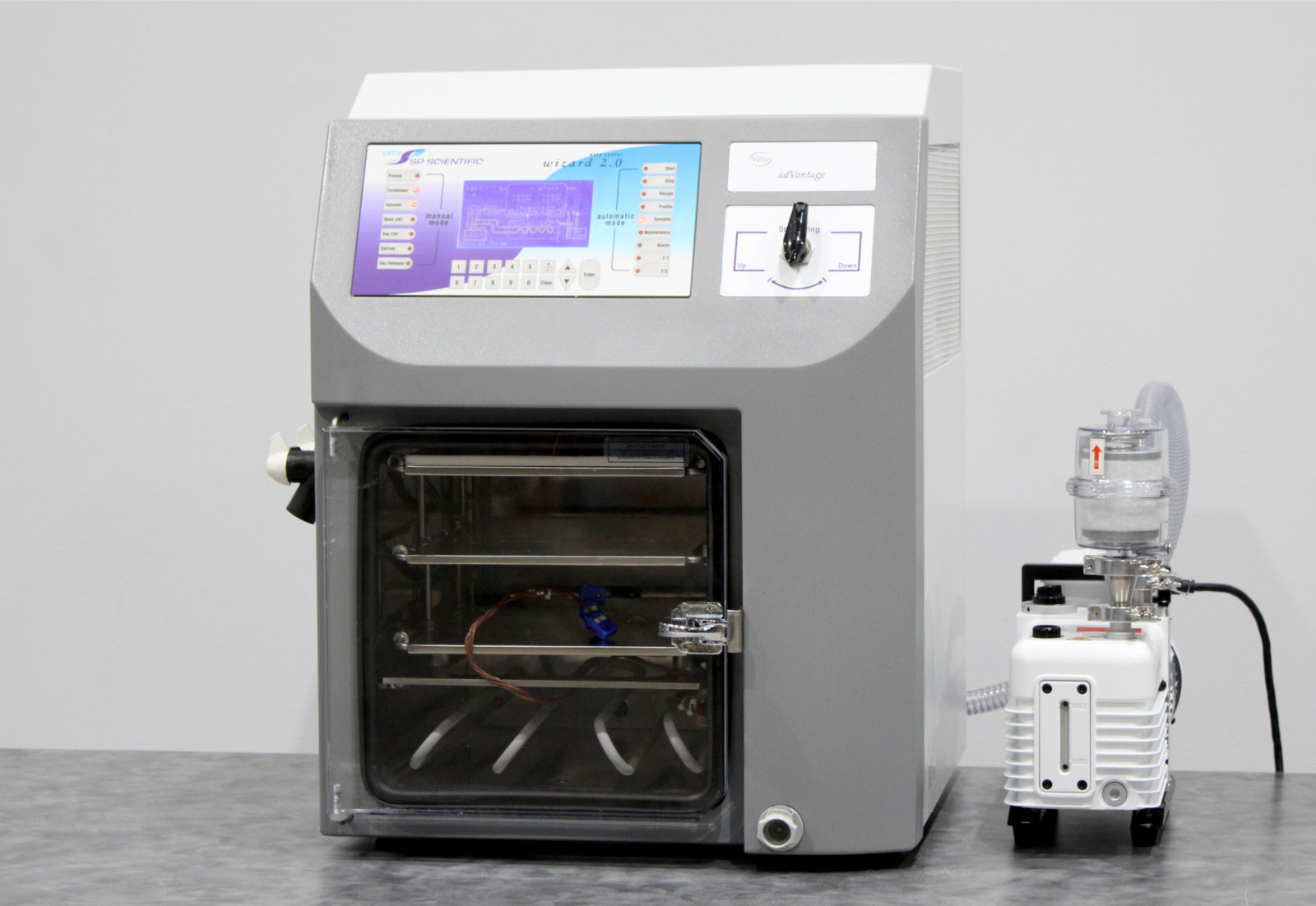

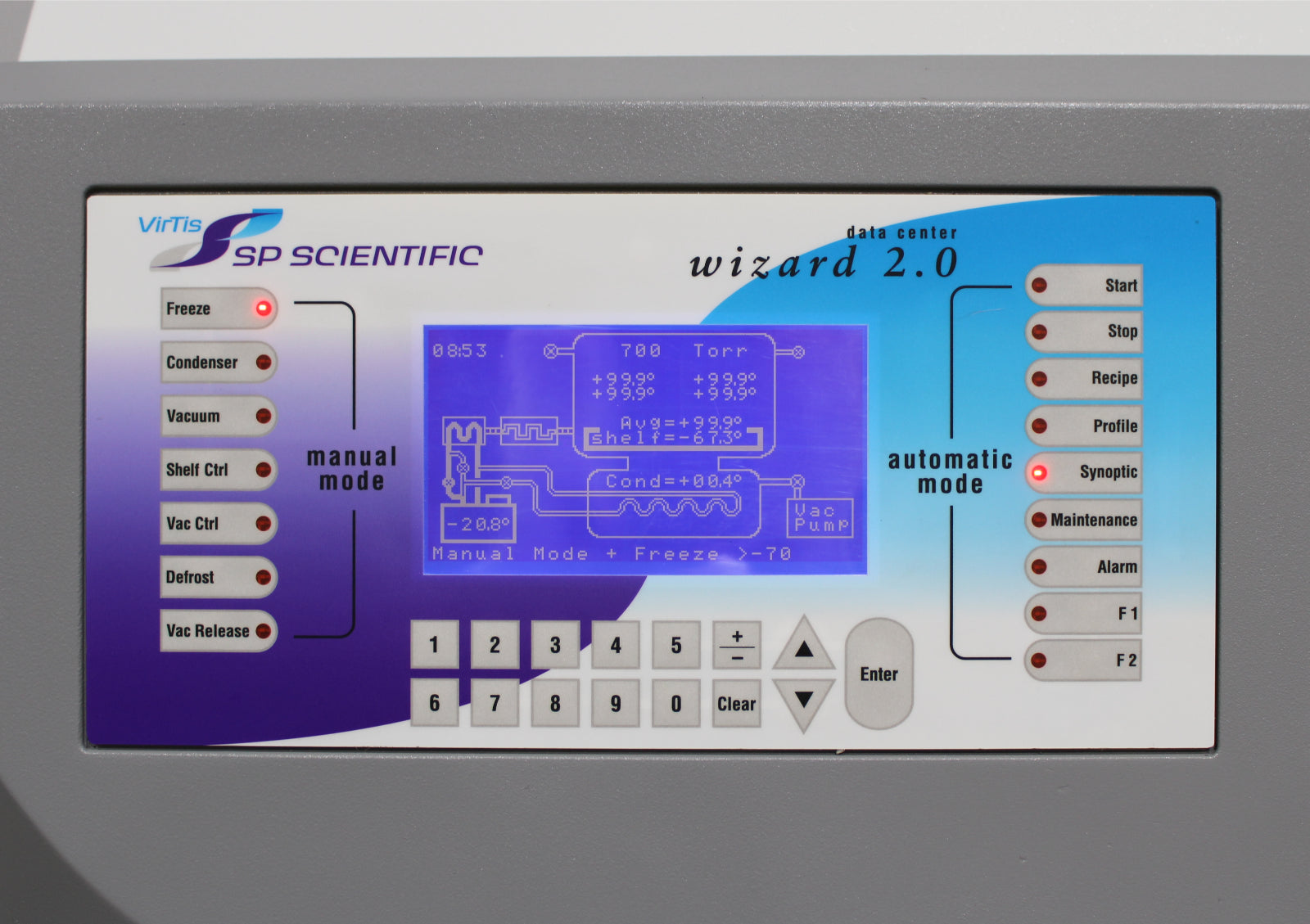

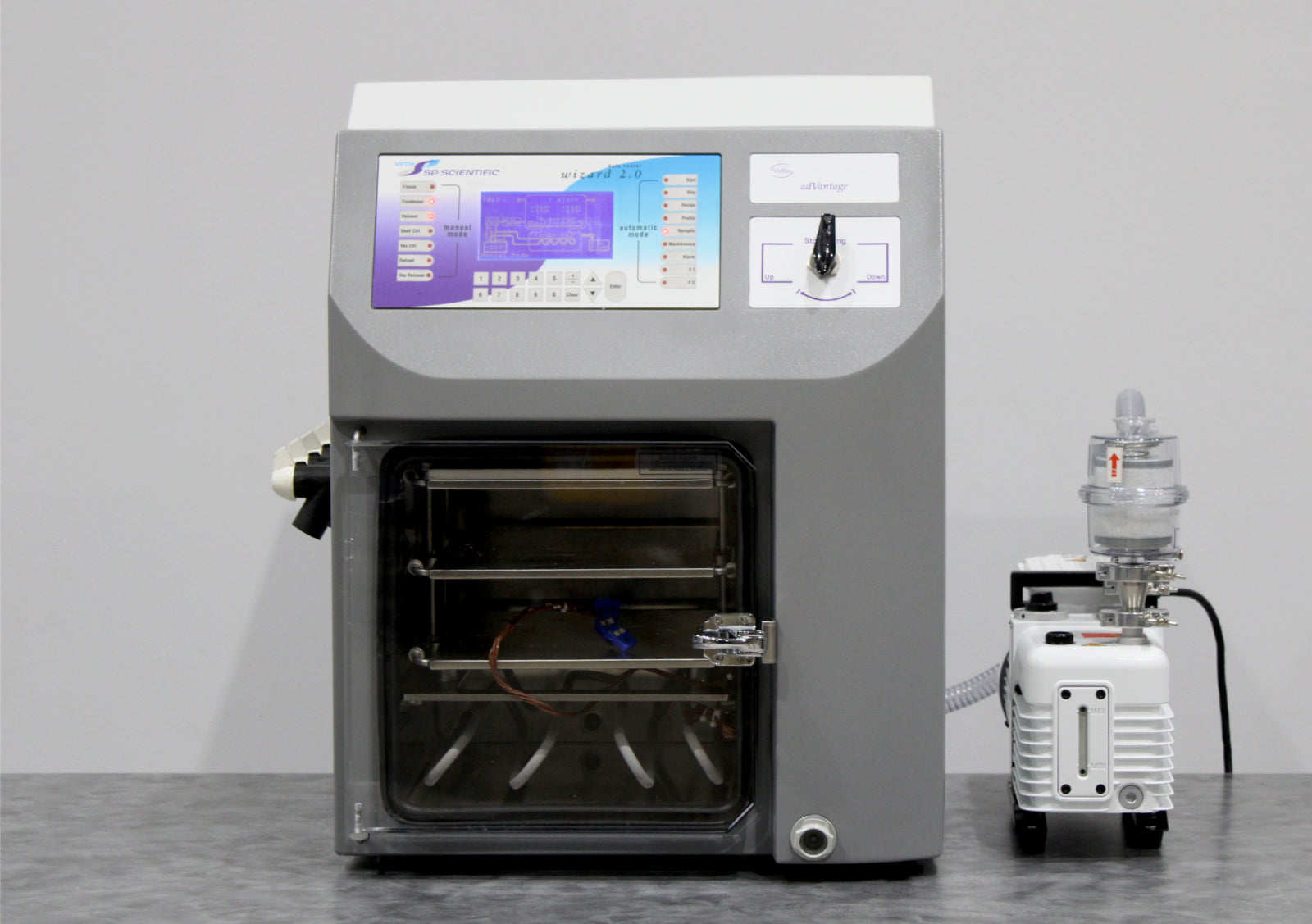

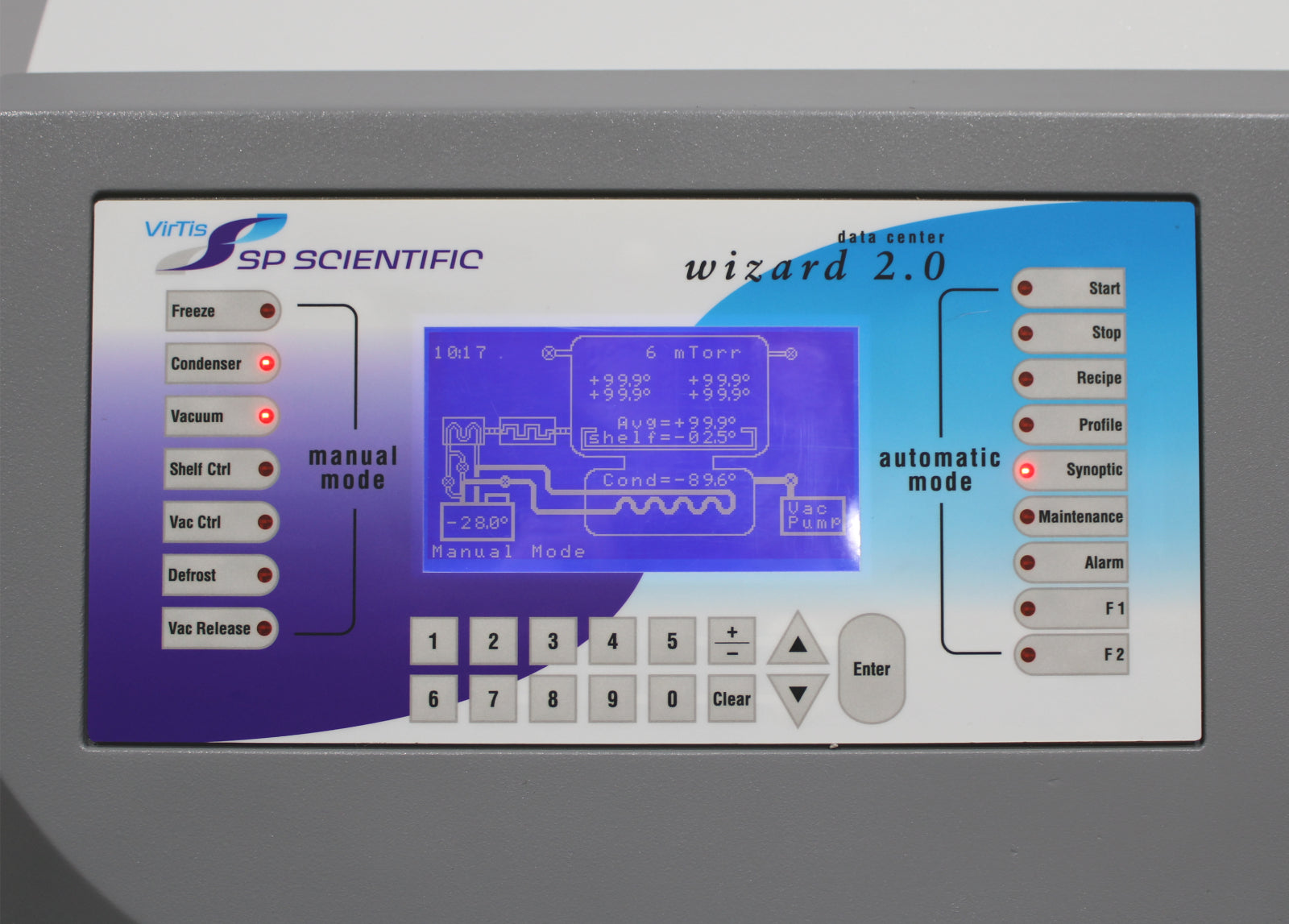

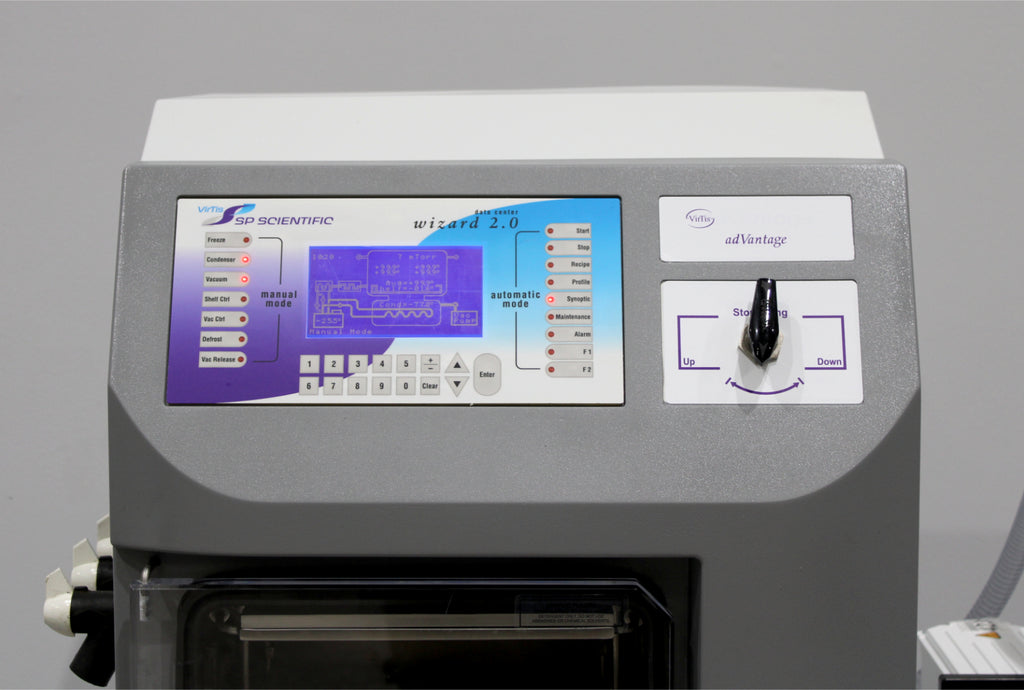

- SP Scientific VirTis Advantage Plus EL-85 Stoppering Benchtop Freeze Dryer Lyophilizer 208/230V (100004549) with Wizard 2.0

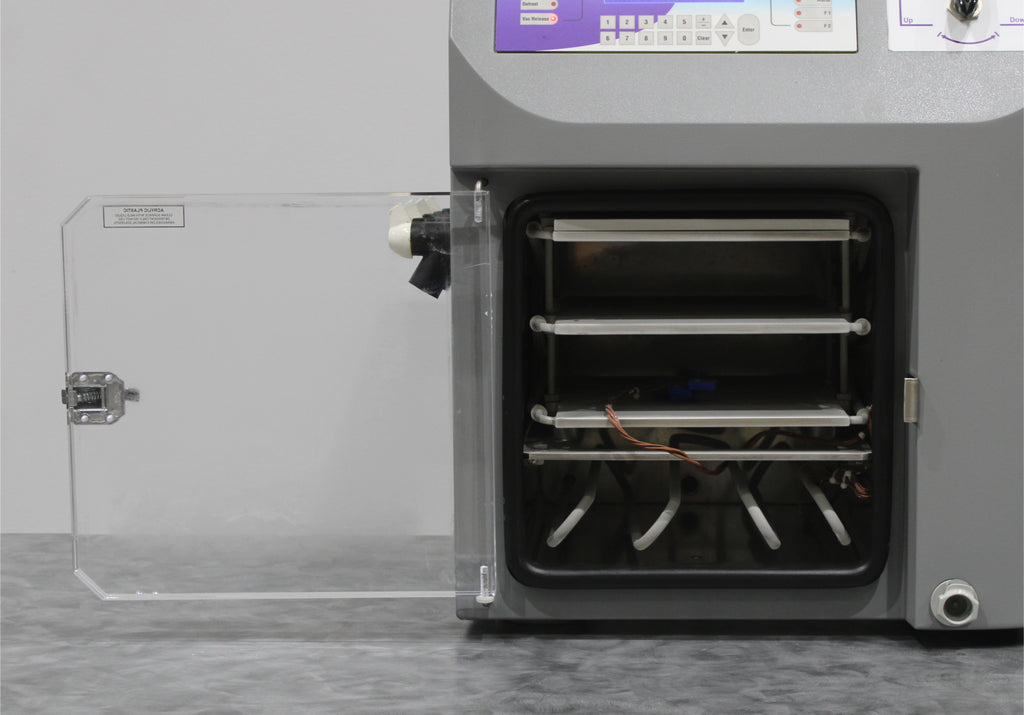

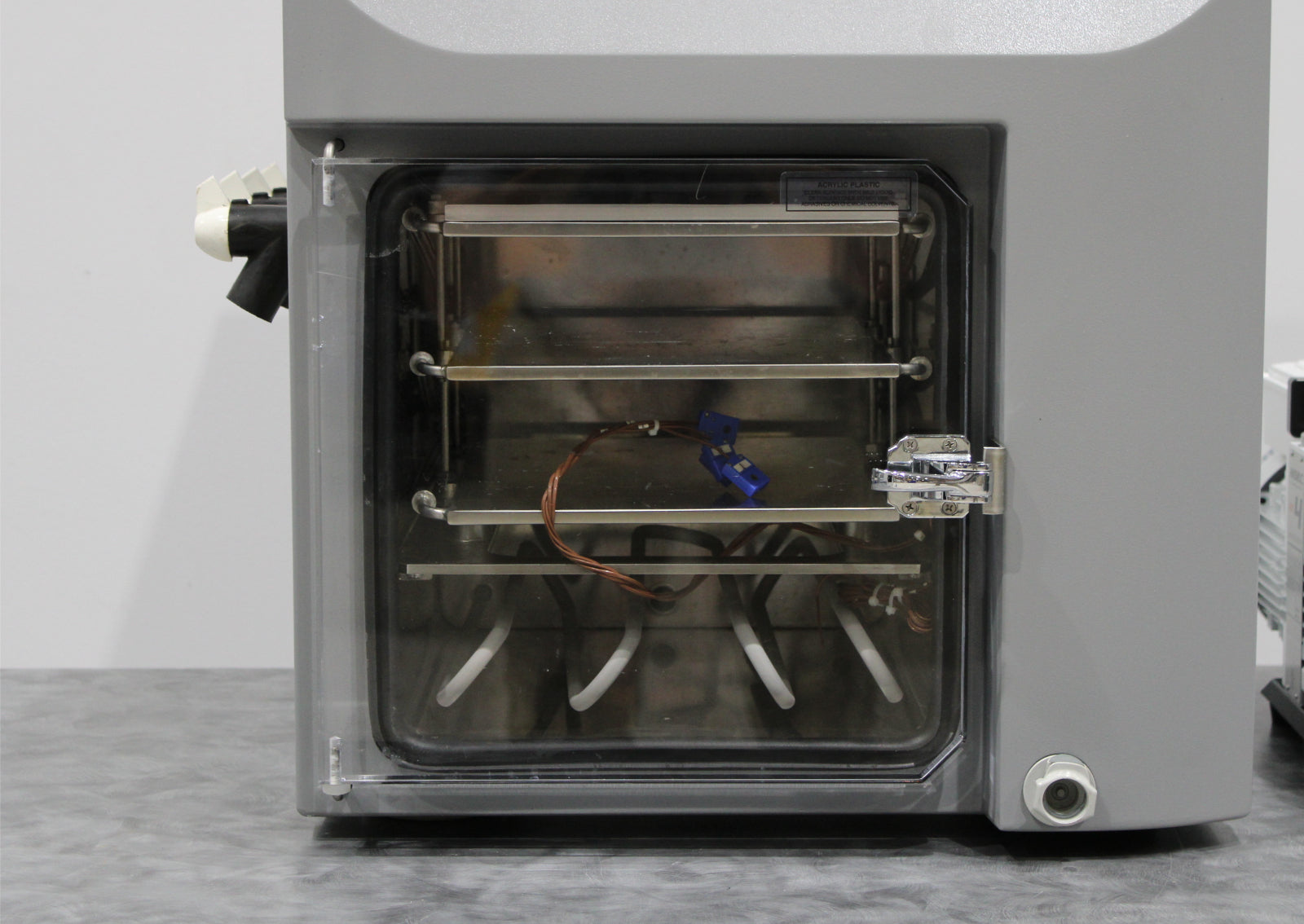

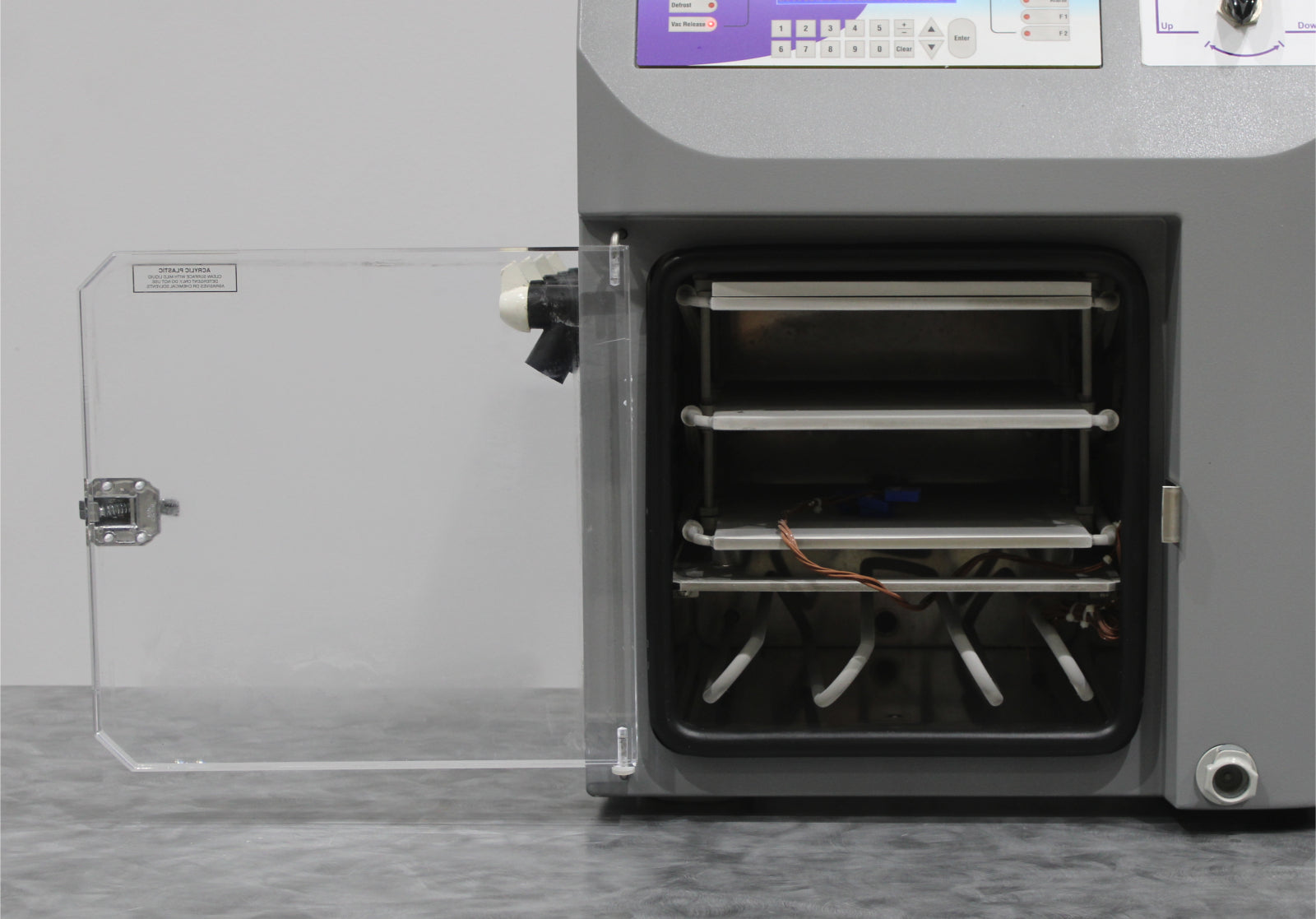

- x3 Stoppering Shelves

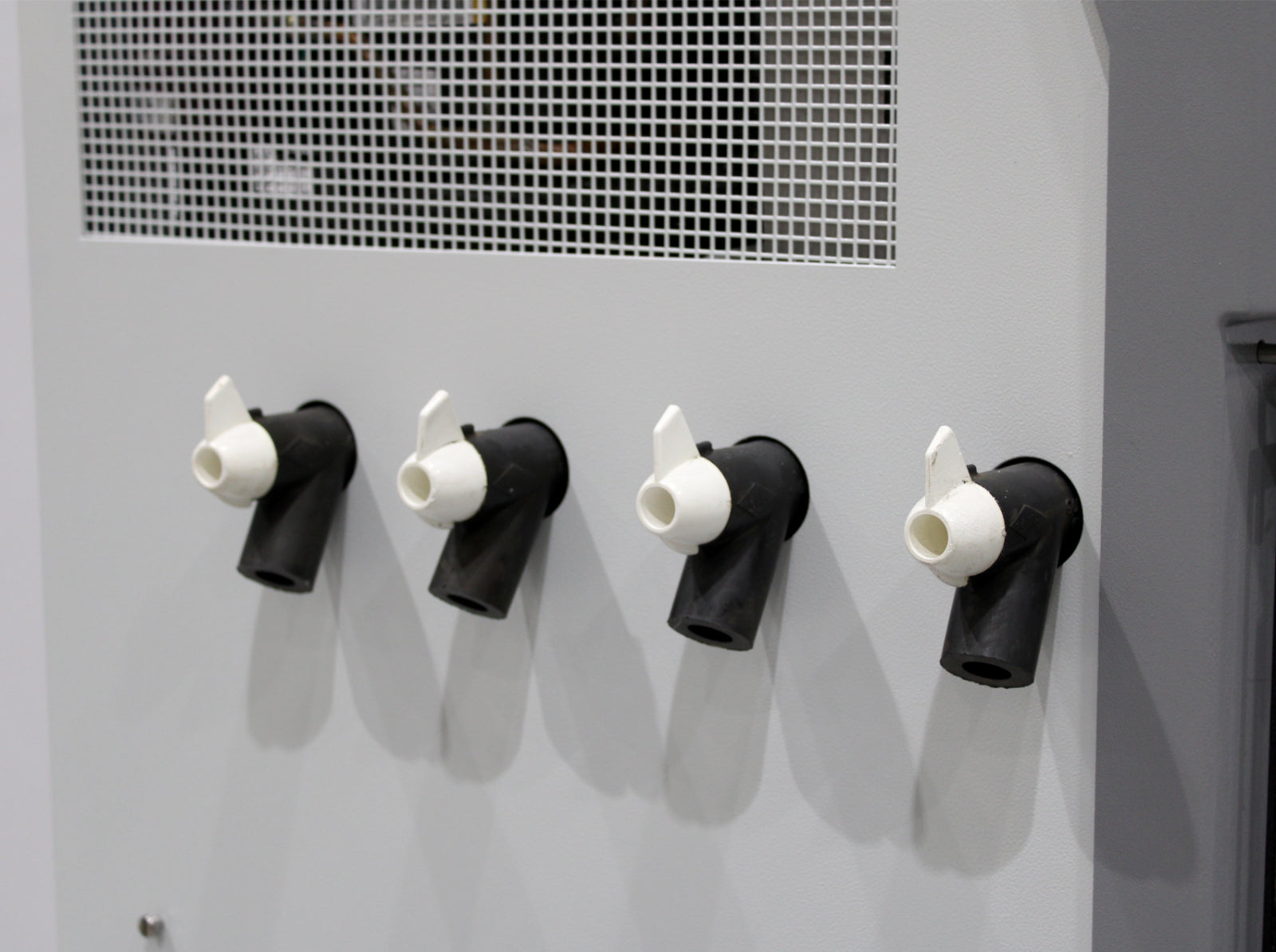

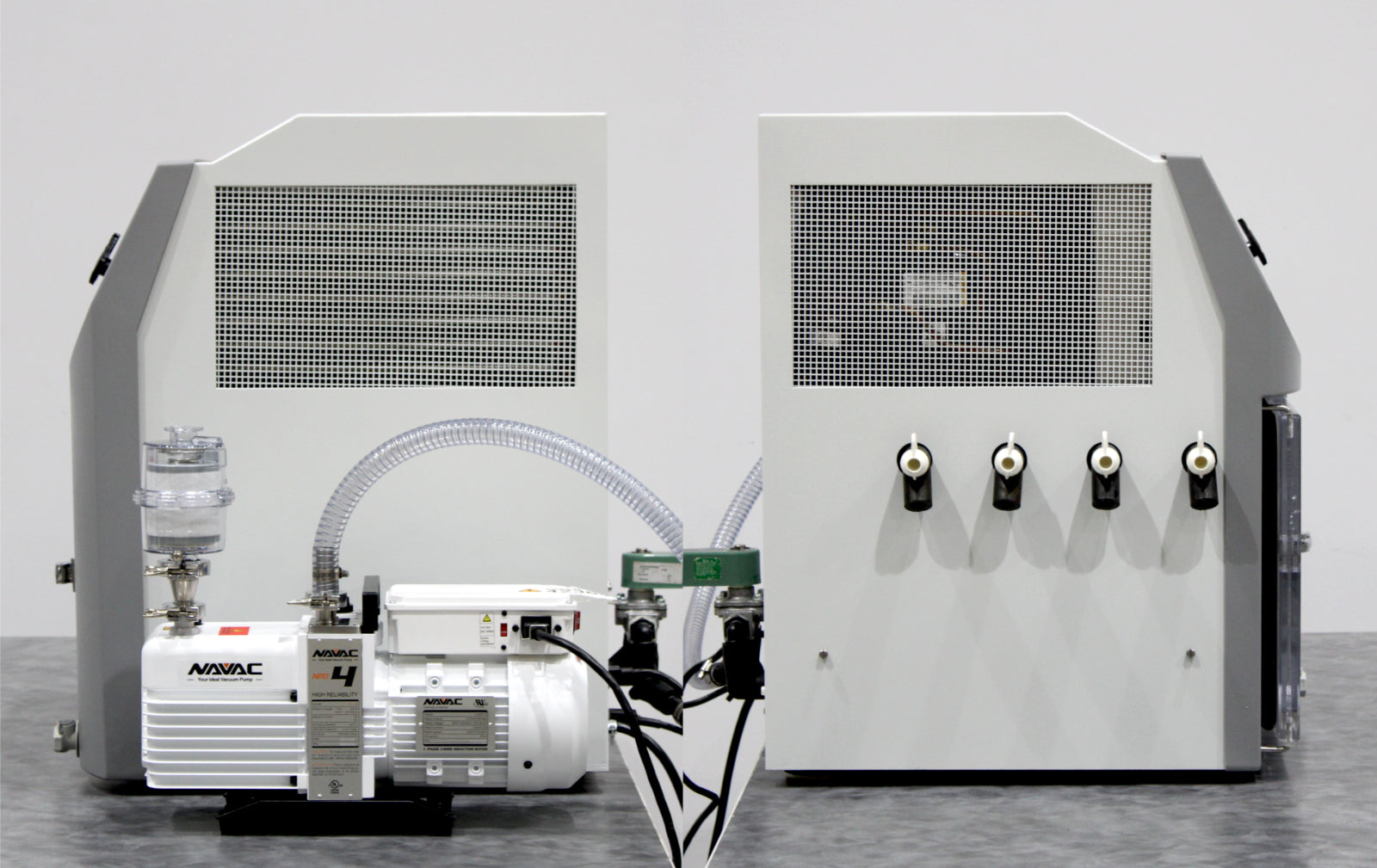

- x4 Manifold Valves

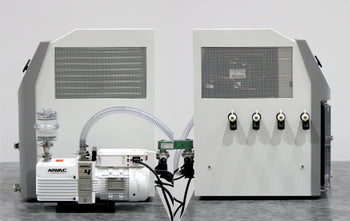

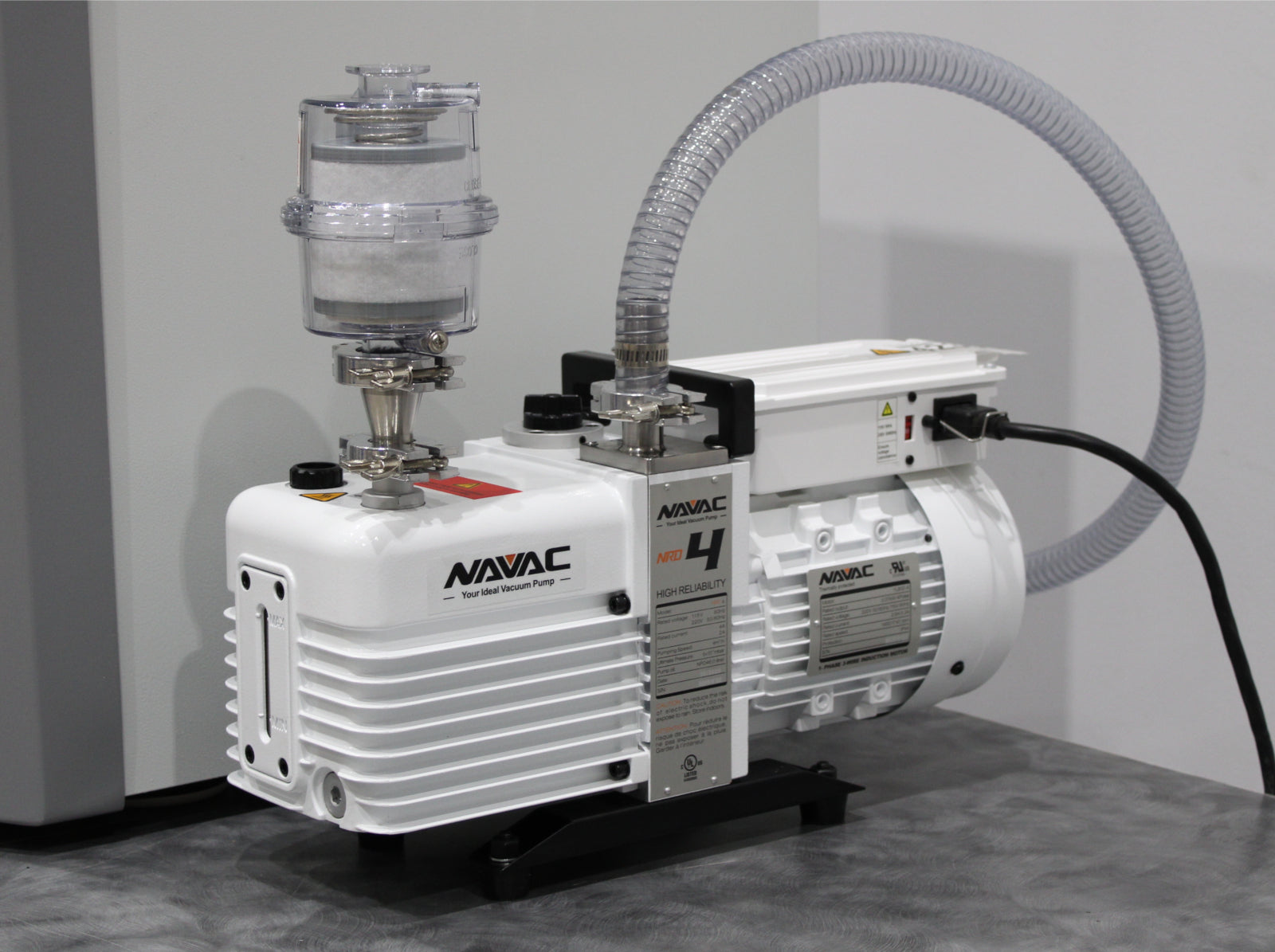

- Vacuum Pump (New) with Vacuum Hose
- Vacuum Pump Power Cable
- Attached Power Cable with NEMA 6-20 Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis Advantage Plus EL-85 stoppering benchtop freeze dryer with the following results:
- Shelf temperature achieved -67°C: PASSED
- Condenser temperature achieved -89°C: PASSED
- Vacuum achieved 6 mT: PASSED
- Inspected and reinsulated refrigeration lines as needed.
- Inspected and replaced vacuum hoses as needed.
- Installed new low-stage compressor.
- Calibrated thermocouples.
|
Manufacturer
|
SP Scientific
|
|
Model
|
Advantage Plus EL-85
|
|
Part No.
|
100004549
|
|
Serial No.
|
310373
|
|
Shelf temperature control range
|
-55 to 60°C
|
|
Lowest shelf temperature (50Hz / 60Hz)
|
-62 / -65°C
|
|
Lowest condenser temperature (50Hz / 60Hz)
|
-82 / -85°C
|
|
Maximum condenser capacity
|
6 L
|
|
Maximum ice condensing capacity in 24 hrs
|
4 L
|
|
Maximum deposition rate
|
0.17 L/hour
|
|
Shelf pull-down from 20°C to -40°C
|
≤ 30 minutes
|
|
Number of compressors
|
2
|
|
Compressor horsepower
|
1/3, 3/4
|
|
System refrigerant
|
R508B, R407C
|
|
Vacuum rate of rise
|
≤ 60 mT/hour
|
|
Volume-based leak rate
|
≤ .0009 mbar * L/sec
|
|
Temperature uniformity
|
± 1.0°C
|
|
Compressed air requirement (stoppering)
|
60-90 psig
|
|
Approximate peak heat generated with vacuum pump
|
7,000 BTU/h
|
|

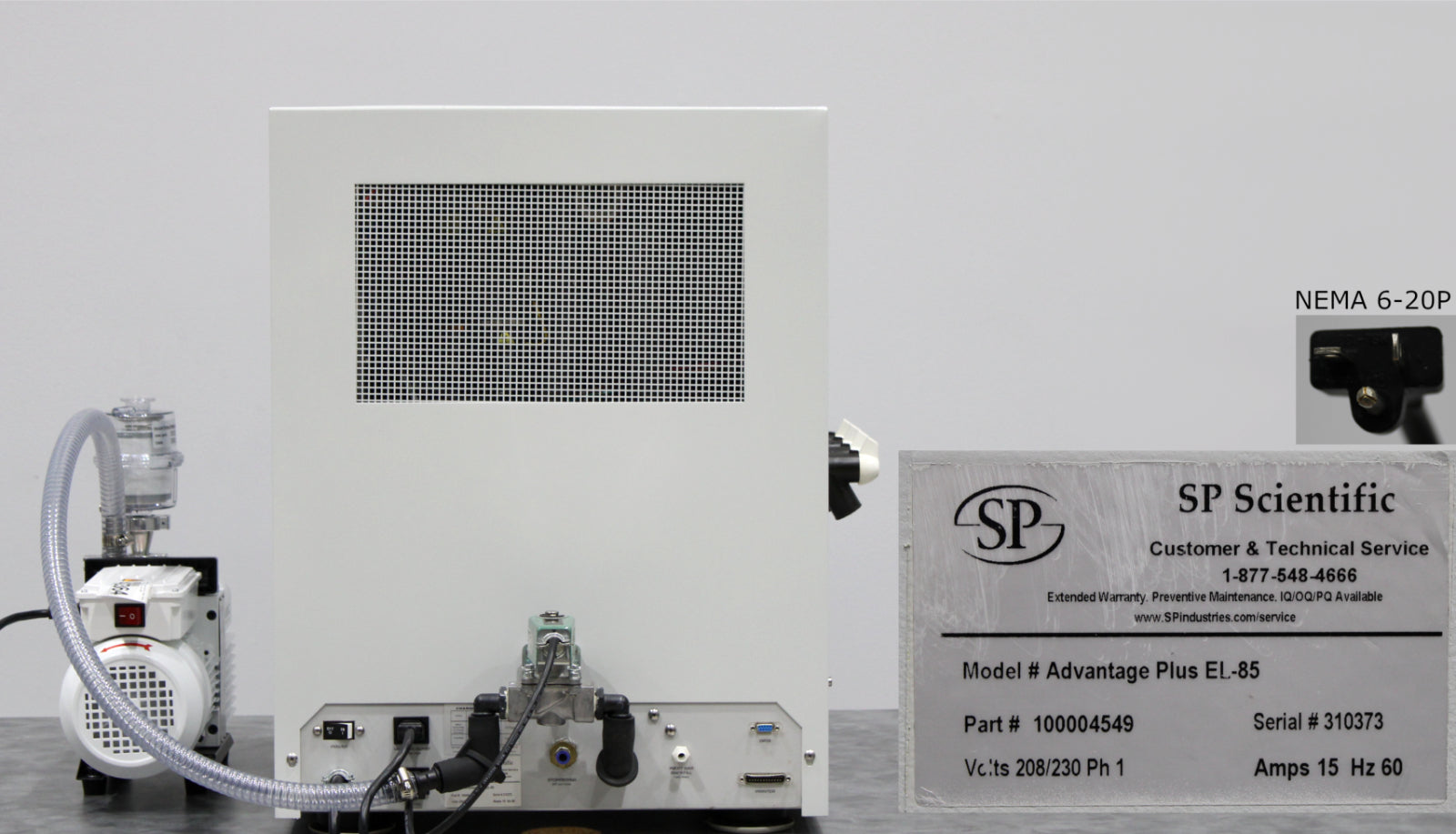

Plug type
|
NEMA 6-20P
|
|
Power rating
|
208/230V, 60Hz, 15A, 1Ph
|
|
Dimensions (W x D x H)
|
25.75 x 28 x 28.75 in (65.4 x 71.1 x 73 cm)
|
|
Approximate weight
|
320 lb (145 kg)
|
Note: Performance specifications are based on SP Scientific test data from units operating at an ambient room temperature of approximately 20 °C. SP Scientific recommends an operating range of 15-25 °C (59-77 °F).
|
Number of shelves
|
Minimum shelf clearance (in / mm)
|
Shelf area (in2 / cm2)
|
|
1 Shelf
|
6.25 / 158
|
143 / 922
|
|
2 Shelves
|
2.87 / 73
|
286 / 1,844
|
|
3 Shelves
|
1.75 / 44.5
|
429 / 2,766
|
|
Nominal shelf size (W x D x TH)
|
10.25 x 14 x 0.375 in (260 x 355 x 9.5 mm)
|
|
Vacuum pump
|
Two-stage rotary vane or suitable dry pump
|
|
Defrost type
|
Hot gas
|
|
Refrigerant type
|
CFC free
|
|
Condenser type
|
Internal
|
|

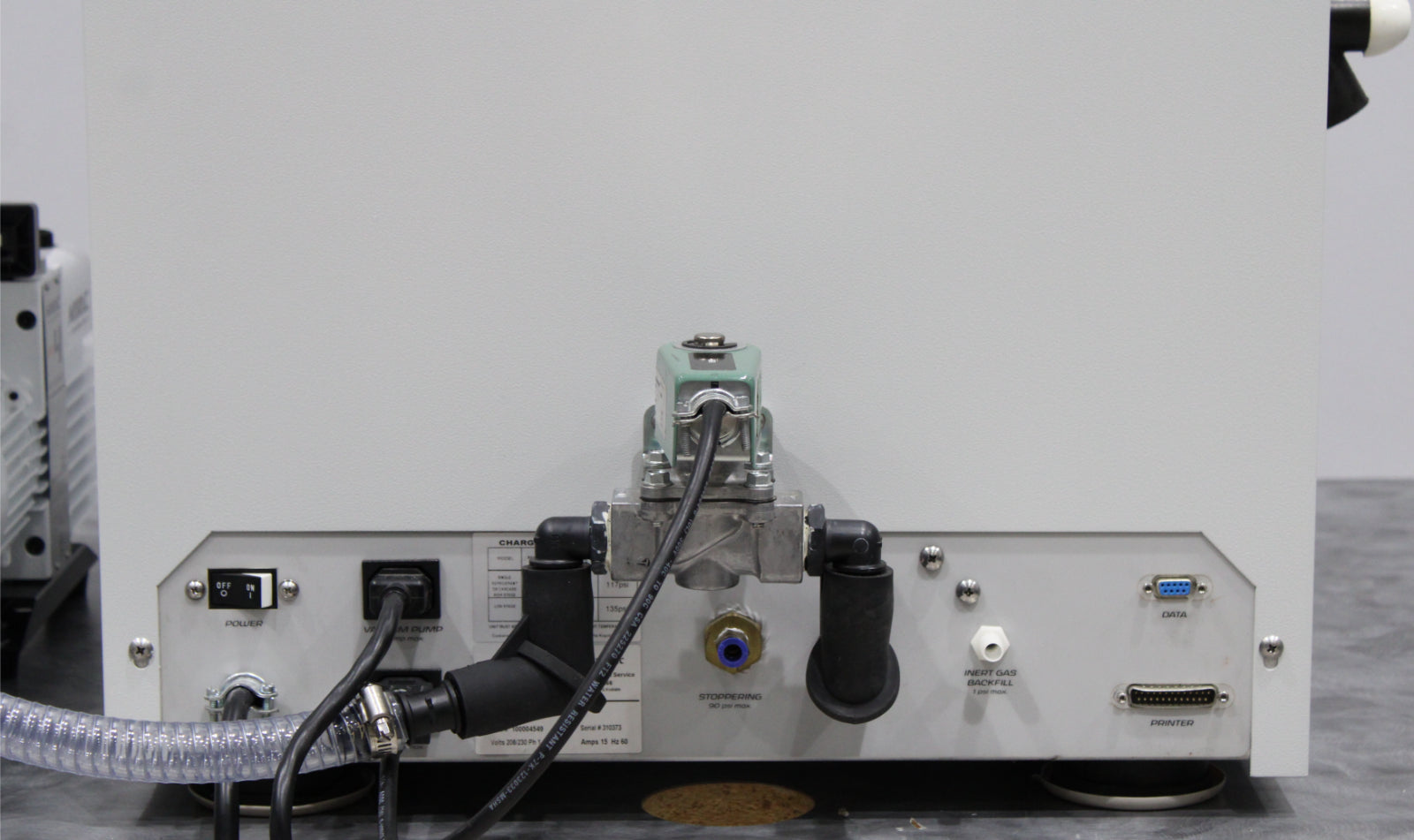

Compressed air inlet (stoppering)
|
¼ inch FPT fitting
|
|

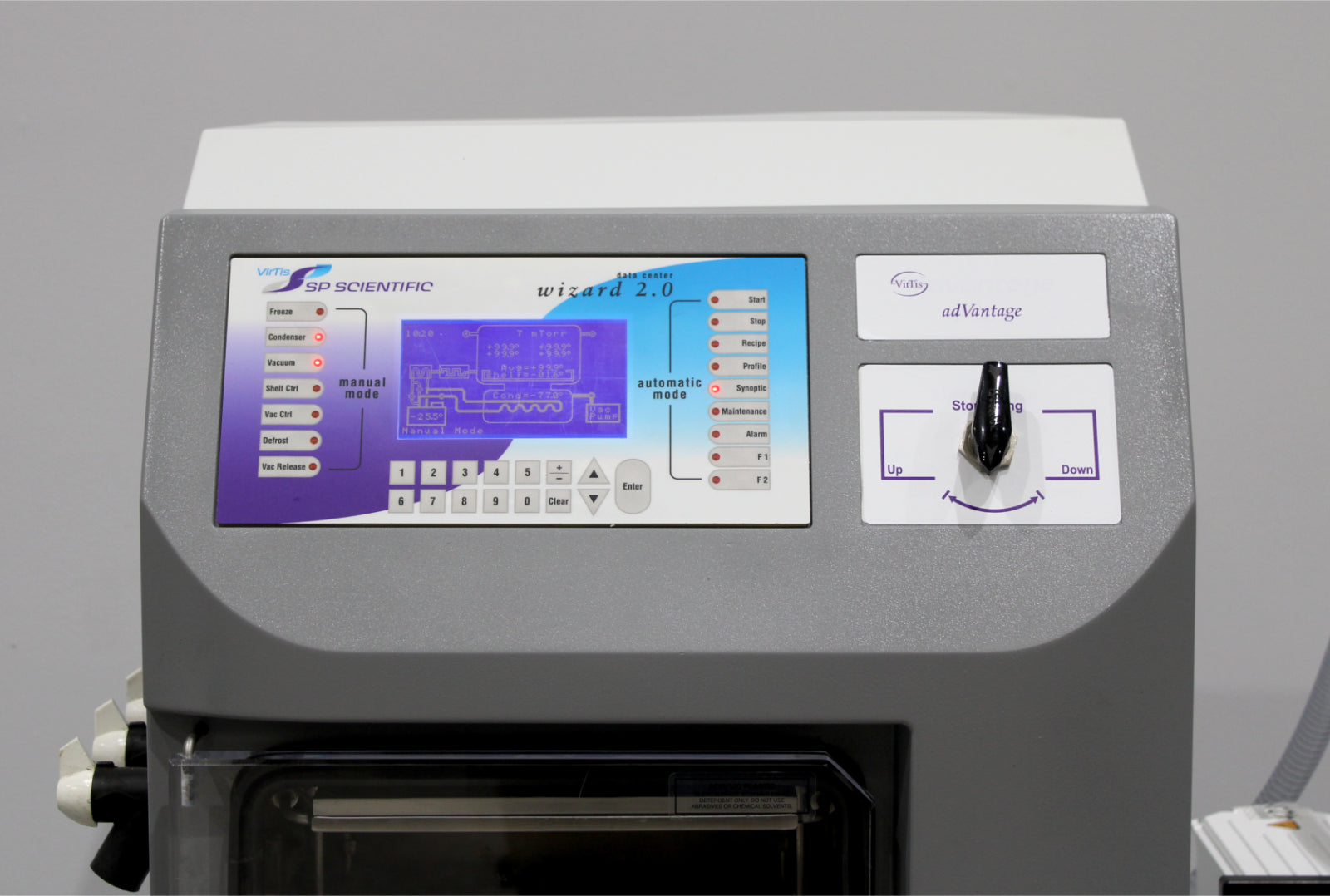

Stoppering (optional)
|
Top-down pneumatic
|
|
Inert gas port
|
⅜ inch hose barb fitting
|
