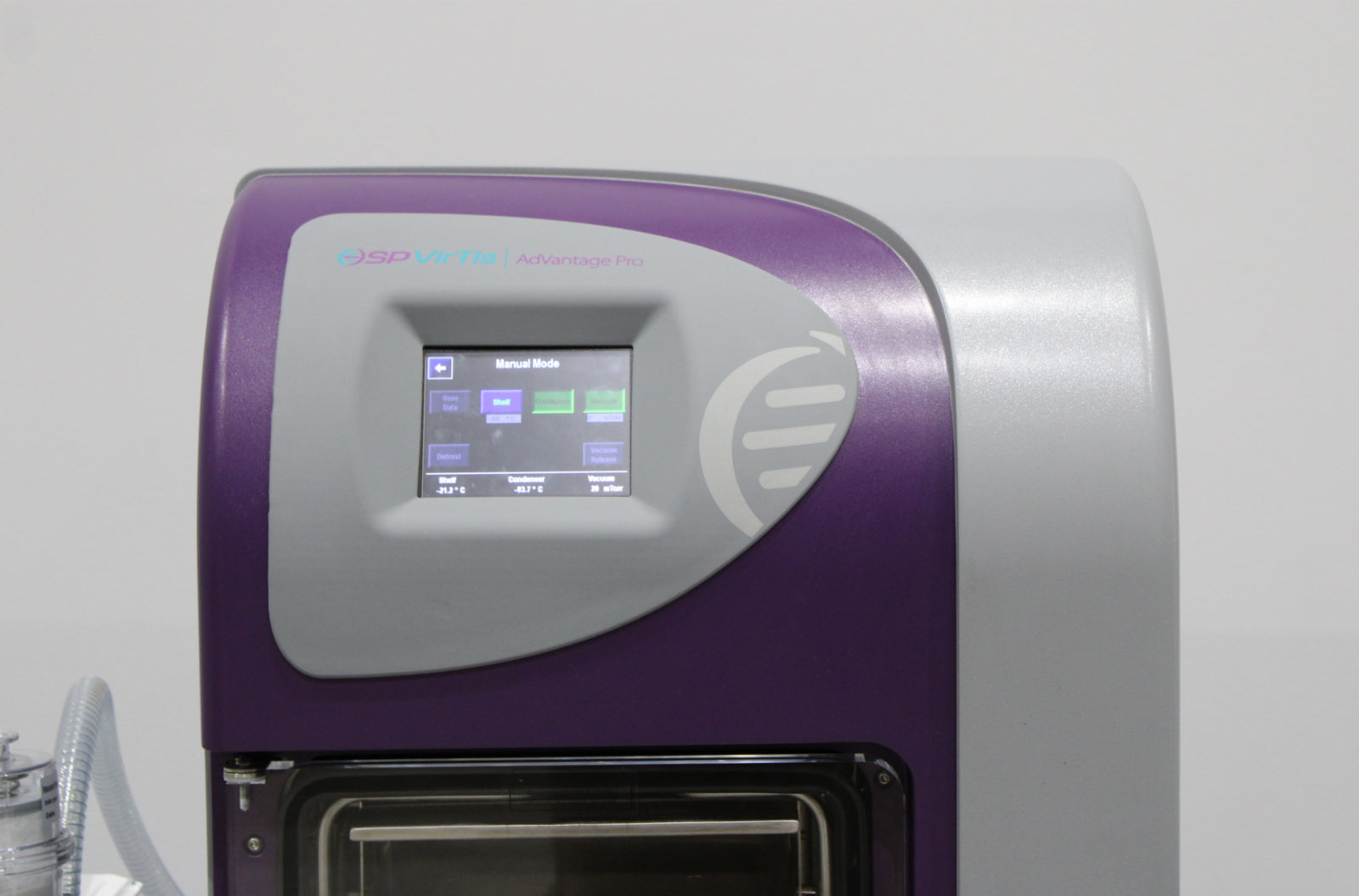

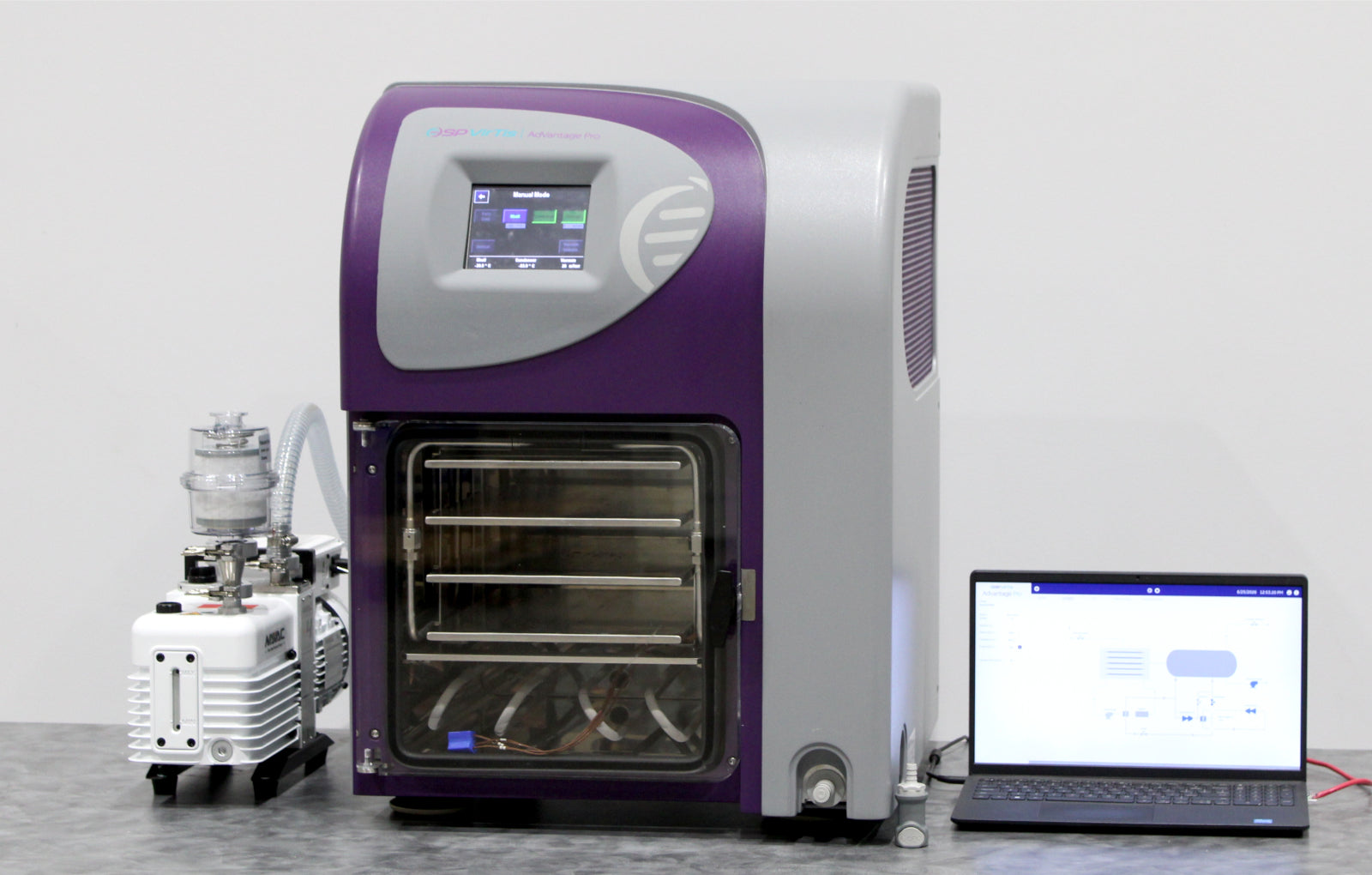

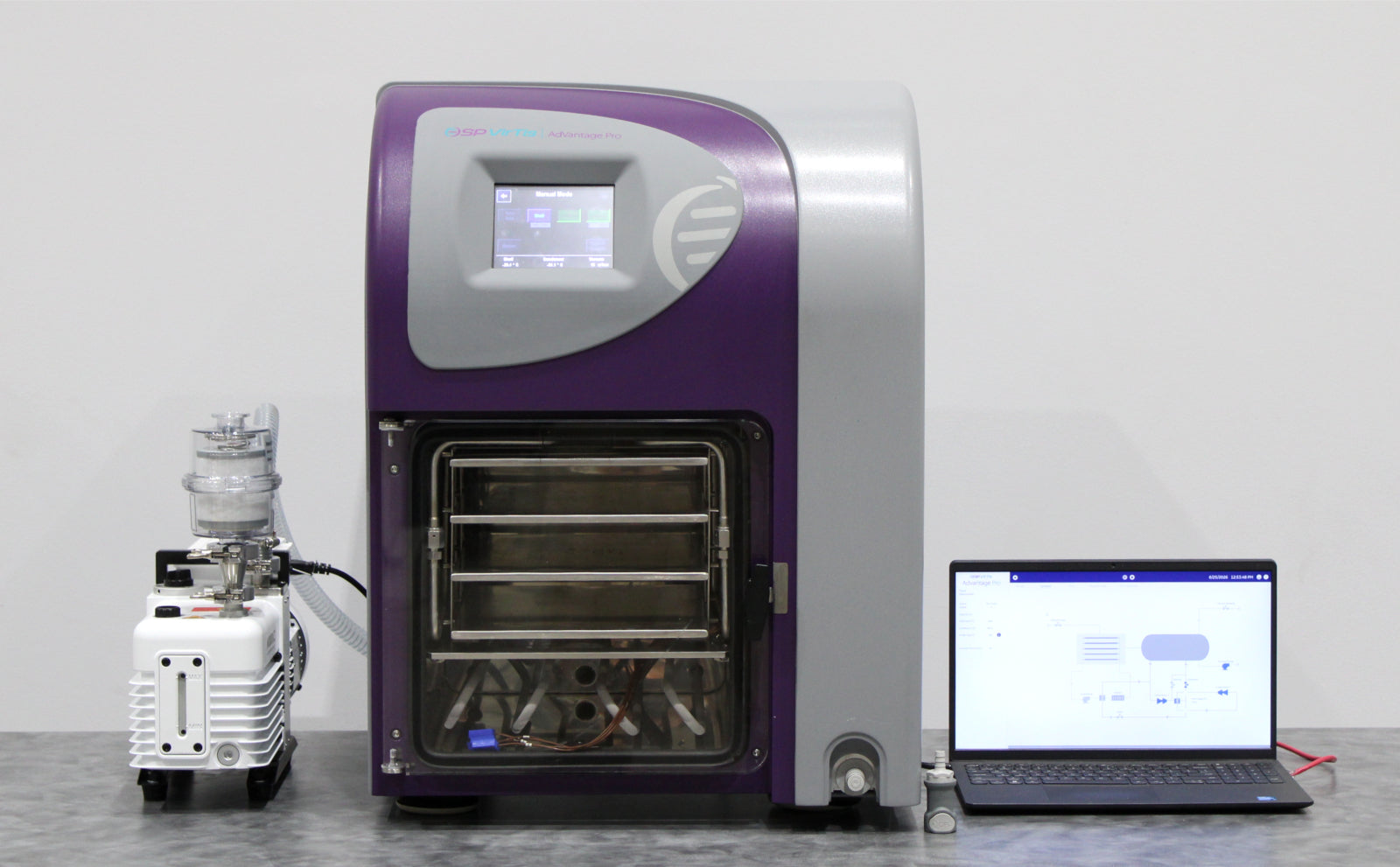

- SP Scientific VirTis AdVantage Pro Benchtop Shelf Freeze Dryer (ADP-B3EL-EVA-X) with 3 Shelves

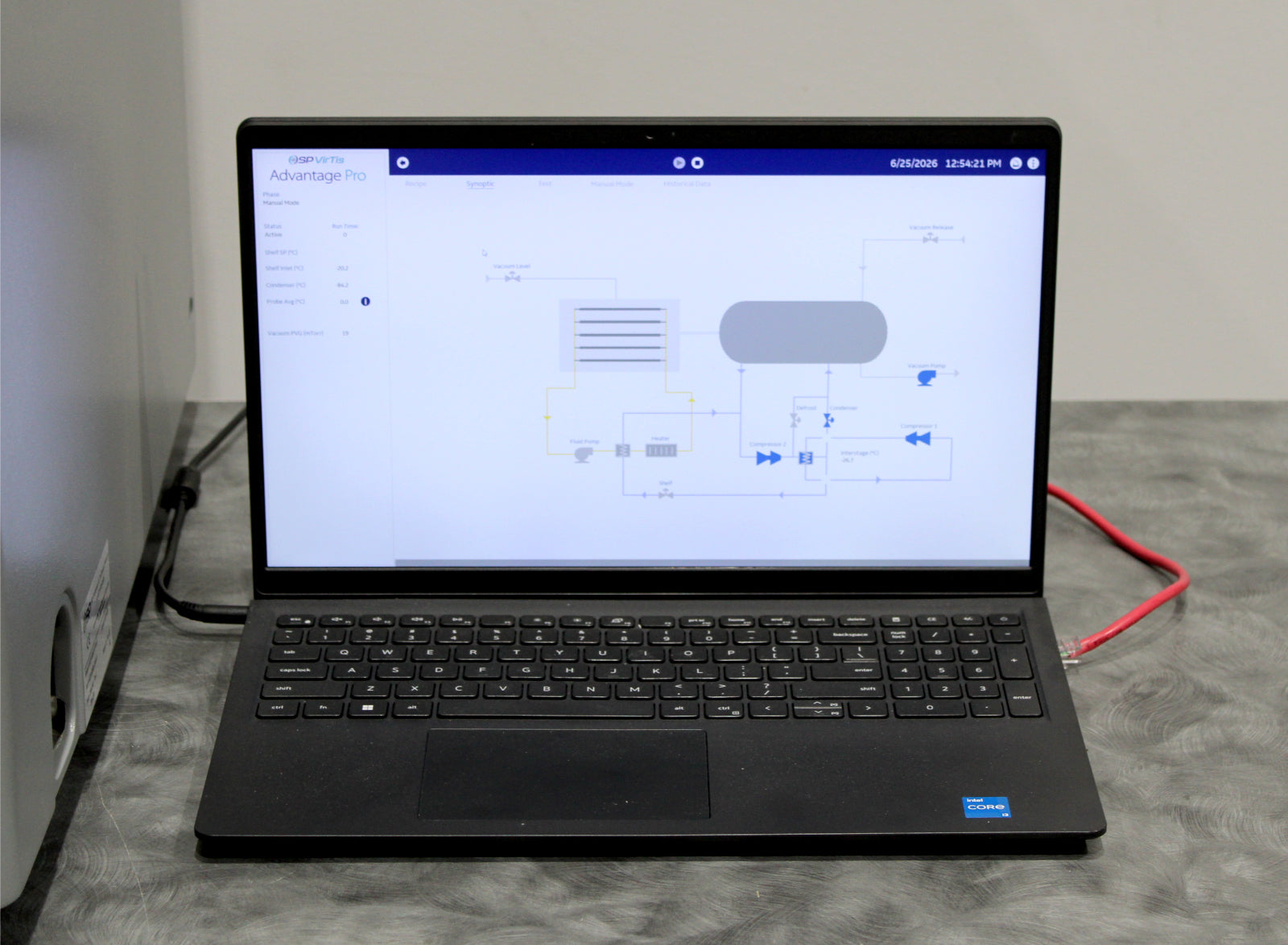

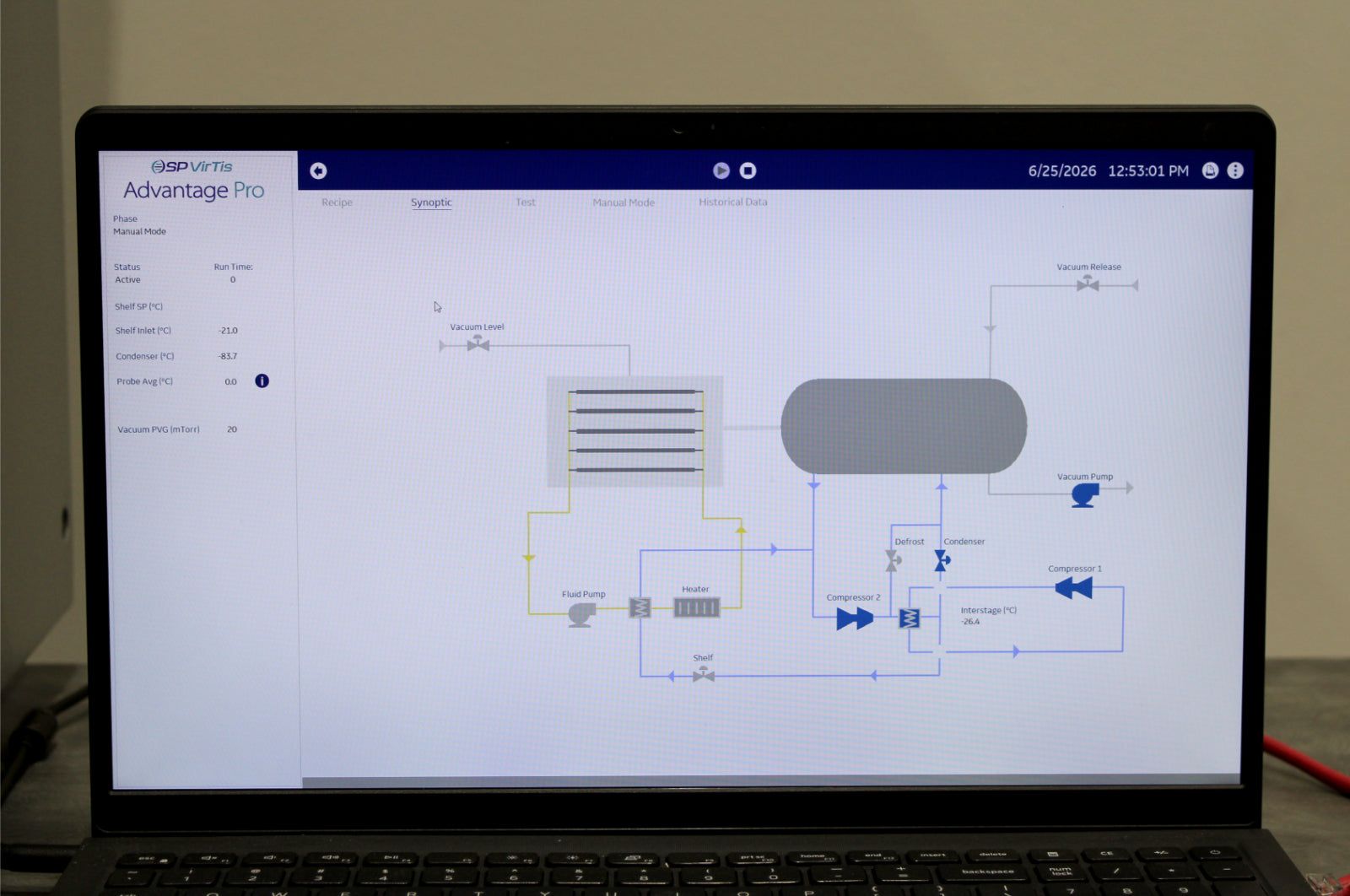

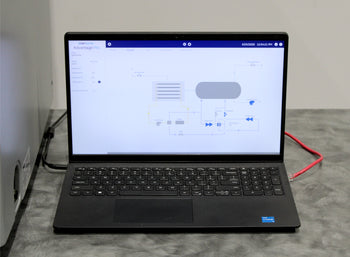

- Laptop with Advantage Pro Software Installed
- Network Cable
- Laptop Power Adapter

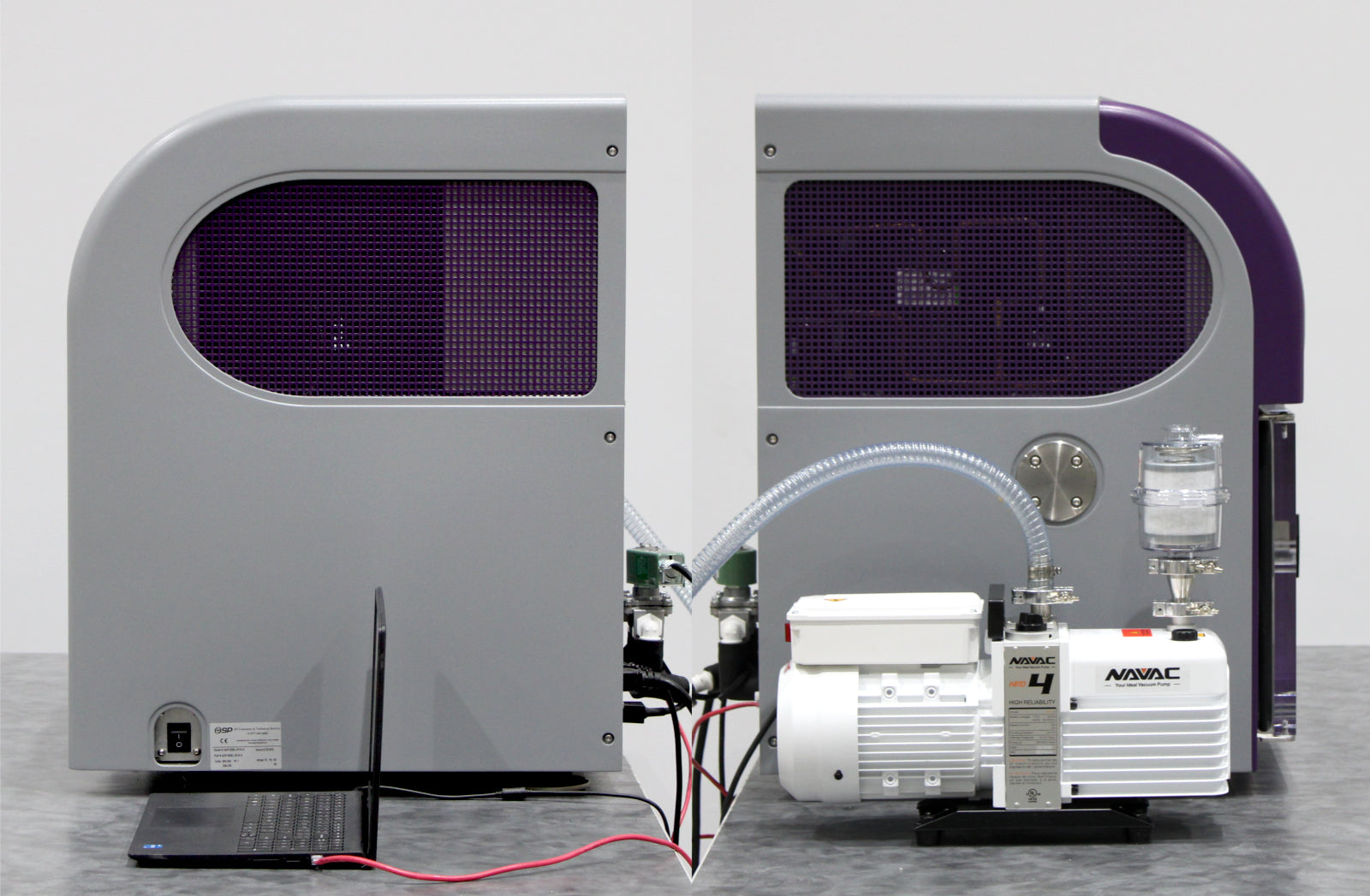

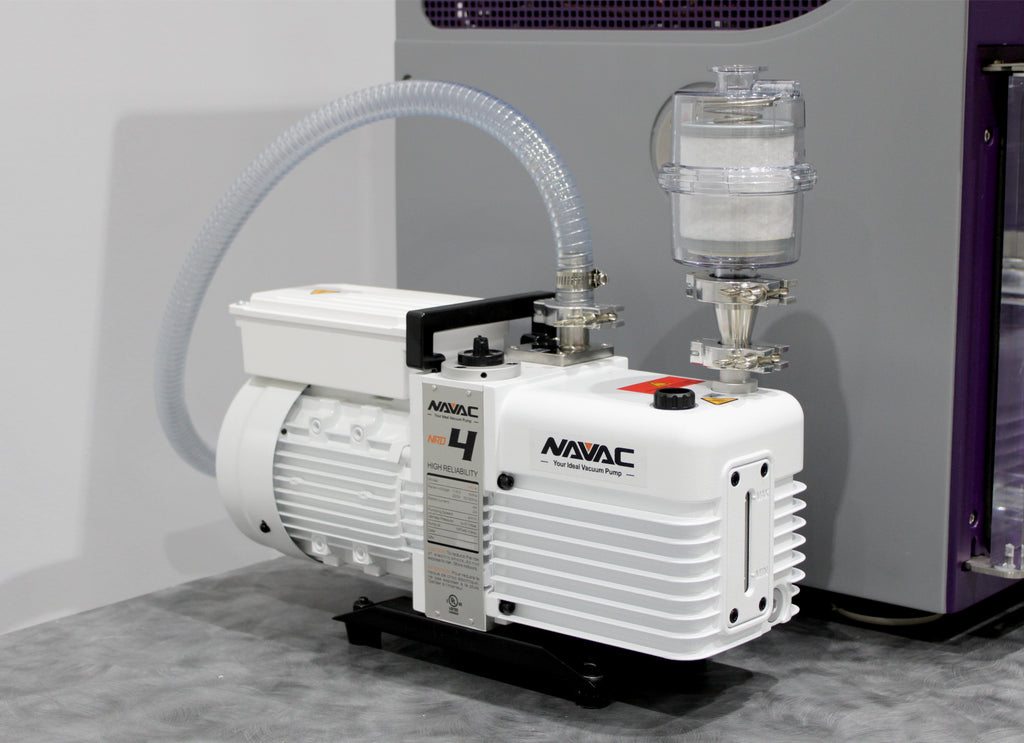

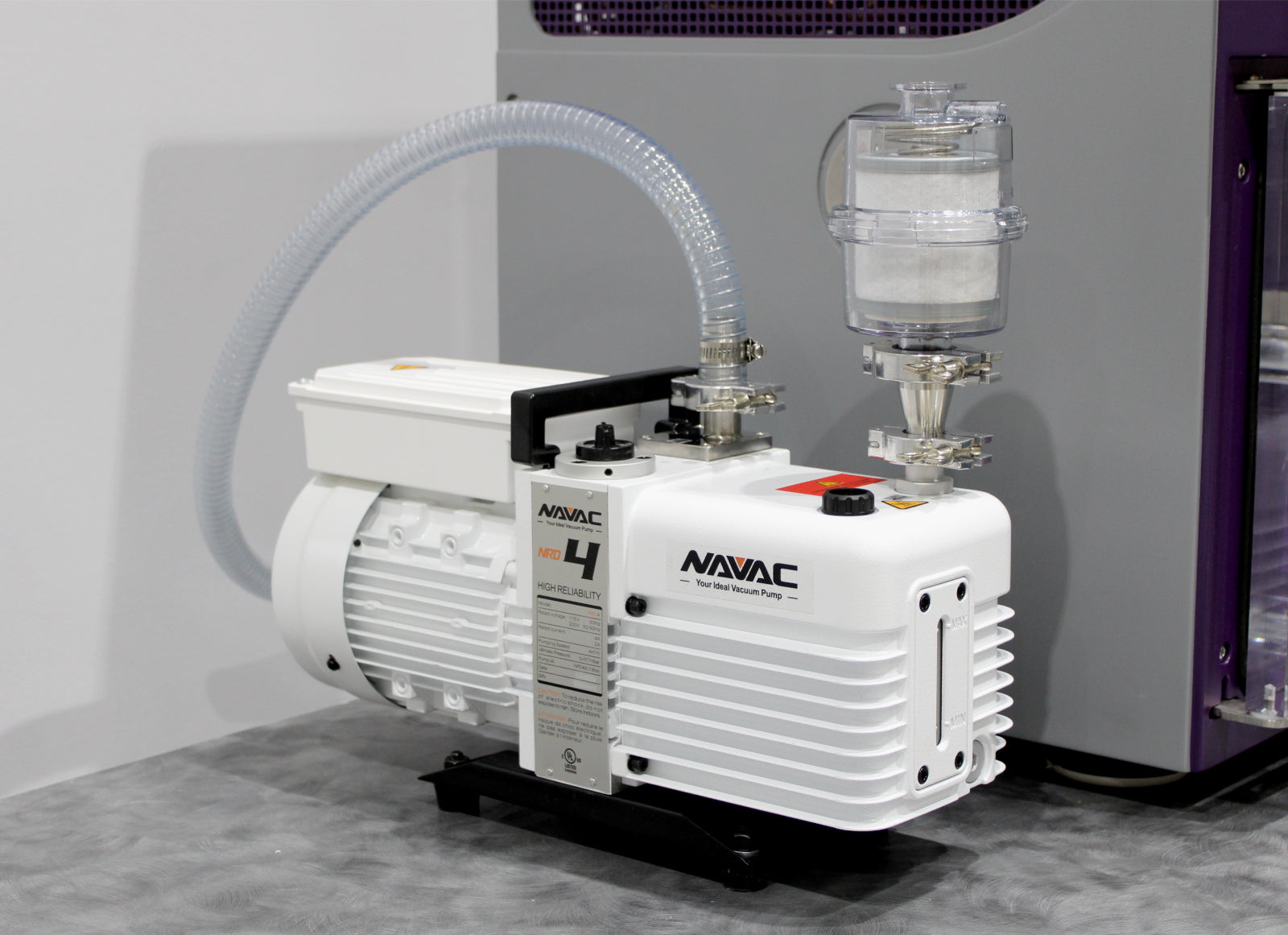

- Vacuum Pump (New)
- Vacuum Hose
- Vacuum Pump Power Cable
- Main Power Cable with NEMA 6-20 Plug
- 90-Day Warranty

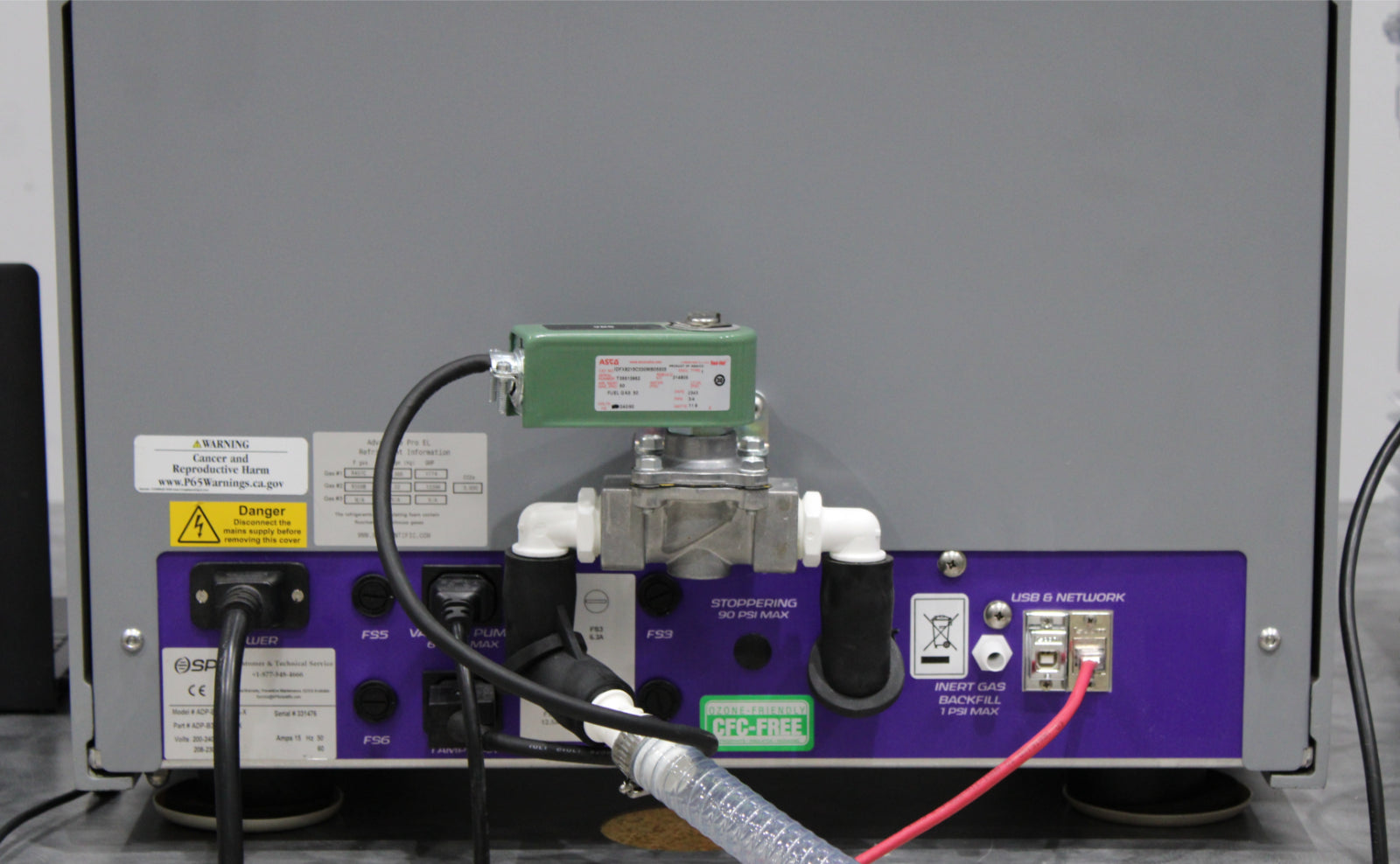

Notice: This model does not have the stoppering option or four port manifold option.
After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis AdVantage Pro benchtop shelf freeze dryer with the following results:

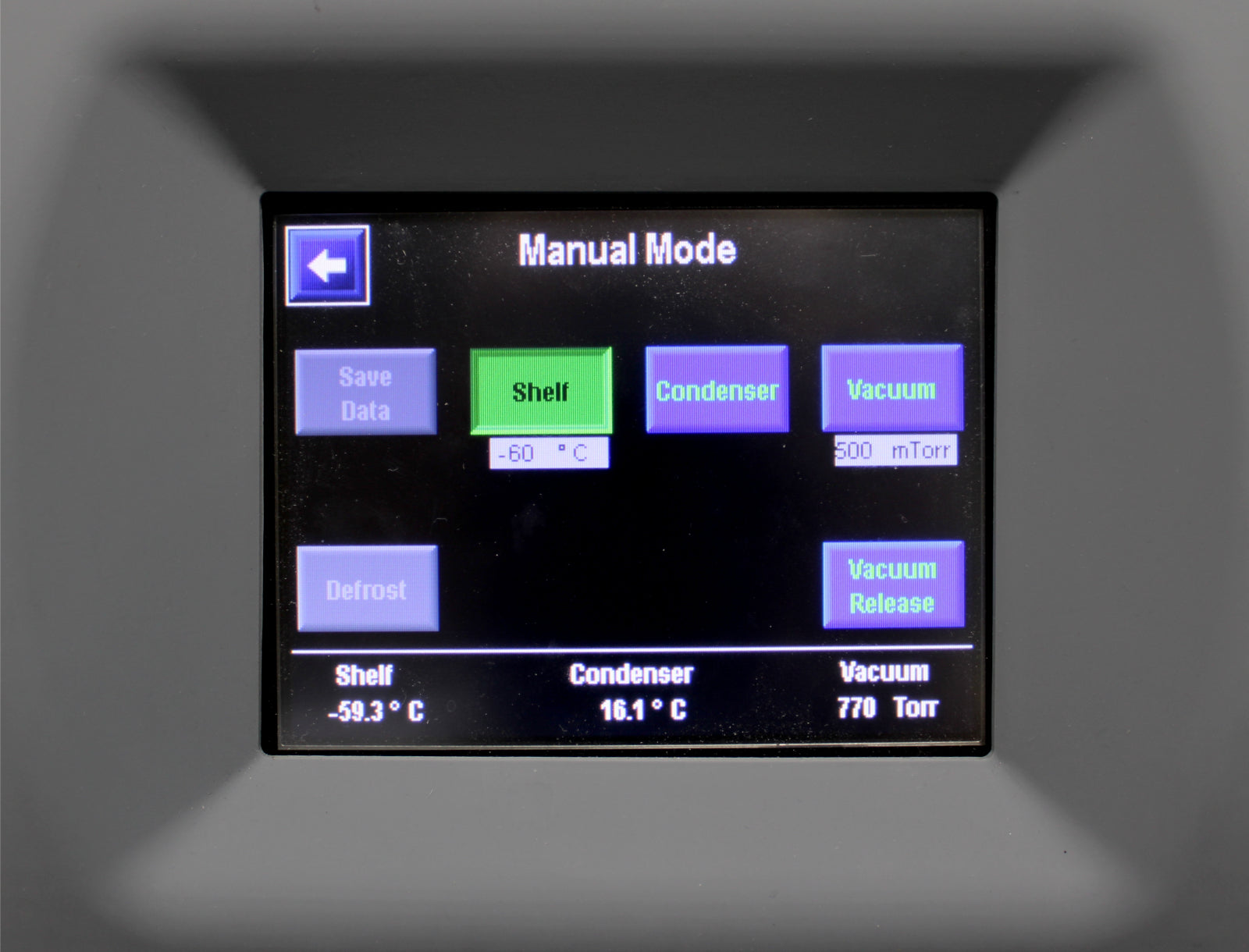

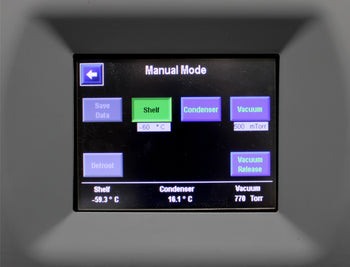

- Shelf temperature maintains -60°C setpoint: PASSED

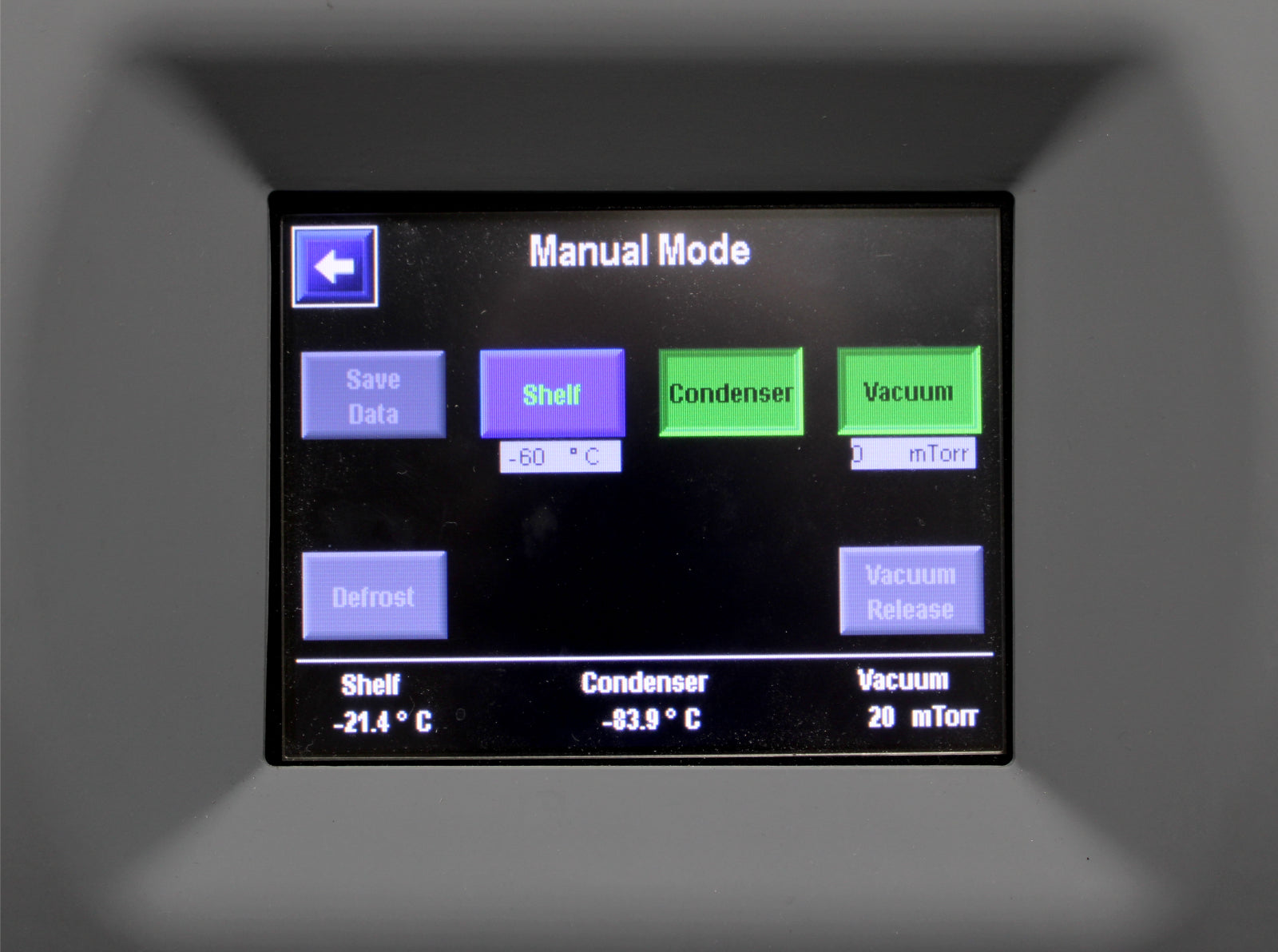

- Condenser temperature reaches -83.9°C: PASSED
- Vacuum reaches 20 mTorr: PASSED

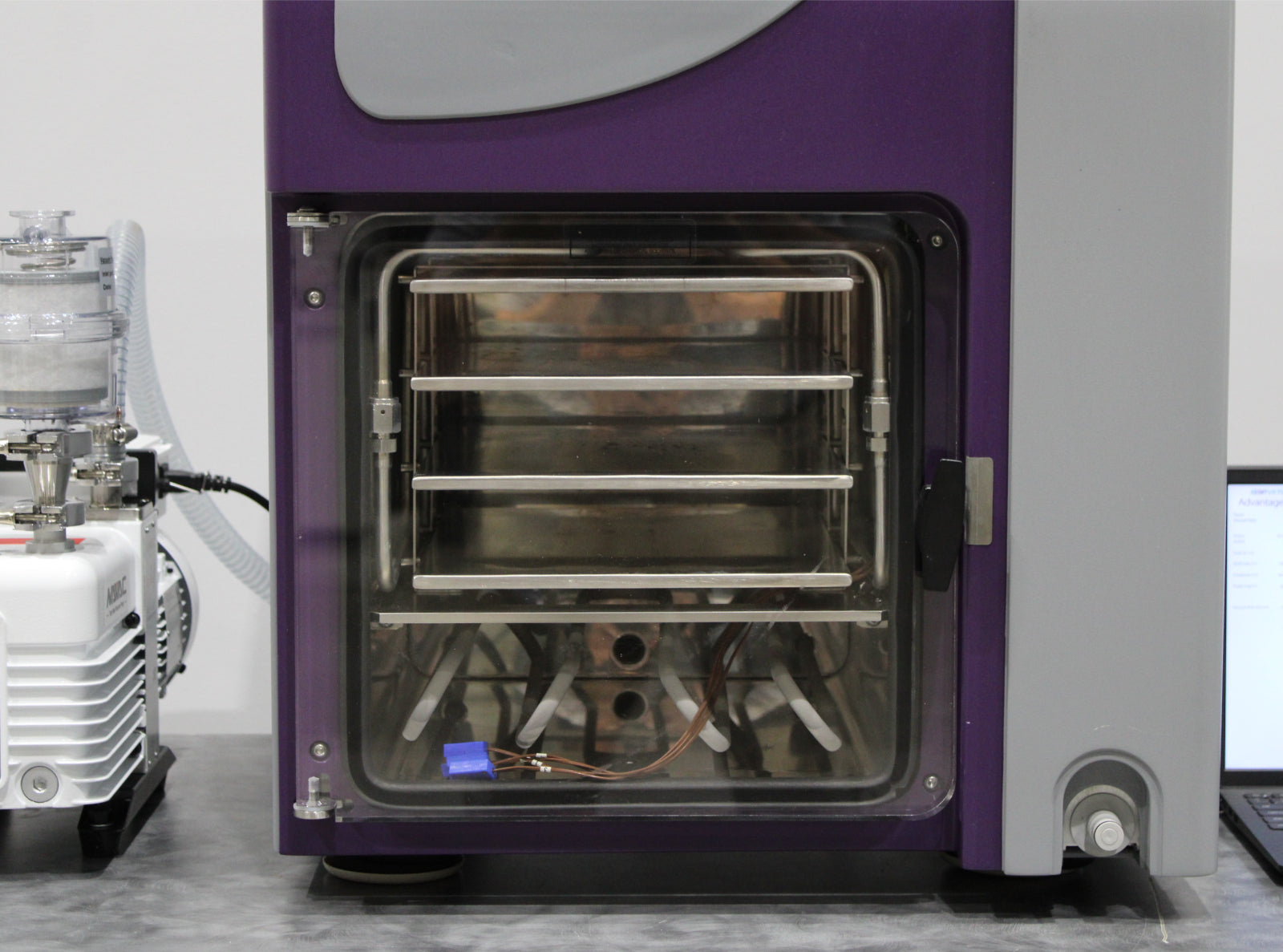

Total shelf area for 3 shelves is 429 in2 (2,766 cm2)

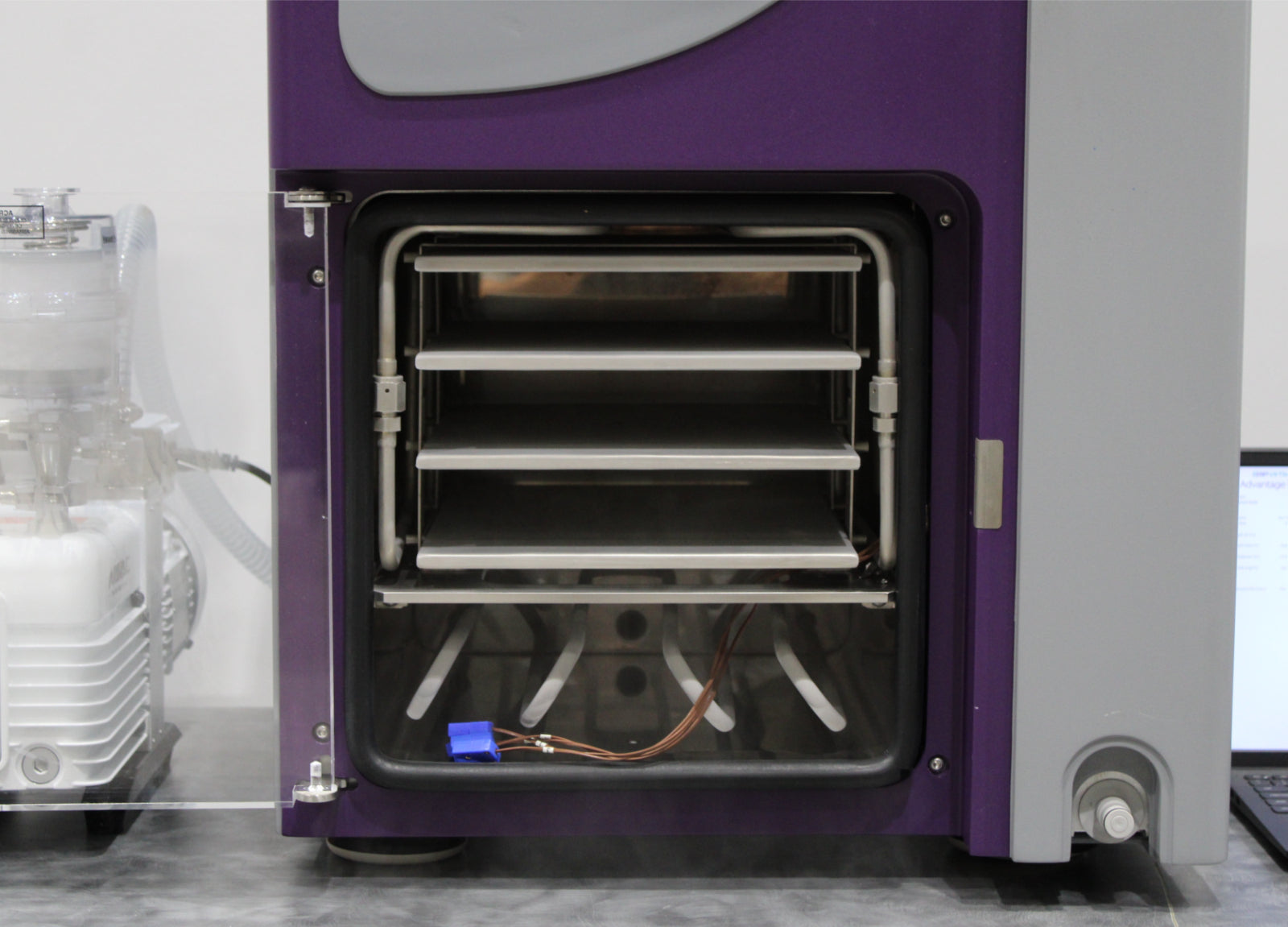

Shelf clearance for 3 shelves is 1.75 in (44.5 mm)
|
Manufacturer
|
SP Scientific
|
|
Model
|
AdVantage Pro
|
|
Model No.
|
ADP-B3EL-EVA-X
|
|
Serial No.
|
331476
|
|
Shelf temperature control range
|
-55 to 60°C
|
|
Lowest shelf temperature (50Hz/60Hz)
|
-62°C / -65°C
|
|
Shelf pull-down from 20°C to -40°C
|
≤30 minutes
|
|
Temperature uniformity
|
± 1.0 °C
|
|
Lowest condenser temperature (50Hz/60Hz)
|
-82°C / -85°C
|
|
Maximum condenser capacity
|
6 L
|
|
Maximum ice condensing capacity in 24 hours
|
4 L
|
|
Number of compressors
|
2
|
|
Maximum deposition rate
|
0.17 L/hour
|
|
Vacuum rate of rise
|
≤60 mT/hour (≤0.08 mbar/hour)
|
|
Compressor horsepower
|
0.333, 0.75
|
|
Vacuum pump
|
Two-stage rotary vane or suitable dry pump
|
|
Defrost type
|
Hot gas
|
|
Refrigerant
|
CFC-free
|
|
Condenser type
|
Internal
|
|
Chamber construction
|
AISI Type 316L SS
|
|
Shelf dimensions (W x D)
|
10 x 14 in
|
|

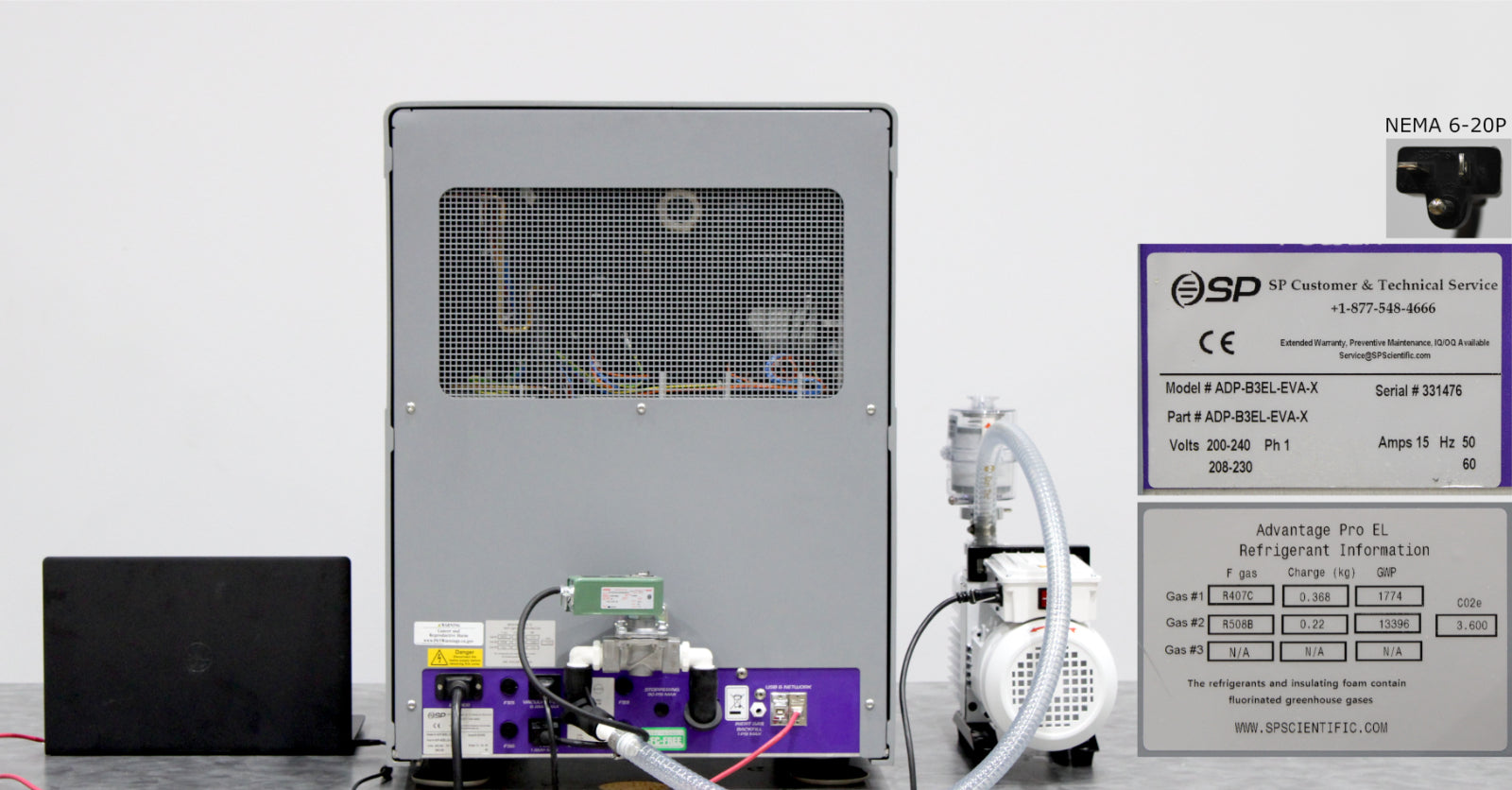

Plug type
|
NEMA 6-20P
|
|
Power rating
|
200-240V, 50Hz, 15A, 1Ph
208-230V, 60Hz, 15A, 1Ph
|
|
Dimensions (W x D x H)
|
22 x 25.7 x 29.7 in
|
|
Weight
|
310 lb (140 kg)
|
Note: Performance specifications are based on SP test data from units operating at an ambient room temperature of approximately 20°C. SP recommends an operating range of 15-25°C (59-77°F).
