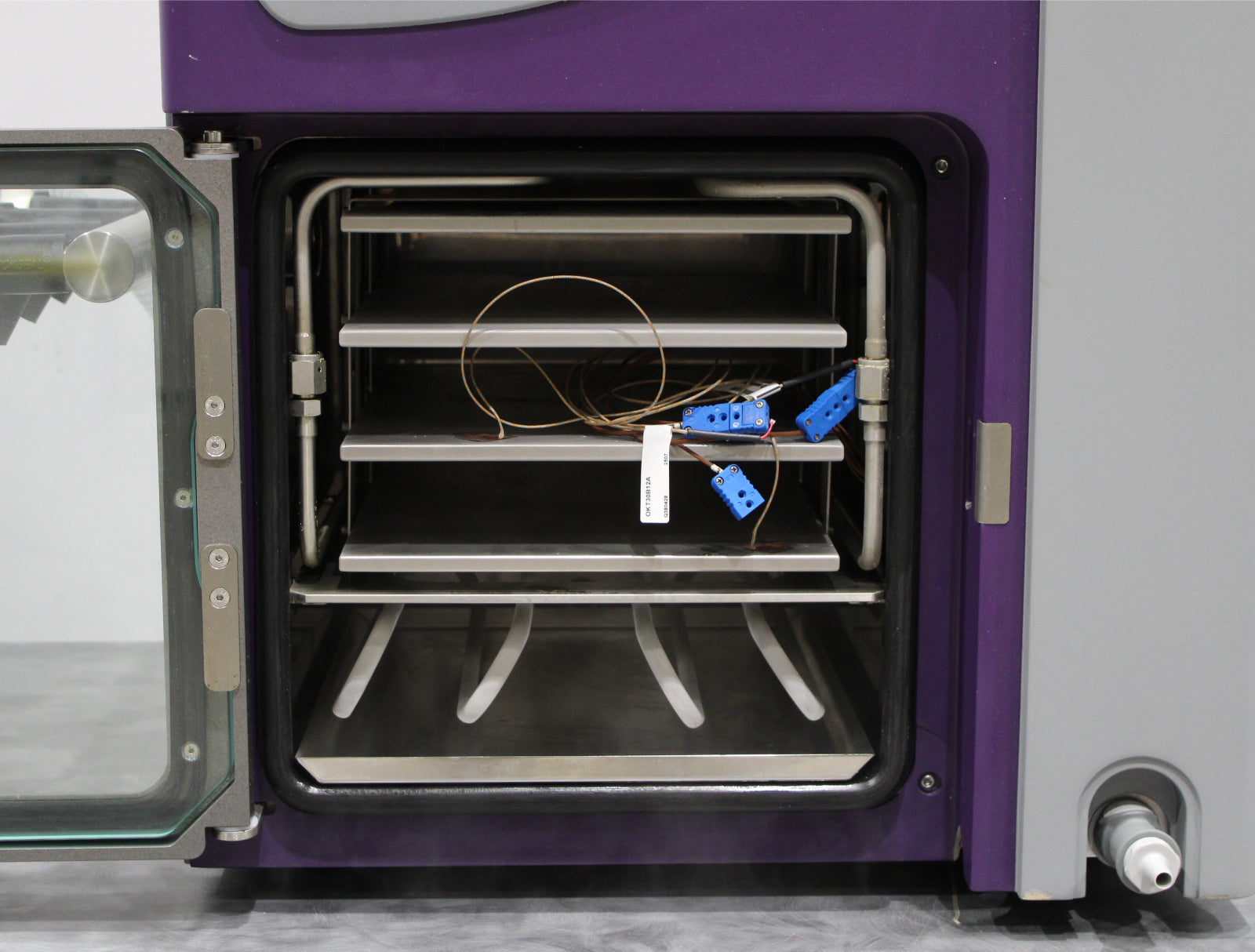

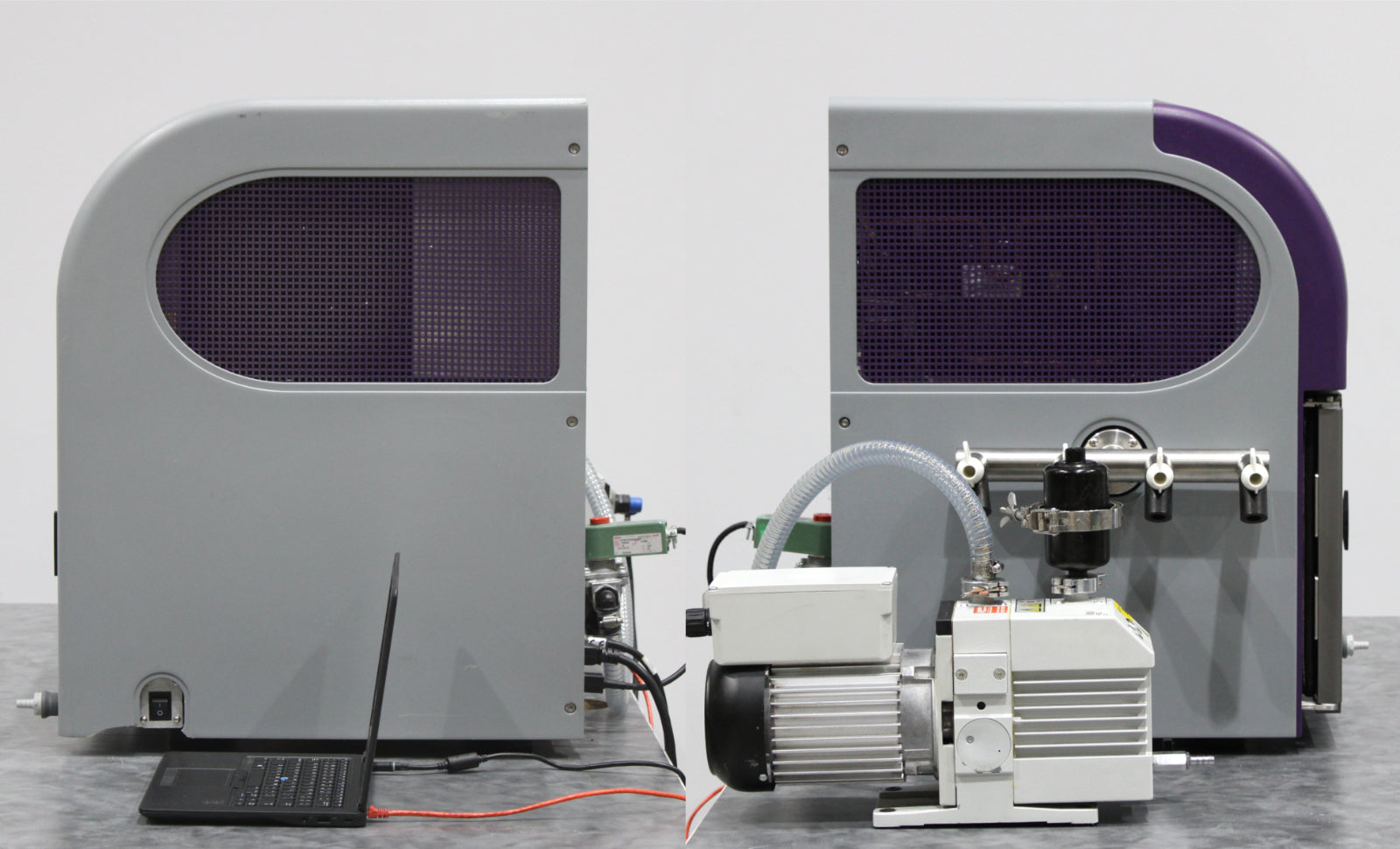

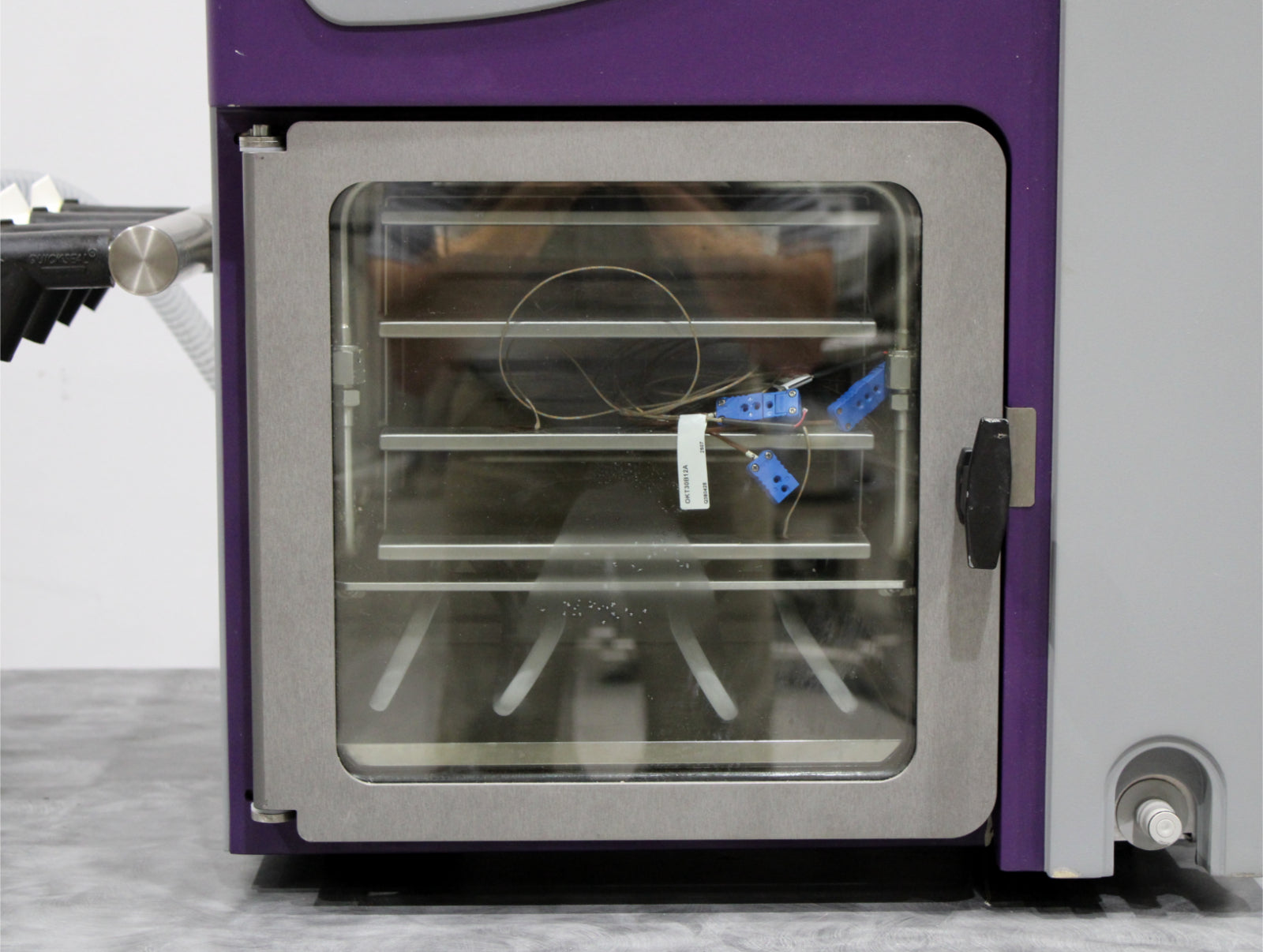

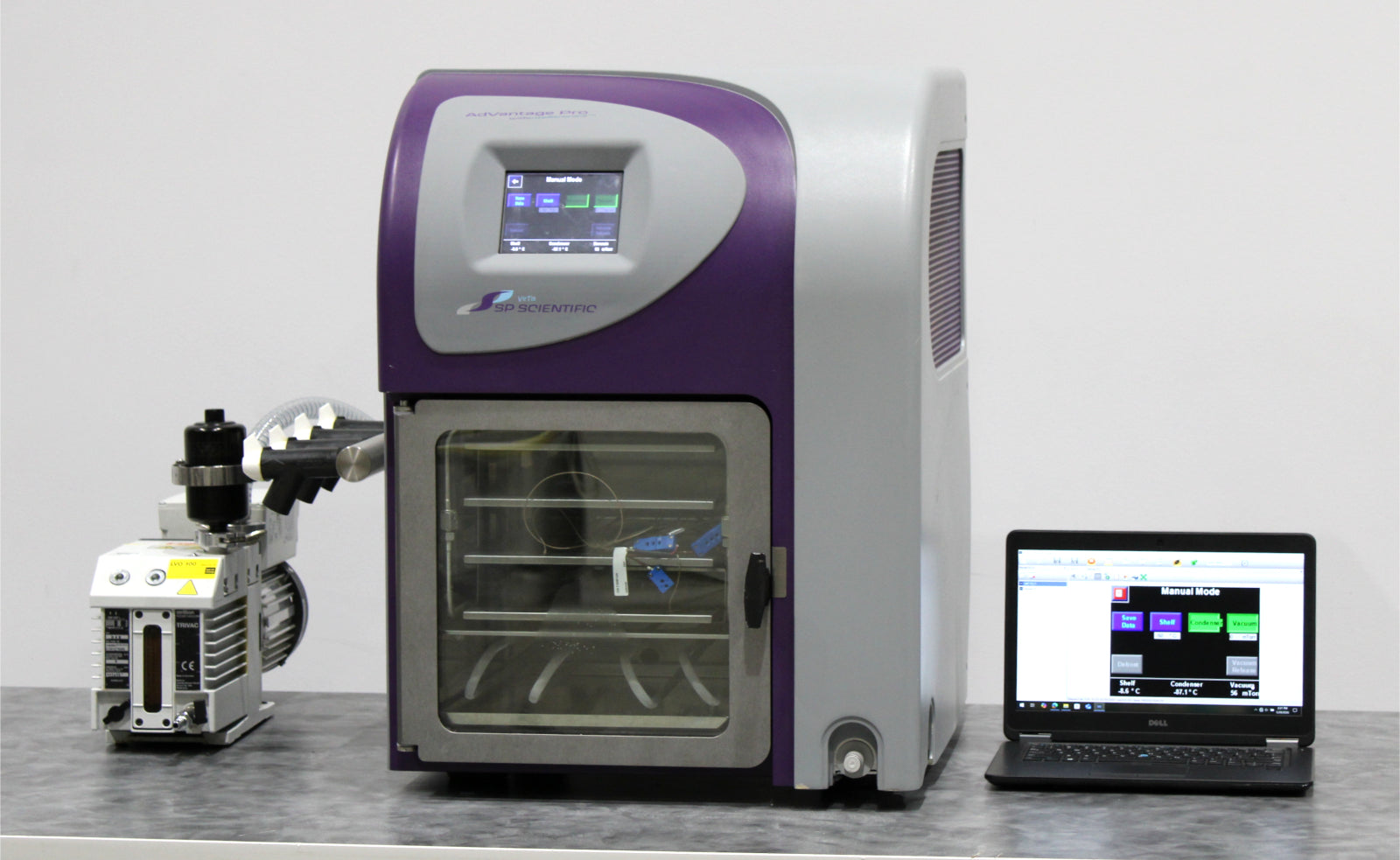

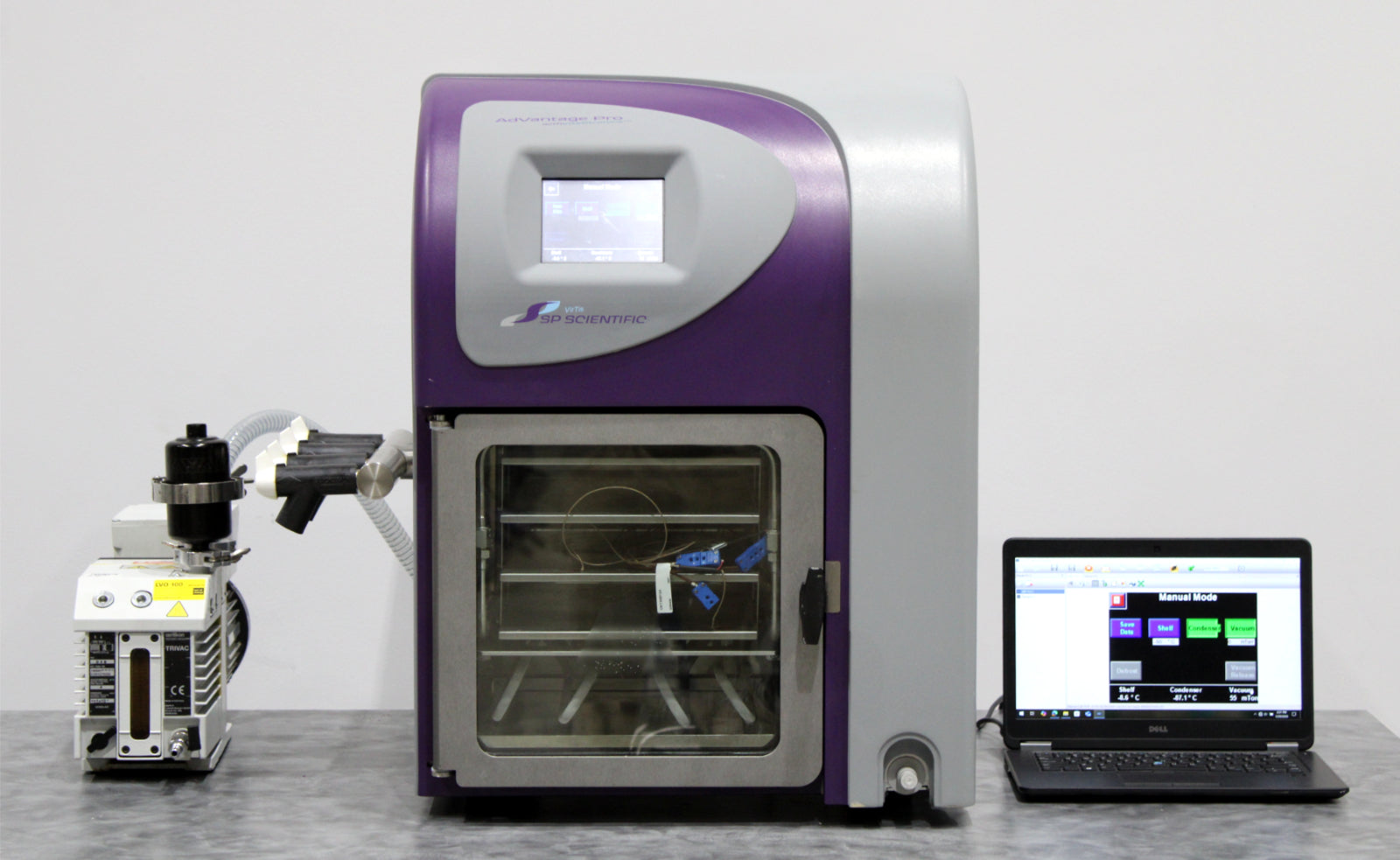

- SP Scientific VirTis AdVantage Pro Benchtop Shelf Freeze Dryer (ADP-B3EL-EVG-X) with 3 Shelves

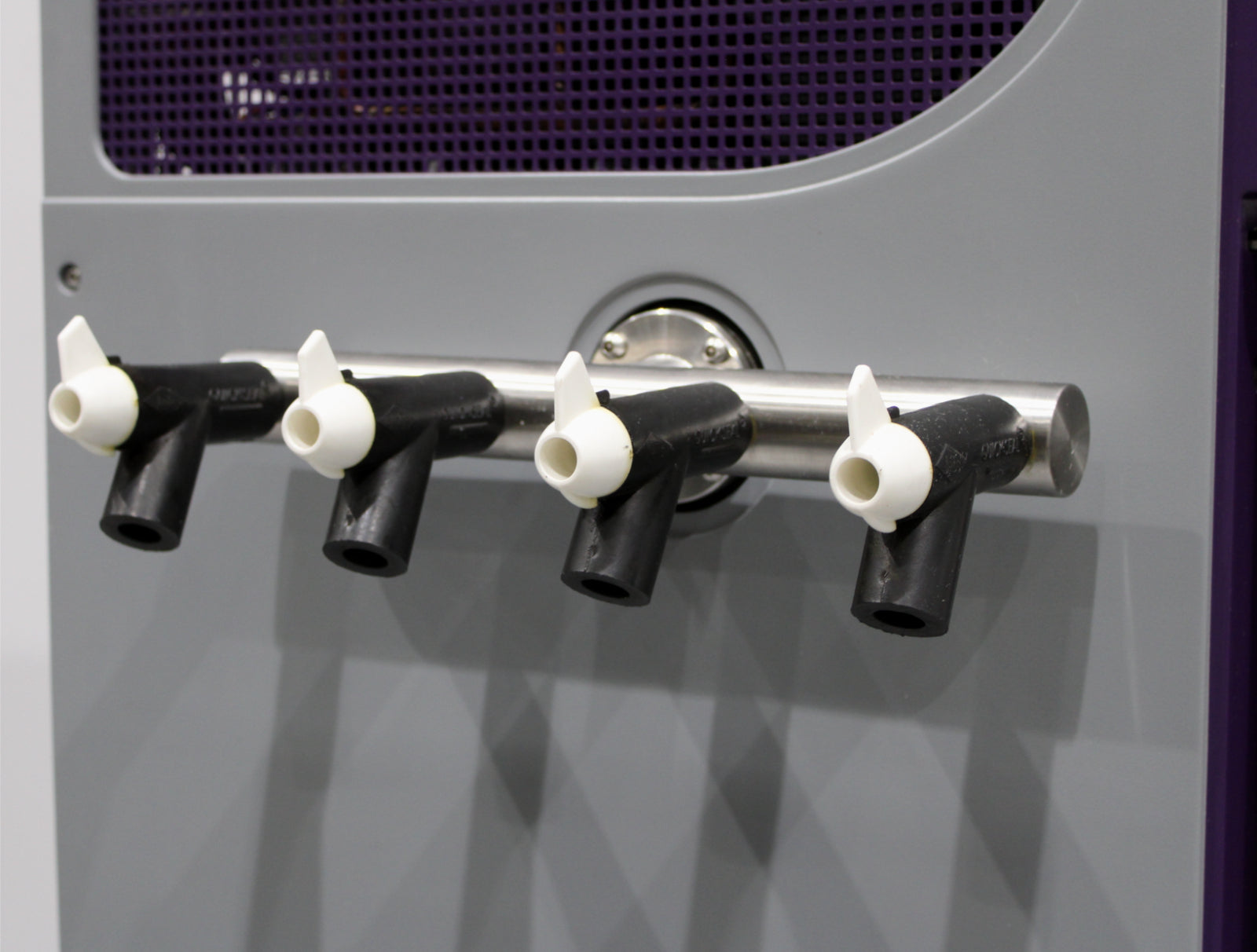

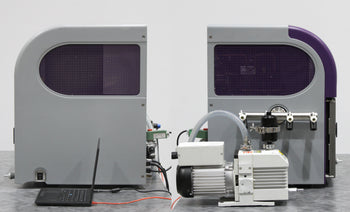

- Side-Mounted Manifold with 4 Manifold Valves

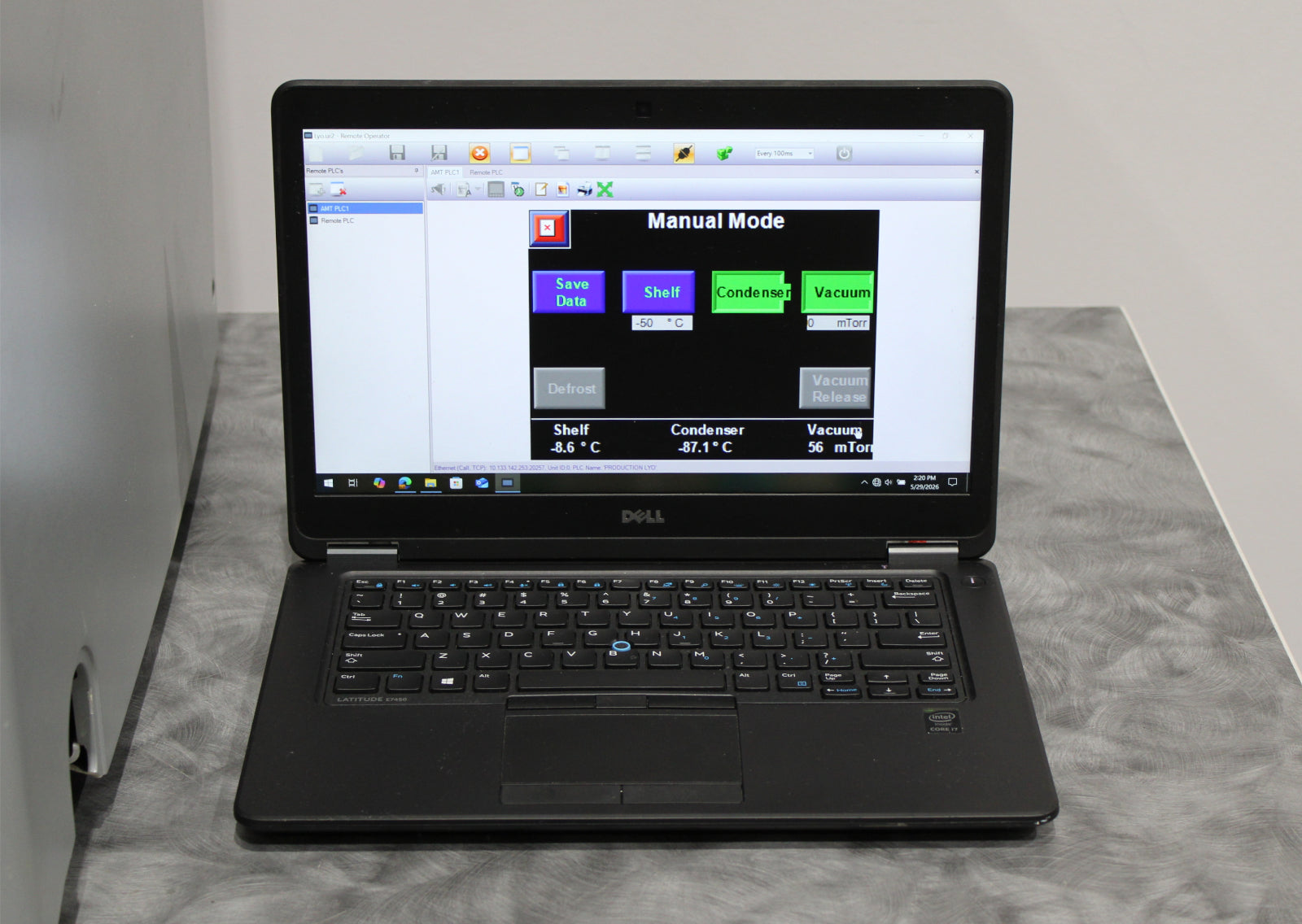

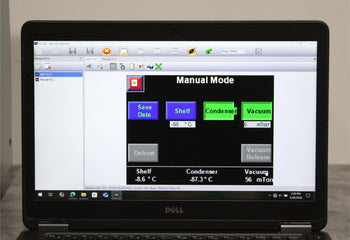

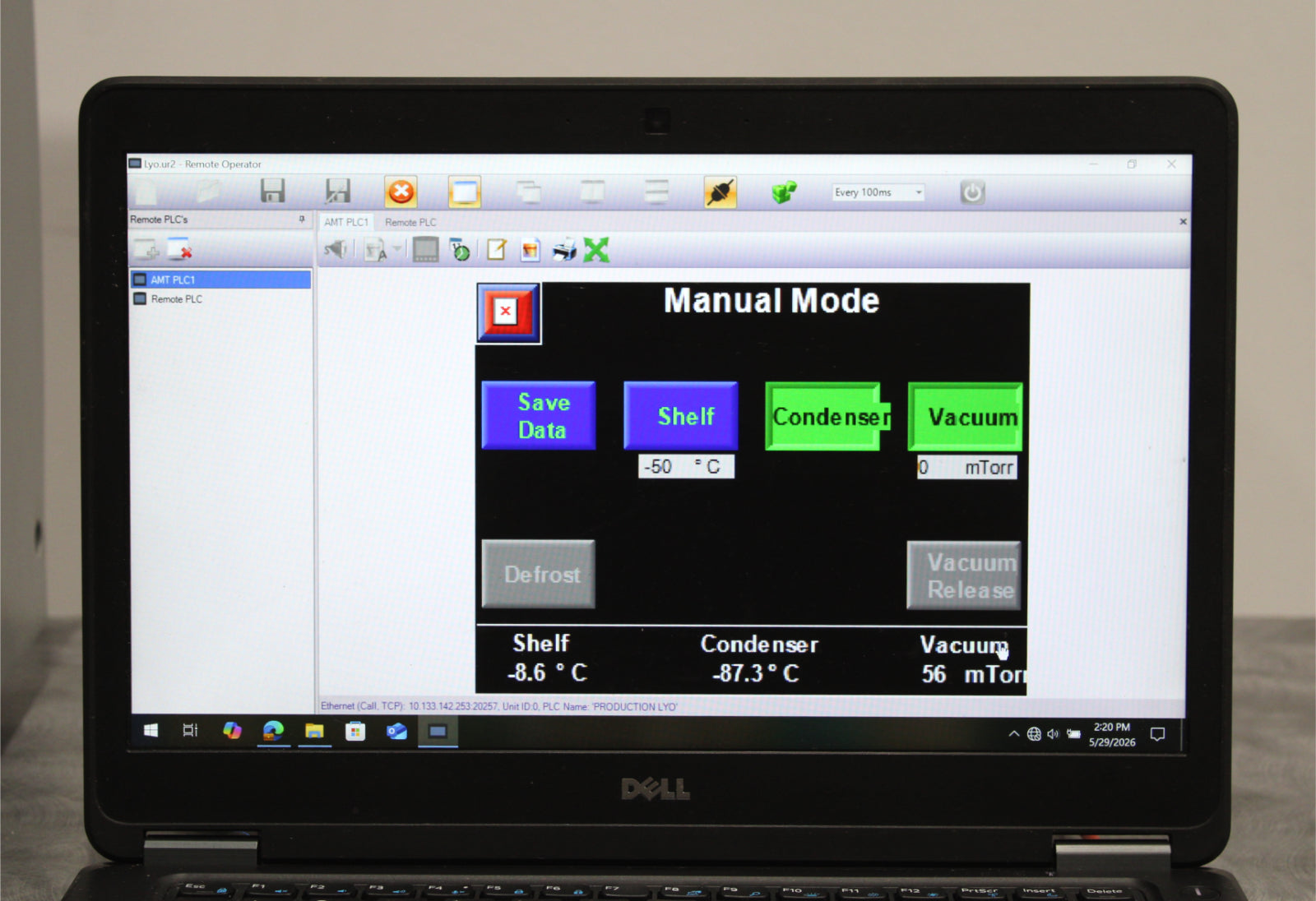

- Dell Laptop with Control Software
- Network Cable
- Laptop Power Adapter

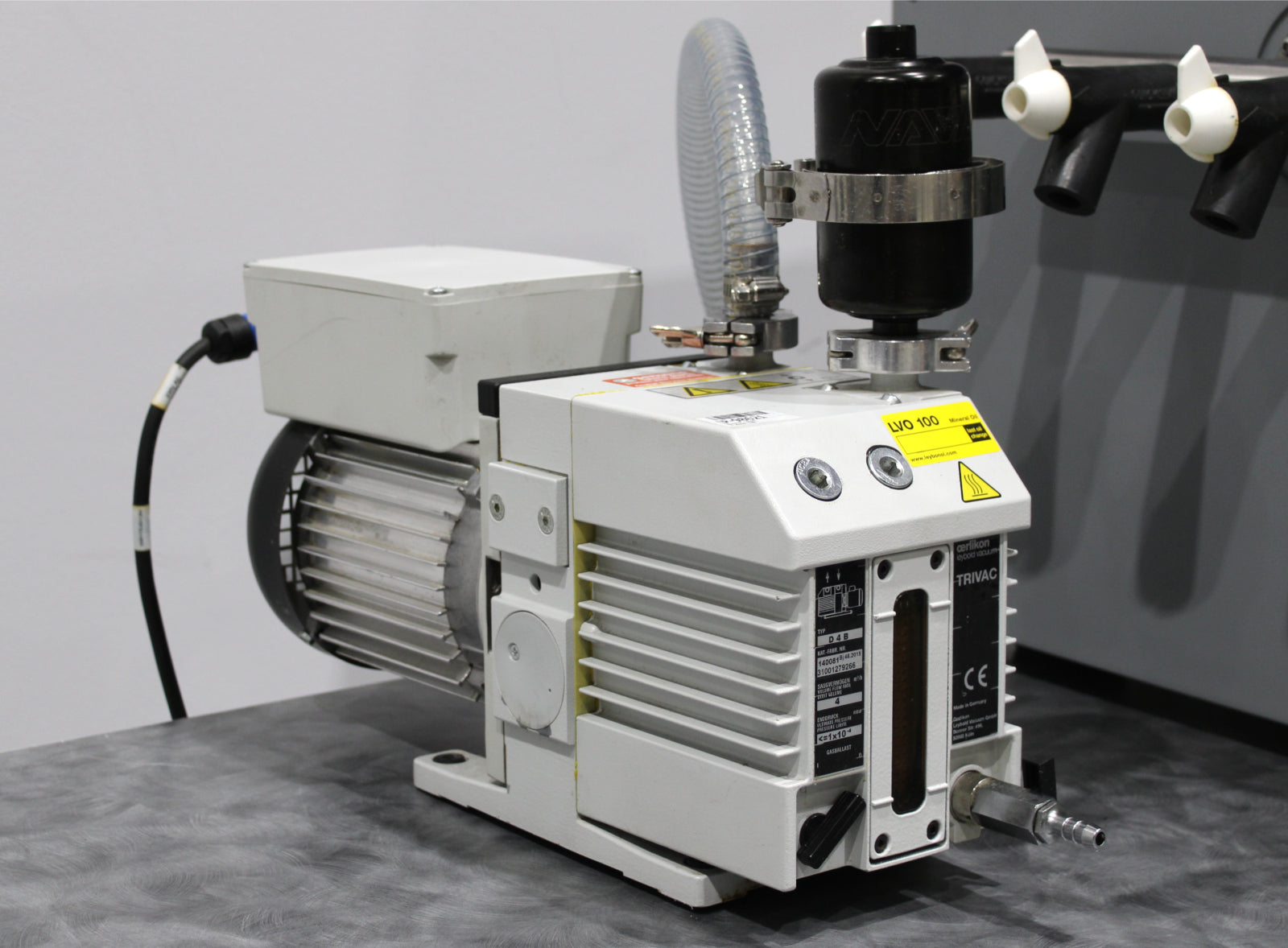

- Oerlikon Leybold TRIVAC D4B Dual-Stage Rotary Vane Vacuum Pump
- Vacuum Hose
- Vacuum Pump Power Cable

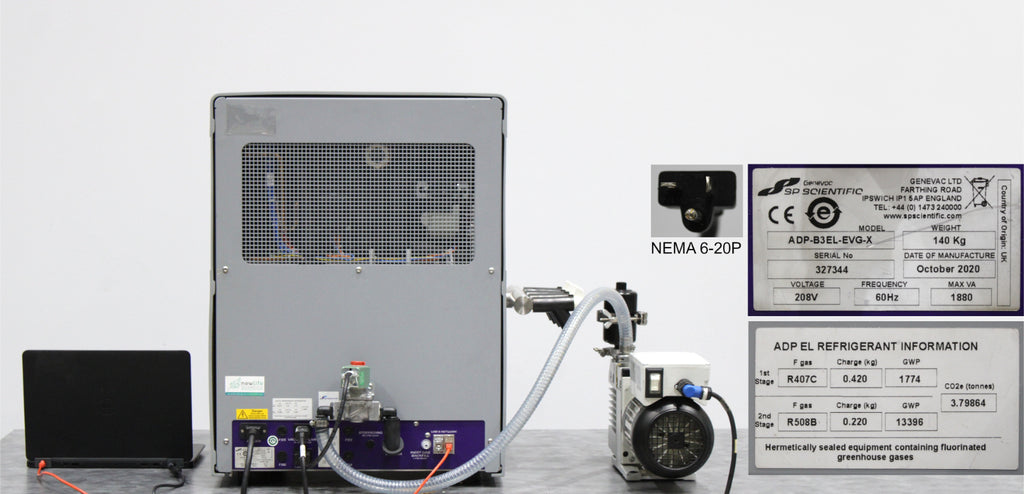

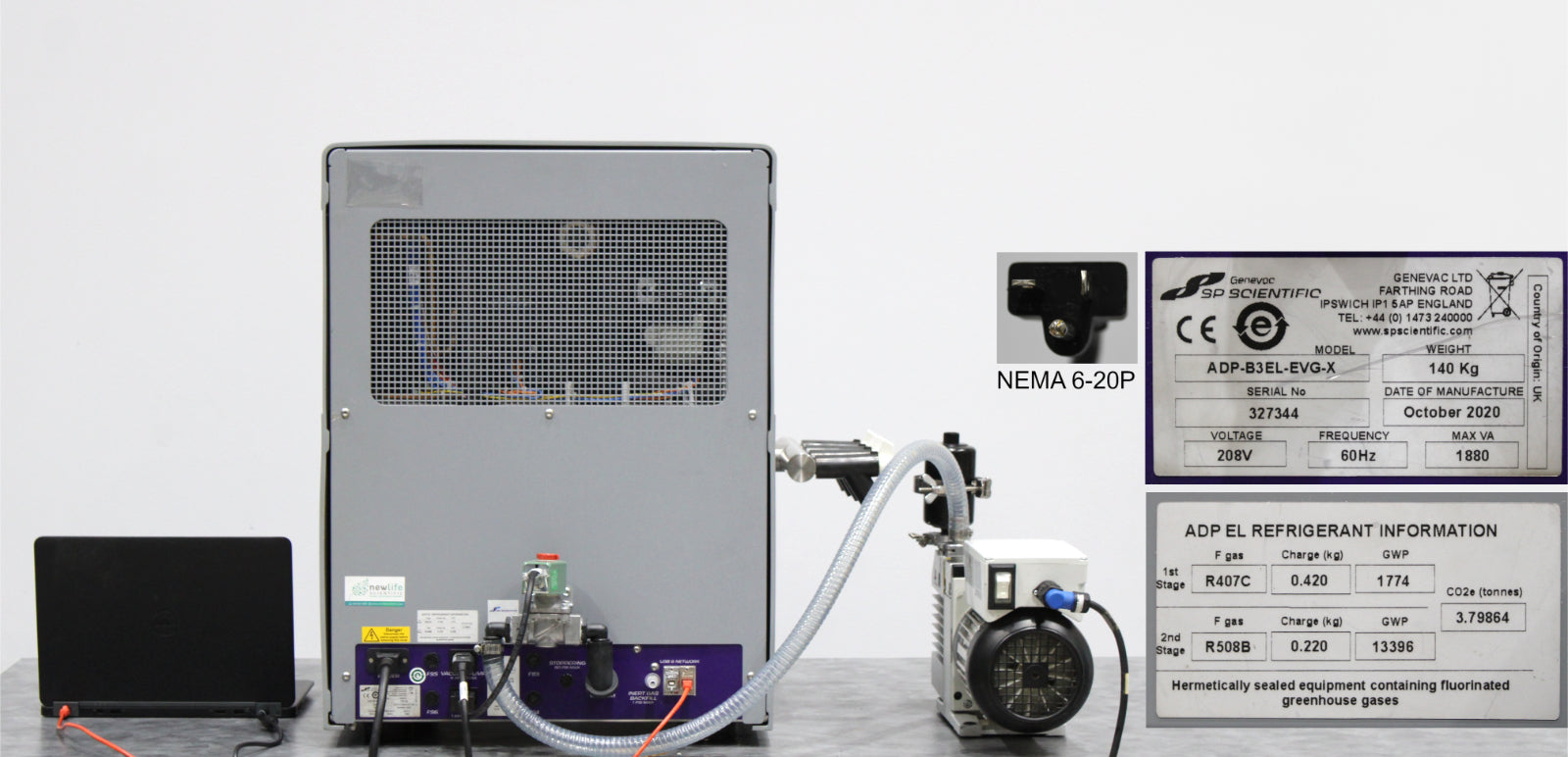

- Main Power Cable with NEMA 6-20P
- 90-Day Warranty

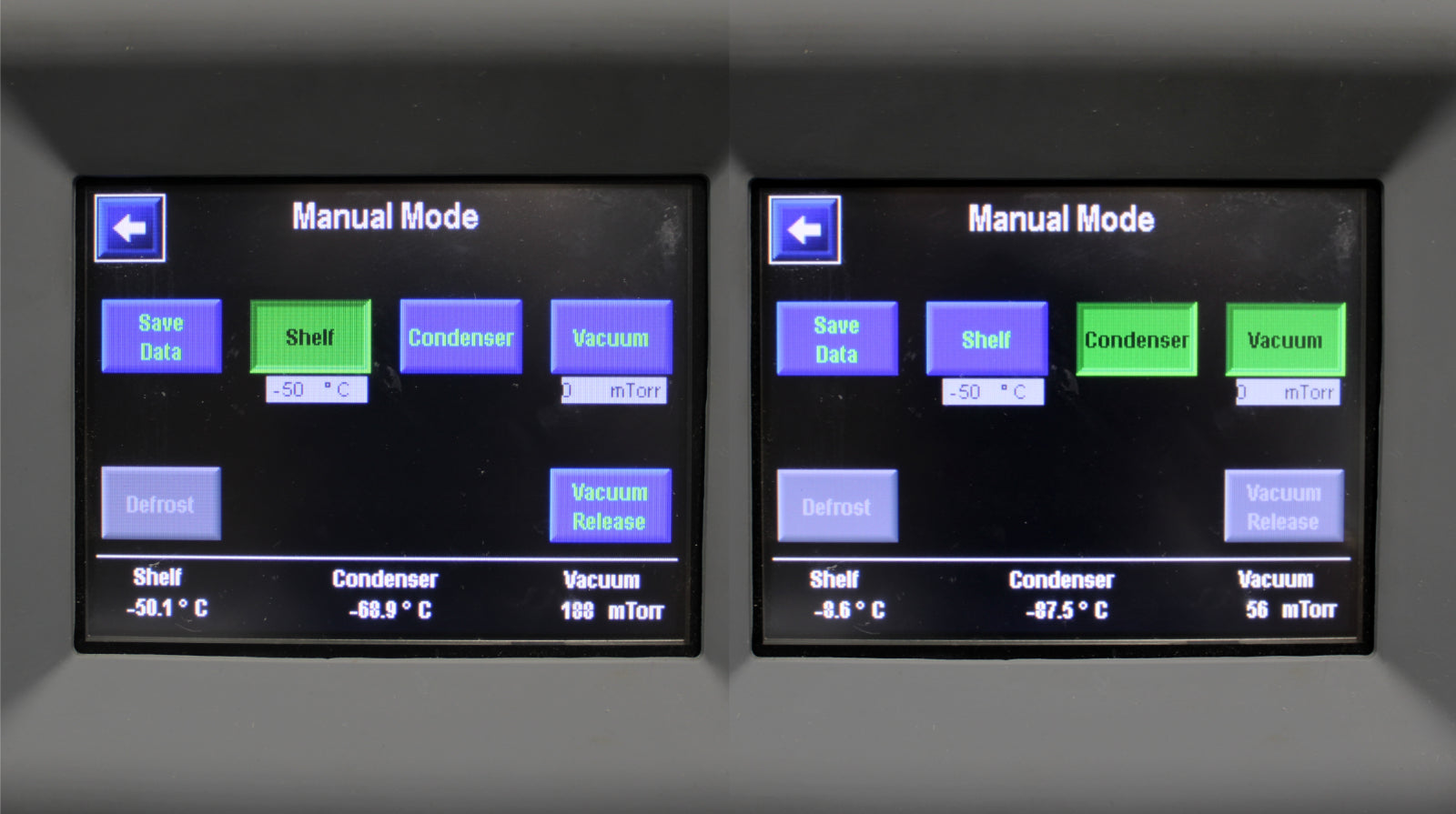

After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis AdVantage Pro benchtop shelf freeze dryer with the following results:
- Shelf temperature maintains -50°C setpoint: PASSED
- Condenser temperature reaches -87°C: PASSED
- Vacuum reaches 56 mT: PASSED
- Inspected and replaced refrigeration lines as needed.
- Inspected and replaced vacuum hoses as needed.
|
Manufacturer
|
SP Scientific
|
|
Model
|
AdVantage Pro
|
|
Model No.
|
ADP-B3EL-EVG-X
|
|
Serial No.
|
327344
|
|
Mfg. date
|
October 2020
|
|
Shelf Temperature Control Range
|
-55 to 60°C
|
|
Lowest Shelf Temperature† (50 Hz / 60 Hz)
|
-62 °C / -65 °C
|
|
Shelf Pull-Down from 20 °C to -40 °C‡
|
≤ 30 minutes
|
|
Temperature Uniformity
|
± 1.0 °C
|
|
Lowest Condenser Temp. (50 Hz / 60Hz)
|
-82°C / -85°C
|
|
Max. Condenser Capacity
|
6 L
|
|
Maximum Ice Condensing Capacity in 24 hours
|
4 L
|
|
Number of Compressors
|
2
|
|
Compressor Horsepower
|
1/3, 3/4
|
|
System Refrigerant
|
R508B, R407C
|
|
Refrigerant Type
|
CFC-free
|
|
Construction
|
AISI Type 316L SS
|
|

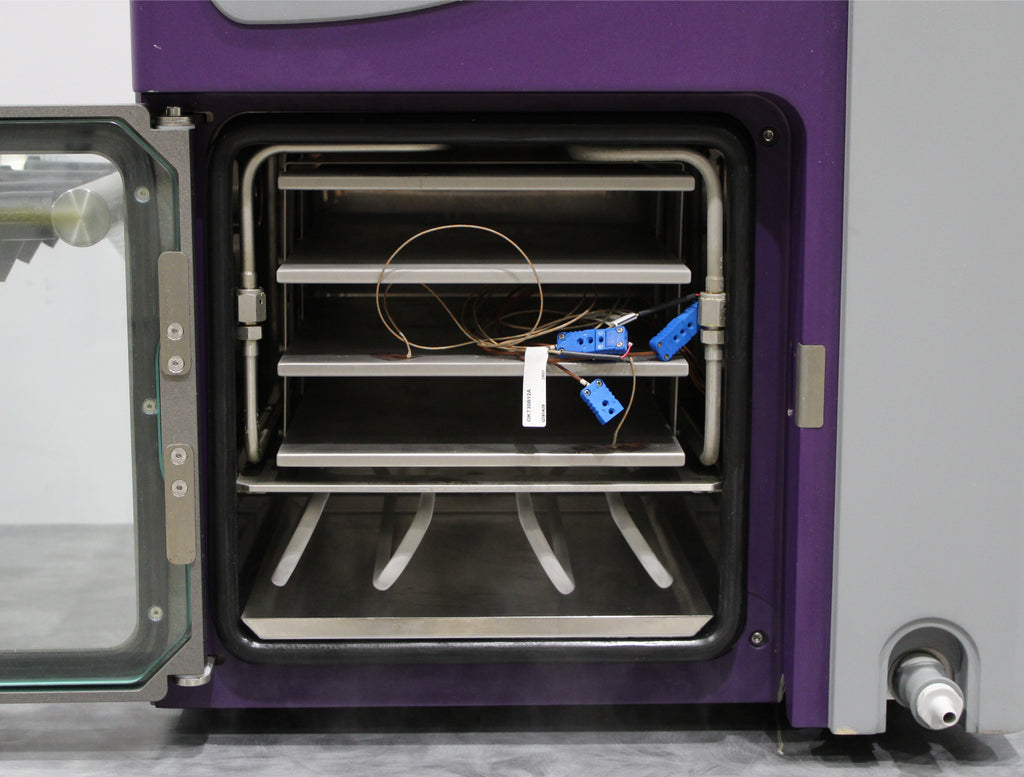

Shelf dimensions (W x D)
|
10 x 14 in
|
|
Power rating
|
208V, 60Hz
|
|
Power consumption
|
1880VA max
|
|
Dimensions (W x D x H)
|
22 x 25.7 x 29.7 in
|
|
Weight
|
310 lb (140 kg)
|
