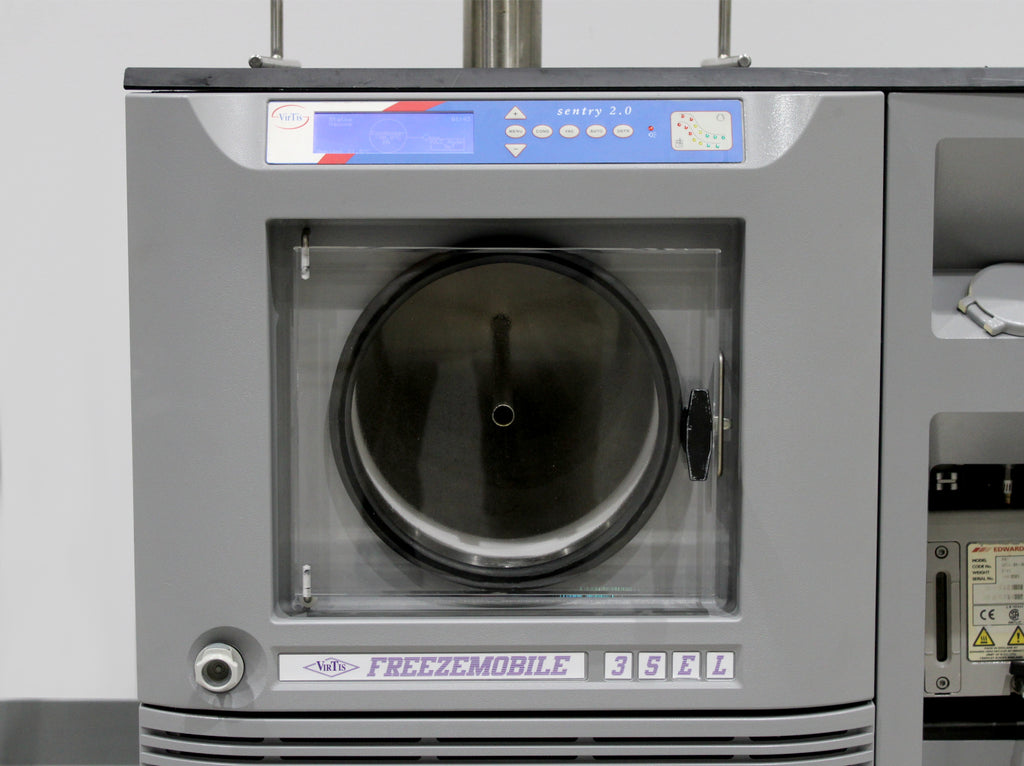

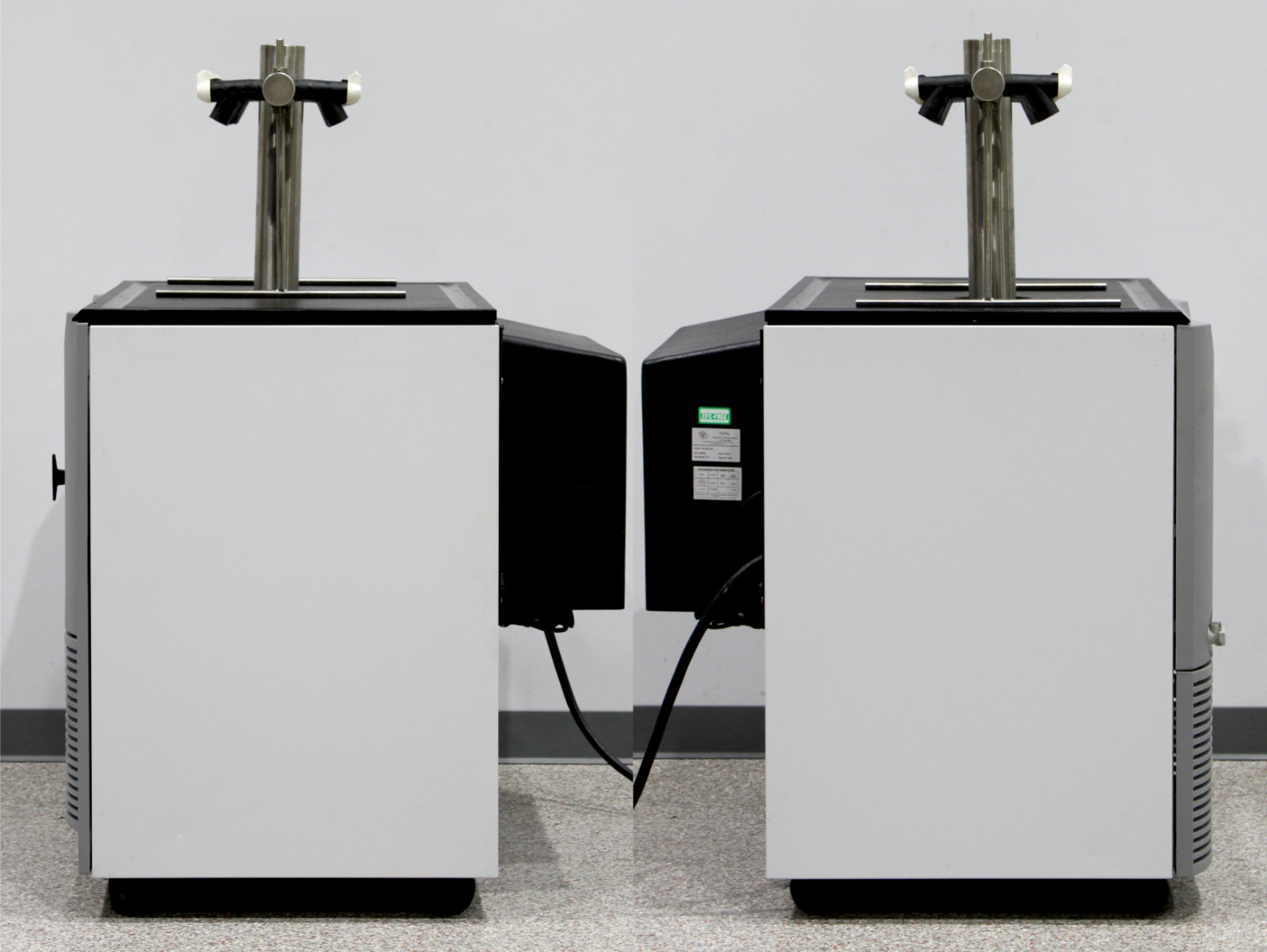

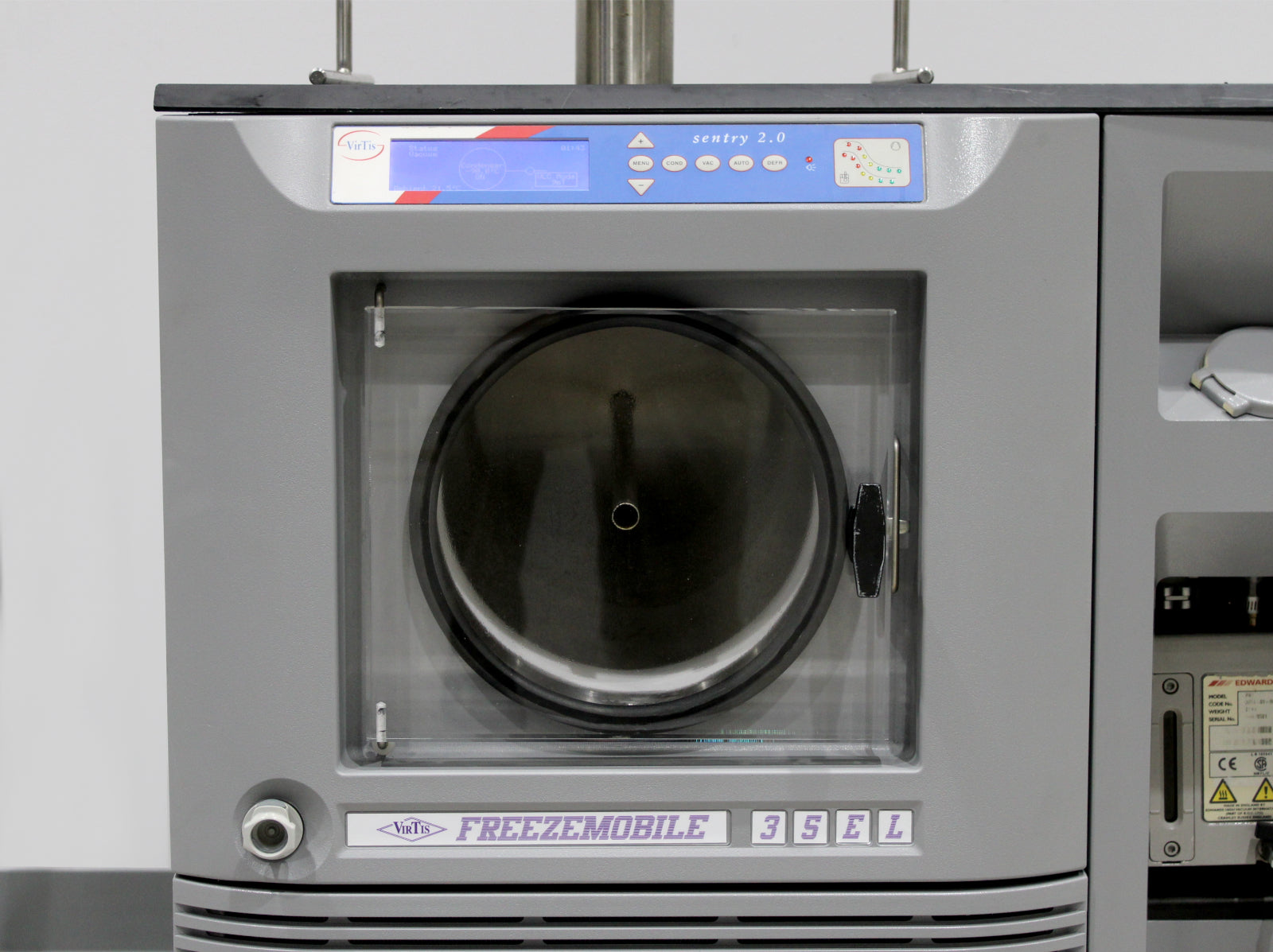

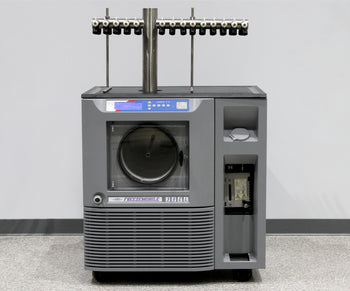

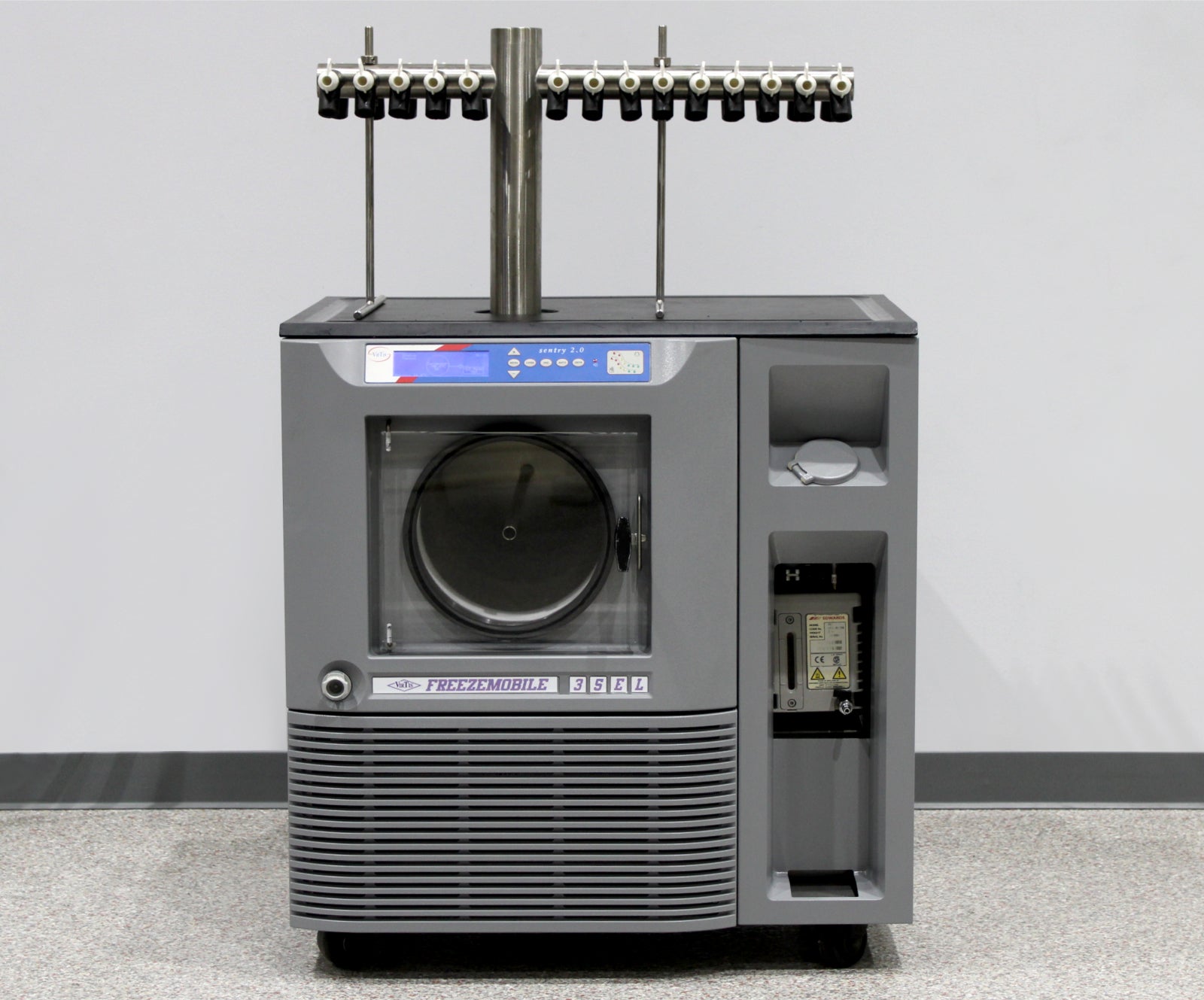

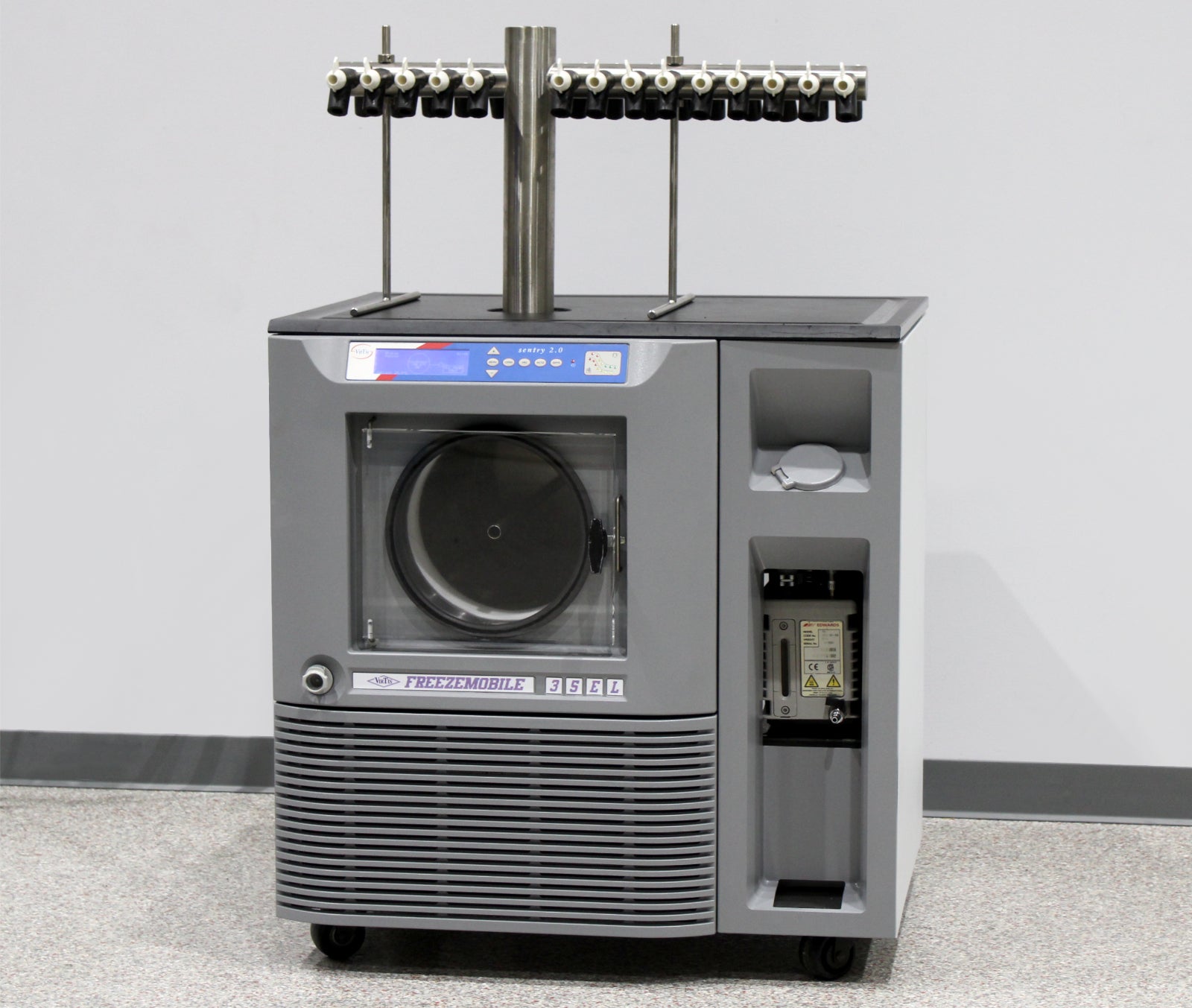

- SP VirTis Freezemobile FM35EL-85 Floor Freeze Dryer Lyophilizer 208/230V (449252)

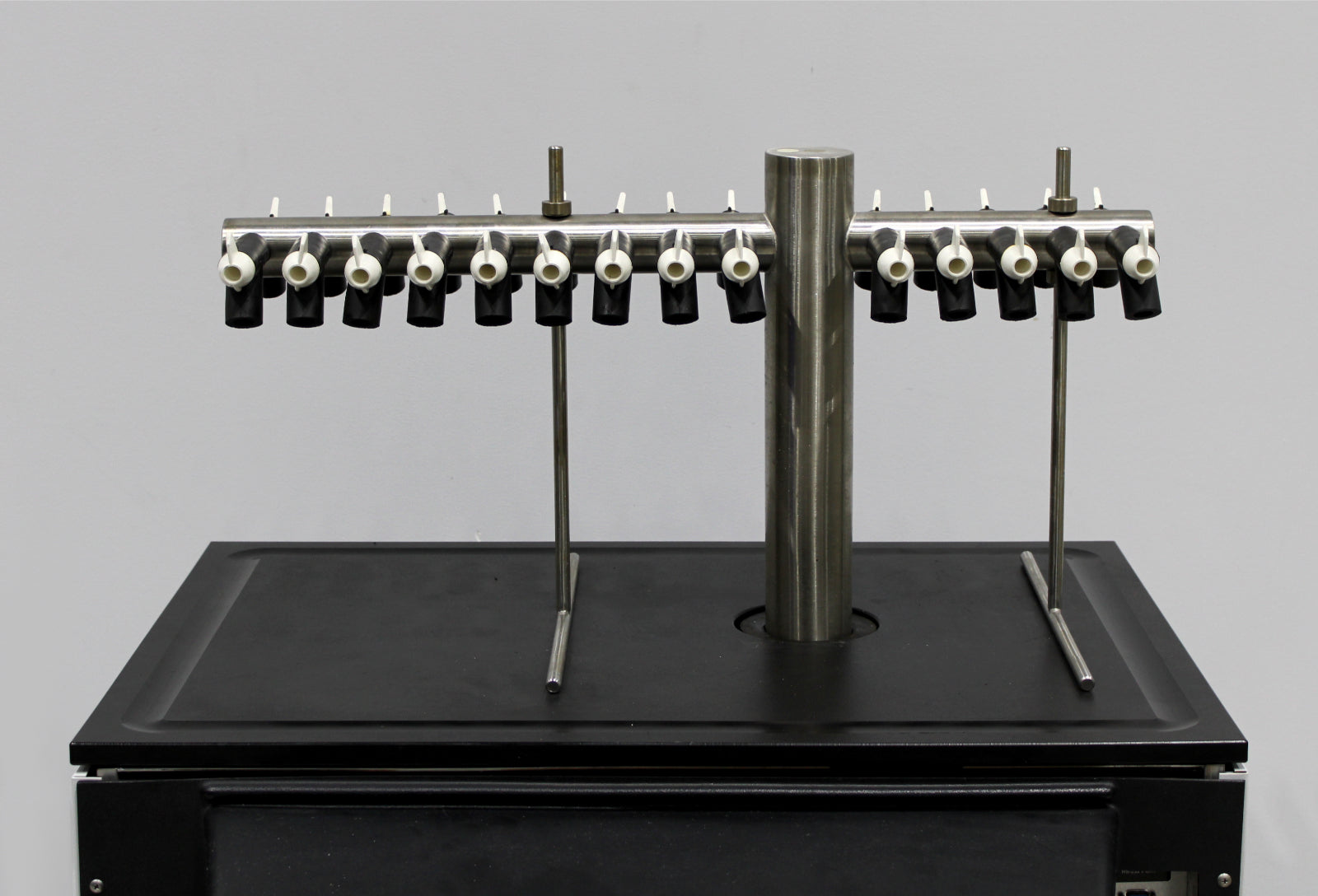

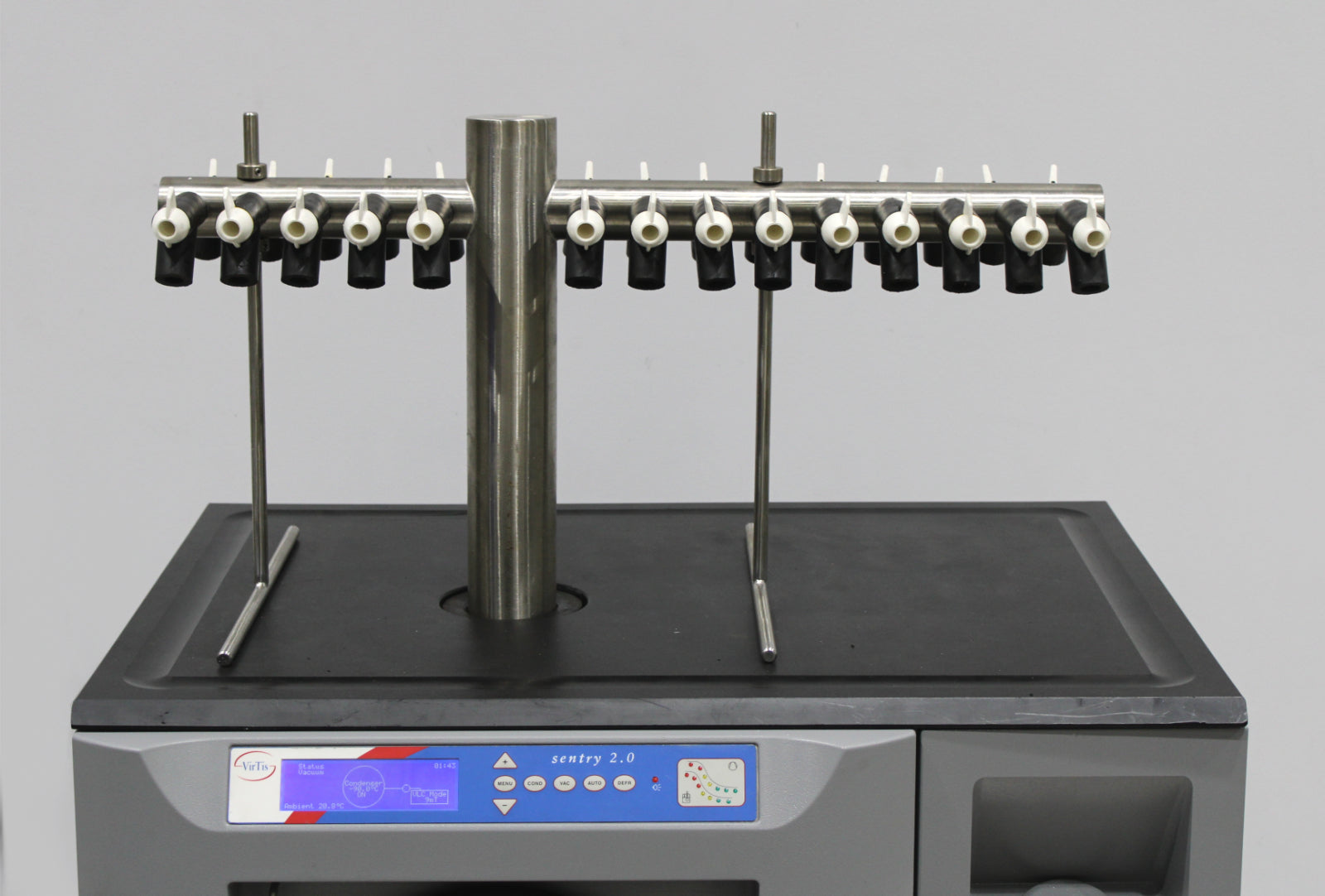

- 28-Port Tree Manifold with 28 Manifold Valves

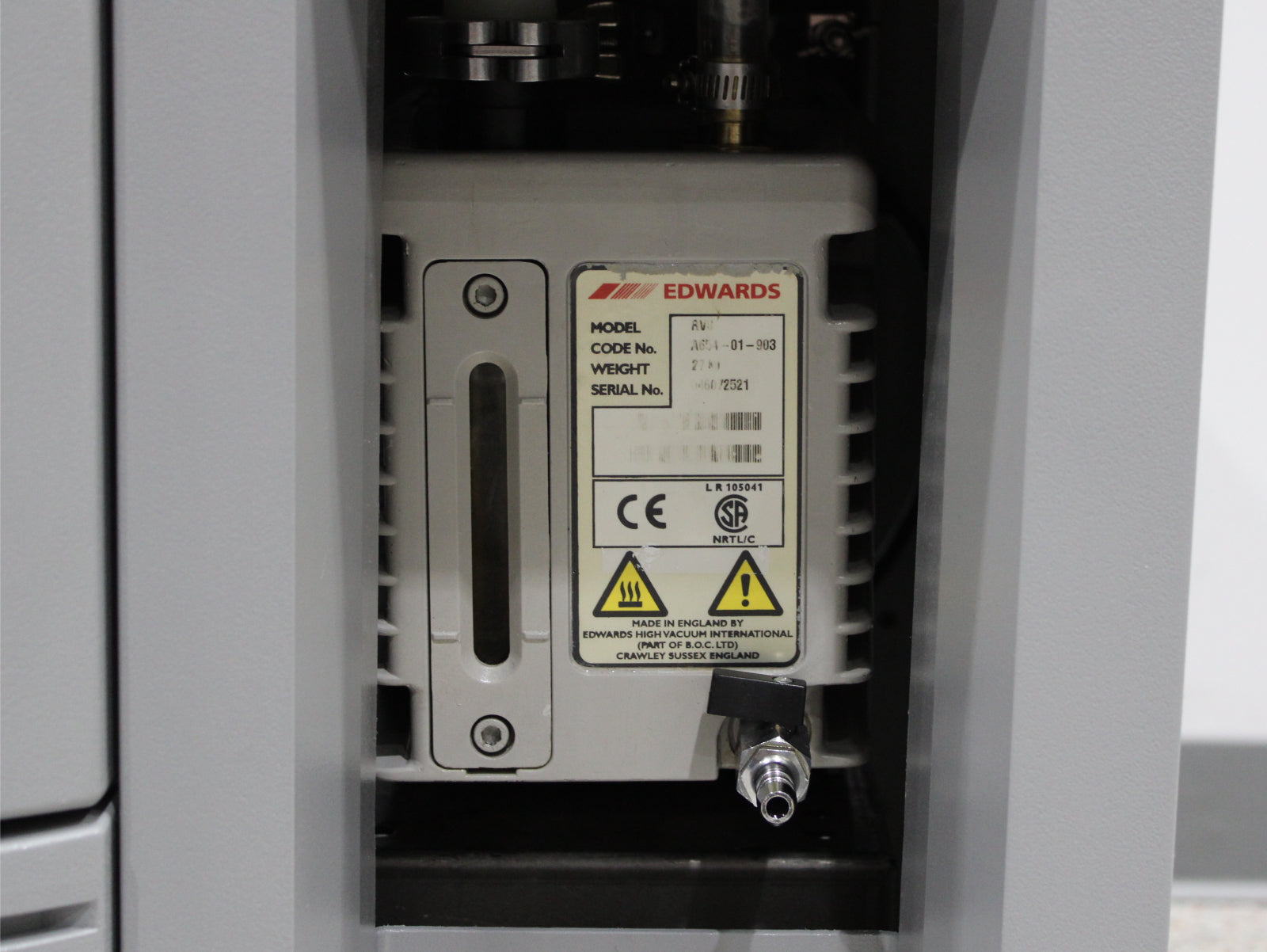

- Edwards Vacuum Pump

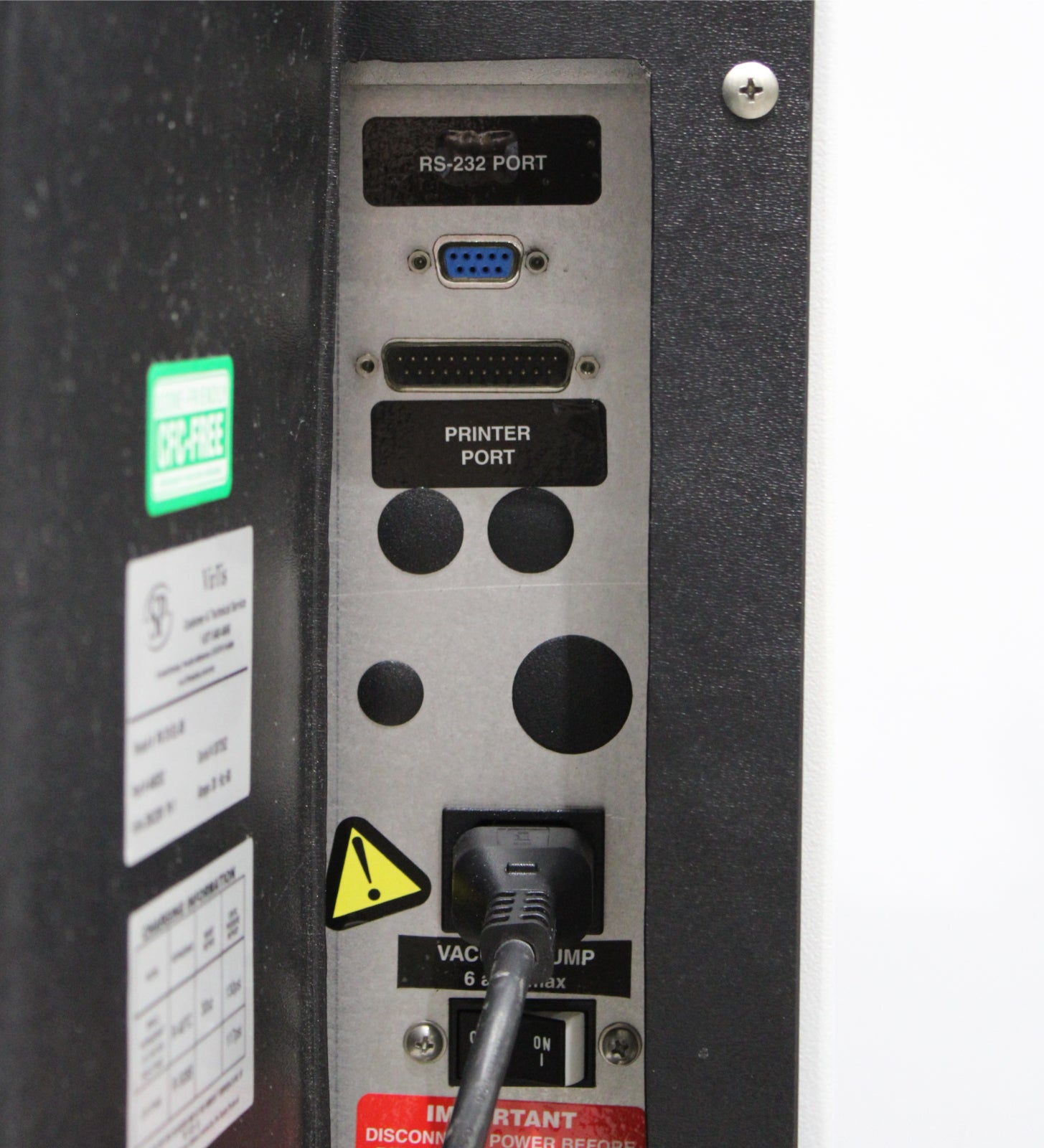

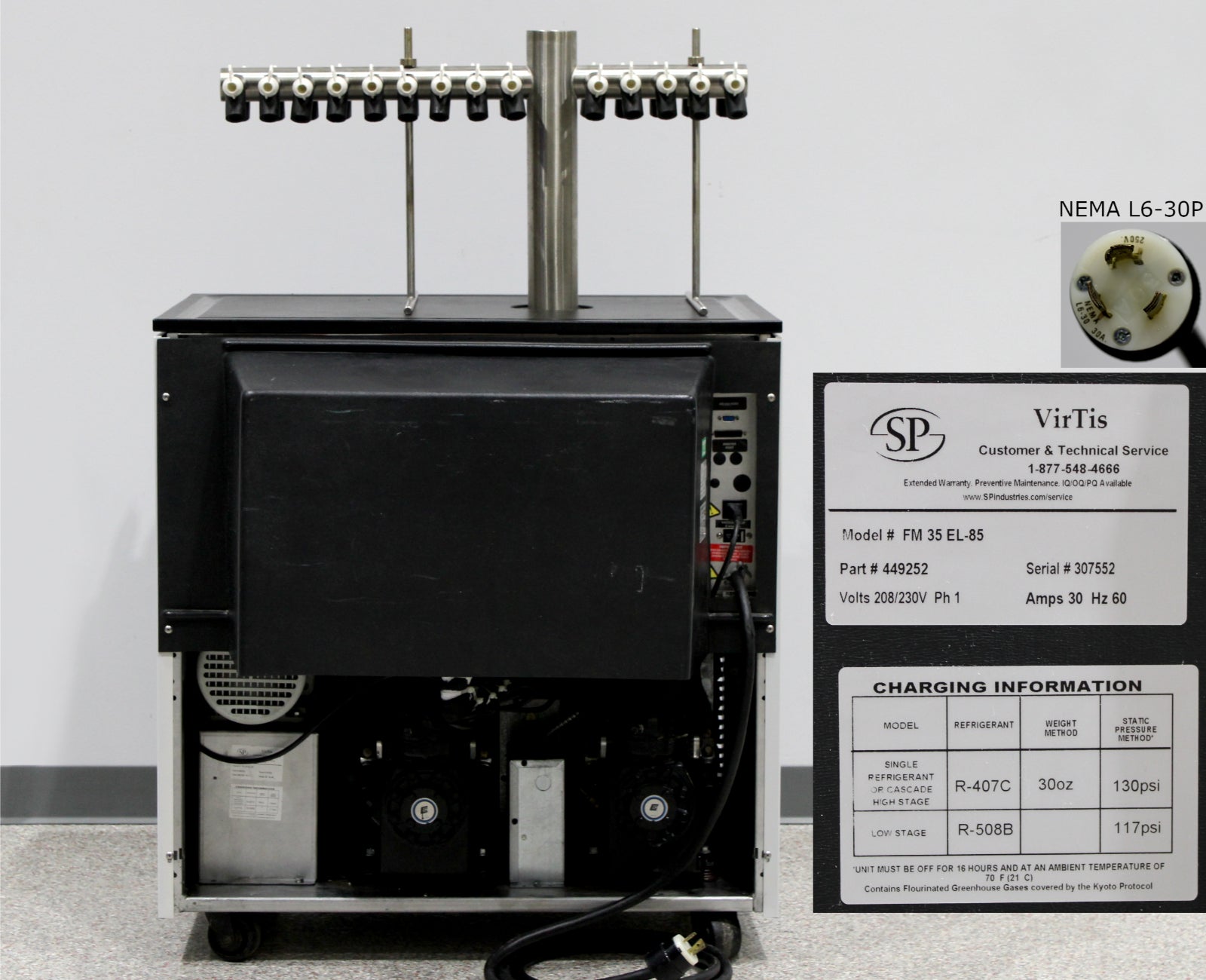

- Attached Power Cable with NEMA L6-30 Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the SP VirTis Freezemobile FM35EL-85 freeze dryer with the following results:

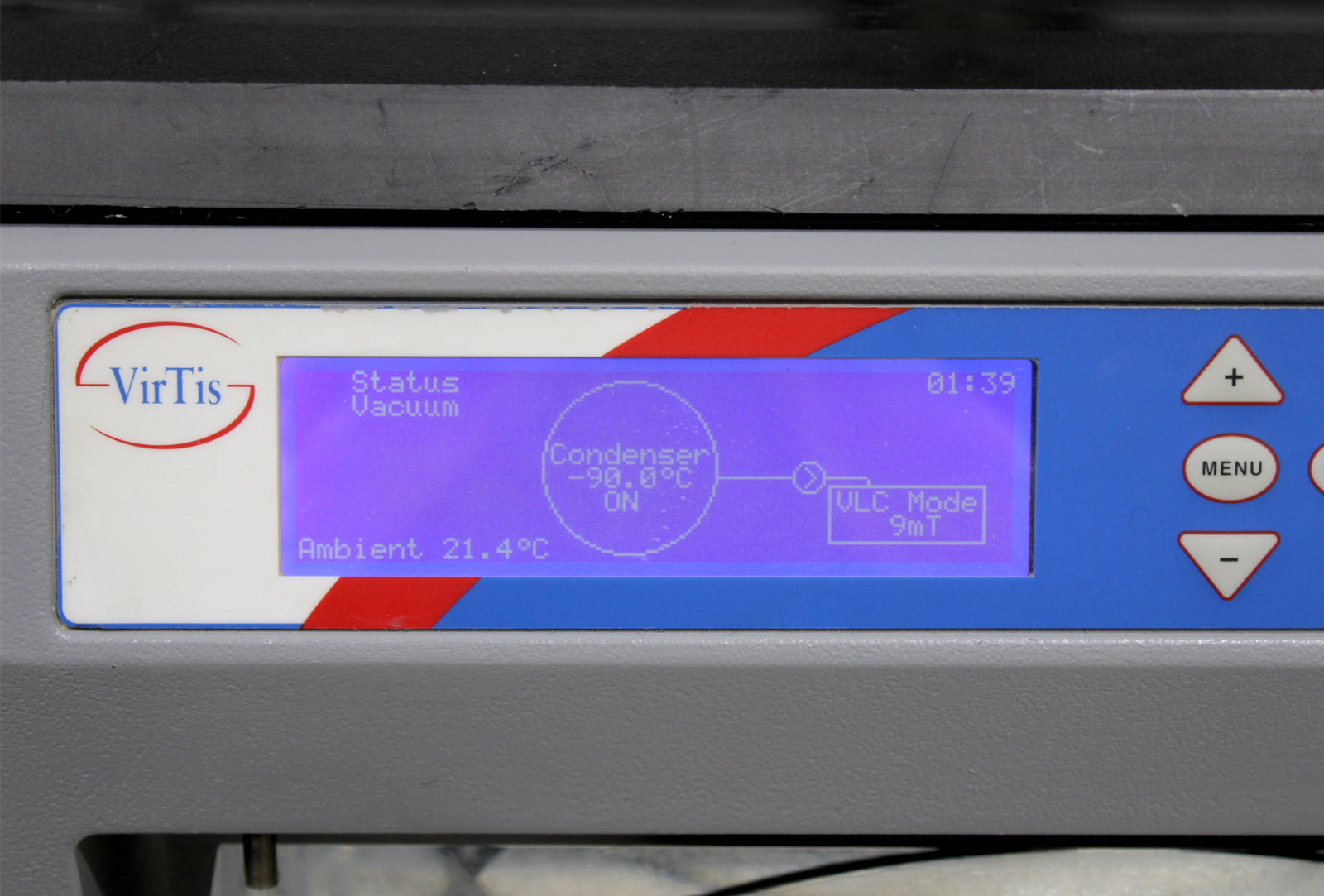

- Condenser temperature reaches -90.0°C: PASSED
- Vacuum reaches 9 mT: PASSED
- Inspected and replaced vacuum hoses as needed.
- Inspected and replaced refrigeration insulation as needed.
Notice: This freeze dryer has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
SP Industries
|
|
Model
|
Freezemobile 35EL
|
|
Model No.
|
FM35EL-85
|
|
Part No.
|
449252
|
|
Serial No.
|
307552
|
|
Lowest condenser temp. (50 Hz / 60Hz)
|
-82°C / -85°C
|
|
Maximum condenser capacity
|
35 L
|
|

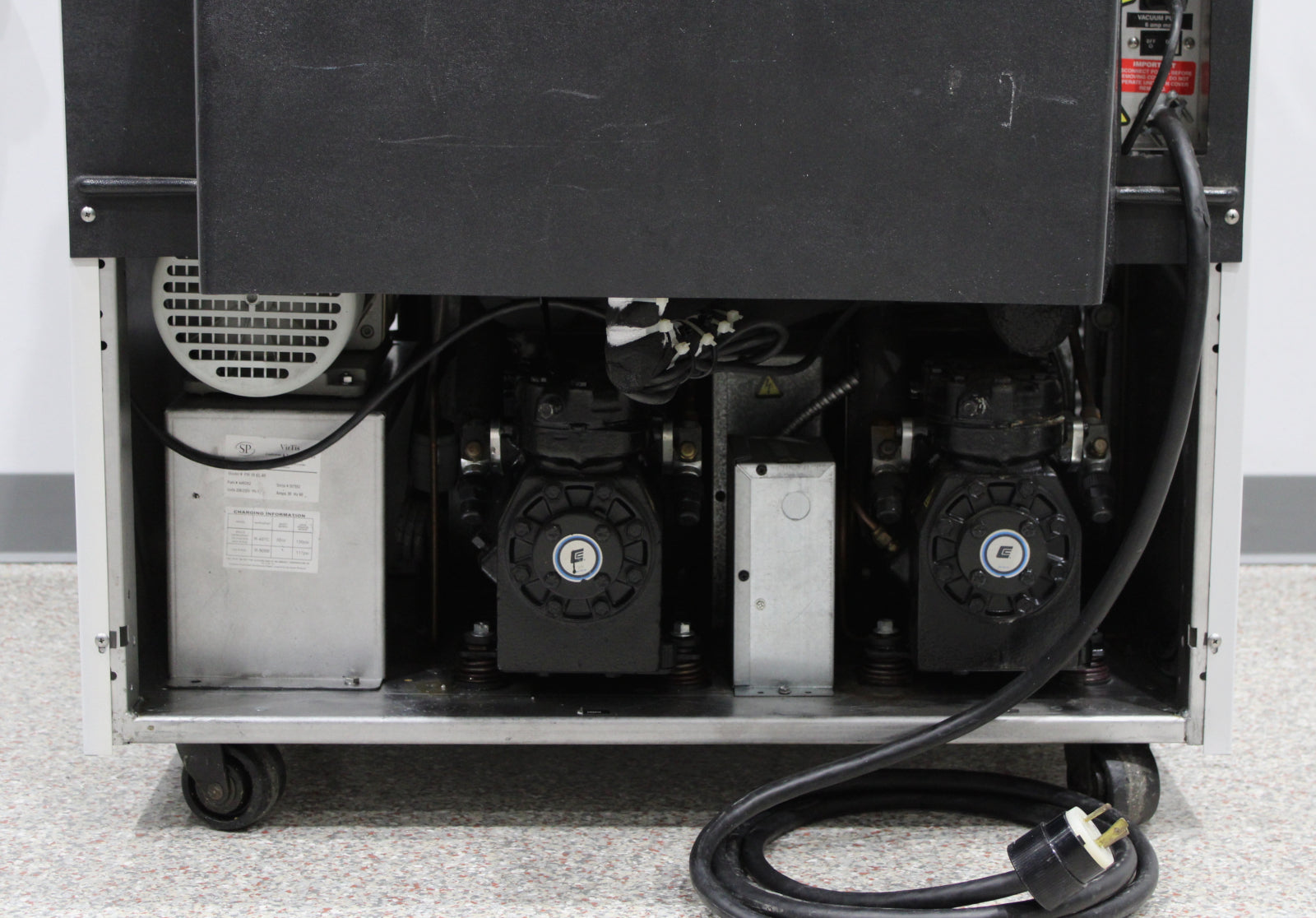

Number of compressors
|
2
|
|
Compressor horsepower
|
1.0, 1.5
|
|
Vacuum time to 100 millitorr
|
≤ 20 minutes
|
|
Lowest system vacuum
|
≤ 15 mT
|
|
Refrigerant
|
CFC-Free
|
|
Construction
|
316L stainless steel condenser chamber
|
|
Power rating
|
208/230V, 60Hz, 30A, 1Ph
|
|
Dimensions (W x D x H)
|
35 x 35 x 37 in
|
|
Dimensions with manifold (W x D x H)
|
35 x 35 x 53 in
|
