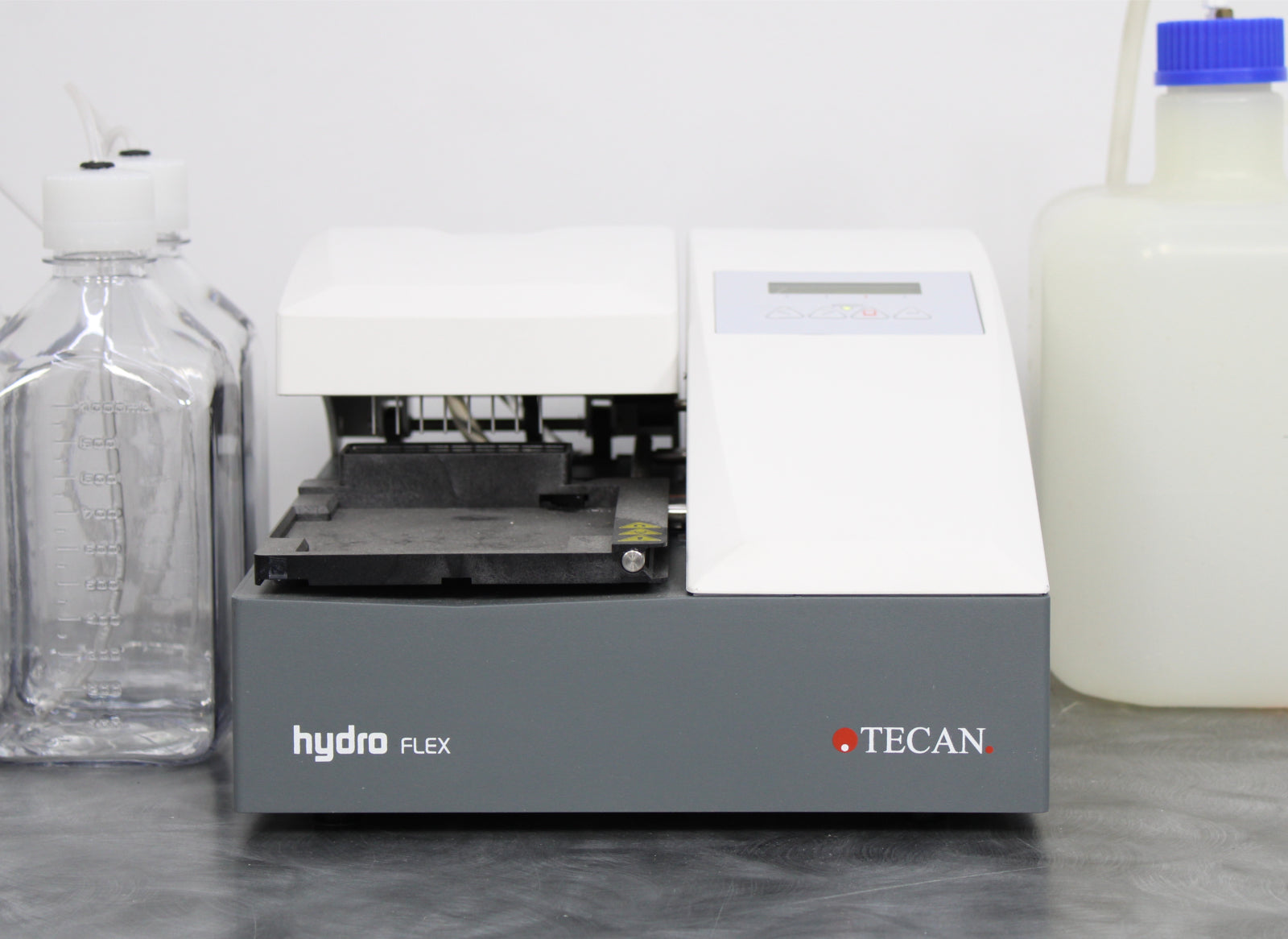

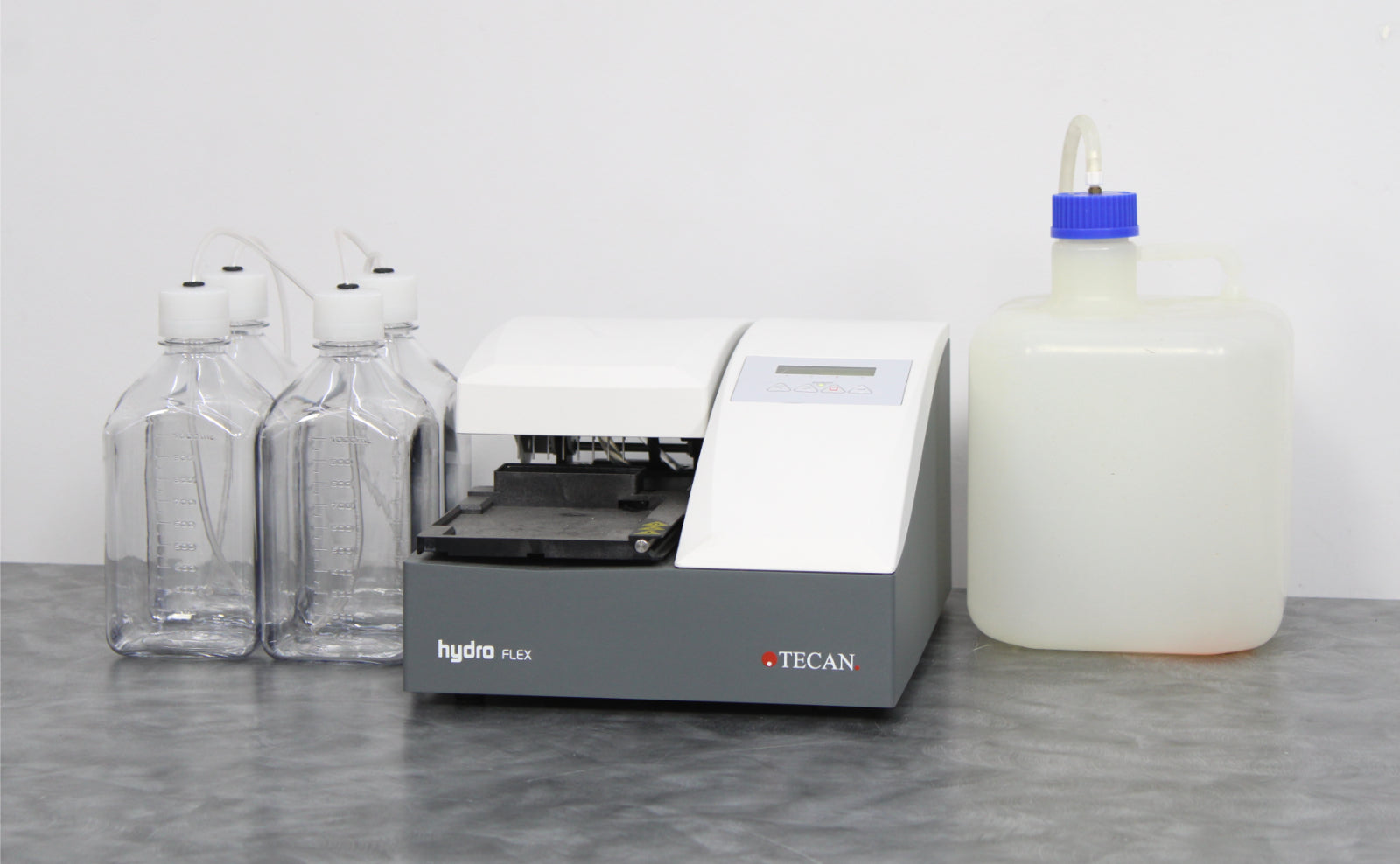

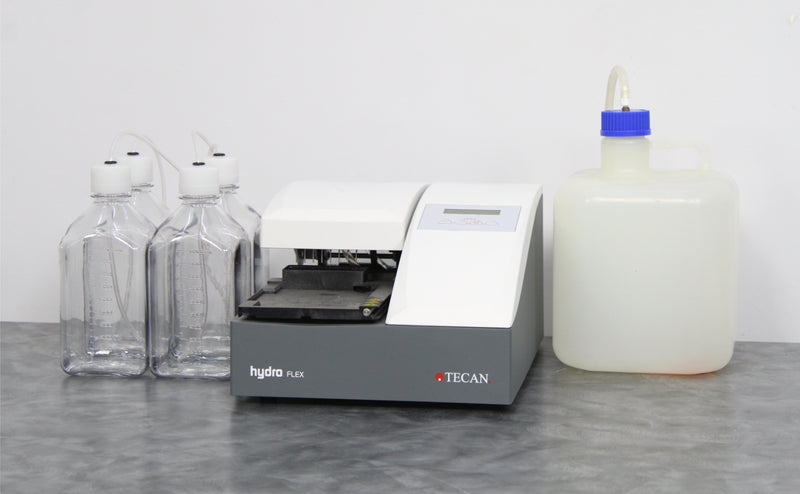

Tecan Hydroflex Microplate Strip Washer 30087531 with Bottles and Software

Manufacturer

Tecan

Model

Hydroflex

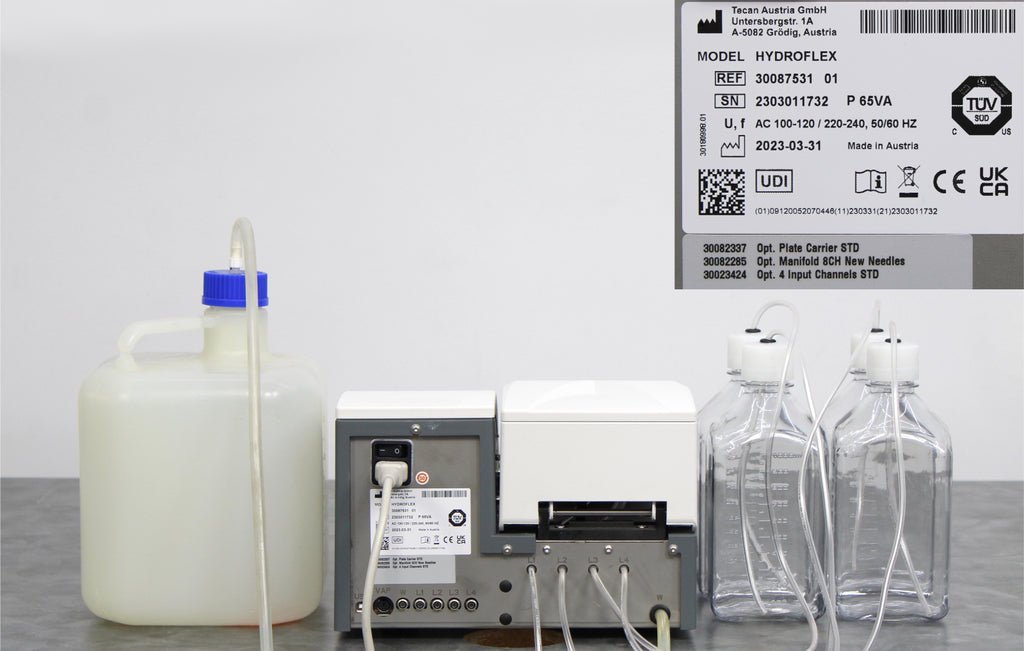

Ref. No.

30087531 01

Serial No.

2303011732

Mfg. date

2023-03-31

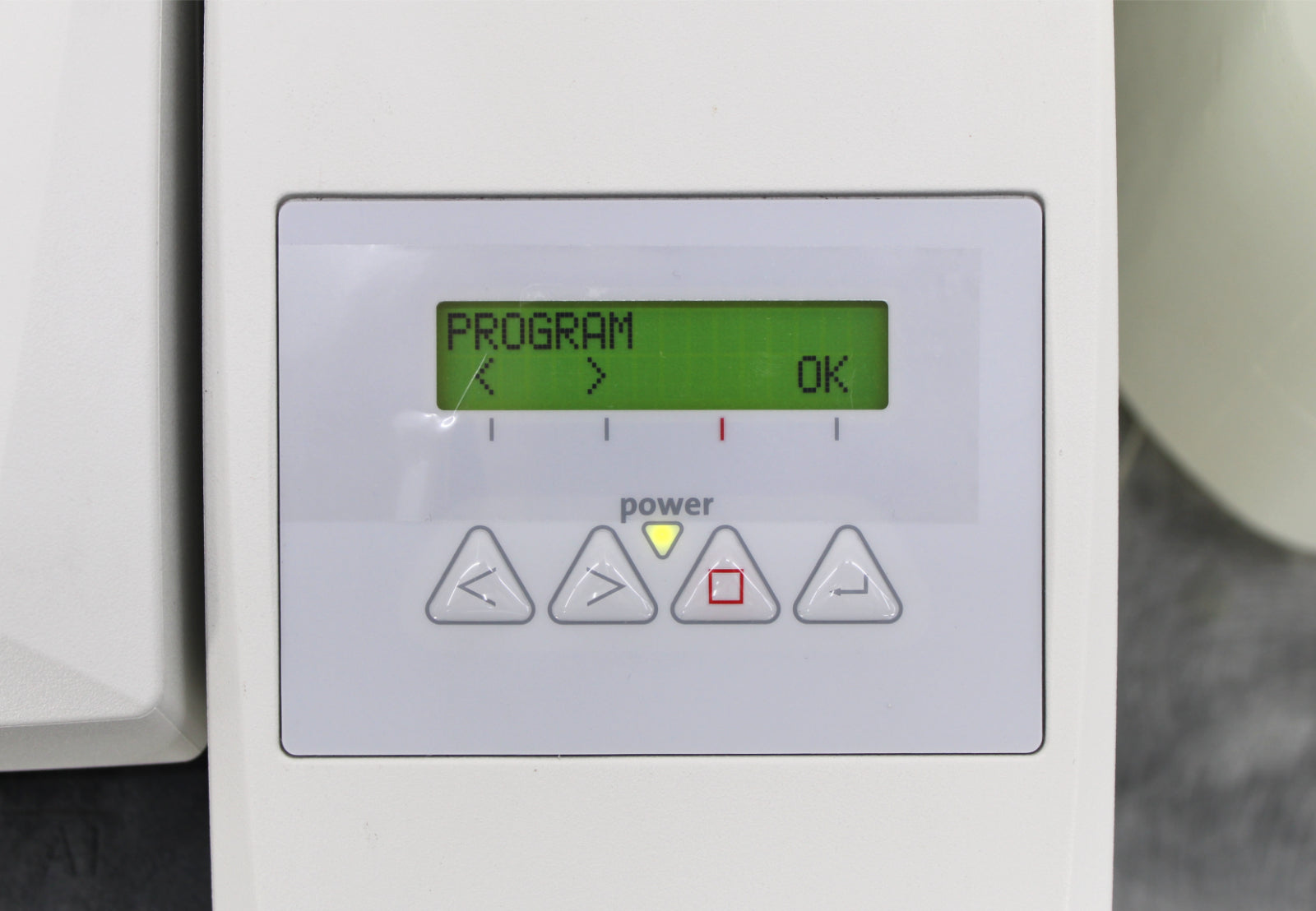

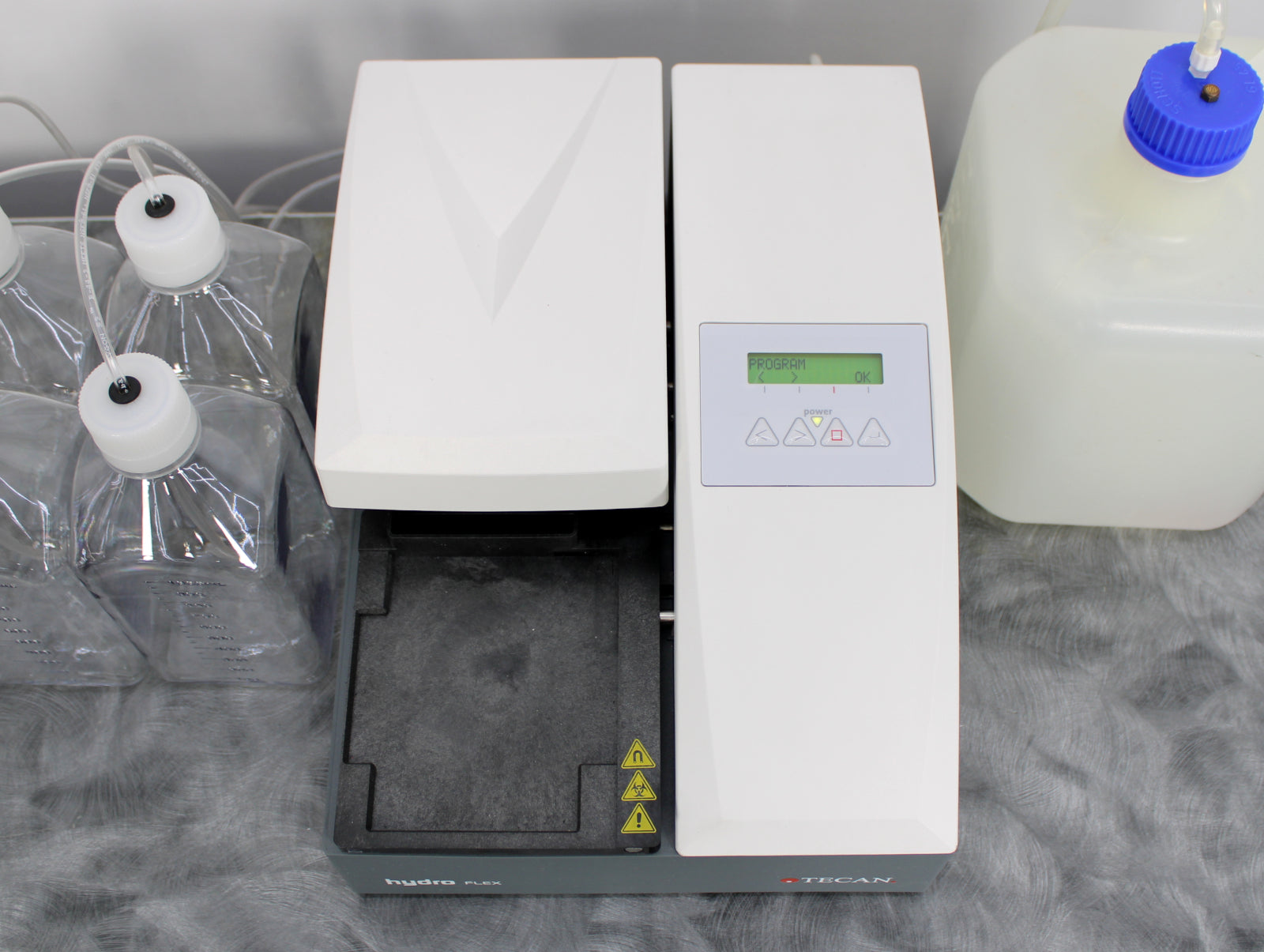

Display unit

LCD with two rows of sixteen digits

Keyboard

Four key membrane keyboard

Number of dispensing channels

1, 2 or 4 channels

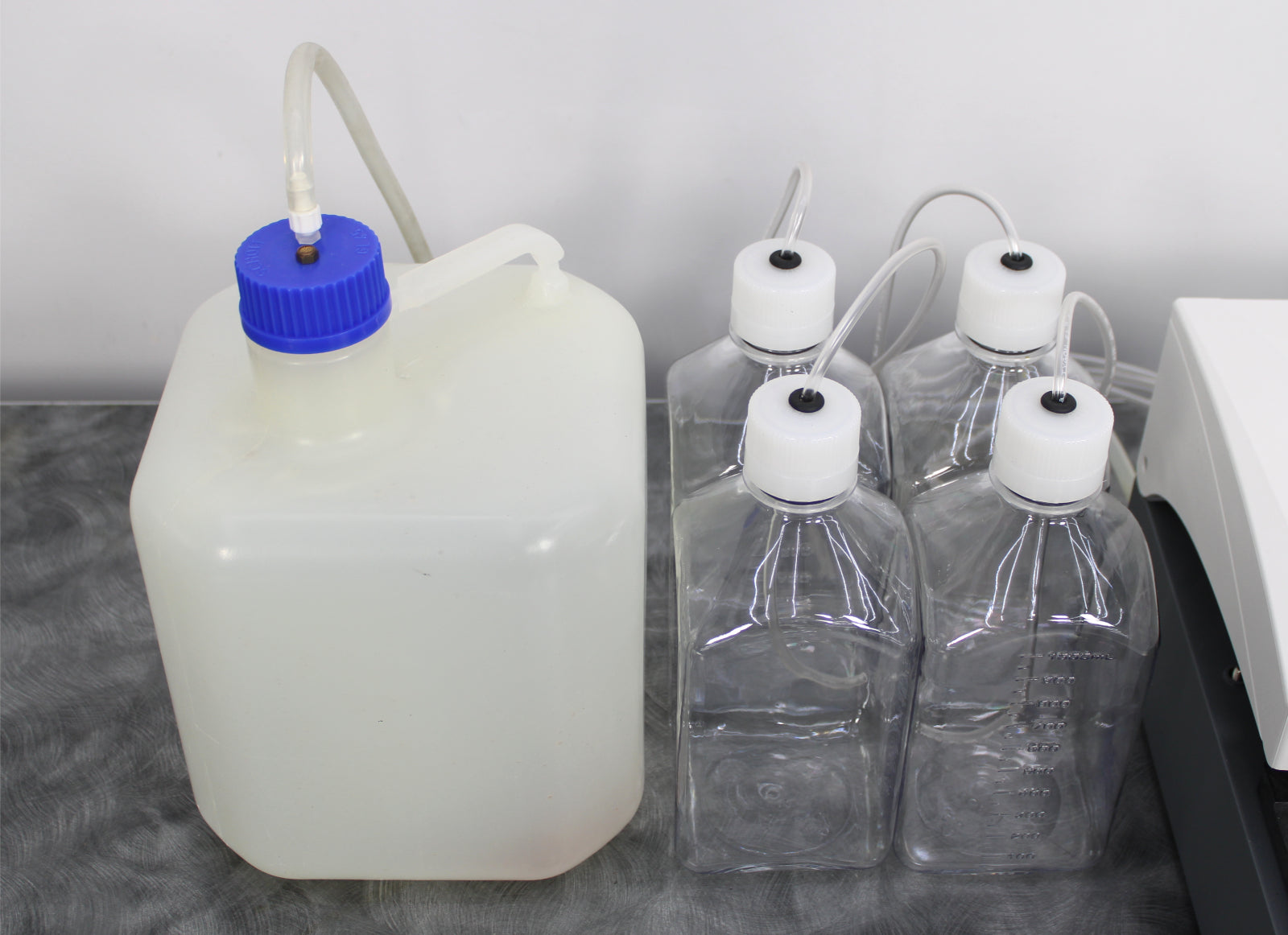

Wash buffer bottle volume: 2, 5l
Waste bottle volume: 5l

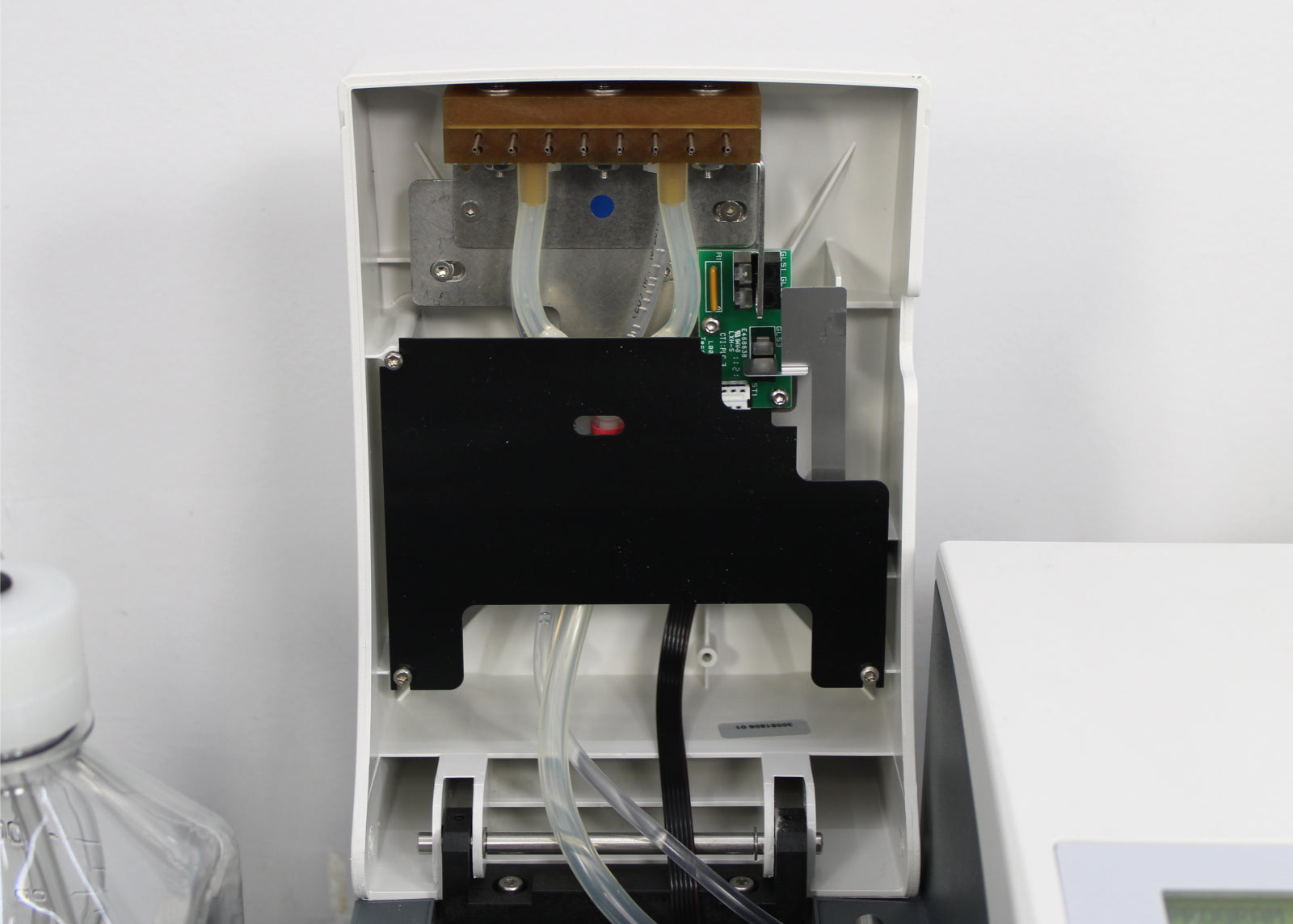

Manifold types

8- or 16-way manifold for parallel processing of 8 or 16 wells

Volume of solution dispensed

50 - 3,000 µl in 50 µl steps (washing)
50 - 400 µl in 50 µl steps (dispensing)

Dispensing accuracy

≤2%
Measured under following conditions: 8-way manifold, 300 µl, dispensing rate 3 (250 µl/s/well), wash buffer, Greiner 96 well flat bottom plate

Dispensing uniformity (CV)

≤4%
Measured under following conditions: 8-way manifold, 300 µl, dispensing rate 3 (250 µl/s/well), wash buffer, Greiner 96 well flat bottom plate

Residual volume

Measured under following conditions:
≤2 μl / well (Greiner 96-well flat bottom plate)
- Crosswise aspiration, 8-way manifold, aspiration rate: 3, aspiration time: 4 s, head speed: 10 mm/s, wash buffer.
- Residual volume of <= 2 μl / well cannot be guaranteed if a 16-way manifold is used and if not, all wells are filled with liquid.

≤5 μl / well (Greiner 96-well round bottom and V-shaped bottom plates)
- Single aspiration, 8-way manifold, aspiration rate: 3, aspiration time: 4 s, head speed: 10 mm/s, wash buffer.
- Residual volume of <= 5 μl / well cannot be guaranteed if a 16-way manifold is used and if not, all wells are filled with liquid.

Carry over between wells

≤1 ppm
The carry over between wells ≤1 ppm cannot be guaranteed if not all wells are filled with liquid.

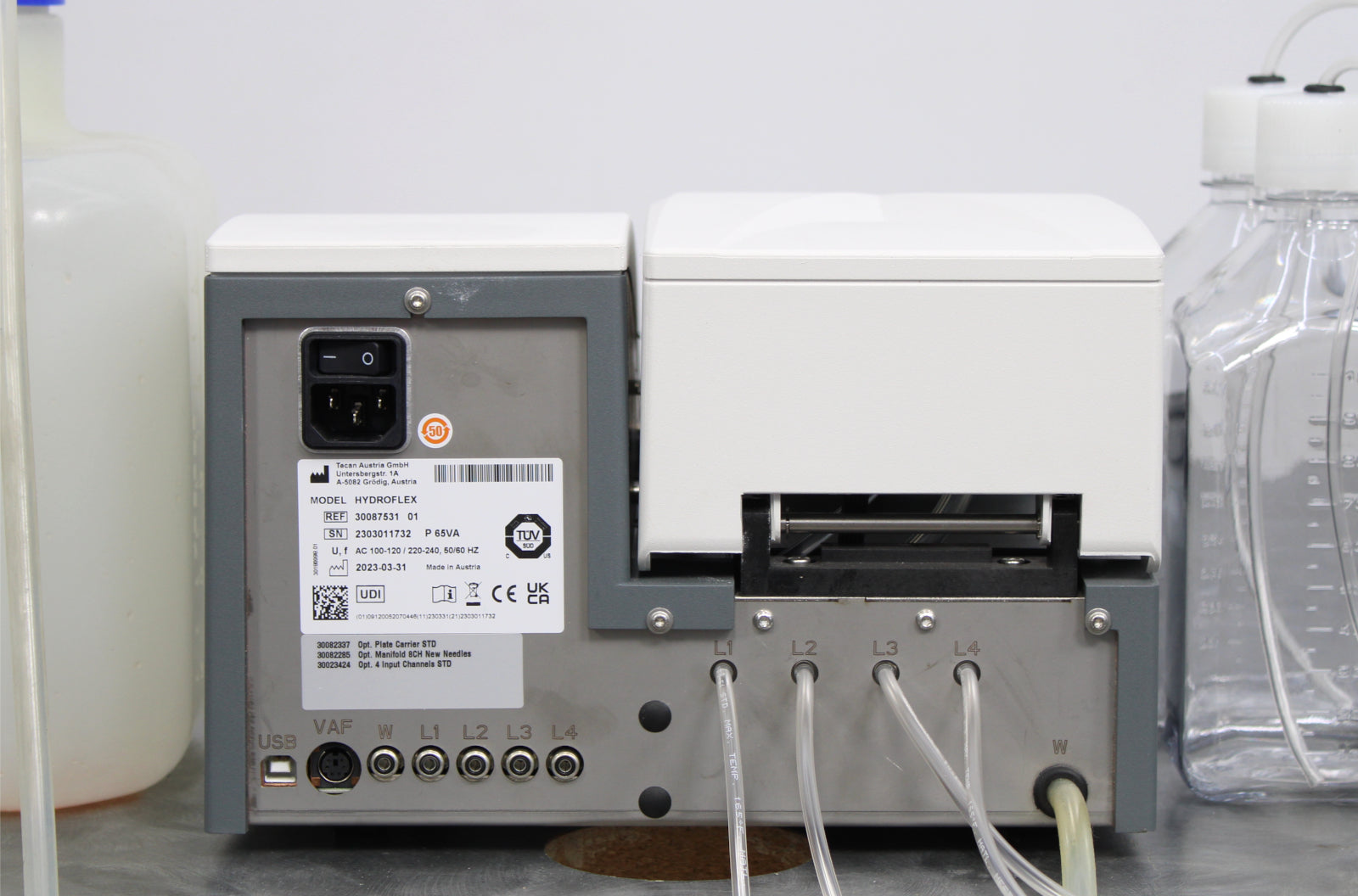

Computer interface

USB

Shaking

Linear shaking; high, medium and low settings

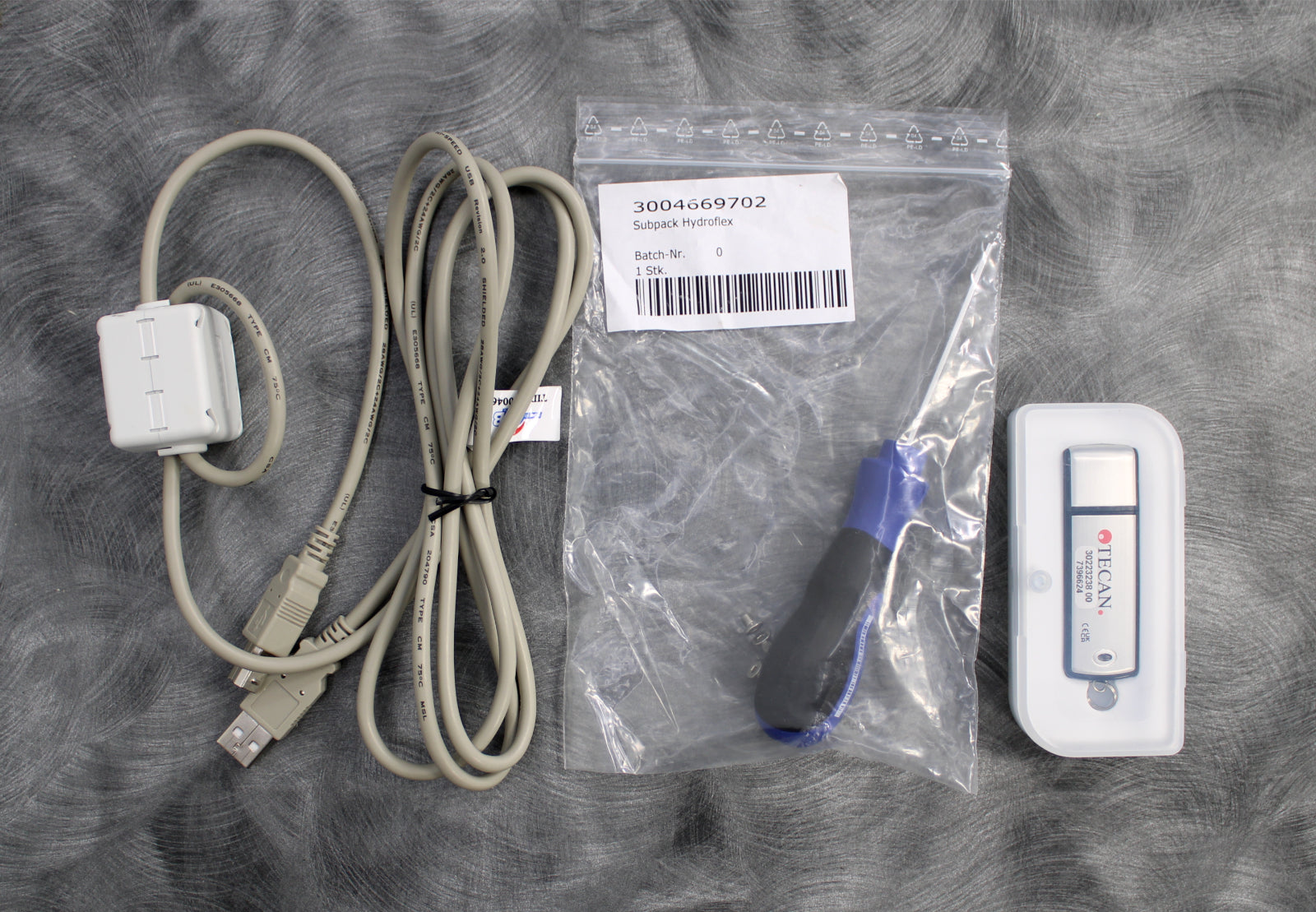

Software

HydroControl (incl. FDA 21 CFR Part 11 functionality)

Power rating

100-120/220-240V, 50/60Hz (auto-sensing)

Power consumption

65VA

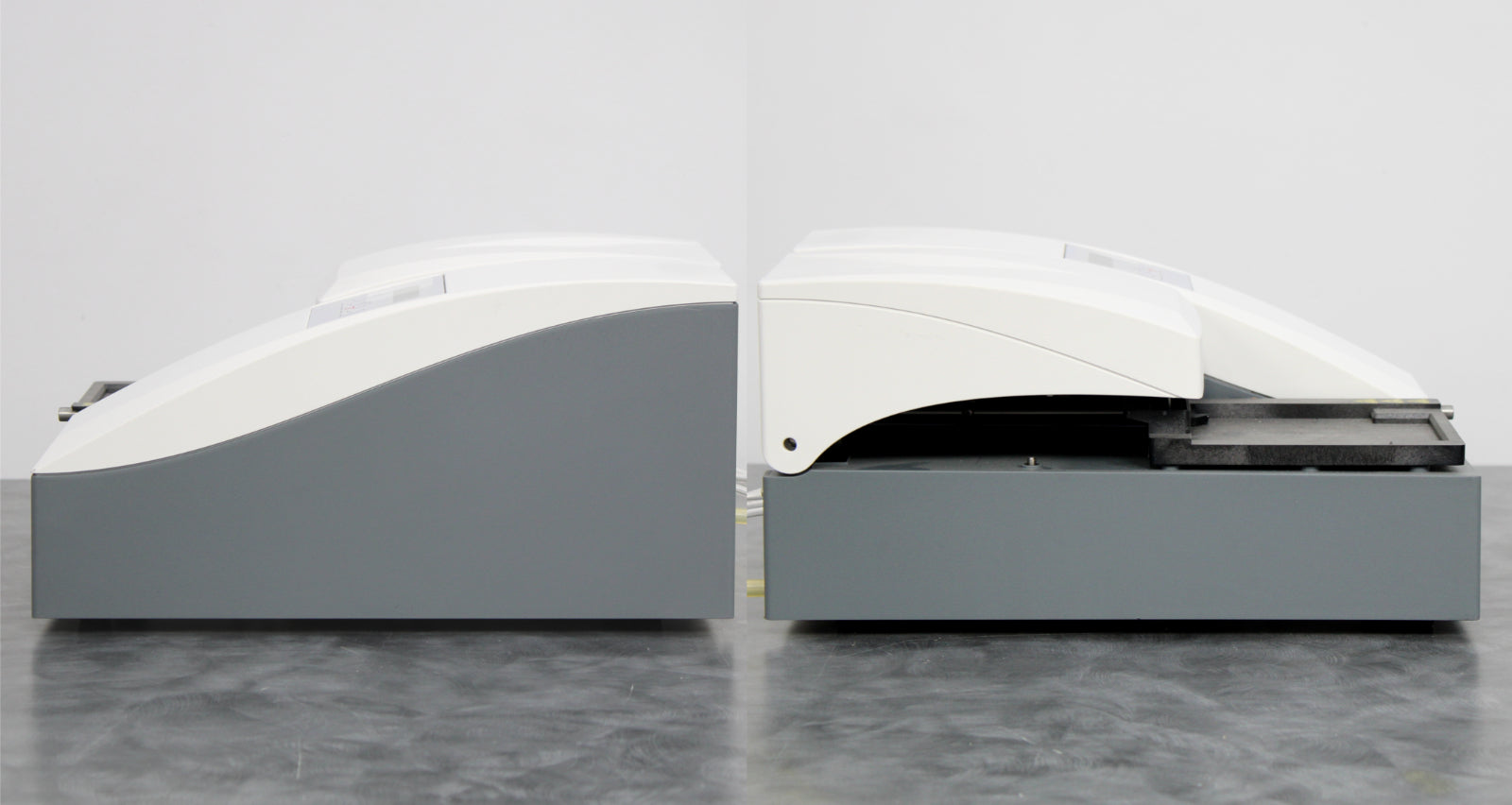

Dimensions (W x D x H)

10.8 x 14.4 x 7.1 in (27.5 x 36.6 x 18 cm)

Weight

14.5 lb (6.6 kg)
