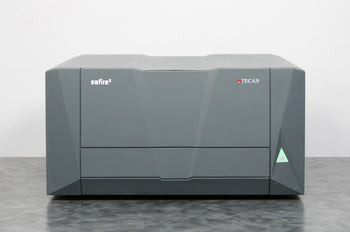

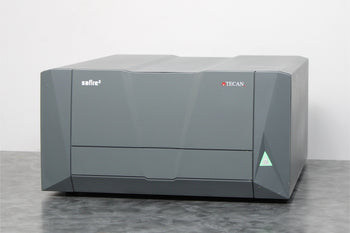

- Tecan Safire 2 Multi-Detection Plate Reader (16129042)
- Power Cable
- 90-Day Warranty
Notice: Software is not included and must be acquired separately.
This microplate reader powers on, but we are unable to do any further testing due to lack of software.

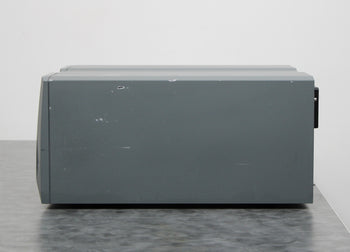

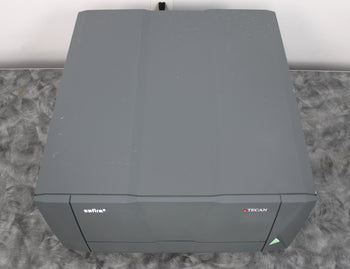

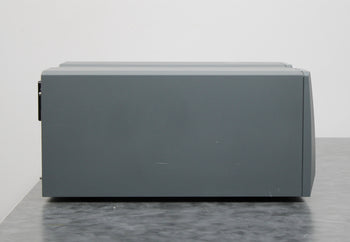

Notice: This reader has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Tecan
|
|
Model
|
Safire II-Basic
|
|
Reference No.
|
16129042
|
|

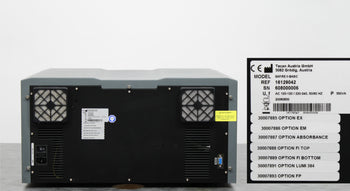

Serial No.
|
608000006
|
|
Mfg. date
|
20060830
|
|
Plate formats
|
6 to 1536 well plates
|
|
Detectors
|
Fluorescence- Extended wavelength, low dark current PMT
Absorbance- UV Silicon photodiode, 4 channel parallel reading
|
|
Temperature control
|
Ambient +4°C to 42°C
|
|
Shaking
|
Linear, orbital, 3 velocities
|
|
Fluorescence wavelength selection
|
Quad-4 Monochromator, 2 ex 2 em
|
|
Fluorescence wavelength range
|
Excitation: 230-850 nm
Emission: 280-850 nm
|
|
Fluorescence bandwidth
|
Adjustable from 2.5 - 10 nm below 280 nm, 5 - 20 nm else
|
|
Fluorescence wavelength accuracy
|
±1 nm
|
|
Fluorescence wavelength precision
|
±1 nm
|
|
Sensitivity (top reading) 384 well plate
|
0.2 fmol / well Fluorescein
|
|
Sensitivity (bottom reading) 384 well plate
|
0.6 fmol / well Fluorescein
|
|
TRF sensitivity 384 well plate
|
60 amol/ well Europium
|
|
TRF precision 384 well plate
|
3 mP standard deviation @ 1nm Fluorescein
|
|
Absorbance wavelength selection
|
Double monochromator
|
|
Absorbance wavelength range
|
230 - 1000 nm
|
|
Absorbance bandwidth
|
2.5 nm below 280 nm, 5 nm else
|
|
Absorbance wavelength accuracy
|
±1 nm
|
|
Absorbance wavelength precision
|
±1 nm
|
|
Measurement range
|
0 - 4 OD
|
|
Accuracy @ 492 nm
|
0 - 2 OD: ±1% and 0.006 OD
|
|
Precision @ 492 nm
|
0 - 2 OD: ±0.5% and 0.005 OD
|
|
Interface connection
|
RS232 serial
|
|
Software driven
|
Yes
|
|
Power rating
|
100-120/220-240V, 50/60Hz
|
|
Power consumption
|
350VA
|
|
Dimensions (W x D x H)
|
21 x 23 x 11 in
|
|
Weight
|
90 lb (40.8 kg)
|
