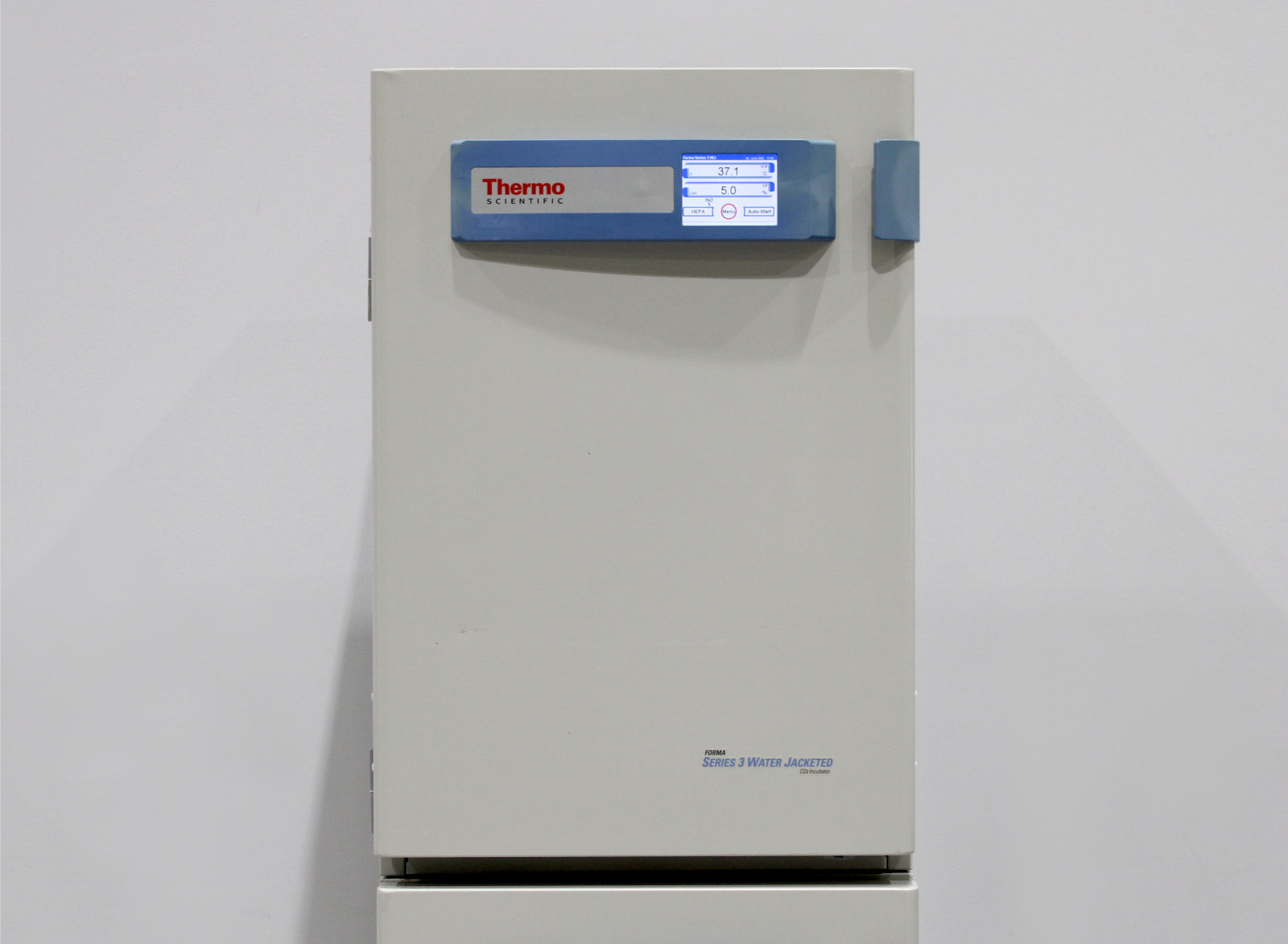

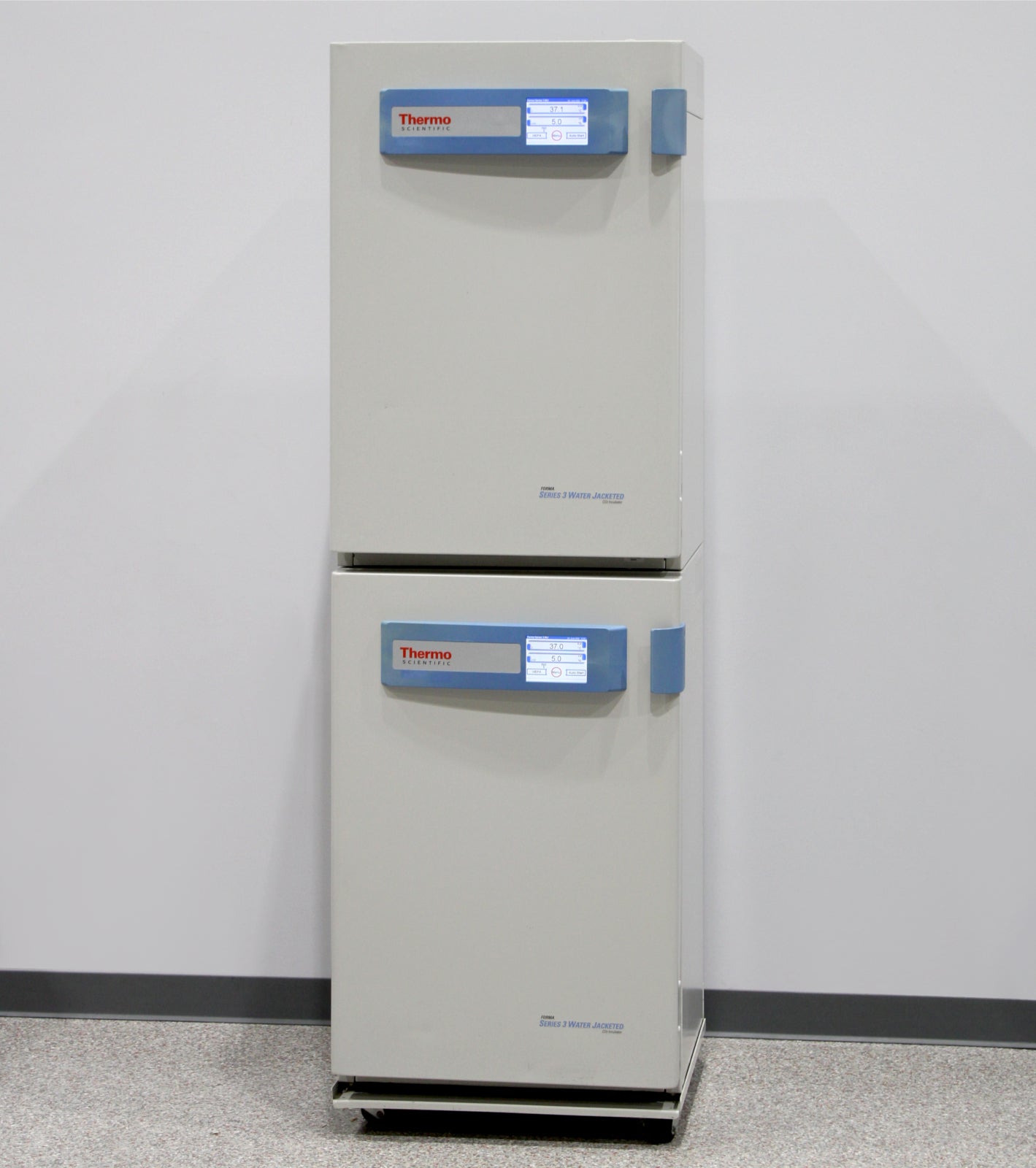

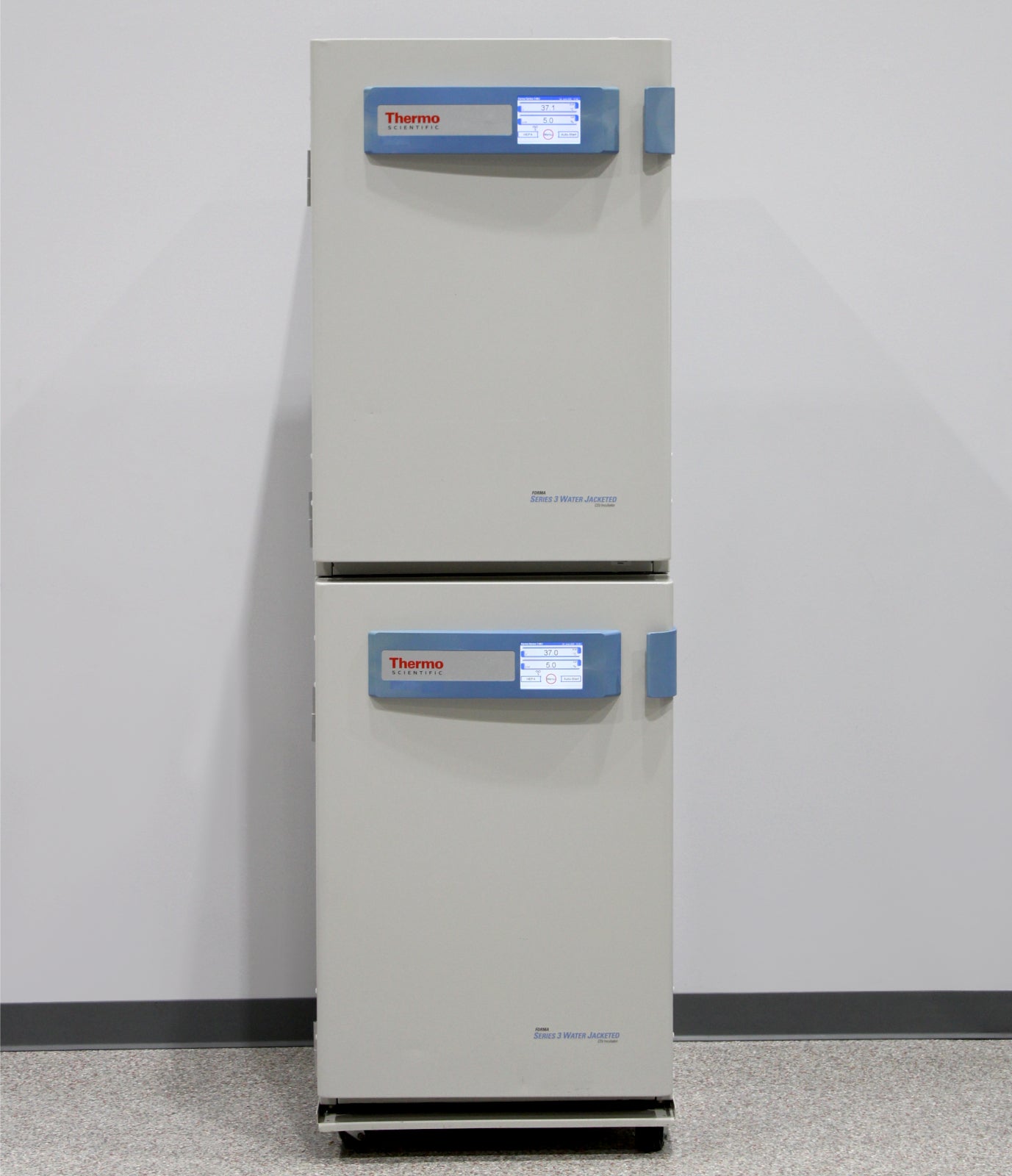

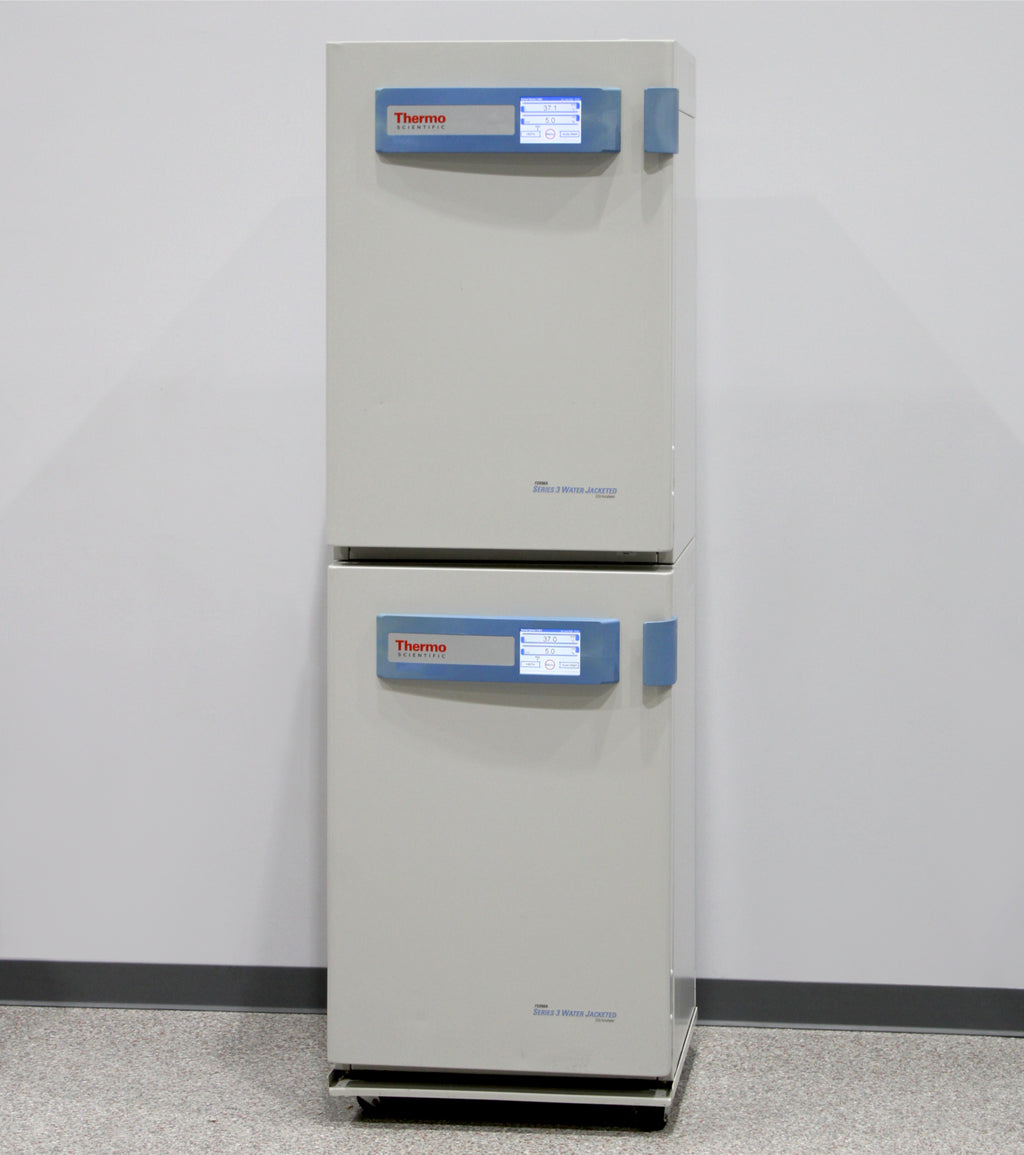

- x2 Thermo Scientific Forma 4110 Series 3 Water Jacketed CO2 Incubators

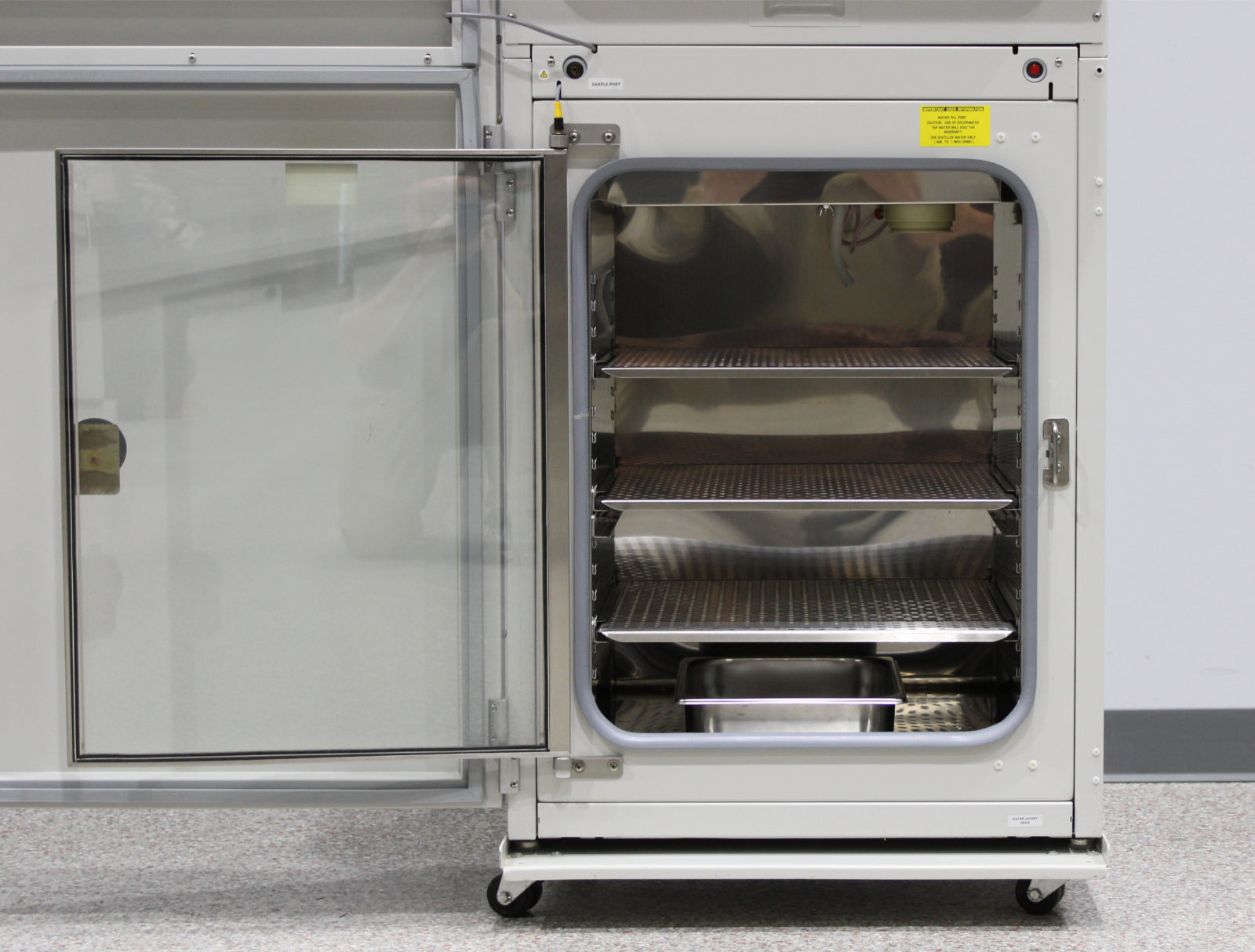

- x6 Adjustable Stainless Steel Shelves
- x2 Humidity Pans
- x2 Filters (New and still sealed)
- Stacking Kit
- Cart
- x2 Power Cables
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Thermo Scientific Forma 4110 Series 3 water jacketed stacked CO2 incubators with the following results:

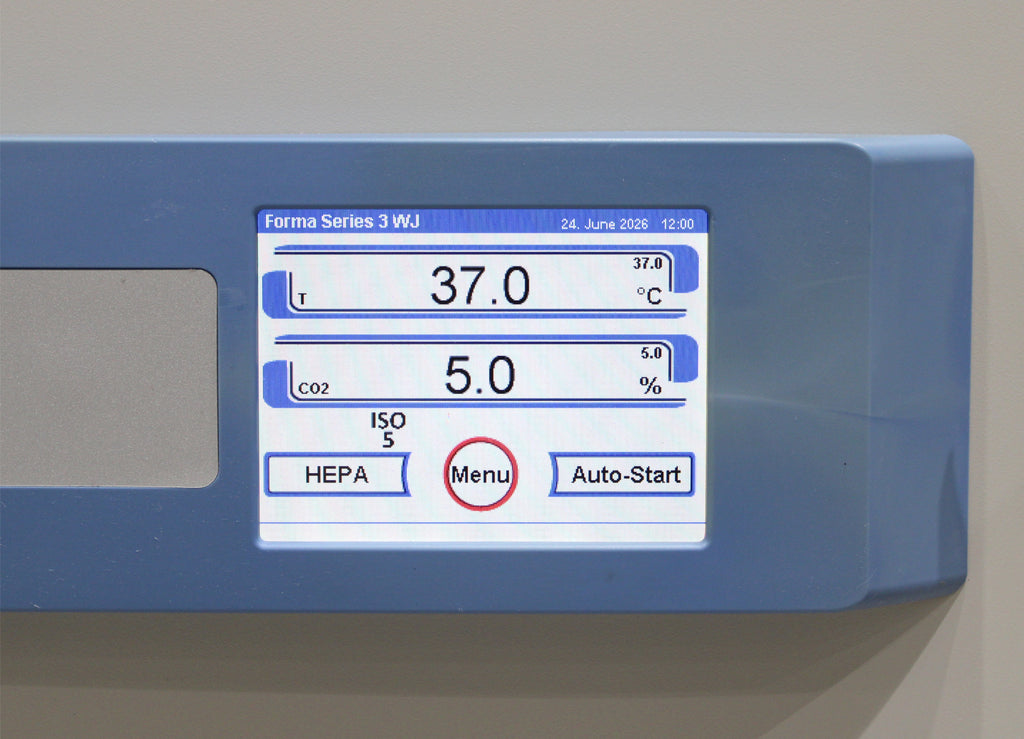

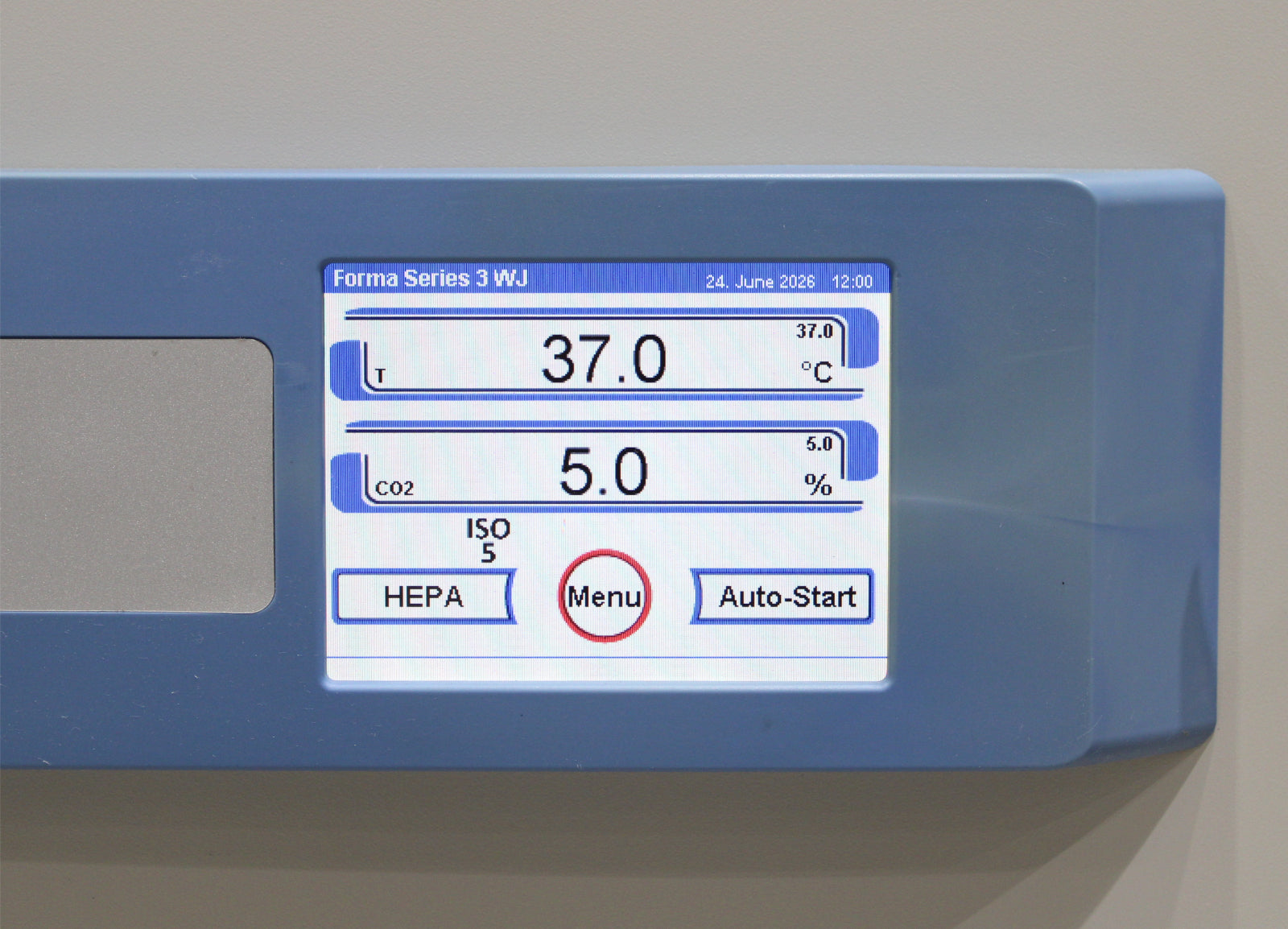

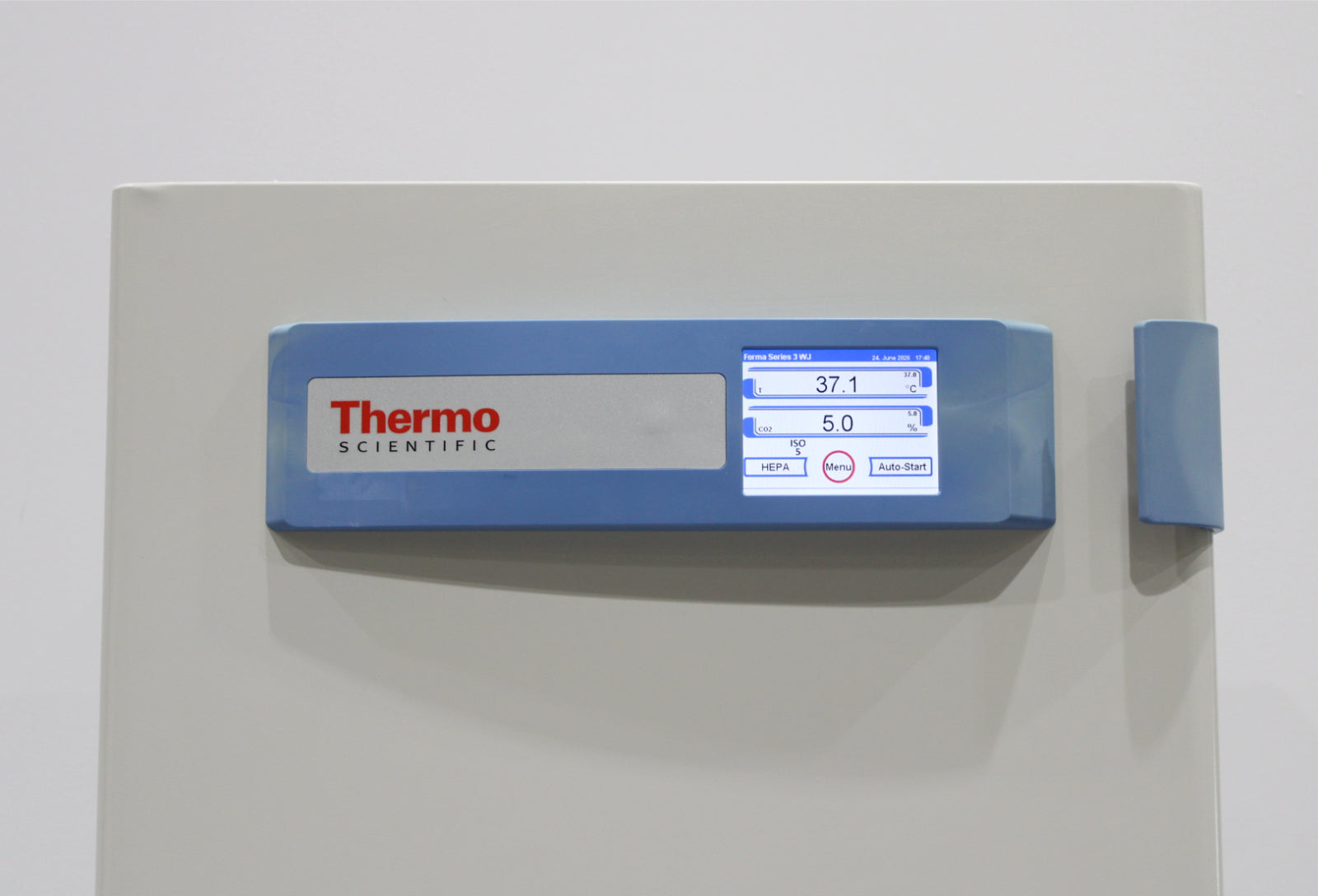

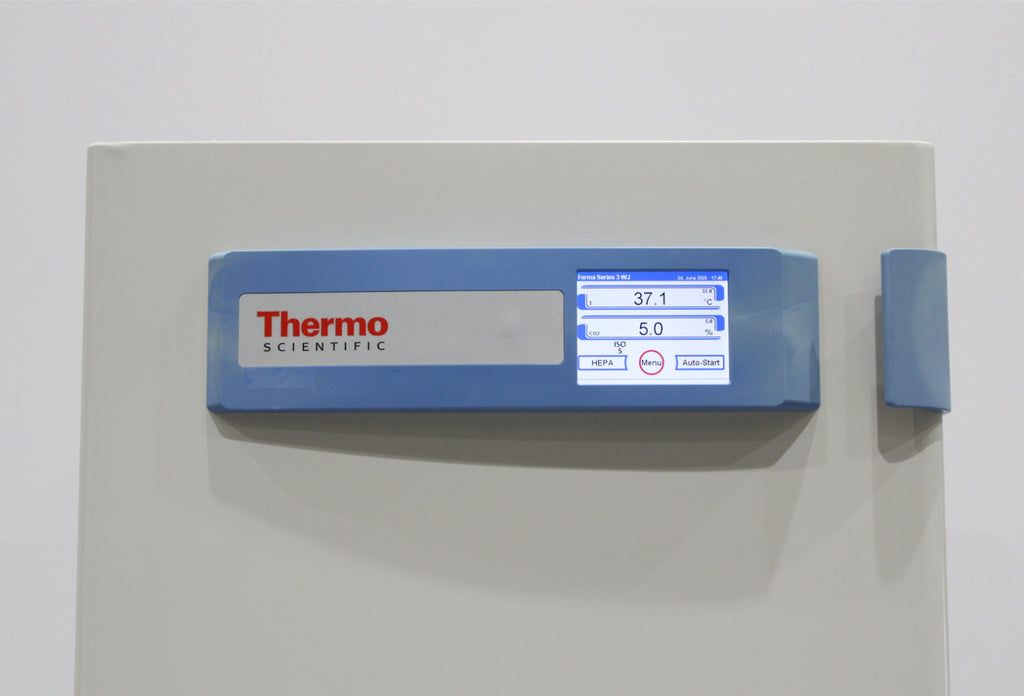

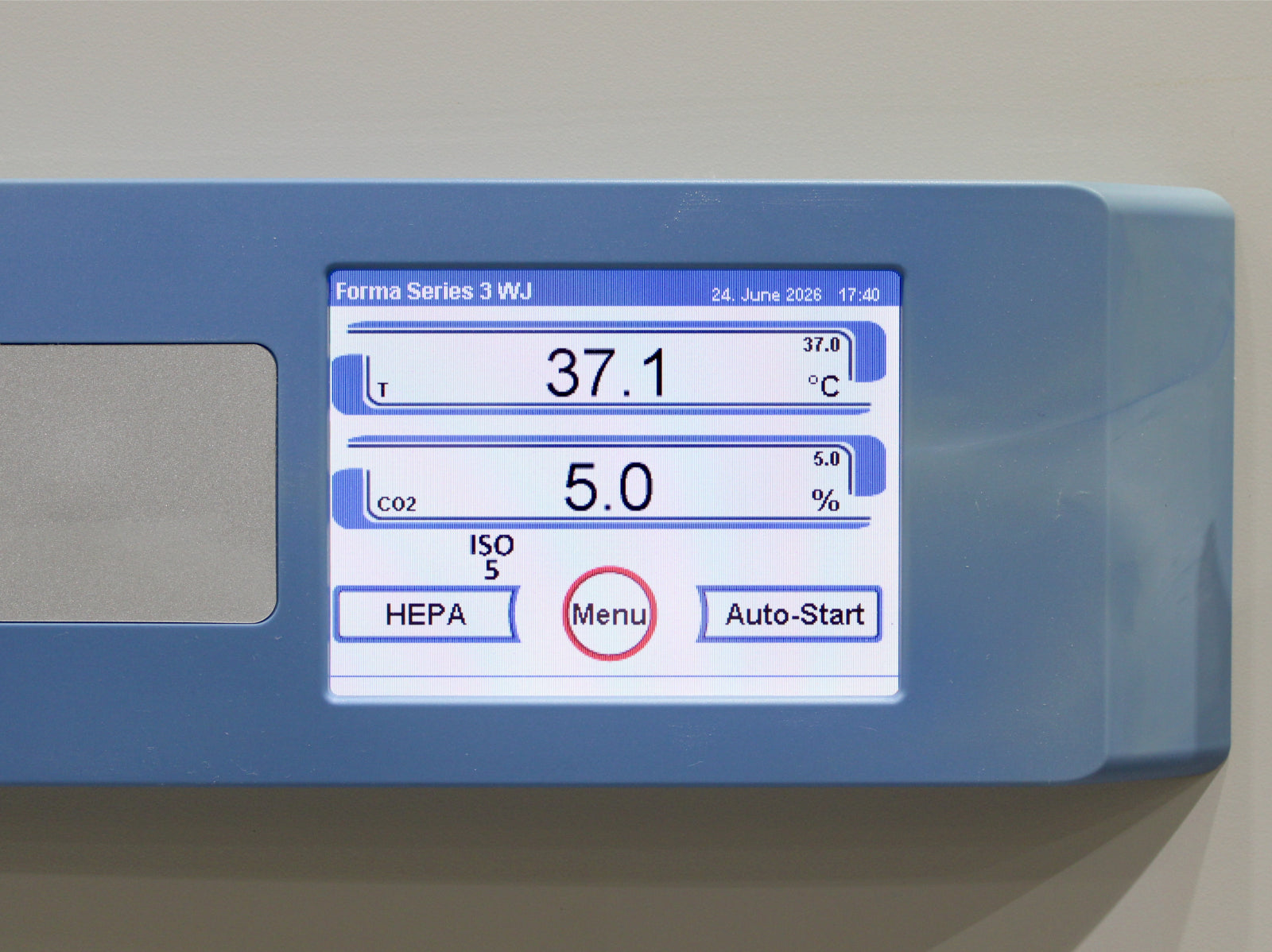

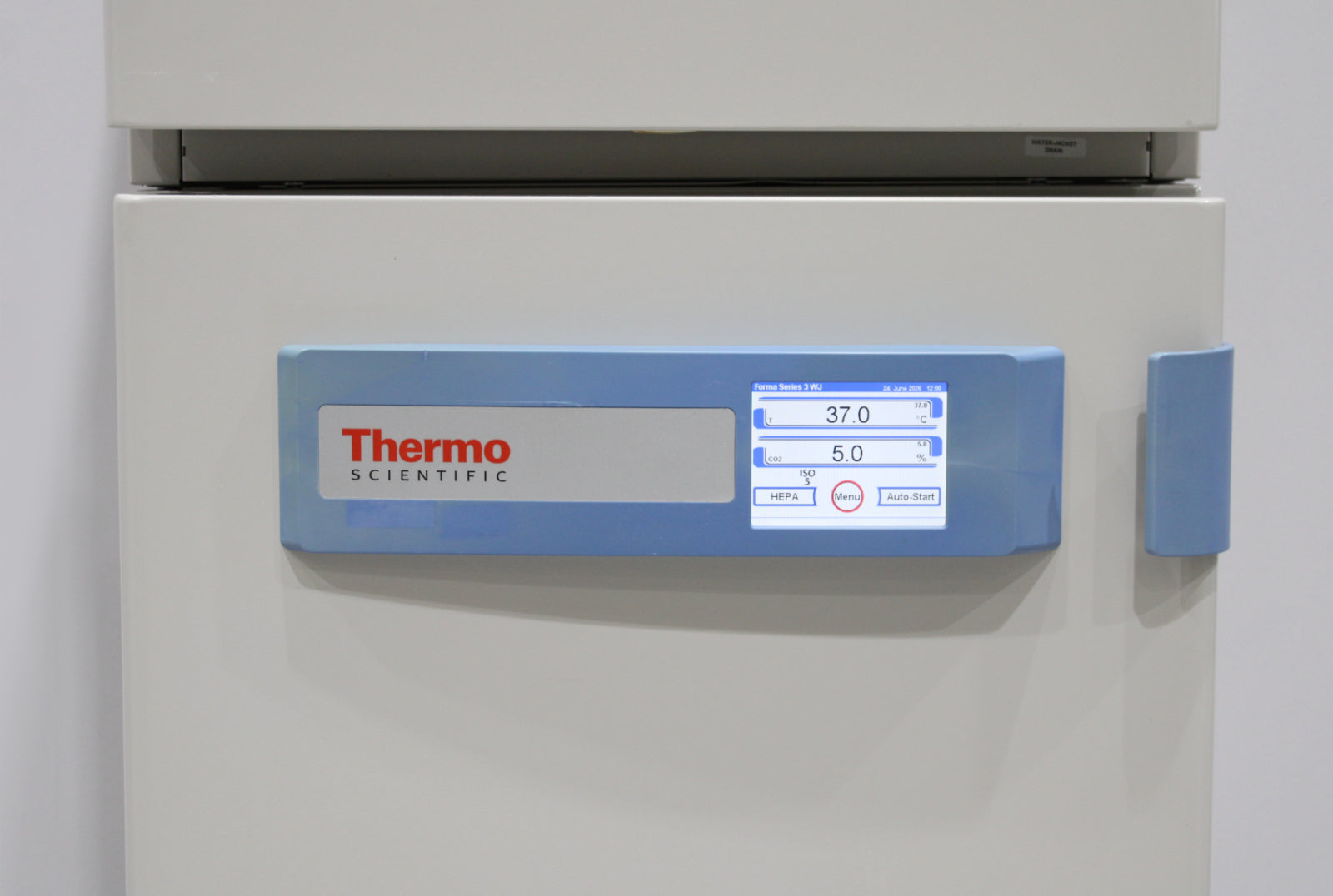

- Temperature holds steady at 37°C setpoint: PASSED
- Temperature reading calibration: PASSED
- CO2 concentration holds steady at 5% setpoint: PASSED
- CO2 concentration reading calibration: PASSED
Notice: These incubators have some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Thermo Fisher Scientific
|
|
Type
|
CO2 incubator
|
|
Model No.
|
4110
|
|

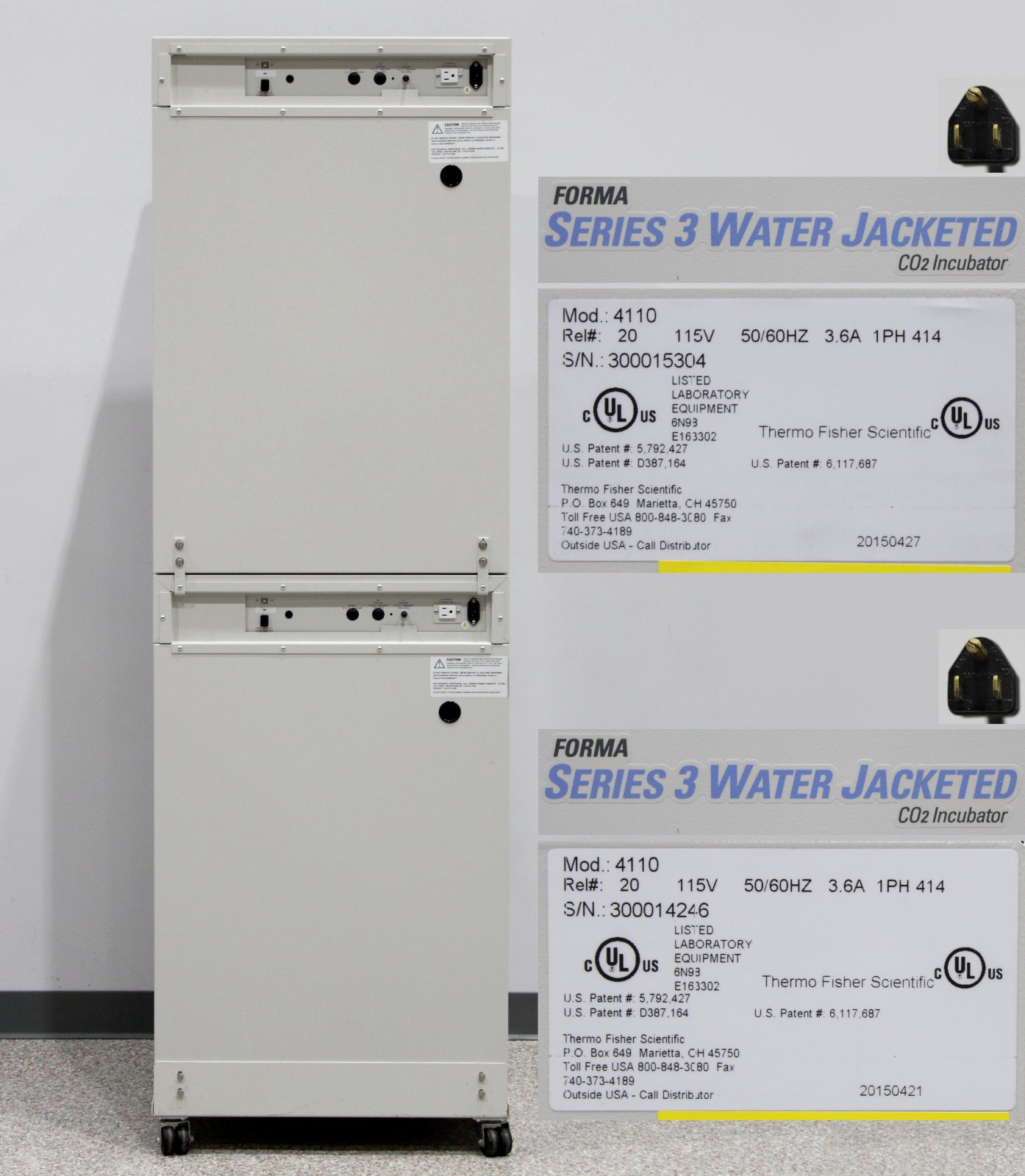

Serial No. (Mfg. date)
|
300015304 (20150427)
300014246 (20150421)
|
|
Temperature control
|
±0.1°C
|
|
Temperature range
|
5°C above ambient to 50°C (131°F)
|
|
Temperature uniformity
|
±0.2°C @ 37°C (98.6°F)
|
|
Tracking alarm
|
±1°C
|
|
Temperature sensor
|
Precision thermistor
|
|
Temperature controller
|
Independent analog electronic
|
|
CO2 control
|
Better than ±0.1%
|
|
CO2 range
|
0 to 20%
|
|
Inlet pressure
|
15 PSIG (1.0 bar)
|
|
CO2 sensor
|
TC sensor
|
|
O2 control
|
None
|
|
Relative humidity
|
Ambient to 95% @ 37°C (98.6°F)
|
|
Humidity pan
|
3.2 qt. (3.0 liters) standard
|
|
Fill port
|
3/8” (0.95 cm) hose (barbed)
|
|
Drain port
|
1/4” (0.64 cm) hose (barbed)
|
|

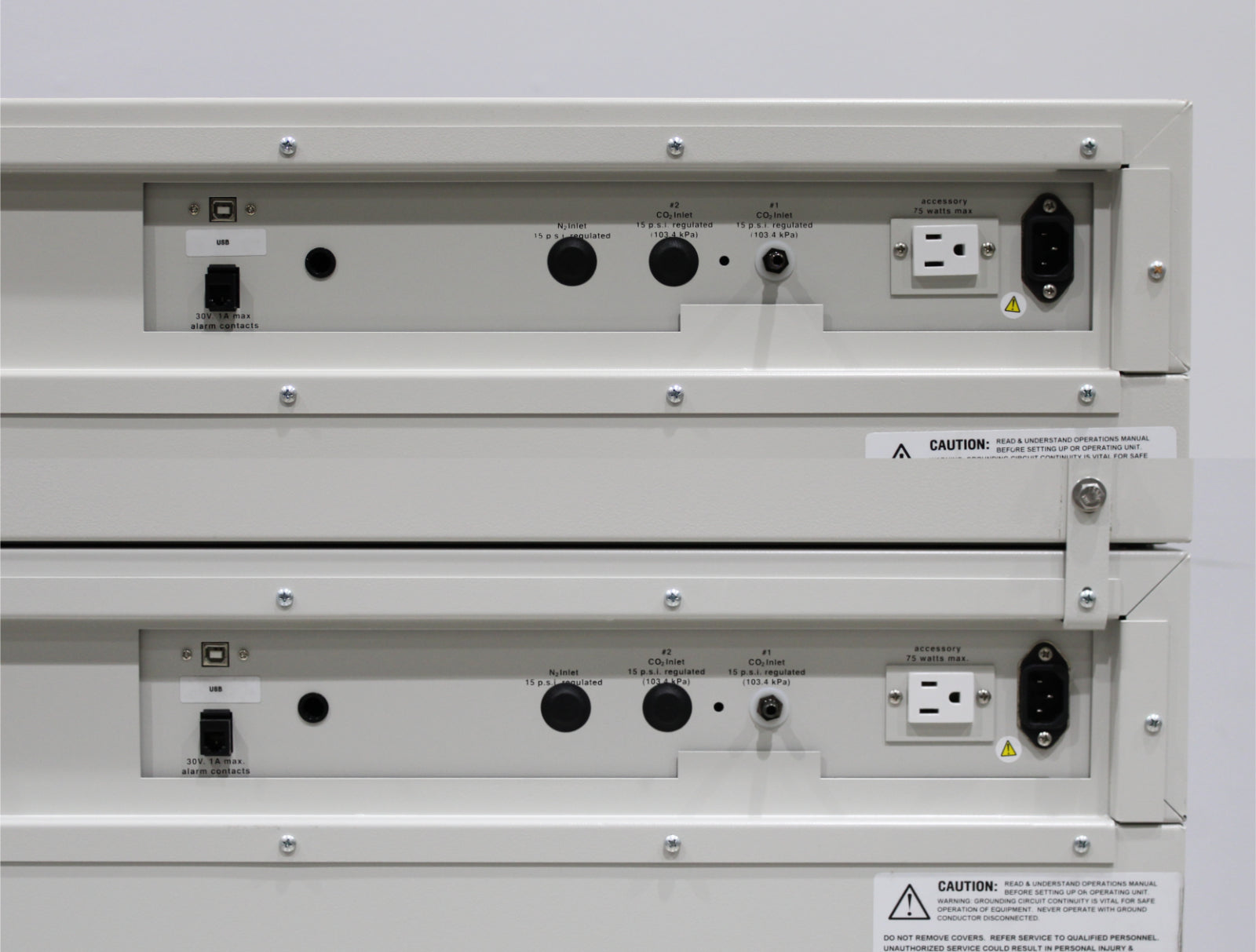

Access port
|
1.3” (3.3 cm) with removable silicone plug with filter
|
|
CO2 inlet
|
1/4” (0.64 cm) hose (barbed)
|
|

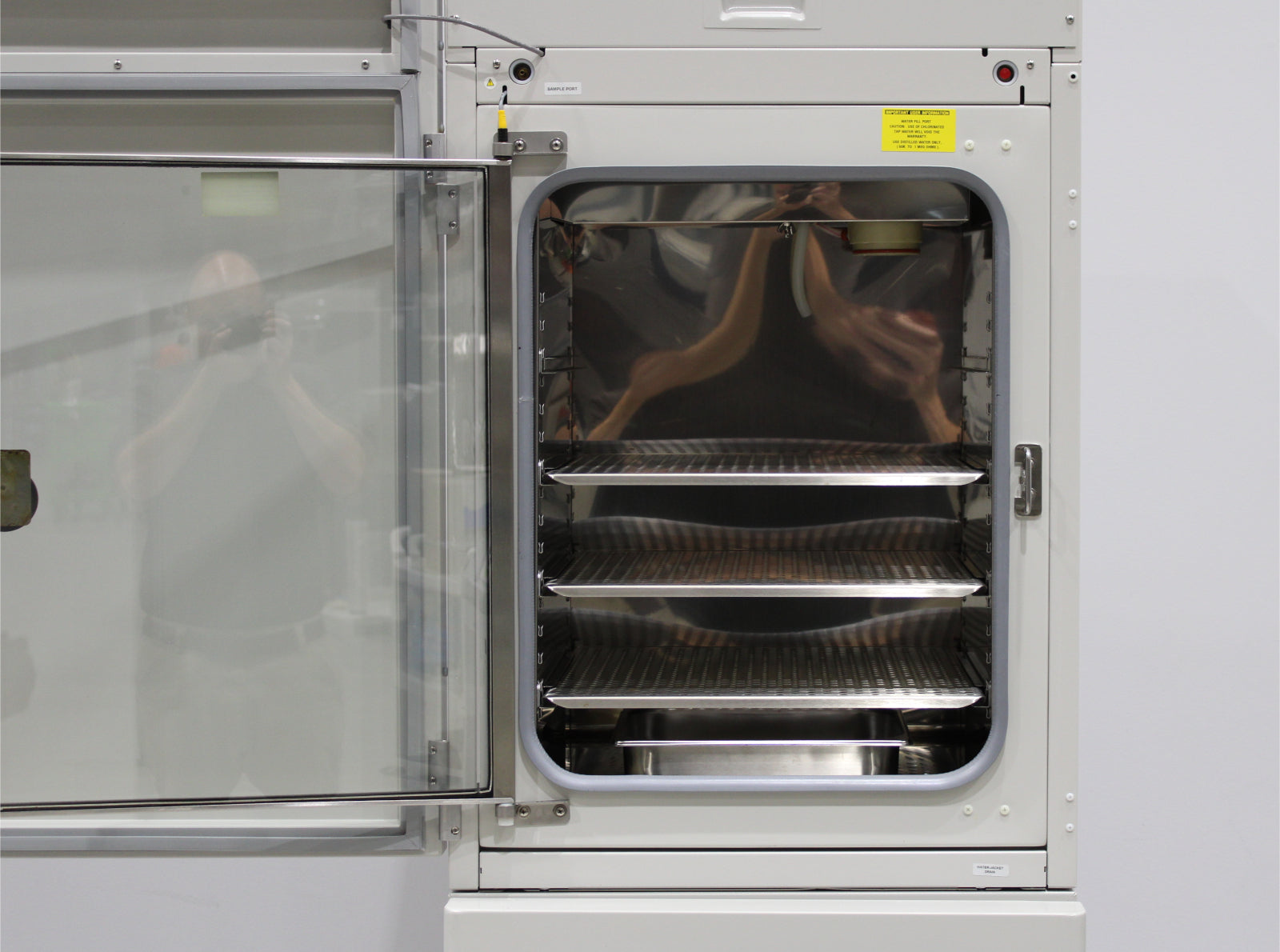

Shelves dimensions
|
18.5 x 18.5 in (47 x 47 cm)
|
|
Shelves construction
|
Stainless steel, perforated
|
|
Shelves surface area
|
2.4 sq. ft. (0.2 sq. m)
|
|
Shelves maximum area per chamber
|
40.8 sq. ft. (3.8 sq. m)
|
|
Number of shelves (standard, maximum)
|
3, 16
|
|
Maximum shelf load/shelf
|
Shelf load limit 35 lbs. (16kg) slide in and out 50 lbs. (23kg) stationary
|
|
Water jacket volume
|
11.7 gal. (43.5 liters)
|
|
Interior volume
|
6.5 cu. Ft. (184.1 liters)
|
|
Interior material
|
Type 304, mirror finish, stainless steel
|
|
Exterior material
|
18 gauge, cold-rolled steel, powder coated
|
|
Outer door gasket
|
Four-sided, molded, magnetic vinyl
|
|
Inner door gasket
|
Removable, cleanable, feather-edged, silicone
|
|
Alarm contacts
|
Power interruption; deviation of temp, CO2, O2, RH; customer connections through jack on back of unit
|
|
Data outputs (opt.)
|
USB (standard)
|
|
Power rating
|
115V, 50/60Hz, 3.6A, 1Ph
|
|
Power consumption
|
414W
|
|
Interior dimensions (W x D x H)
|
21.3 x 20 x 26.8 in
|
|
Exterior dimensions single (W x D x H)
|
26 x 25 x 39.5 in
|
|

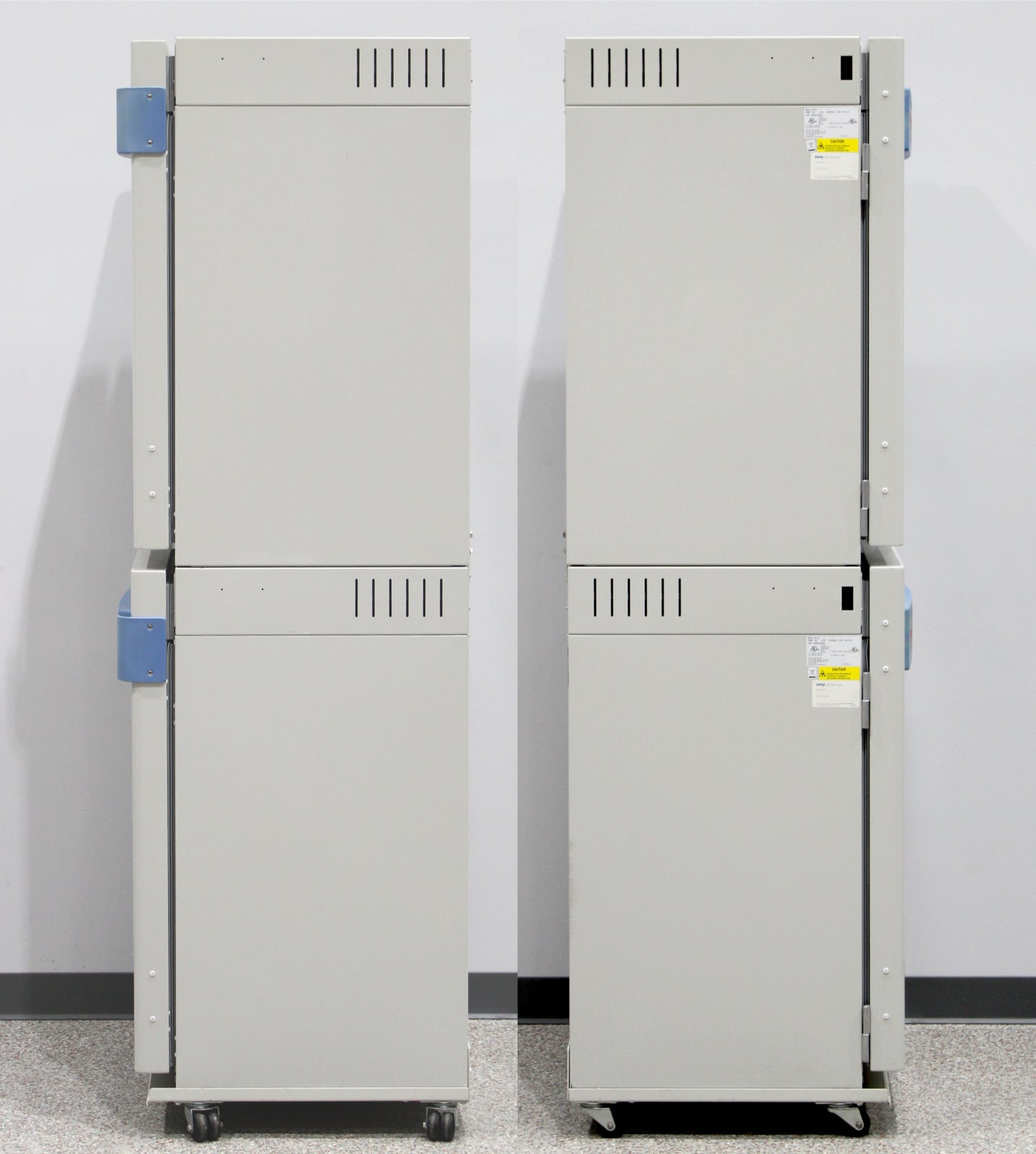

Exterior dimensions double (W x D x H)
|
26 x 25 x 81.5 in
|
|
Net weight single
|
265 lb (120.2 kg)
|
|
Net operational weight single
|
365 lb (165.6 kg)
|
|
Net weight double
|
~575 lb (261 kg)
|
|
Net operational weight double
|
~775 lb (352 kg)
|
