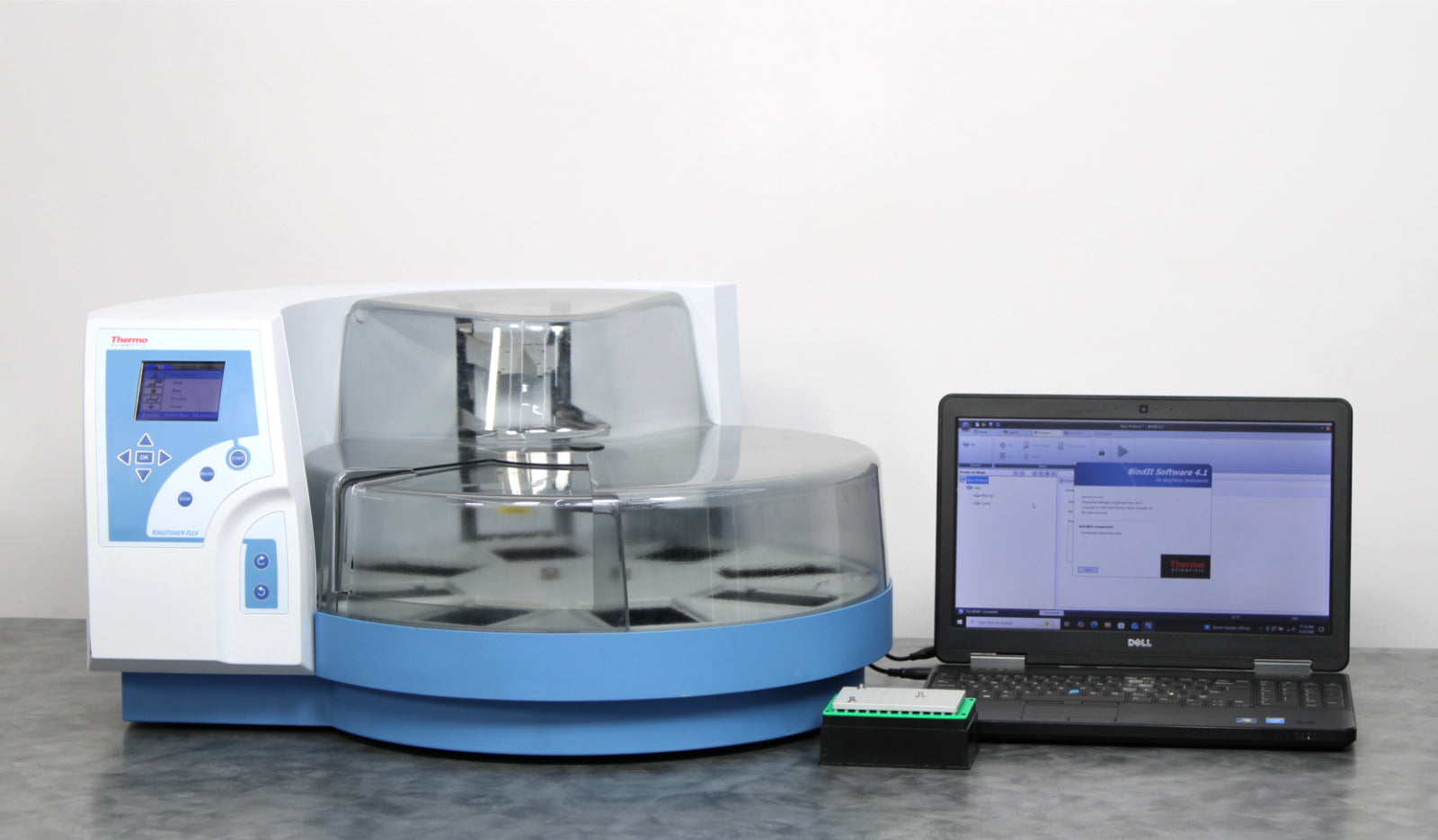

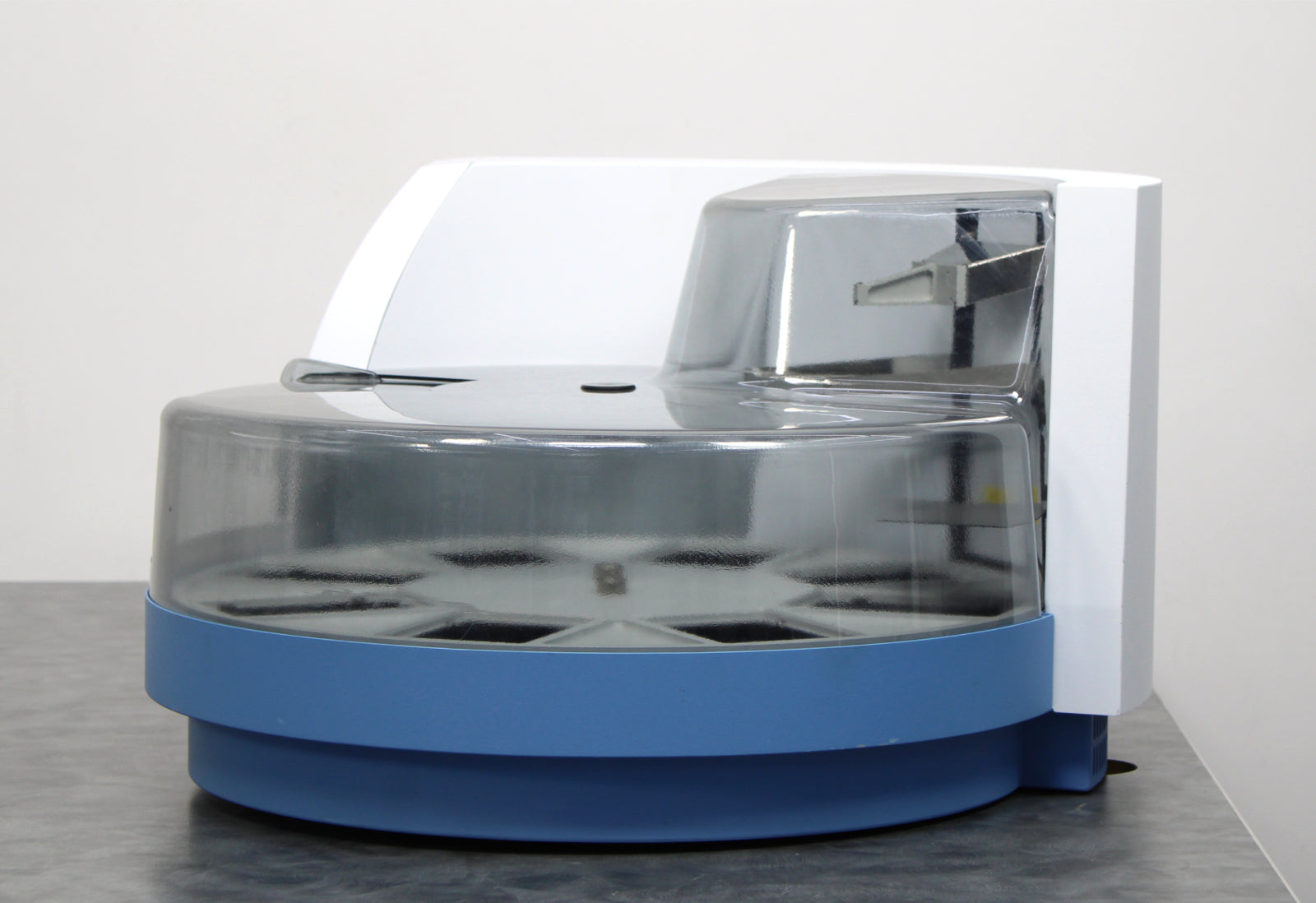

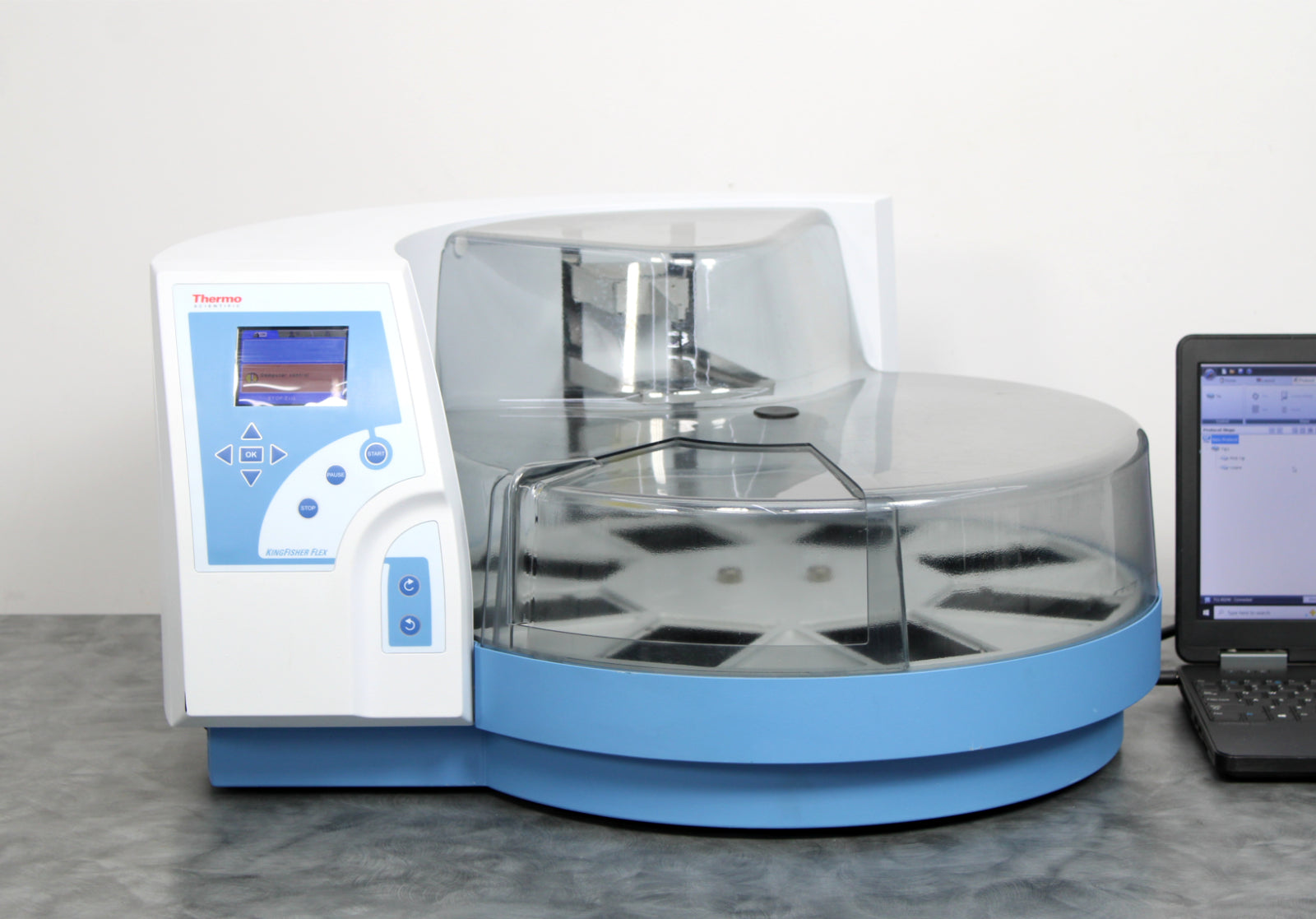

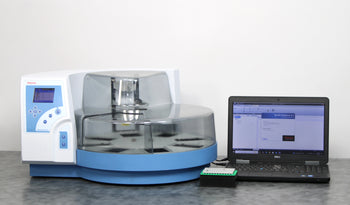

- Thermo Scientific KingFisher Flex 711 Nucleic Acid Purification Automate (5400630) and Cover

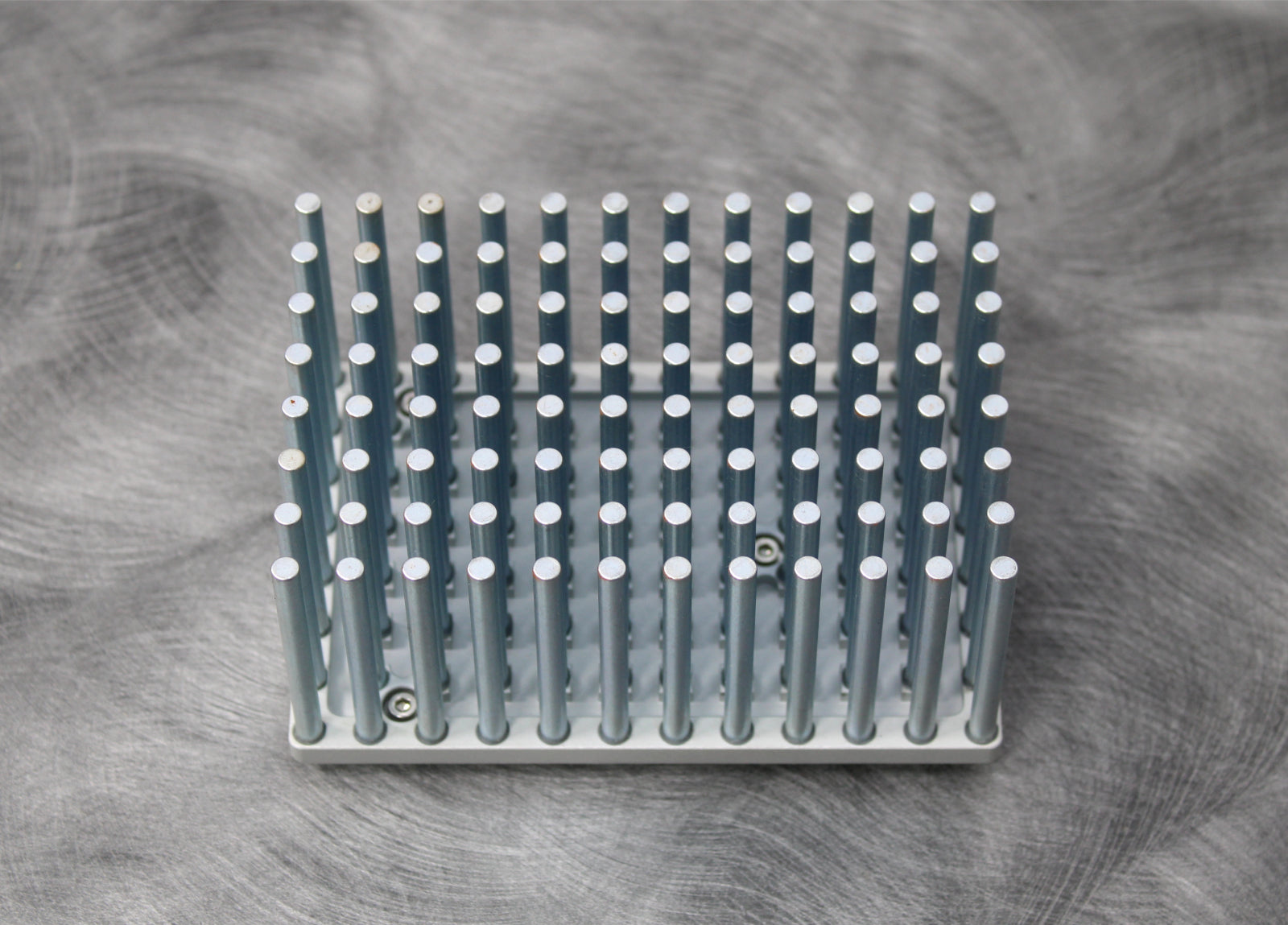

- 96-Well Magnetic Head

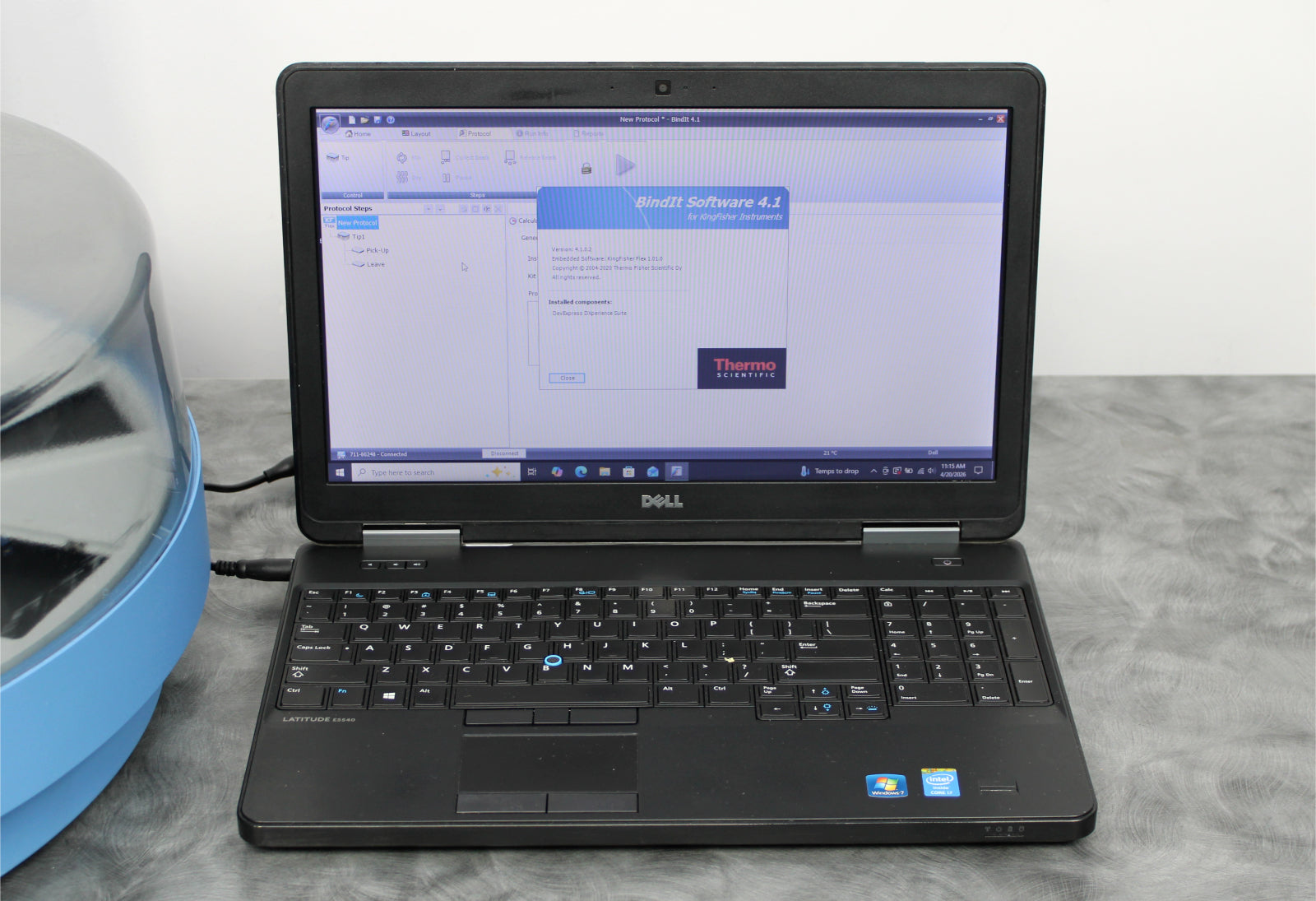

- Laptop with BindIt Software 4.1 Installed
- USB Cable
- Laptop Power Adapter
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Thermo Scientific KingFisher Flex system with the following results:

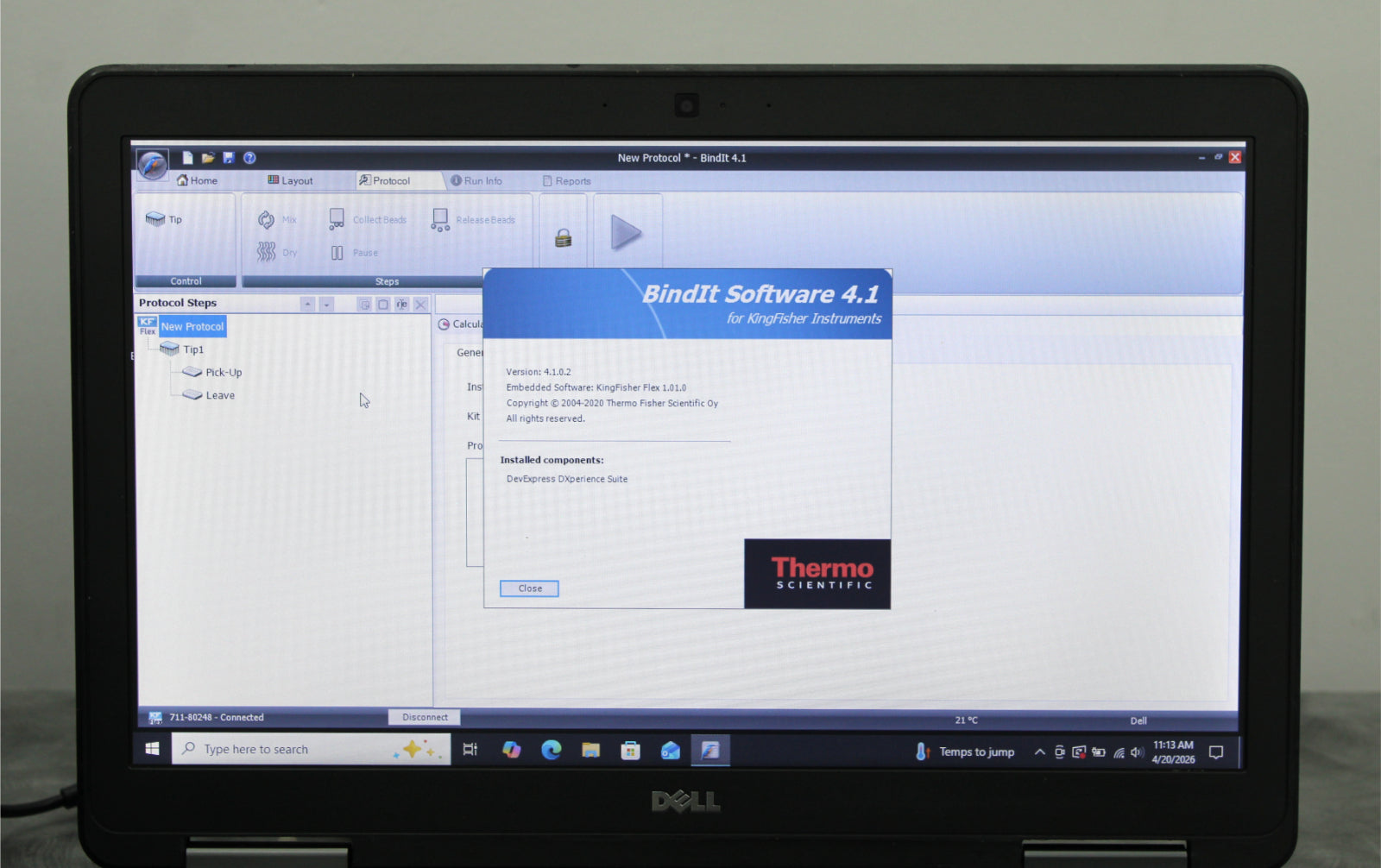

- KingFisher connects to laptop BindIt Software 4.1: PASSED

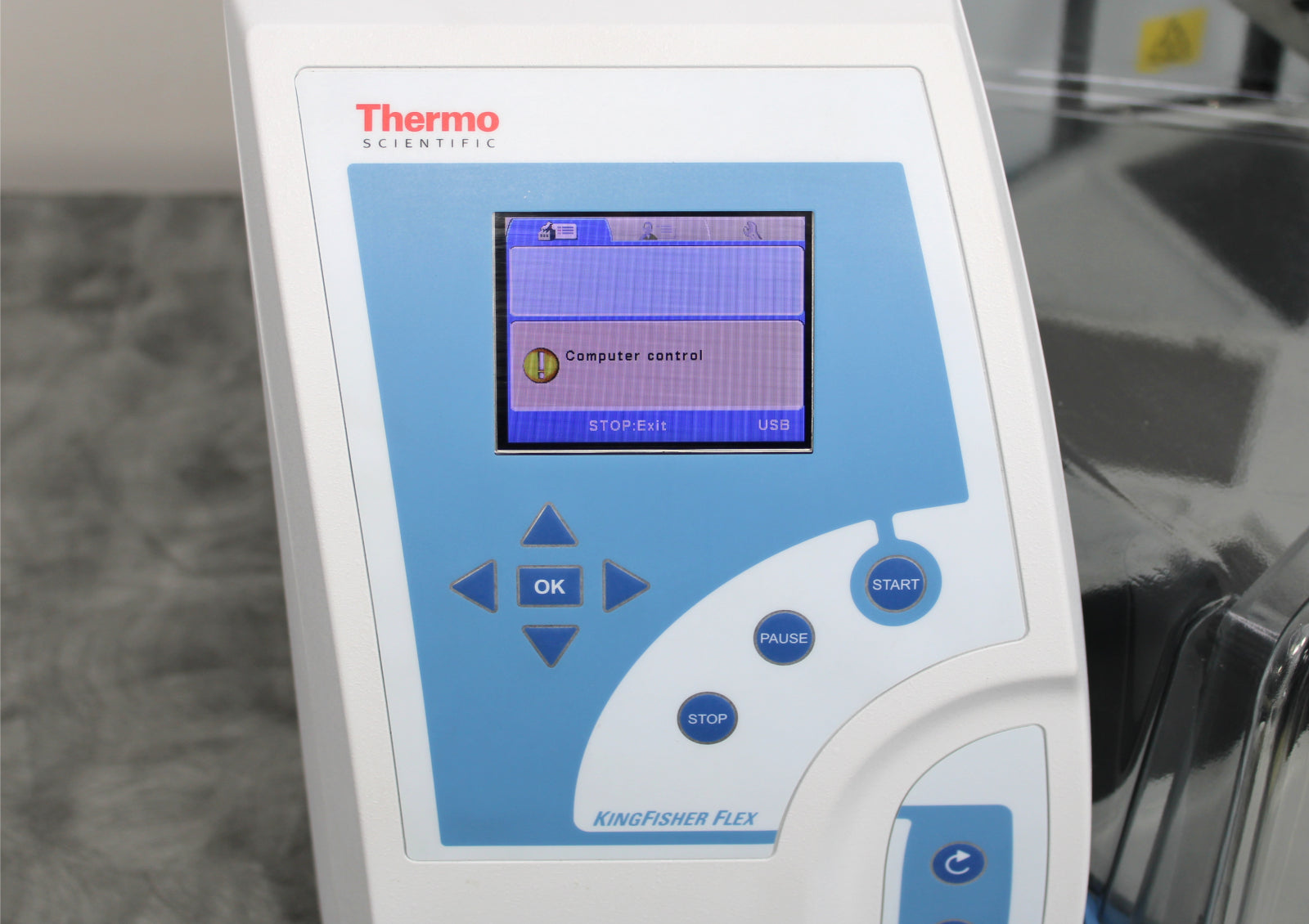

- KingFisher acknowledged PC control: PASSED

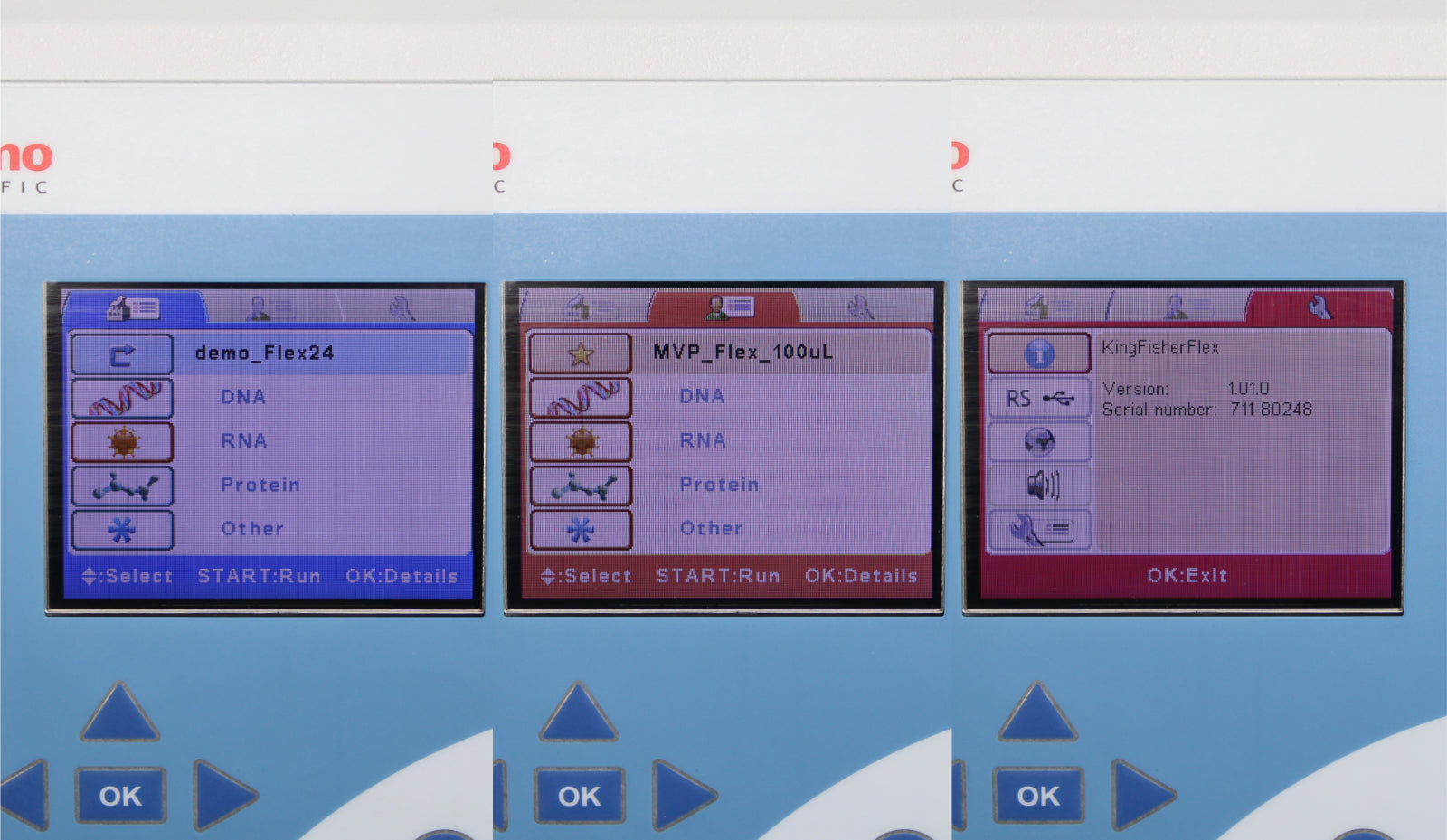

- Ran the demo program: PASSED
- Head pick up, move up and down, and release: PASSED

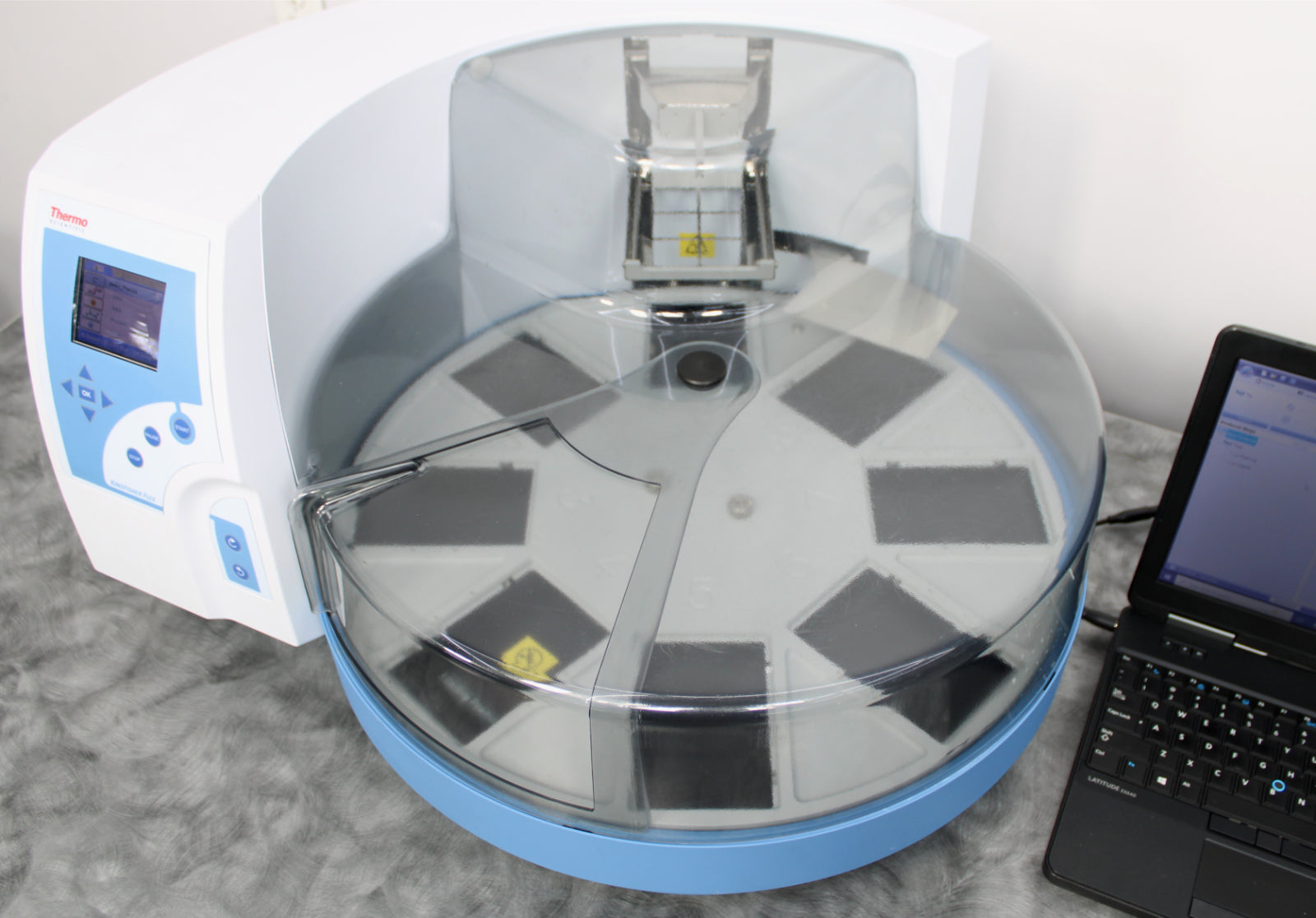

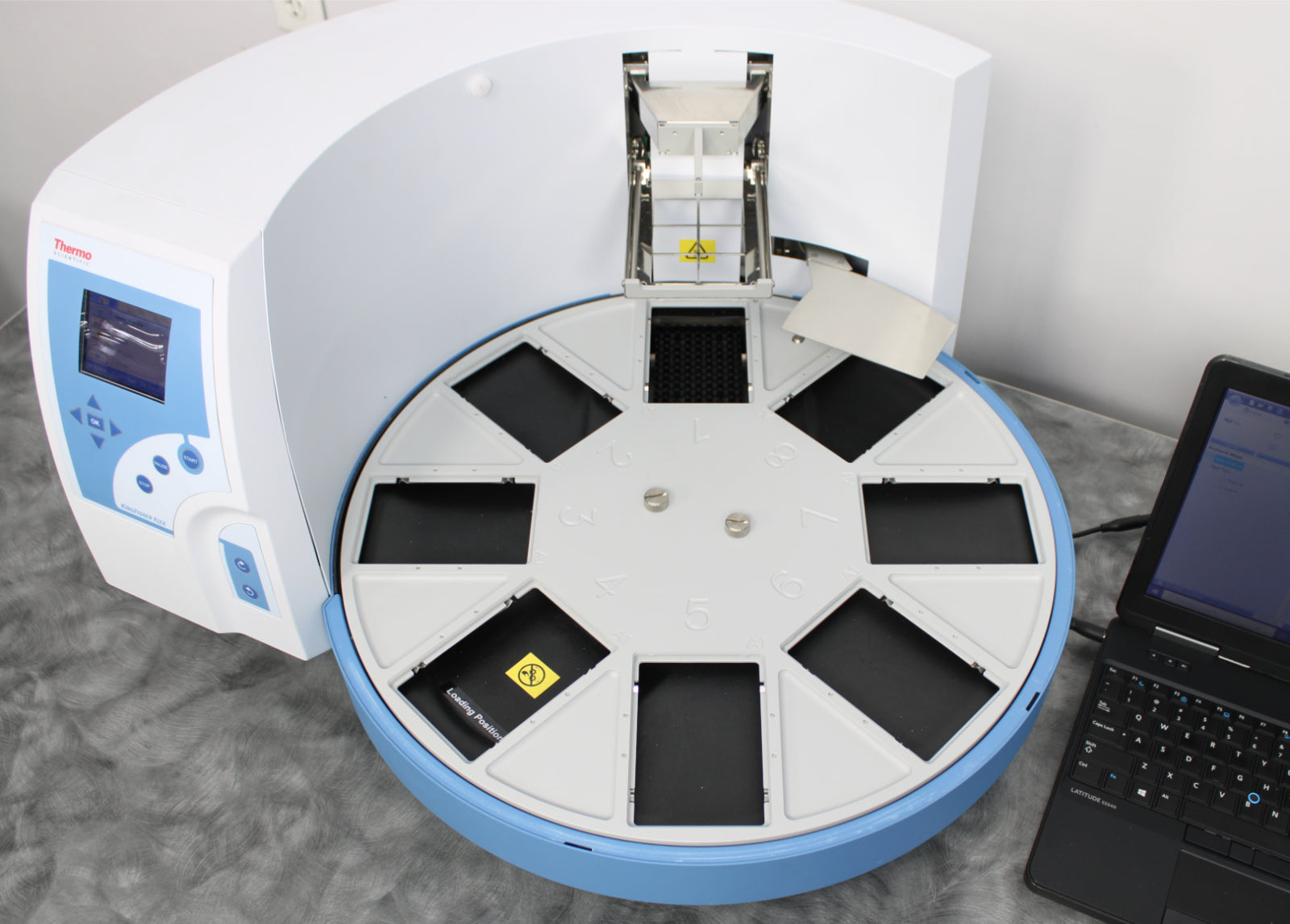

- Carousel rotation: PASSED
|

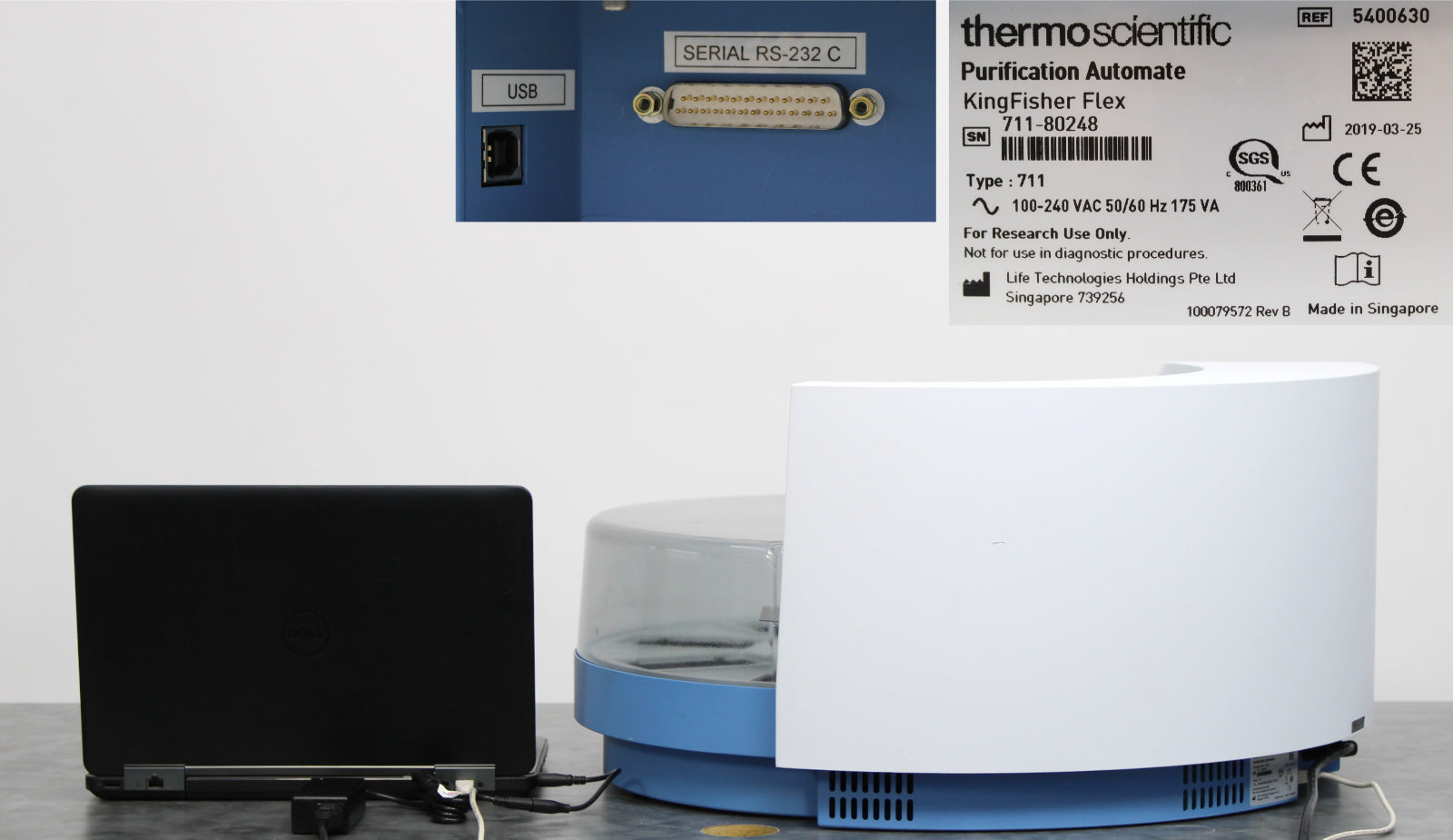

Manufacturer
|
Thermo Scientific
|
|
Model
|
KingFisher Flex
|
|
Type
|
711
|
|
Ref. No.
|
5400630
|
|
Serial No.
|
711-80248
|
|
Mfg. date
|
2019-03-25
|
|
Throughput level
|
Medium to high
|
|
Processing volume range
|
PCR plate (20-100 µL), skirted (or similar skirted PCR plate)
20-200 µL: 96-well plate
50-1,000 µL: 96 deep-well plate
200-5,000 µL: 24 deep-well plate
|
|
Samples per run
|
24 or 96
|
|
Software included
|
BindIt
|
|
Customizable protocols
|
Yes (with BindIt software)
|
|
Heating/cooling
|
From 5°C above ambient temperature to 115°C
|
|
Ultraviolet lamp
|
No
|
|
Barcode reader
|
With BindIt software
|
|
User-selectable magnetic heads
|
4
|
|
Standalone use
|
Yes
|
|
Power rating
|
~100-240VAC, 50/60Hz
|
|
Power consumption
|
175VA
|
|
Dimensions (W x D x H)
|
26.77 x 23.6 x 14.96 in (68 x 60 x 38 cm)
|
|
Weight
|
62 lb (28 kg)
|
