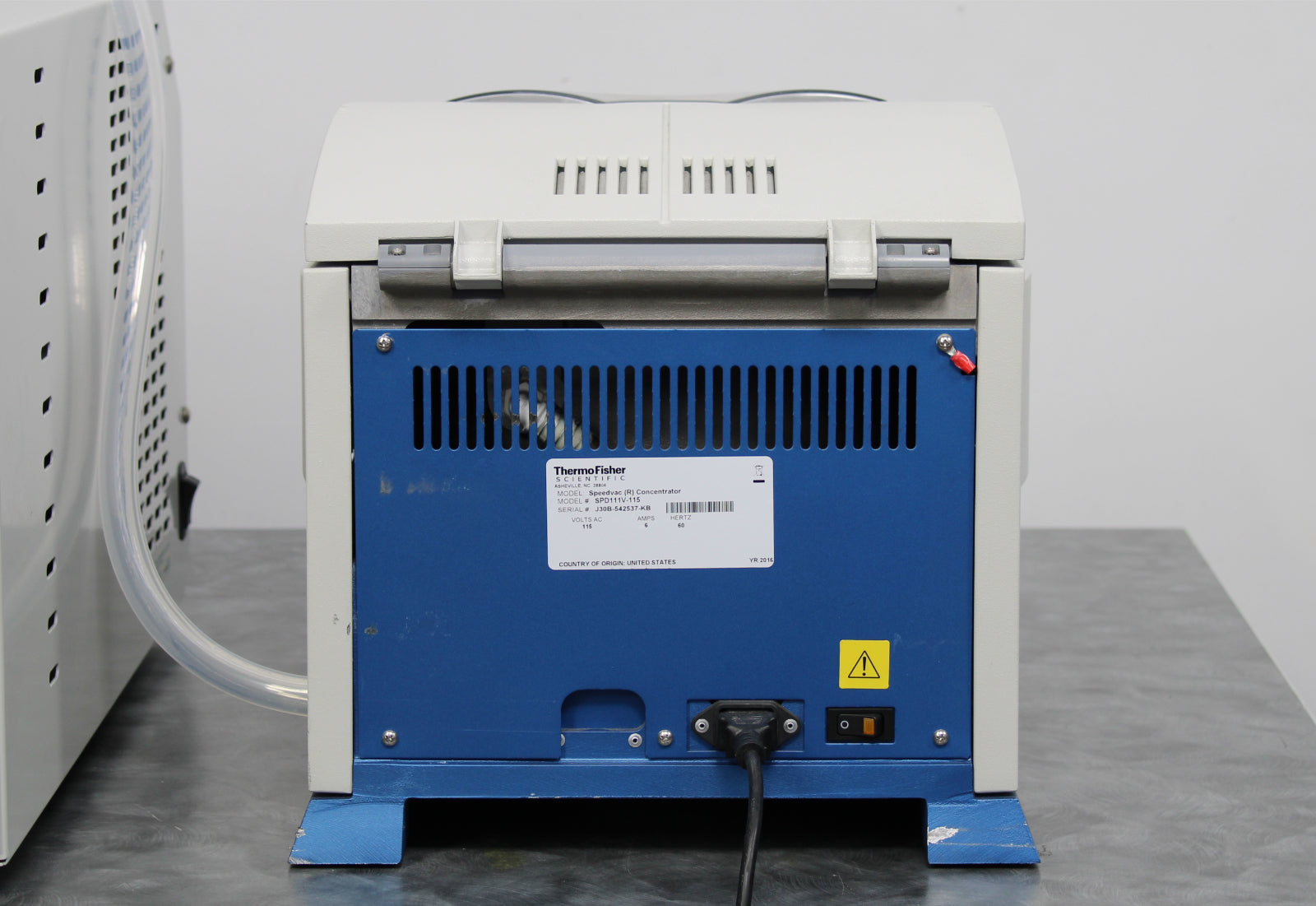

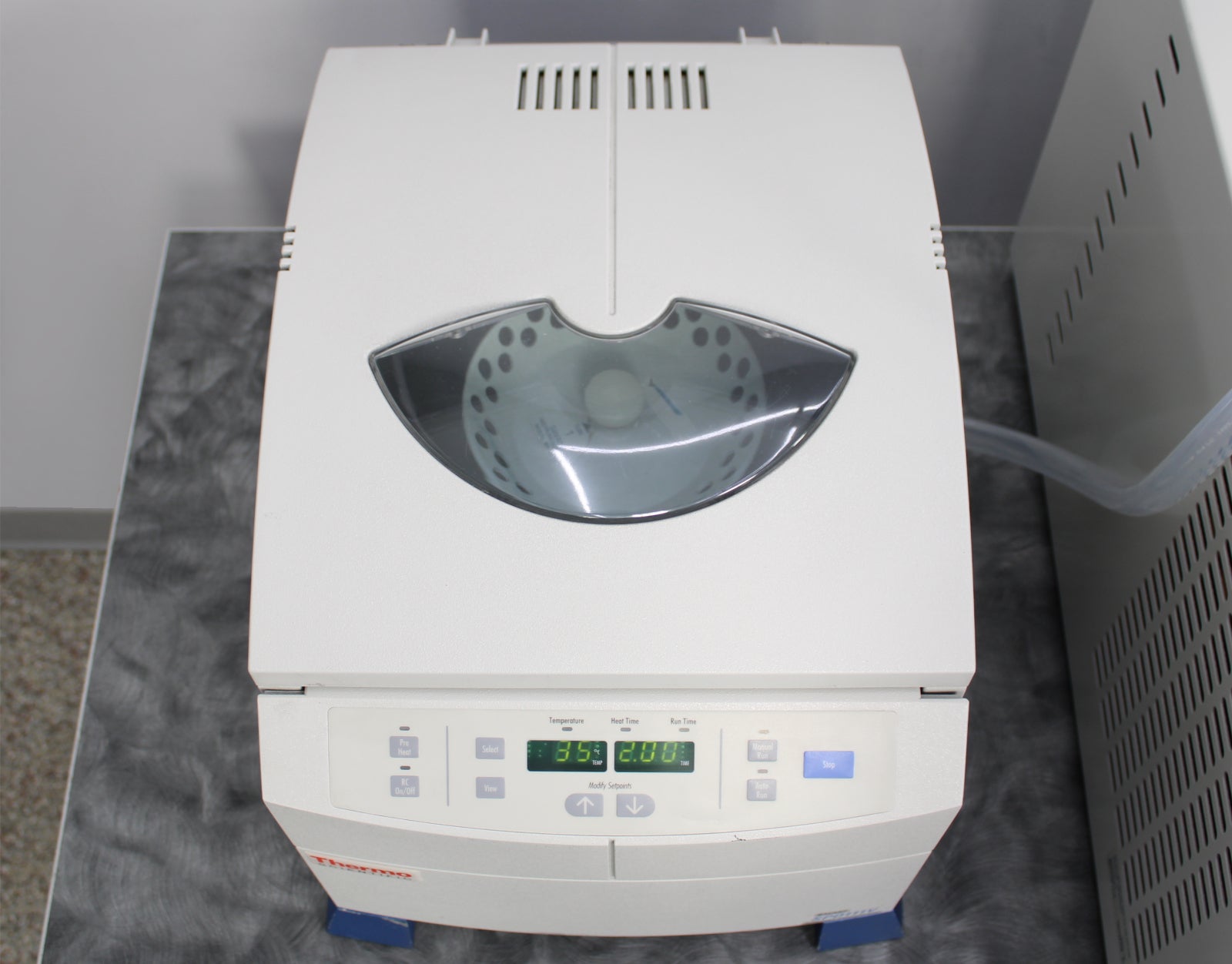

- Thermo Scientific Savant SPD111V-115 SpeedVac Concentrator

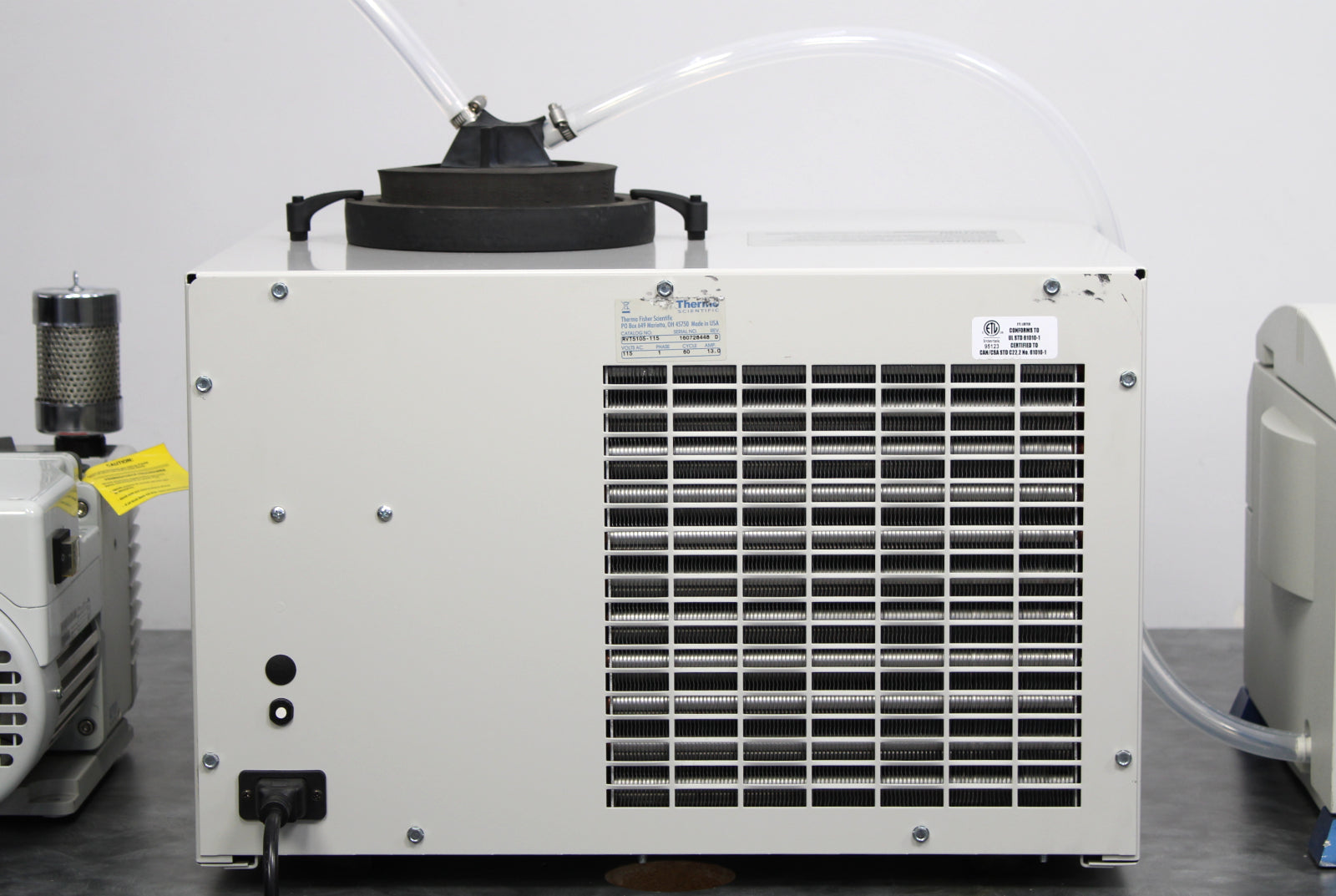

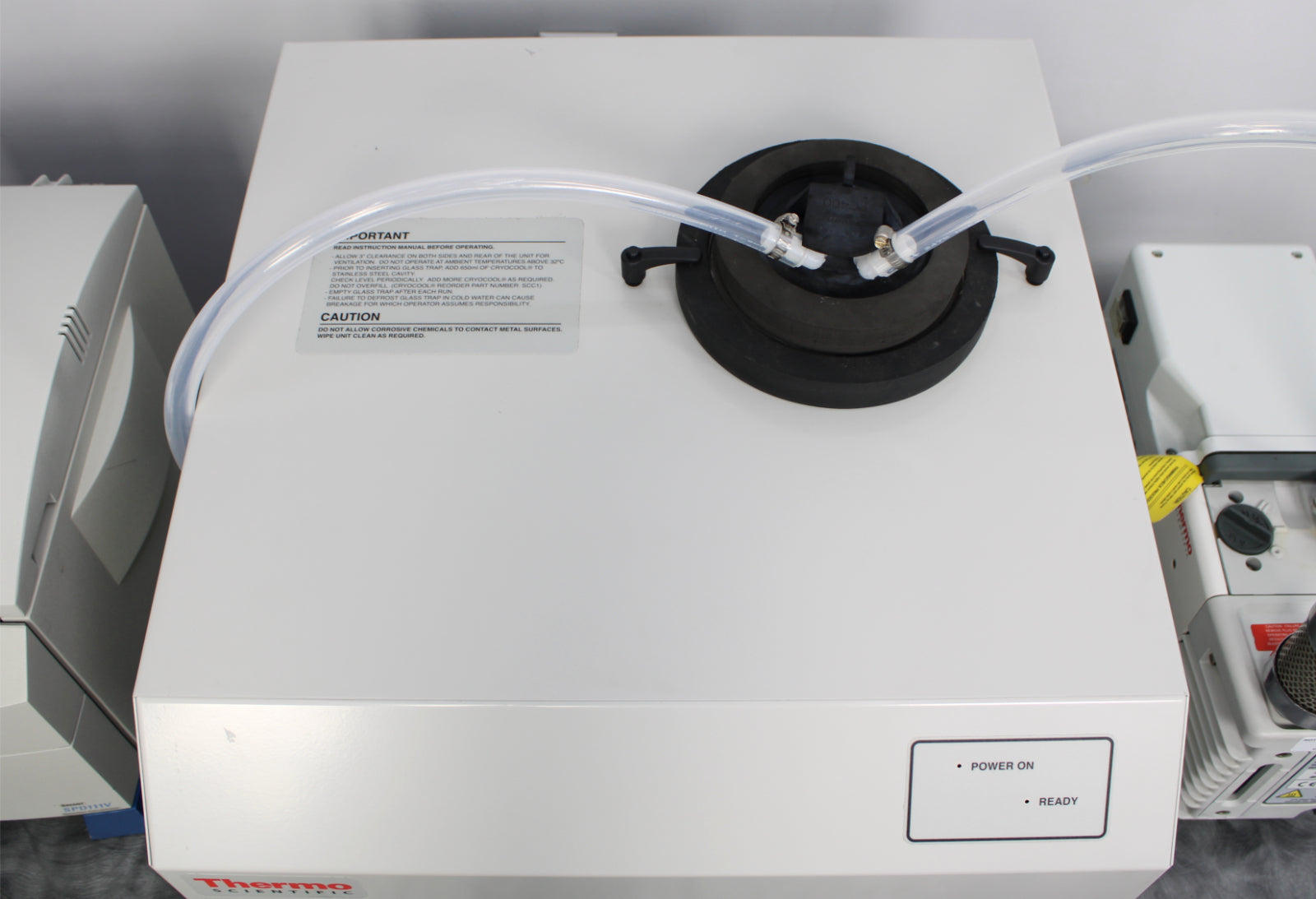

- Thermo Scientific Savant RVT5105-115 Refrigerated Vapor Trap

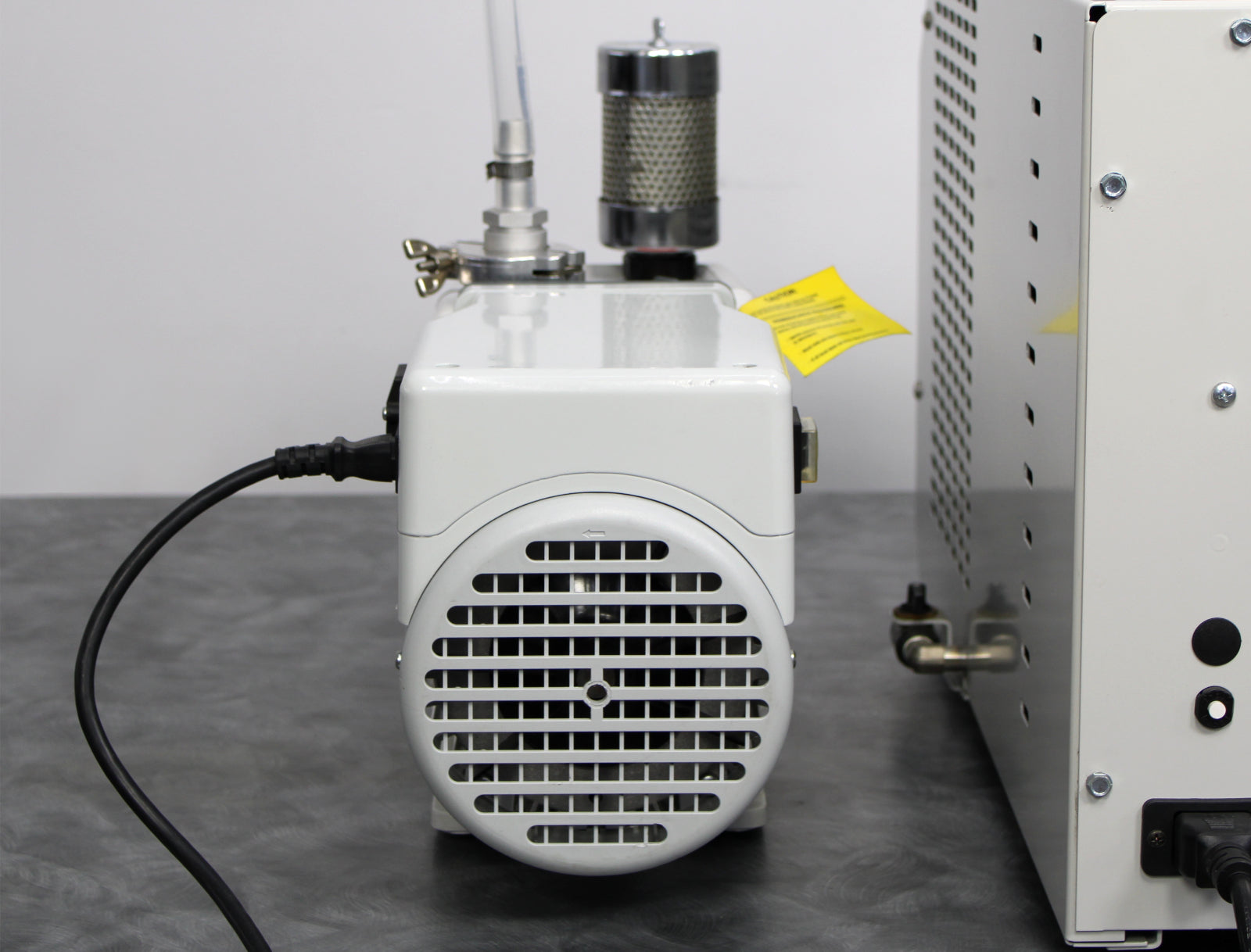

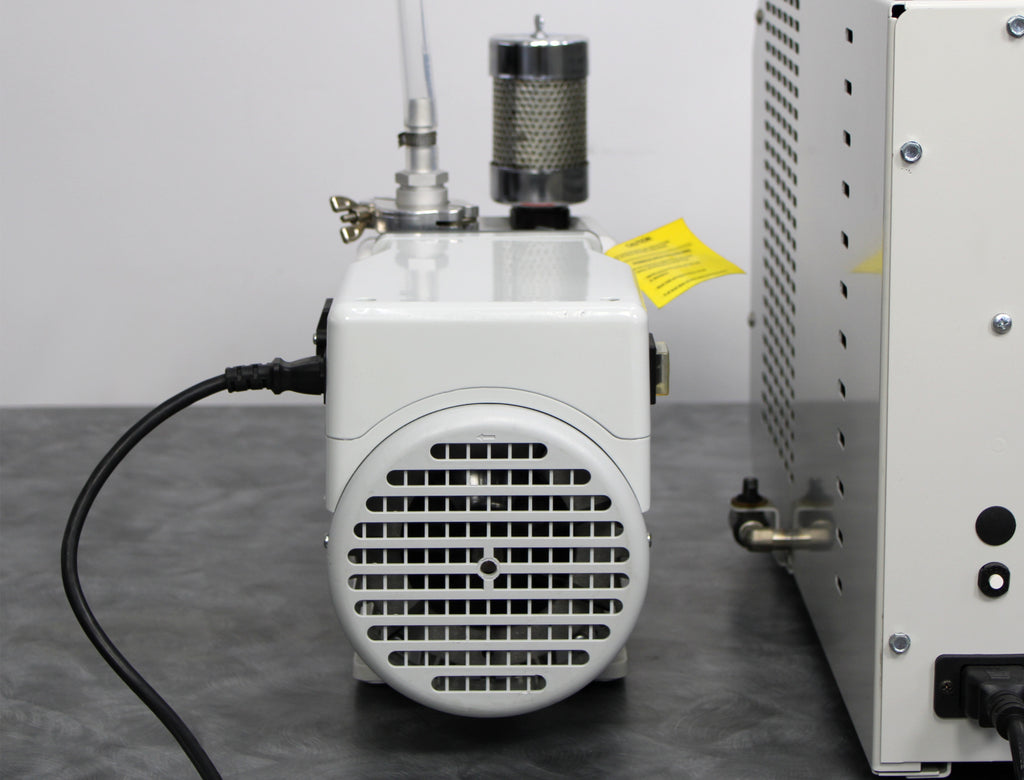

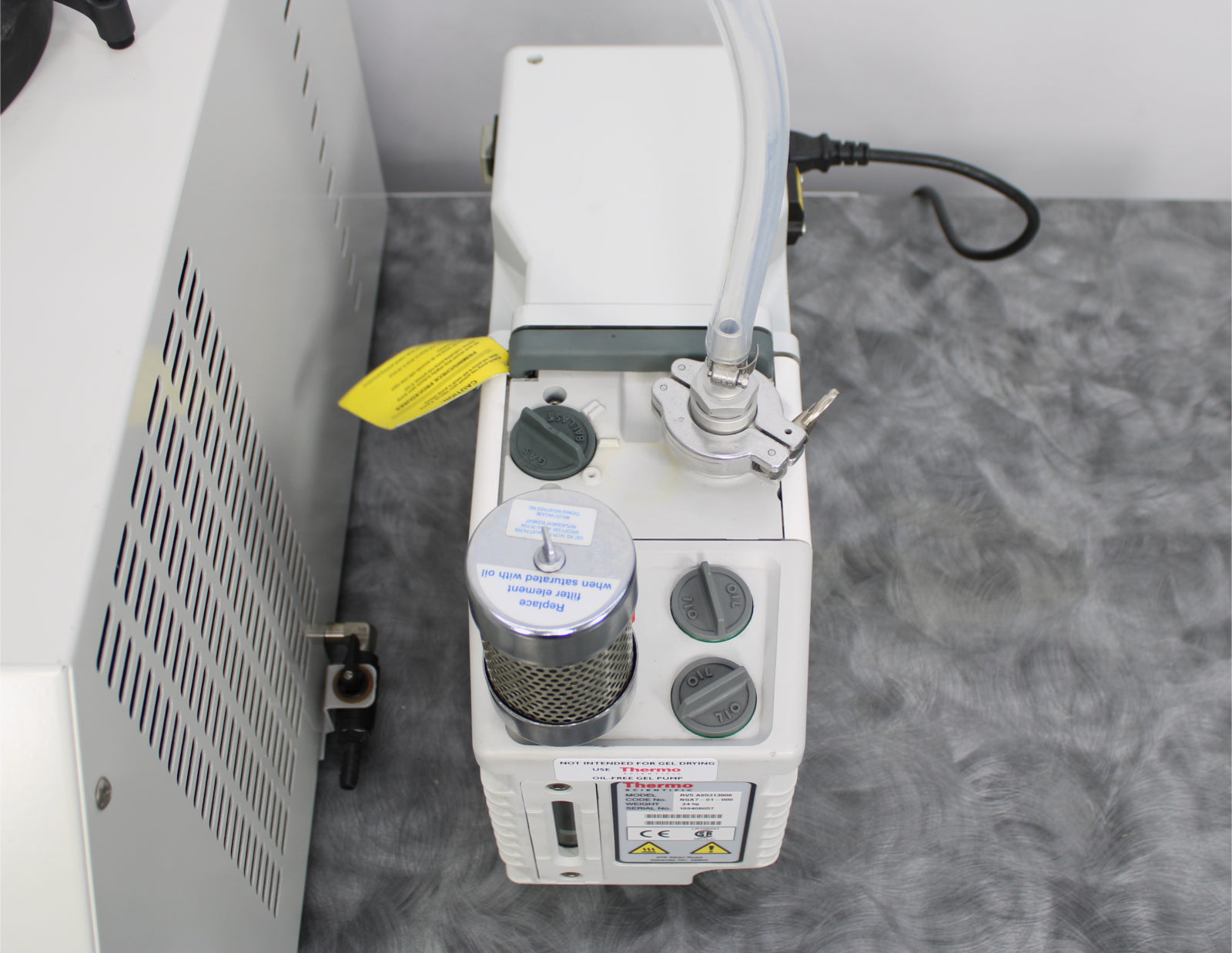

- Thermo Scientific RV5 A65313906 Vacuum Pump (NGA7-01-000)

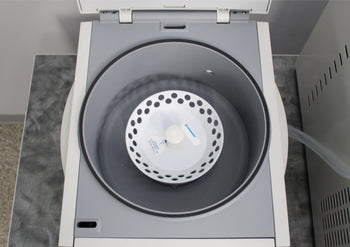

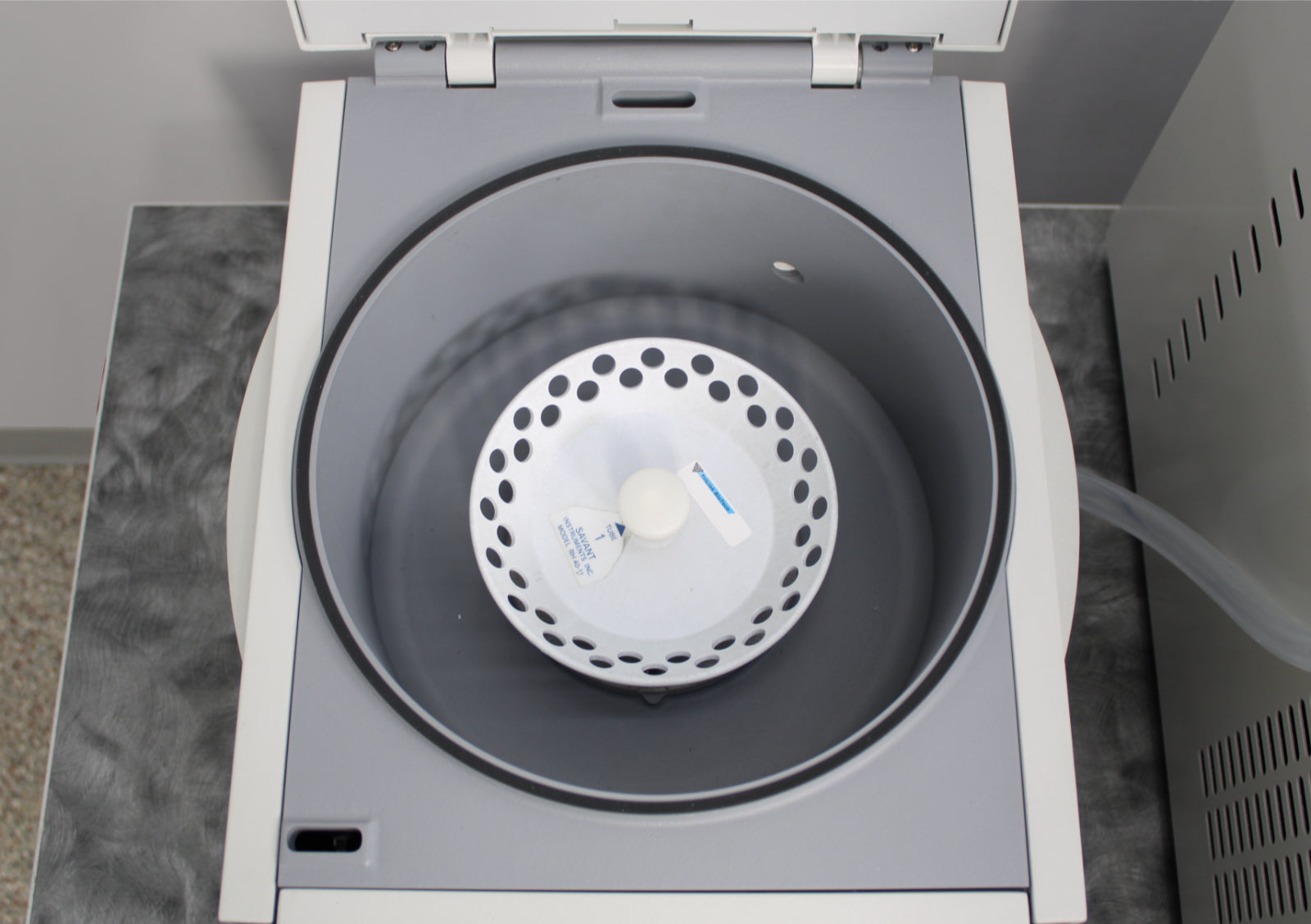

- Microtube Rotor
- Condensation Flask
- Tubing/Hoses
- x3 Power Cables
- 90-Day Warranty

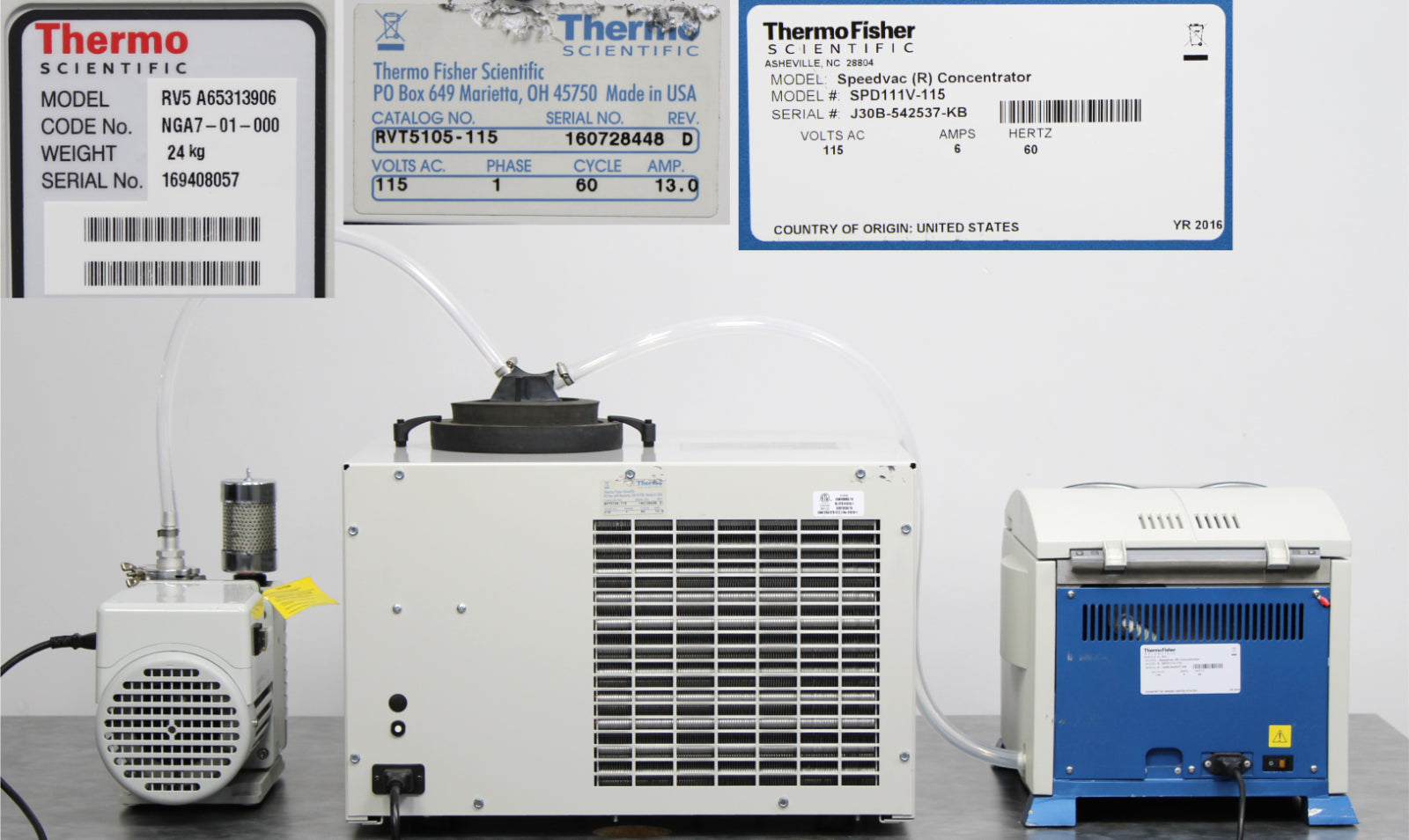

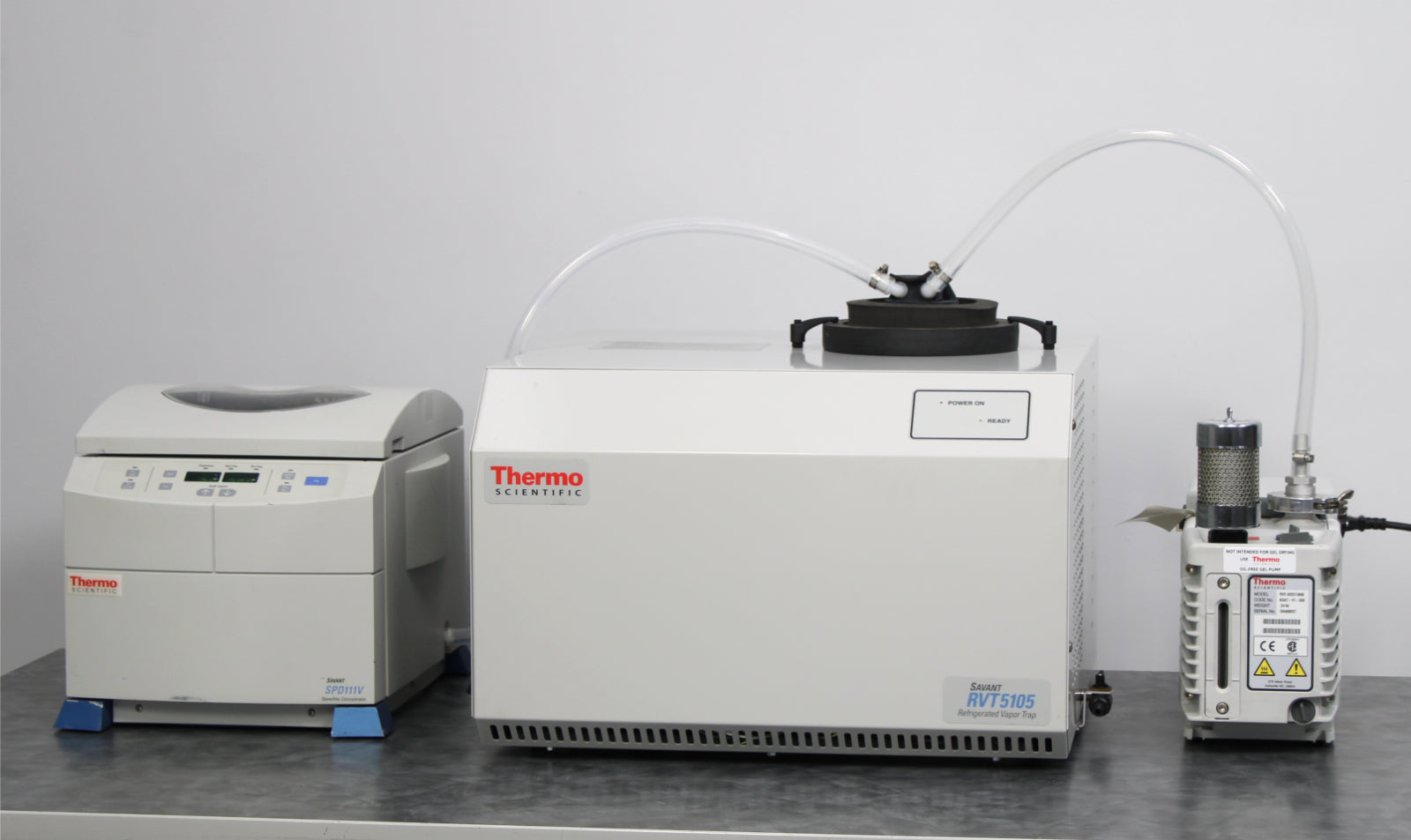

After its initial disinfection and inspection, our technicians tested the Thermo Scientific Savant SpeedVac concentrator, cold trap, and vacuum pump with the following results:
- Concentrator speed: PASSED
- Concentrator temperature to 70°C: PASSED

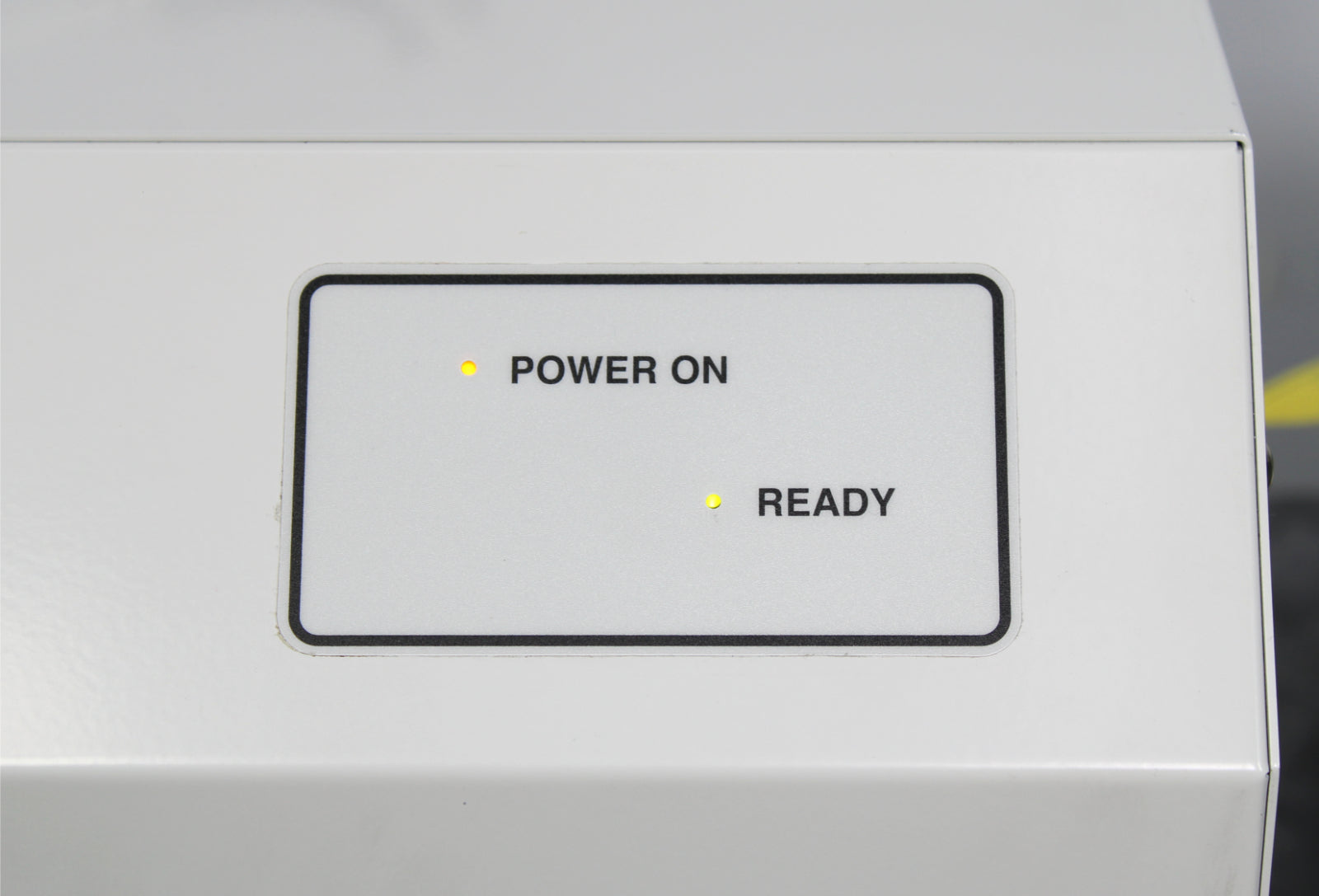

- Cold trap to Ready status: PASSED
- Vacuum pump: PASSED
- Performed inspection; no issue found: PASSED
|

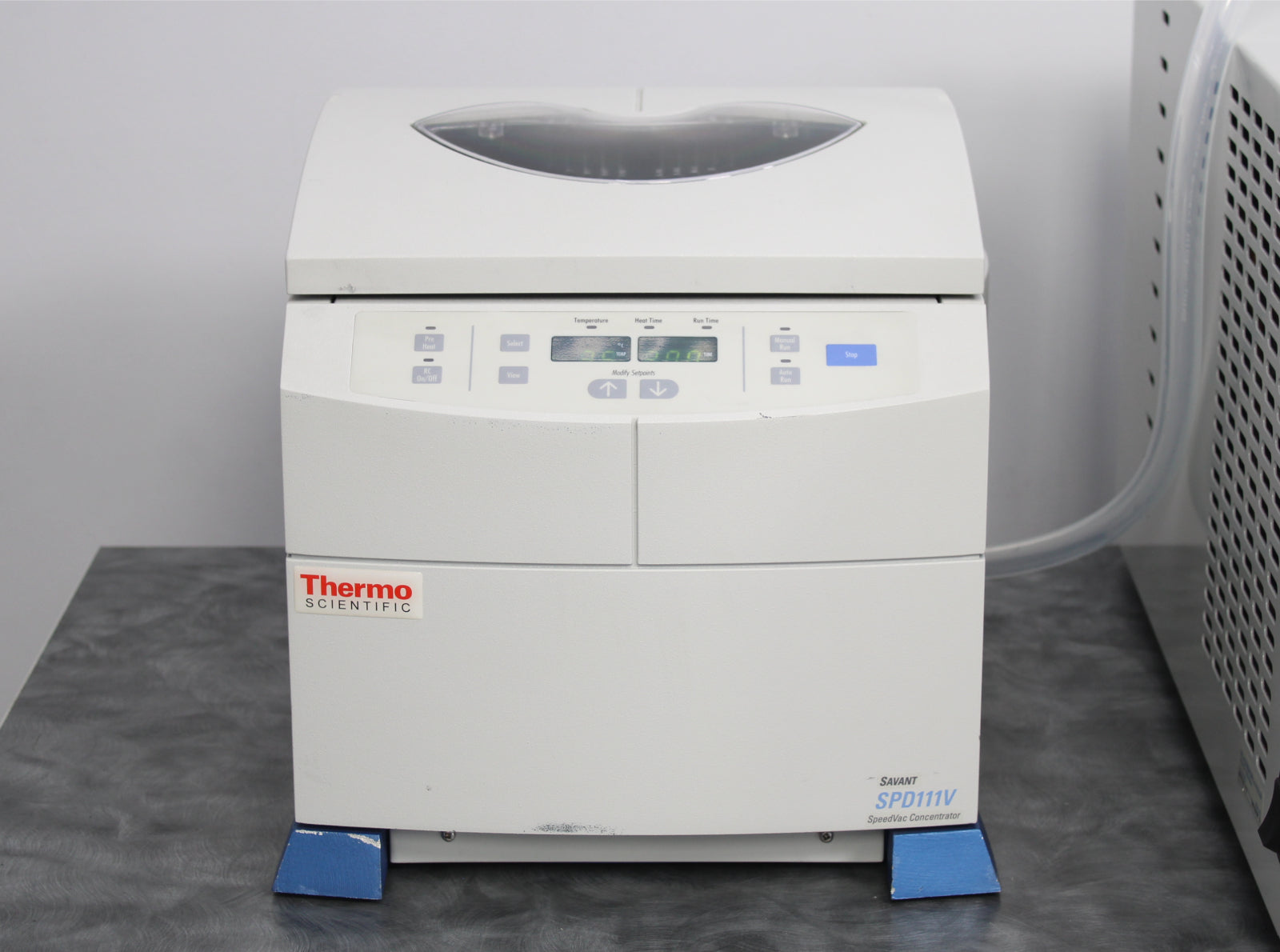

Manufacturer
|
Thermo Fisher Scientific
|
|
Model
|
Speedvac Concentrator
|
|
Model No.
|
SPD111V-115
|
|
Serial No.
|
J30B-542537-KB
|
|
Mfg. year
|
2016
|
|

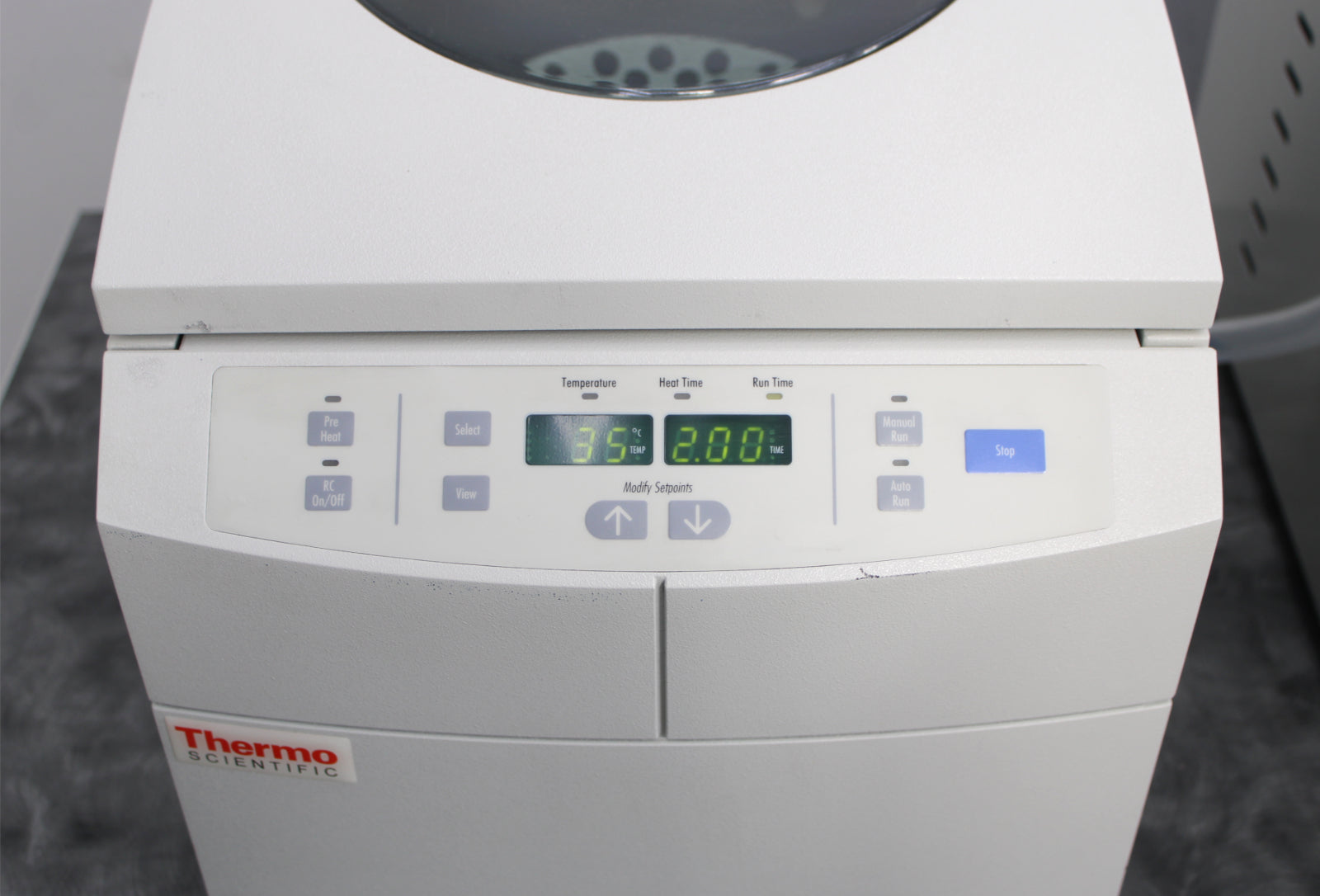

Temperature setting
|
Off, 35°C to 80°C in 5°C increments
|
|
Temperature range
|
35°C to 85°C
|
|
Bleeder valve
|
Automatic
|
|
Exhaust port
|
Standard
|
|
Holds
|
0.4 to 100 mL tubes, 2 microtiter plates
|
|
Infrared chamber lamps
|
None
|
|
Ramp rate
|
None
|
|

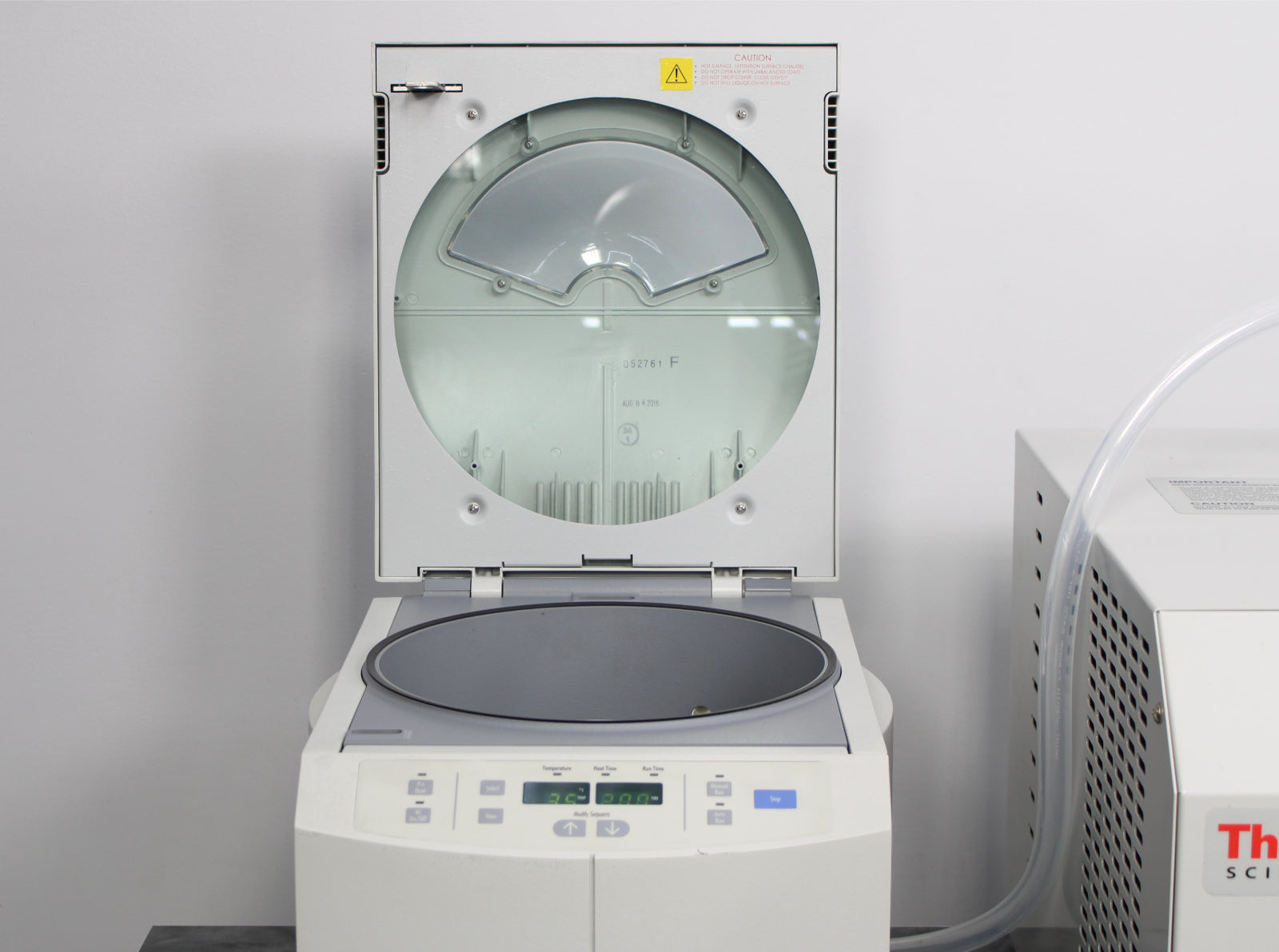

Standard cover
|
Plexiglass
|
|
Timer
|
1 min. to 10 hr.
|
|
Vacuum control
|
None
|
|
Chamber material
|
PTFE-coated aluminum
|
|
Power rating
|
115V, 60Hz, 6A
|
|
Dimensions (W x D x H)
|
14 x 18 x 13 in
|
|
Weight
|
44 lb (20 kg)
|
|

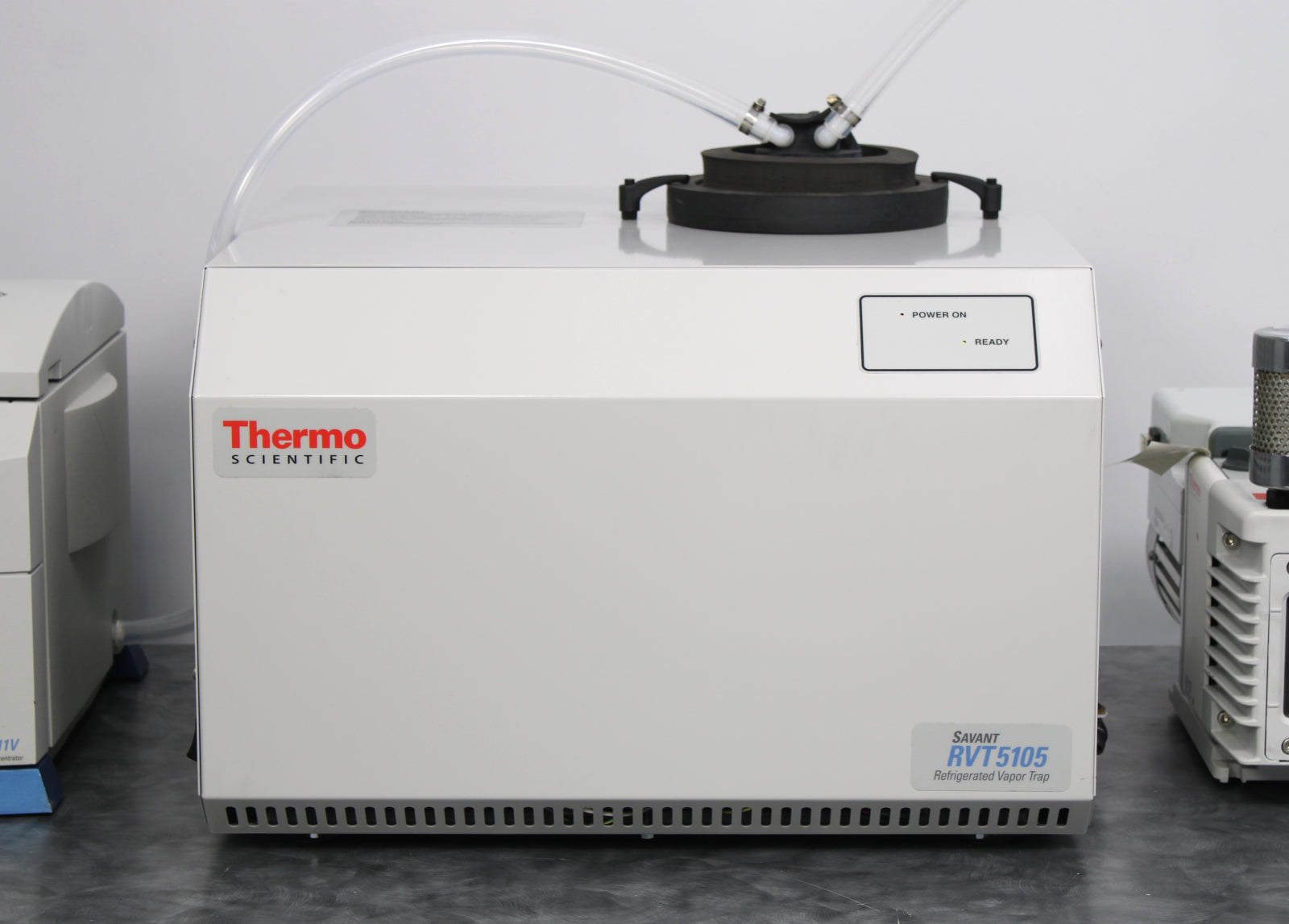

Manufacturer
|
Thermo Fisher Scientific
|
|
Type
|
Refrigerated Vapor Trap
|
|
Model No.
|
RVT5105-115
|
|
Serial No.
|
160728448 D
|
|
Temperature
|
-105°C
|
|
Volume
|
4 L
|
|
Power rating
|
115V, 60Hz, 13.0A, 1Ph
|
|
Dimensions (W x D x H)
|
24.1 x 24 x 18.3 in
|
|
Weight
|
150 lb (68 kg)
|
|

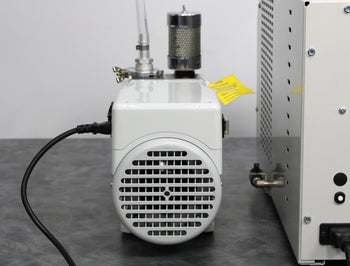

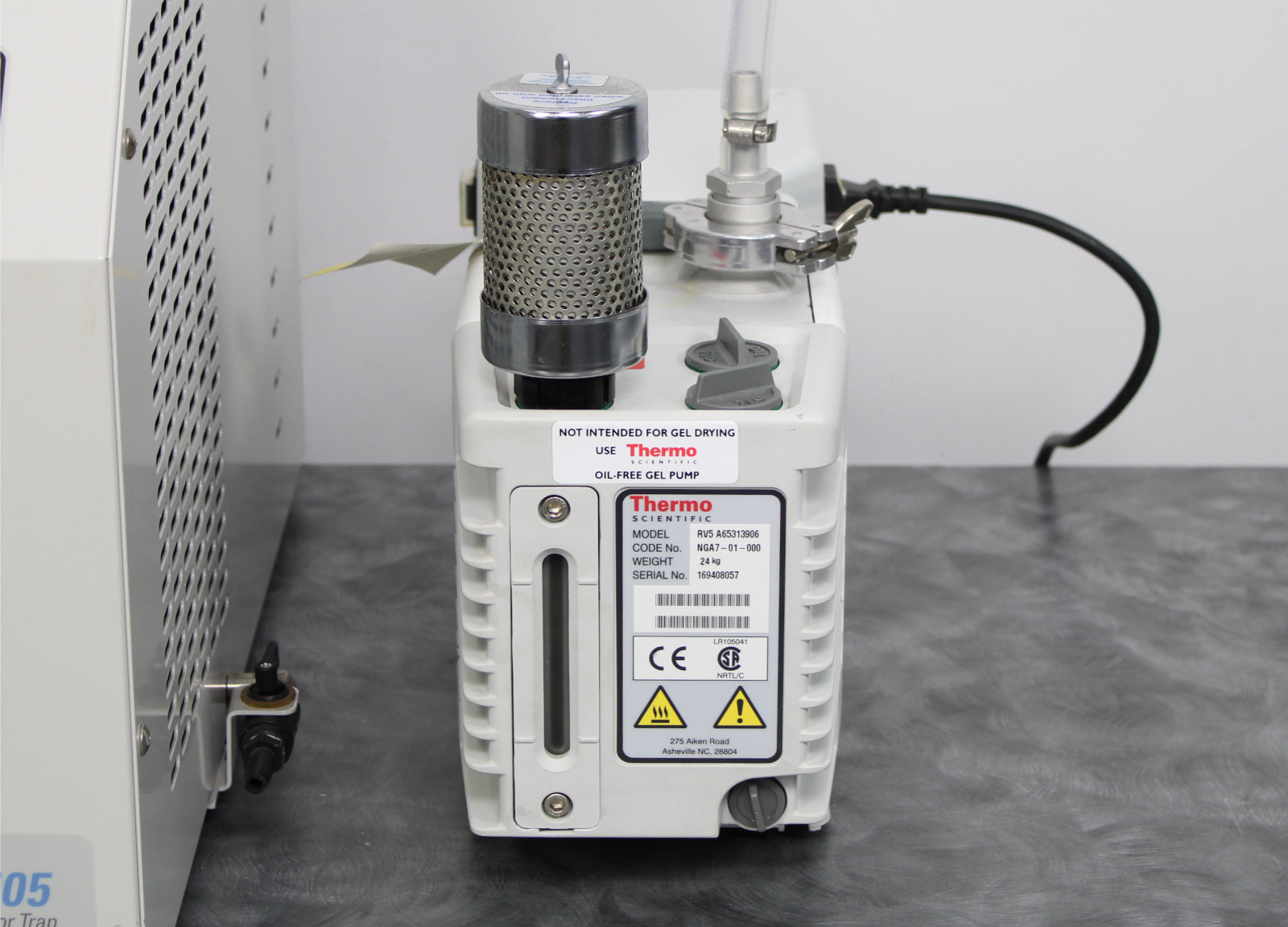

Manufacturer
|
Thermo Scientific
|
|
Type
|
Vacuum Pump
|
|
Model No.
|
RV5 A65313906
|
|
Code No.
|
NGA7-01-000
|
|
Serial No.
|
169408057
|
|
Dimensions (W x D x H)
|
7 x 17 x 9 in
|
|
Weight
|
52.9 lb (24 kg)
|
