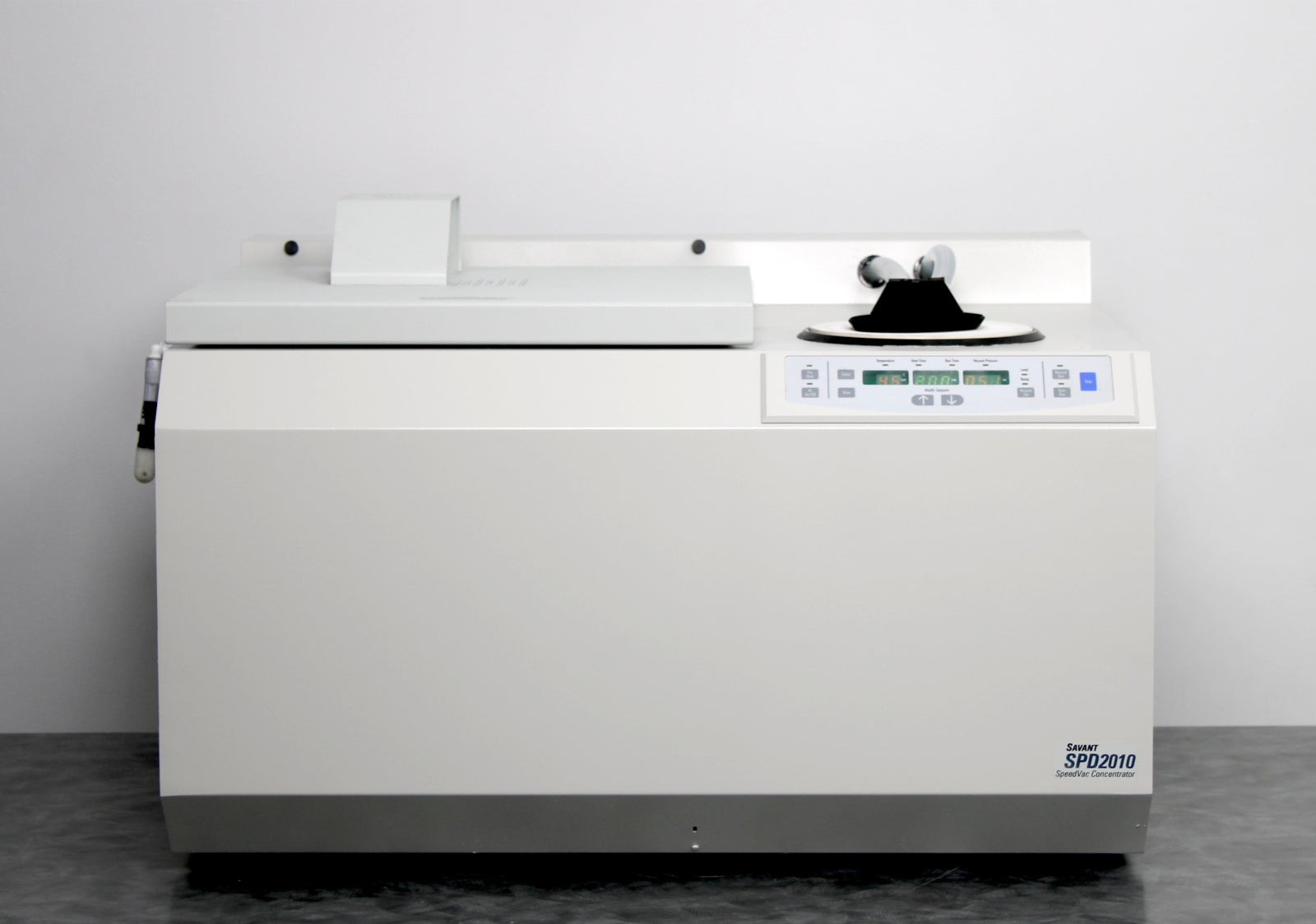

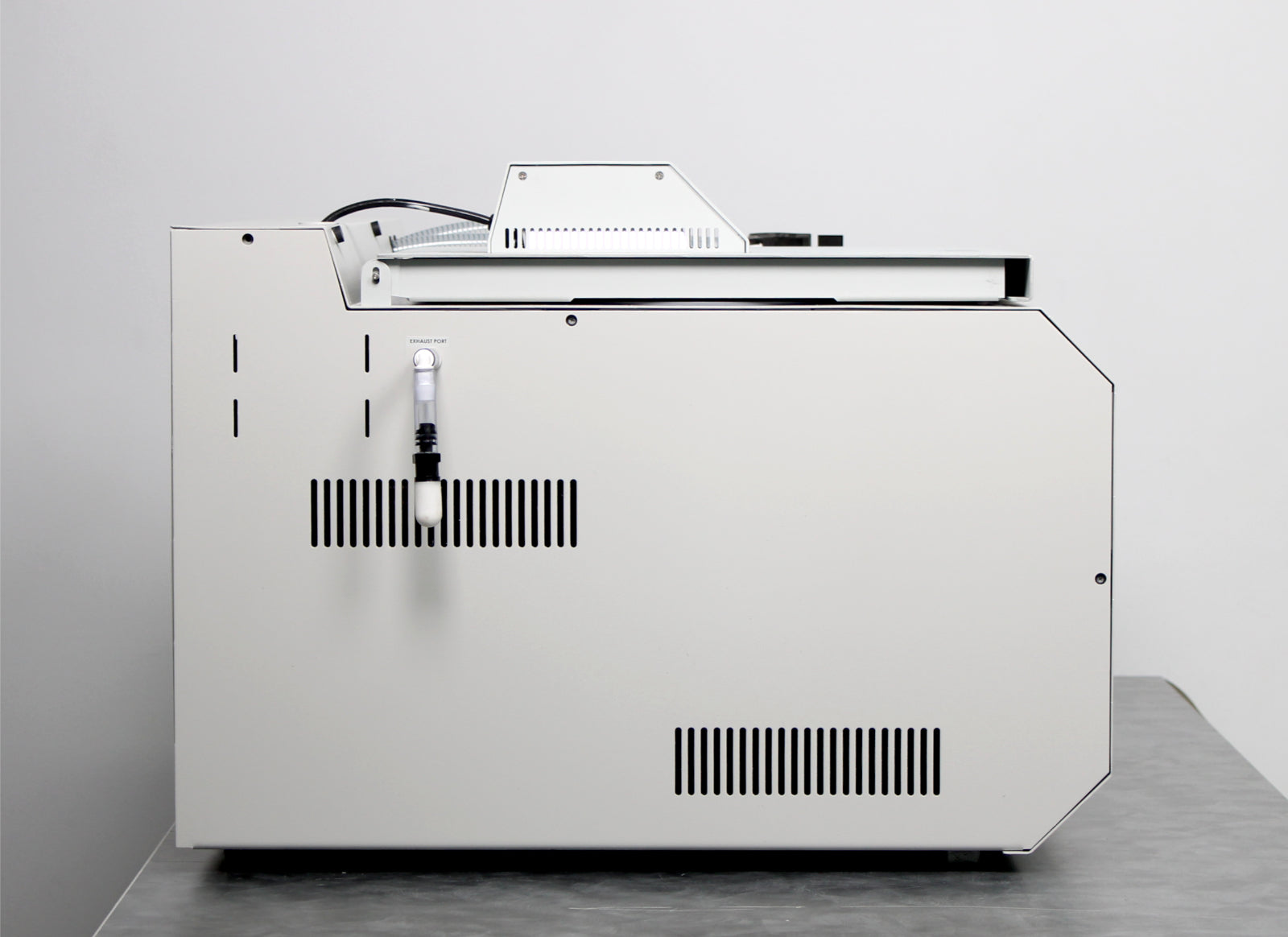

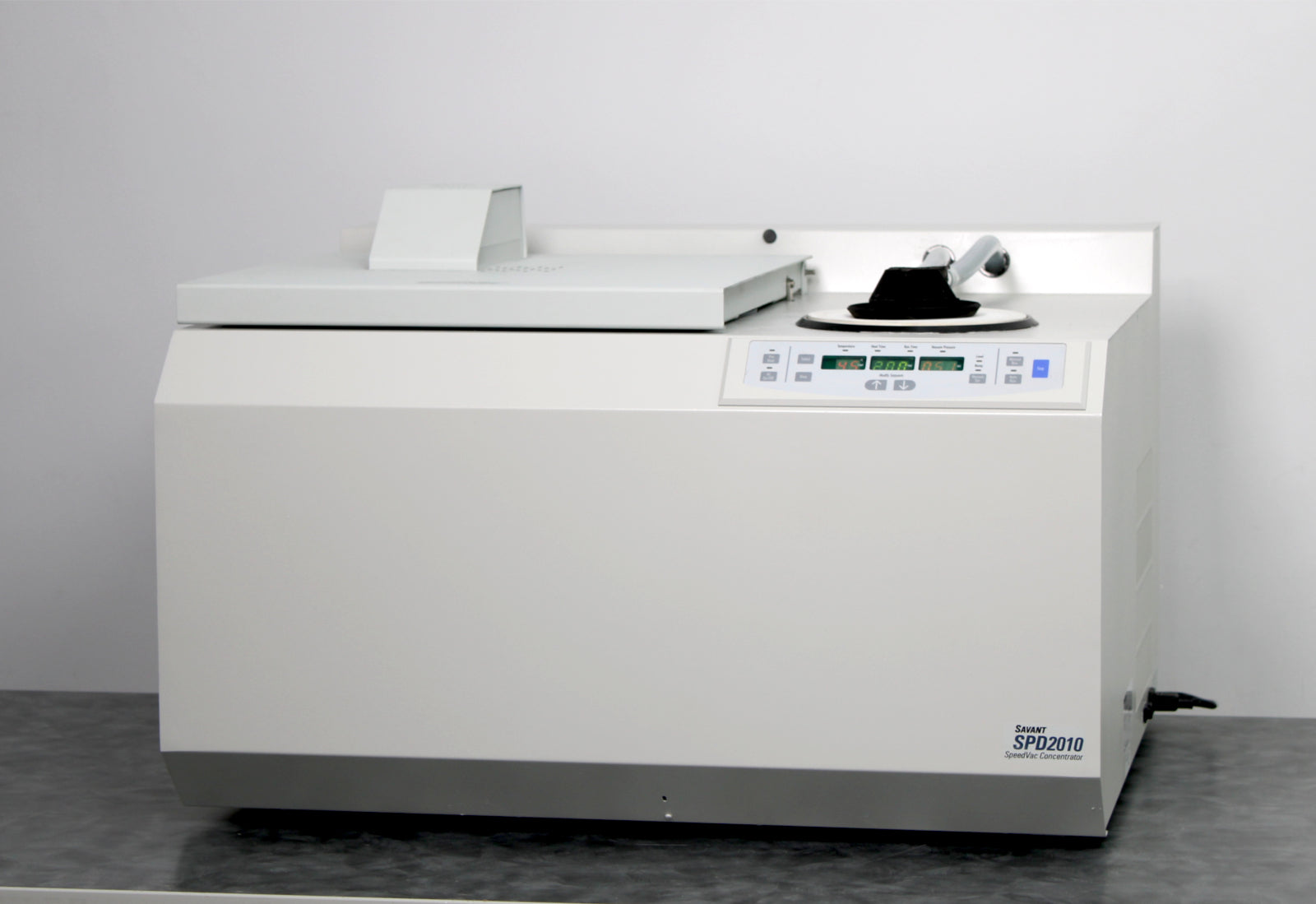

- Thermo Scientific Savant SPD2010 Integrated SpeedVac Concentrator 220V (SPD2010-220)

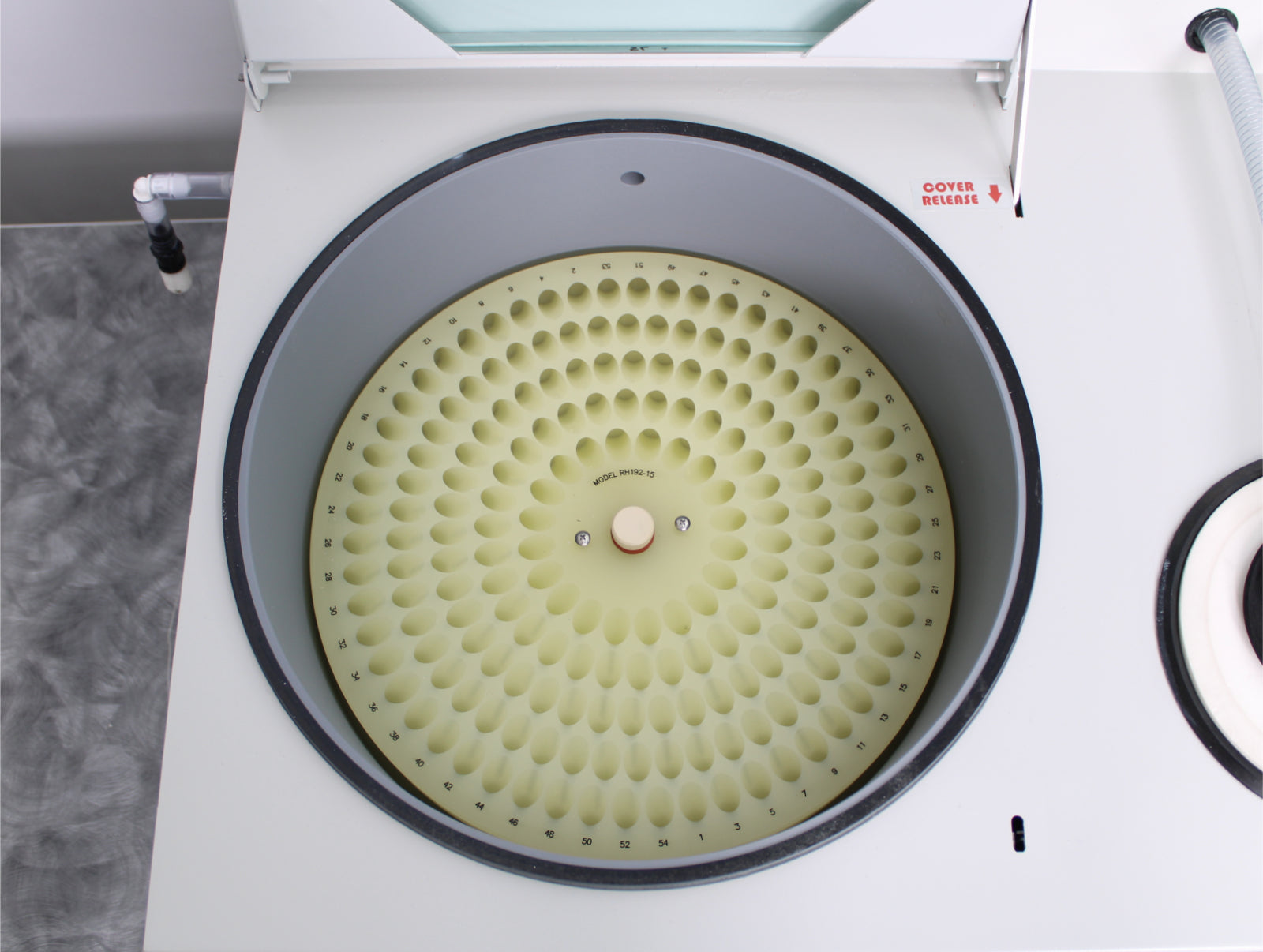

- Thermo Savant SpeedVac Model RH192-15 Rotor

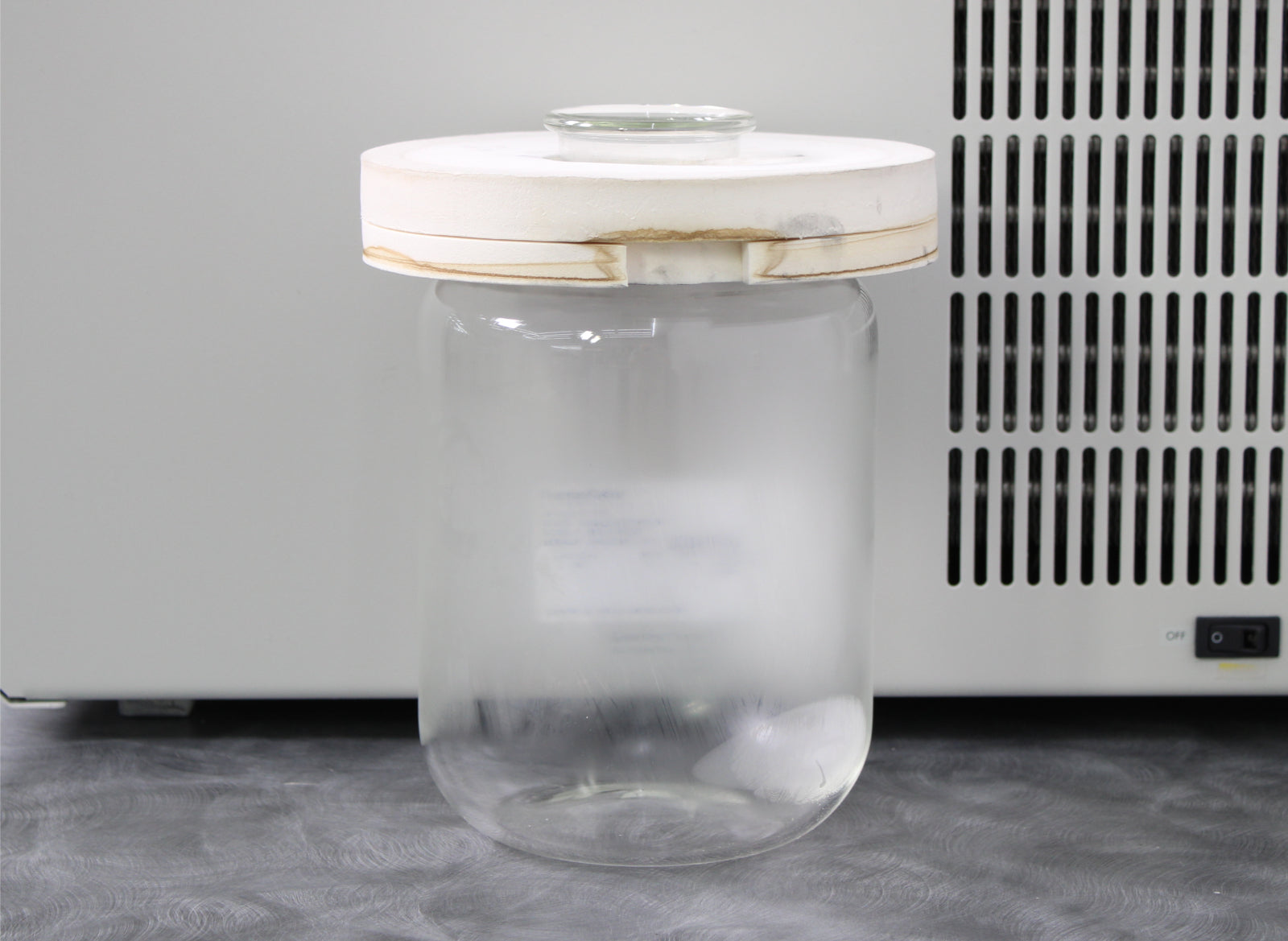

- Glass Condensation Flask with Foam Insulating Ring
- Power Cable with NEMA 6-15 Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Thermo Scientific Savant SPD2010-220 integrated SpeedVac concentrator with the following results:
- Power and initialization: PASSED

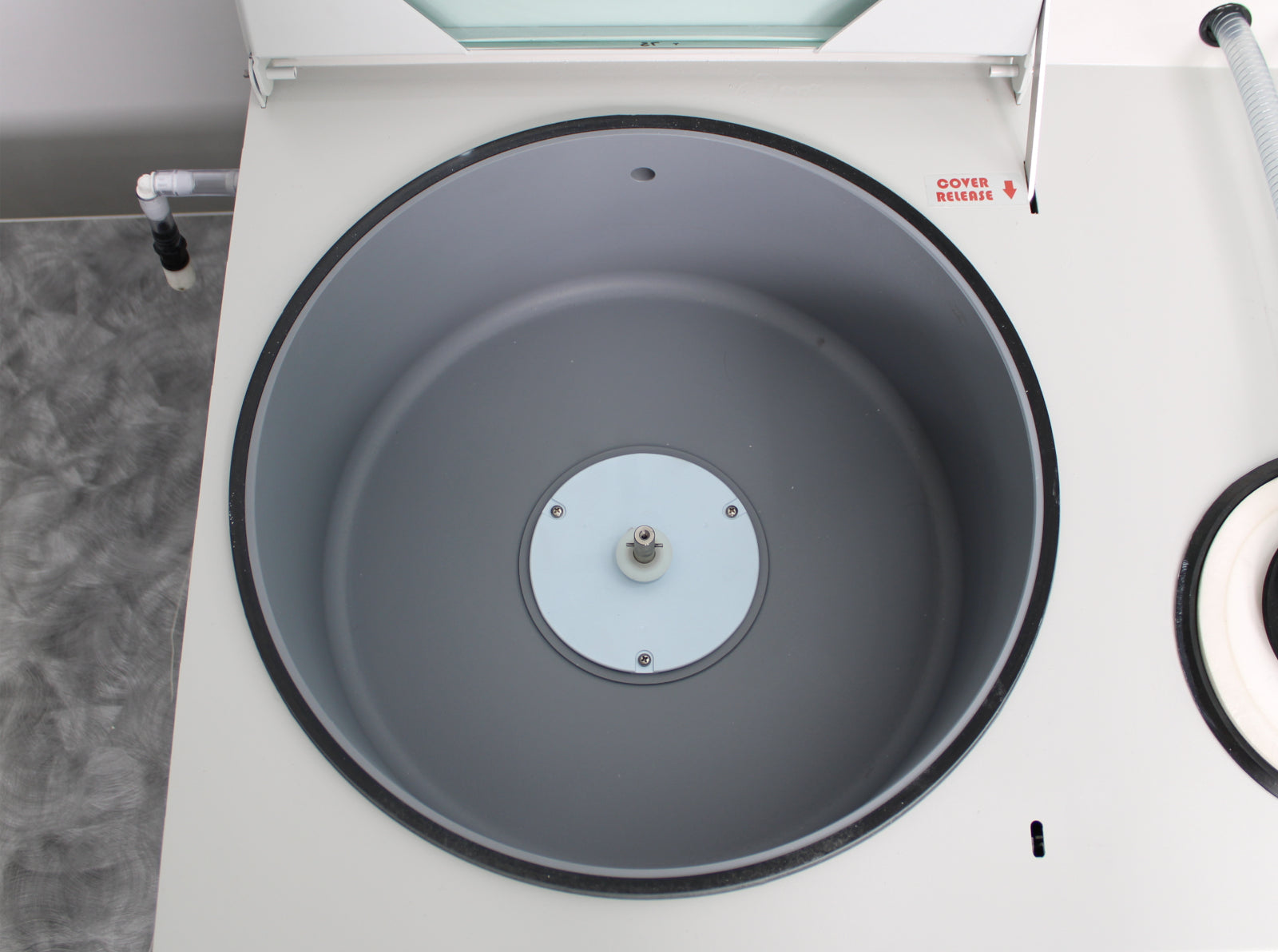

- Centrifuge spinning without issue: PASSED
- Chamber heating: PASSED
- Vacuum pressure to 7.5 bar: PASSED
|
Manufacturer
|
Thermo Fisher Scientific
|
|
Model
|
Integrated Speedvac
|
|
Model No.
|
SPD2010-220
|
|
Serial No.
|
1154473301171122
|
|
Capacity
|
Large
|
|

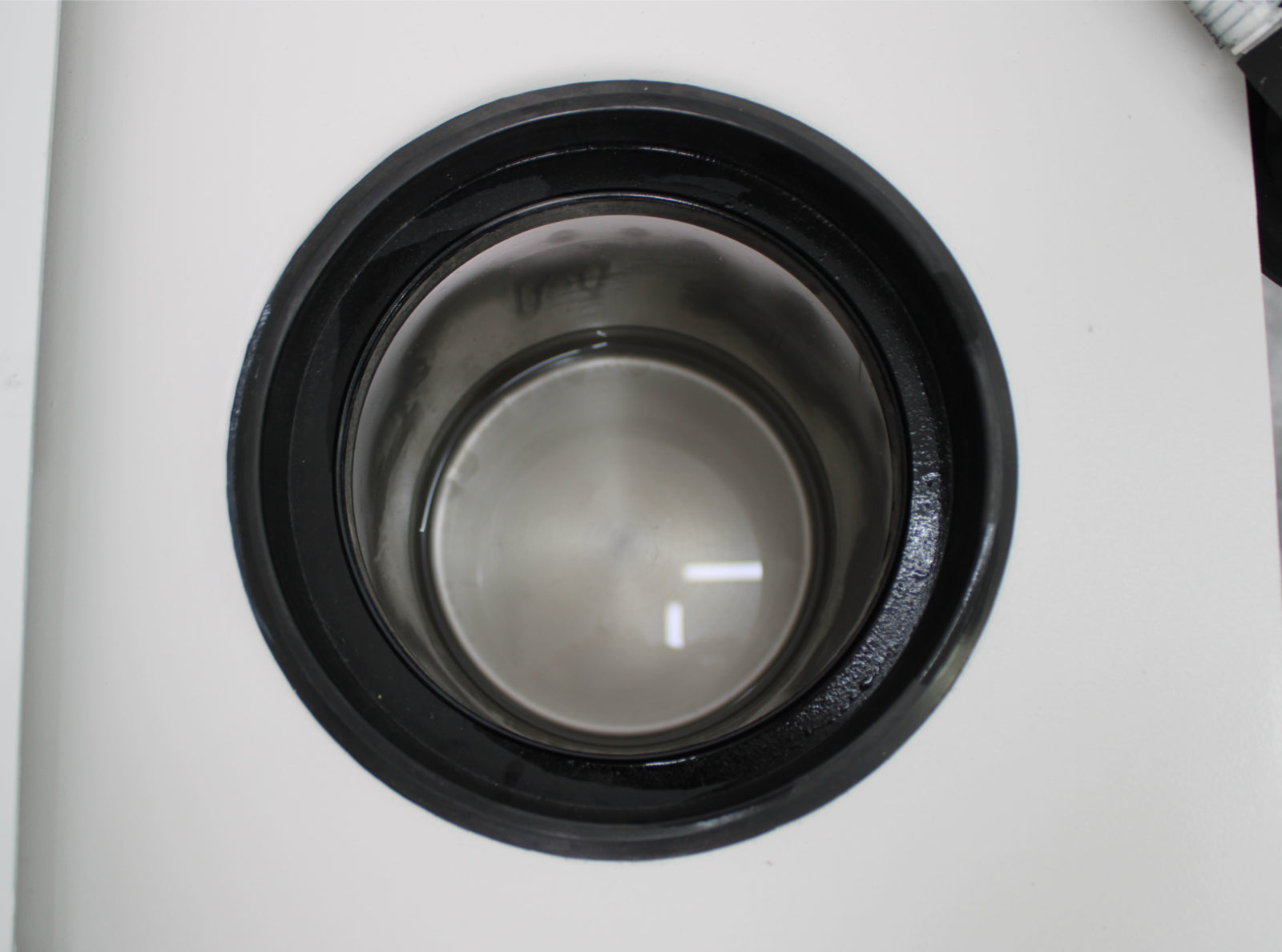

Refrigerated trap
|
Approx. -50°C
4 liter
CFC-free
|
|
Vacuum pump displacement (50/60Hz)
|
30/36 liters/min
|
|
Maximum vacuum
|
7 Torr
|
|

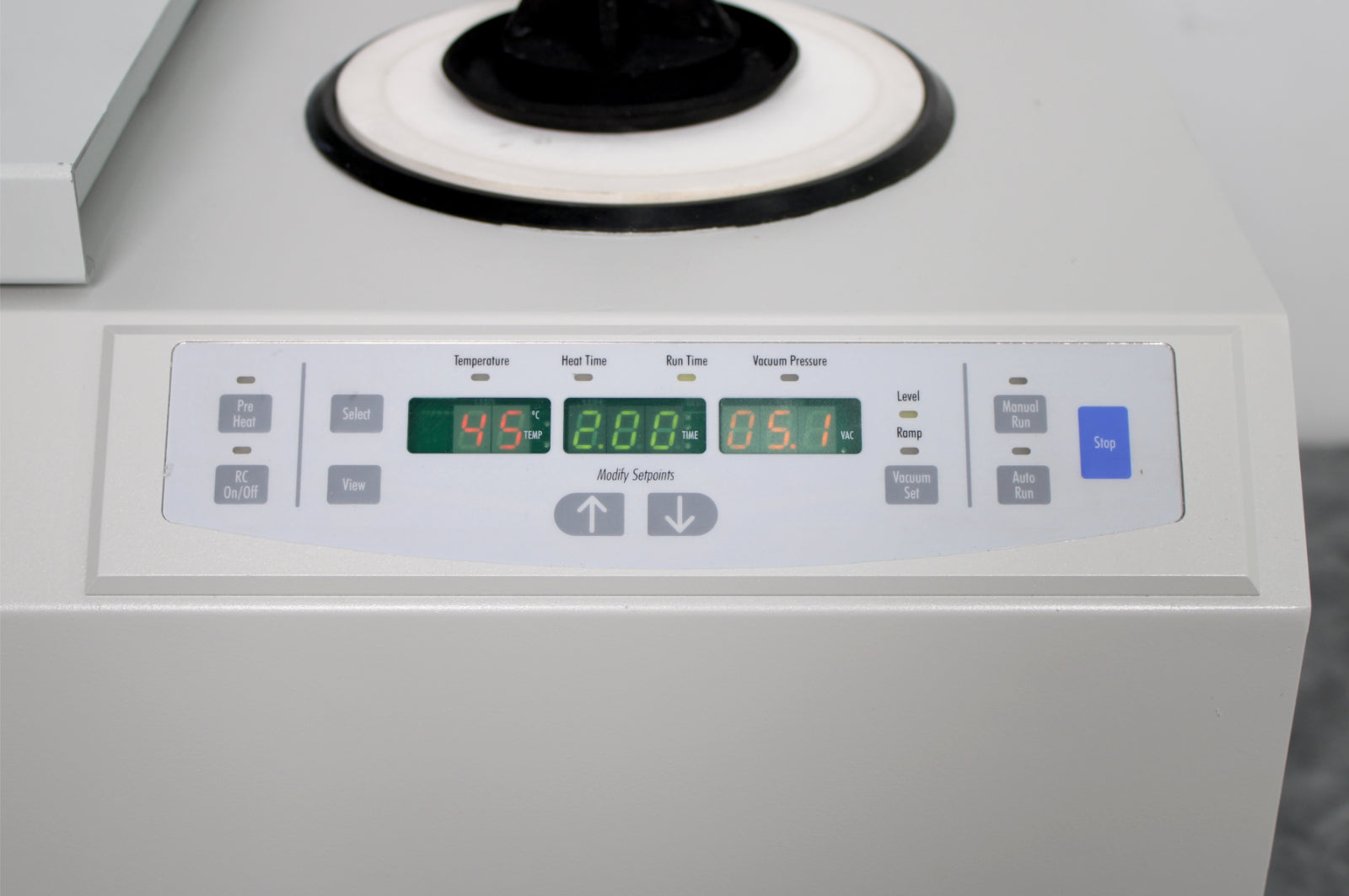

Vacuum level control
|
30 to 5.1 torr in 0.1 increments
|
|
Vacuum ramp setting
|
1 to 5
|
|

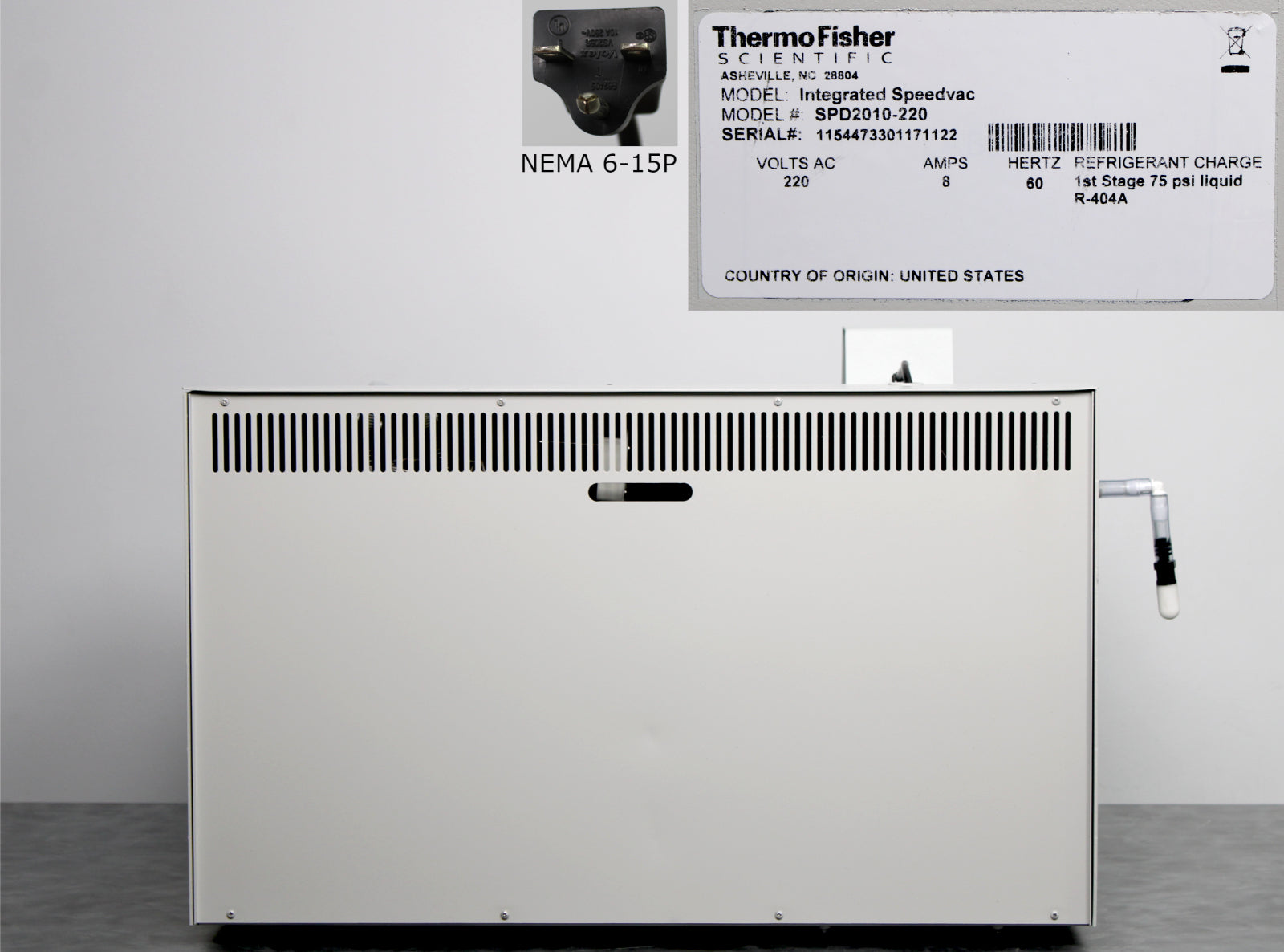

Plug type
|
NEMA 6-15P
|
|
Power rating
|
220VAC, 60Hz, 8A
|
|
Dimensions (W x D x H)
|
31 x 27 x 19 in (77 x 67 x 47 cm)
|
|
Weight
|
182 lb (83 kg)
|
|
Manufacturer
|
Thermo Fisher Scientific
|
|
Type
|
Savant SpeedVac Rotor
|
|
Model
|
RH192-15
|
|
Capacity
|
192 vials (1 dram 15 x 45 mm, 4mL), Large capacity models
|
