Manufacturer
|
Thermo Fisher Scientific
|
|

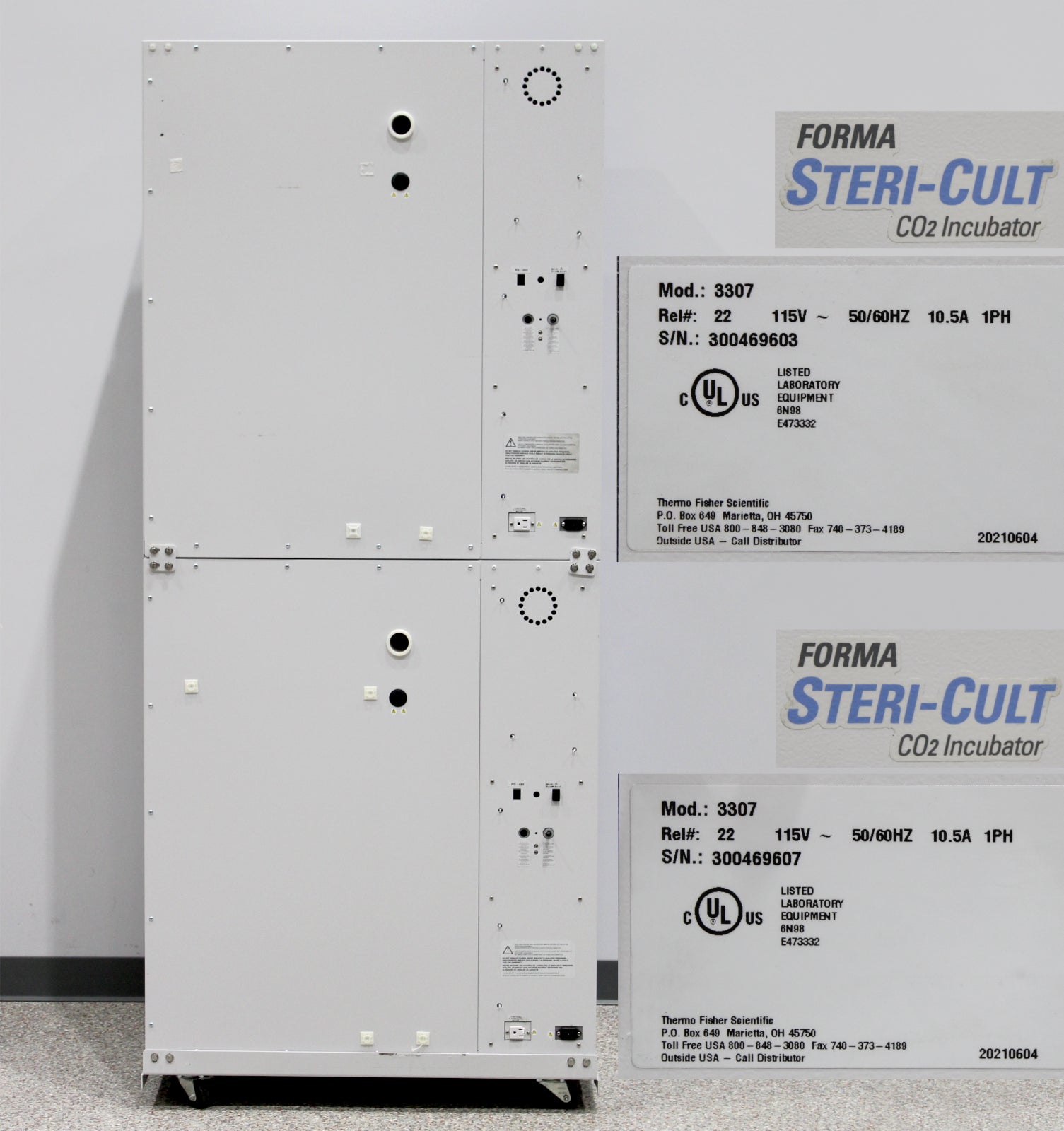

Model
|
3307
|
|
Serial No. (Mfg. date)
|
300469603 (20210604)
300469607 (20210604)
|
|
Temperature control
|
±0.1°C @ 37.0°C
|
|
Temperature setpoint
|
Digital touch pad, 0.1°C resolution
|
|
Temperature range
|
5°C over ambient to 50°C
|
|
Temperature uniformity
|
±0.2°C @ +37°C, in a 23°C ambient @ nominal line voltage
|
|

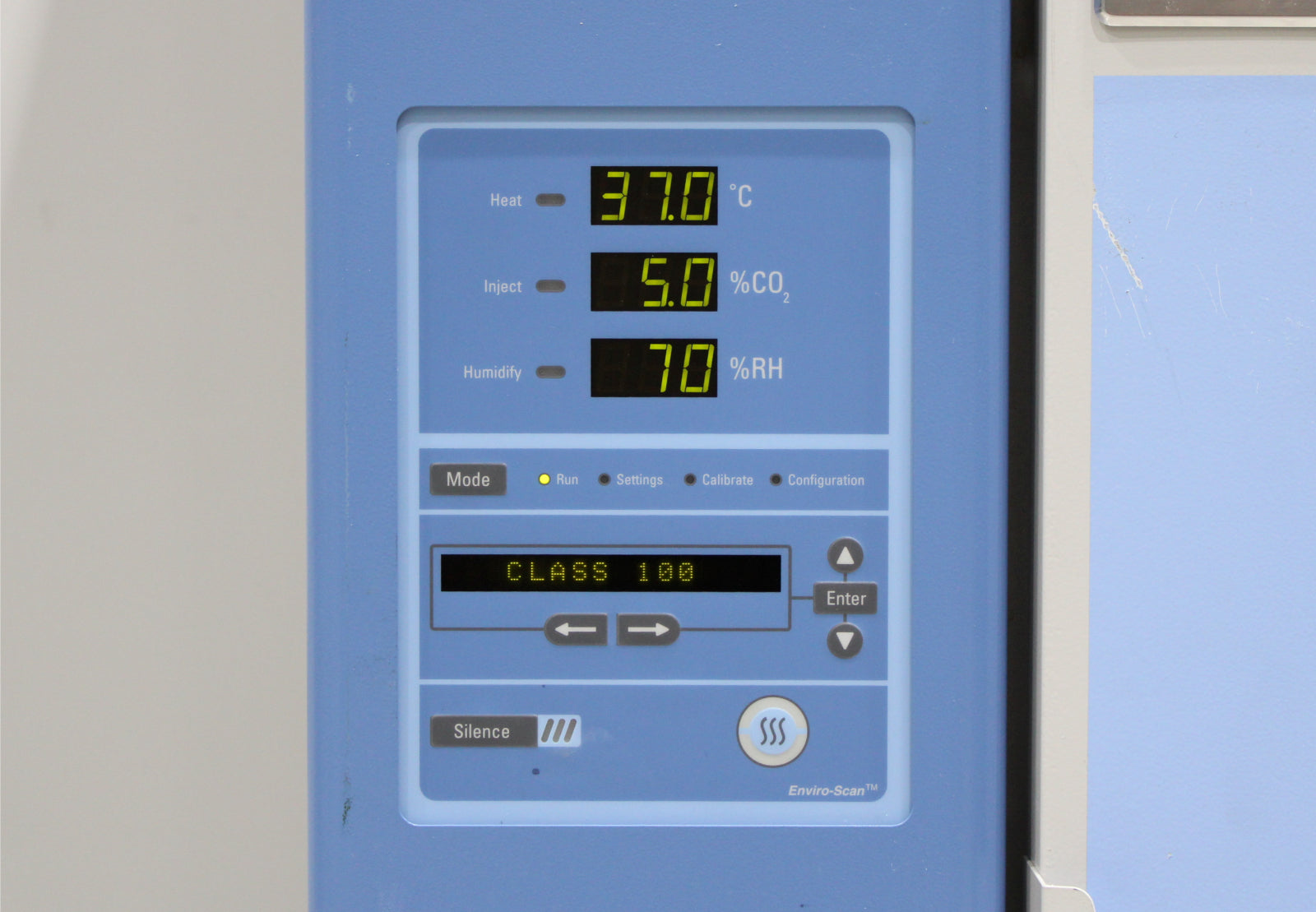

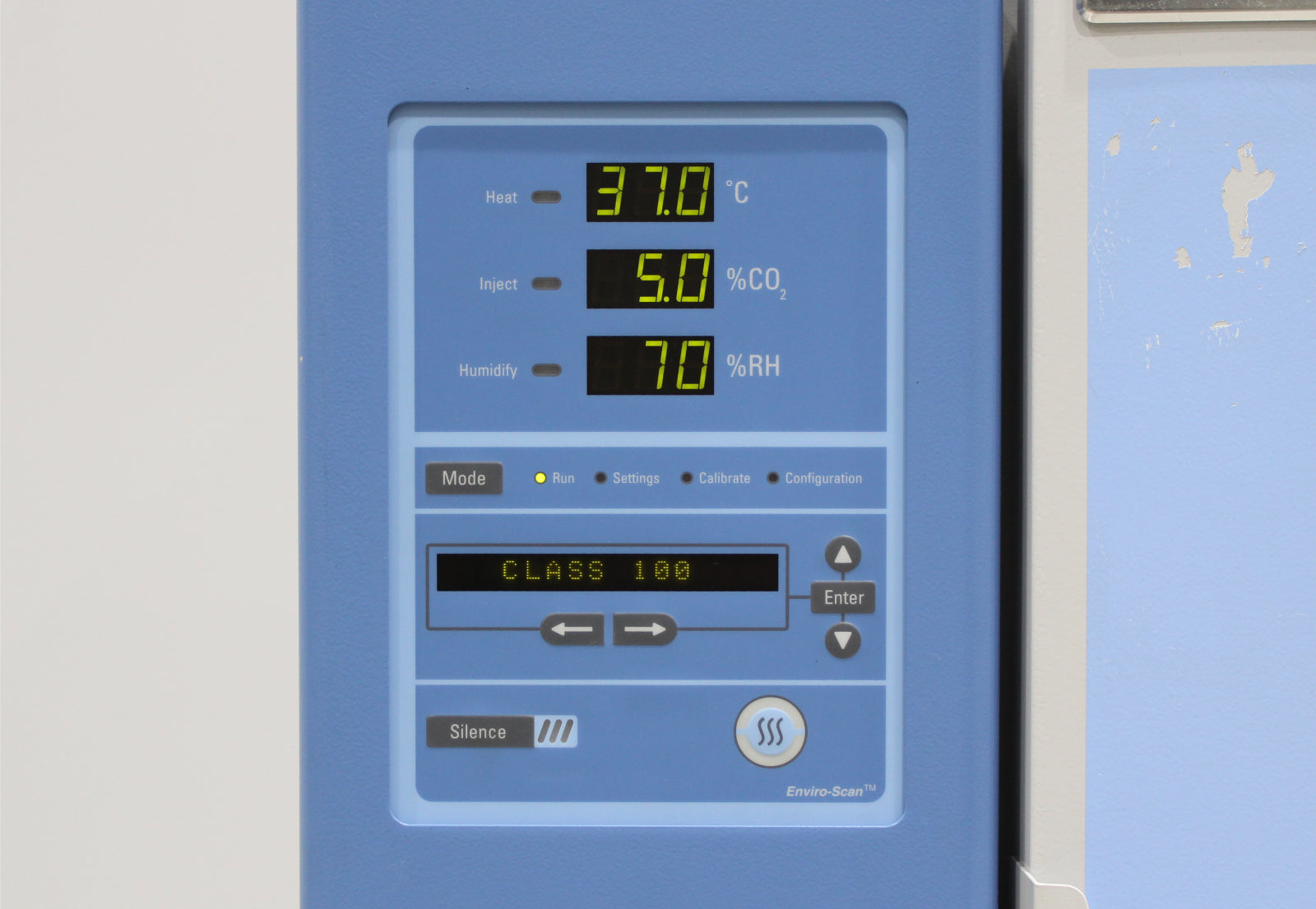

Temperature display
|
Digital, LED, 0.1°C increments
|
|
Temperature sensor
|
Thermistor
|
|
Relative humidity control
|
±2.0%
|
|
Relative humidity range
|
Ambient level to 90%
|
|
Relative humidity controller
|
Microprocessor
|
|

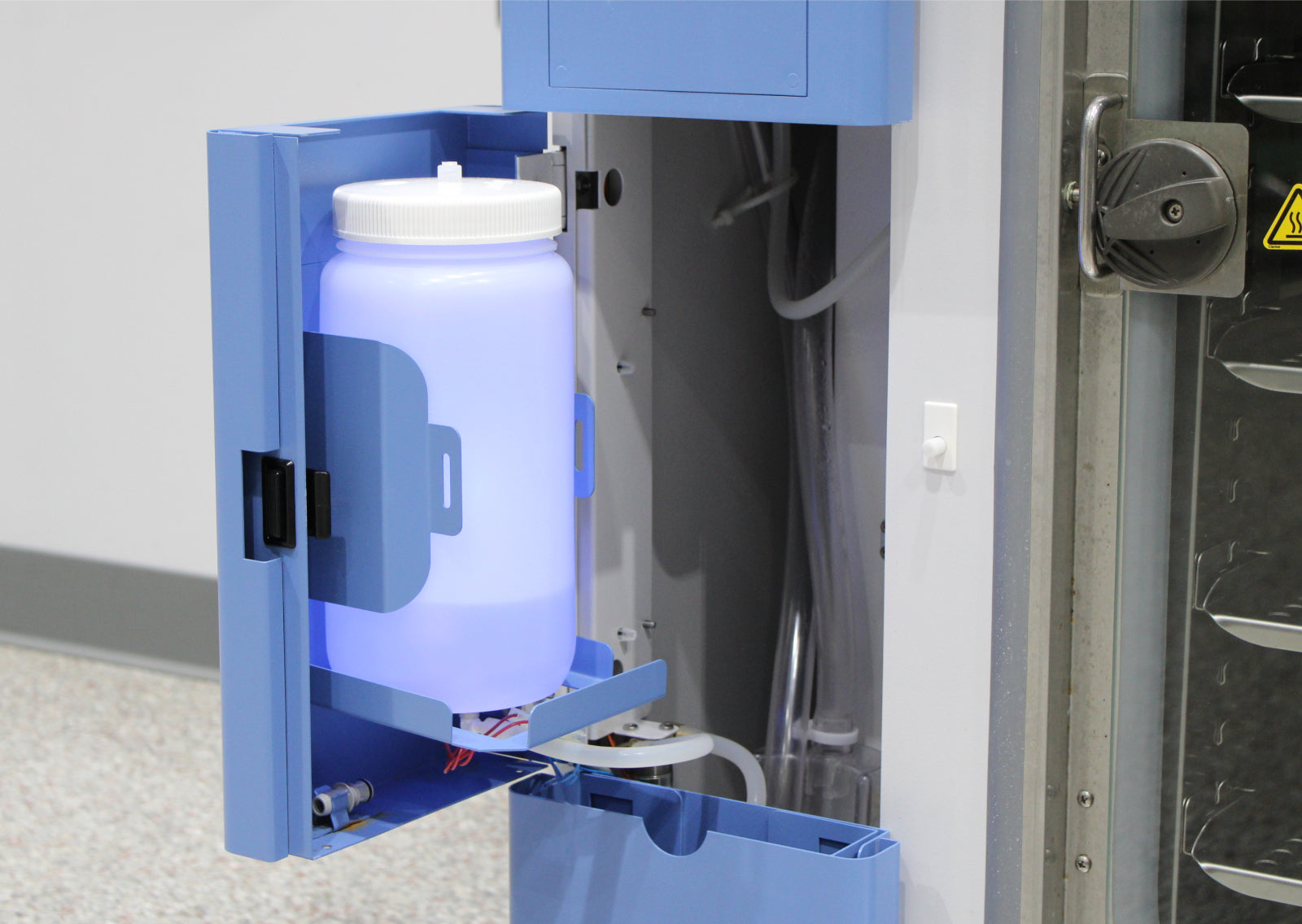

Relative humidity system
|
95% RH at 37°C
|
|
Relative humidity setpoint
|
Digital touch pad, 1% resolution
|
|
Relative humidity display
|
Digital LED, 1% resolution
|
|
CO2 control
|
±0.1% @ 5.0%
|
|
CO2 sensor
|
Infrared
|
|
CO2 setpoint
|
Digital touch pad, 0.1°C resolution
|
|
CO2 range
|
0 to 20%
|
|
CO2 inlet pressure
|
15 PSIG, ±5 PSIG
|
|
CO2 controller
|
Microprocessor
|
|
CO2 display
|
Digital LED, 0.1% increments
|
|

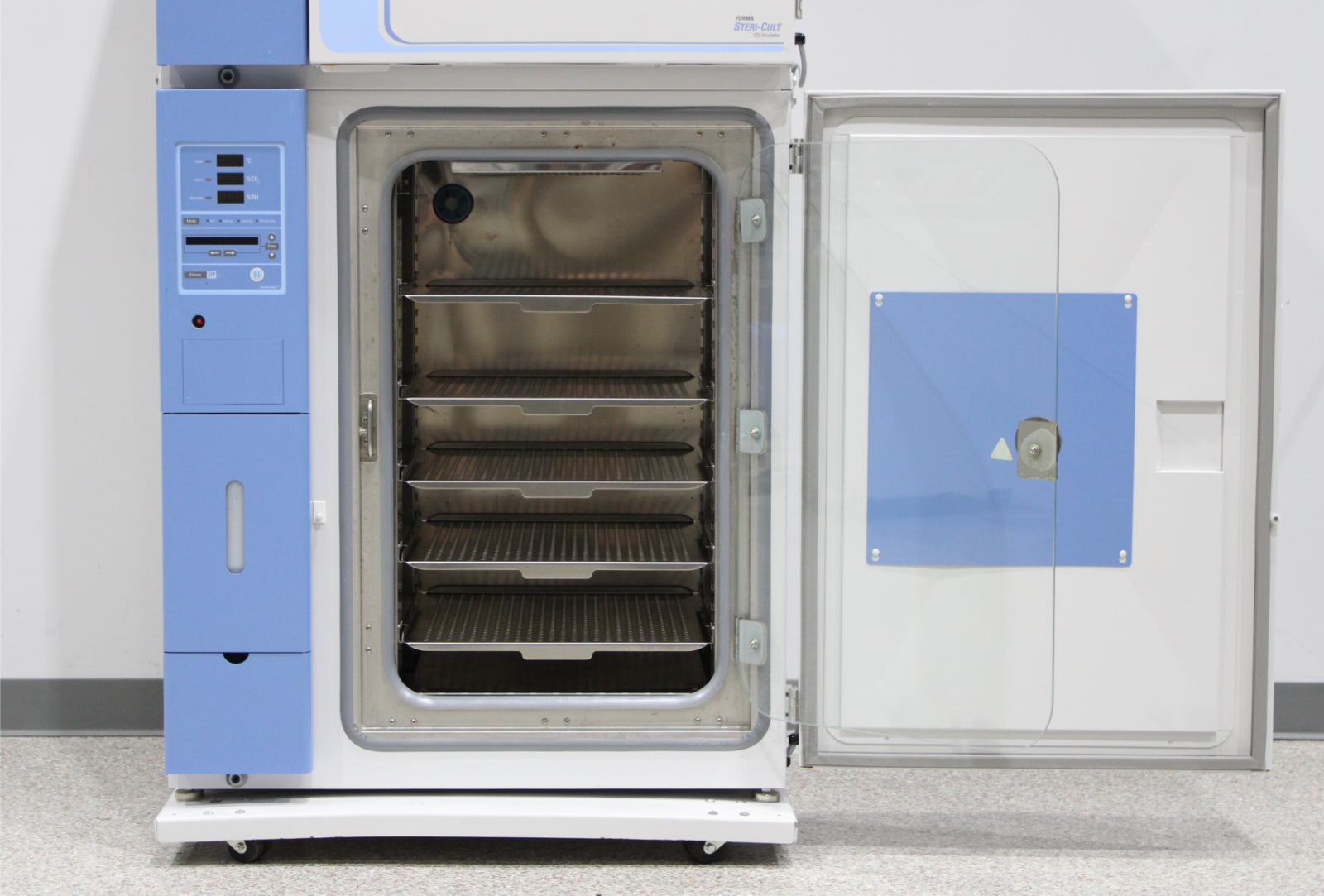

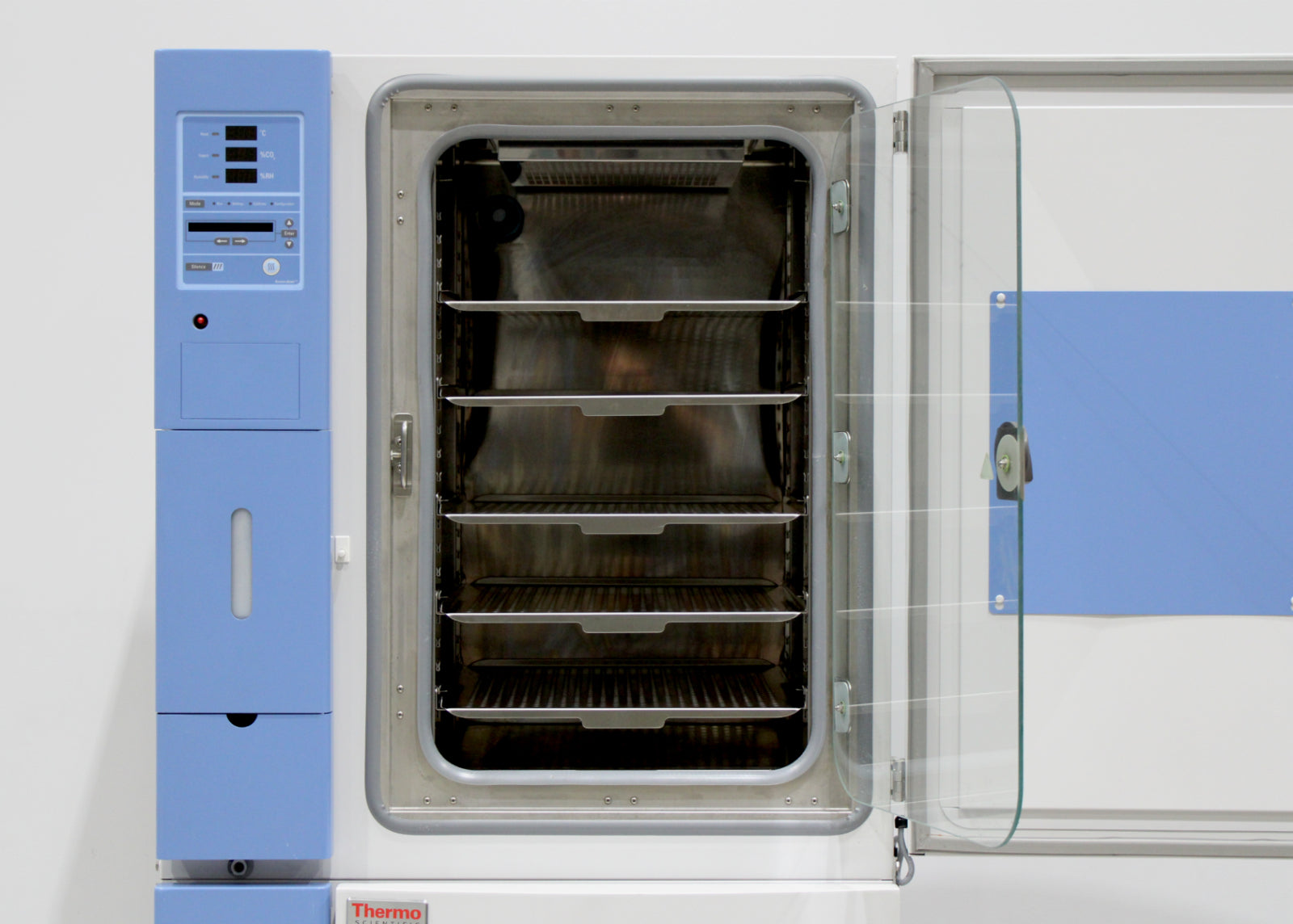

No. of shelves (standard / maximum)
|
5 / 22
|
|
Shelves construction
|
Stainless steel, perforated
|
|
Shelves clearance
|
Adjustable on 1.160” centers
|
|
Shelves dimensions
|
17.7 x 19.9 in (45.2 x 50.5 cm)
|
|
Shelves surface area
|
2.4 sq. ft. per shelf
|
|
Shelves loading
|
50 lb (22.7 kg) stationary
|
|
Sterilization cycle setpoint
|
140°C
|
|
Sterilization cycle time
|
Approximately 14 hours @ 23°C, nominal line voltage
|
|
Sterilization activation
|
Digital touch pad
|
|
Construction interior volume
|
8.2 cu. ft. (232.2 liters)
|
|
Construction interior material
|
Type 304 stainless steel mirror finish, coved corners
|
|
Construction exterior material
|
18 gauge cold rolled steel, powder-coated
|
|
Construction outer door gasket
|
Four-sided, molded, magnetic vinyl
|
|
Construction inner door gasket
|
Silicone feather
|
|
Construction insulation
|
Mineral wool
|
|
Fittings access port
|
1.4 in (3.6 cm) with removable silicone plug
|
|
Fittings CO2 inlet
|
0.25 in (0.64 cm) hose barbed
|
|
Fittings drain port
|
⅜ in (0.95 cm) barbed fitting with shutoff
|
|

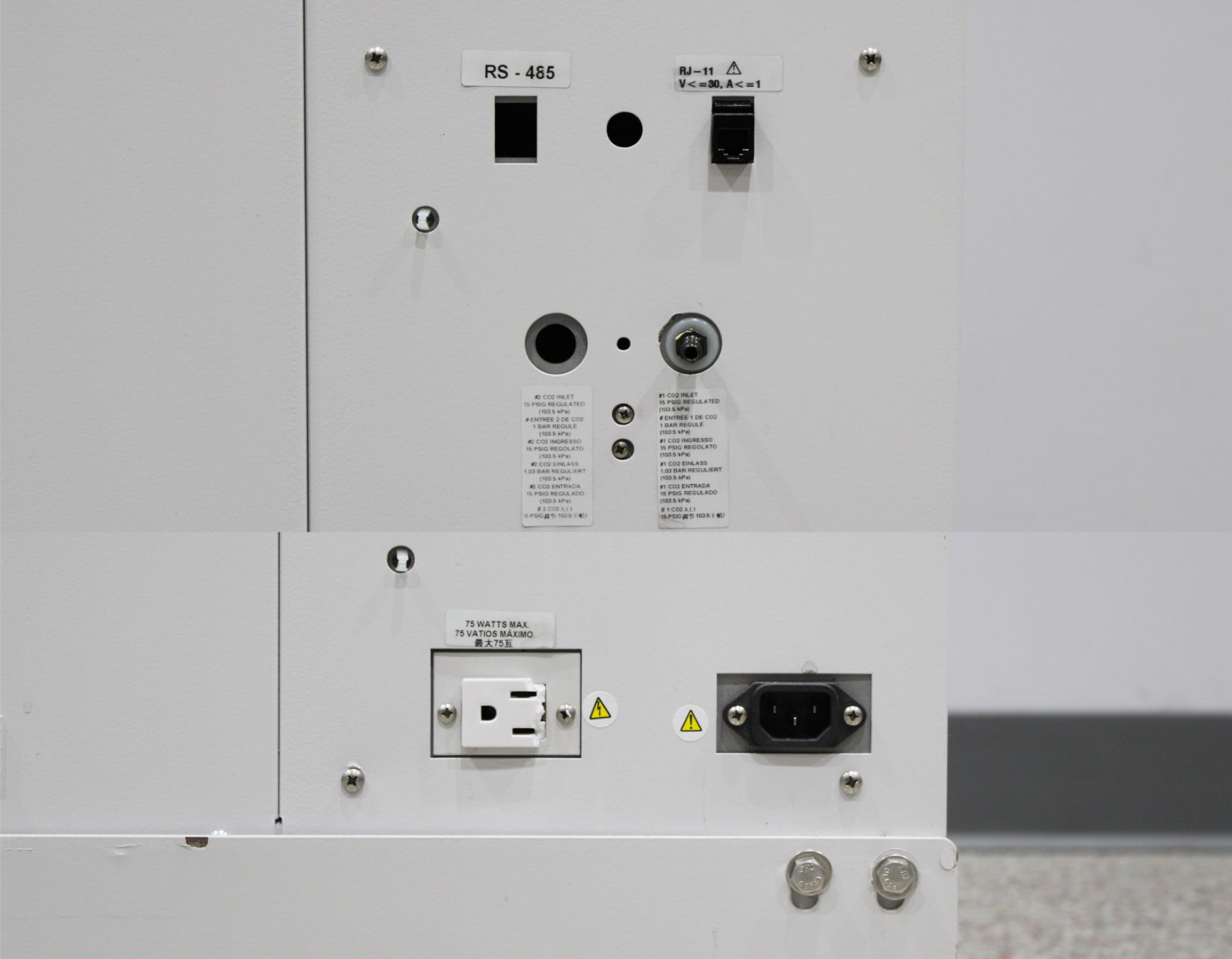

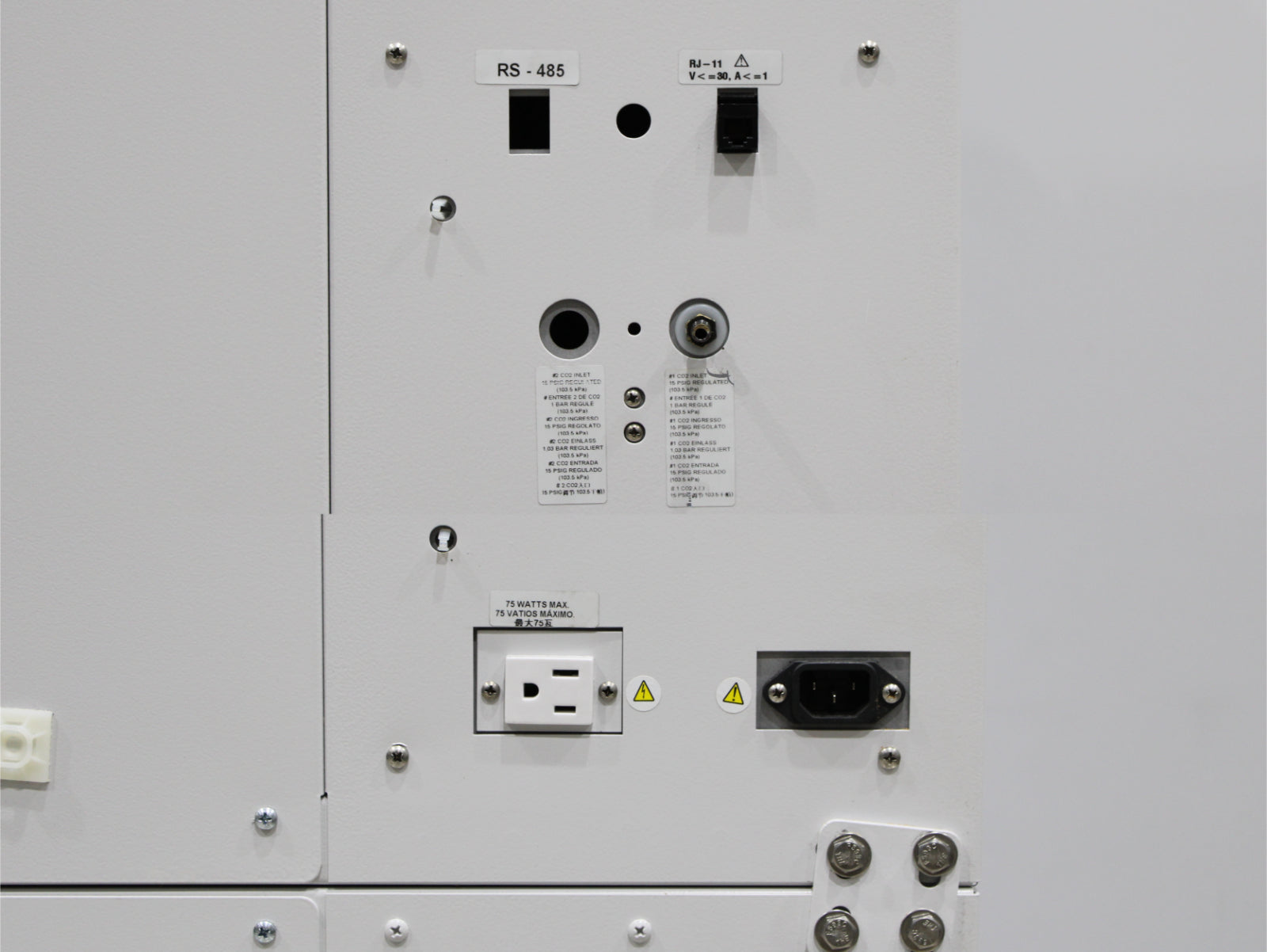

Power rating
|
115V~, 50/60Hz, 10.5A, 1Ph
|
|
Exterior dimensions single (W x D x H)
|
35 x 27 x 39.4 in (88.9 x 68.6 x 100 cm)
|
|

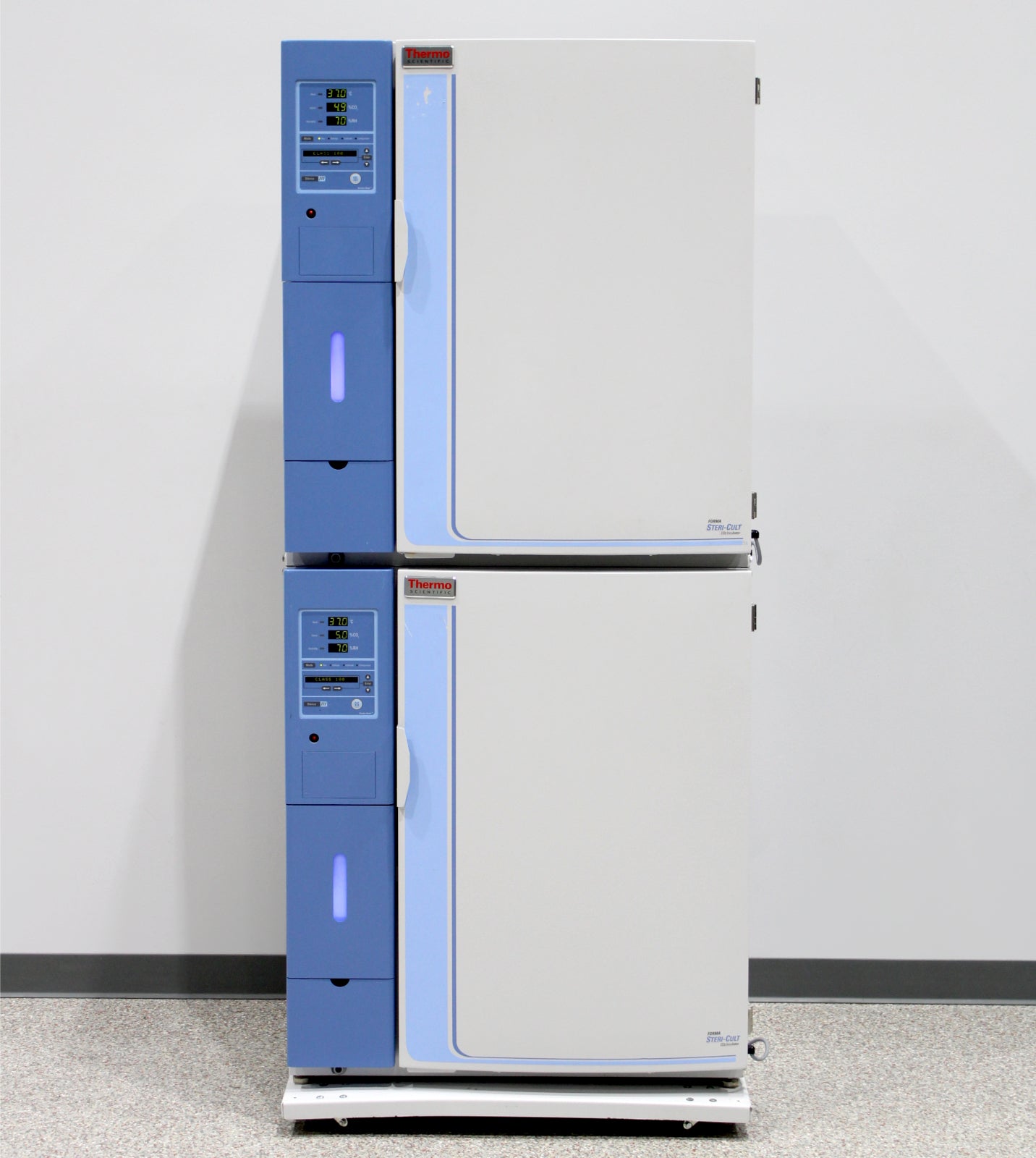

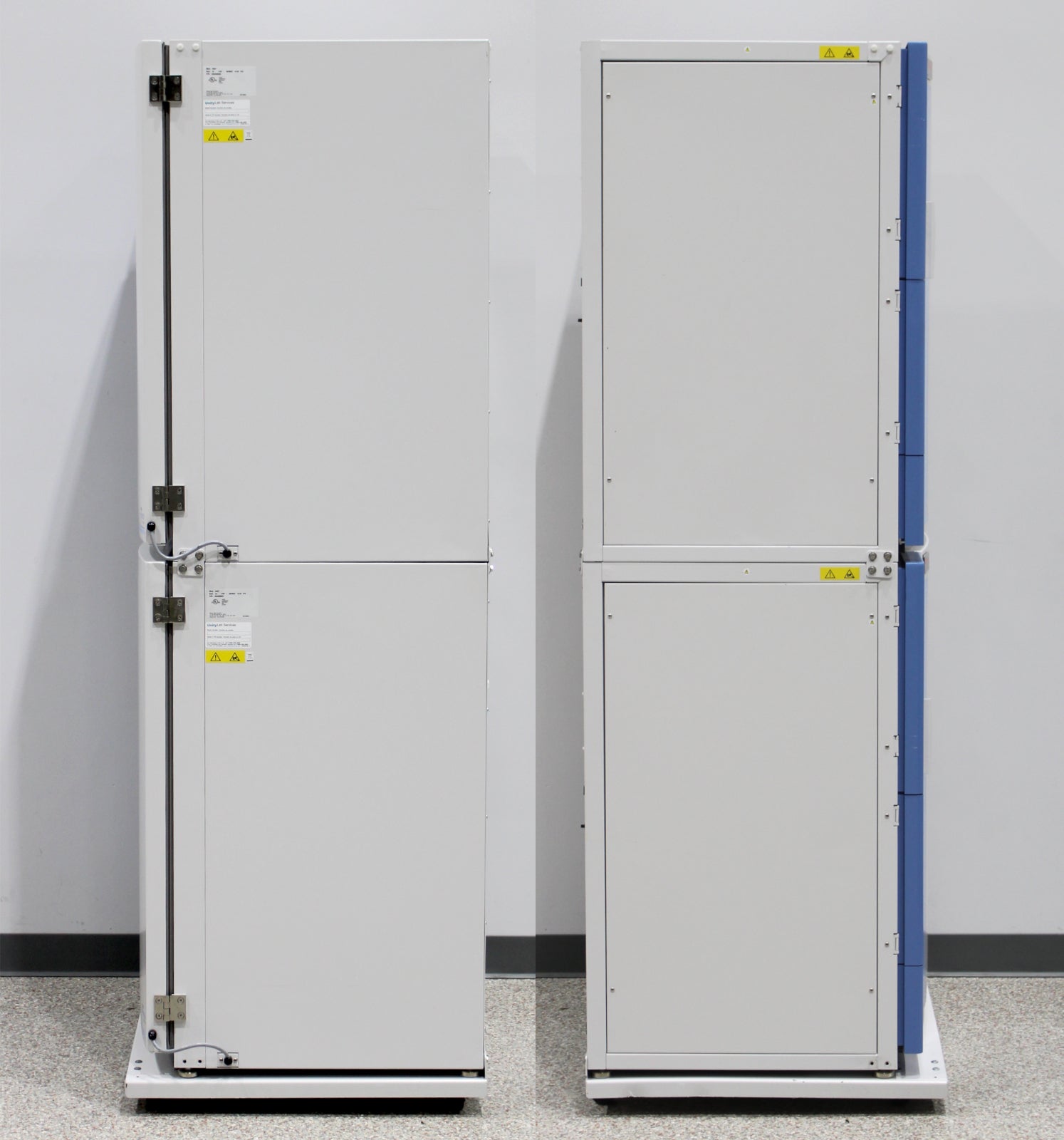

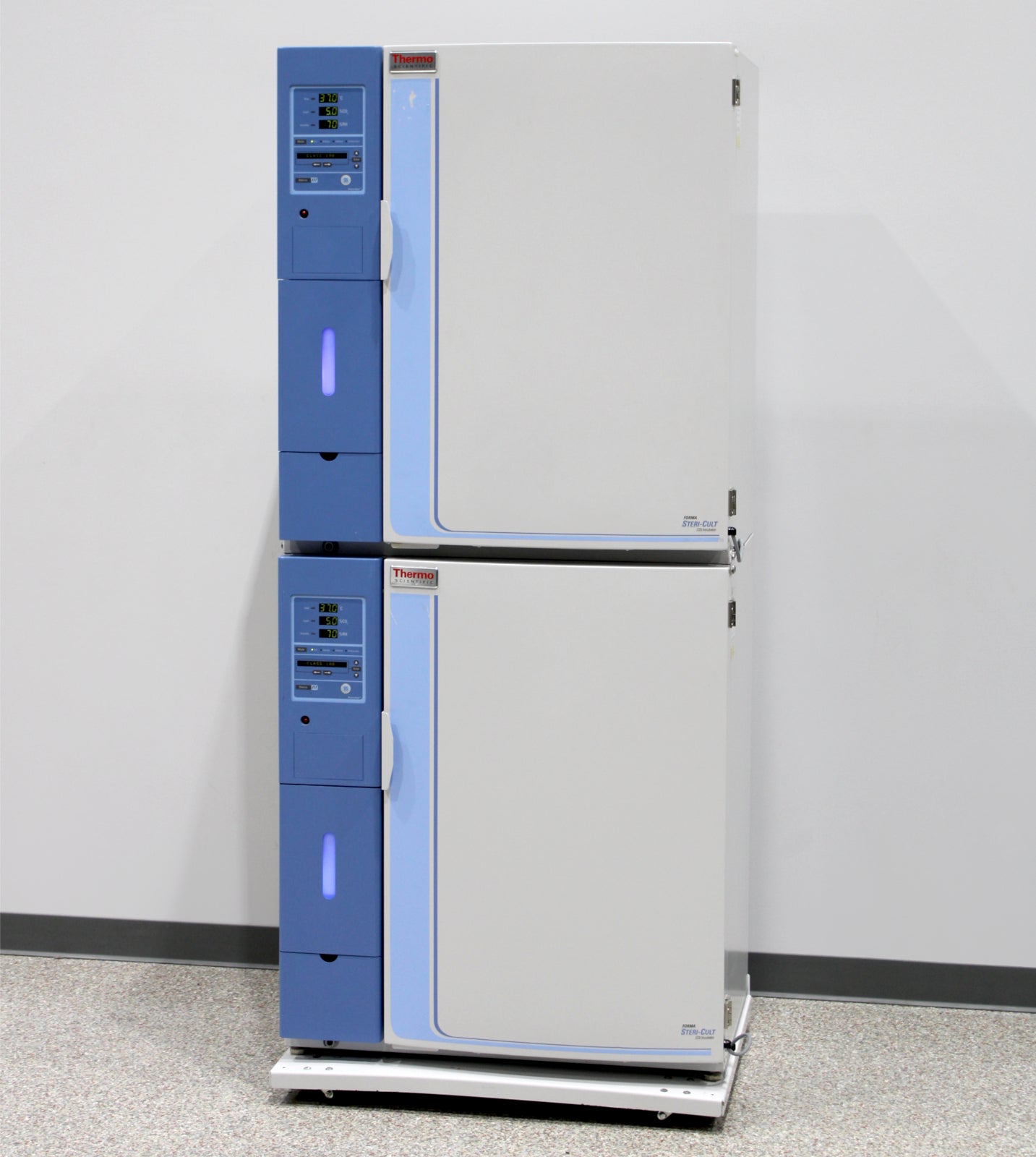

Exterior dimensions double (W x D x H)
|
35 x 27 x 83 in (88.9 x 68.6 x 210.8 cm)
|
|
Weight single
|
330 lb (149.7 kg)
|
|
Approx. weight double
|
~680 lb (308.4 kg)
|
