Manufacturer
|
Thermo Fisher Scientific
|
|

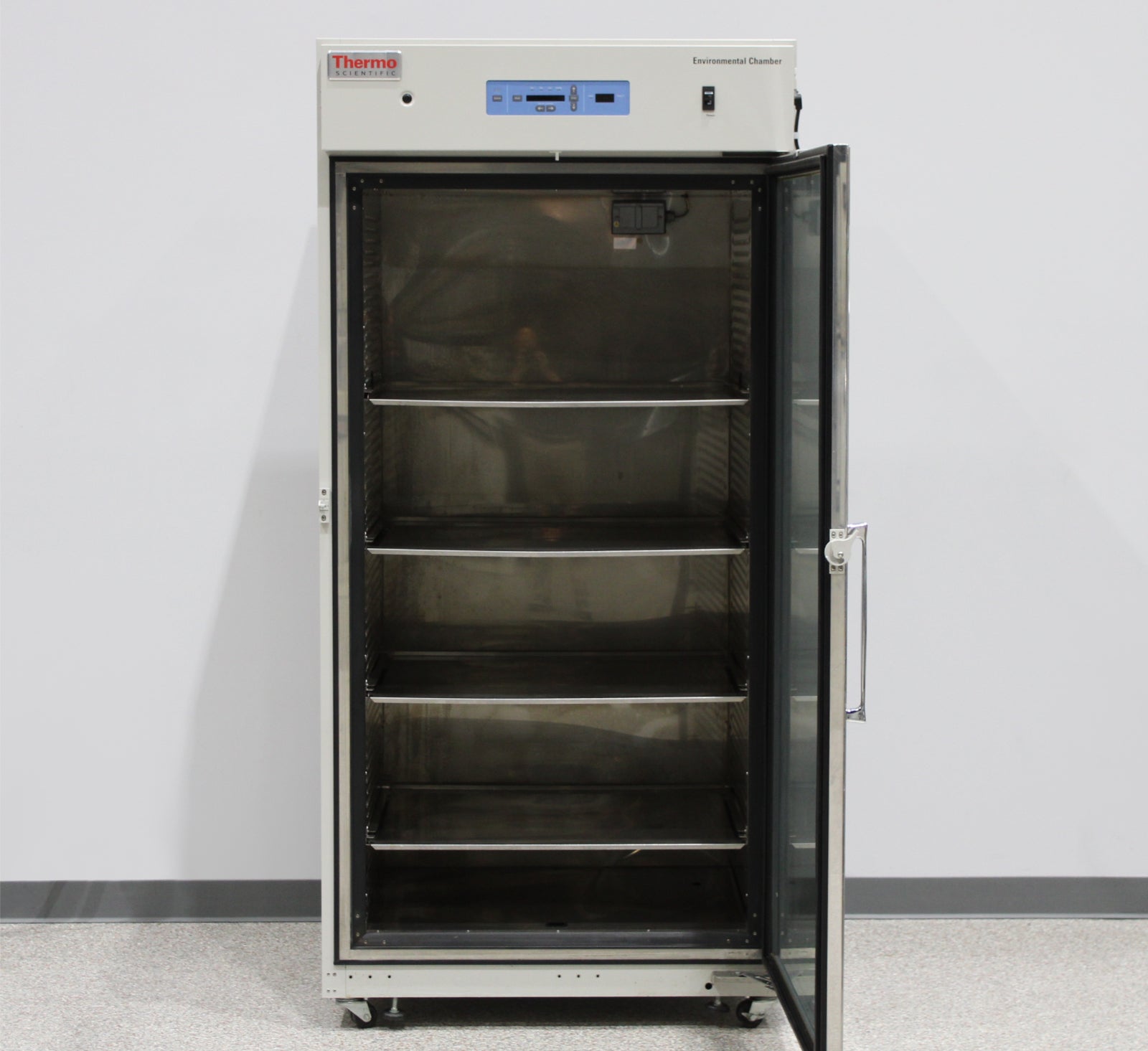

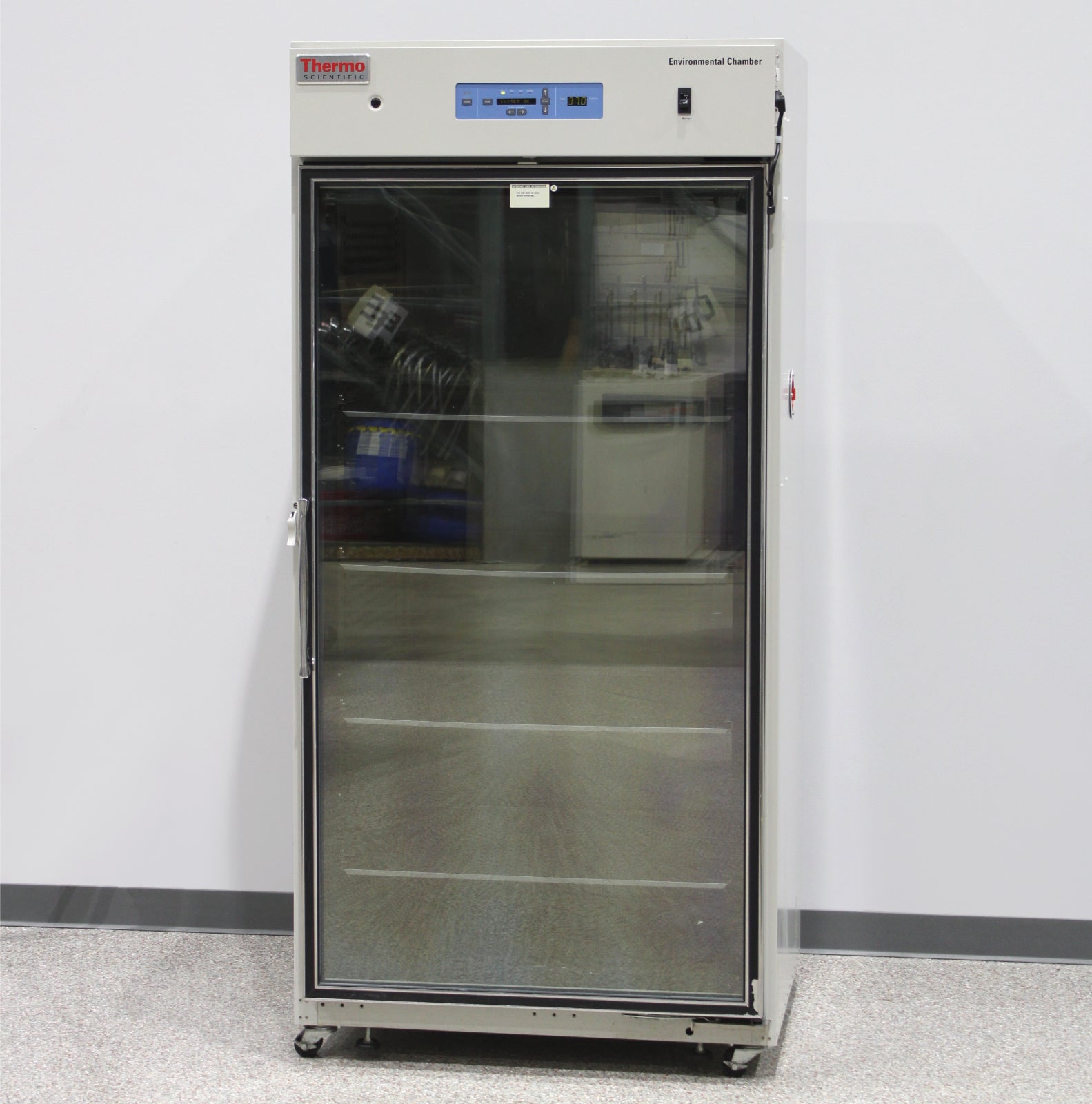

Type
|
Environmental chamber
|
|

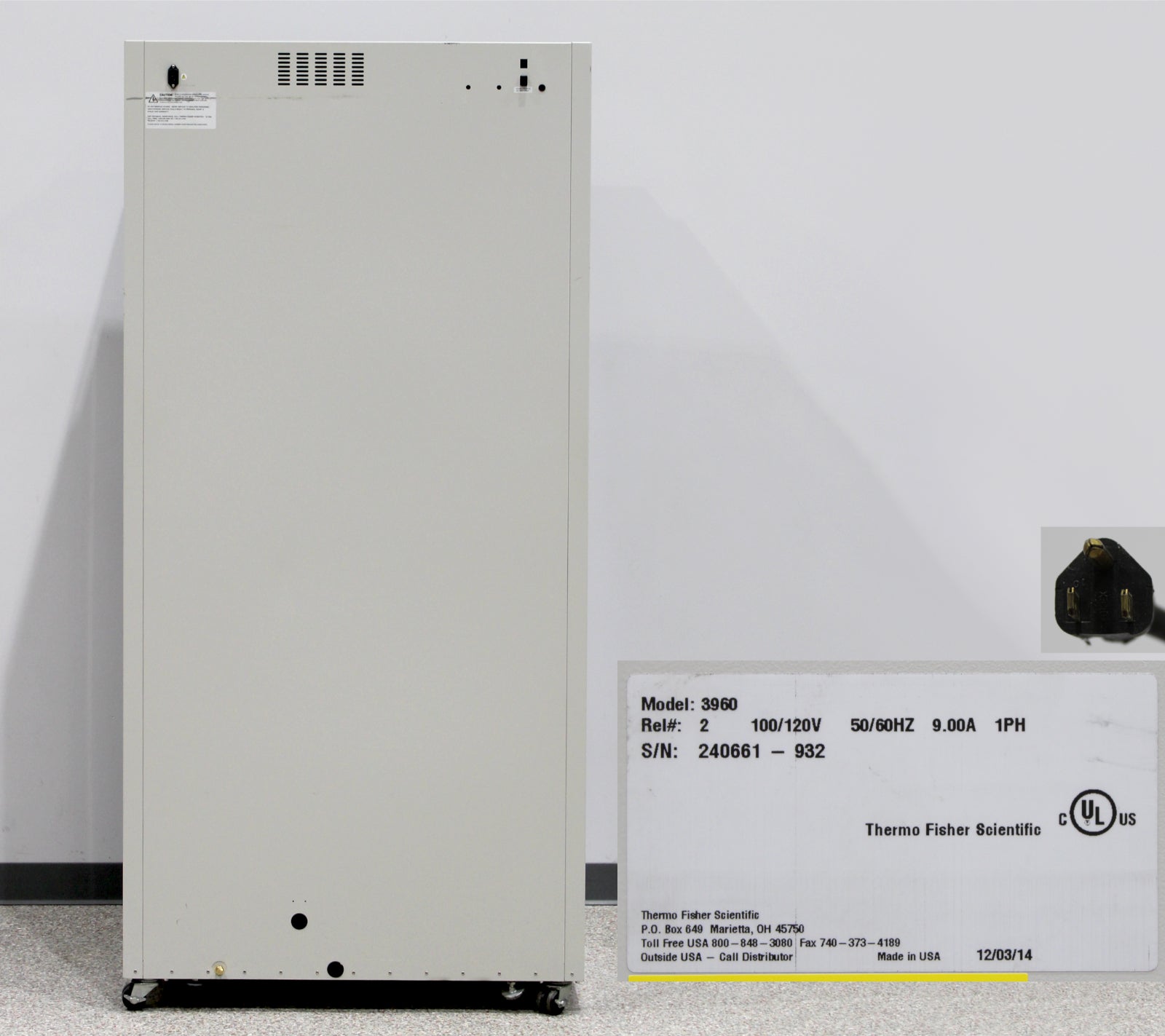

Model
|
3960
|
|
Serial No.
|
240661-932
|
|
Mfg. date
|
12/03/14
|
|

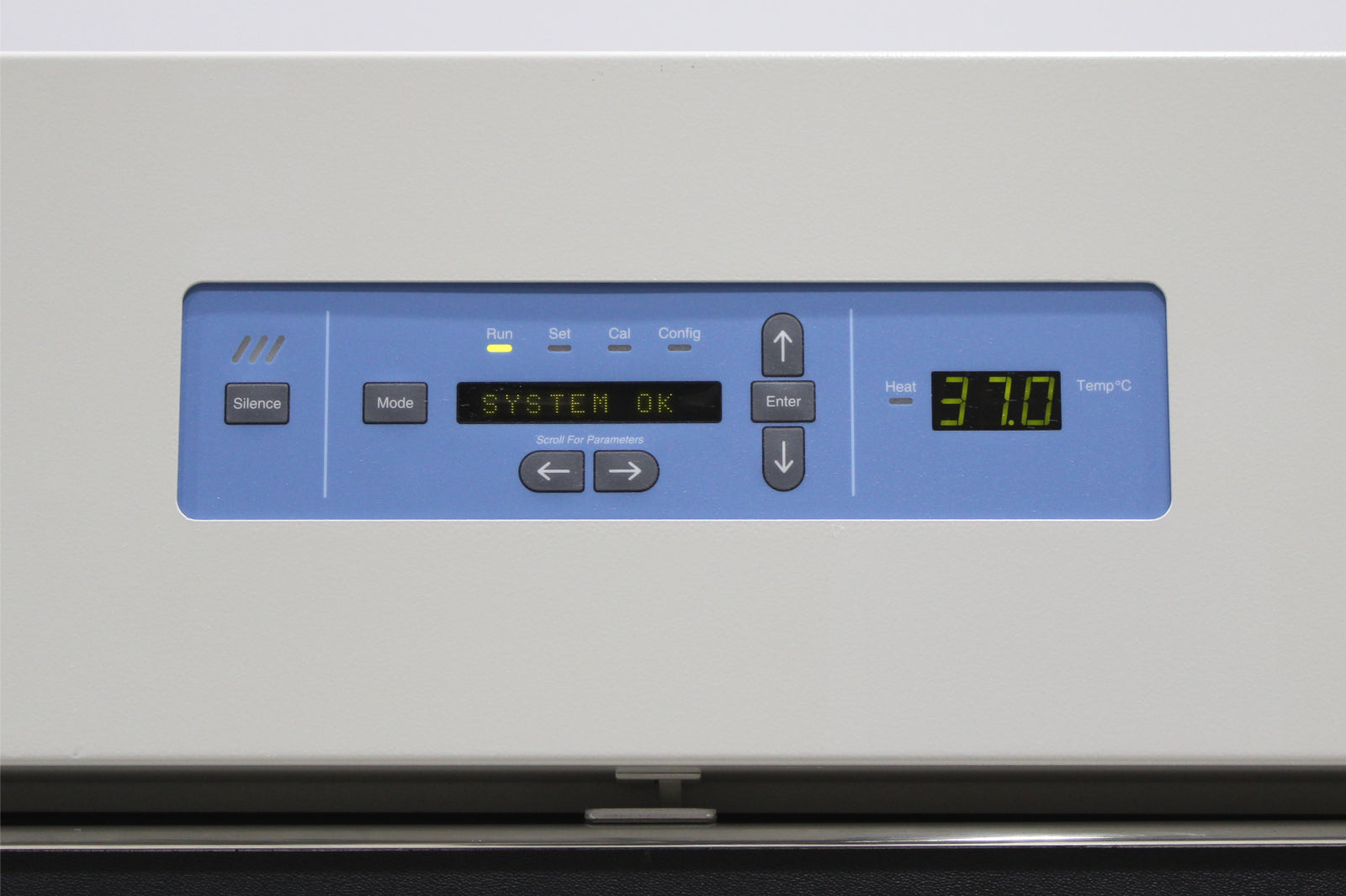

Temperature control
|
±0.1°C
|
|
Temperature range
|
5°C above ambient to 60°C (140°F)
|
|
Temperature uniformity
|
±0.4° at 30°C (86°F); ±0.3° at 37°C (98.6°F); ±0.5° at 45°C (113°F)
|
|
Temperature low alarm
|
User programmable and indicator
|
|
Over-temperature sensor
|
Precision thermistor
|
|
Over-temperature setability
|
0.1°C
|
|
Over-temperature function
|
User programmable, action (shuts off heat), and indicator
|
|
Temperature safety (cabinet) sensor
|
Independent thermostat
|
|
Temperature safety (cabinet) type
|
Independent analog electronic
|
|

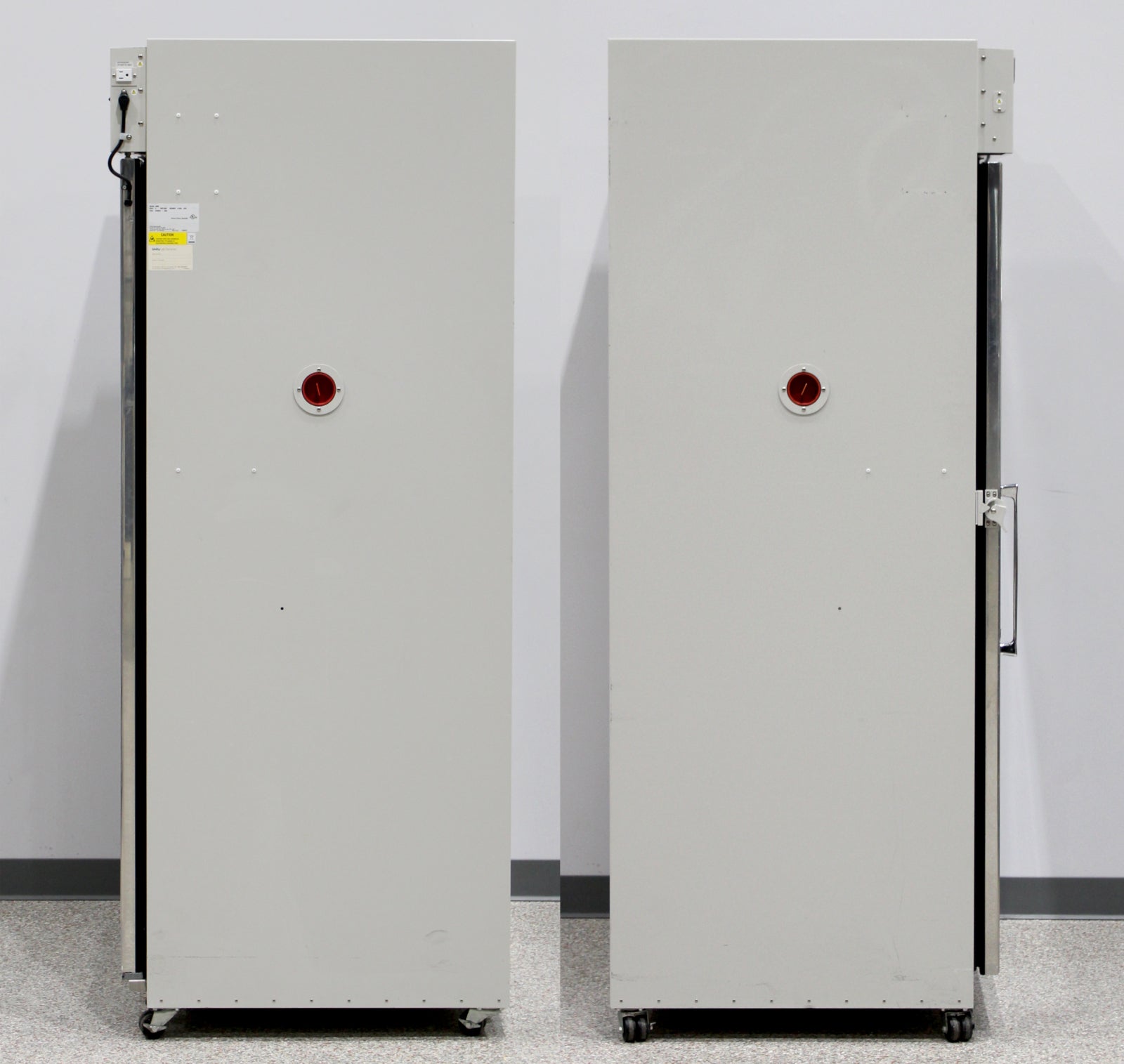

Access port with stopper
|
2.4” (6.1 cm) I.D., one on each side
|
|
Unit heat load 115V/230V
|
510 BTUH (150 Watts) 129 kcal per hour
|
|

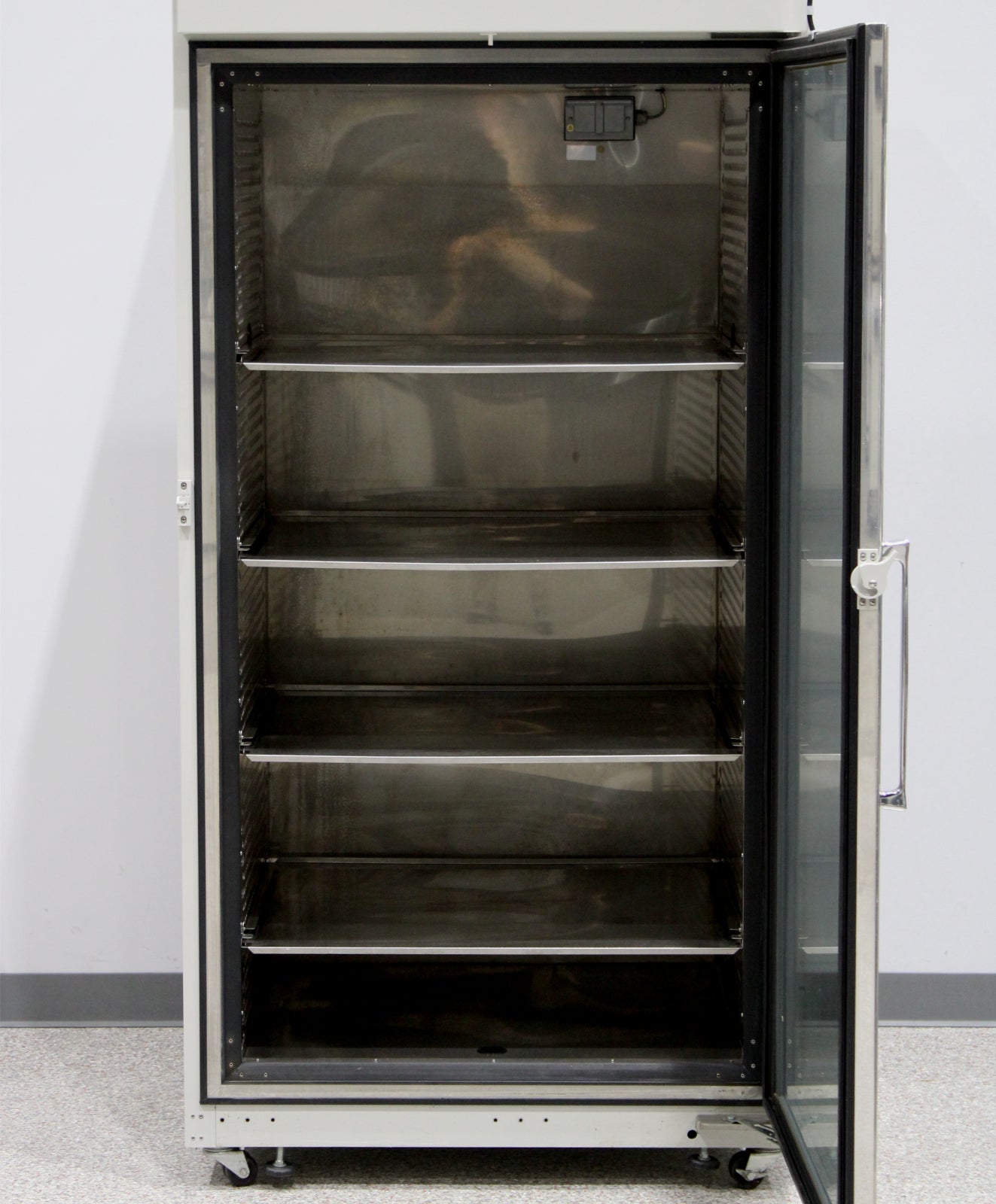

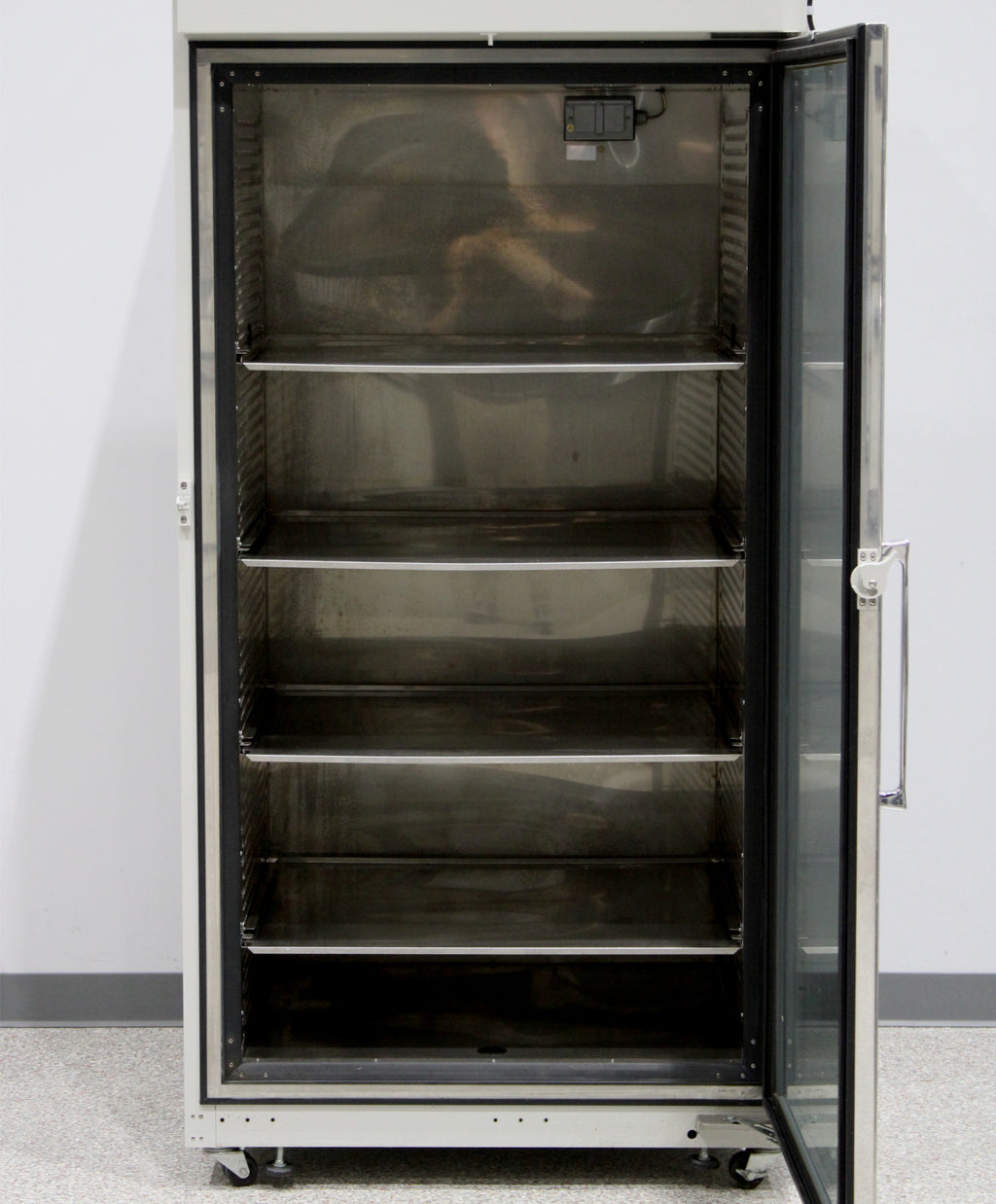

Shelves dimensions
|
30.6”W x 25.8”F-B (77.7 x 65.5 cm)
|
|
Shelves construction
|
2B finish, solid stainless steel
|
|
Shelves surface area
|
5.4 sq. ft. (0.5 sq. m) per shelf
|
|
Shelves max. surface area per chamber
|
140.4 sq. ft. (13.0 sq. m)
|
|
Standard/Maximum No. of shelves
|
5, 26
|
|
Shelves loading
|
30 lb. (13.6 kg) per shelf, fully inserted and stationary; not to exceed 300 lb. (136 kg) total per cabinet
|
|
Construction interior volume
|
29 cu. ft. (821.2 liters)
|
|
Construction interior material
|
Type 304, 2B finish, stainless steel
|
|
Construction exterior material
|
Cold-rolled steel, powder coated
|
|
Construction insulation
|
2.0” (5.1 cm) fiberglass
|
|

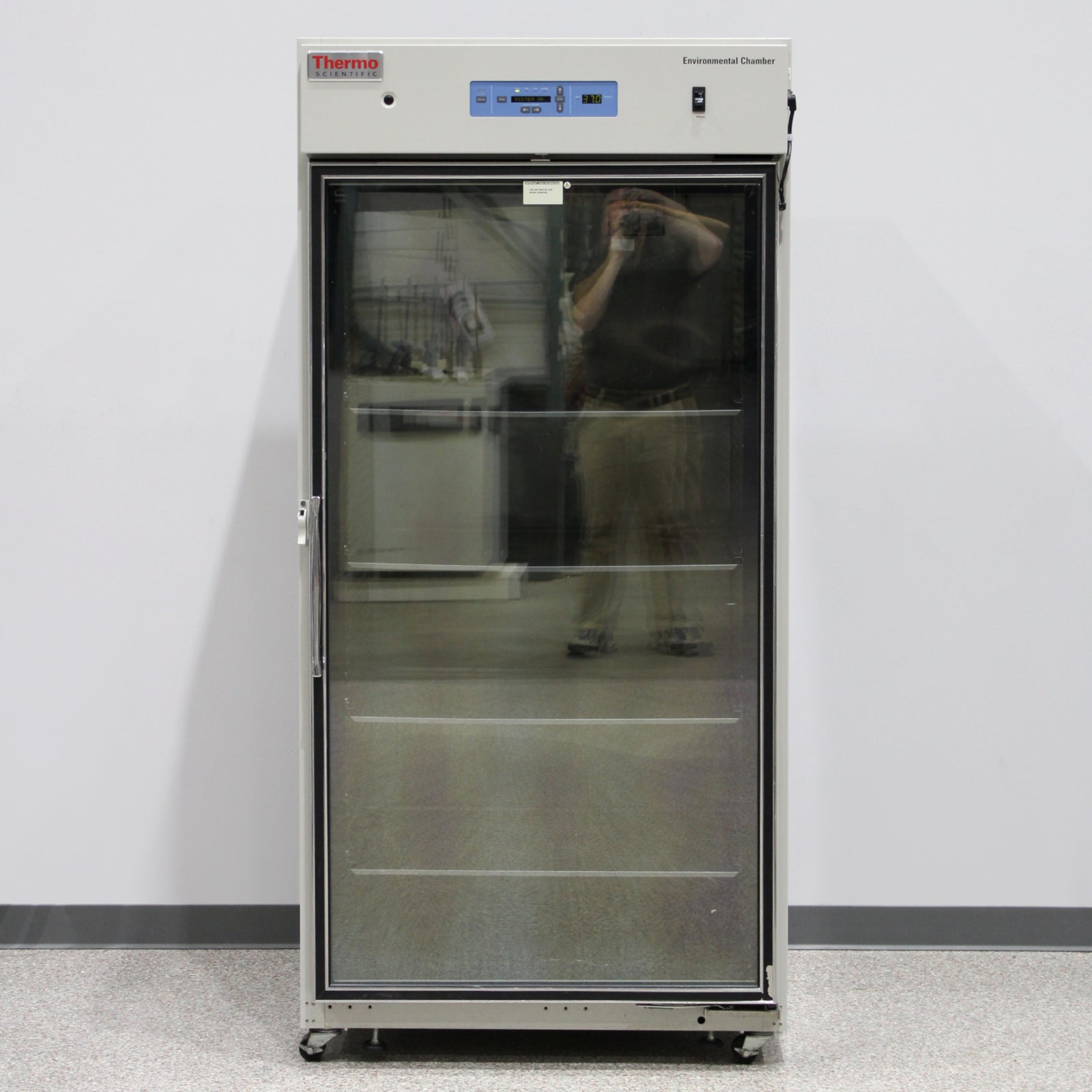

Construction exterior door
|
Heated, triple pane, tempered glass
|
|
Construction outer door gasket
|
Molded vinyl
|
|
Electrical power rating
|
120V, 50/60Hz, 9.00Amps (operating range 90-125V includes voltage fluctuations)
|
|
Circuit breaker/Power switch
|
15 Amps; 2 pole
|
|

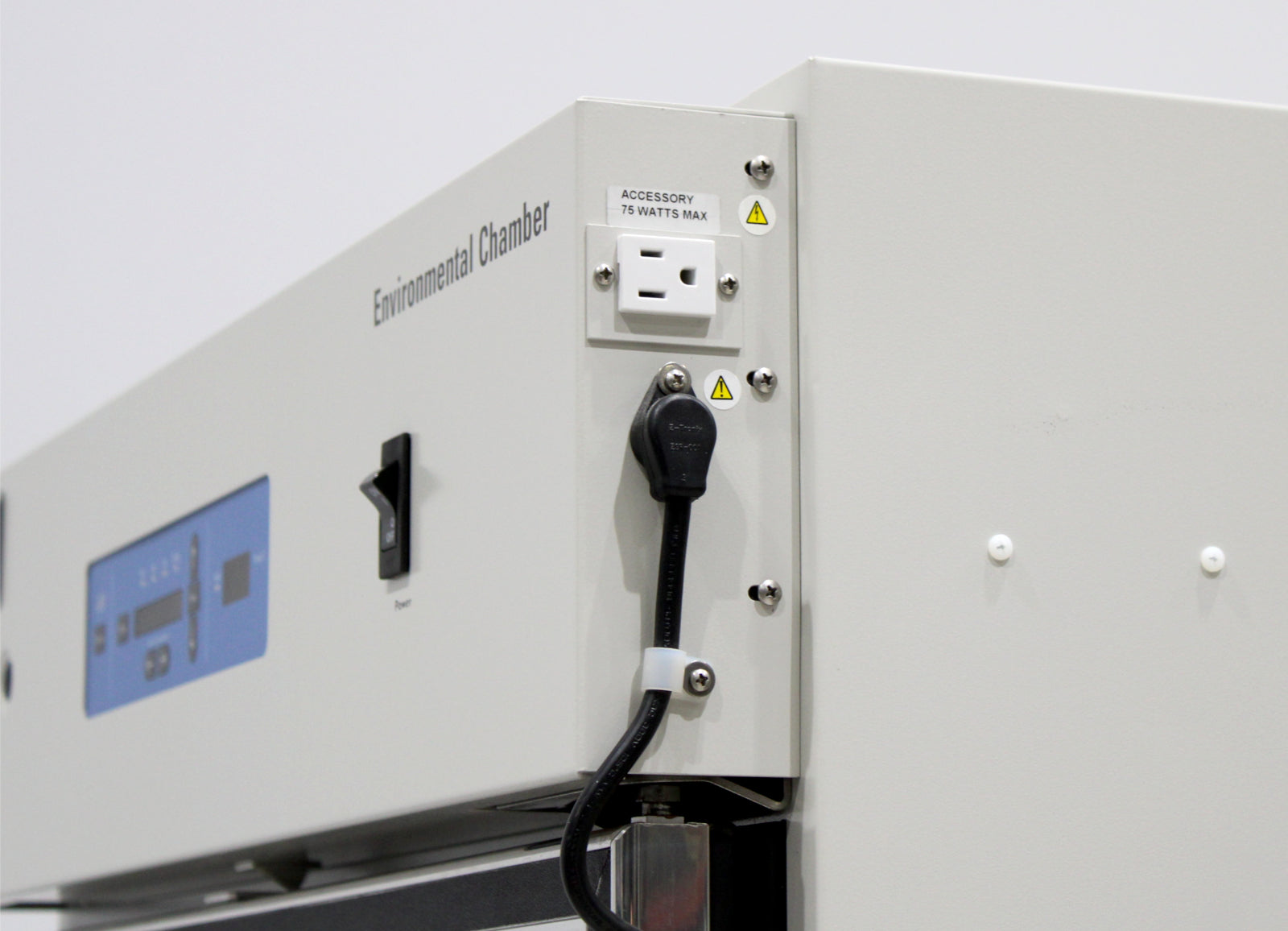

Exterior convenience receptacle
|
75 Watts maximum (matches cabinet voltage)
|
|

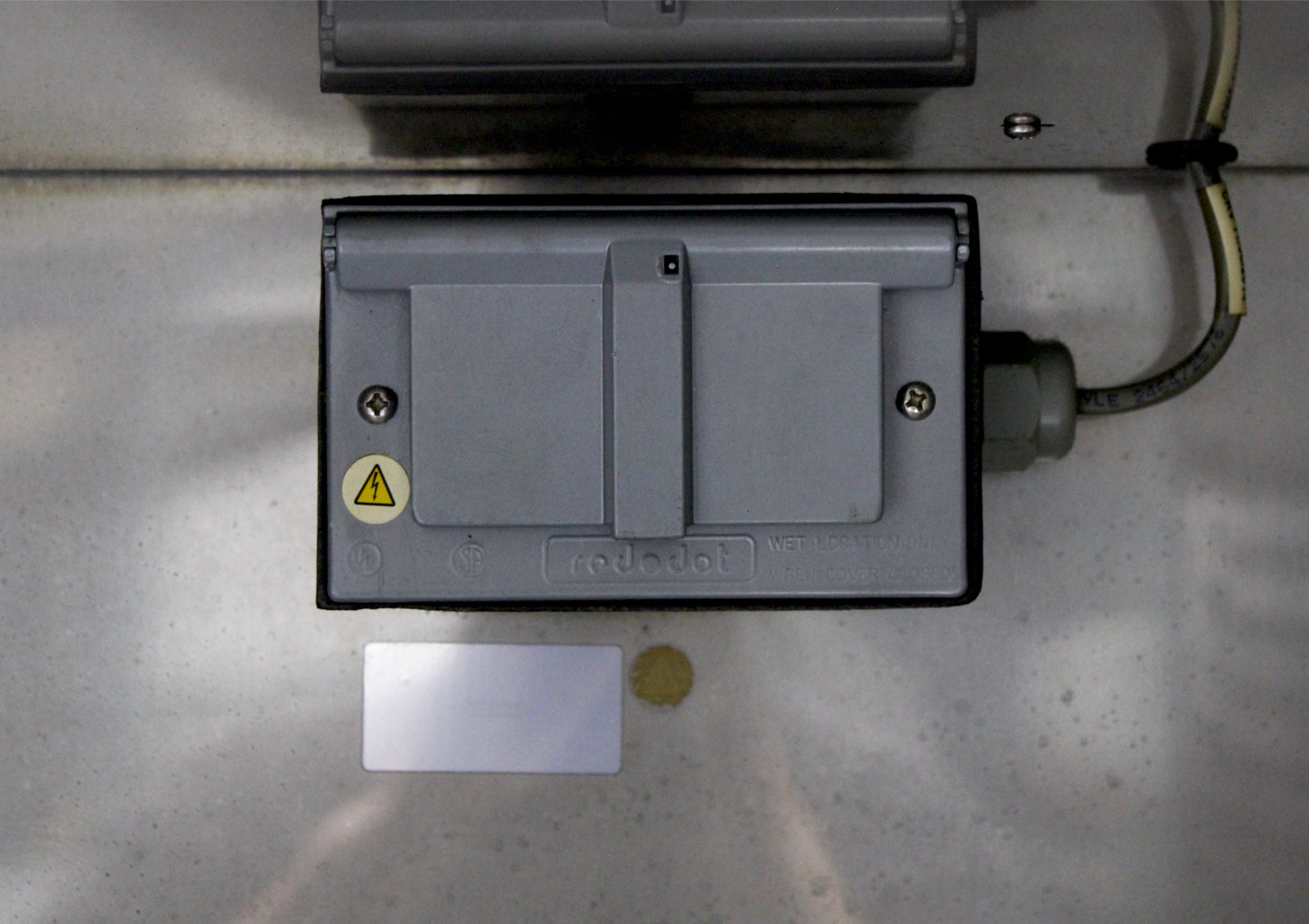

Interior convenience receptacle
|
230 Watts maximum (matches cabinet voltage)
|
|
Electrical plug
|
115V: NEMA 5-15P Plug
|
|

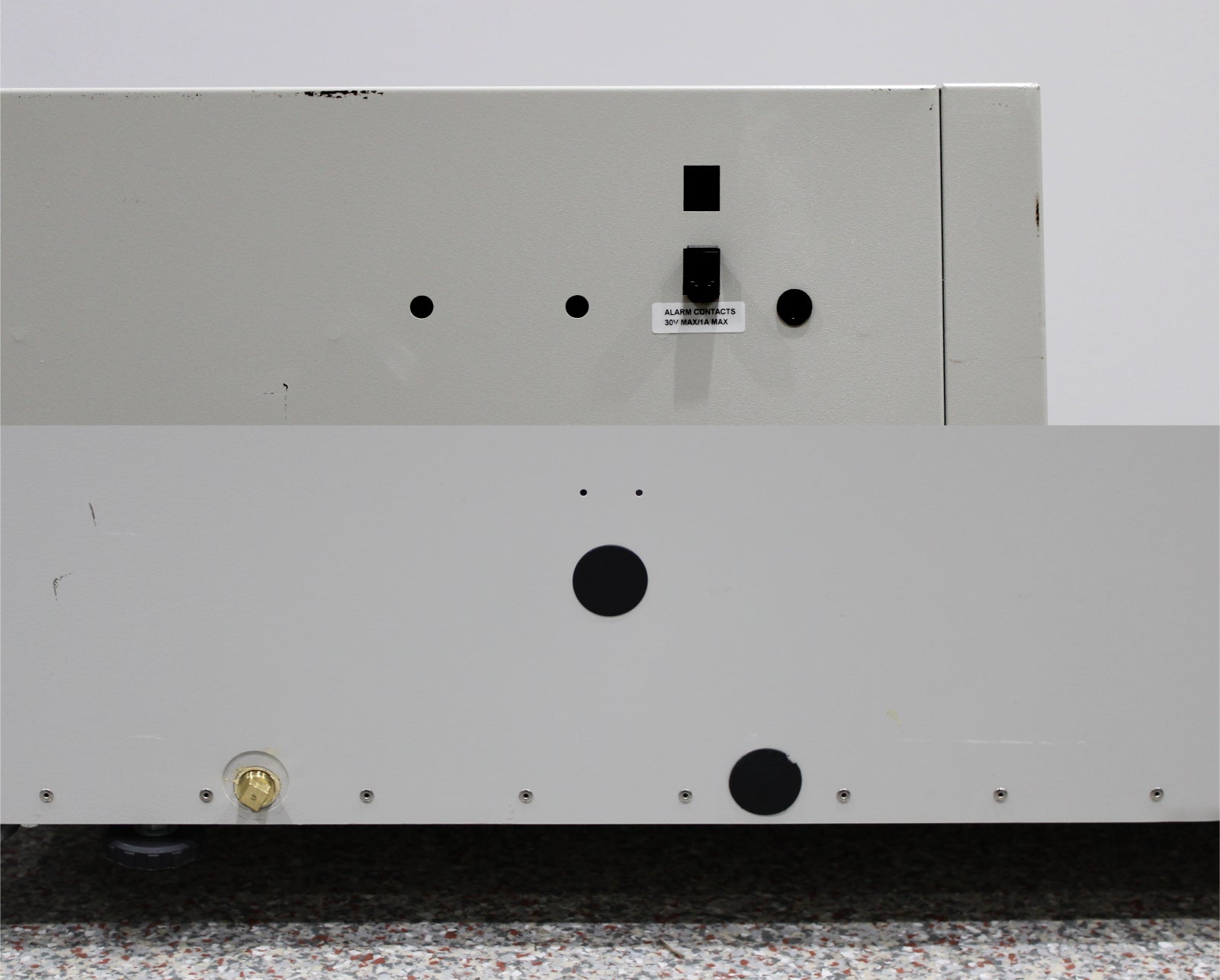

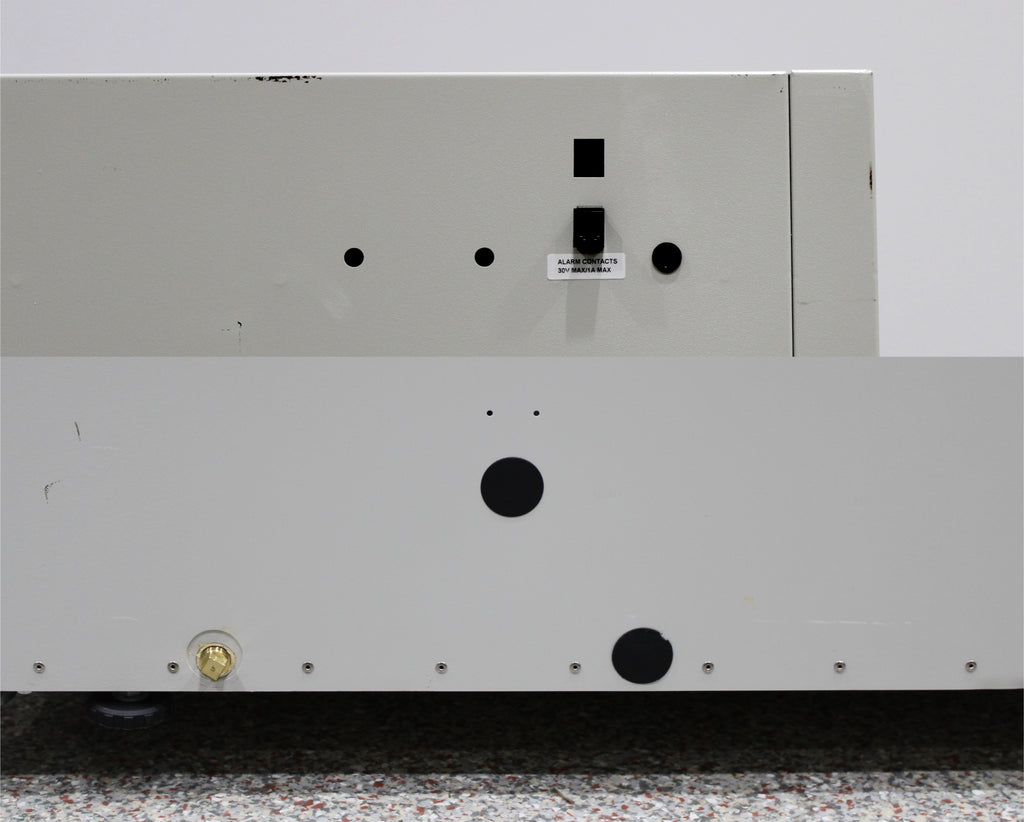

Alarm contacts
|
Temperature deviation and power failure; Common, NO, and NC; customer connections through RJ11 jack on rear of unit
|
|
Data outputs
|
RS-485, 0-1V, 0-5V, 4-20 milliamp
|
|
Interior dimensions (W x D x H)
|
31 x 27 x 60 in (78.7 x 68.8 x 152.4 cm)
|
|
Exterior dimensions (W x D x H)
|
38 x 33 x 80 in (96.5 x 83.8 x 203.2 cm)
|
|
Net weight
|
500 lb (226.8 kg)
|
