**Currently en route to our facility. It will take about 30 days to arrive, after which we will test and certify it.**
Included Items
-

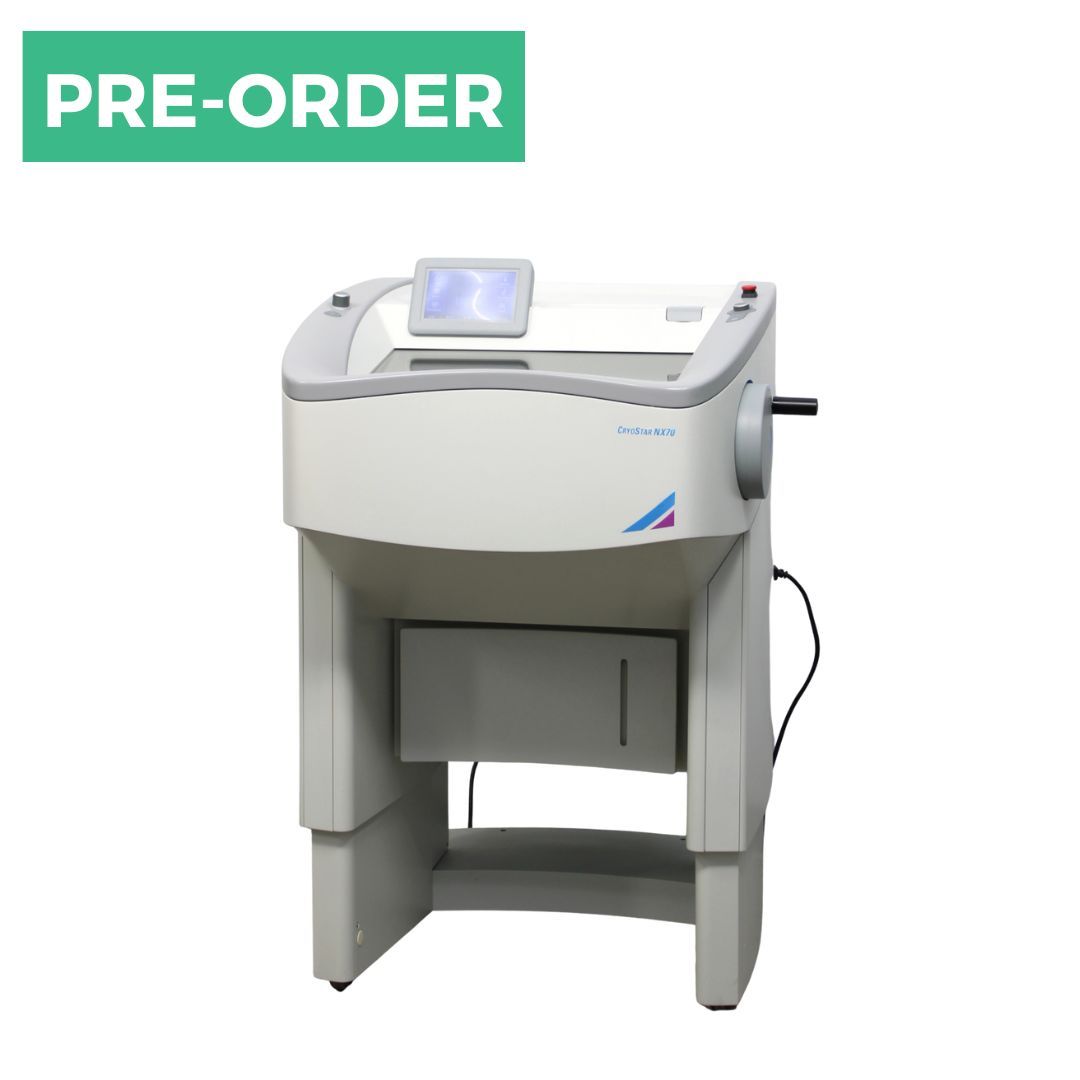

Thermo Scientific CryoStar NX70 Cryostat Microtome
- Power cable
Refurbished to Like New Performance & Appearance
After your instrument arrives at our facility, it will be inspected and tested to certify it performs at manufacturer specifications and will undergo cosmetic refinishing as needed. If any component does not pass testing, then it will receive the service or replacement necessary to restore full functionality.
Often, our work leaves the instrument in better functional condition and expected longevity than other used instruments of the same age.
Specifications
|
Manufacturer
|
Thermo Scientific
|
|
Model
|
CryoStar NX70
|
|
Cat. No.
|
957030
|
|
Section Thickness Range
|
0.5 to 500µm
|
|
Type
|
HOMPD
|
|
Fine Section Thickness Range
|
0.5 to 100µm
|
|
Fine Section Thickness Resolution
|
0.5 to 5µm in 0.5µm steps, 5 to 10µm in 1µm steps, 10 to 20µm in 2µm steps, 20 to 50µm in 5µm steps, 50 to 100µm in 10µm steps
|
|
Trim Thickness Range
|
5 to 500µm
|
|
Trim Thickness Resolution
|
0.5 to 5µm in 0.5µm steps, 5 to 10µm in 1µm steps, 10 to 20µm in 2µm steps, 20 to 50µm in 5µm steps, 50 to 100µm in 10µm steps
|
|
Vertical Cutting Stroke
|
64mm
|
|
Horizontal Specimen Movement
|
48mm
|
|
Specimen Orientation
|
x- and y-axes universal 7° with zero positioning; z-axis up to 360°
|
|
Cutting Drive
|
Manual and motorized, electronically controlled
|
|
Cutting Speed
|
0 to 256mm/sec.
|
|
Cutting Window
|
Manually adjusted to specimen size
|
|
Chamber Temperature
|
-60°C Max.
|
|
Specimen Temperature Control
|
-50° to +10°C (-58° to +50°F) at +20°C room temp. (decrease 0.7°C/1°C room temp. increase)
|
|
Knife Temperature Control
|
-35° to -5°C (-31° to +23°F) at 20°C room temp. (decrease 0.5°C/1°C room temp. increase)
|
|
Display
|
Integrated color LCD touch screen
|
|
Specimen Retraction
|
20µm
|
|
Lighting
|
LED
|
|
Coarse Feed
|
Motorized (on/off)
|
|
Clearance Angle Adjustment
|
Disposable blade carrier 8 to 16°
|
|
Defrost
|
Programmed/Immediate
|
|
Dimensions (W x D x H)
|
29.7" x 39.4" x 32.3" to 44.0" (75.5 x 100 x 82 to 112 cm)
|
|
Weight
|
440 lbs (200 kg)
|
