**Currently en route to our facility. It will take about 30 days to arrive, after which we will test and certify it.**
Manufactured in 2021
Included Items:

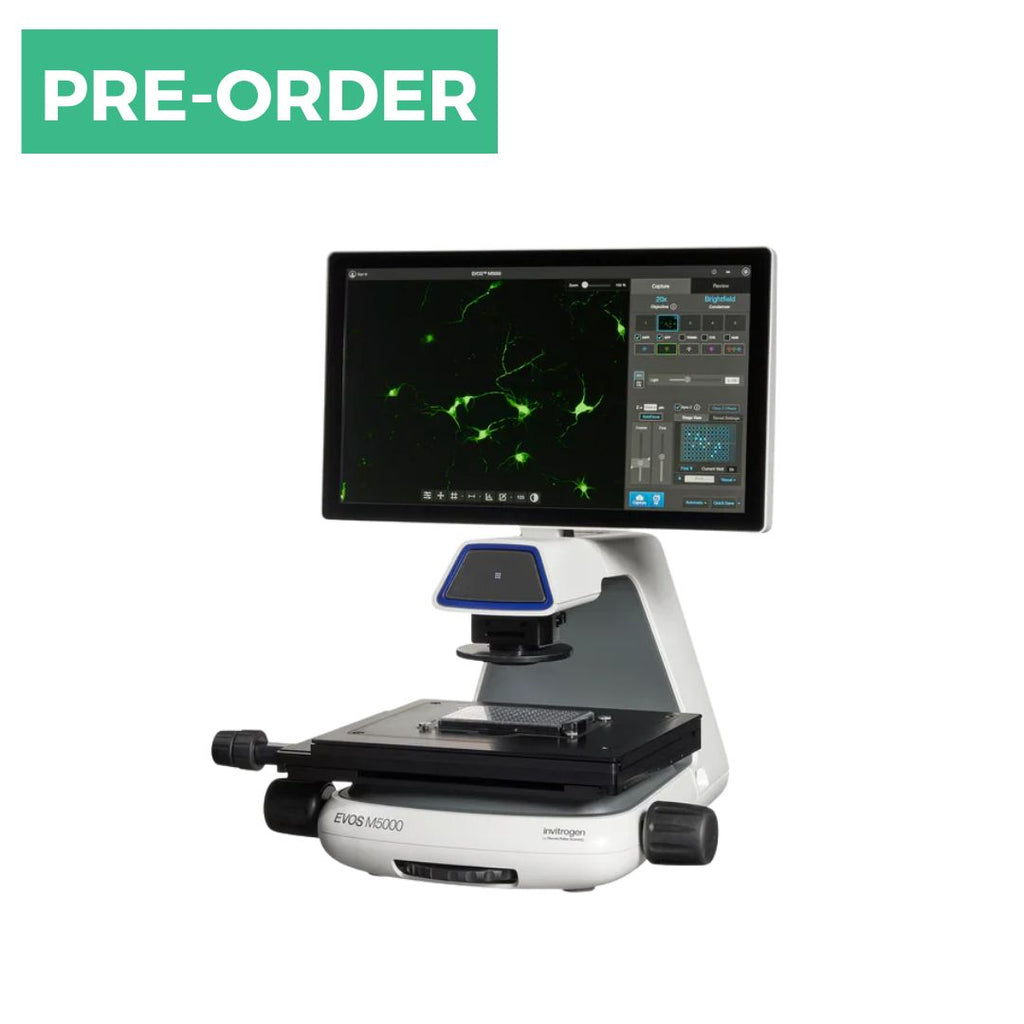

- Thermo Scientific EVOS M5000 Live Cell Imager
- Power cables
Guaranteed to Perform Without Error
After your instrument arrives at our facility, it will be inspected and tested to verify it is free of malfunction. Unless stated otherwise, we are confident it will perform at manufacturer specifications. If you receive this instrument and it does not meet your required specifications, your purchase will be protected by our warranty.
Specifications
|
Manufacturer
|
Thermo Scientific
|
|
Model
|
EVOS M5000
|
|
Ref. No.
|
AMF5000
|
|
Imaging mode
|
Fluorescence, brightfield, color brightfield, phase contrast
|
|
Imaging methods
|
Single color, multicolor, time lapse, Z-stacking, movie capture
|
|
Illumination
|
Adjustable-intensity LED light cubes with integrated hard-coated filter set and >50,000-hour life
|
|
Light cube capacity
|
4-position chamber, for 4 fluorescence cubes + brightfield
|
|
Light cubes (not included)
|
Broad selection of standard and specialty light cubes. Commonly used light cubes include (ex/em):
- DAPI (357/447 nm)
- GFP (470/525 nm)
- RFP (531/593 nm)
- Texas Red (585/624 nm)
- Cy5 (628/692 nm)
|
|
Objective capacity
|
5-position manual turret, not automated
|
|
Condenser
|
60-mm LWD condenser; 4-position turret with a clear aperture and 3 phase annuli
|
|
Focus mechanism
|
Automated focus with sub-micron (0.150um) resolution (single-step accuracy)
|
|
Monochrome camera
|
High-sensitivity 3.2 MP (2048 x 1536) CMOS sensor with 3.45 um pixel resolution
|
|
Captured images
|
16-bit RAW monochrome: TIFF, PNG (12-bit dynamic range)
8-bit color: TIFF, PNG, JPG
Movies and time-lapse: AVI, WMV
|
|
X/Y stage
|
Travel range 120mm x 80mm with sub-micron resolution
Drop-in inserts to receive vessel holders
|
|
Stage mechanism
|
Mechanical
|
|
Electrical specifications
|
12V, 5A
|
|
Dimensions (W x D x H)
|
18 x 18 x 23 in.
|
|
Weight
|
36 lbs (16.4 kg)
|
