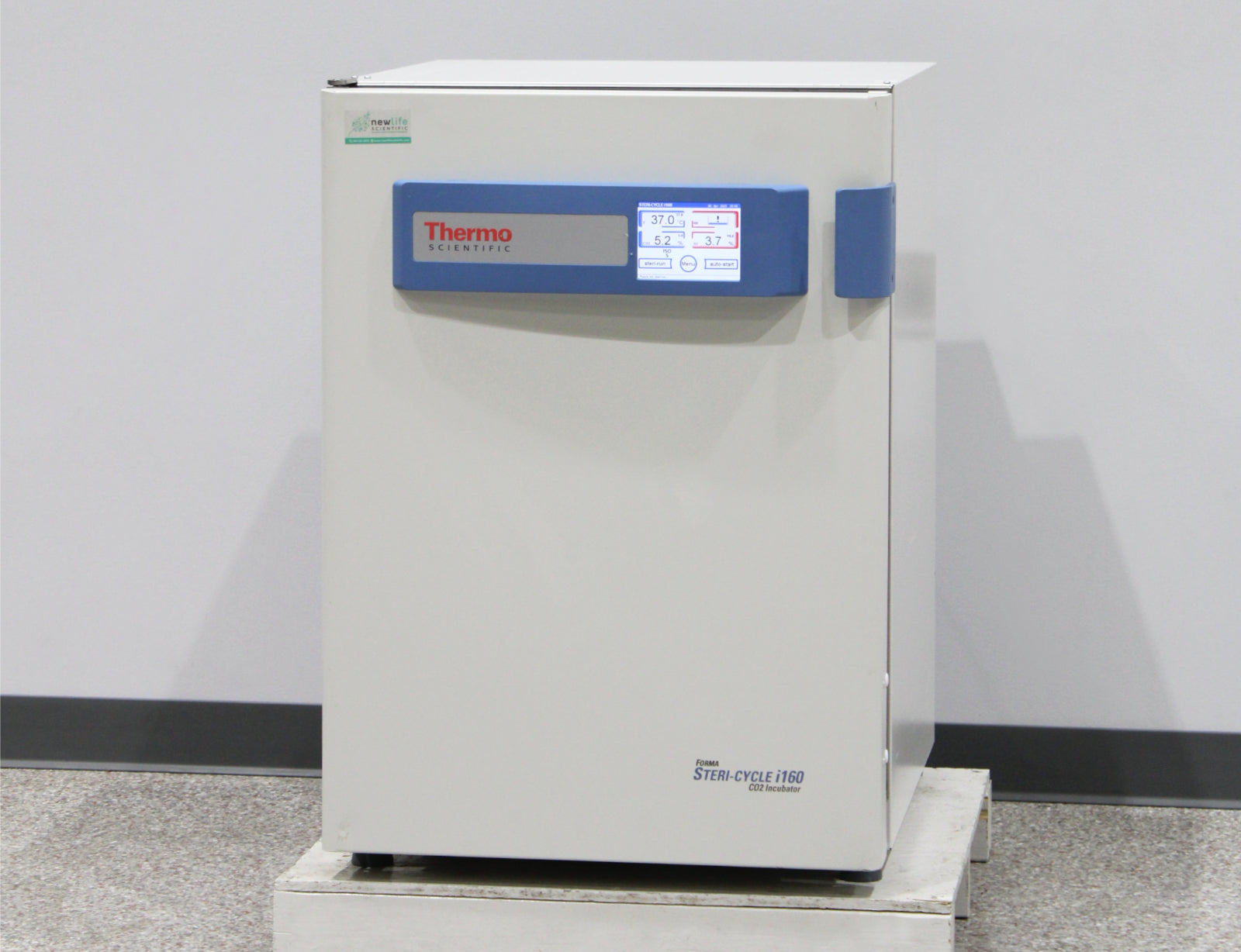

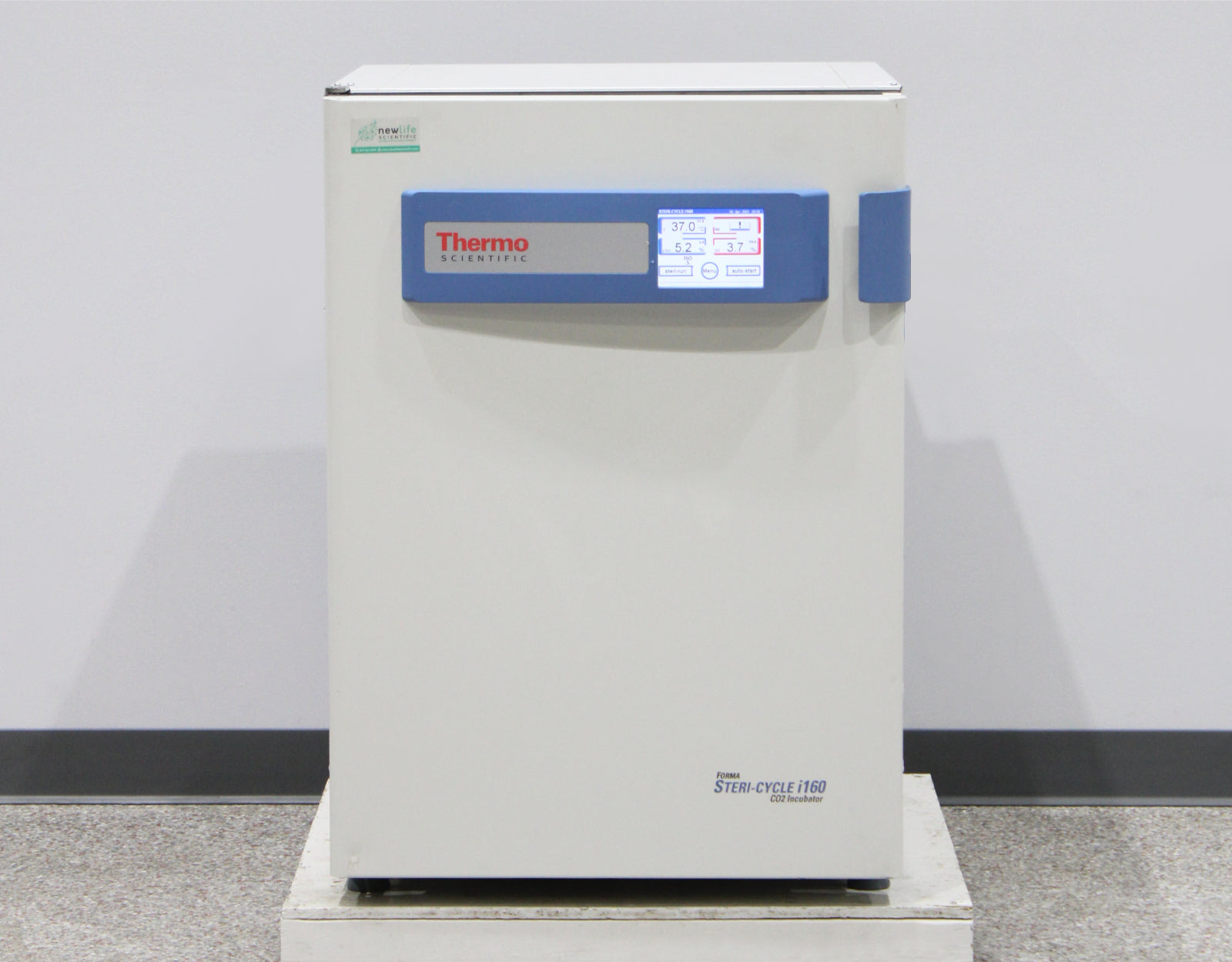

- Thermo Scientific Forma Steri-Cycle i160 CO2 Incubator (51030388)

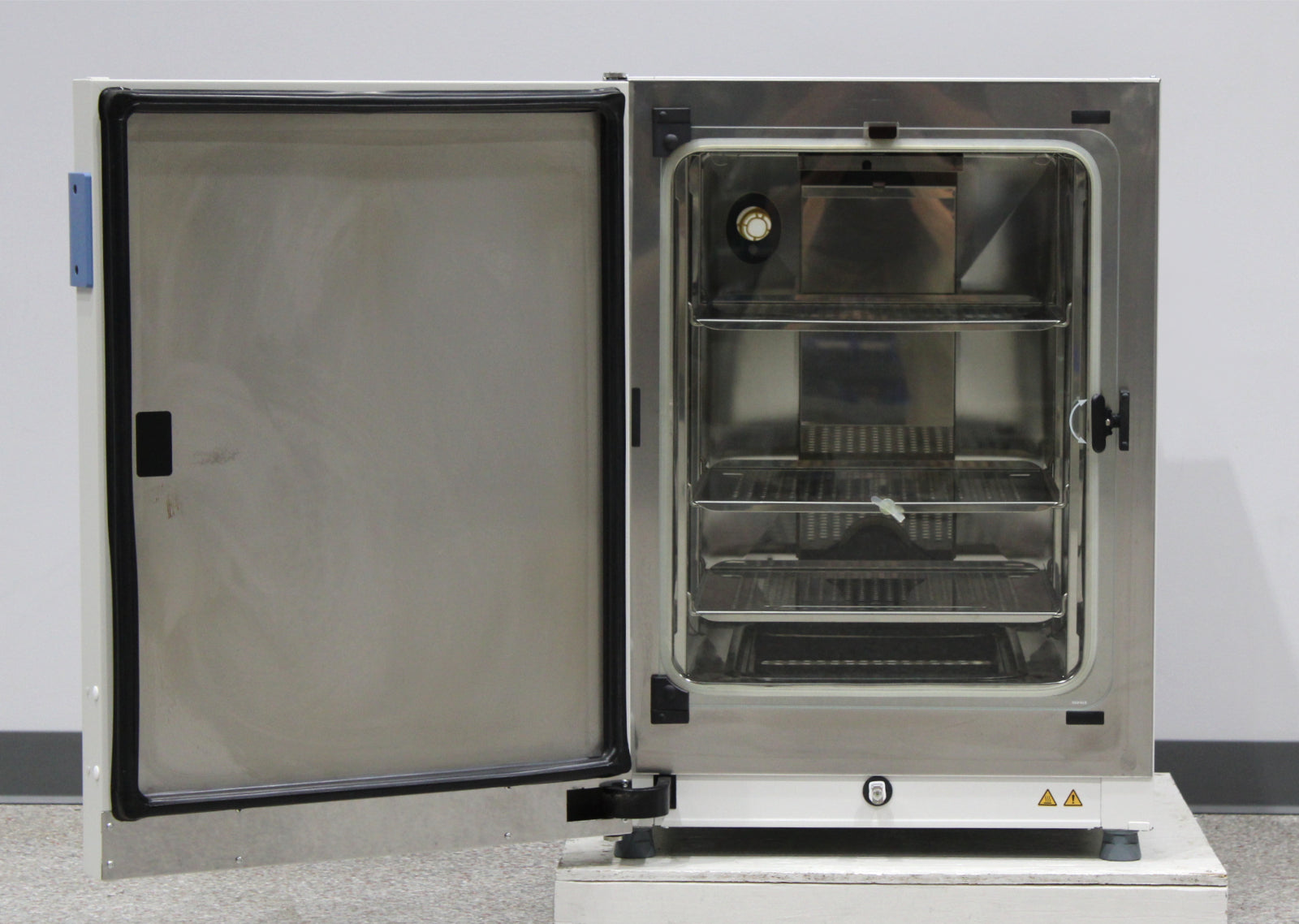

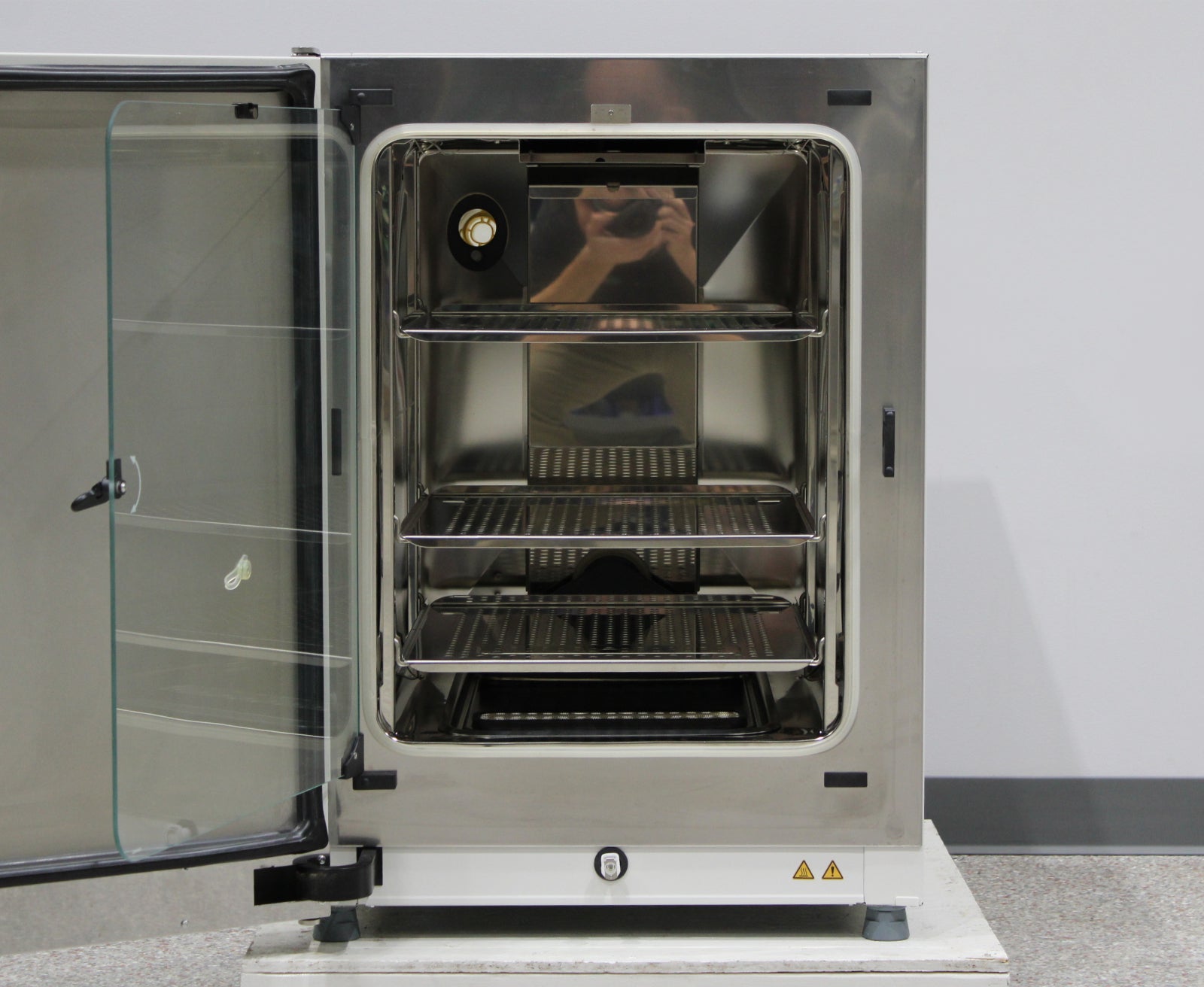

- x3 Adjustable Stainless Steel Shelves
- Power Cable
- 90-Day Warranty

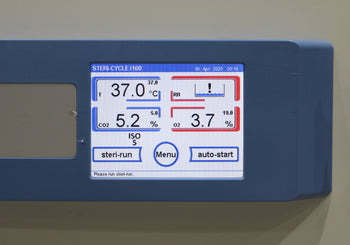

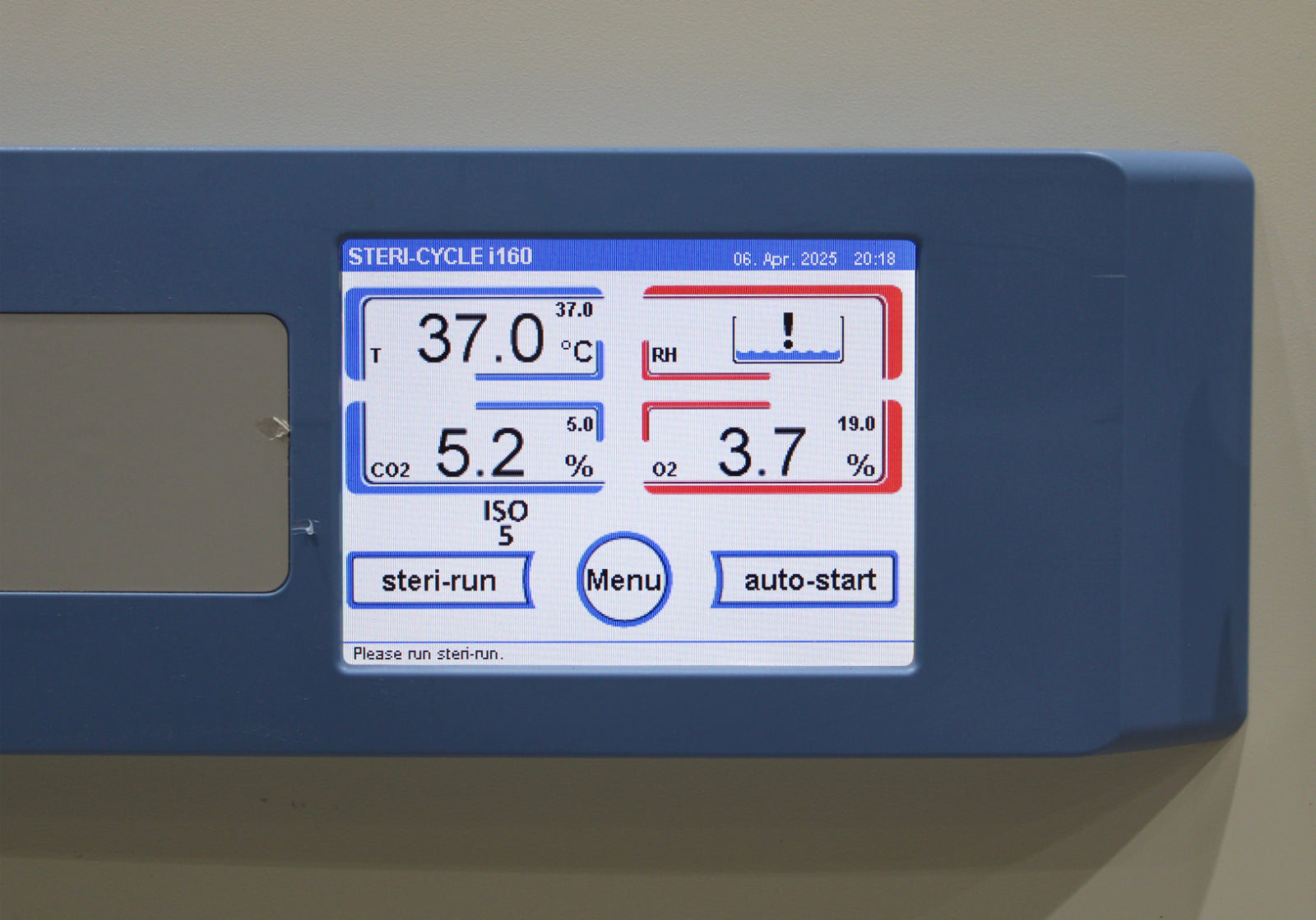

After its initial disinfection and inspection, our technicians tested the Thermo Scientific Forma Steri-Cycle i160 CO2 incubator with the following results:
- Temperature verification: PASSED
- Temperature holds steady at 37°C setpoint: PASSED
- CO2 reading verification: PASSED
- CO2 reading holds steady at 5% setpoint: PASSED

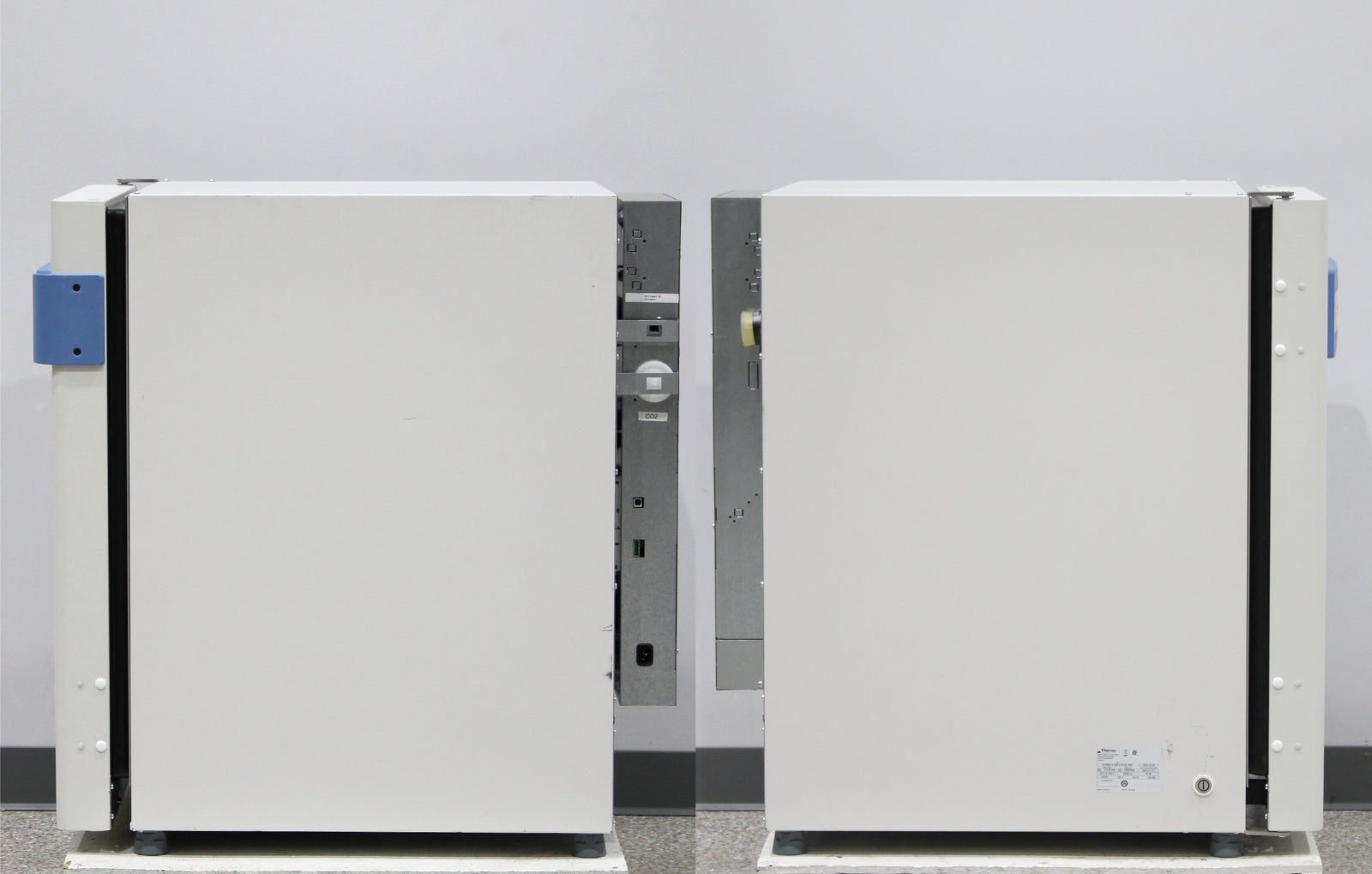

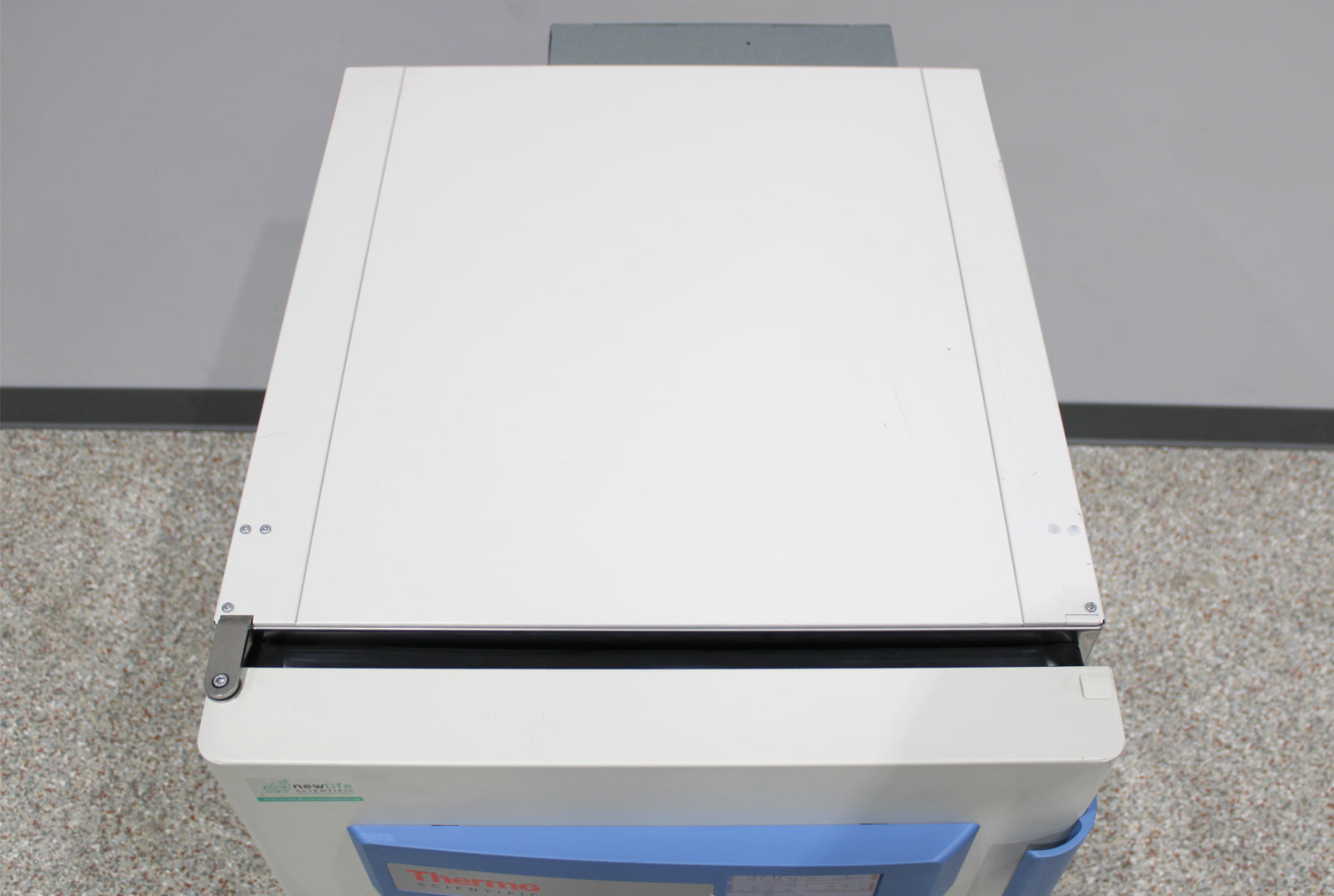

Notice: This incubator has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Thermo Fisher Scientific
|
|
Type
|
Forma Steri-Cycle i160
|
|
Order code
|
51030388
|
|

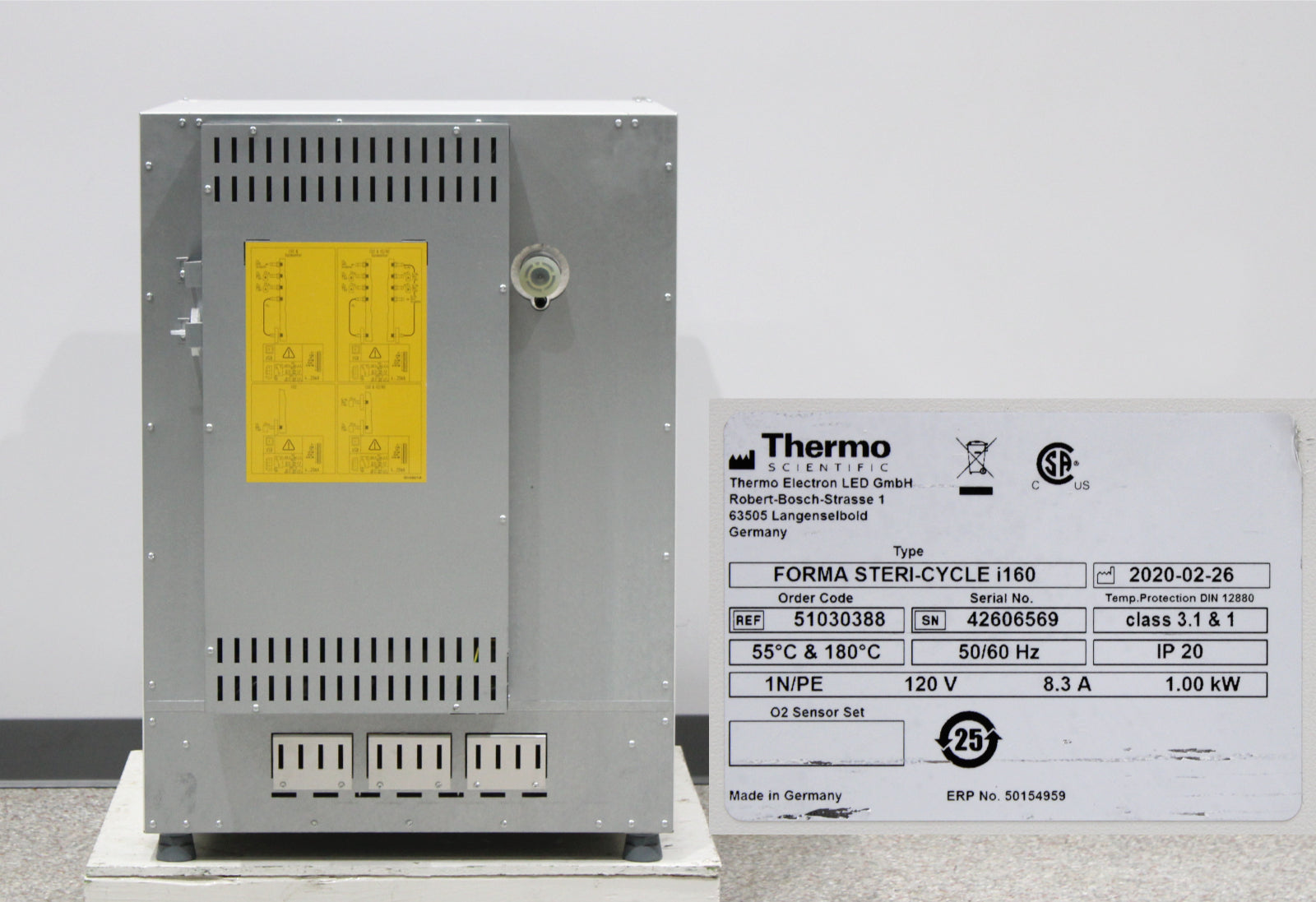

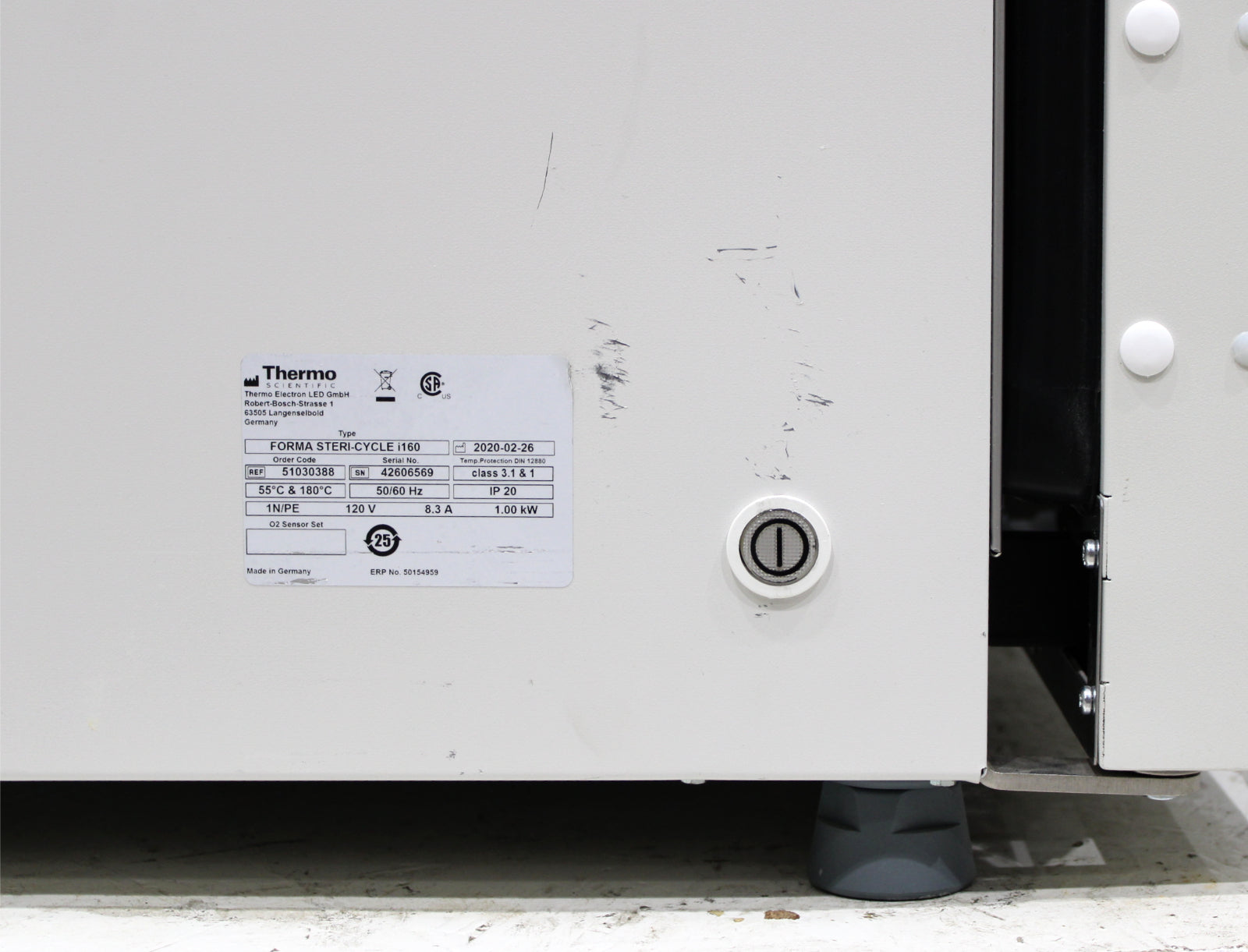

Serial No.
|
42606569
|
|
Mfg. date
|
2020-02-26
|
|
Chamber volume
|
5.8 cu.ft. (165L)
|
|
Temperature range
|
3°C above ambient to 55°C
|
|
Temperature control
|
±0.1°C
|
|
Temperature uniformity
|
<±0.3°C
|
|
Sterilization cycle
|
180°C on all internal surfaces in under 12 hours
|
|
Relative humidity
|
≥ 93% @ 37°C
|
|
Humidity reservoir
|
Max. 3L / min 0.5L
|
|
Chamber material
|
Electropolished stainless steel
|
|
CO2 sensor technology
|
IR Sensor
|
|
CO2 control
|
±0.1%
|
|
CO2 range
|
1-20%
|
|
CO2 inlet pressure
|
12-15 PSI (0.8-1.0 bar)
|
|
CO2 gas purity
|
min. 99.5 or medical quality
|
|
CO2 inlet
|
⅛” hose (barbed)
|
|
Sterilization cycle temperature
|
180°C on all internal surfaces
|
|
Sterilization cycle duration
|
Under 12 hours
|
|

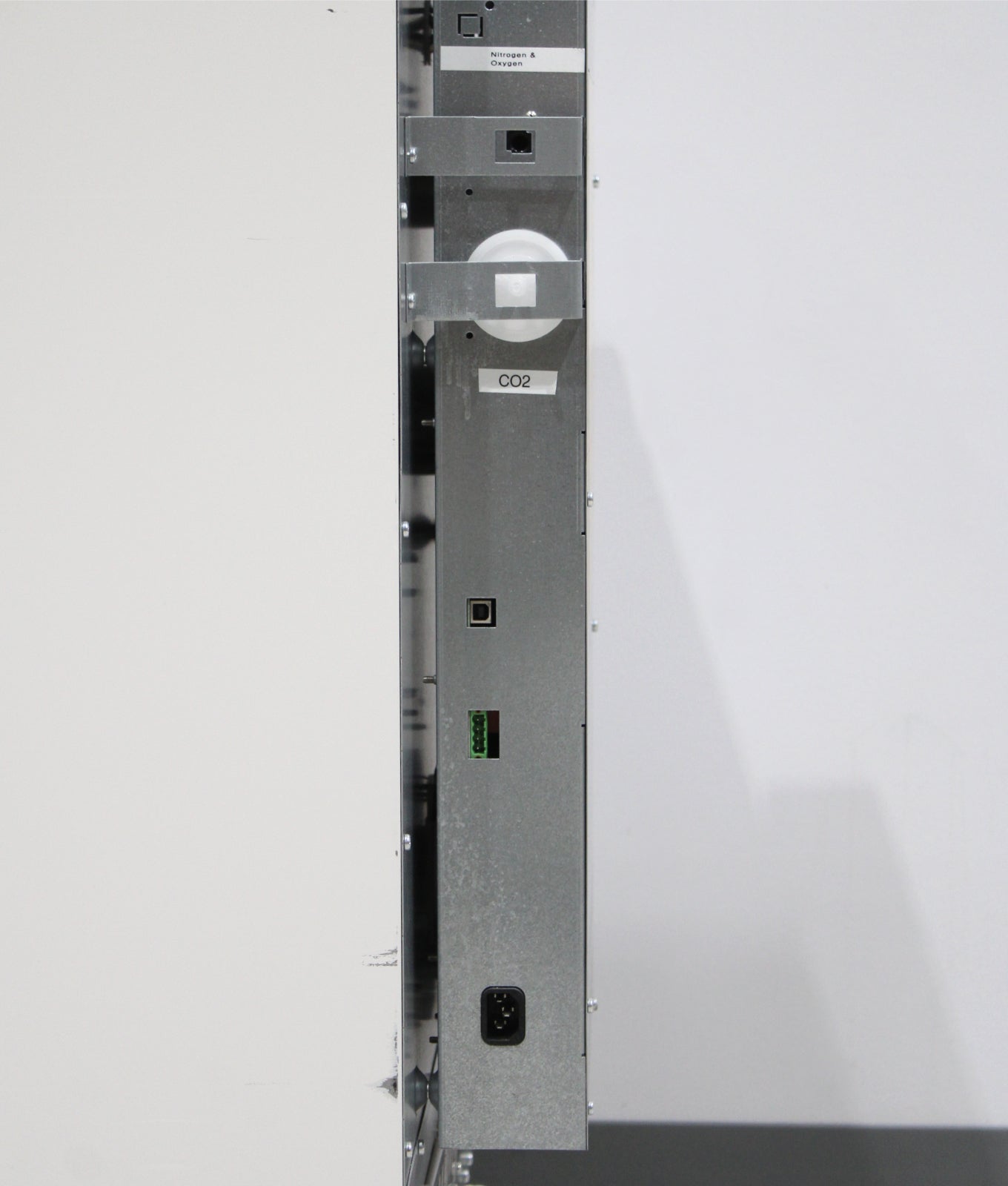

Data outputs
|
Remote alarm contacts, USB
|
|
Shelf dimensions (W x D)
|
16.7 x 18.3 in (42.3 x 46.5 cm)
|
|
Shelf number standard/maximum
|
3/10
|
|
Max. load per shelf/total load
|
22/66 lbs (10/30 kg)
|
|
Power rating
|
120V, 50/60Hz, 8.3A
|
|
Power consumption
|
1.00 kW
|
|
Interior dimensions (W x D x H)
|
18.5 x 22.7 x 23.9 in (47 x 57.6 x 60.7 cm)
|
|
Exterior dimensions (W x D x H)
|
25.1 x 34.6 x 35.4 in (63.7 x 88 x 90 cm)
|
|
Weight without accessories
|
183 lb (83 kg)
|
