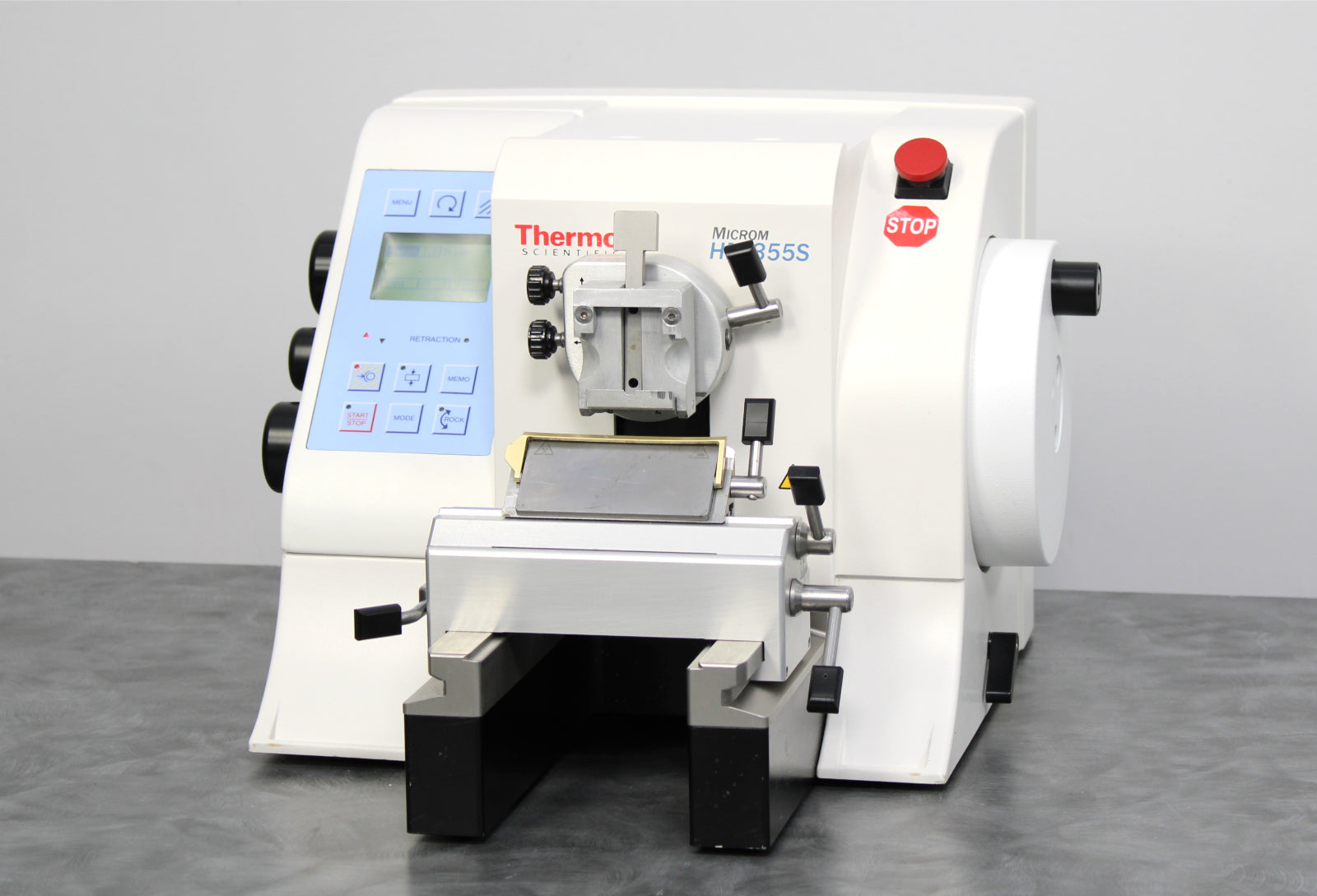

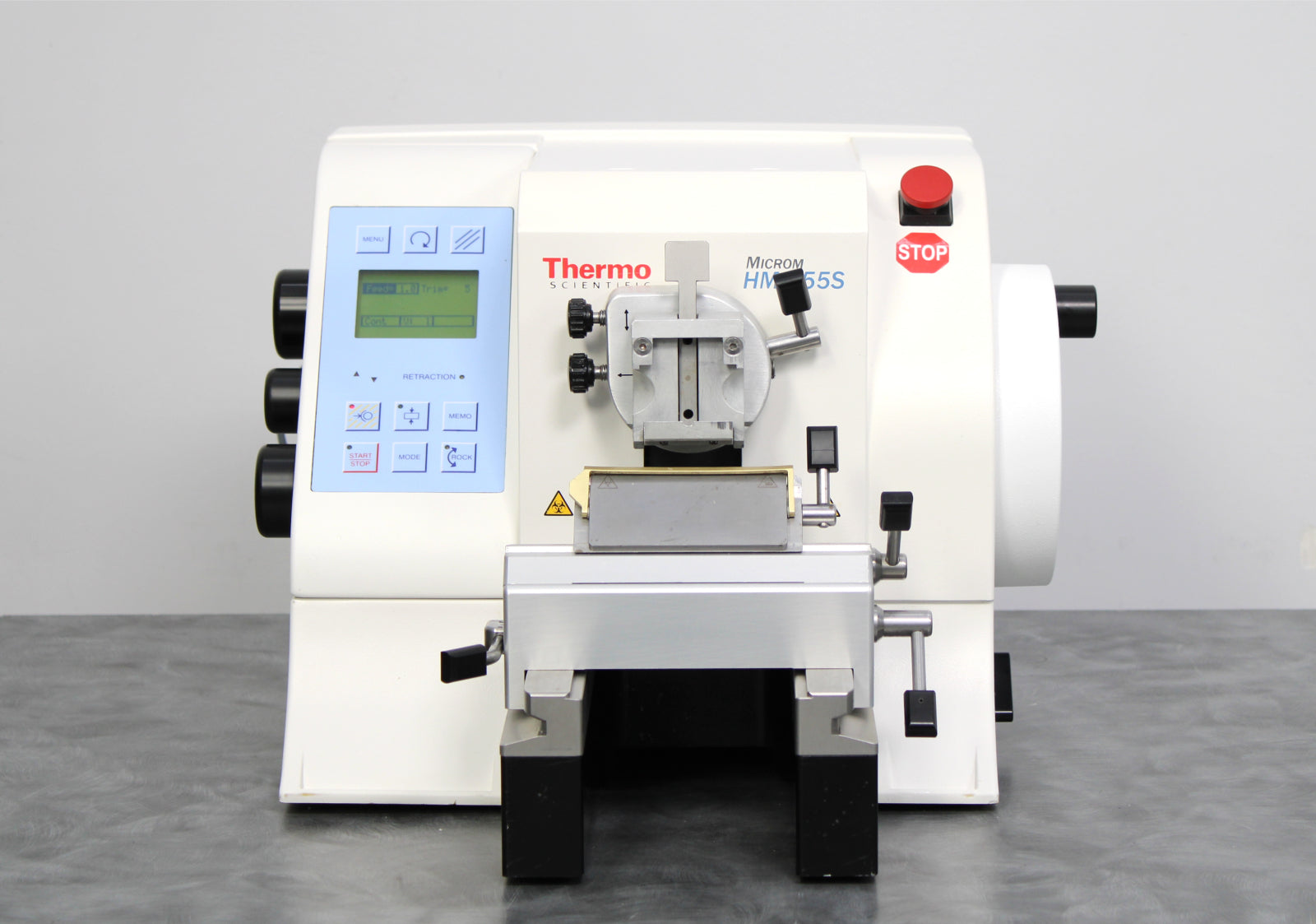

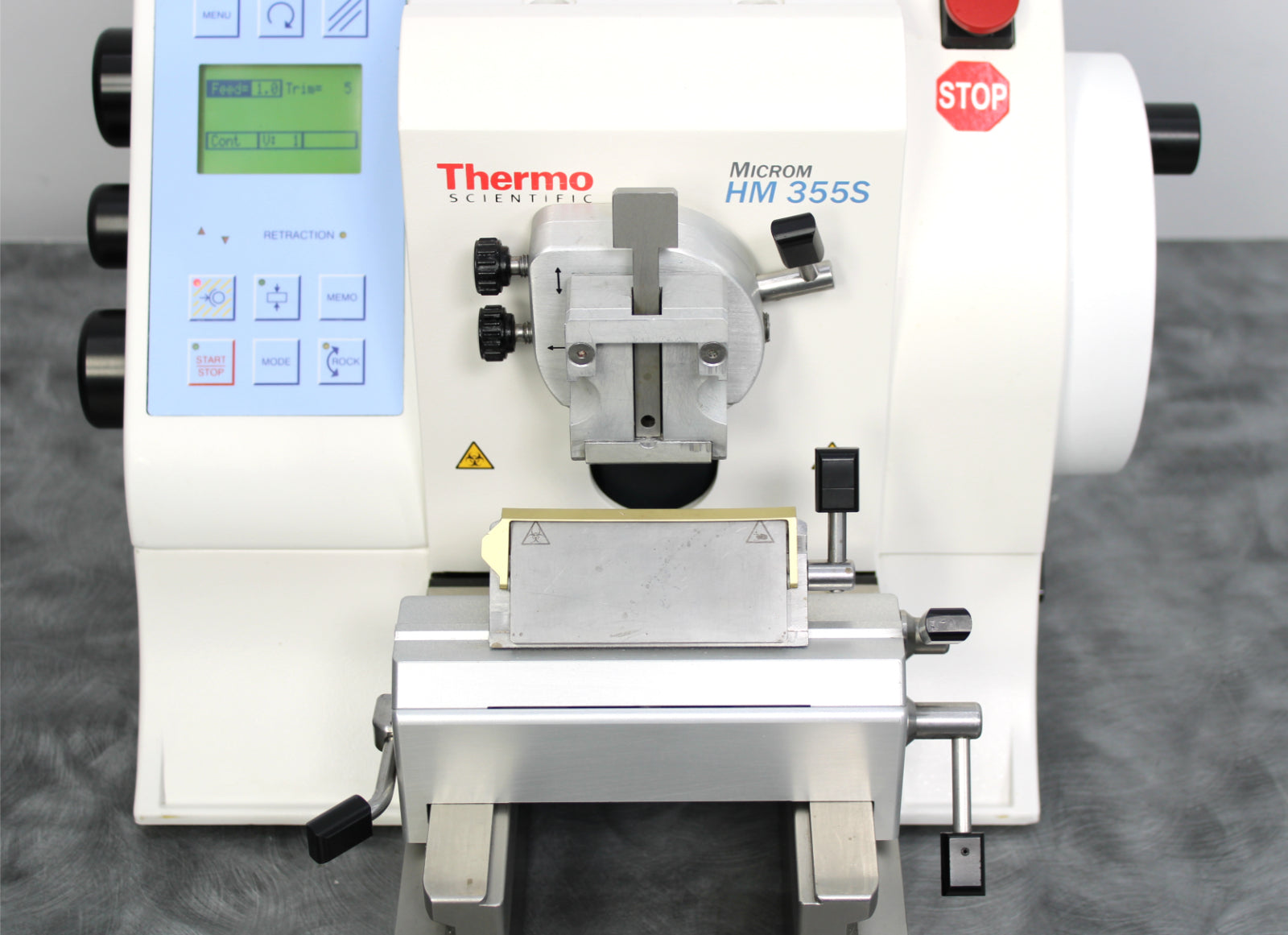

- Thermo Scientific Microm HM355S Benchtop Rotary Microtome (905200)

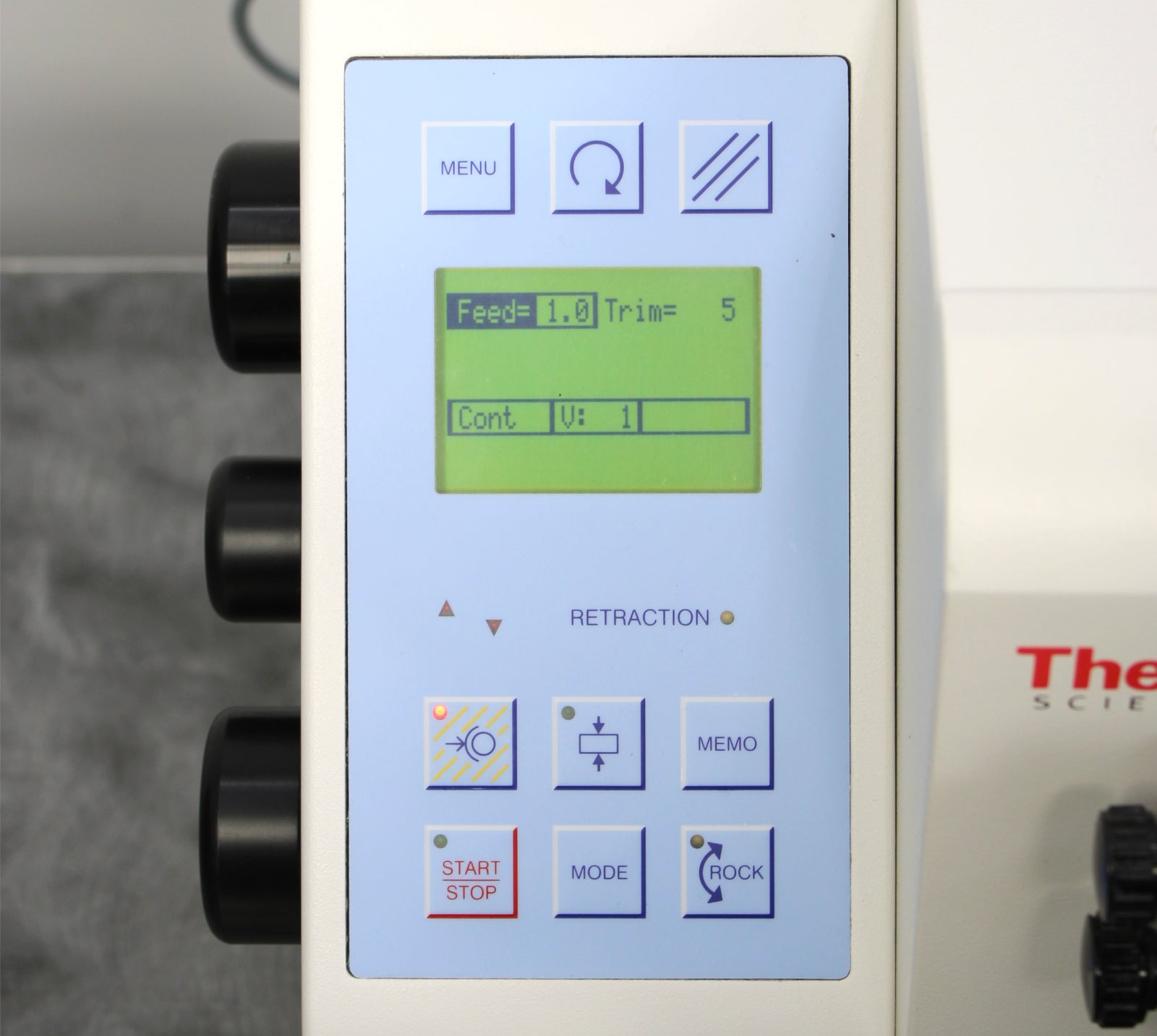

- Removable Controller

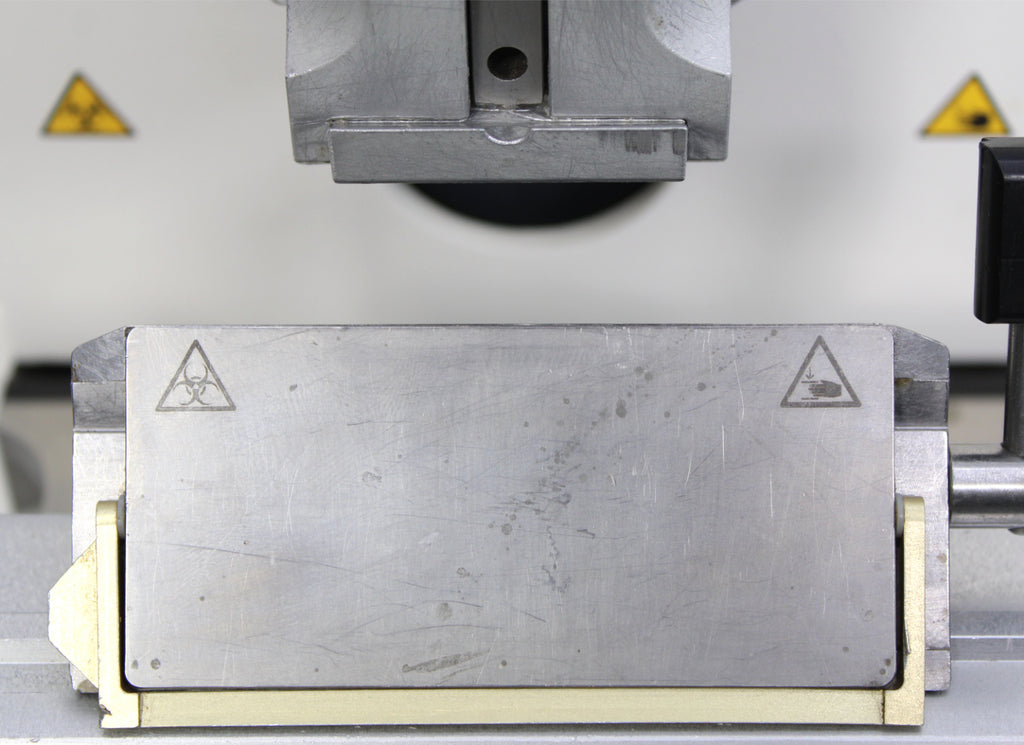

- Knife/Blade Holder Assembly

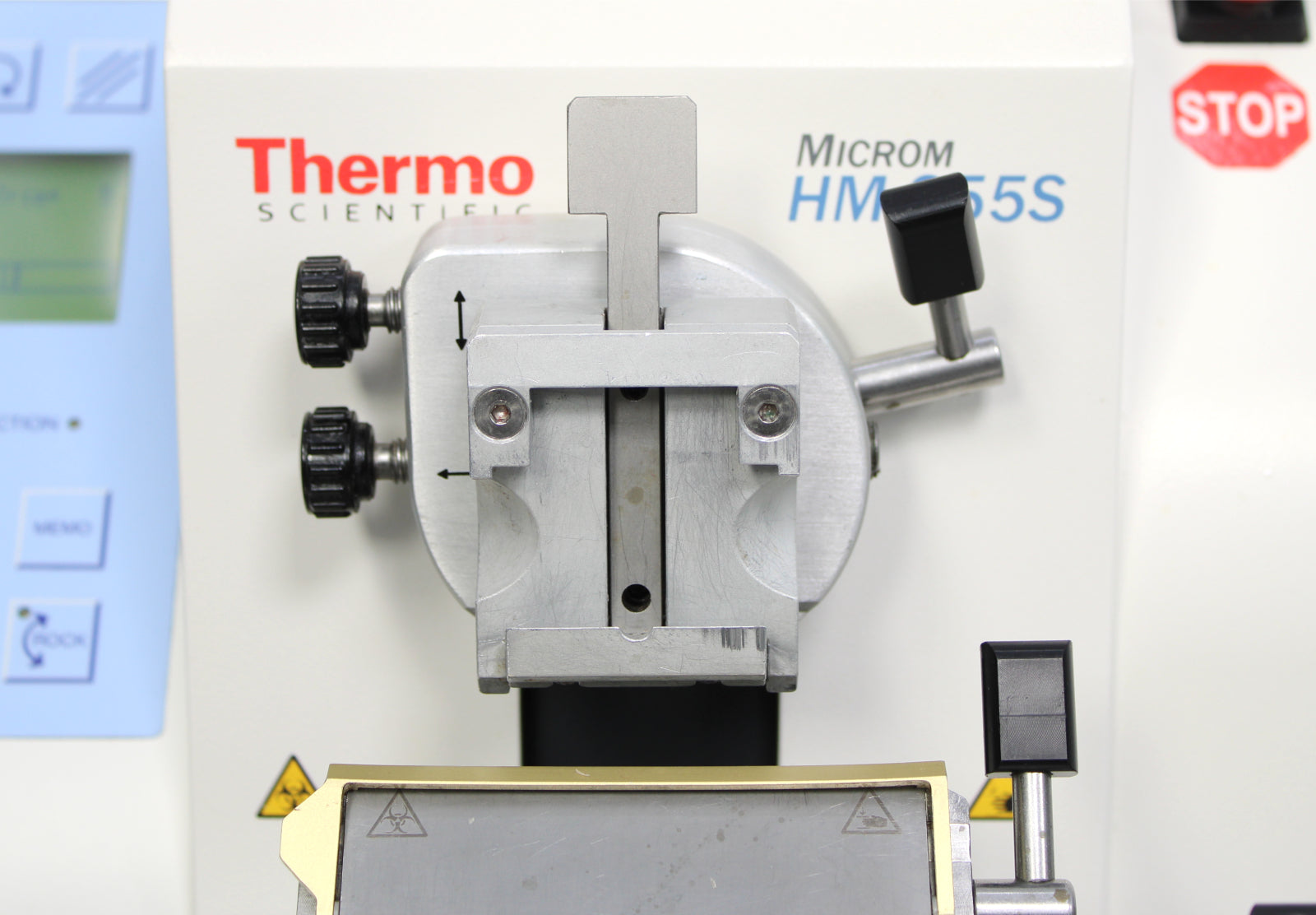

- Specimen Holder
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Thermo Scientific Microm HM355S benchtop rotary microtome with the following results:
- Sectioning: PASSED

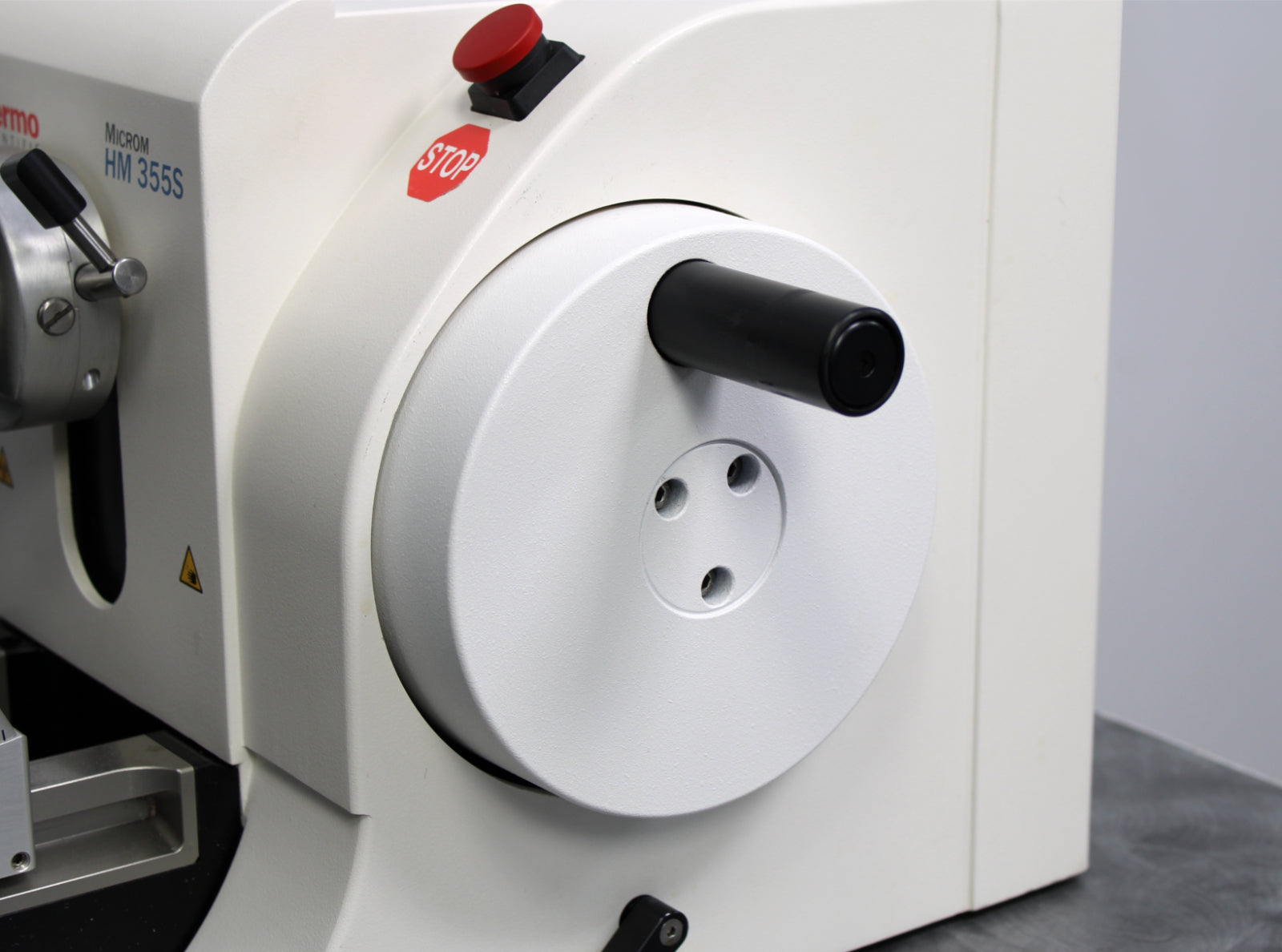

- Handwheel: PASSED
- Adjustments: PASSED
- Lubricated moving components.
Notice: This microtome has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

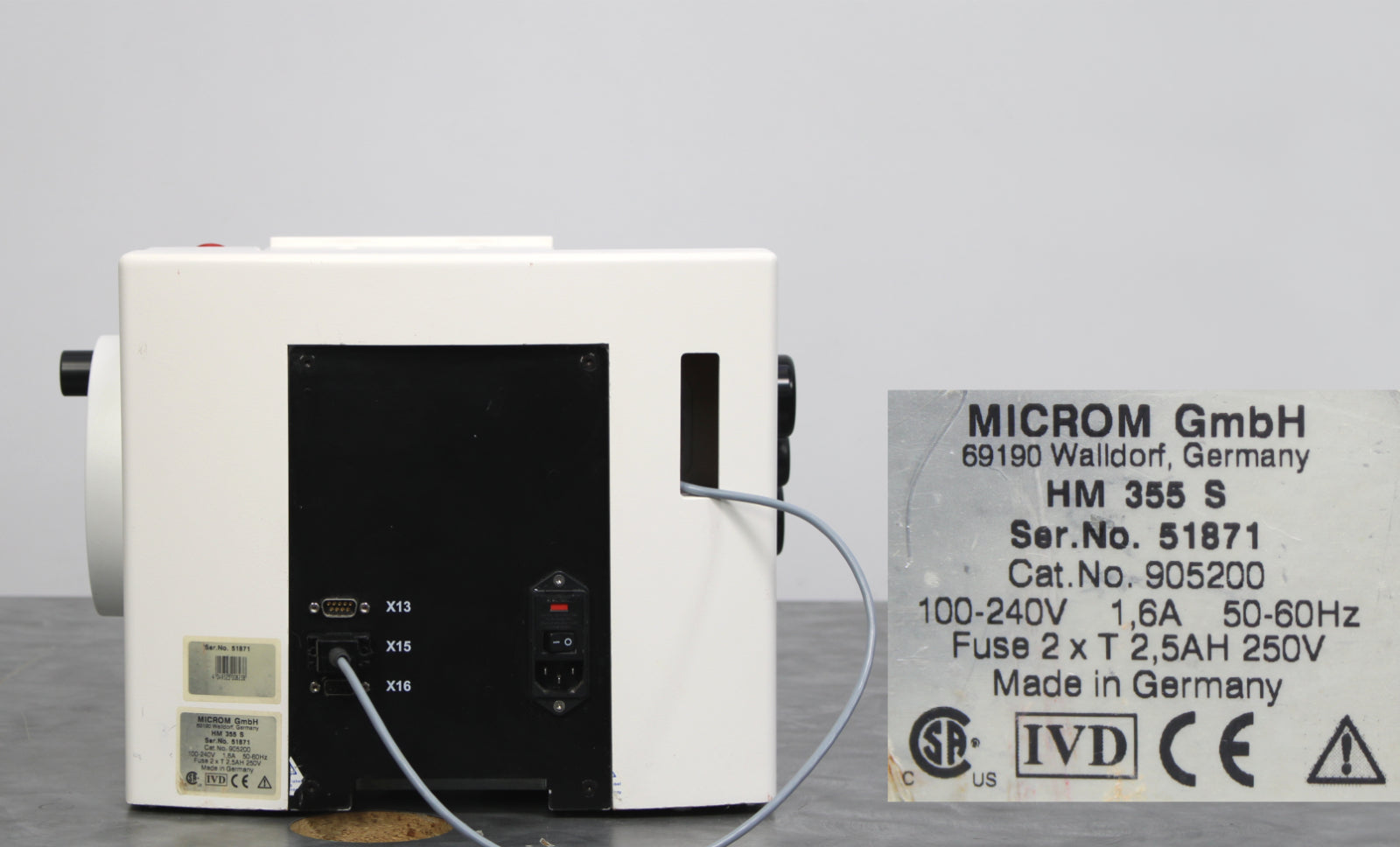

Manufacturer
|
Thermo Scientific
|
|
Model
|
HM355S
|
|
Cat. No.
|
905200
|
|
Serial No.
|
51871
|
|
Feed section thickness range
|
0.5 - 100 µm
|
|
Resolution
|
0.5 µm from 0.5 - 5 µm
1 µm from 5 - 20 µm
2 µm from 20 - 30 µm
5 µm from 30 - 60 µm
10 µm from 60 - 100 µm
|
|
Trimming thickness range
|
5 - 100 µm
|
|
Resolution
|
5 µm from 5 - 30 µm
10 µm from 30 - 100 µm
20 µm from 100 - 200 µm
50 µm from 200 - 500 µm
|
|
Specimen retraction during return travel
|
40 µm, disengageable
|
|
Horizontal feed range
|
28 µm
|
|
Vertical specimen stroke
|
72 mm
|
|
Section counter
|
5-digit, with reset
|
|
Section thickness sum
|
5-digit, with reset
|
|
Specimen size (standard clamp)
|
max. 55 x 50 mm
|
|
Specimen size (macro clamp)
|
max. 68 x 50 mm
|
|
Cutting drive
|
motorized, electronically controlled
|
|
Modes of operation
|
Interval, single, multi and continuous mode
|
|
Cutting speed
|
0 - 450 mm/s
|
|
Coarse feed
|
motorized, variable speed
|
|
Power rating
|
100-240V, 50-60Hz, 1.6A
|
|
Dimensions (W x D x H)
|
16.1 x 20.4 x 11 in (41 x 52 x 28 cm)
|
|
Weight
|
68.3 lb (31 kg)
|
