Manufacturer
|
Thermo Fisher Scientific
|
|
Model
|
NanoDrop One
|
|

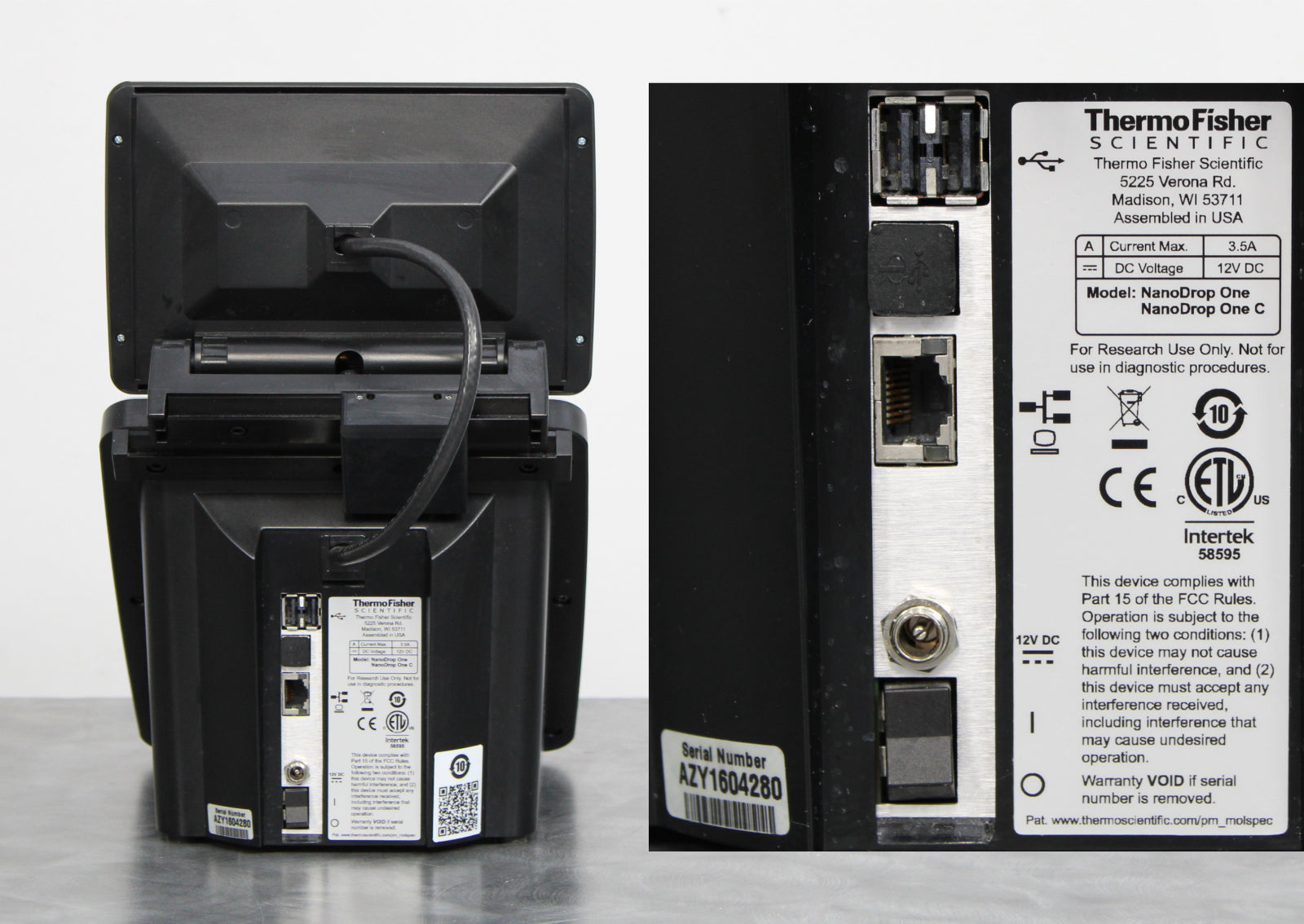

Serial No.
|
AZY1604280
|
|
Compatibility
|
DYMO LabelWriter 450 printer, Bluetooth keyboard, mouse and barcode reader
|
|
Concentration
|
dsDNA: Pedestal: 27,500 ng/μL
BSA (IgG): Pedestal: 820 (400) mg/mL
|
|
Connections
|
Three USB-A ports, Ethernet, Bluetooth™ and Wi-Fi
(Only available on instruments with Wi-Fi/Bluetooth support)
|
|
Detection range
|
dsDNA: Pedestal: 2.0 ng/μL, Cuvette: 0.2 ng/μL,
BSA (IgG): Pedestal: 0.06 (0.03) mg/mL, Cuvette: 0.006 (0.003) mg/mL
|
|

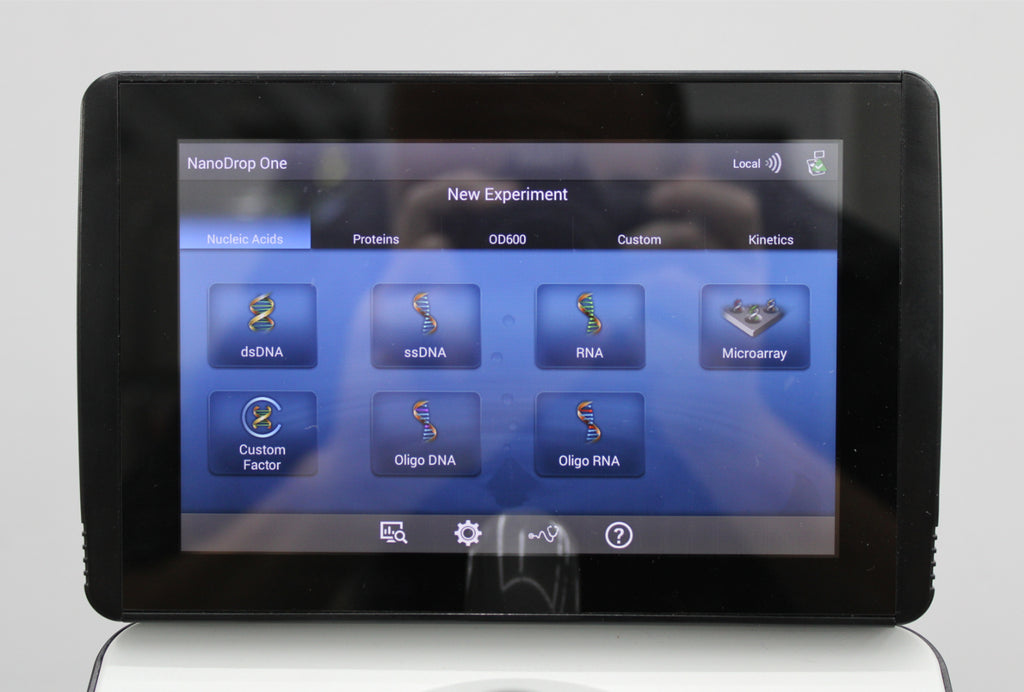

Keypad
|
Built-in touchscreen, multipoint capacitive touch
|
|
Measurement time
|
8 seconds
|
|
Pathlength
|
0.030 to 1.0 mm (auto-ranging)
|
|
Photometric accuracy
|
3% at 0.97 A, 302 nm, (Absorbance expressed at Abs/mm at 25°C)
|
|
Photometric range
|
10 mm equivalent: Pedestal: 0–550 A; Cuvette: 0–1.5 A
|
|
Processor
|
Android
|
|
Repeatability
|
Typical: 0.002 A (1.0 mm path) or 1%CV, whichever is greater (SD of 10 individual measurements at 0.97 A)
|
|
Sample volume
|
Minimum 1 µL
|
|
Wavelength accuracy
|
±1 nm
|
|
Detector type
|
2048-element CMOS Linear Image Sensor
|
|
Light source
|
Xenon Flash
|
|
Spectral bandwidth
|
≤1.8 nm (FWHM at Hg 254 nm)
|
|
Wavelength range
|
190 to 850 nm
|
|
System requirements
|
Windows 8.1 and 10, 64 bit
|
|
Display
|
7 in. High Definition Color Display, 1280x800 pixels
|
|
Languages
|
English, French, German, Spanish, Polish, Chinese, Japanese, Korean
|
|
For use with (application)
|
Nucleic Acid A260, A260/A280, A260/A230 and Labeled Nucleic Acids;, Protein A280 and A205, Protein Pierce 660, Protein Bradford, Protein BCA, Protein Lowry, Labeled Proteins, OD600, Kinetics, UV-Vis, and Custom Methods
|
|

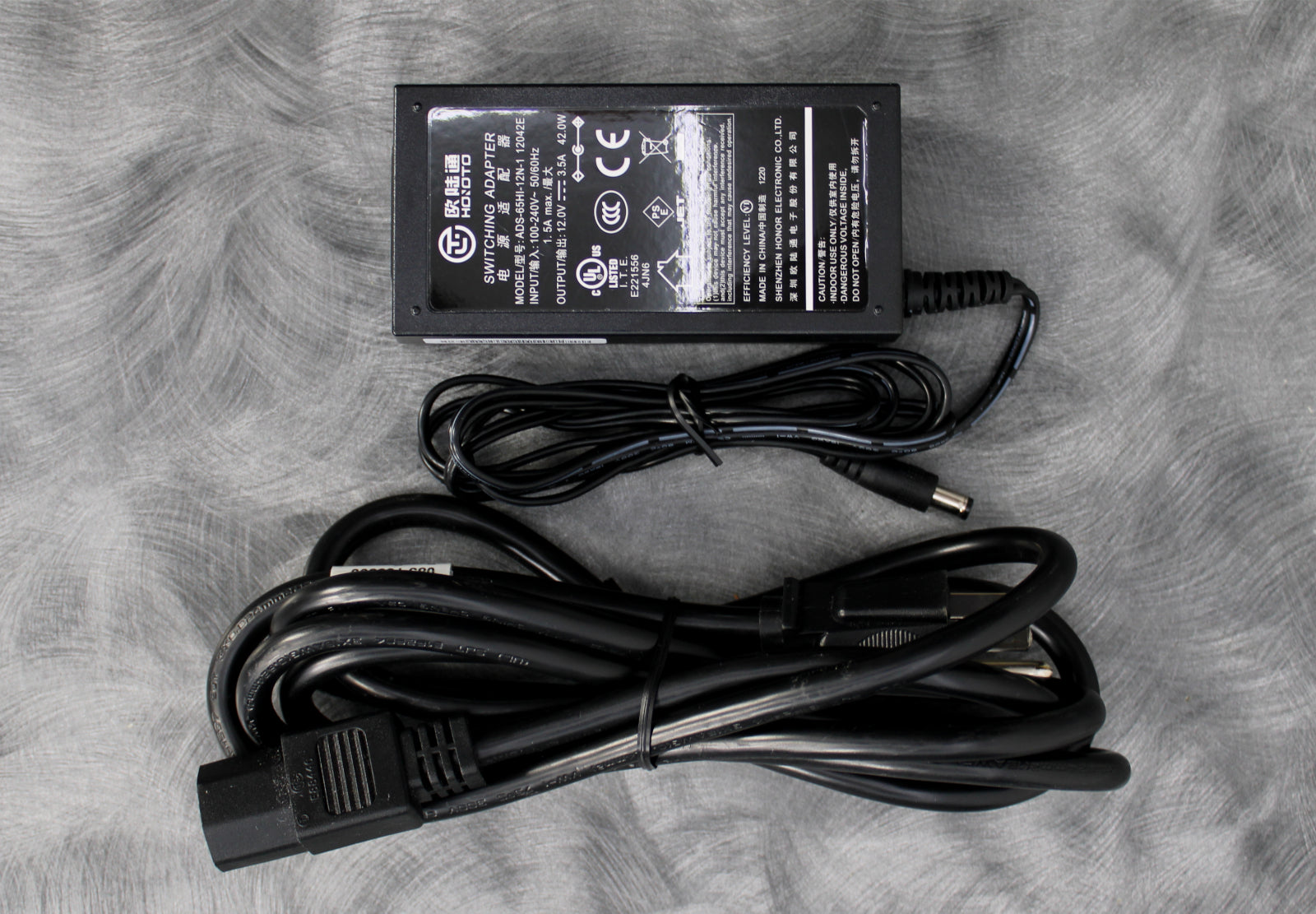

Power input
|
12V DC, 3.5A max
|
|
Power consumption
|
Operating: 12 to 18W; Standby: 5W
|
|
Dimensions (W x D x H)
|
8 x 10 x 12.7 in (20 x 25.4 x 32.3 cm)
|
|
Weight
|
7.9 lb (3.6 kg)
|
