Manufacturer
|
Thermo Fisher Scientific
|
|
Type
|
Ultra-Low Freezer, Upright
|
|
Model No.
|
TDE60086FA
|
|
Item No.
|
16CAT5A01A
|
|
Serial No.
|
1155043001241106
|
|
Mfg. date
|
2024
|
|
Application
|
Storage of general (non-flammable) laboratory materials
|
|
Storage volume
|
28.8 cu. ft. (816 liters), 600 standard 2” boxes
|
|
Temperature range
|
-50°C to -86°C
|
|
Insulation
|
Vacuum insulation panels with high-density water-blown polyurethane foam
|
|
Door seal
|
Silicone-based high performance seal gasket with electrical cabinet perimeter heater
|
|

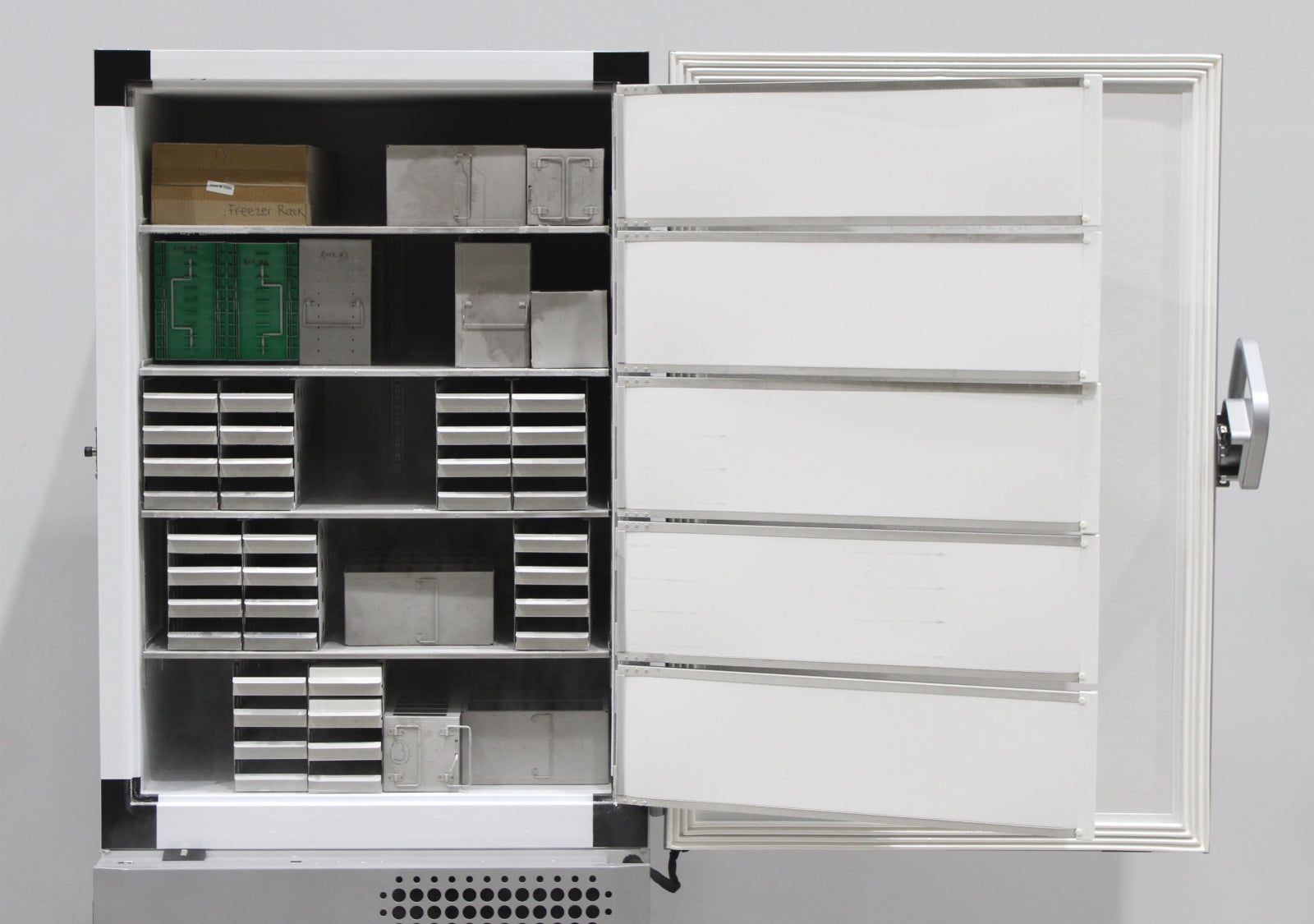

Shelves
|
3 stainless steel
Adjustable shelves in 1” (25mm) increments
|
|
Shelf capacity
|
Maximum capacity per shelf: 245 lb (110 kg)
Cabinet load not to exceed 1140 lb (517.1 kg)
|
|
Interior/Exterior material
|
Painted steel (stainless steel option) / Painted steel
|
|
All-direction casters
|
Standard with locks
|
|
Controller level
|
Top
|
|
Power switch
|
(Rear) main circuit breaker
|
|

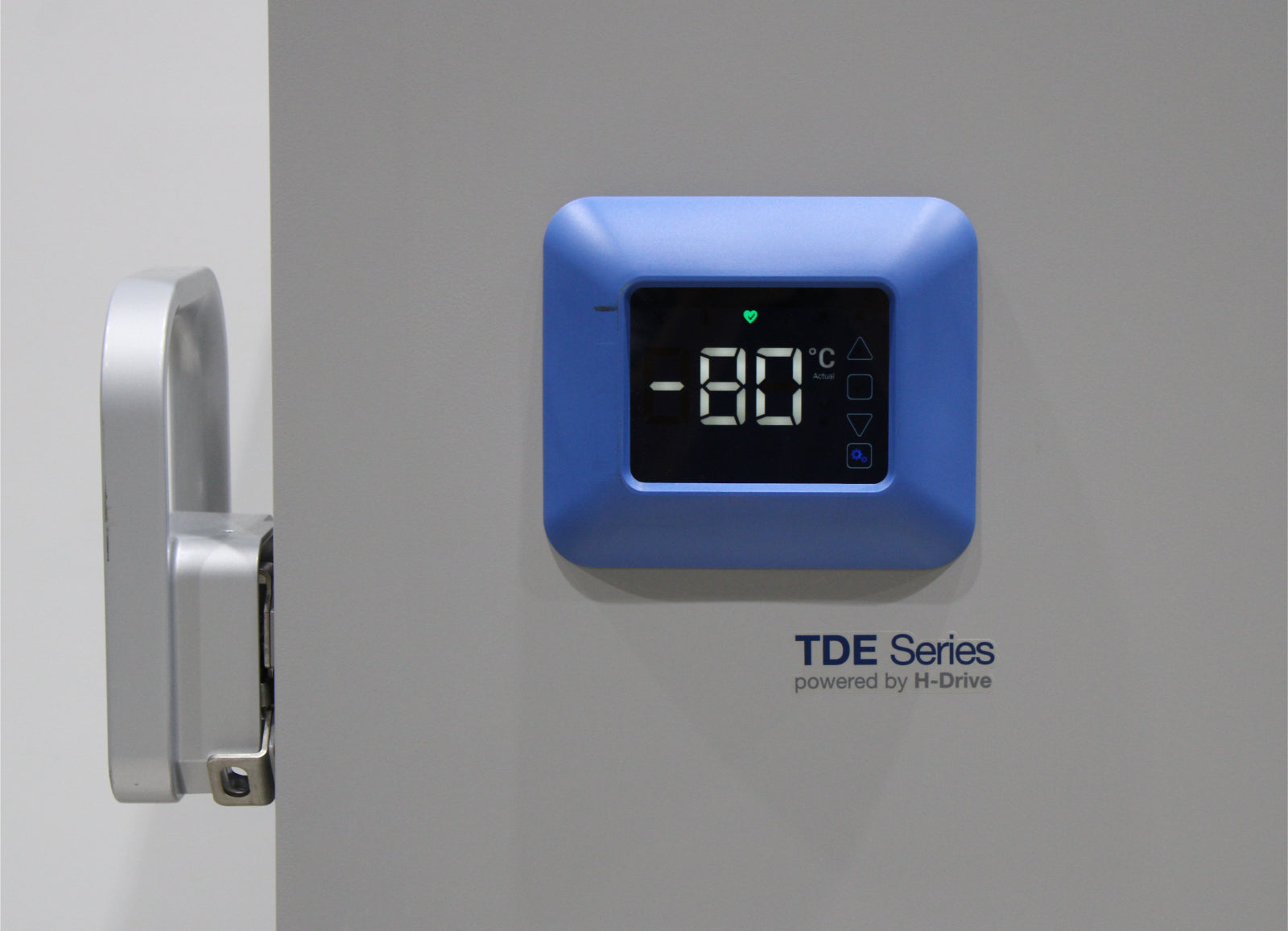

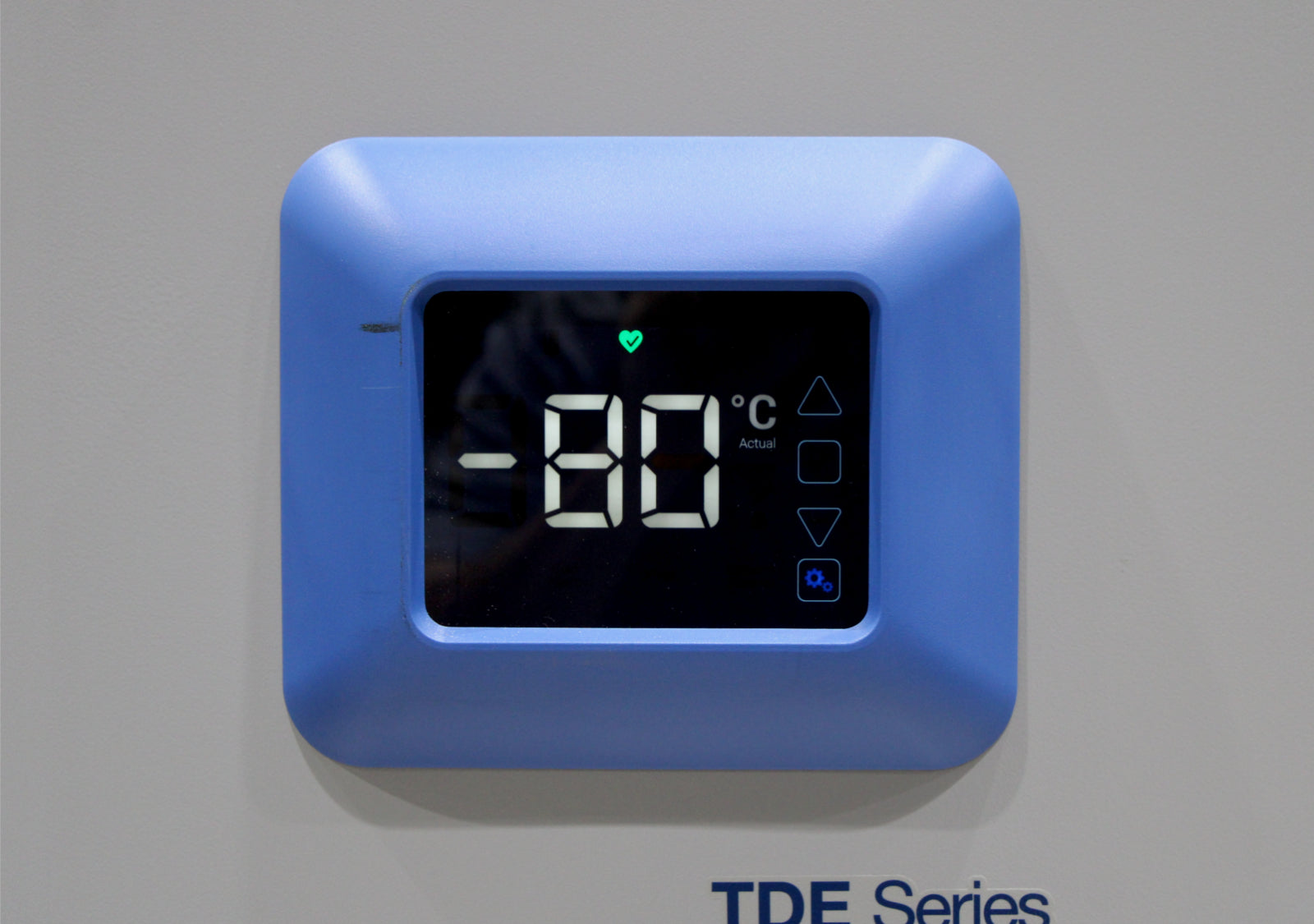

Controller type
|
HIC interface: 7-segment display with capacitive touch screen buttons
|
|
Setpoint security
|
Yes
|
|
Compressor safe guard
|
High temp cutout switch, current, logic protection
|
|
Control sensor
|
Single RTD (1000 ohm Platinum RTD)
|
|
Connectivity / Remote outputs
|
RS485/4-20mA output/Dry contacts
|
|
Thermo Fisher Cloud
|
InstrumentConnect remote monitoring (compatible)
|
|
Adjustable warm/cold alarms
|
Fully adjustable
|
|
Refrigeration system
|
Two stage cascade system
|
|
Compressor/number
|
Industrial rated, hermetically sealed / 2
|
|
Compressor capacity
|
509 W
|
|
Condenser type
|
Enhanced tube and find with forced-air cooling
|
|
Expansion device
|
Capillary tube
|
|
Evaporator type
|
Enhanced cold wall design
|
|
Defrost method
|
Manual defrost
|
|
Refrigerant (1st/2nd stage)
|
R290 / R170+R290 Mix
|
|
Environmental effects
|
GWP: 3 (R290), 6 (R170)
ODP: 0 (R290); 0 (R170)
|
|
Application environment
|
Non-corrosive, Non-flammable, Non-explosive
Indoor use only, ventilated 15°C-32°C (59°F-90°F)
|
|
Agency listings
|
UL, cUL
|
|

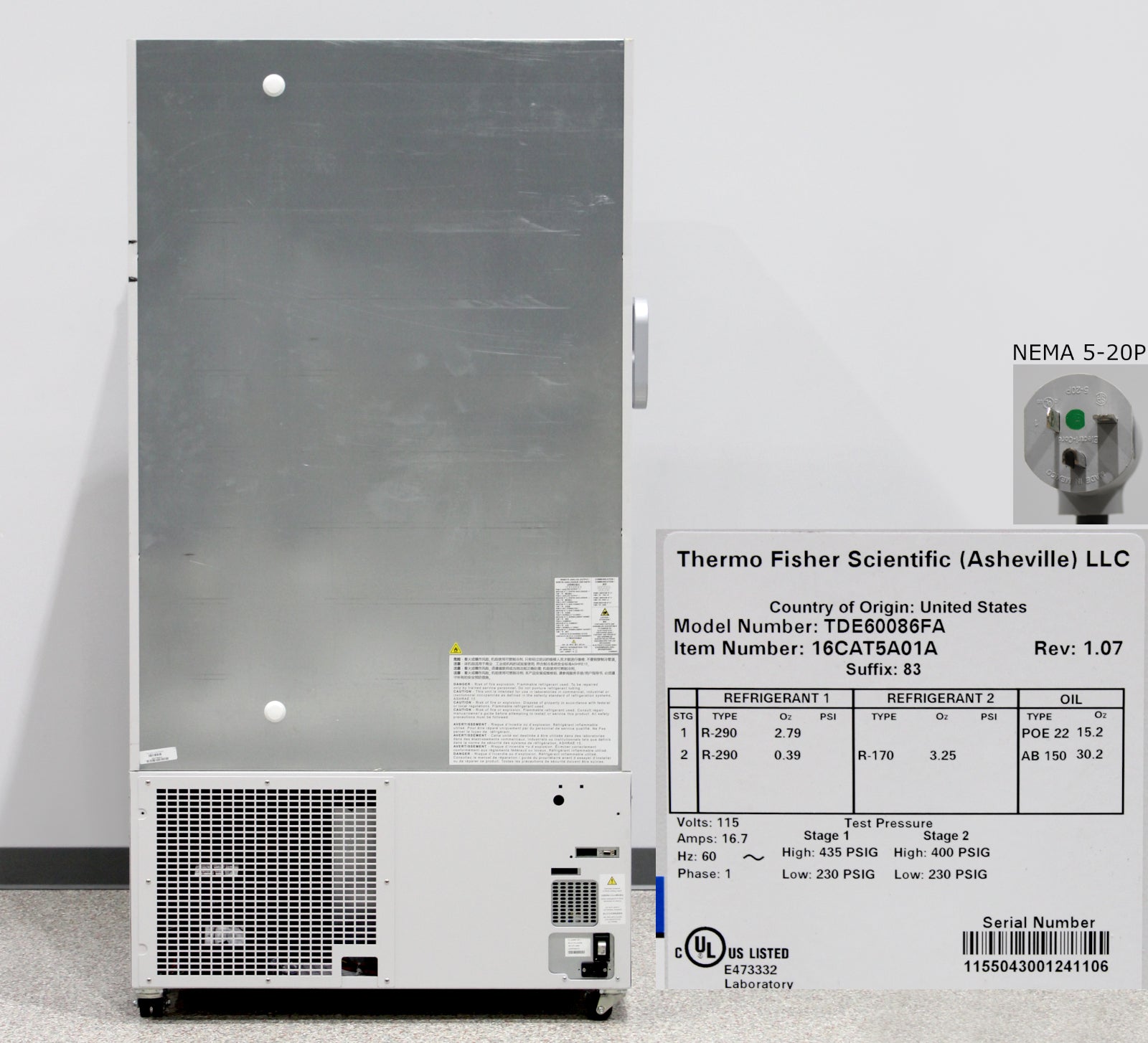

Plug type
|
NEMA 5-20P
|
|
Building supply rating
|
20A dedicated grounded circuit, Type C protection or similar required, Ensure compliance with local electric code
|
|
Power rating
|
115V, 60Hz, 16.7A, 1Ph
|
|
Interior dimensions (W x D x H)
|
34.4 x 28.3 x 51.2 in (87.3 x 71.9 x 130.1 cm)
|
|
Exterior dimensions (W x D x H)
|
43.6 x 38.5 x 78 in (110.7 x 97.7 x 198.1 cm)
|
|
Net weight
|
709 lb (322 kg)
|
