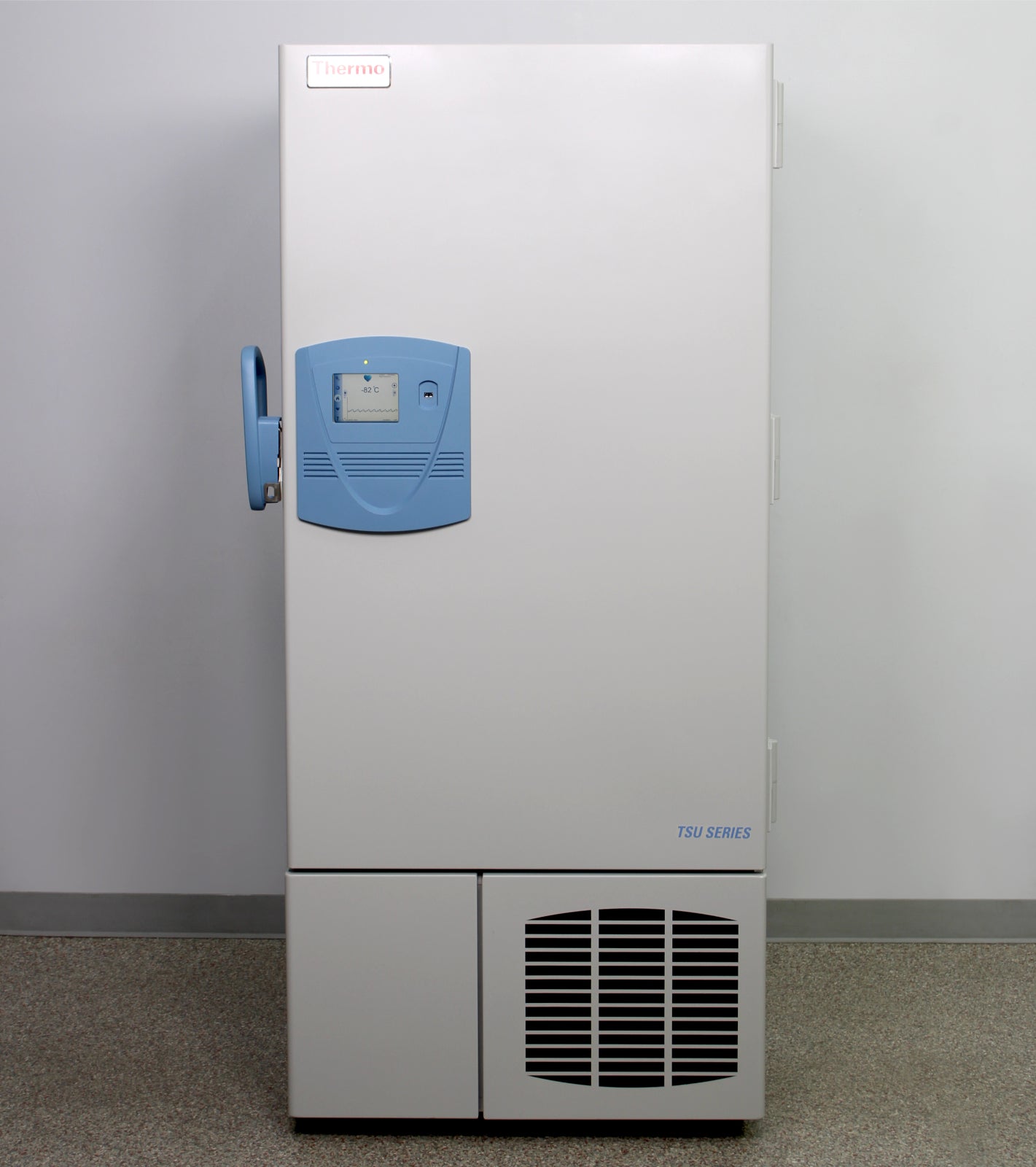

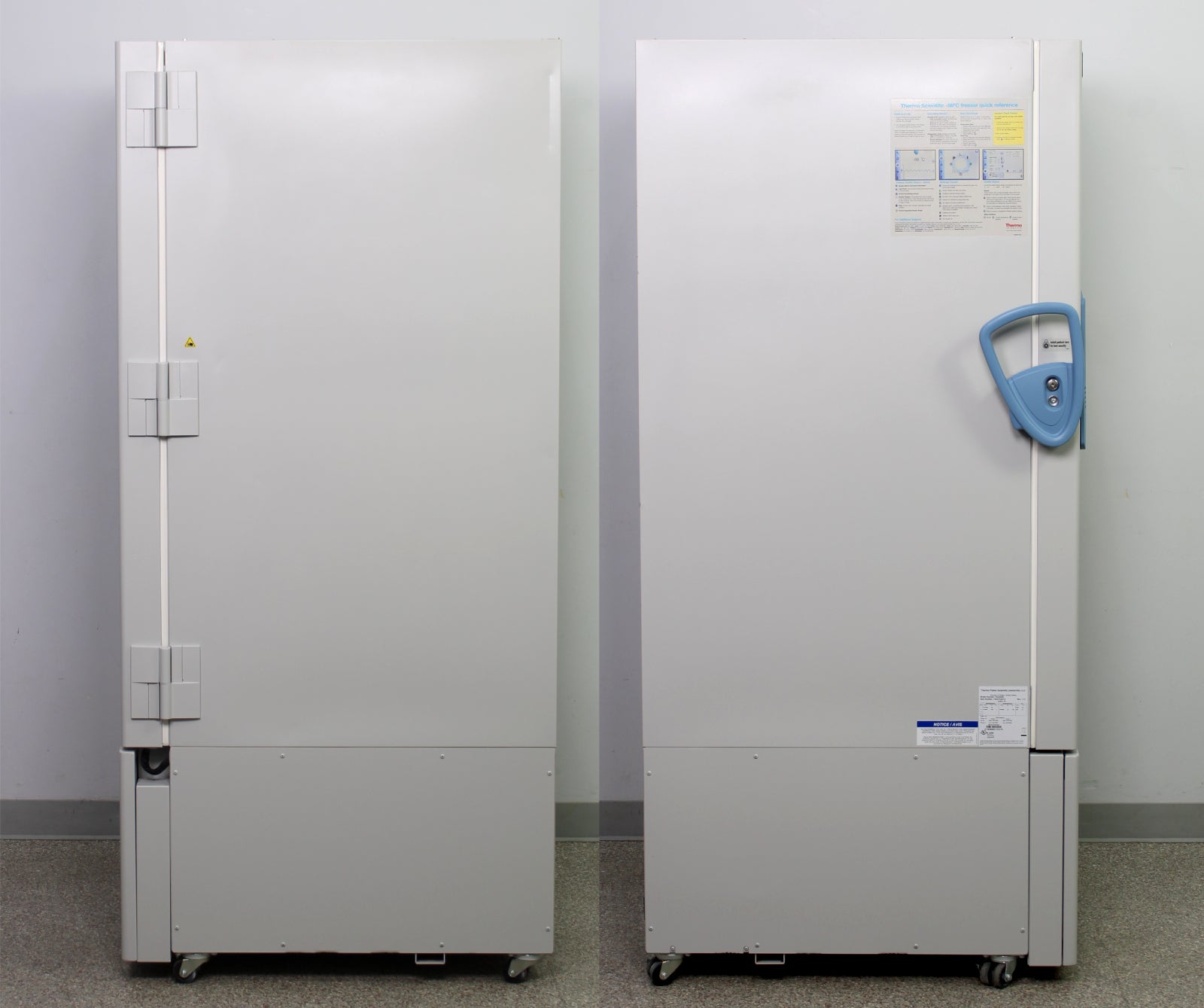

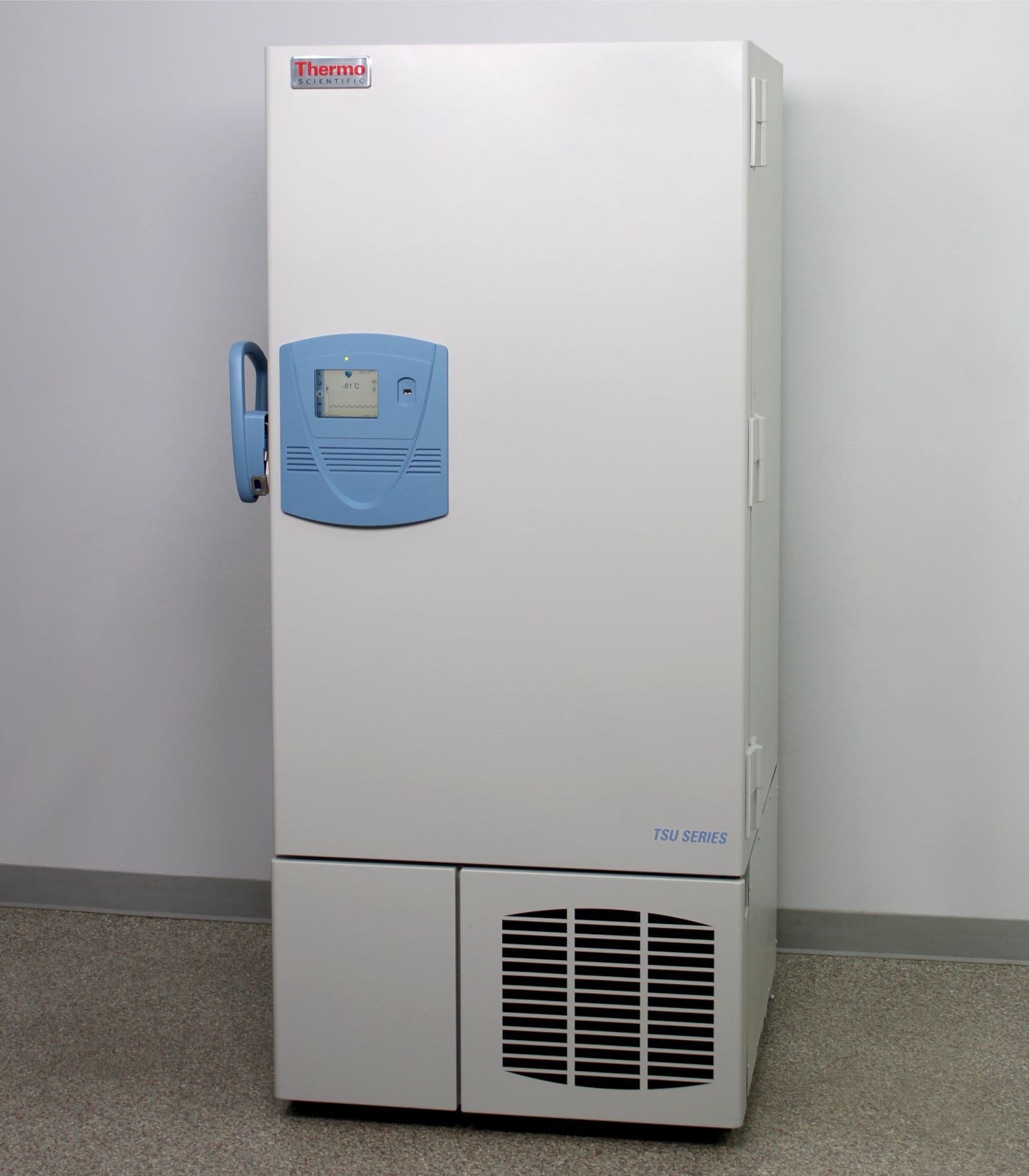

- Thermo Scientific TSU500A Upright ULT Ultra-Low Temperature Freezer 115V (152AT4A01A)

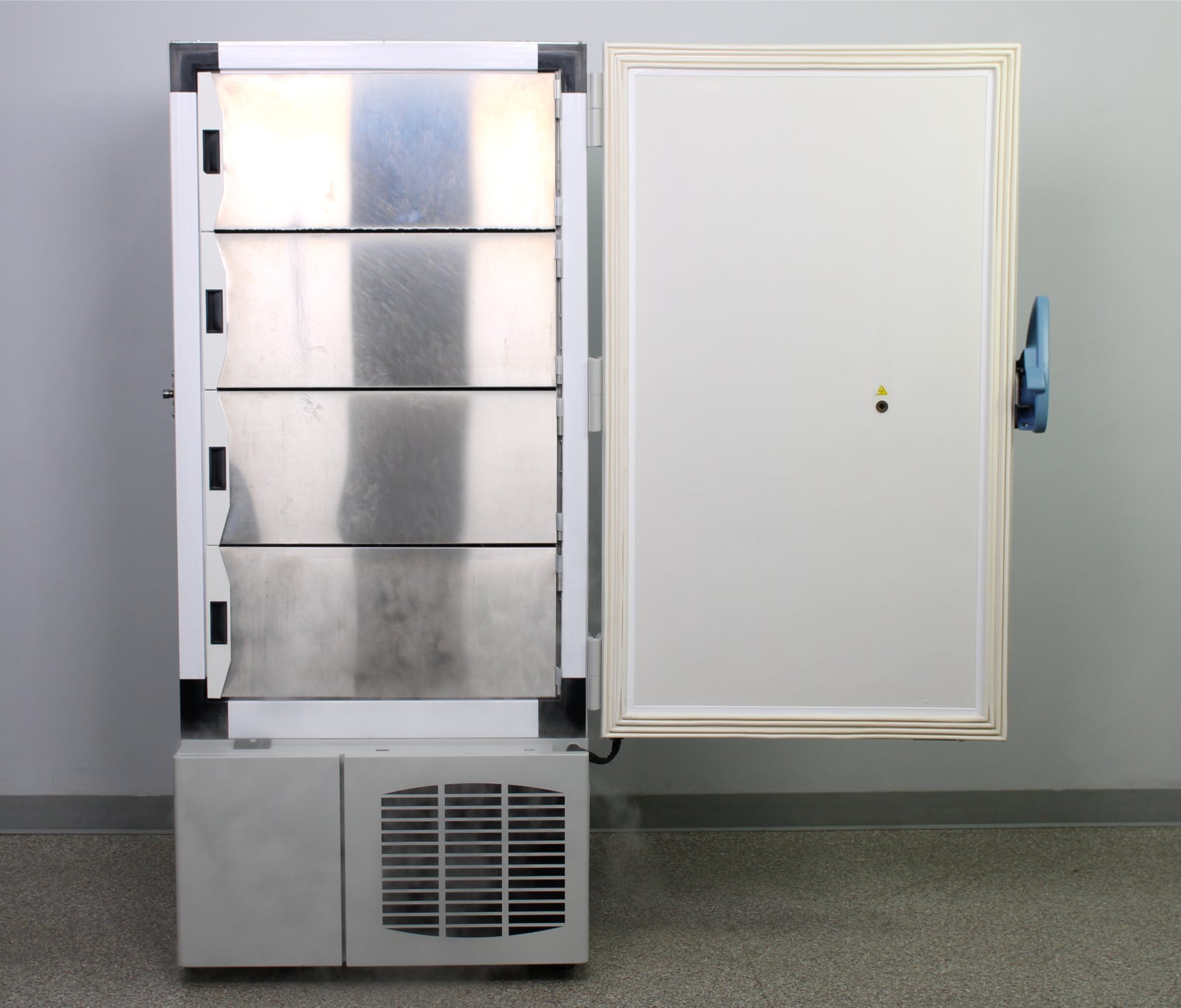

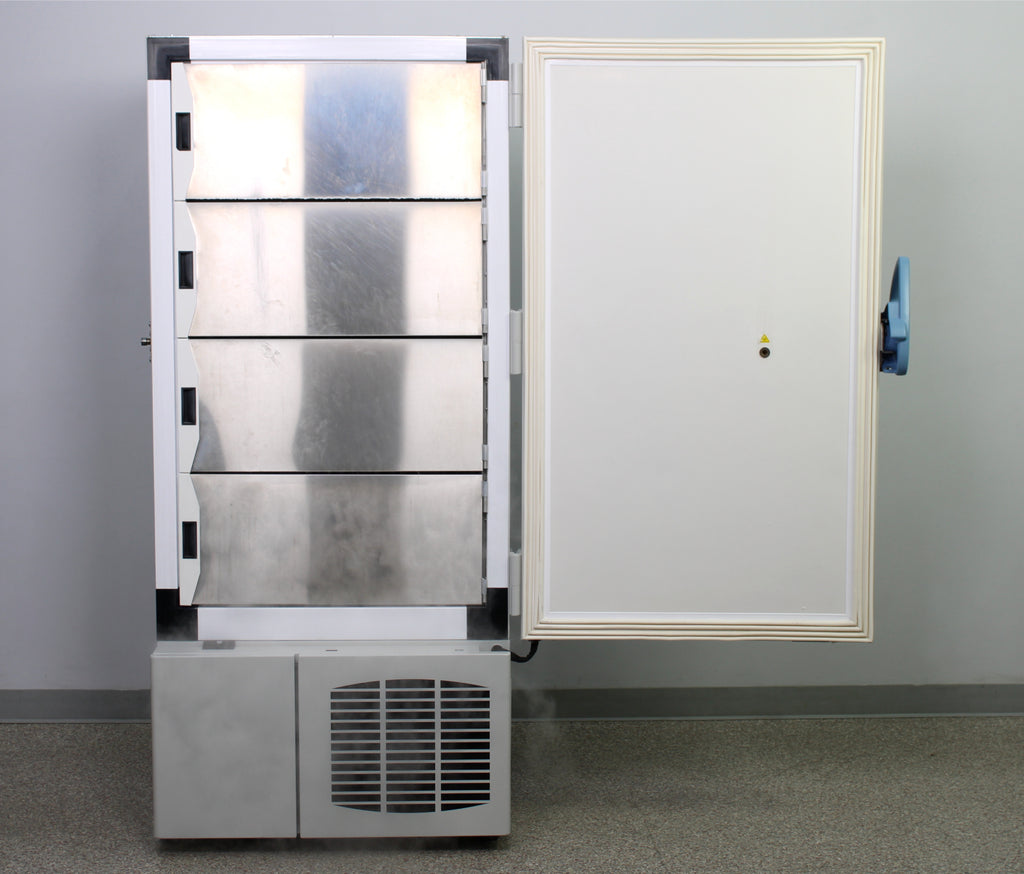

- x3 Adjustable Stainless Steel Shelves
- Power Cable with NEMA 5-15 Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Thermo Scientific TSU500A upright ULT ultra-low temperature freezer with the following results:

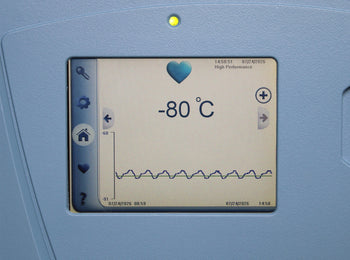

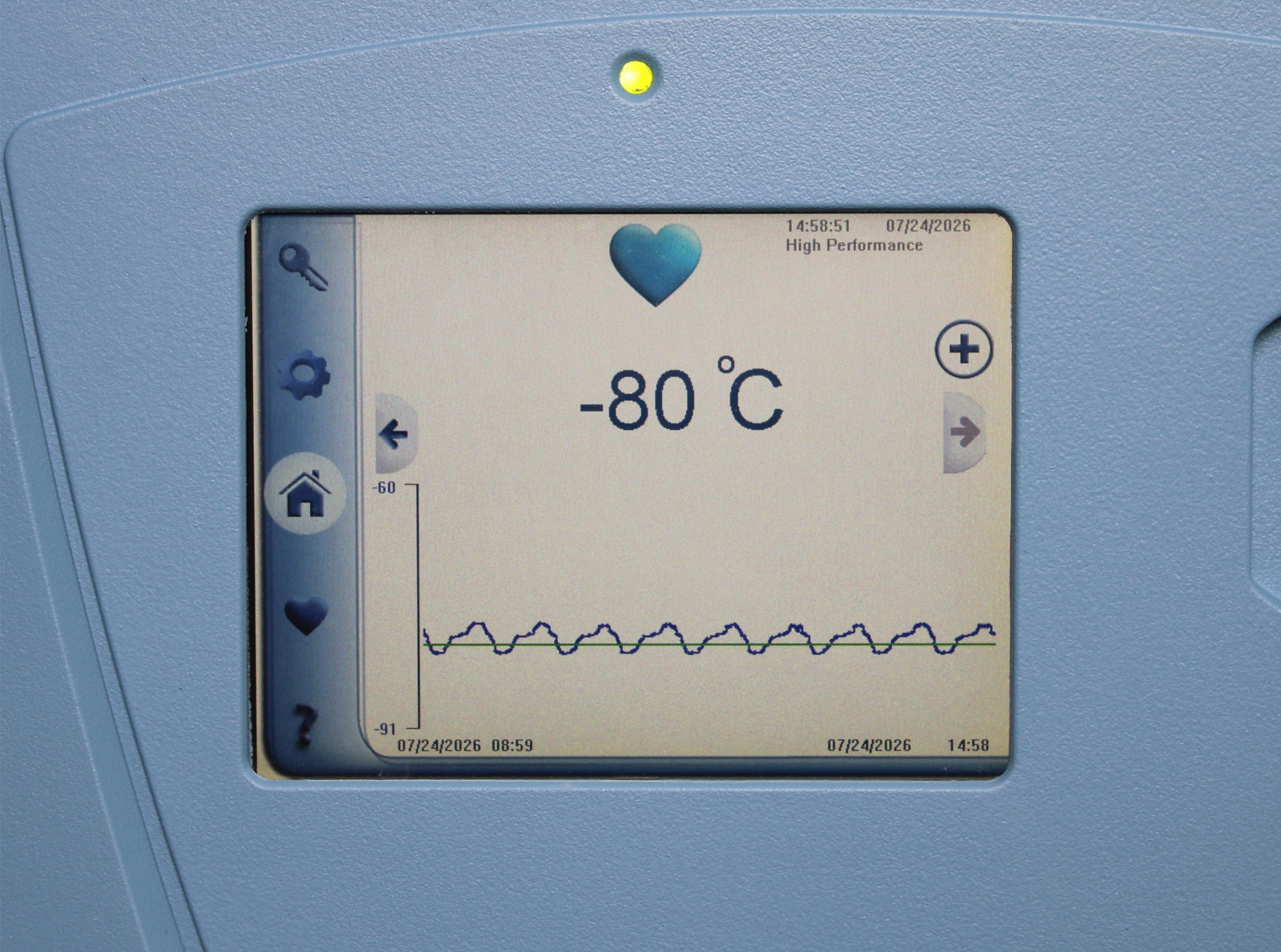

- Refrigeration maintains -80°C setpoint: PASSED
- Exterior professionally repainted.
- Inspected and replaced refrigeration insulation.

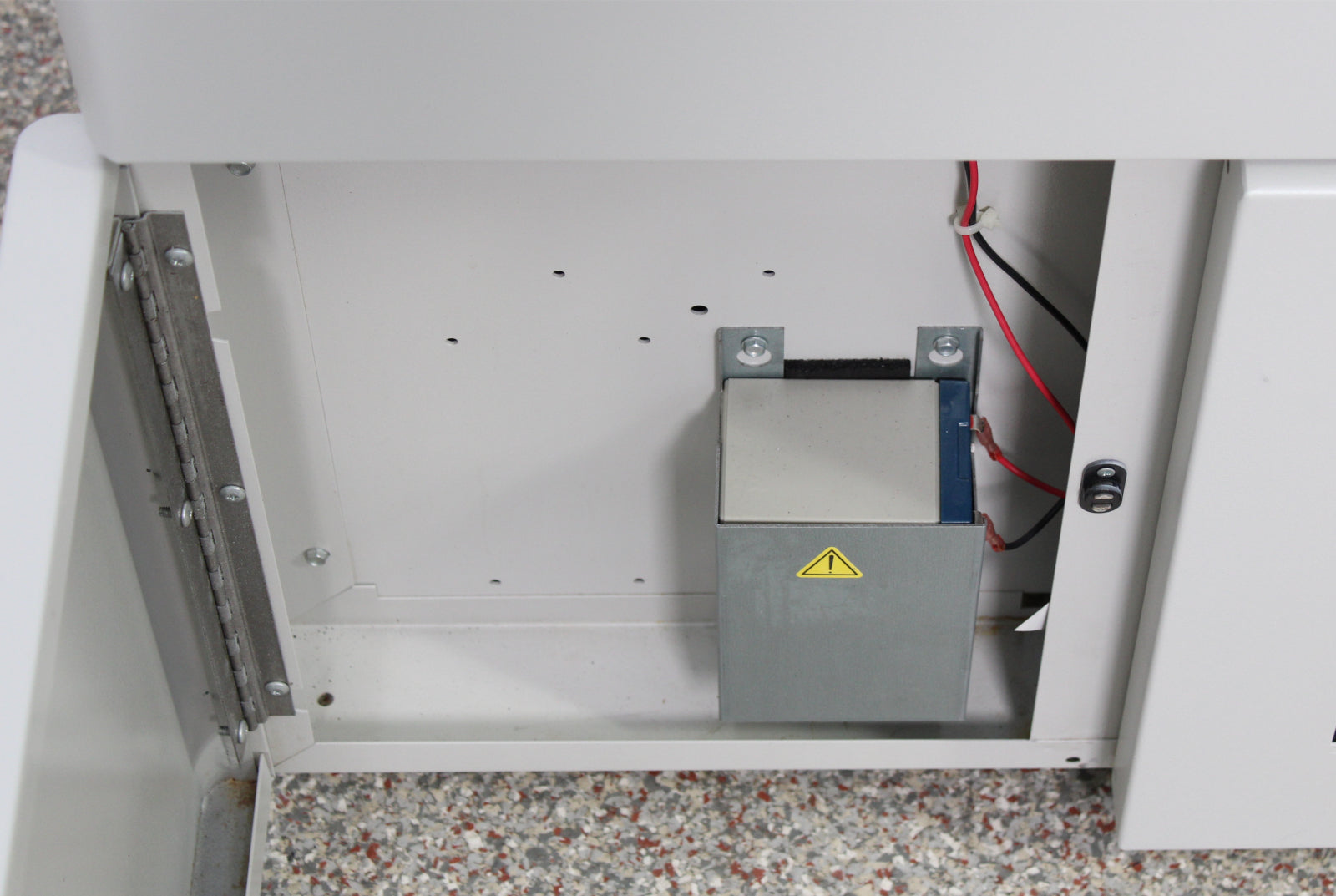

- Tested backup display battery.
- Replaced condenser fan filter.
|
Manufacturer
|
Thermo Fisher Scientific
|
|
Model No.
|
TSU500A
|
|

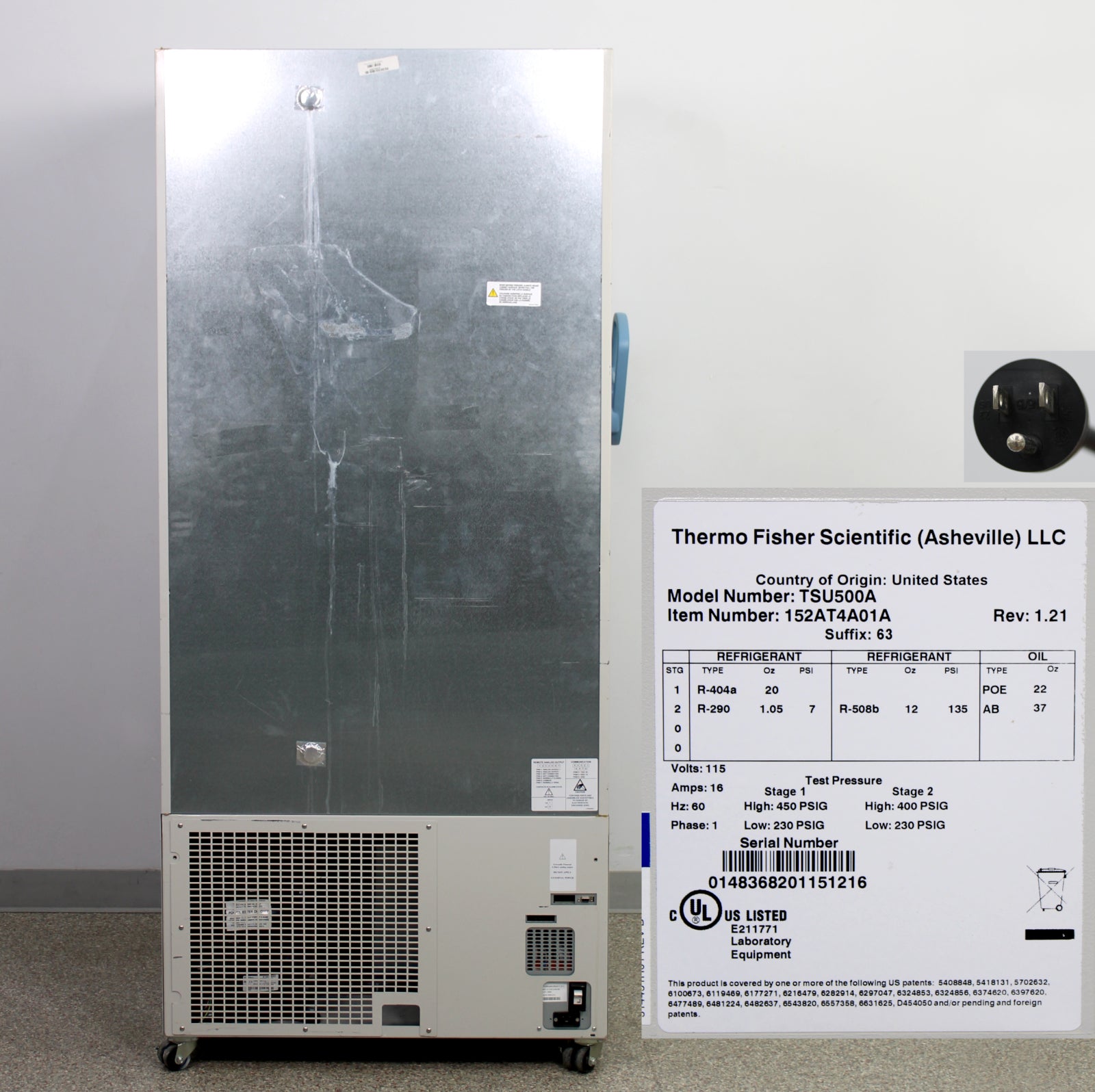

Item No.
|
152AT4A01A
|
|
Serial No.
|
0148368201151216
|
|
Mfg. date
|
2015
|
|
Style
|
Upright
|
|
Storage volume
|
682 liters / 24.1 cu. ft., 500 Standard 2" Boxes
|
|
Temperature range
|
-50°C to -85°C @ 32°C (90°F) ambient
|
|
Refrigeration system
|
Industrial-rated two stage cascade system
|
|
Compressor/Number
|
1 HP hermetic compressor for low temperature application / 2
|
|
Condenser Type/Number
|
Enhanced Finned-Tube and Forced-Air Cooled / 1
|
|
Expansion device
|
Capillary tube on both cascade stages
|
|
Evaporator type
|
Cold wall with enhanced heat transfer treatment
|
|
Defrost method
|
Manual defrost
|
|
Refrigerant charge/flammability
|
CFC/HCFC-free environmentally safe refrigerant mixtures / non-flammable in both stages
|
|
Controller level
|
Eye level
|
|
Power switch
|
On-off with circuit breaker
|
|

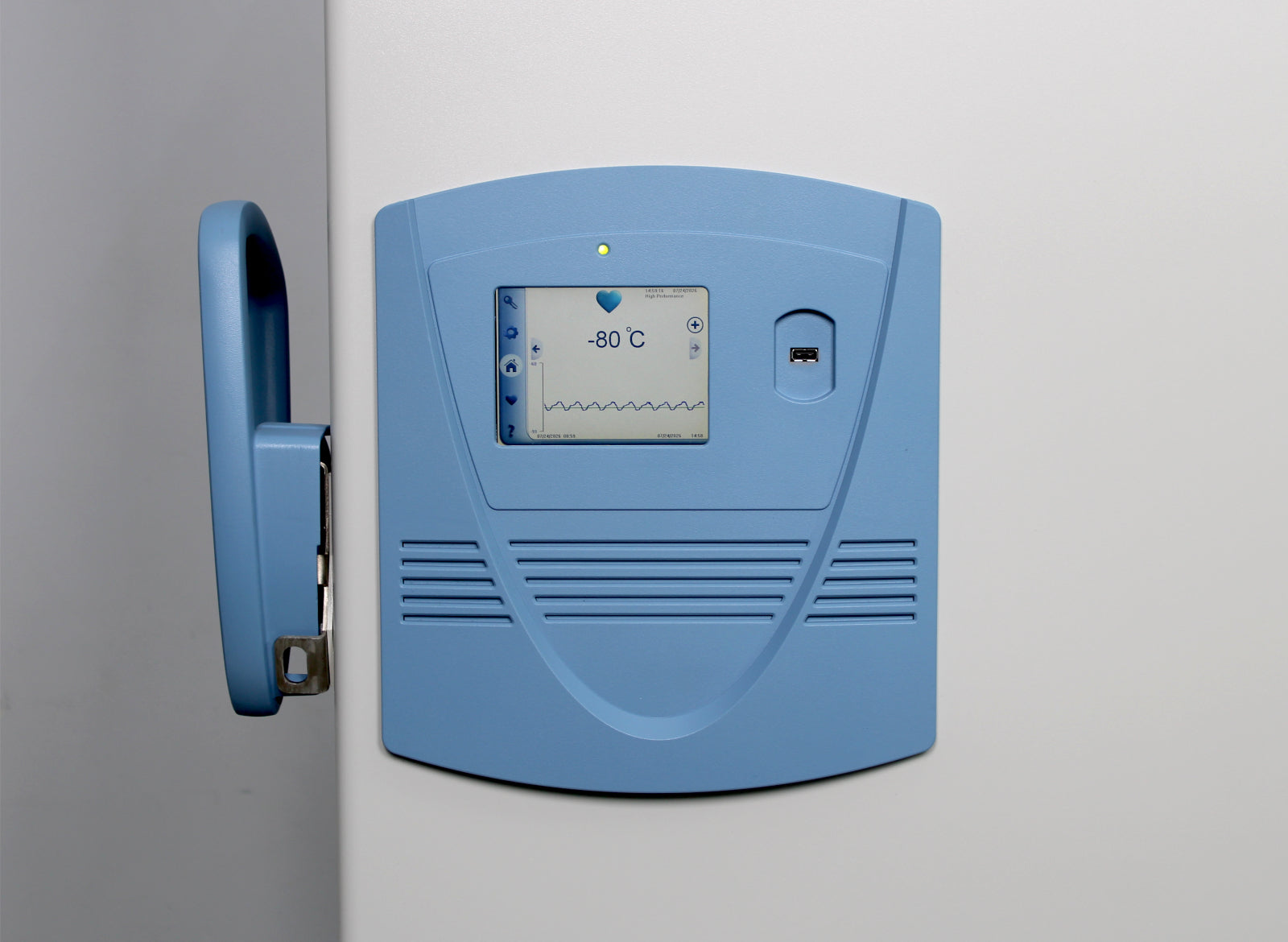

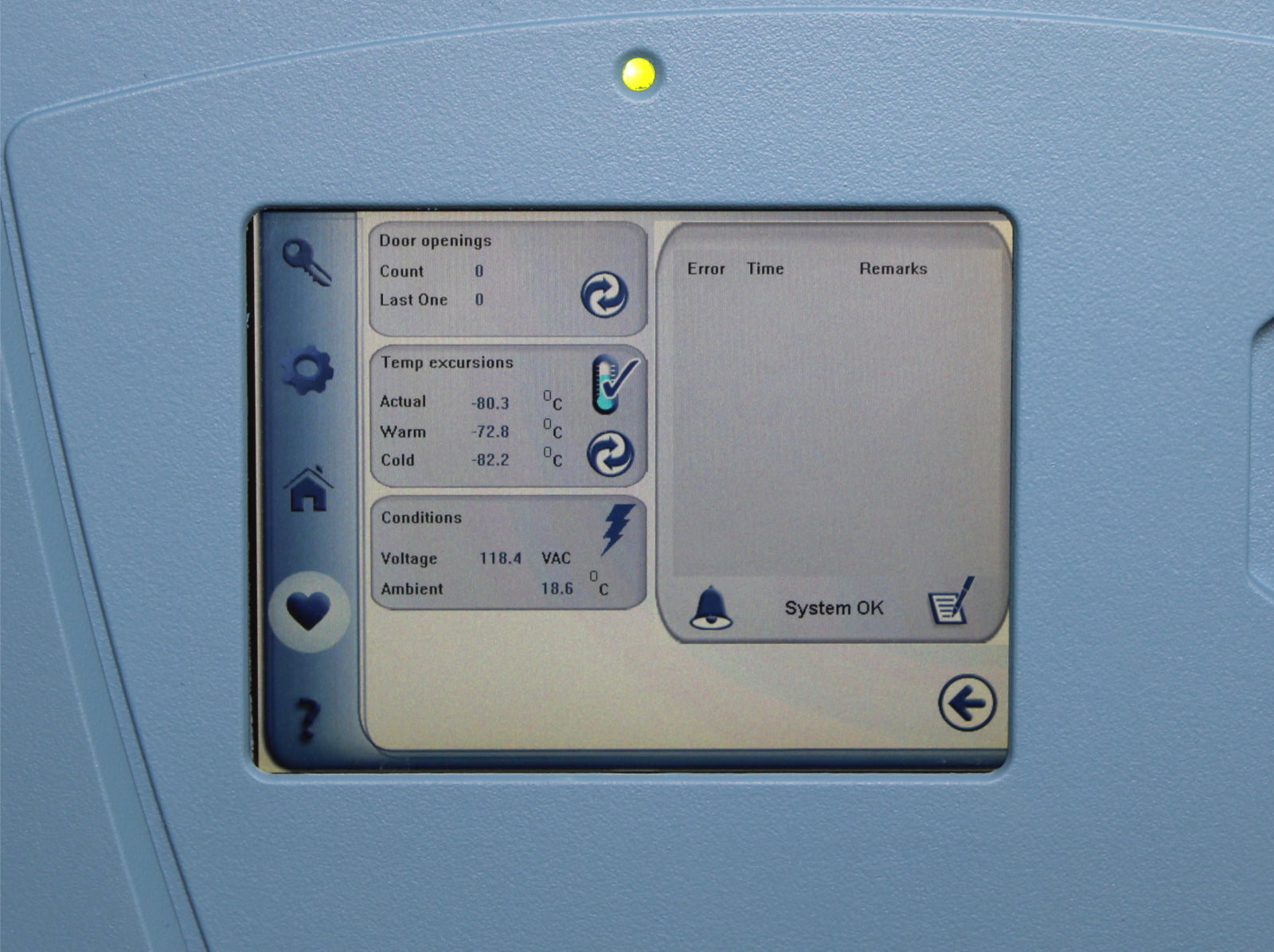

Controller type
|
Microprocessor control with touch screen input and display. Includes USB system data retrieval
|
|
Setpoint security
|
Yes
|
|
Compressor safe guard
|
High temperature warning/current and temperature protection/logic protection
|
|
Control sensor
|
Single RTD (1000 ohm platinum RTD)
|
|
RS232/remote alarm terminals
|
RS485/4-20mA output
|
|
Adjustable warm/cold alarms
|
Fully adjustable
|
|
Auto-voltage safeguard
|
Buck/boost system
|
|

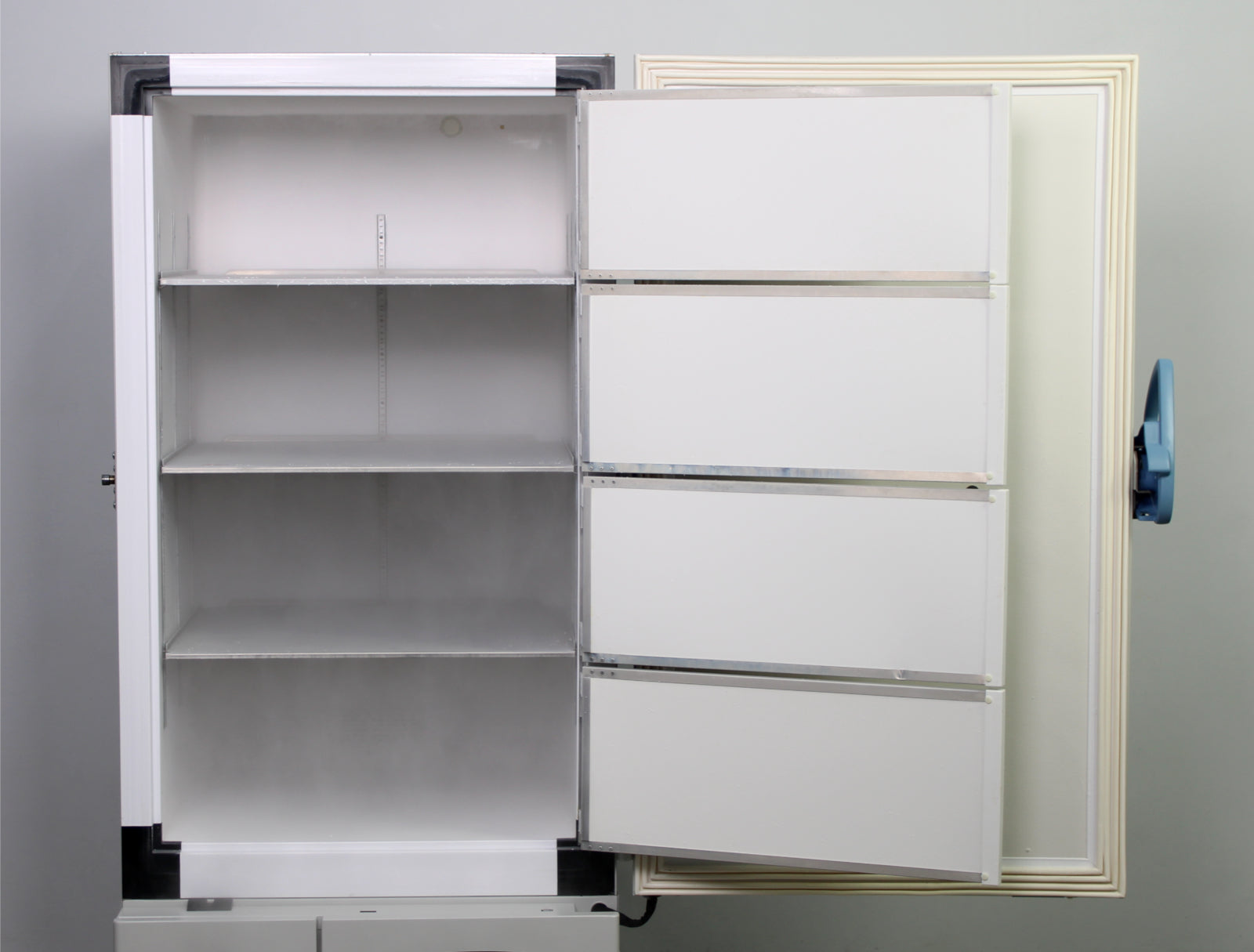

Shelves/Capacity
|
3 or 4 stainless steel shelves adjustable in 1” increments. Maximum capacity per shelf: 91.7 kg (205 lbs.)
|
|
Power rating
|
115V, 60Hz, 16A, 1Ph
|
|
Interior dimensions (W x D x H)
|
28.8 x 28.3 x 51.2 in (73.2 x 71.9 x 130 cm)
|
|
Exterior dimensions (W x D x H)
|
38 x 37.6 x 78 in (96.5 x 95.5 x 198 cm)
|
|
Approximate weight
|
730 lb (331 kg)
|
