Manufacturer
|
Thermo Fisher Scientific
|
|
Type
|

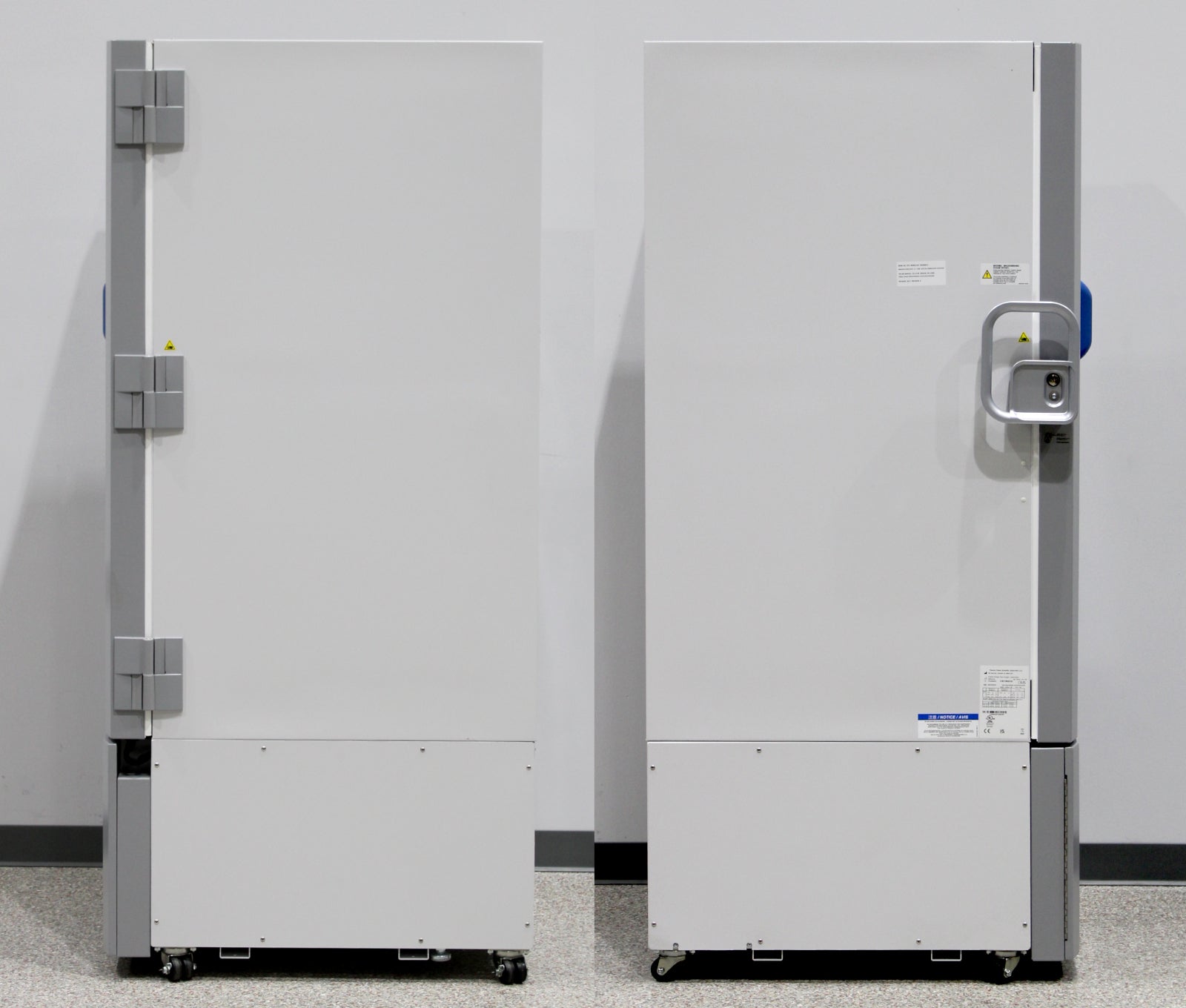

Ultra-Low Freezer, Upright
|
|
Model No.
|
TSX40086CA
|
|
Item No.
|
A4CUT8V37R
|
|
Serial No.
|
1160606201260424
|
|
Mfg. date
|
2026-04-24
|
|
Application
|
Storage of general (non-flammable) laboratory materials
|
|
Storage volume
|
19.31 cu. ft. (547 liters), 400 standard 2” boxes
|
|
Temperature range
|
-50°C to -86°C
|
|
Insulation
|
Vacuum insulation panels with high-density water-blown polyurethane foam, electric heater at breaker area
|
|

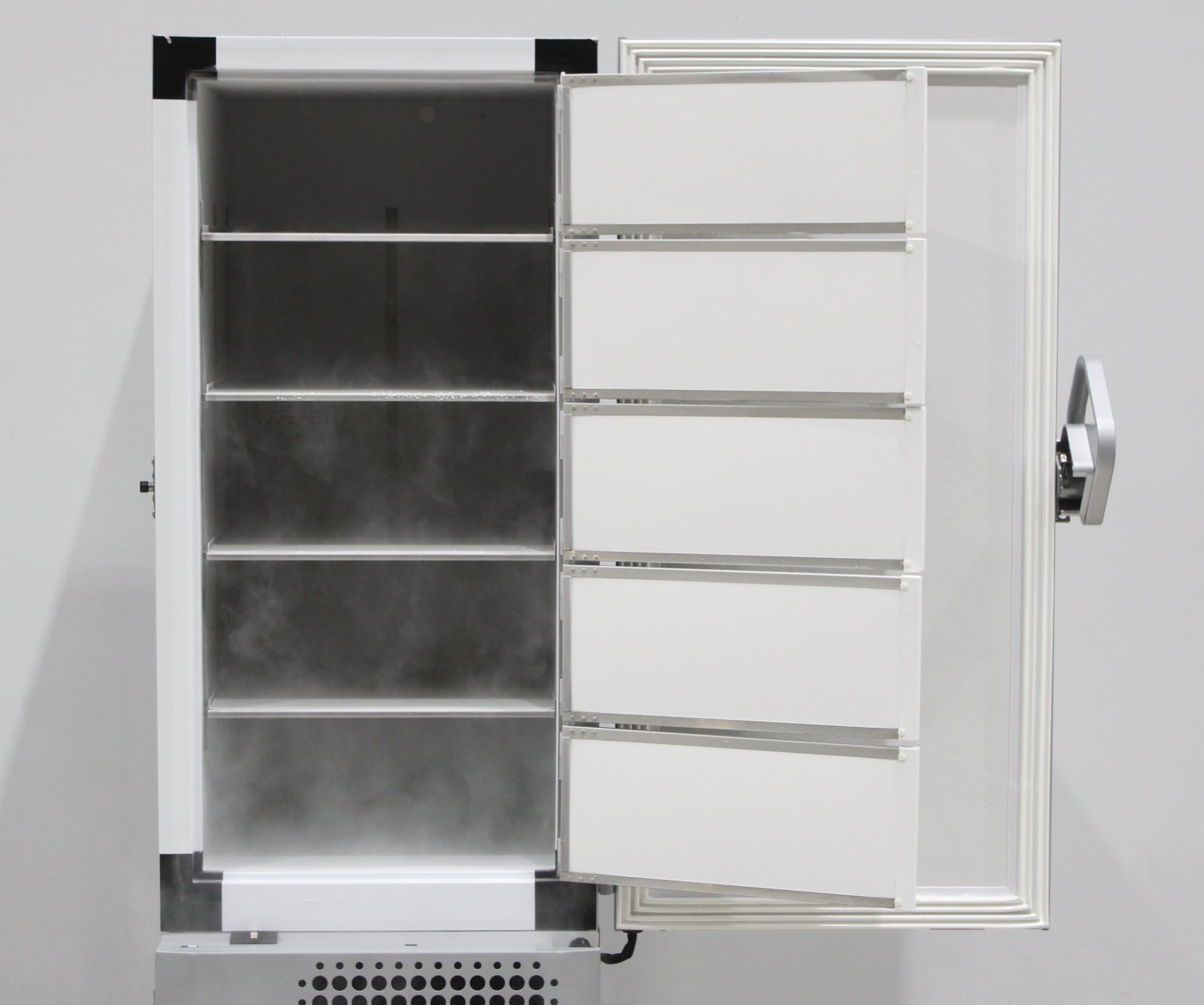

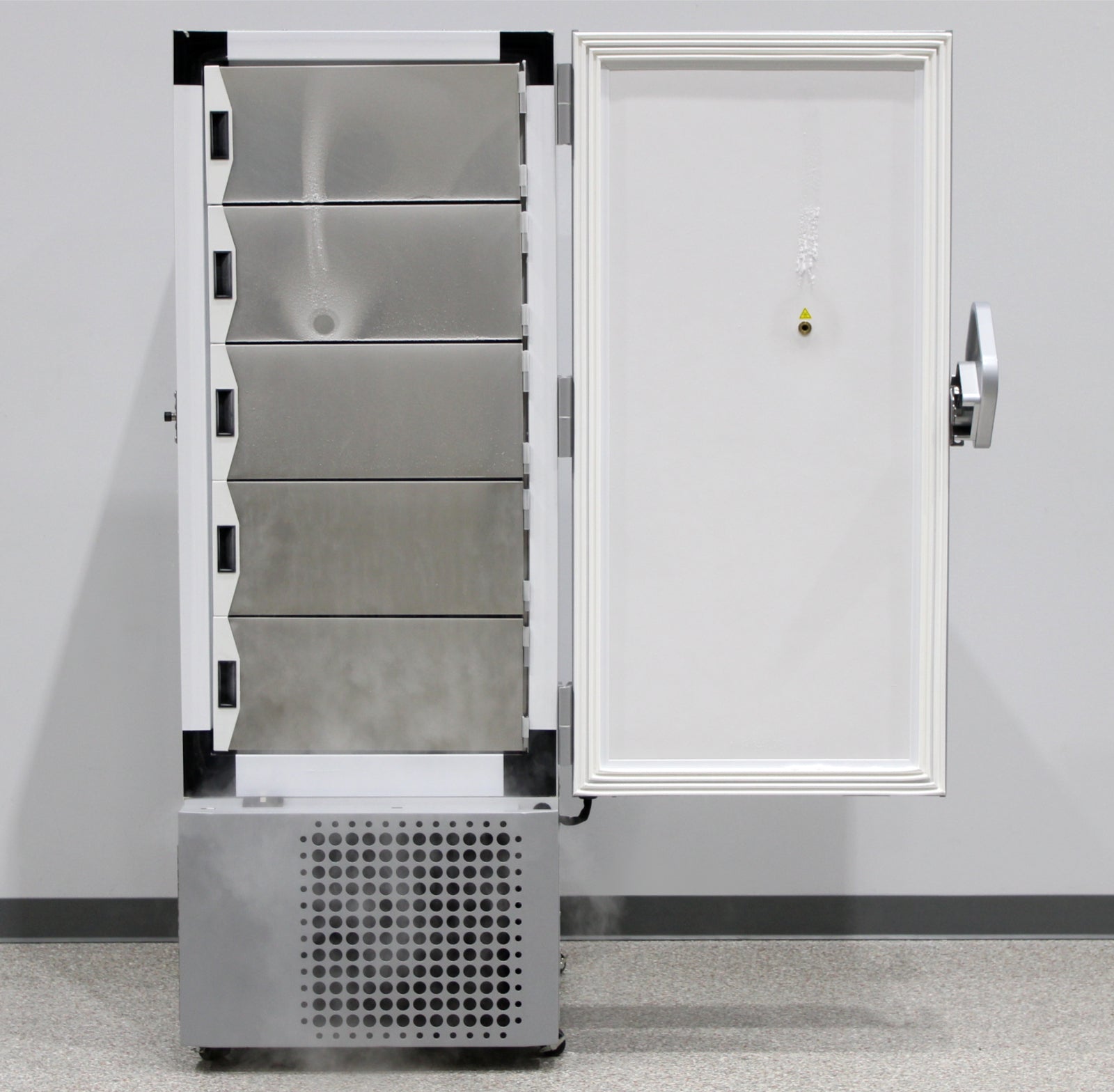

Door
|
Single outer: silicone-based gasket seal
Number of inner: 2x stainless steel (5x optional)
|
|
Shelves
|
3x stainless steel (4x option)
Adjustable shelves in 1” (25 mm) increments
|
|
Shelf capacity
|
Shelf: 165 lb (75 kg)
Cabinet load not to exceed: 1140 lb (517 kg)
|
|
Interior / Exterior wall material
|
Painted steel (stainless steel optional) / Painted steel
|
|
Casters
|
4x standard all-direction with locks
|
|

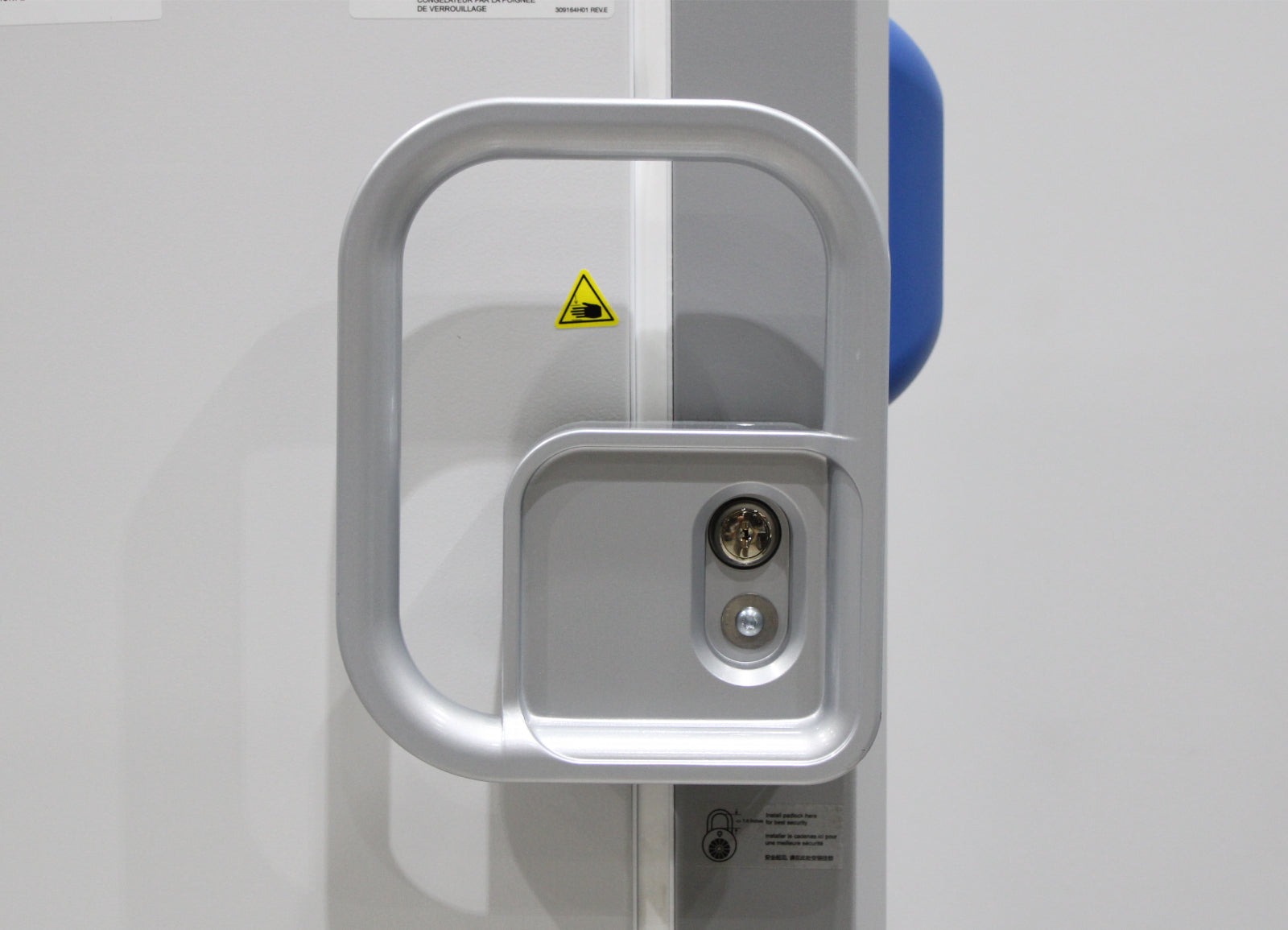

Locking mechanism
|
Handle key lock and pad lock loop standard
|
|

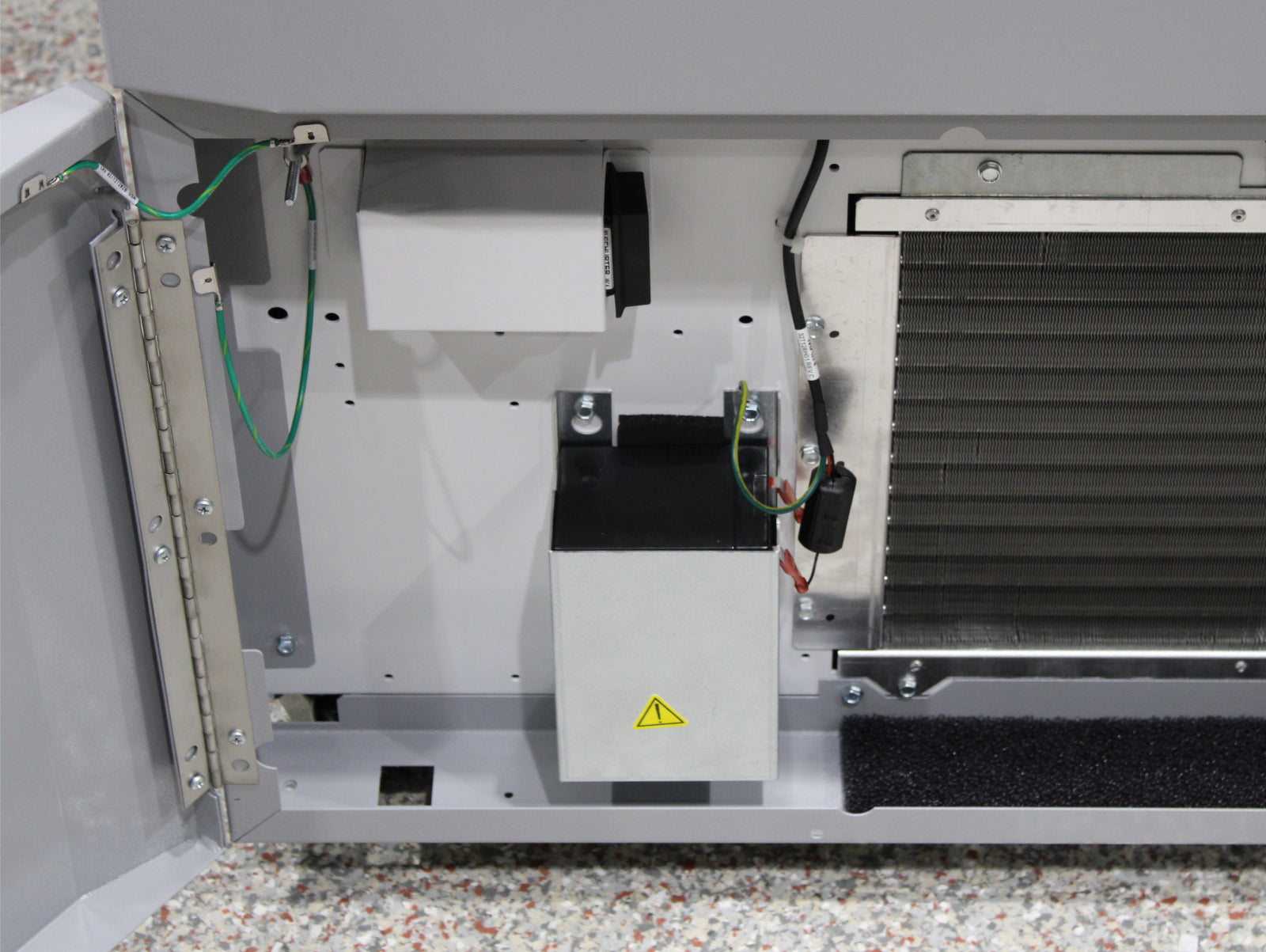

Power switch
|
Main circuit breaker (behind grill door)
|
|

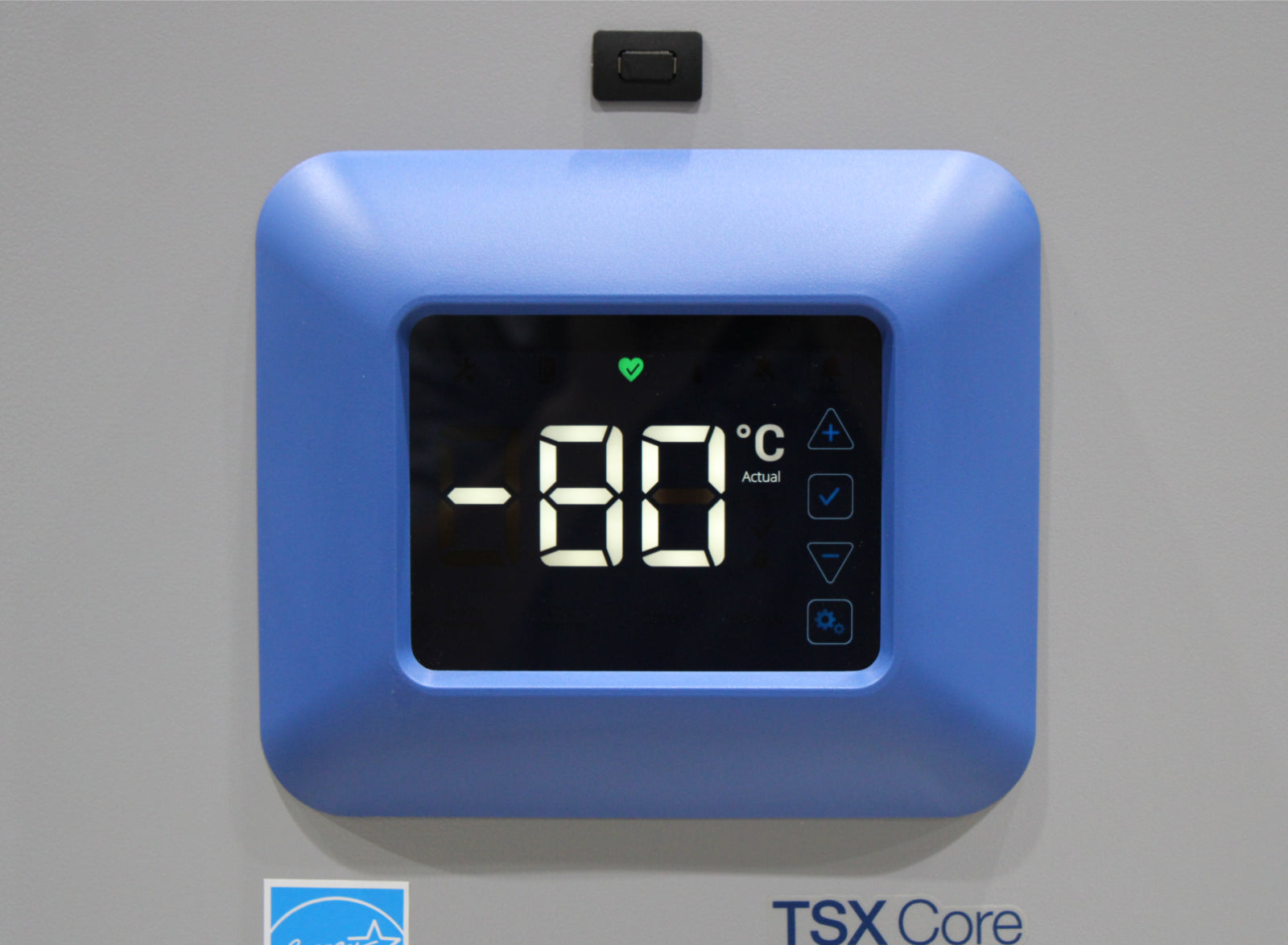

Controller type
|

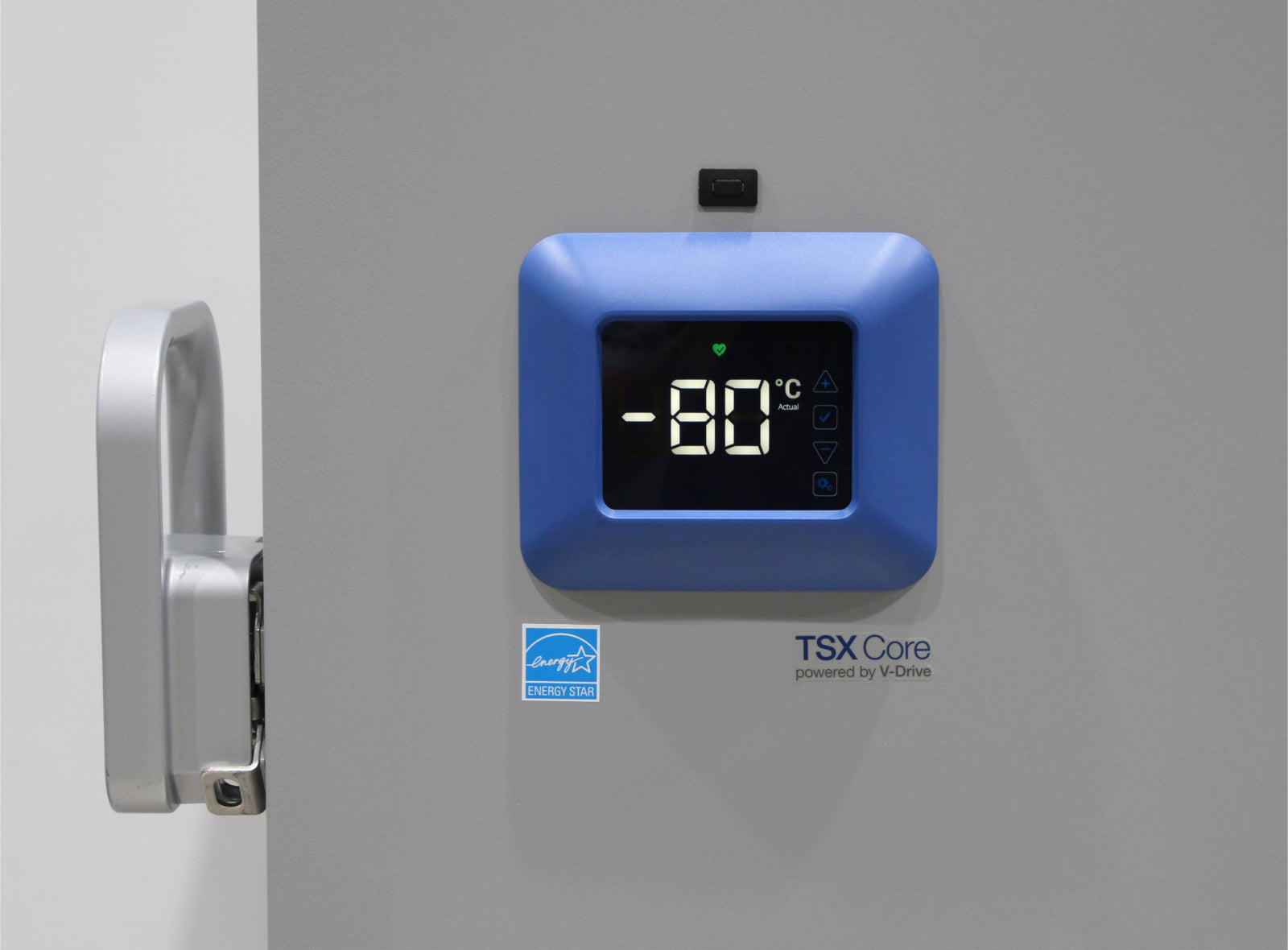

7-segment display with capacitive touch screen buttons with USB data retrieval at eye level
|
|
Control security
|
Setpoint setting, passcode access control
|
|
Compressor safe guard
|
High temp cutout switch, current, logic protection
|
|
Control sensor
|
Single RTD (1000 ohm Platinum RTD, class B, -196°C)
|
|
Remote output
|
RS485, 4-20 mA output, remote warning dry contacts
|
|
Thermo Fisher Cloud
|
InstrumentConnect compatible with accessory
|
|
Adjustable warm/cold alarms
|
Adjustable in 1°C increments
|
|
Refrigeration system
|
Two stage cascade system
|
|
Compressor/number
|
Variable speed industrial rated, hermetically sealed / 2
|
|
Compressor capacity
|
938 W (max. speed)
|
|
Condenser type
|
Enhanced micro-channel and forced-air cooled
|
|
Expansion device
|
Capillary tube
|
|
Evaporator type
|
Enhanced cold wall design
|
|
Defrost method
|
Manual defrost
|
|
Refrigerant (1st/2nd stage)
|
R290 / R170 + R290 Mix
|
|
Agency listings
|
UL, cUL, CE, Energy Star
|
|
Application environment
|
Non-corrosive, Non-flammable, Non-explosive
Indoor use only, ventilated 15-32°C (59-90°F) < 60% RH
|
|

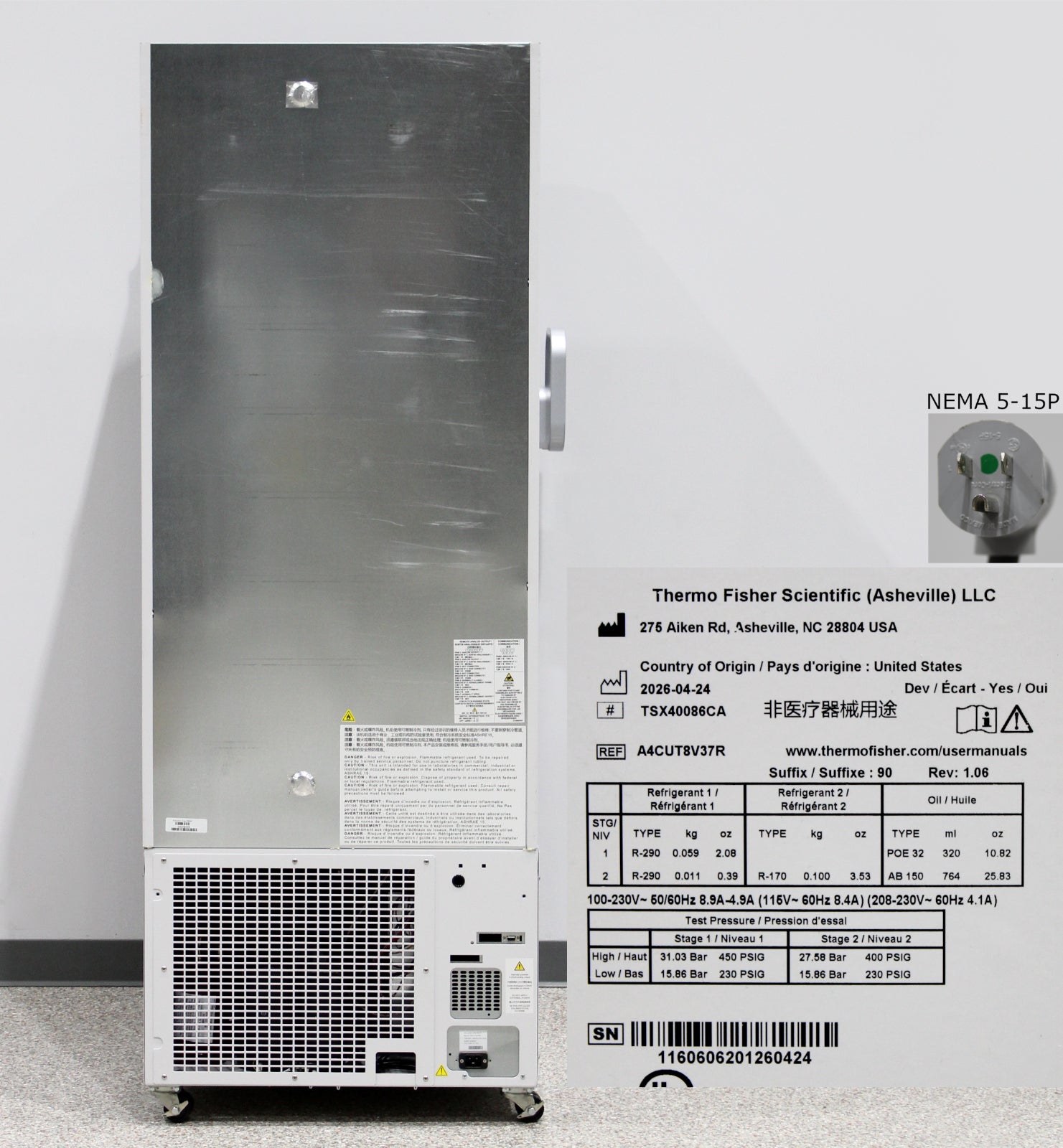

Plug type
|
NEMA 5-15P
|
|
Recommended building supply rating
|
Type C circuit protection or similar required, Ensure compliance with local electric code
|
|
Power rating
|
115V~, 60Hz, 8.4A
|
|
Interior dimensions (W x D x H)
|
23.1 x 28.3 x 51.2 in (58.8 x 71.9 x 130.1 cm)
|
|
Exterior dimensions (W x D x H)
|
28.3 x 37 x 78 in (71.9 x 97.8 x 198.1 cm)
|
|
Net weight
|
596 lb (270 kg)
|
