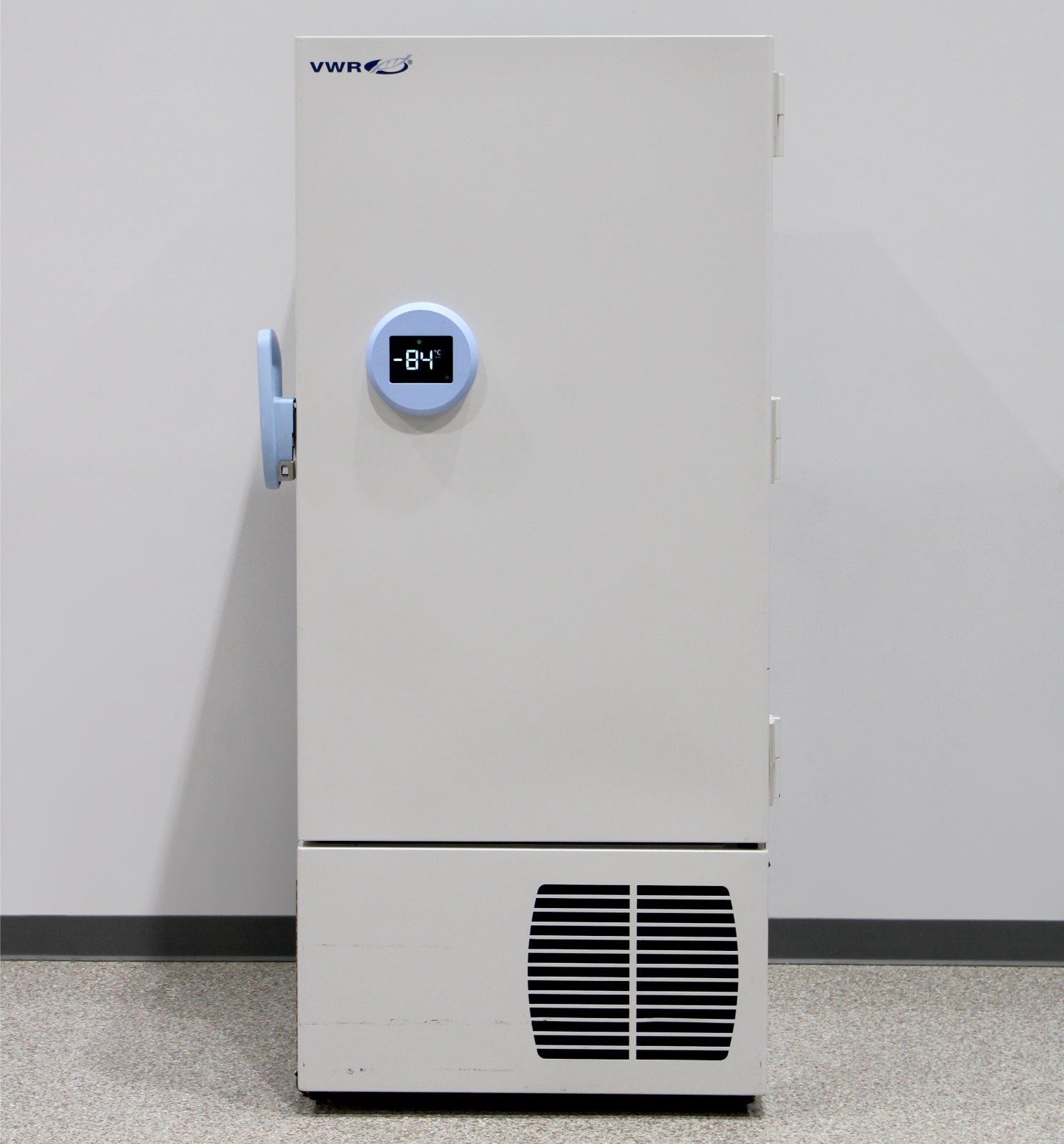

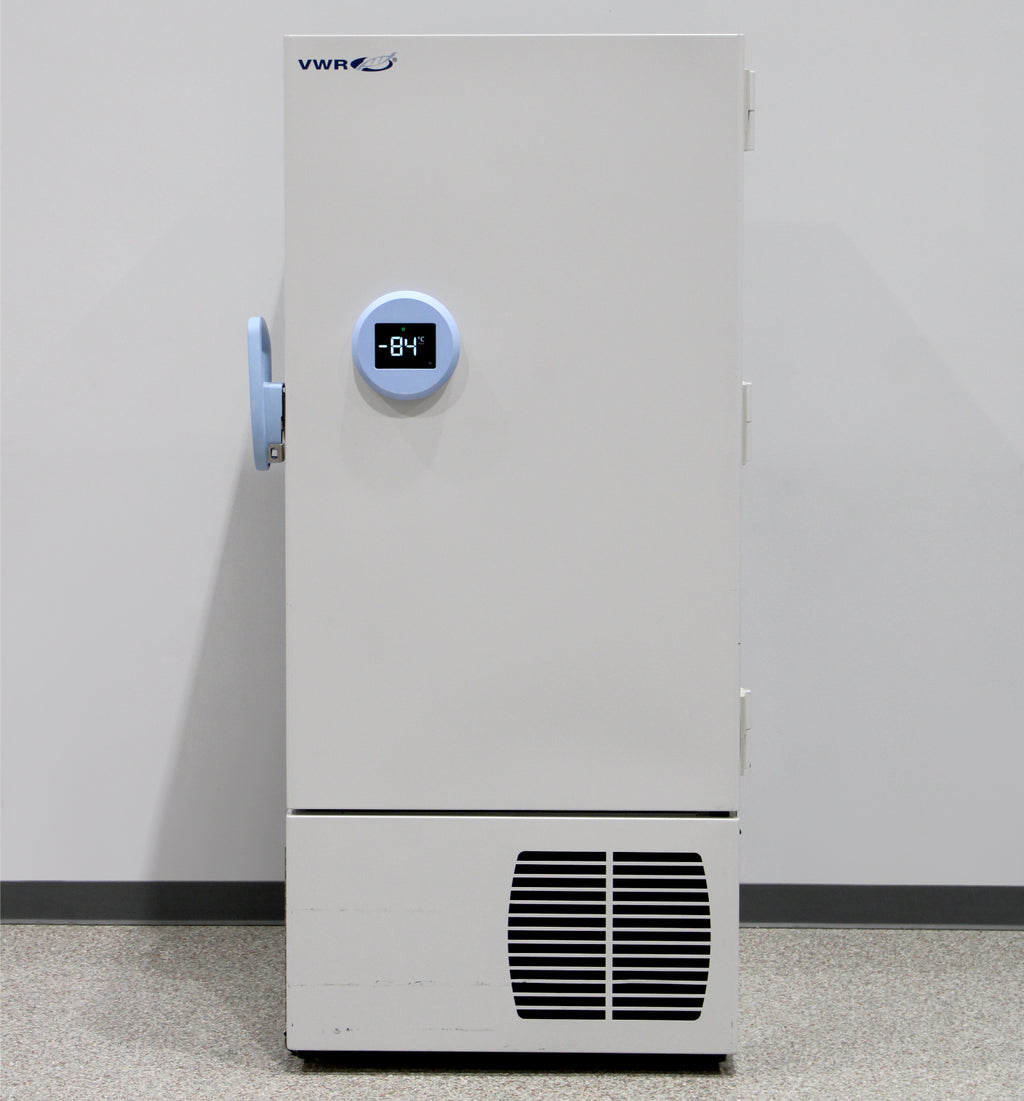

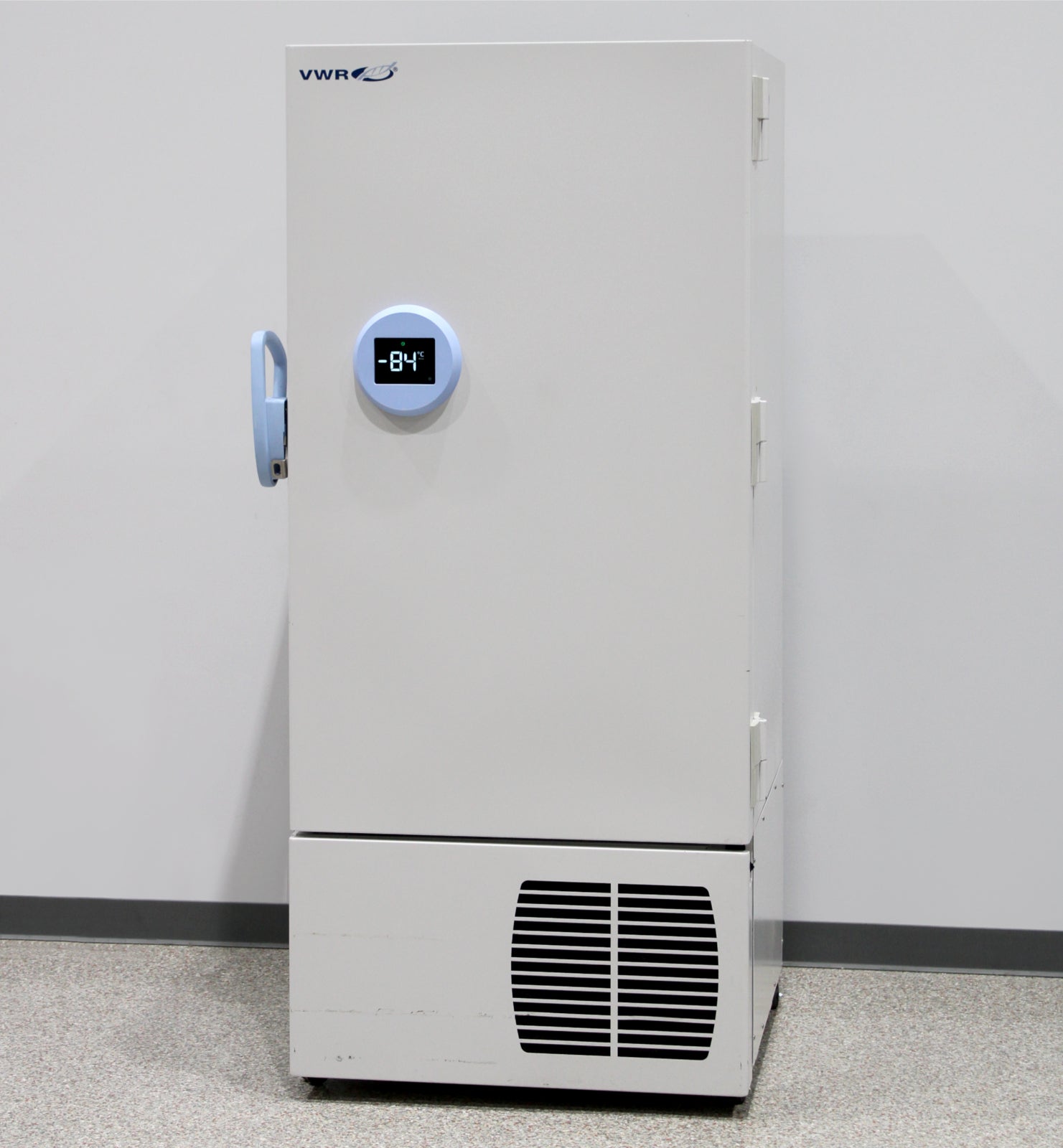

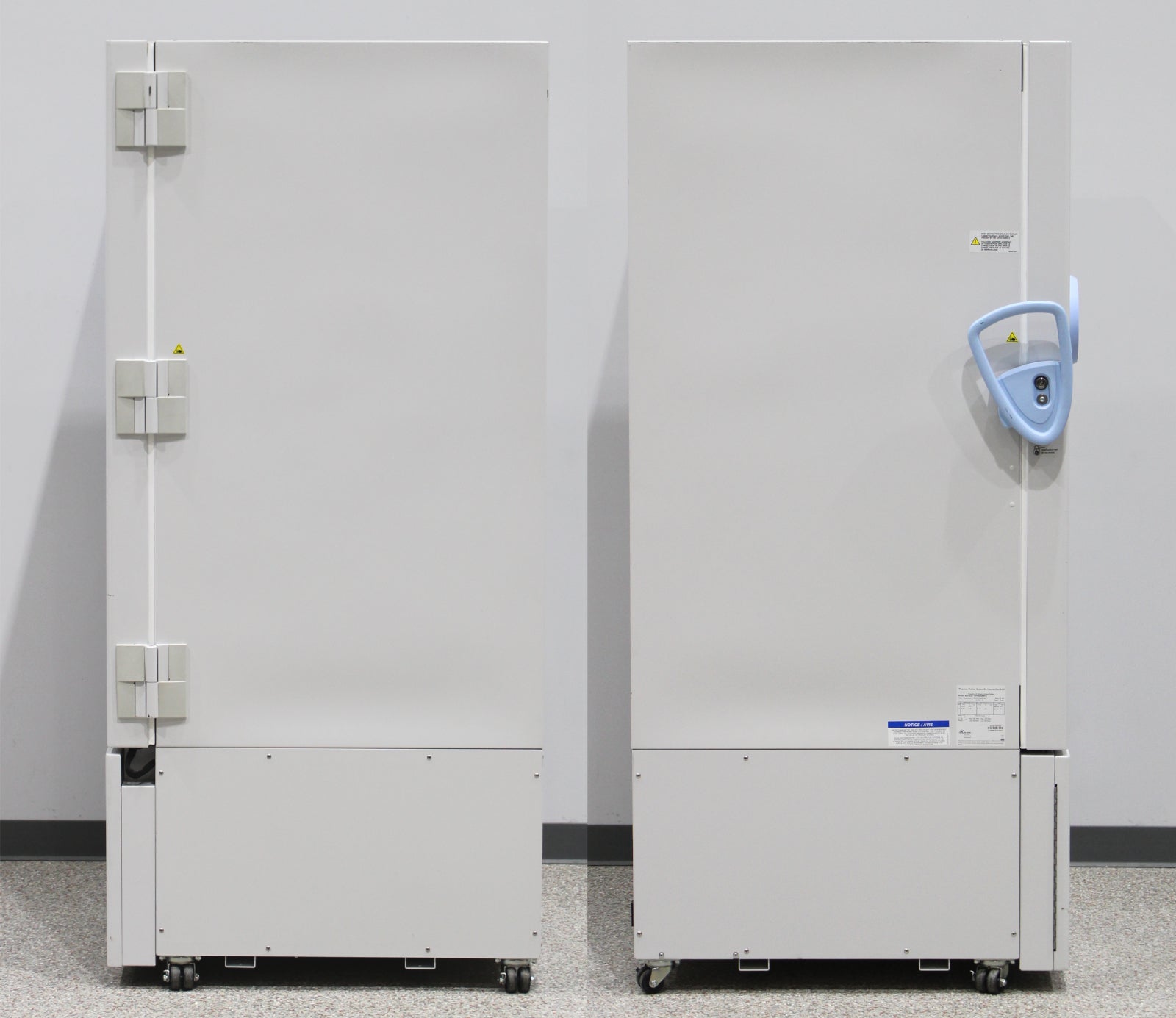

- Thermo Scientific VWR Freezer VWR50086FA Upright ULT Ultra-Low Temperature Freezer 115V (15DAV4A01A)
- x3 Adjustable Stainless Steel Shelves

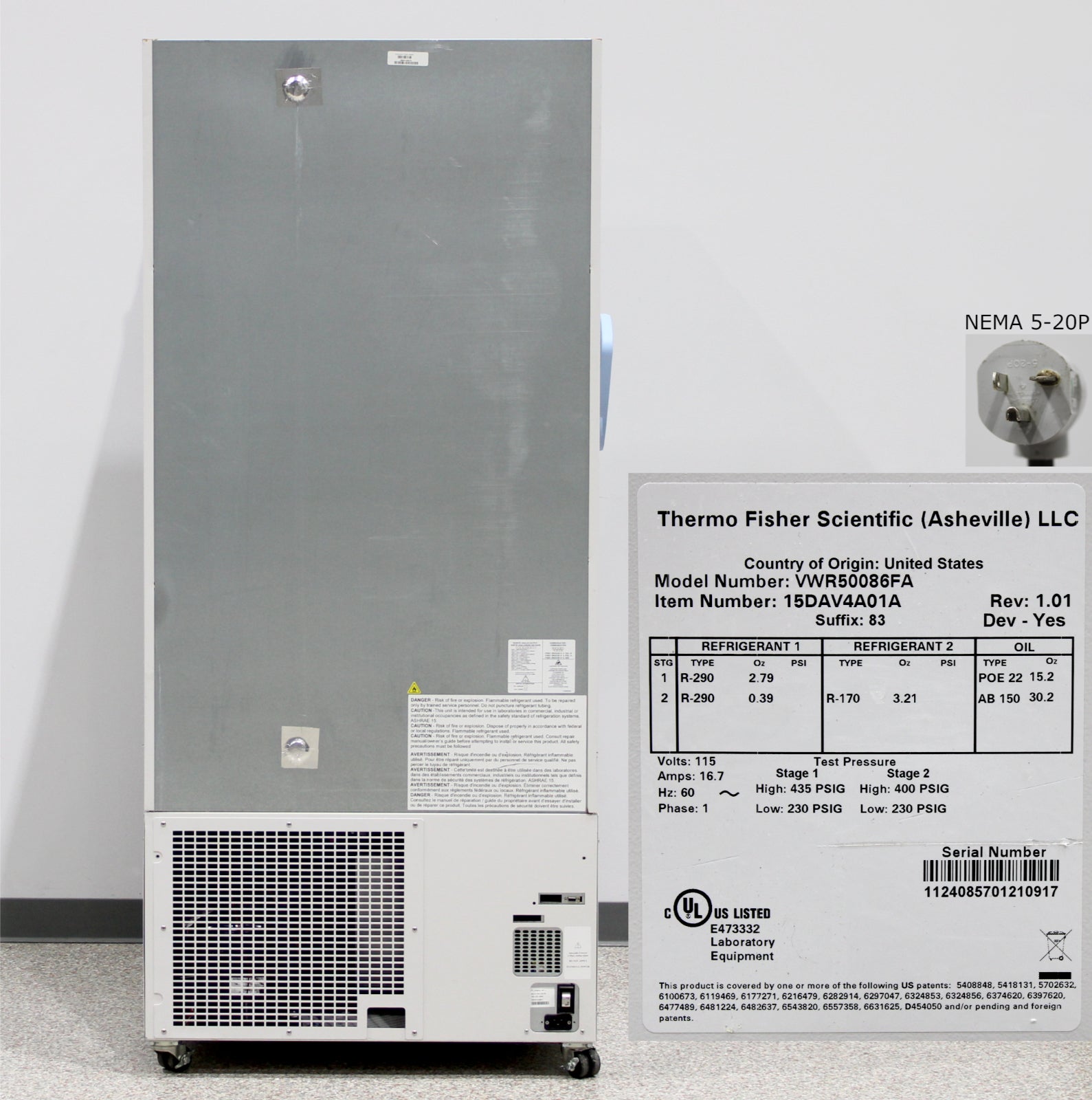

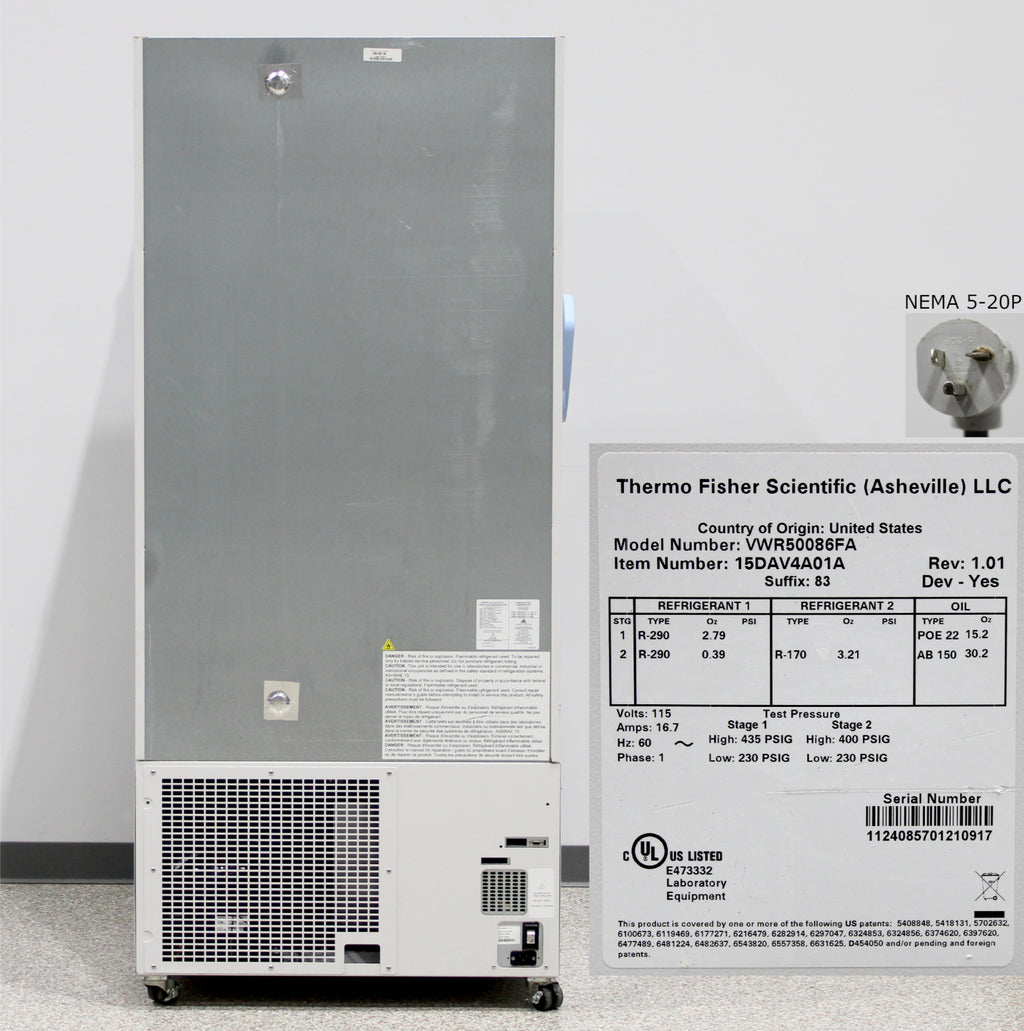

- Power Cable with NEMA 5-20P Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Thermo Scientific VWR50086FA upright ULT ultra-low temperature freezer with the following results:
- Maintains -81°C setpoint: PASSED

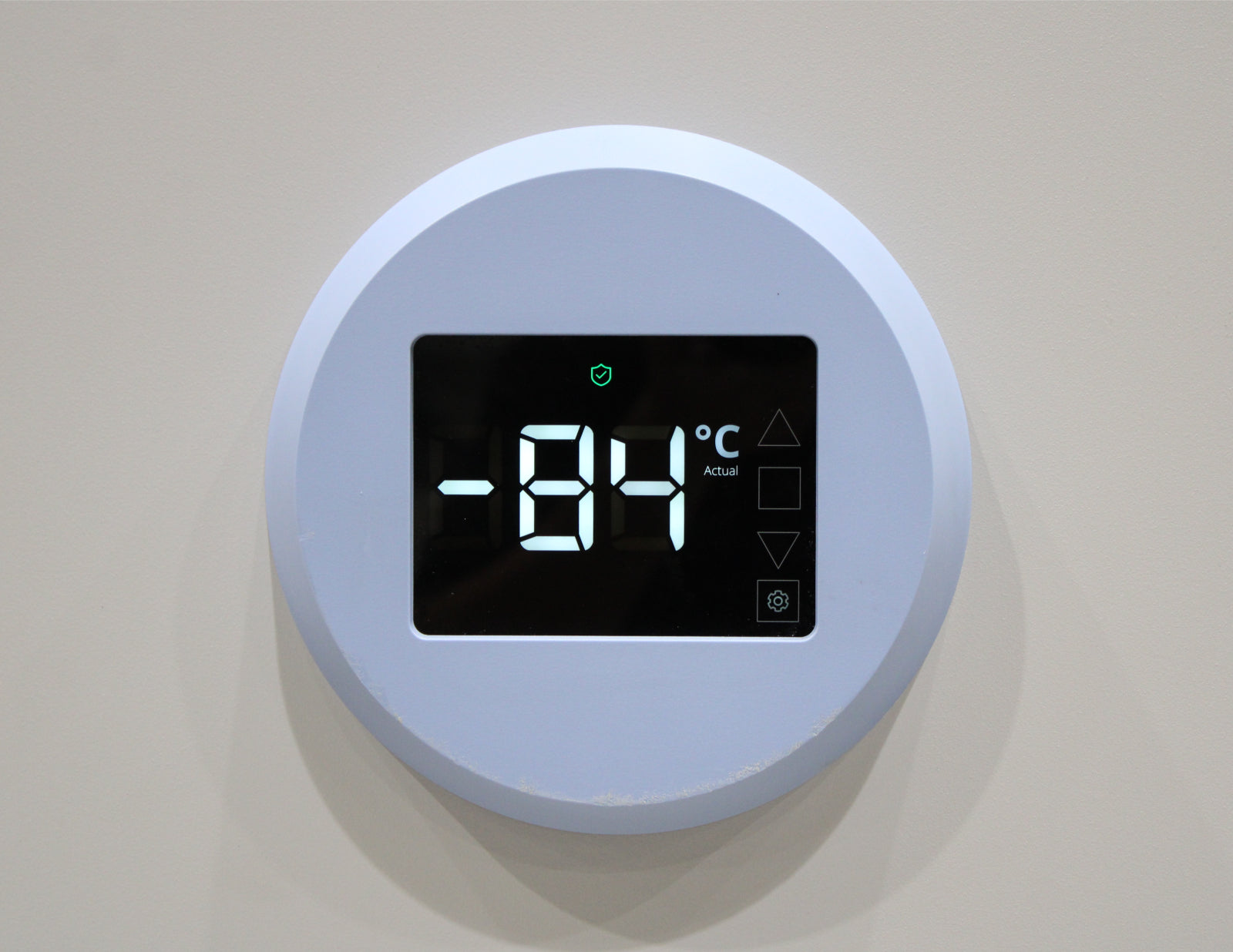

Notice: This freezer has one dead segment in the display screen.
- Inspected and reinsulated refrigeration lines as needed.

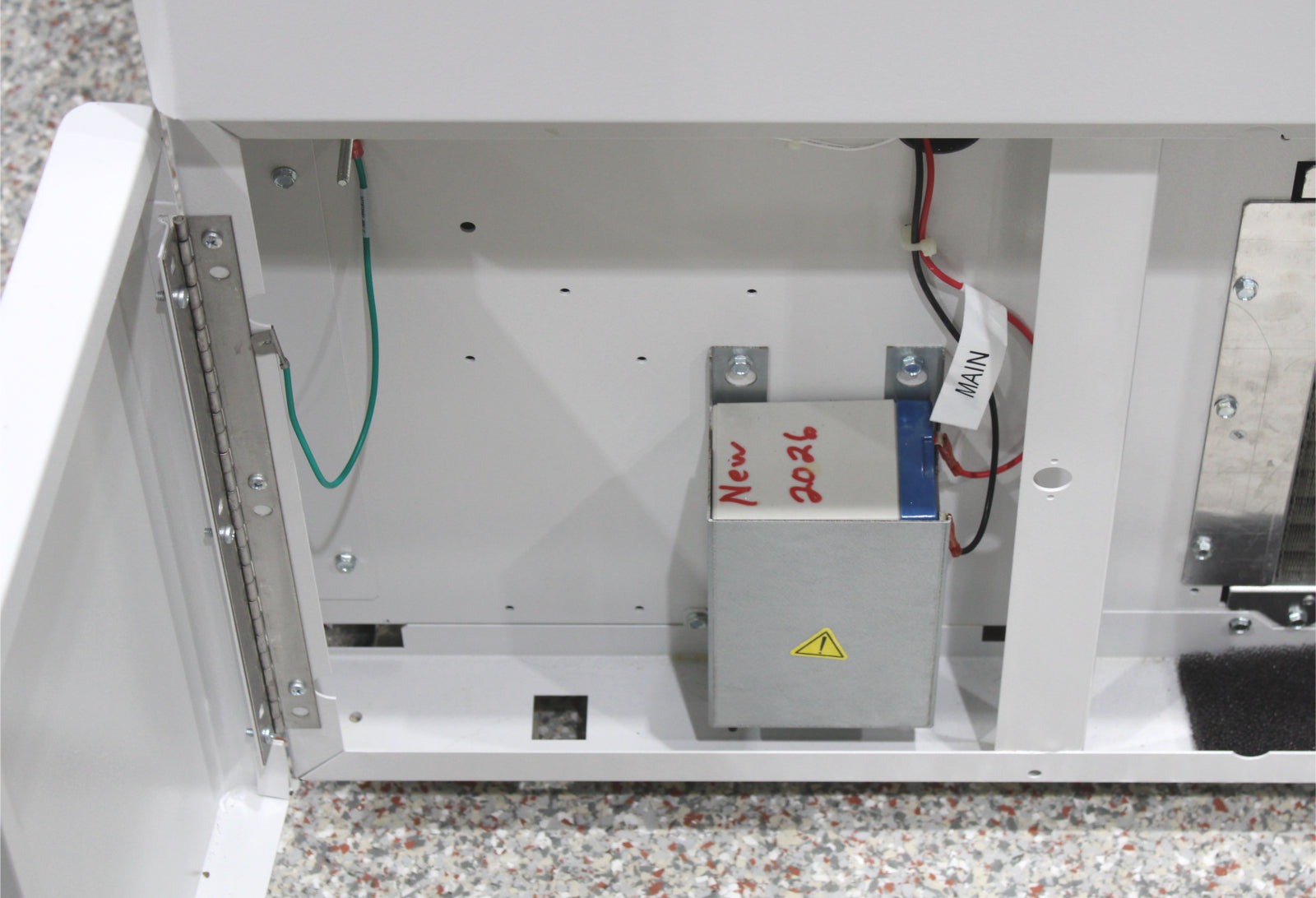

- Installed a new 12v backup battery.
- Installed new condenser air filters.
- Lubricated wheels.

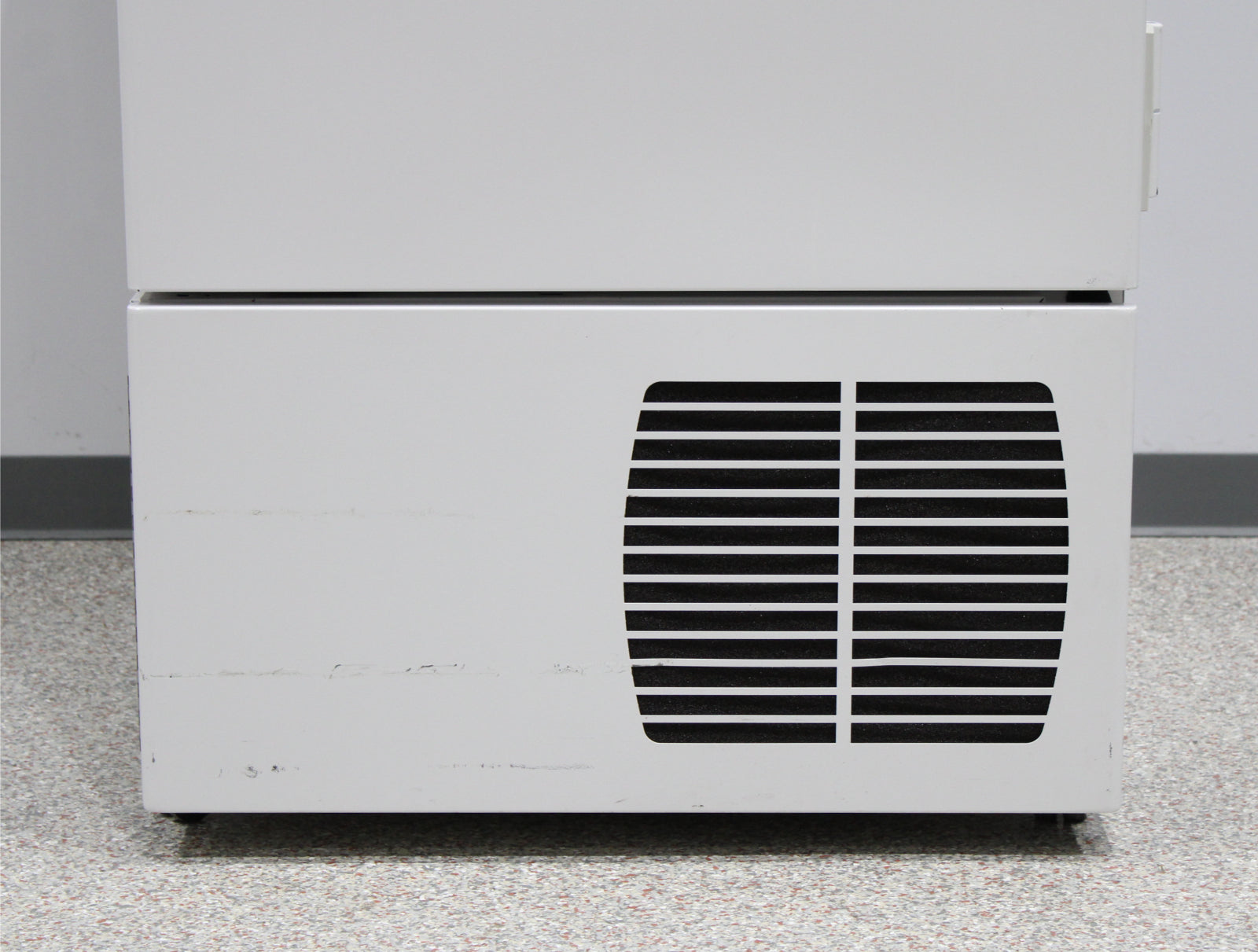

Notice: This freezer has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Thermo Fisher Scientific
|
|
Model
|
VWR
|
|
Model No.
|
VWR50086FA
|
|
Item No.
|
15DAV4A01A
|
|
Serial No.
|
1124085701210917
|
|
Mfg. date
|
2021
|
|
Temperature range
|
-50°C to -86°C
|
|
Capacity
|
24.1 cu. ft. (682 L), 500 standard 2” boxes
|
|
Insulation
|
Vacuum insulation panels with high-density water-blown polyurethane foam
|
|
Door seal
|
Silicone-based gasket seal with electrical door perimeter heater
|
|

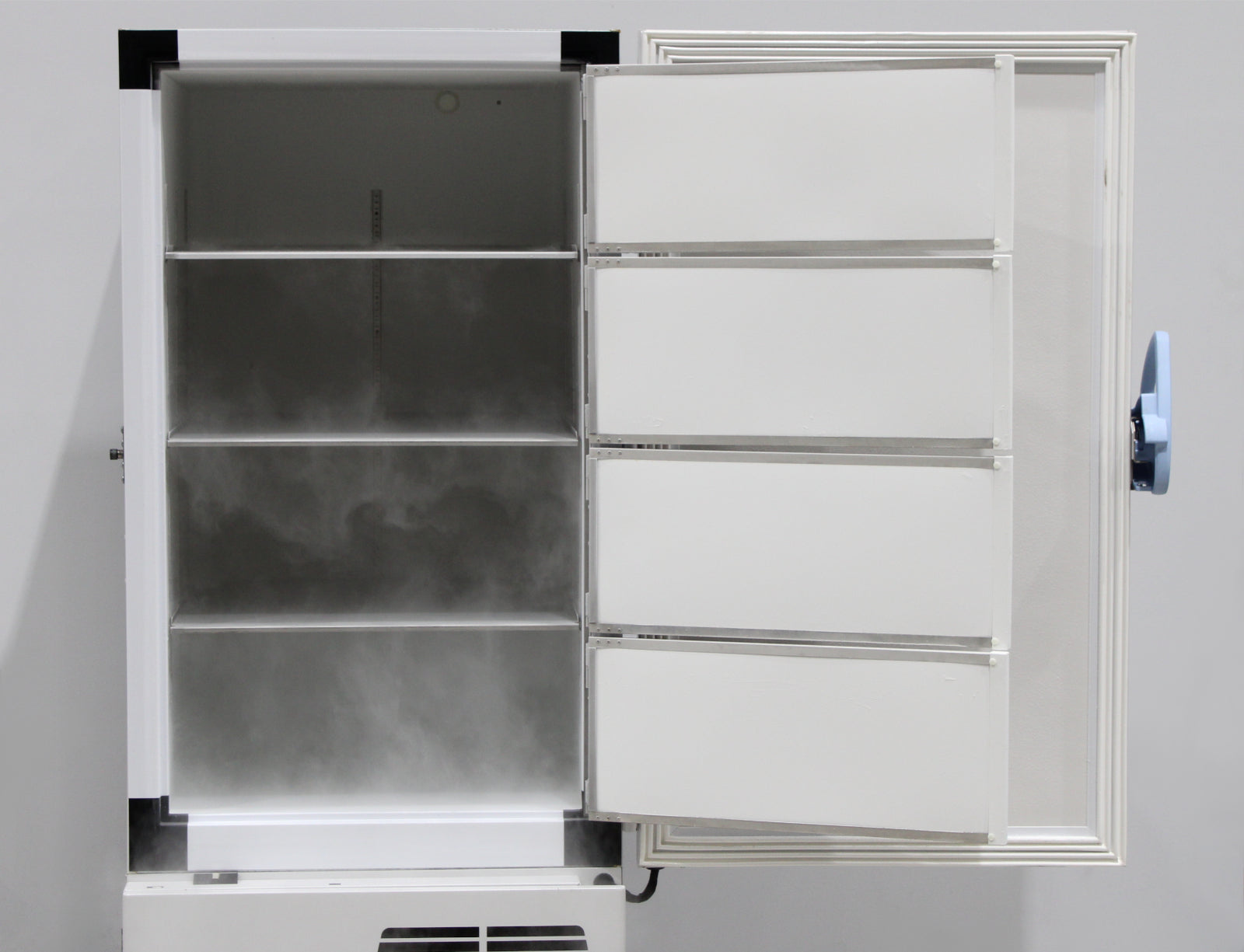

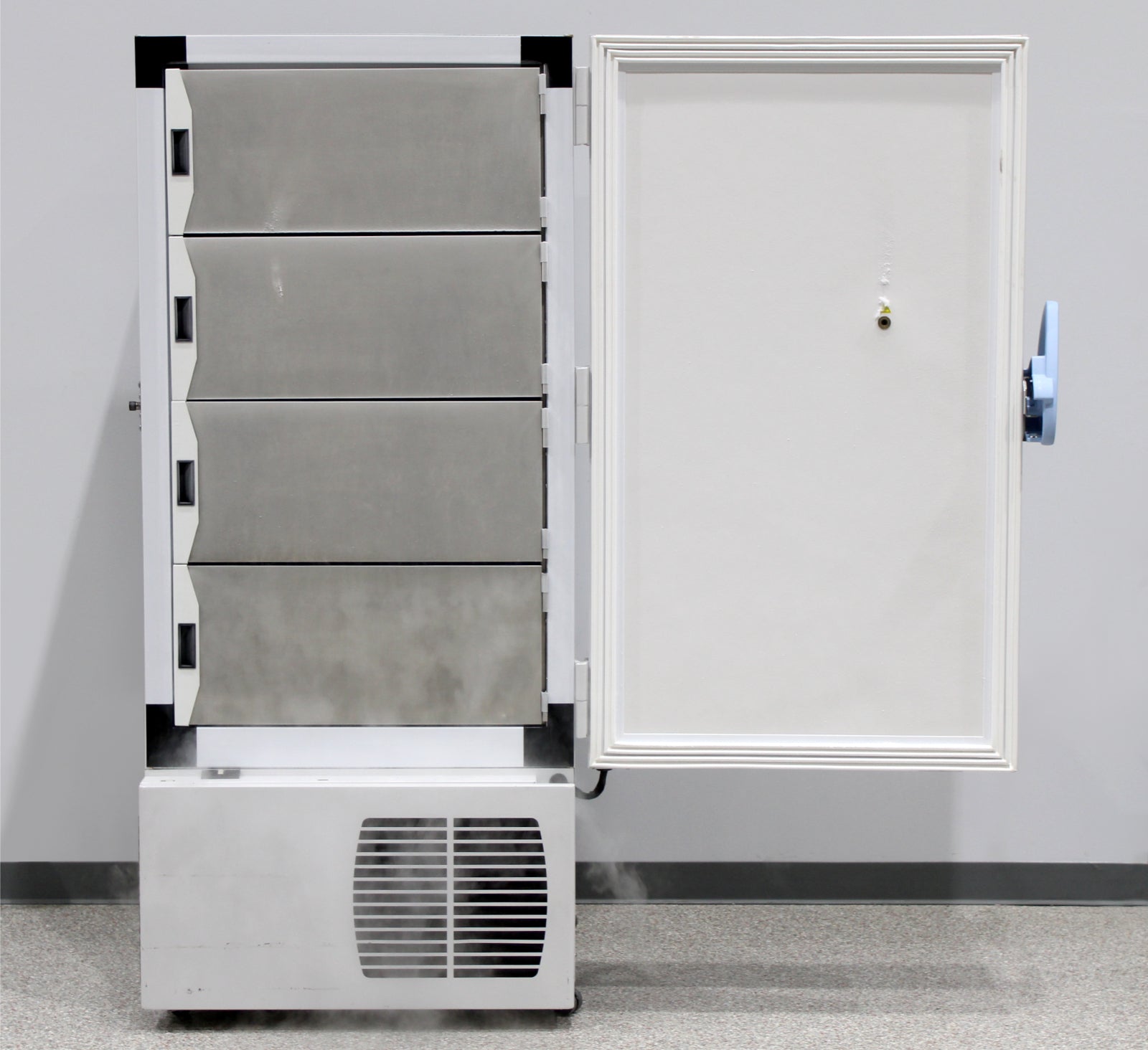

Shelves
|
3 stainless steel
Adjustable shelves in 1” (25mm) increments
|
|
Shelf capacity
|
Max. capacity per shelf: 205 lbs. (91.7 kg)
|
|
Interior / exterior material
|
Painted steel (stainless steel option) / painted steel
|
|
All-direction casters
|
Standard with locks
|
|
Controller level
|
Top
|
|
Power switch
|
(Rear) main circuit breaker
|
|

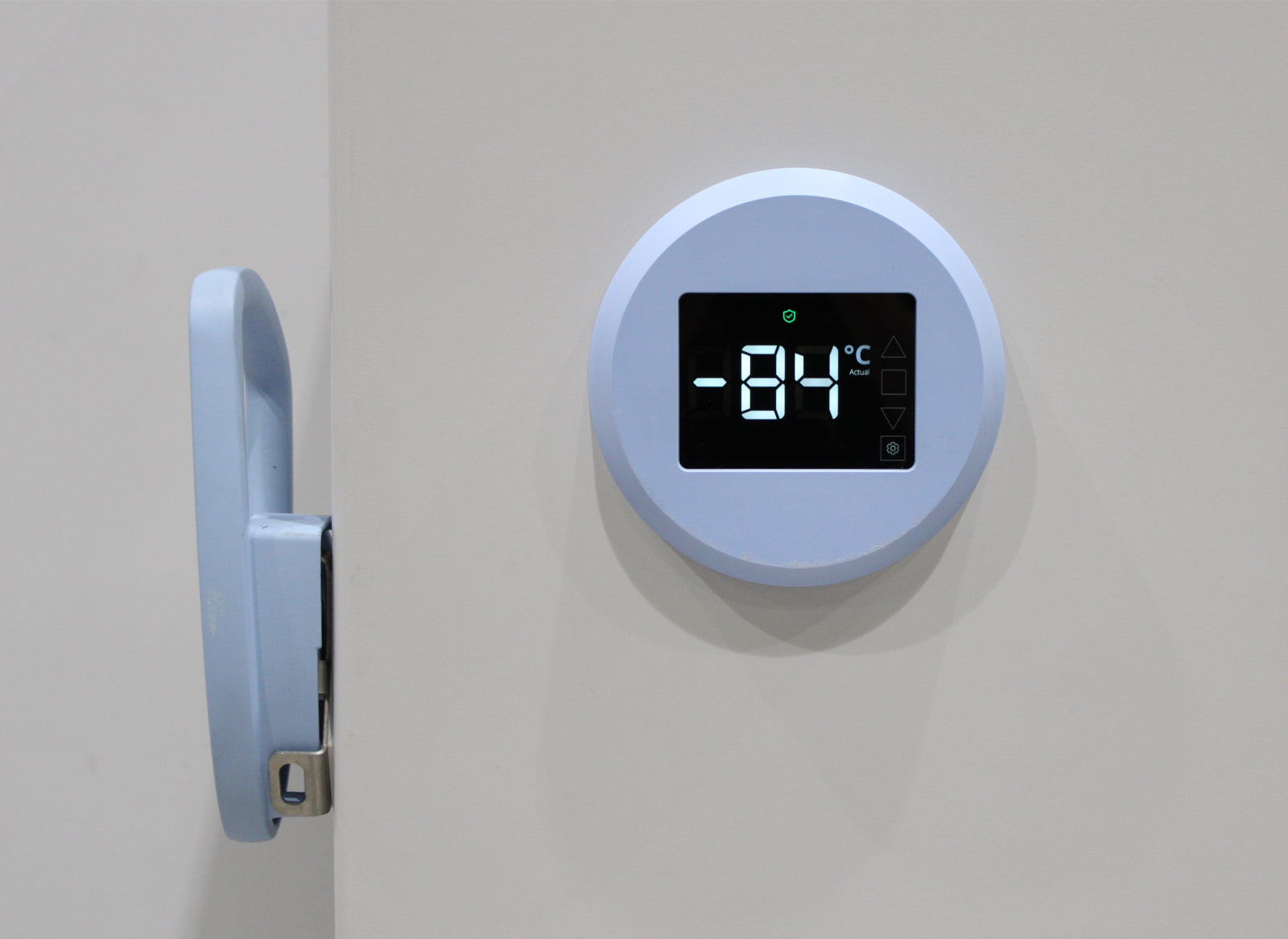

Controller type
|
7-segment display with capacitive touch screen buttons
|
|
Setpoint security
|
Yes
|
|
Compressor safe guard
|
High temp cutout switch, current, logic protection
|
|
Control sensor
|
Single RTD (1000 ohm Platinum RTD)
|
|
Connectivity / remote outputs
|
RS485/4-20mA output/Dry contacts
|
|
Adjustable warm/cold alarms
|
Fully adjustable
|
|
Refrigeration system
|
Two stage cascade system
|
|
Compressor/number
|
Industrial rated, hermetically sealed / 2
|
|
Compressor capacity
|
509 W
|
|
Condenser type
|
Enhanced micro-channel and forced-air cooled
|
|
Expansion device
|
Capillary tube
|
|
Evaporator type
|
Enhanced cold wall design
|
|
Defrost method
|
Manual defrost
|
|
Refrigerant (1st/2nd stage)
|
R290 / R170+R290 Mix
|
|
Environmental effects
|
GWP: 3 (R290), 6 (R170)
ODP: 0 (R290); 0 (R170)
|
|
Flammable
|
Yes
|
|
Power rating
|
115V, 60Hz, 16.7A, 1Ph
|
|
Instrument rated current
|
12.5 AMP
|
|
Building supply rating
|
20.0A (min) dedicated grounded circuit
|
|
Interior dimensions (W x D x H)
|
28.8 x 28.3 x 51.2 in (73.2 x 71.9 x 130.1 cm)
|
|
Exterior dimensions (W x D x H)
|
38 x 38.4 x 78 in (96.5 x 97.5 x 198.1 cm)
|
|
Weight
|
640 lb (290 kg)
|
