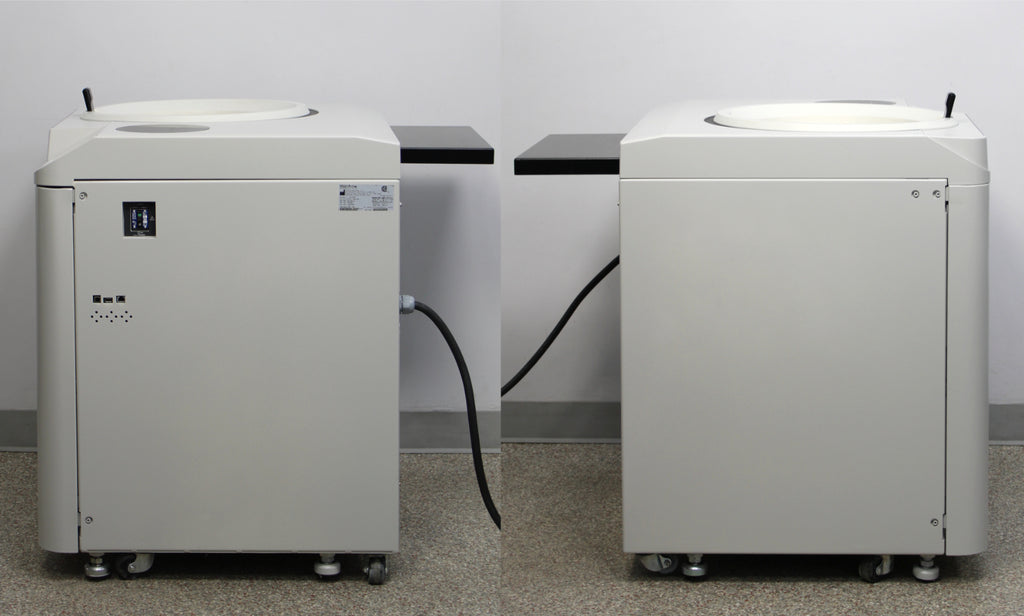

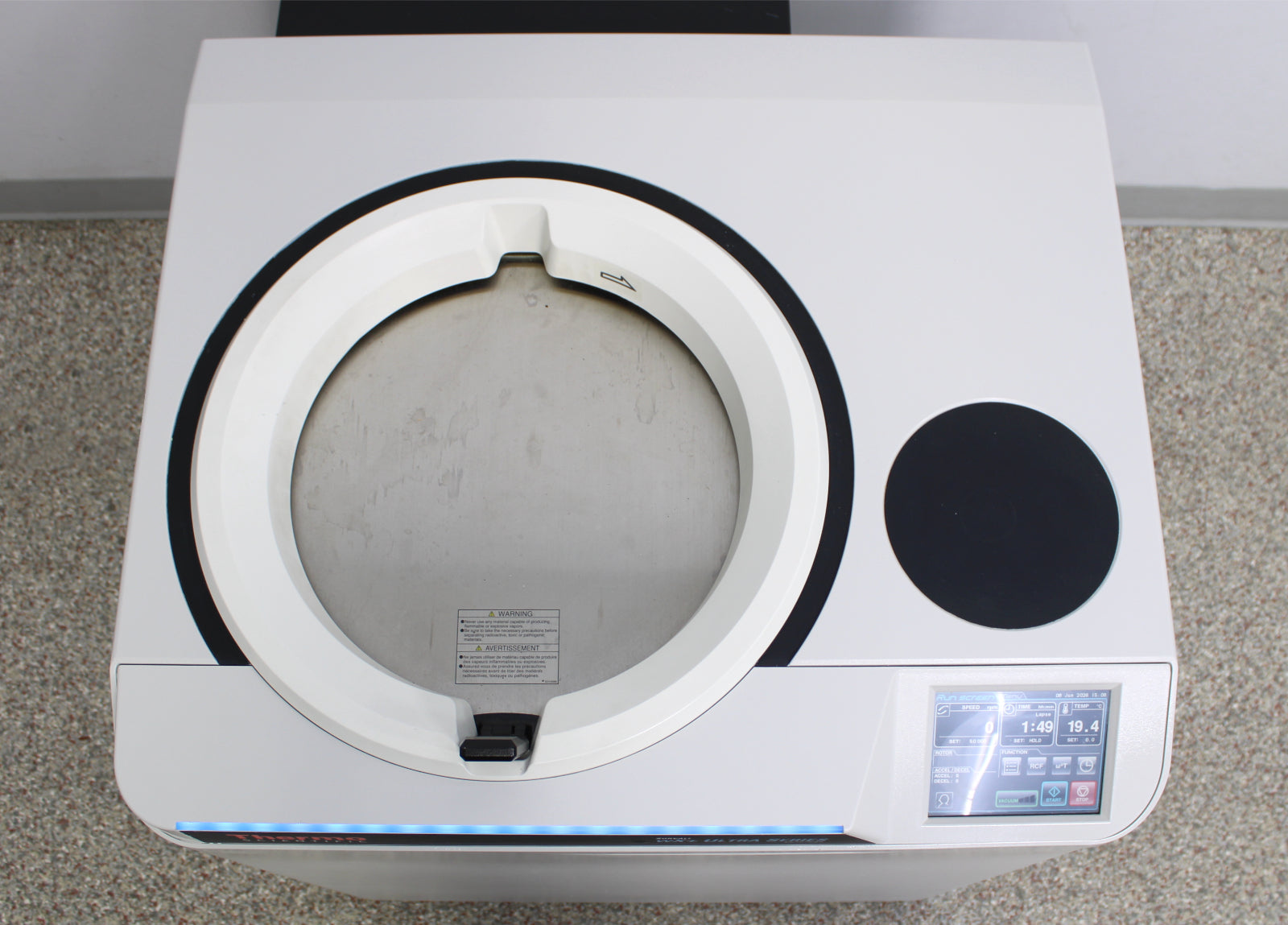

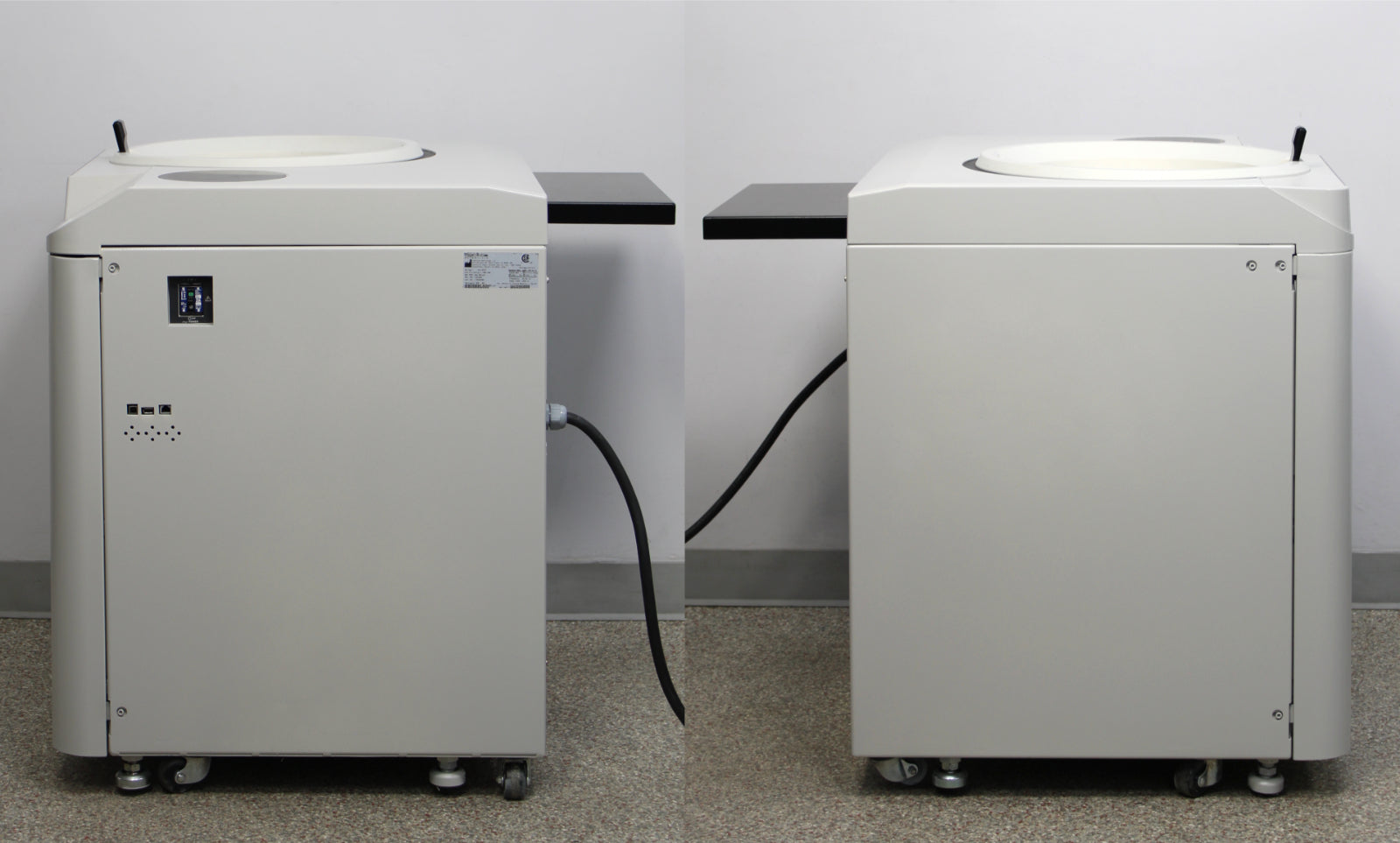

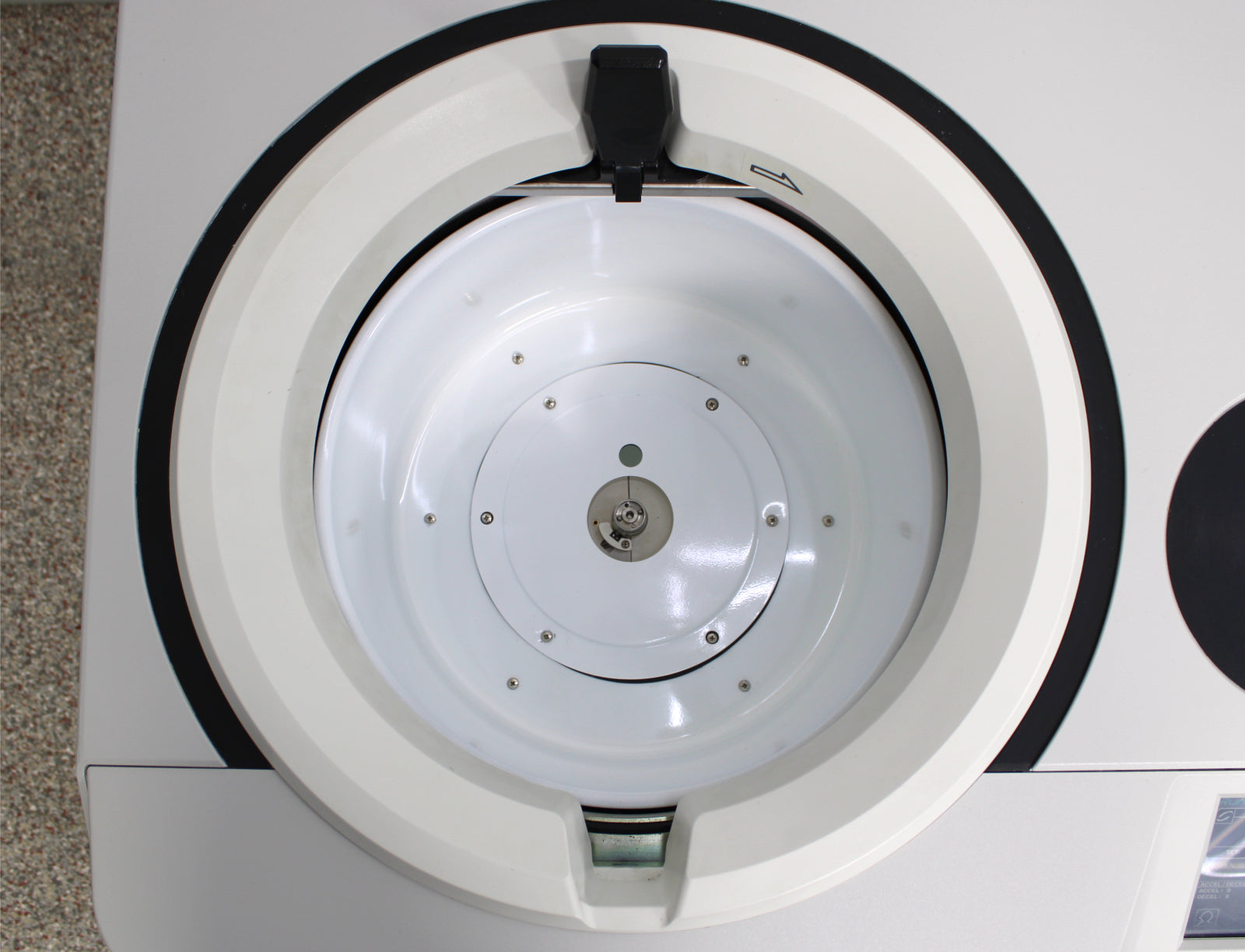

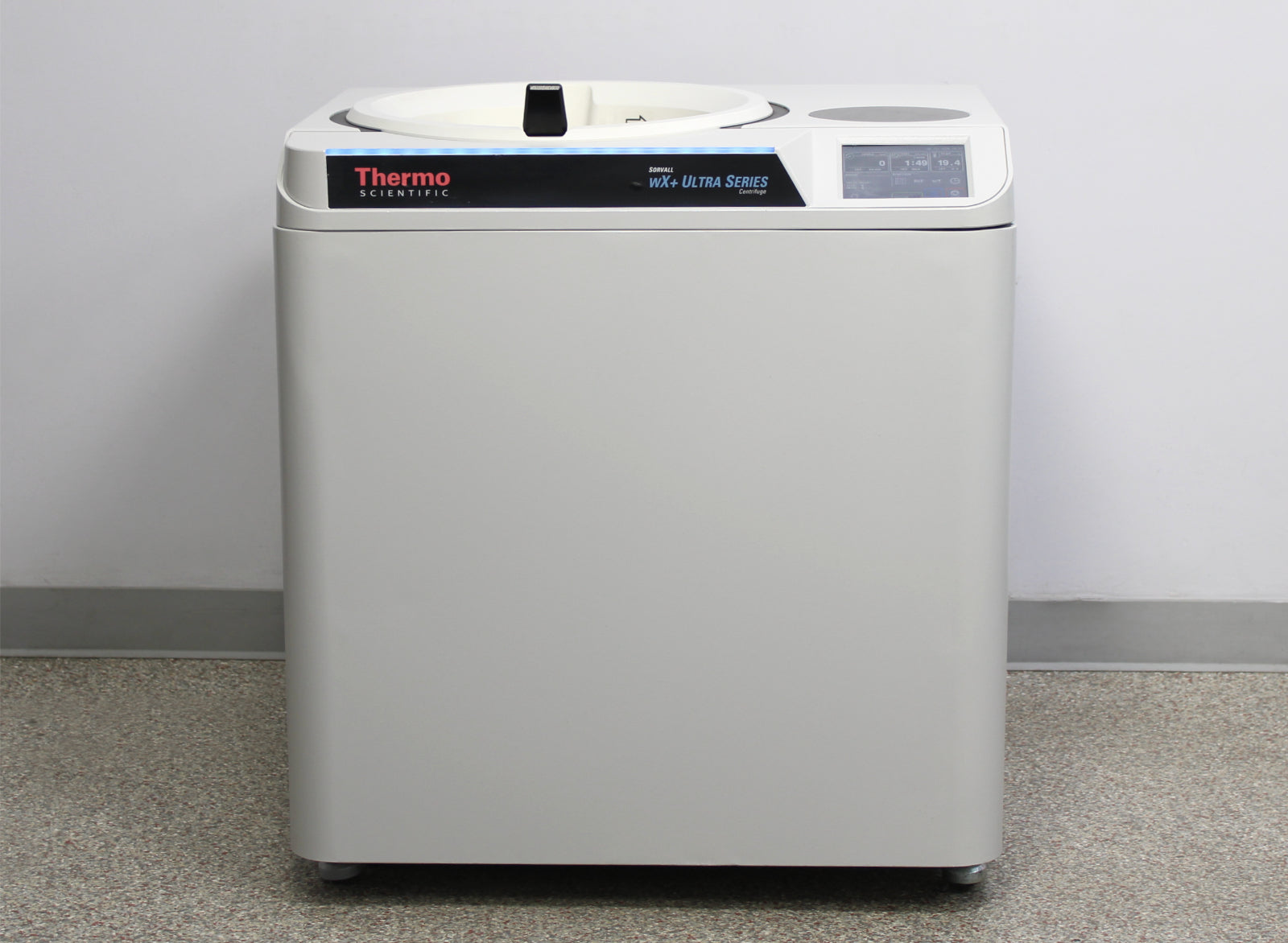

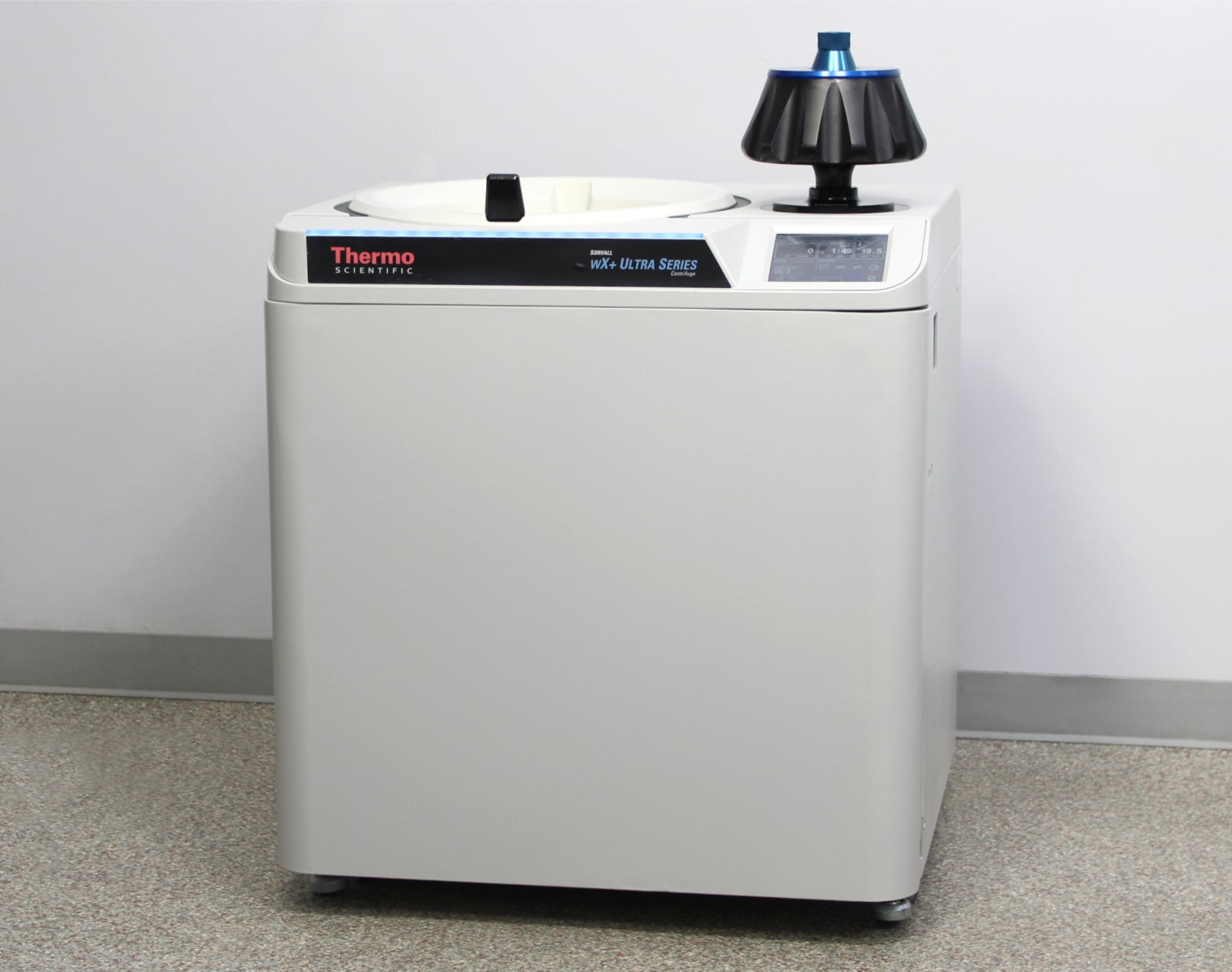

- Thermo Scientific Sorvall WX+ 90 Ultra Series Floor Ultracentrifuge (75000090)

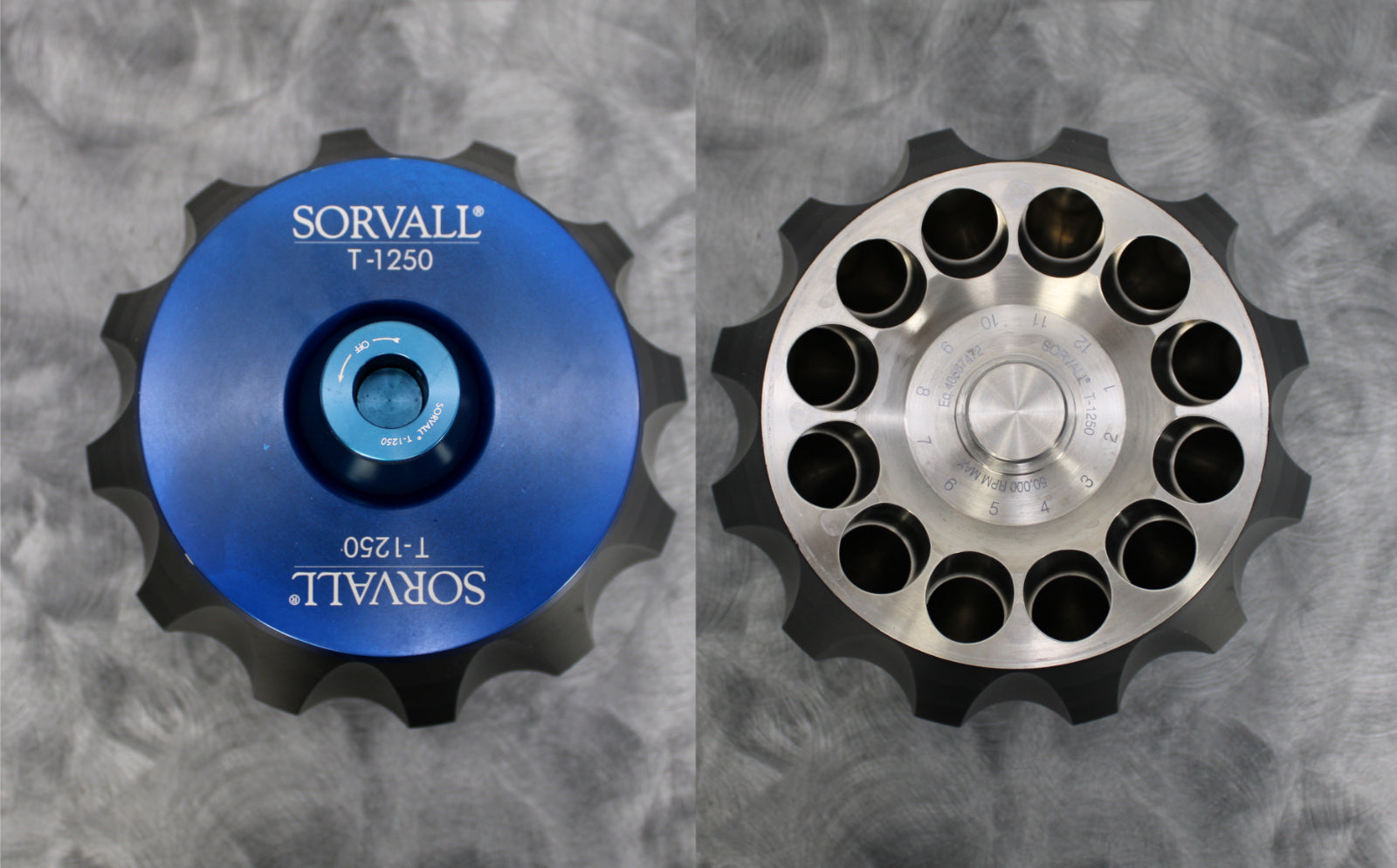

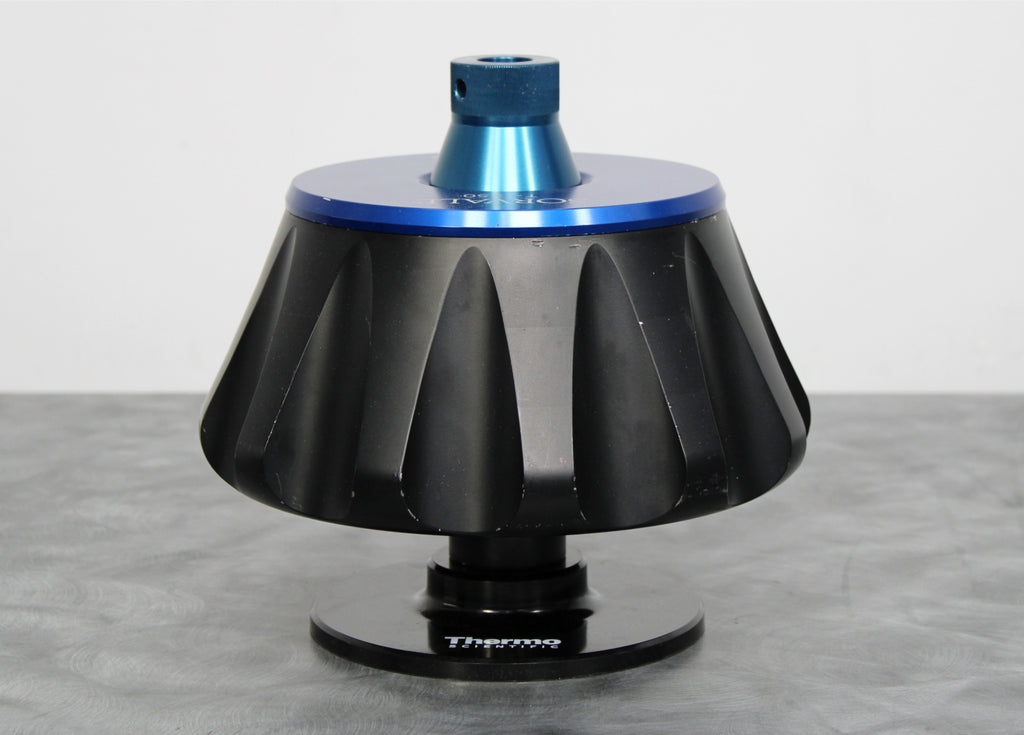

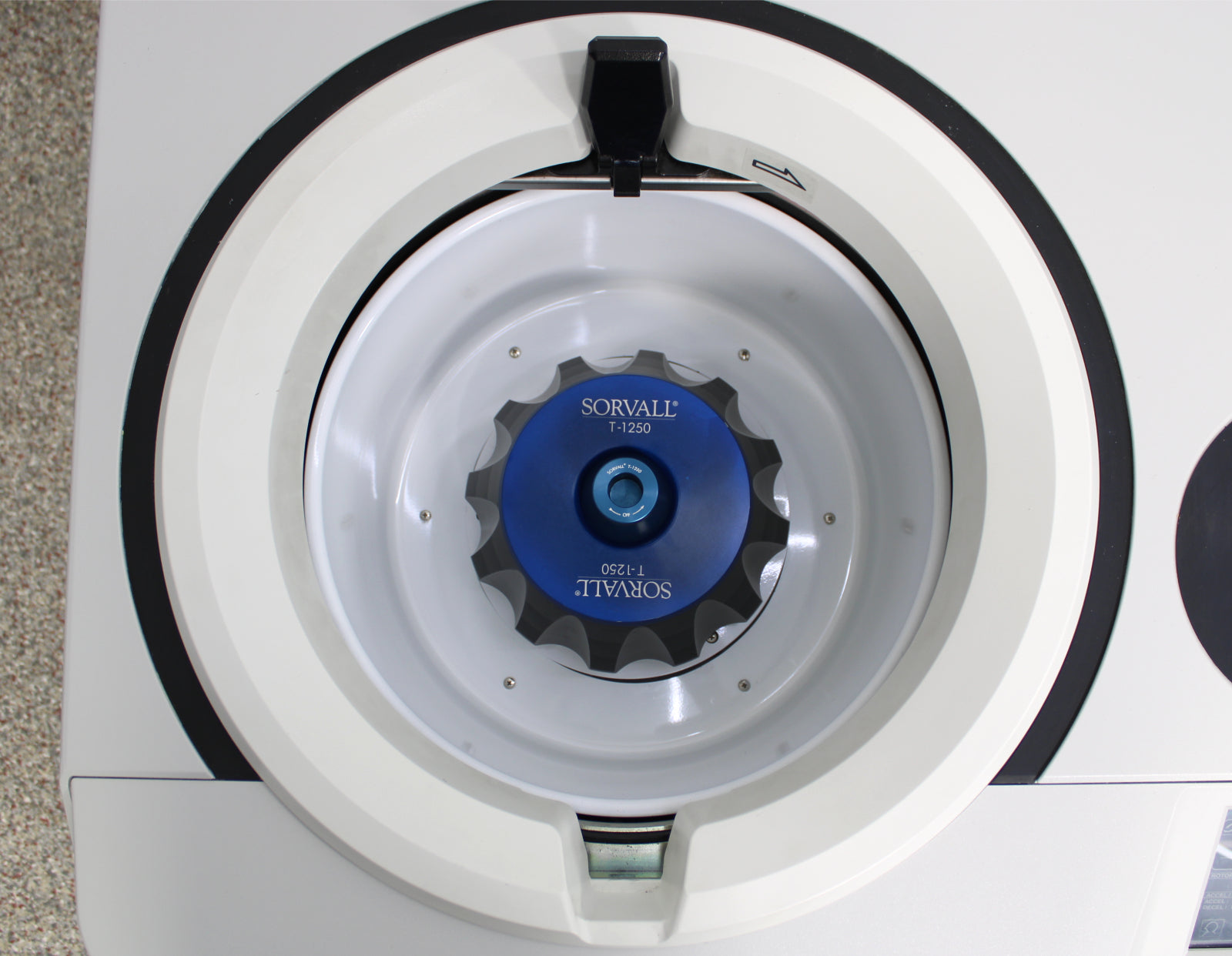

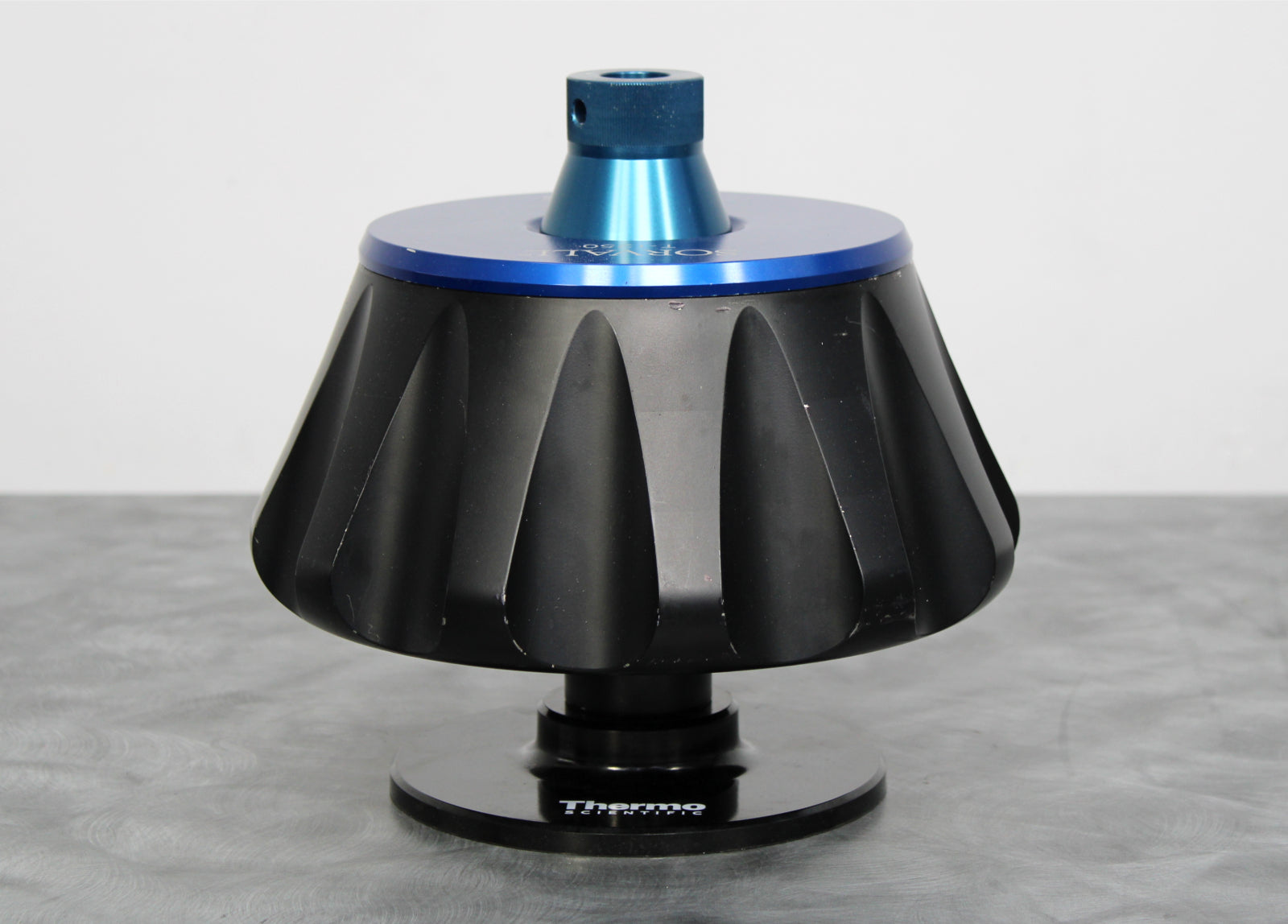

- Sorvall T-1250 Fixed-Angle Rotor and Stand

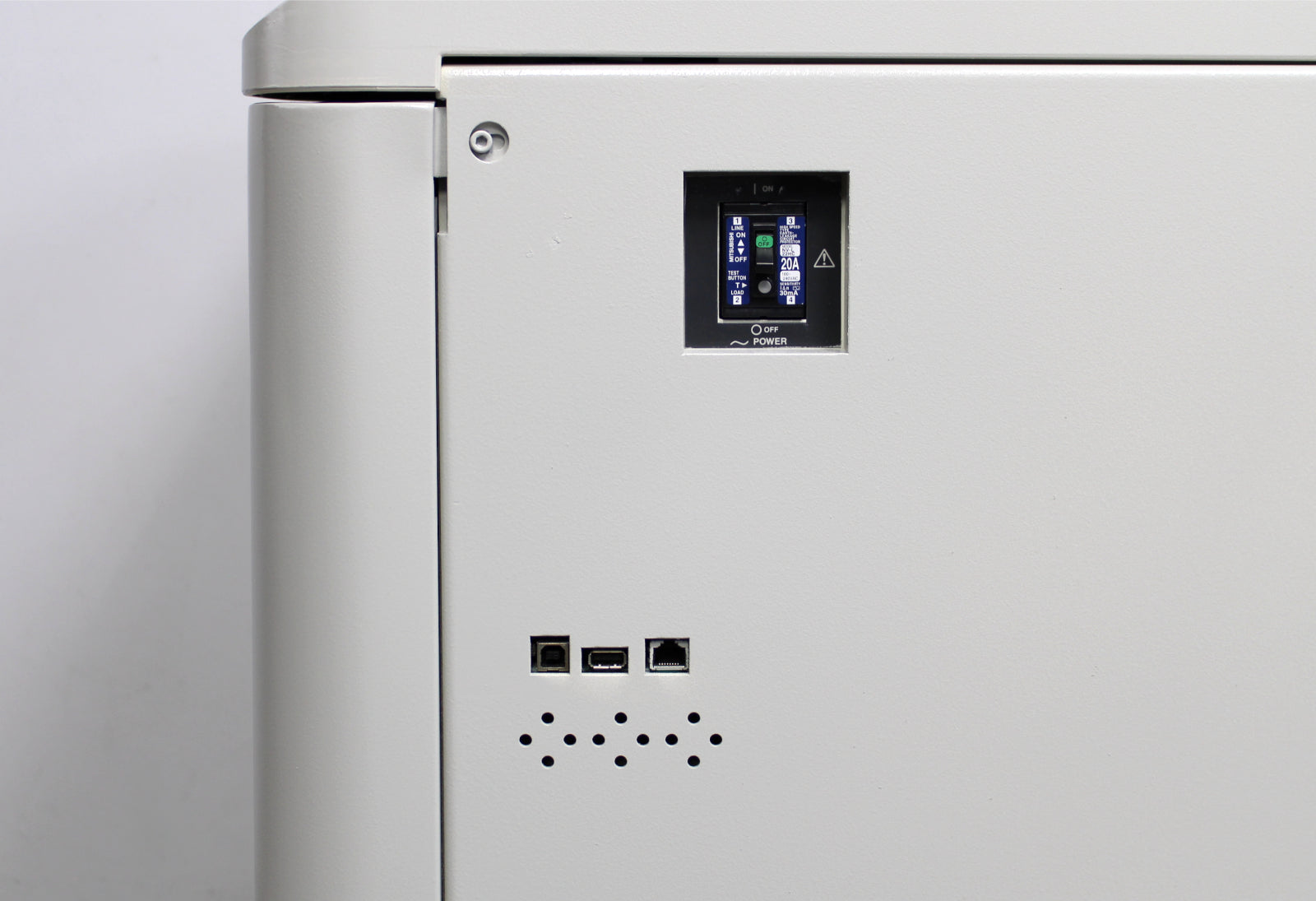

- Attached Power cable
- 90-Day warranty

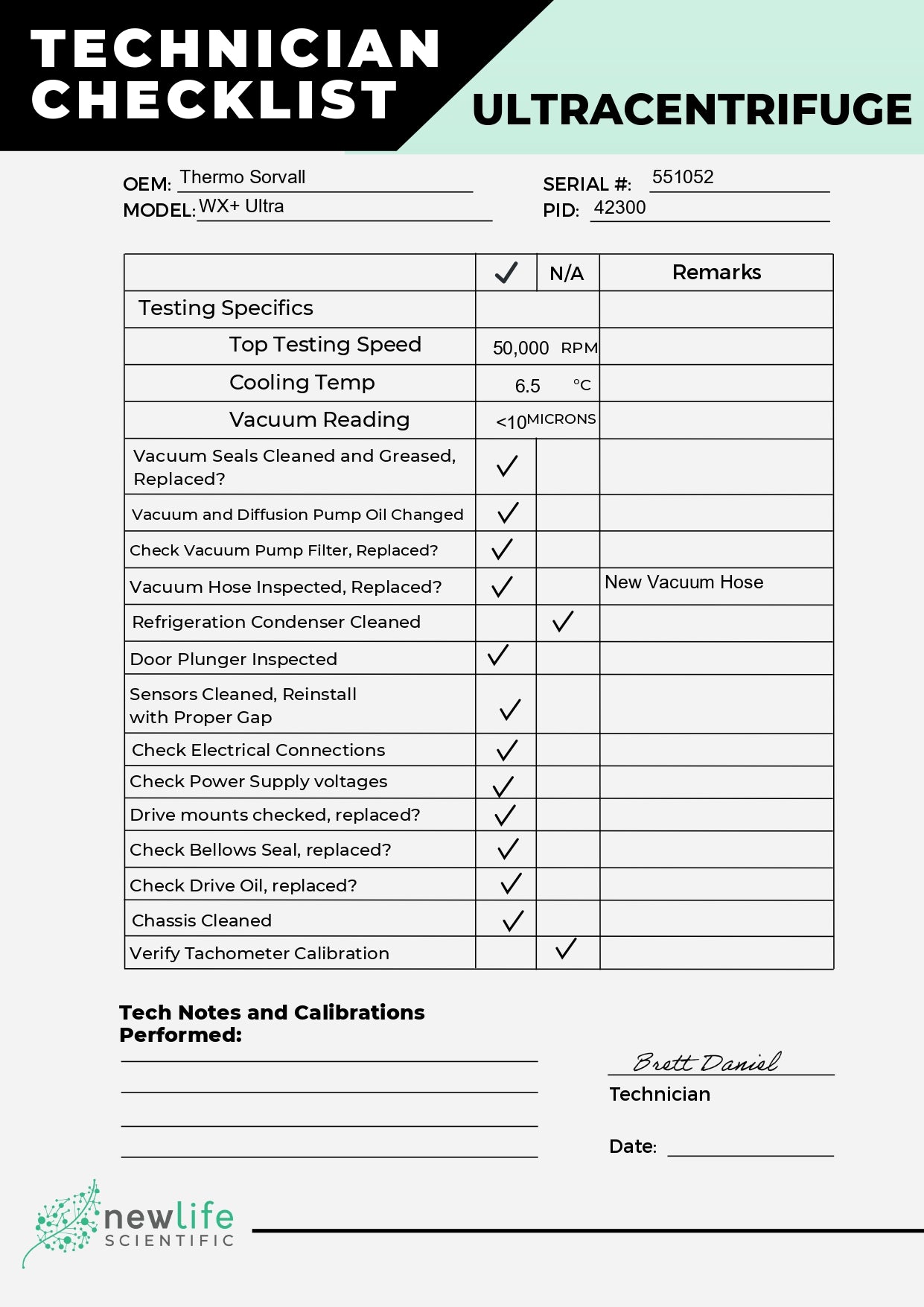

After its initial disinfection and inspection, our technicians tested the Thermo Scientific WX+ 90 Ultra Series floor ultracentrifuge with the following results:

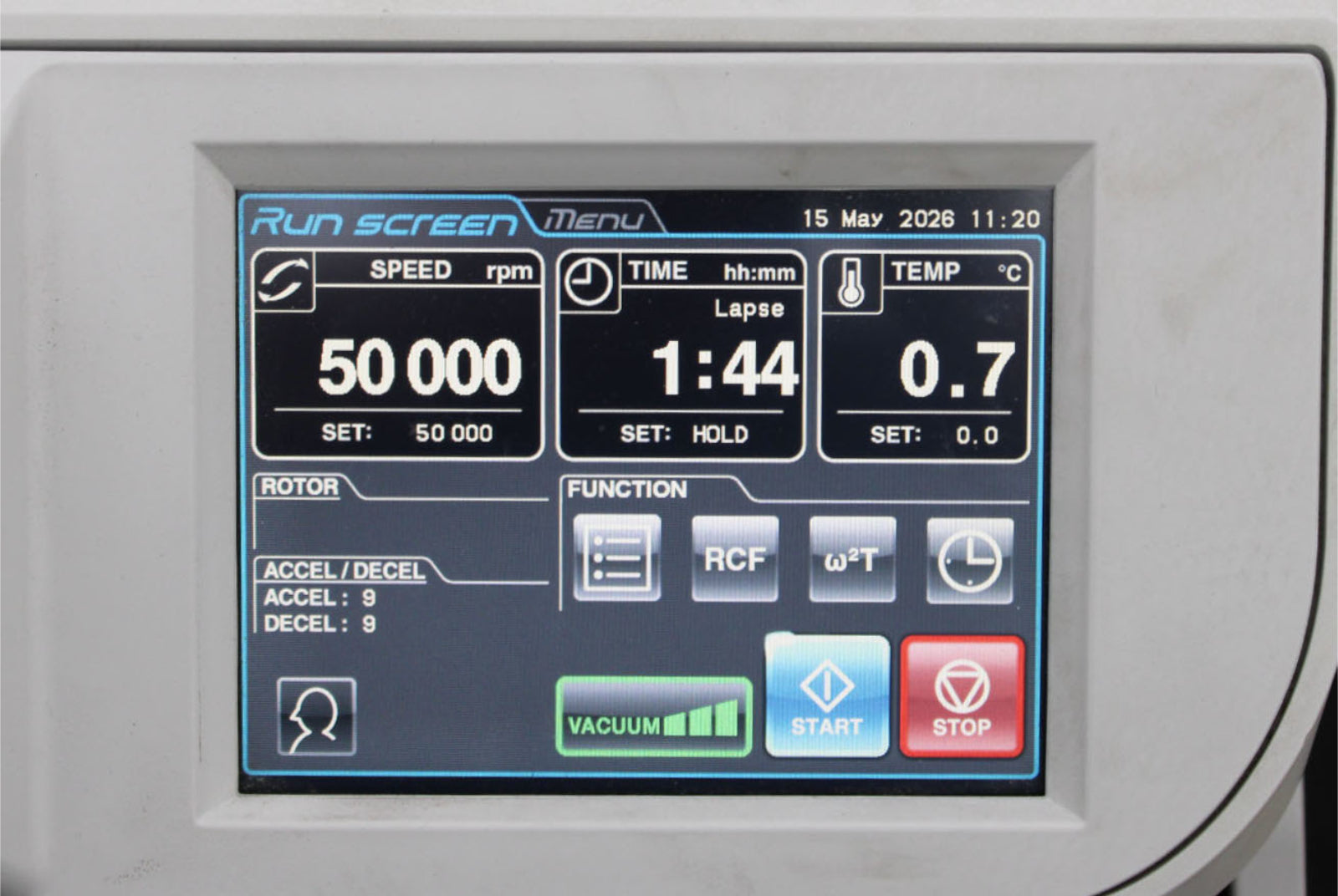

- Ran to 50,000 rpm (maximum speed of T-1250 rotor): PASSED
- Refrigeration held at 0.7°C: PASSED
- Vacuum at <10 microns: PASSED
- No excessive noise or imbalance: PASSED
- Spun down properly: PASSED
- Performed inspection; no issue found: PASSED
|
Manufacturer
|
Thermo Scientific
|
|
Type
|
Floor model centrifuge
|
|
Product line
|
Sorvall
|
|
Model
|
Sorvall WX+ 90
|
|
Cat. No.
|
75000090
|
|
Serial No.
|
551052
|
|
Mfg. date
|
October 2015
|
|
Refrigerated
|
Yes
|
|
Maximum speed
|
90,000 rpm
|
|
Maximum RCF
|
692,149 x g (T-890 rotor)
|
|
Capacity
|
6 x 250 mL
|
|
Temperature range
|
0°C to 40°C
|
|
Speed control accuracy
|
±2 rpm
|
|
Refrigerator system type
|
Thermo-module cooling system (CFC/HCFC/HFC-free), Solid-state thermoelectric refrigeration (CFC-free)
|
|
Program storage
|
1000 programs with step-runs
|
|
Profile (acceleration/braking)
|
10/11 (10 and coasting)
|
|
Heat output
|
1 kW or below
|
|
Noise level
|
51 dBA (running at set speed, under in-house test condition) measured 1m in front of instrument
|
|
Ambient temperature operating range
|
10°C to 30°C
|
|
Certifications/compliance
|
CE and cCSAus
|
|

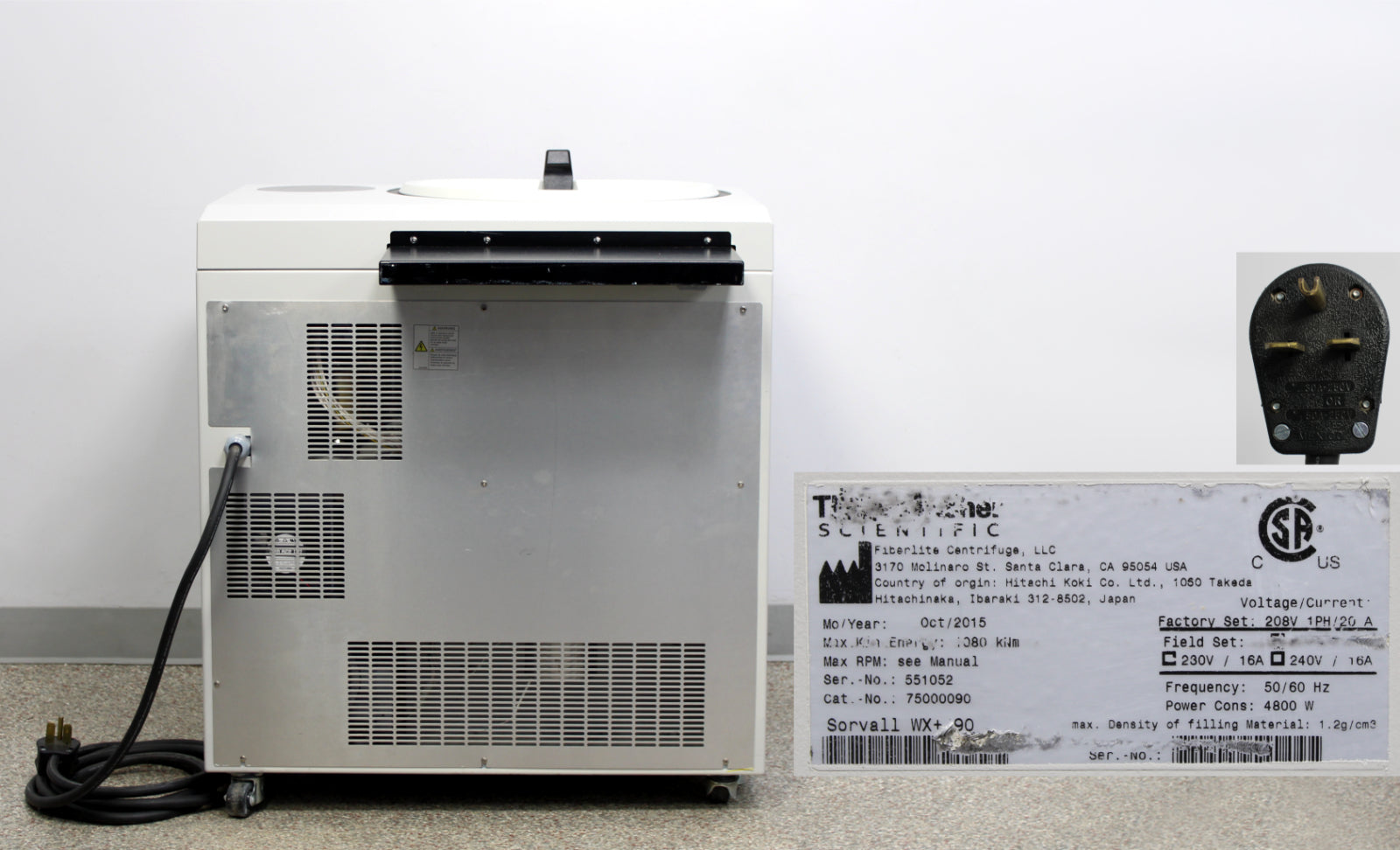

Power rating
|
208/240V, 50/60Hz, 16/20A, 1Ph
|
|
Power consumption
|
4800W
|
|
Dimensions (W x D x H)
|
31.1 x 27.2 x 34.6 in (79 x 69 x 88 cm)
|
|
Weight
|
859.8 lb (390 kg)
|
|
Manufacturer
|
Sorvall
|
|
Type
|
Fixed-Angle Rotor
|
|
Model
|
T-1250
|
|
Maximum speed
|
50,000 rpm
|
|
Minimum RCF
|
152,750 x g
|
|
Average RCF
|
227,030 x g
|
|
Maximum RCF
|
301,032 x g
|
|
Maximum sample density
|
1.2 g/mL
|
|
Capacity
|
12 x 36 mL
|
|
Maximum tube diameter
|
25 mm
|
|
Maximum tube length
|
97 mm
|
|
Angle
|
24°
|
|
K factor
|
68.7
|
|
Weight
|
24.5 lb (11.1 kg)
|
