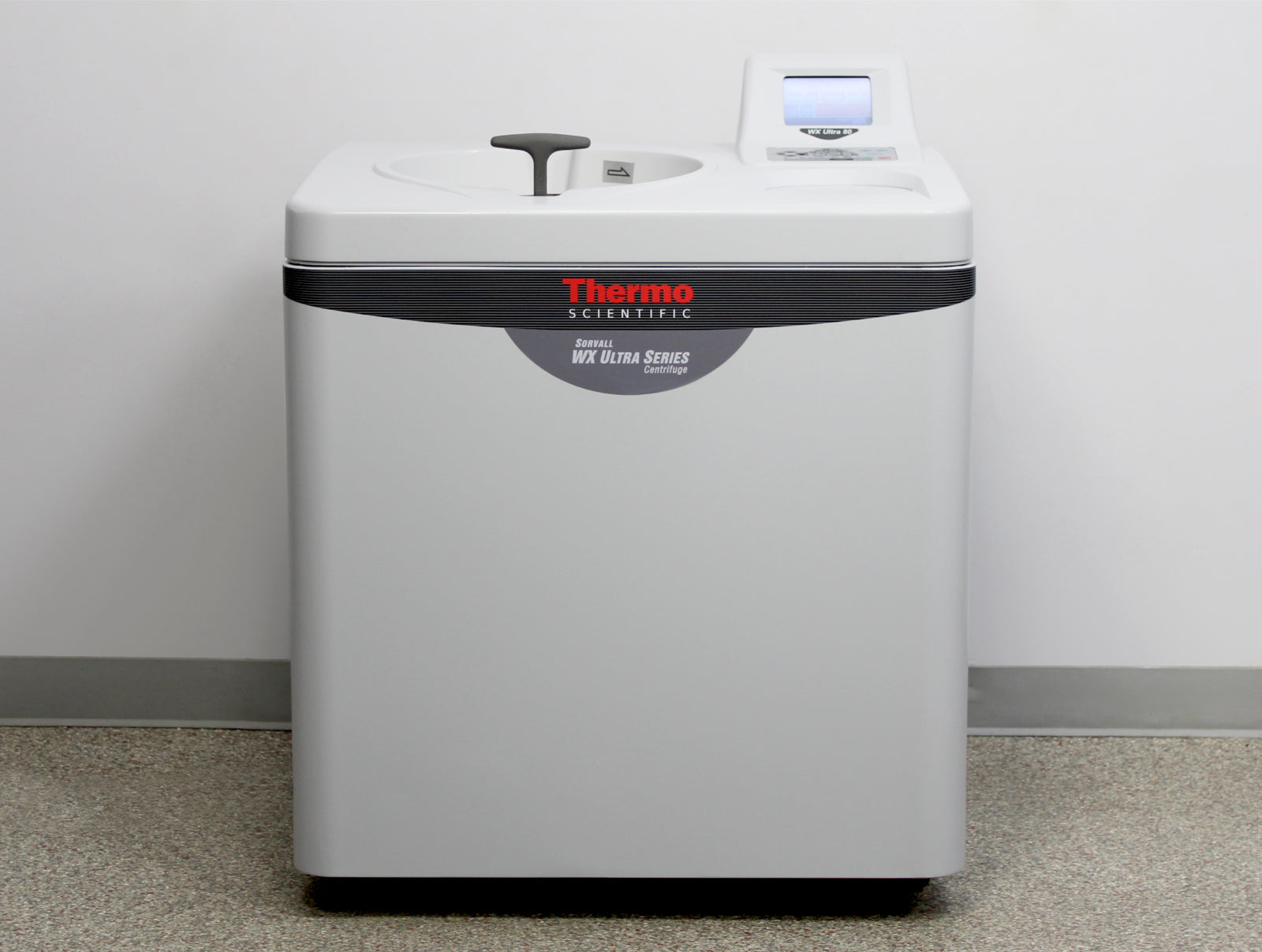

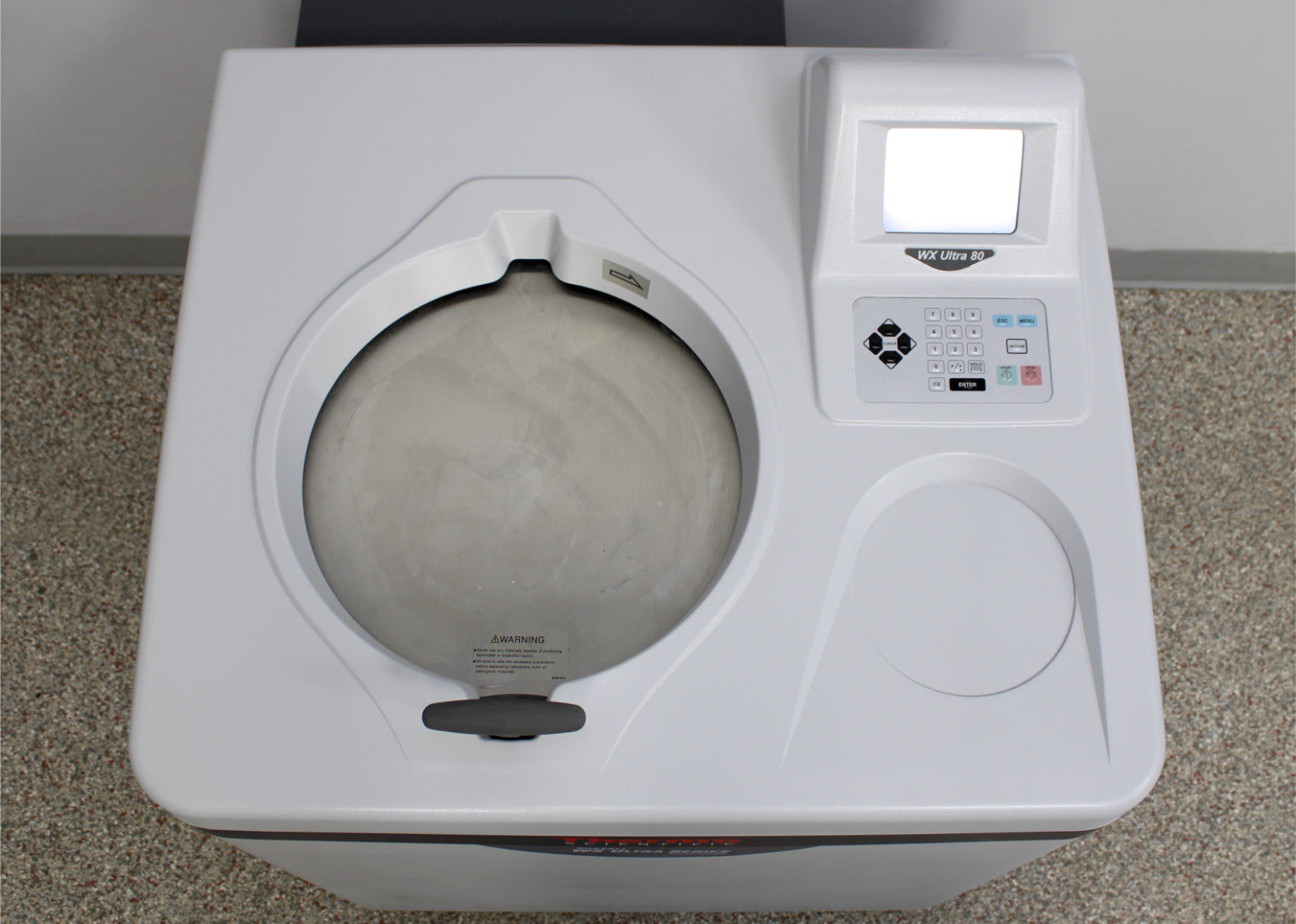

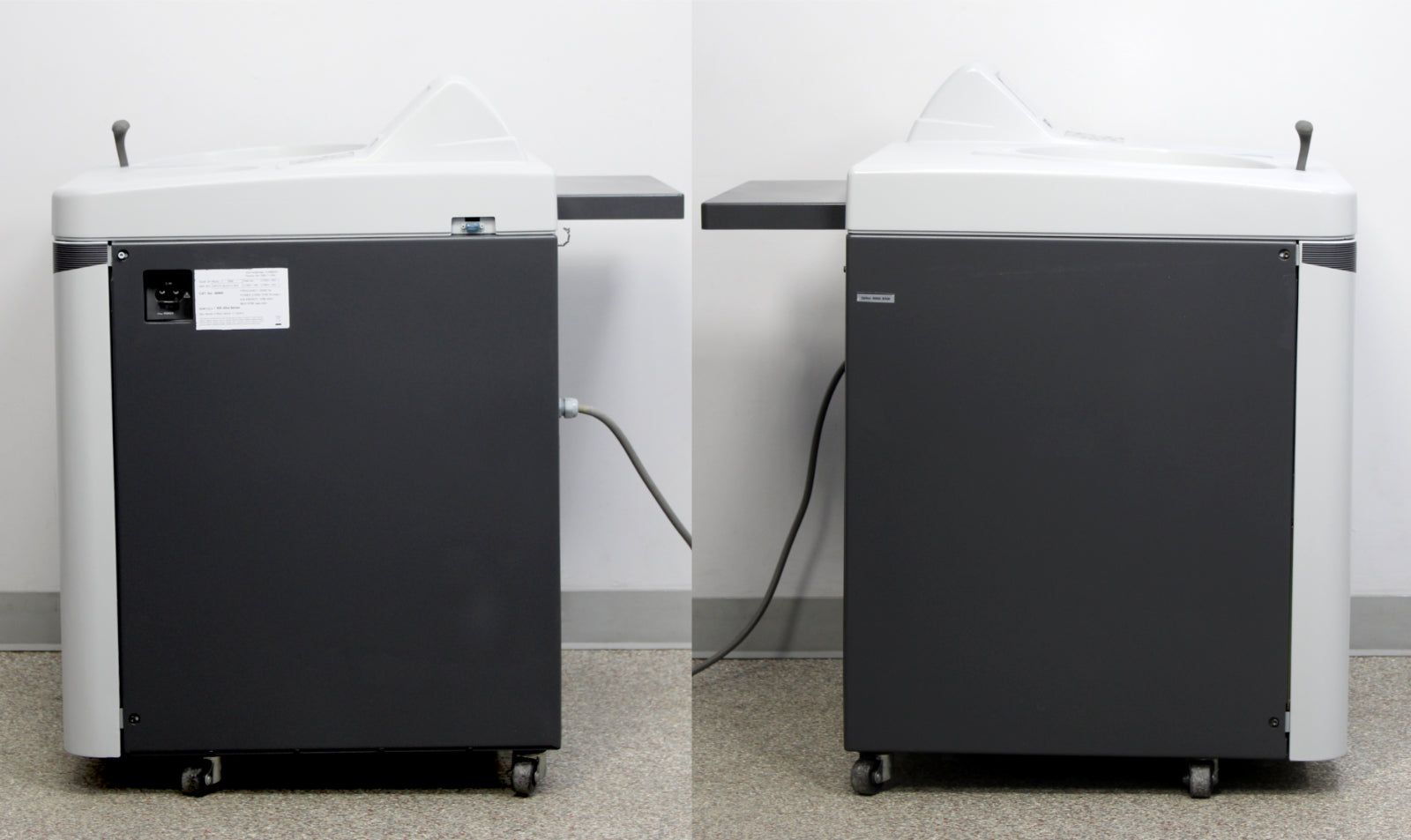

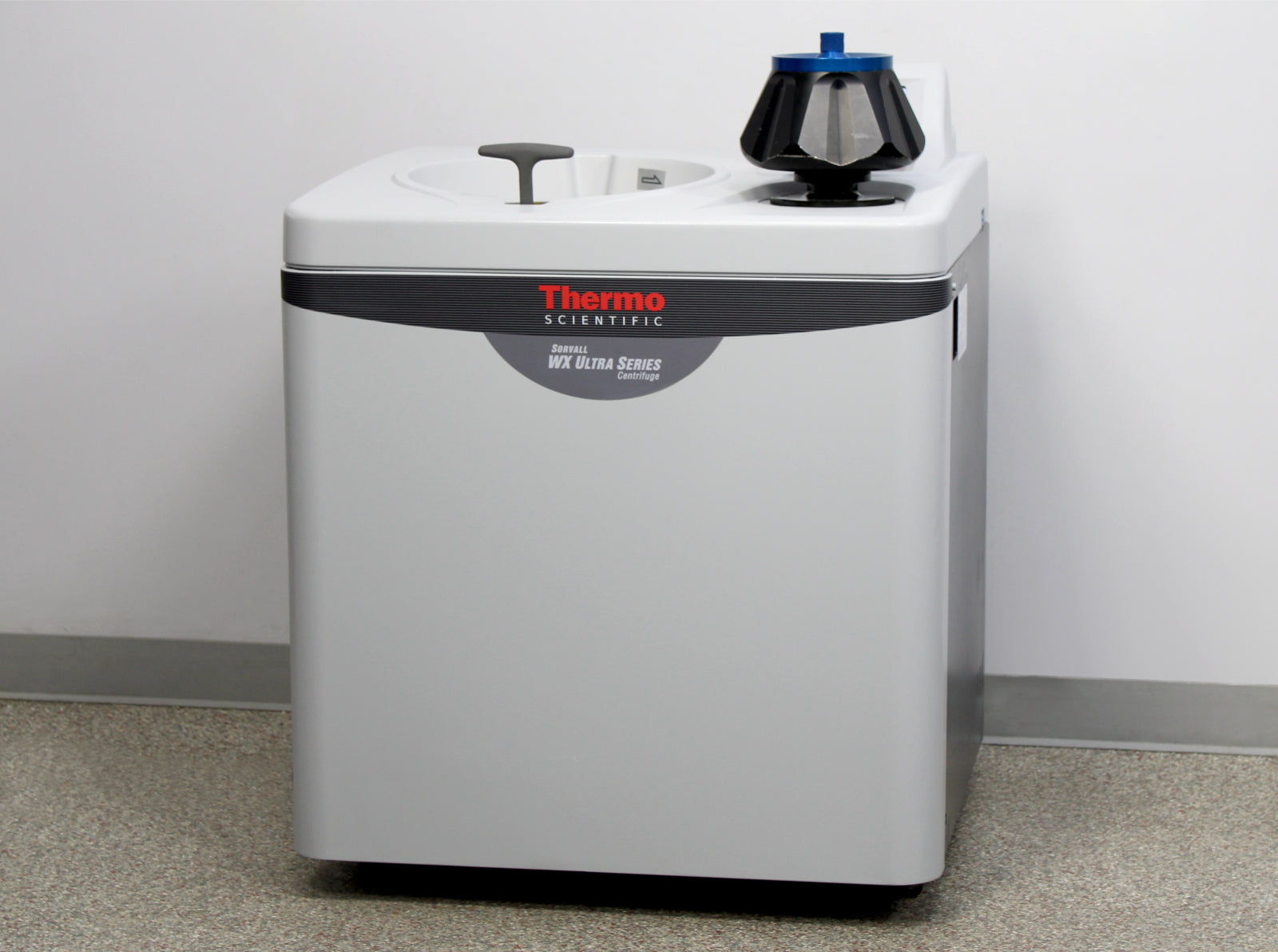

- Thermo Scientific Sorvall WX Ultra 80 Floor Ultracentrifuge (46900)

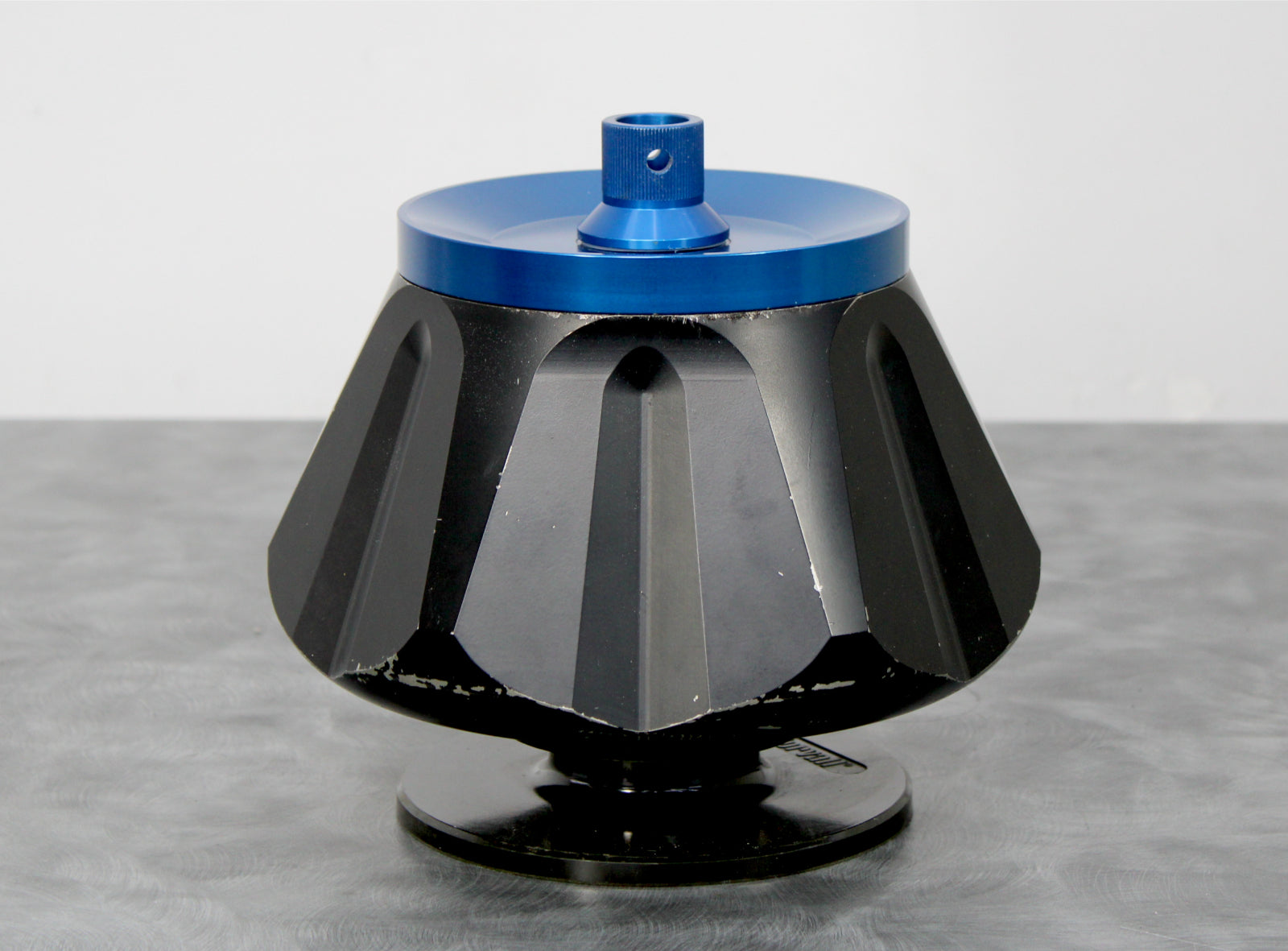

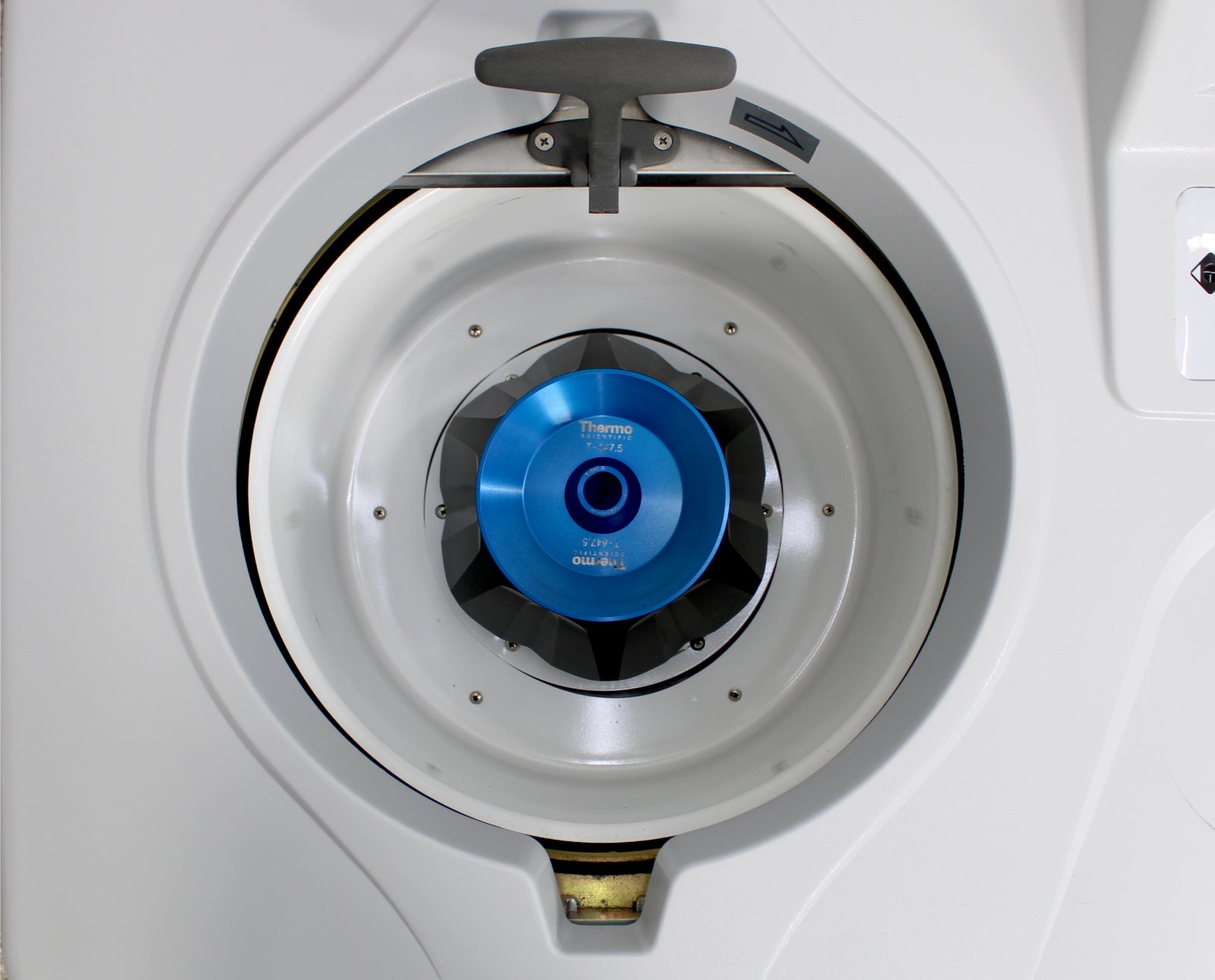

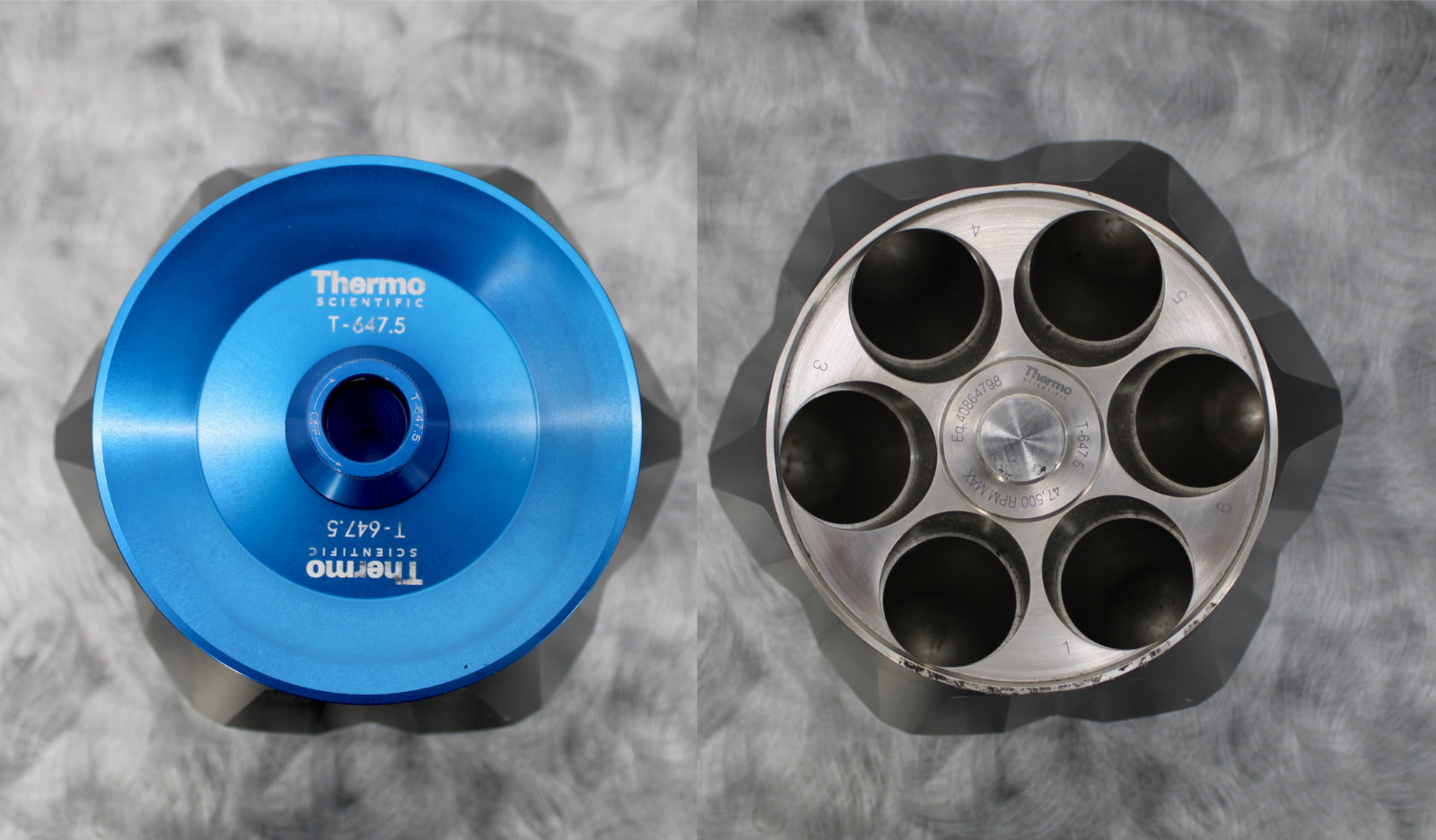

- Thermo Scientific T-647.5 Fixed Angle Rotor with Stand

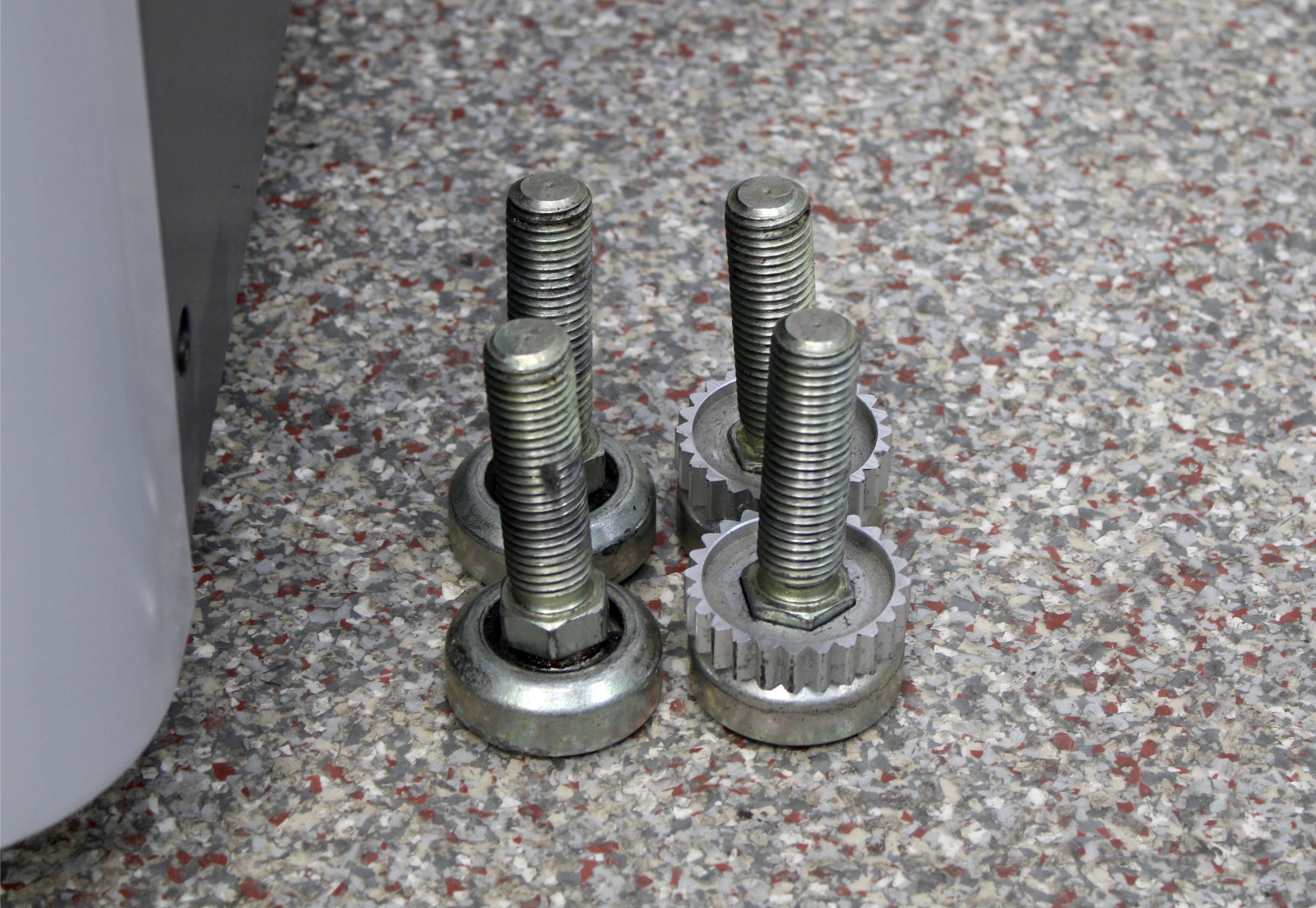

- x4 Feet

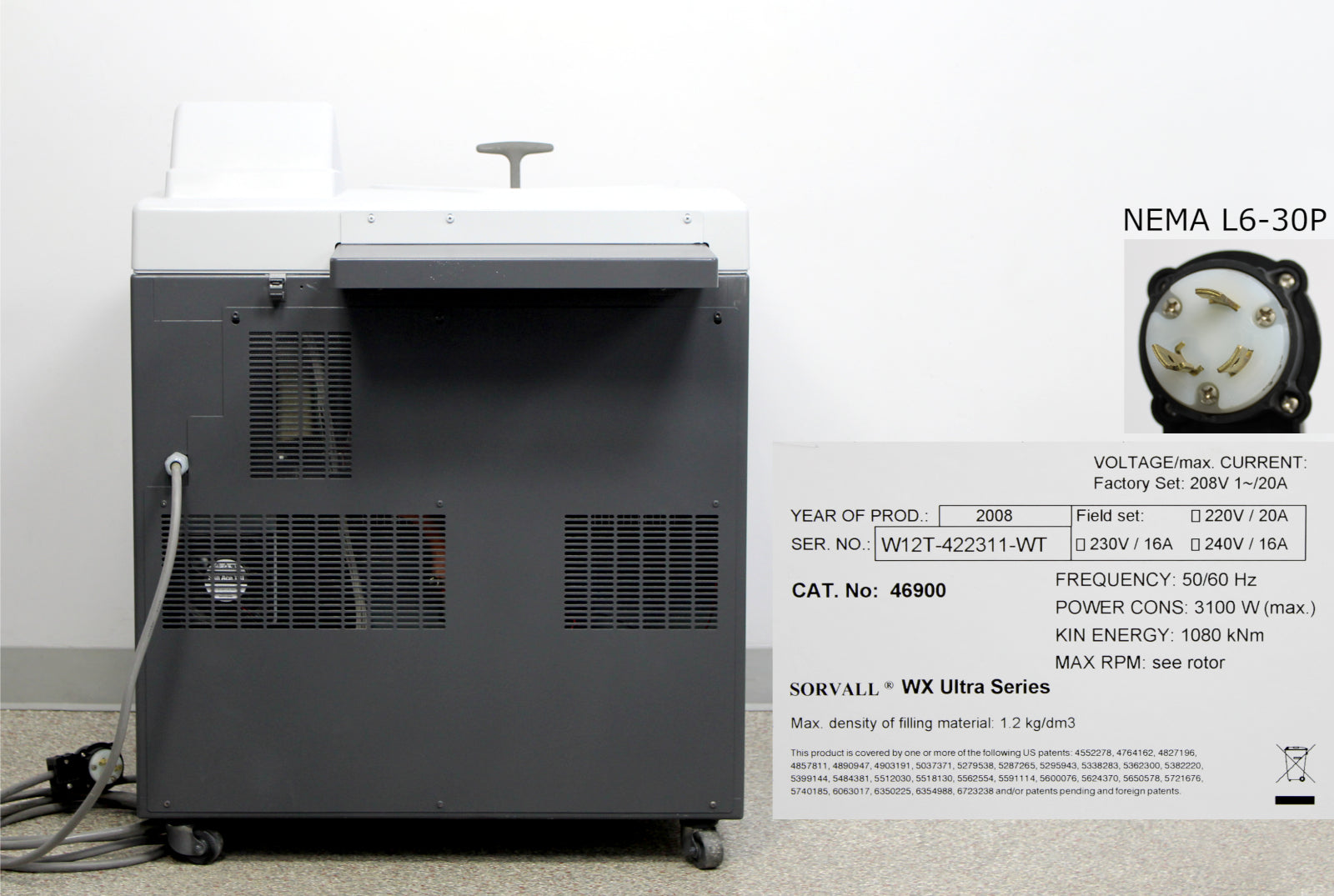

- Attached Power Cable with NEMA L6-30 Plug
- 90-Day Warranty

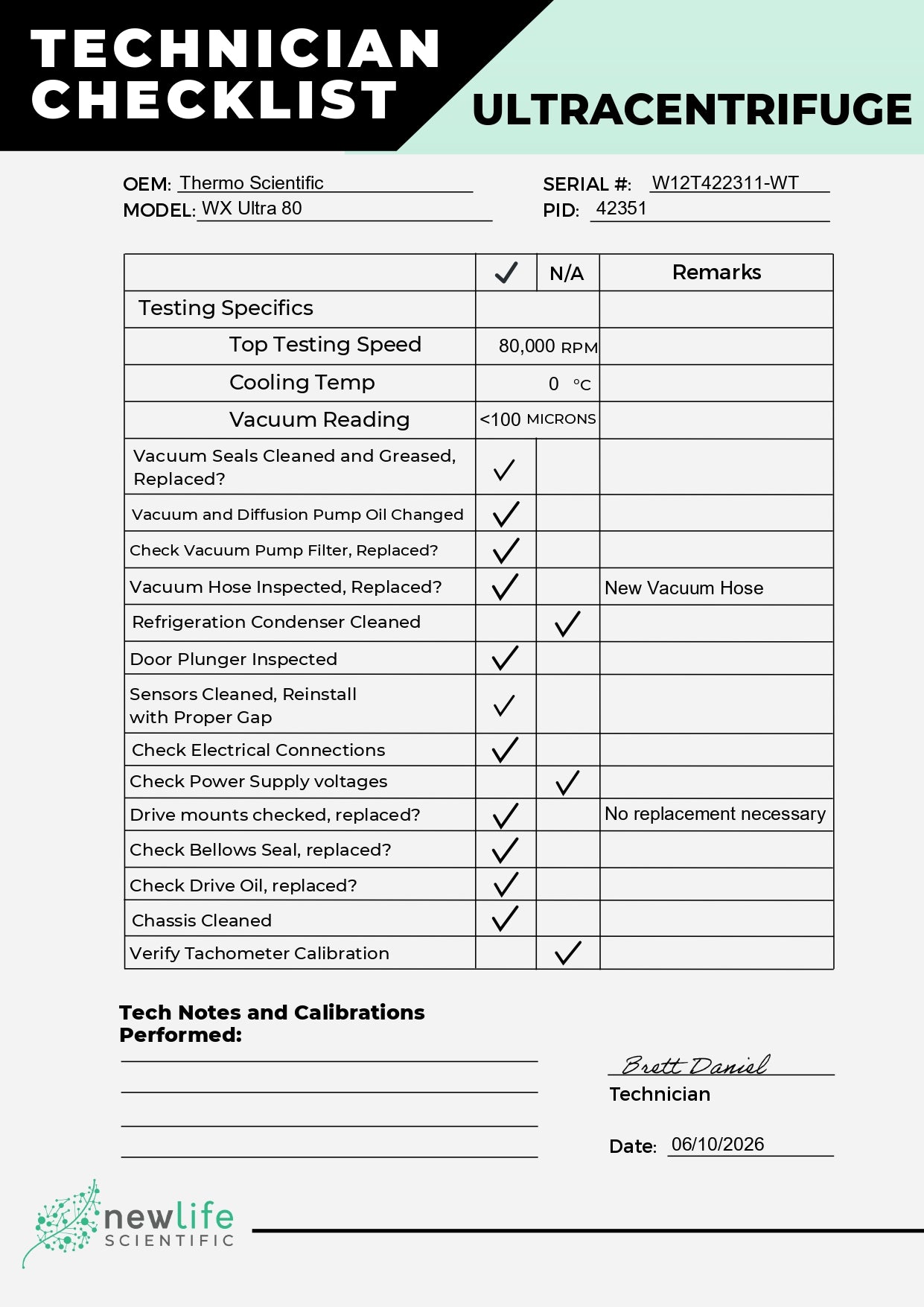

After its initial disinfection and inspection, our technicians tested the Thermo Scientific Sorvall WX Ultra 80 floor ultracentrifuge with the following results:

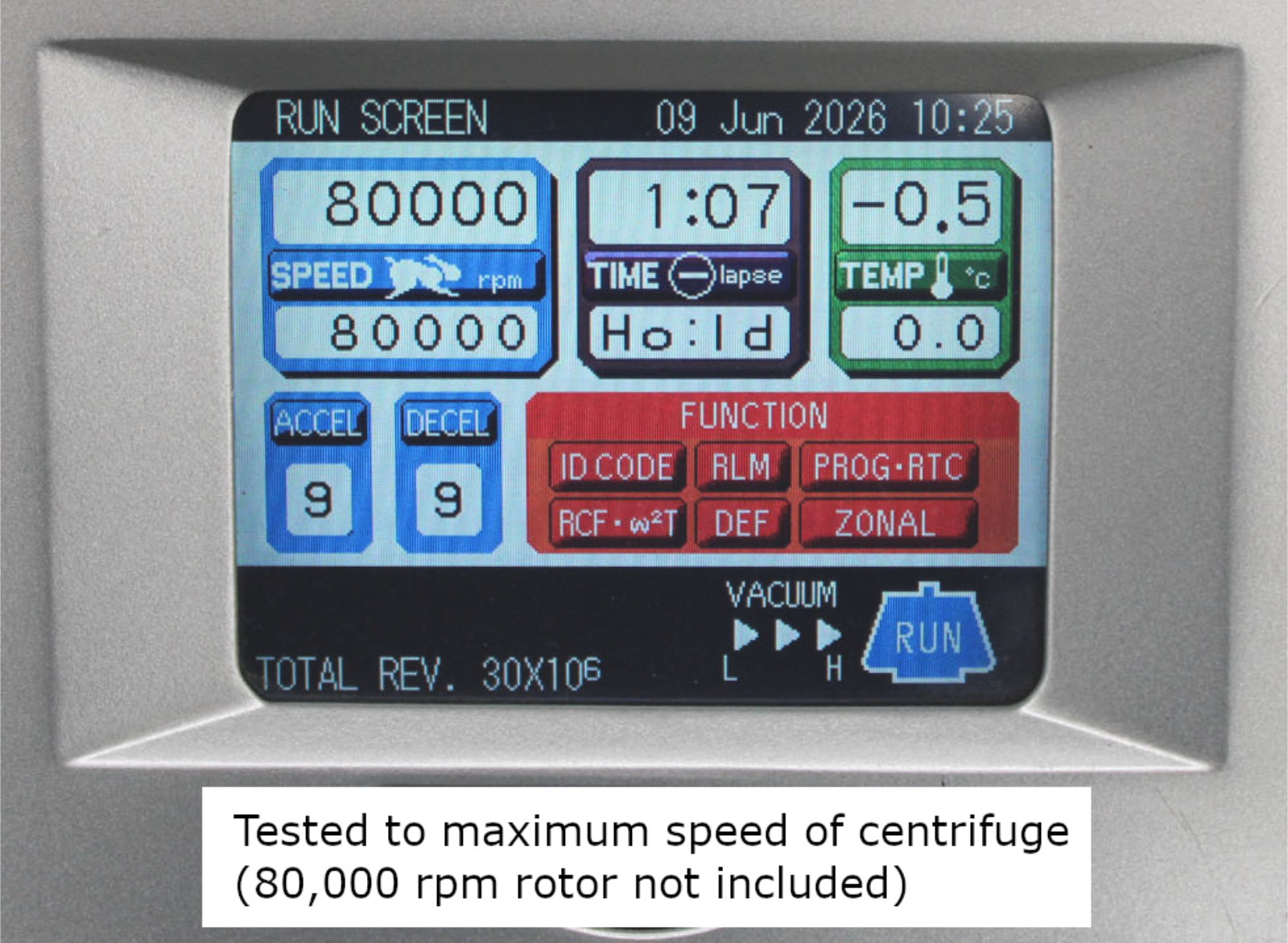

- Ran to maximum speed of centrifuge 80,000 rpm: PASSED

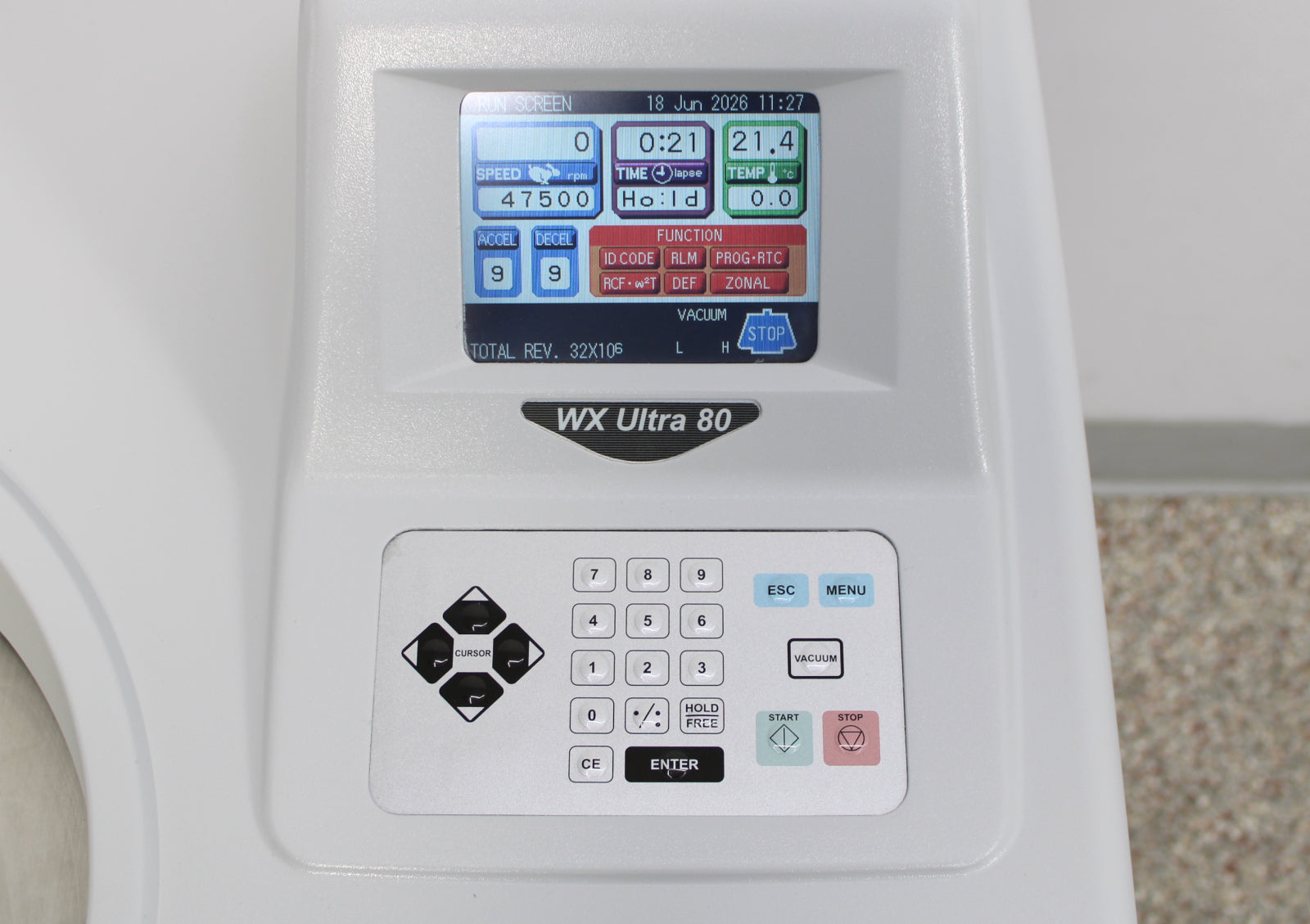

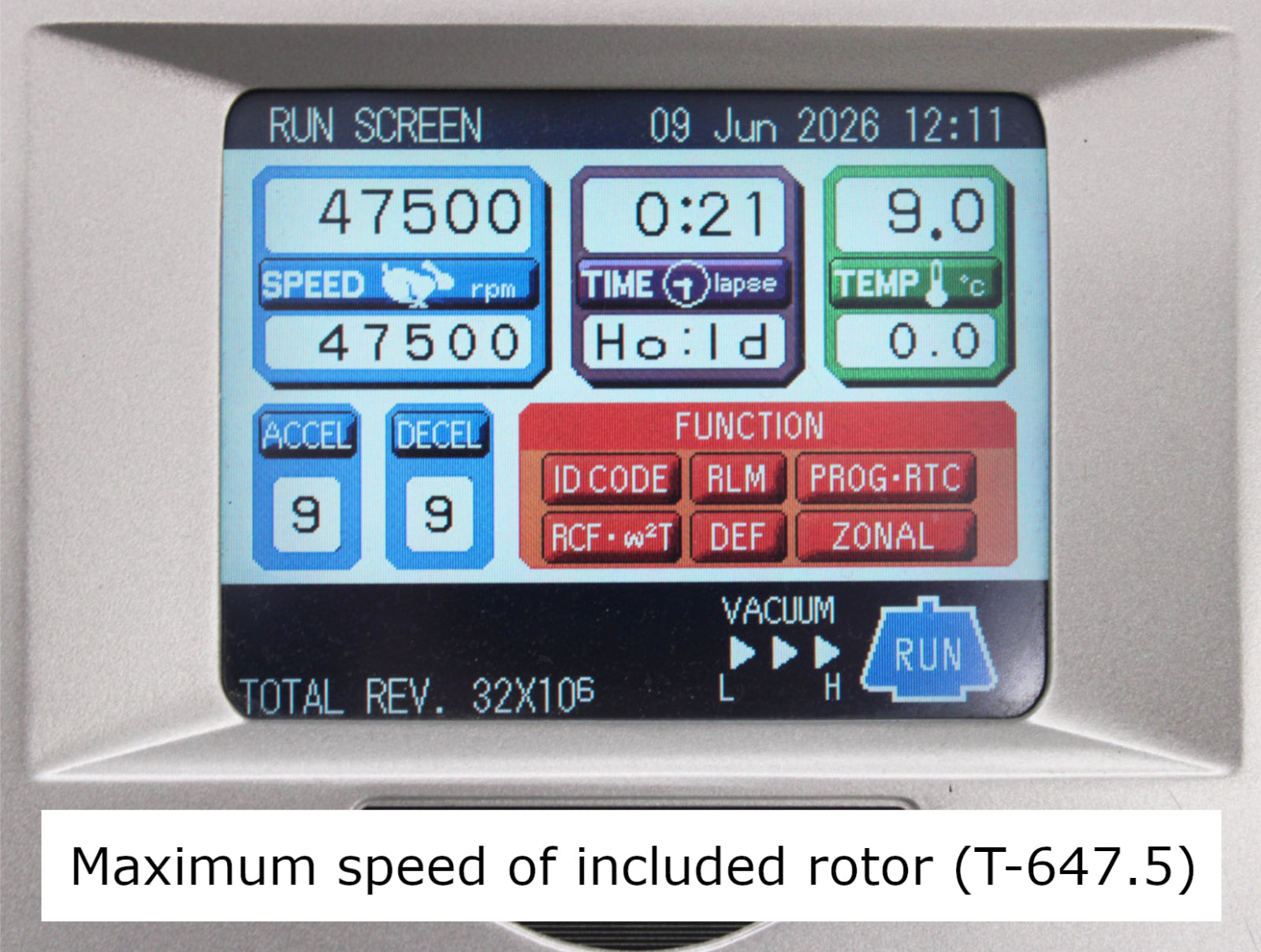

- Ran to maximum speed of included rotor 47,500 rpm: PASSED
- Refrigeration held at 0°C: PASSED
- No excessive noise or imbalance: PASSED
- Spun down properly: PASSED
- Performed inspection; no issue found: PASSED
|
Manufacturer
|
Thermo Scientific
|
|
Model
|
WX Ultra 80
|
|
Cat. No.
|
46900
|
|
Serial No.
|
W12T-422311-WT
|
|
Mfg. date
|
2008
|
|
Maximum speed
|
80,000 rpm
|
|
Maximum RCF
|
602,644 x g (T-880)
|
|
Speed control accuracy
|
±10 rpm (1,000 rpm to maximum speed)
|
|
Acceleration/Deceleration control
|
About 5 minutes from 0 to 100,000 rpm or vice versa
|
|
Rotor Temperature Control/Display Accuracy
|
±0.5°C set temperature is from 0°C to 40°C
|
|
Set speed
|
1,000 rpm to maximum speed in increments of 100 rpm
|
|
Vacuum system
|
Oil rotary vacuum pump and oil diffusion pump combined
Ultimate vacuum: below 0.01Torr (1.33 Pa)
|
|
Cooling method
|
Thermo-module cooling (CFC-free)
|
|
Noise level
|
53 db (A scale) (measured 1m in front of the instrument at the set speed of the rotor)
|
|
Maximum heat dissipation into room
|
1kW/hr
|
|
User interaction means
|
Color LCD (color-256), touch panel, and keyboard
|
|
Interface
|
RS232C X 1CH
|
|
Plug
|
NEMA L6-30
|
|
Power consumption
|
3100 W (max.)
|
|
Power requirements
|
Single phase 50/60 Hz
208,220 Vac+/-10%, 20A maximum (normally 8A)
230,240 Vac+/-10%, 16A maximum (normally 7A)
|
|
Dimensions (W x D x H)
|
31.1 x 27.2 x 39.4 in (79 x 69 x 100 cm)
|
|
Weight
|
881.8 lb (400 kg)
|
|
Manufacturer
|
Thermo Scientific
|
|
Type
|
Fixed angle rotor
|
|
Model
|
T-647.5
|
|
Maximum speed
|
47,500 rpm
|
|
Angle
|
22.5°
|
|
Capacity
|
6 x 100 mL
|
|
K factor
|
36.3
|
|
Max. tube diameter
|
39 mm
|
|
Max. tube length
|
107 mm
|
|
Max. RCF
|
250,259 x g
|
|
Min. RCF
|
85,436 x g
|
|
Avg. RCF
|
167,847 x g
|
|
Radius
|
99.3 mm
|
|
Radius min.
|
33.9 mm
|
|
Net weight
|
24.3 lb (11 kg)
|
