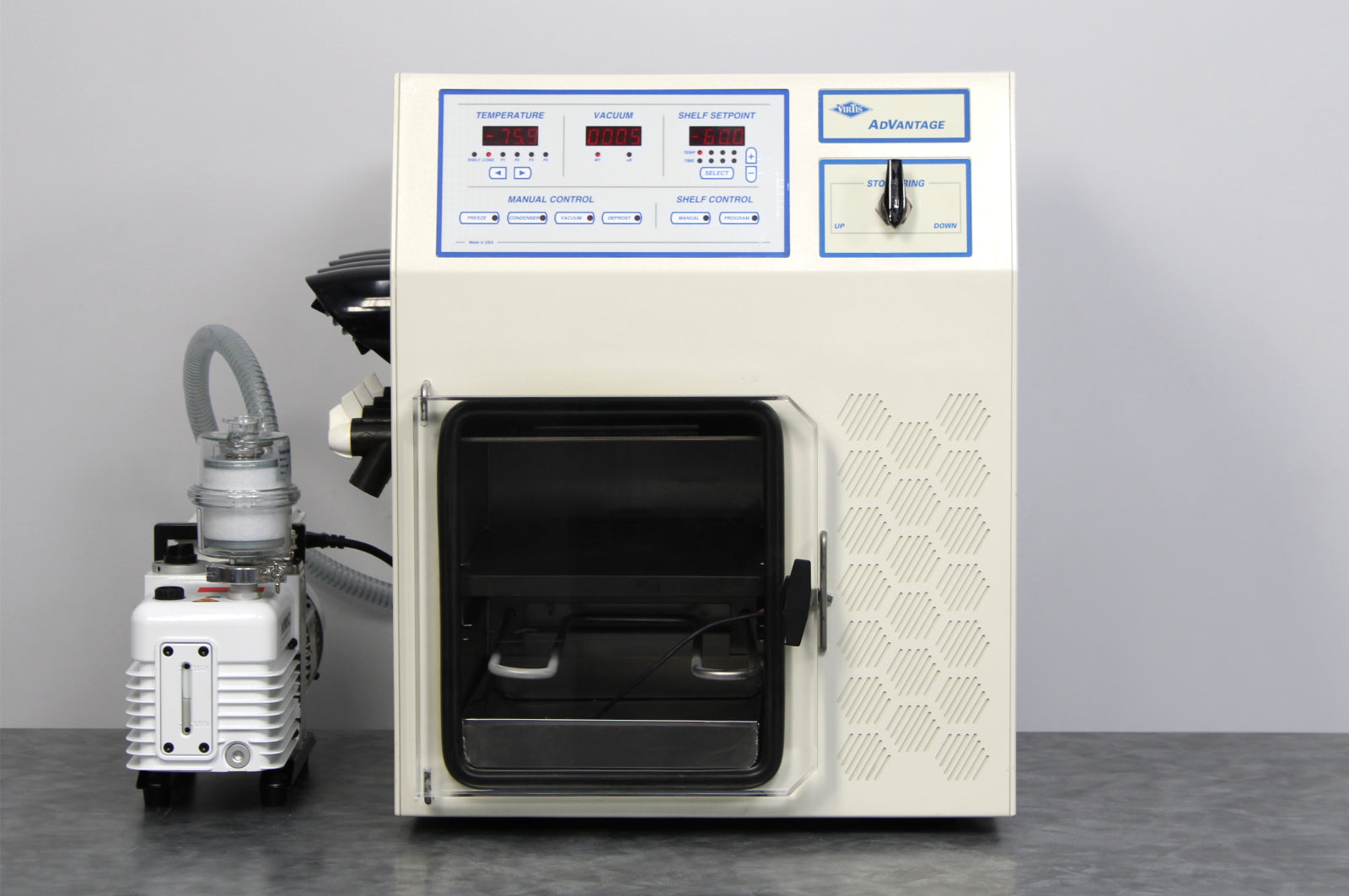

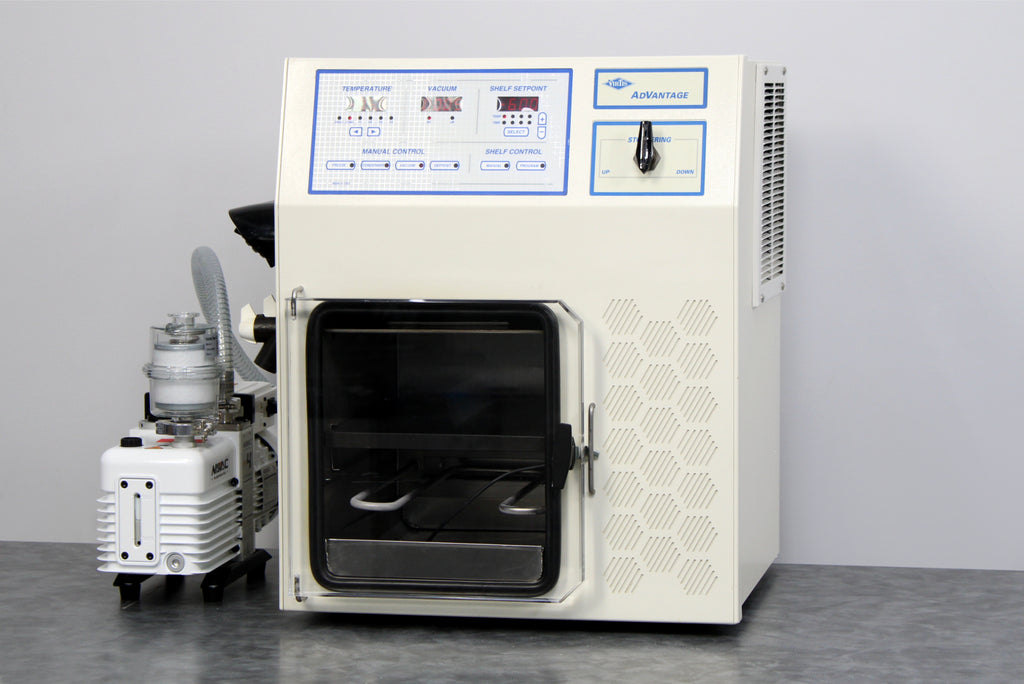

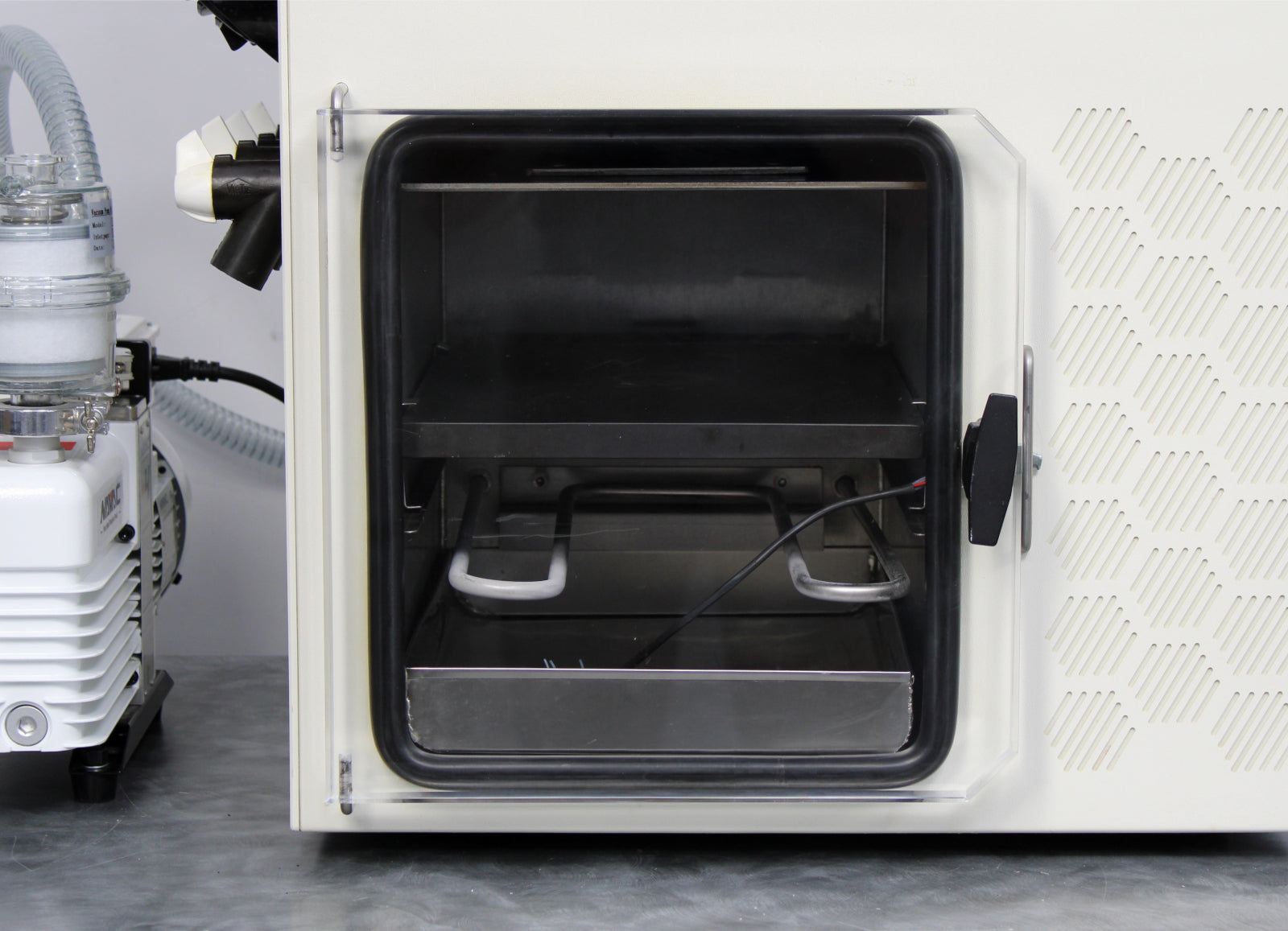

- VirTis Advantage XL Stoppering Shelf Freeze Dryer (360065) with 1 Shelf

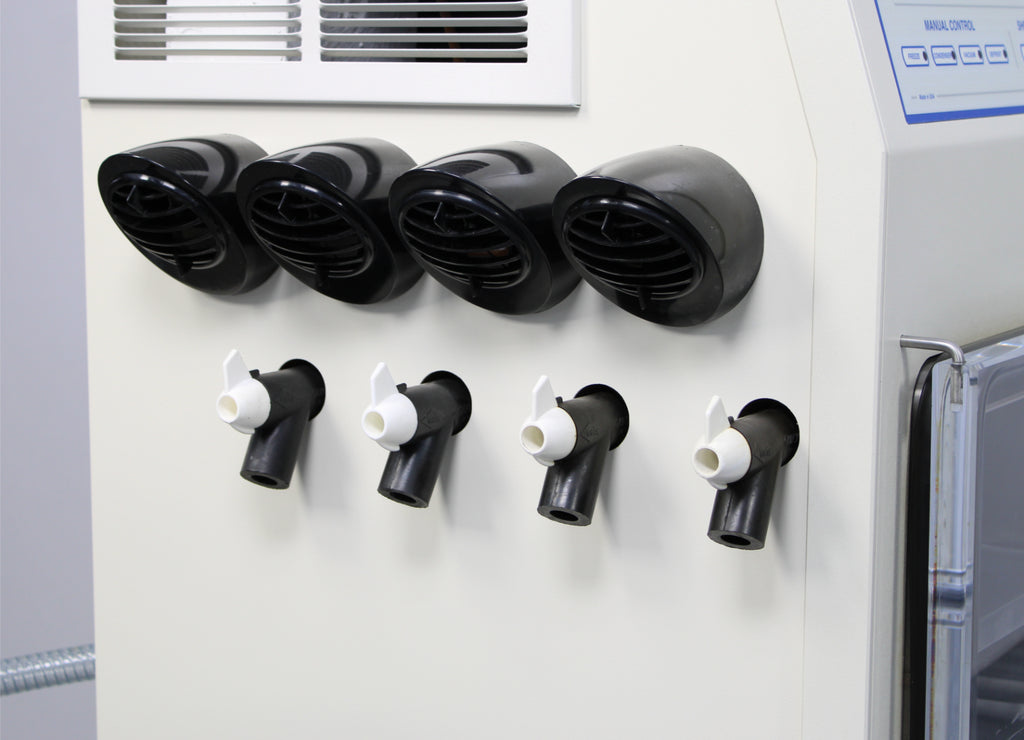

- x4 Manifold Valves

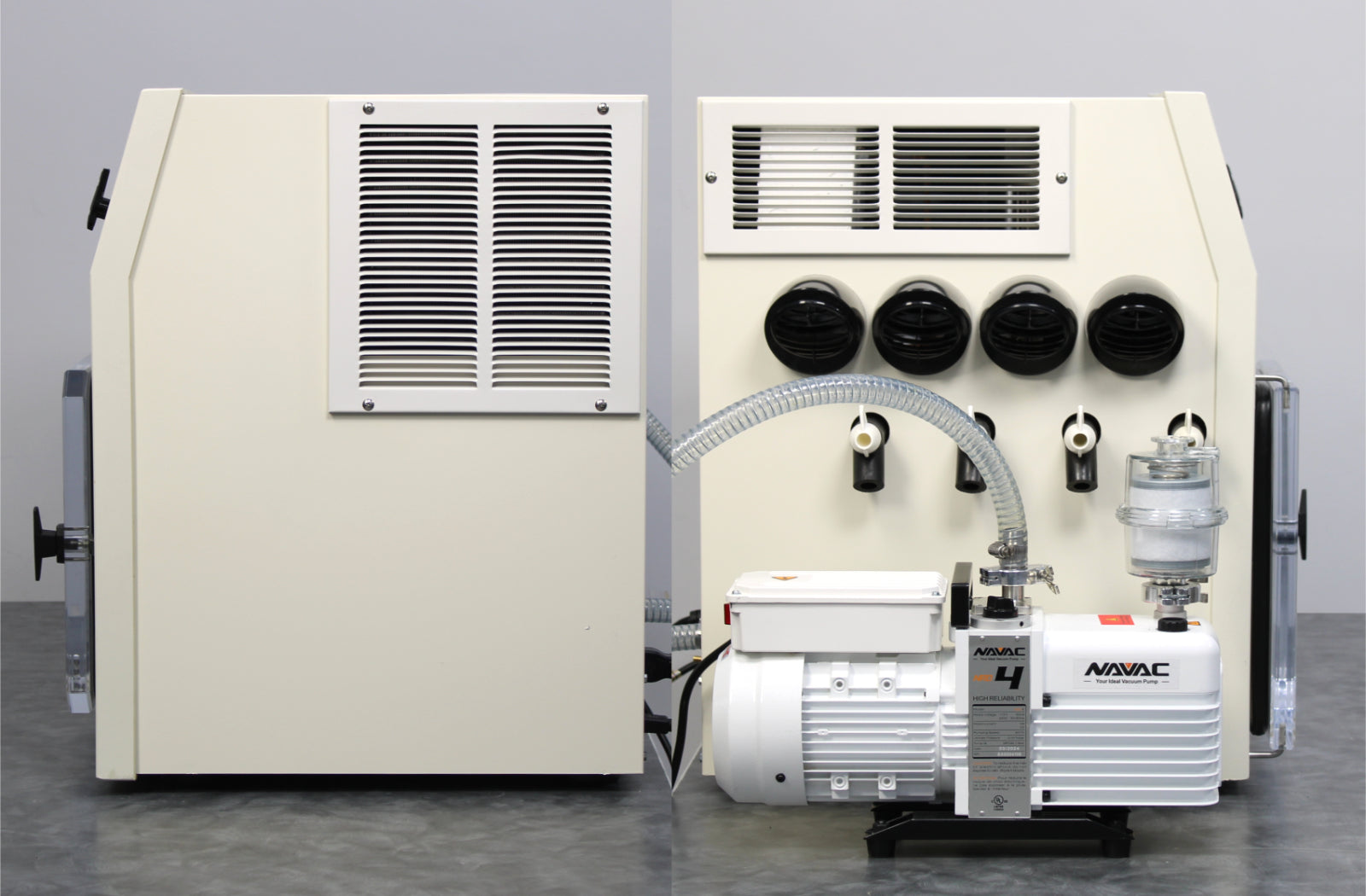

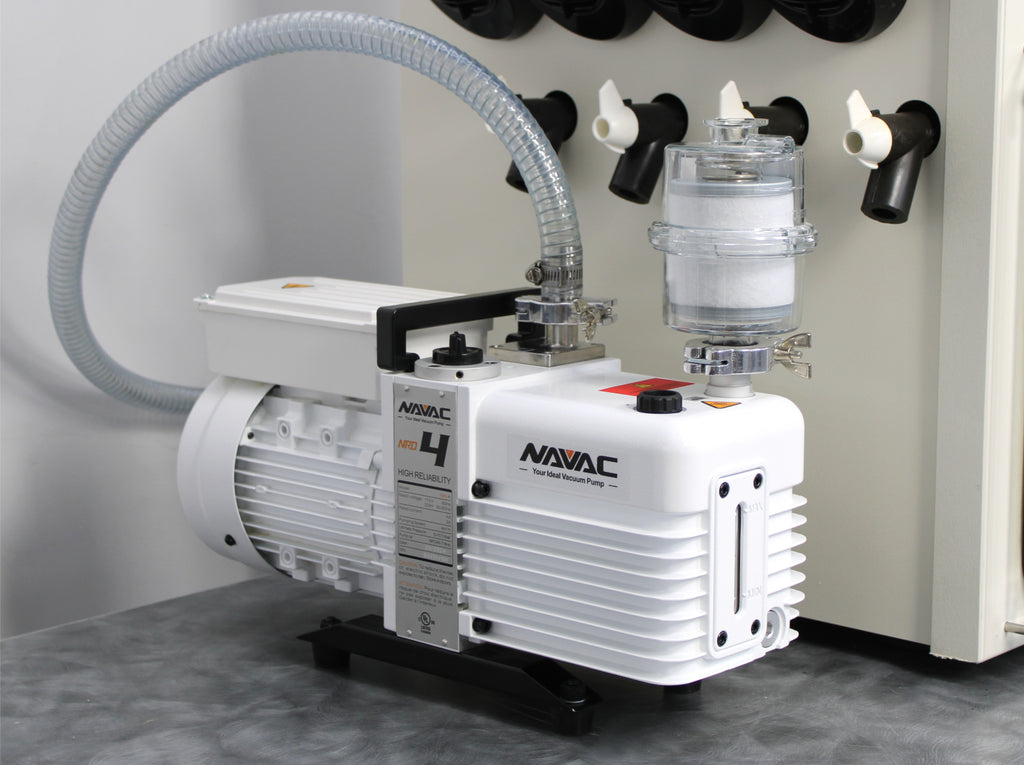

- Vacuum Pump
- Vacuum Hose
- Vacuum Pump Power Cable
- Attached 115V Power Cable
- 90-Day Warranty

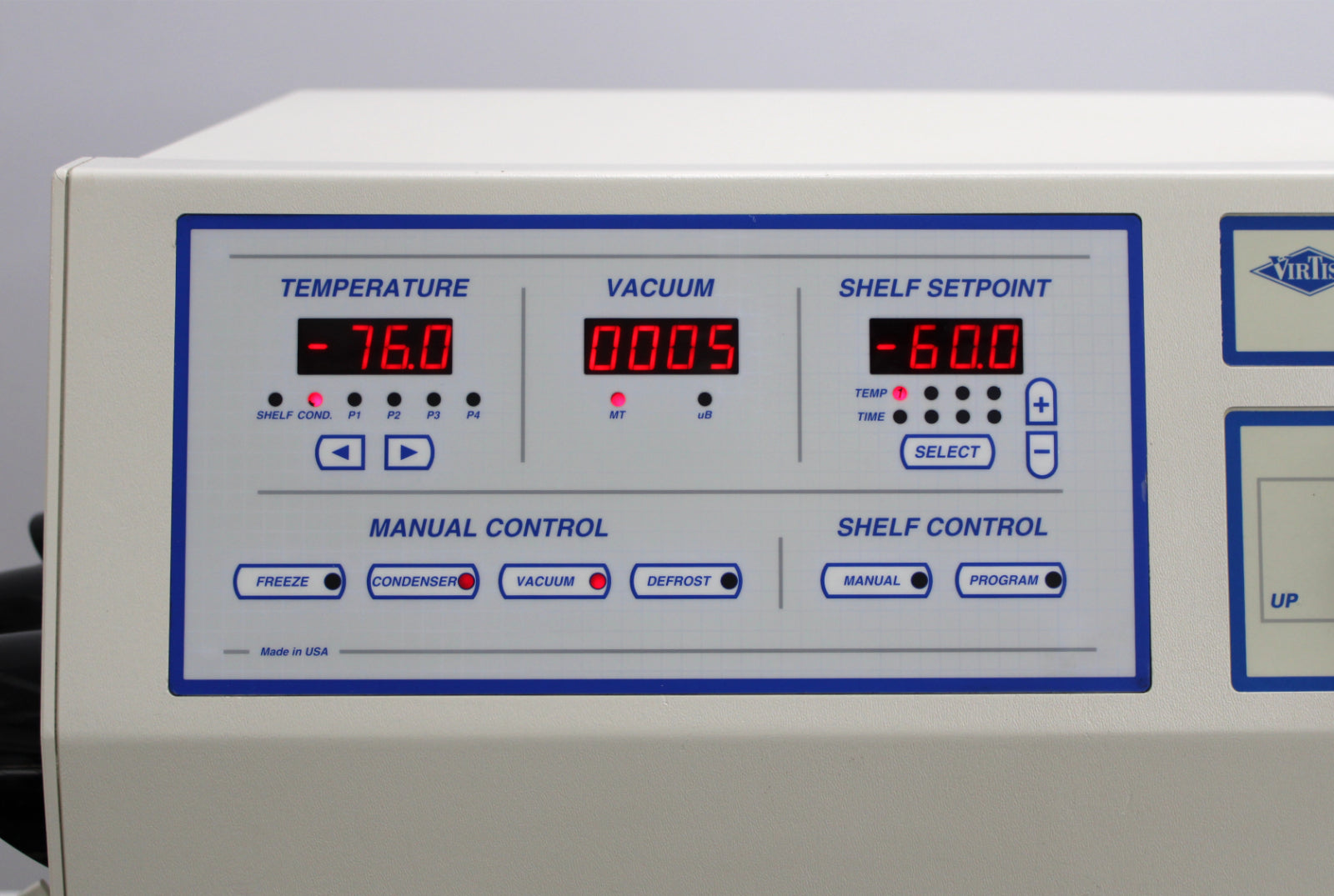

After its initial disinfection and inspection, our technicians tested the VirTis Advantage XL stoppering shelf freeze dryer with the following results:
- Condenser temperature achieves -76°C: PASSED

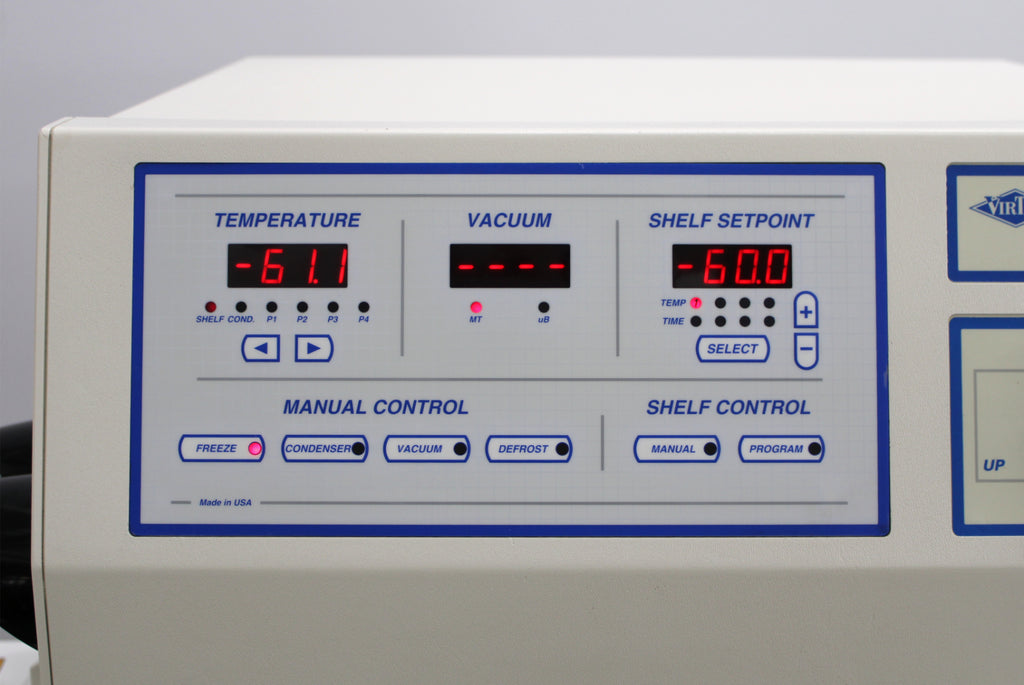

- Shelf temperature achieves -60°C: PASSED
- Vacuum achieves 5mT: PASSED
- Stoppering: PASSED
- Defrost: PASSED

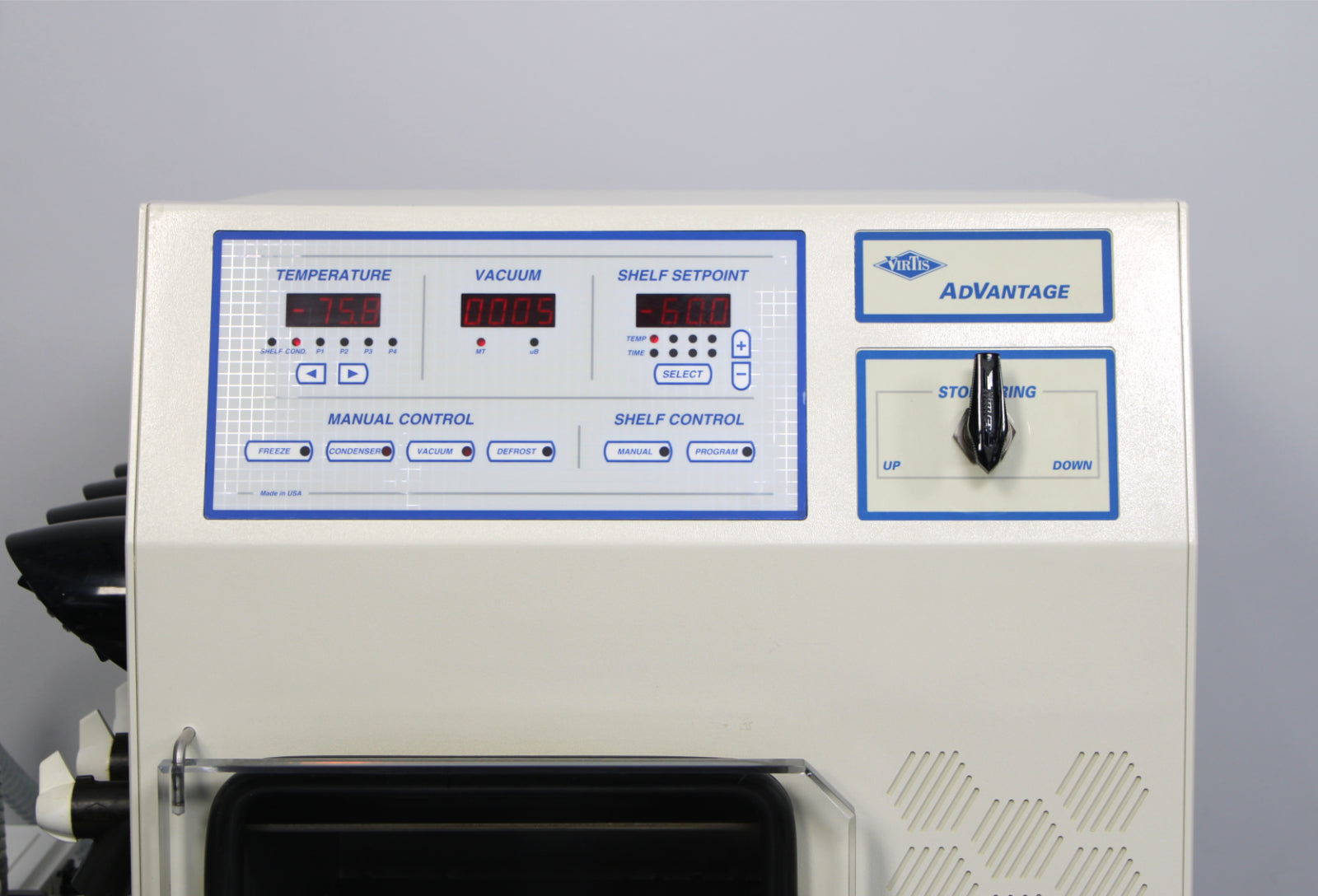

Notice: There is a small deviation of about 7°C on the high side at ambient temperature, but since the dryer was calibrated at colder temperatures, those readings match the calibration meter exactly. Additionally, the select button under shelf control must be pressed in a specific spot in order to function properly.
- Inspected and replaced vacuum hoses as needed.
- Calibrated temperature.
- Calibrated vacuum.
|

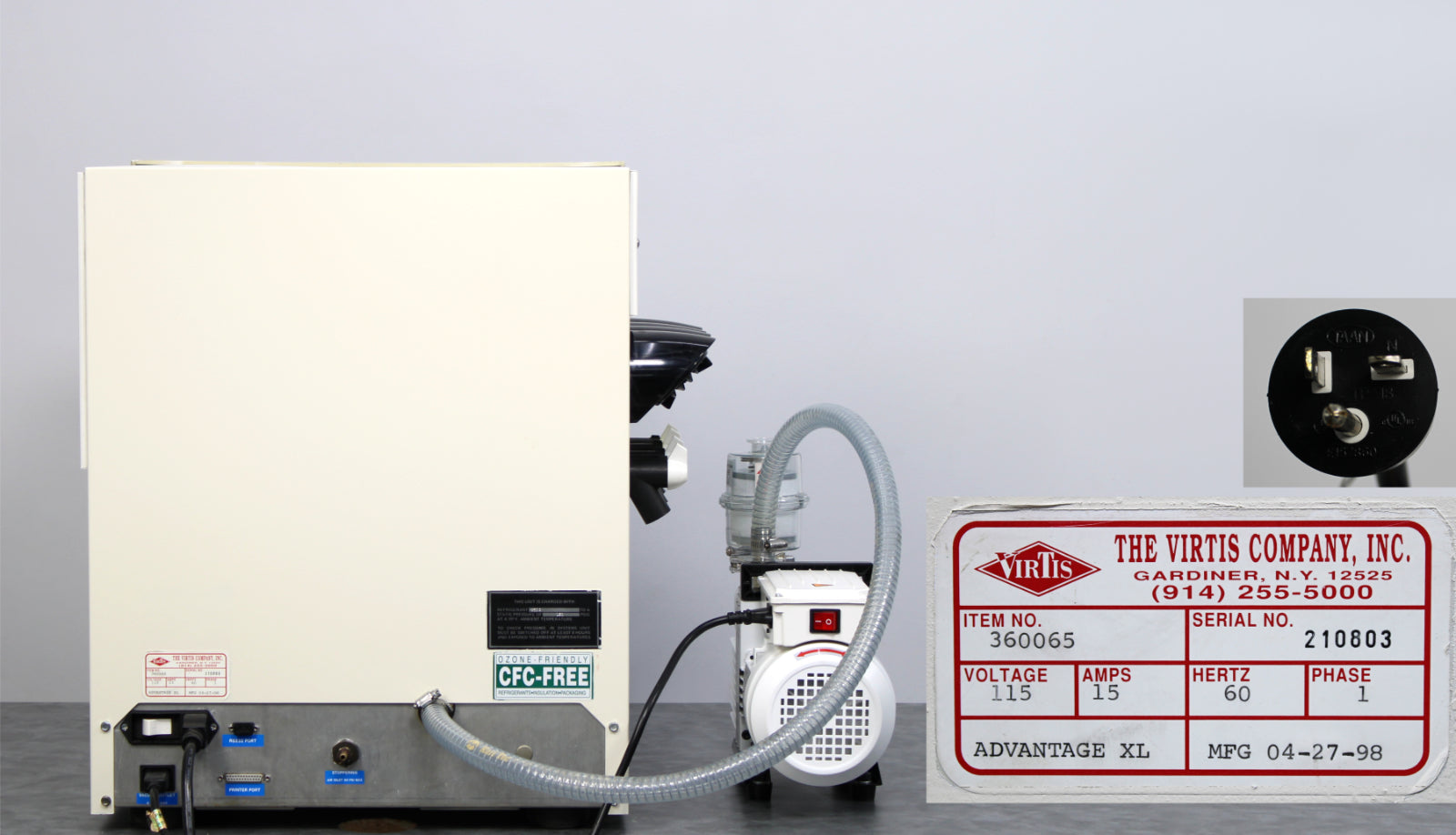

Manufacturer
|
The VirTis Company, Inc.
|
|
Model
|
Advantage XL
|
|
Part No.
|
360065
|
|
Serial No.
|
210803
|
|
Mfg. date
|
04-27-98
|
|
Shelf temperature control range
|
-60°C to +60°C
|
|
Lowest shelf temperature
|
-57°C to -60°C
|
|
Shelf dimensions (W x D)
|
10.5 x 14 in
|
|
Lowest condenser temperature
|
-70°C
|
|
Stoppering
|
Yes; pneumatic
|
|
Vacuum control
|
<20 mTorr
|
|

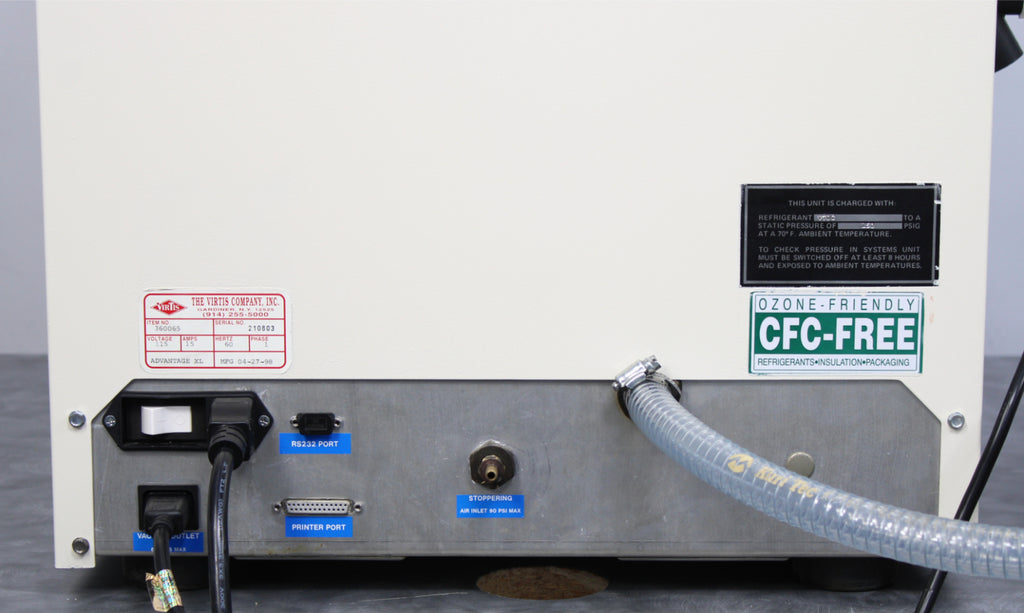

Power rating
|
115V, 60Hz, 15A, 1Ph
|
|
Dimensions (W x D x H)
|
25.5 x 24 x 27 in
|
|
Weight
|
~300-400 lbs
|
