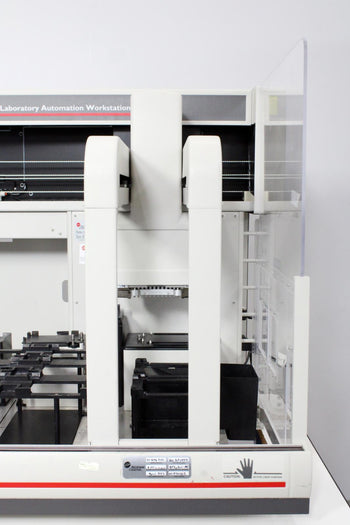

- Biomek FXp Liquid Handler

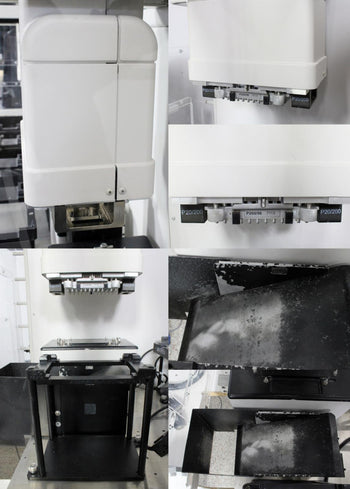

- Dual 96-Well P200 Head Pods
- 4 One X One ALP Orbital Shaker
- 2 Accu-Frame Alignment Probes
- Accu-Frame Plate Adapter Tool

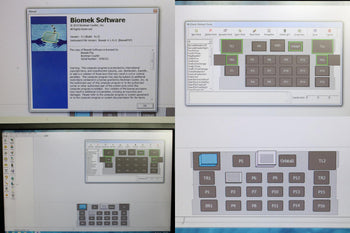

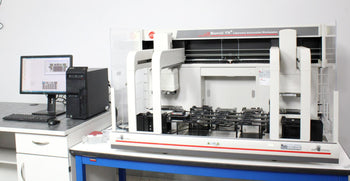

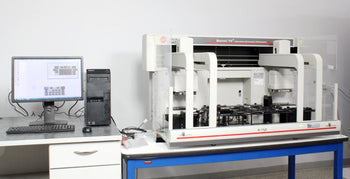

- PC, Monitor, Keyboard, and Mouse, with Biomek Software Installed

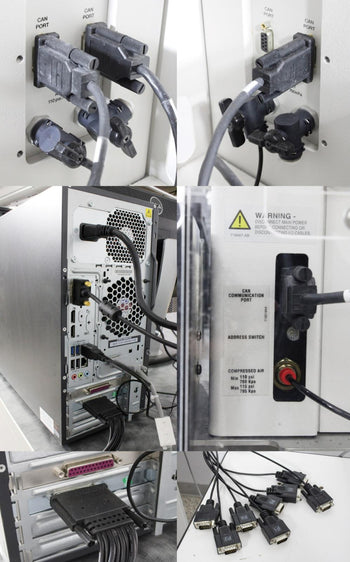

- PC has a Digi 8-Port Serial Card
After its initial disinfection and inspection, our technicians tested the Biomek FXp with the following results:
- Tested both pods by aligning the ALPS: PASSED

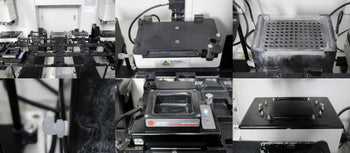

- Tested the shakers, grippers, and the tip loaders: PASSED
- Tested the tip washer: PASSED
- The tip washer will require a pump and a controller.
- This system will require compressed air to operate.
- Tips and microplates need sourced separately.
|
Manufacturer
|
Beckman Coulter
|
|
Model
|
Biomek FXp
|
|
Mfg. Year
|
2012
|
|
Power Data
|
US: 100-120VAC, 60Hz
Europe: 200-240VAC, 50Hz
|
|
System Fluid Requirements
|
De-ionized or distilled water
|
|
Ambient operating temperature is 59-86ºF (15-30ºC)
|
|
System Fluid should be degassed for 24 hours prior to use.
|
|
Ambient Operating Temp
|
5-30ºC (41-86ºF)
|
|
Humidity Restrictions
|
<85% (non-condensing) @ 30ºC (86ºF)
|
|
Altitude Restrictions
|
Up to 2000m (6562ft)
|
|
Installation Category
|
Category II
|
|
Pollution Degree
|
2
|
|
Sound Pressure Level
|
Maximum sound pressure: 79dB
|
|
Maximum sound pressure at 1 meter: 76dB
|
|
Fuses
|
US: 250VAC, 5A, 5x20 mm, SLO-BLO, UL recongized, CSA approved
Europe: 250VAC, 5A, 5x20 mm, SLO-BLO, CENELEC approved
|
|
Dimensions (WxDxH)
|

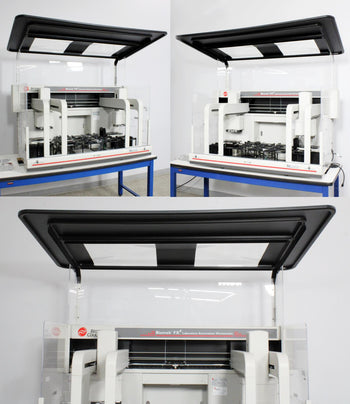

139.7 x 81.28 x 152 cm with Canopy
(109.22 x 81.28 x 152 cm without Canopy)
|
