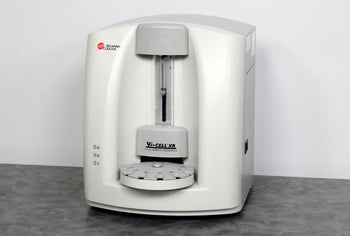

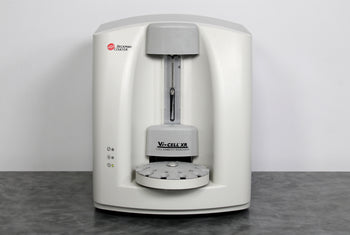

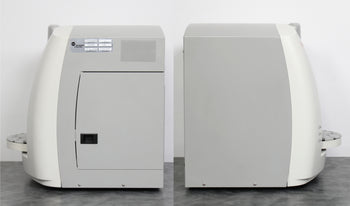

- Beckman Coulter Vi-CELL XR Cell Viability Analyzer (383556)
- Power cable
- 90-day warranty
After its initial disinfection and inspection, our technicians tested the Beckman Coulter Vi-CELL XR Cell Viability Analyzer with the following results:
- Powers on: PASSED

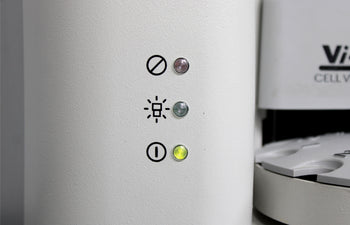

- Status light is green: PASSED

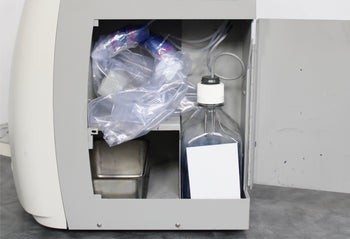

Notice: The flow cell is being protected by a piece of cardboard/tape inside the left side of the instrument and the VI-cell cannot run until this is removed.
|
Manufacturer
|
Beckman Coulter
|
|
Model
|
Vi-CELL XR
|
|
Reference No.
|
383556
|
|

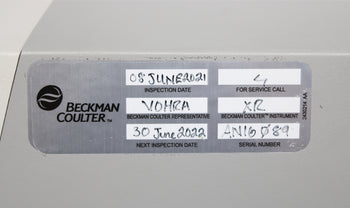

Serial No.
|
AN16089
|
|
Mfg. date
|
2009/04/17
|
|

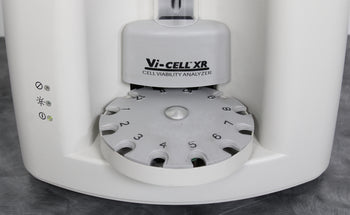

Autosampler
|
Yes
|
|
Size range
|
2 - 70 um
|
|
Sample volume
|
500 uL
|
|
Analysis time
|
2.5 min
|
|
Imaging technology
|
Camera focus: auto
Image collection: Firewire
Camera: 1394x1040 CCD
|
|
Image zoom
|
Yes
|
|

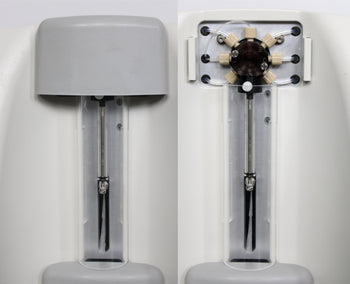

Aspiration and Trypan Blue mixing
|
Variable
|
|
Concentration range
|
5 x 104 to 1 x 107 cells/mL
Counting accuracy: +/- 6%
|
|
Operating system
|
Windows 7 or Windows 10
|
|
Instrument type
|
Video imaging through a quartz flow cell
|
|
Temperature
|
10° to 40°C (50°F to 104°F)
|
|

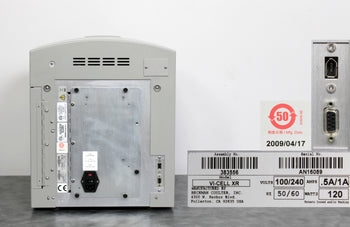

Power rating
|
100/240V, 50/60Hz, 120W, 0.5/1A
|
|
Dimensions (W x D x H)
|
15 x 17.5 x 18 in
|
|
Weight
|
36.2 lb
|
