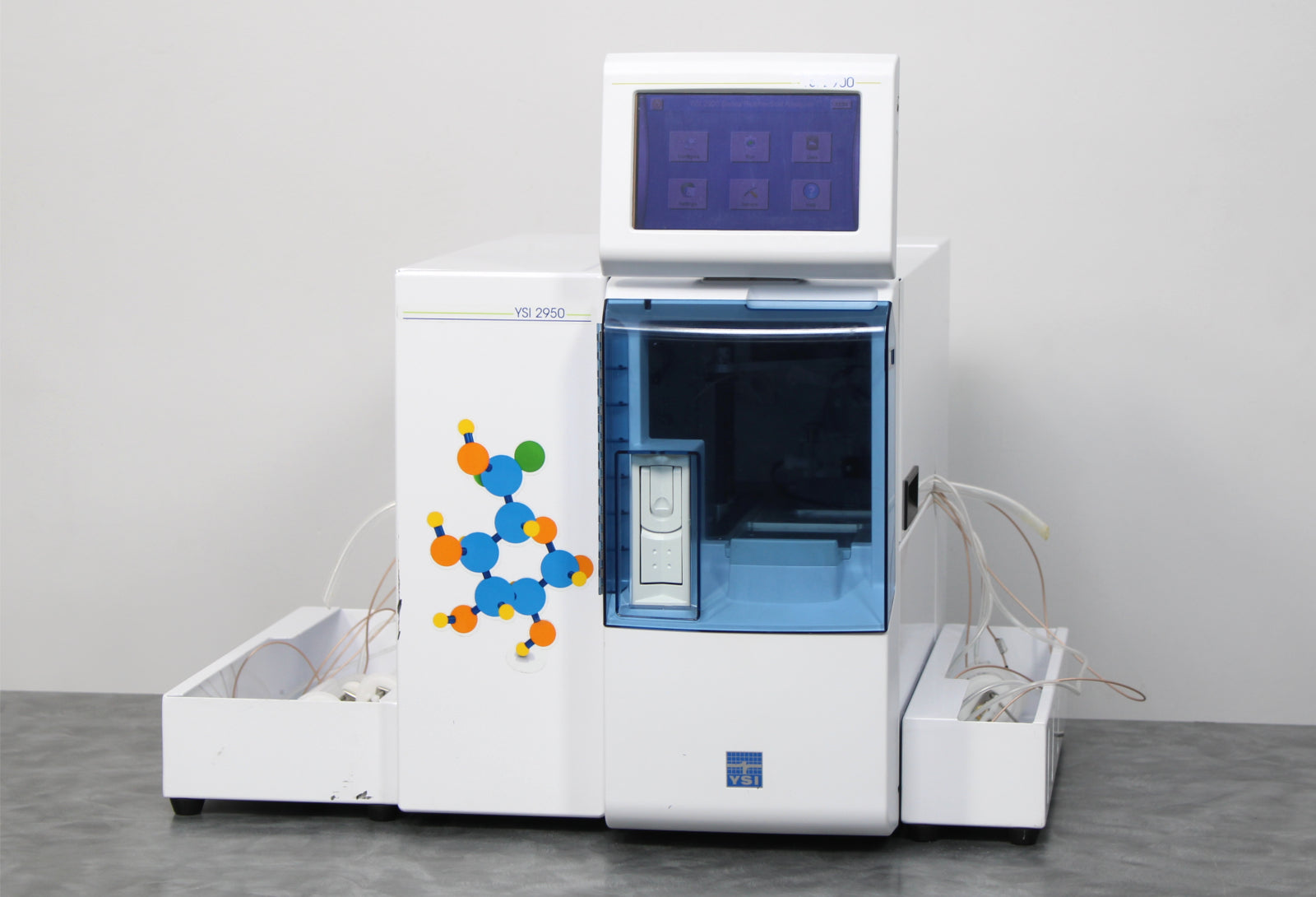

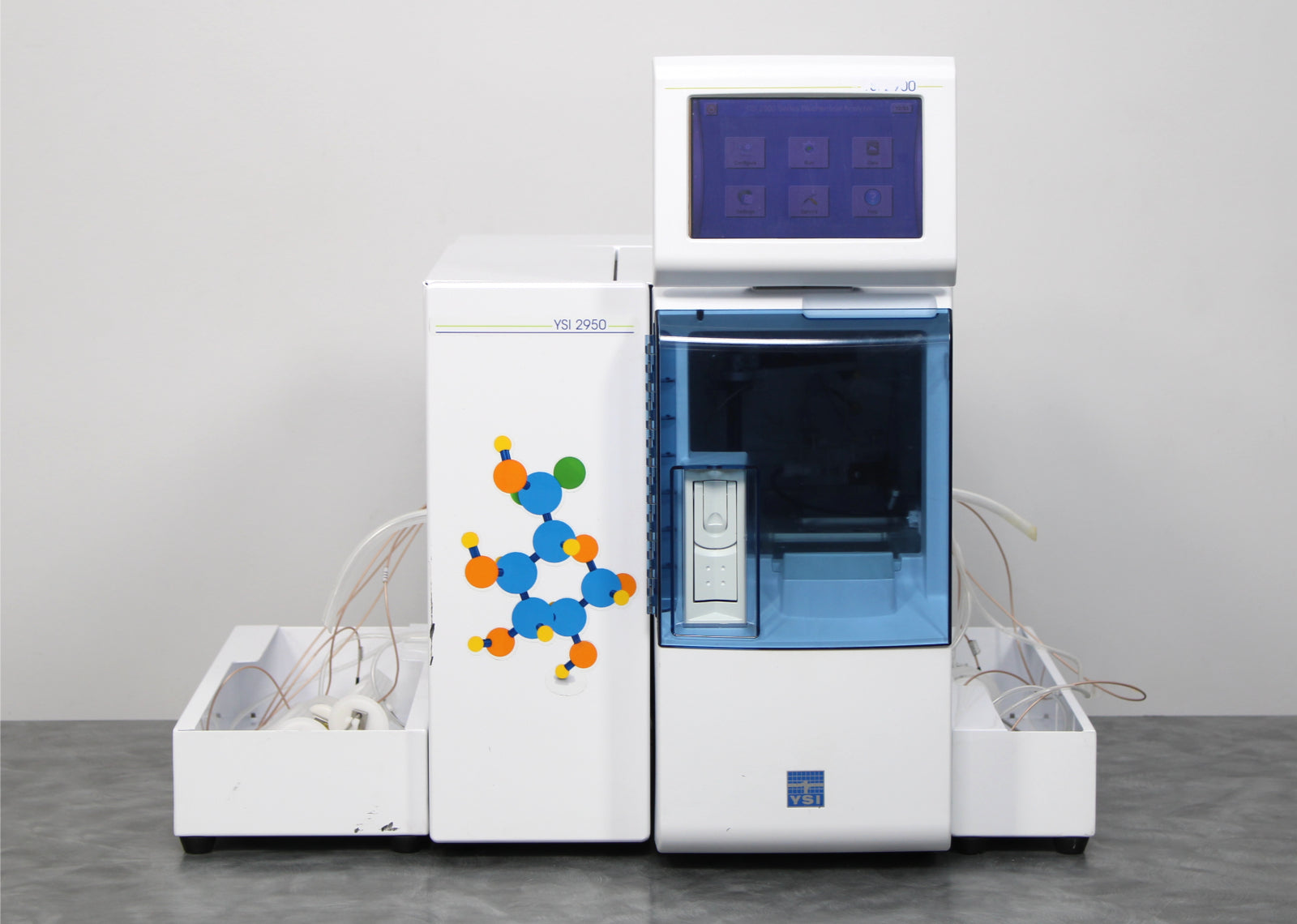

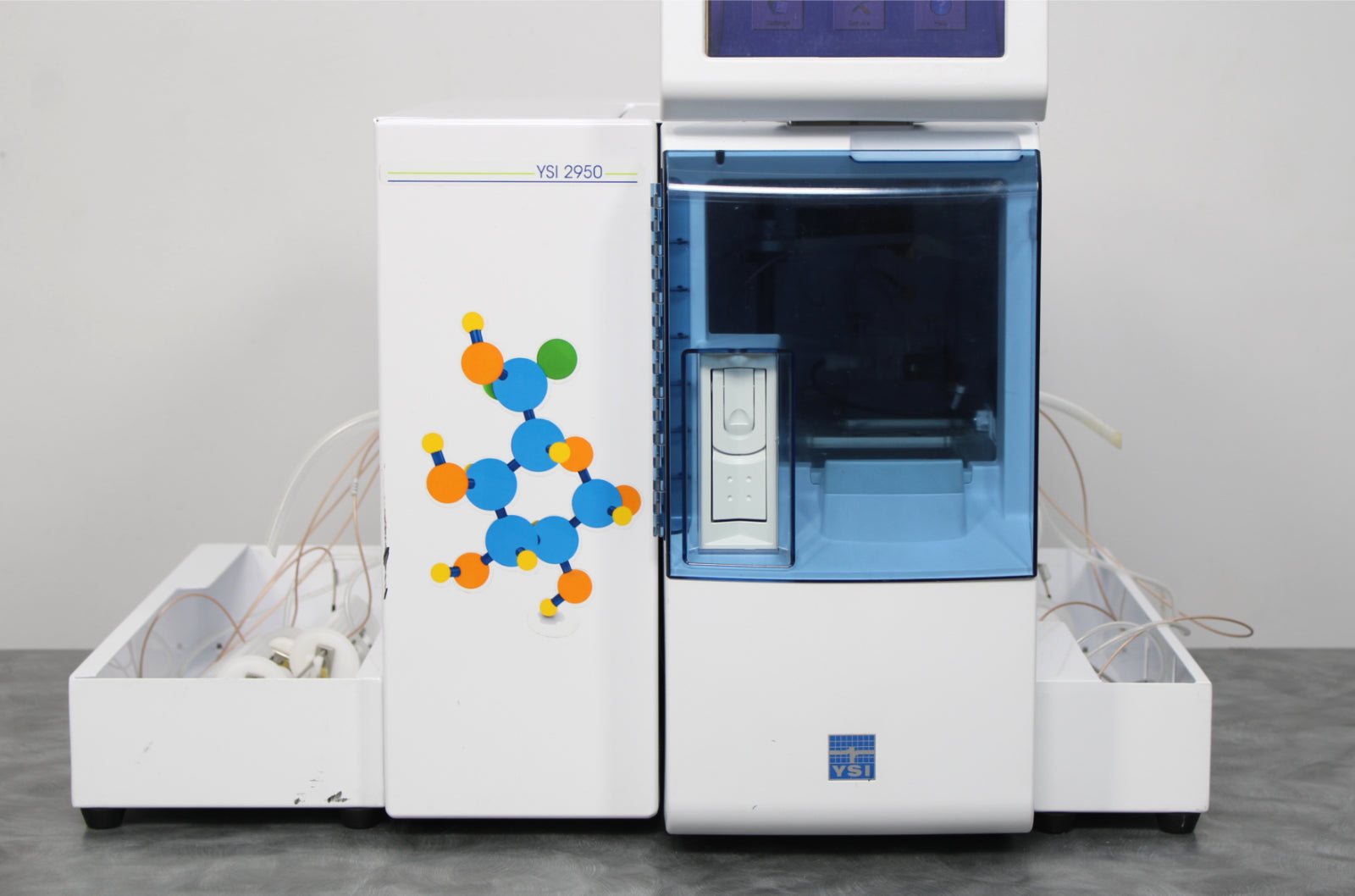

- YSI 2950D-1 Dual Module Biosensor Biochemistry Analyzer

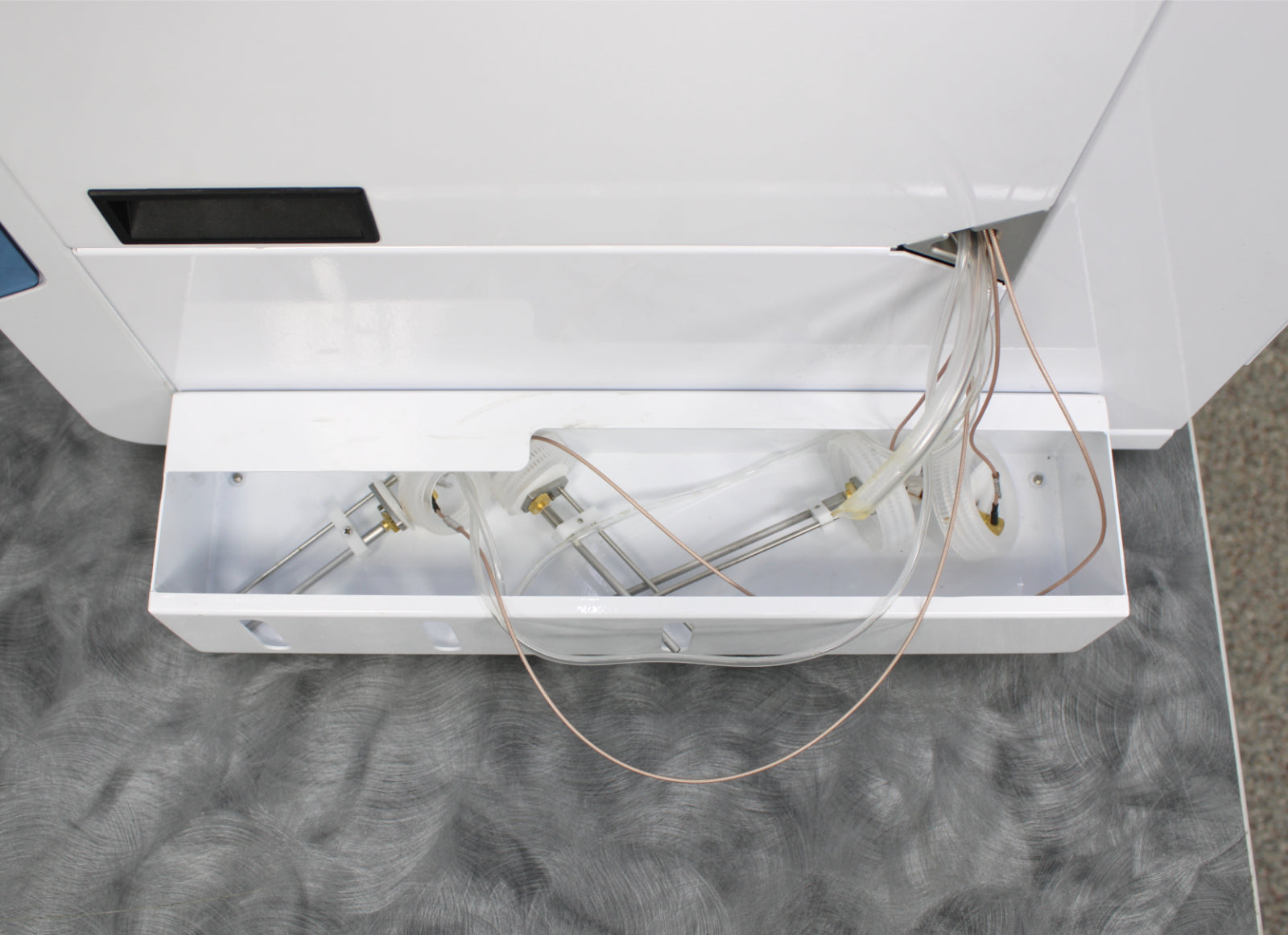

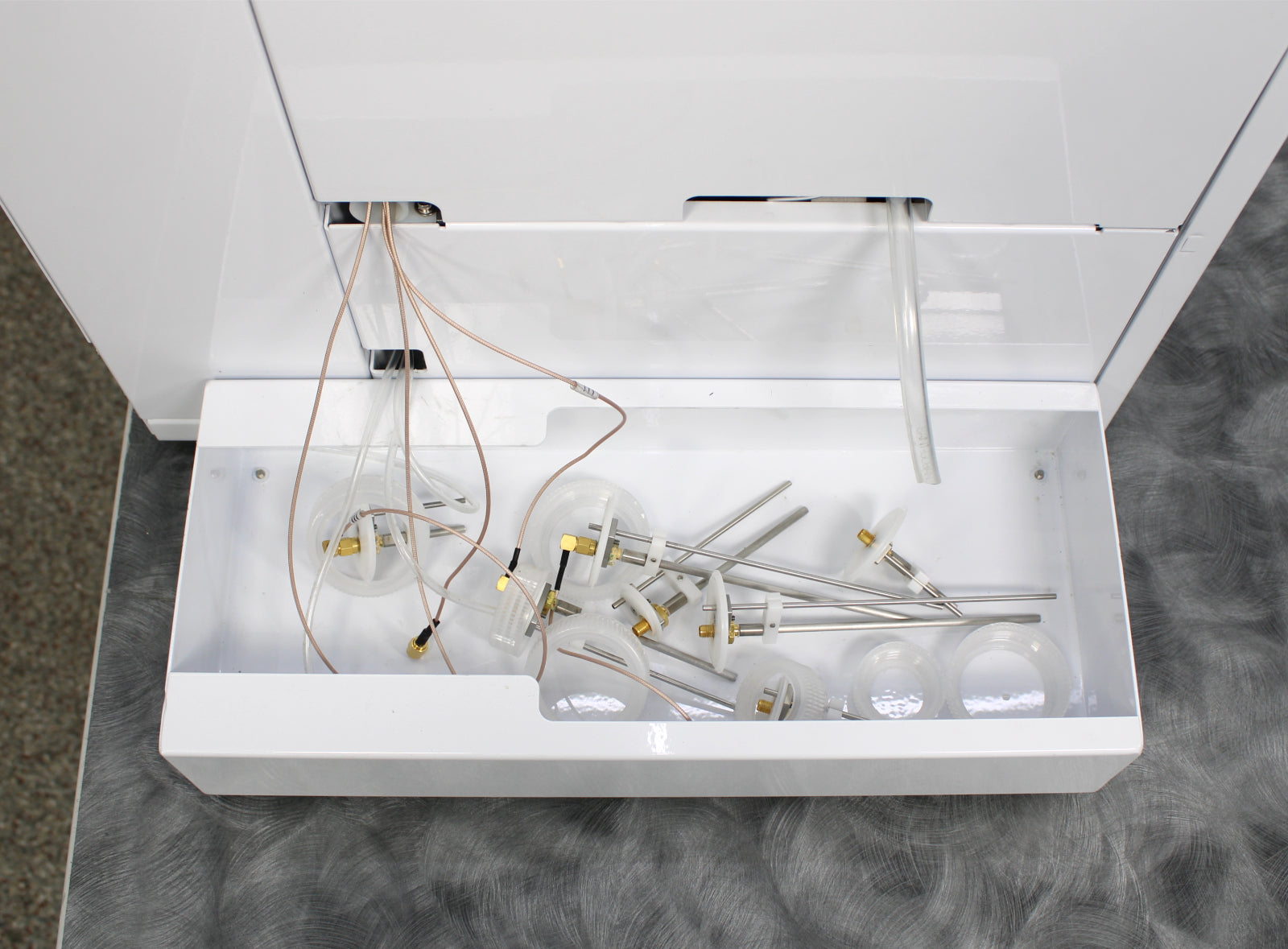

- x2 Bottle Trays
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the YSI 2950D-1 dual module biosensor biochemistry analyzer with the following results:
- Power and initialization: PASSED

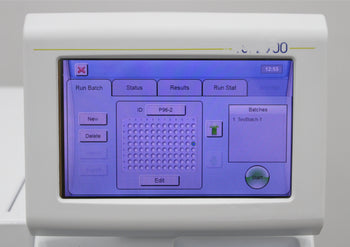

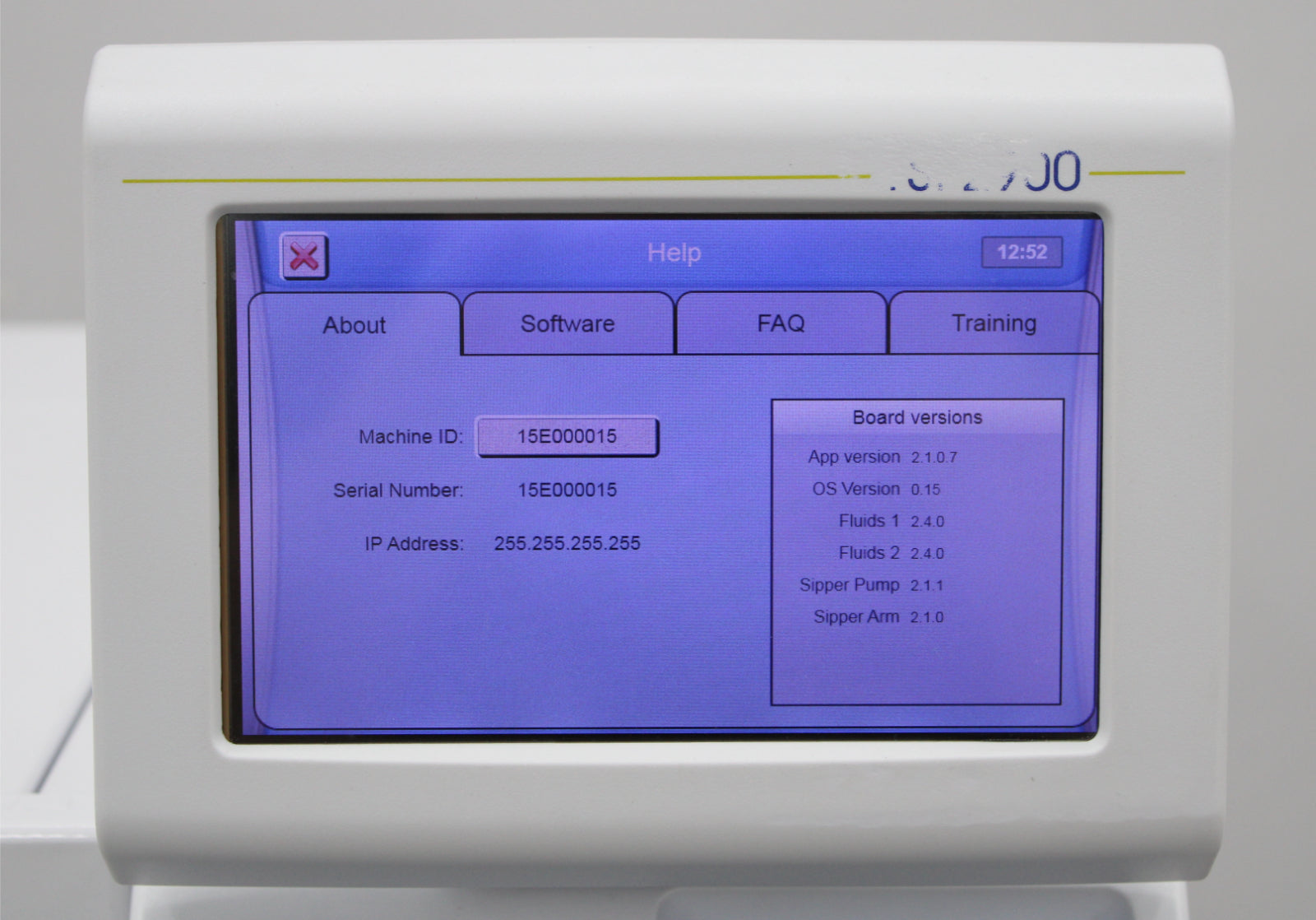

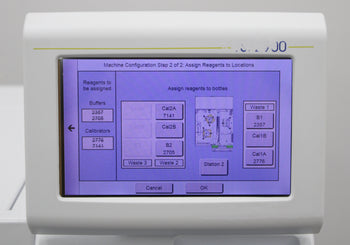

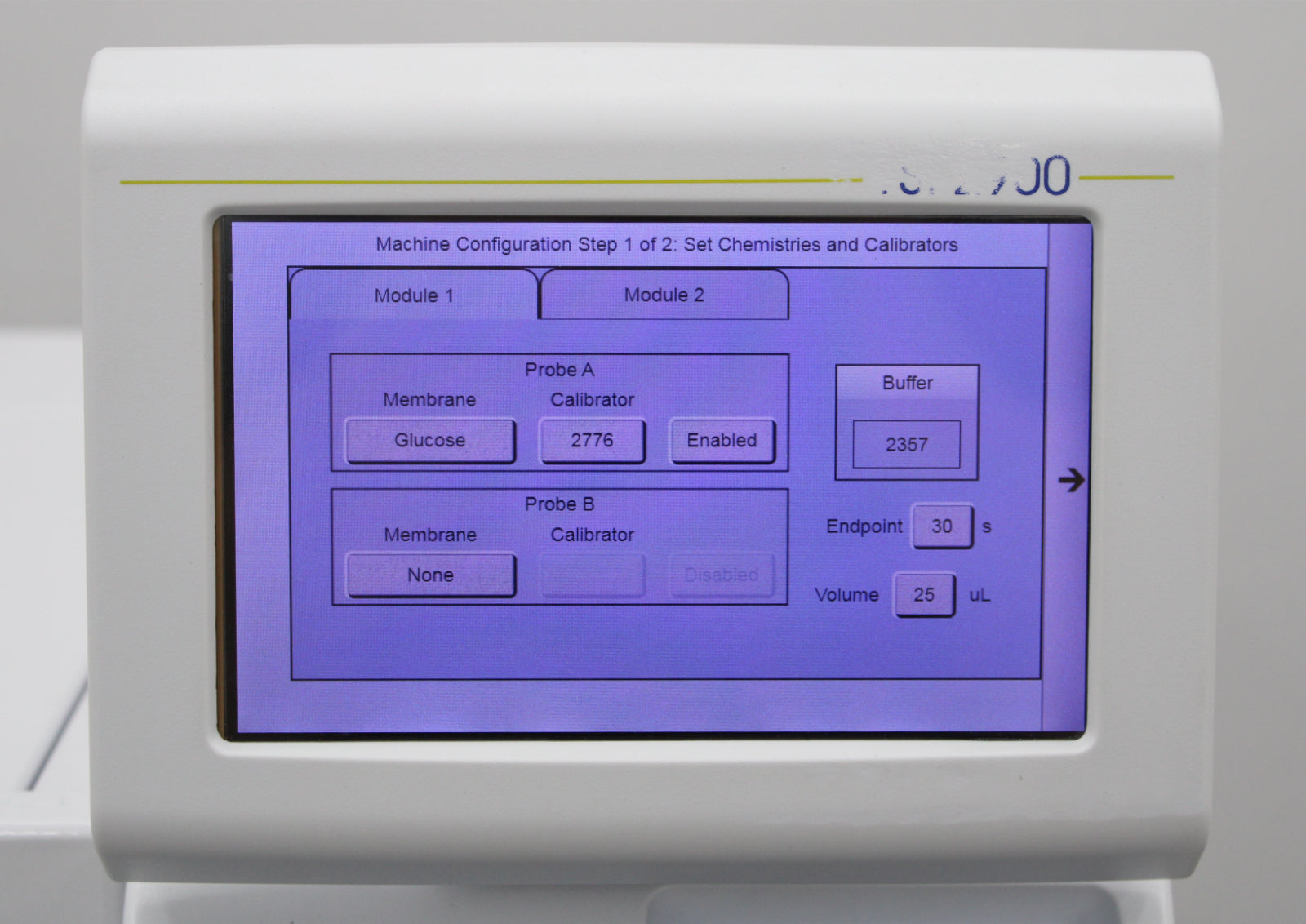

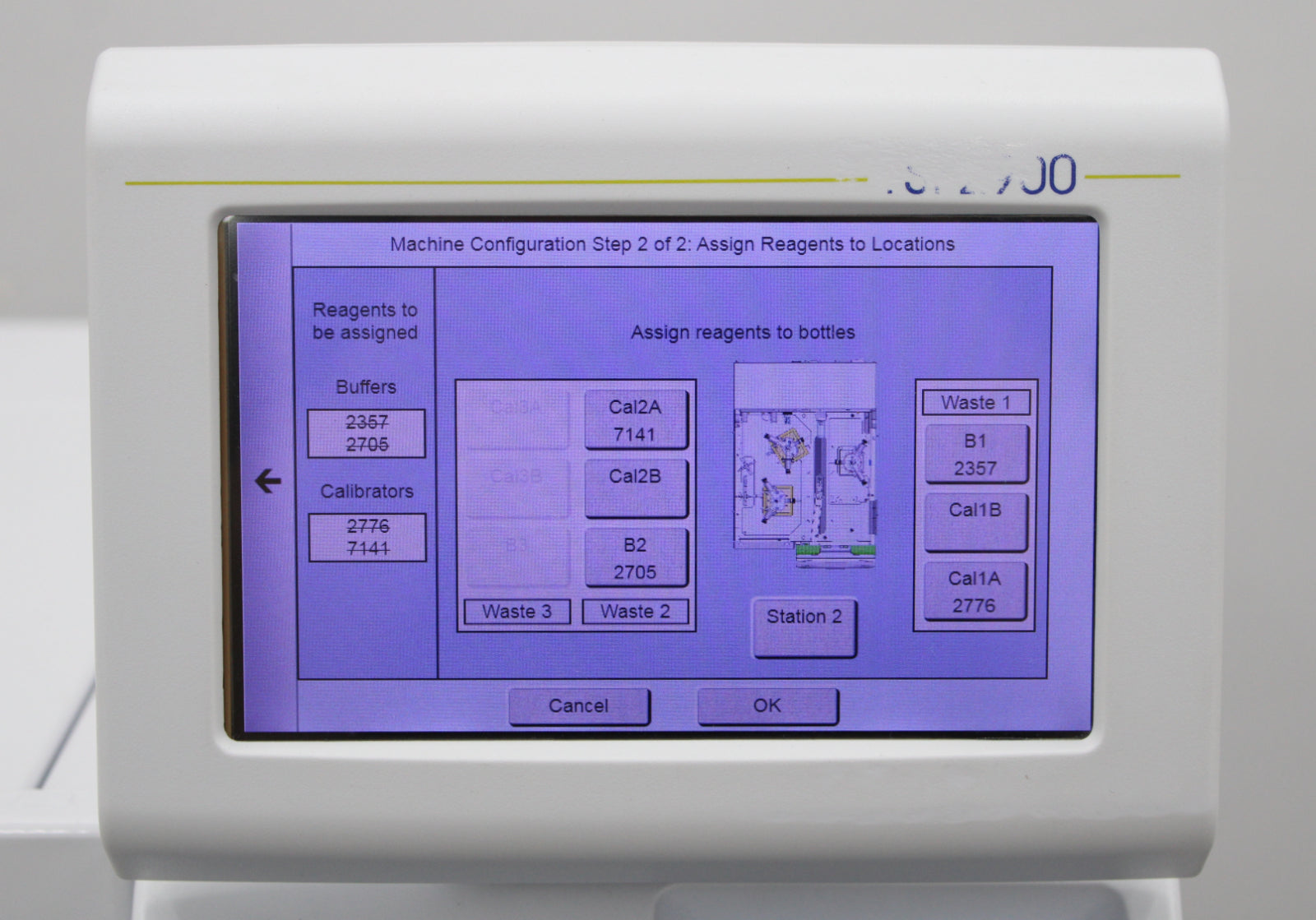

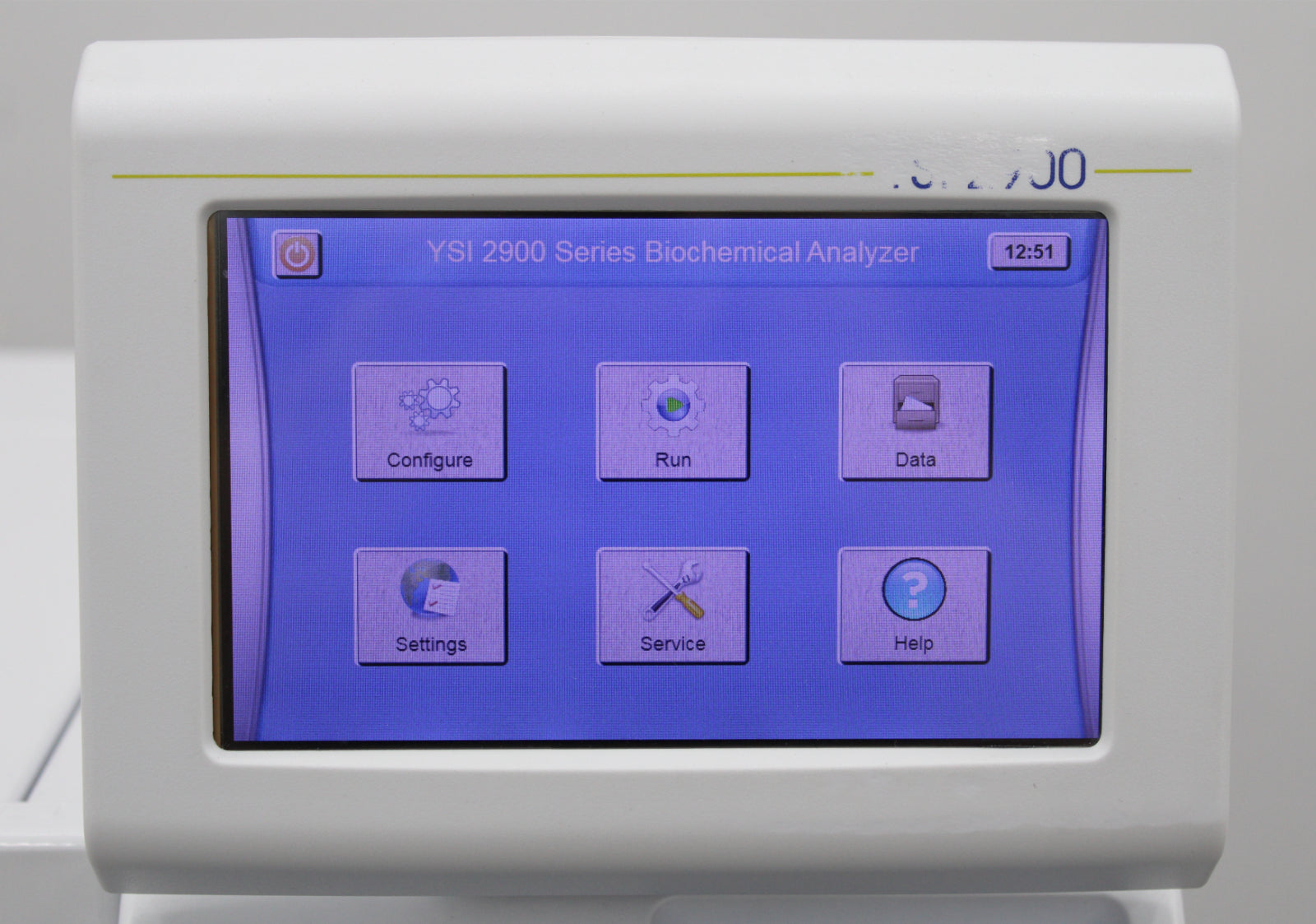

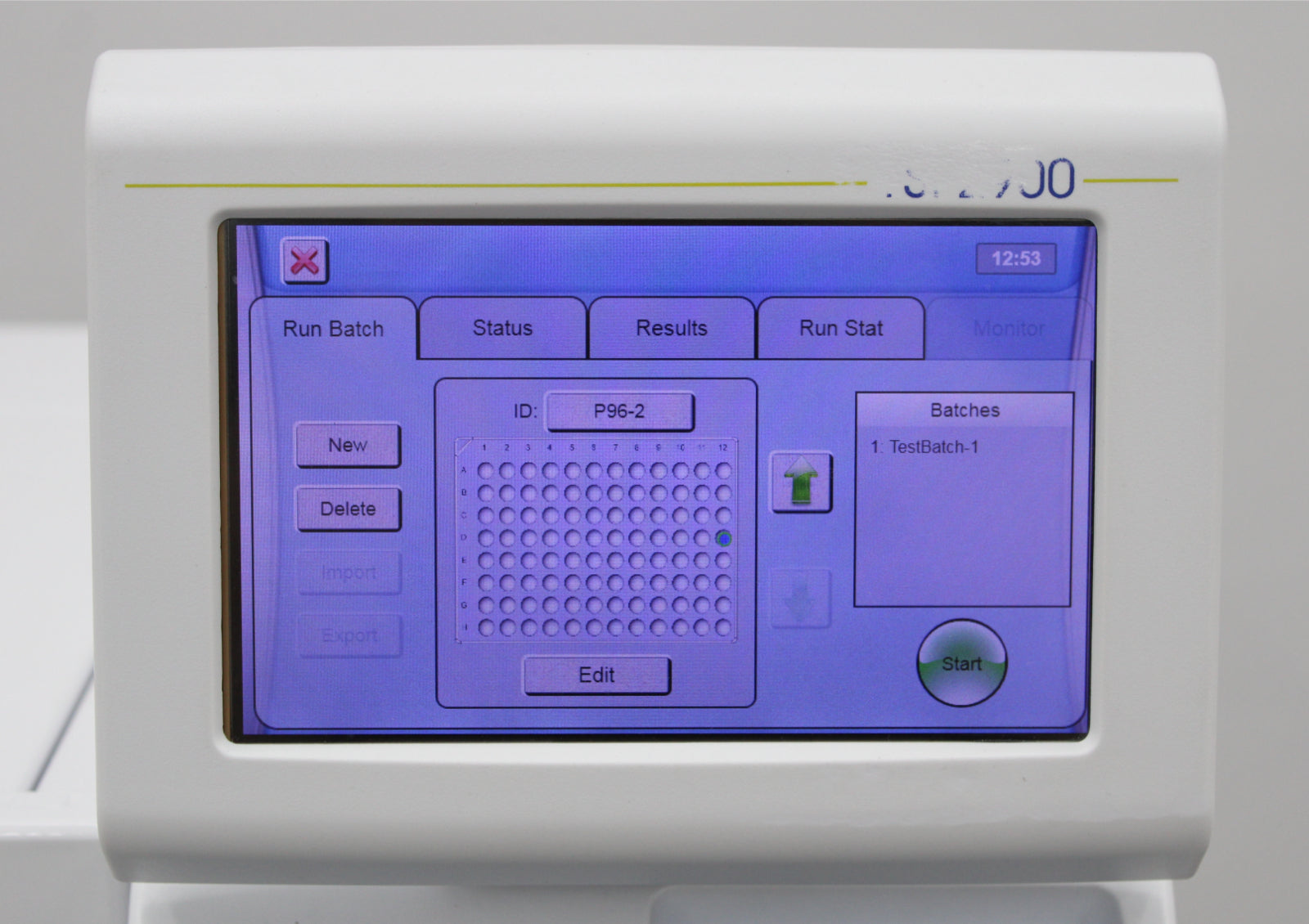

- Touchscreen interface: PASSED

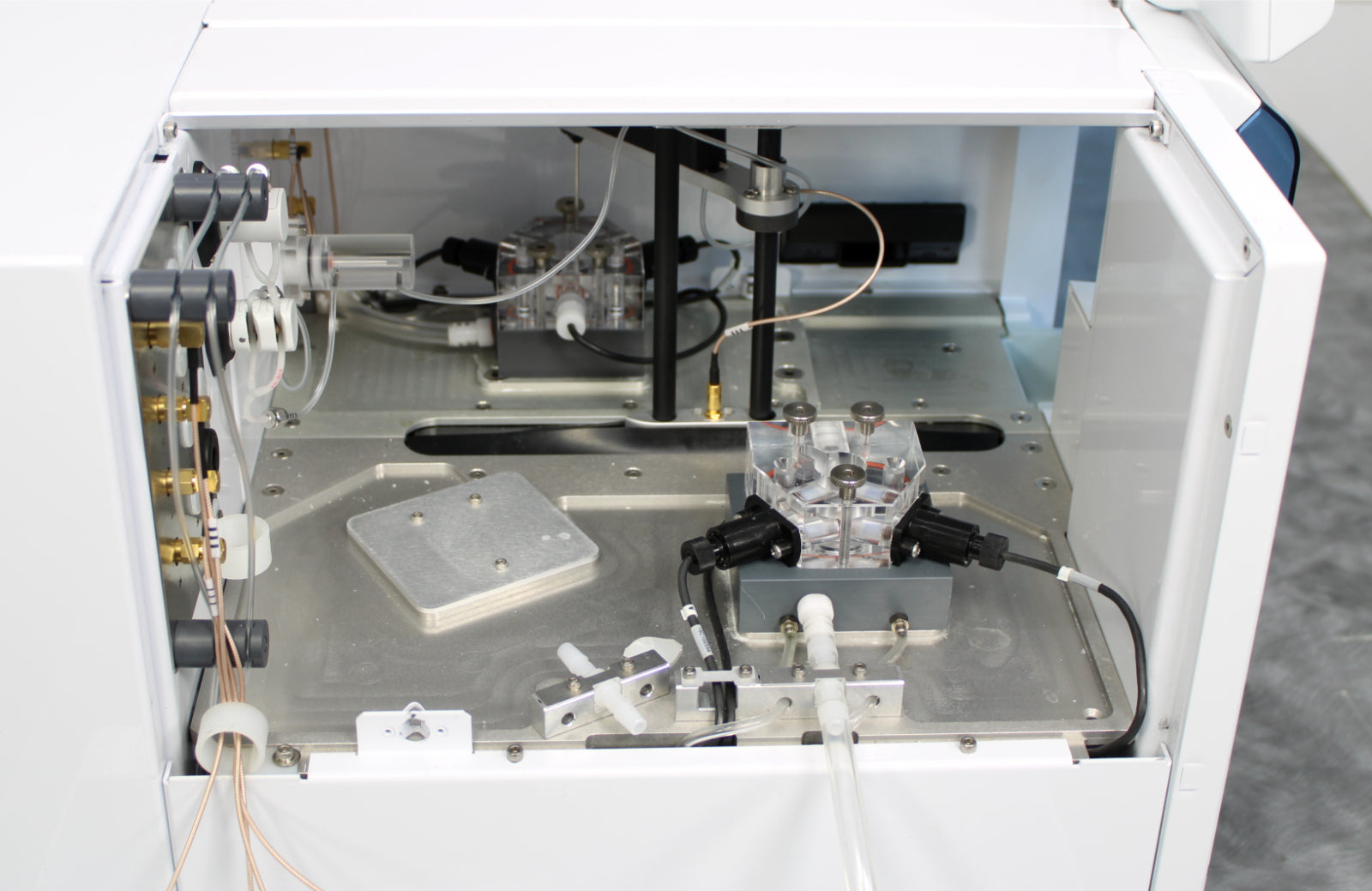

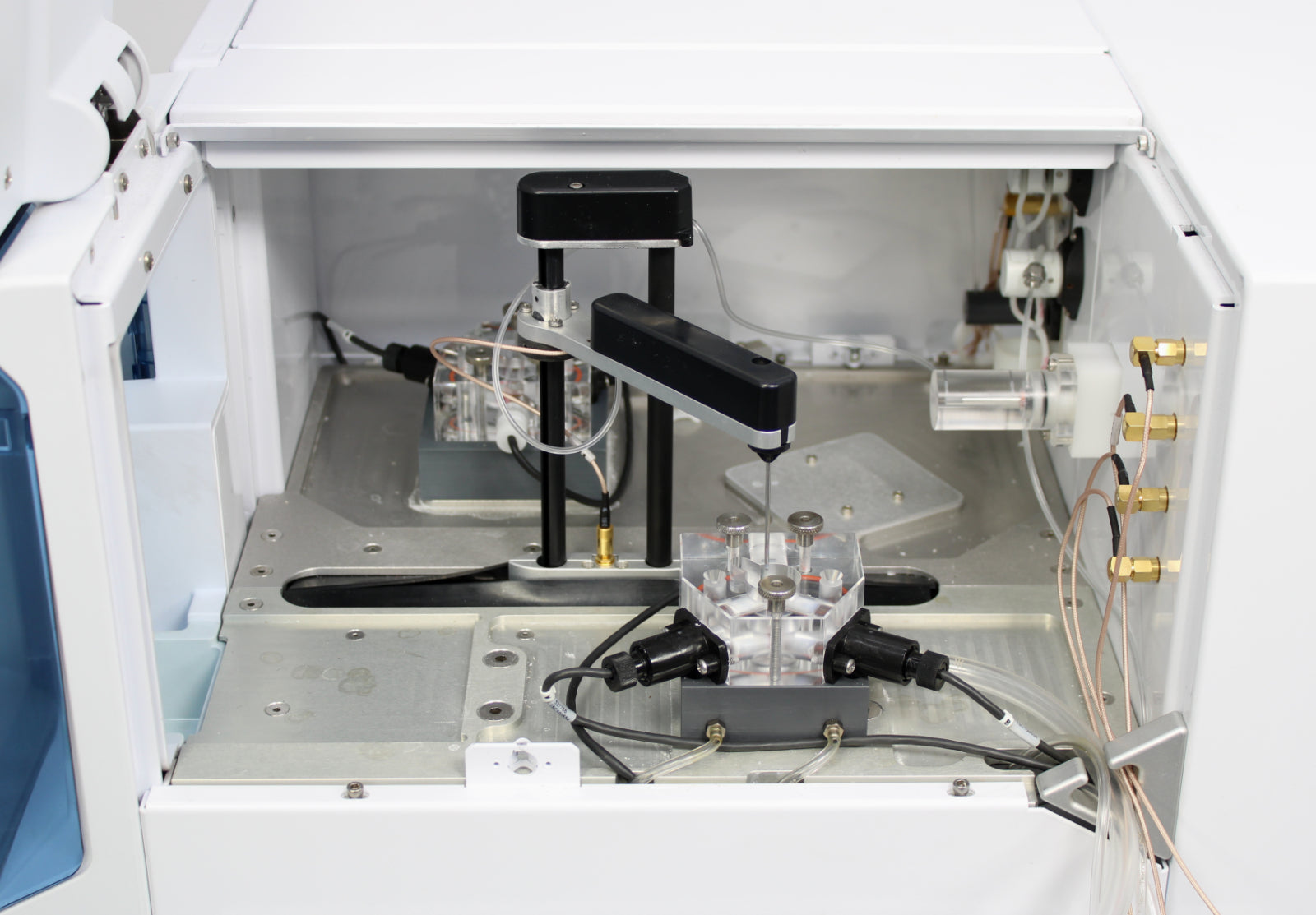

- Arm homing: PASSED

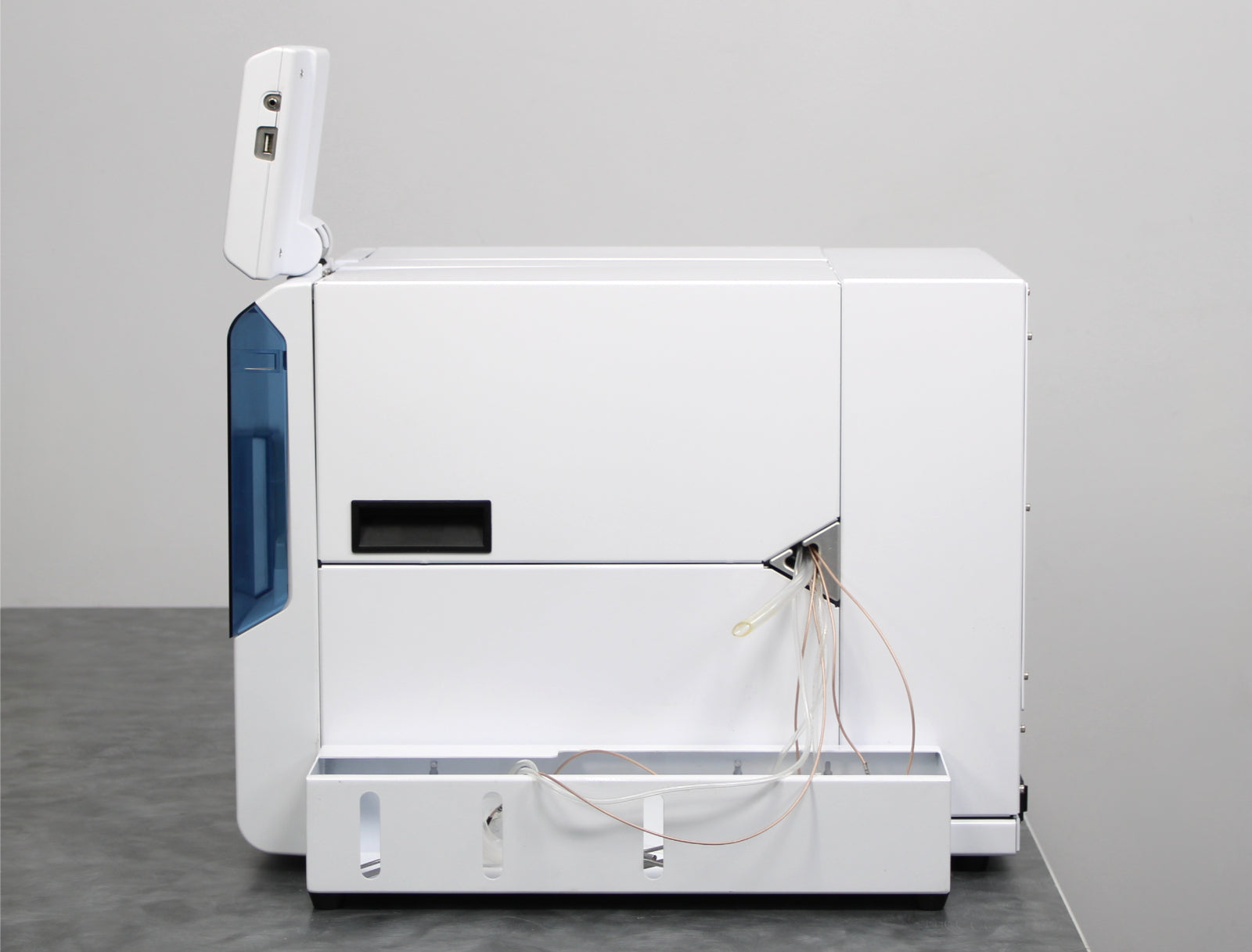

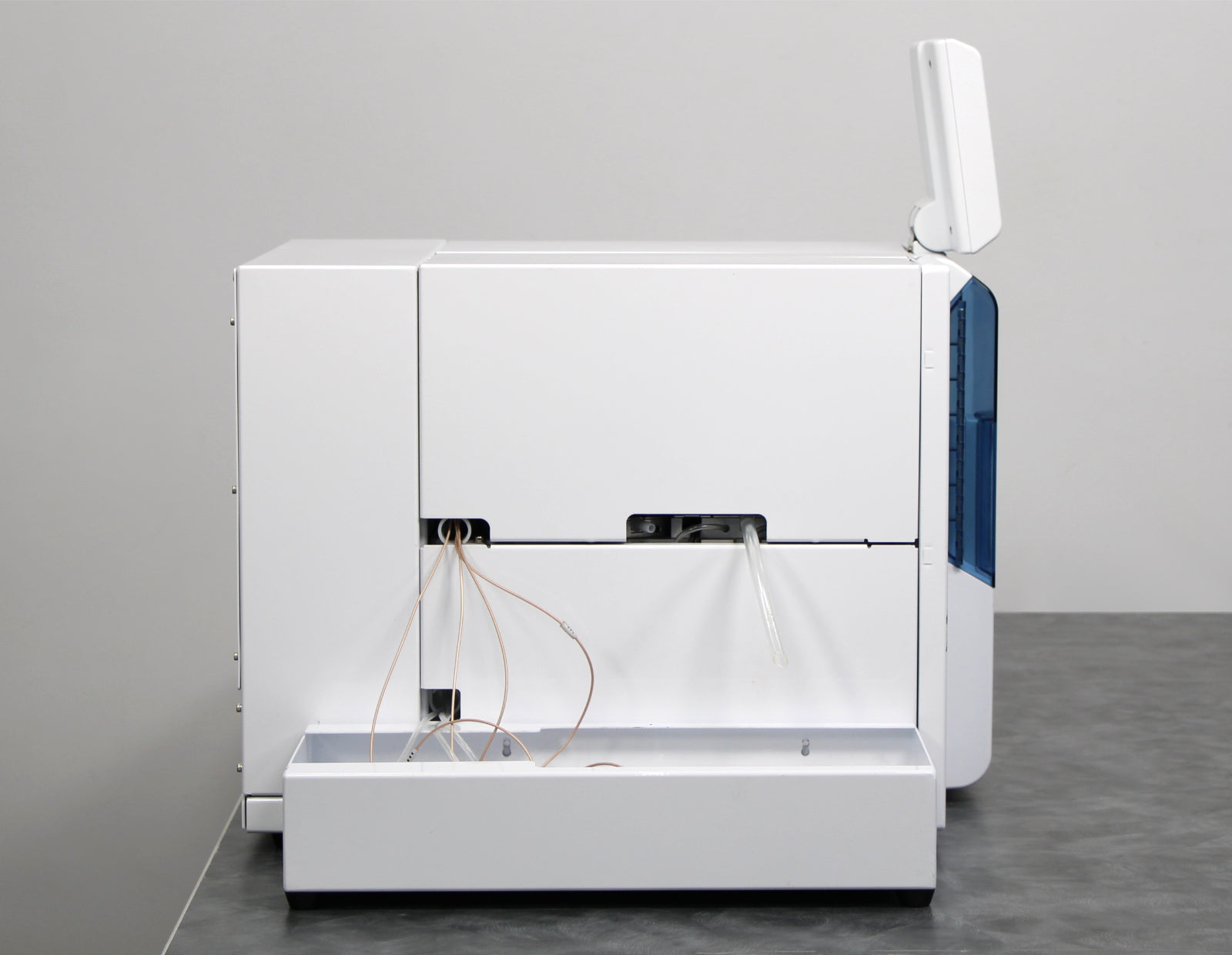

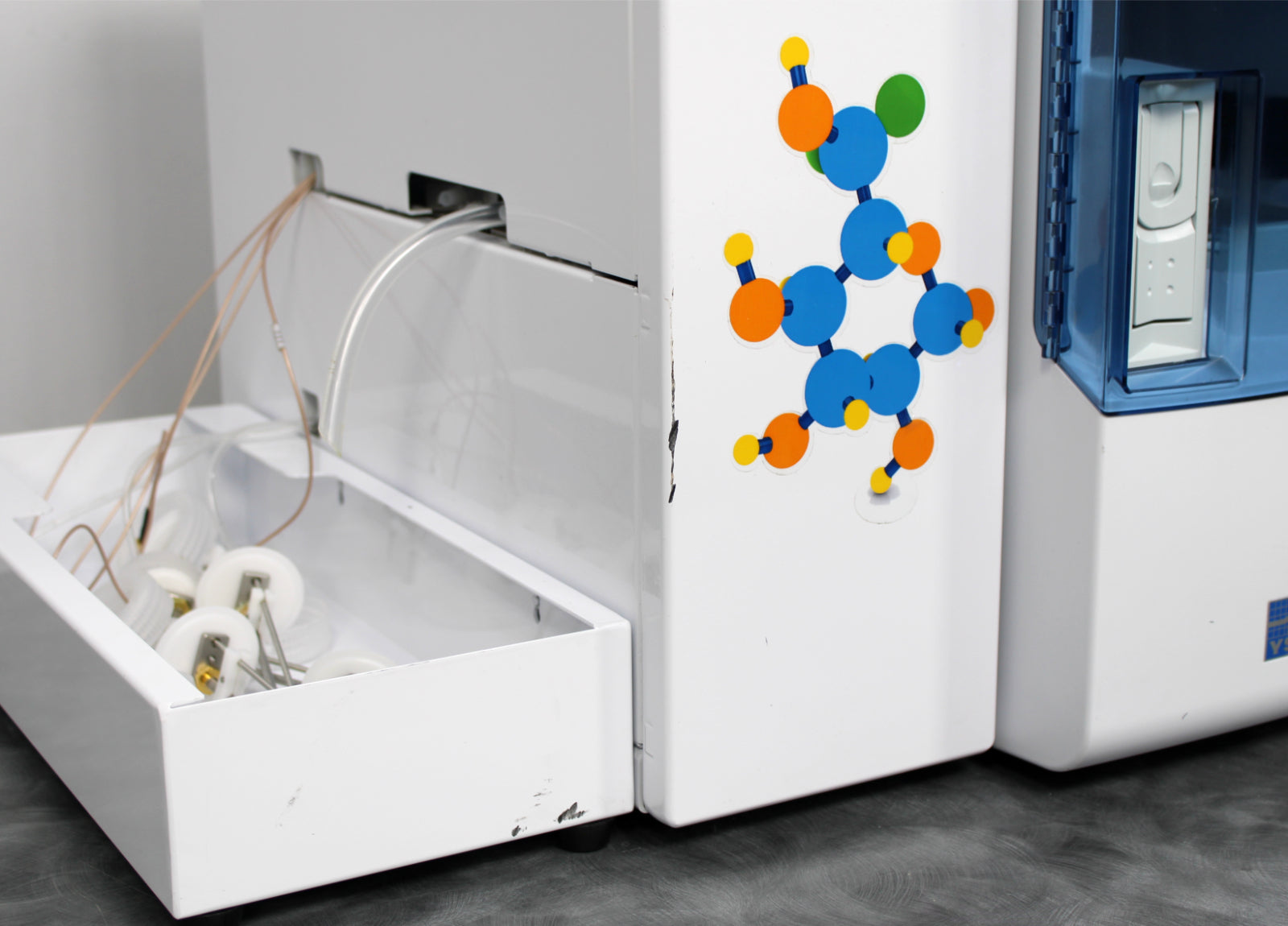

Notice: This analyzer has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
YSI Incorporated
|
|
Model
|
2950D-1
|
|

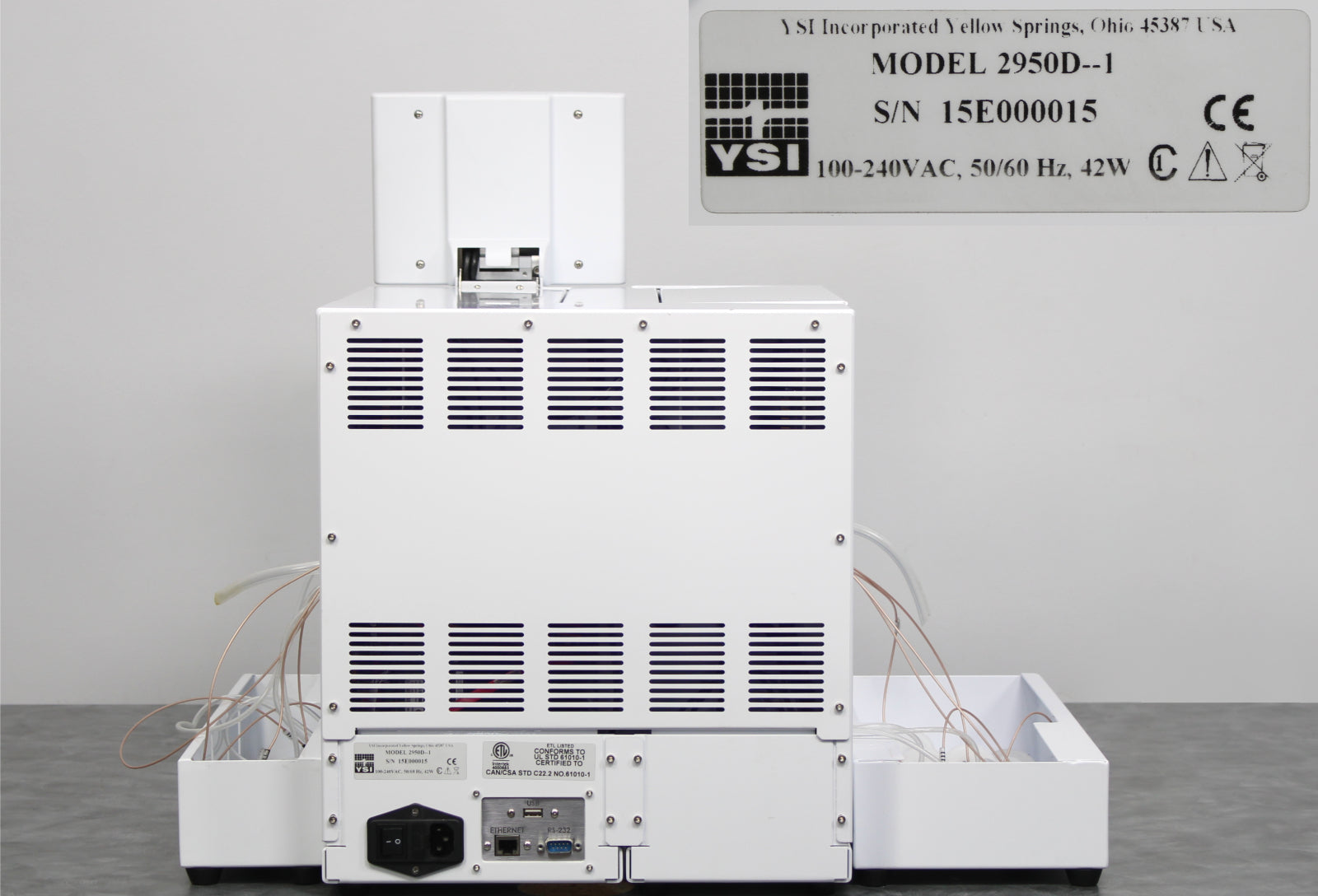

Serial No.
|
15E000015
|
|

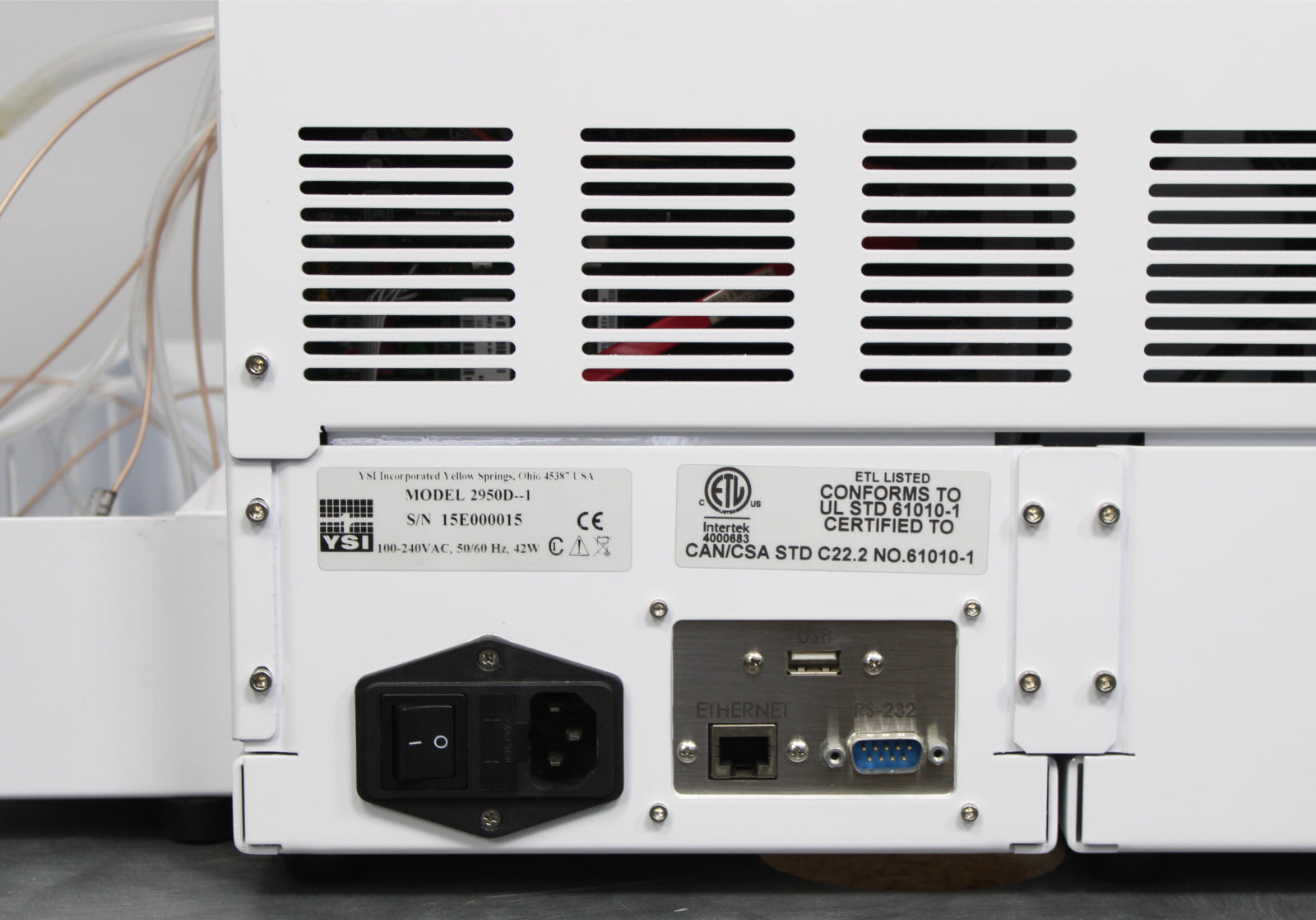

Connectivity/communications
|
Ethernet, USB
|
|
Module capacity
|
2 biosensor modules
|
|
Analysis response time
|
≤60 seconds per module
|
|
Aspirated sample volume
|
User-defined from 10 to 50 µL
|
|
Graphic display
|
Yes
|
|
Measurement range
|
Glucose: 0.05-25 g/L, Lactate: 0.05-2.70 g/L, Glutamate: 15-1460 mg/L, Glutamine: 30-1169 mg/L, Glycerol: 0.75-40 g/L, Xylose: 0.5-30 g/L, Choline: 5-450 mg/L, Hydrogen Peroxide: 3-300 mg/L, Sucrose: 0.1-25 g/L, Ethanol: 0.04-3.2 g/L, Methanol: 0.1-2.5 g/L, Lactose: 0.05-25 g/L, Galactose: 0.1-25 g/L
|
|
Parameters measured
|
Glucose, Lactate, Glutamate, Glutamine, Glycerol, Xylose, Choline, Hydrogen Peroxide, Sucrose, Ethanol, Methanol, Lactose, Galactose
|
|
Precision
|
Application specific, typical CV <2%
|
|
Unit of measure
|
mg/L, mg/dL, mmol/L, %, g/L
|
|
Memory
|
Yes
|
|
Operating temperature
|
15-35°C
|
|
Certification
|
ETL, CE, RoHS
|
|
Compliance
|
21 CFR, Part 11
GAMP 5
|
|
Power rating
|
100-240VAC, 50/60Hz, 42W
|
|
Dimensions (W x D x H)
|
14 x 21 x 22 in (35.5 x 53.3 x 55.9 cm)
|
|
Dimensions with trays (W x D x H)
|
25 x 21 x 22 in (63.5 x 53.3 x 55.9 cm)
|
|
Weight
|
39 lb (17.7 kg)
|
