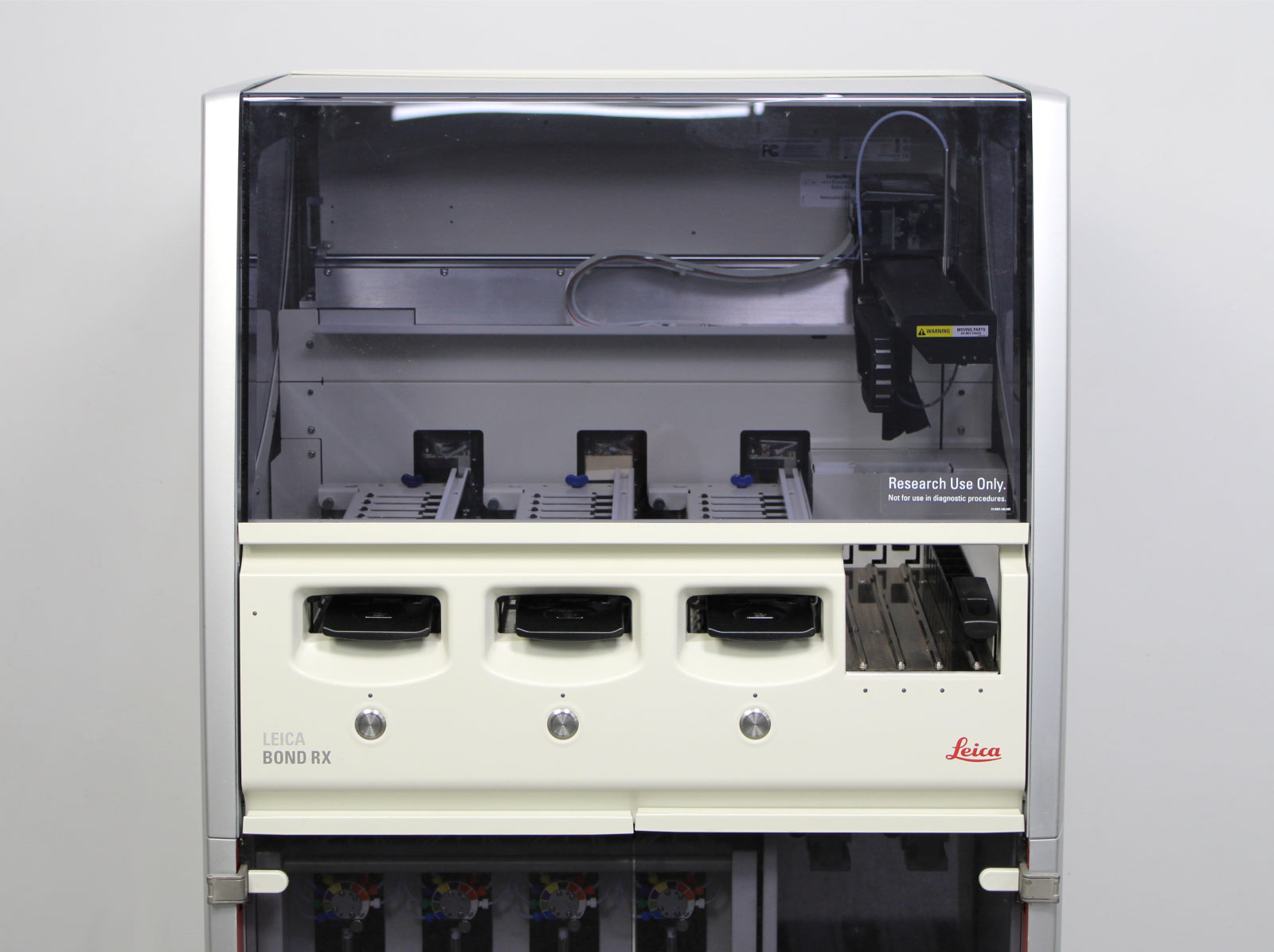

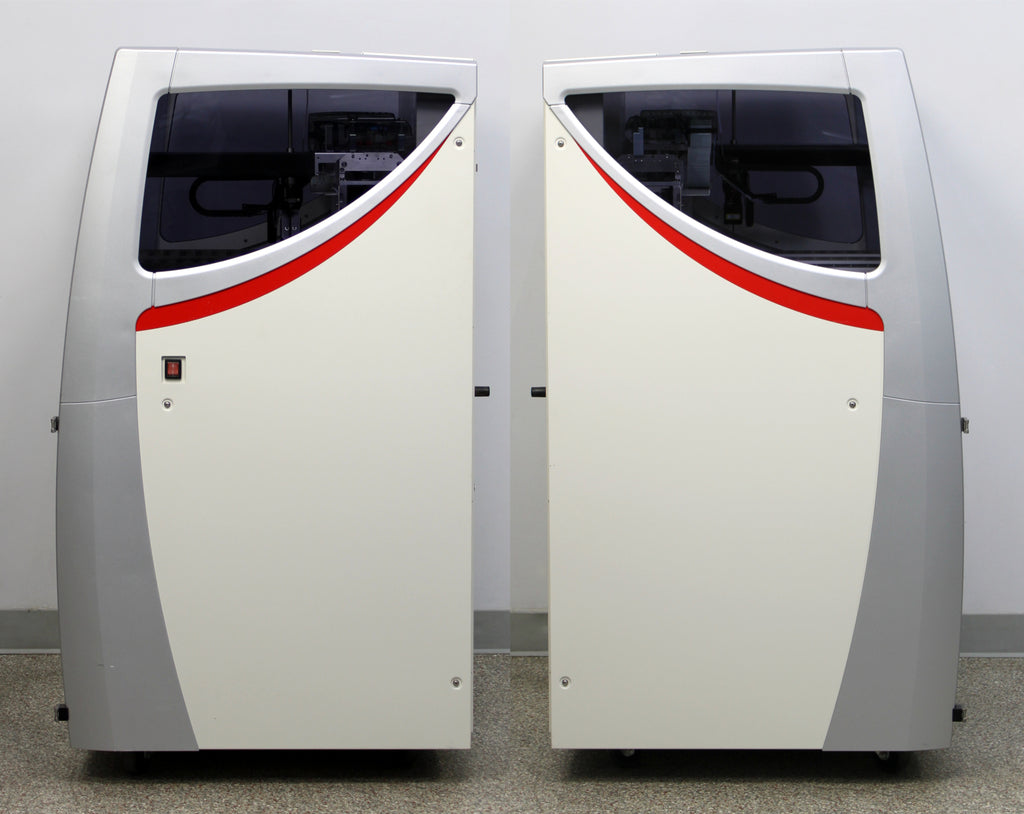

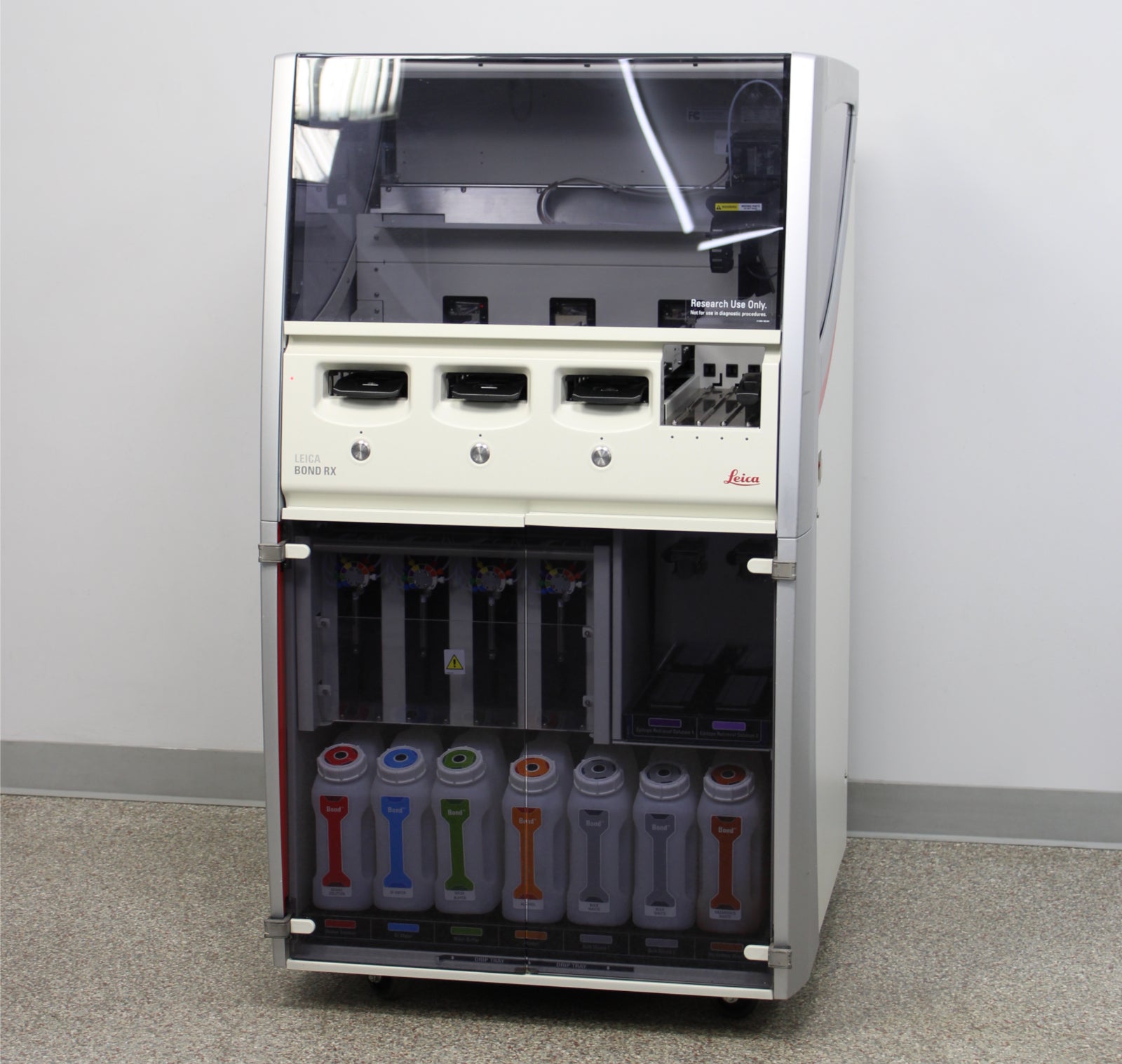

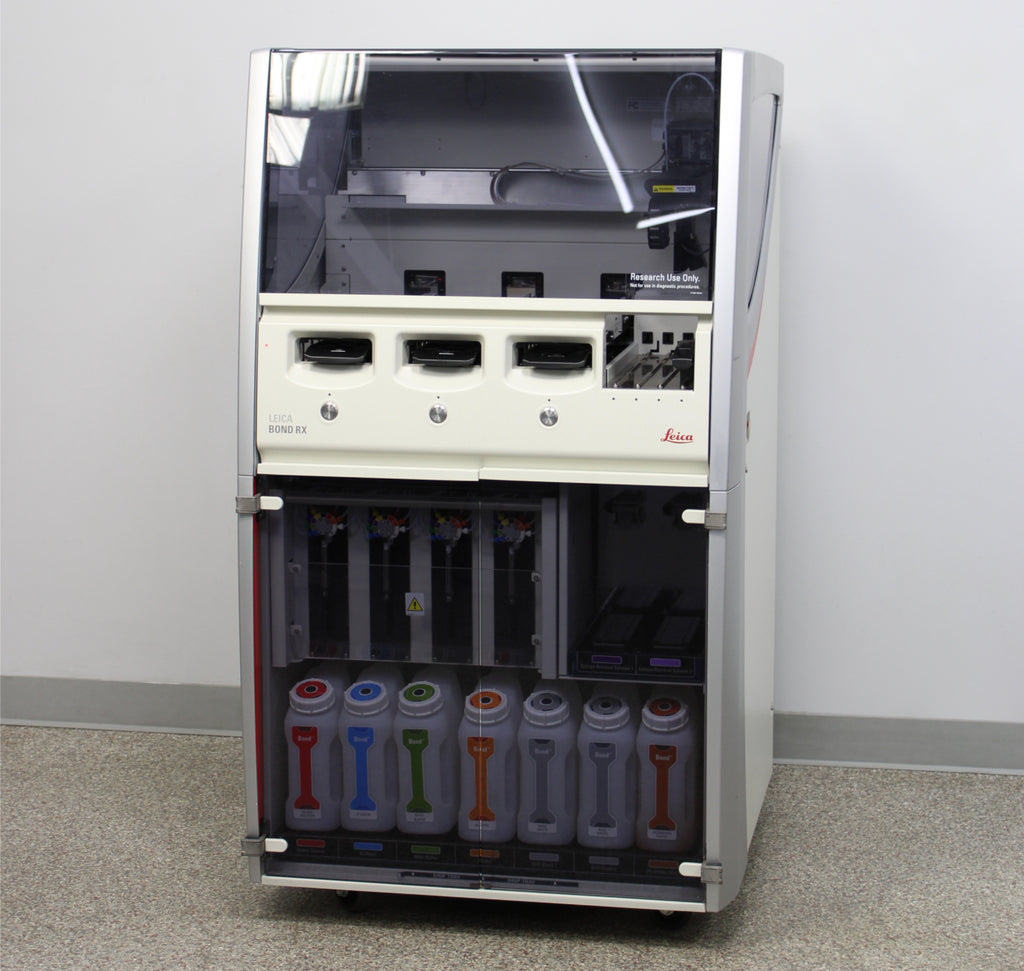

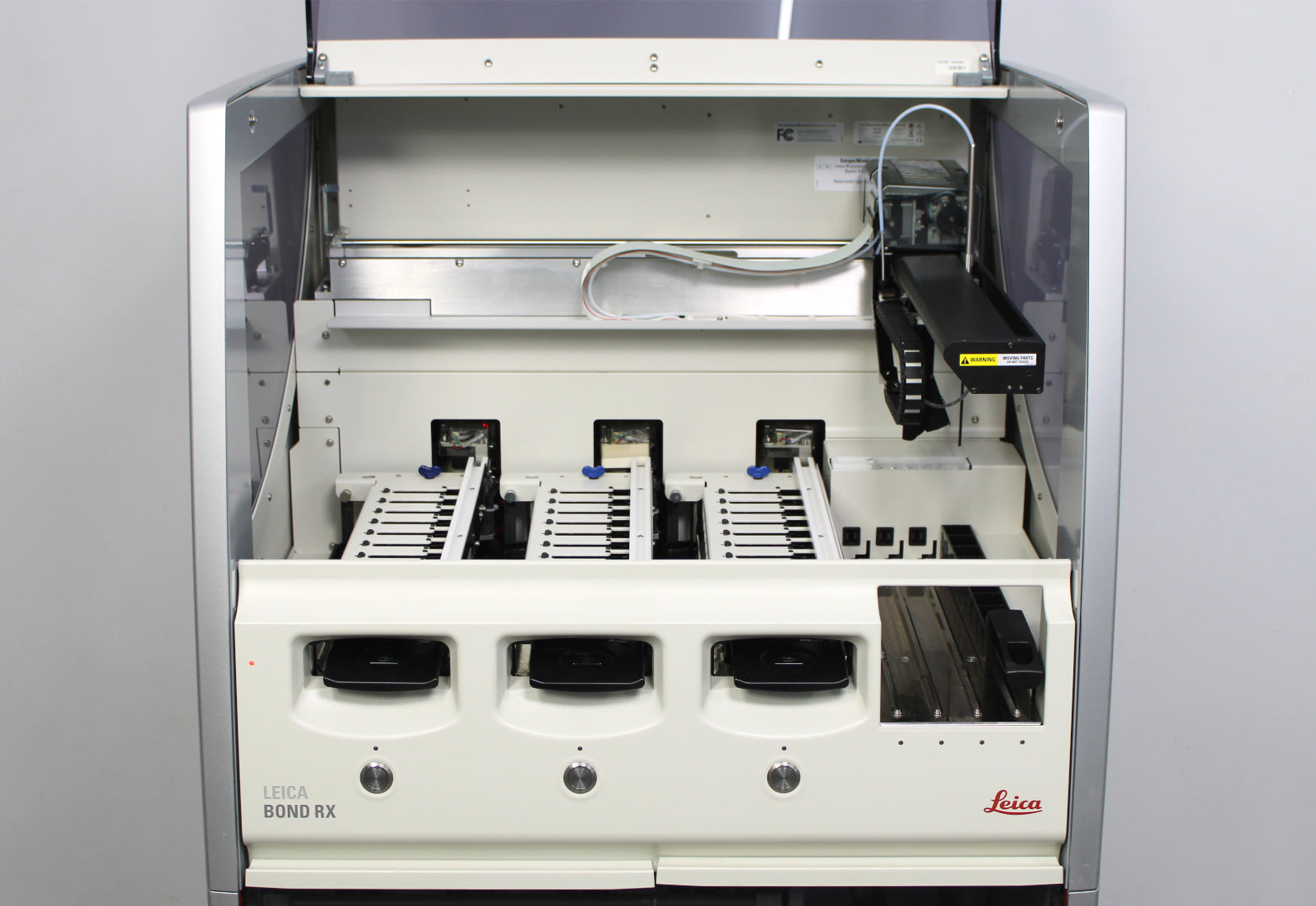

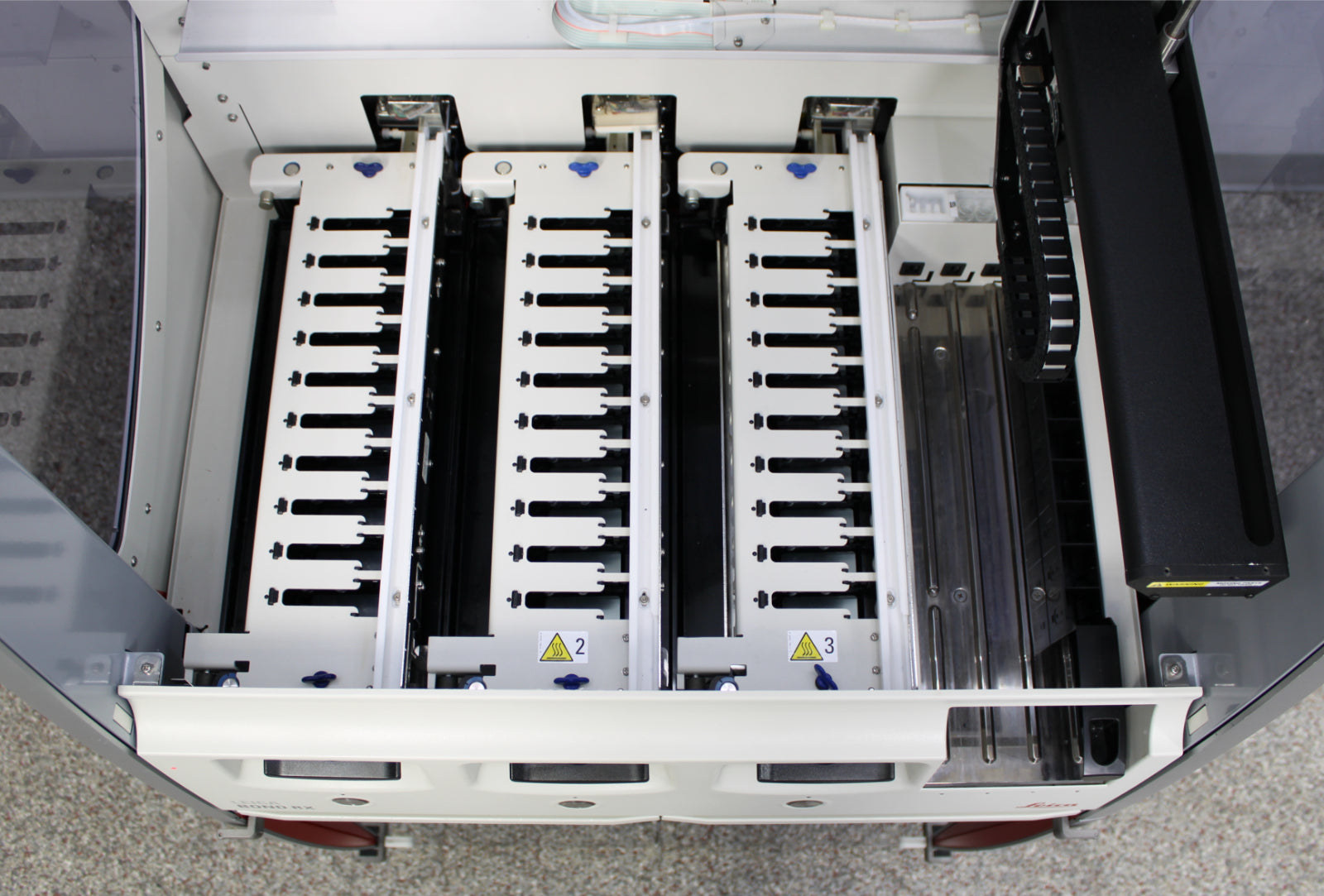

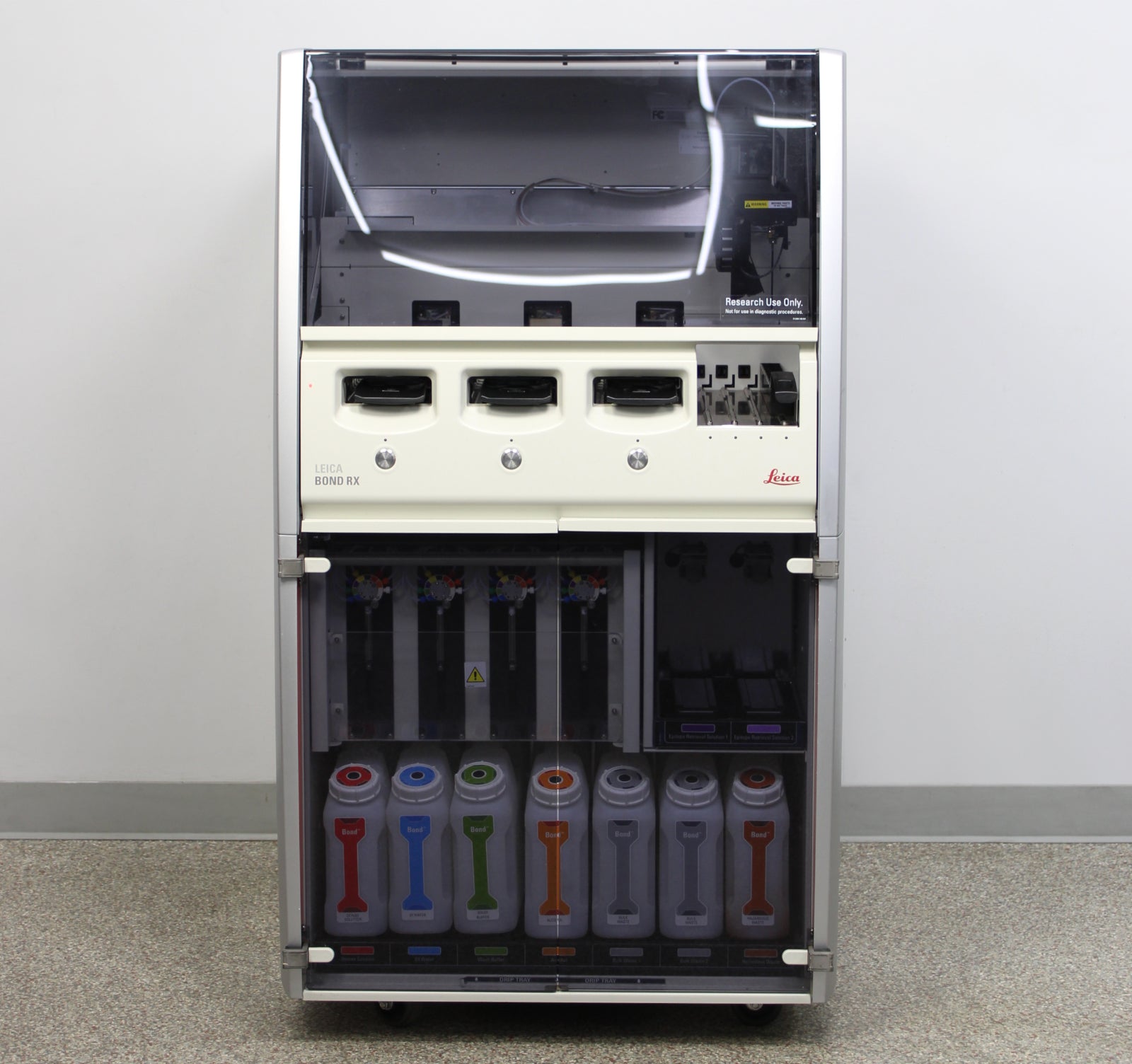

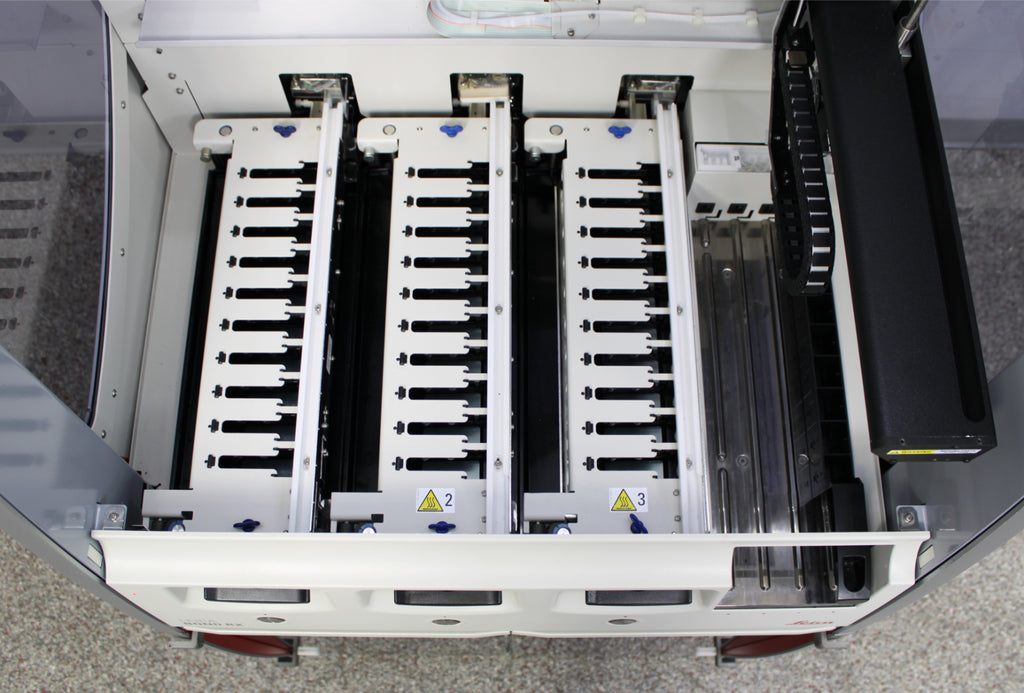

- Leica Biosystems BOND RX Fully Automated Research Slide Stainer

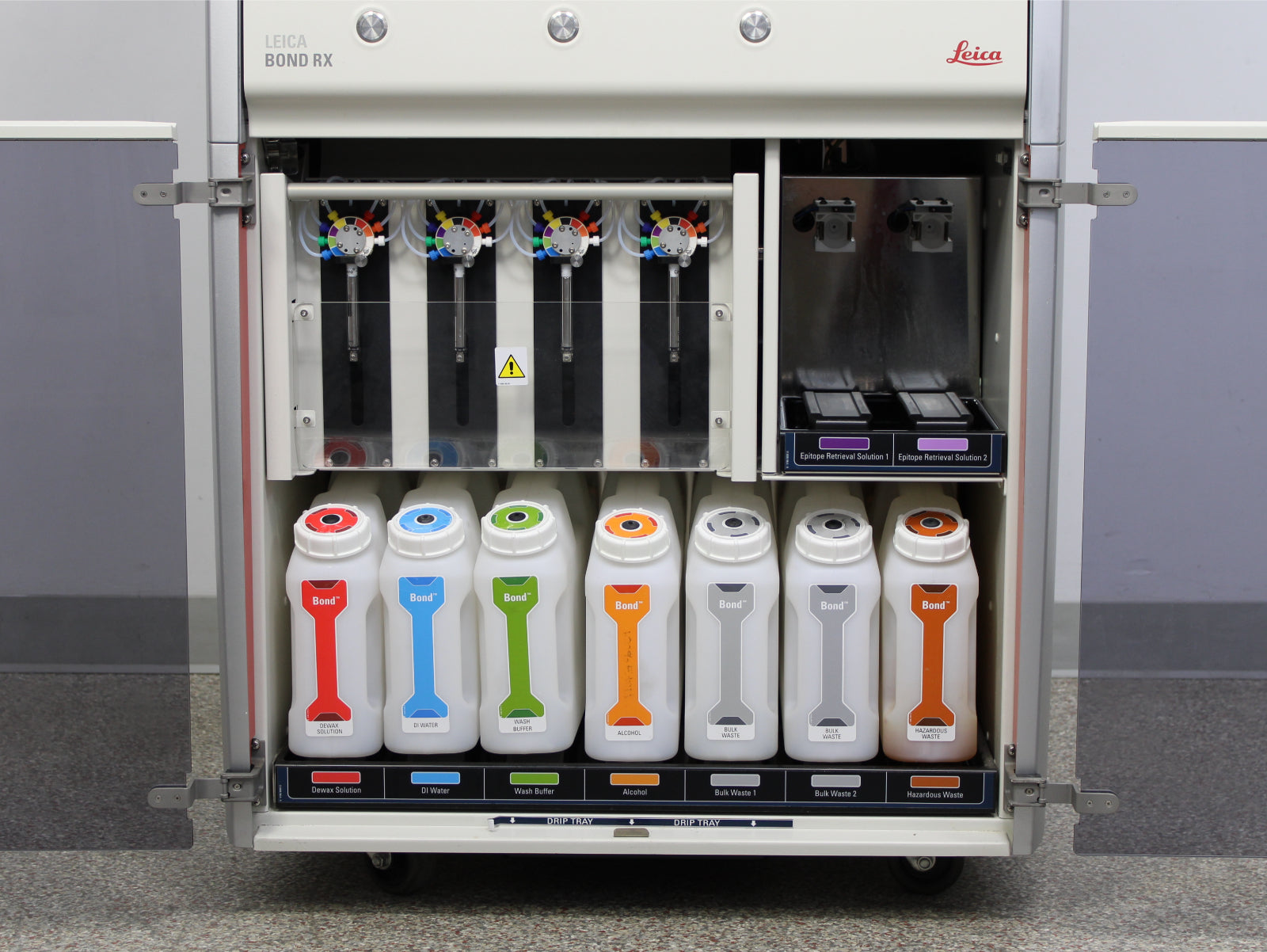

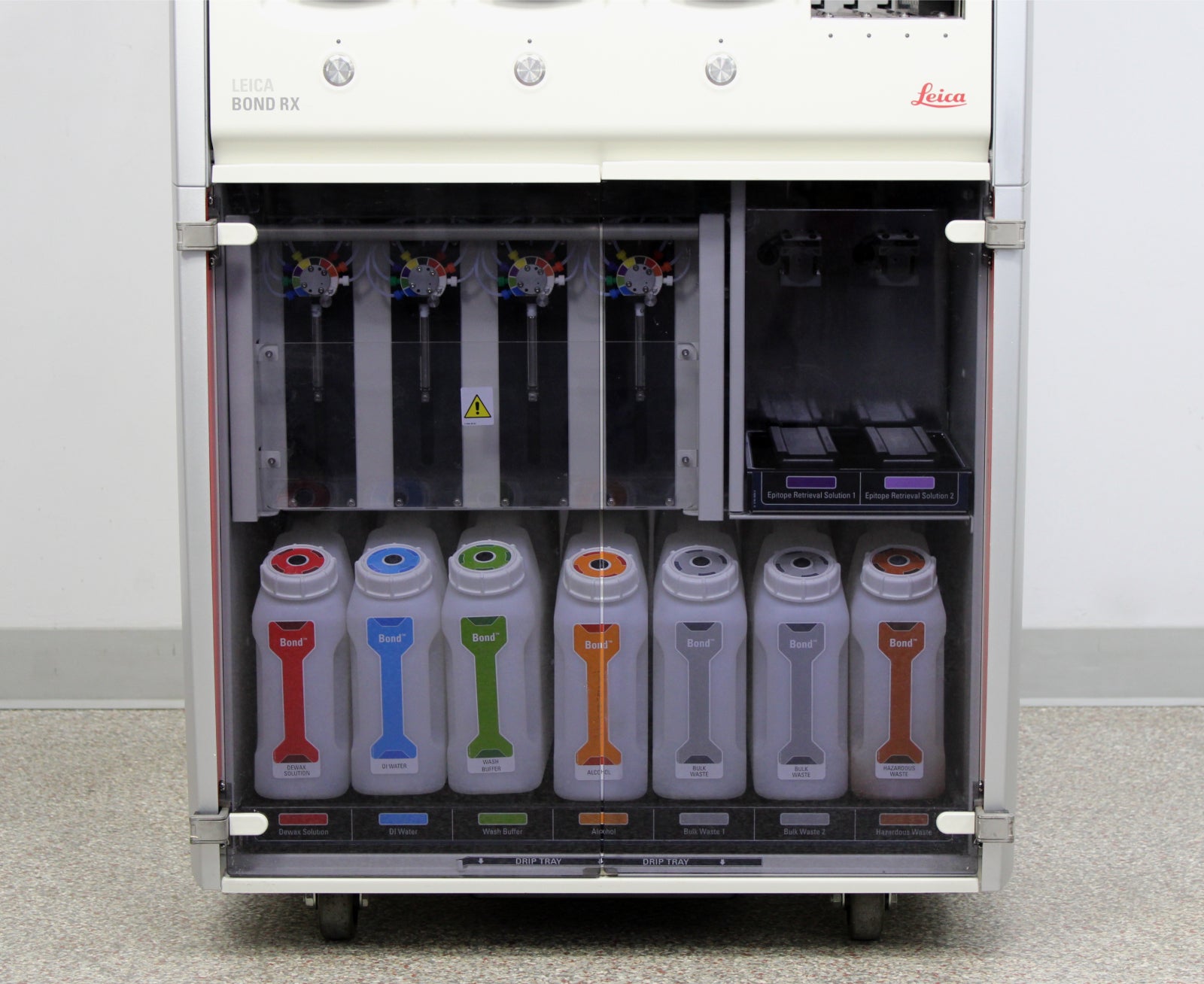

- Reagent Vessels
- Power Cable
- 90-Day Warranty
Notice: Anything not mentioned in this product listing or shown in the product photos is not included and must be acquired separately.
We powered on this instrument and observed the status light illuminate and a chime sound. No further testing was performed.
|

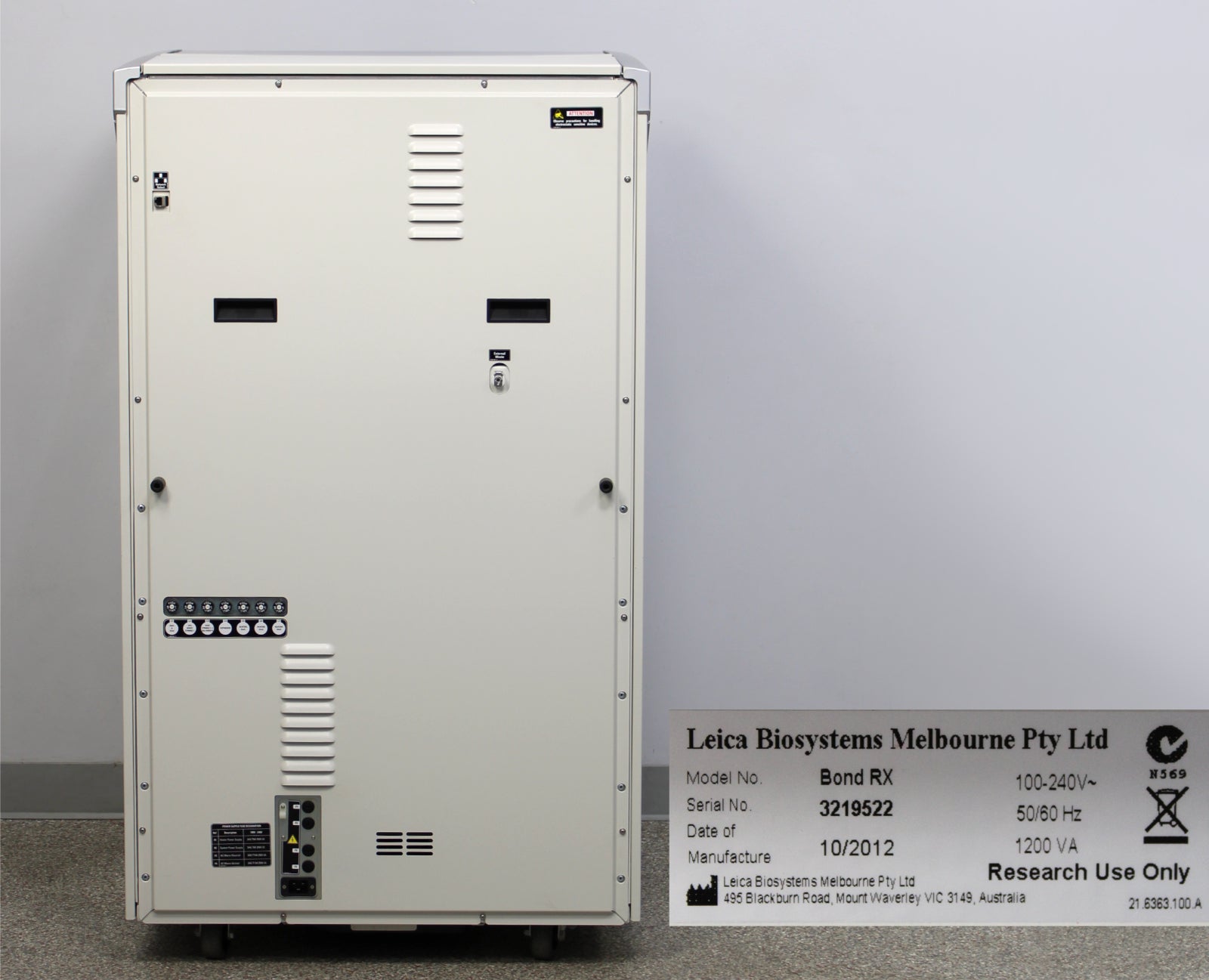

Manufacturer
|
Leica Biosystems
|
|
Model No.
|
BOND RX
|
|
Serial No.
|
3219522
|
|
Mfg. date
|
10/2012
|
|
Slide capacity
|
30
Finished trays (10 slides) may be replaced continuously
|
|
Number of reagent containers
|
36
|
|
Reagent container capacity
|
7 mL and 30 mL
|
|
Titration container capacity
|
6 mL
|
|
Bulk reagent container capacity
|
2 L or 5 L
|
|
Hazardous waste container capacity
|
5 L
|
|
Standard waste container capacity
|
2 x 5 L
|
|
Chemical compatibility
|
All BOND reagents
70% alcohol solution (for cleaning purposes)
|
|
Temperature indication
|
Defaults (these can be changed by service representatives): Warm: 35°C, Hot: 80°C
|
|
Maximum permitted pressure for gas and liquid connections
|
1.0 bar
|
|
Slide width
|
24.64–26.0 mm (0.97–1.02 in)
|
|
Slide length
|
74.9–76.0 mm (2.95–2.99 in)
|
|
Slide thickness
|
0.8–1.3 mm (0.03–0.05 in)
|
|
Slide label area width
|
24.64–26.0 mm (0.97–1.02 in)
|
|
Slide label area length
|
16.9–21.0 mm (0.67–0.83 in)
|
|
Slide material
|
Glass, ISO 8037/1
|
|
Maximum operating temperature
|
35°C (95°F)
|
|
Minimum operating temperature
|
5°C (41°F)
|
|
Temperature required to meet staining performance requirements
|
18–26°C (64–79°F)
|
|
Maximum heating energy output
|
1200W/1000W
|
|
Operating humidity (non-condensing)
|
30 to 80% RH
|
|
Maximum operation altitude
|
0 to 1600 m (5250 ft.) above sea level
|
|
Sound pressure level output (at 1m)
|
<85 dBA maximum
<65 dBA normal operation
|
|
Storage temperature
|
-20 to 55°C (-04 to 131°F)
|
|
Storage humidity (non-condensing)
|
<80% RH
|
|
Power rating
|
100-240V~, 50/60Hz
|
|
Power consumption
|
1200VA
|
|
Dimensions (W x D x H)
|
31.1 x 31.73 x 54.25 in (79 x 80.6 x 137.8 cm)
|
|
Weight (dry)
|
525 lb (238 kg)
|
