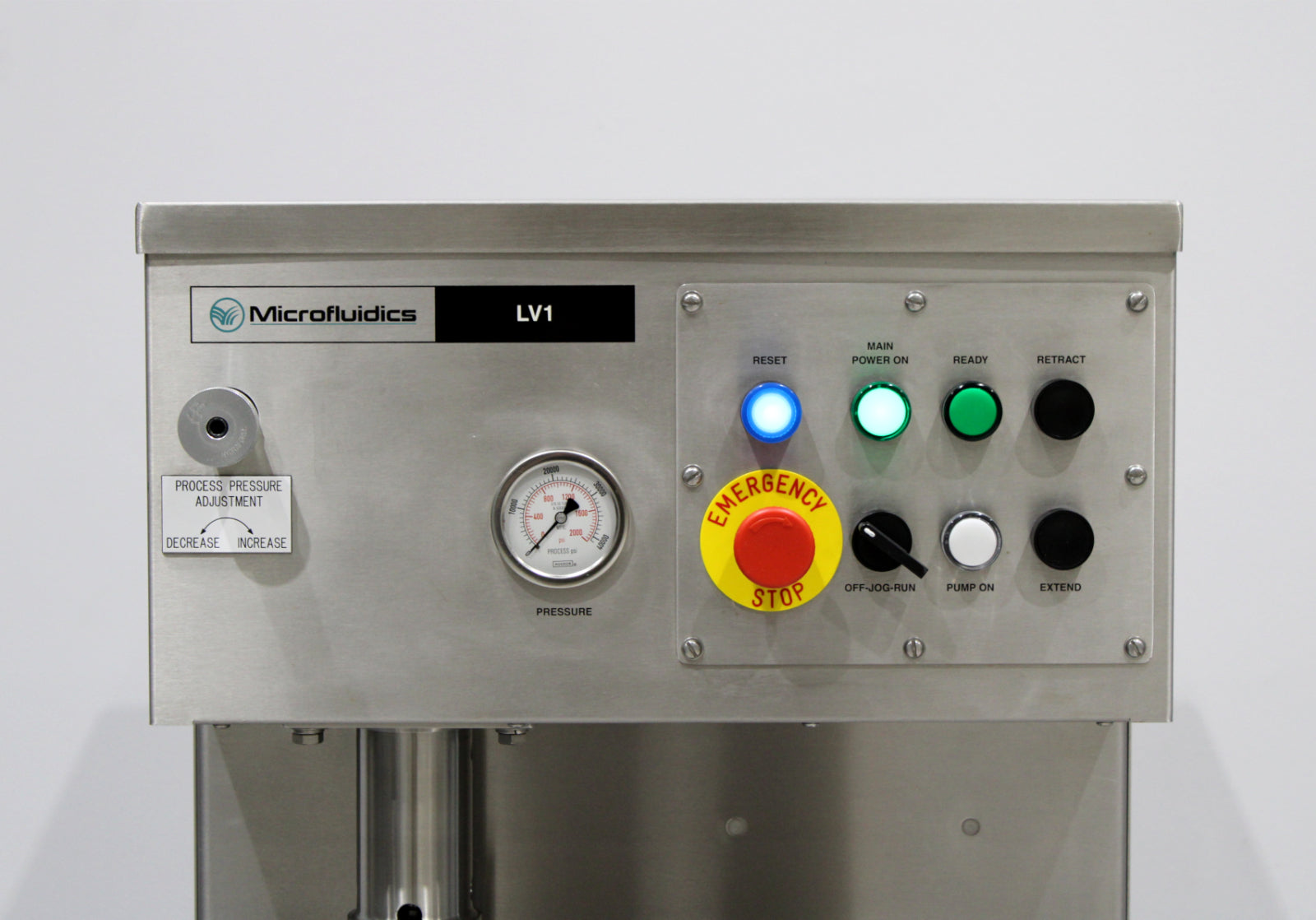

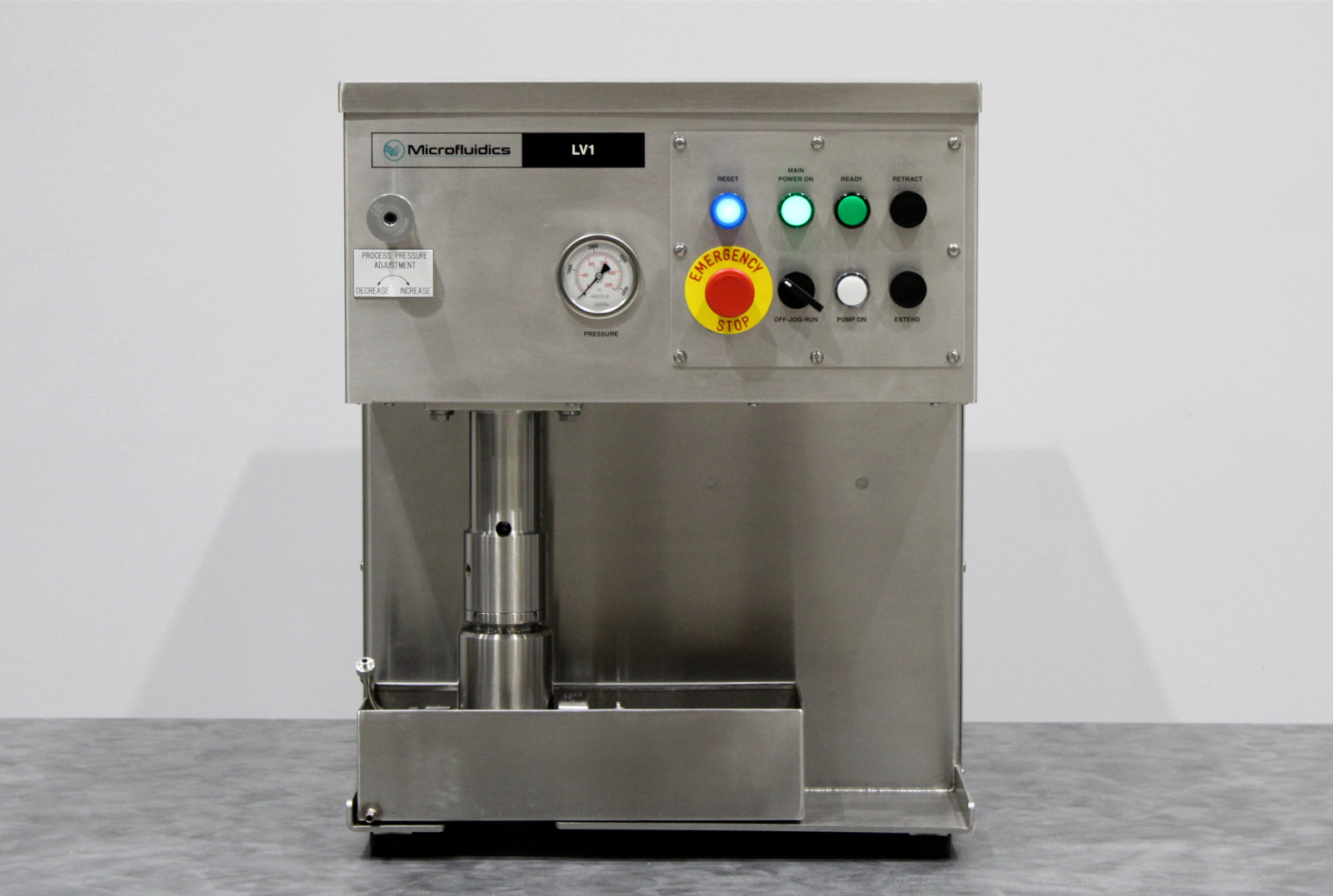

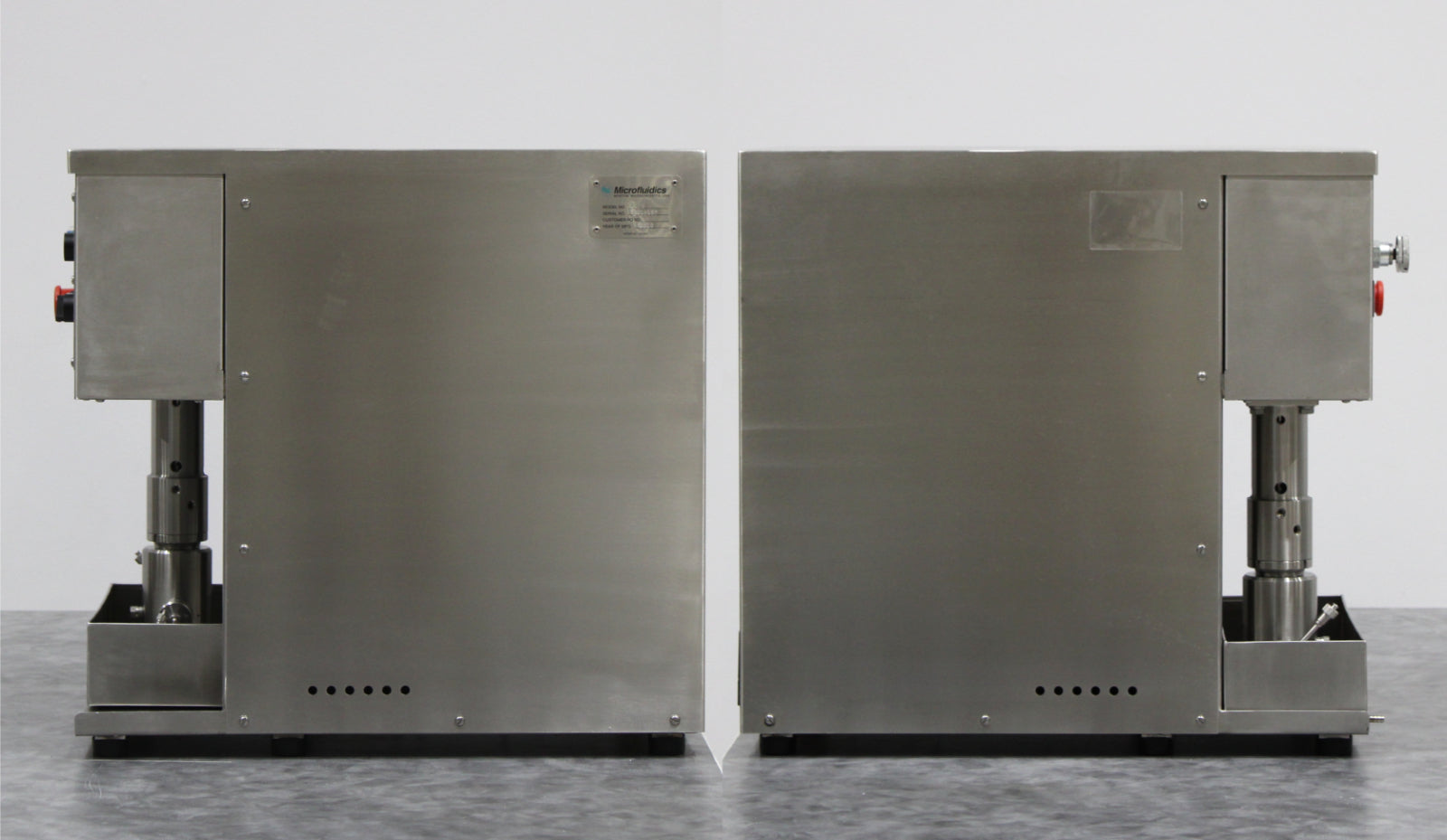

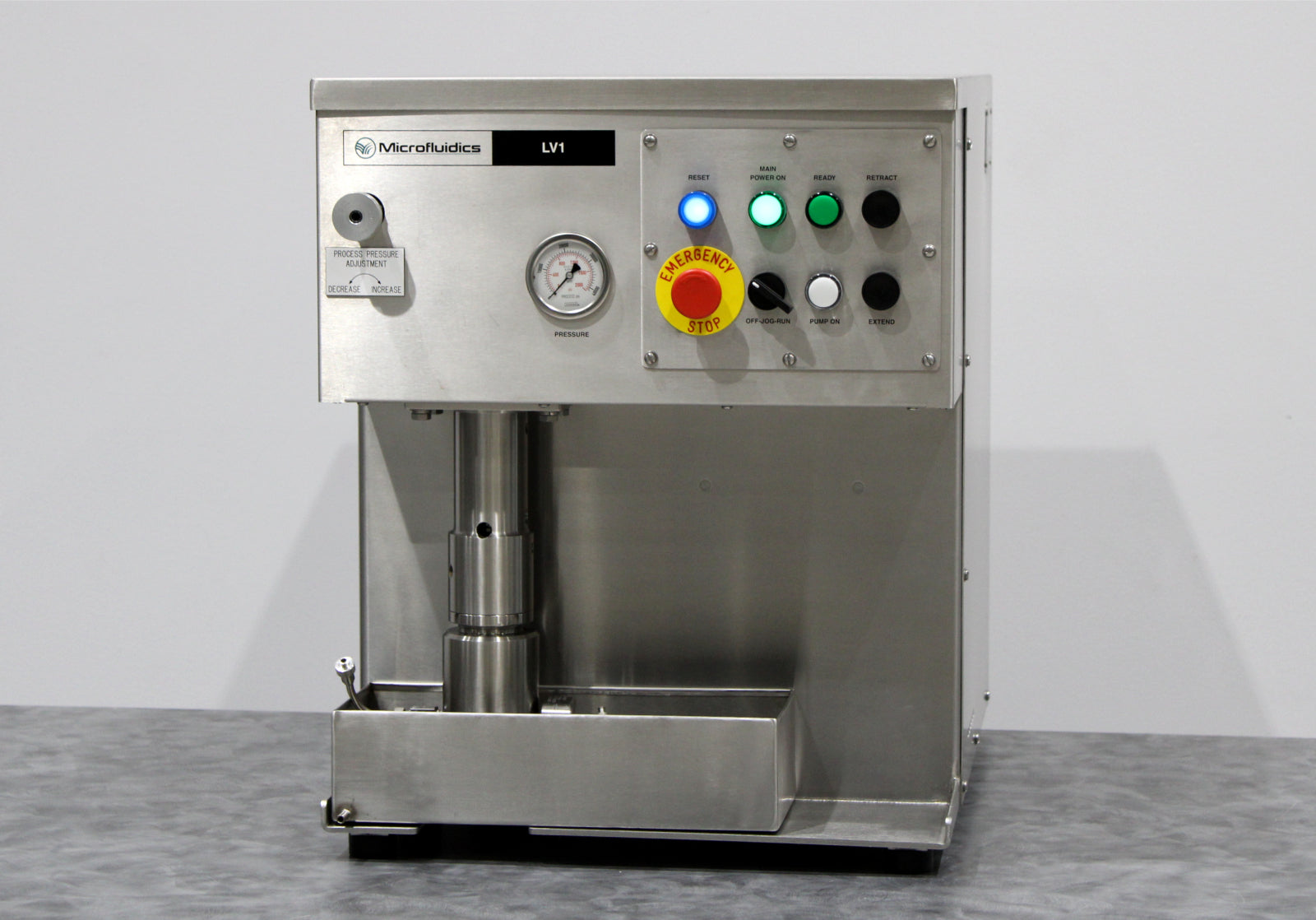

- Microfluidics LV1 Low Volume Electric Microfluidizer Homogenizer
- H10Z 100 Micron Ceramic Interaction Chamber (IXC)

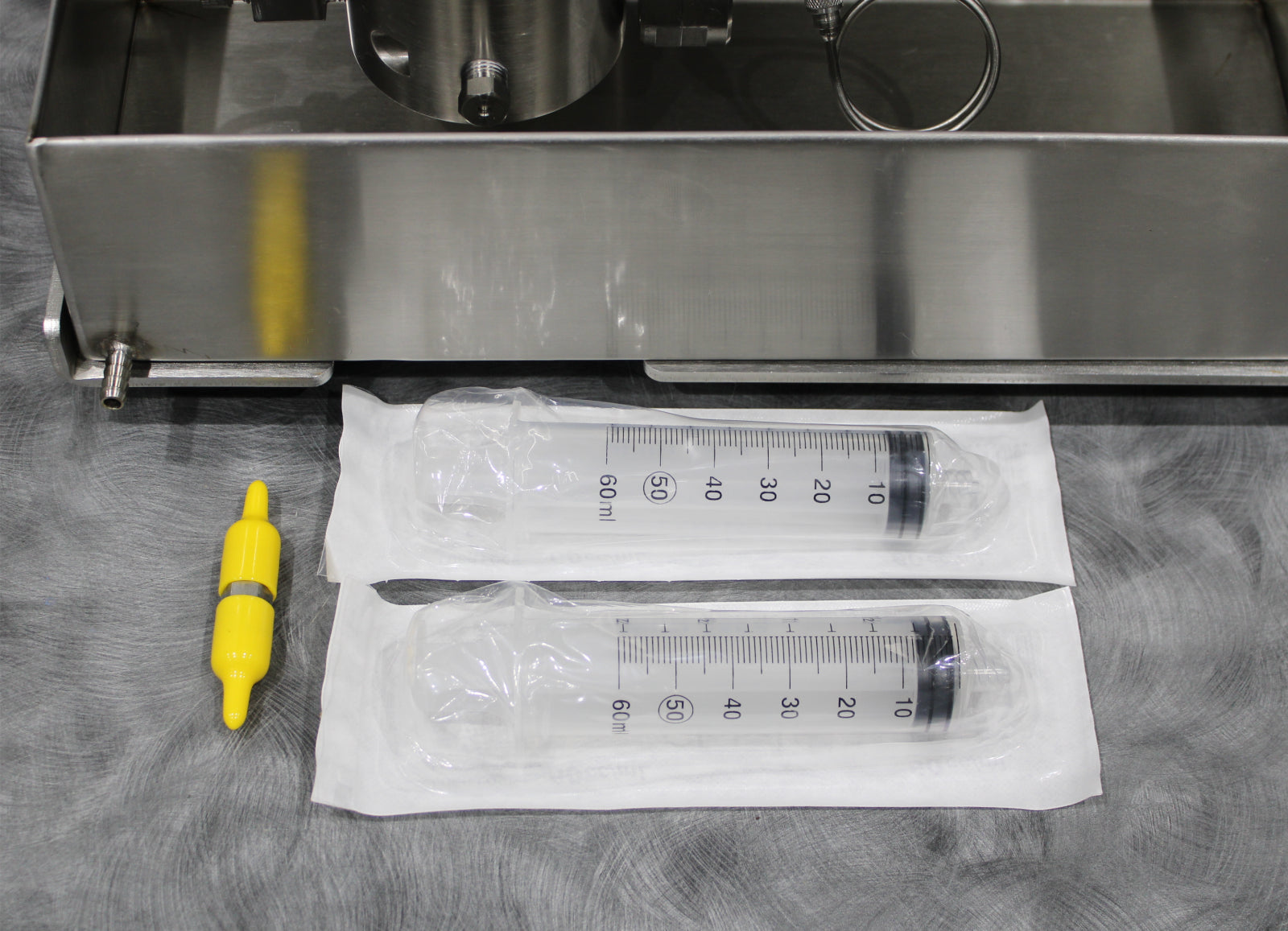

- Set of 2 Plastic 60ml Syringes
- M x M Backflush Adapter

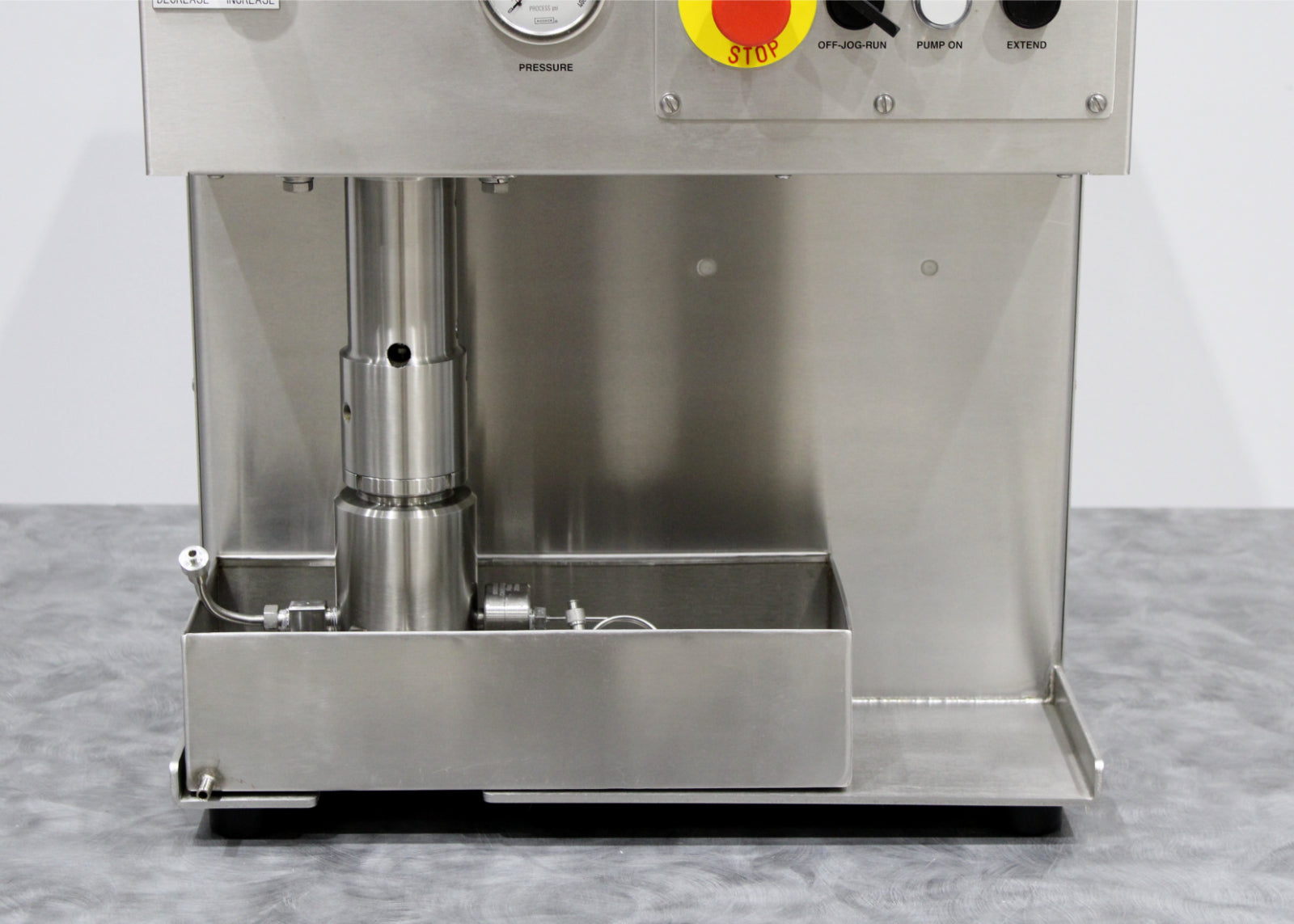

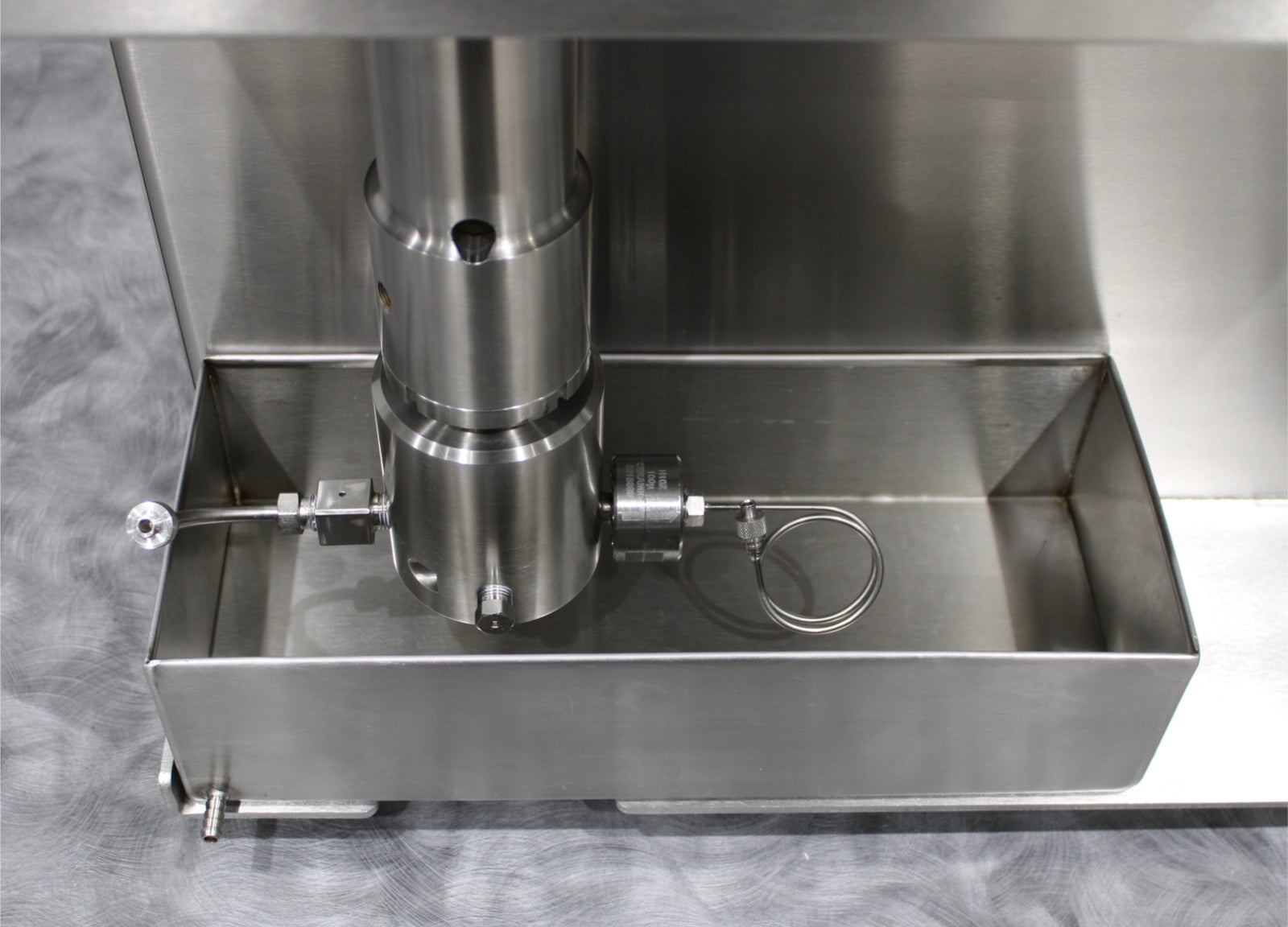

- Drip Pan with Drain

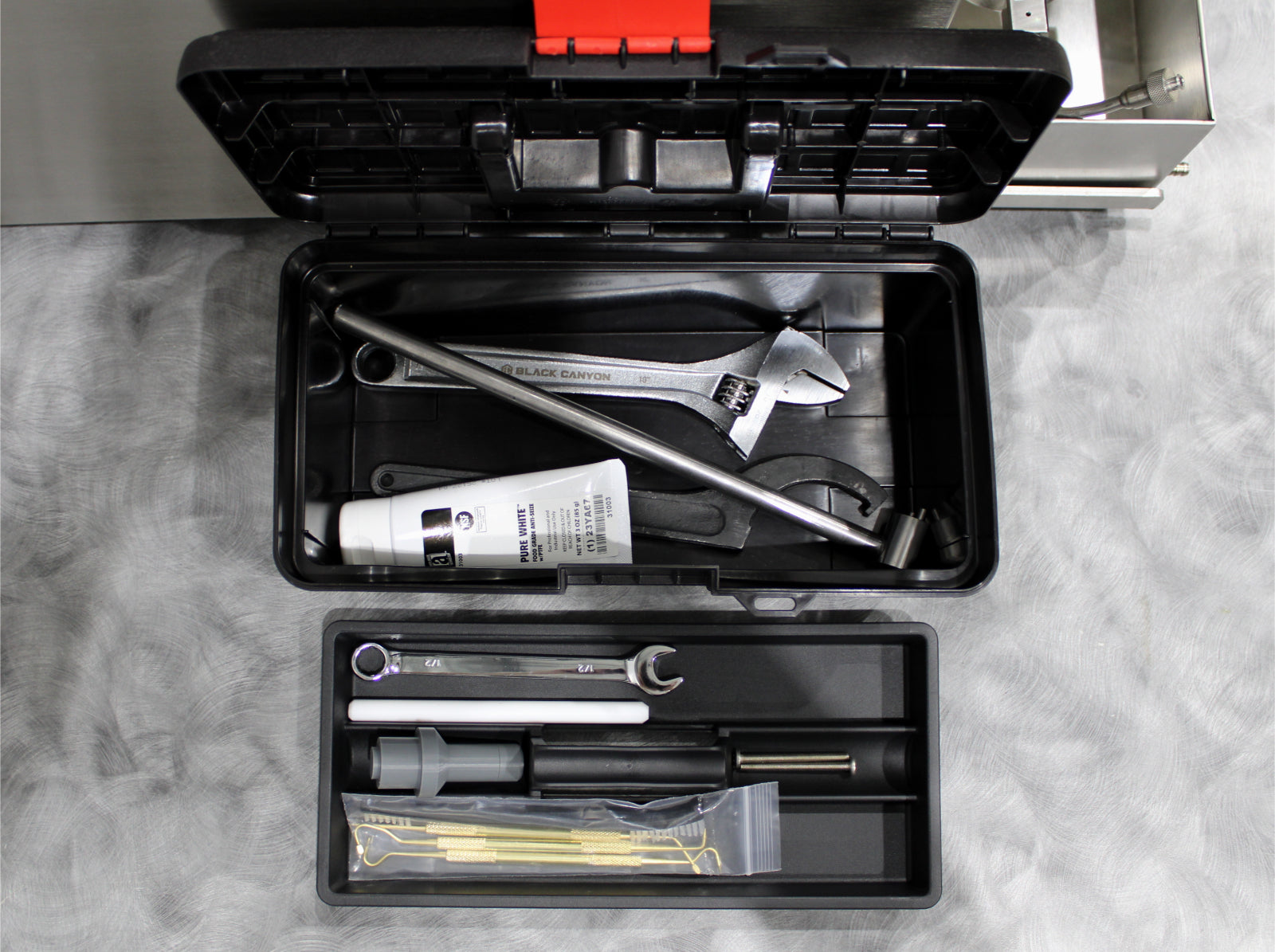

- Preventive Maintenance Toolkit
- Power Cable with NEMA 5-15P
- 90-Day Warranty
Notice: The backflush adapter is for unplugging the interaction chamber. It reverses the chamber to unplug it whenever it becomes clogged.
After its initial disinfection and inspection, our technicians tested the Microfluidics LV1 low volume microfluidizer homogenizer with the following results:
- Cleaned and inspected liquid end (product end): PASSED
- Ran and sterilized with 120 mL of isopropyl alcohol: PASSED
- Verify highest pressure of 30,000 psi: PASSED
- Check process pressure control valve: PASSED
- Check motor start/stop control: PASSED
- Check/replace plunger seal assembly: PASSED
- Clean and inspect plunger: PASSED
- Clean and inspect bearing isolator/o-rings: PASSED
- Clean and inspect/replace high pressure fittings: PASSED
- Clean and inspect/replace inlet check valve: PASSED
- Check/replace hydraulic oil and filter: PASSED
- Clean hydraulic oil reservoir: PASSED
- Inspect/replace hydraulic cylinder seals: PASSED
- Backflush the interaction chamber: PASSED

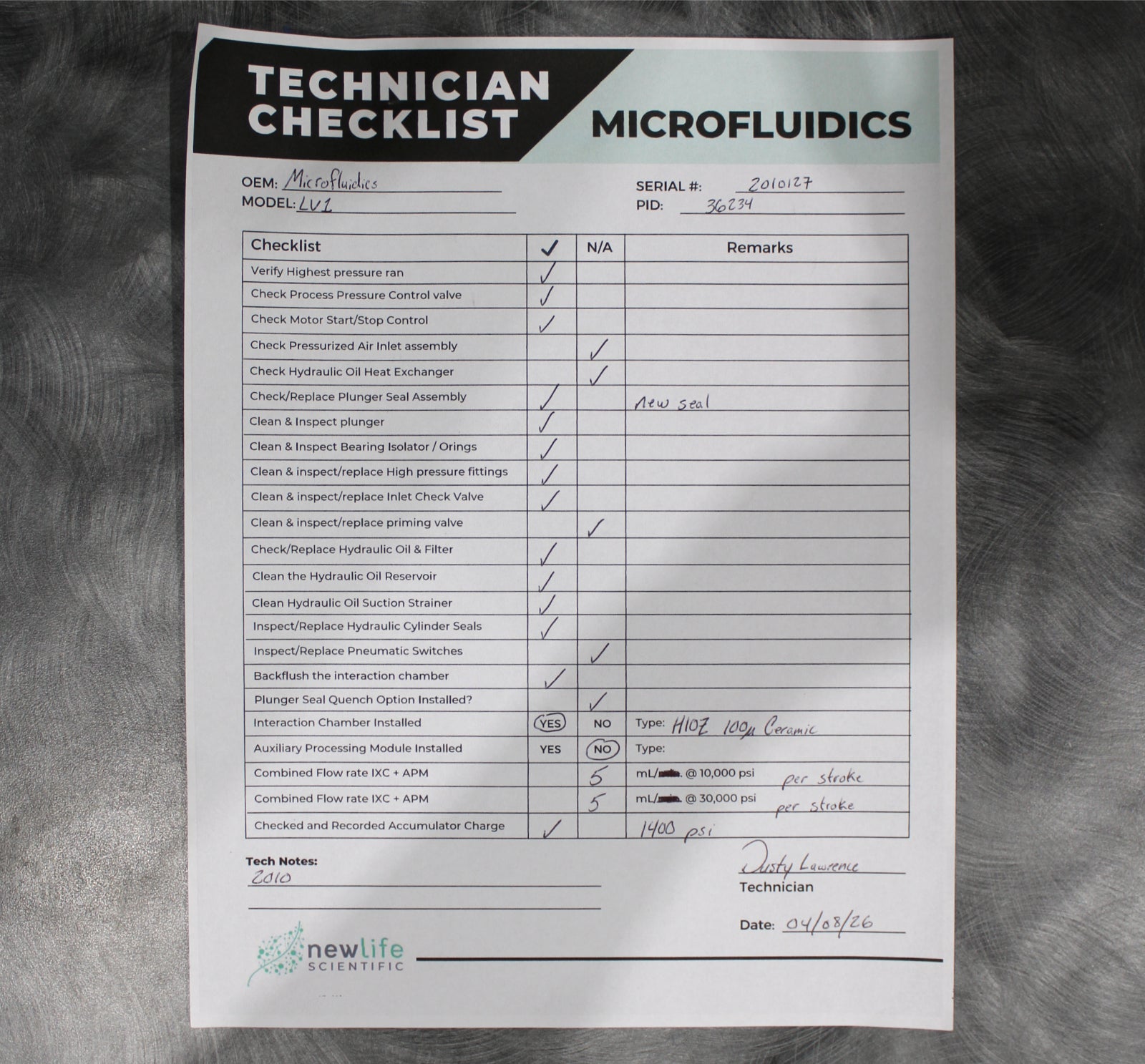

Notice: Please review the technician checklist in the product images to see more details of the inspection and testing performed.
|
Manufacturer
|
Microfluidics
|
|
Model
|
LV1
|
|

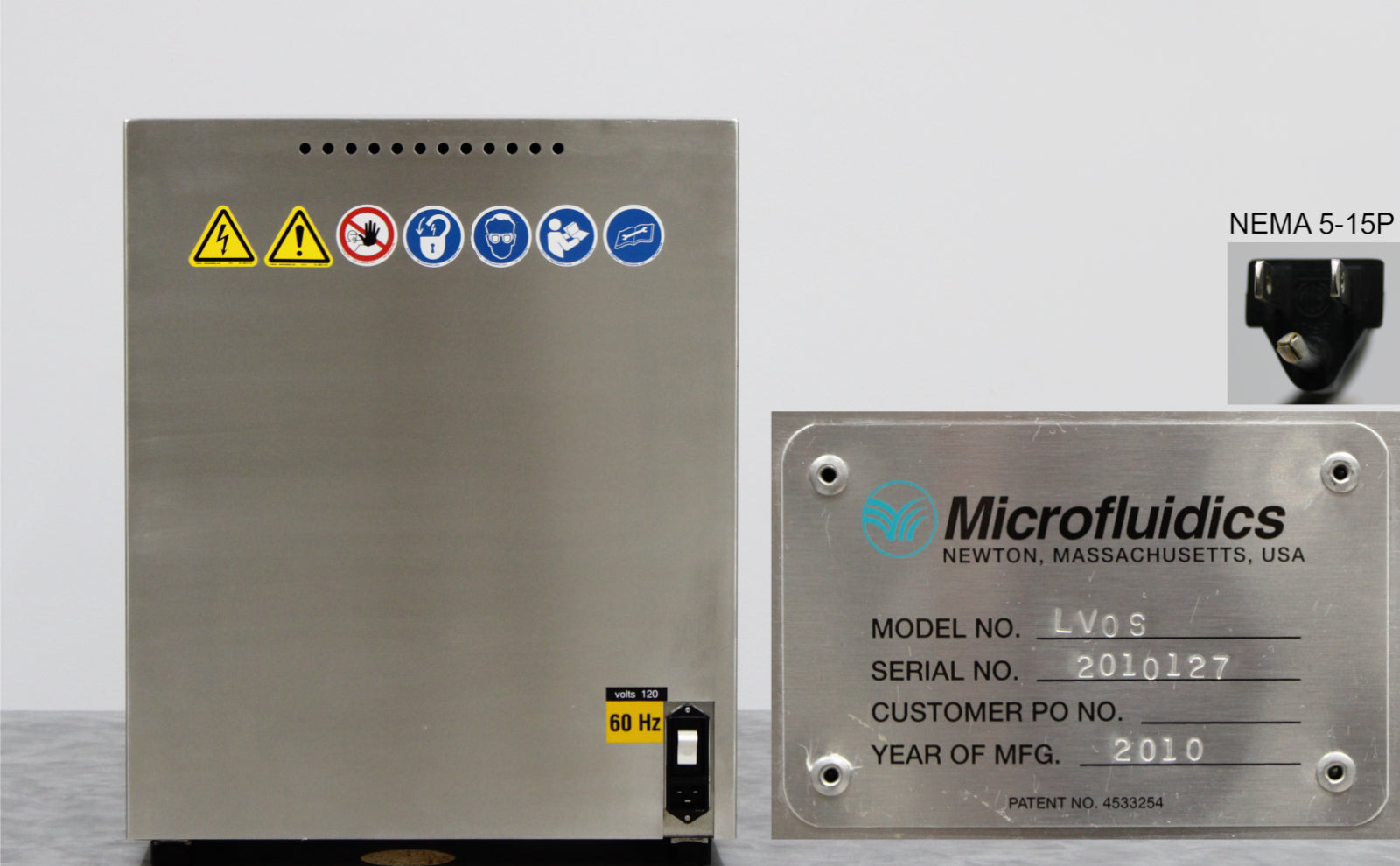

Model No.
|
LV0S
|
|
Serial No.
|
2010127
|
|
Mfg. year
|
2010
|
|
Shear rate @ 2069 bar (30,000 psi)
|
1.23 x 107 sec-1
|
|
Minimum sample size
|
1 ml to 6 ml per stroke
|
|
Maximum sample volume
|
6 ml per stroke
|
|
Stroke frequency
|
Up to 2 per minute (user dependant)
|
|
Product temperature limit
|
73°C (165°F)
|
|
Cleaning
|
Flush to clean (no disassembly required)
|
|
Sterilising
|
Autoclavable (disassembly required)
|
|
Power rating
|
110 VAC, 50/60Hz, 10A, Ph1
|
|
Dimensions (W x D x H)
|
20 x 25.8 x 23.7 in (51 x 65 x 60.2 cm)
|
|
Weight
|
240 lb (109 kg)
|
