Microfluidics LM20 Electric Microfluidizer Processor High-Shear Homogenizer

Overview of Microfluidics LM20 Electric Microfluidizer

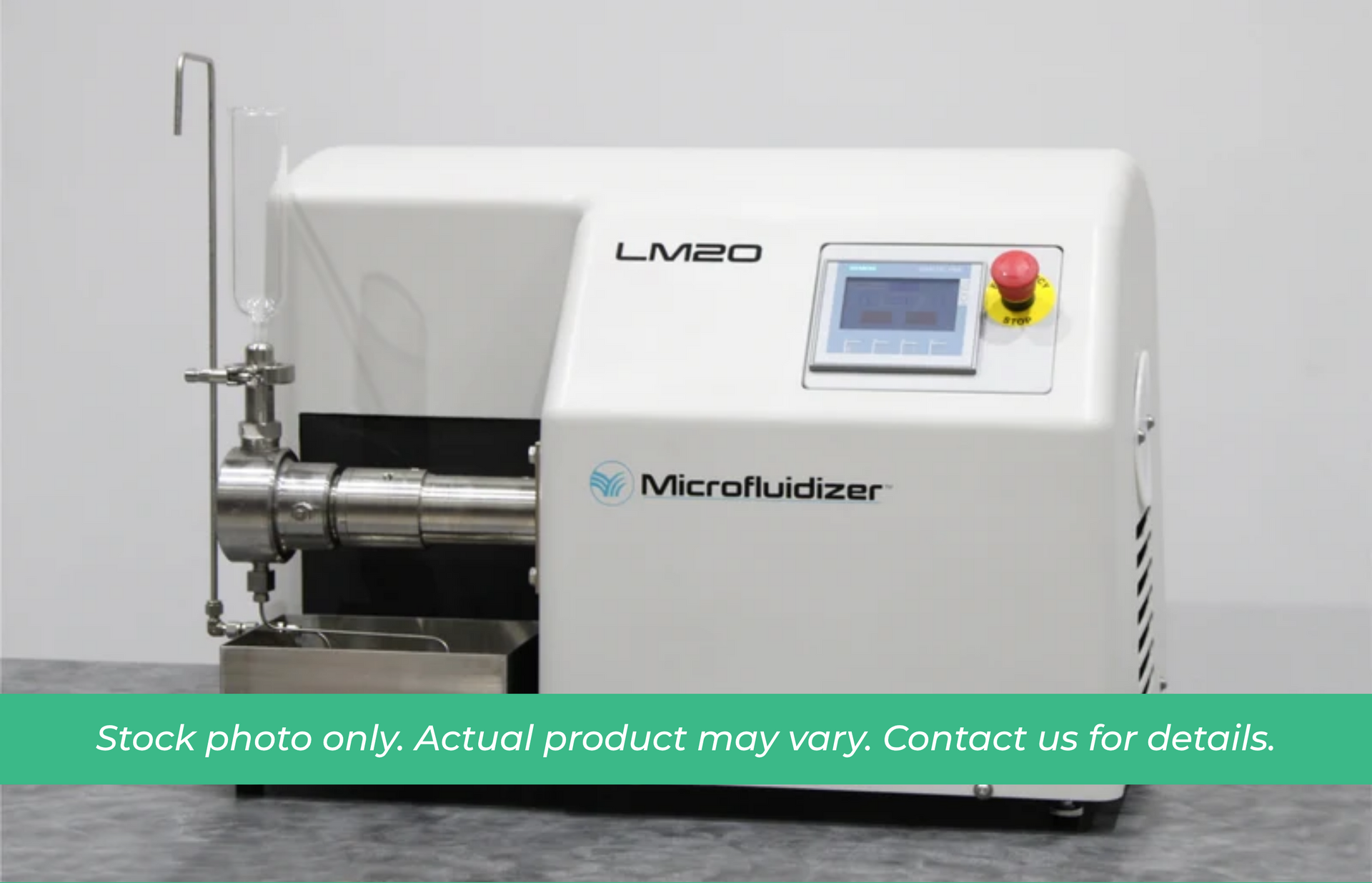

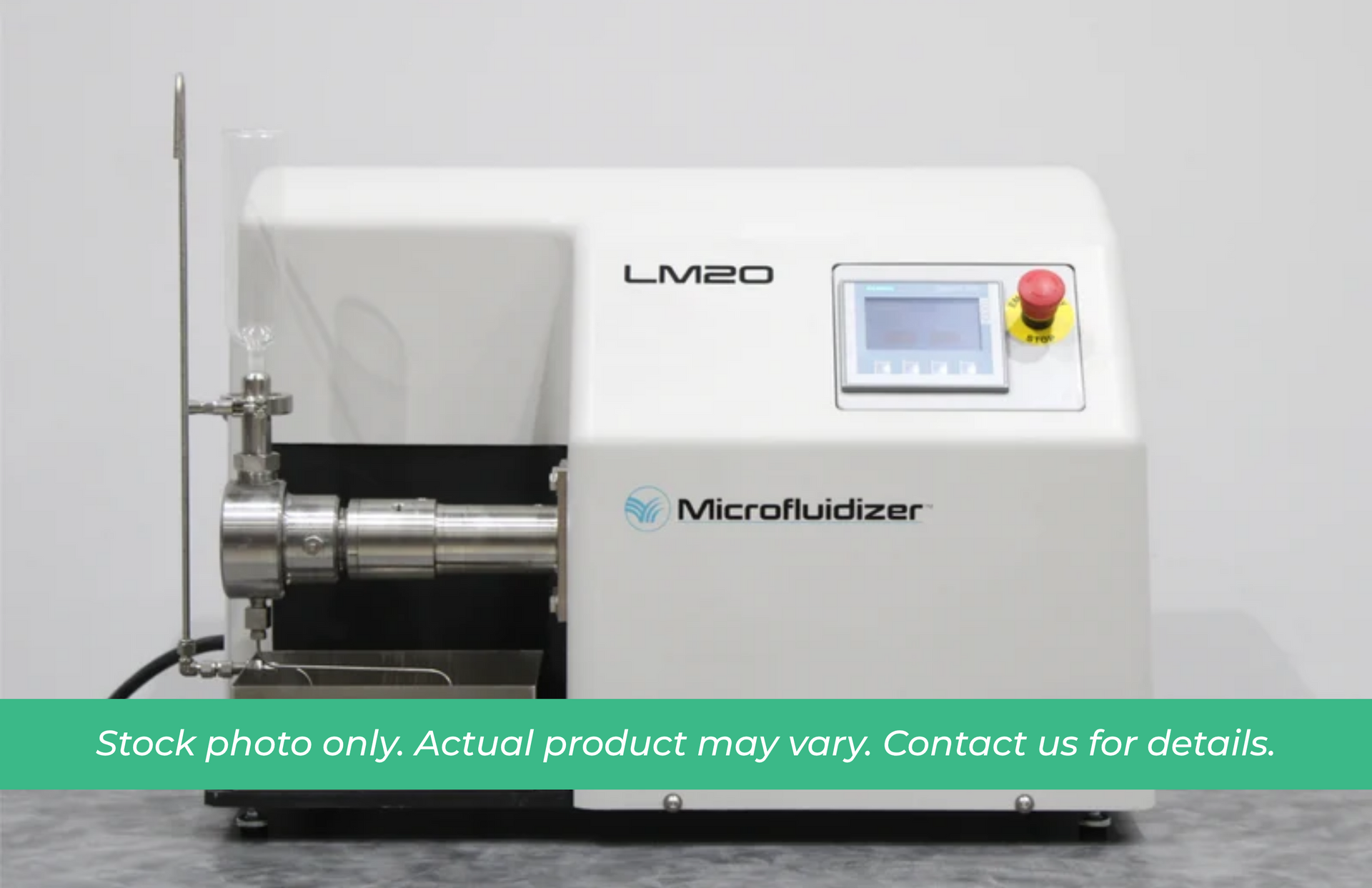

The used Microfluidics LM20 Electric Microfluidizer delivers lab-scale processing power for emulsions, cell disruption and particle size reduction. This compact processor combines high-pressure precision with digital control.

View in-stock used Microfluidizers for sale here. Need assistance? Call us today at (567)-292-2752.

Microfluidics LM20 Microfluidizer Features

The electric Microfluidizer LM20 processes samples under high-pressure conditions. Operating at pressures up to 30,000 psi with a 14 mL minimum sample size, this benchtop unit handles liposome formation, cell lysis and emulsification.

Results scale directly to larger Microfluidics models for predictable transitions into pilot or production runs. The intensifier pump maintains constant pressure throughout processing.

This model sets itself apart with:

• Intensifier pump technology: Deliver constant pressure through the Interaction Chamber, minimizing variability.
• High-yield cell disruption: Achieve high-yield disruption in a single pass while limiting temperature rise.
• Diamond or ceramic chamber: Fixed-geometry microchannels efficiently convert pressure into shear forces.
• Digital pressure control: Set pressures while the stroke counter tracks usage and triggers maintenance reminders.

Microfluidics LM20 Microfluidizer Specifications

Our Microfluidizer Testing Process

1. Microfluidizer technician inspects electrical components, verifying proper functionality. Rewiring is done if needed.
2. Microfluidizer technician performs a detailed inspection on the high pressure fittings, and proper tightness are ensured.
3. The low pressure fittings are then inspected for proper seal.
4. Microfluidizer technician inspects hydraulic and pneumatic systems for damage. Then the unit is turned on, to make sure it runs smoothly.
5. Microfluidizer technician changes hydro oil if necessary.
6. The unit is then run/sterilized with denatured alcohol.
7. The unit is then cleaned and stainless steel is polished.
8. Upon purchase by the customer, plunger seal(s) are replaced, to ensure a fresh seal when the customer gets it.

Available Microfluidics LM20 Microfluidizer Upgrades, Accessories, and Options

- Interaction Chamber
- Stainless Steel Reservoir
- Mechanical Pressure Gauge
- Preventive Maintenance Toolkit
- Power Cable
- 90-Day to 1-Year Warranty

Our Microfluidics Microfluidizer Technician Checklist

At New Life Scientific, our technicians test each device thoroughly before shipping to verify performance and functionality. After our microfluidizer technician finishes the initial testing process, this Microfluidics Technician Checklist is filled out to record the important information gathered throughout the repair process. This checklist will be available publicly after the unit has undergone tech completion.

Microfluidics LM20 Electric Microfluidizer Applications

Common applications for the LM20 include:

• Cell disruption: Extract proteins and nucleic acids for research or biopharmaceutical production.
• Emulsification: Create stable emulsions with uniform droplet sizes for cosmetics and pharmaceuticals.
• Nanoparticle and liposome preparation: Form lipid nanoparticles for drug delivery.
• Homogenization: Encourage uniform particle distribution in biological products.
• Particle size reduction: Reduce pharmaceutical particle sizes to improve dissolution.
• Vaccine production: Disrupt cells to release antigens during manufacturing.
• Bioprocessing: Process cell cultures and biologics for therapeutic protein production.
