Overview of Labconco FreeZone Triad Stoppering Tray Freeze Dryer/Lyophilizer
The Labconco FreeZone Triad transforms your benchtop into a high-performance lyophilization station in a compact 28-inch cube. This unit features a 2.5-liter collector capacity that can maintain temperatures from -55 to +50 degrees Celsius across the shelf. Research labs and small production facilities rely on this unit's high accuracy and productivity without needing dedicated floor space.
View in stock used freeze dryers for sale here. Need assistance? Get in touch with us today.
Labconco FreeZone Triad Freeze Dryer Features
Several key features make the FreeZone Triad beneficial for labs needing a compact lyophilization solution, including:
• Ultra-low temperature capabilities: Reaches collector temperature of -85 degrees Celsius for efficient vapor capture and sample preservation.
• Compact design: Fits into most laboratory spaces and benchtops without sacrificing functionality.
• Integrated shelf system: Provides precise control across a wide temperature range for versatile processing options.
• Rapid defrost: Helps boost efficiency by completing hot gas defrost cycles in just 1.5 hours.
• Stoppering tray compatibility: Works with standard laboratory containers and trays.
FreeZone Triad Specifications
|
Manufacturer |
|
|
Model |
FreeZone Triad |
|
Collector minimum temperature |
-85°C (-121°F) |
|
Collector capacity in 24 Hours |
1.84 L |
|
Collector total capacity |
2.5 L |
|
Shelf minimum temperature |
-75°C |
|
Shelf control temperature range |
-55°C to +50°C |
|
Number of shelves |
1 |
|
Defrost method |
Hot Gas |
|
Time to defrost 2.0 L |
1.5 Hours |
|
Vacuum pump displacement required |
98 L/min or larger displacement |
|
Plug type |
North America, 230V |
|
Power rating |
230VAC, 60Hz, 12.0A, 1Ph |
|
Dimensions (W x D x H) |
28.5 x 28 x 28 in |
Our Testing Process
1. Freeze dryer is visually inspected on arrival and then a performance test is initiated to see how well the unit is operating.
2. The interior and exterior of the unit are cleaned using a dry ice blasting method to remove buildup and contaminants.
3. The freeze dryer technician checks the ambient pressures of the high and low side compressors (if applicable). A functional test of the refrigeration circuit is performed to verify that the unit is cooling in accordance with the manufacturer's specifications.
4. Air-cooled units use a condenser and fans to remove heat from the system. The condenser is inspected and cleaned to ensure proper airflow. Water-cooled units use facility water or a standalone chiller to dissipate heat from the refrigeration circuit. The water circuit is inspected for leaks and verified to be functioning correctly.
5. For rotary vane vacuum pumps, the oil is flushed and refilled. Scroll vacuum pumps, which are oil-free, are inspected and calibrated accordingly.
6. For benchtop and floor model freeze dryers equipped with tree and drum manifolds, the valves are cleaned, inspected, and regreased to ensure proper sealing and functionality.
7. The unit’s temperature sensors are calibrated to ensure accurate readings and proper performance (on non-Lyo software units).
8. Door seals and other critical components are inspected and replaced as needed.
9. Refrigeration lines are reinsulated, and all vacuum hoses are inspected or replaced to ensure proper system integrity.
10. If the unit includes software, the technician runs functionality tests, including checking the minimum and maximum achievable temperatures.
11. The freeze dryer technician verifies that the stoppering mechanism (if present) and isolation valves are functioning correctly.
Note: Isolation valves are designed to prevent air leaks within the system and must be tested for proper sealing during operation, heating, and defrost cycles.
12. The unit is repainted and redecaled where necessary to ensure a professional appearance.
NLS' Standard FreeZone Triad Freeze Dryer Upgrades and Accessories
• Manifold with valves
• Vacuum Pump
• Vacuum Hose
• 90-Day to 1-Year Warranty

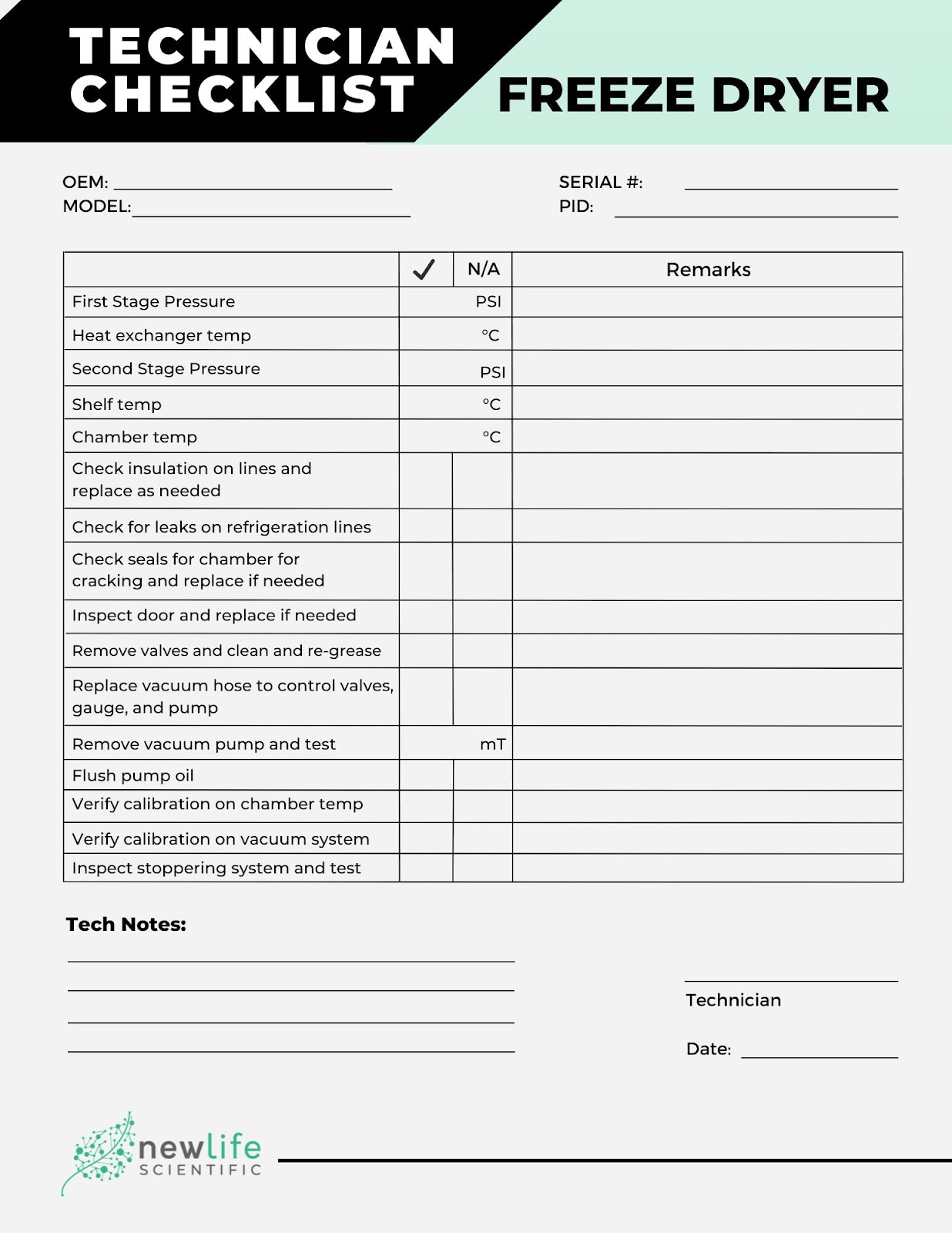

Our Freeze Dryer Technician Checklist
At New Life Scientific, our technicians test each device thoroughly before shipping to verify performance and functionality. After our freeze dryer technician finishes the initial testing process, this Freeze Dryer Technician Checklist is filled out to record the important information gathered throughout the repair process. This checklist will be available publicly after the unit has undergone tech completion.
VirTis Genesis 25 EL Pilot Freeze Dryer Applications
• Biopharmaceutical Labs - Labs involved in the production of biologics, including monoclonal antibodies, therapeutic proteins, and peptides, use freeze dryers to stabilize and preserve these sensitive products.
• Vaccine Development Labs - Labs working on vaccine production, especially those requiring lyophilization to preserve the potency of live or inactivated viruses, often rely on freeze-drying.
• Gene and Cell Therapy Labs - Labs focused on gene therapies (e.g., plasmids, mRNA) and cell therapy (e.g., stem cells) use freeze dryers to preserve the viability and stability of biological materials.
• Diagnostic and Assay Labs - Laboratories producing diagnostic kits, reagents, and assays, especially for long-term storage and stability, use freeze dryers to maintain their integrity over time.
• Research and Biotech Labs - Labs involved in biological research, including the preservation of biological samples, cell lines, and microbial cultures, use freeze dryers for sample storage and transportation.
• Blood Bank and Plasma Labs - Labs that process and store blood plasma, serum, and other biological materials often use freeze dryers to maintain the stability of these sensitive components.
• Nutraceutical and Exosome Therapy Labs - Labs producing nutraceuticals (e.g., probiotics) or exosome-based therapies use freeze dryers to stabilize these products for longer shelf life.
Contact New Life Scientific Today for Additional Information
Are you ready to add a reliable and compact lyophilization device to your laboratory's workbench? Our team can help you decide whether the FreeZone Triad's capacity and features align with your processing needs. Contact us today if you have questions or need additional specifications. You may also:
• Live chat with us by clicking on the icon at the lower right of your screen.
• Email us at cs@newlifescientific.com
• Call us at (567)-210-2838
