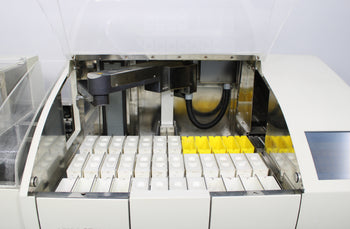

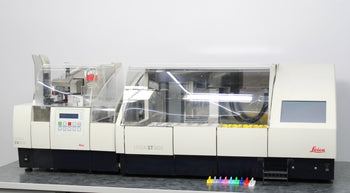

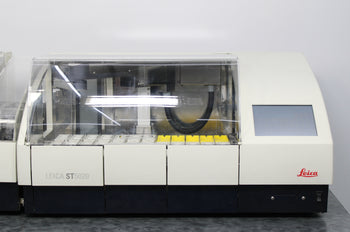

- Leica ST5020 Automated Slide Stainer (047533623)

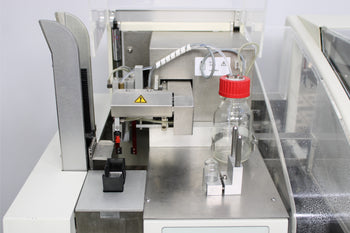

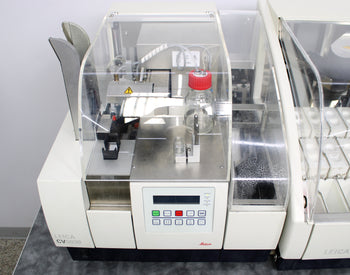

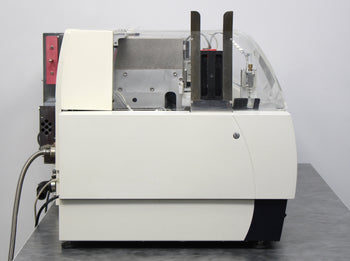

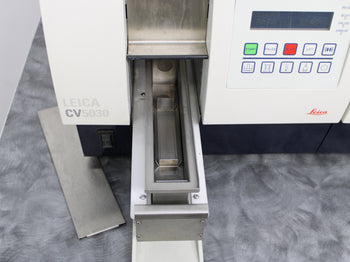

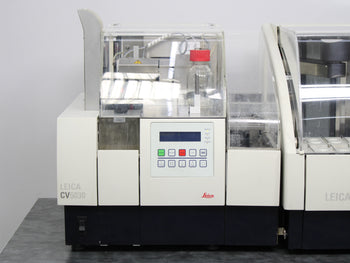

- Leica CV5030 Automated Glass Coverslipper (047839700)
- Leica TS5025 Transfer Station (047839710)

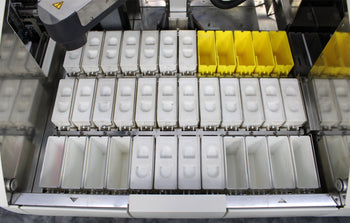

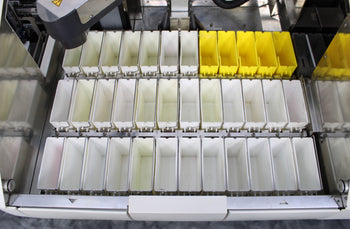

- x31 Reagent Stations
- x23 Reagent Station Lids
- x5 Rinse Stations

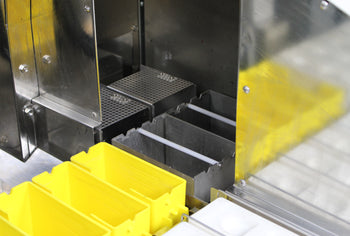

- x2 Oven Stations
- Slide Rack

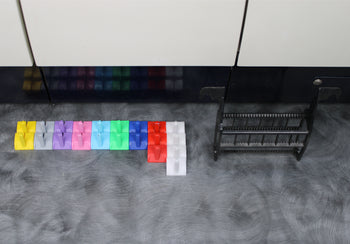

- x21 Color Coded Clips (4 white, 3 red, 2 blue, 2 green, 2 light blue, 2 pink, 2 purple, 2 gray, 2 yellow)
- Communication Cable
- Power Cables
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Leica ST5020 automated slide stainer and coverslipper with the following results:
- Ran slide rack through full stainer program: PASSED
- Checked movement to every station: PASSED
- Slide stainer oven operation: PASSED
- Coverslipper identifies slide positioning: PASSED

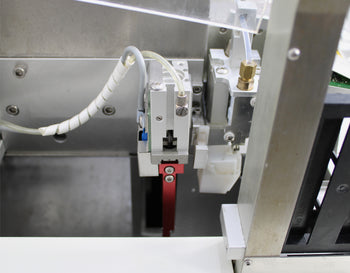

- Coverslipper slide pickup and dispense fluid: PASSED
- Coverslip placement: PASSED
- Replaced filters.
- Replaced oven station.
- Replaced coverslipper gas spring.
Notice: This automated slide stainer system has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

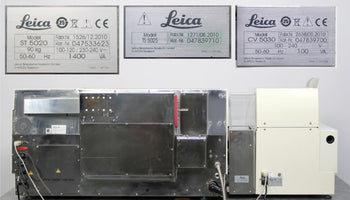

Manufacturer
|
Leica
|
|
Model
|
ST5020
|
|
Cat. No.
|
047533623
|
|
Serial No.
|
1526/12.2010
|
|
Mfg. date
|
12.2010
|
|
Sample types
|
Histology and cytology specimens
|
|
Throughput
|
Up to 12 racks in parallel (depending on protocol, loading schedule and instrument set-up)
|
|
Power rating
|
100-120/230-240V~, 50-60Hz
|
|
Power consumption
|
1400VA
|
|
Dimensions (W x D x H)
|
41 x 29 x 21.5 in
|
|
Weight
|
198.5 lb (90 kg)
|
|
Manufacturer
|
Leica
|
|
Model
|
CV5030
|
|
Cat. No.
|
047839700
|
|
Serial No.
|
2638/08.2010
|
|
Mfg. date
|
08.2010
|
|
Slide Throughput
|
1 slide in 9 seconds
|
|
Volume Mounting Media Bottle
|
250 mL
|
|
Maximum Filling Volume
|
200 mL
|
|
Relative Humidity
|
max 80%, non-condensing
|
|
Power rating
|
100-240V~, 50-60 Hz
|
|
Power consumption
|
100VA
|
|
Dimensions (with TS5025) (W x D x H)
|
22 x 23 x 23 in
|
|
Manufacturer
|
Leica
|
|
Model
|
TS5025
|
|
Cat. No.
|
047839710
|
|
Serial No.
|
1271/08.2010
|
|
Mfg. date
|
08.2010
|
