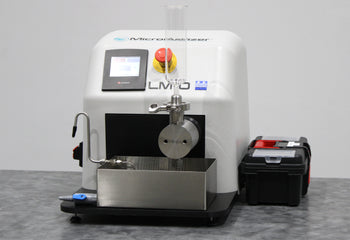

Overview of Microfluidics LM10 Microfluidizer High-Shear Fluid Processor Homogenizer
The Microfluidics LM10 microfluidizer processor is pneumatically driven with a modern user interface perfect for small sample size research. The LM10 microfluidizer processor boasts its cell disruption and submicron size reduction. The LM10 operates with a pressure range of up to 23,000 psi or 1586 bar with a minimum sample size of 30 mL.
View in-stock used microfluidizers for sale here. Need assistance? Get in touch with us today.
Microfluidics LM10 Microfluidizer Features
Here are the top features of the Microfluidics LM10 processor:
• Its economical air-driven intensifier pump supplies desired pressure at constant rate within the interaction chamber producing uniform product results.
• The LM10 achieves high-yield cell disruption and deagglomeration with tighter particle size distribution at low process pressure with real-time temperature monitoring capability.
• The LM10 is equipped with a ceramic interaction chamber, a cooling coil and bath assembly.
Microfluidics LM10 Microfluidizer Specifications
|
Manufacturer |
|
|
Model |
LM10 |
|
Pressure range |
Up to 23,000 psi (1,546 bar) |
|
Minimum sample size |
30 ml |
|
Flow rate range |
Up to 600 ml/min |
|
Pump actuator |
Pneumatically driven |
|
Air utility requirement |
Free mode = 57 scfm @ 120 psi (27 l/s @ 8.3 bar) |
|
Air supply max |
150 psi (10.3 bar) max |
|
Noise level |
<80dB TWA |
|
Power rating |
100-240V, 50/60Hz, 5A |
|
Dimensions |
17.25 x 26.58 x 18.87 in (43.8 x 67.5 x 47.9 cm) |
|
Weight |
75 lb (34 kg) |
Our Microfluidizer Testing Process
1. Microfluidizer technician inspects electrical components, verifying proper functionality. Rewiring is done if needed.
2. Microfluidizer technician performs a detailed inspection on the high pressure fittings, and proper tightness are ensured.
3. The low pressure fittings are then inspected for proper seal.
4. Microfluidizer technician inspects hydraulic and pneumatic systems for damage. Then the unit is turned on, to make sure it runs smoothly.
5. Microfluidizer technician changes hydro oil if necessary.
6. The unit is then run/sterilized with denatured alcohol.
7. The unit is then cleaned and stainless steel is polished.
8. Upon purchase by the customer, plunger seal(s) are replaced, to ensure a fresh seal when the customer gets it.
Available Microfluidics LM10 Microfluidizer Upgrades, Accessories, and Options
- Interaction Chamber
- Stainless Steel Reservoir
- Mechanical Pressure Gauge

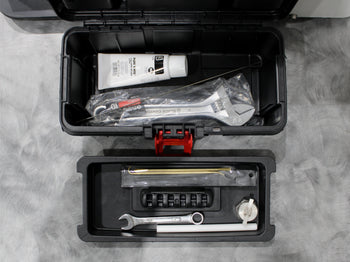

- Preventive Maintenance Toolkit
- Power Cable
- 90-Day to 1-Year Warranty
Our Microfluidics Microfluidizer Technician Checklist
At New Life Scientific, our technicians test each device thoroughly before shipping to verify performance and functionality. After our microfluidizer technician finishes the initial testing process, this Microfluidics Technician Checklist is filled out to record the important information gathered throughout the repair process. This checklist will be available publicly after the unit has undergone tech completion.
Microfluidics LM10 Microfluidizer Processor Applications
• Cell Disruption - This is used for breaking open cells to extract proteins, nucleic acids, and other intracellular materials.
• Emulsification - Creation of stable emulsions by dispersing one liquid into another, typically with the goal of producing uniform droplets in applications like cosmetics, food, and pharmaceuticals.
• Nanoparticle and Liposome Preparation - Formation of nanoparticles or liposomes for drug delivery, diagnostics, and other applications requiring fine particle sizes.
• Homogenization - Ensuring uniform distribution of particles in a liquid, often for biological, food, or chemical products.
• Dispersing Powders or Solids into Liquids - Efficiently dispersing powders or solid materials into liquids, which is crucial for making stable suspensions and slurries.
• Particle Size Reduction - Reducing the size of particles in a sample to achieve desired size distributions, which is essential for the uniformity and quality of products in various sectors.
• Vaccine and Antigen Production - Disrupting bacterial or viral cells for vaccine preparation, enhancing the delivery of antigens in therapeutic formulations.
• Bioprocessing - Large-scale production of biopharmaceuticals, enzymes, and other biologics through the processing of cell cultures or bio-based products.
Contact New Life Scientific Today for Additional Information
Are you ready to discover how the LM10 can help your process achieve desired quality results? Our team can help you decide with your processing needs. Contact us today if you have questions or need additional specifications. You may also:
• Live chat with us by clicking on the icon at the lower right of your screen.
• Email us at cs@newlifescientific.com
• Call us at (567)-210-2838
