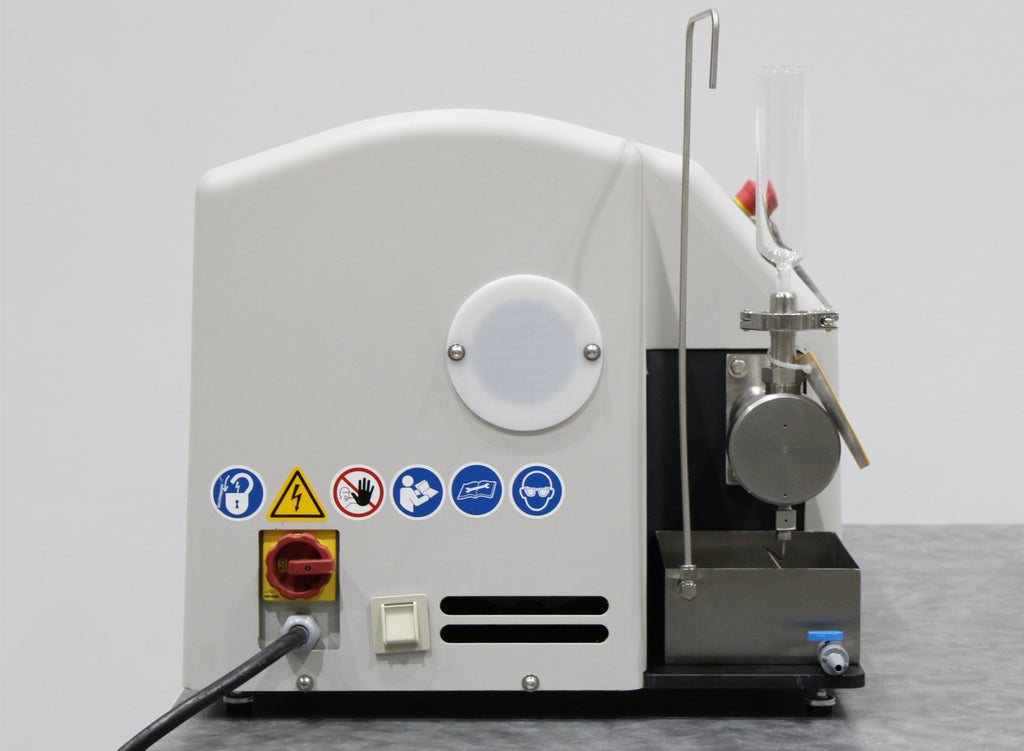

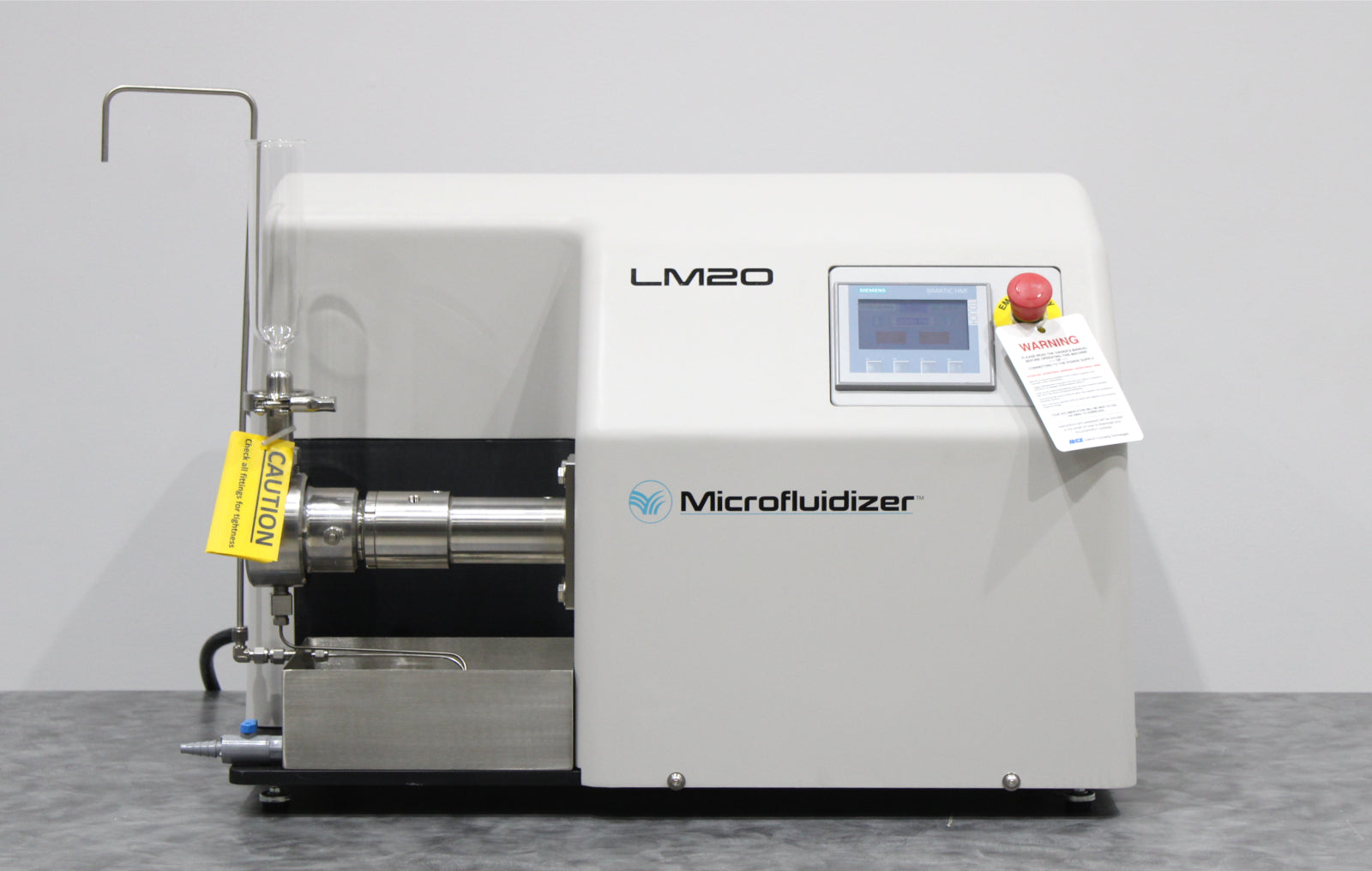

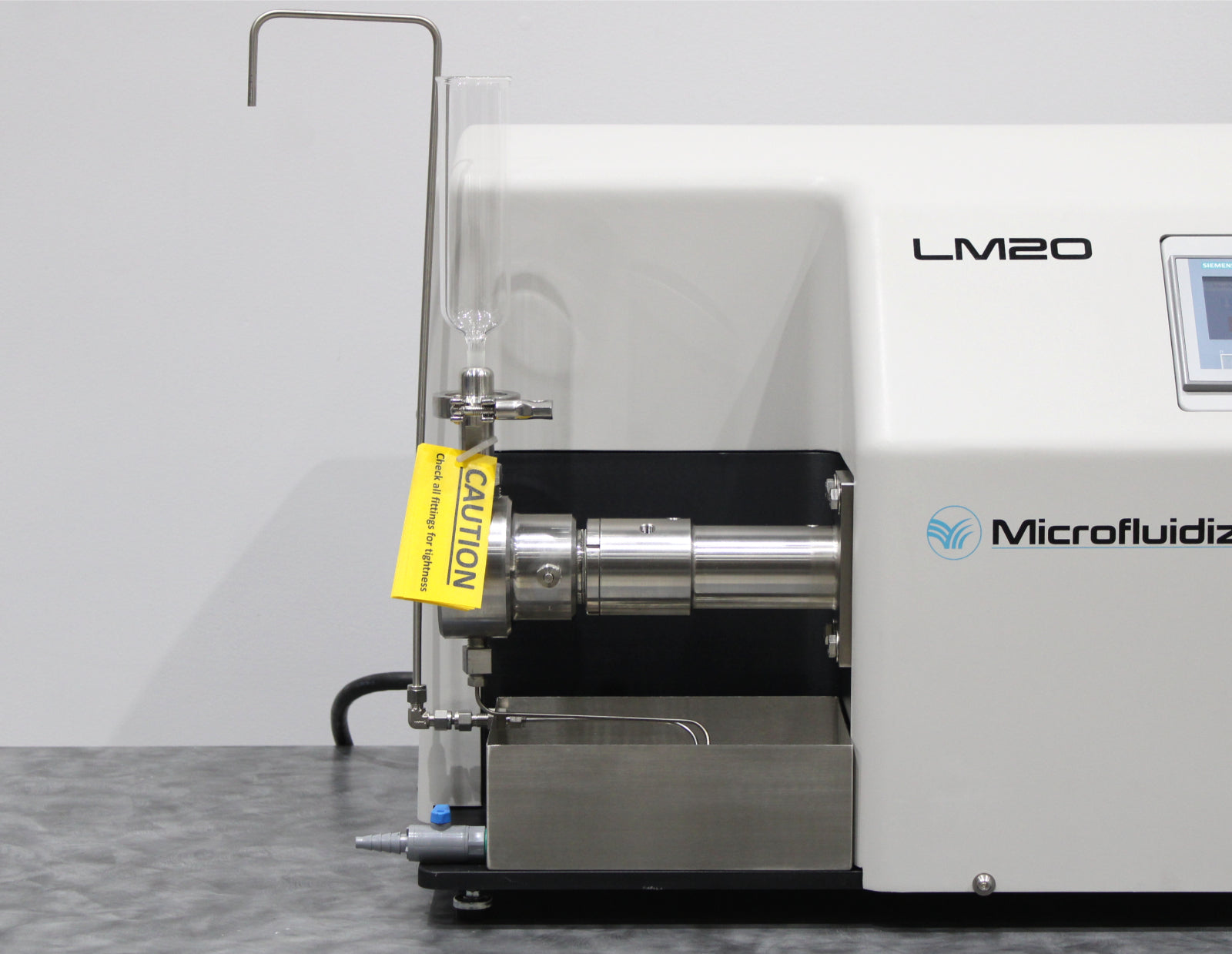

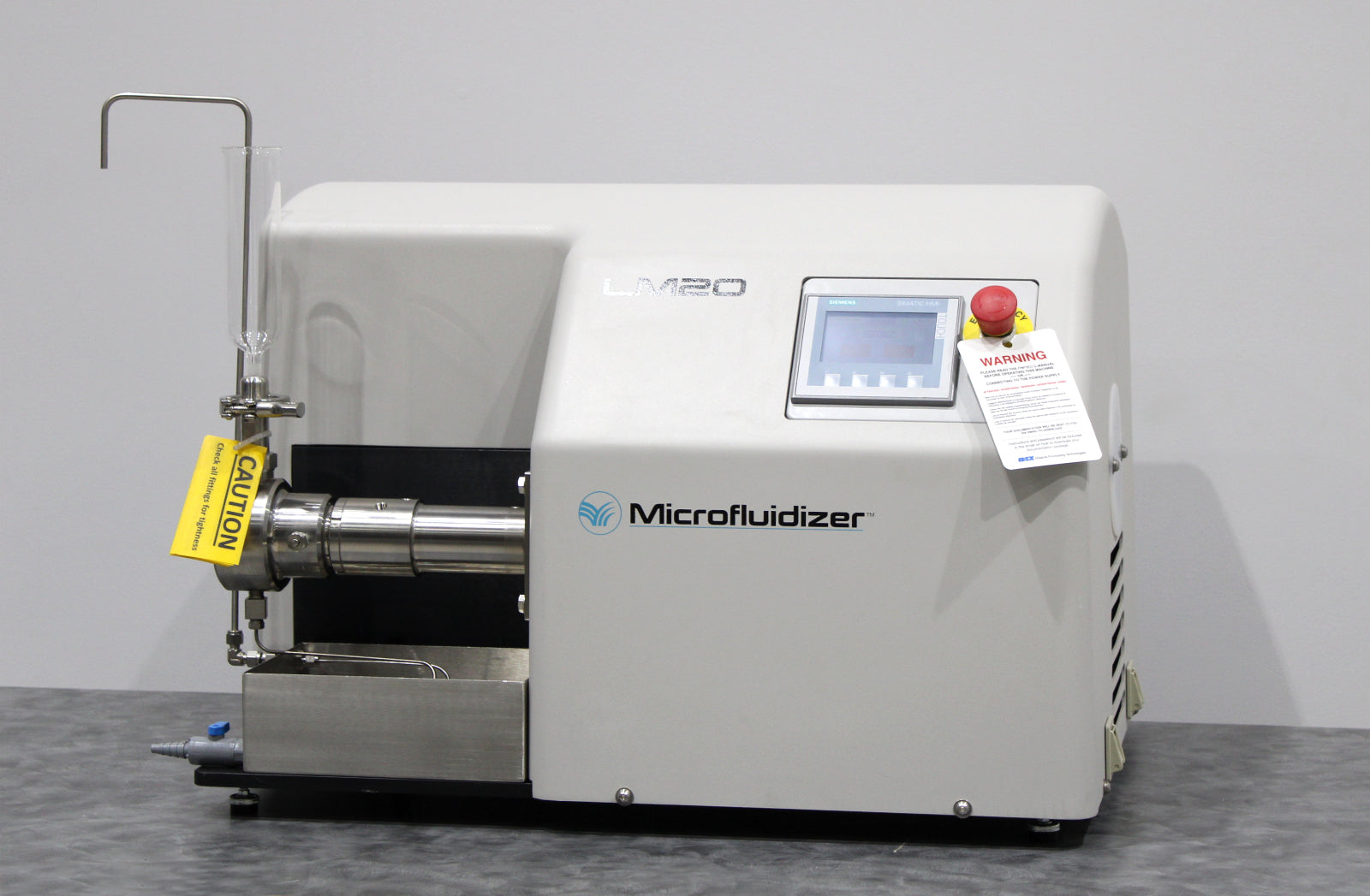

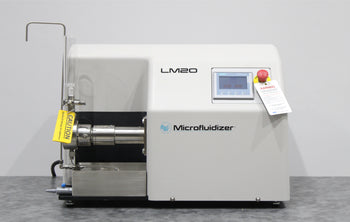

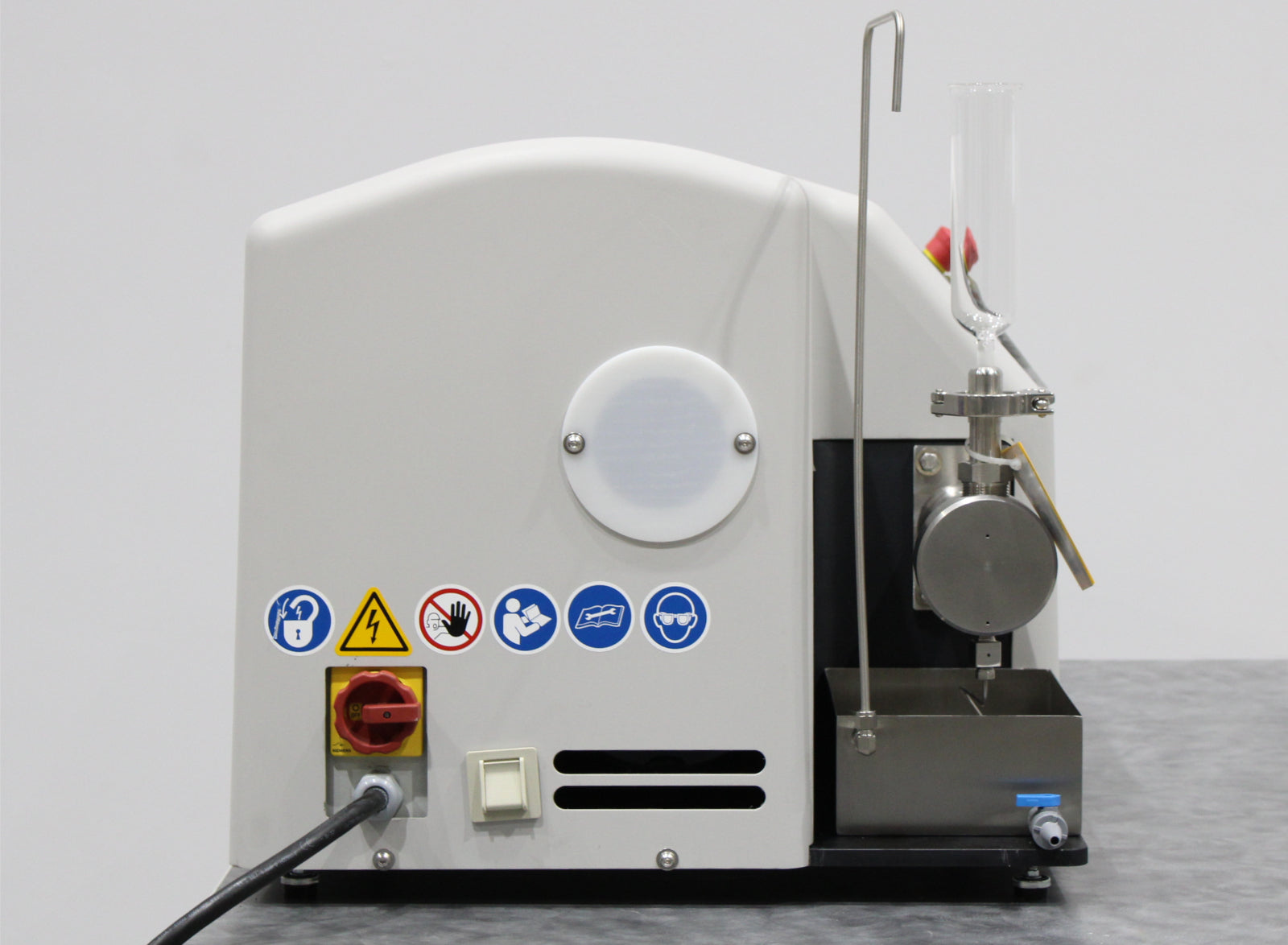

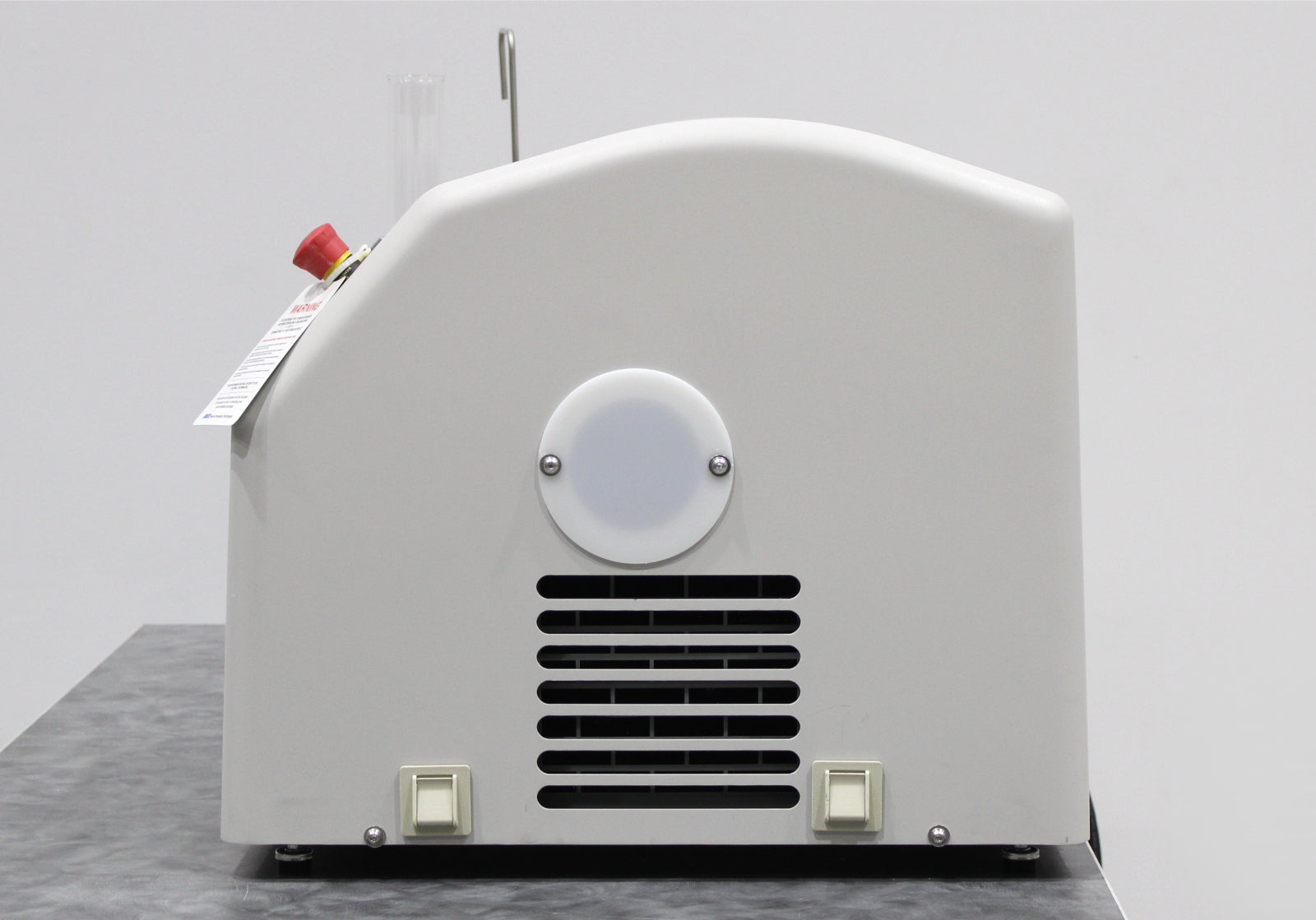

- Microfluidics LM20 20K Electric Microfluidizer Processor with Electronic User Interface

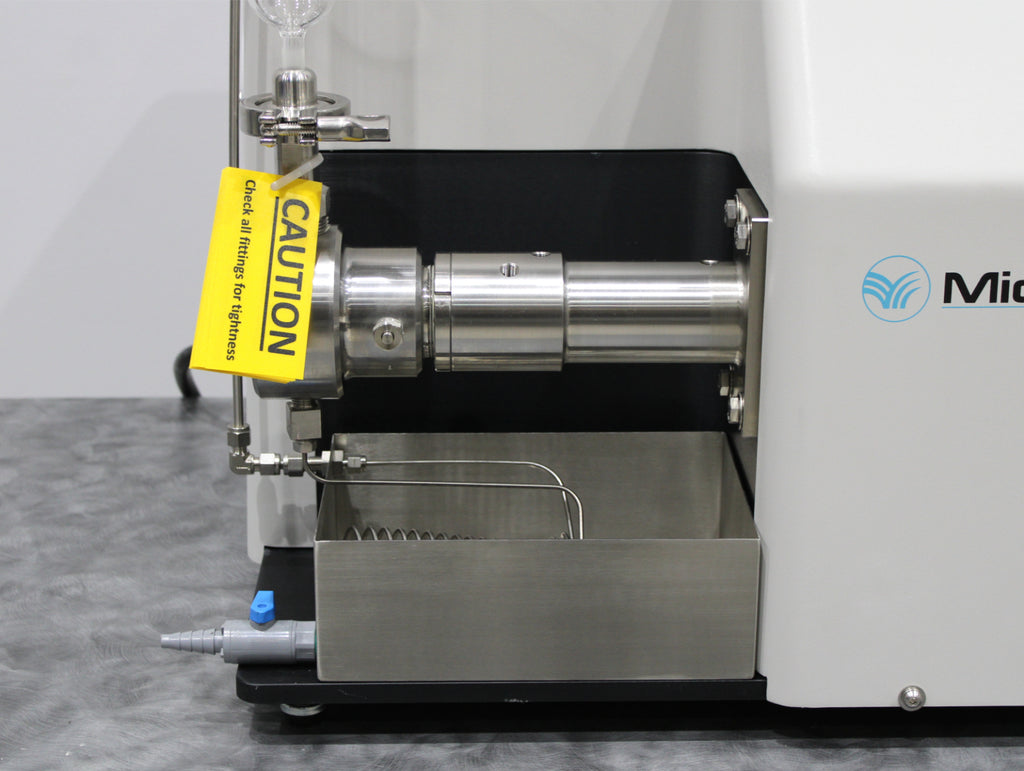

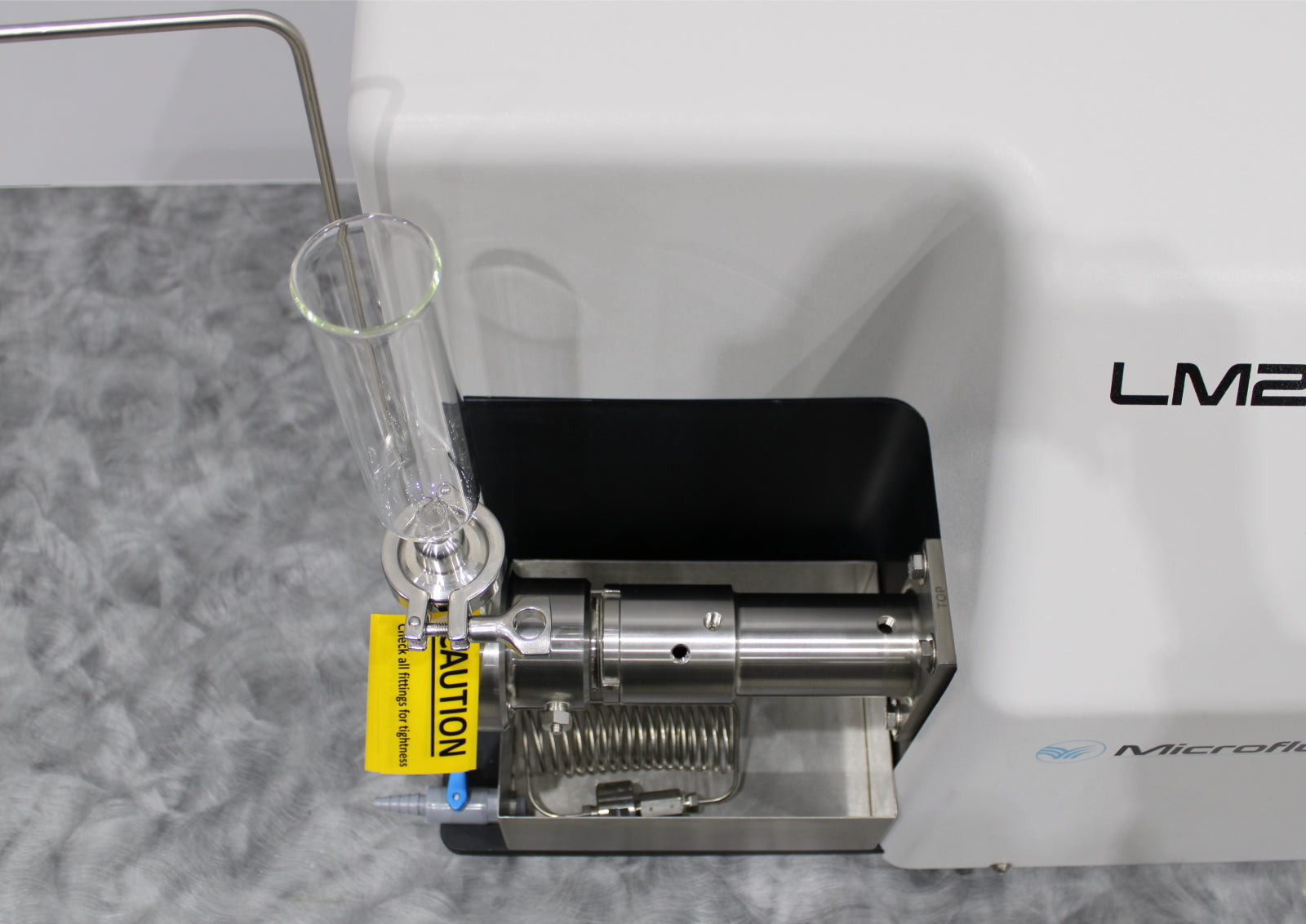

- Ceramic H30Z 200 Micron Interaction Chamber (IXC)
- 300 mL Glass Reservoir

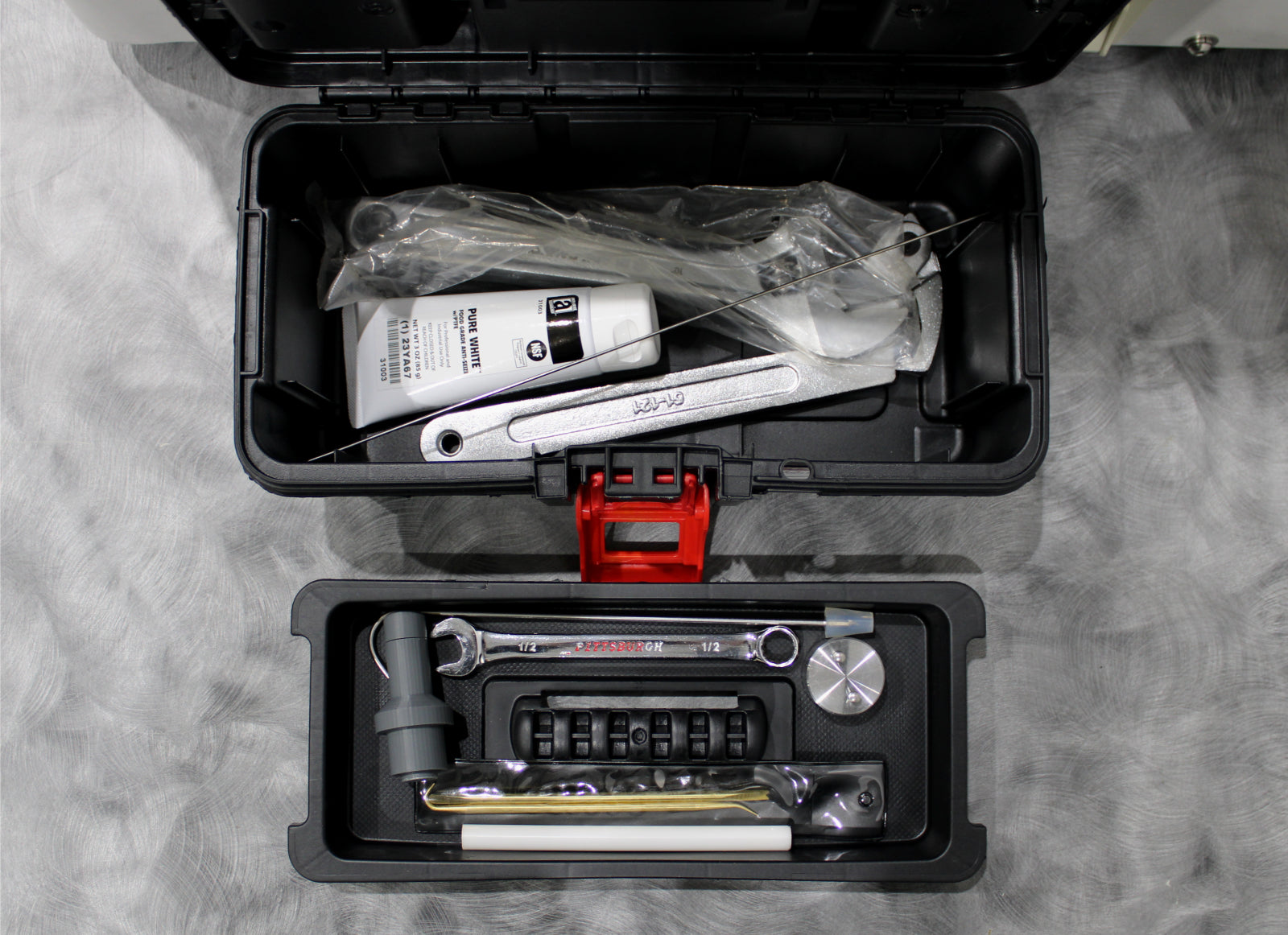

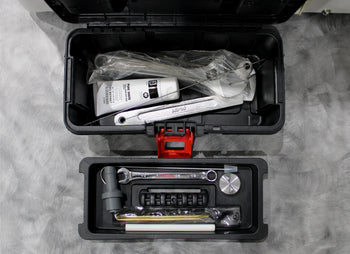

- Preventative Maintenance Toolbox

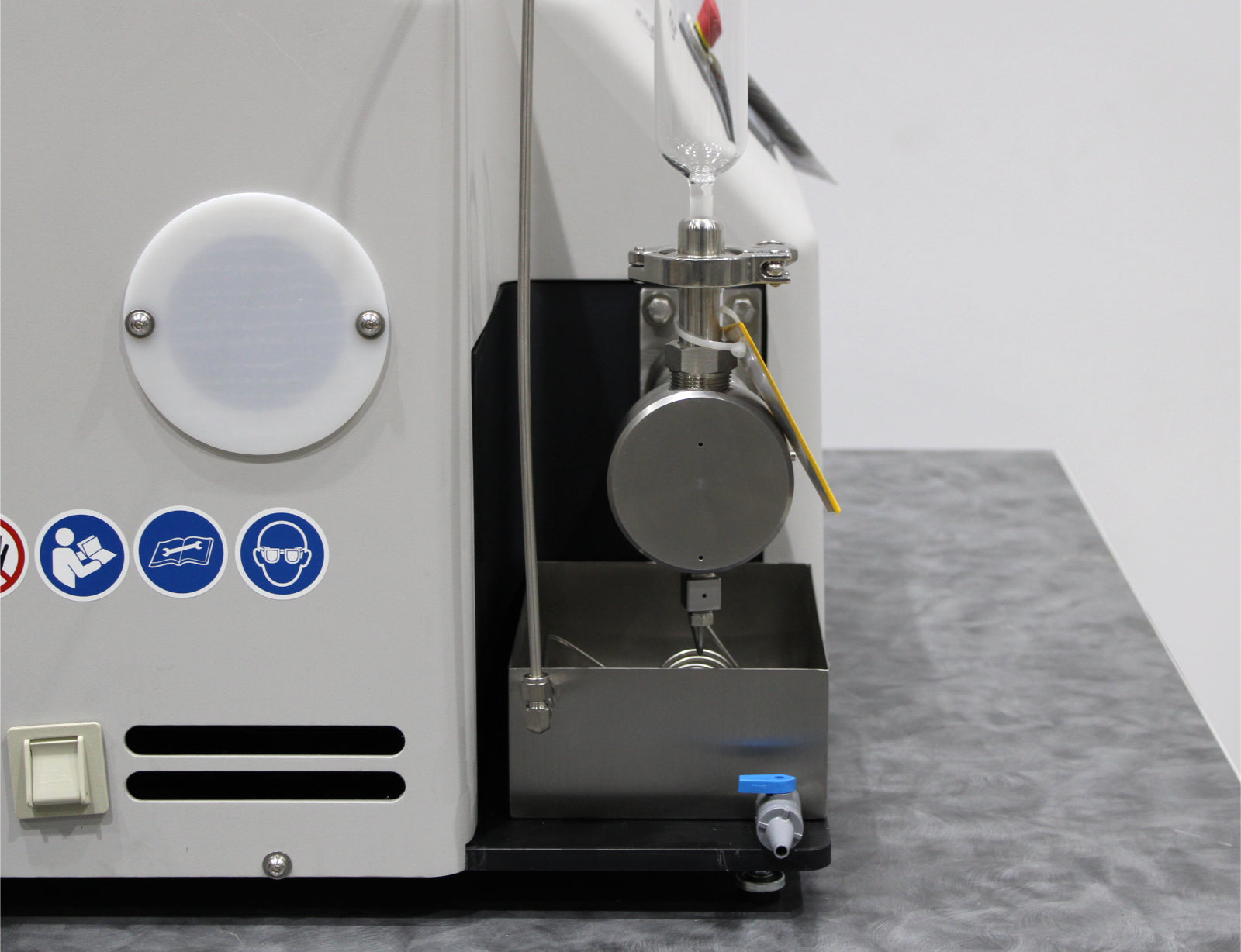

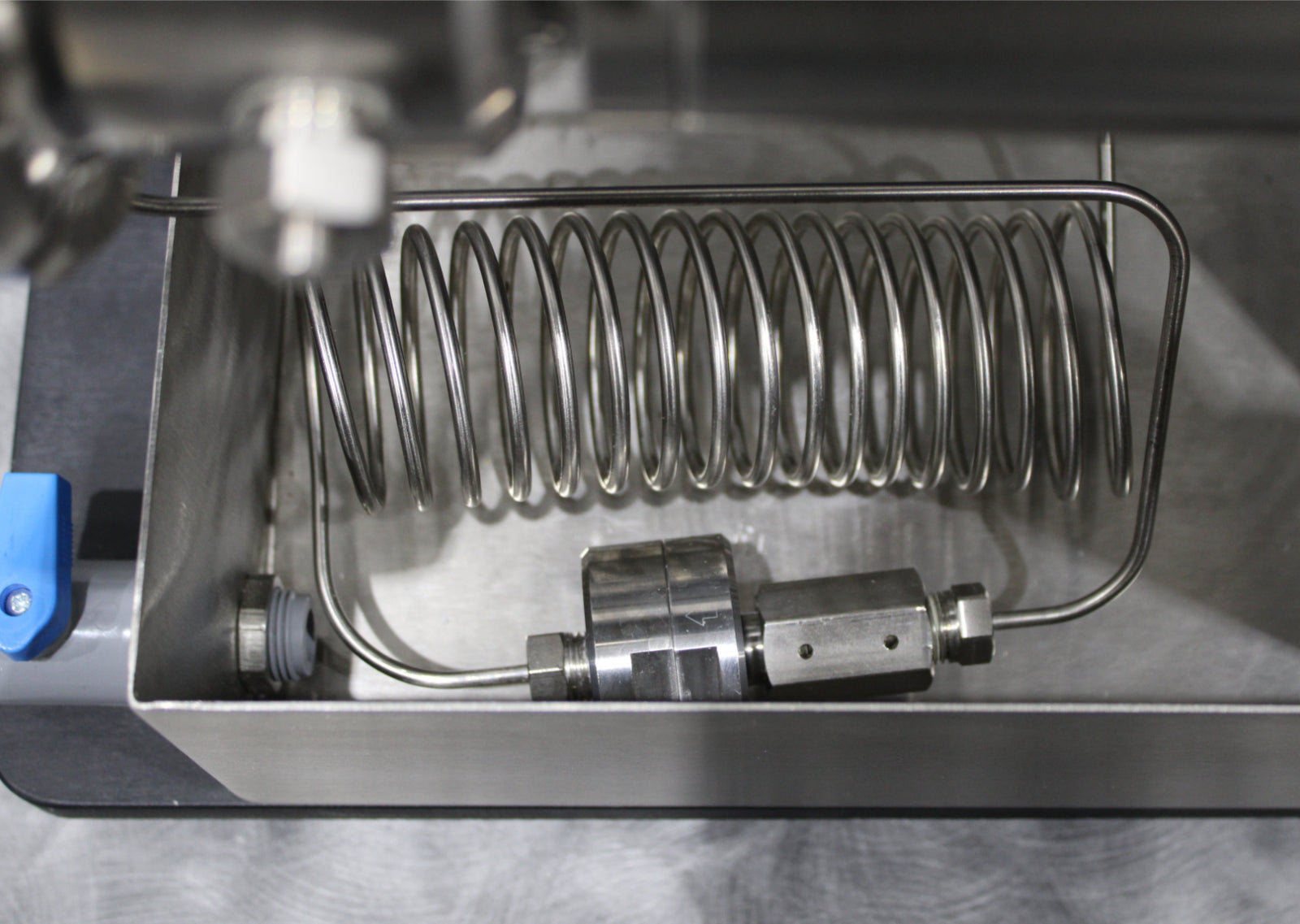

- Product Cooling Coil
- Product Cooling Coil Bath
- Attached Power Cable NEMA L15-20
- 90-Day Warranty

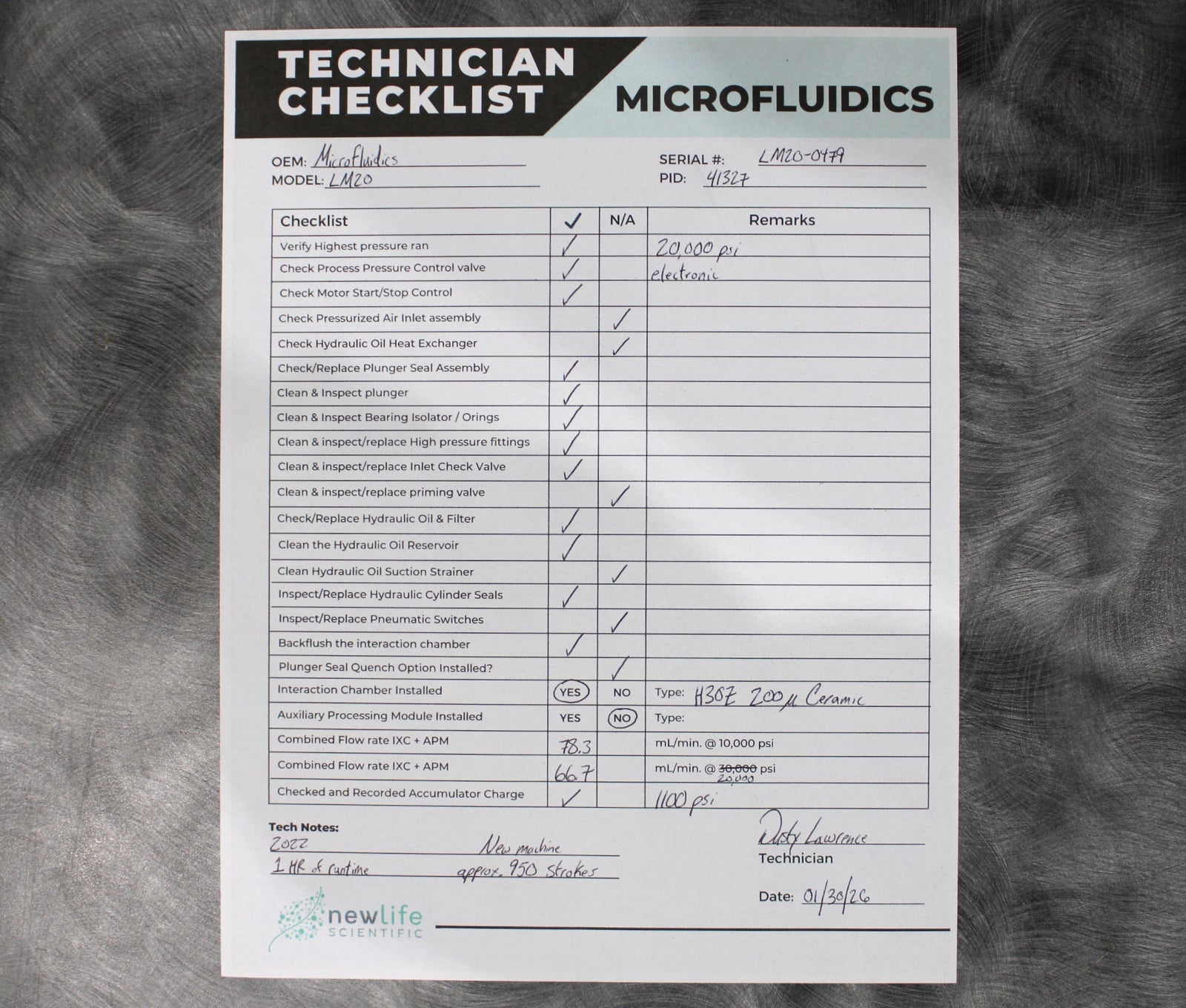

After its initial disinfection and inspection, our technicians tested the Microfluidics LM20 20K electric microfluidizer processor with the following results:

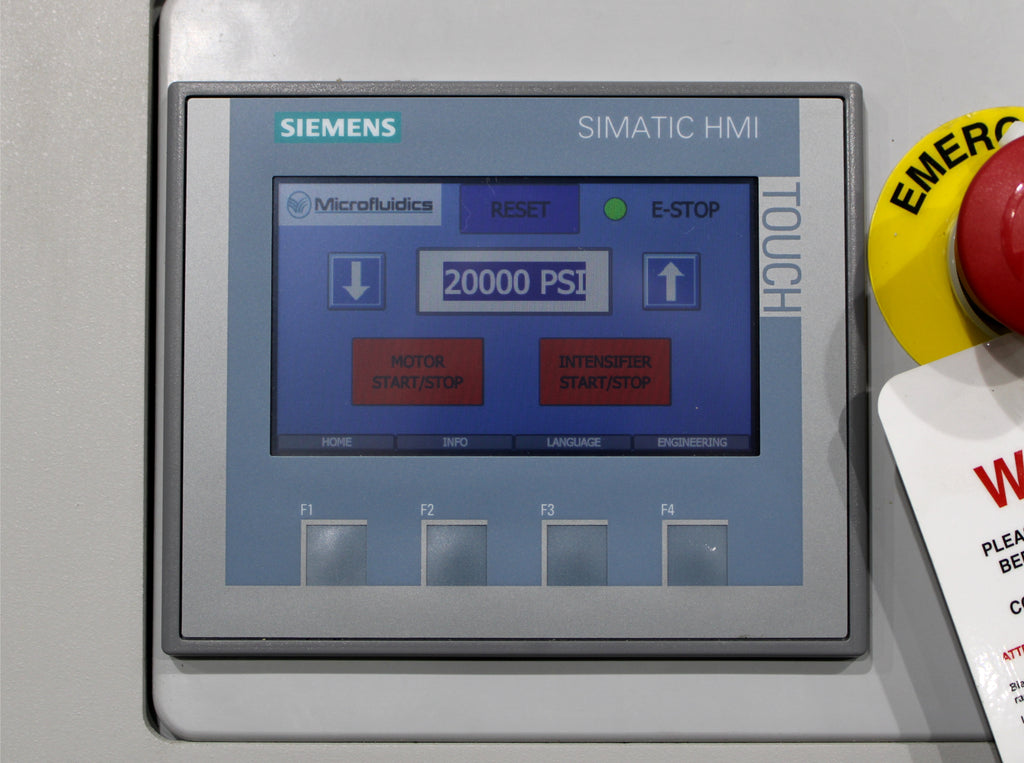

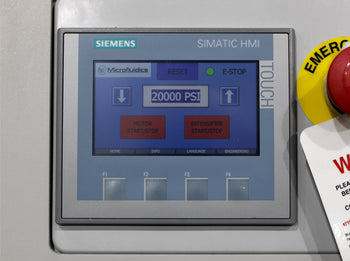

- Electronic user interface: PASSED
- Verify highest pressure of 20,000 psi: PASSED
- Check motor start/stop control: PASSED
- Check/replace plunger seal assembly: PASSED
- Clean and inspect plunger: PASSED
- Clean and inspect bearing isolator/o-rings: PASSED
- Clean and inspect/replace high pressure fittings: PASSED
- Clean and inspect/replace inlet check valve: PASSED
- Check/replace hydraulic oil and filter: PASSED
- Clean the hydraulic oil reservoir: PASSED
- Inspect/replace hydraulic cylinder seals: PASSED
- Backflush the interaction chamber: PASSED

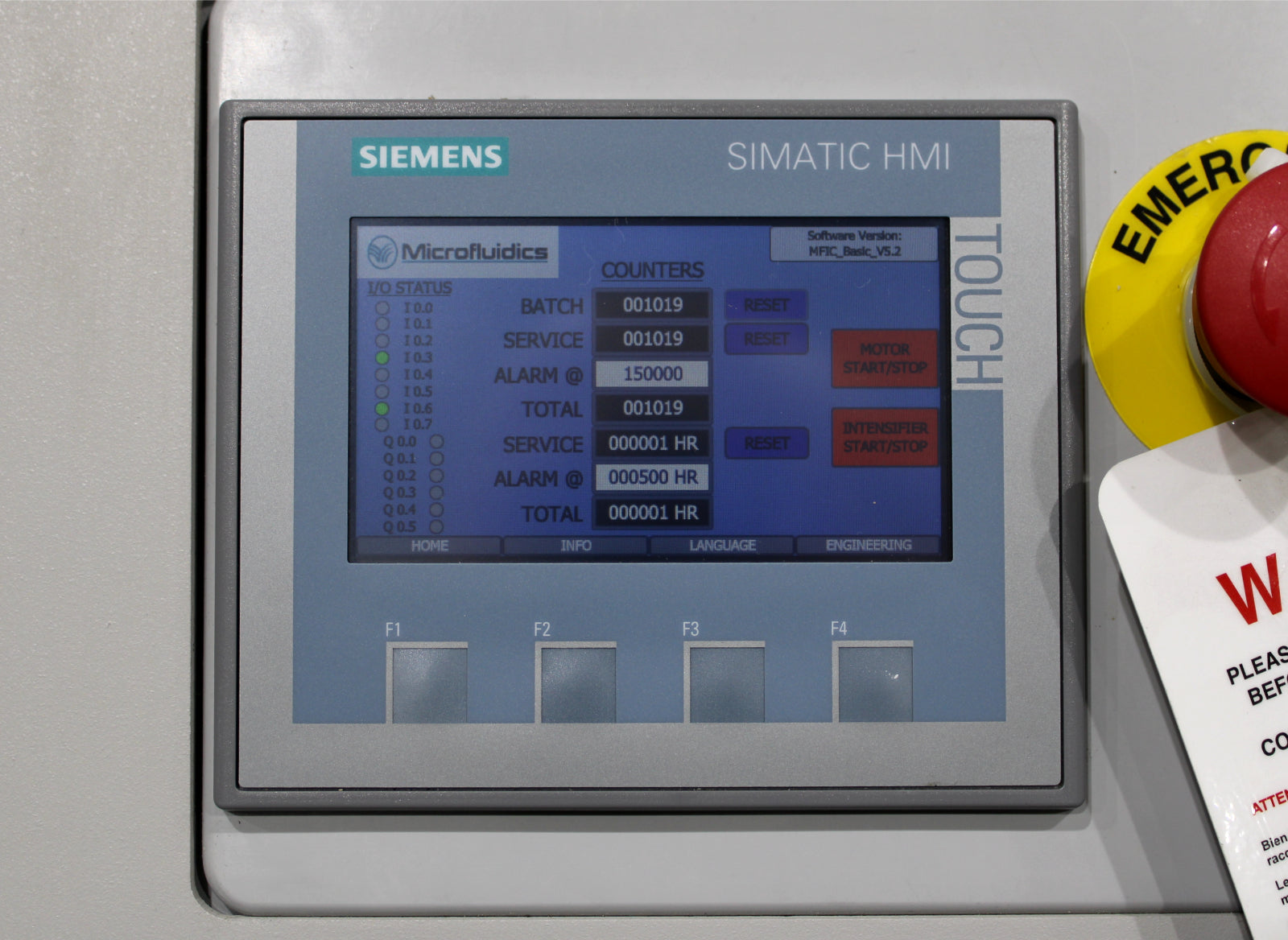

Notice: This LM20 has only 1 hour of runtime recorded. This runtime was likely from testing in the factory at the time of manufacture.
|

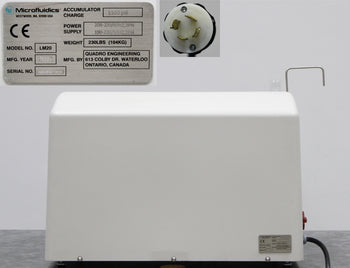

Manufacturer
|
Microfluidics
|
|
Model No.
|
LM20
|
|
Serial No.
|
LM20-0479
|
|
Mfg. year
|
2022
|
|
Pressure range
|
Up to 20,000 psi
|
|
Minimum sample size
|
14 ml
|
|
Flowrate range
|
60 ‒ 100 ml/min
|
|
Accumulator charge
|
1100 psi
|
|
Feed temperature
|
Maximum of 75°C (165°F)
|
|
Pump actuator
|
Electro-hydraulic
|
|
Noise level
|
<80 dB TWA
|
|
Power supply
|
208-230, 60Hz, 3Ph
190-220, 50Hz, 3Ph
|
|
Dimensions (W x D x H)
|
32 x 25 x 22 in
|
|
Weight
|
230 lb (104 kg)
|
