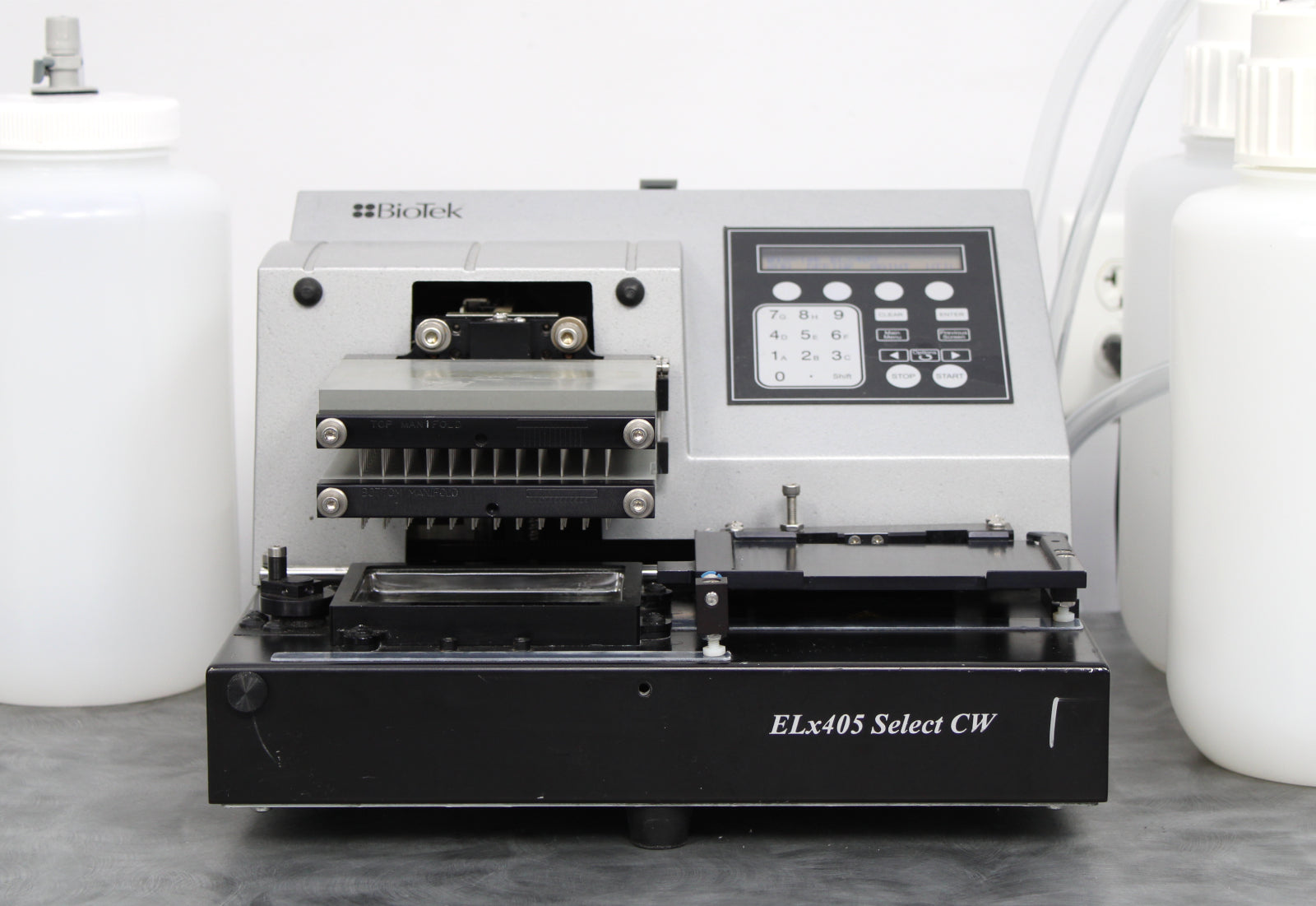

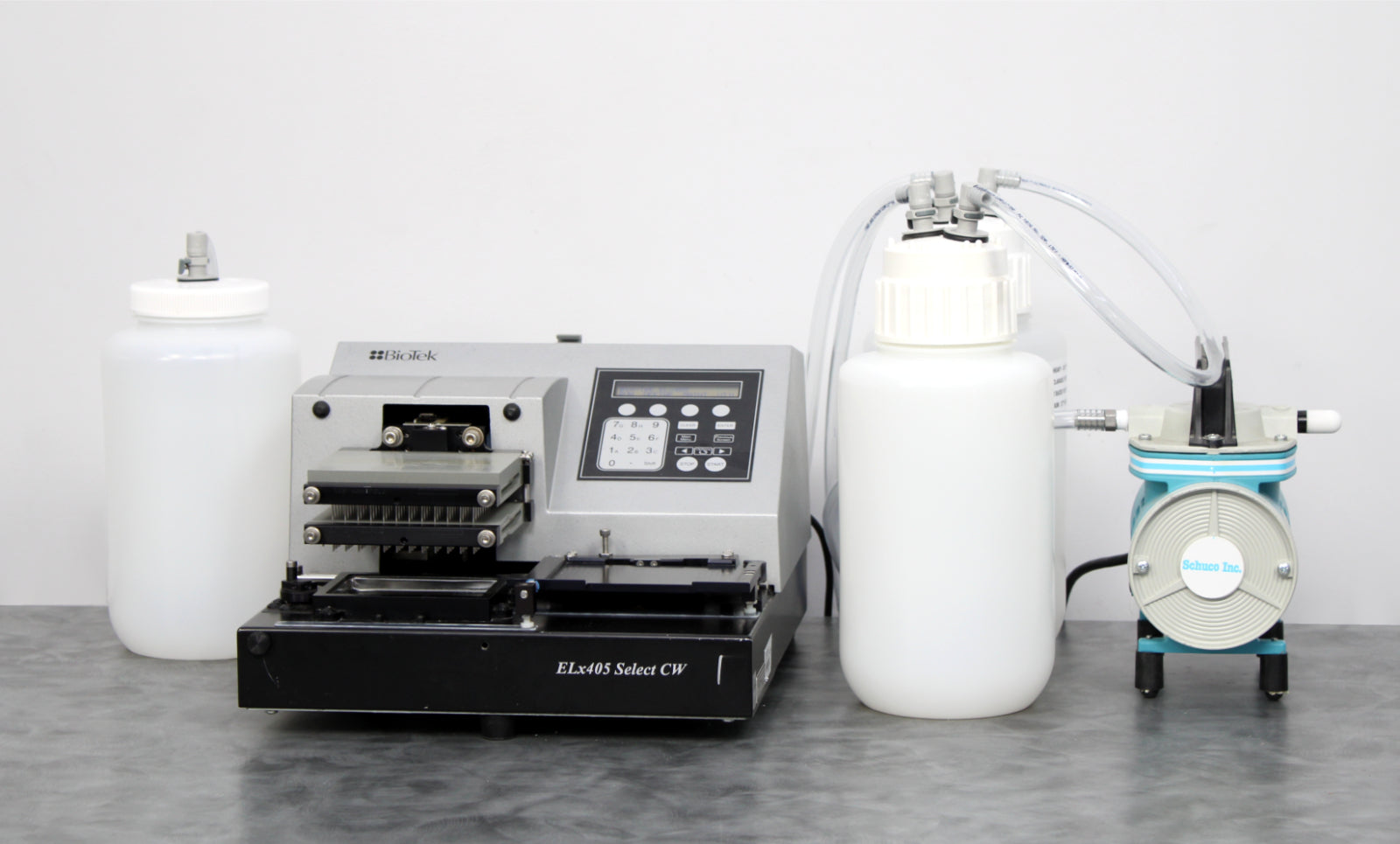

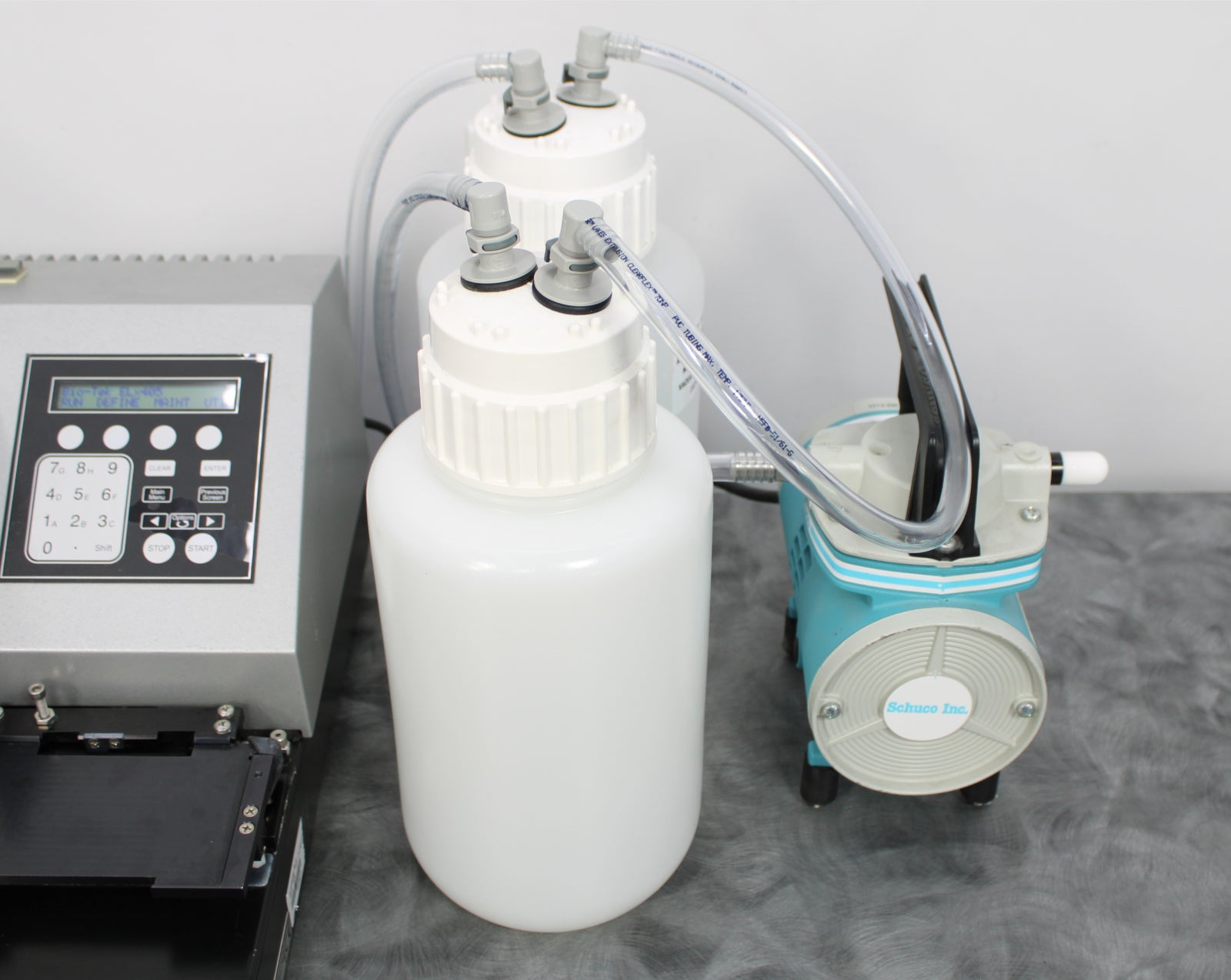

- BioTek ELx405 Select CW Microplate Washer (ELX405UCWVS)

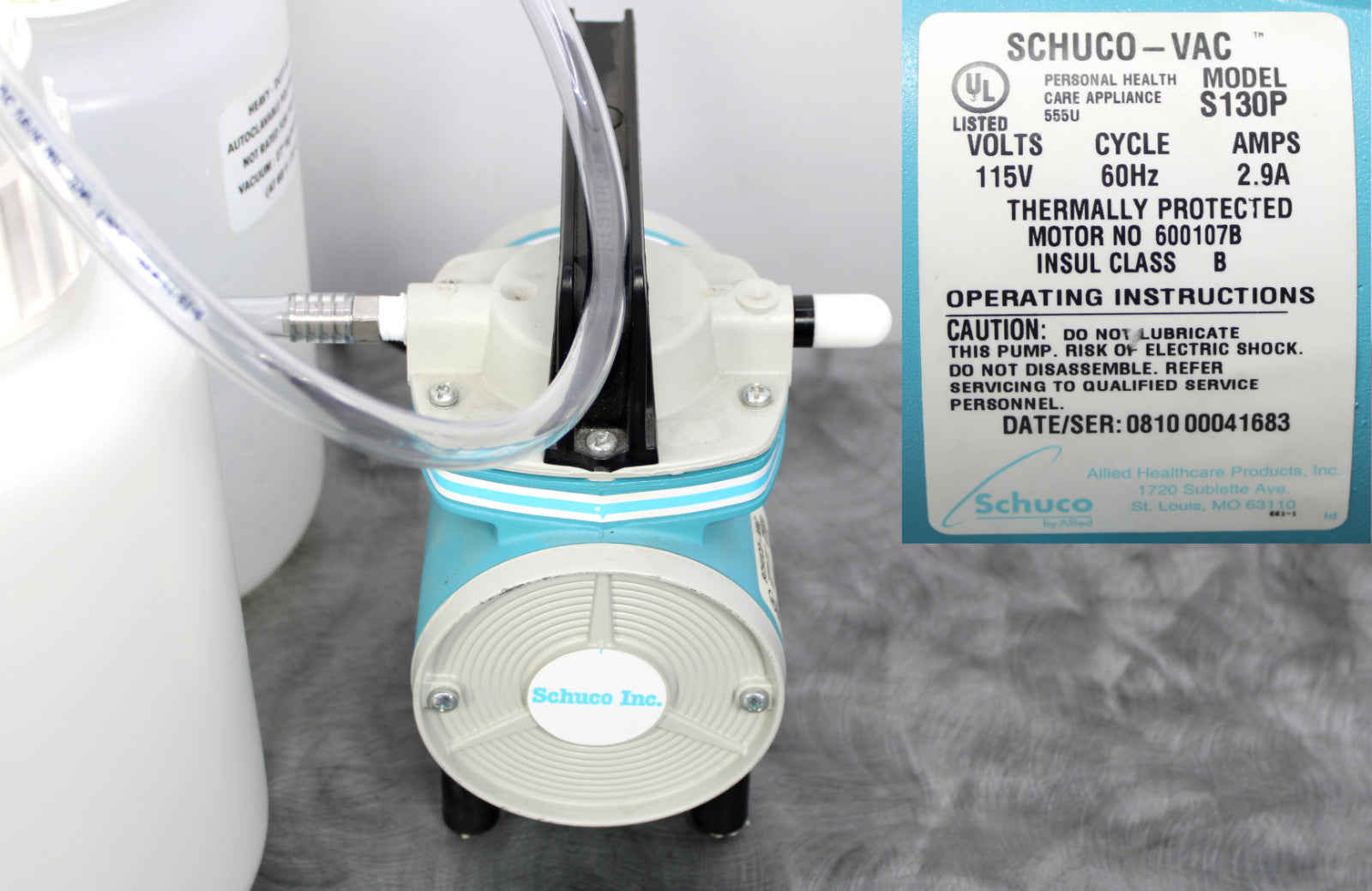

- Schuco S130P Vacuum Pump

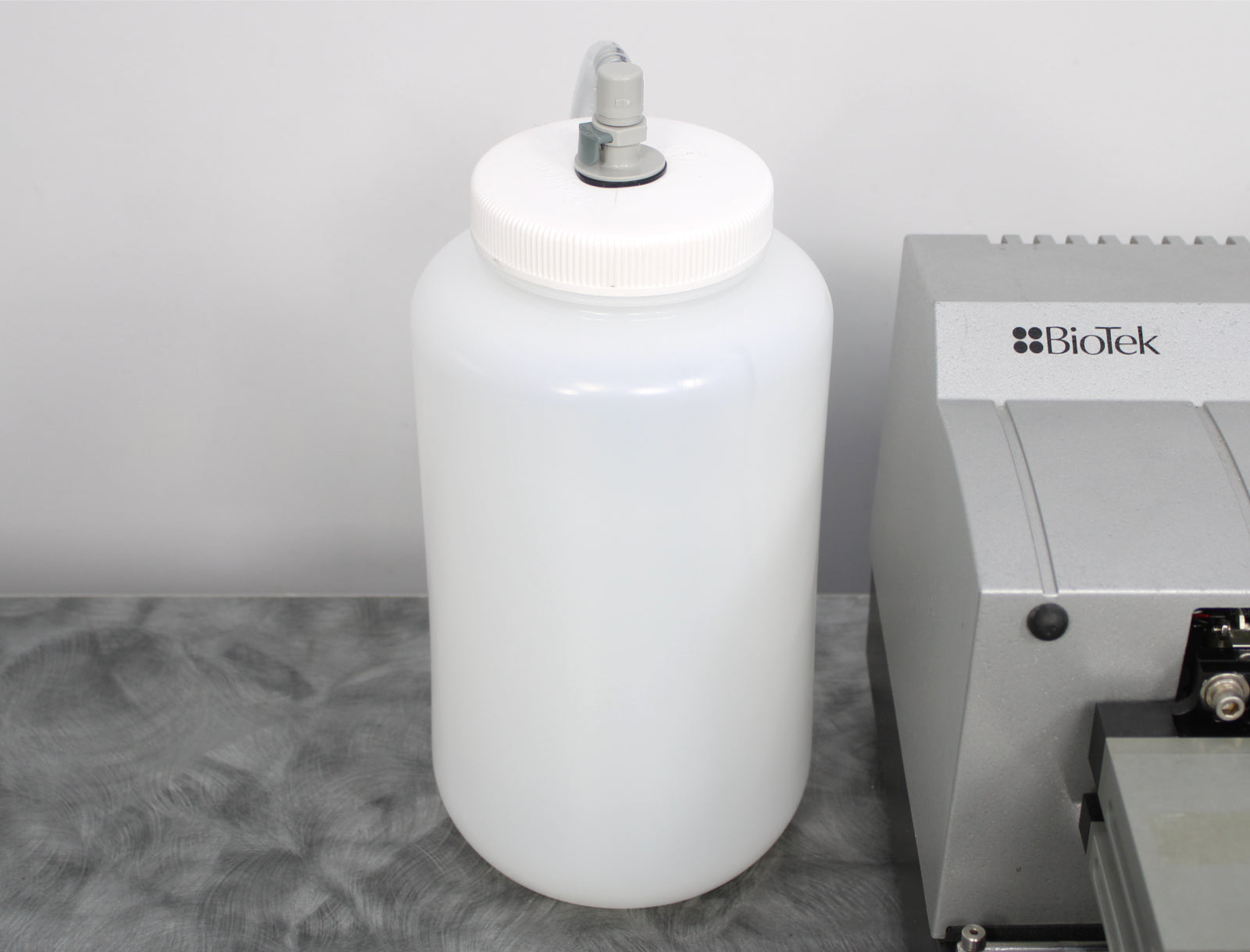

- Supply (Buffer) Bottle
- x2 Waste Bottles
- Tubing
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the BioTek ELx405 Select CW microplate washer with the following results:
- Power and initialization: PASSED
- Ran wash cycles: PASSED
- Dispensing: PASSED
- Aspiration: PASSED
- Performed inspection; no issue found: PASSED

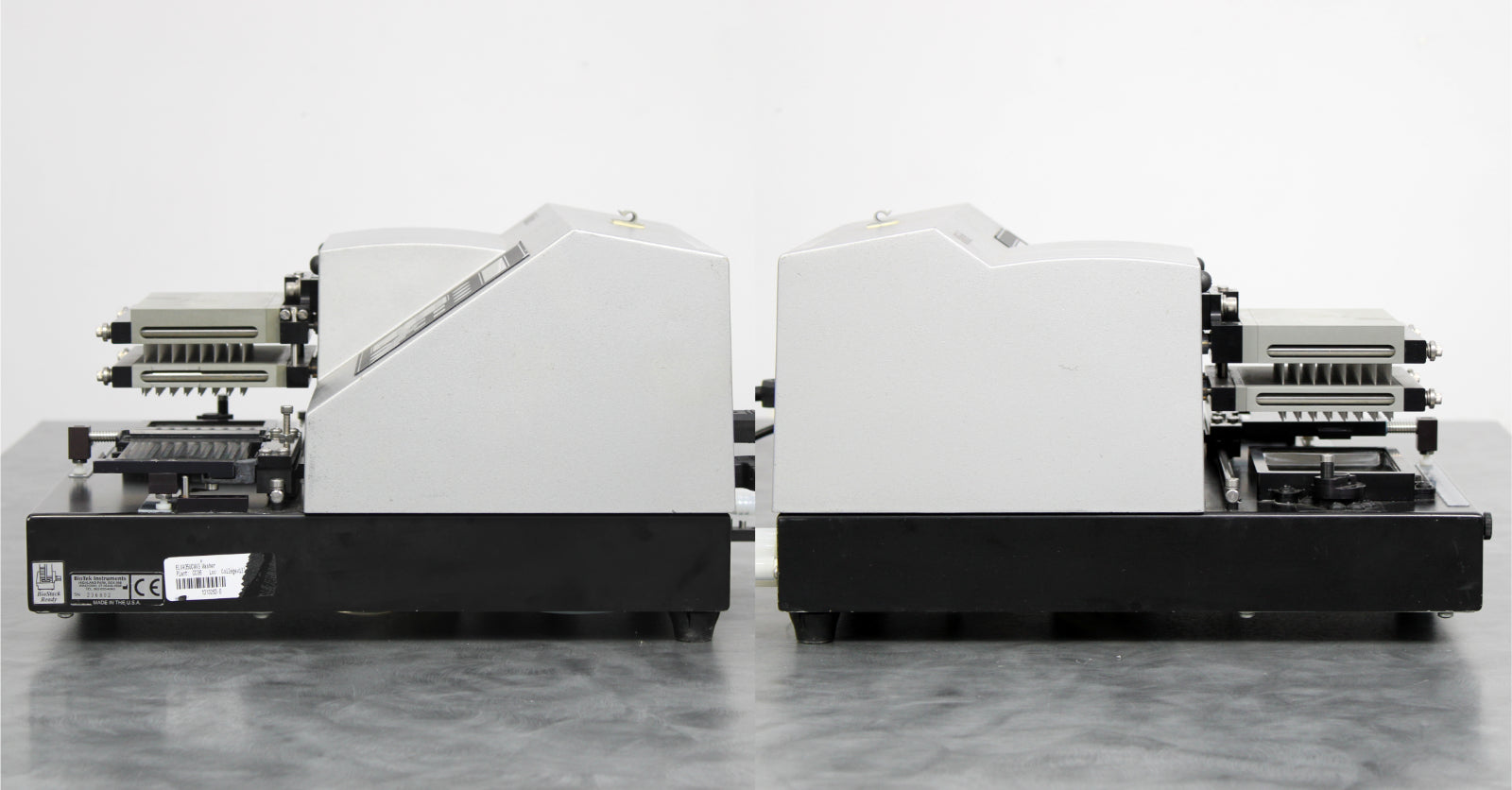

Notice: This microplate washer has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
BioTek Instruments
|
|
Model
|
ELx405 Select CW
|
|
Model No.
|
ELX405UCWVS
|
|
Serial No.
|
236802
|
|
Microplate type
|
96- and 384-well plates
|
|

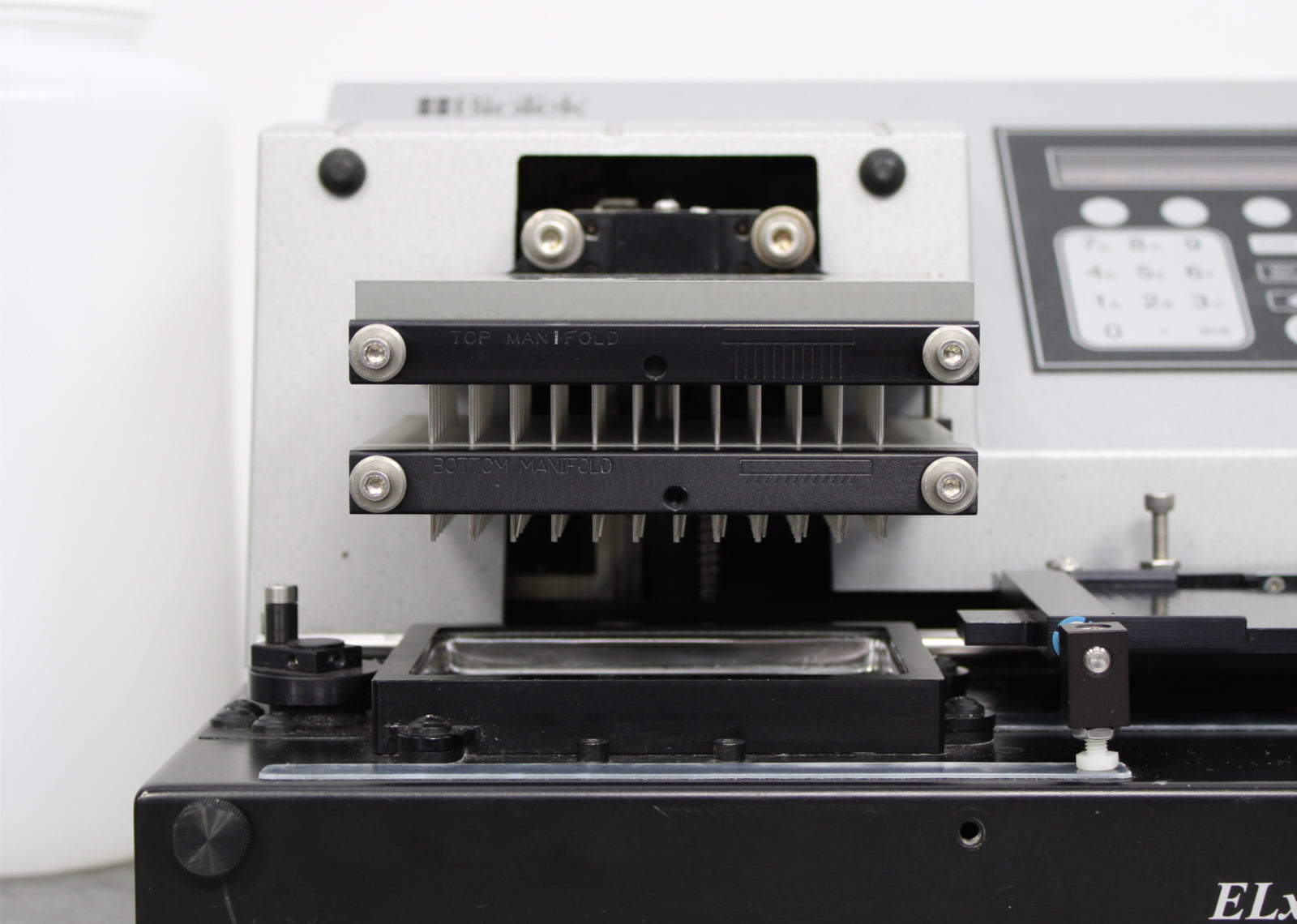

Manifold type
|
Two manifolds, one with 96 aspirate tubes and the other with 96 dispense tubes, for processing 96- and 384-well plates.
|
|

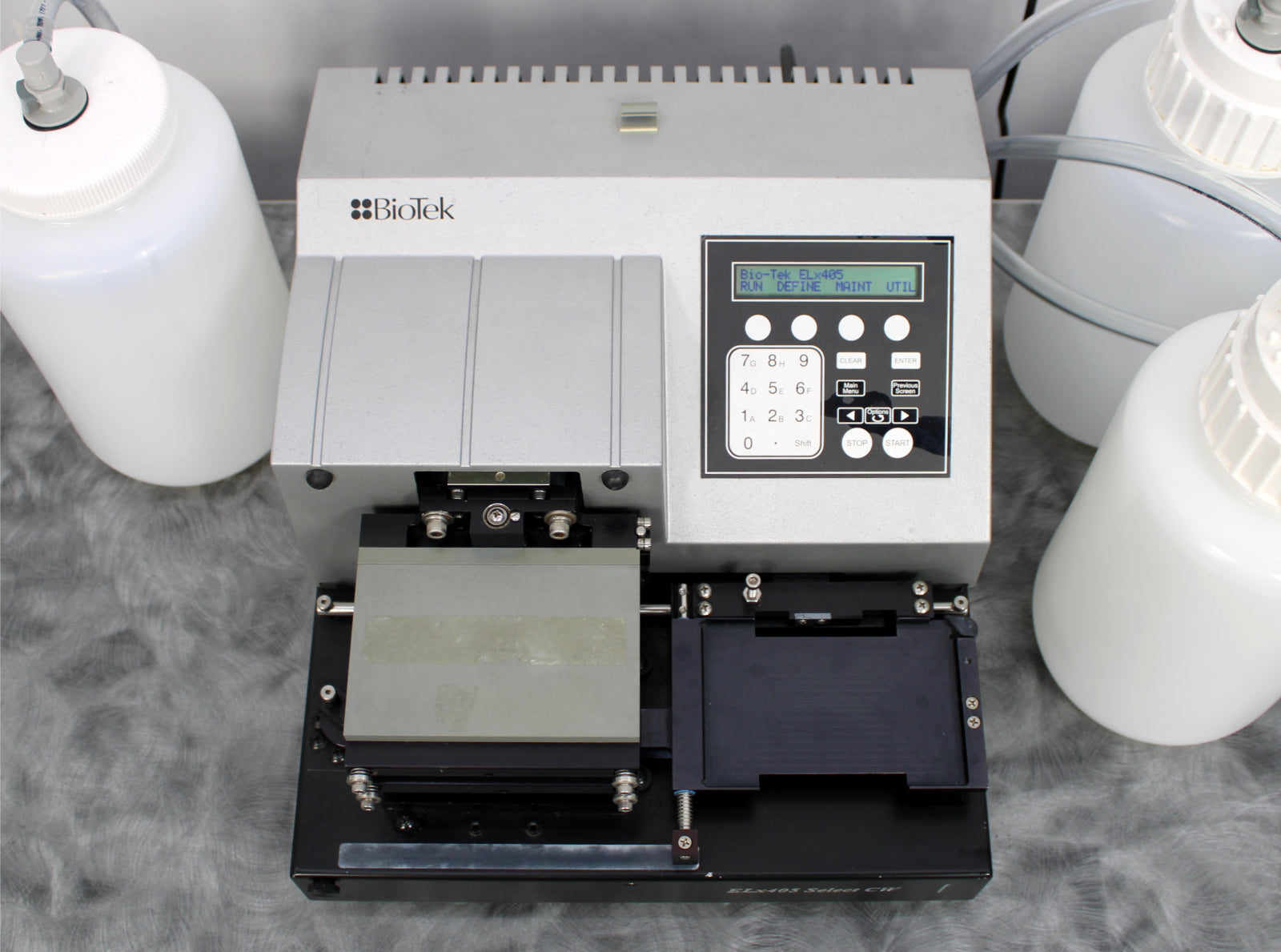

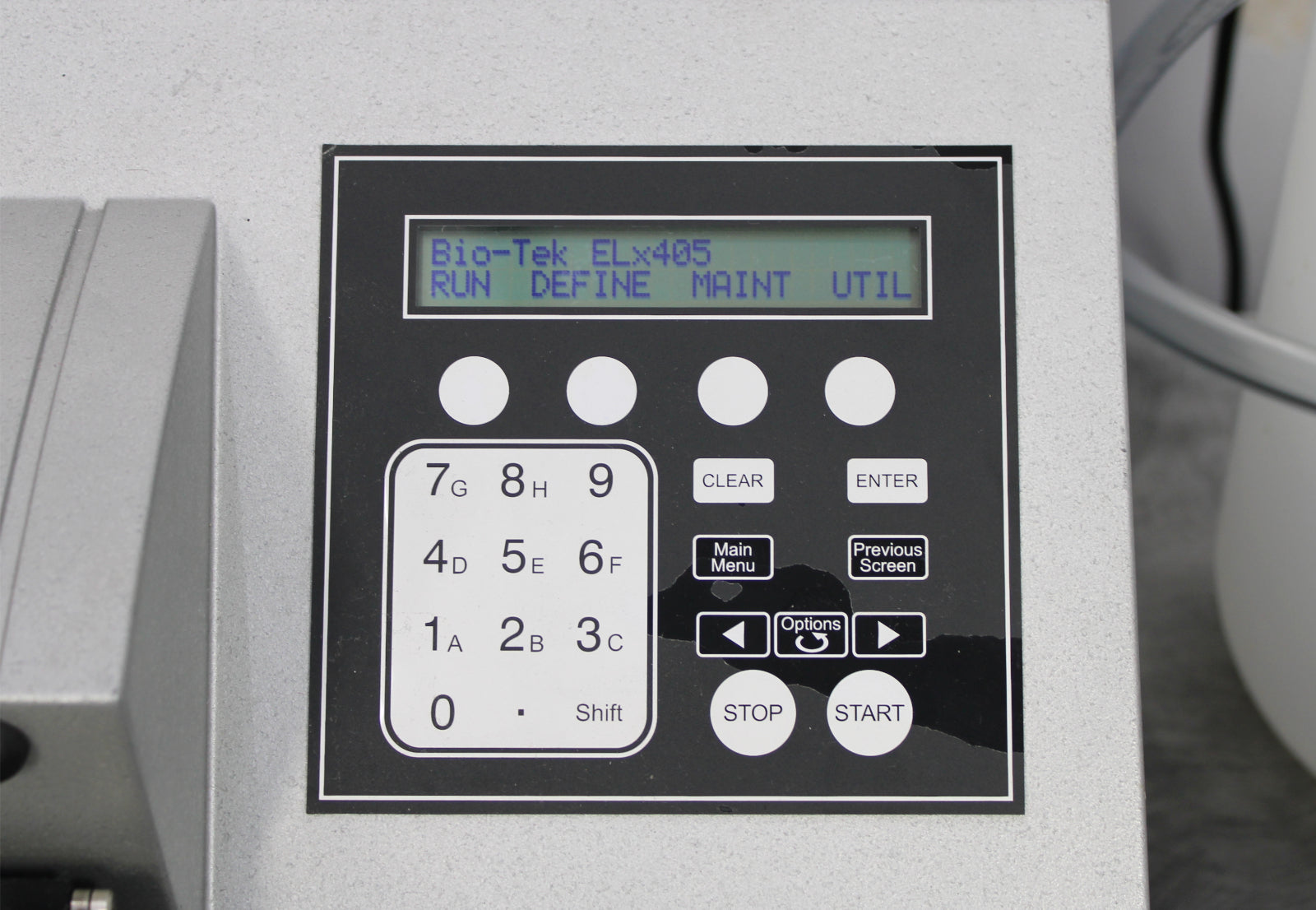

User interface (LCD)
|
2 line x 24-character LCD display, 25 alphanumeric keys
|
|
Average residual volume (evacuation efficiency)
|
Average residual volume in the microwells is ≤ 5 µl per well after a 3-cycle wash, when 300 µl of deionized water with 0.1% Tween 20, or buffer equivalent, is dispensed per well into a Costar 96-well flat-bottomed plate. The aspirate height adjustment is optimized for the plate prior to testing.
|
|
Dispense precision
|
≤ 4.0% CV, when dispensing 300 µl per well of deionized water with 0.1% Tween 20, with FD&C #1 blue dye at a rate of 300 µl per well, per second (3.0% CV is typical) into a Costar 96-well flat-bottomed plate. The absorbance of the solution is read at 630 nm and 450 nm reference.
|
|

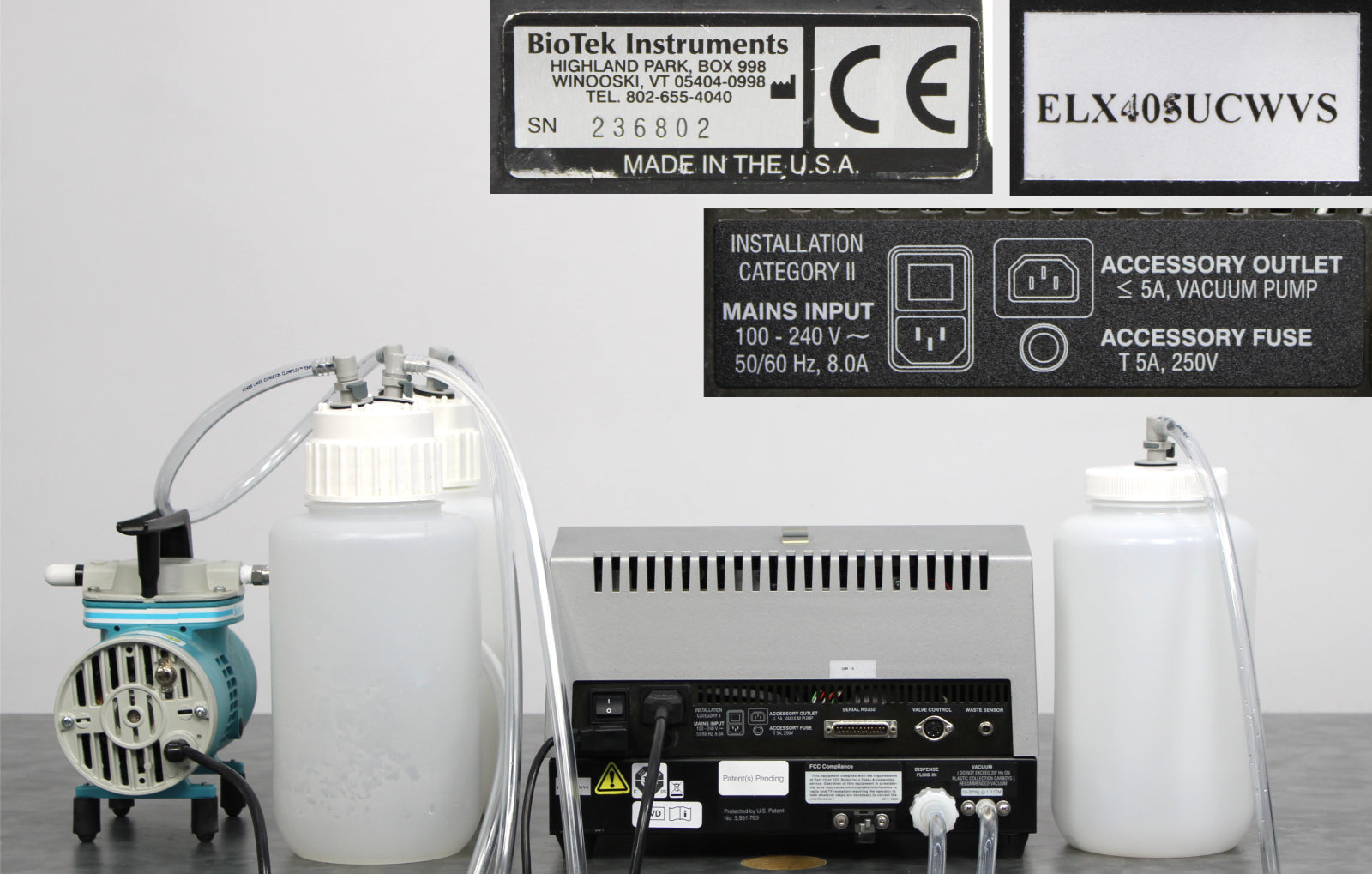

Power rating
|
100 to 240V~, 50/60Hz, 8.0A
|
|

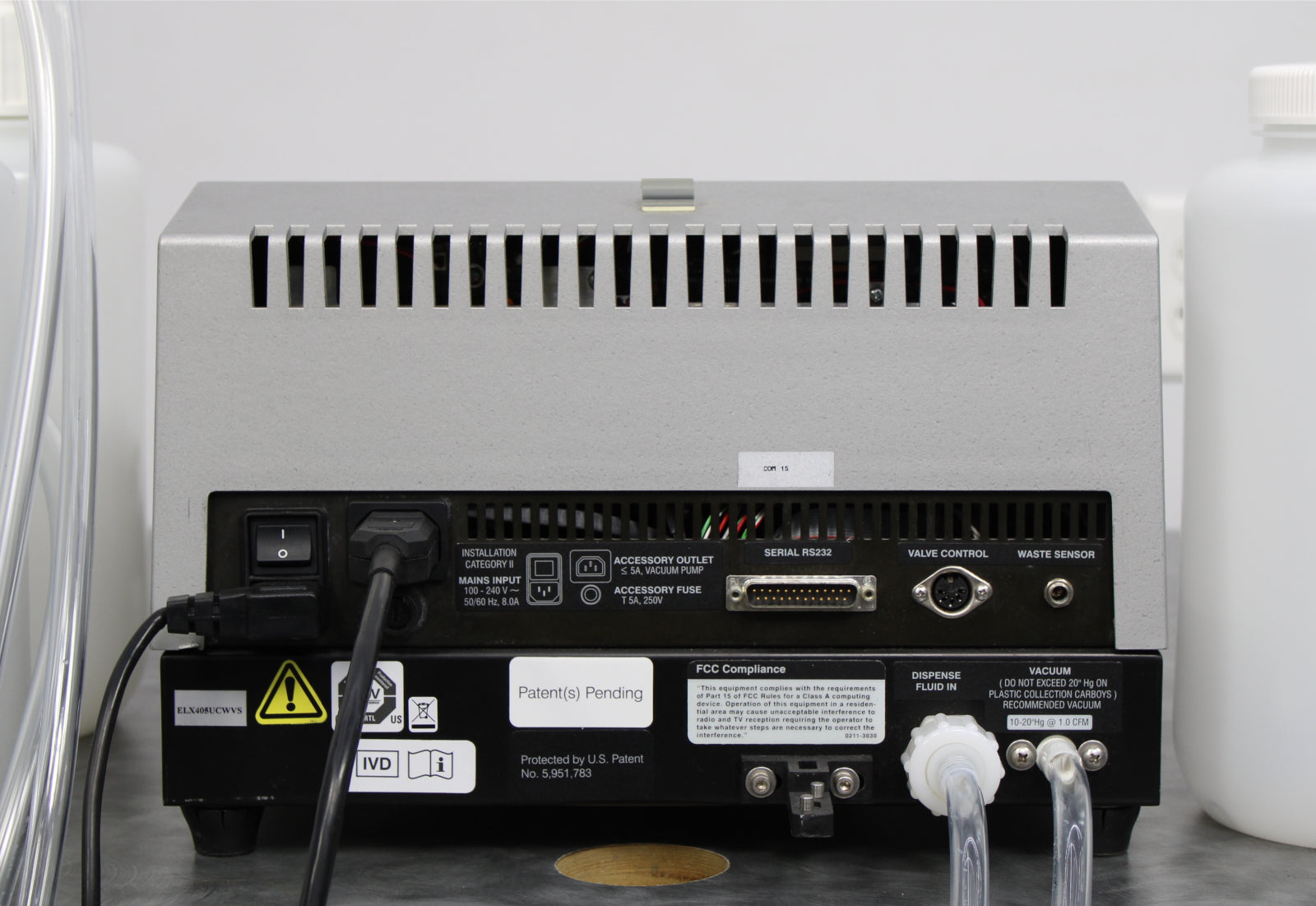

Accessory outlet
|
≤5.0A, used for vacuum pump
|
|
Dimensions (W x D x H)
|
14 x 17 x 10 in (35.6 x 43.2 x 25.4 cm)
|
|
Weight
|
≤30 lb (13.5 kg)
|
