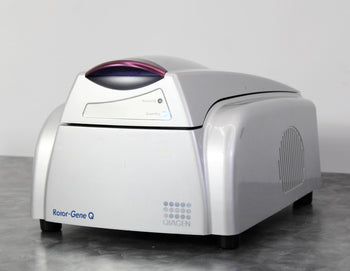

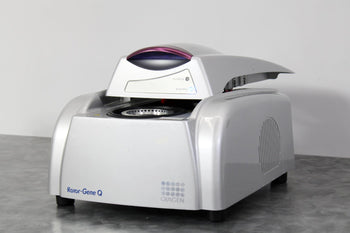

- QIAGEN Rotor-Gene Q 5-Plex Real-Time qPCR Centrifugal DNA/RNA Thermal Cycler

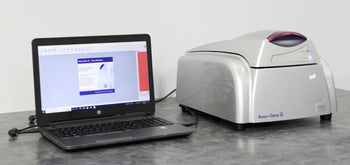

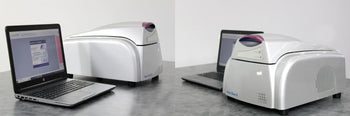

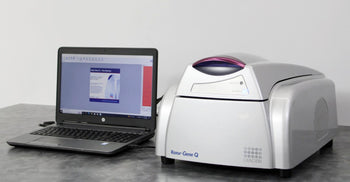

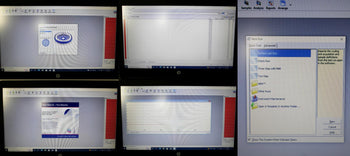

- Windows 10 Laptop with Software installed
After its initial disinfection and inspection, our technicians tested this Rotor-Gene Q with the following results:
- Runs a cycle without any issues: PASSED
|

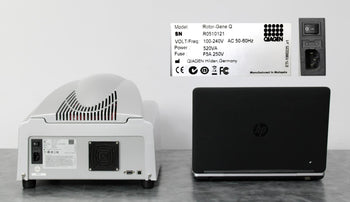

Manufacturer
|
QIAGEN
|
|
Model
|
Rotor-Gene Q
|
|
Serial No.
|
R0510121
|
|
Place of Manufacture
|
Made in Malaysia
|
|
Operating Temperature
|
18-30°C (64-86°F)
|
|
Optical System
|
Up to 6 channels spanning UV to infra-red wavelengths; Excitation sources: High energy light-emitting diodes; Detector: Photomultiplier; Acquisition time: 4 s. The software allows to create new excitation/detection wavelength combinations
|
|
Excitation Wavelength
|
Gene expression analysis, microRNA detection, Virus detection, SNP genotyping, SNP genotyping, High Resolution Melt analysis (HRM)
|
|
Samples per run (throughput)
|

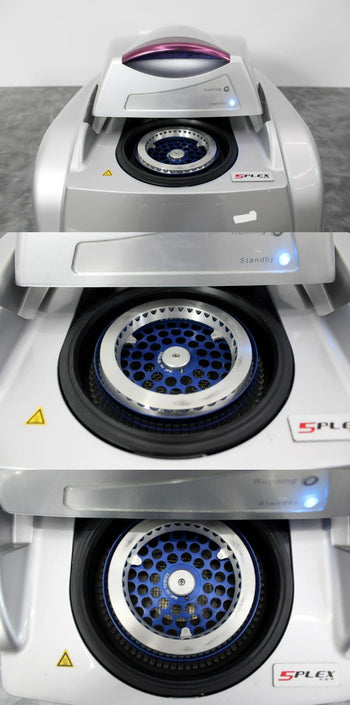

Tubes 0.2 ml; Strip Tubes 0.1 ml (4 tubes); Rotor-Disc 72; Rotor-Disc 100; Up to 100 samples per run using a Rotor-Disc 100
|
|
Thermal performance
|
Temperature range, 35 to 99ºC; Temperature accuracy, ±0.5ºC (type, measured 30 seconds after clock start); Temperature resolution, ±0.02ºC (smallest programmable increment); Temperature uniformity, ±0.02ºC; Ramp rate (peak ramp rates, air), >15ºC/s heating, >20ºC/s cooling
|
|
Typical run time
|
40 cycles in 45 min with QIAGEN RG Kits (assay dependent)
|
|
Dimensions (W x D x H)
|
14.5 x 15.75 x 11.5 in.
|
|
Weight
|
12.5 kg (27.6 lb.), standard configuration
|
|

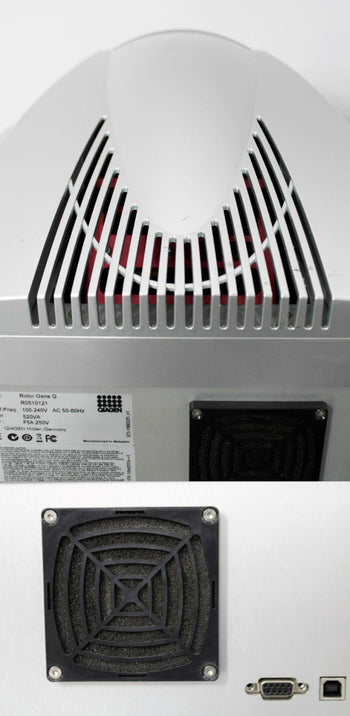

Electrical Specifications
|
100-240V, 50-60Hz, 520VA
|
