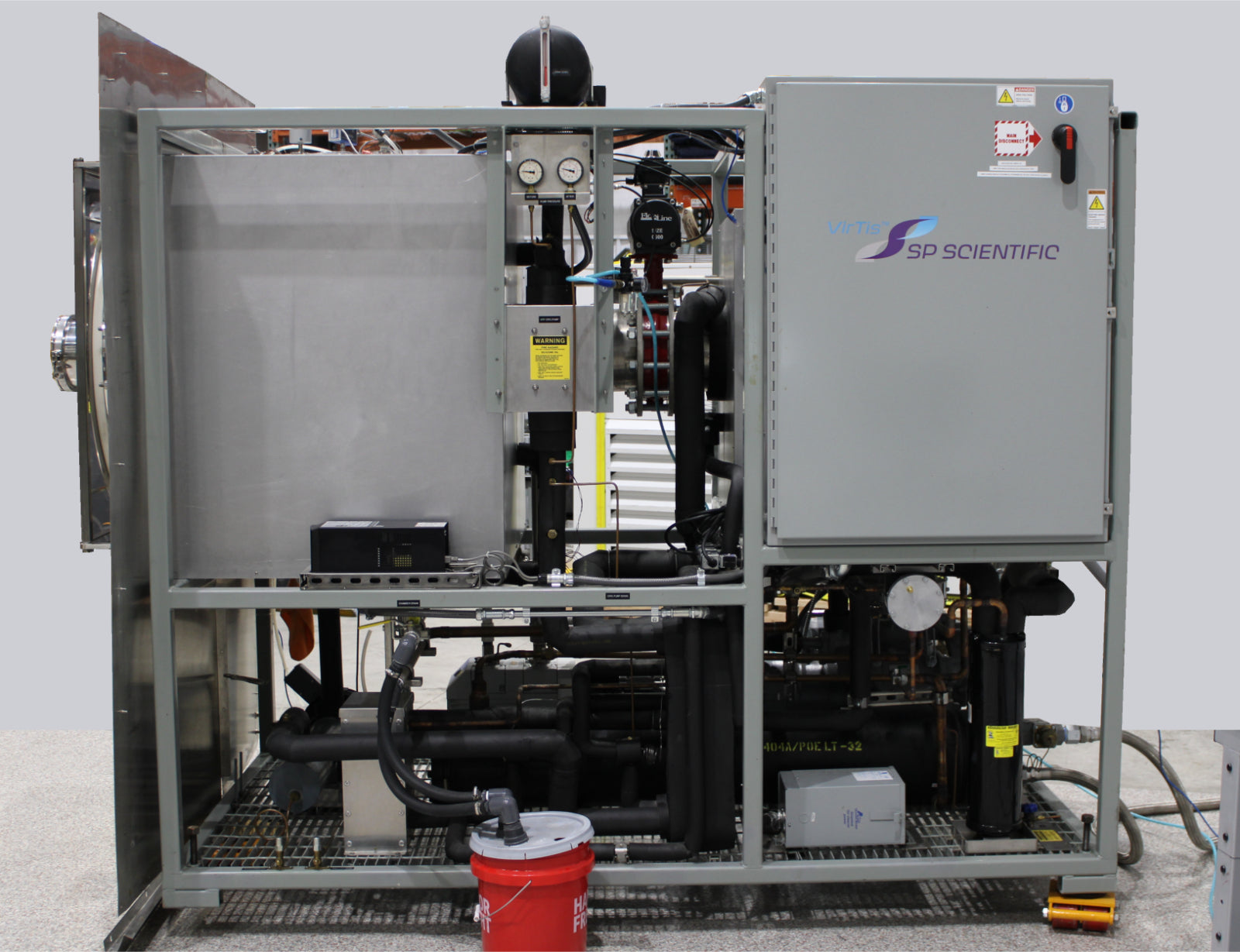

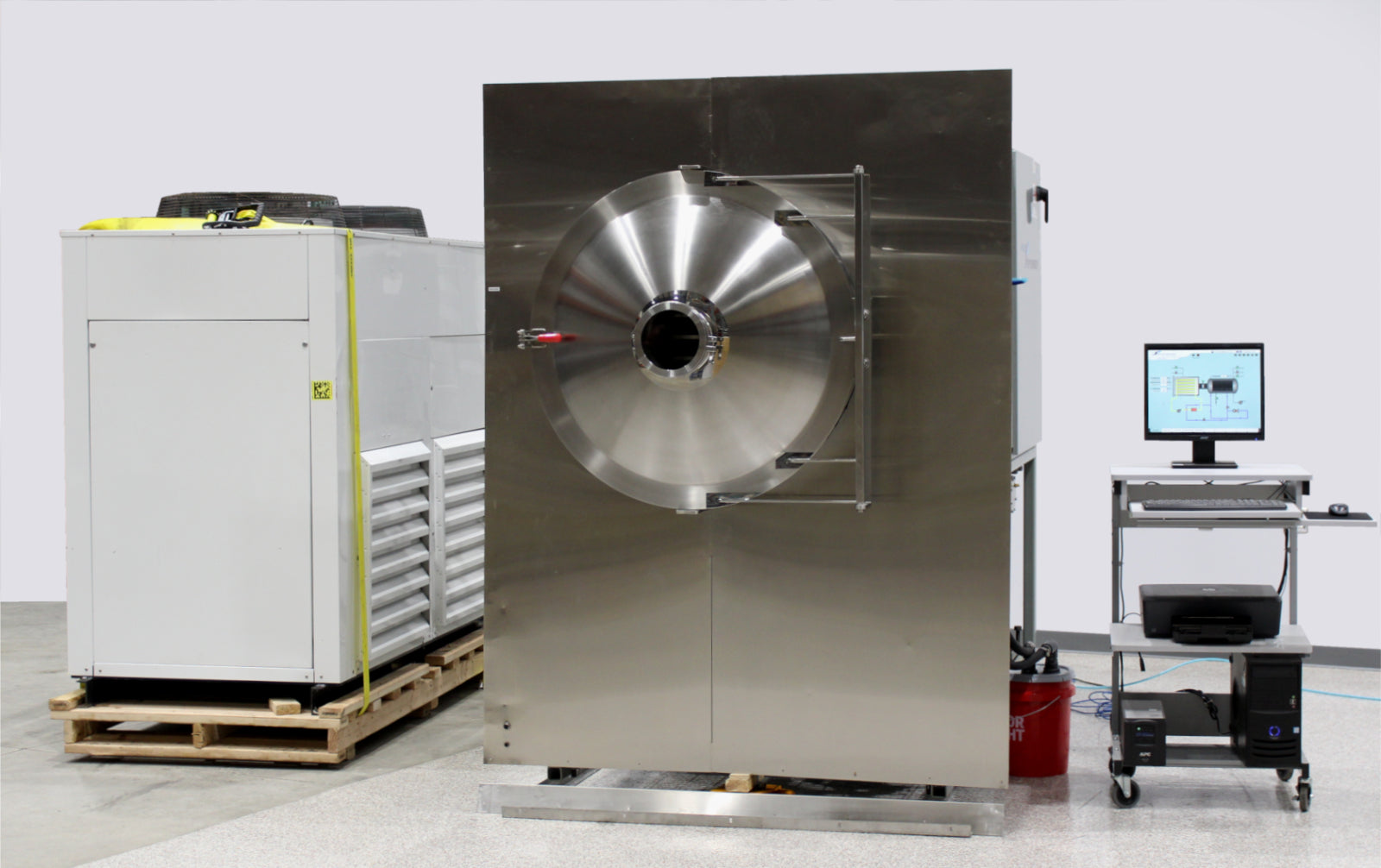

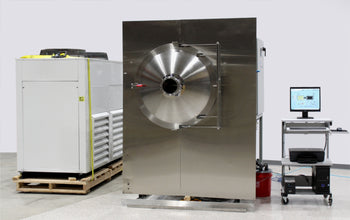

- SP Scientific VirTis Benchmark 3000 Lyophilizer Production Freeze Dryer with 48ft2 Shelf Area and 42 Liter Condenser Capacity
- LyoS Control Software

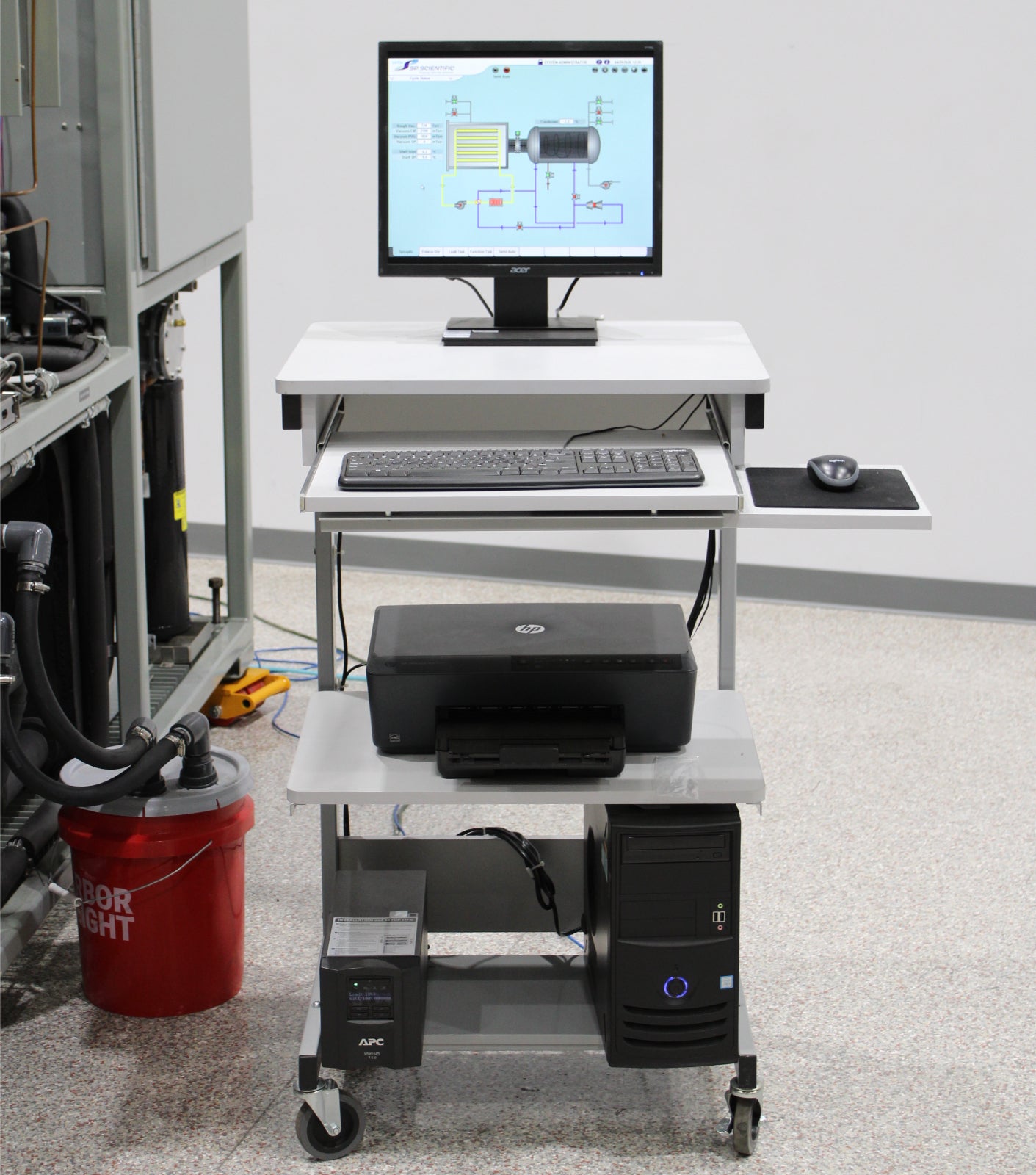

- Computer, Monitor, Keyboard, Mouse, and Cart

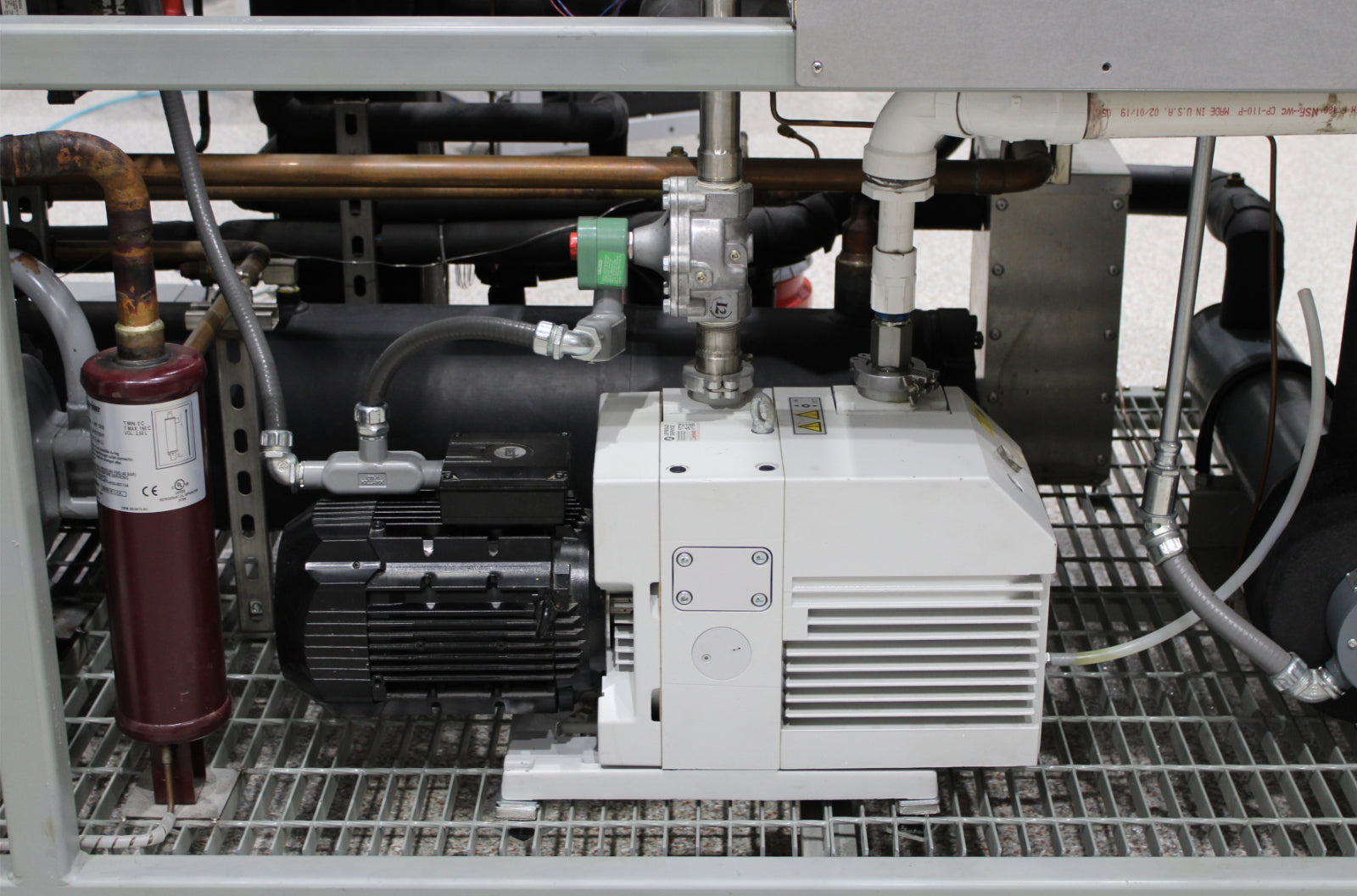

- Leybold TRIVAC D 40 B Dual-Stage Rotary Vane Vacuum Pump

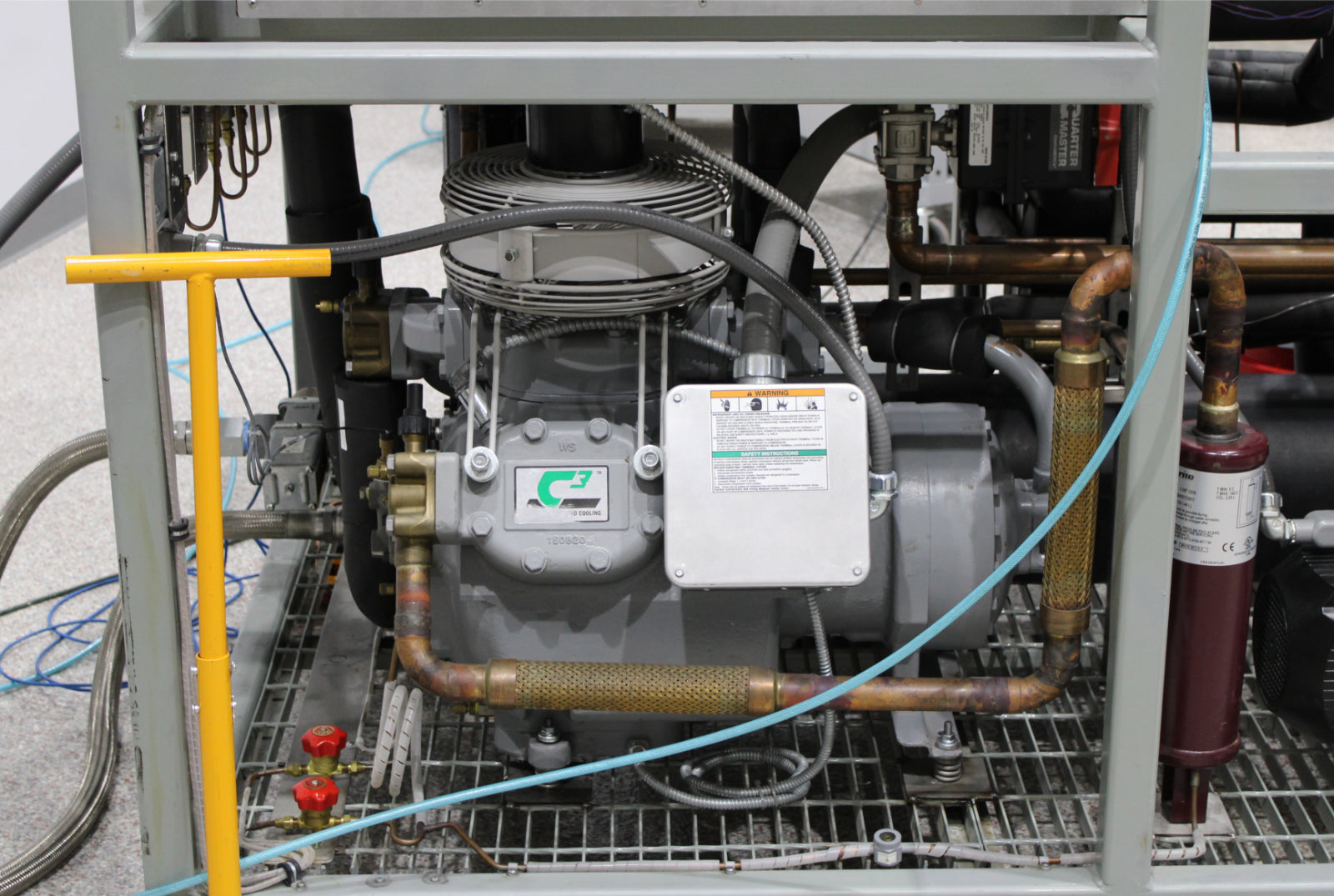

- Carlyle Compound Cooling Semi-Hermetic Compressor

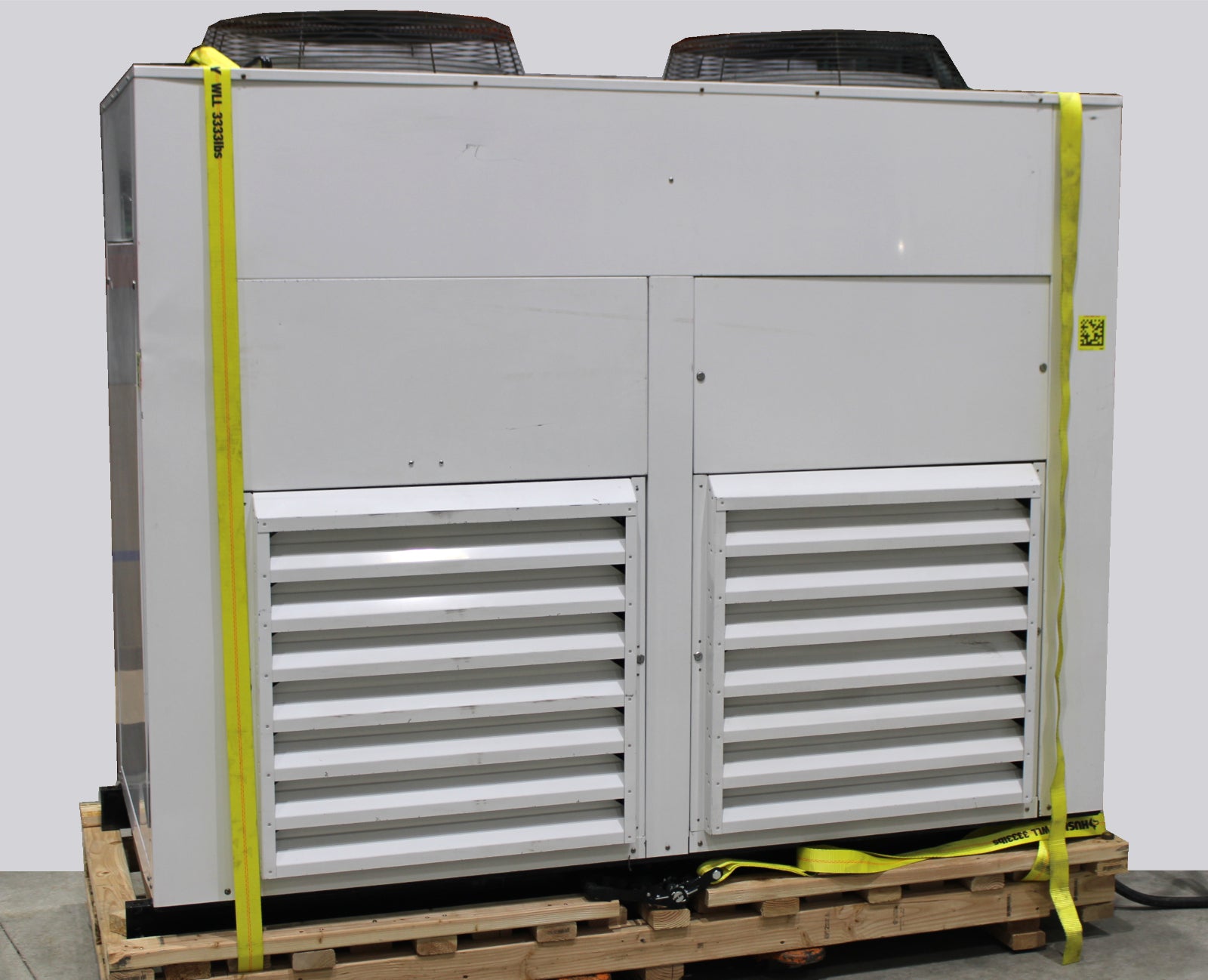

- The Arctic Chiller Group ArctiChill PACVPV0100S4 Manhattan Modular Air-Cooled Chiller
- Installation, Operation, and Maintenance Manual for Chiller
- Custom Operator’s Manual for Benchmark 3000
- System Integration Testing (SIT) for Benchmark 3000
- Validation Guide and Workbook for Benchmark 3000
- Factory Acceptance Test for Benchmark 3000
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis Benchmark 3000 freezer dryer and chiller with the following results:
- Thermal pull-down (function testing): PASSED

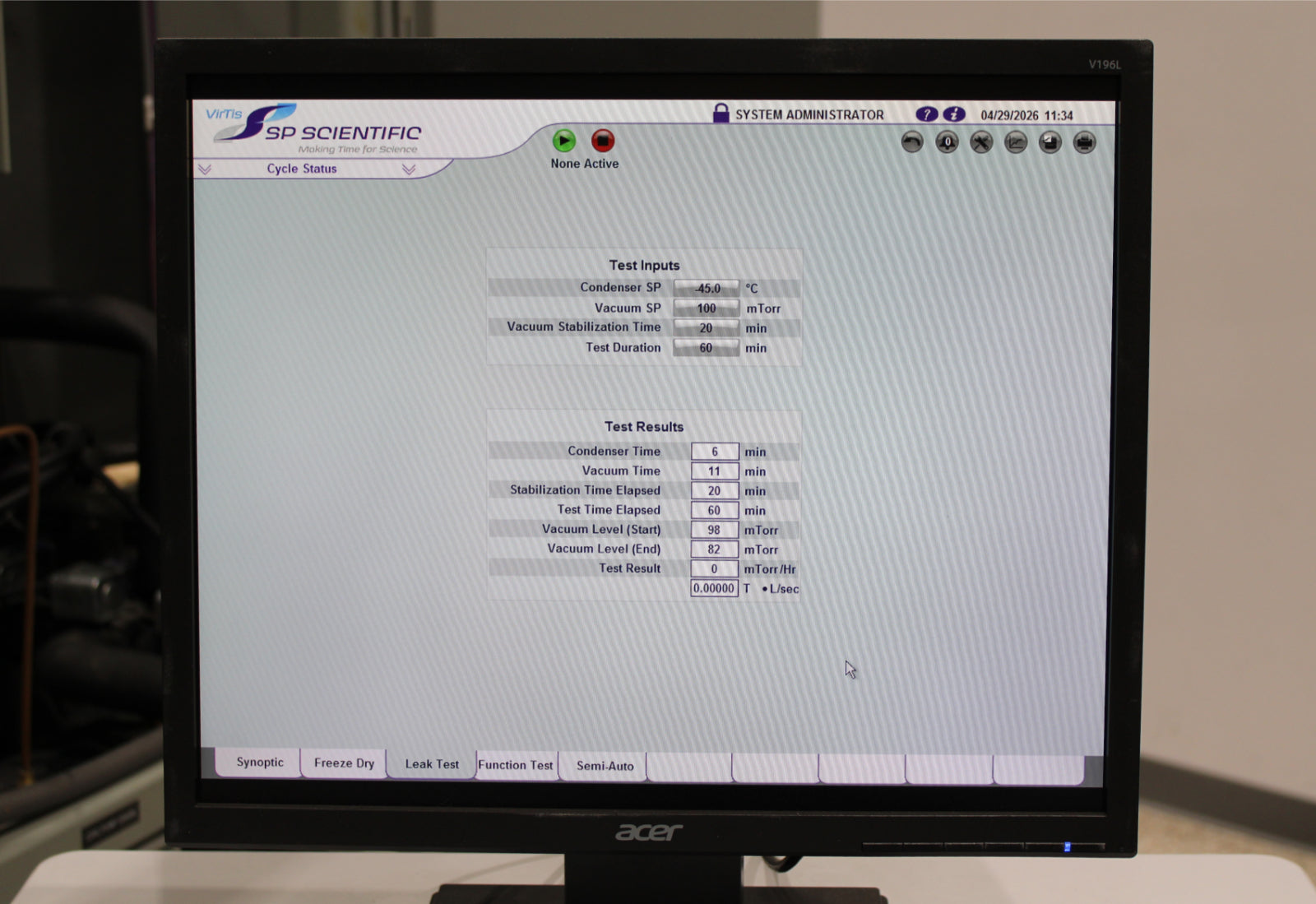

- Vacuum leak testing: PASSED
- Pressure rise testing (moisture/isolation test): PASSED
- Fluid circulation and heat exchange testing: PASSED
- Hot water defrost validation: PASSED
- Control and electrical system safety verification: PASSED
This is a highly reliable, production-scale turnkey freeze-drying system engineered by SP Scientific VirTis. Renowned for their uncompromising build quality and longevity, the Benchmark series is a trusted standard across the pharmaceutical, biotech, diagnostics, and CDMO industries.
This specific bulk-drying system offers substantial, high-capacity shelf space, making it exceptionally suited for processing large production-scale batches.

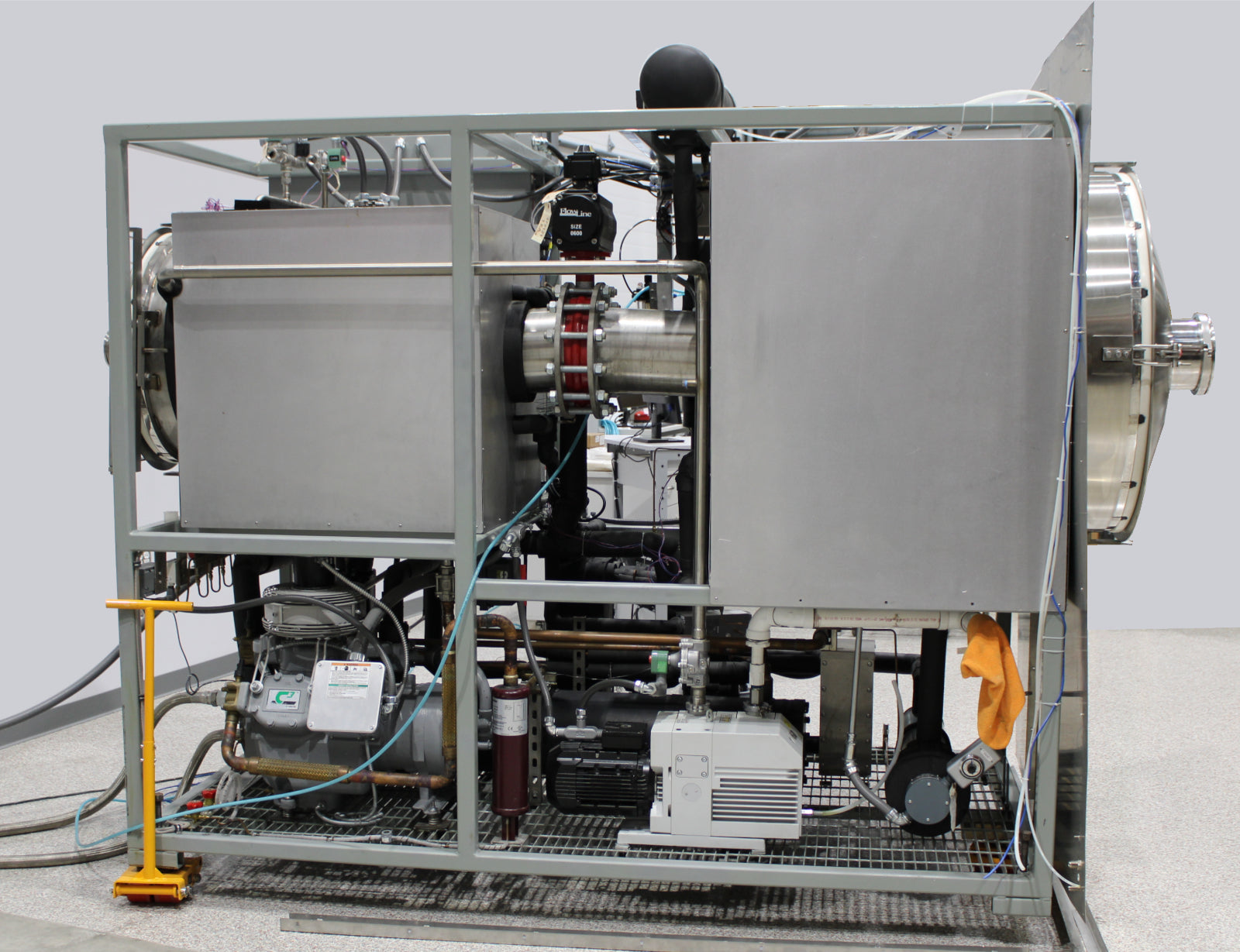

- VirTis Benchmark 3000 Lyophilizer Main Unit (Bulk/Non-Stoppering configuration with full stainless steel enclosure panels)

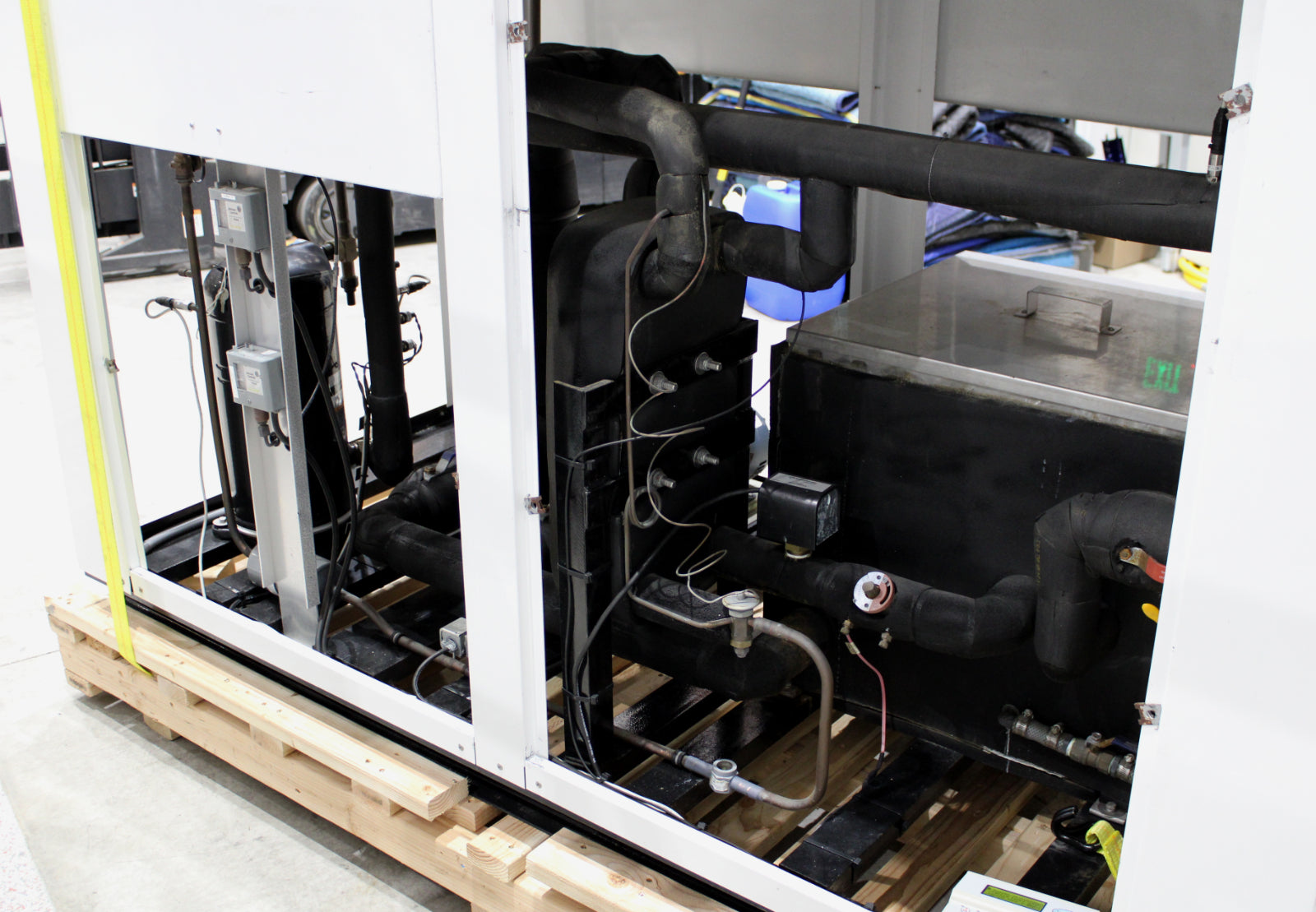

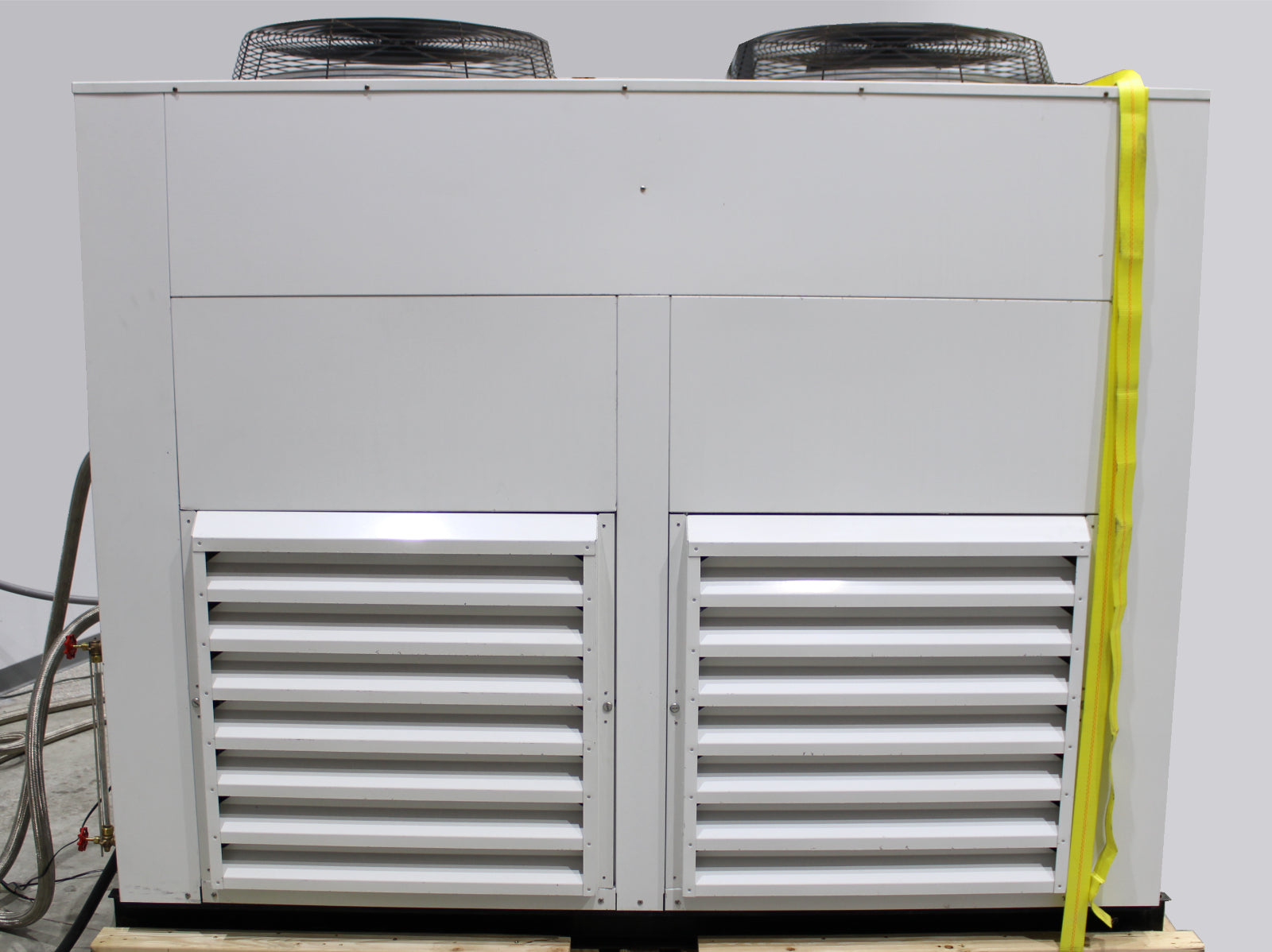

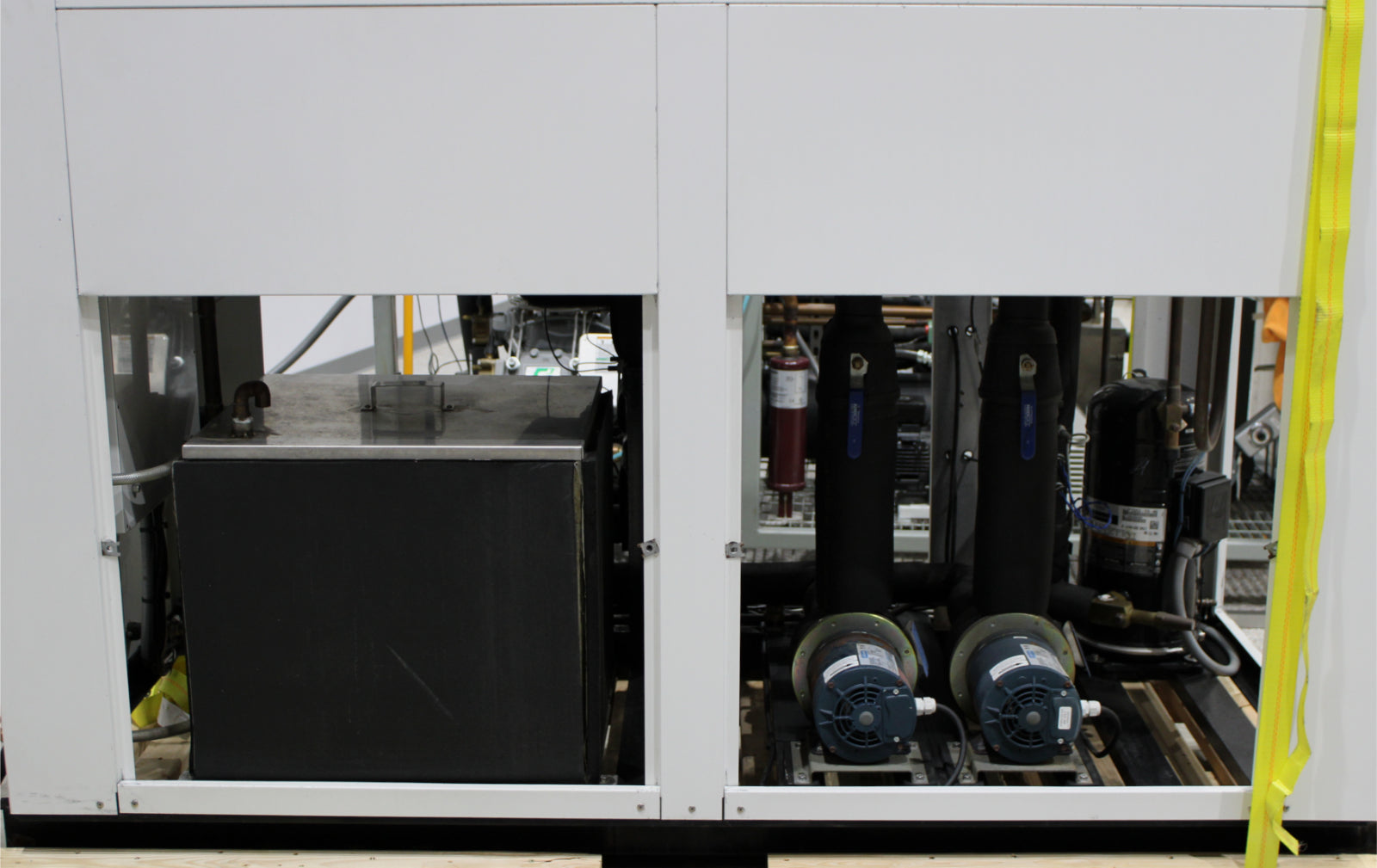

- Matching External Fluid Chiller Unit

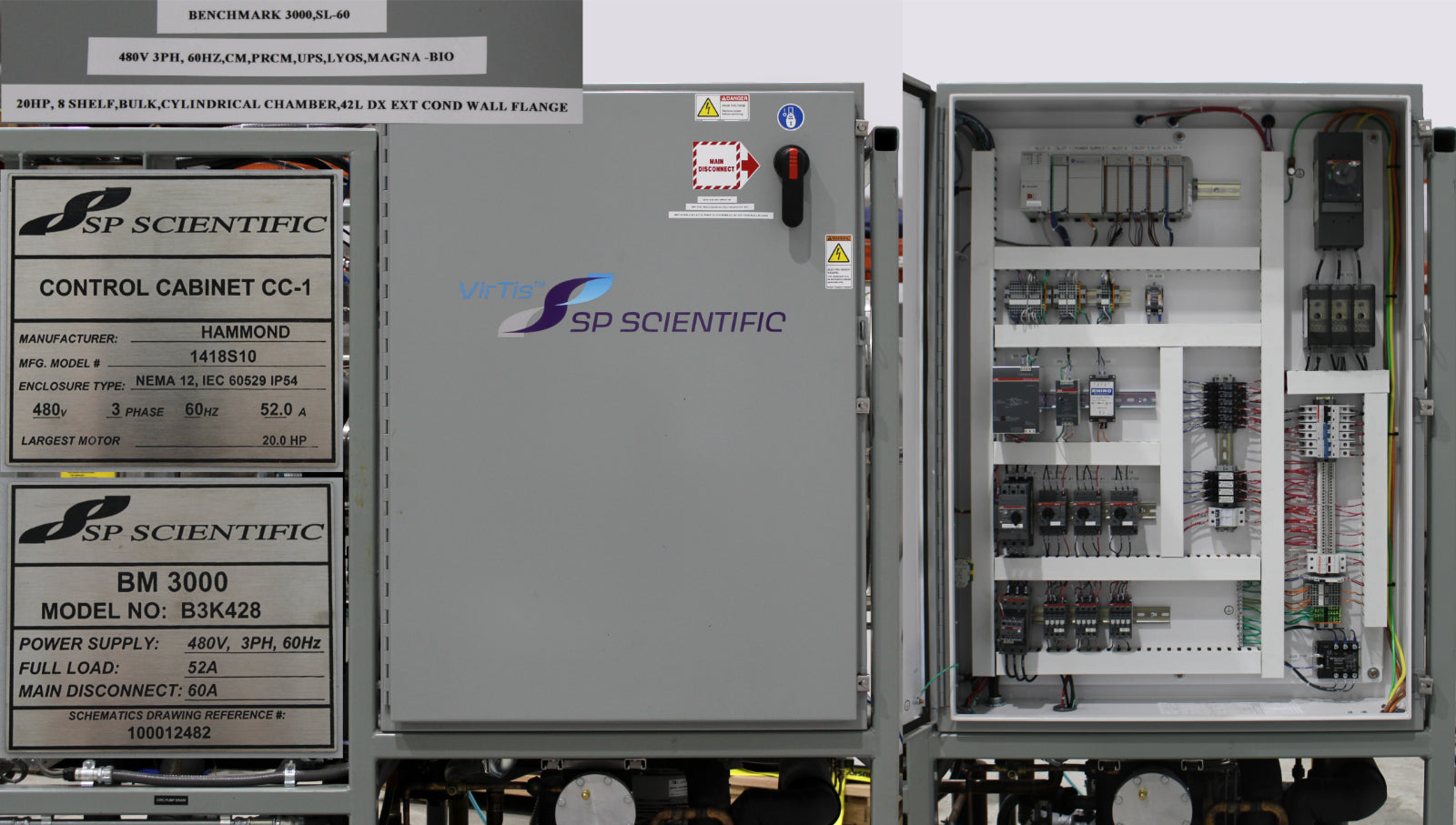

- Integrated PLC Cabinet with built-in battery backup systems

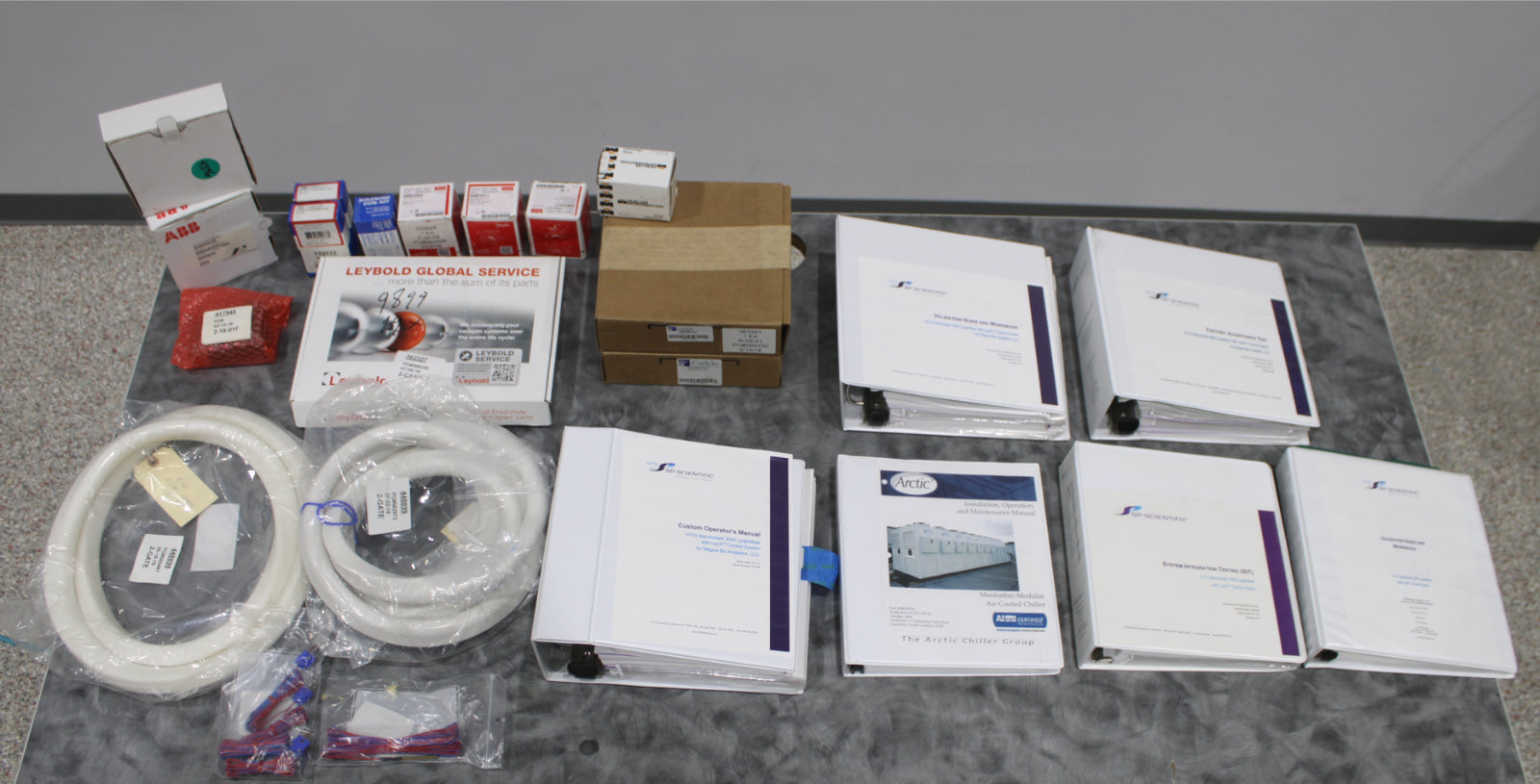

- Documentation Pack: Complete original manuals, system integration testing data, and IQ/OQ validation guides

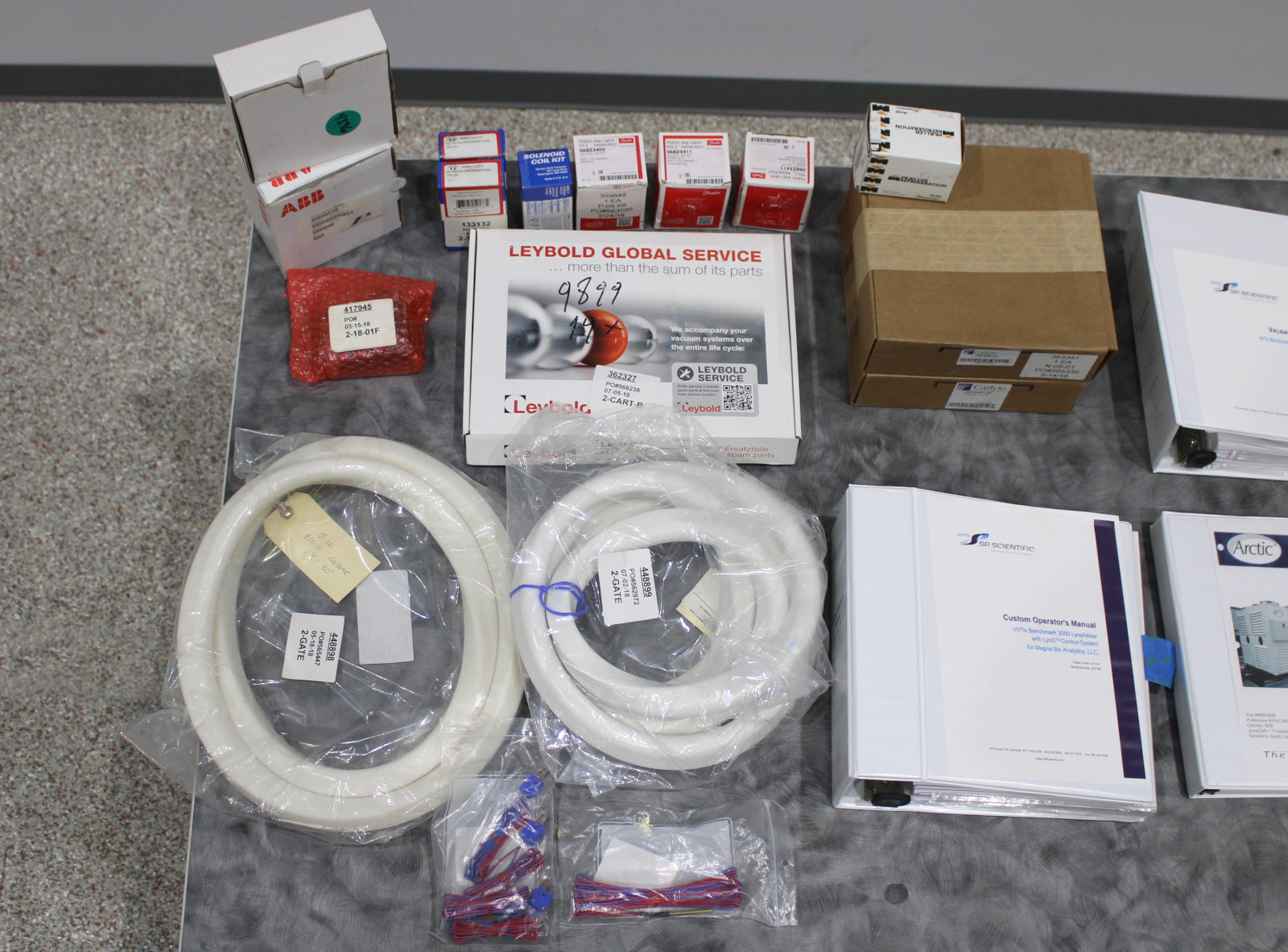

- Bonus Maintenance Kit: Includes replacement chamber door seals, vacuum pump rebuild kits, and assorted factory spares

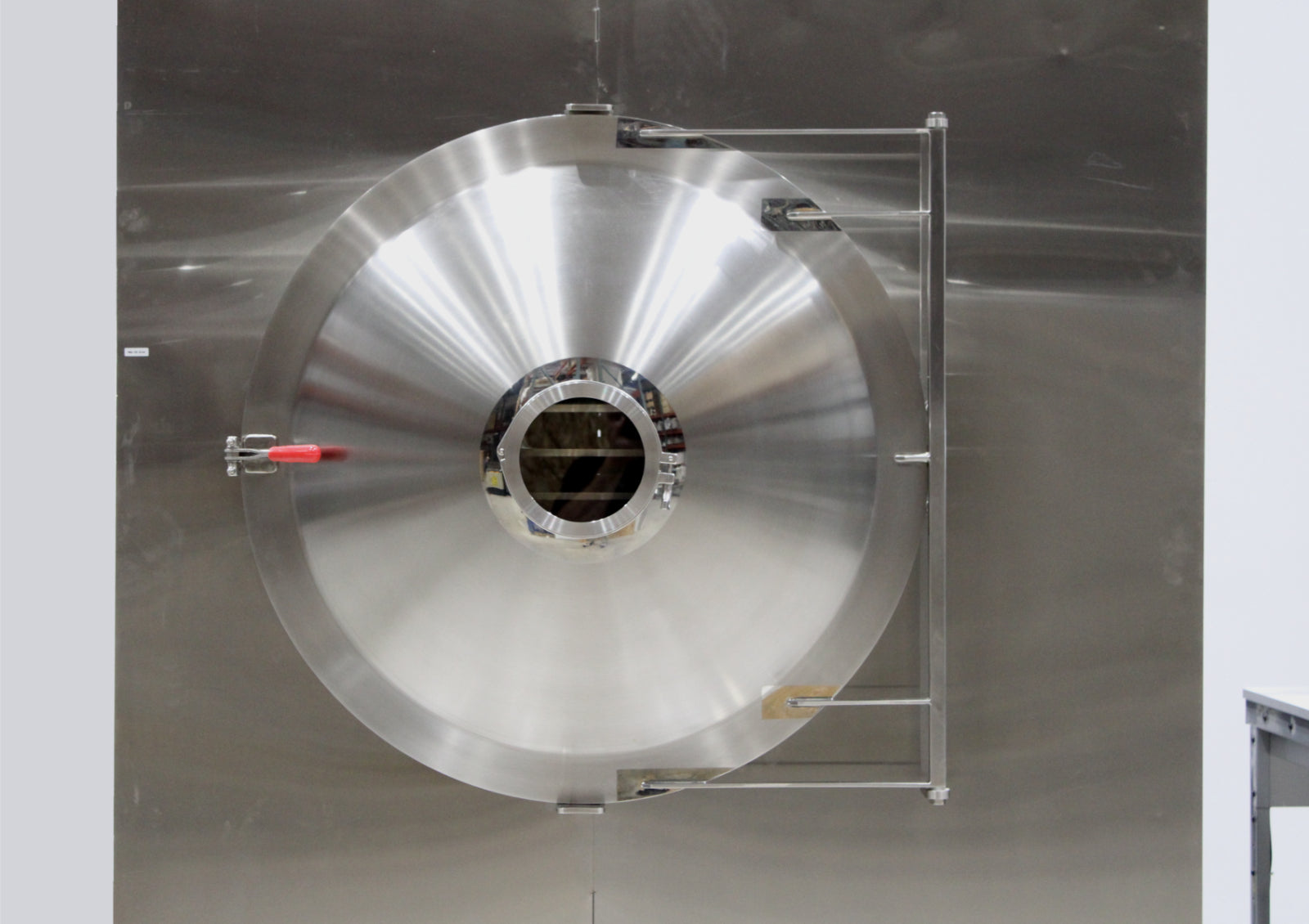

Durable Construction: Built with high-grade 316L stainless steel for optimal corrosion resistance and compatibility with cleanroom wall installations.

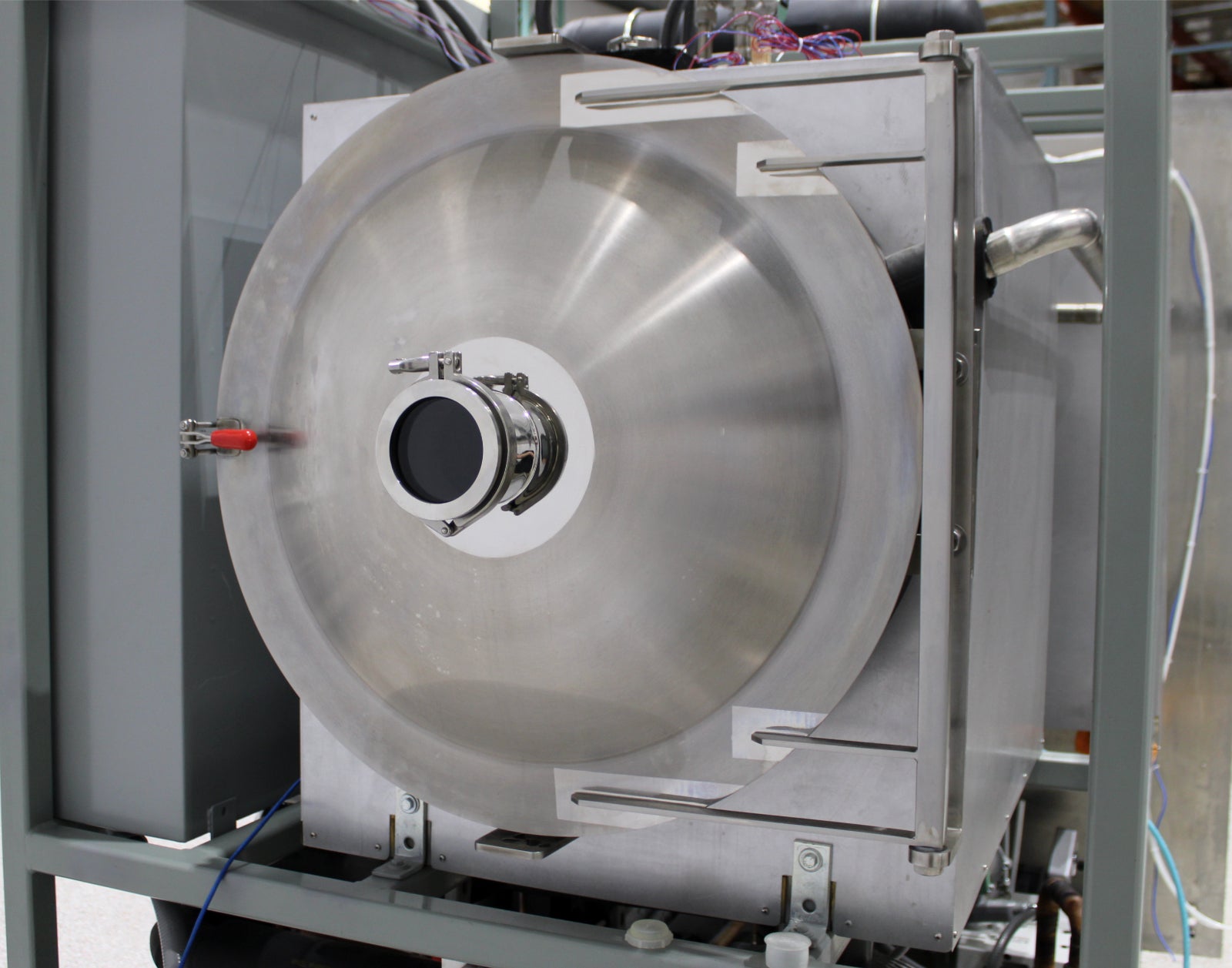

High-Capacity Condenser: Equipped with a large 42L condenser chamber to handle demanding vapor loads efficiently without mid-cycle bottlenecks.

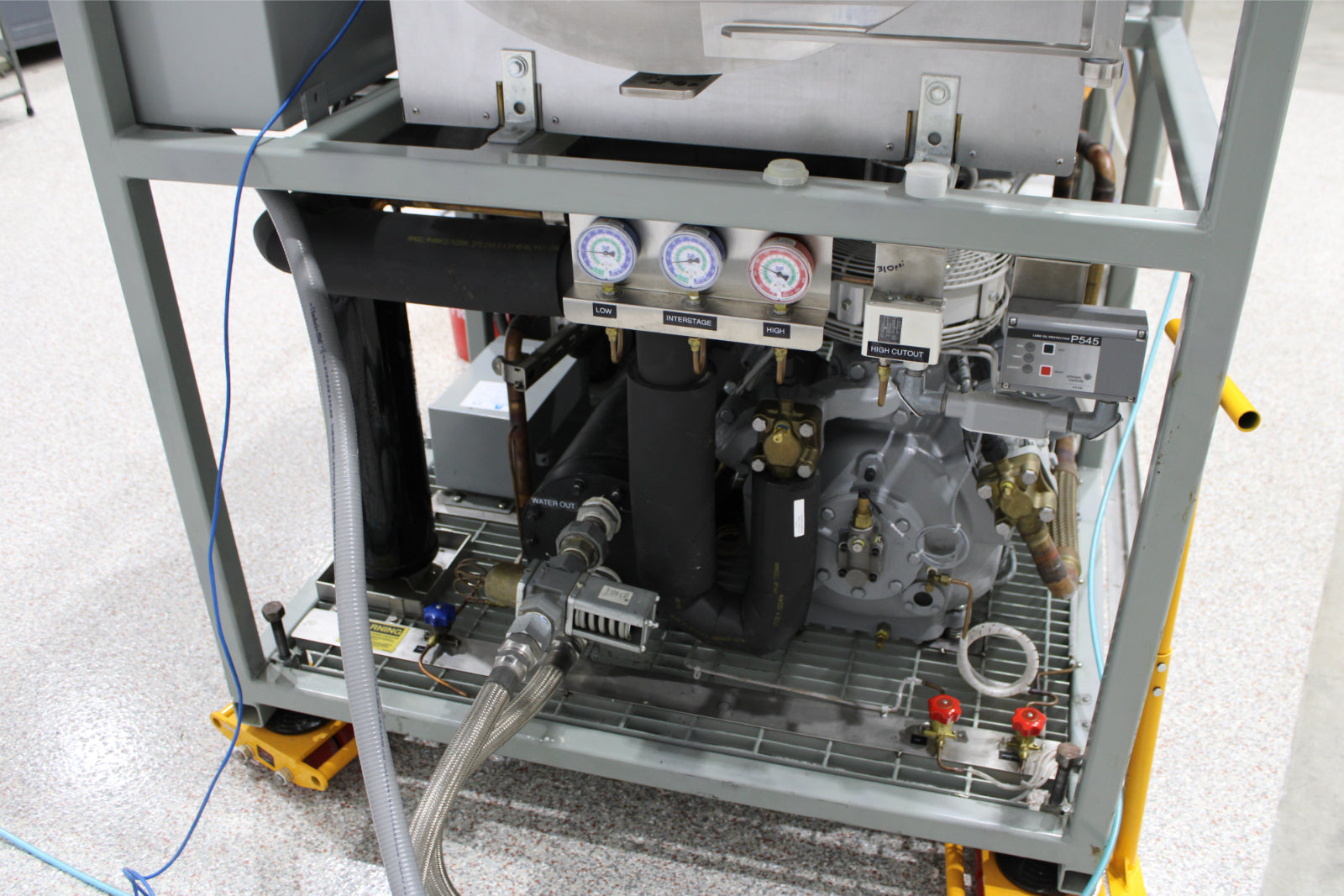

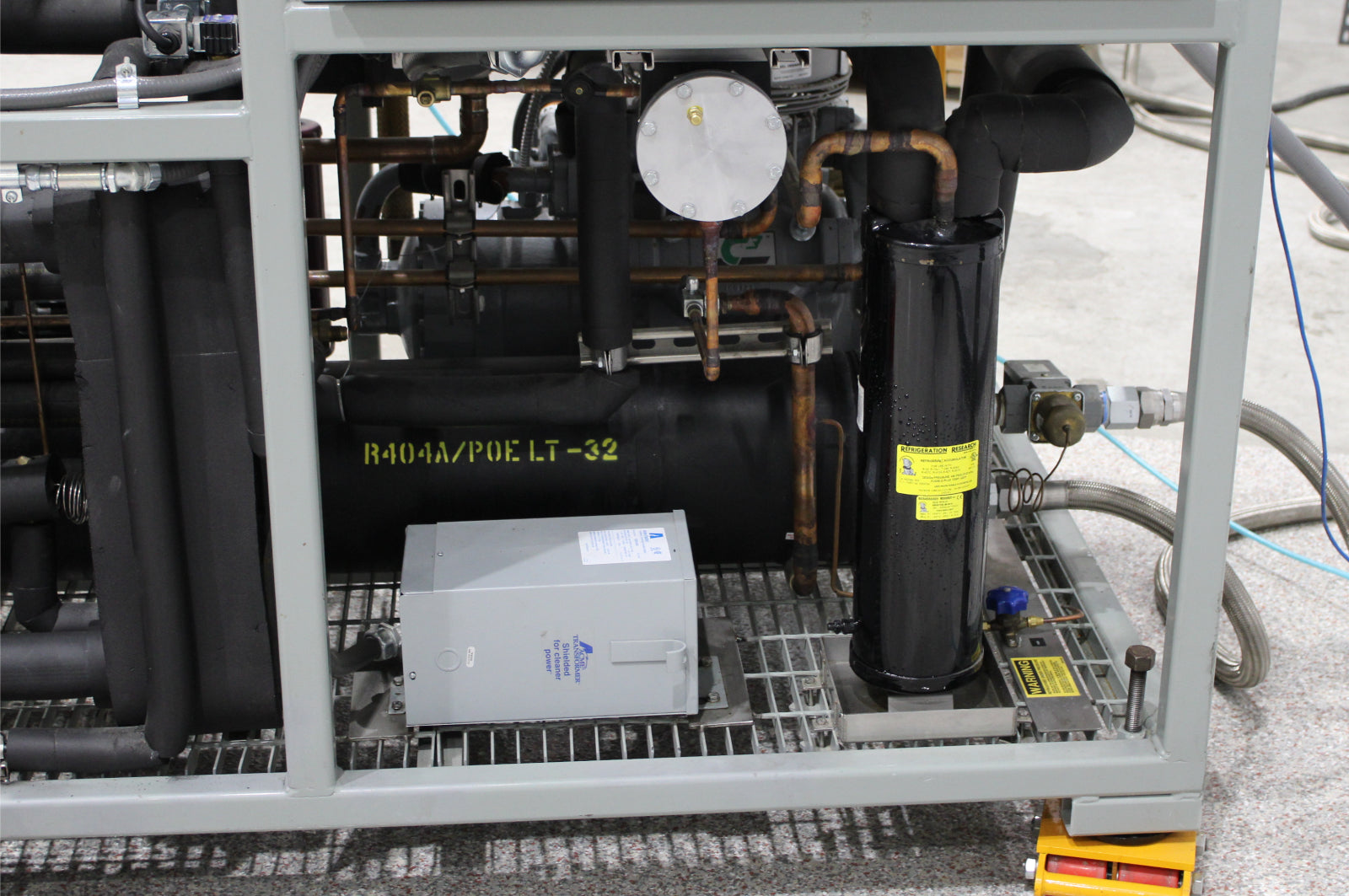

Advanced Single-Refrigerant Cooling: Powered by a robust cooling system utilizing standard R404A refrigerant. It easily achieves ultra-low shelf and condenser temperatures using a simplified single-compressor layout.
Silicon Fluid Shelf Temp Control: Utilizes a professional external chiller package running premium silicon fluid through the shelf system, delivering excellent shelf-to-shelf thermal uniformity.

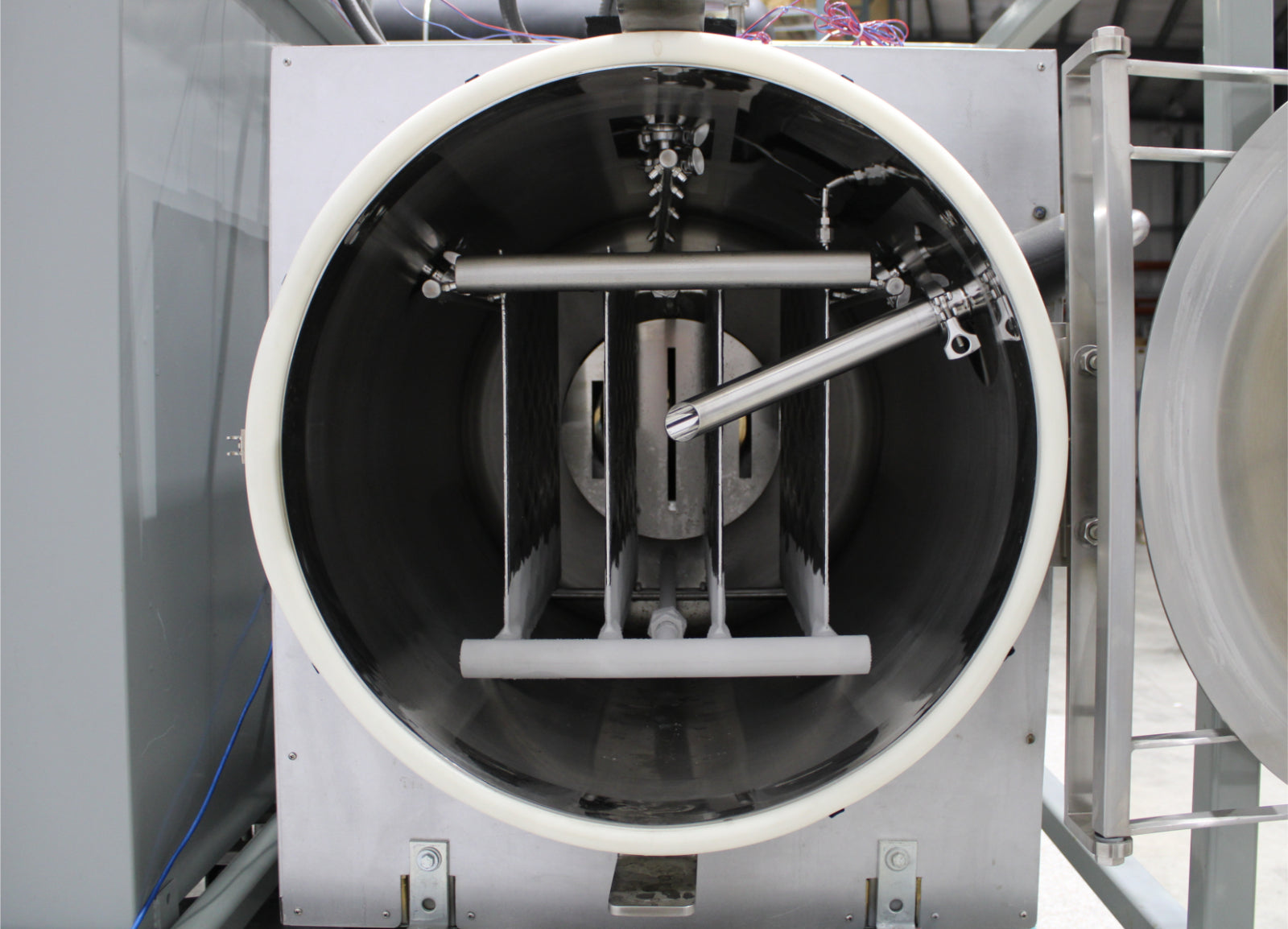

Fast Automated Turnaround: Features an integrated hot water defrost system with built-in spray nozzle jets across four condenser sectors and an automated drain valve. This system drastically minimizes downtime between process runs.

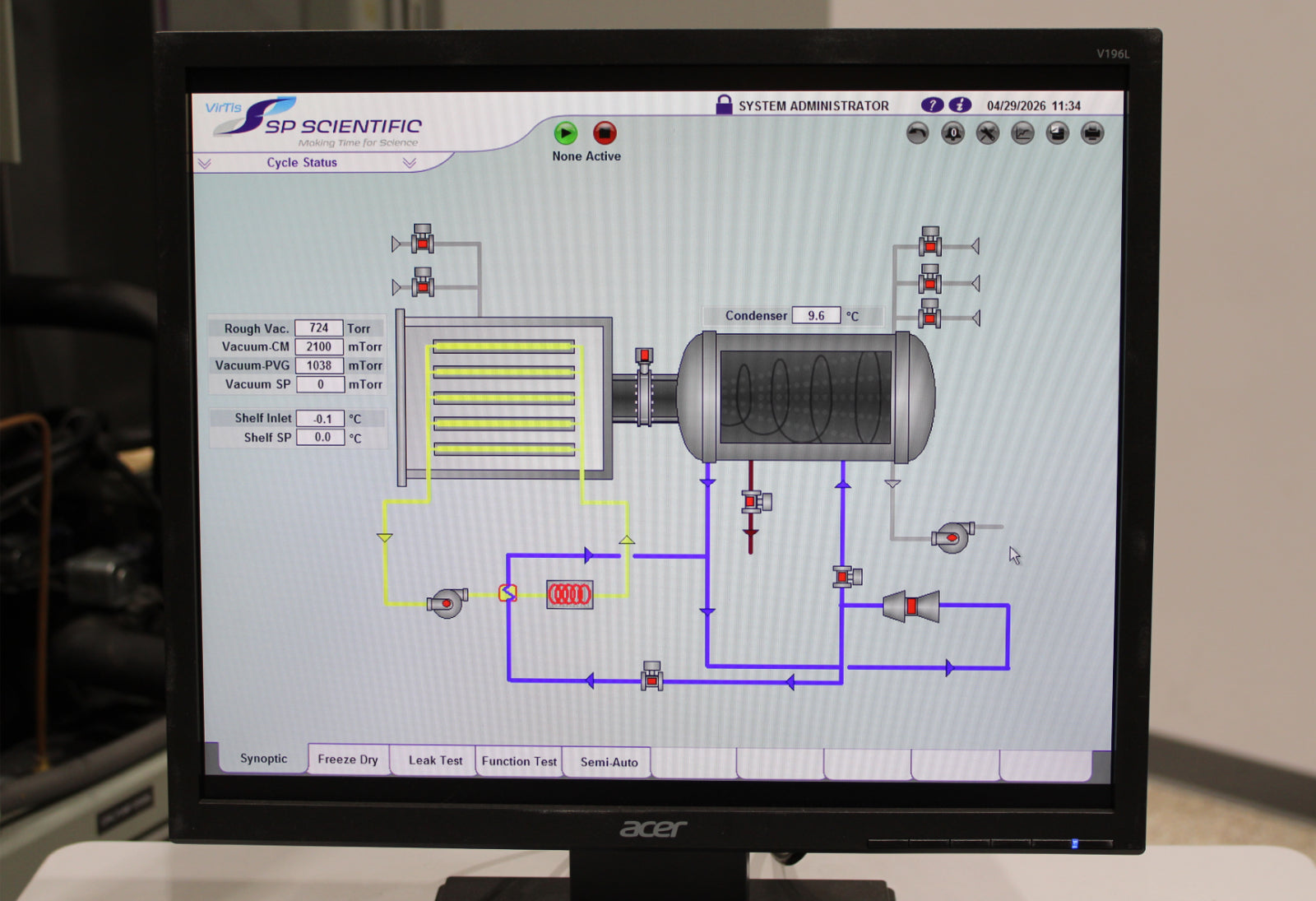

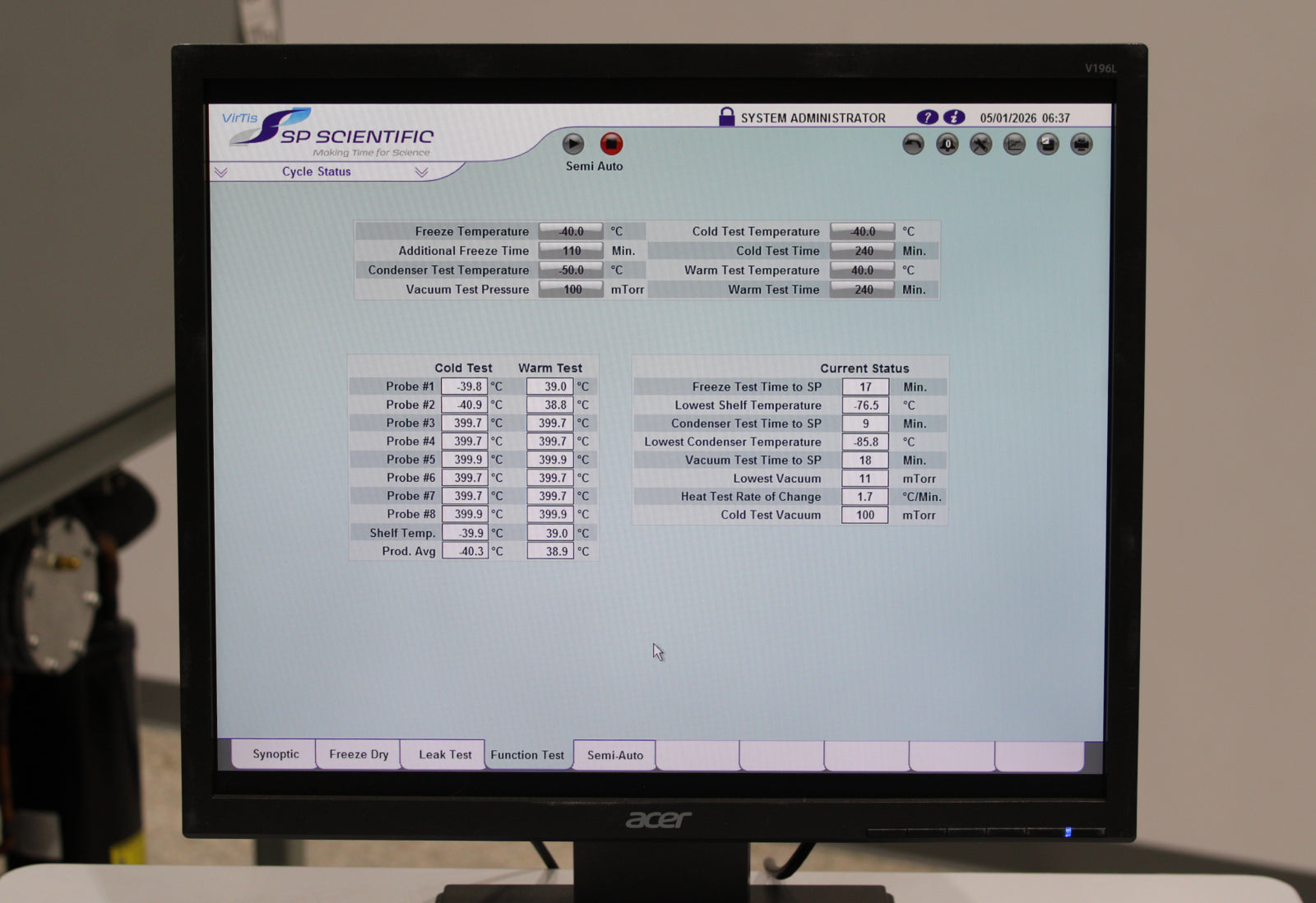

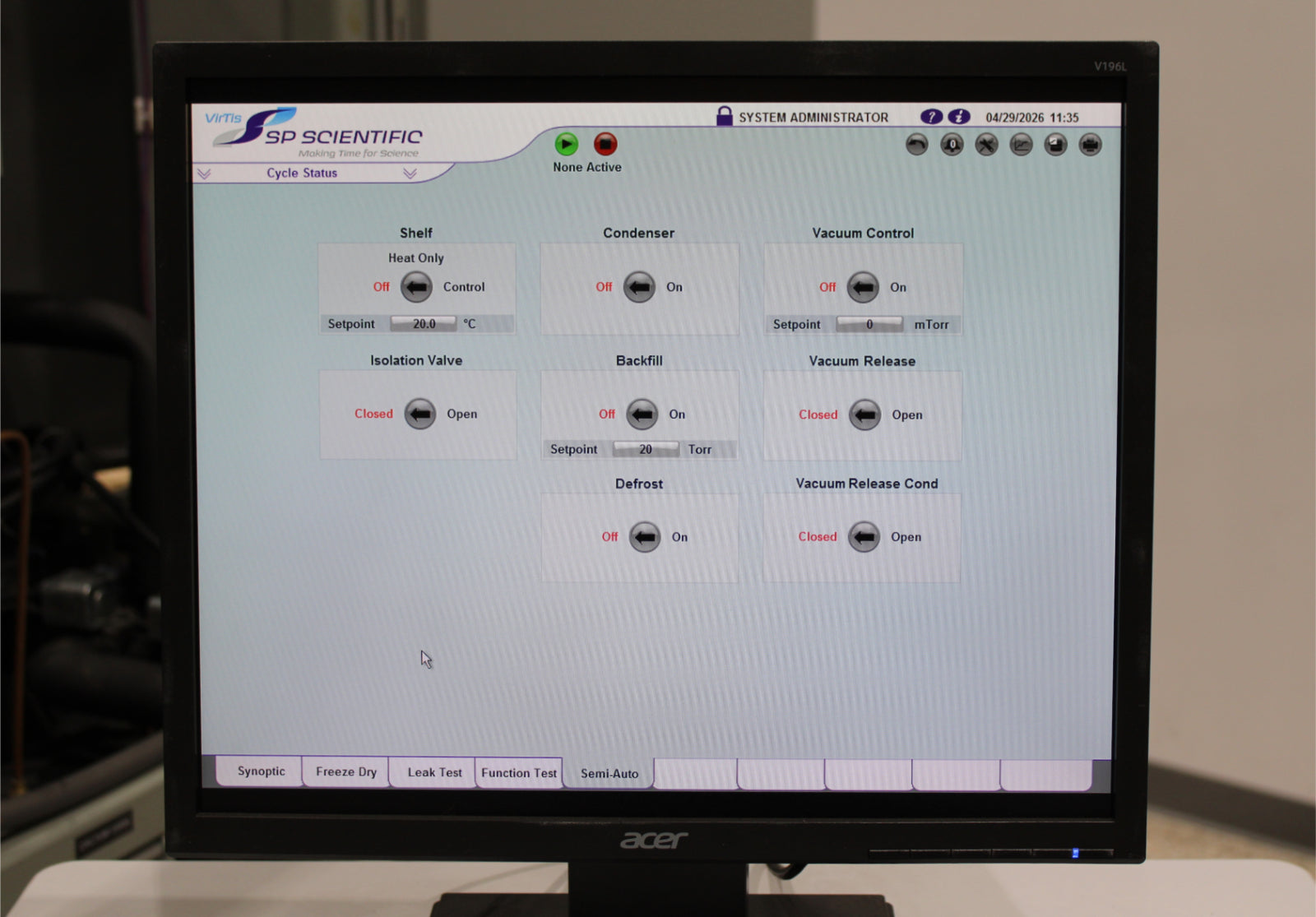

Process Tracking & Controls: Includes a dedicated control station running LyoS / HMI software. The software features an intuitive synoptic system status view, customizable recipe builder, and built-in isolation valves for precise pressure rise moisture testing.
|
Manufacturer
|
SP Scientific
|
|
Model
|
VirTis Benchmark 3000 (BM3000)
|
|
Model No.
|
B3K428
|
|
Serial No.
|
322786
|
|
Lowest shelf temperature
|
≤ -60°C
|
|
Maximum shelf temperature
|
≥ 65°C
|
|
Shelf inlet temperature control range and accuracy, concurrent with condenser operation (drying mode)
|
-55°C to 65°C (±1°C)
|
|
Shelf pull-down from 20°C to -40°C
|
≤ 40 minutes
|
|
Shelf heat-up rate from -40°C to 20°C
|
≥ 1°C/minute
|
|
Condenser blank-off temperature (lowest condenser temperature)
|
≤ -75°C
|
|
Condenser pull-down from 20°C to -45°C (no shelf assist mode)
|
≤ 30 minutes
|
|
Maximum temperature deviation across the top of the product shelf at steady state conditions from high to low within a temperature range of -40°C to 40°C
|
≤ ±1°C
|
|
Maximum temperature deviation between any two similarly located points on any two product shelves at steady conditions within a temperature range of -40°C to 40°C from high to low
|
≤ ±1°C
|
|
System evacuation time to 100 millitorr (with primary vacuum pump and without vacuum line or exhaust filters)
|
≤ 30 minutes
|
|
System blank-off pressure (lowest system vacuum)
|
≤ 15 millitorr
|
|
Vacuum rate of rise at ~100 mTorr system pressure
|
≤ 30 millitorr/hour
|
|
Vacuum level control and range (pressure tolerance when lowering and maintaining chamber pressure during drying cycles)
|
50 to 500 millitorr (±5 mT)
|
|
Condenser capacity (minimum)
|
≥ 42 liters/24 hours
|
|
Defrost time
|
≤ 60 minutes
|
|
Drying chamber connections
|
Eight (8) type “T” plug-in product temperature thermocouples with ceramic connectors are located inside the chamber
|
|
Shelf nominal dimensions (W x D x H)
|
24 x 36 x 0.5 inches
|
|

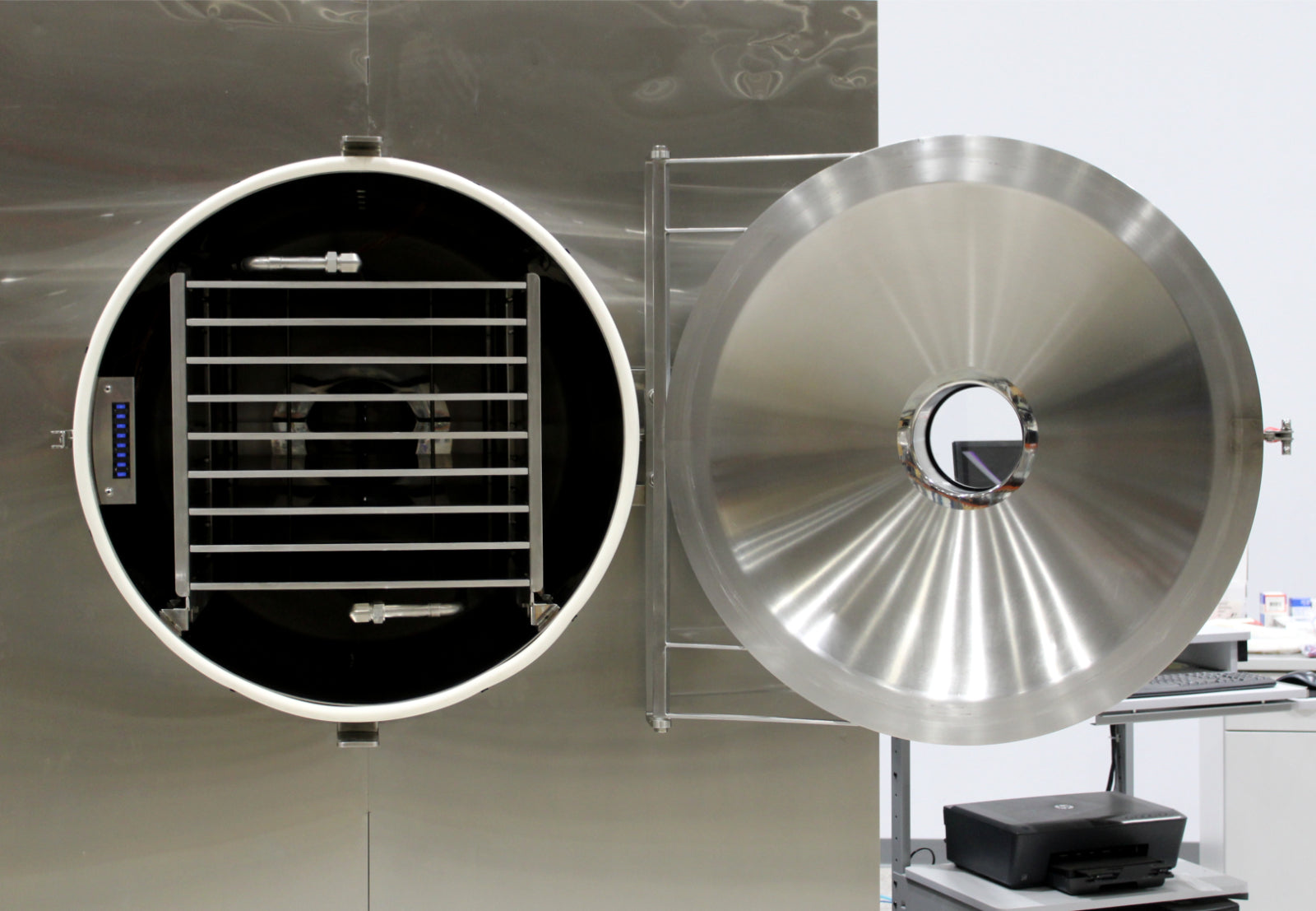

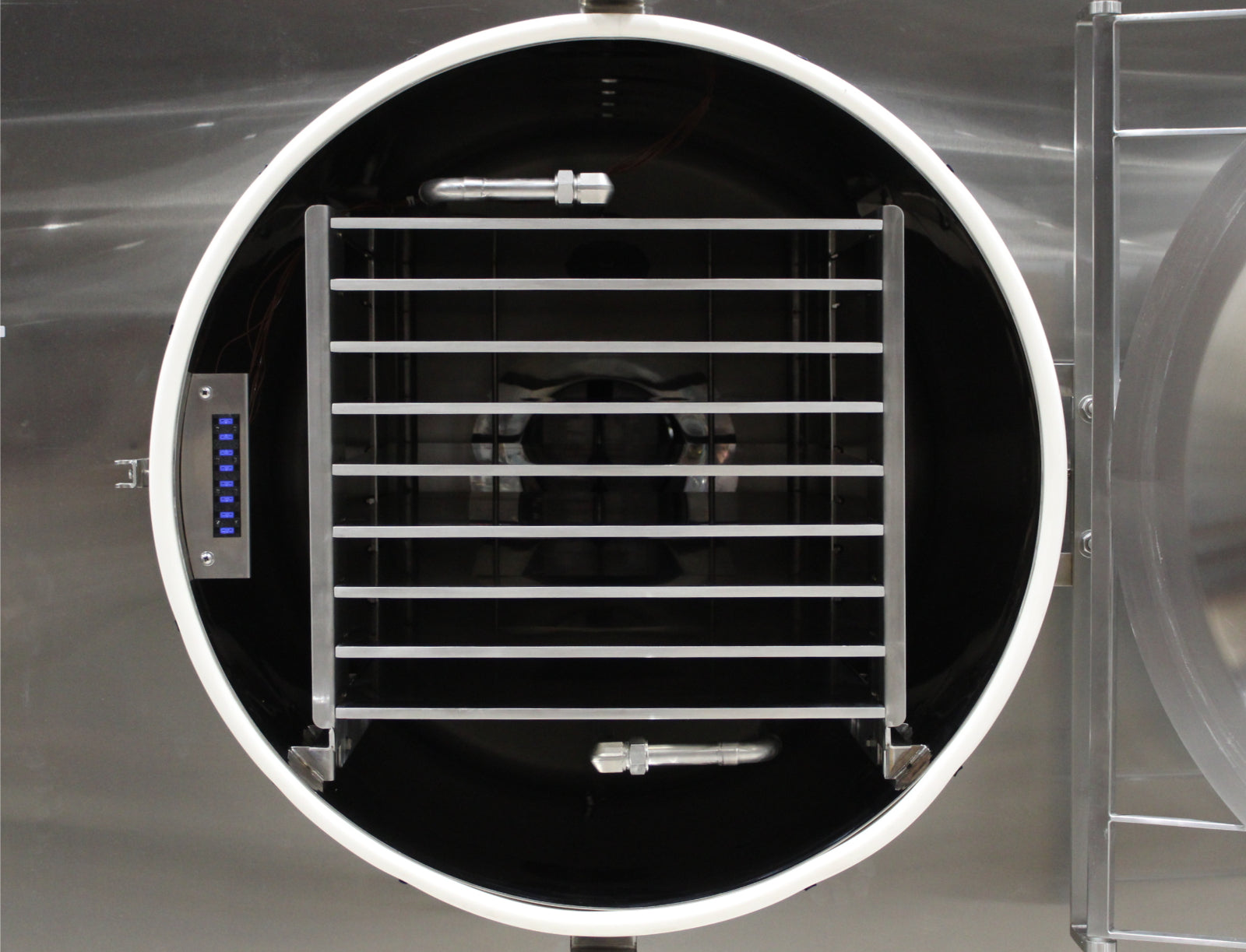

Number of product shelves
|
8 fixed shelves and 1 radiant heat shelf
|
|
Usable Shelf Area
|
48 ft2
|
|
Nominal shelf clearance
|
2.1 inches (54 mm)
|
|
Isolation valve
|
80 psi air source required, butterfly valve type, nominal diameter is 10 inches
|
|
Vacuum pump
|
Leybold D-40 Rotary Vane pump
|
|
Cooling water
|
The refrigeration system compressor requires cooling water at a rate of 20 gpm @ 85°F (29°C) max.
|
|
Power rating
|
480 VAC (± 10%), 3-Phase, 60Hz (± 3%)
|
|
Overall dimensions (W x D x H)
|
69 x 130 x 97 inches
|
|

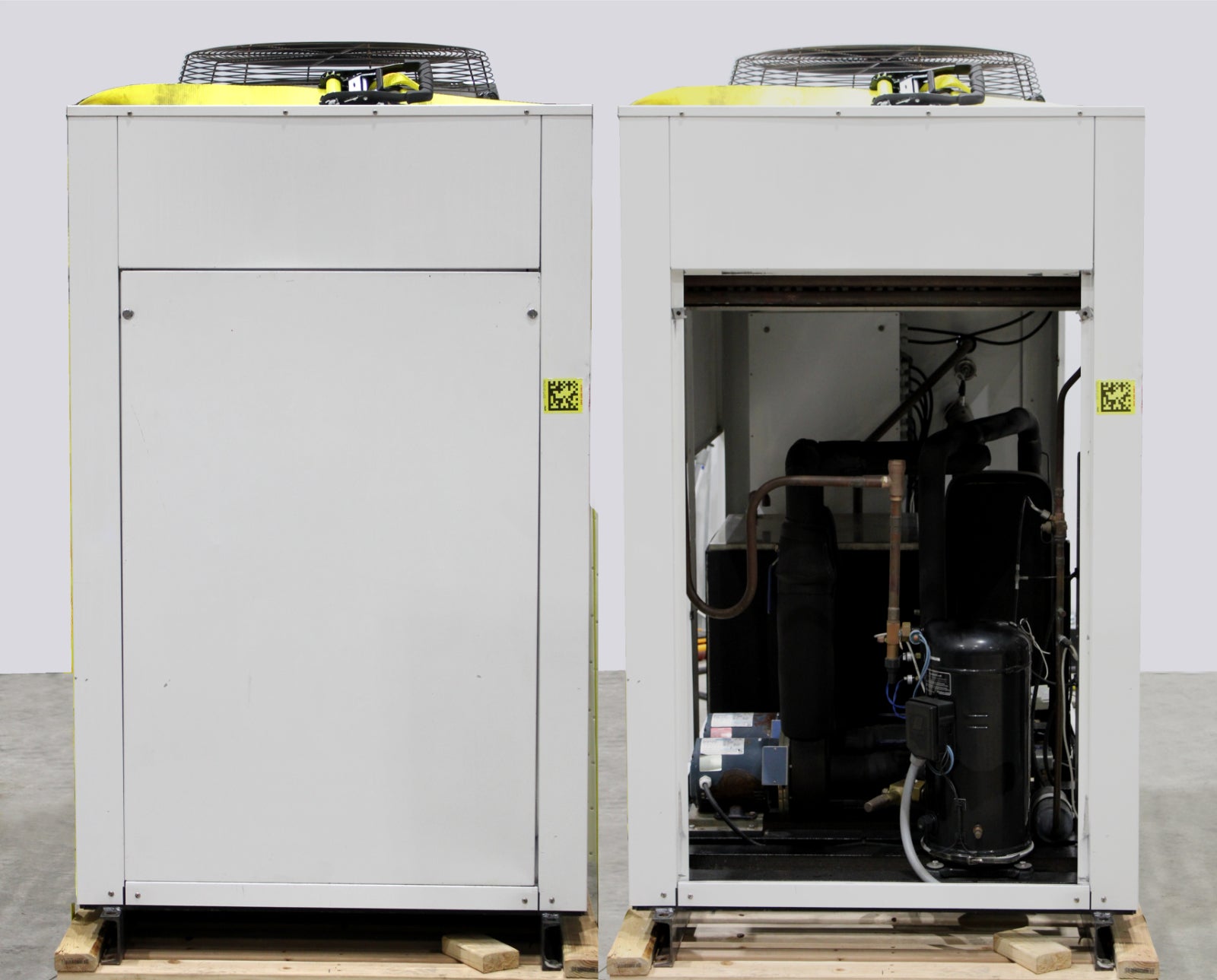

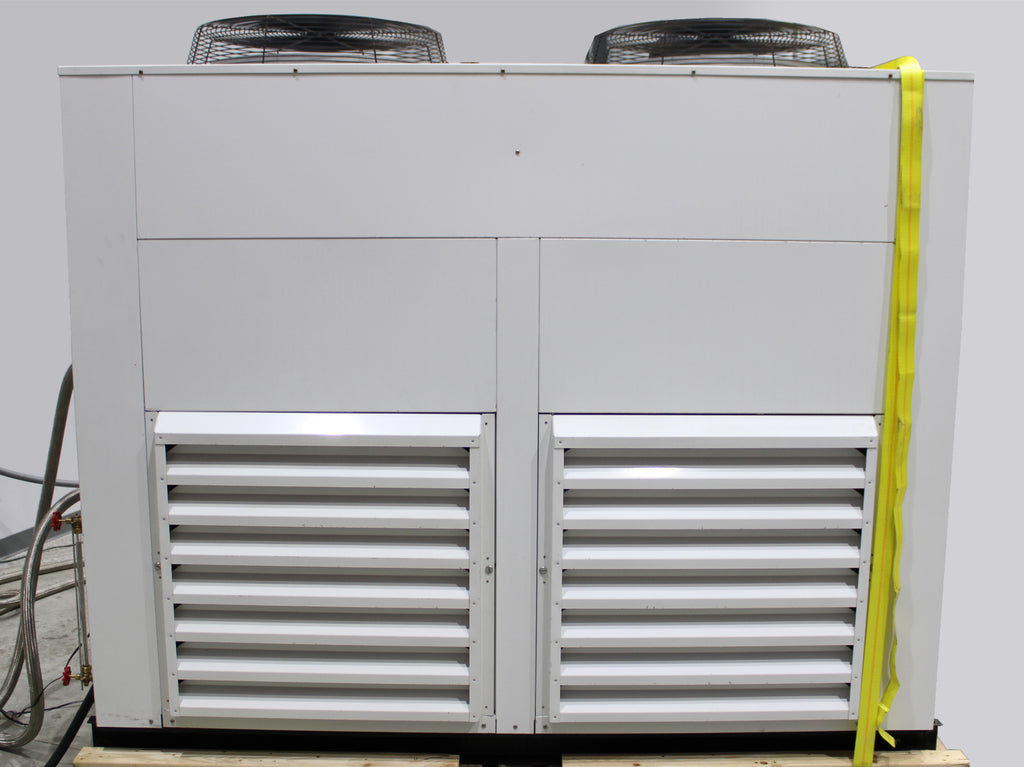

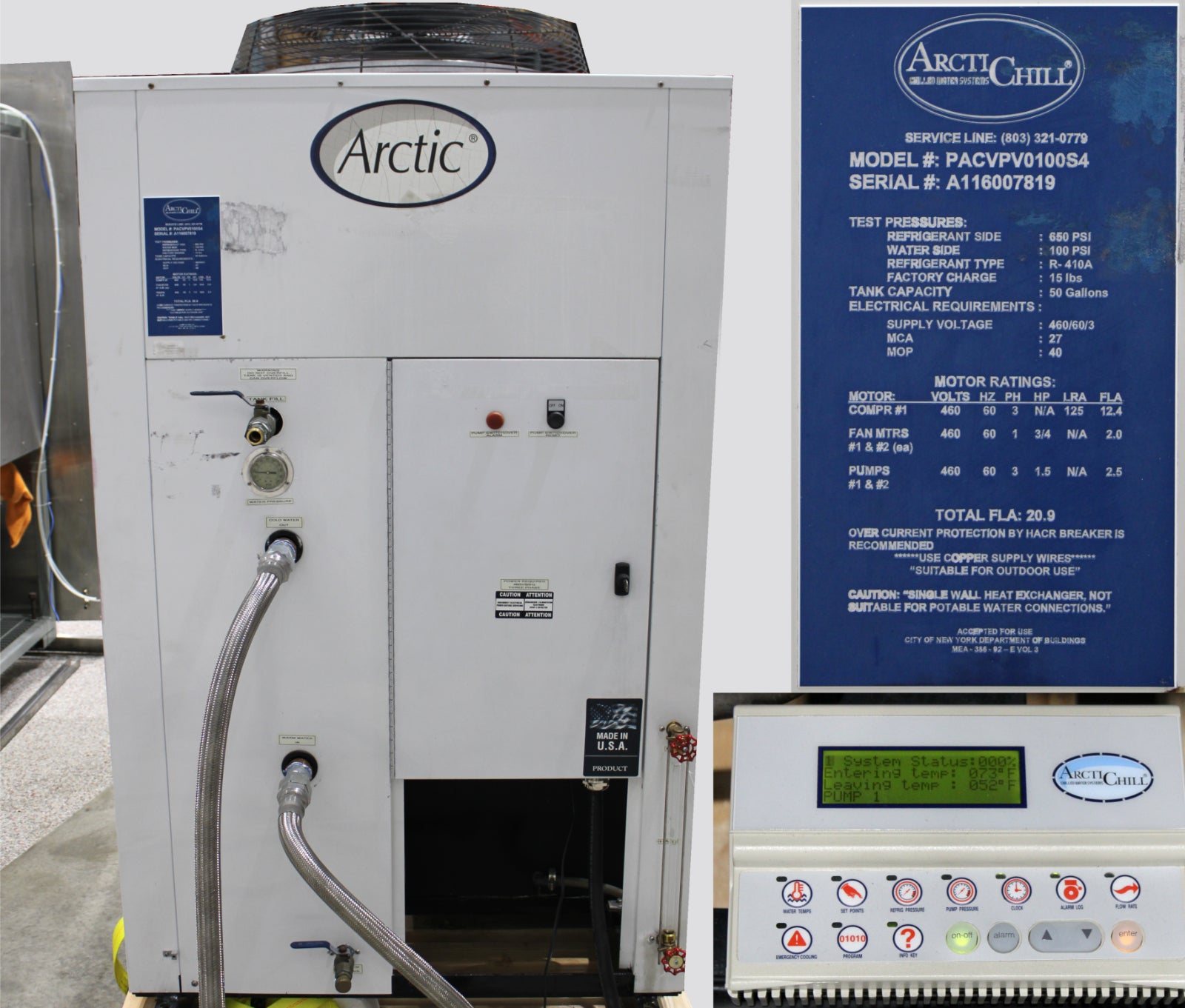

Manufacturer
|
The Arctic Chiller Group
|
|
Model No.
|
PACVPV0100S4
|
|
Serial No.
|
A116007819
|
|
Tank capacity
|
50 gallons
|
|
Refrigerant type
|
R-410A
|
|
Factory charge
|
15 lb
|
|
Max refrigerant side pressure
|
650 psi
|
|
Max water side pressure
|
100 psi
|
|
Power rating
|
460 V, 60 Hz, 3 Phase
|
|
Minimum circuit ampacity (MCA)
|
27 A
|
|
Maximum overcurrent protection (MOP)
|
40 A
|
|
Total Full Load Amps (Total FLA)
|
20.9 A
|
|
Compressor motor #1
|
460V / 60Hz / 3PH | 12.4 FLA | 125 LRA
|
|
Fan motors #1 & #2 (each)
|
460V / 60Hz / 1PH | ¾ HP | 2.0 FLA
|
|
Pumps #1 & #2
|
460V / 60Hz / 3PH | 1.5 HP | 2.5 FLA
|
|
Wiring material requirement
|
Copper supply wires only
|
|
Overall dimensions (W x D x H)
|
42 x 86 x 76 inches
|
