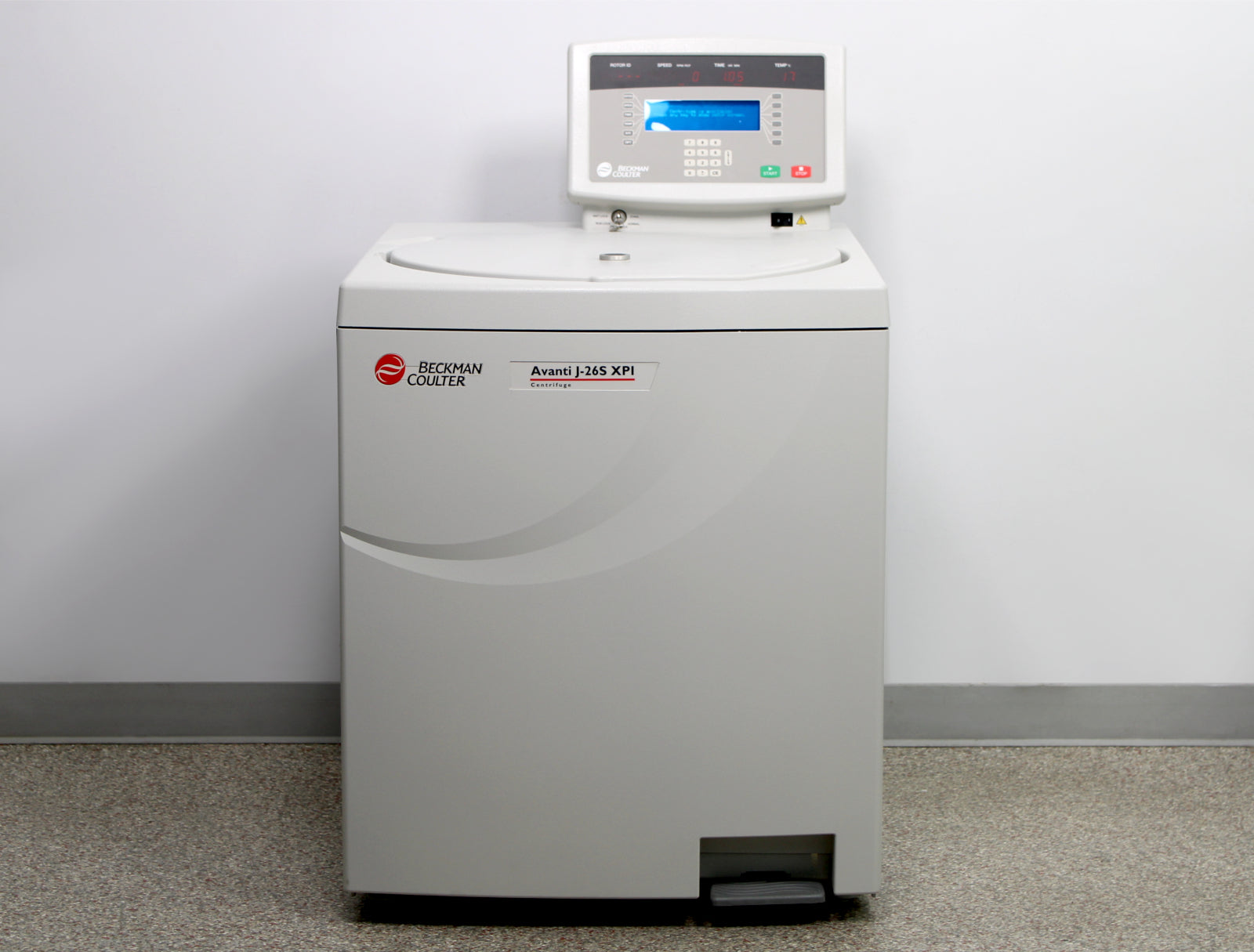

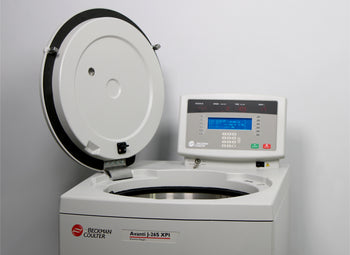

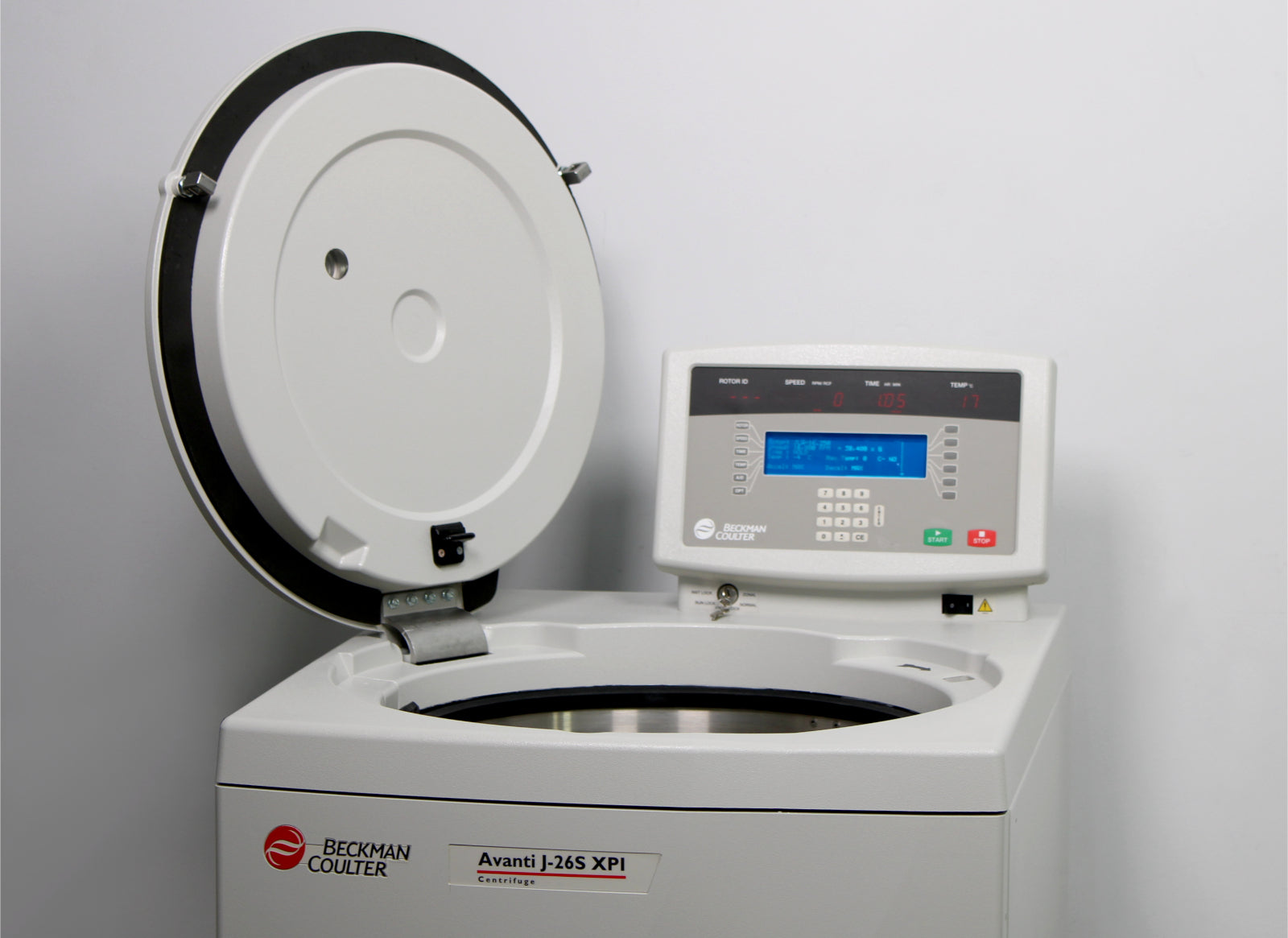

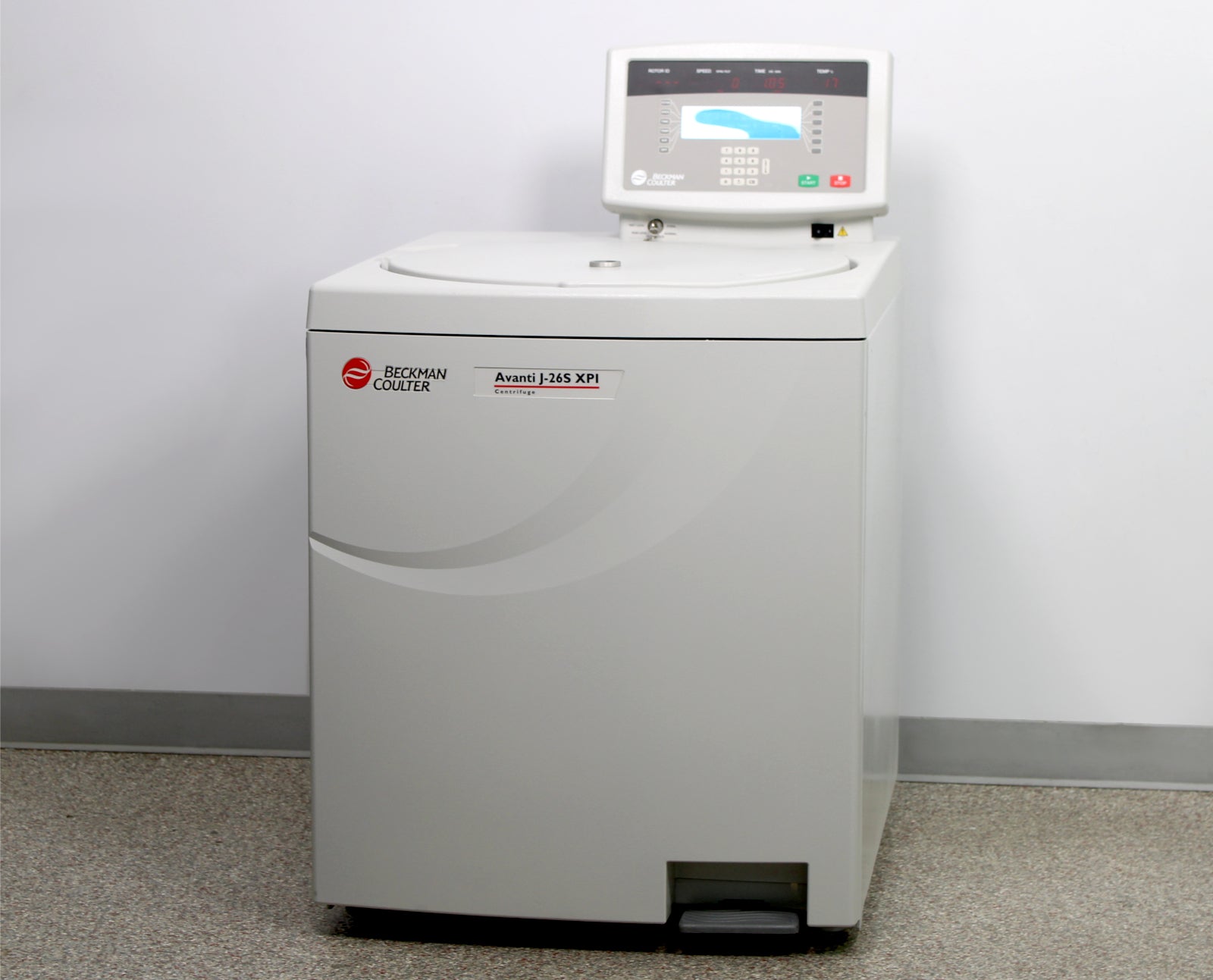

- Beckman Coulter Avanti J-26S XPI High-Speed Refrigerated Floor Centrifuge (B14538)

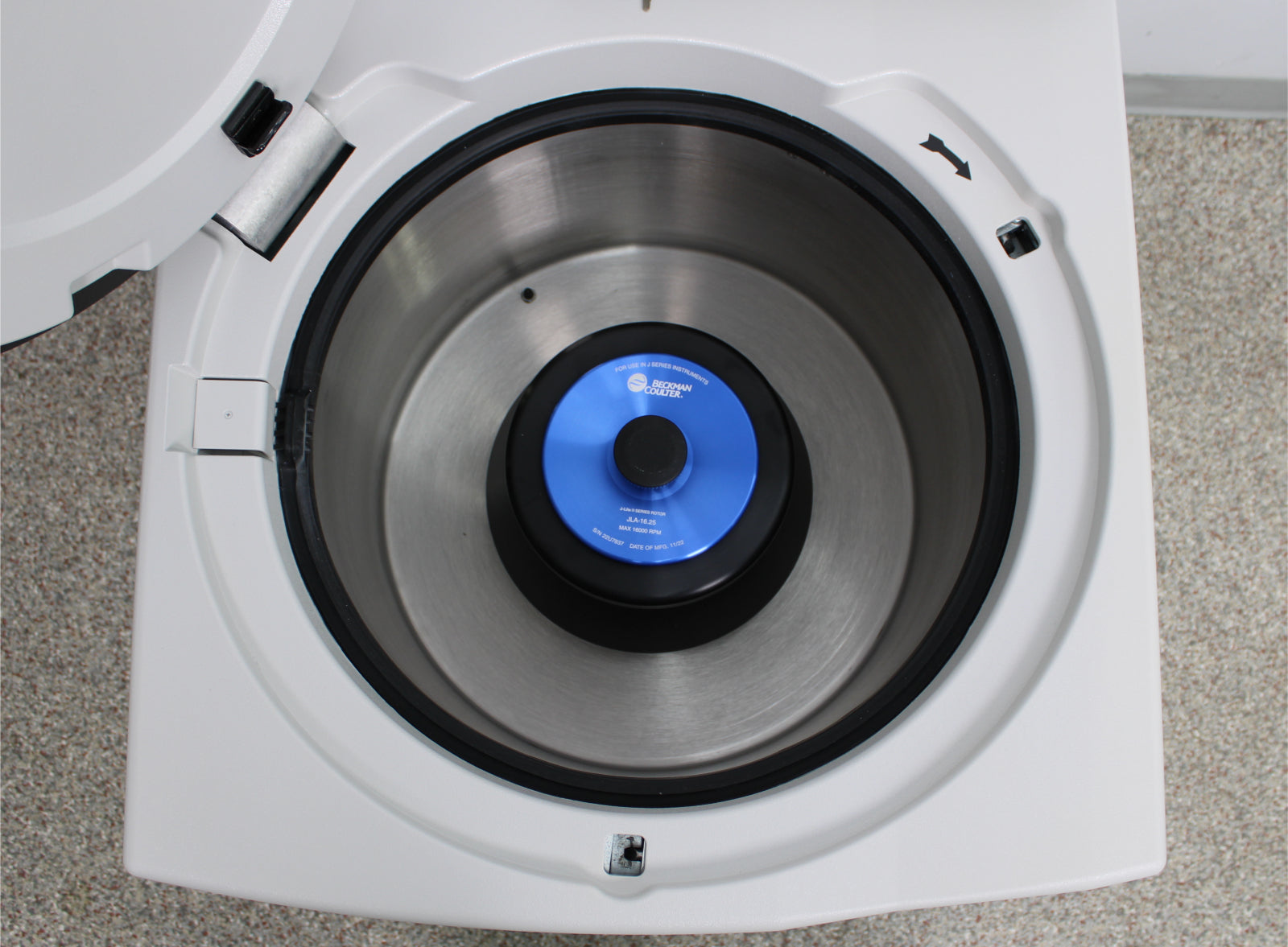

- Beckman Coulter JLA-16.250 Fixed-Angle Aluminum Rotor with Lid
- x2 Keys
- Attached Power Cable
- 90-Day Warranty

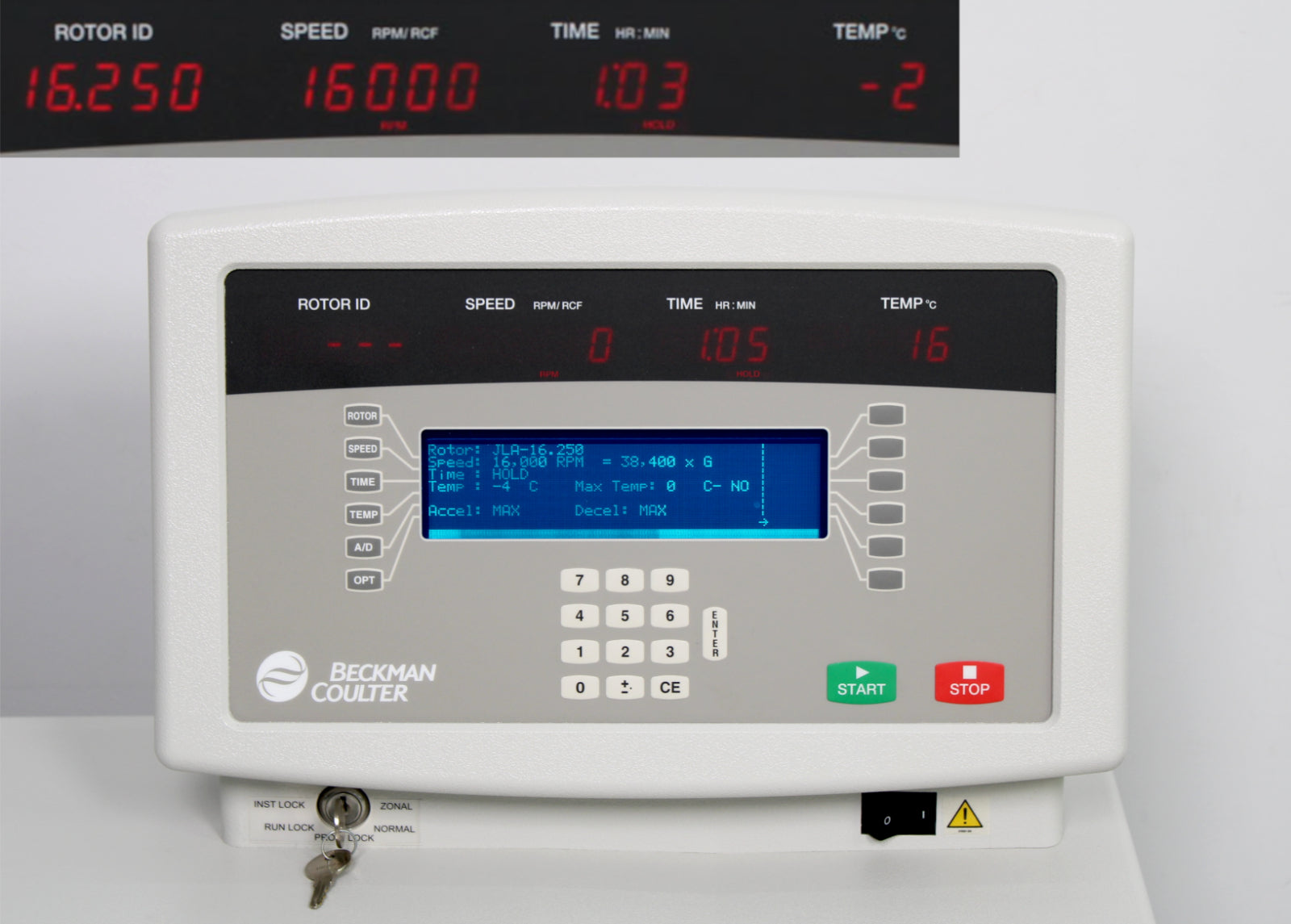

After its initial disinfection and inspection, our technicians tested the Beckman Coulter Avanti J-26S XPI high-speed floor centrifuge with the following results:

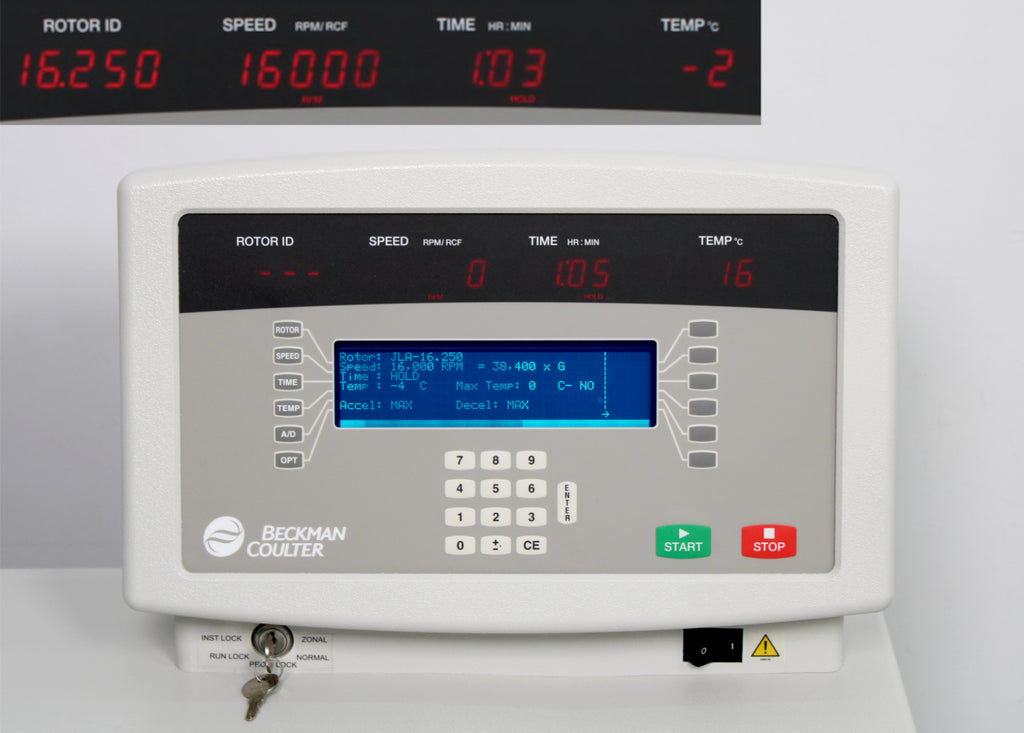

- Ran to 16,000 rpm: PASSED
- Refrigeration held at -2°C: PASSED
- No excessive noise or imbalance: PASSED
- Spun down properly: PASSED
- Performed inspection; no issue found: PASSED
|
Manufacturer
|
Beckman Coulter
|
|
Platform
|
Avanti
|
|
Model
|
J-26S XPI
|
|
Cat. No.
|
B14538
|
|
Serial No.
|
JST13J04
|
|
Mfg. date
|
2013
|
|
Maximum speed
|
26,000 rpm
|
|
Maximum g-Force
|
81,800 x g
|
|
BioSafe
|
No
|
|
Acceleration
|
Maximum, Slow or Timed (1-10 minutes, 0-500 rpm)
|
|
Deceleration
|
Maximum, Slow or Timed (1-10 minutes from 500-0 rpm) or Off
|
|
Timed run
|
1 min to 99 hr 59 min, W2t or Continuous hold
|
|
Maximum capacity volume range
|
1 - 6 L
|
|
Refrigeration system
|
Non-CFC, non-ozone depleting refrigerant
|
|
Temperature range
|
-10°C to +40°C in 1 degree increments
|
|
Rotor ID
|
Automatic
|
|
Zonal capability
|
Yes
|
|
Pollution degree
|
2
|
|
Environmental conditions
|
-10°C to 40°C in 1° increments
|
|
Installation category
|
II
|
|
Software
|
Virtual Network Computing (VNC), Mobile Fuge app for Apple iOS and Android
|
|
Materials
|
Steel, Plastic
|
|
Finish
|
Powder coat paint
|
|

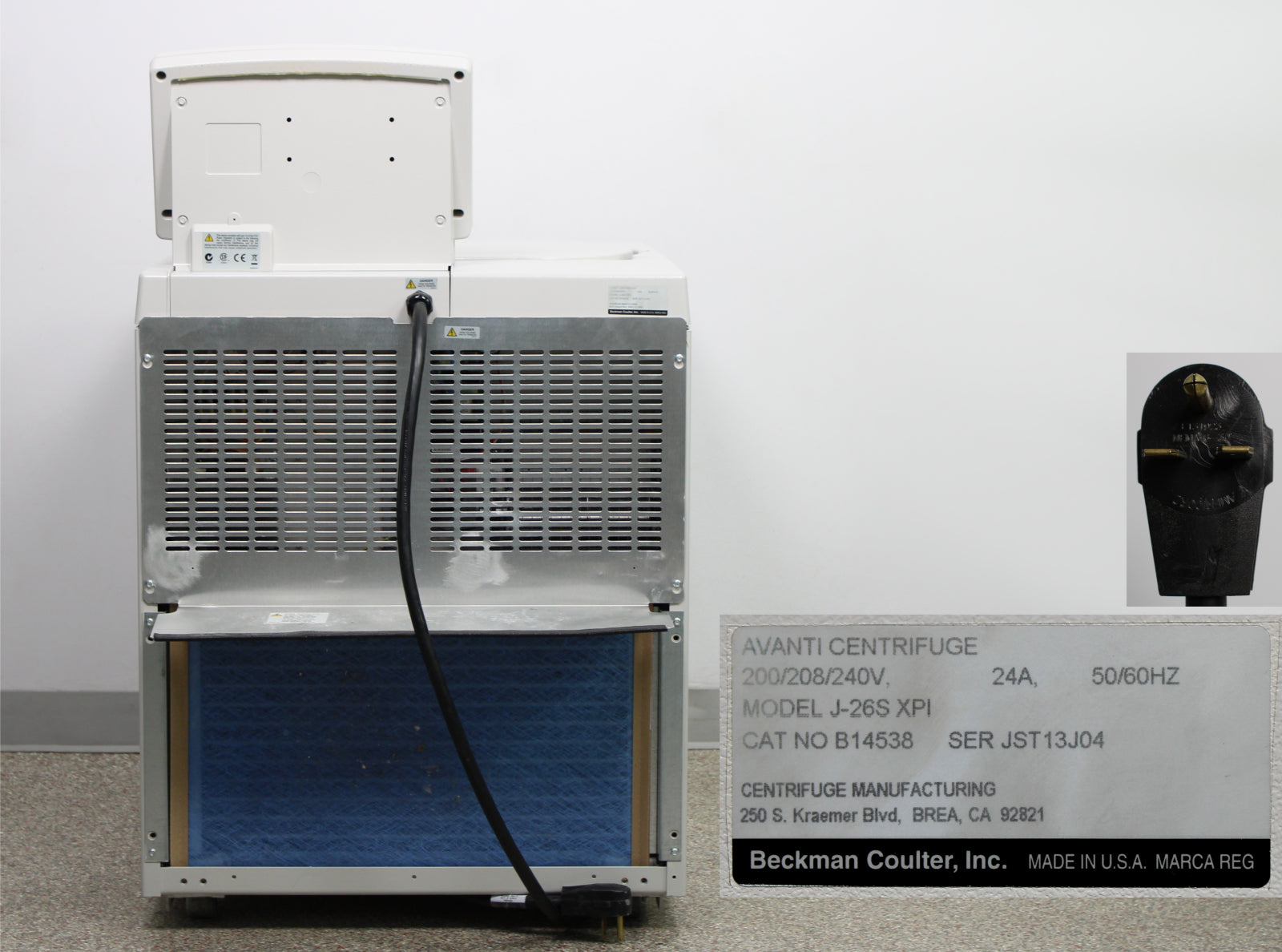

Power rating
|
200/208/240V, 50/60Hz, 24A
|
|
Dimensions (W x D x H)
|
28 x 34 x 45.5 in (71 x 86 x 116 cm)
|
|
Weight
|
639.3 lb (290 kg)
|
|

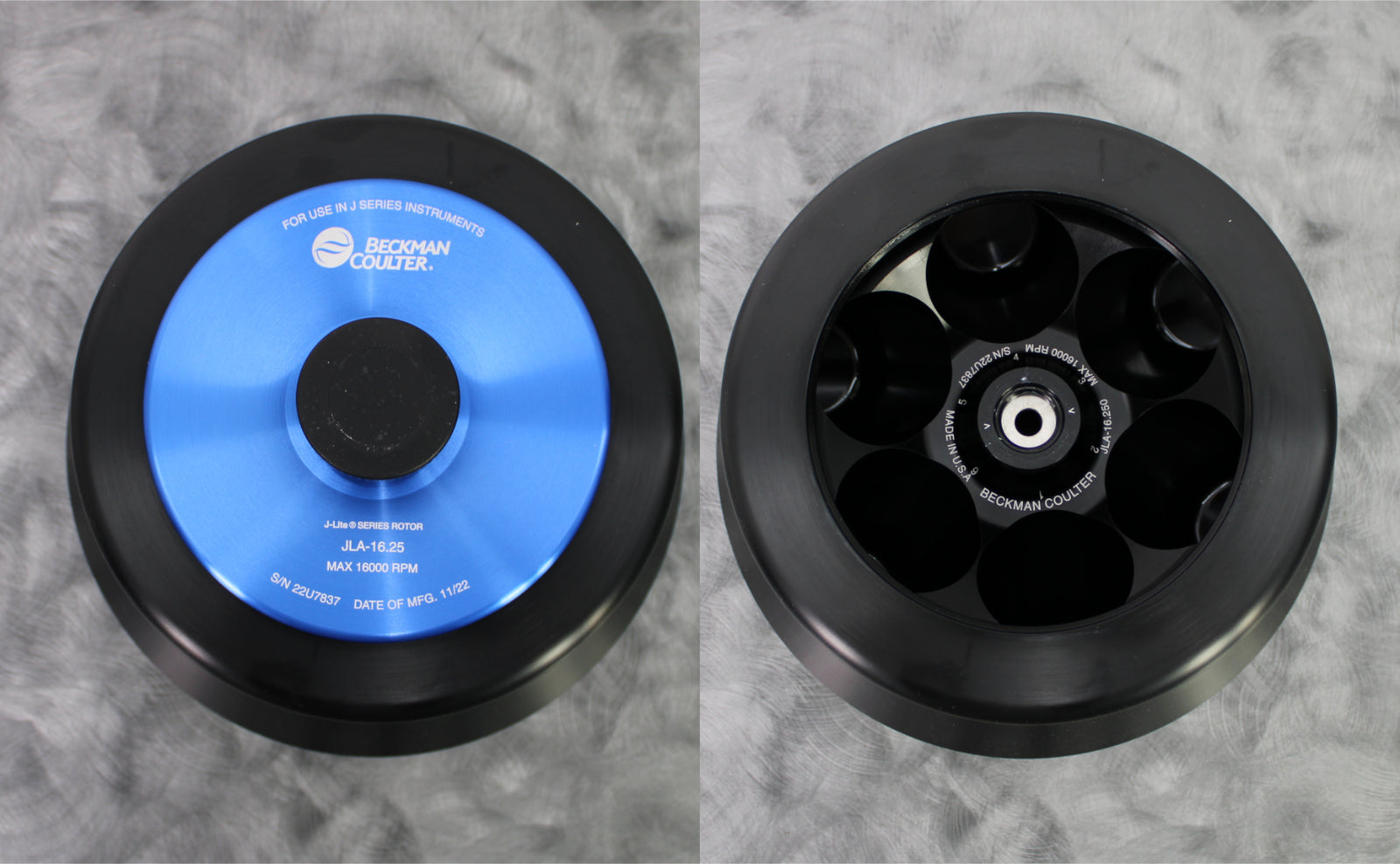

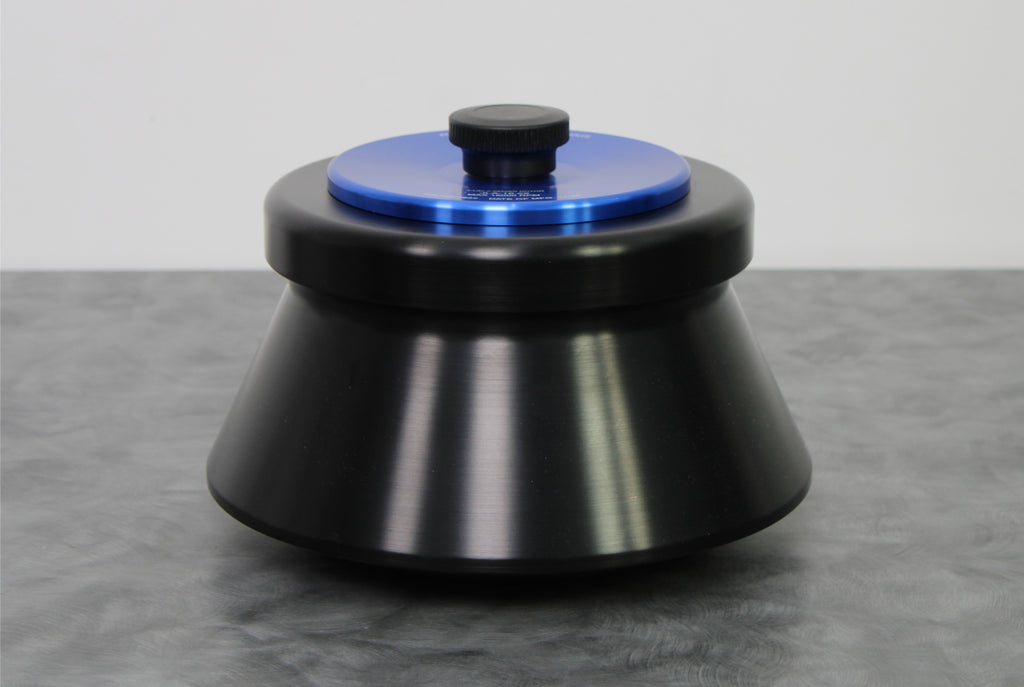

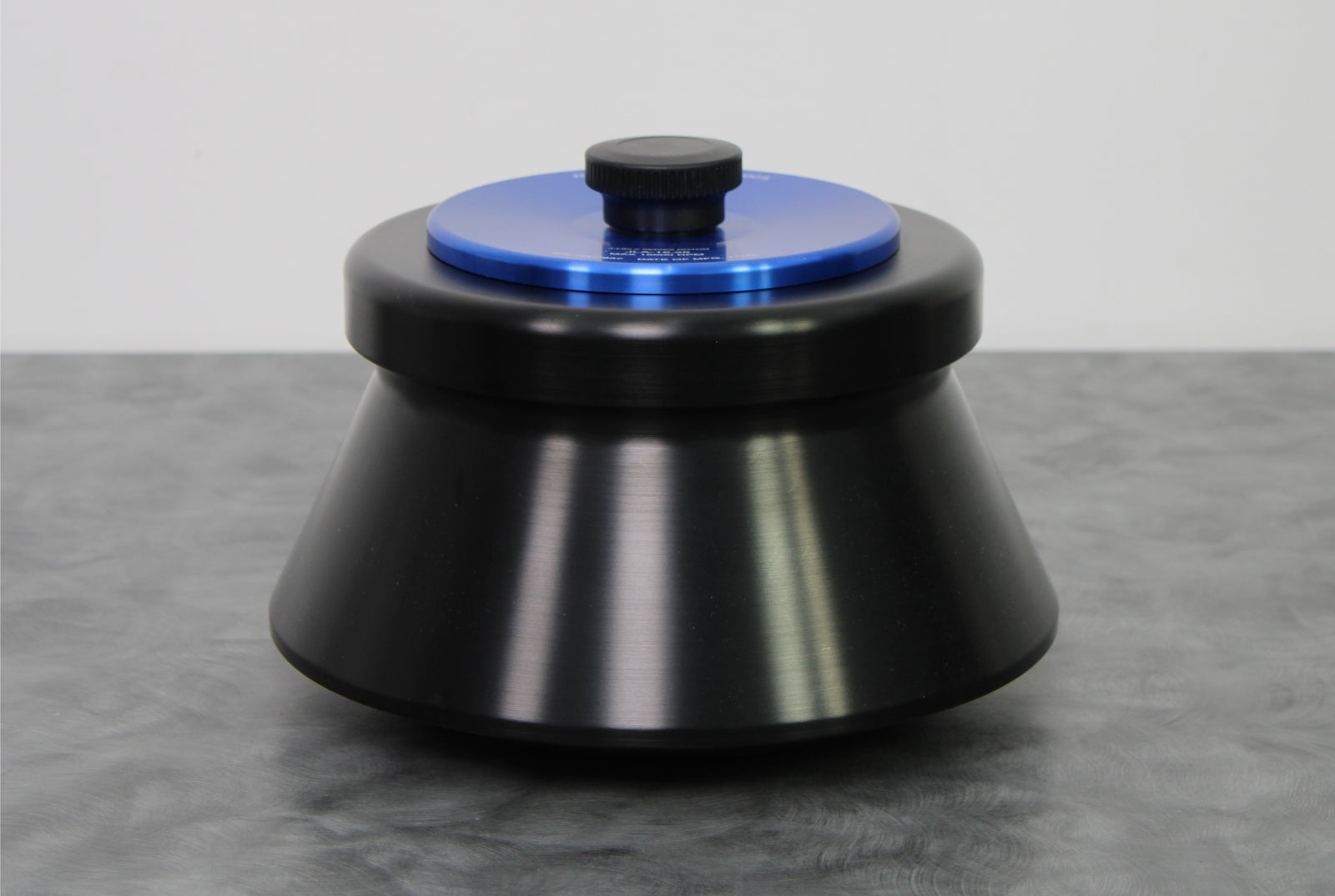

Manufacturer
|
Beckman Coulter
|
|
Platform
|
Avanti
|
|
Rotor type
|
Fixed-angle (high performance)
|
|
Model
|
JLA-16.250
|
|
Serial No.
|
22U7837
|
|
Maximum RPM
|
16,000 rpm
|
|
Maximum g-Force
|
38,400 x g
|
|
k-Factor
|
1,090
|
|
Adapters
|
356965, 356997
|
|
Nominal capacity
|
1500mL
|
|
rMAX
|
134
|
|
rMIN
|
46
|
|
rAV
|
90 mm
|
|
BioSafe
|
Biosafe configuration available
|
|
Materials
|
Anodized aluminum
|
|
Weight
|
22.7 lb (10.3 kg)
|
