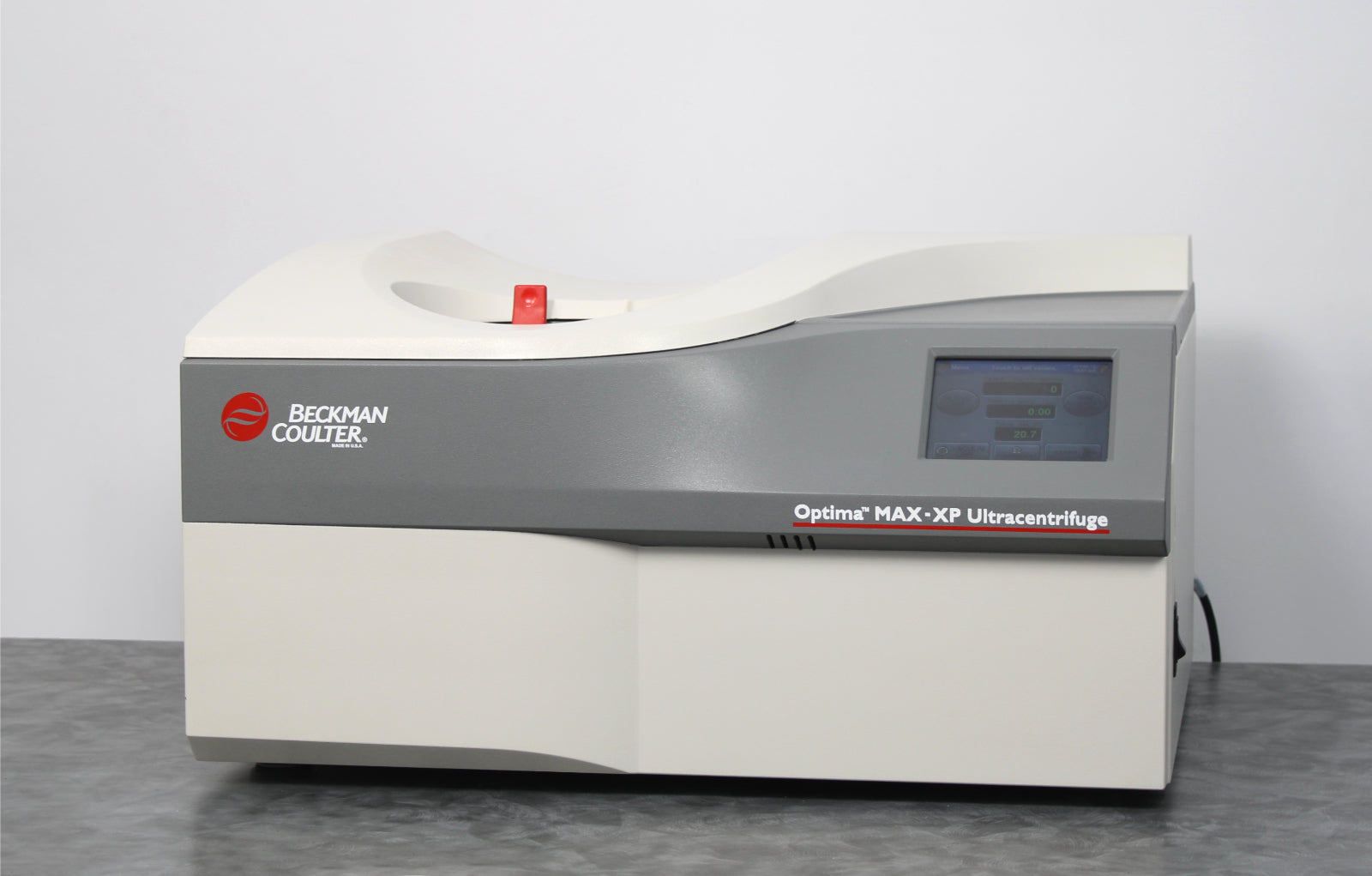

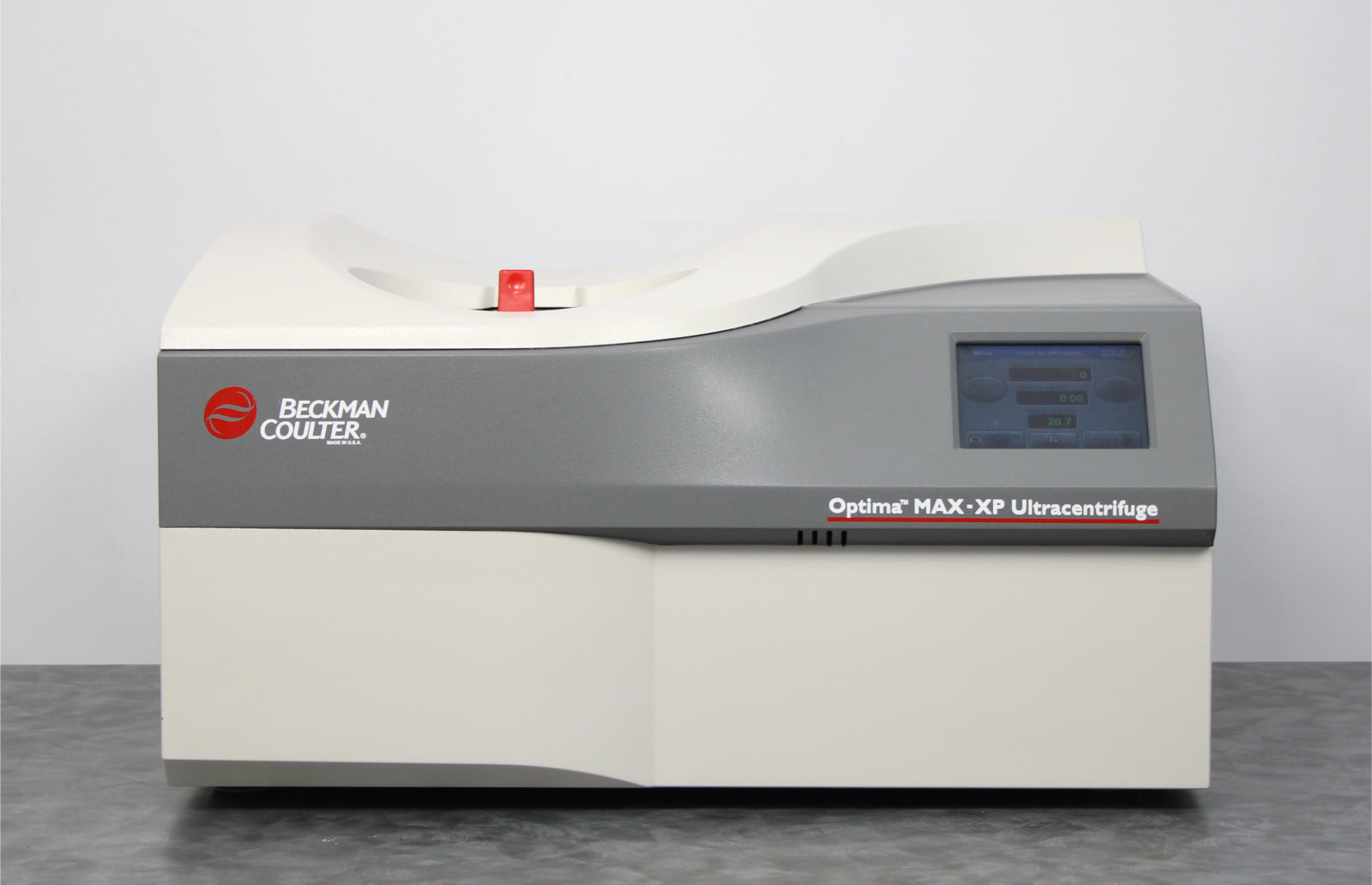

- Beckman Coulter Optima MAX-XP Benchtop Ultracentrifuge (393315)
- Power Cable
- 90-day Warranty
After its initial disinfection and inspection, our technicians tested the Beckman Coulter Optima MAX-XP benchtop ultracentrifuge with the following results:
- Ran to 120,000 rpm: PASSED
- Refrigeration held at 4.2°C during run: PASSED
- Vacuum reached below 10 microns: PASSED
- No excessive noise or imbalance: PASSED
- Spun down properly: PASSED
- Performed inspection; no problem found: PASSED
Only prepared for shipping and some internal cleaning. Preventative maintenance (PM) was last done in January 2023, so we did not do the full tear down like we normally would. The PM in January 2023 was performed by "eagle" which is a name we are familiar with.
It survived shipping to our location and immediate testing/inspection proved the vacuum to be performing well and the internal components in good condition. We replaced the power switch casing as it was broken. Internals were switched to a new casing.
PM was last done in January 2023 and is due in January 2024.
|
Manufacturer
|
Beckman Coulter
|
|
Model
|
Optima MAX-XP
|
|
Catalog No.
|
393315
|
|
Serial No.
|
CTZ14A12
|
|
Mfg. date
|
2014
|
|
Set speed range
|
5,000 to 150,000 RPM in 1,000-RPM increments
|
|
Speed display
|
Actual rotor speed in 100-RPM increments above 5,000 RPM and 10-RPM increments at speeds below 5,000 RPM
|
|
Speed control
|
Actual rotor speed, +/- 50 RPM of set speed
|
|
Max. RCF
|
1,019,000 x g
|
|
Set time
|
Up to 99 hours, 59 minutes
|
|
Time display
|
Timed run: indicates run time remaining
Hold mode: indicates actual run time
Programmed operation: indicates time remaining in step
|
|
Set temperature range
|
0 to 40°C in 1° increments
|
|
Temperature control (after equilibration)
|
+/- 2°C of set temperature
|
|
Temperature display
|
Actual rotor temperature in 0.1° increments
|
|
Ambient temperature range
|
15 to 35°C
|
|
Acceleration
|
10 acceleration profiles
|
|
Deceleration
|
11 deceleration profiles
|
|
Power rating
|
100/120V, 50/60Hz, 12A
|
|
Dimensions (W x D x H)
|
29 x 24.5 x 16 in.
|
|
Weight
|
105 kg (231.5 lb)
|
