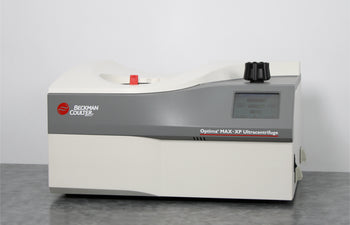

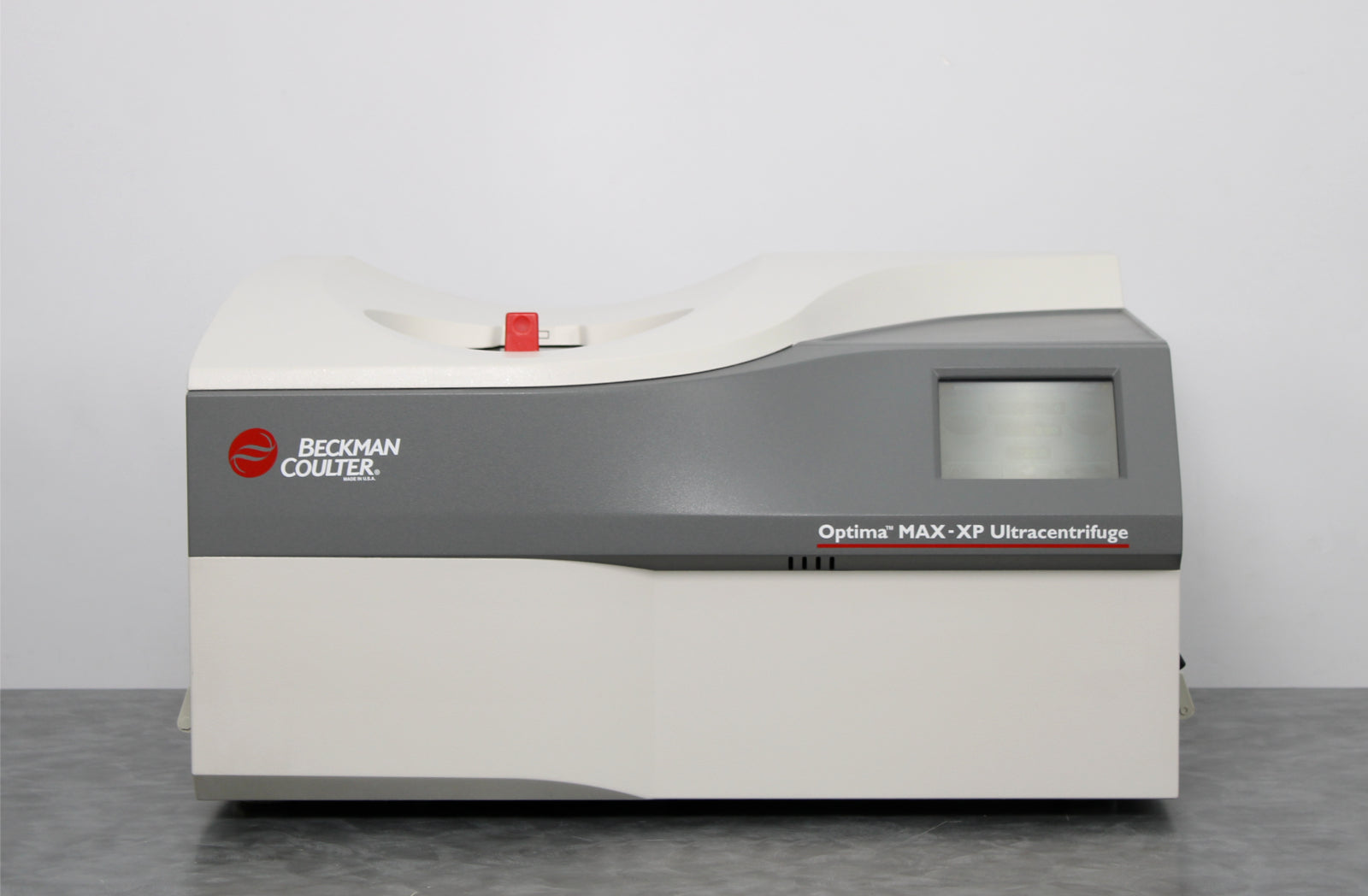

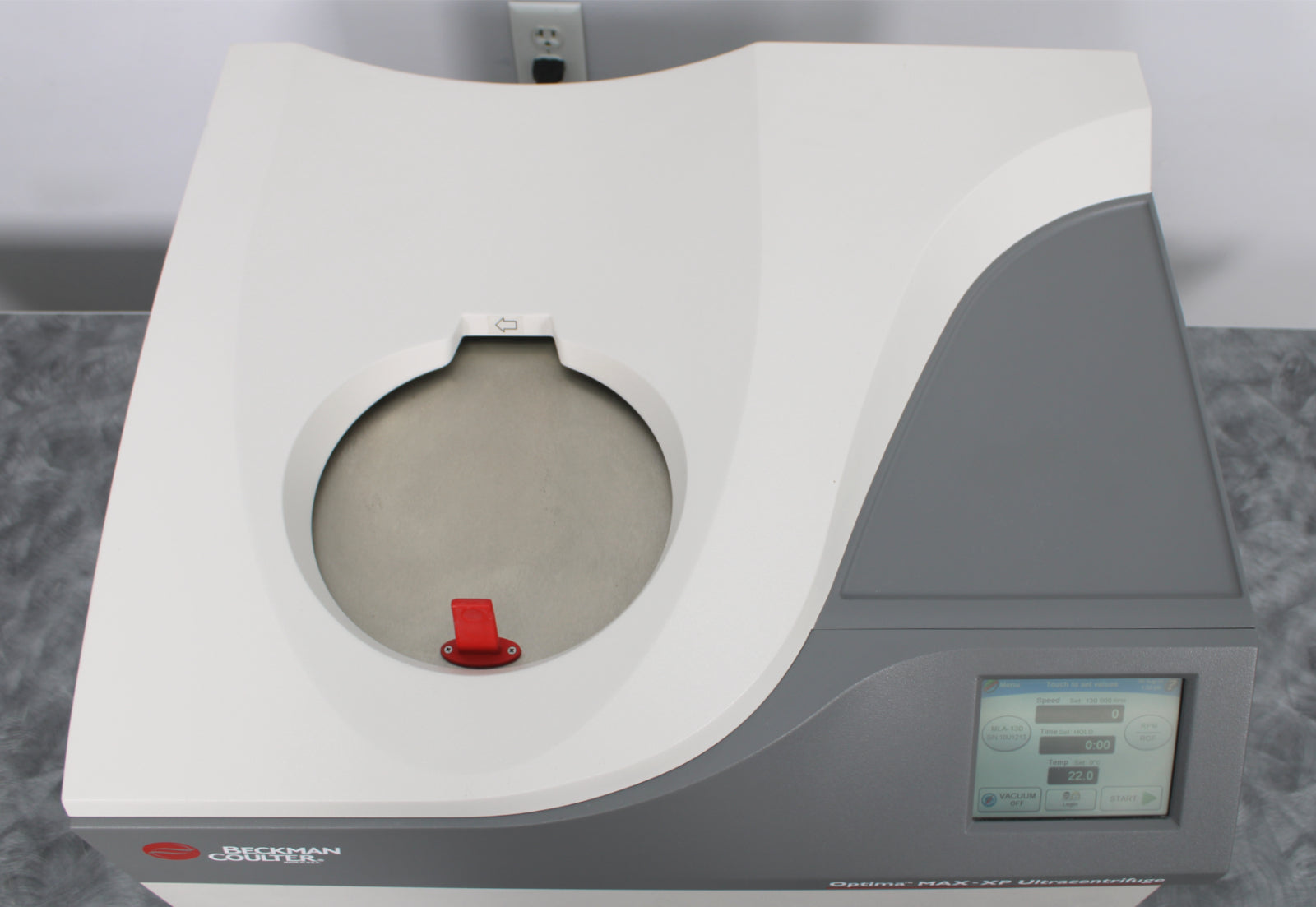

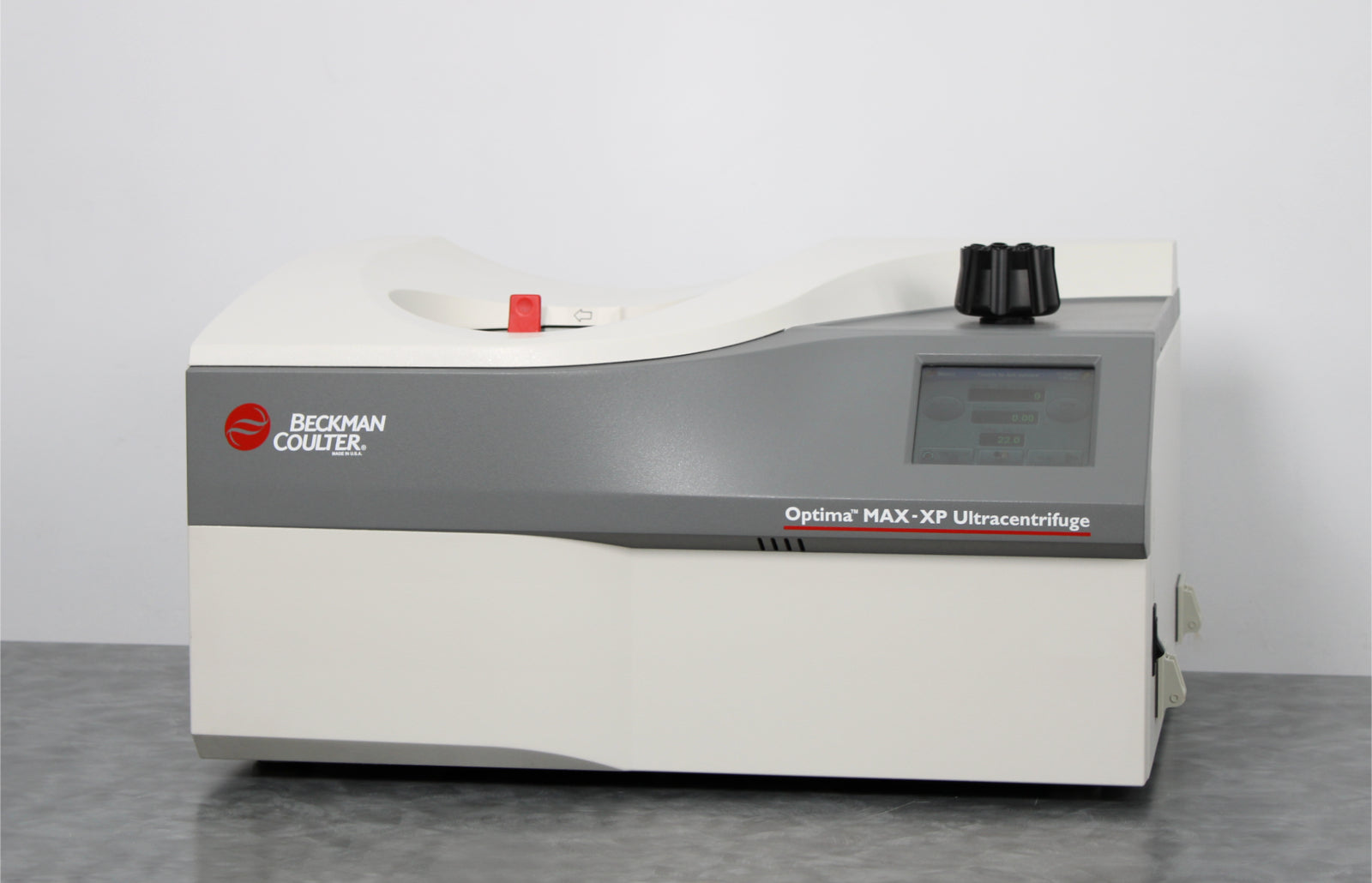

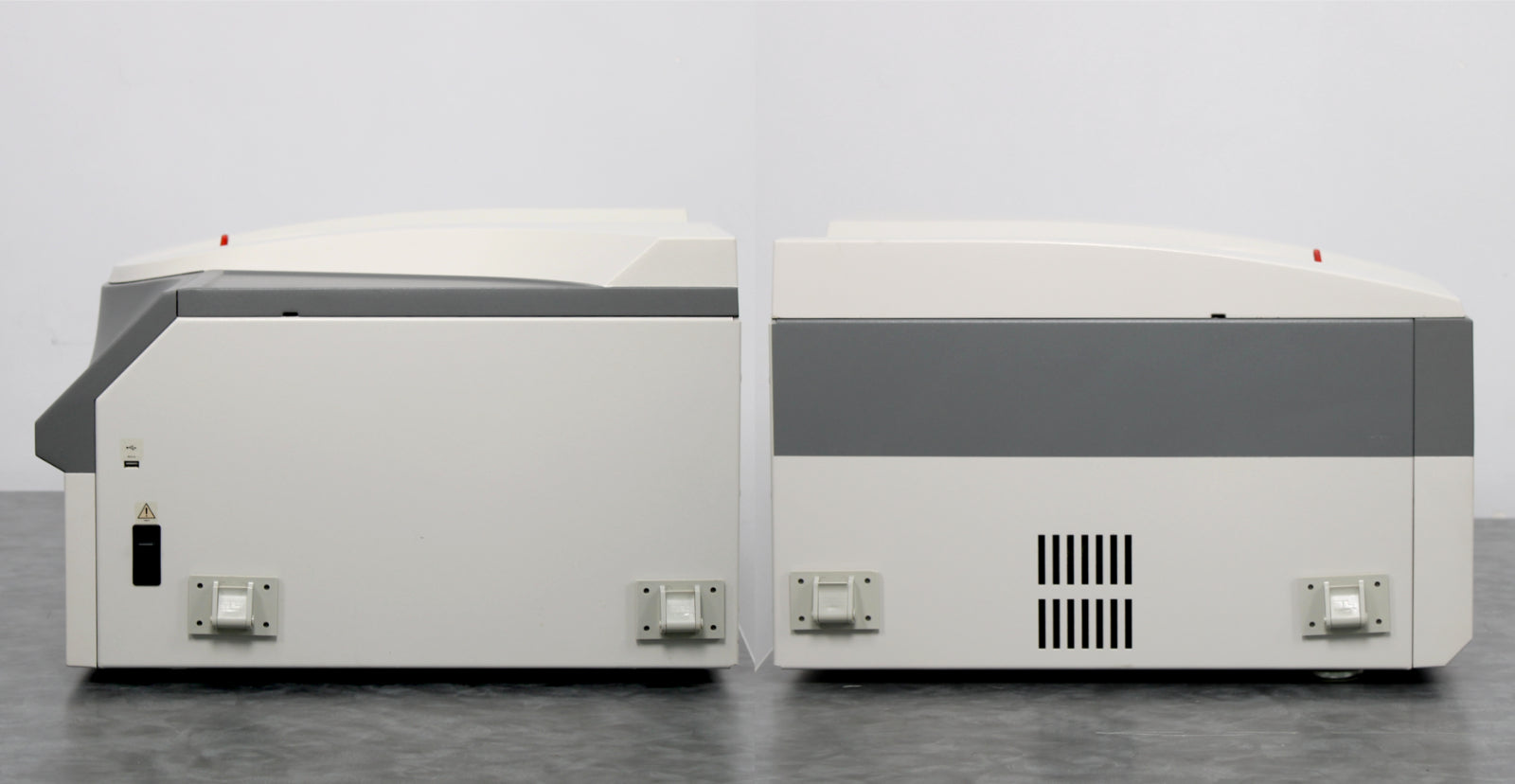

- Beckman Coulter Optima MAX-XP Benchtop Ultracentrifuge 120V (393315)
- Beckman TLN-100 Near-Vertical Rotor
- Power Cable with NEMA 5-20 Plug
- 90-Day Warranty

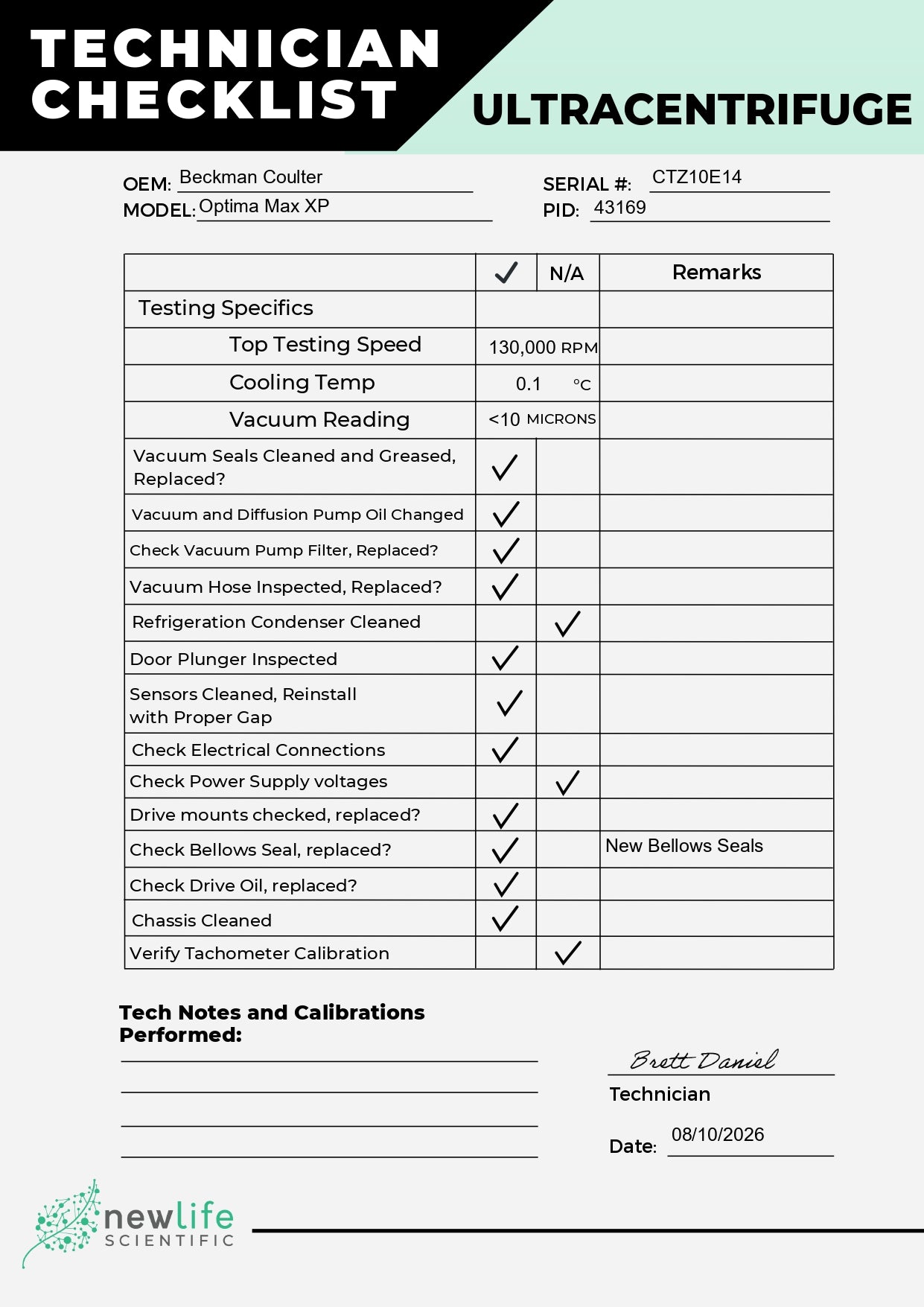

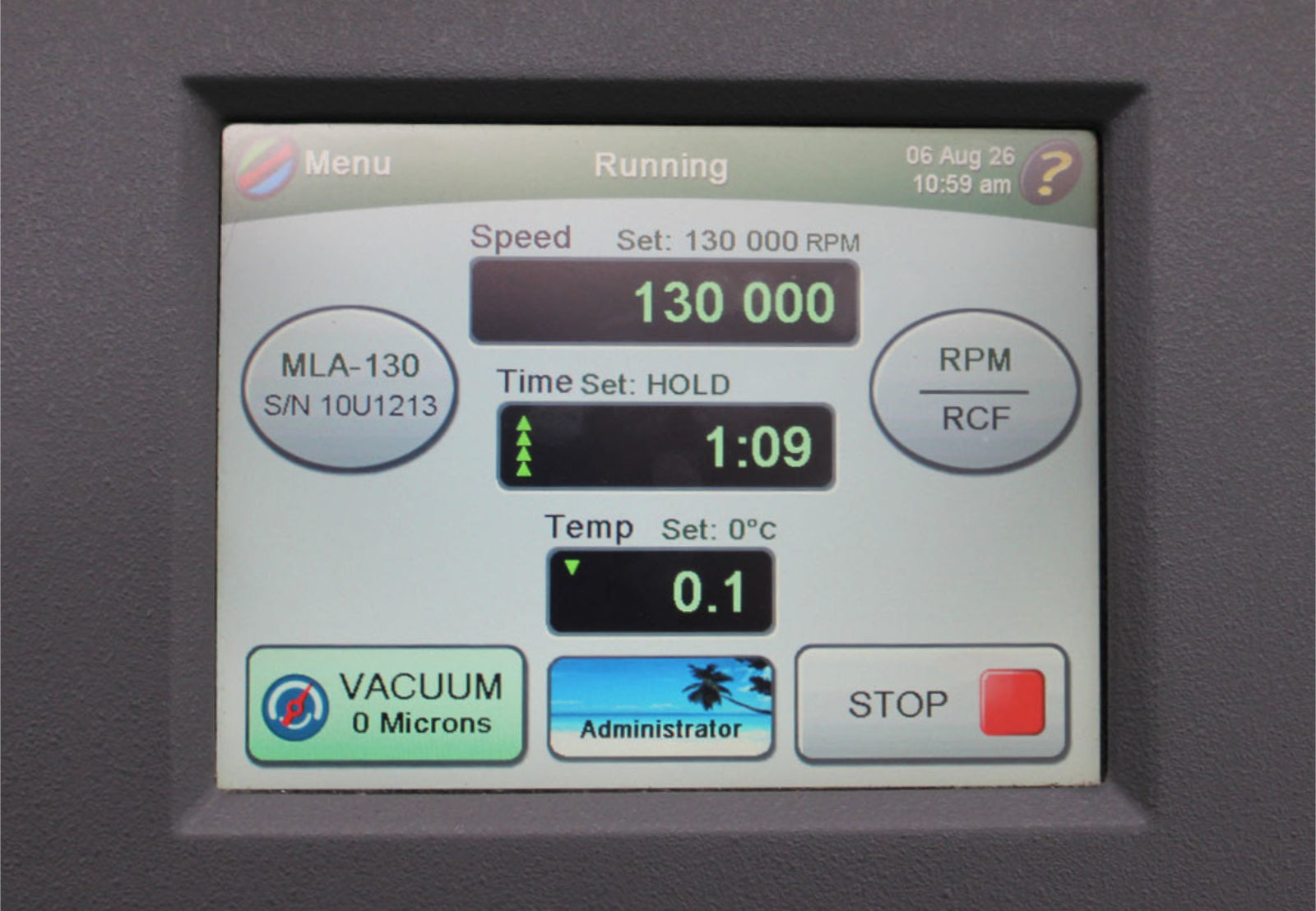

After its initial disinfection and inspection, our technicians tested the Beckman Coulter Optima MAX-XP benchtop ultracentrifuge with the following results:
- Ran to 130,000 rpm: PASSED
- Refrigeration held at 0.1°C: PASSED
- Vacuum reading below 10 microns: PASSED
- No excessive noise or imbalance: PASSED
- Spun down properly: PASSED
- Performed inspection; no issue found: PASSED
- Installed new bellows seals.
- Installed new vacuum hoses.
|
Manufacturer
|
Beckman Coulter
|
|
Model
|
Optima MAX-XP
|
|
Catalog No.
|
393315
|
|
Serial No.
|
CTZ10E14
|
|
Mfg. date
|
2010
|
|
Set speed range
|
5,000 to 150,000 rpm in 1,000-rpm increments
|
|
Speed display
|
Actual rotor speed in 100-rpm increments above 5,000 rpm and 10-rpm increments at speeds below 5,000 rpm
|
|
Speed control
|
Actual rotor speed, +/- 50 rpm of set speed
|
|
Max. RCF
|
1,019,000 x g
|
|
Set time
|
Up to 99 hours, 59 minutes
|
|
Time display
|
Timed run: indicates run time remaining
Hold mode: indicates actual run time
Programmed operation: indicates time remaining in step
|
|
Set temperature range
|
0 to 40°C in 1° increments
|
|
Temperature control (after equilibration)
|
+/- 2°C of set temperature
|
|
Temperature display
|
Actual rotor temperature in 0.1° increments
|
|
Ambient temperature range
|
15 to 35°C
|
|
Acceleration
|
10 acceleration profiles
|
|
Deceleration
|
11 deceleration profiles
|
|

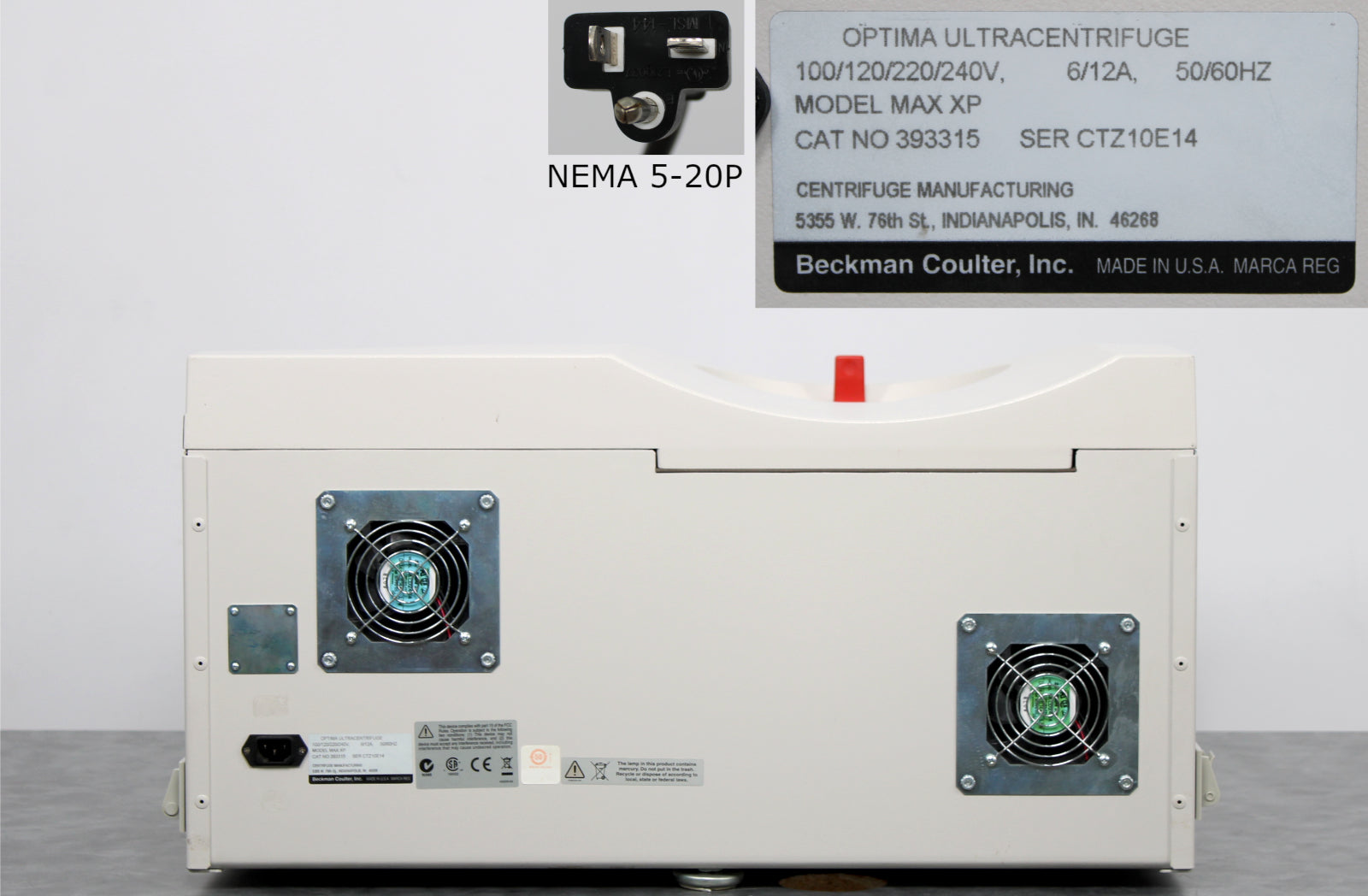

Power rating
|
100/120/220/240V, 50/60Hz, 6/12A
|
|
Dimensions (W x D x H)
|
29 x 24.5 x 15.5 in
|
|
Weight
|
231.5 lb (105 kg)
|
|

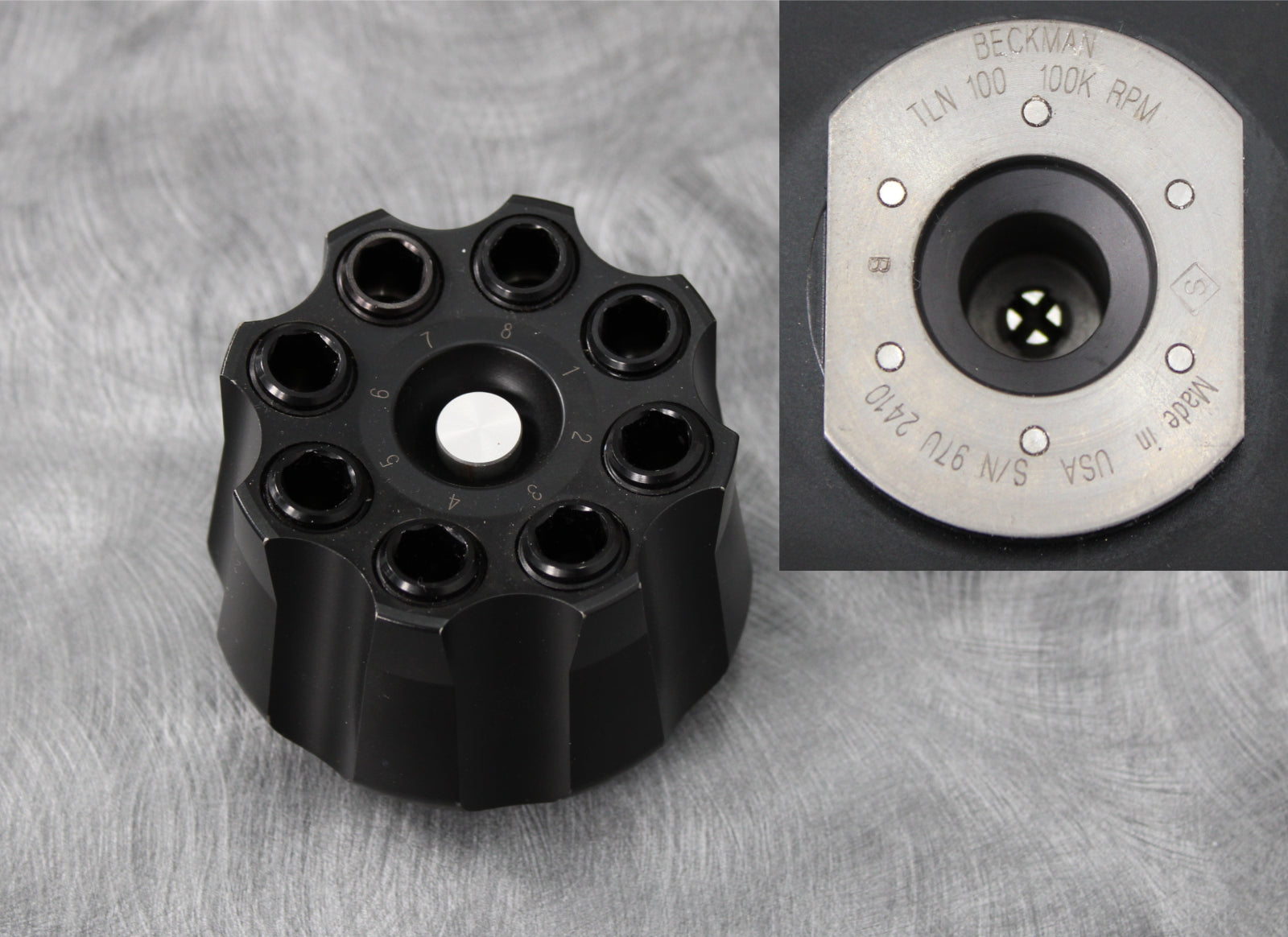

Manufacturer
|
Beckman
|
|
Model
|

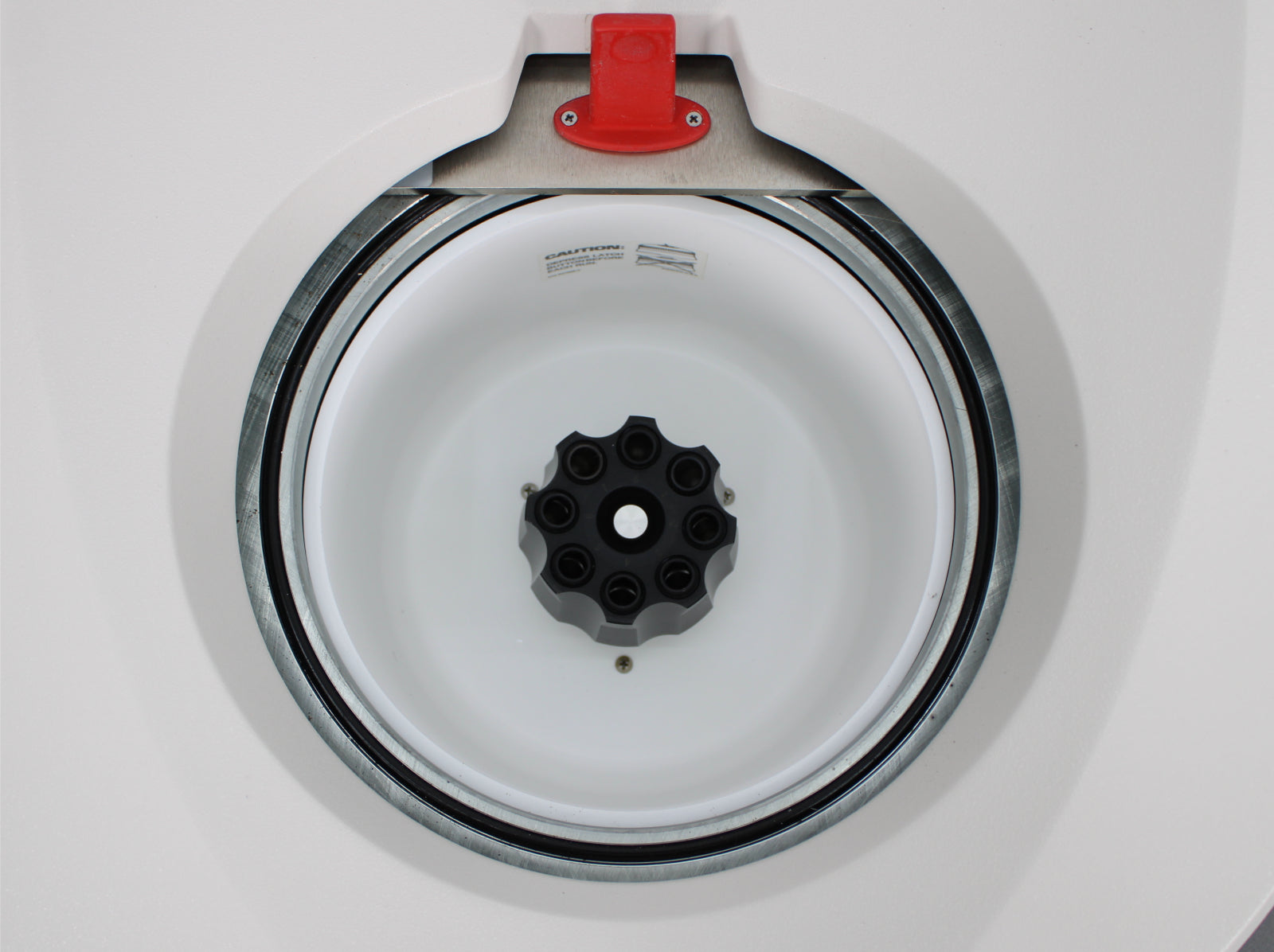

TLN-100 Near-Vertical Rotor
|
|
Serial No.
|
97U 2410
|
|
Maximum RPM
|
100,000 rpm
|
|
Maximum RCF
|
450,000 x g
|
|
K factor
|
14
|
|
Rotor capacity
|
31.2 mL
|
|
Tube number/volume/size/dimensions
|
8 x 3.9 mL
13 x 38 mm
|
