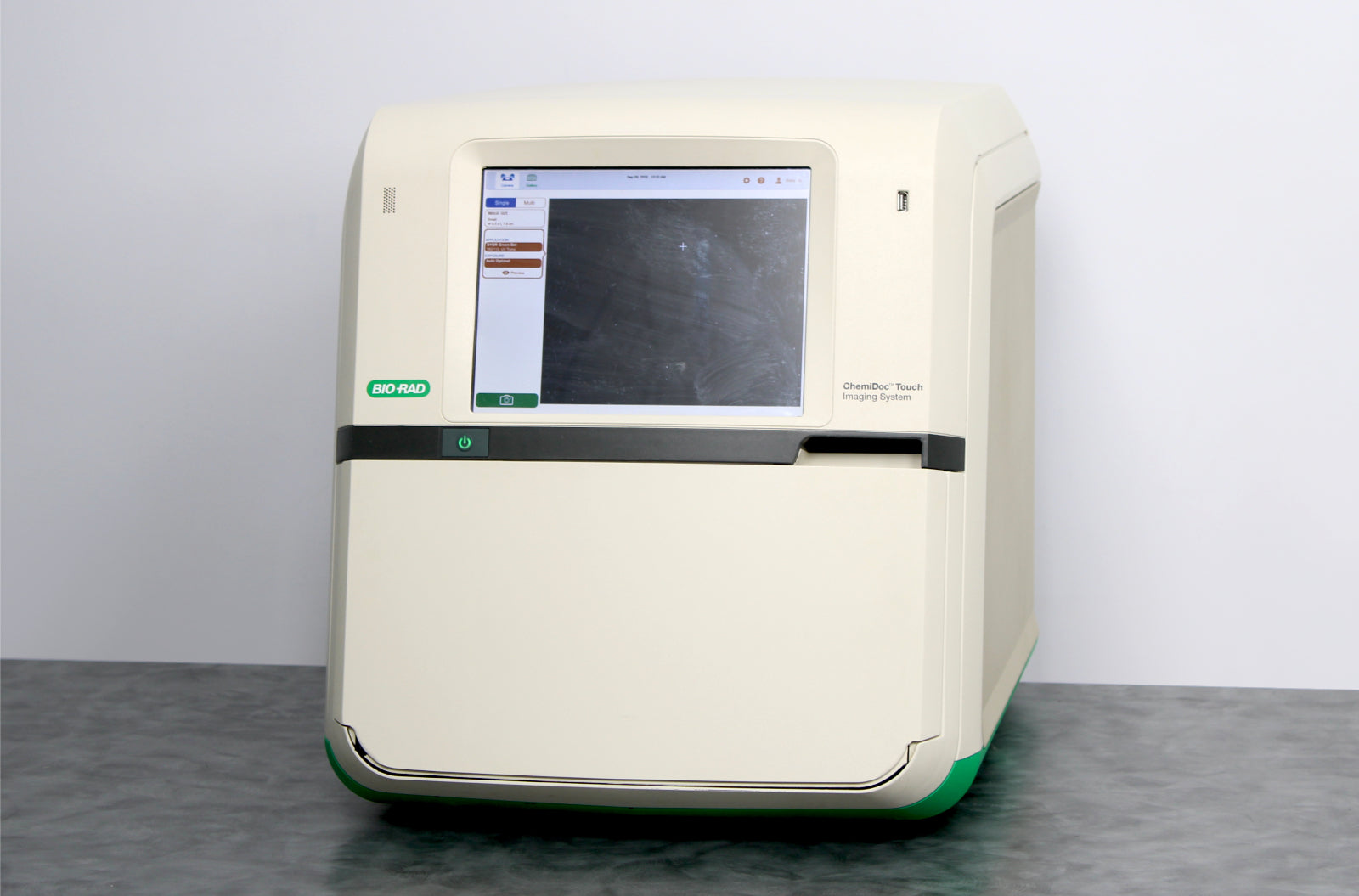

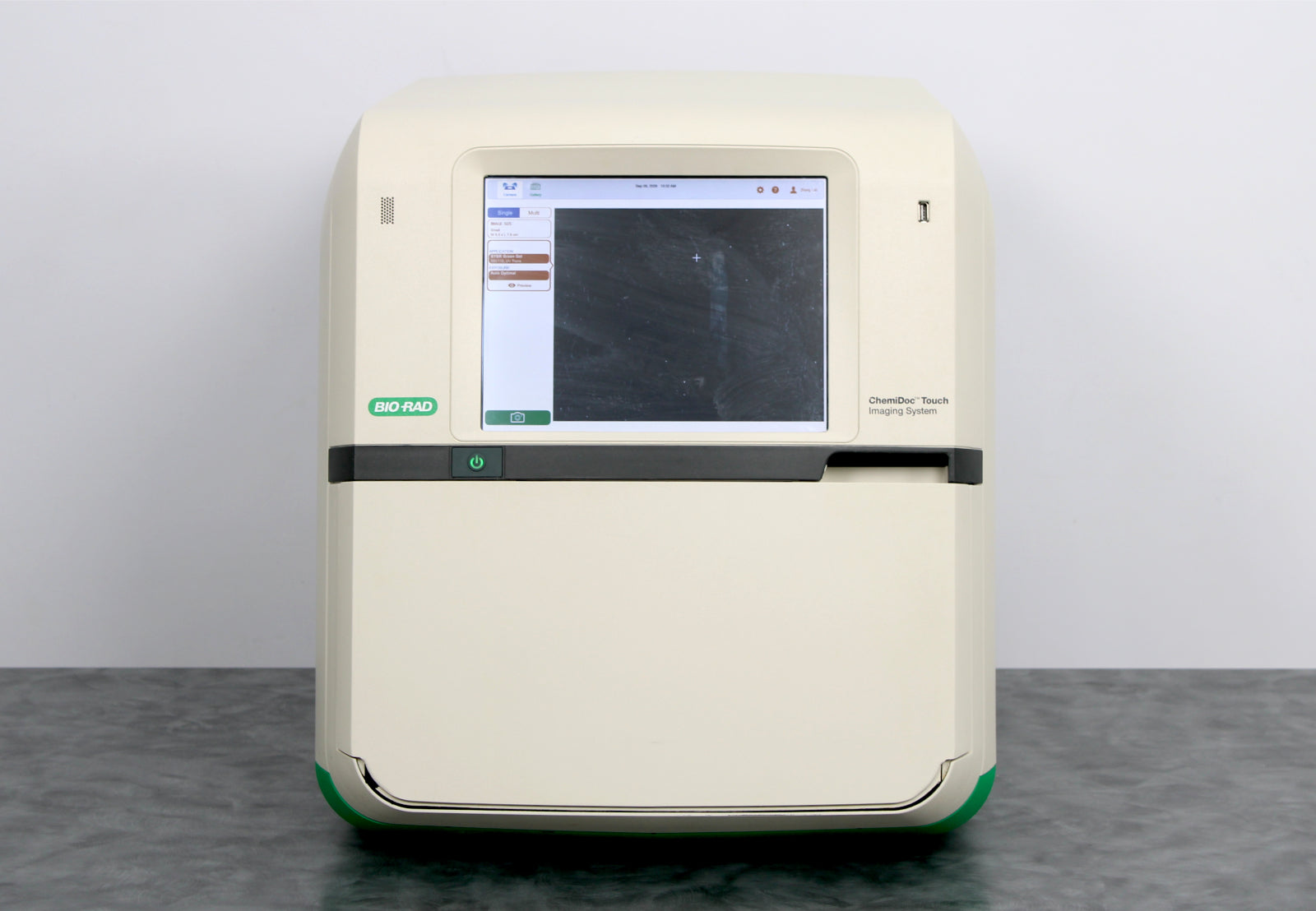

- Bio-Rad ChemiDoc Touch Imaging System

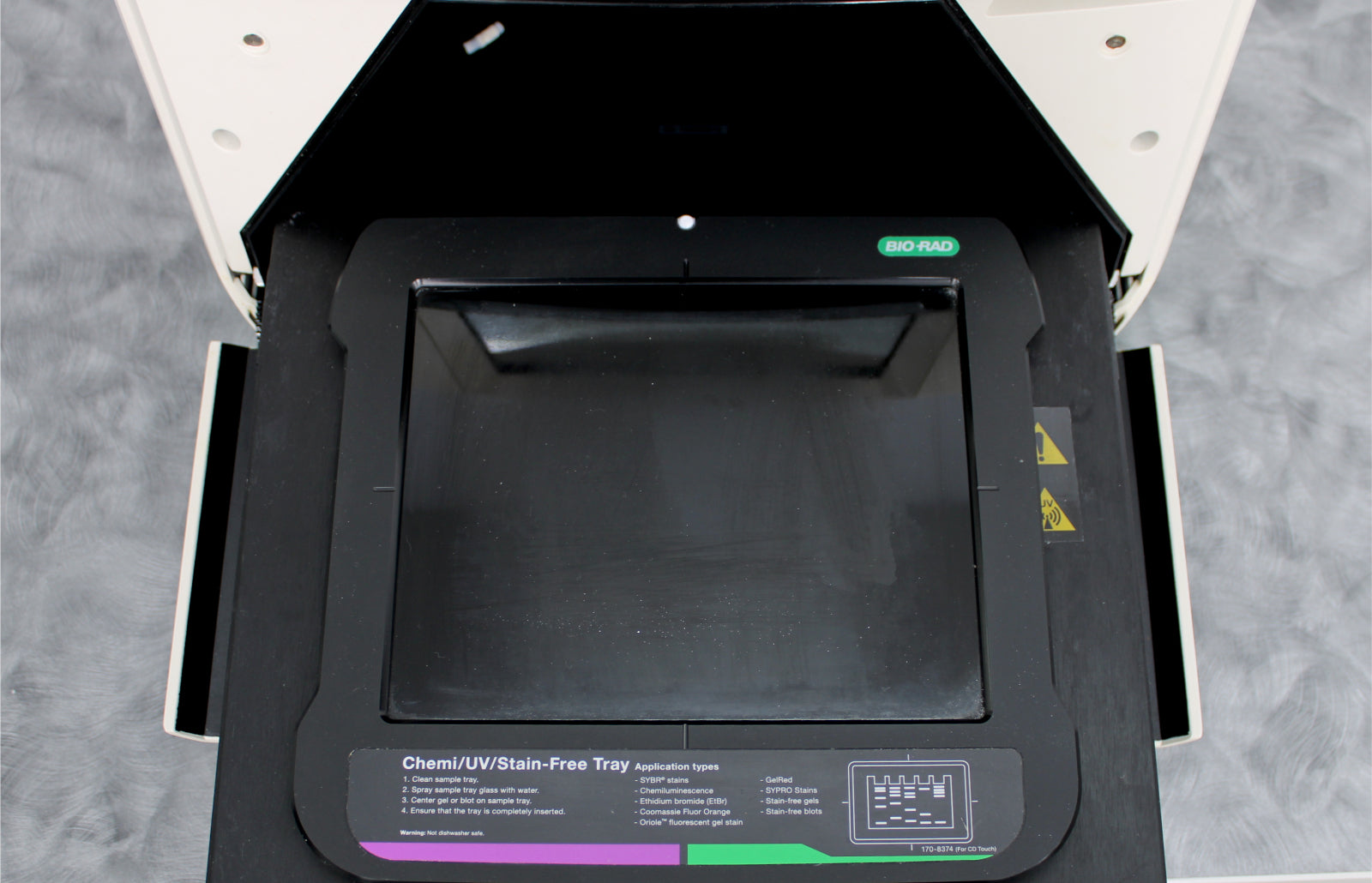

- Chemi/UV/Stain-Free Tray
- Power Cable with NEMA 5-15P Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Bio-Rad ChemiDoc Touch Imaging System with the following results:
- Touchscreen: PASSED
- Menu navigation: PASSED
- Light source: PASSED
- Camera image quality: PASSED

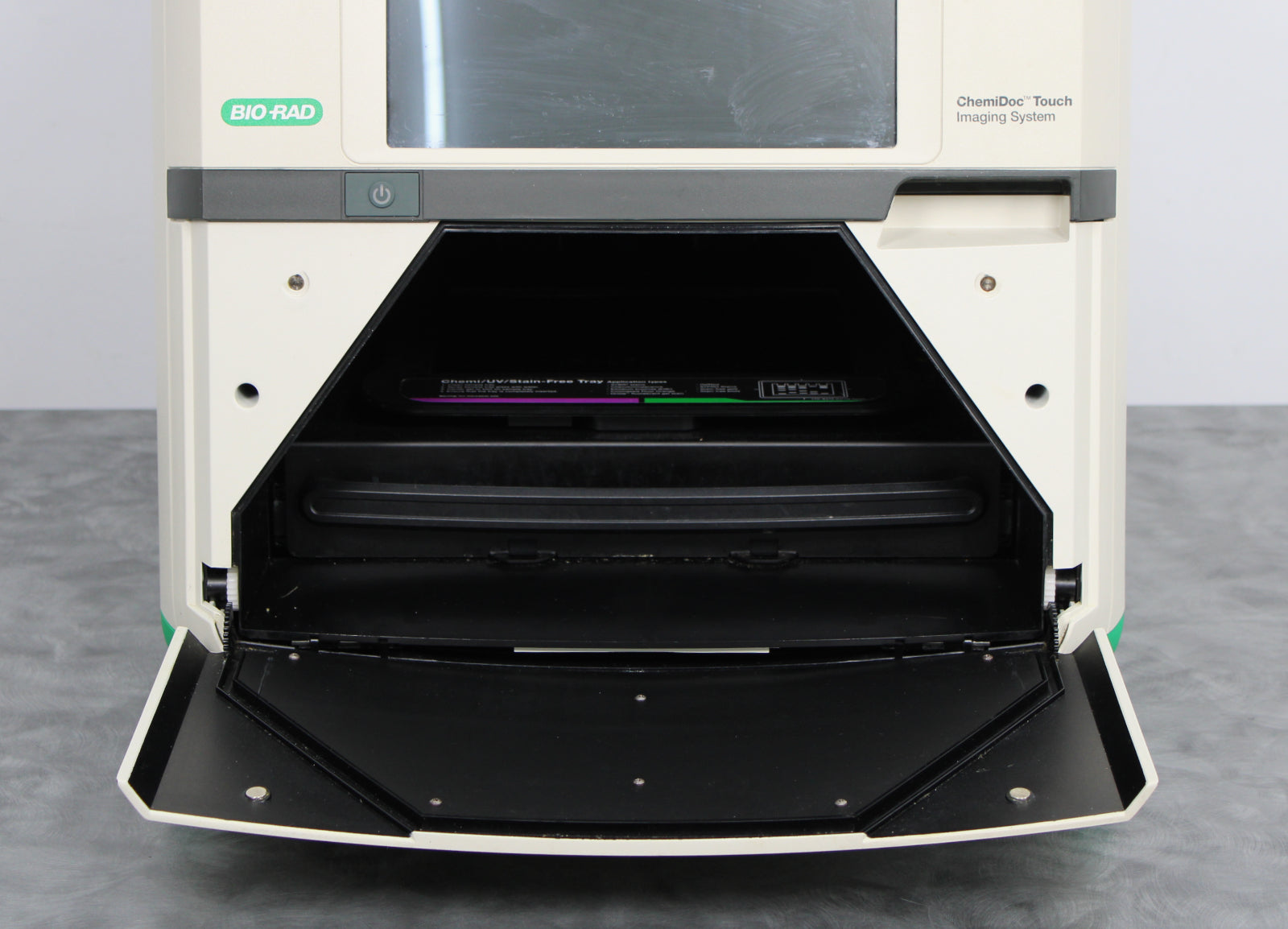

Notice: The Admin account is locked as well as most of the user accounts but there is a single unlocked user account. Admin changes can't be made with a service visit from Bio-Rad due to discontinuation of the product. Slow opening on the door doesn't work because the gear is broken and out of place, causing it to skip the gears when trying to open.
|
Manufacturer
|
Bio-Rad Laboratories
|
|
Model
|
ChemiDoc Touch Imaging System
|
|

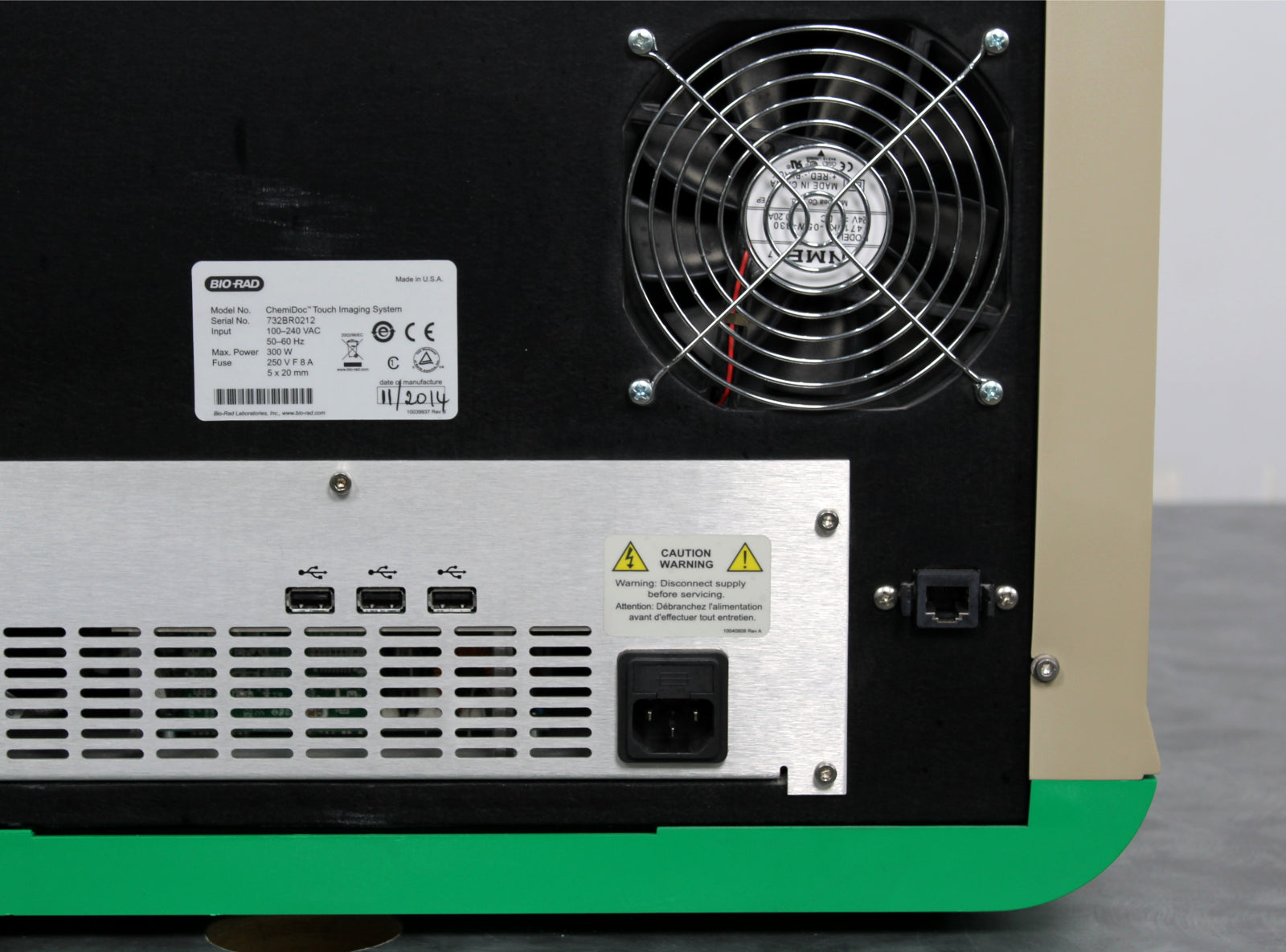

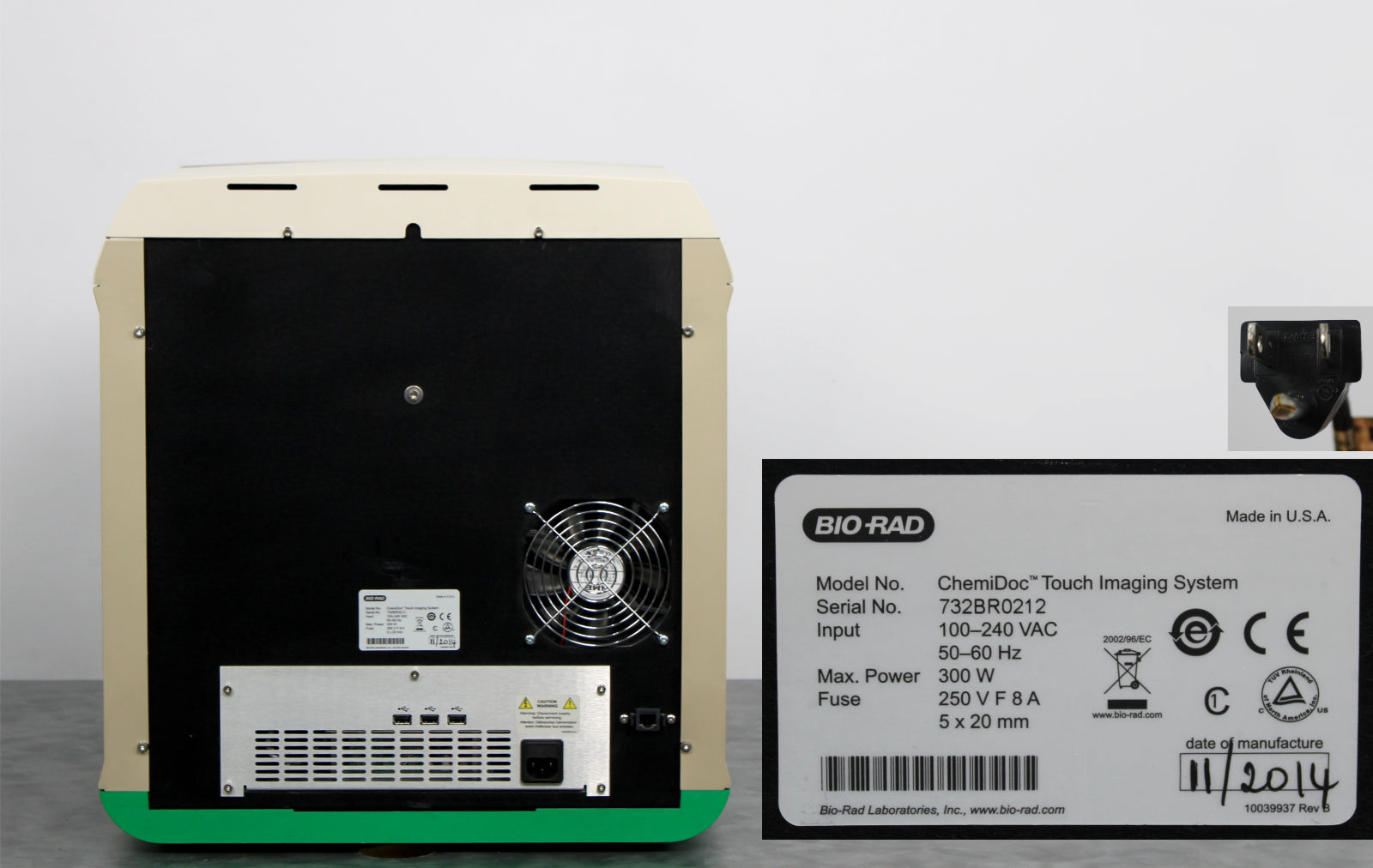

Serial No.
|
732BR0212
|
|
Mfg. date
|
11/2014
|
|
Applications
|
Chemiluminescence
Fluorescence
Colorimetry/densitometry
Gel documentation
|
|

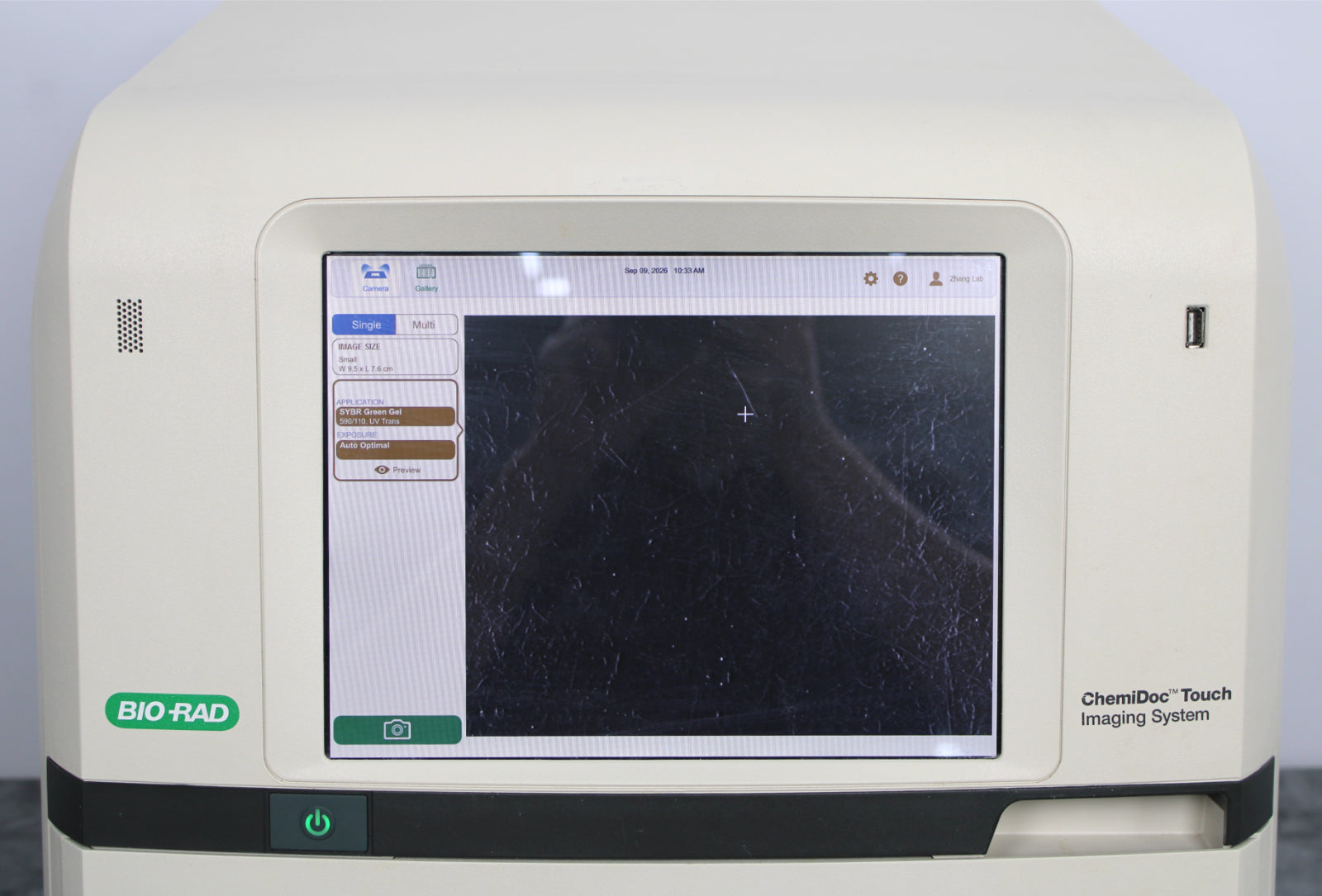

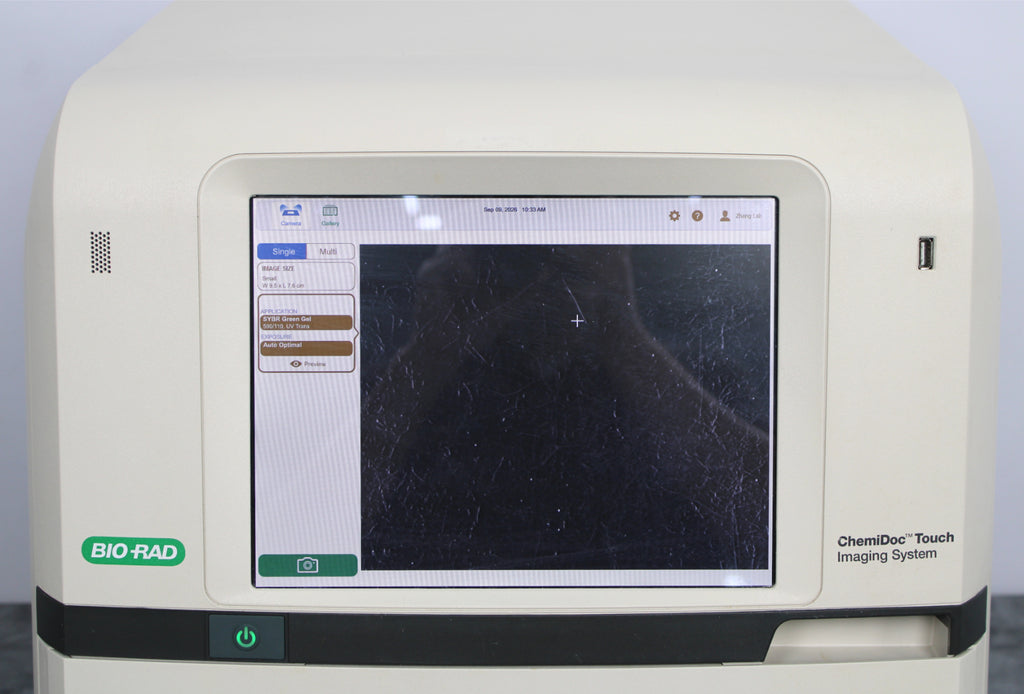

Touch-screen functionality
|
Multi-touch capability (4 points), 12” display
|
|
Maximum image area
|
6.61 x 8.26 in (16.8 x 21 cm)
|
|
Illumination modes
|
Epi-white (standard)
Trans-UV, 302 nm (standard)
Trans-white (optional)
Trans-blue (optional)
|
|
Detector
|
Cooled CCD
|
|
Camera cooling temperature
|
-25°C
|
|
Filter holder
|
2 positions (1 for standard filter, 1 without filter for chemiluminescence)
|
|
Emission filters
|
Standard filter to perform protein and DNA gel and blot imaging
|
|
Dynamic range
|
>4 orders of magnitude
|
|
Pixel density (gray levels)
|
65,535
|
|
Smart Tray Technology
|
The ChemiDoc Touch Imaging System automatically recognizes the application-specific trays and adjusts imaging parameters and software options accordingly
|
|
Autofocus (patent pending)
|
Precalibrated focus for any zoom setting or sample height
|
|
Image flat fielding
|
Dynamic; precalibrated and optimized for every application
|
|
Auto-exposure
|
2 user-defined modes (rapid or optimal auto-exposure) for chemiluminescence
2 user-defined modes (intense or faint bands) for non-chemiluminescence applications
|
|
Power rating
|
100-240VAC, 50-60Hz
|
|
Power consumption
|
300W max
|
|
Dimensions (W x D x H)
|
20 x 24 x 20.8 in (51 x 61 x 53 cm)
|
|
Weight
|
78 lb (35 kg)
|
