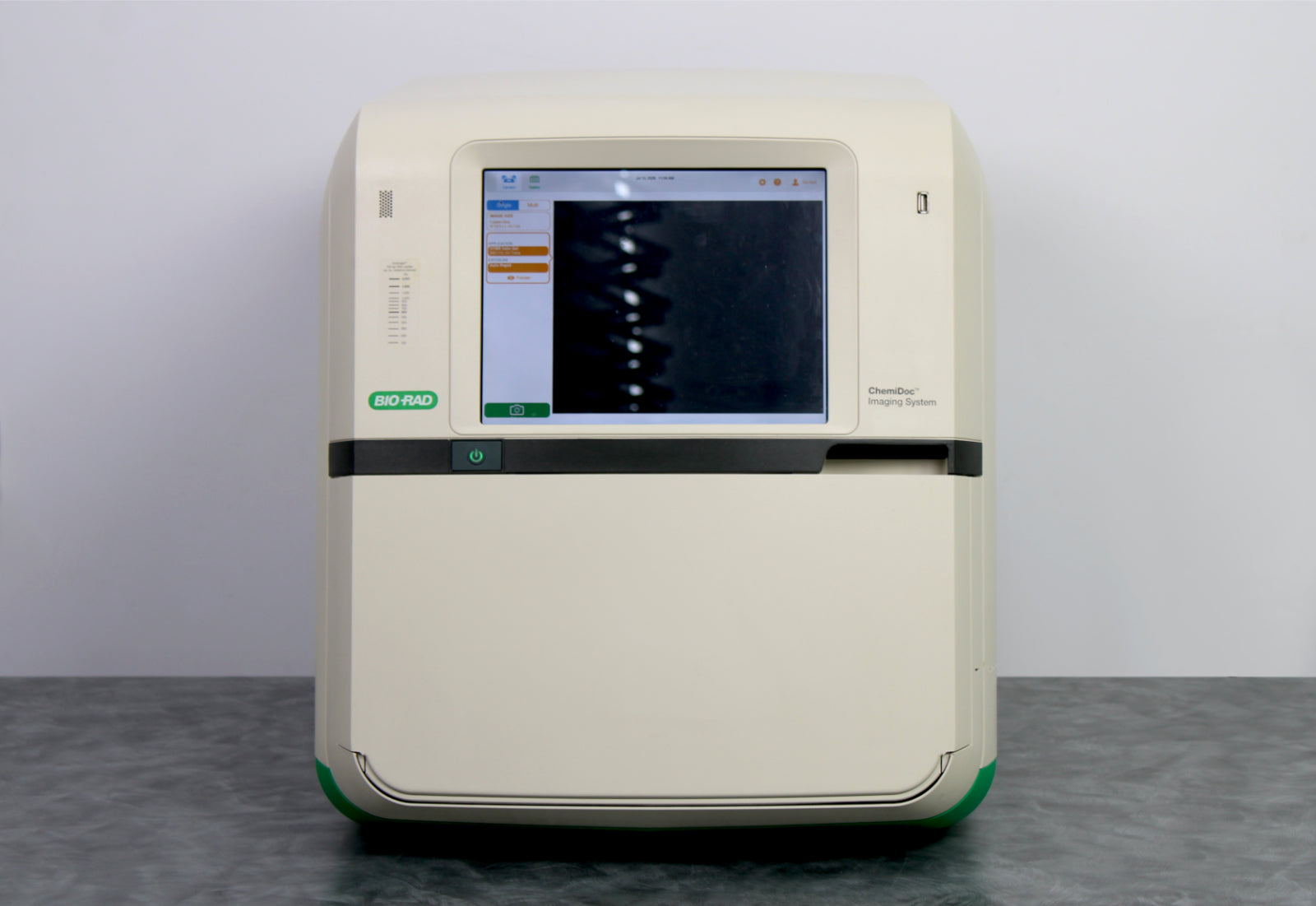

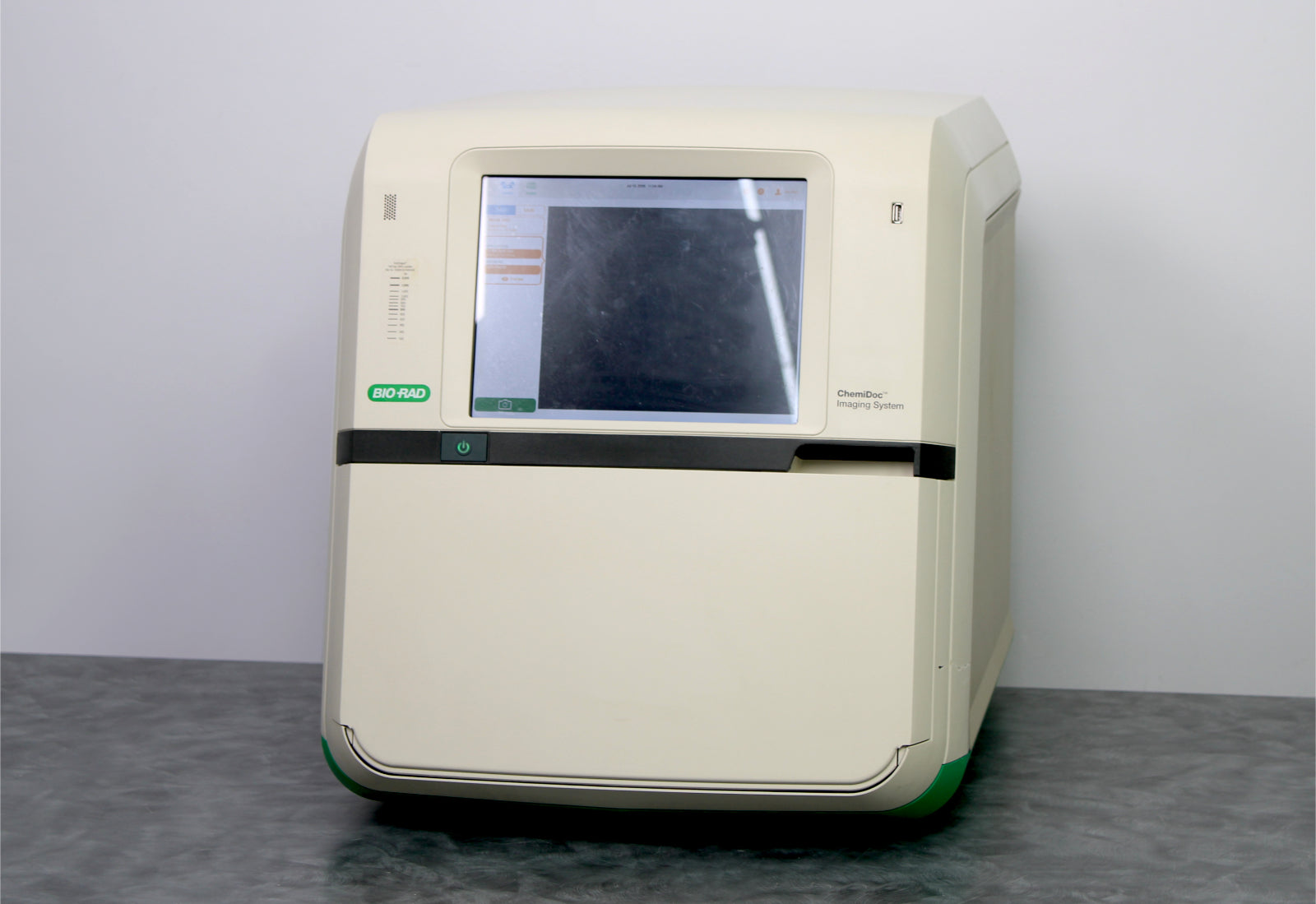

- Bio-Rad ChemiDoc Touch Imaging System

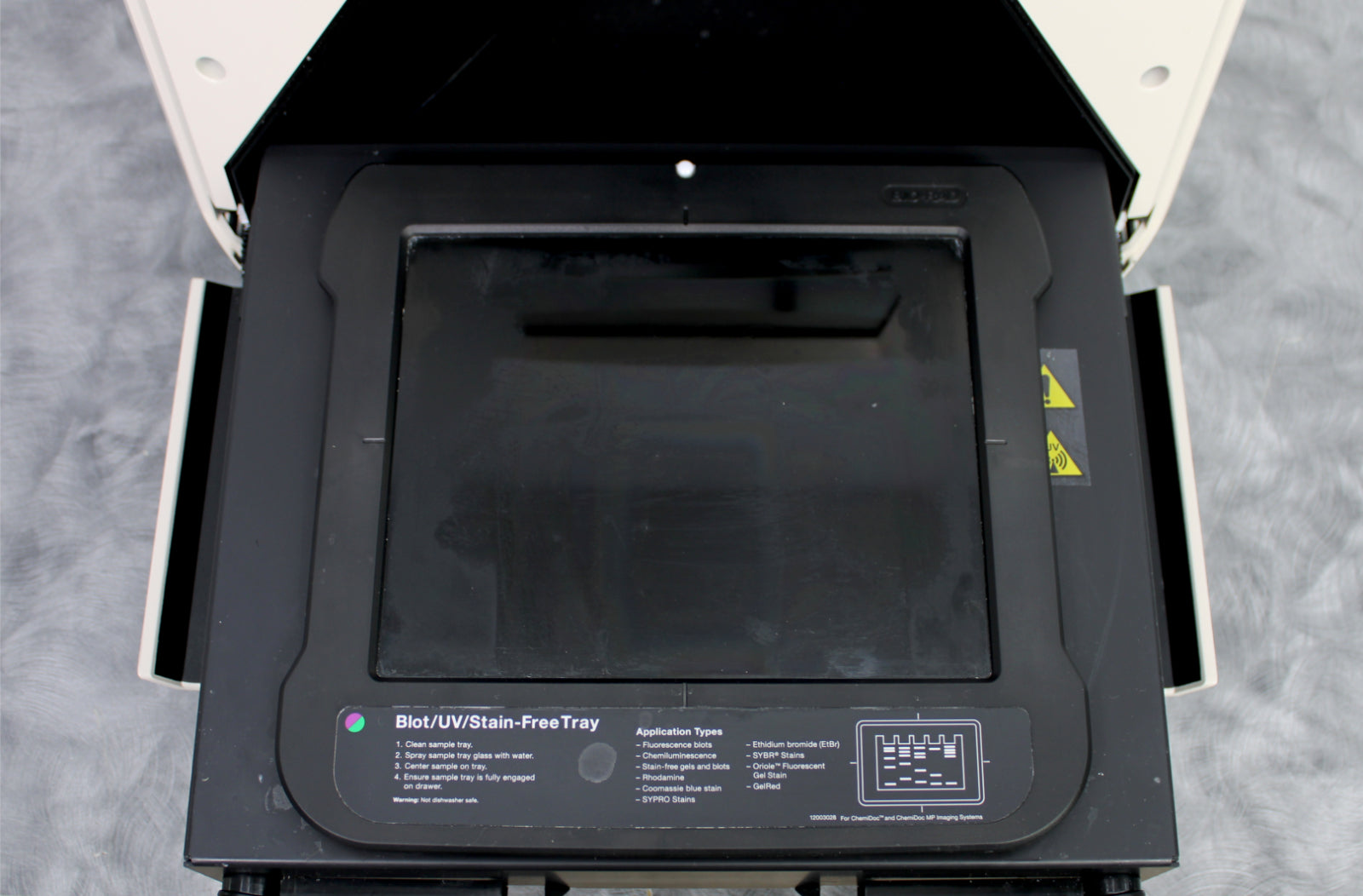

- Blot/UV/Stain-Free Tray
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Bio-Rad ChemiDoc Touch Imaging System with the following results:

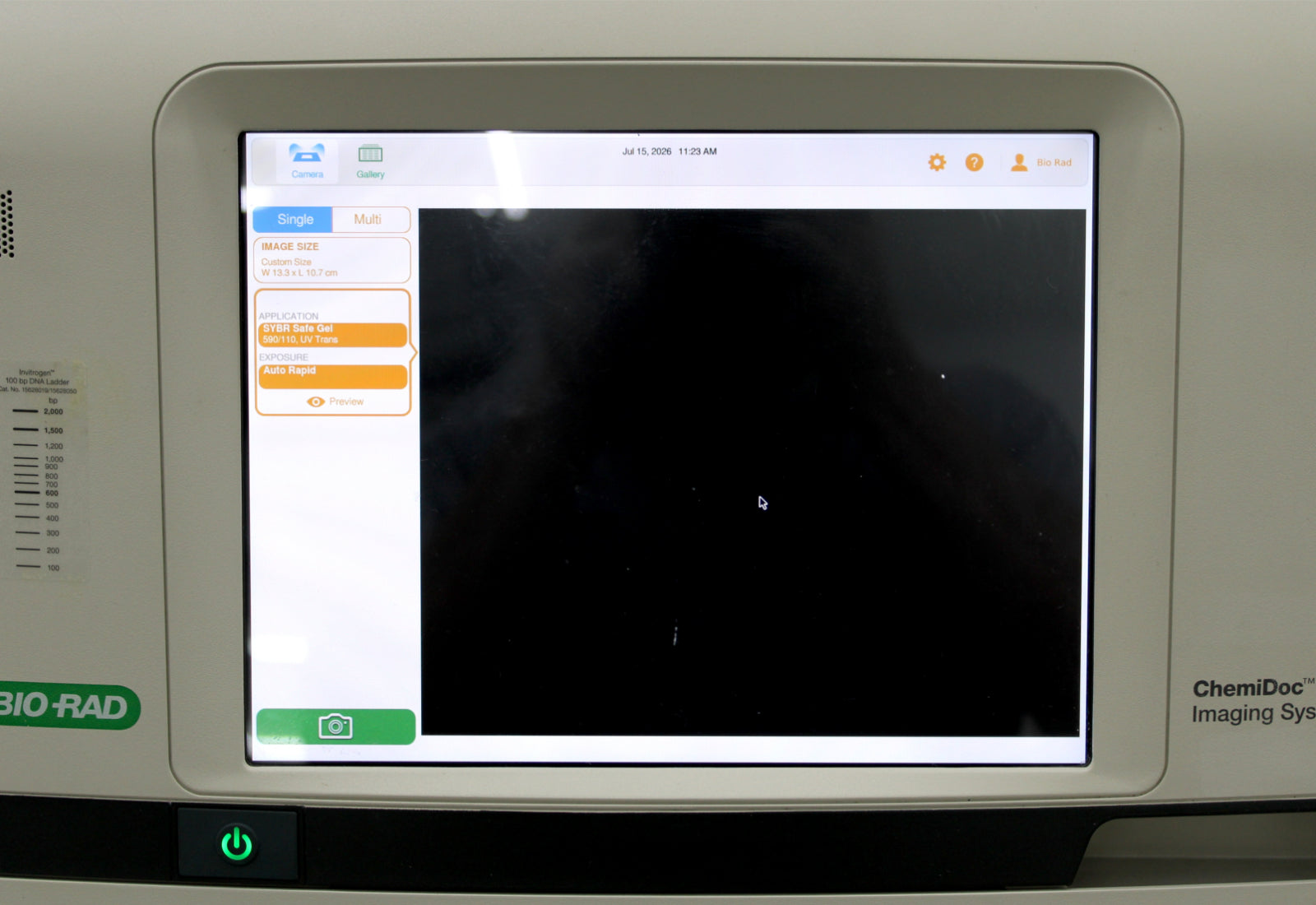

- Touchscreen: PASSED

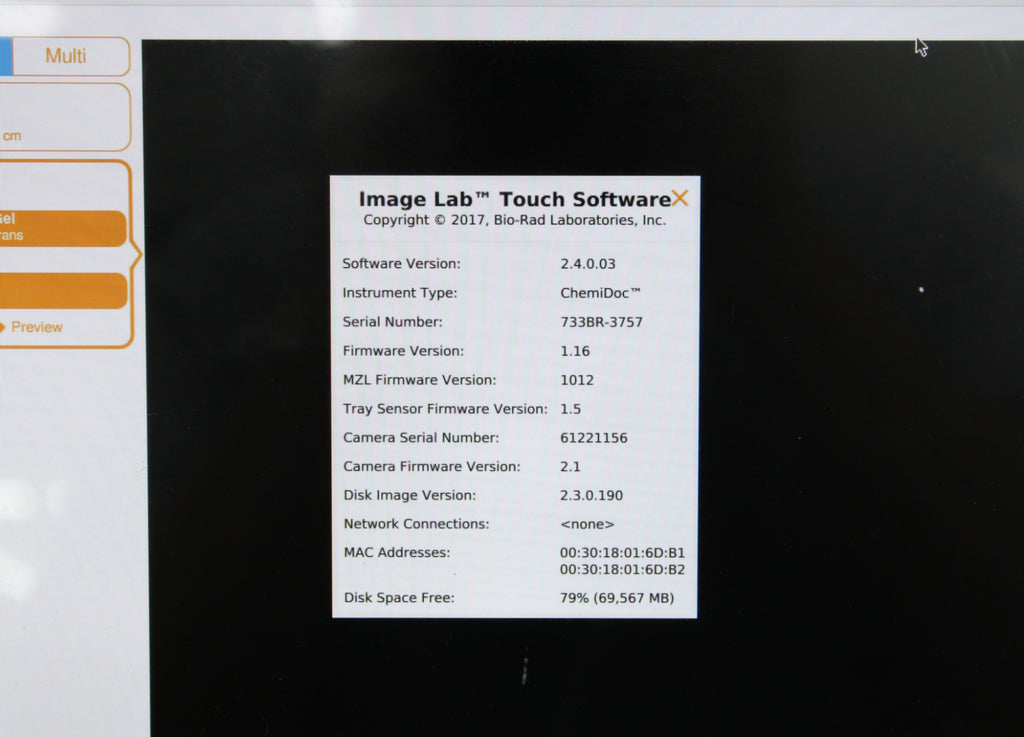

- Menu navigation: PASSED
- Light source: PASSED
- Camera image quality: PASSED

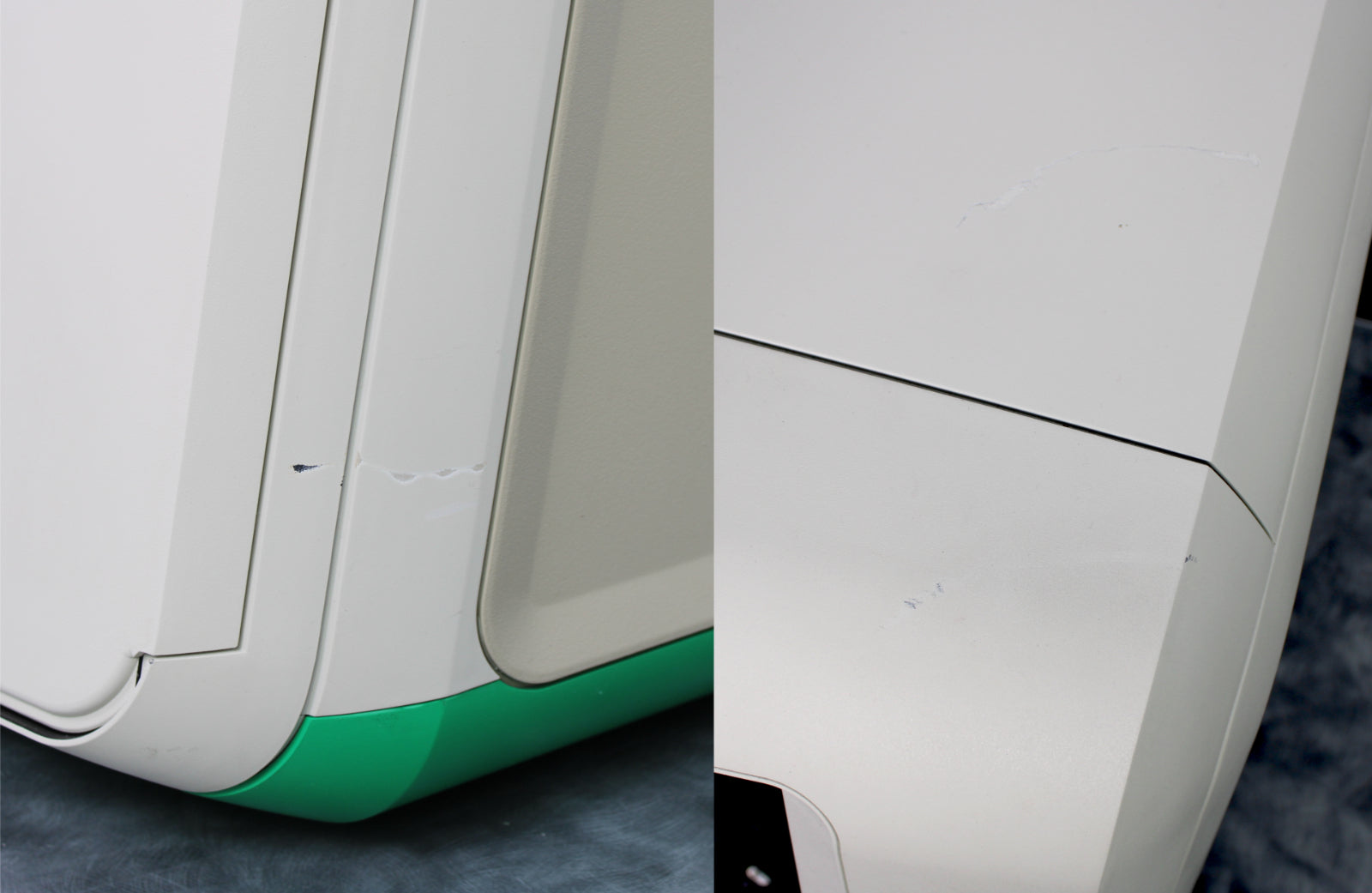

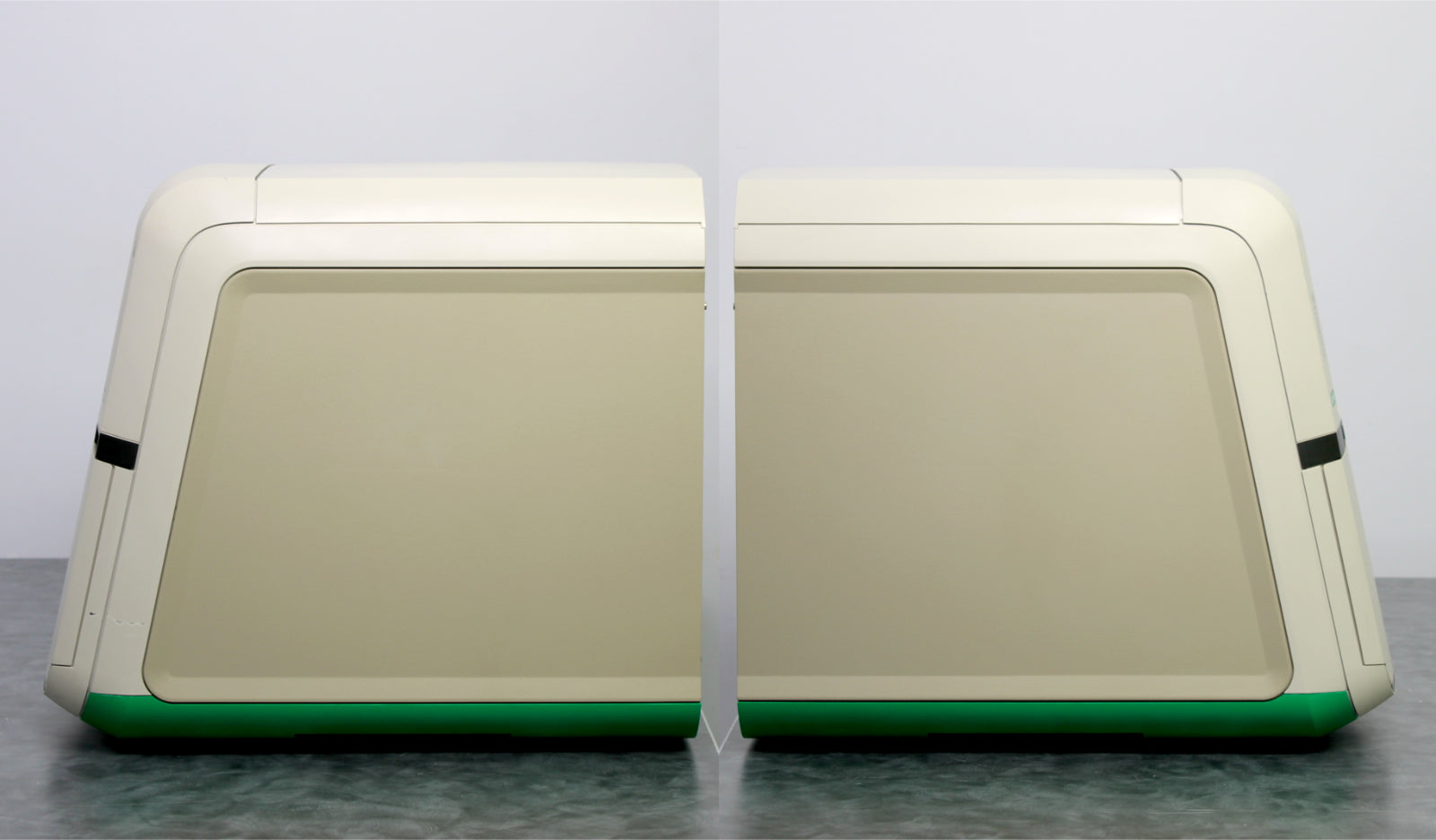

Notice: This imaging system has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Bio-Rad Laboratories
|
|
Model
|
ChemiDoc Touch Imaging System
|
|
Serial No.
|
732BR3757
|
|
Mfg. date
|
2019/12
|
|
Applications
|
Chemiluminescence
Fluorescence
Colorimetry/densitometry
Gel documentation
|
|
Touch-screen functionality
|
Multi-touch capability (4 points), 12” display
|
|
Maximum image area
|
6.61 x 8.26 in (16.8 x 21 cm)
|
|
Illumination modes
|
Epi-white (standard)
Trans-UV, 302 nm (standard)
Trans-white (optional)
Trans-blue (optional)
|
|
Detector
|
Cooled CCD
|
|
Camera cooling temperature
|
-25°C
|
|
Filter holder
|
2 positions (1 for standard filter, 1 without filter for chemiluminescence)
|
|
Emission filters
|
Standard filter to perform protein and DNA gel and blot imaging
|
|
Dynamic range
|
>4 orders of magnitude
|
|
Pixel density (gray levels)
|
65,535
|
|
Smart Tray Technology
|
The ChemiDoc Touch Imaging System automatically recognizes the application-specific trays and adjusts imaging parameters and software options accordingly
|
|
Autofocus (patent pending)
|
Precalibrated focus for any zoom setting or sample height
|
|
Image flat fielding
|
Dynamic; precalibrated and optimized for every application
|
|
Auto-exposure
|
2 user-defined modes (rapid or optimal auto-exposure) for chemiluminescence
2 user-defined modes (intense or faint bands) for non-chemiluminescence applications
|
|
Power rating
|
100-240VAC, 50-60Hz
|
|
Power consumption
|
120W
|
|
Dimensions (W x D x H)
|
20 x 24 x 20.8 in (51 x 61 x 53 cm)
|
|
Weight
|
78 lb (35 kg)
|
