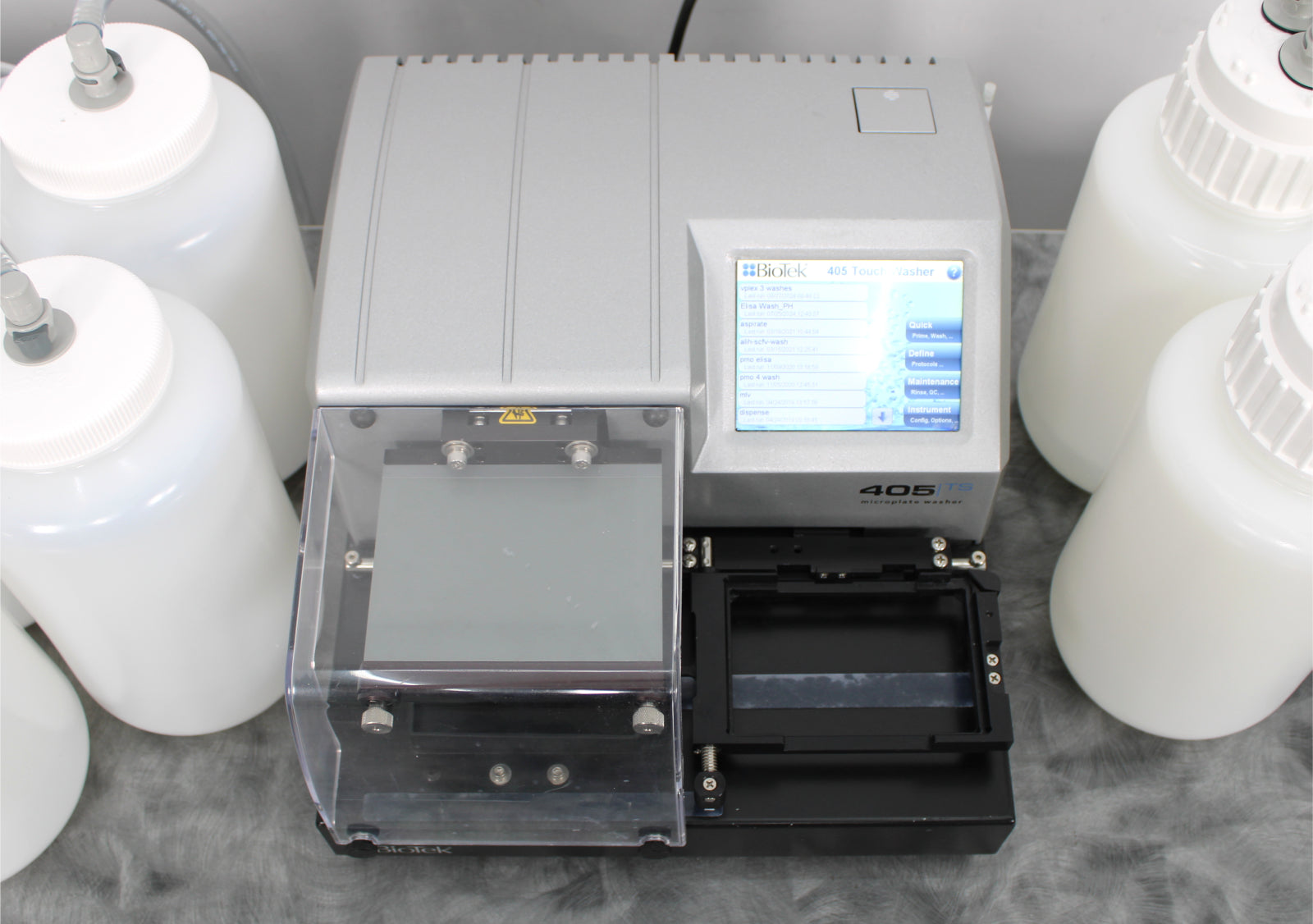

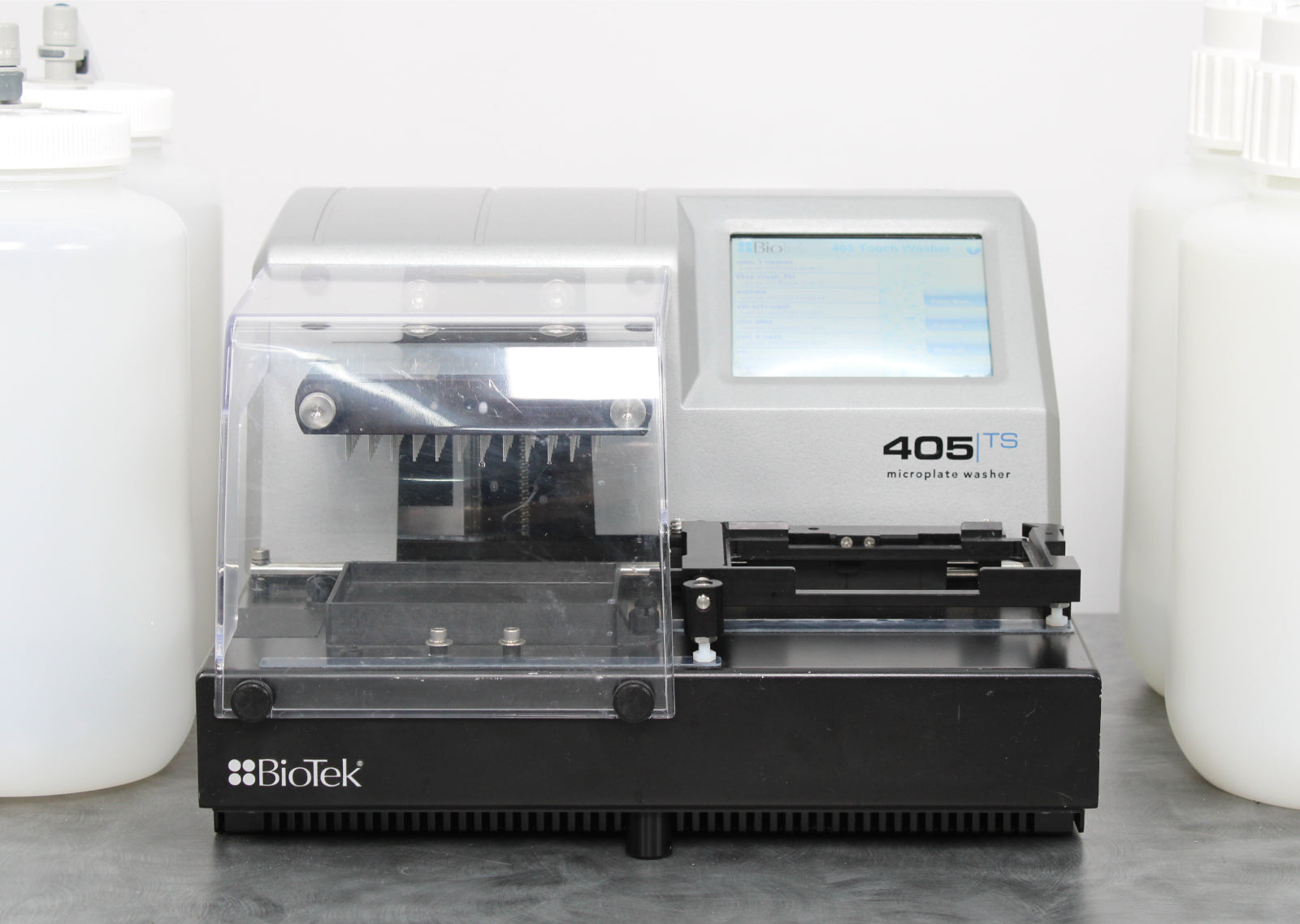

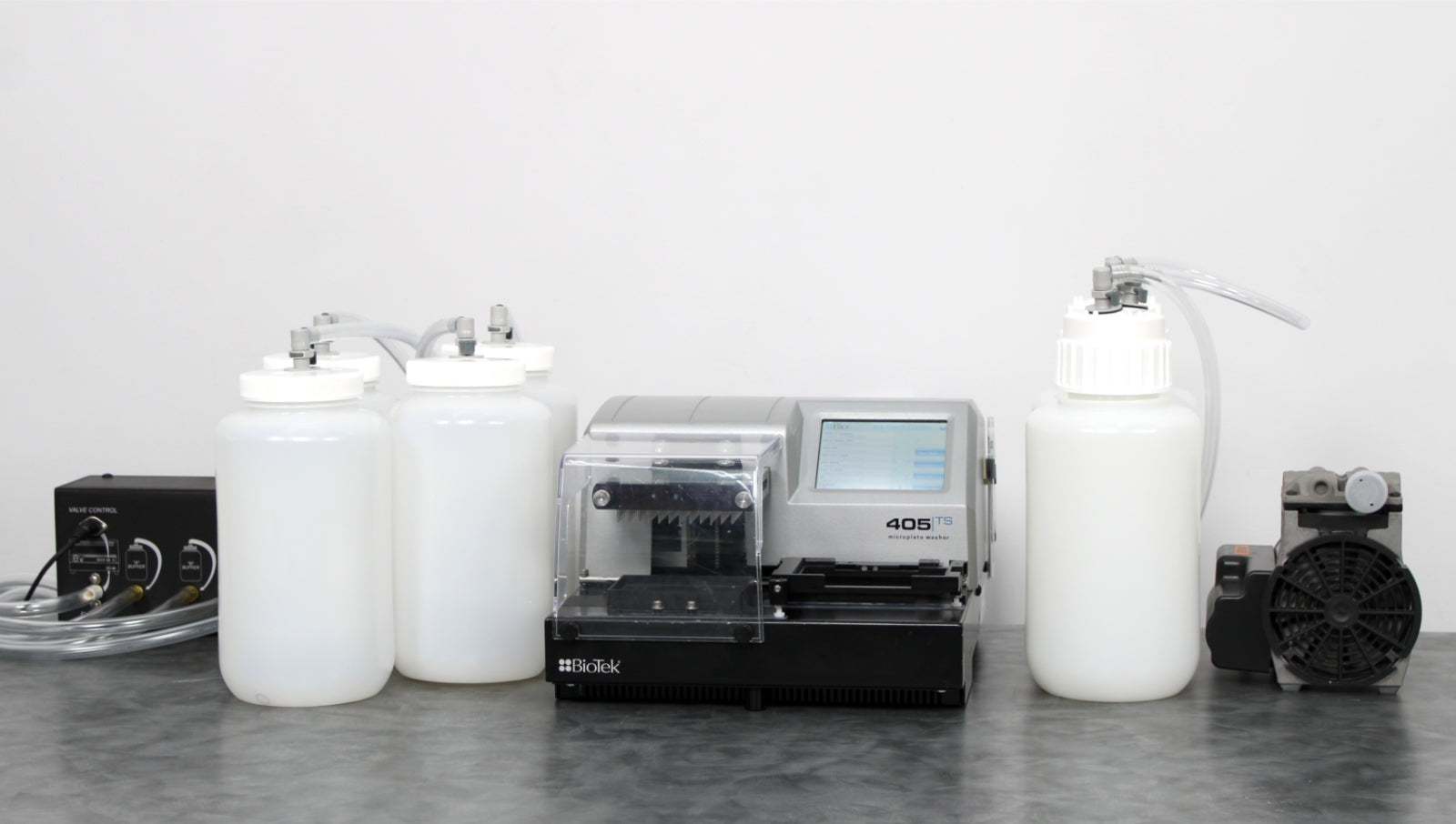

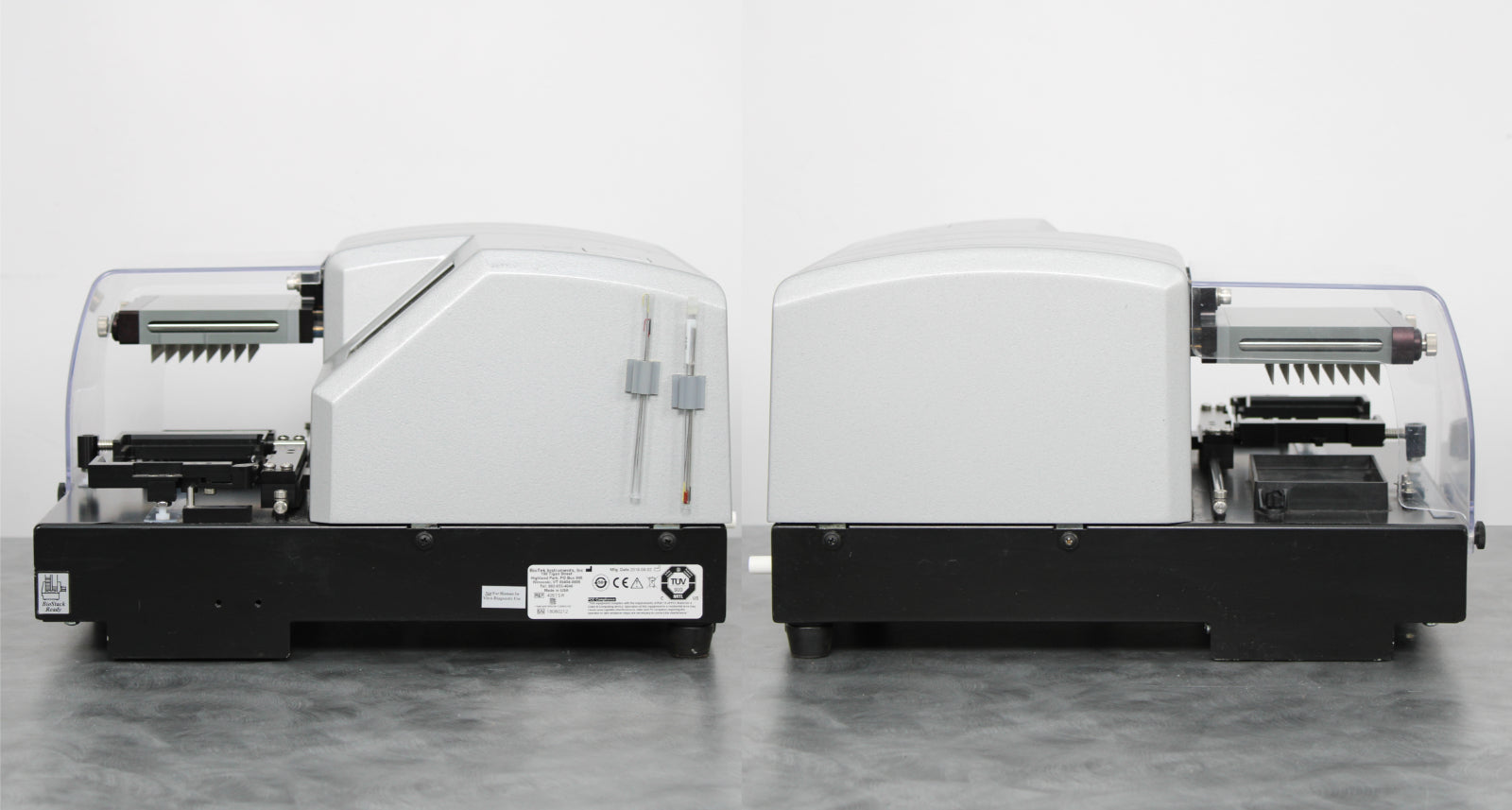

- BioTek 405 TS Touch Microplate Washer 96-Well (405TSR)

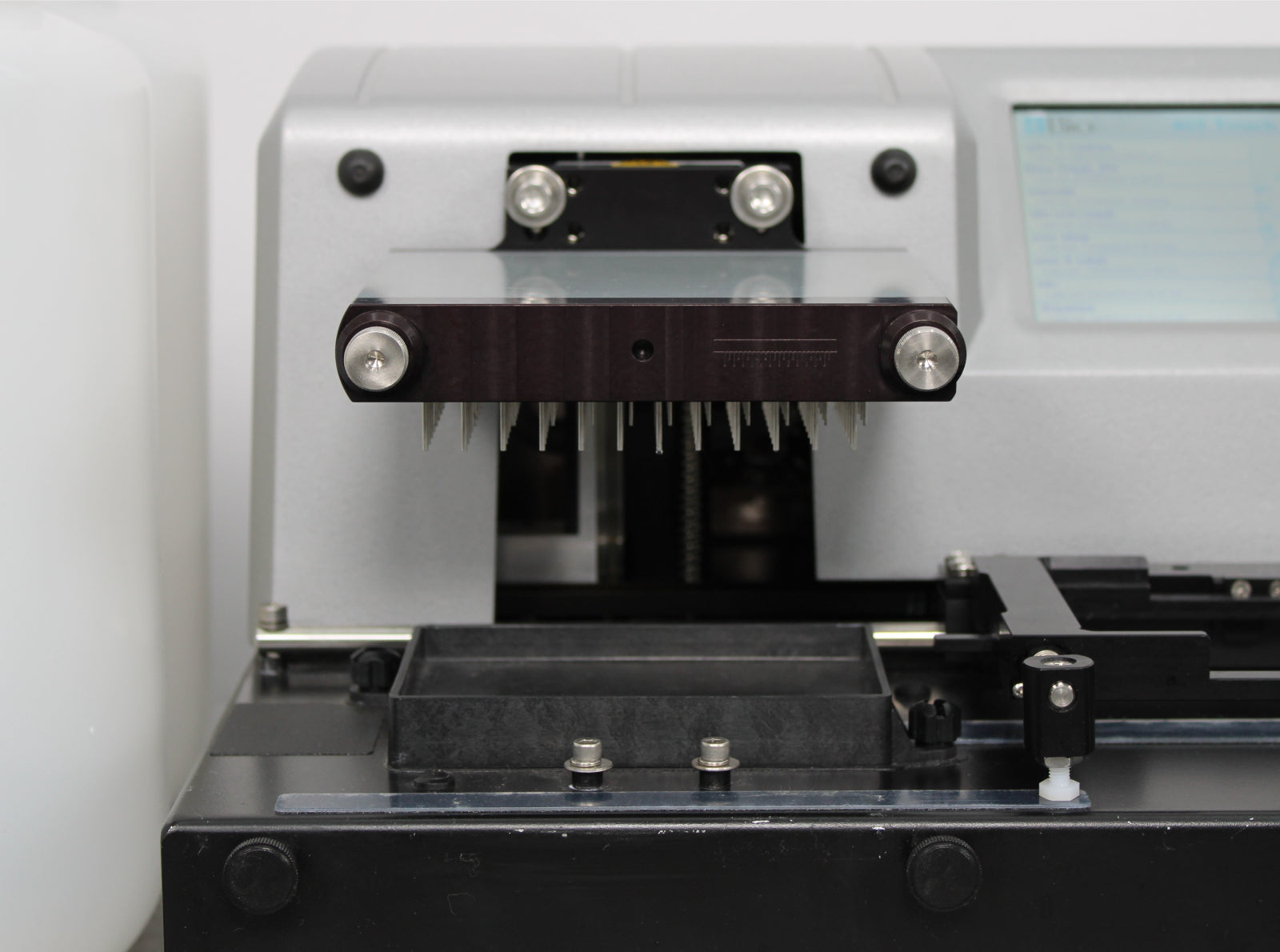

- 96-tube Single Manifold Installed

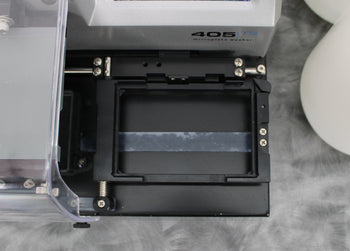

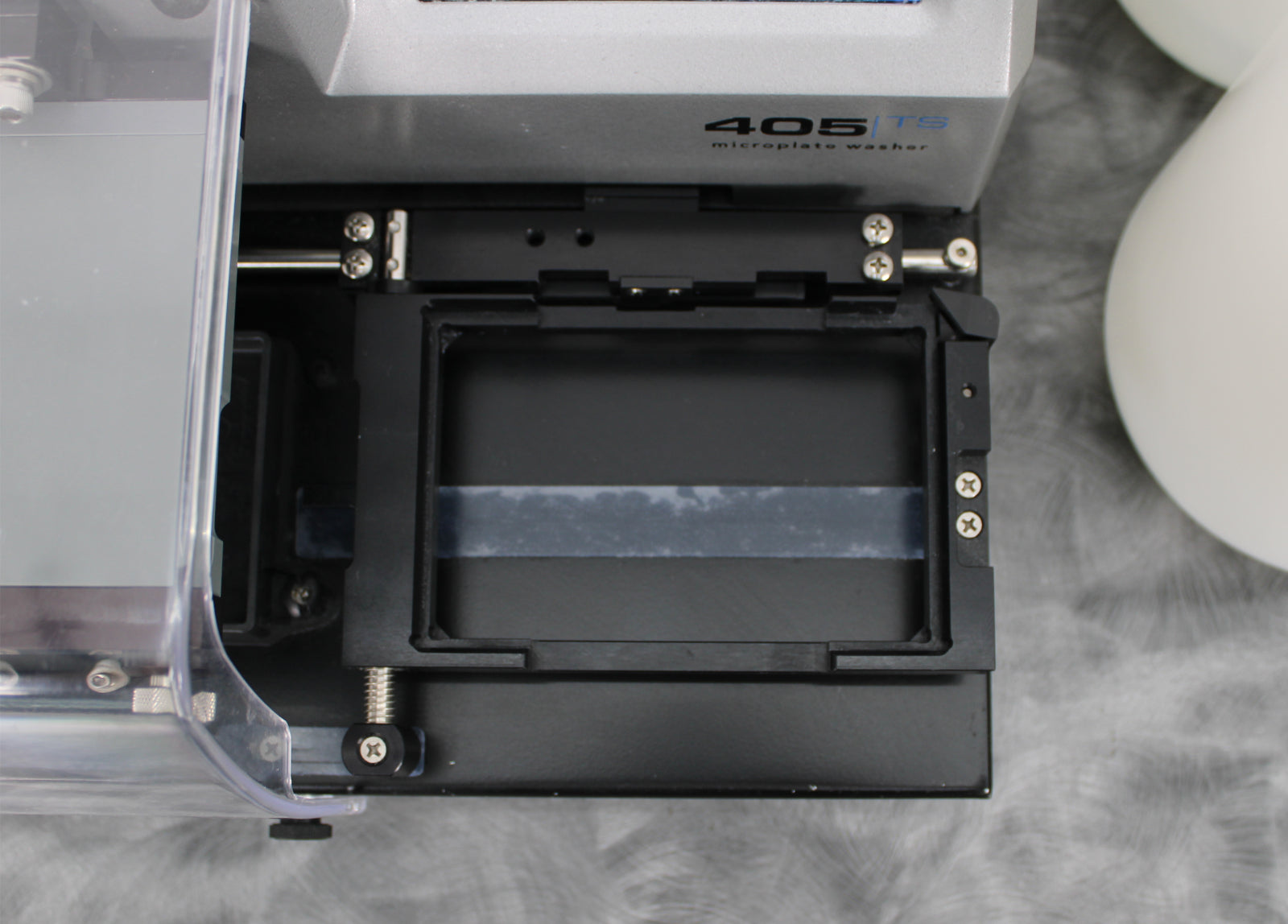

- Plate Carrier

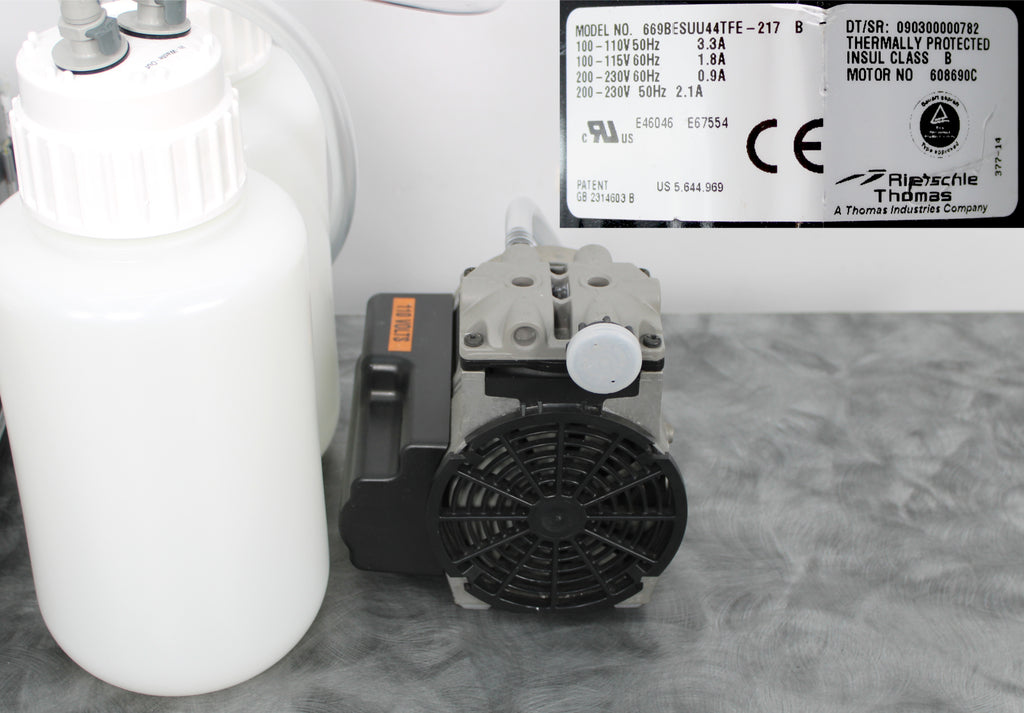

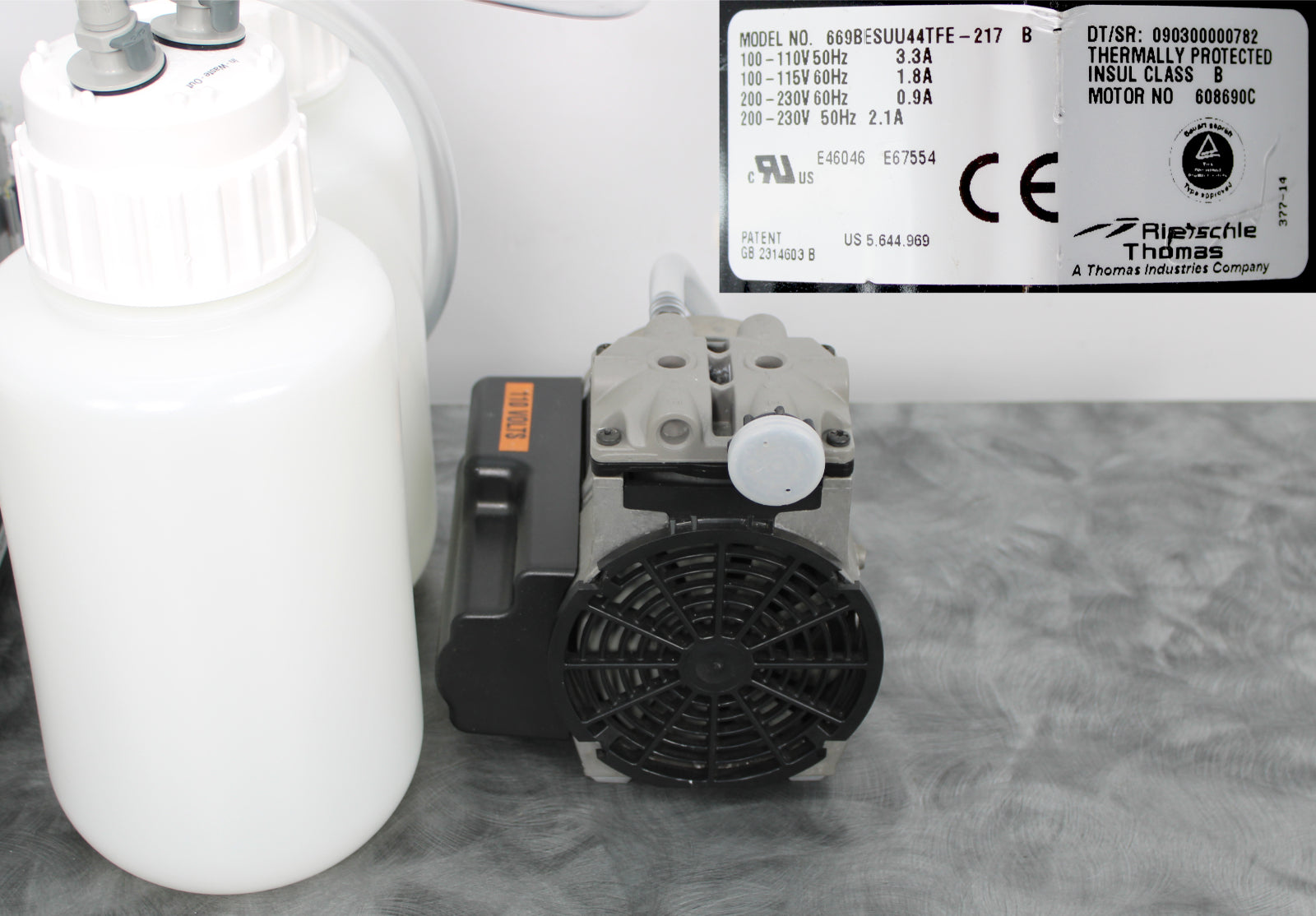

- Vacuum Pump

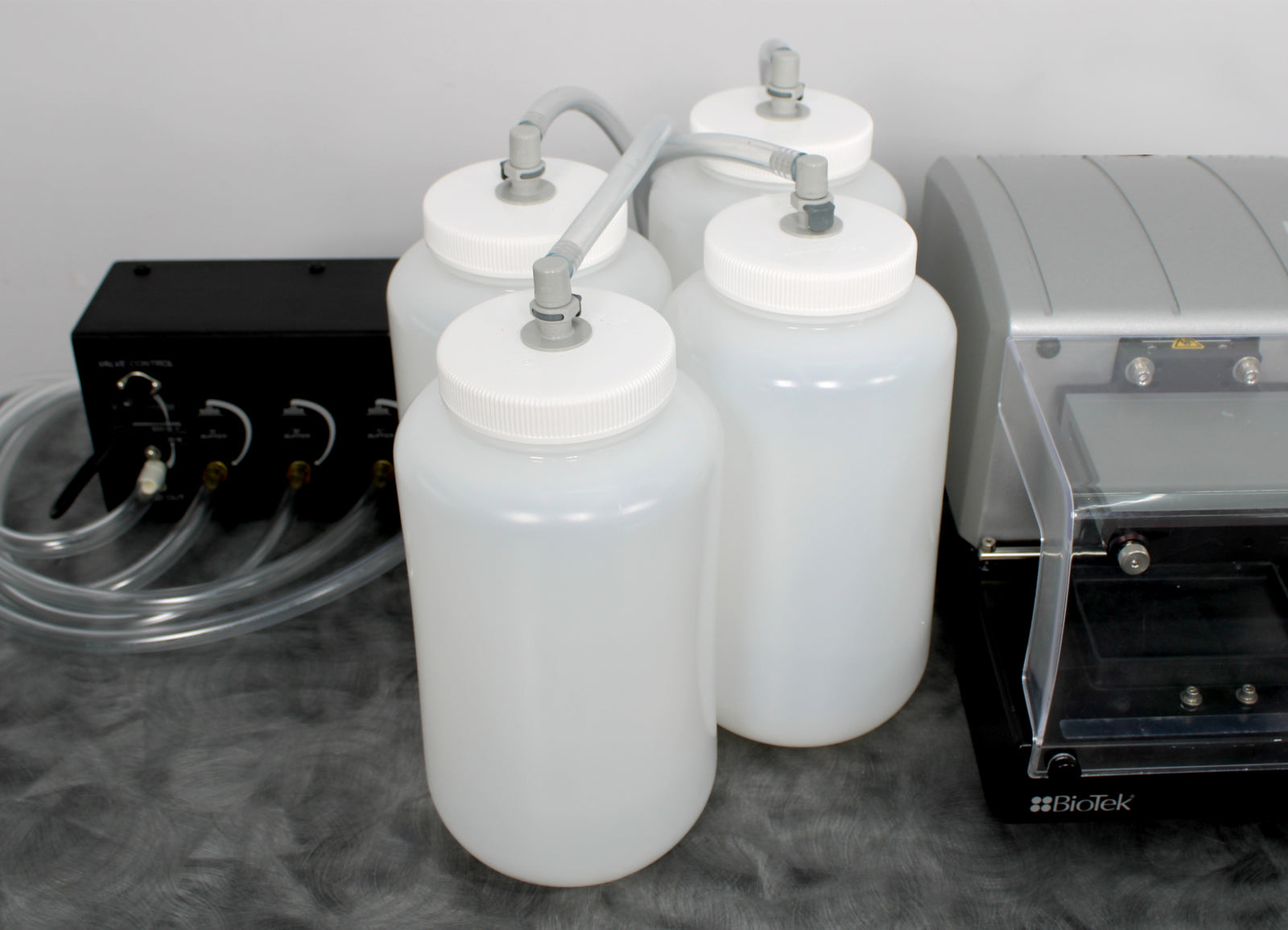

- BioTek Buffer Valve Module
- x4 Supply (Buffer) Bottles
- x2 Vacuum Bottles
- Tubing
- Communication Cable
- Pump Power Cable
- Main Power Cable
- 90-Day Warranty

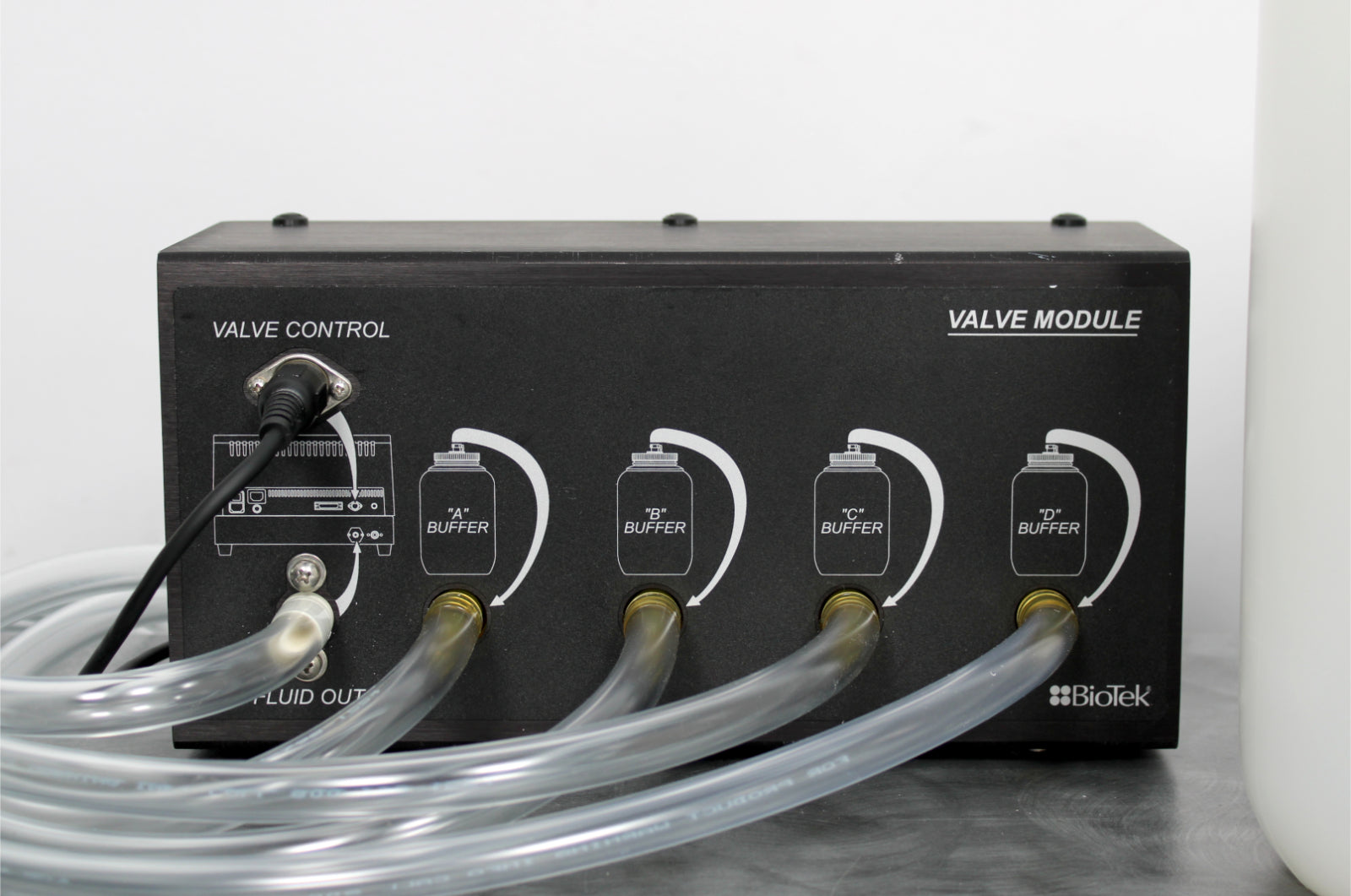

Notice: The buffer valve module allows multi-buffer switching where the main instrument can automatically switch between up to four different bottles of wash buffers or rinse solutions ("A", "B", "C", and "D") during a programmed assay protocol.
After its initial disinfection and inspection, our technicians tested the BioTek 405 TS touch microplate washer with the following results:
- Power and initialization: PASSED

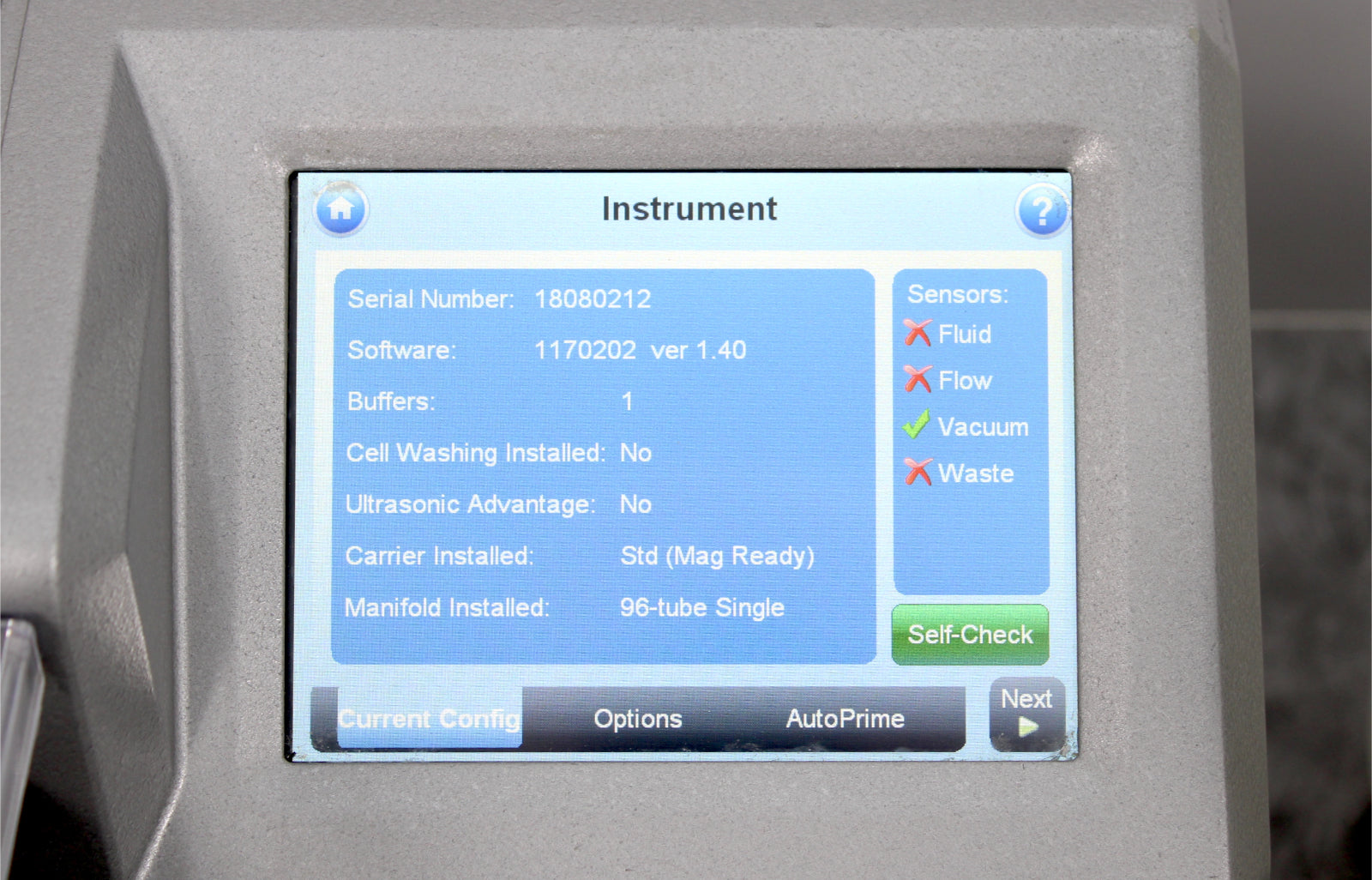

- System self check: PASSED
- Ran multiple wash cycles: PASSED
- Priming: PASSED
- Dispensing: PASSED
- Aspiration: PASSED
|

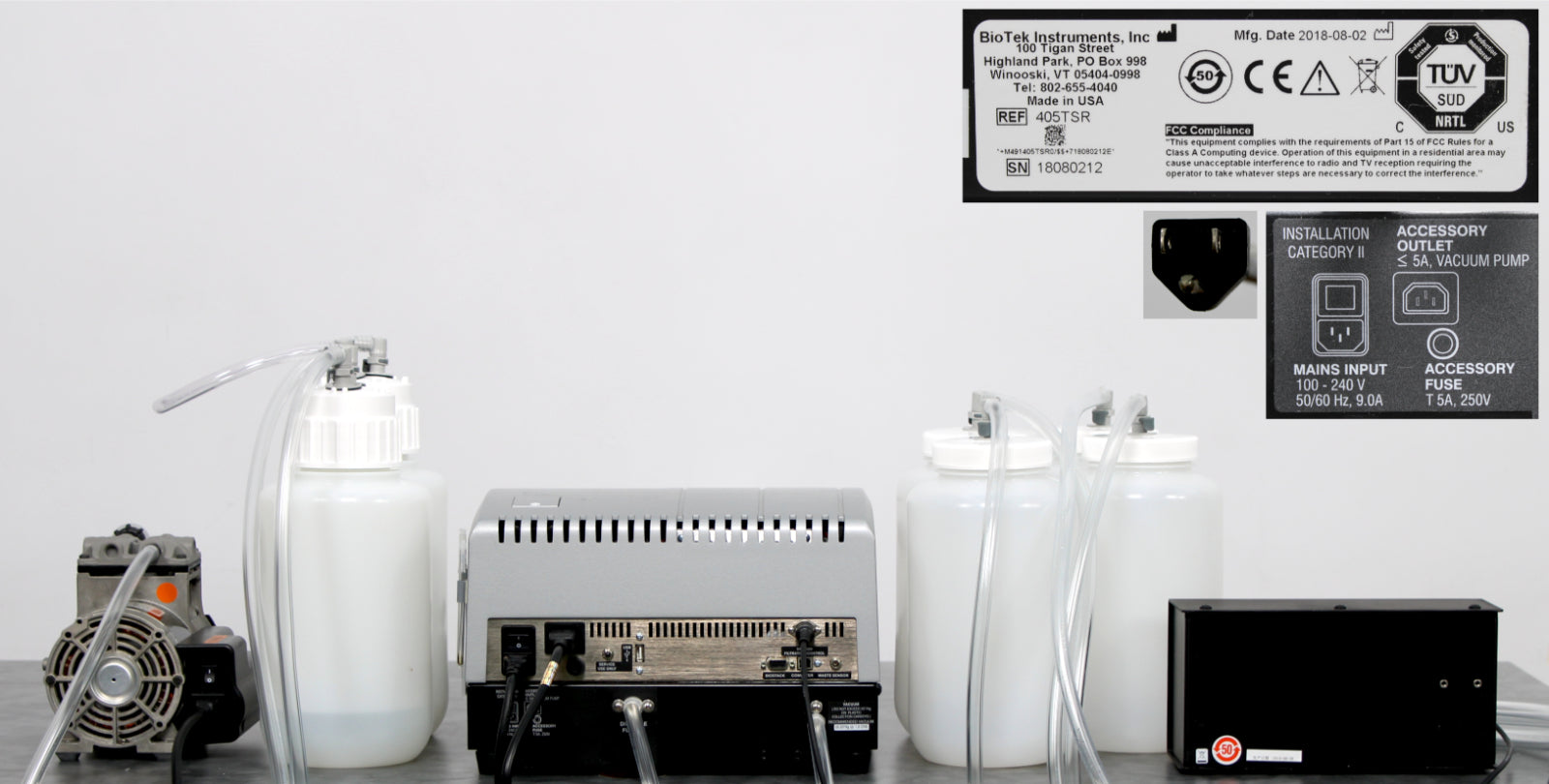

Manufacturer
|
BioTek Instruments, Inc
|
|
Product No.
|
405TSR
|
|
Serial No.
|
18080212
|
|
Mfg. date
|
2018-08-02
|
|
Microplate type
|
96-well
|
|

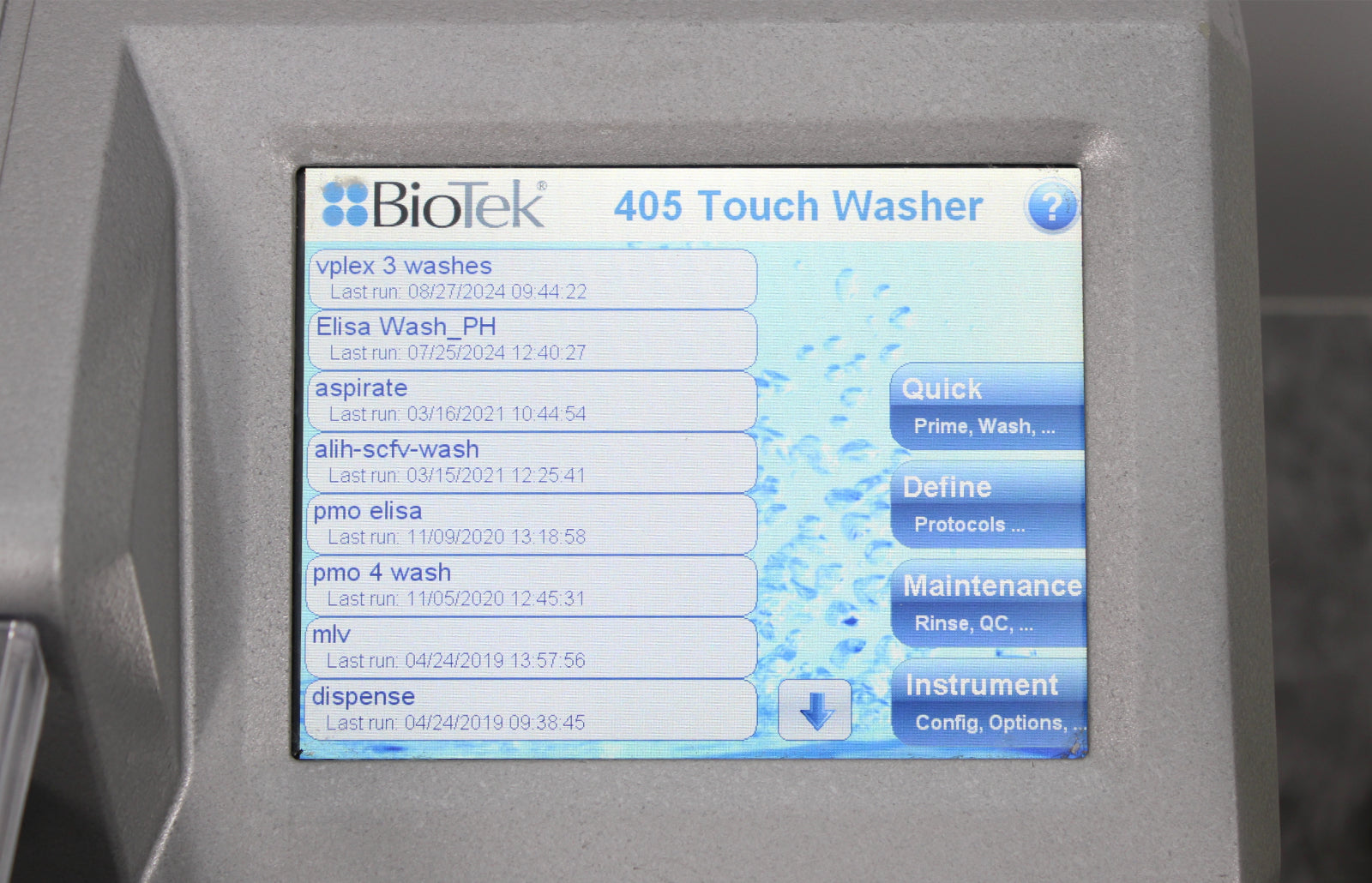

Onboard software
|
Create, edit, or run multiple protocols
|
|
Ultrasonic advantage
|
Yes
|
|
Separation capable
|
Biomagnetic separation (requires optional accessory), vacuum filtration (requires optional hardware configuration)
|
|
Shaking
|
Programmable up to 60 minutes
Slow, medium, fast, or variable
|
|
Soaking
|
Programmable up to 60 minutes
|
|
Volume range
|
96-tube manifold: 50-3,000 µL/tube in 1 µL increments
|
|
Wash cycles
|
1-250
|
|
Supply bottle
|
4 or 10 L (optional)
|
|
Dispense precision
|
<3% CV 300 µL/well (96-well washing)
|
|
Residual volume
|
≤2 µL/well (96-well plates)
|
|
Wash speed
|
96-wells, 300 µL/well, 3 cycles; ≤ 30 s
|
|
Flow rates
|
High flow to low flow
Optimized rates for cell assays
|
|
Sterilization
|
Chemical
|
|
Vacuum filtration capable (requires hardware configuration that must be acquired separately)
|
Selectable: approximate final at 30 s:
Lowest: -38 mmHg
Low: -113 mmHg
Medium: -200 mmHg
High: -390 mmHg
Highest: -506 mmHg
Vacuum filtration time range: 5-999 s
|
|

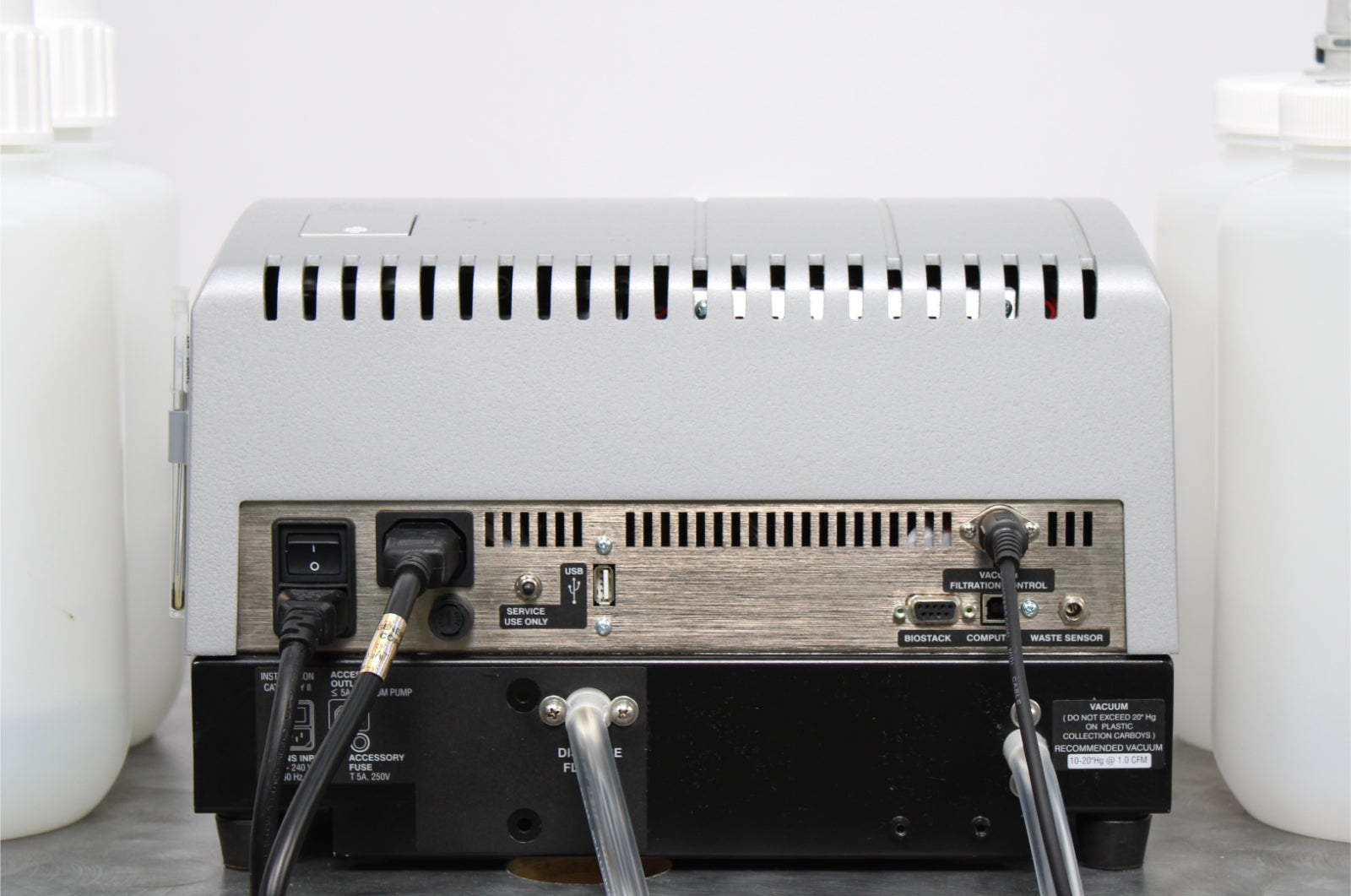

Power rating
|
100-240V~, 50-60Hz, 9.0A
|
|
Accessory outlet
|
≤5.0A, used for vacuum pump
|
|
Dimensions (W x D x H)
|
14 x 17 x 10 in (36 x 43 x 25 cm)
|
|
Weight
|
With internal buffer switching: 36 lb (16.5 kg)
Without internal buffer switching: 30 lb (13.5 kg)
|
