Manufacturer
|
BioTek Instruments, Inc
|
|
Model
|

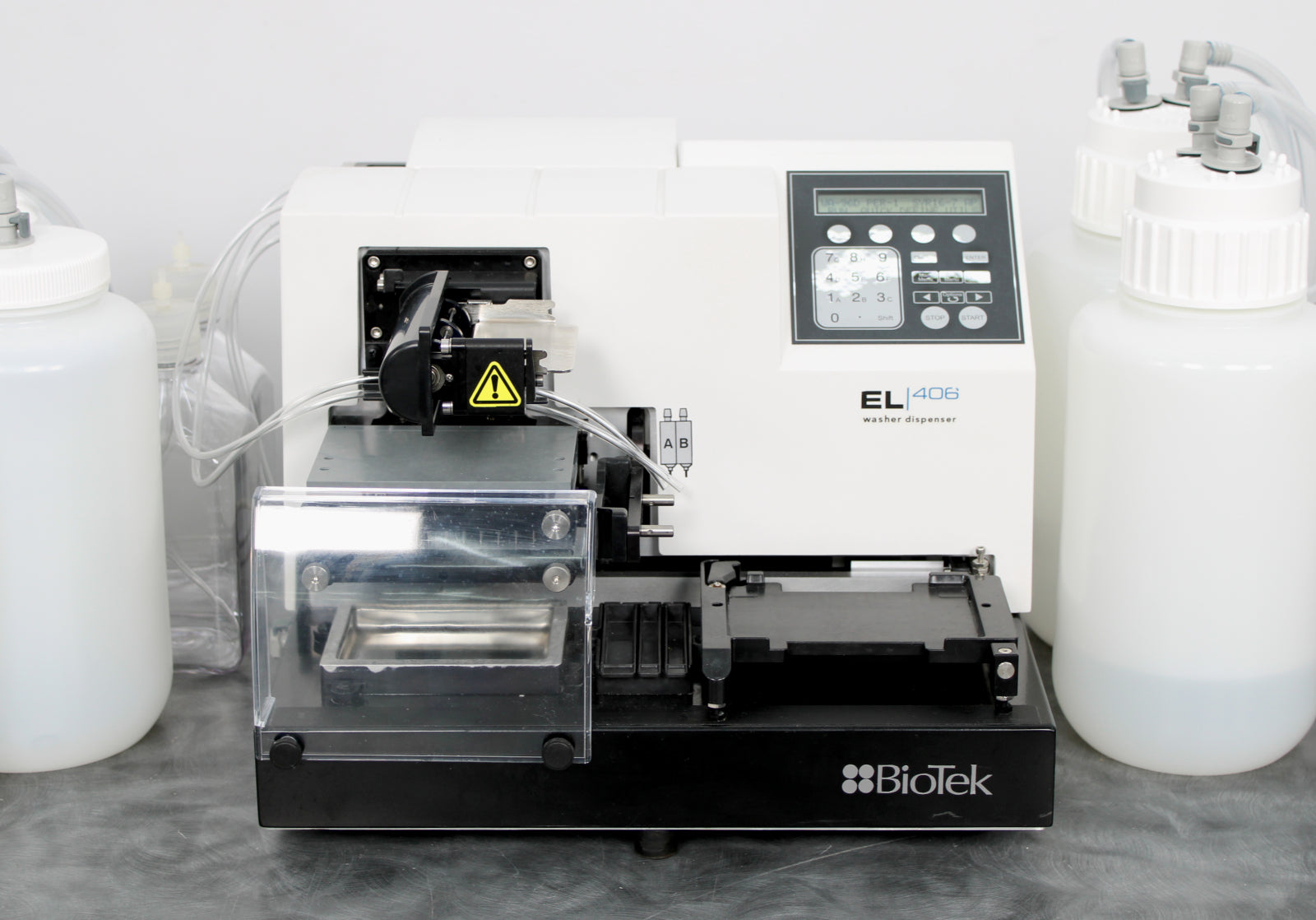

EL406
|
|
Ref. No.
|
406PSUB1
|
|
Serial No.
|
20072819
|
|
General
|
|
|
Microplate types
|
96- and 384--well
Low profile and standard height
Solid and filter bottom (option)
|
|

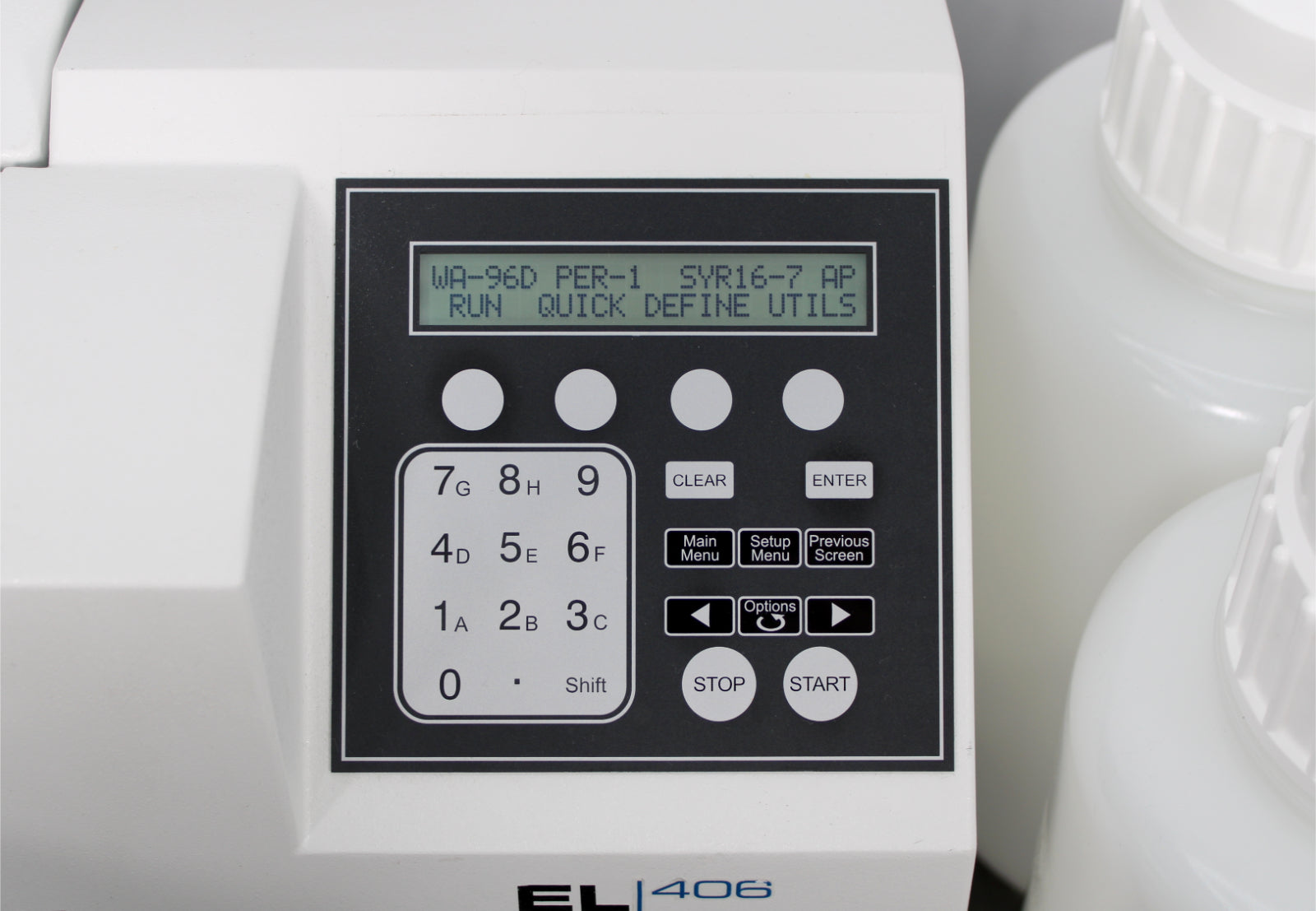

Onboard software
|
Create, edit, or run multiple protocols
|
|
Separation capable
|
Biomagnetic separation (requires optional accessories), vacuum filtration (requires optional accessories)
|
|
Shaking
|
Programmable up to 60 minutes
Slow, medium, fast, or variable
|
|
Soaking
|
Programmable up to 60 minutes
|
|
Ultrasonic advantage
|
Yes
|
|
Washing
|
|
|

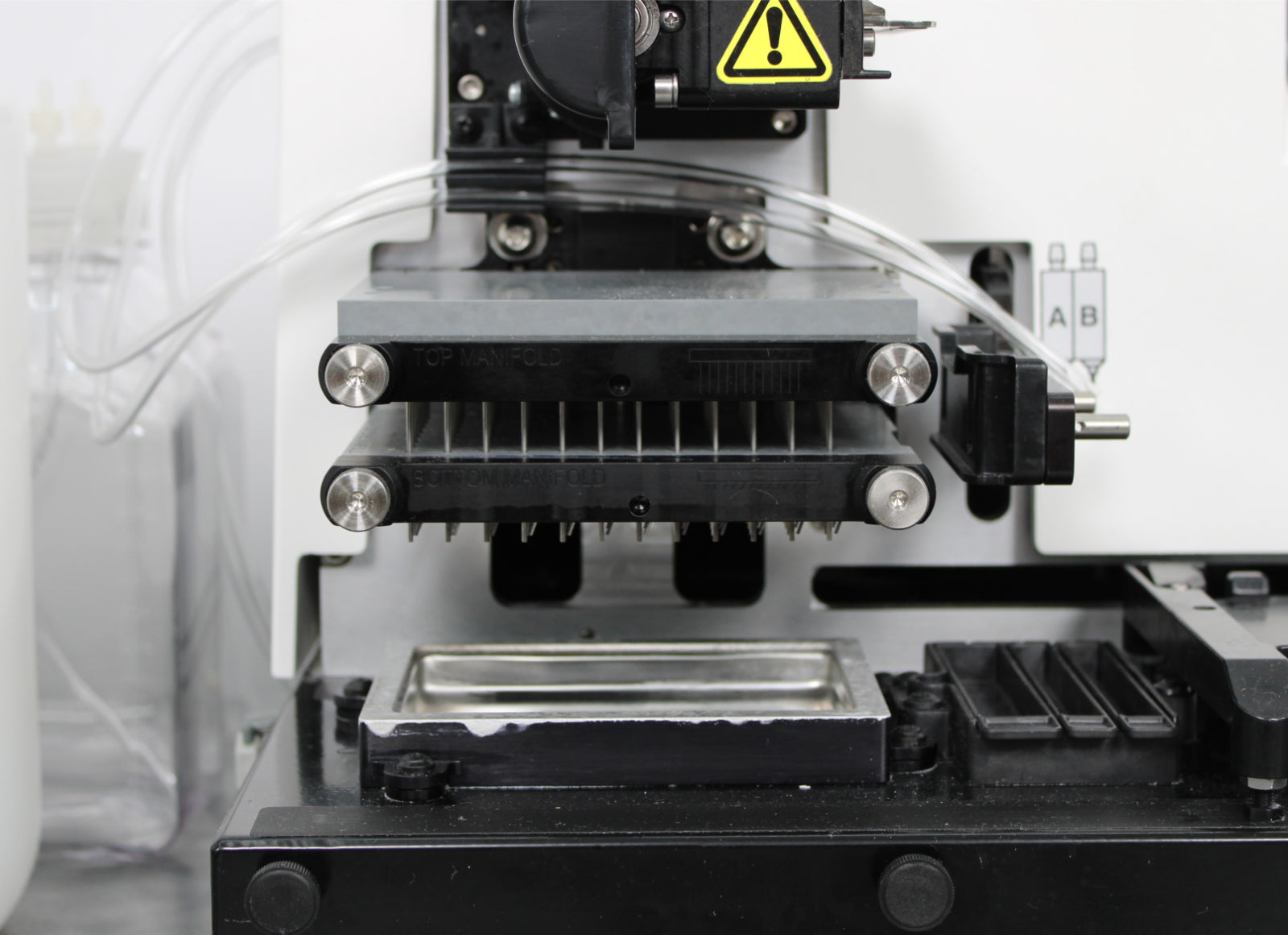

Manifold types
|
96-well washing: 96-tube manifold−straight dispense tubes
96- and 384-well washing: 96-tube Dual-Action manifold−20° angled dispense tubes
384-well washing (fast): 192-tube Dual-Action manifold−7° angled dispense tubes
|
|
Volume range
|
3-3,000 µL/well, in 1 µL increments
|
|
Wash cycles
|
1-250
|
|
Buffer/reagent selection
|

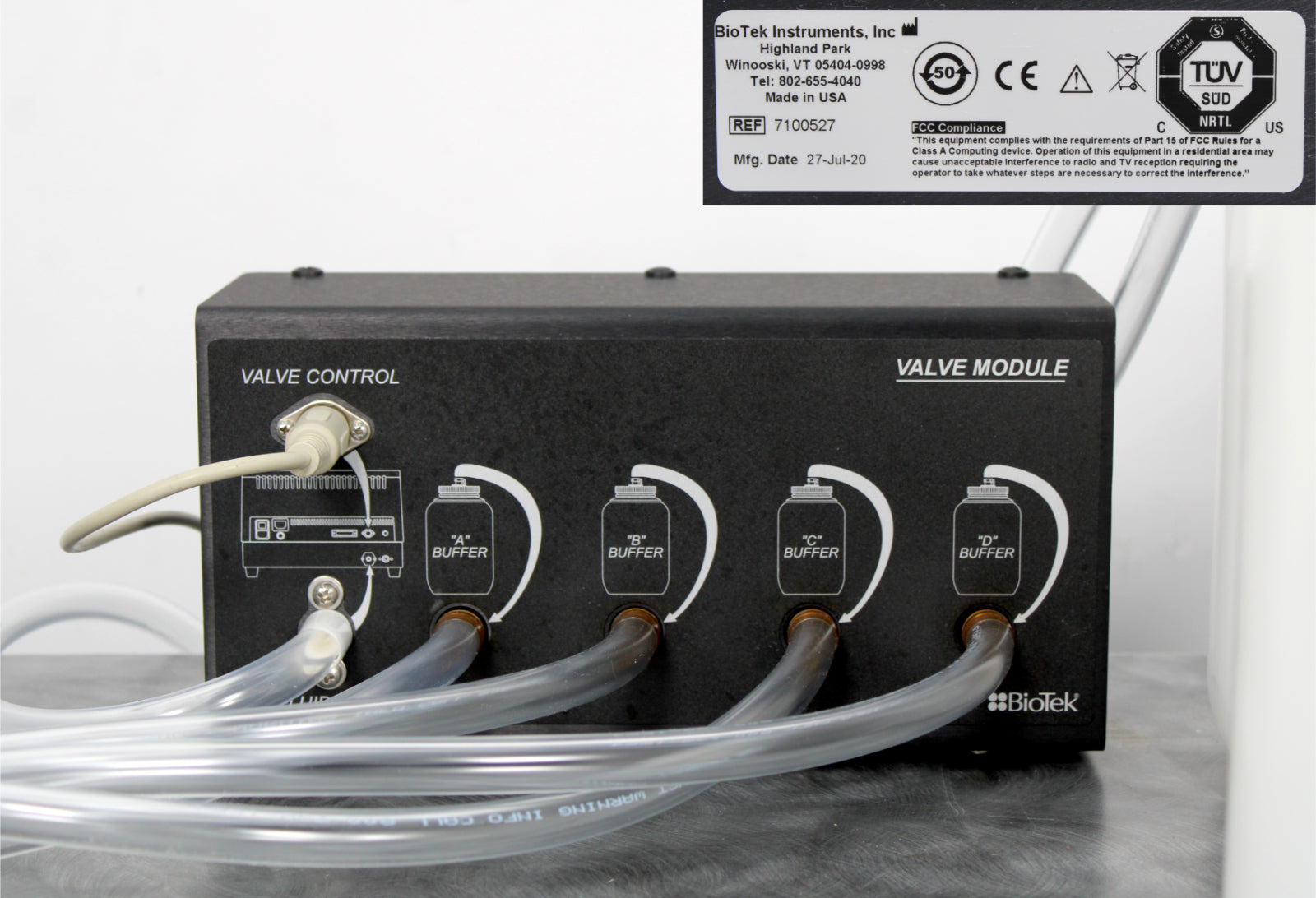

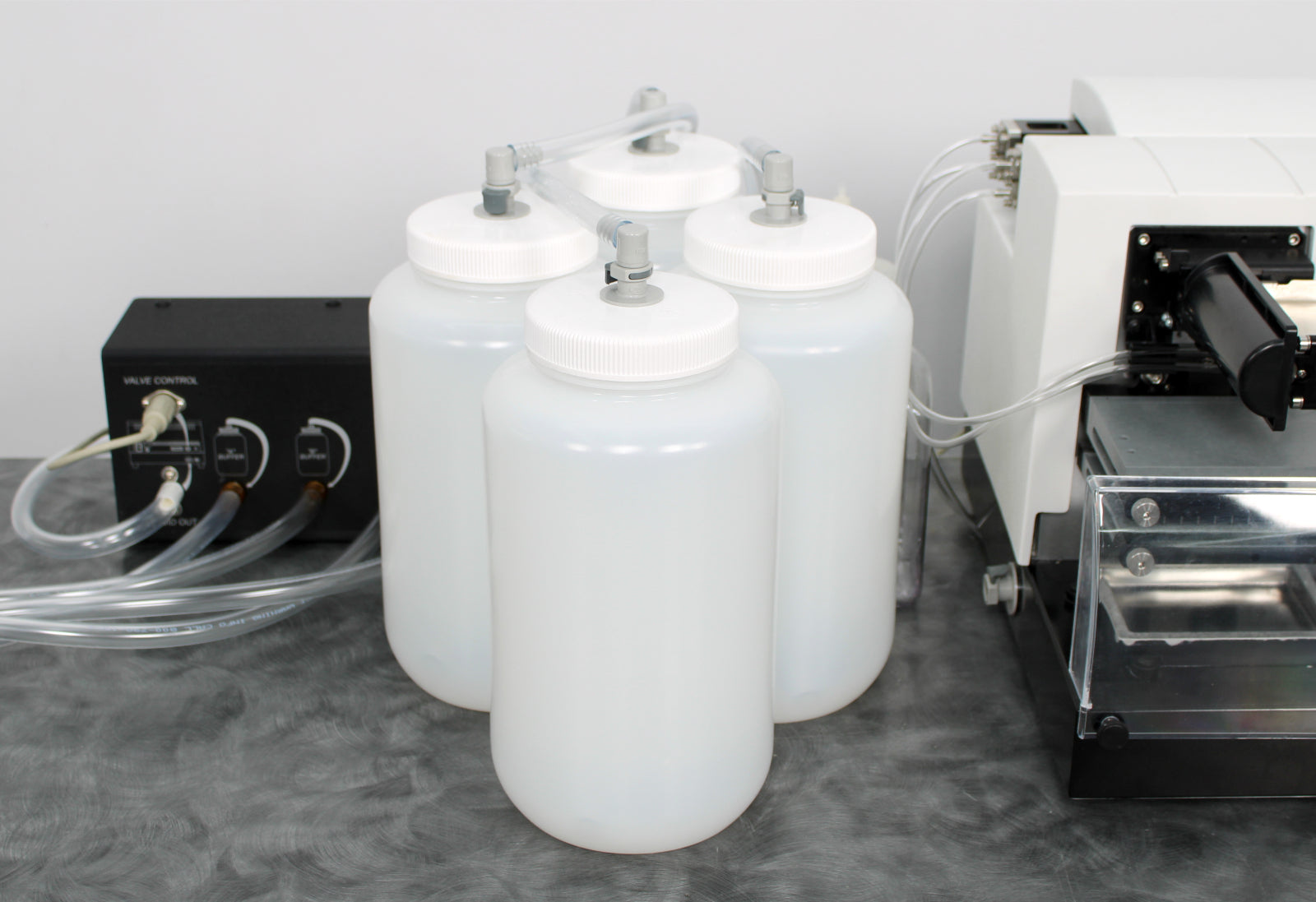

Auto switching module for up to four buffers (option)
|
|
Supply bottle
|
4 L or 10 L (optional)
|
|
Dispense accuracy
|
±3%
|
|
Dispense precision
|
≤3% CV (model dependent)
|
|
Residual volume
|
≤2 µL/well
|
|
Wash speed
|
96 wells, 300 µL/well, 96-tube manifold: 13 s
384 wells, 100 µL/well, 192-tube manifold: 17 s
|
|
Flow rates
|
High flow to low flow
Optimized rates for cell assays
|
|
Sterilization
|
Chemical
|
|
Vacuum range for filtration
|
Selectable: 0 to -380 mmHg (final at 30 s)
Filtration time: 5−999 s
|
|

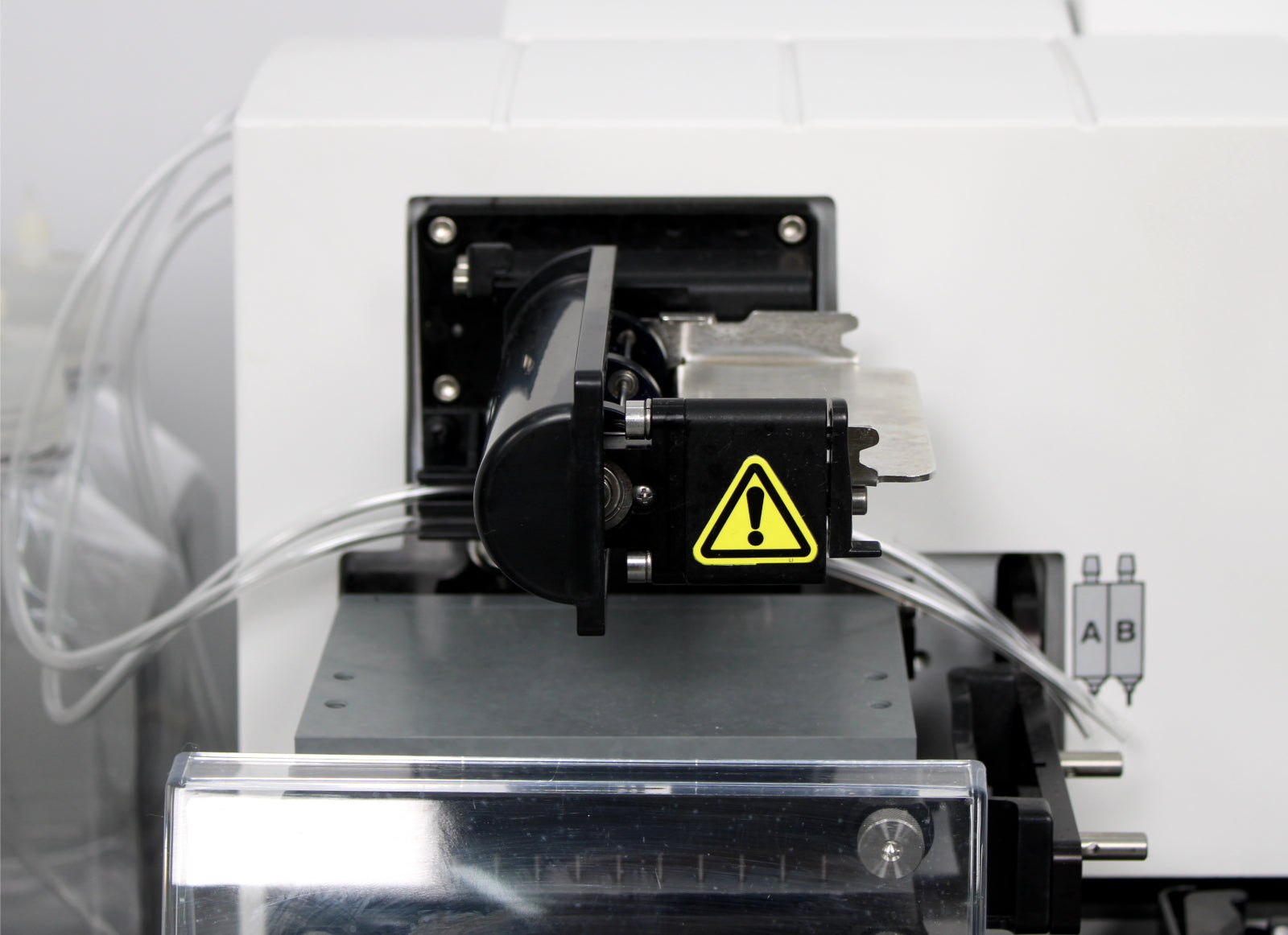

Dispensing - Peristaltic Pump (Multichannel)
|
|
|
Manifold types
|
8-tip (1 x 8) cassette with plastic, 316 SS tubes or sapphire-jeweled 316 SS tubes
|
|
Fluid delivery
|
1 peristaltic pump
|
|
Dispense speed
|
96 wells, 10 µL/well: 8 s
384 wells, 5 µL/well: 12 s
|
|
Volume range
|
500 nL to 3,000 µL/well, selectable in 1 µL increments
|
|
Flow rates
|
User programmable rates from high to low
Optimized rates for cell assays
|
|
Dispense Performance
|
|
|
Recommended volume range
|
1 µL cassette: 1−50 µL
5 µL cassette: 5−2,500 µL
10 µL cassette: 10−3,000 µL
|
|
Dispense accuracy
|
1 µL cassette: ± 5% at 1 µL
5 µL cassette: ± 2.0% at 5 µL
10 µL cassette: ± 2.0% at 10 µL
|
|
Dispense precision
|
1 µL cassette: ≤ 5% CV at 1 µL; ≤ 10% CV at 500 nL
5 µL cassette: ≤ 2.5% CV at 5 µL
10 µL cassette: ≤ 2.0% CV at 10 µL
|
|
Minimum prime volume
|
1 µL cassette: 1.20 mL
5 µL cassette: 4.23 mL
10 µL cassette: 7.36 mL
|
|
Recommended cassette replacement interval
|
1 µL cassette: 1,000 384-well microplates at 5 µL/well
5 µL cassette: 1,000 96-well microplates at 50 µL/well
10 µL cassette: 1,000 96-well microplates at 100 µL/well
|
|
Sterilization
|
Autoclave, chemical
|
|
Dispensing - Syringe Pump
|
|
|
Manifold types
|
96-well dispensing:
One 16-tube (2 x 8) manifold−316 SS tubes
96-/384-well dispensing:
Two 16-tube (1 x 16) manifolds−316 SS tubes
1536-well dispensing:
Two 32-tube (1 x 32) manifolds−sapphire-jeweled 316 SS or 316 stainless steel tubes
|
|
Fluid delivery
|
Two positive displacement syringe drives
|
|
Dispense speed
|
20 µL/well, 96 wells, 1 x 16 tubes: 5.25 s
20 µL/well, 384 wells, 1 x 16 tubes: 14 s
3 µL/well 1536 wells, 2 x 32 tubes: 7 s
|
|
Volume range
|
3−3,000 µL/well, selectable in 1 µL increments
Minimum prime volume: 12 mL
|
|
Flow rates
|
User-programmable rates from high to low
|
|
Dispense accuracy
|
± 1 µL at 5 µL
± 1 µL at 20 µL
± 1% at 100 µL
|
|
Dispense precision
|
≤ 5% CV at 5 µL
≤ 2.5% CV at 20 µL
≤ 1% CV at 100 µL
|
|
Supply bottle
|
1 L or 2 L
|
|
Sterilization
|
Chemical, autoclavable option
|
|
Physical Characteristics
|
|
|

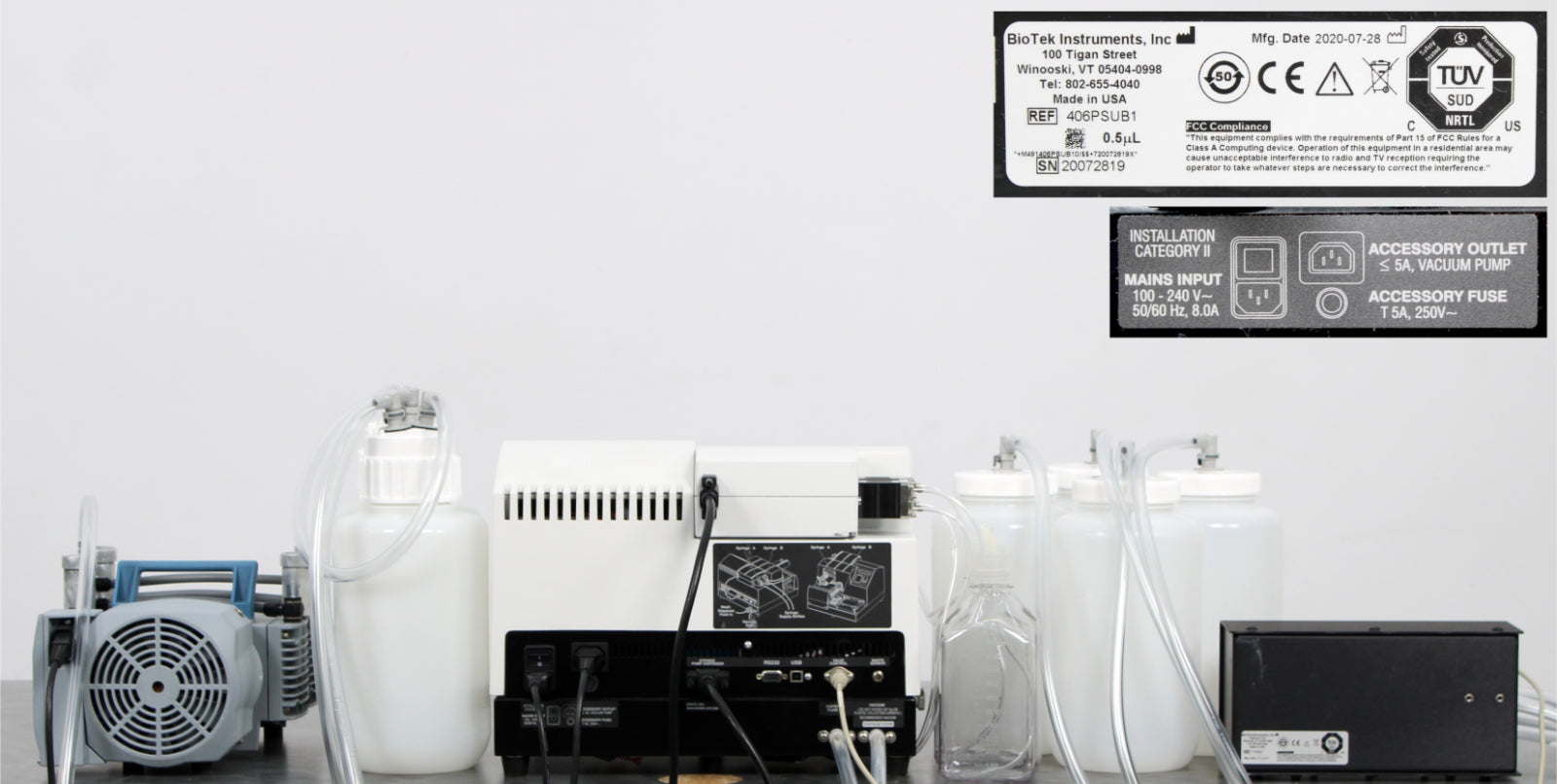

Power rating
|
100 to 240V~, 50/60Hz, 8.0A
|
|
Accessory outlet
|

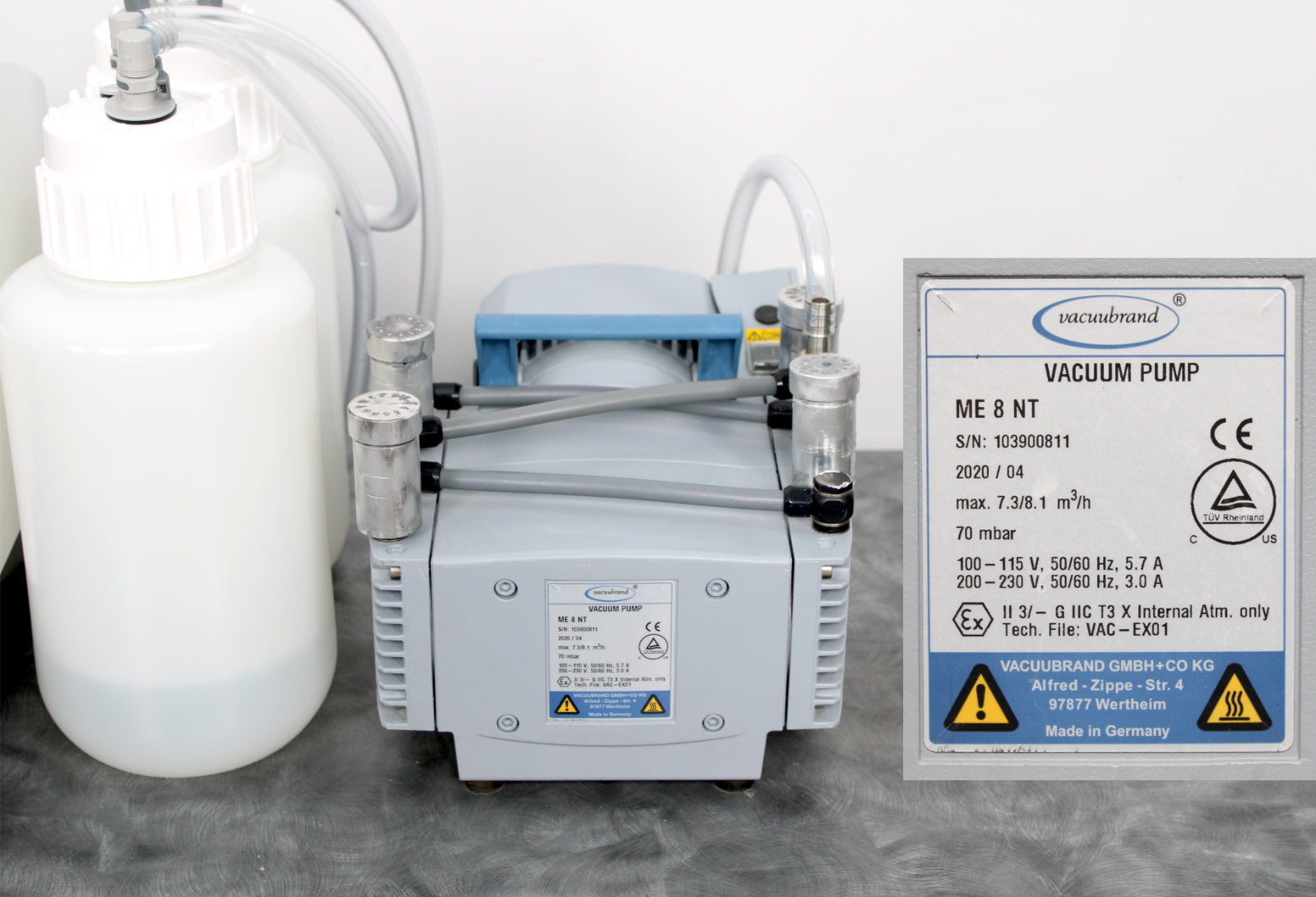

≤5A, used for vacuum pump
|
|
Dimensions (W x D x H)
|
16 x 18 x 12.5 in (42 x 46 x 32 cm)
|
|
Weight
|
32 lb (14.5 kg)
|
