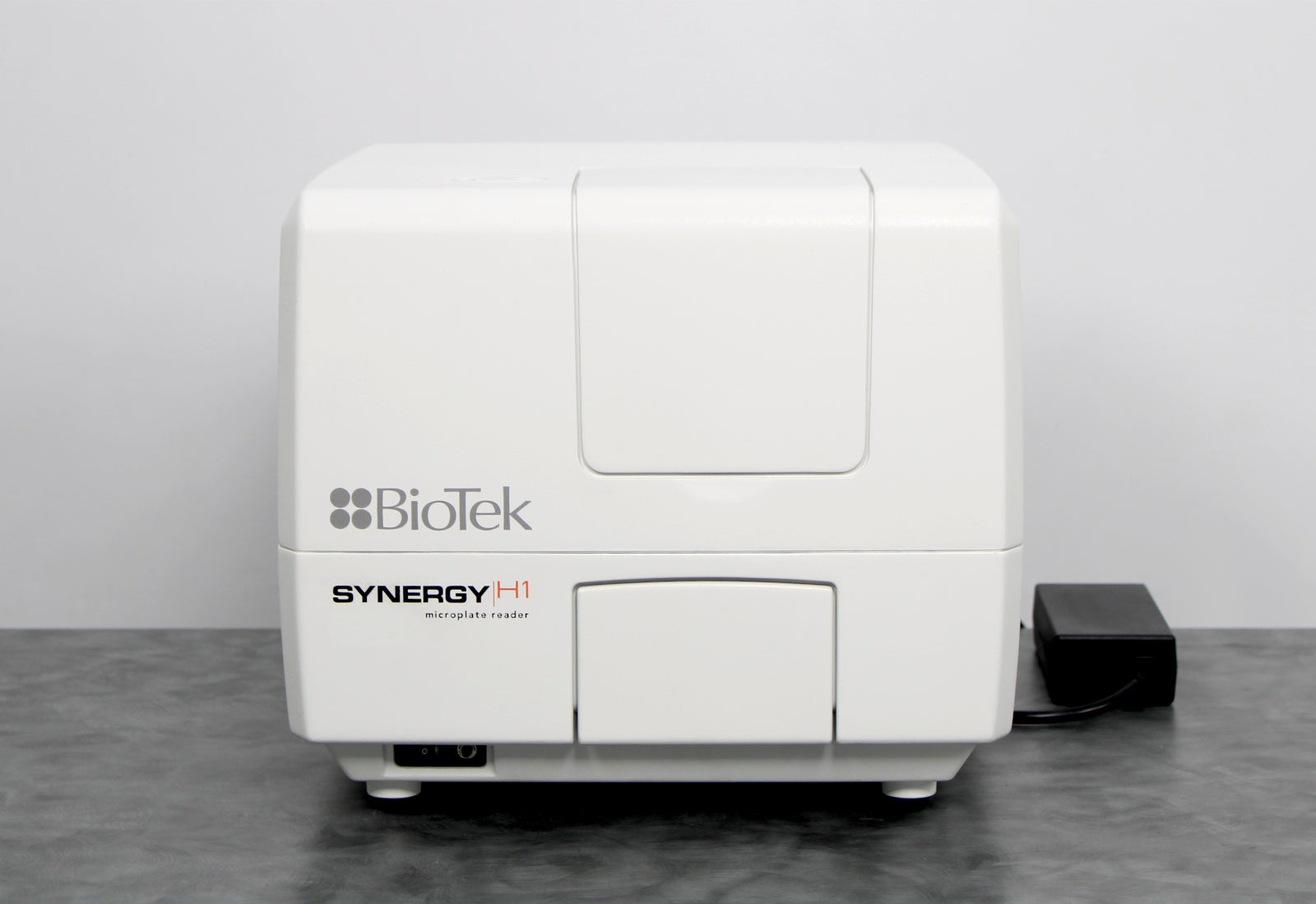

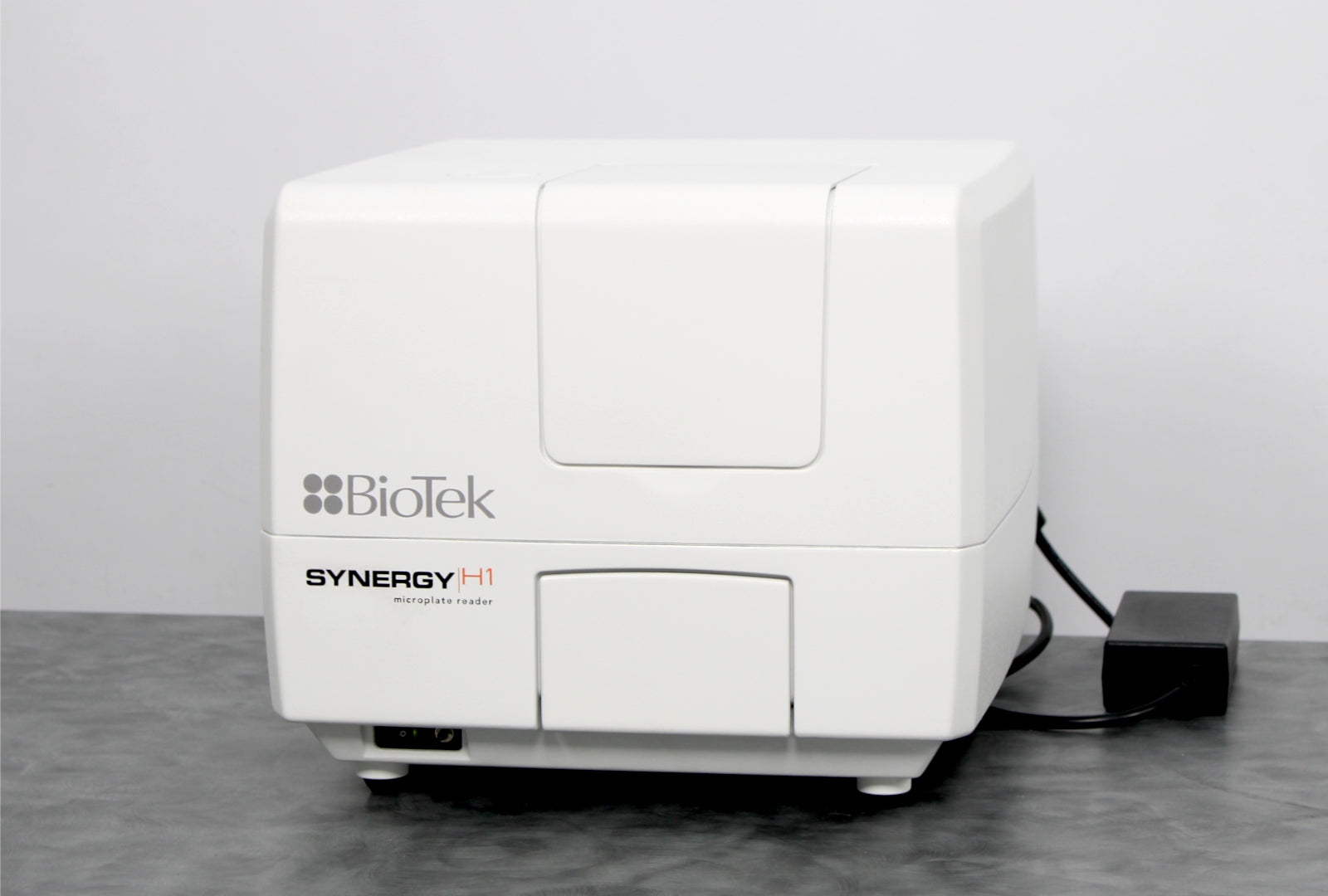

- BioTek Synergy H1 Hybrid Filter-Based Multimode Microplate Reader (H1F)
- Filters Cube

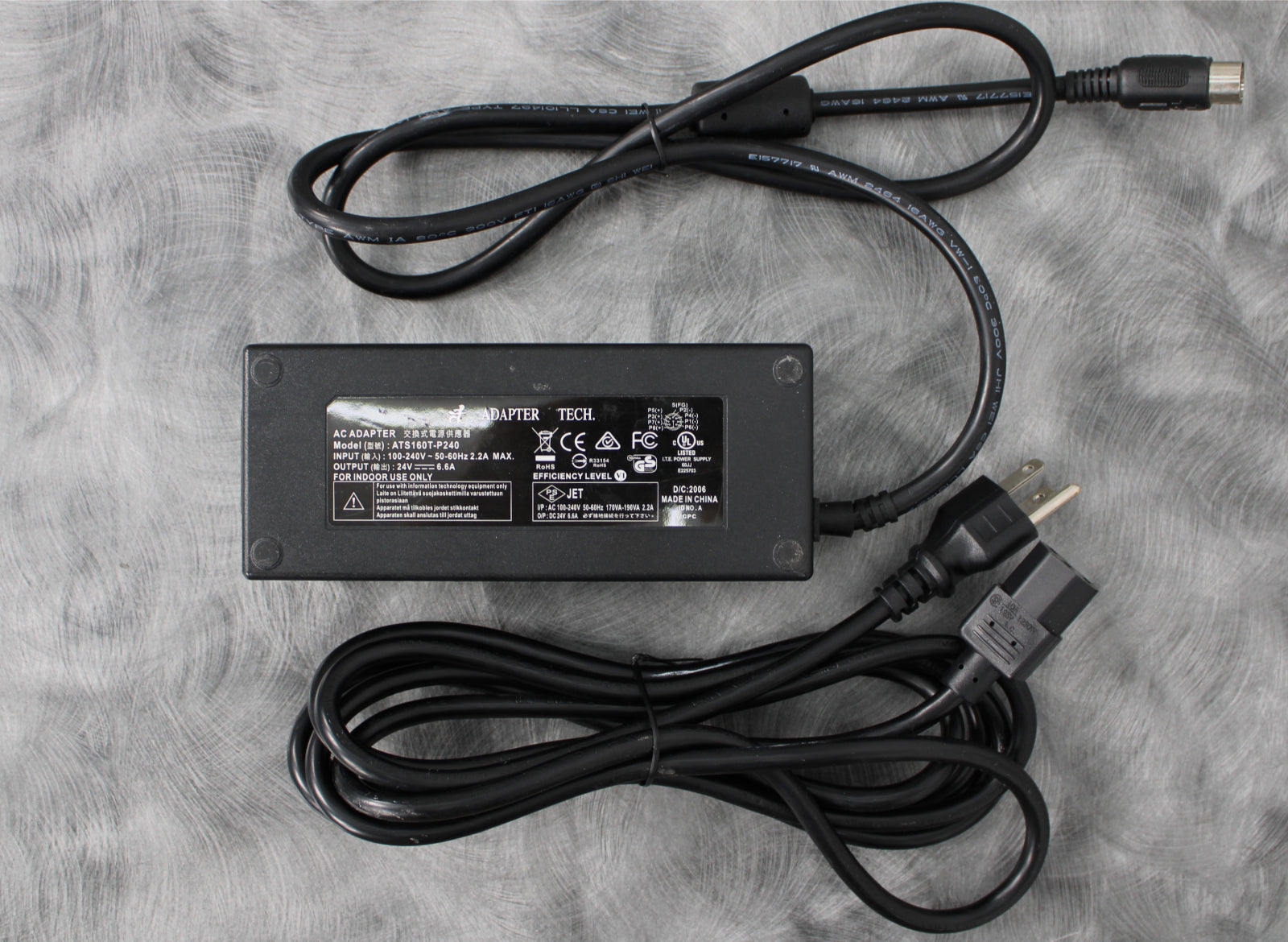

- Power Adapter
- Power Cable
- 90-Day Warranty

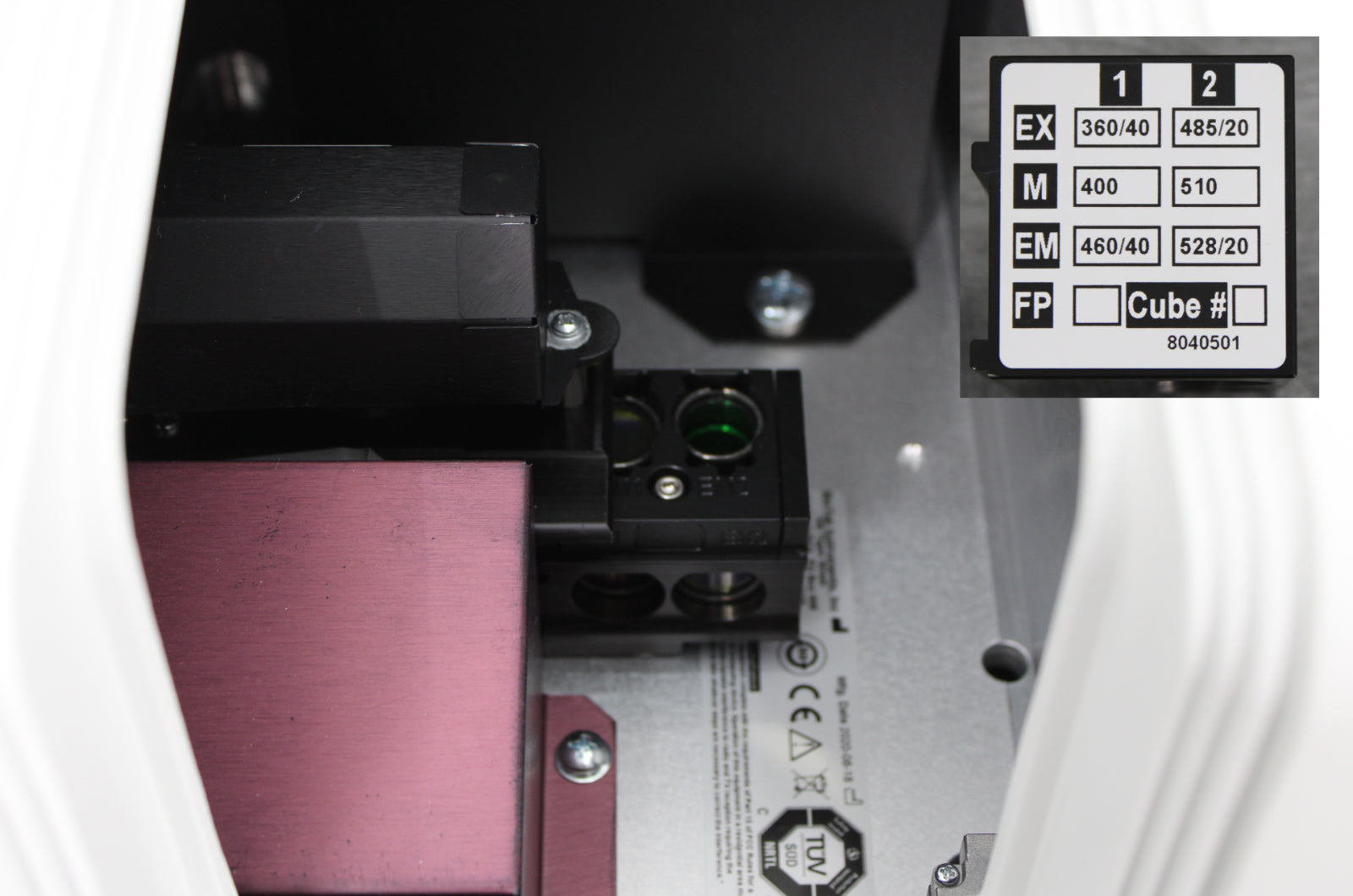

- EX 360/40, 485/20
- EM 460/40, 528/20
Notice: A computer and software must be acquired to operate this microplate reader.
After its initial disinfection and inspection, our technicians tested the BioTek Synergy H1 Hybrid multimode microplate reader with the following results:
- Power and initialization: PASSED
- Status light turns solid green: PASSED

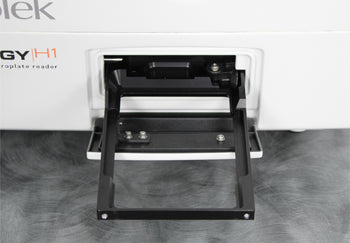

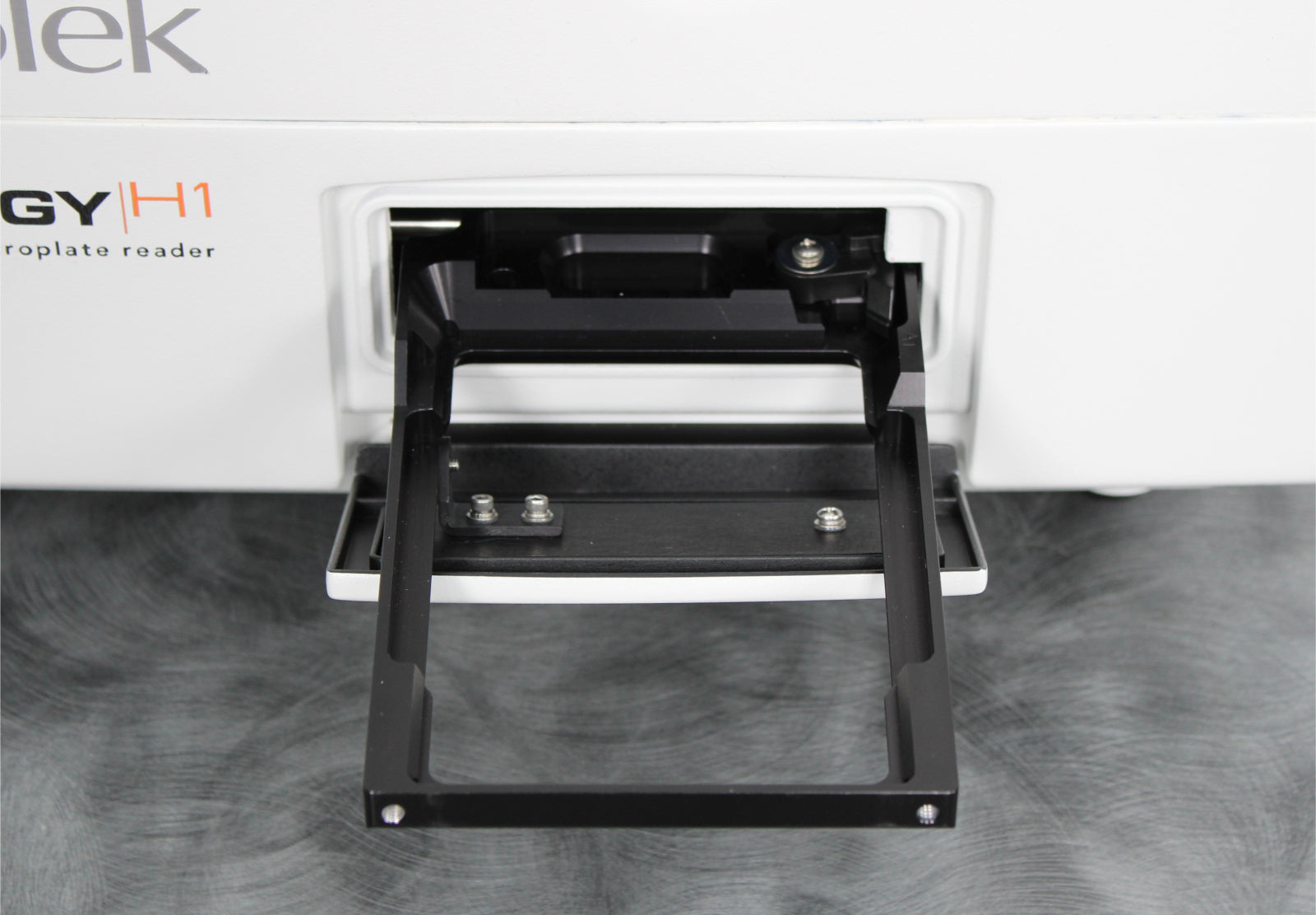

- Plate tray load and unload: PASSED
|

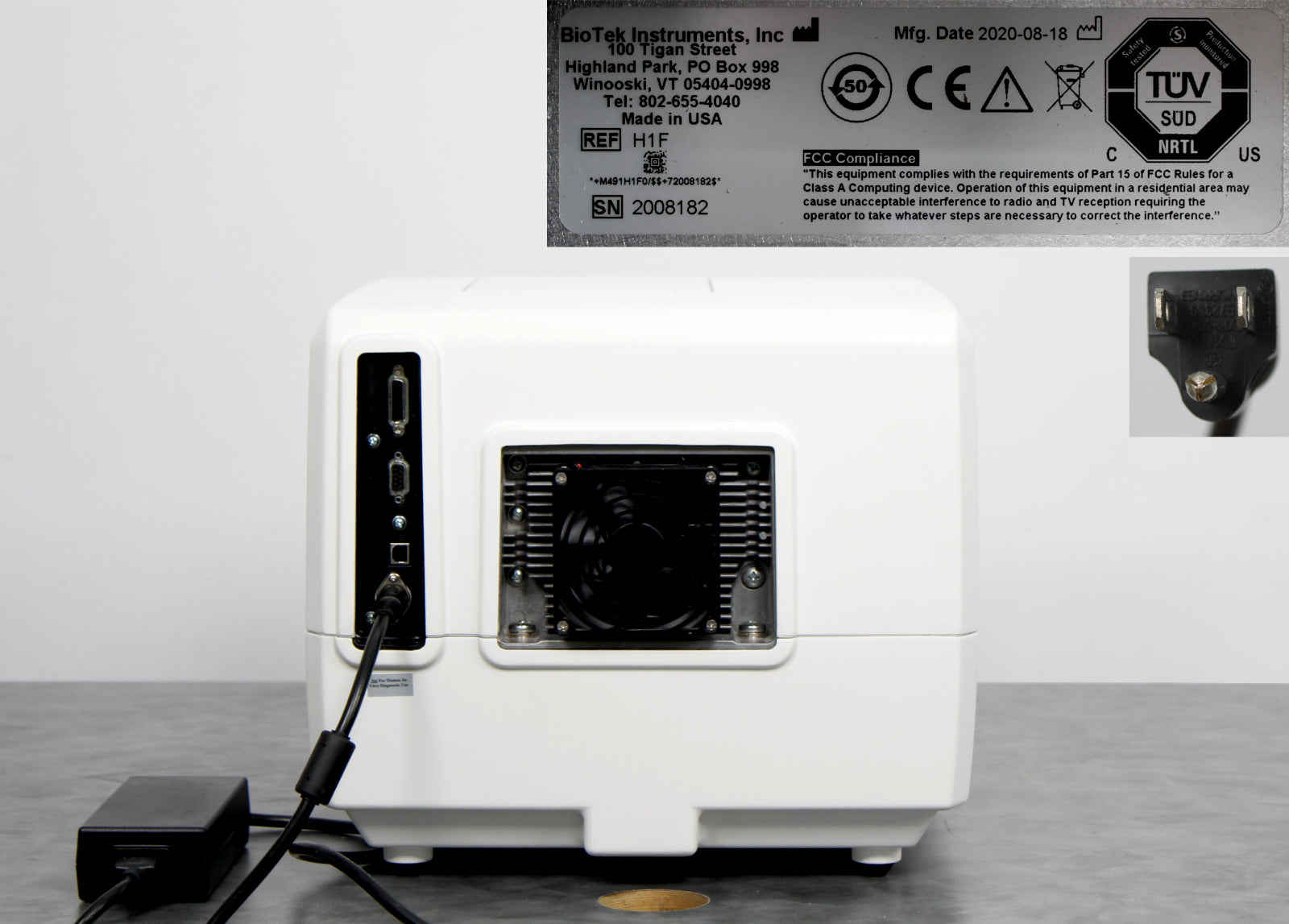

Manufacturer
|
BioTek Instruments, Inc.
|
|
Model
|
Synergy H1
|
|
Model No.
|
H1F
|
|
Serial No.
|
2008182
|
|
Mfg. date
|
2020-08-18
|
|
Model platform
|
BioTek Synergy H1F (filter-only optical configuration)
|
|
Light source
|
High-energy Xenon flash lamp
|
|
Detector system
|
Low-noise photomultiplier tube (PMT) for filter pathway
|
|
Wavelength selection
|
Interchangeable physical filter cubes and dichroic mirrors
|
|
Read methods
|
Endpoint, kinetic, and well-area scanning
|
|
Fluorescence intensity (FI)
|
Top-reading only
Wavelength: 200-700 nm (up to 850 nm with optional PMT)
Sensitivity: 0.25 pM (0.025 fmol/well, 384-well plate)
|
|
Luminescence
|
Glow (full-light) and filtered (BRET/BRET2)
Sensitivity: 10 amol ATP
|
|
Time-Resolved Fluorescence
|
Top-reading, TR-FRET compatible
Sensitivity: <40 fM (Europium)
|
|
Fluorescence polarization
|
Filter-wheel based
Wavelength: 280-700 nm
Sensitivity: 1.2 mP standard deviation
|
|
Microplate formats
|
Standard 6-, 12-, 24-, 48-, 96-, and 384-well plates
Take3 micro-volume plate (2 µL)
|
|
Incubation control
|
4-Zone incubation up to 45°C
Includes Condensation Control
Accuracy ±0.2°C at 37°C
|
|
Plate shaking profiles
|
Continuous software control
Three modes: linear, orbital, and double-orbital
|
|
Measurement speed
|
96-well plate: 11 seconds
384-well plate: 22 seconds
|
|
Control software
|
Gen5 data analysis software

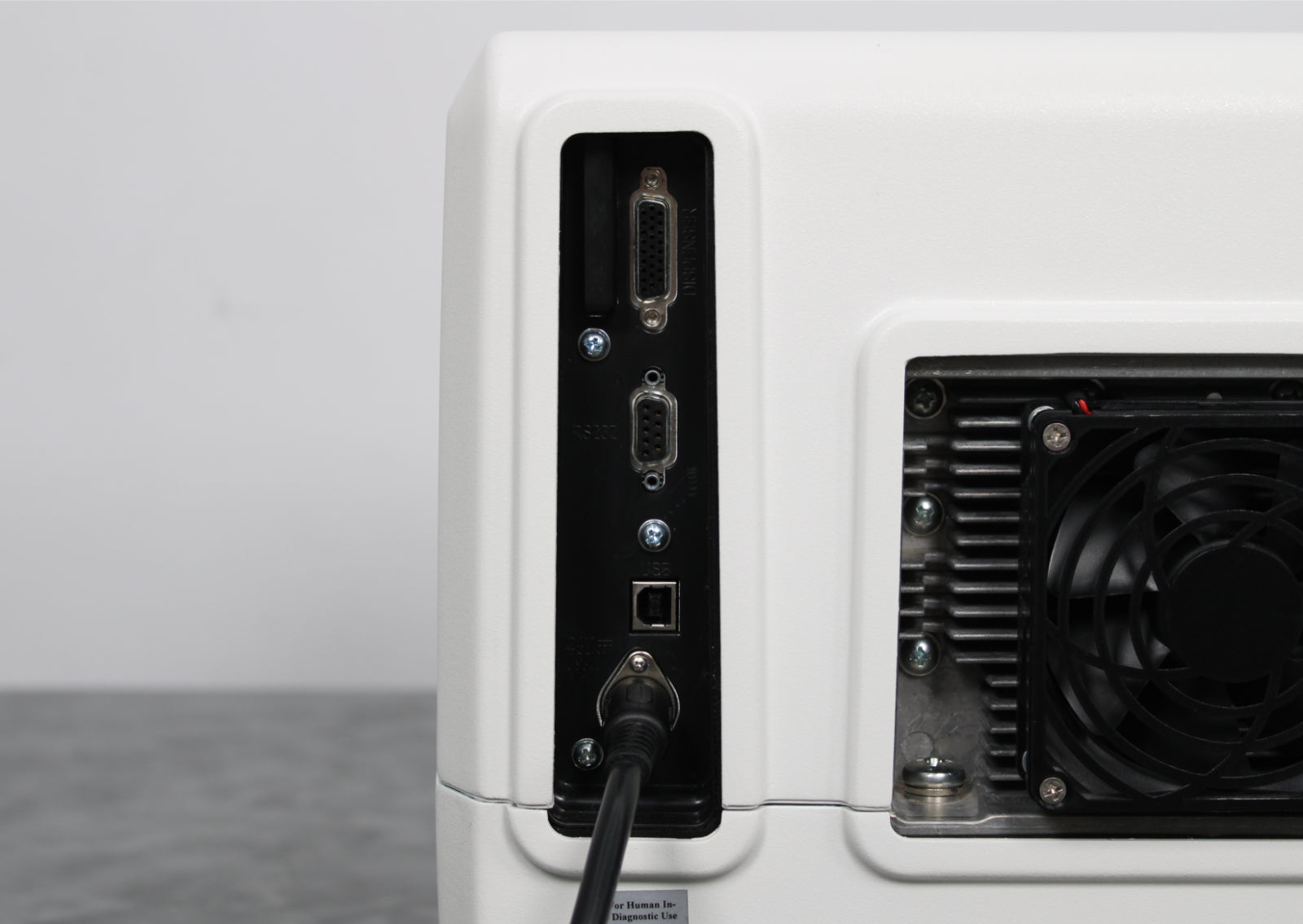

Connection: USB
|
|
Power rating
|
100-240VAC, 50/60Hz
|
|
Power consumption
|
130W max
|
|
Dimensions (W x D x H)
|
15.4 x 18.6 x 12.9 in (39.1 x 47.2 x 32.8 cm)
|
|
Weight
|
40 lb (18.2 kg)
|
