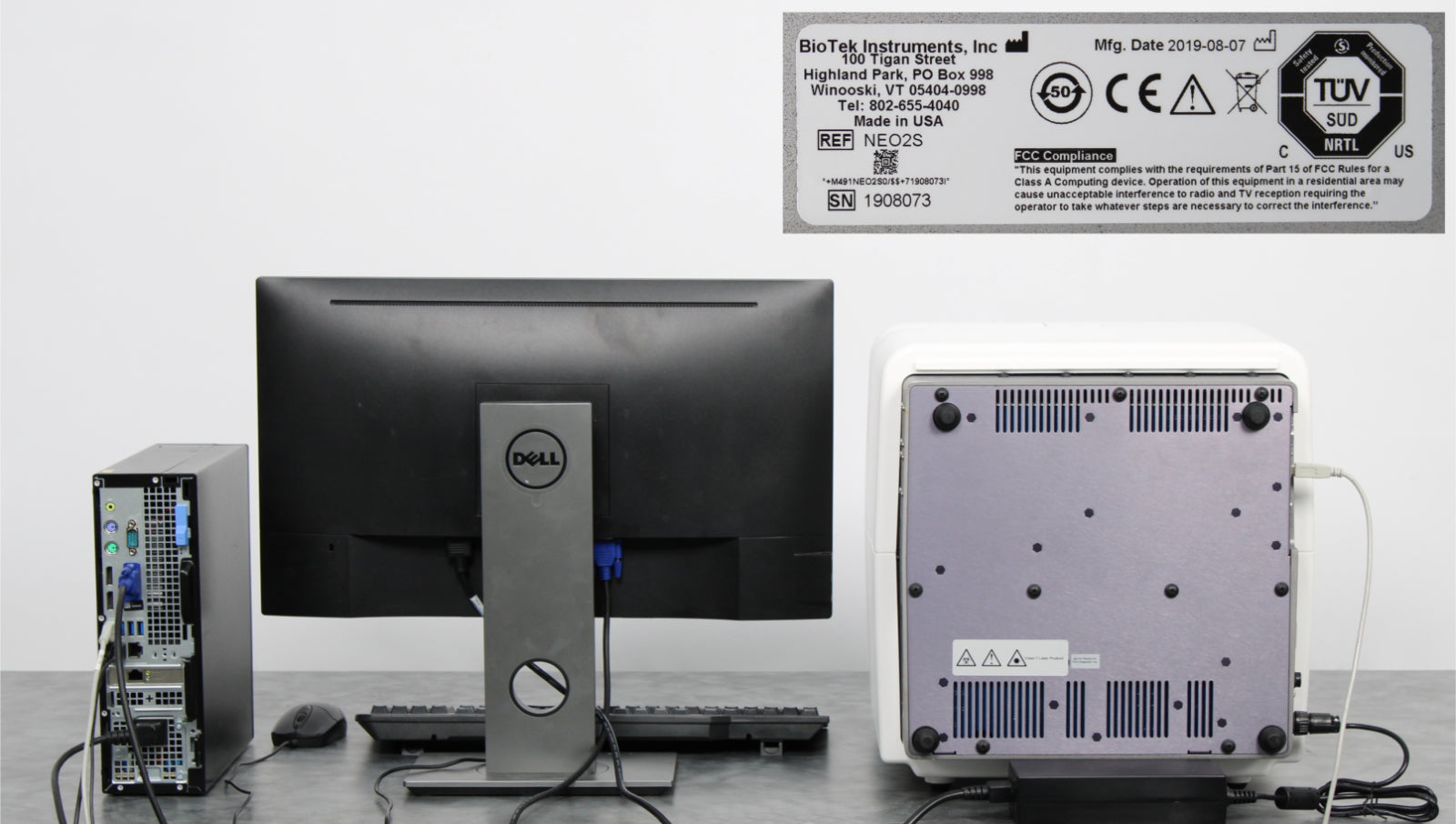

Manufacturer
|
BioTek Instruments, Inc
|
|
Model
|

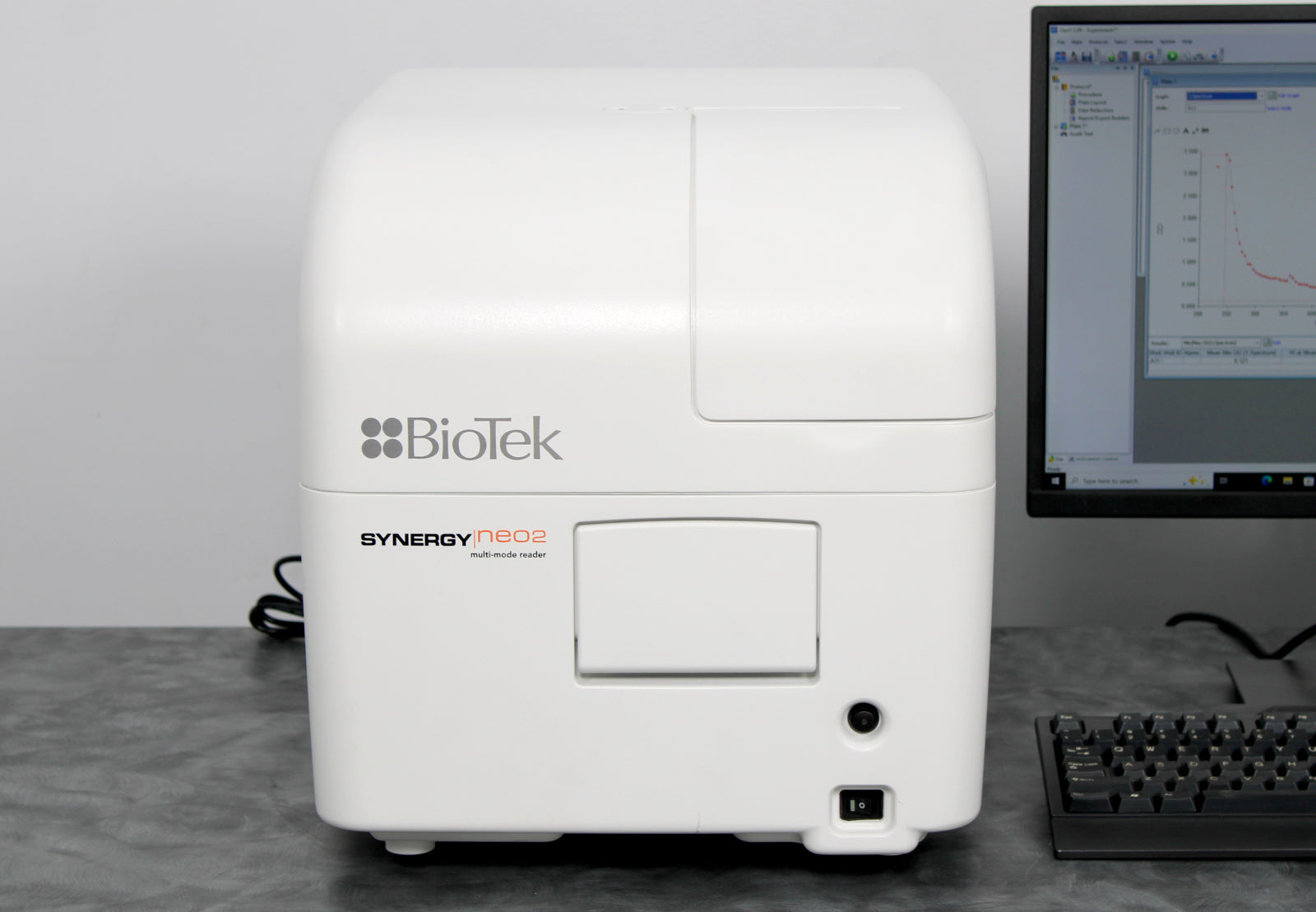

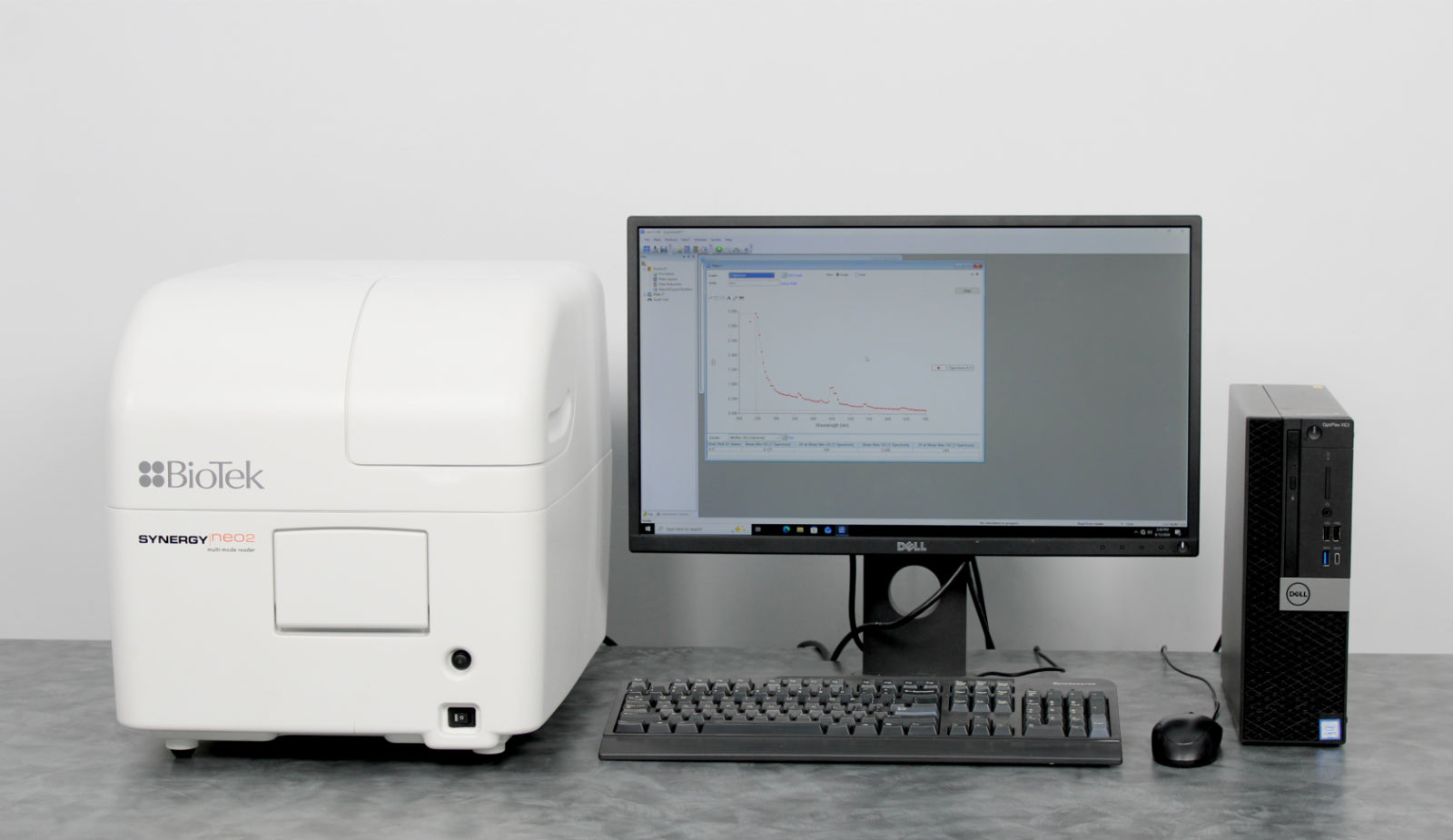

Synergy Neo2
|
|
Ref. No.
|
NEO2S
|
|
Serial No.
|
1908073
|
|
Mfg. date
|
2019-08-07
|
|
Detection mode
|
Monochromators: FL, Lum, UV-Vis Abs, TRF (secondary)
Filters: FL, TRF, FP, Lum, Alpha
|
|
Read mode
|
End point, kinetic, spectral scanning, well area scanning
|
|
Microplate types
|
1- to 1536-well plates
|
|
Other labware
|

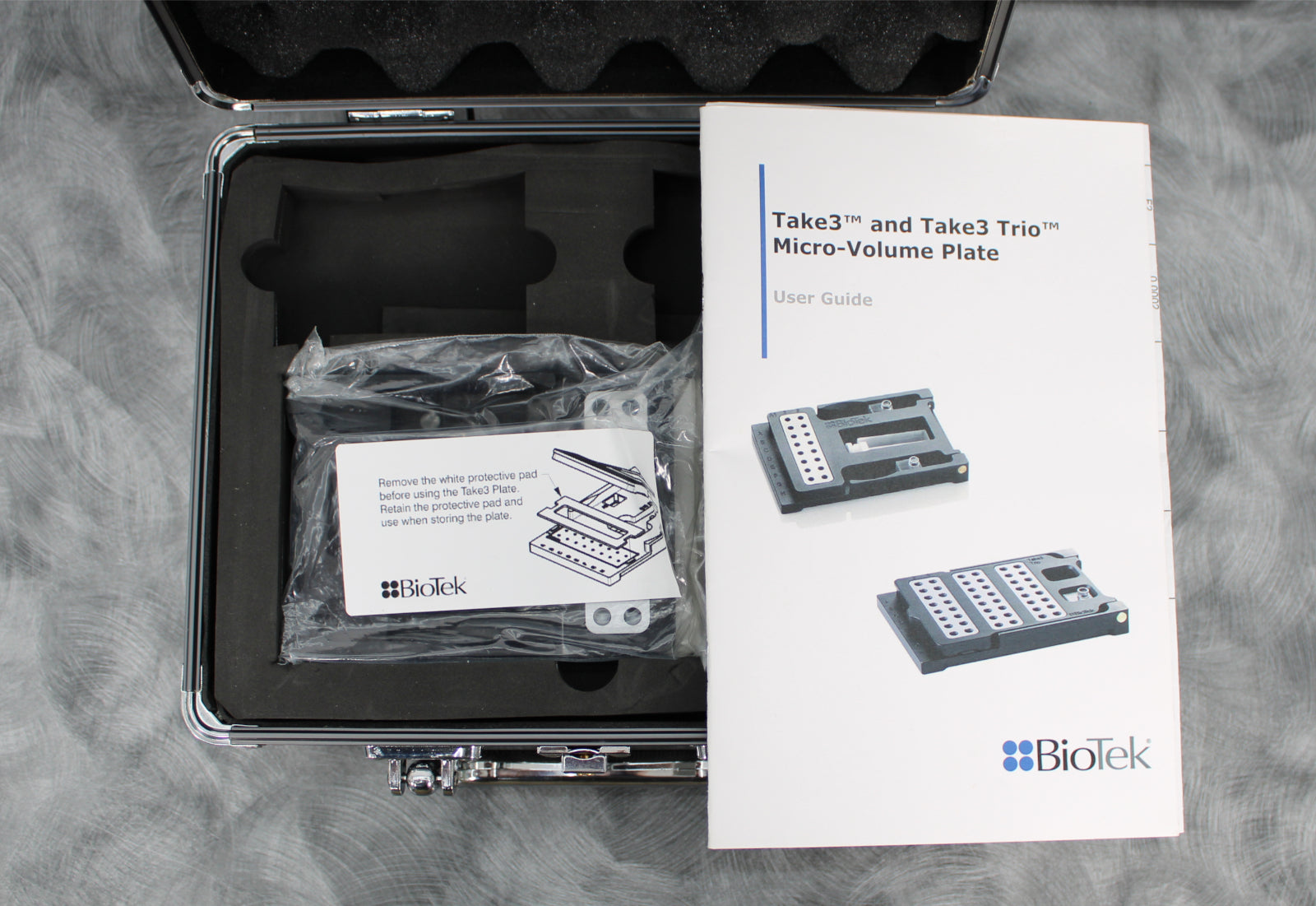

Compatible with Take3 Micro-Volume Plates with 2 µL microspots
|
|
Temperature control
|
3°C above ambient to 65°C with Condensation Control
Variation ±0.2°C at 37°C
|
|
Shaking
|
Linear, orbital, double orbital
|
|
Software
|

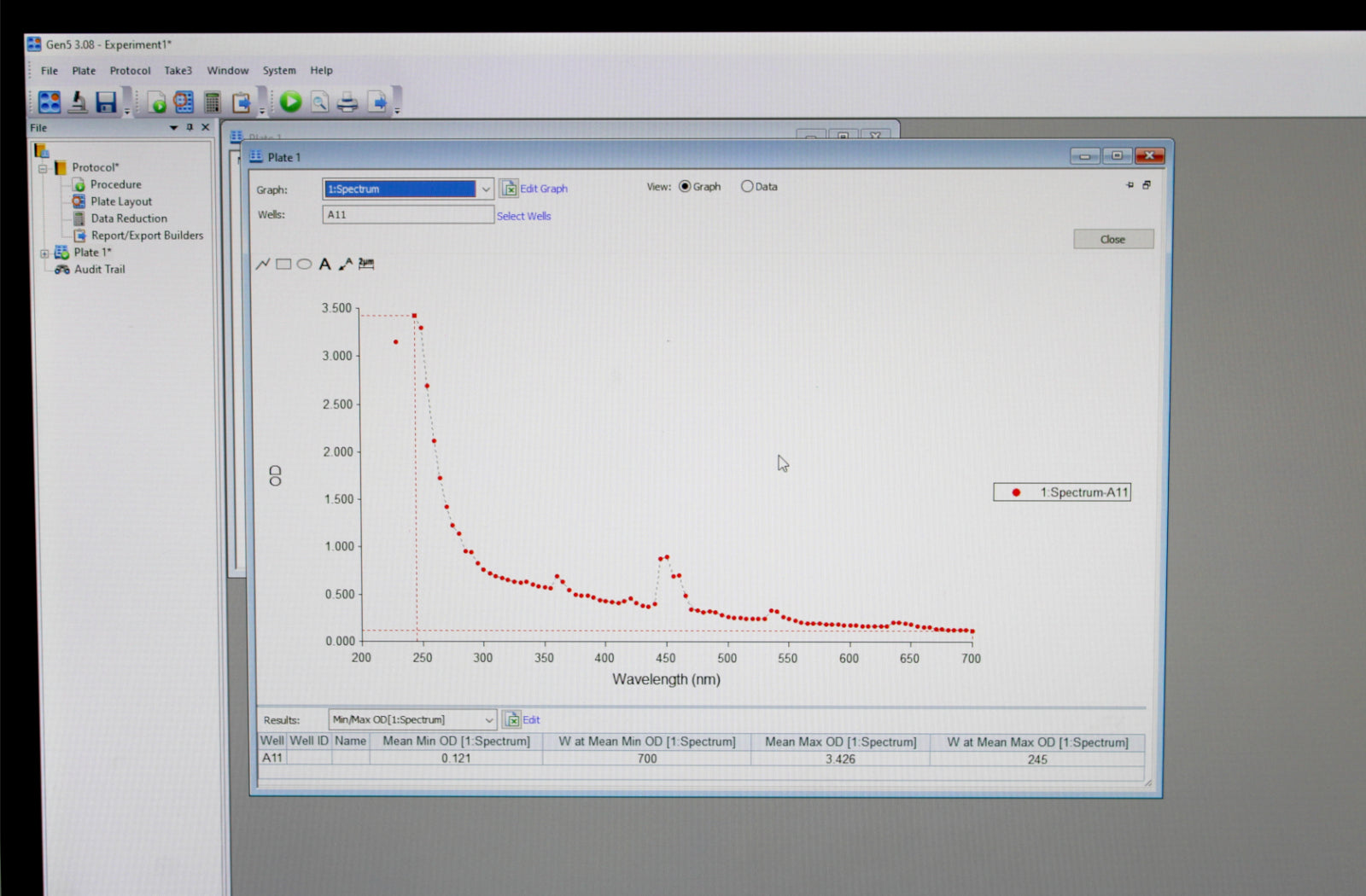

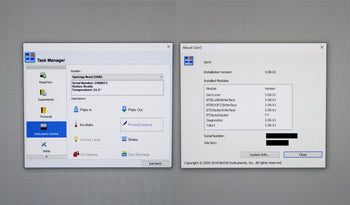

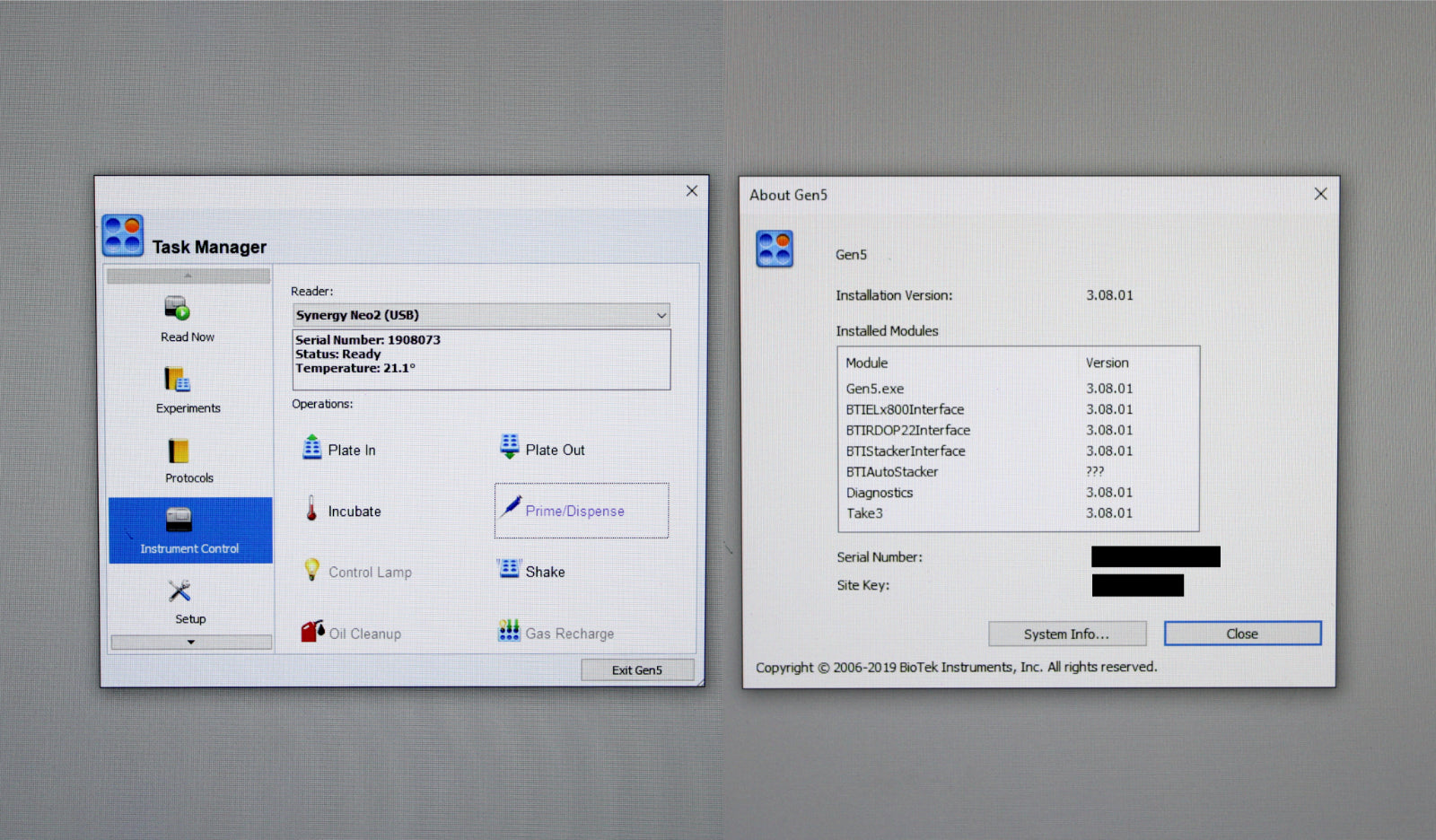

Gen5 Data Analysis Software included
Gen5 Secure Software option for 21 CFR Part 11 compliance features
|
|
Automation
|
BioStack and 3rd party compatible
|
|
CO2 and O2 control
|
0-20% CO2 control and 1-19% O2 control, with optional Gas Controller
|
|
Barcode reader
|
Multi-directional, 1D and 2D camera-based scanner
|
|
Read height
|
Auto Z, 0.1 mm steps, top/bottom (Filters), top (Mono)
|
|
Kinetic speed
|
96-well: 6 seconds
384-well: 11 seconds
1536-well: 25 seconds
|
|
With stacker, minimum processing time per plate
|
96-well: 20 seconds
384-well: 25 seconds
1536-well: 39 seconds
|
|
Absorbance
|
|
|
Light source
|
Xenon flash lamp
|
|
Wavelength selection
|
Monochromator
|
|
Wavelength range
|
230-999 nm, in 1 nm increments
|
|
Bandwidth
|
2 nm (230-285 nm), 4 nm (>285 nm)
|
|
Dynamic range
|
0-4.0 OD
|
|
Resolution
|
0.0001 OD
|
|
Fluorescence Intensity
|
|
|
Sensitivity
|

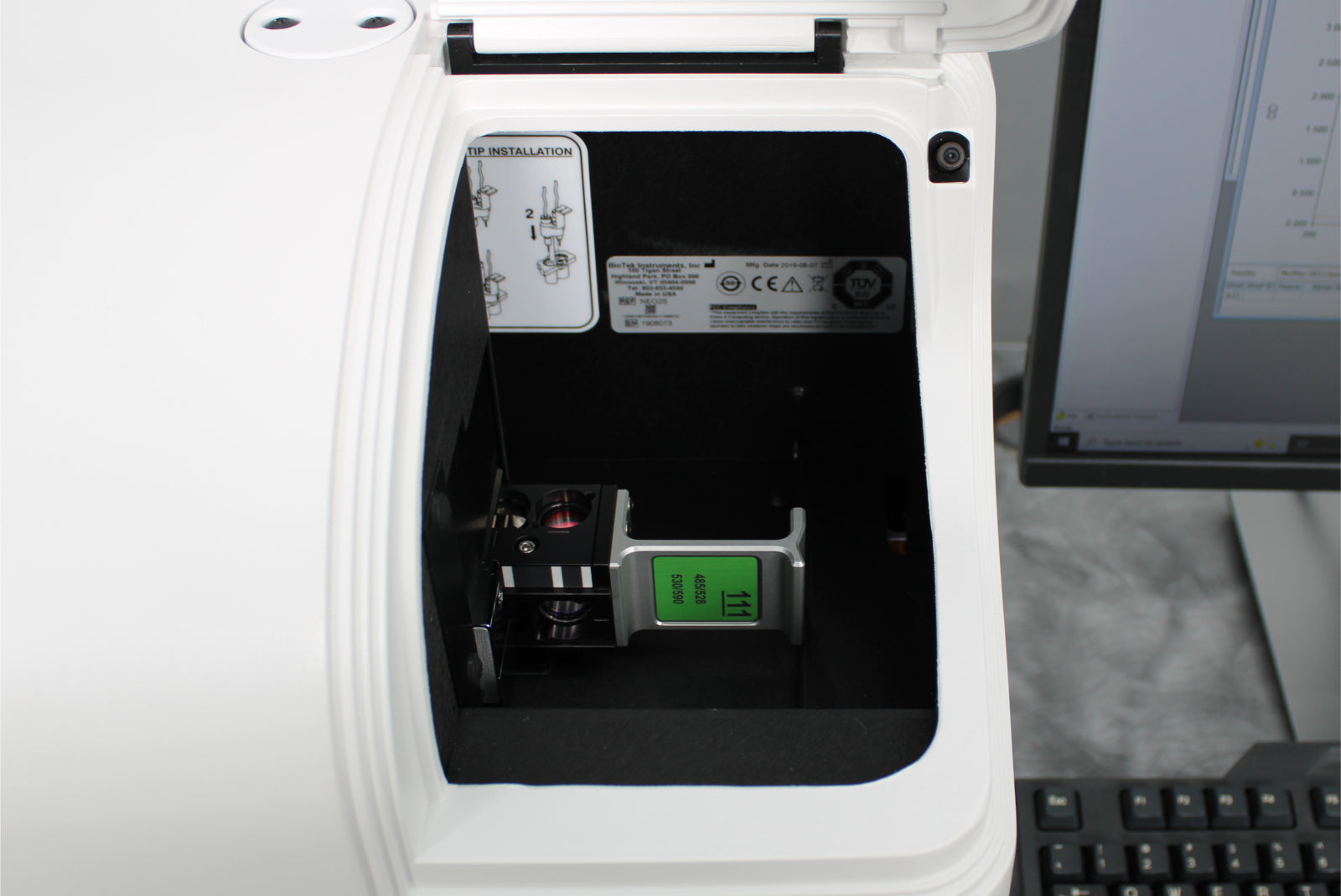

Filter cubes:
Fluorescein 0.2 pM (384-well low-volume plate) - top
Fluorescein 1 pM (1536-well plate) - top
Fluorescein 1 pM (384-well plate) - bottom
Quad Monochromator:
Fluorescein 2 pM (384-well low-volume plate) - top
Fluorescein 2.5 pM (384-well plate) - bottom
|
|
Light source
|
High energy xenon flash lamp
|
|
Read height
|
Auto Z, 0.1 mm steps, top/bottom (filters), top (mono)
|
|
Wavelength selection
|
Double grating monochromators (top/bottom)

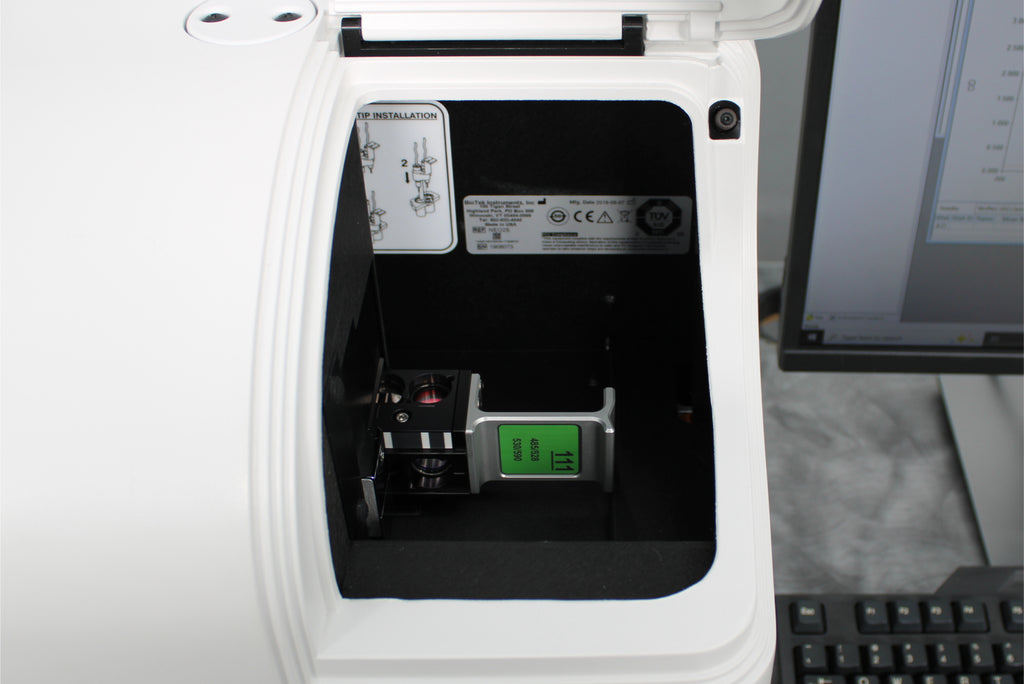

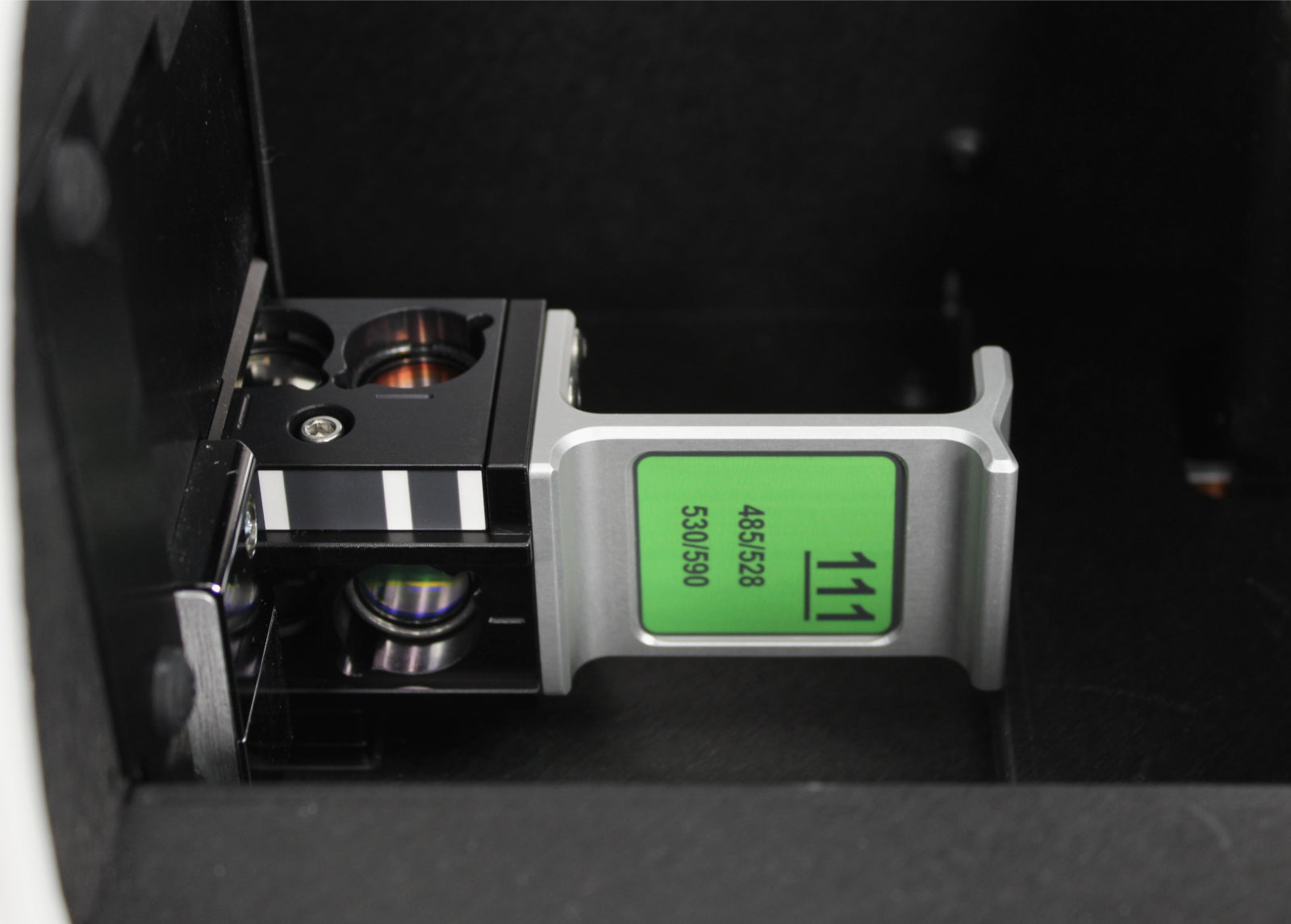

Filter cubes (top/bottom)
|
|
Wavelength range
|
Monochromators: 250-850
Filter cubes - dual PMT: 200-850
|
|
Monochromator bandwidth
|
Variable, from 3 nm to 50 nm, in 1 nm increment excitation/emission
|
|
Detection system
|
Single PMT or dual PMTs (top filter system)
Low Noise PMT bottom filter system
Red shifted PMT top/bottom monochromator system
|
|
Luminescence
|
|
|
Sensitivity
|
5 amol ATP (flash) (384-well low-volume plate)
|
|
Wavelength range
|
300-700 nm
|
|
Dynamic range
|
>6 decades
|
|
Fluorescence Polarization
|
|
|
Sensitivity
|
1 mP standard deviation at 1 nM fluorescein (384-well low volume plate)
1.5 mP standard deviation at 1 nM fluorescein (1536-well plate)
|
|
Light source
|
Xenon flash lamp
|
|
Wavelength selection
|
Filter cubes (top/bottom)
|
|
Wavelength range
|
280-850 nm
|
|
Detection system
|
Single PMT or dual PMTs
|
|
Time-Resolve Fluorescence
|
|
|
Light source
|
Xenon flash lamp
|
|
Sensitivity
|
Europium 40 fM (384-well low volume plate)
Europium 70 fM (1536-well plate)
|
|
Wavelength selection
|
Filter Cubes (top/bottom)
Double grating monochromator (top/bottom)
|
|
Wavelength range
|
Monochromators: 250-850 nm
Filters: 200-850 nm
|
|
Detection system
|
Single PMT or dual PMTs
|
|
Alpha Detection
|
|
|
Sensitivity
|
100 amol LCK peptide (384-well low-volume plate)
|
|
Light source
|
100 mW 680 nm laser
|
|
Detector
|
PMT
|
|
Wavelength selection
|
Filter cubes
|
|
Read speed
|
96-well: 30 seconds
384-well: 1 minute 50 seconds
1536-well: 7 minutes 20 seconds
|
|
Reagent Dispensers
|
|
|
Number
|
2 syringe pumps
|
|
Dispense volume
|
5-1000 µL, in 1 µL increments
|
|
Dead volume
|
1.1 ml, 100 µL with back flush
|
|
Plate geometry
|
6- to 384-well microplates, Petri dishes
|
|
Dispense precision
|
≤2% at 50-200 µL
|
|
Dispense accuracy
|
±1 µL or 2%
|
|
Physical characteristics
|
|
|

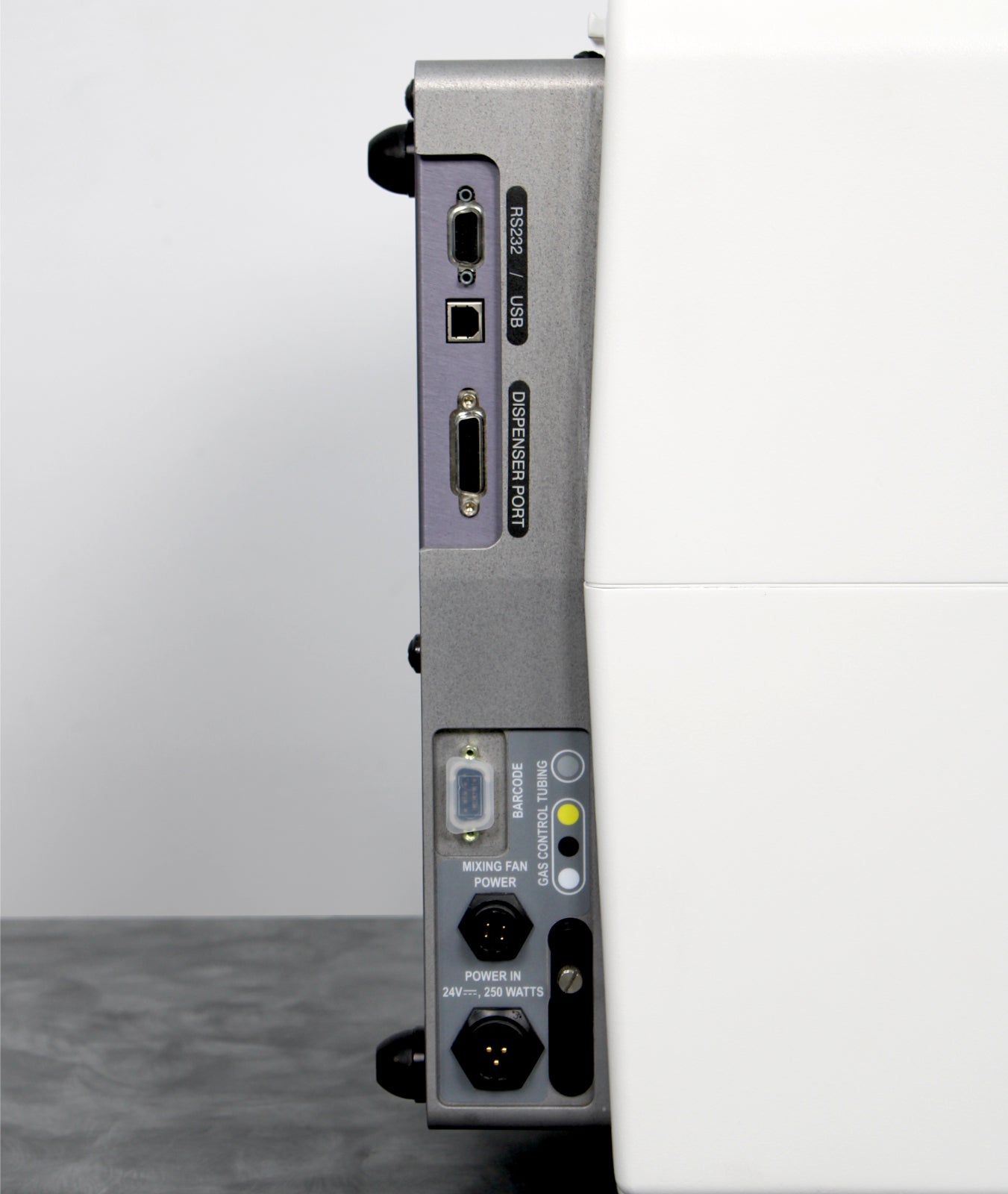

Power consumption
|
250 Watts max.
|
|
Dimensions (W x D x H)
|
15.4 x 20.7 x 16.1 in (39 x 52.5 x 41 cm)
|
|
Weight
|
78 lb (35 kg)
|
