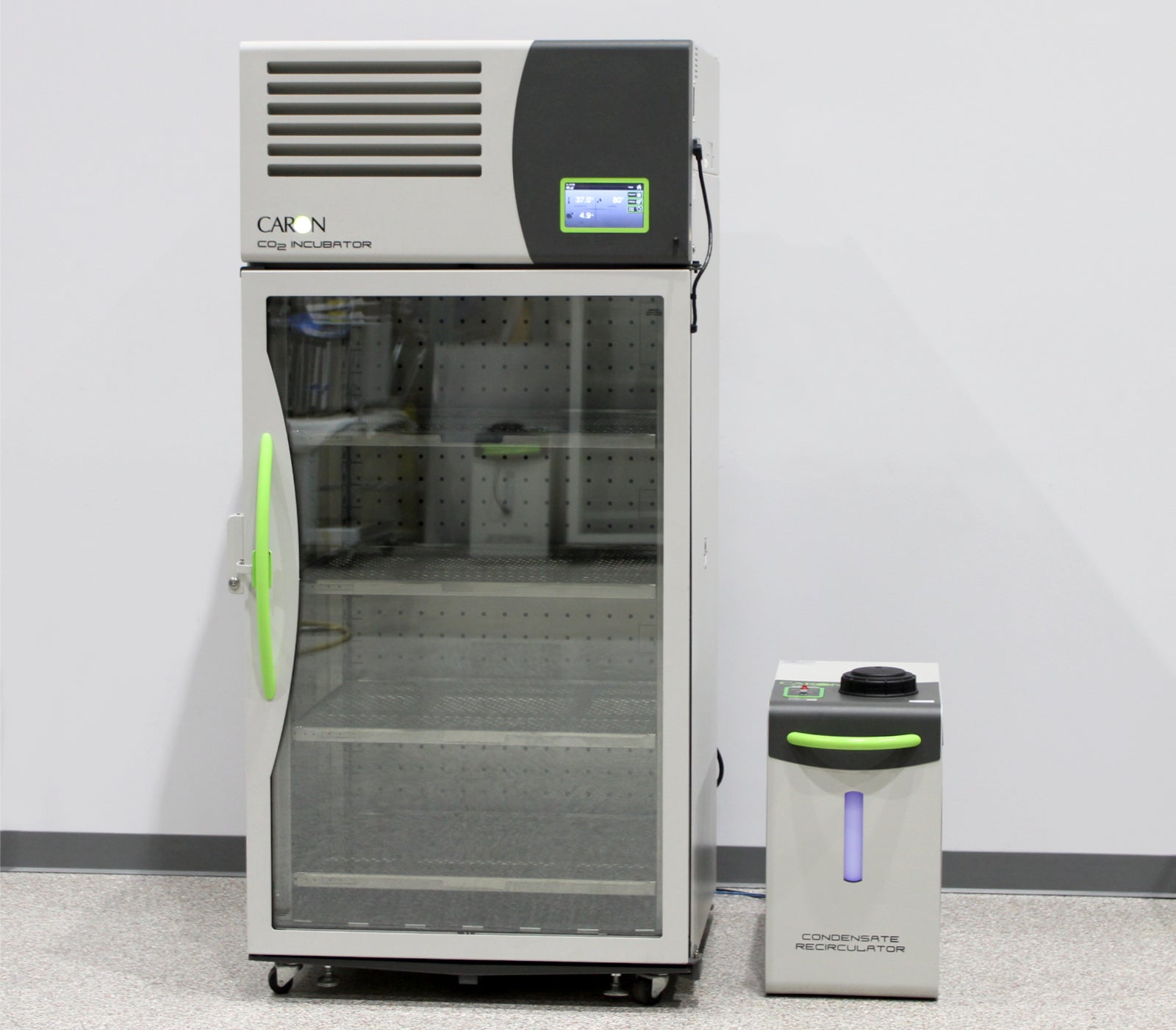

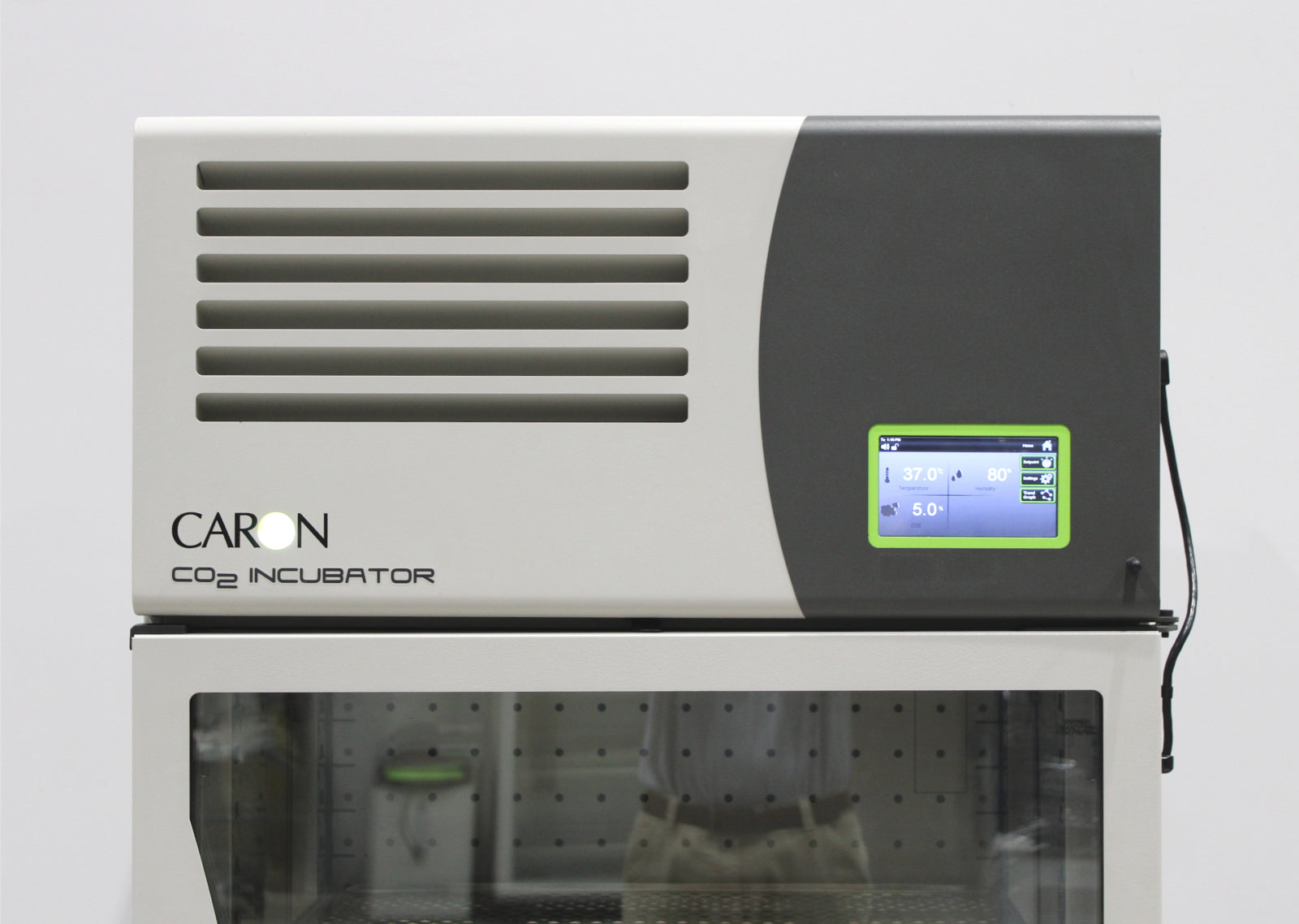

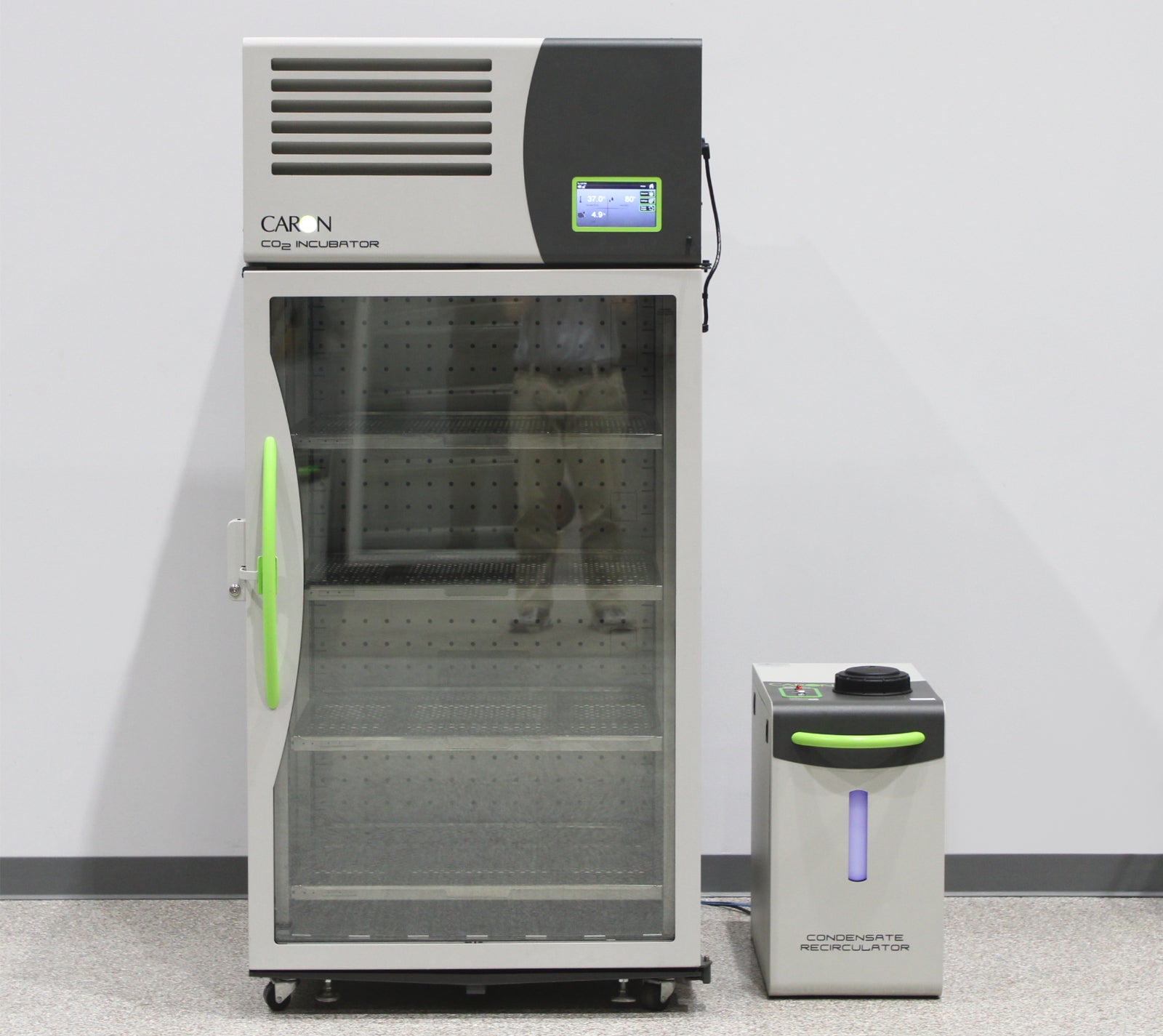

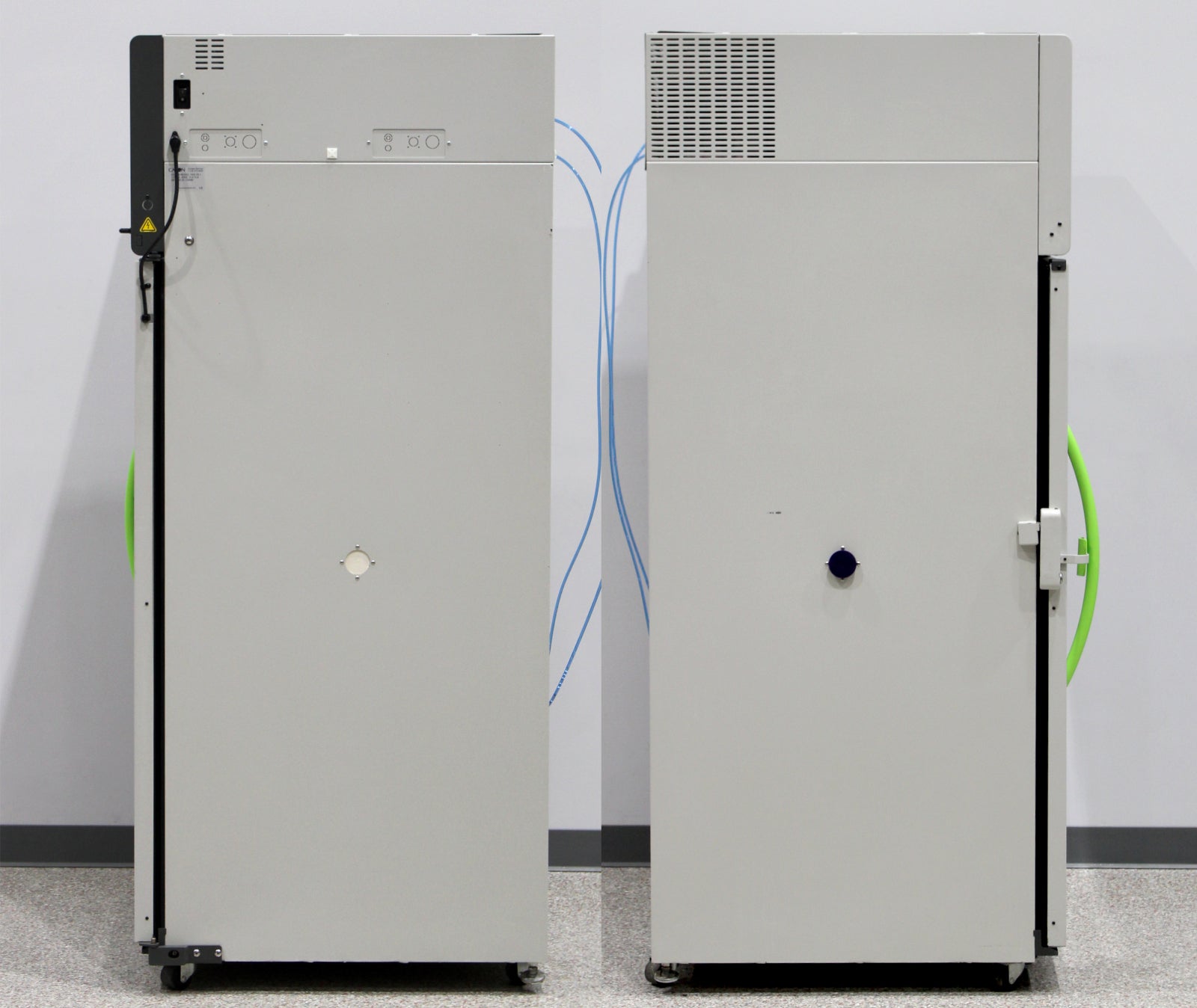

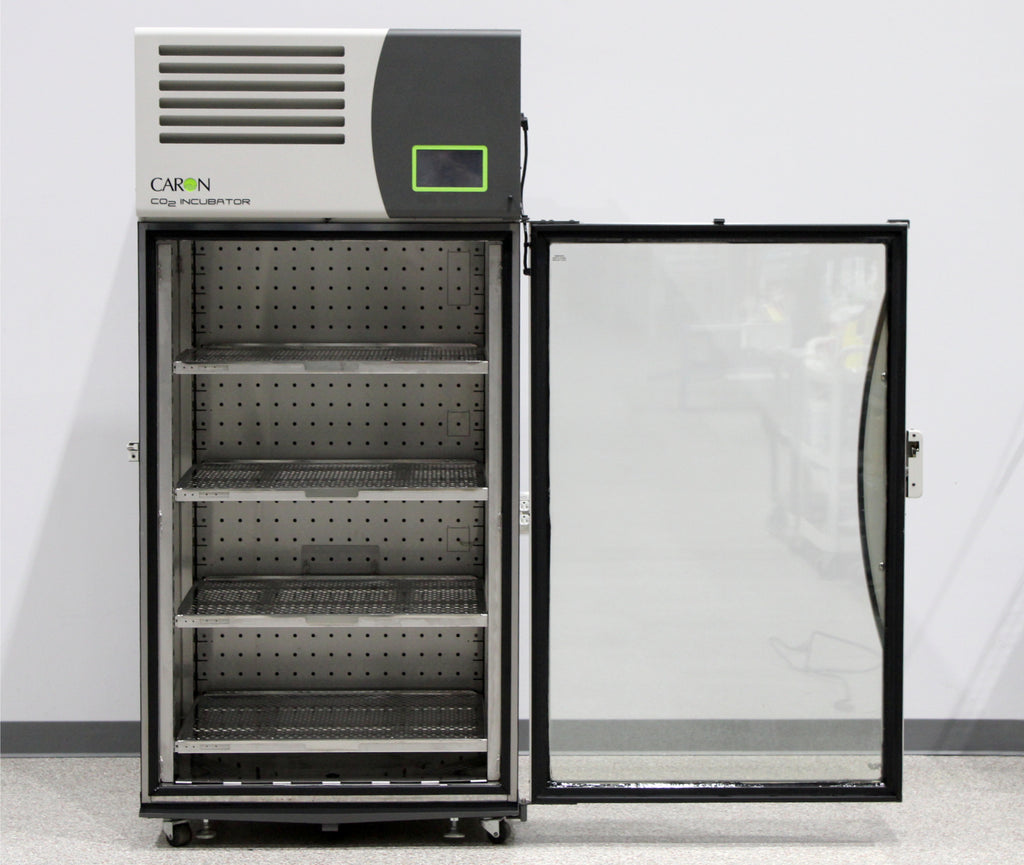

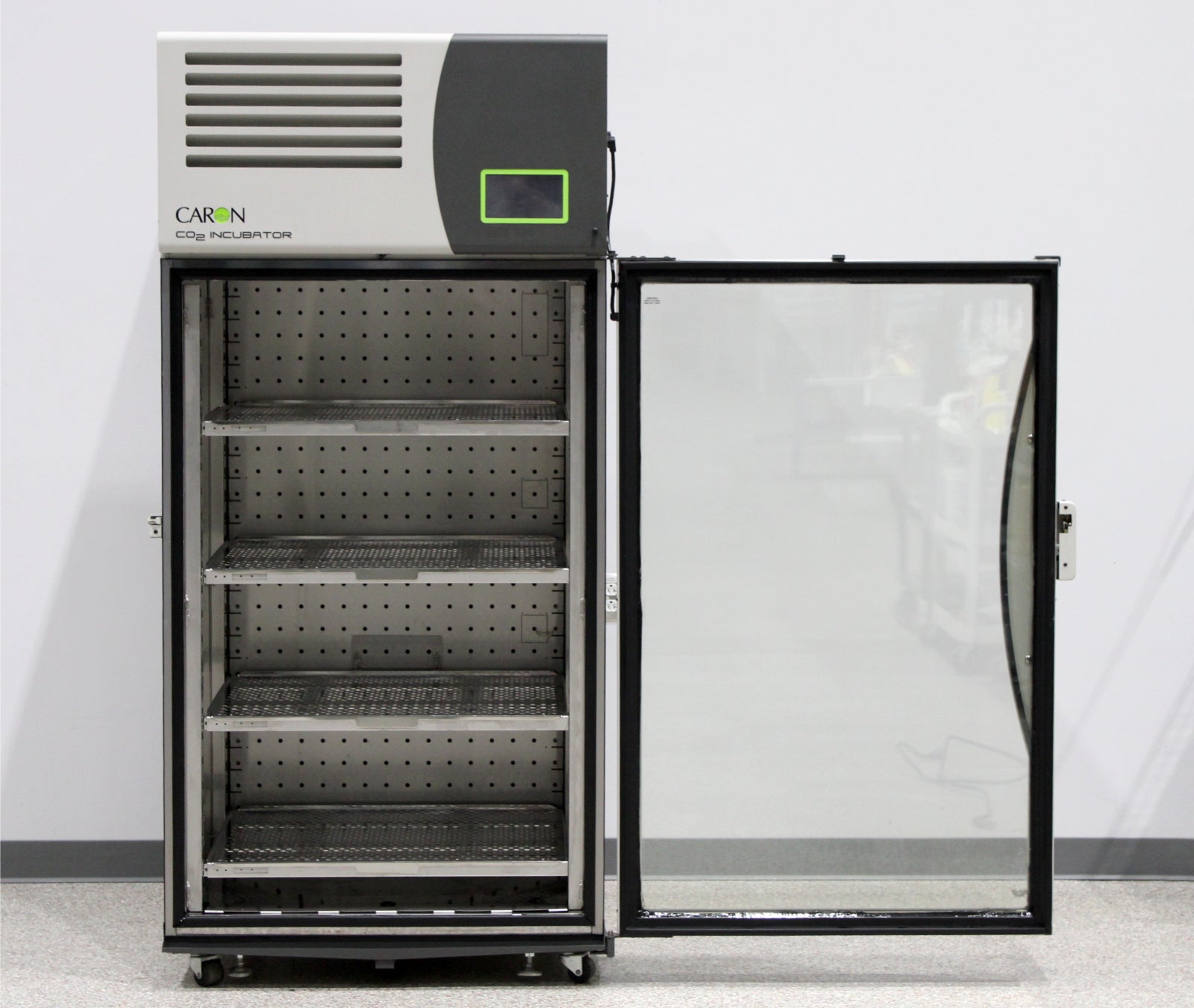

- Caron 7400-25-1 Reach-In CO2 Incubator 115V 708 Liters

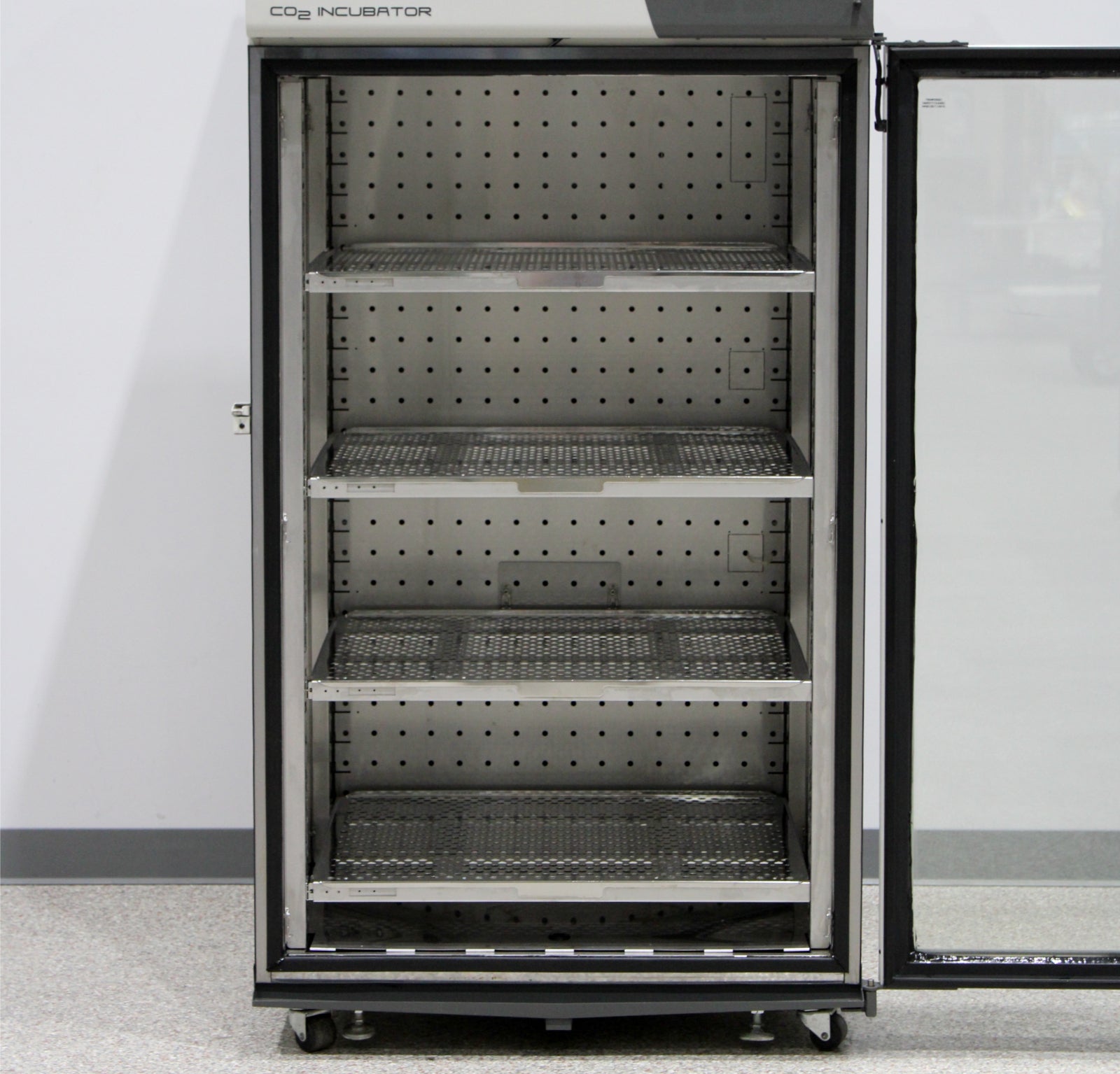

- x4 Adjustable Stainless Steel Shelves

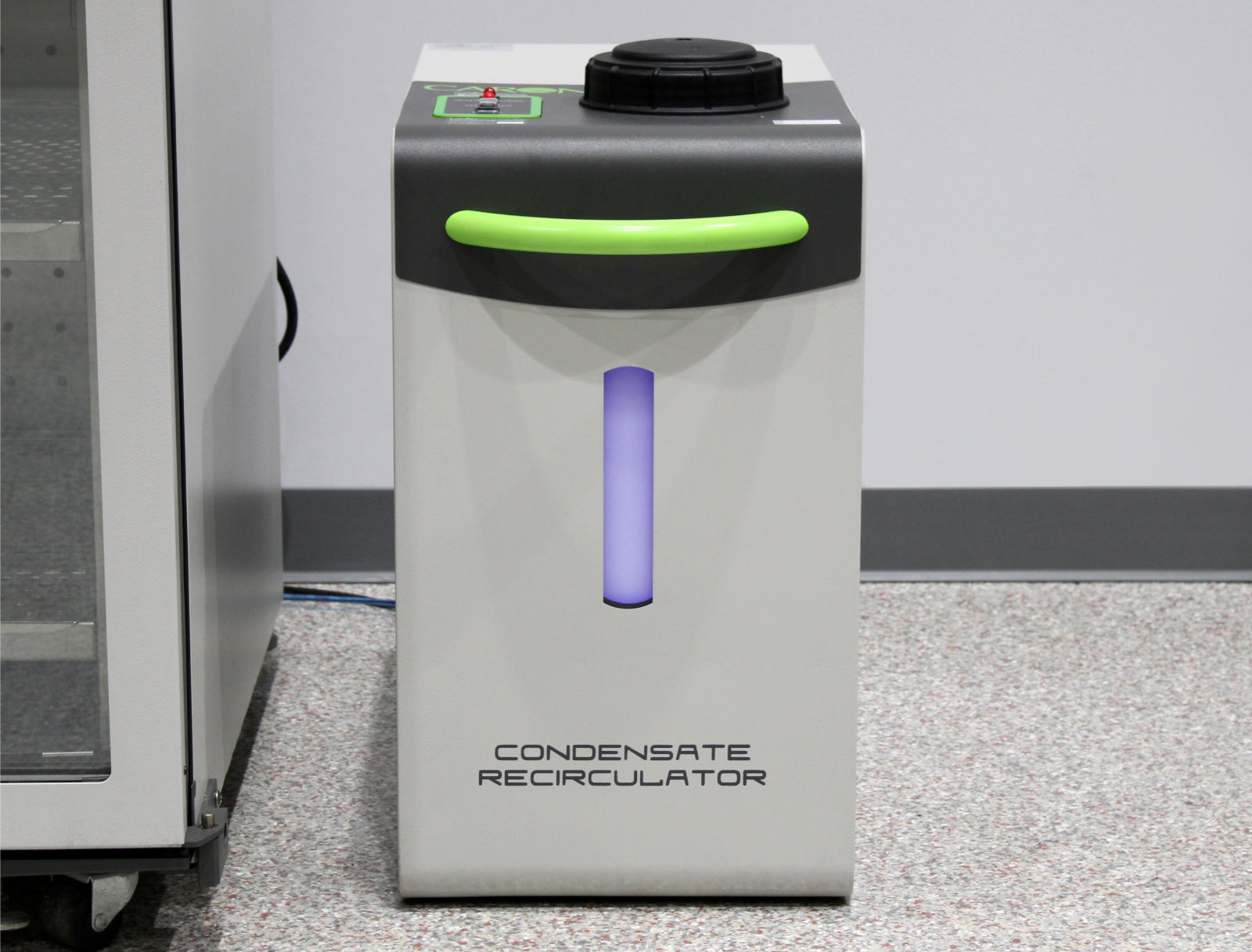

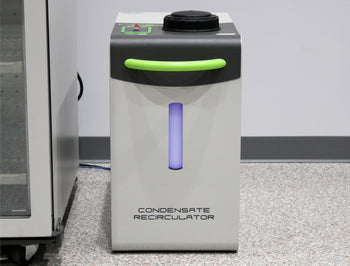

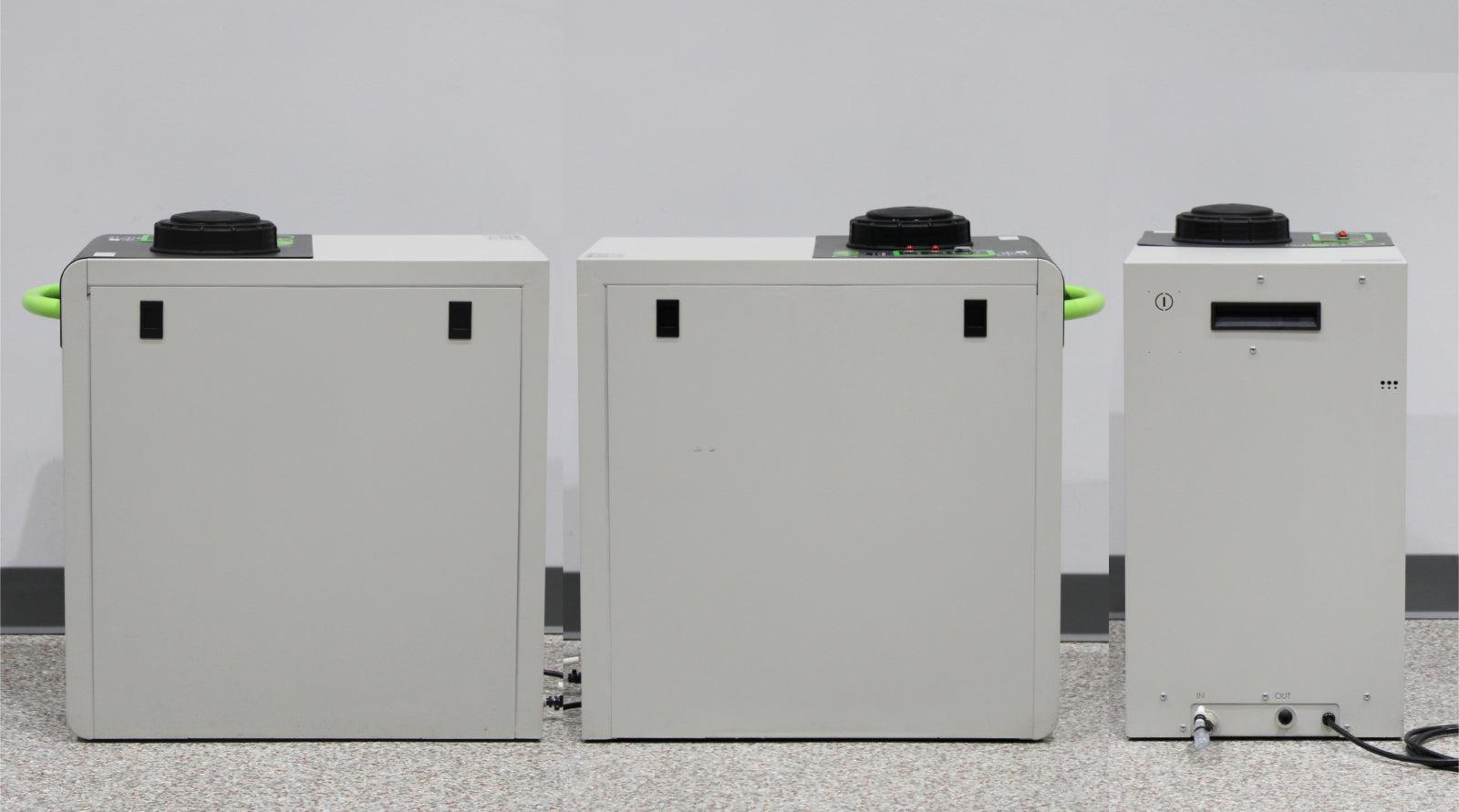

- Caron CRSY102-1 Condensate Recirculator 115V

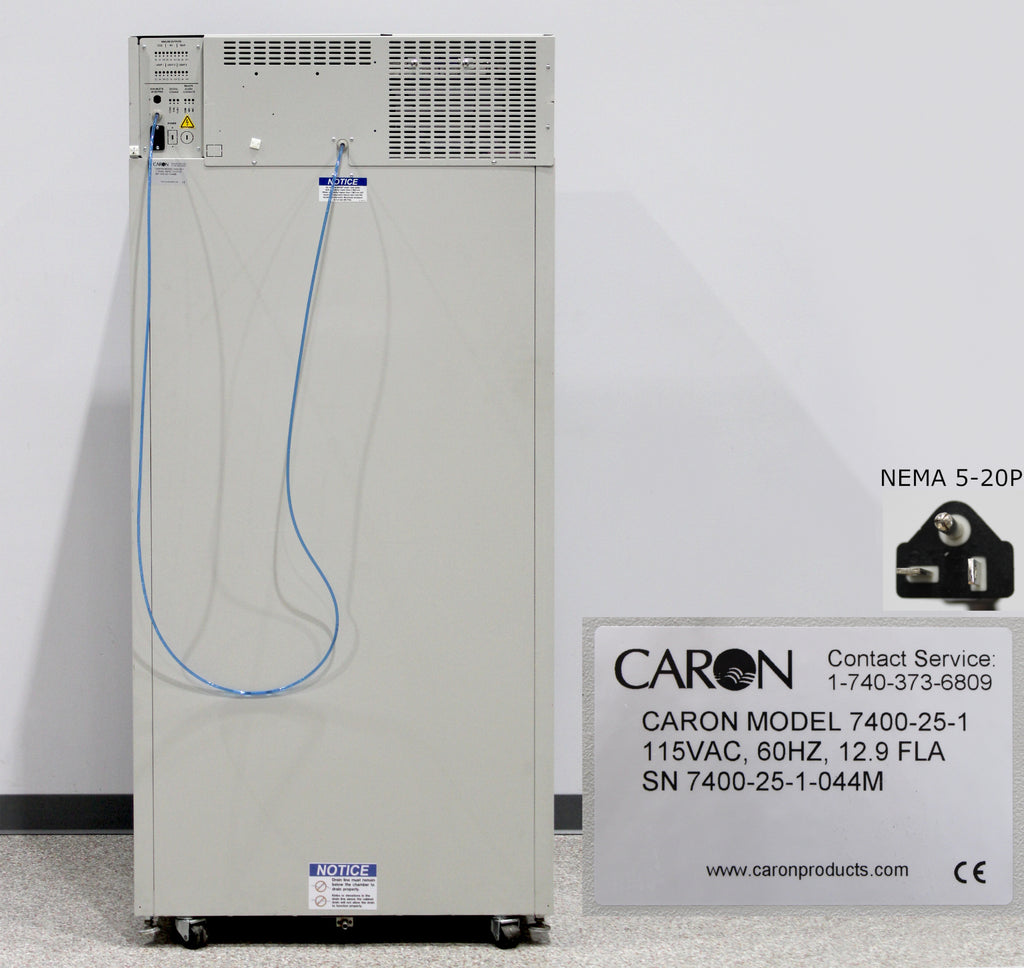

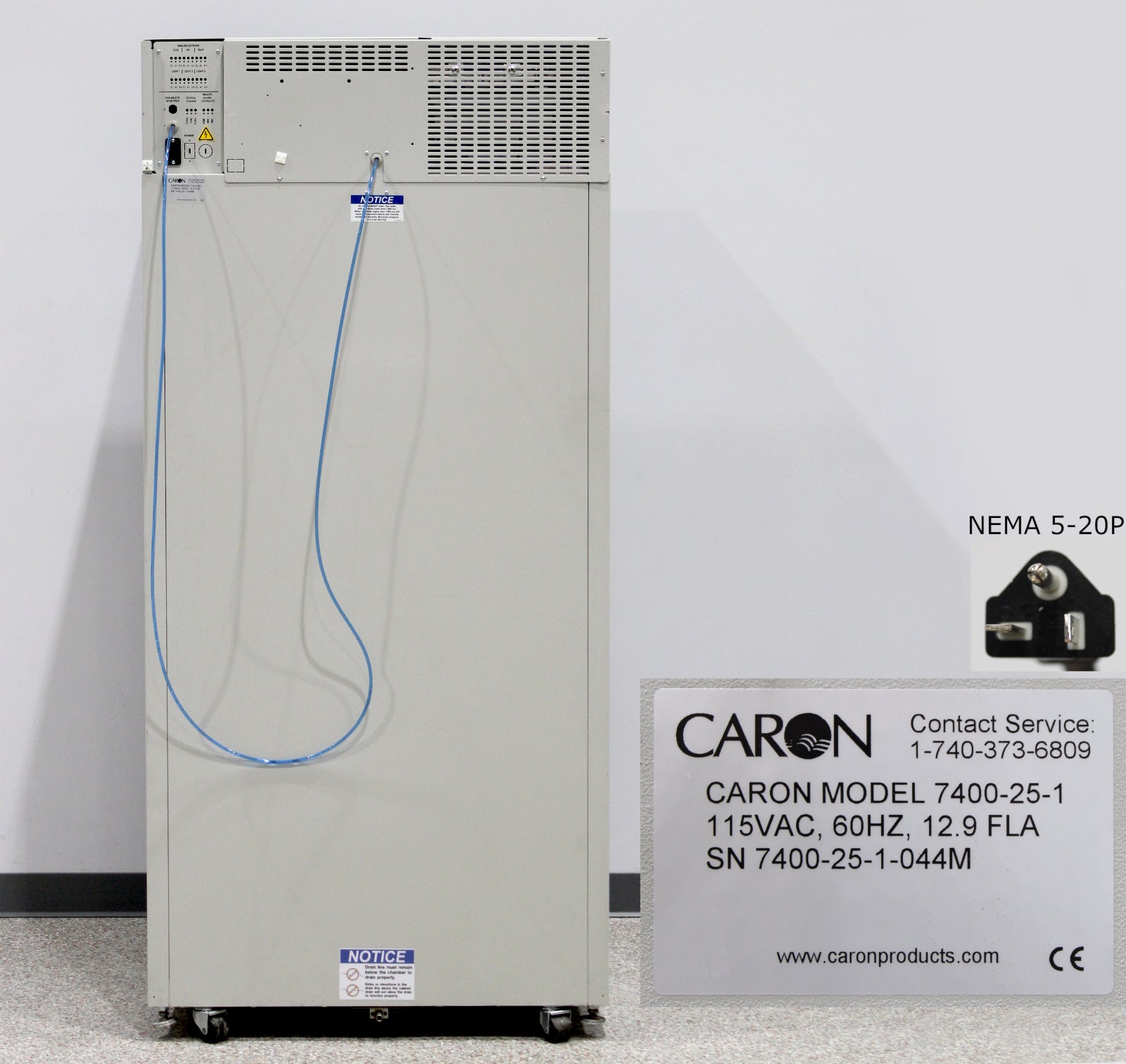

- Power Cable with NEMA 5-20P Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Caron 7400-25-1 Reach-In CO2 incubator and condensate recirculator with the following results:

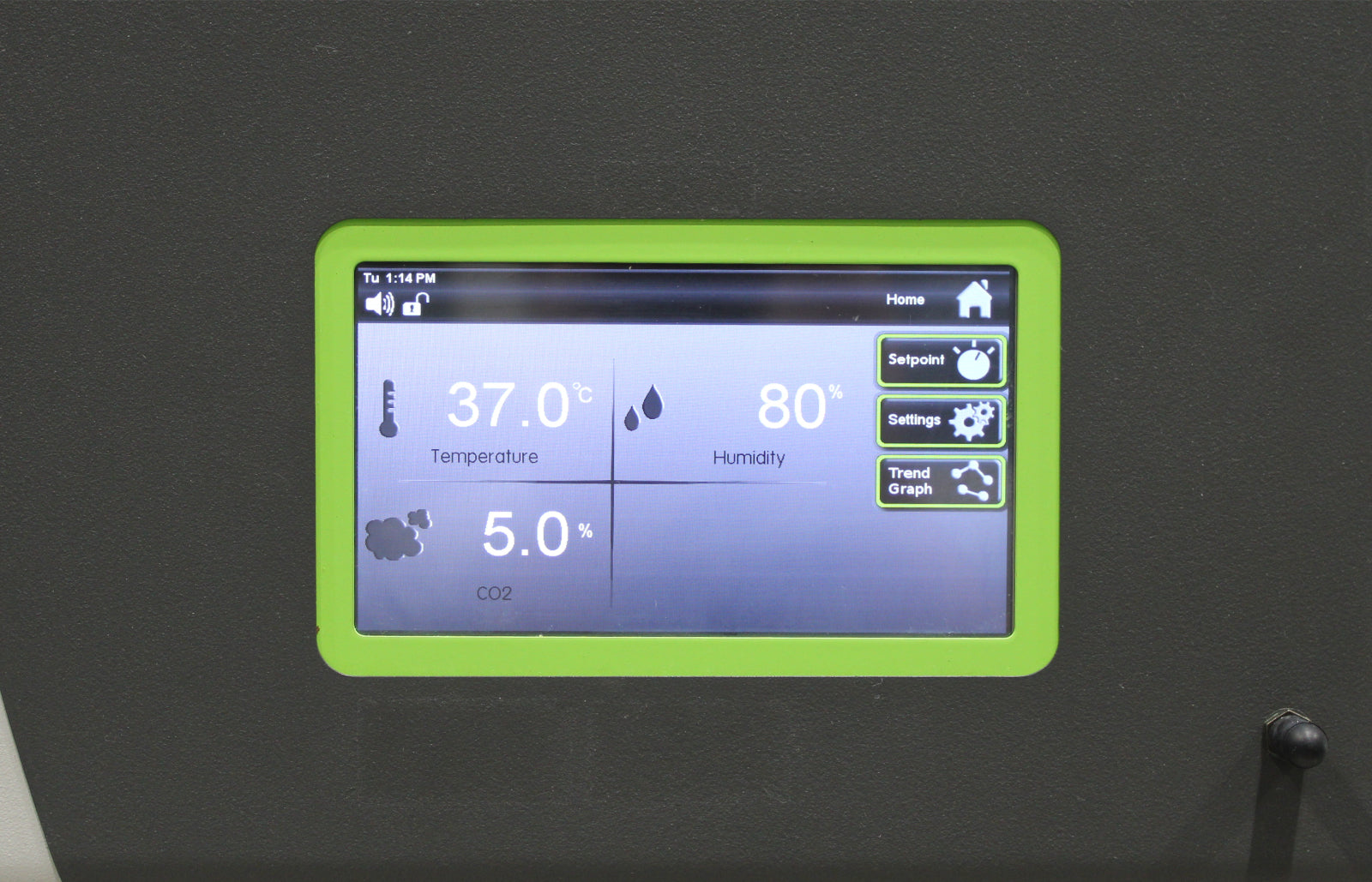

- Temperature holds steady at 37°C setpoint: PASSED
- Temperature calibration: PASSED
- CO2 concentration holds steady at 5% setpoint: PASSED
- CO2 concentration reading calibration: PASSED
- Humidity holds steady at 80% setpoint: PASSED
- Humidity reading calibration: PASSED
|
Manufacturer
|
Caron
|
|
Model
|
7400-25-1
|
|
Serial No.
|
7400-25-1-044M
|
|
Work space
|
25 cu. ft. (708 liters)
|
|
Temperature range
|
10°C above ambient to 60°C
|
|
Temperature control
|
±0.1°C
|
|
Temperature uniformity
|
±0.3°C
|
|
Temperature sensor
|
RTD
|
|
Humidity range (with standard water pan)
|
Elevated up to 95% @ 37°C
|
|
Controlled humidity range (with optional HUMD304)
|
Ambient to 95% RH, ±3% RH
|
|
CO2 range
|
0-20%
|
|
CO2 control
|
±0.1%
|
|
CO2 sensor
|
Infrared CO2 sensor
|
|
Interior construction
|
Type 304, 2B finish solid stainless steel
|
|
Exterior construction
|
Powder coated cold rolled steel
|
|
Number of shelves
|
4 standard; 25 maximum
|
|
Shelf construction
|
Type 304, perforated stainless steel, electropolished
|
|

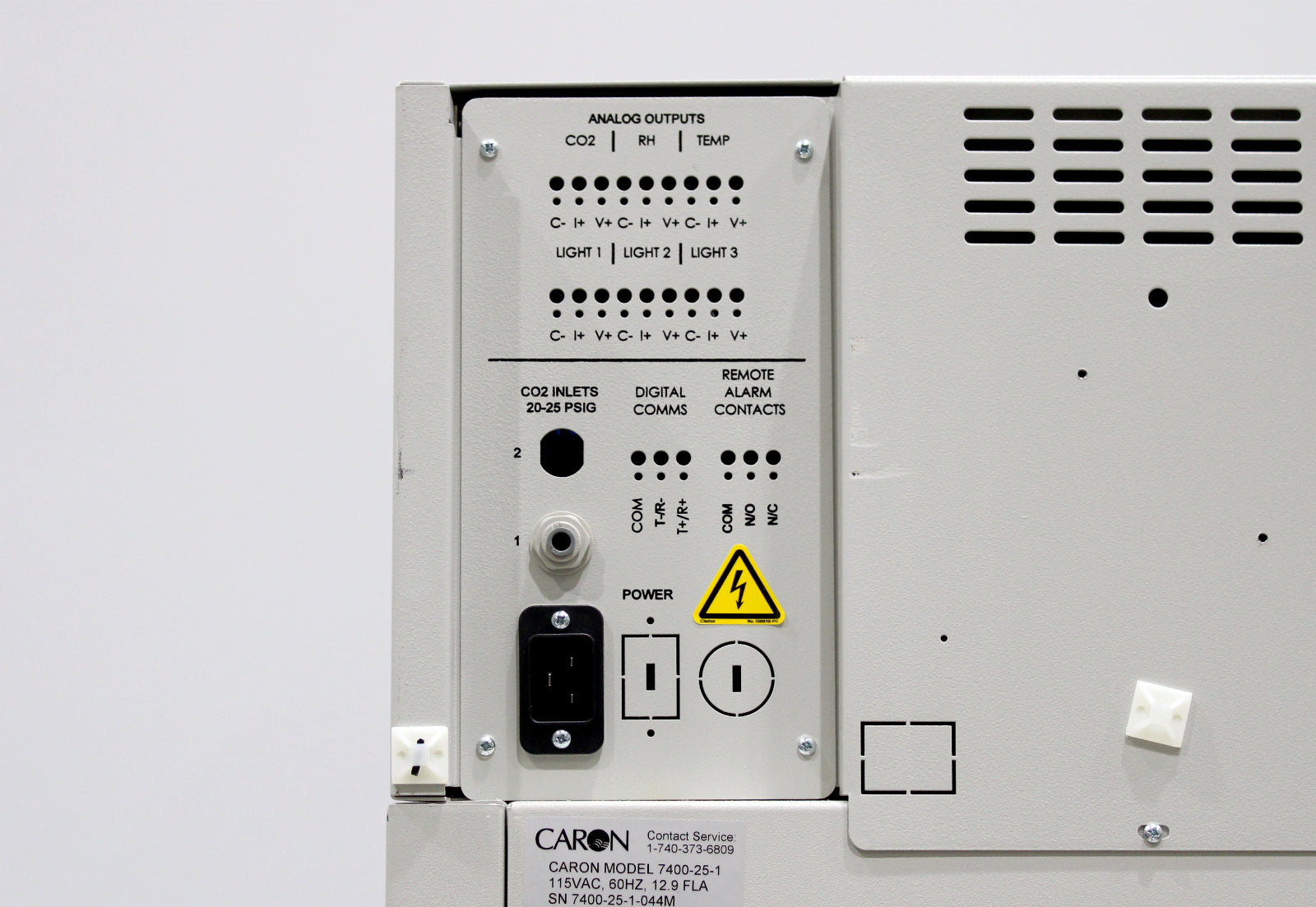

Power rating
|
115VAC, 60Hz, 12.9FLA
|
|
Shelf dimensions (W x D)
|
29.25 x 24.45 in (74.3 x 62.1 cm)
|
|
Interior dimensions (W x D x H)
|
32 x 27 x 52.7 in (81.3 x 68.6 x 133.9 cm)
|
|
Exterior dimensions (W x D x H)
|
35.5 x 33.3 x 77.1 in (90.2 x 84.6 x 195.8 cm)
|
|
Weight
|
725 lb (329 kg)
|
|

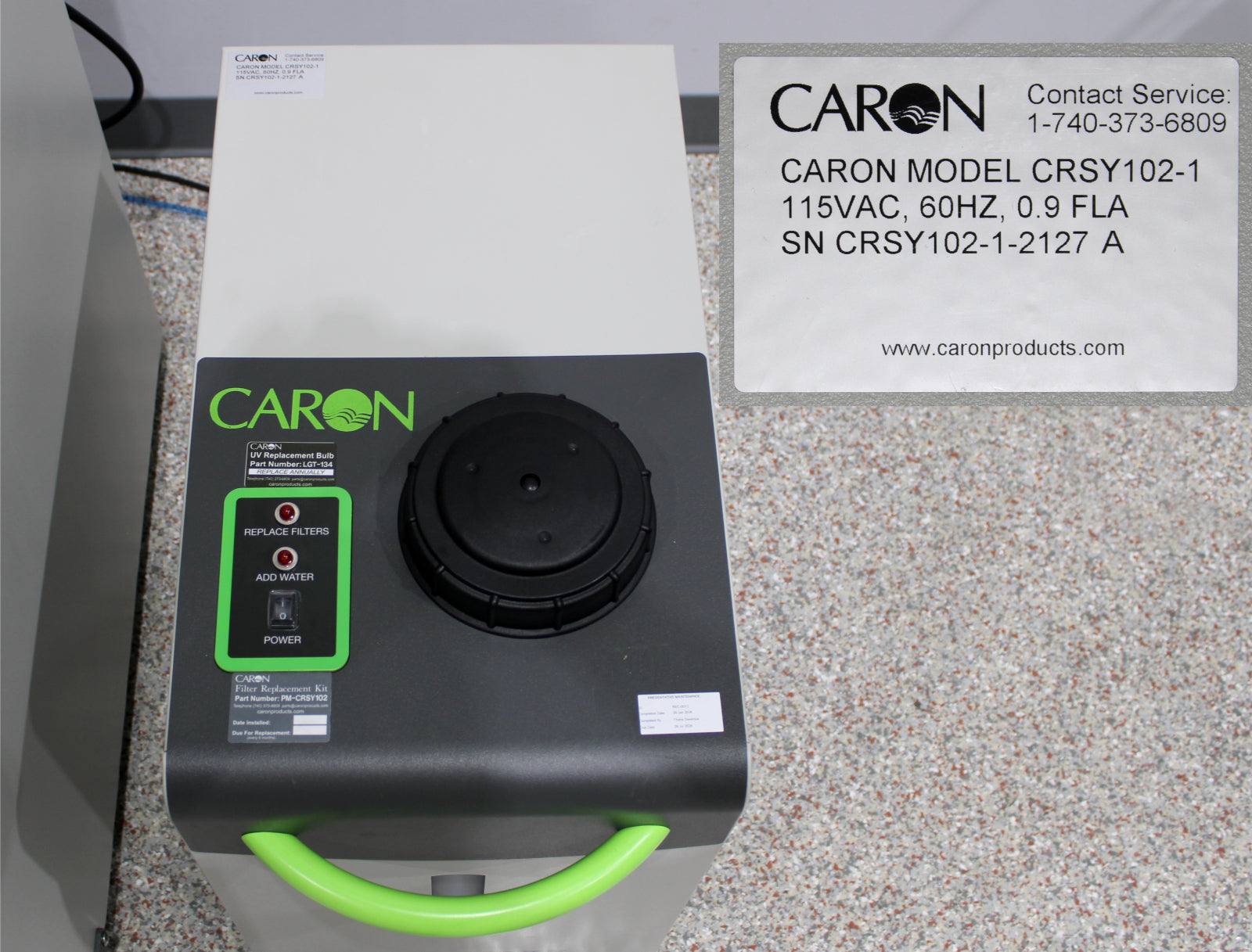

Manufacturer
|
Caron
|
|
Model
|
CRSY102-1
|
|
Serial No.
|
CRSY102-1-2127 A
|
|
Water purity*
|
100-125 k𝝮-cm
|
|
Water reservoir
|
7 gallons (26.5 liters)
|
|
Exterior material
|
Durable powder coated metal
|
|
Plug type
|
NEMA 5-15P
|
|
Power rating
|
115V, 60Hz, 0.9A
|
|
Exterior dimensions (W x D x H)
|
14 x 26.5 x 26.6 in (35.5 x 67.3 x 67.7 cm)
|
|
Weight, empty
|
84 lb (38 kg)
|
*Water purity measured internally.
