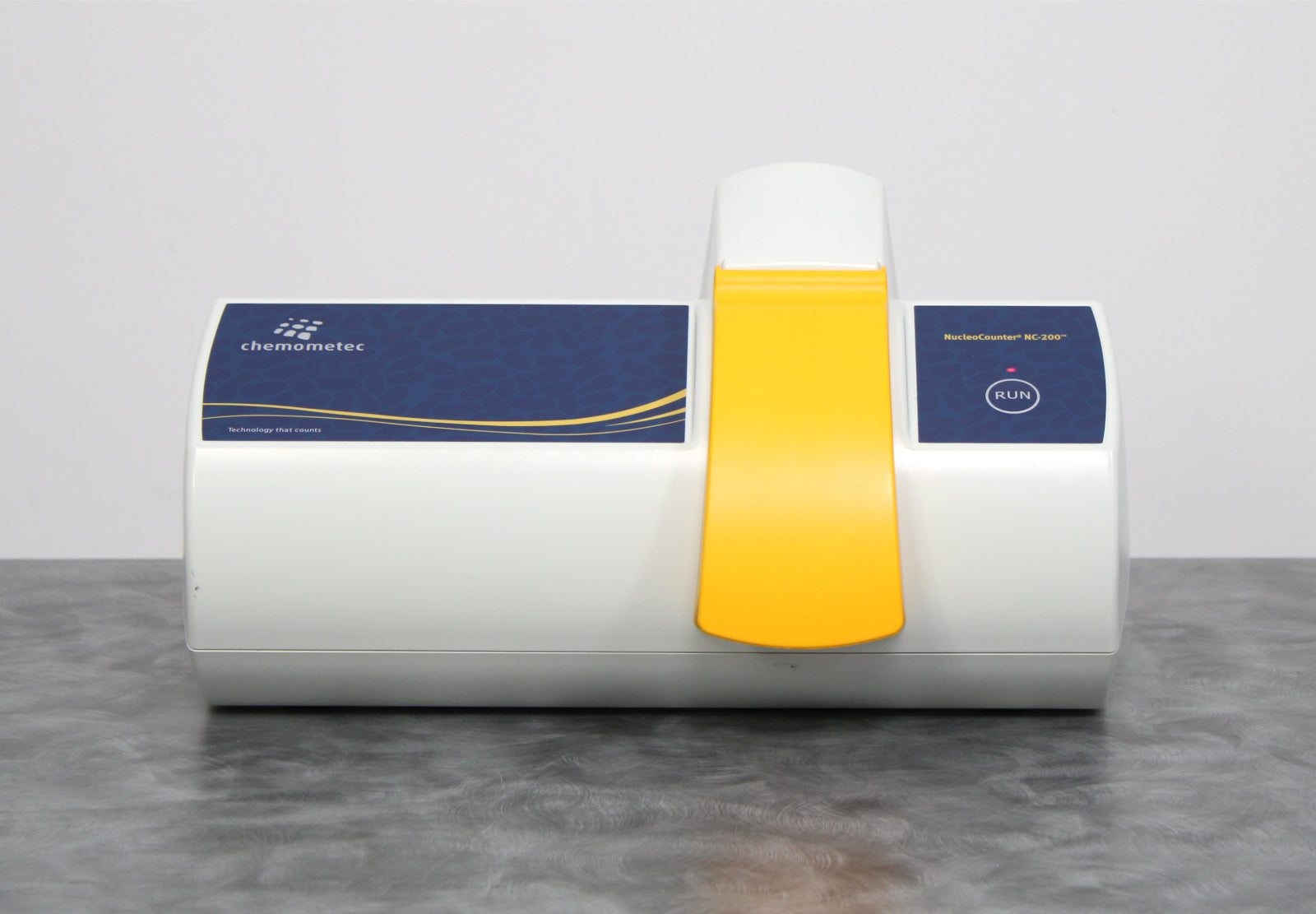

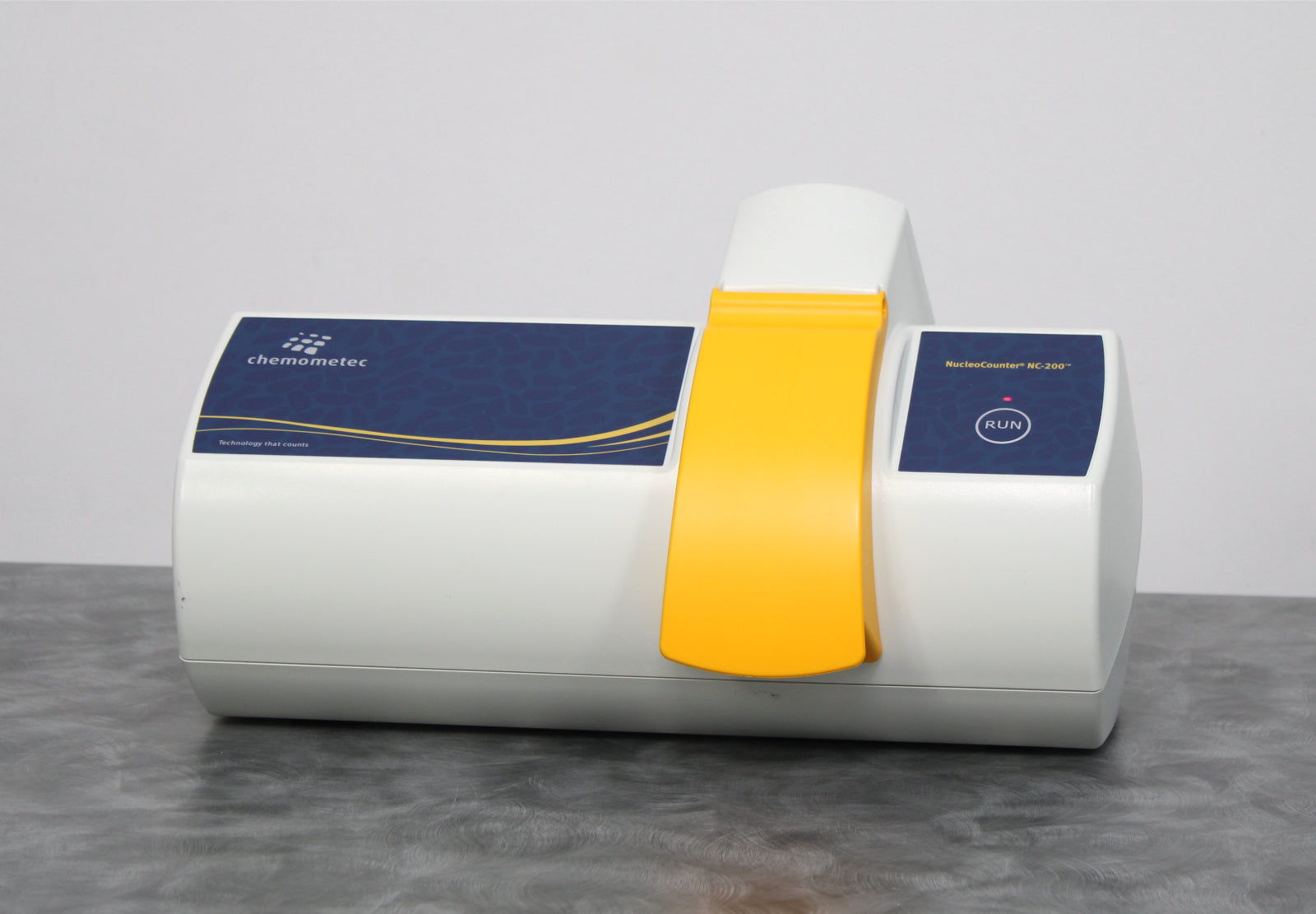

- ChemoMetec NucleoCounter NC-200 Automated Cell Counter

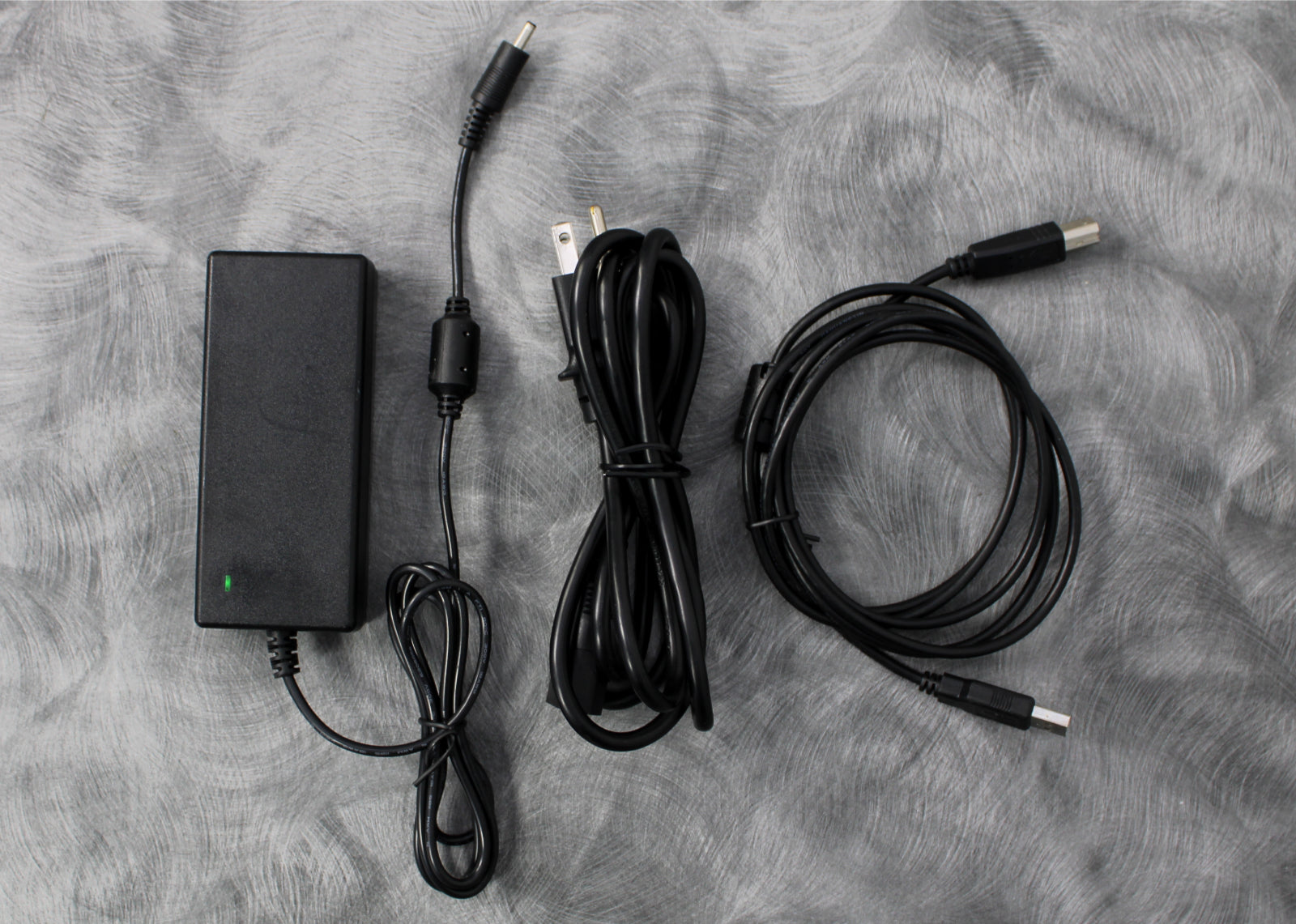

- USB Cable
- Power Adapter
- Power Cable
- 90-Day Warranty
- Computer, Software, and Configuration files
- Consumables
Notice: You will need a computer, software, and configuration files which are available through a "pre-owned package" that the manufacturer offers for an additional cost.

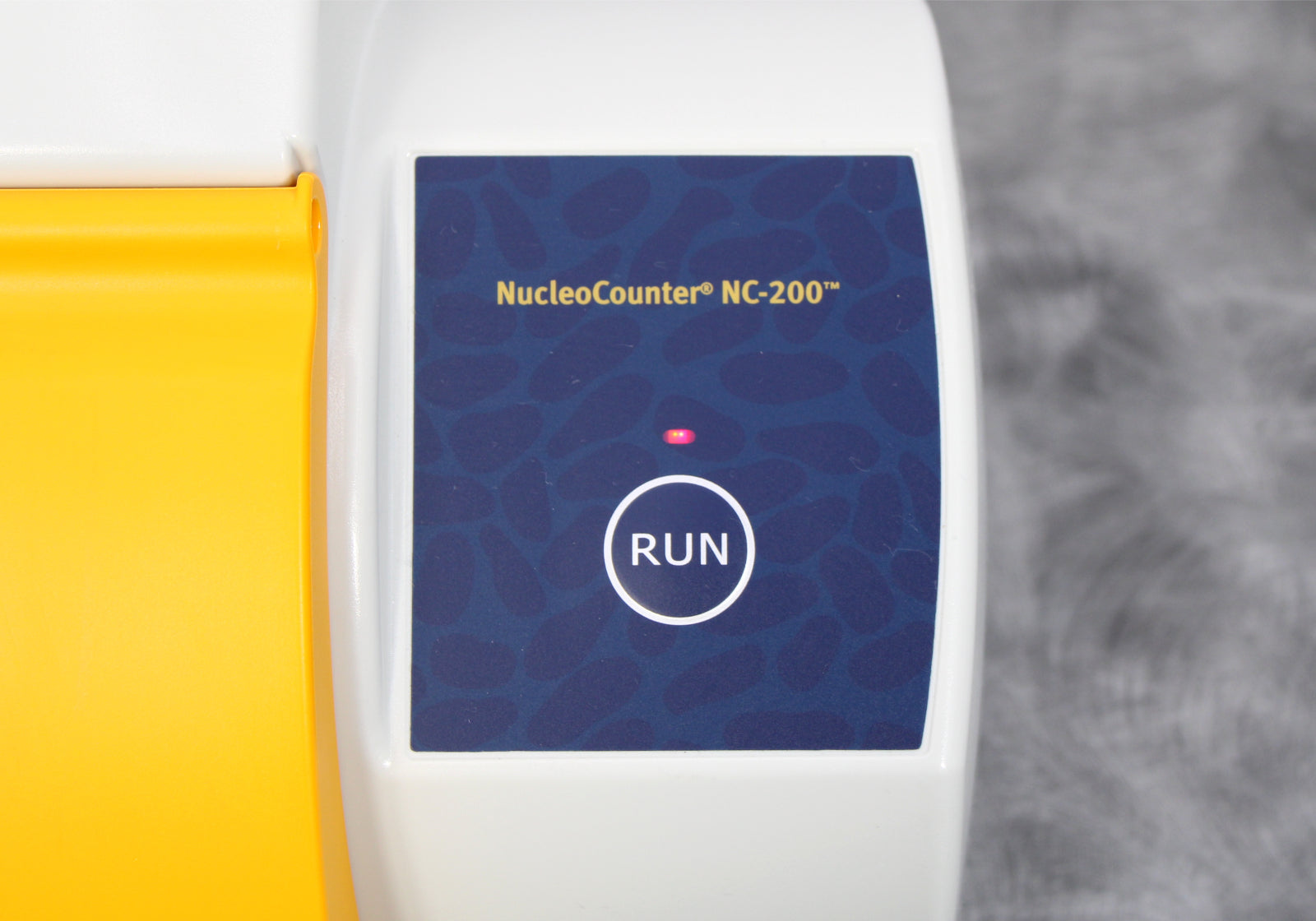

We powered on this NucleoCounter NC-200 and observed the status light illuminate as red when not connected to software. We then connected it to a computer with software and the connection was recognized. No further testing was performed.
|
Manufacturer
|
ChemoMetec
|
|
Model
|
NucleoCounter NC-200
|
|

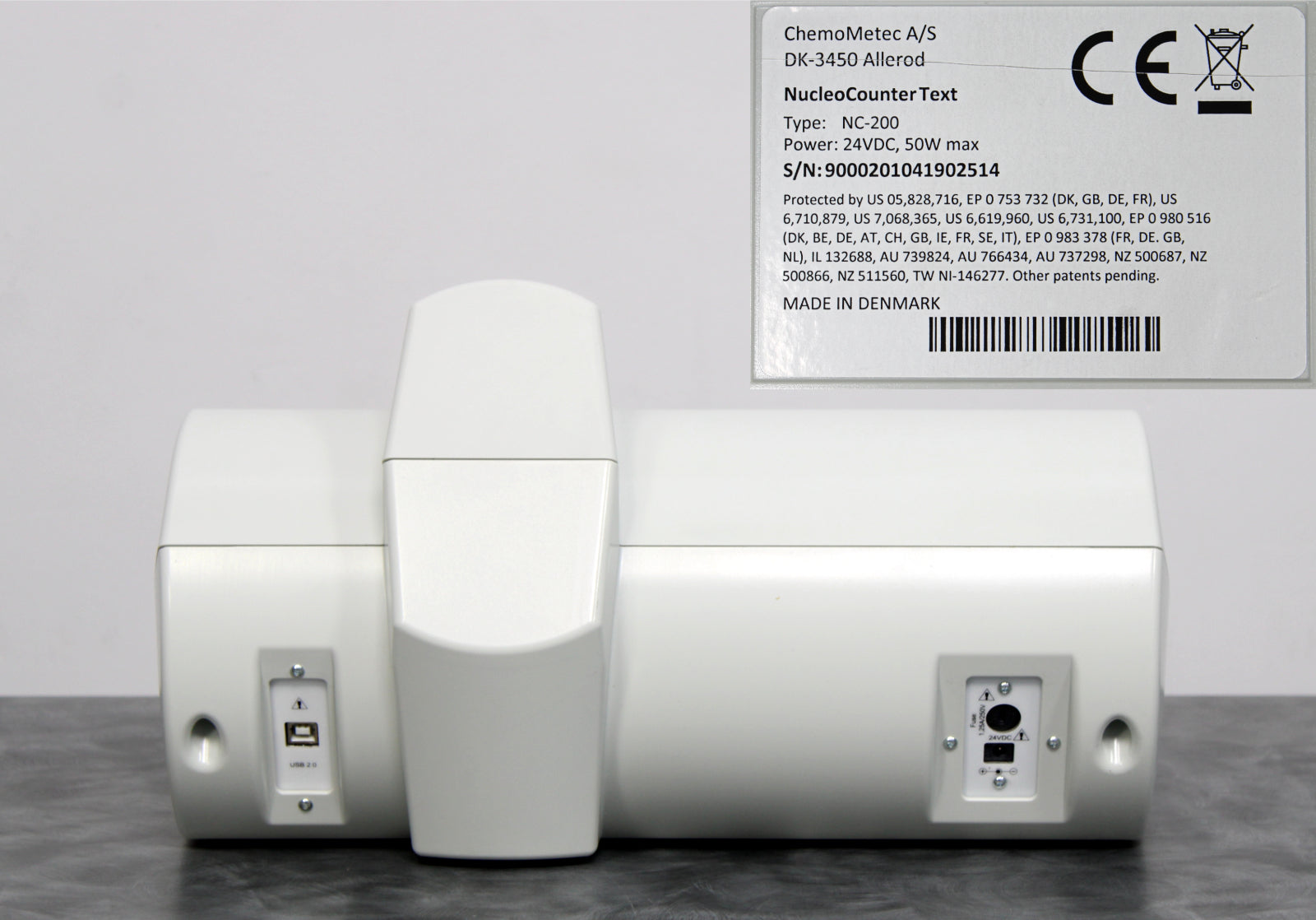

Serial No.
|
9000201041902514
|
|
Application type(s)
|
Cell count & viability for mammalian cells
|
|
Cell type(s)
|
Mammalian cells, including cell lines, leukopaks, PBMCs, whole blood, MSCs, T-cells, aggregated cells, & microcarriers
|
|
Software
|
NucleoView
|
|
Consumable(s)
|
Via1-Cassette
|
|
Capacity (analysis time)
|
50 seconds (one step), 120 seconds (two steps)
|
|
Loading volume
|
60 µl
|
|
Analysis volume
|
1.4 µl
|
|
Optimal range
|
5x104 to 5x106 cells/ml
|
|
Staining dye(s)
|
Acridine orange (AO), DAPI
|
|
Excitation
|
2 LED light sources peaking at 365 nm and 505 nm, dark field light
|
|
Emission (nm)
|
A single dual-band emission filter: 410-460 nm and 540-650 nm
|
|
Optics
|
Lens with x1.3 magnification, 1/2” CMOS camera
|
|
Data output
|
Images, tables, histograms, scatter plots
|
|
Data export formats
|
.cm, .csv, .pdf, .cmpp, .bmp, .tiff
|
|
Supply voltage
|
24VDC (100-240V ~50-60Hz)
|
|
Power consumption
|
50W max
|
|
Dimensions (W x D x H)
|
15.75 x 9.8 x 9 in (40 x 25 x 23 cm)
|
|
Weight
|
9.9 lb (4.5 kg)
|
