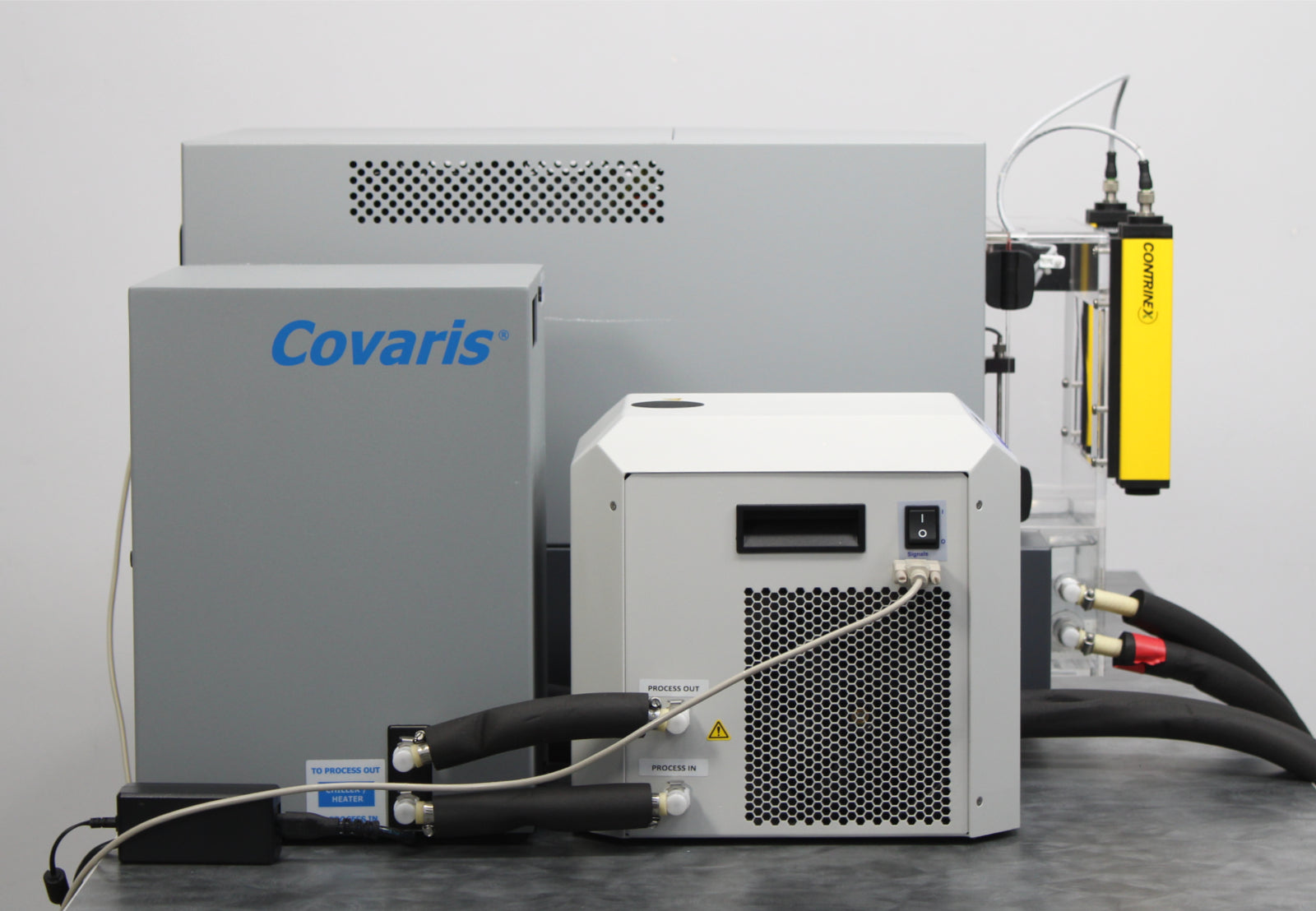

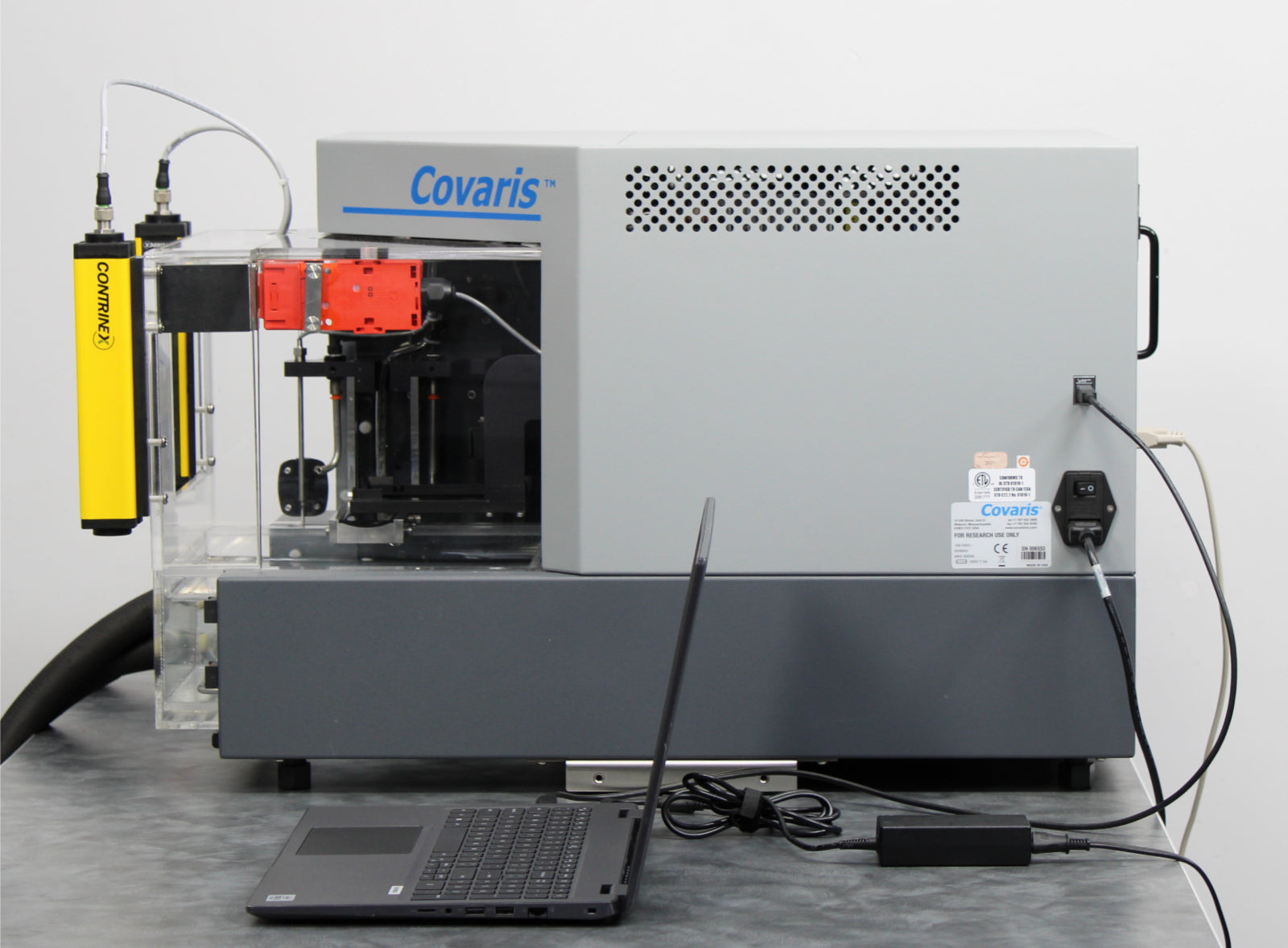

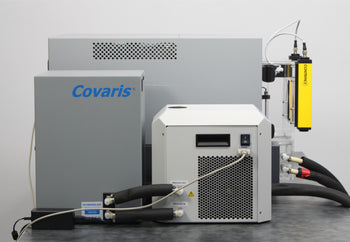

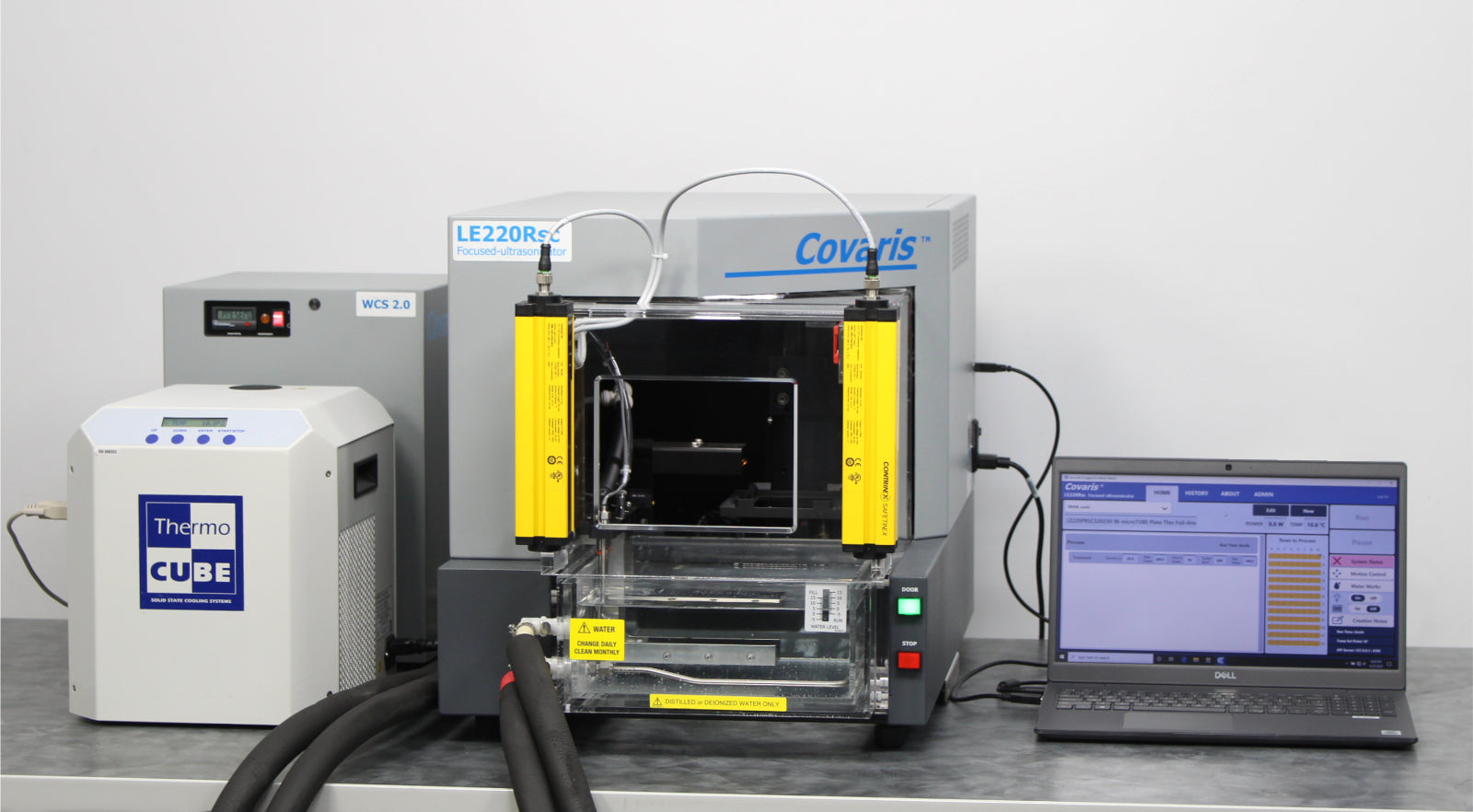

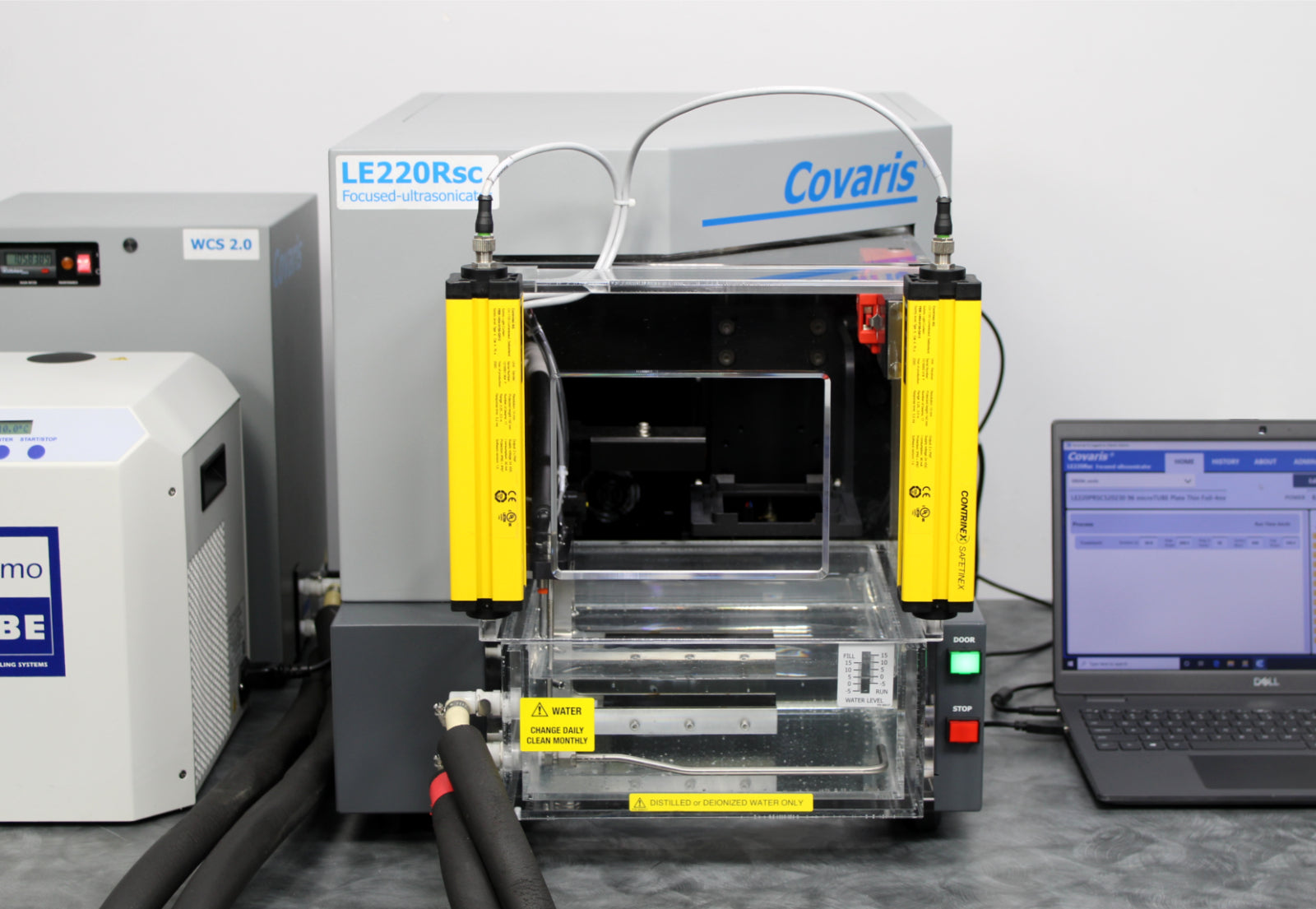

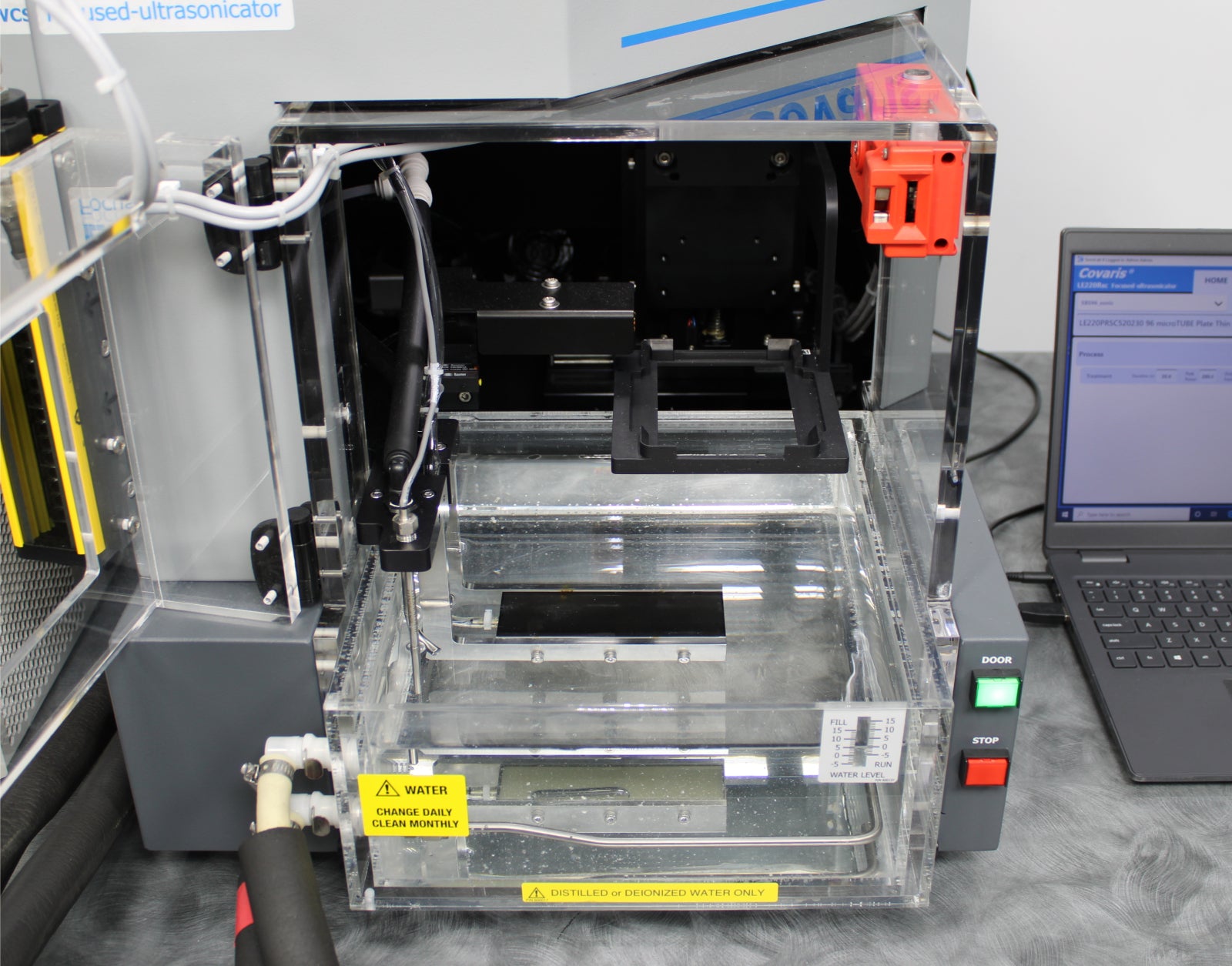

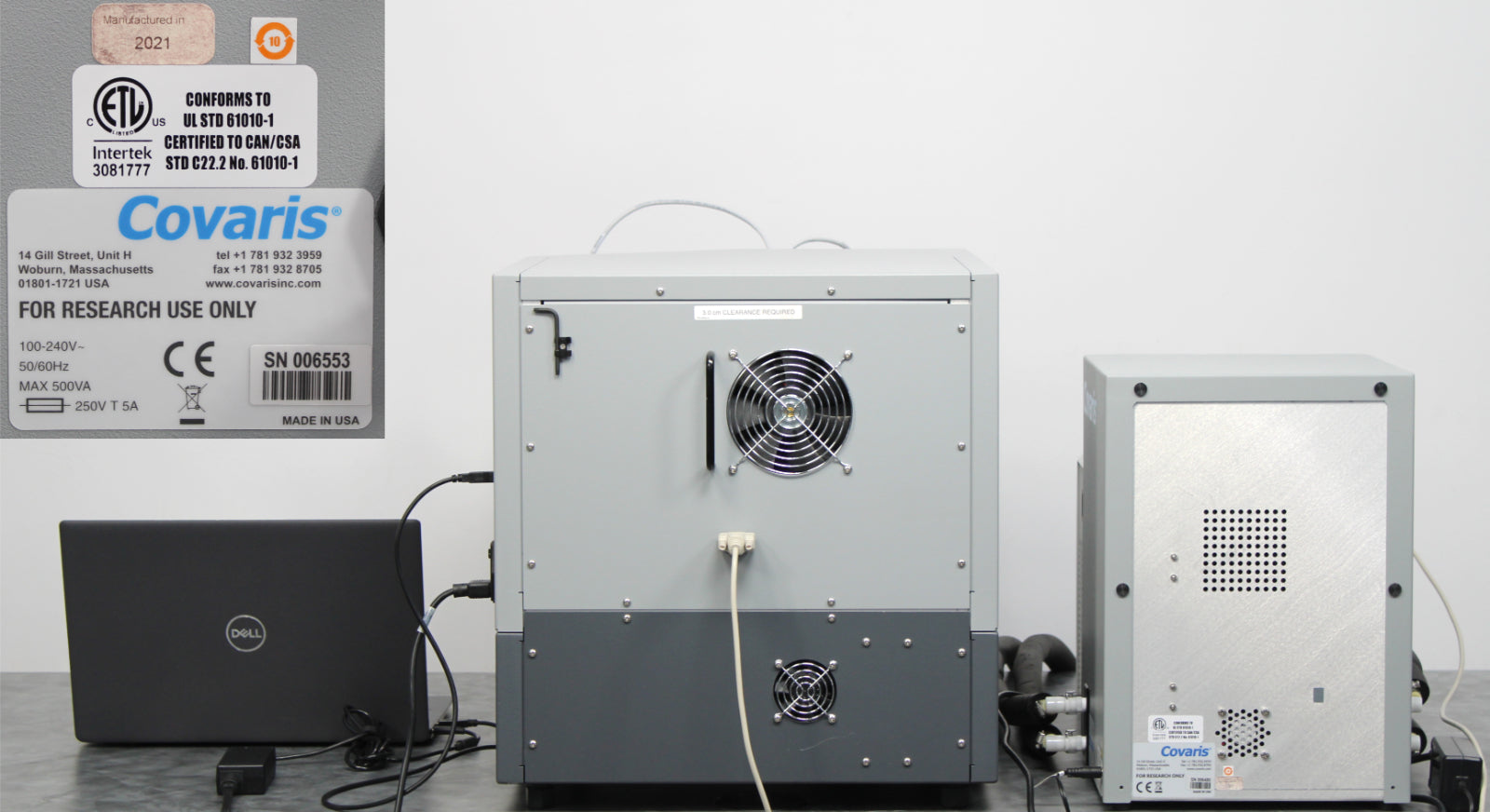

- Covaris LE220Rsc Focused-Ultrasonicator

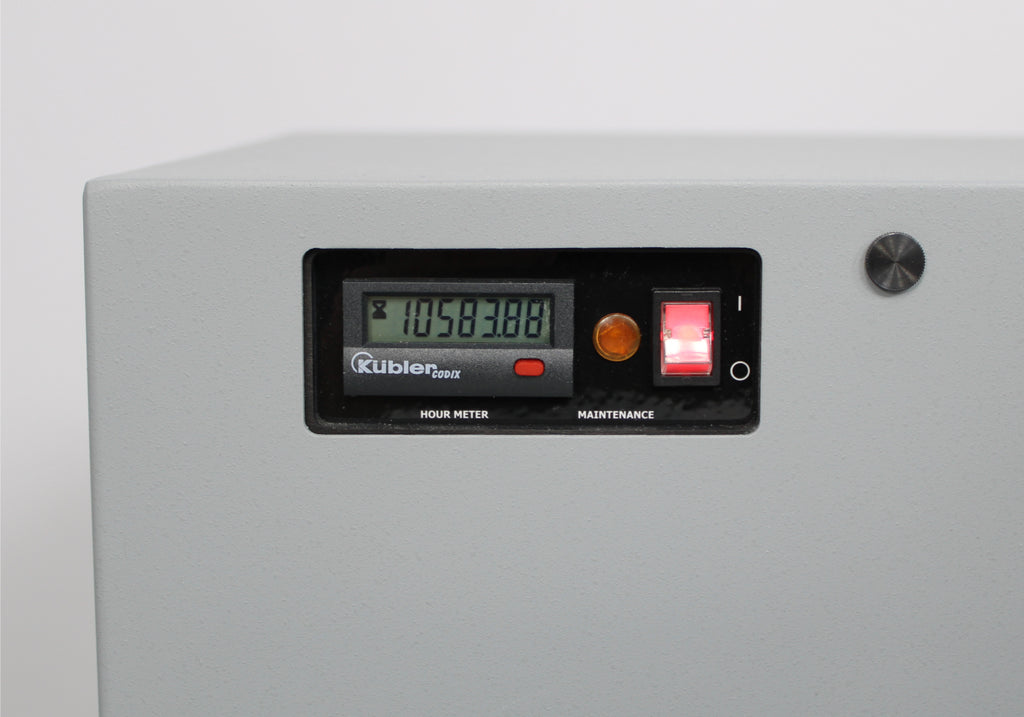

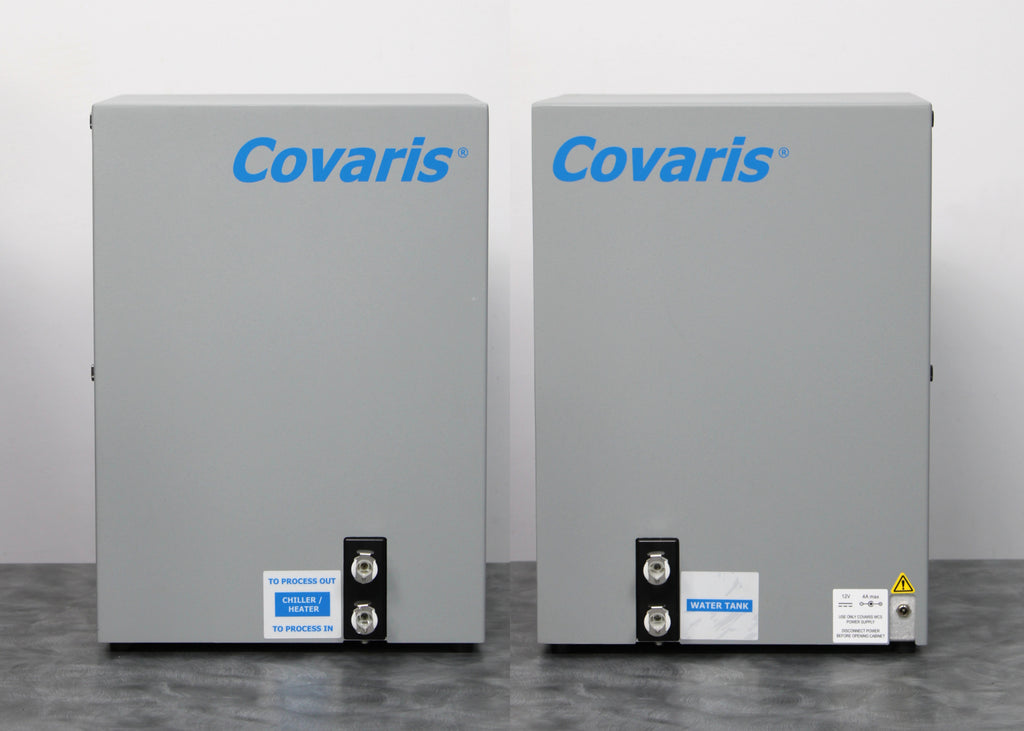

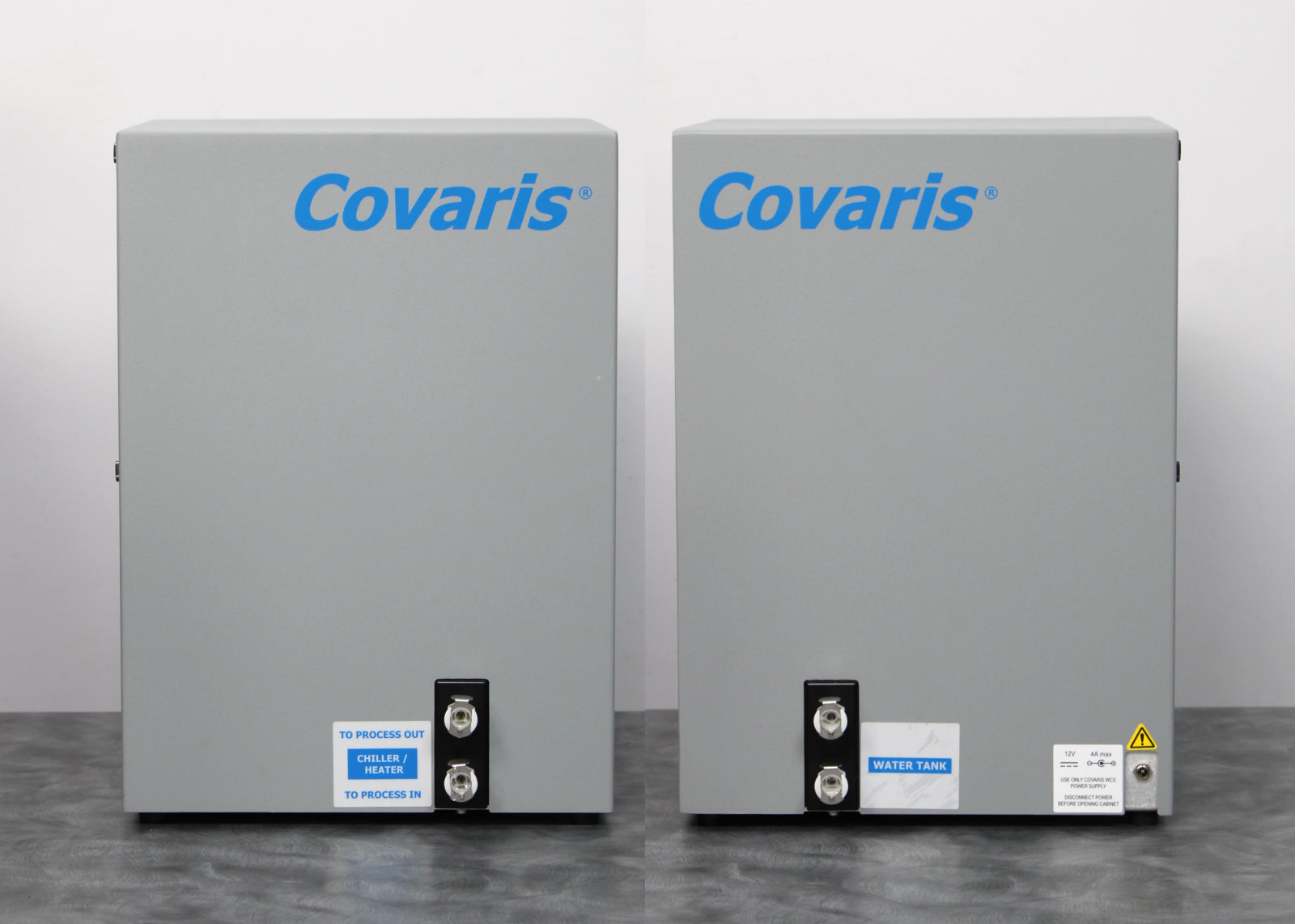

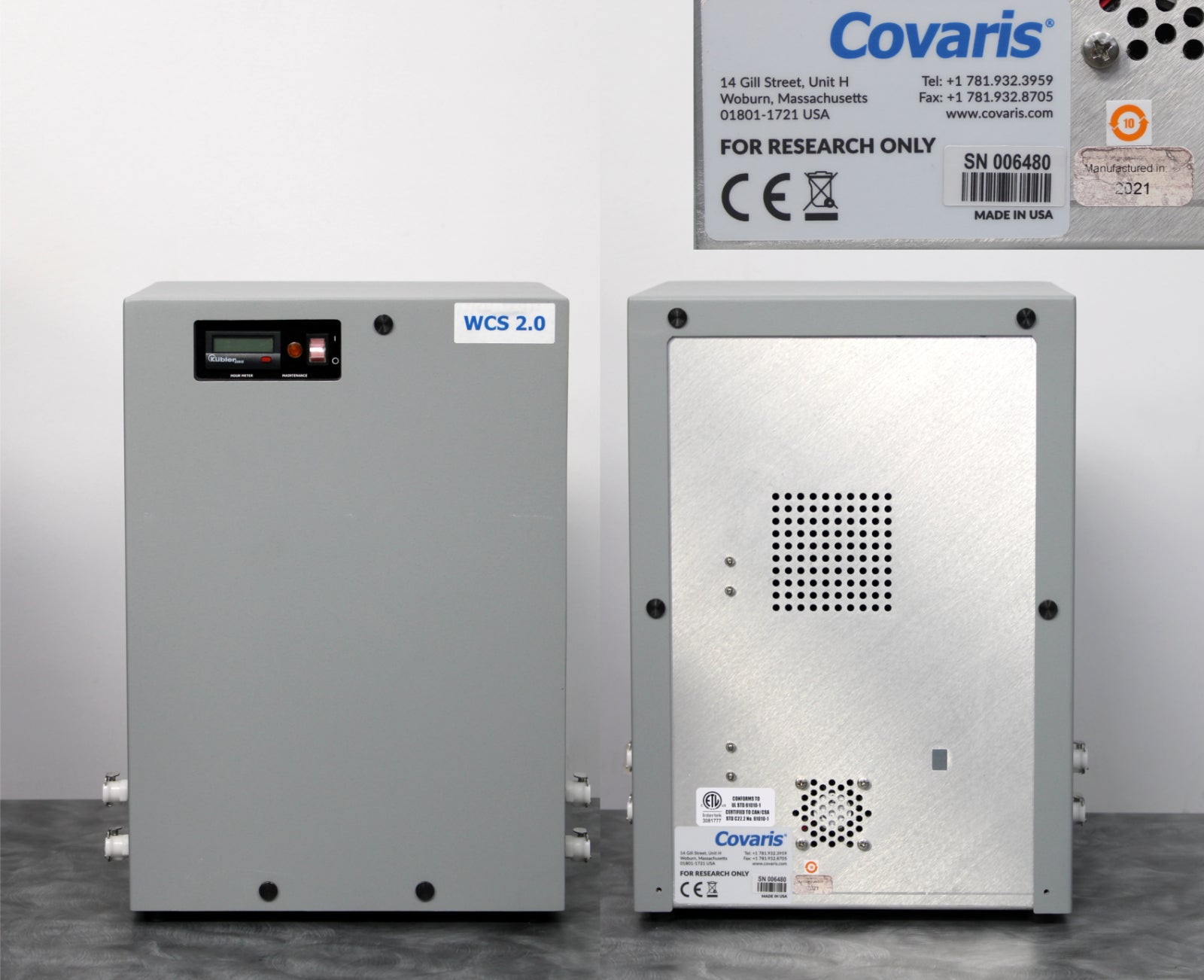

- Covaris WCS 2.0 Water Conditioning System

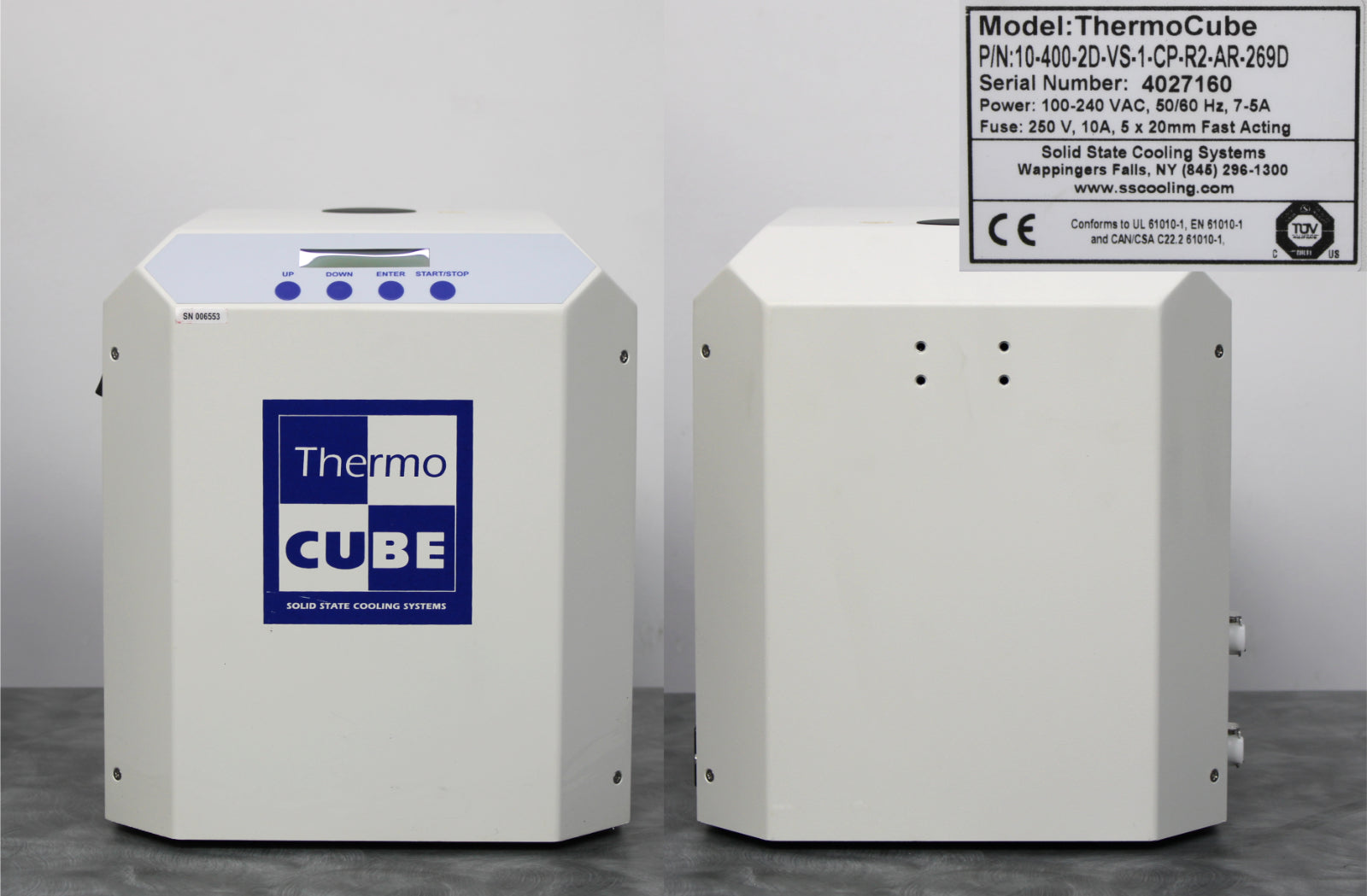

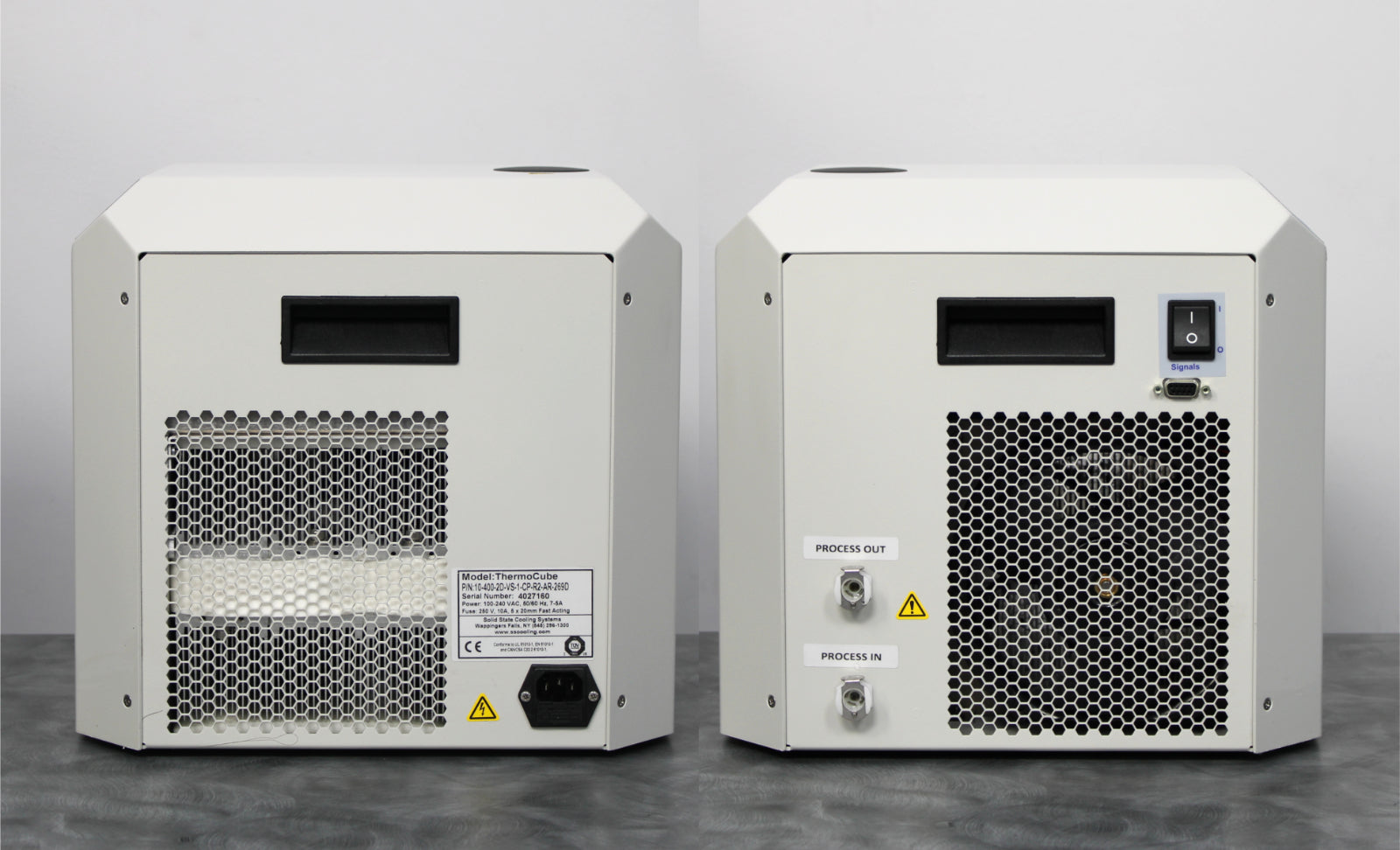

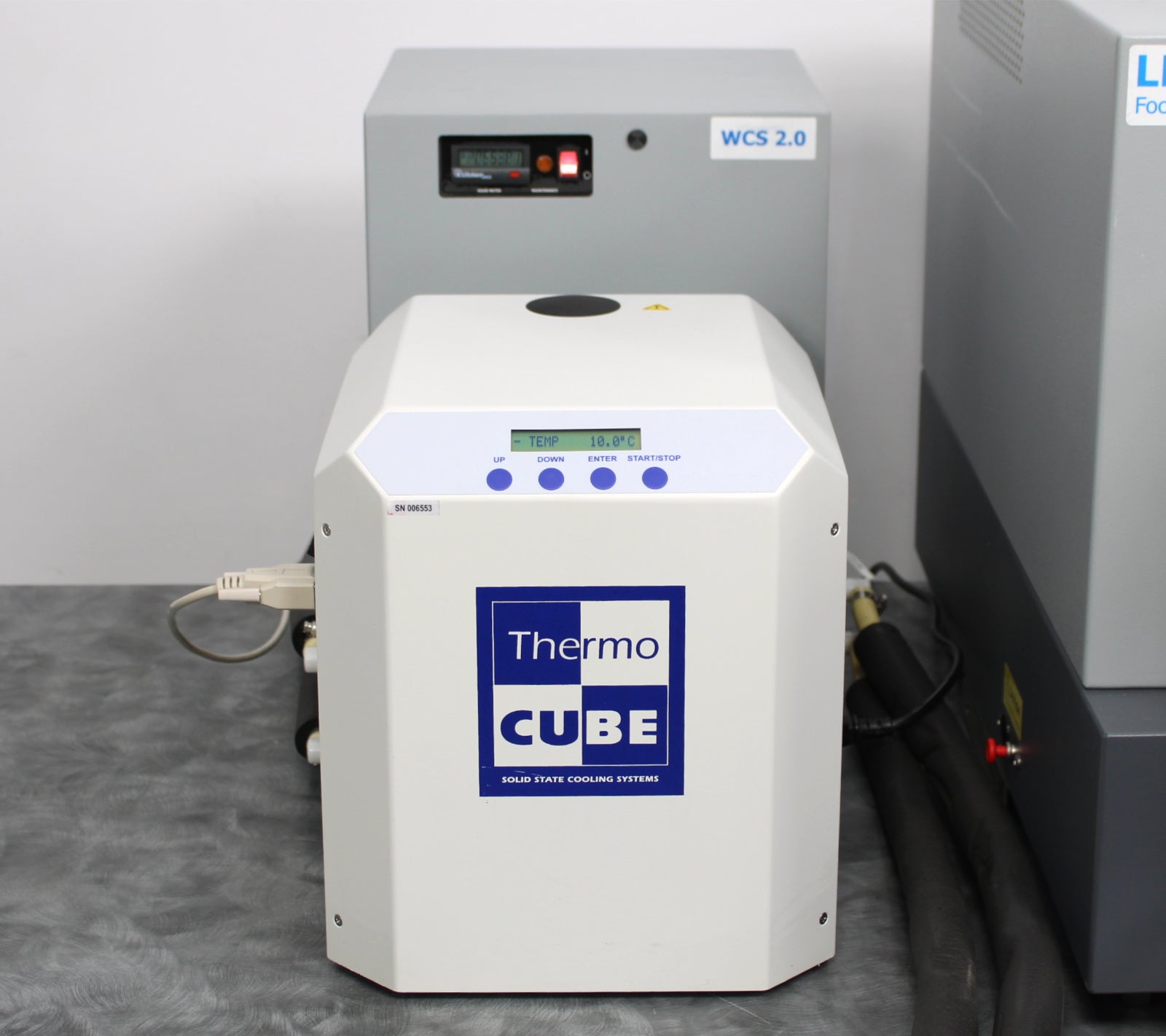

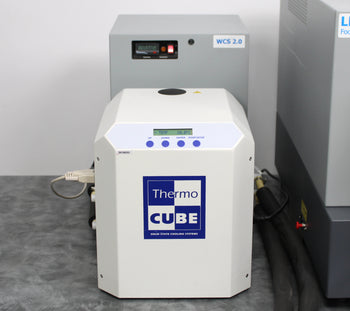

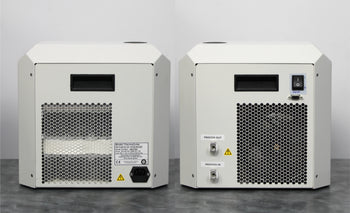

- Solid State Cooling Systems ThermoCube Thermoelectric Recirculating Chiller (10-400-2D-VS-1-CP-R2-AR-269D)
- Tubing

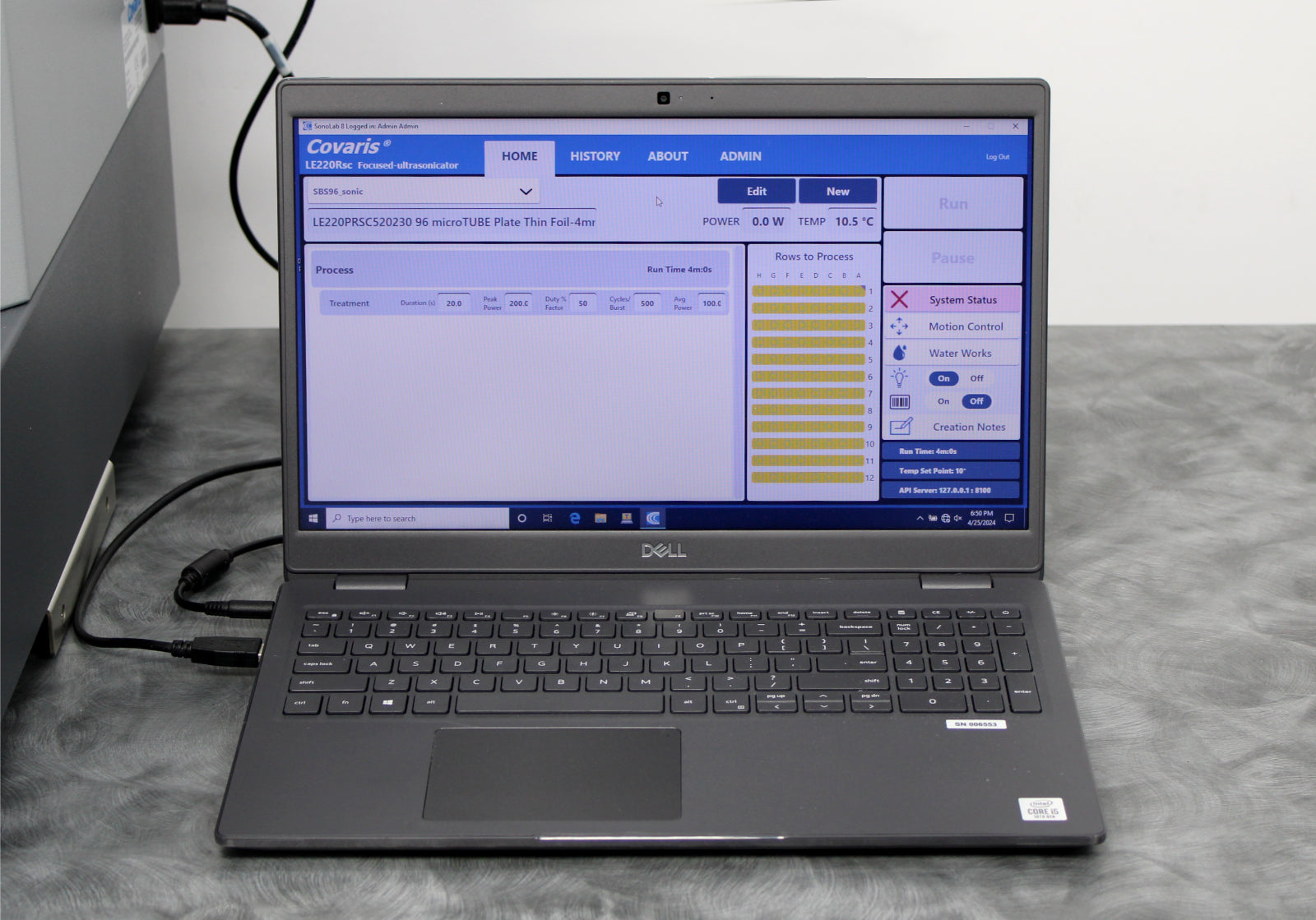

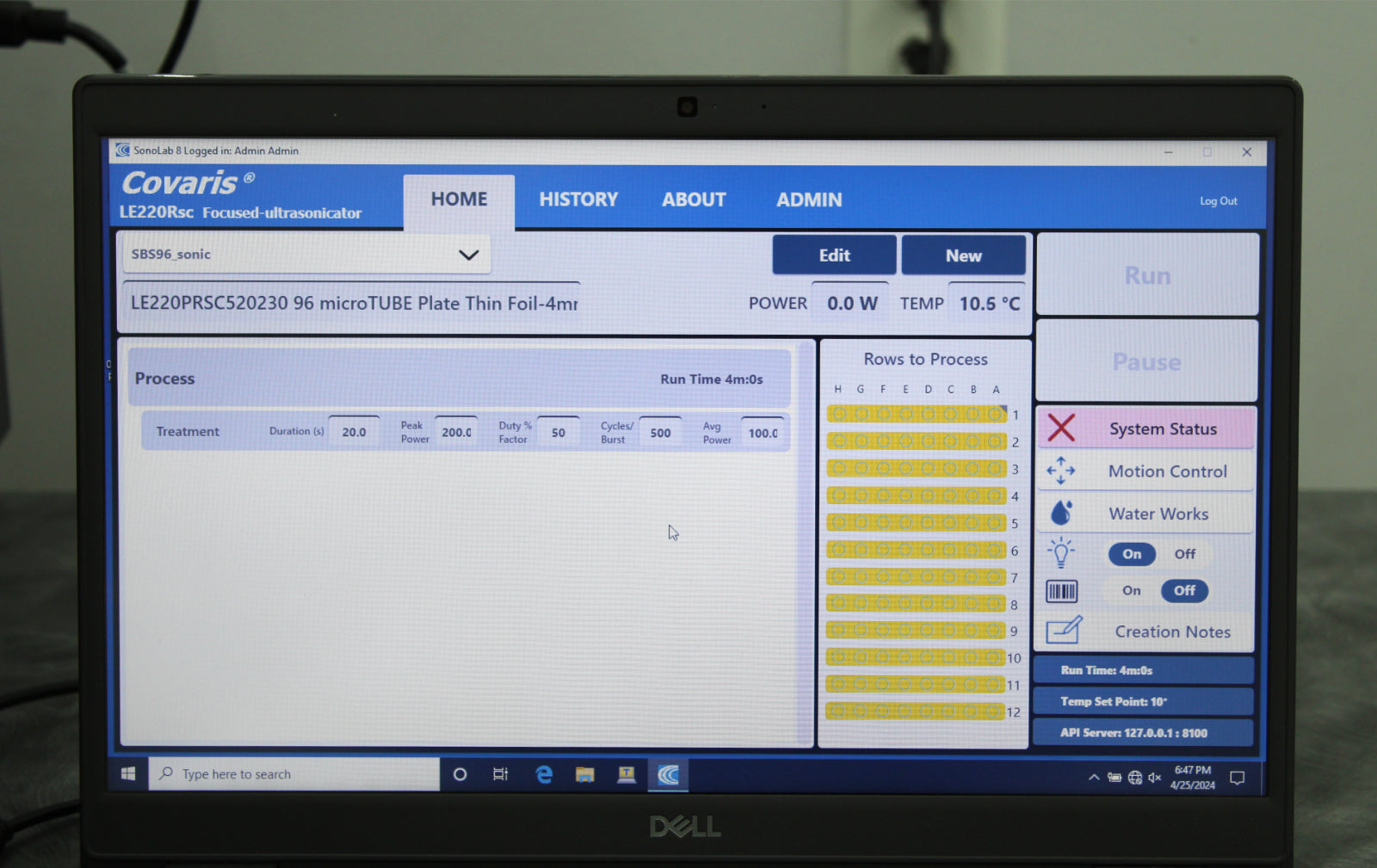

- Laptop with SonoLab 8 Software Installed
- USB Cable
- Serial Cable
- Water Condition System Power Adapter
- Laptop Power Adapter
- Power Cables
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Covaris LE220Rsc focused-ultrasonicator with the following results:

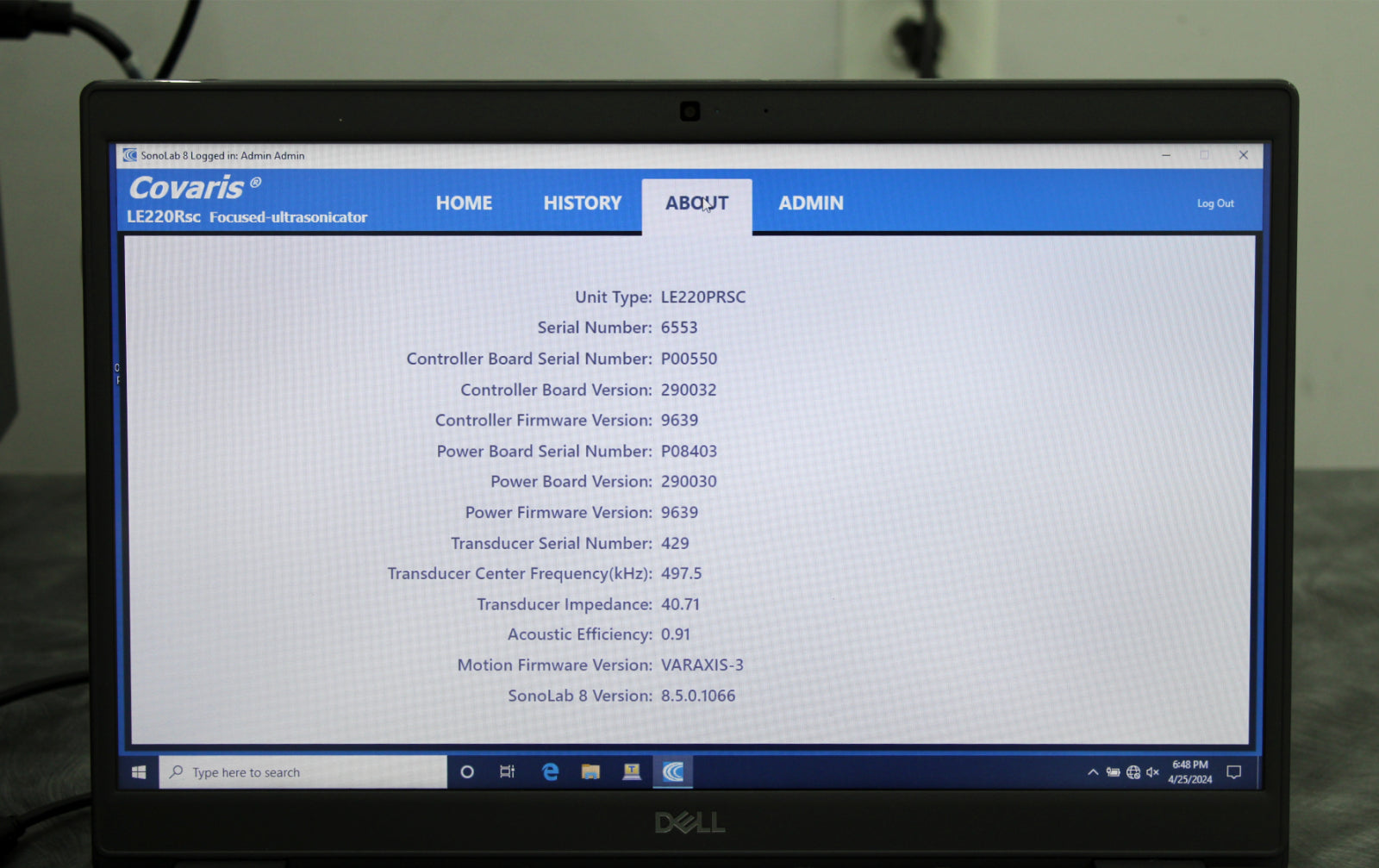

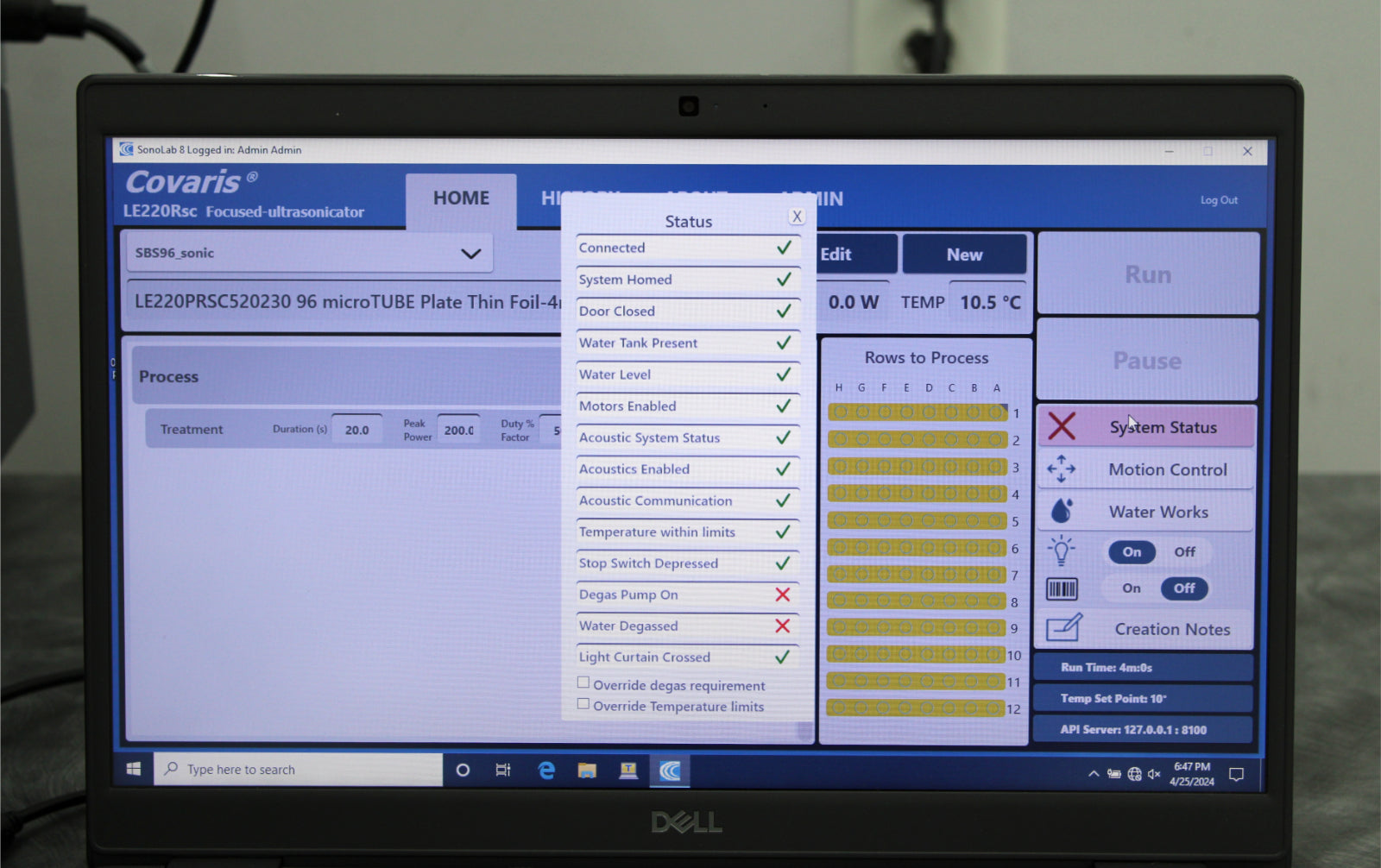

- Ultrasonicator and software connection: PASSED
- Chiller and software connection: PASSED
- Initialization and homing: PASSED
- Moved into service position: PASSED
- Performed run with sonics at 50% and empty: PASSED

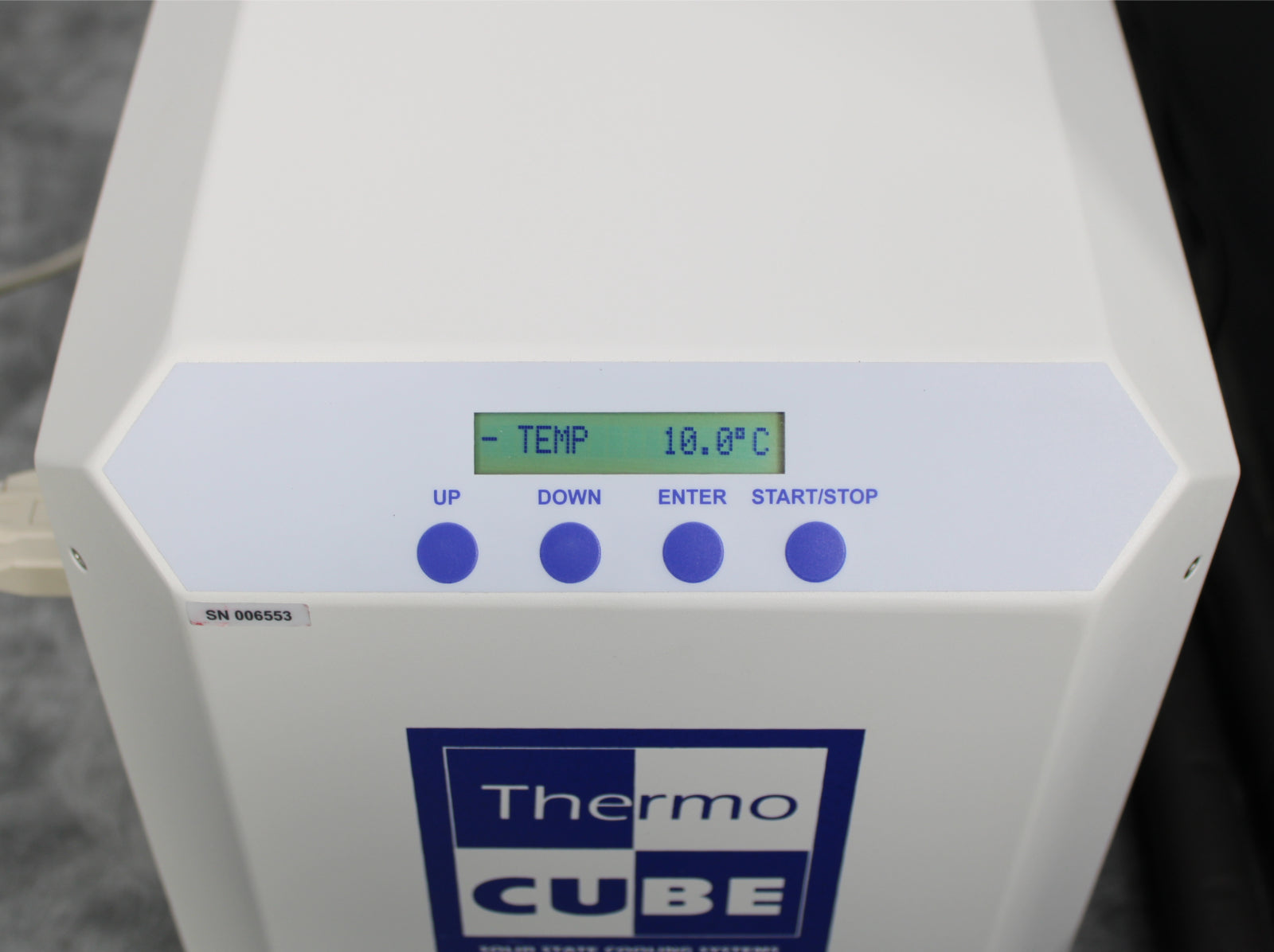

- Chiller reaches and holds 10°C: PASSED
- Light block system: PASSED
- Water circulation: PASSED
Notice: This system has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Covaris
|
|
Model
|
LE220Rsc
|
|
Serial No.
|
6553
|
|
Primary applications
|
Cell lysis: mammalian, bacterial, yeast, DNA/RNA/Chromatin Shearing, DNA, RNA, Protein, and Biomarker extraction, DNA/ RNA Shearing for NGS, Cell Lysis, High Molecular Weight DNA Extraction
|
|
Treatment power
|
0.1-250 W Avg. incident power
|
|
SonoLab version
|
SonoLab 8
|
|
Operating system
|
Windows 10
|
|
Water conditioning system
|
WCS 2.0
|
|
Chiller
|
UltraCUBE
|
|
NGS sample volume
|
5 to 320 µl
|
|
Recommended batch size
|
Up to 384 samples
|
|
Covaris consumables
|
miniTUBES, milliTUBES, microTUBES, 96 AFA-TUBE TPX plate(with RFID), 384 AFA-TUBE TPX plate (with RFID)
|
|
Upgrade potential
|
No
|
|
Operating environment
|
Ambient temperature: 19 to 25°C (66 to 77°F) Relative humidity: 30 to 70%
|
|
Operating temperature
|
5 to 40°C
|
|
Safety
|
Complies with Low Voltage Directive 2006/95/EC. Certified to IEC/EN/UL 61010-1:2004 “Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use, Part1: General Requirements
|
|
Power consumption
|
500VA max.
|
|
Power rating
|
100-240V~, 50/60Hz
|
|
Dimensions (W x D x H)
|
24 x 35.4 x 18.9 in (61 x 90 x 48 cm)
|
|
Weight
|
180 lb (81.6 kg)
|
