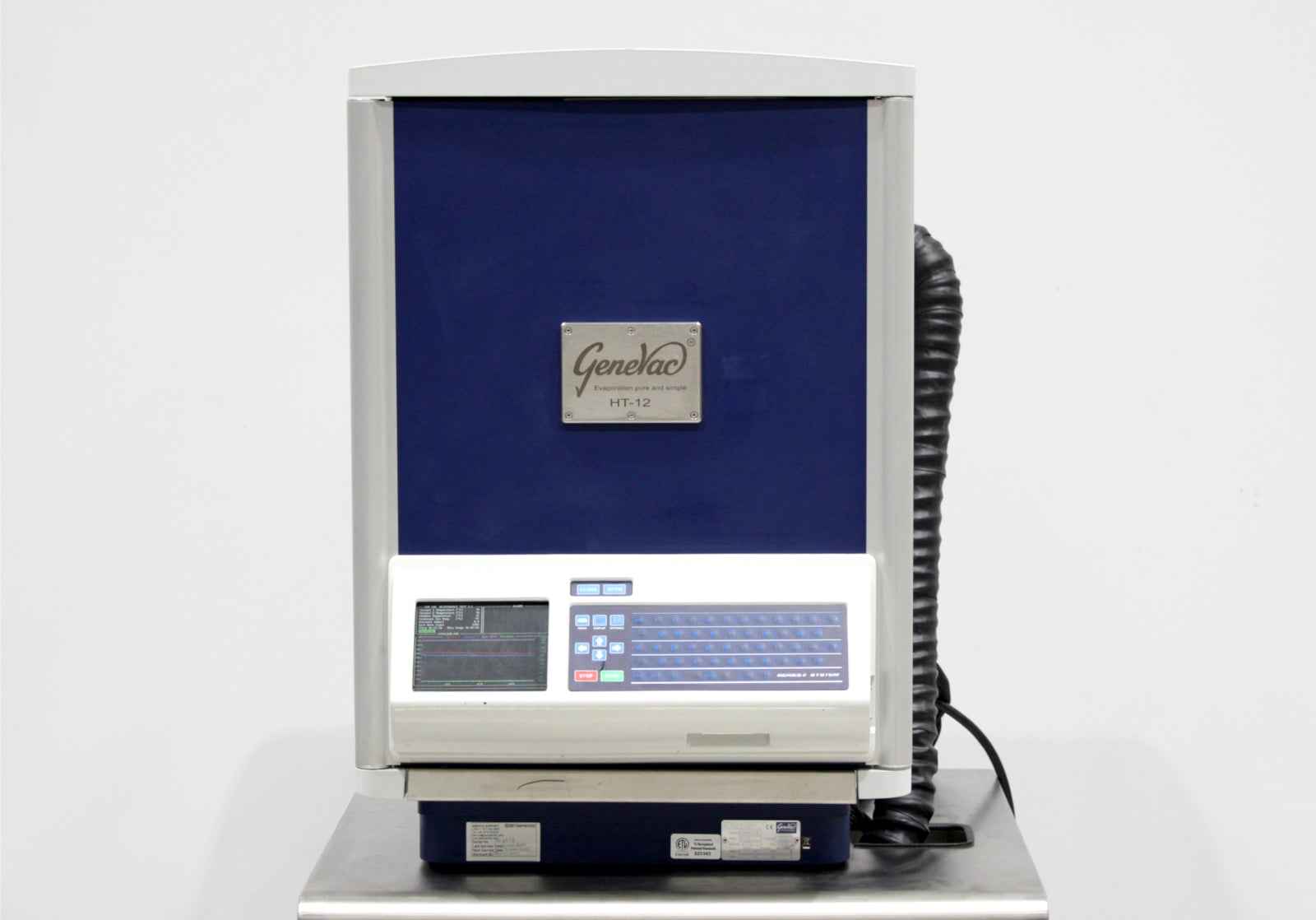

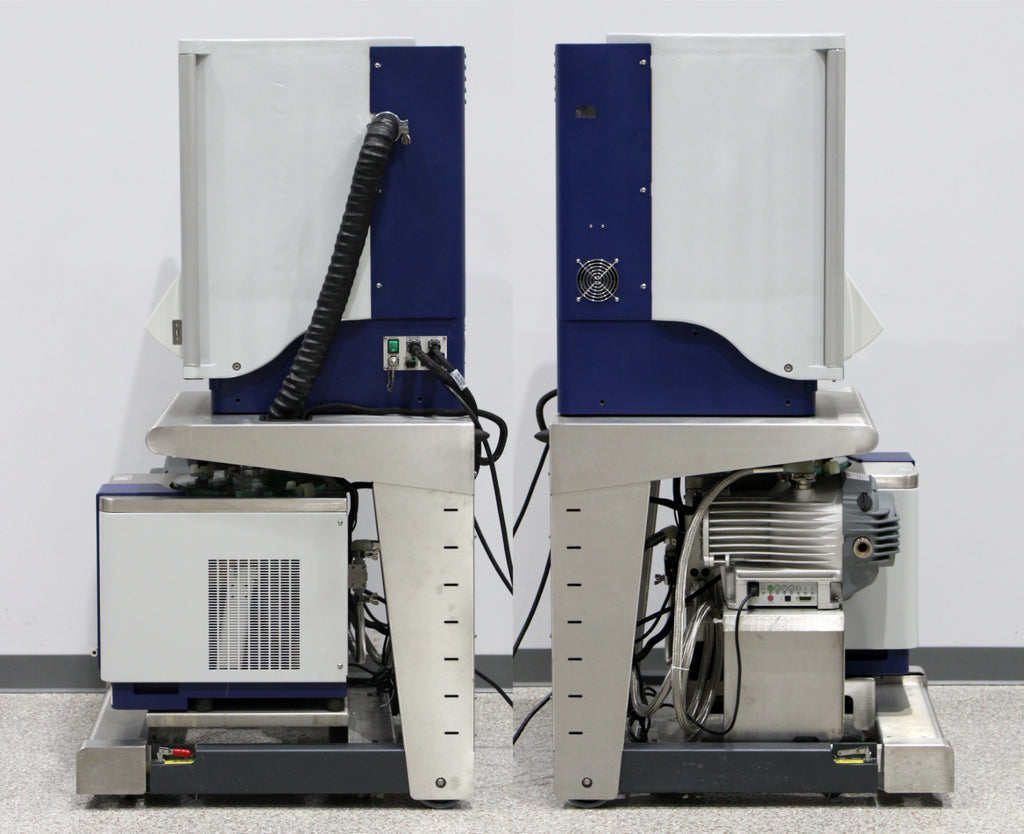

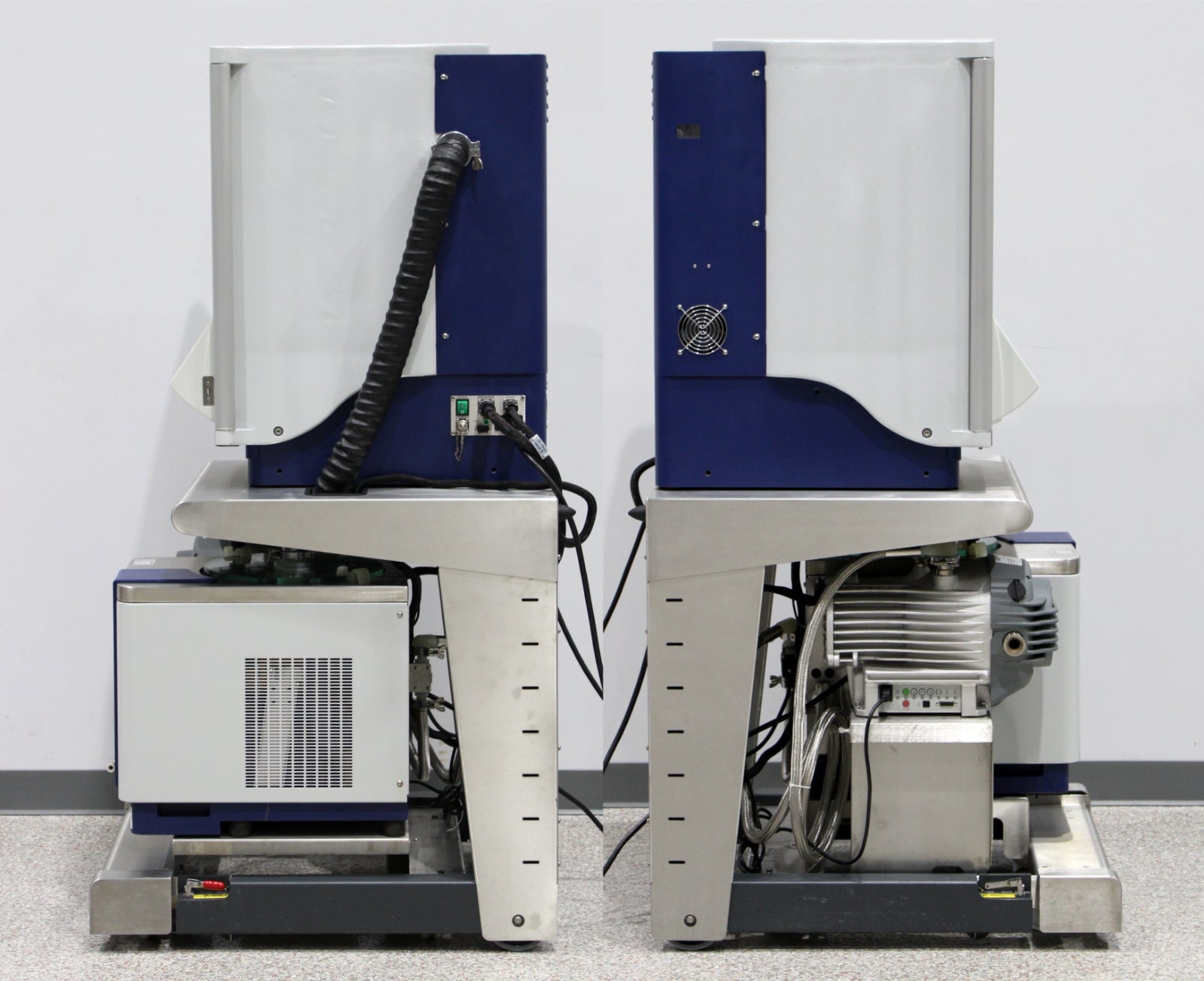

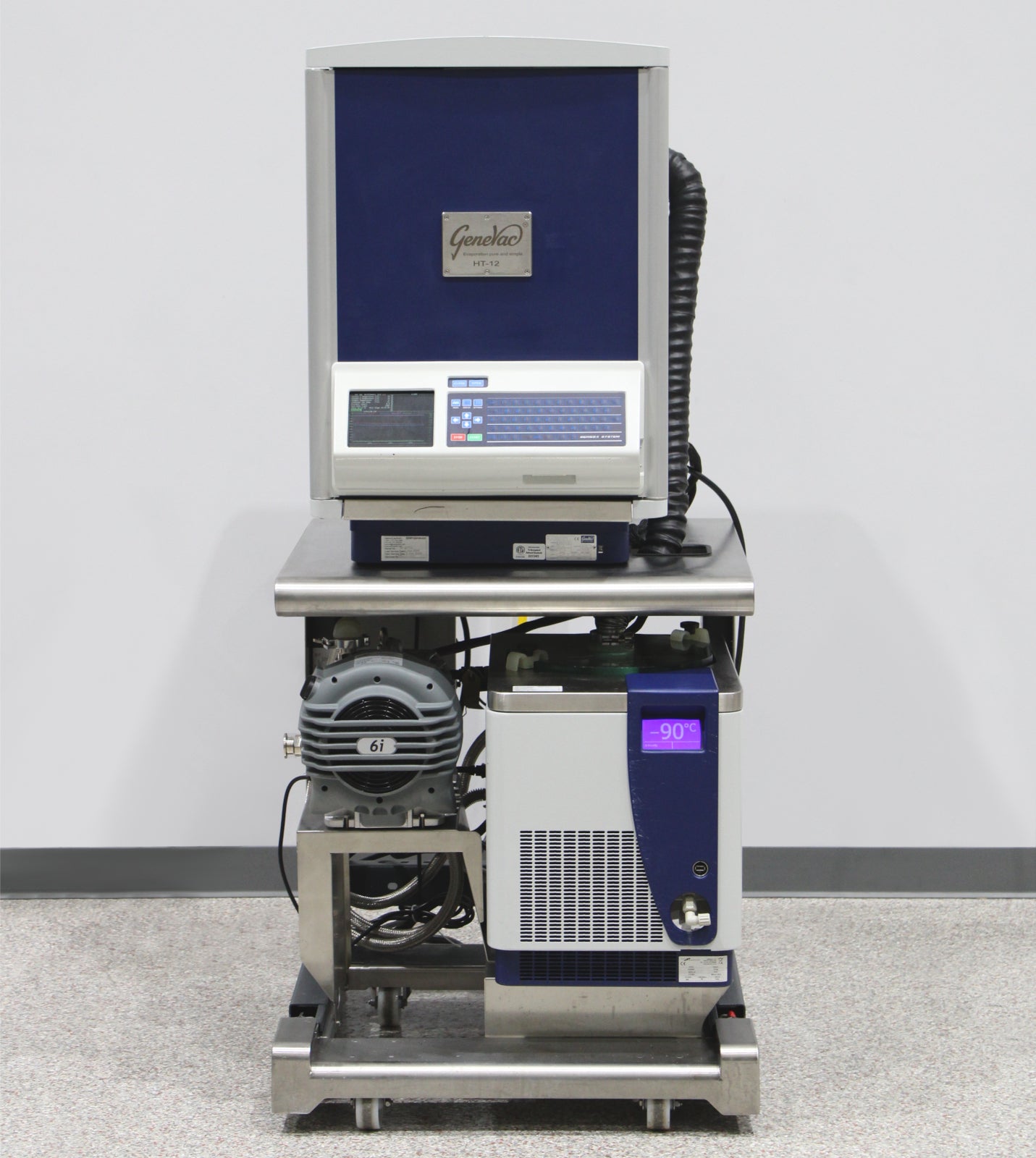

- GeneVac HT-12 Series II Centrifugal Vacuum Evaporator

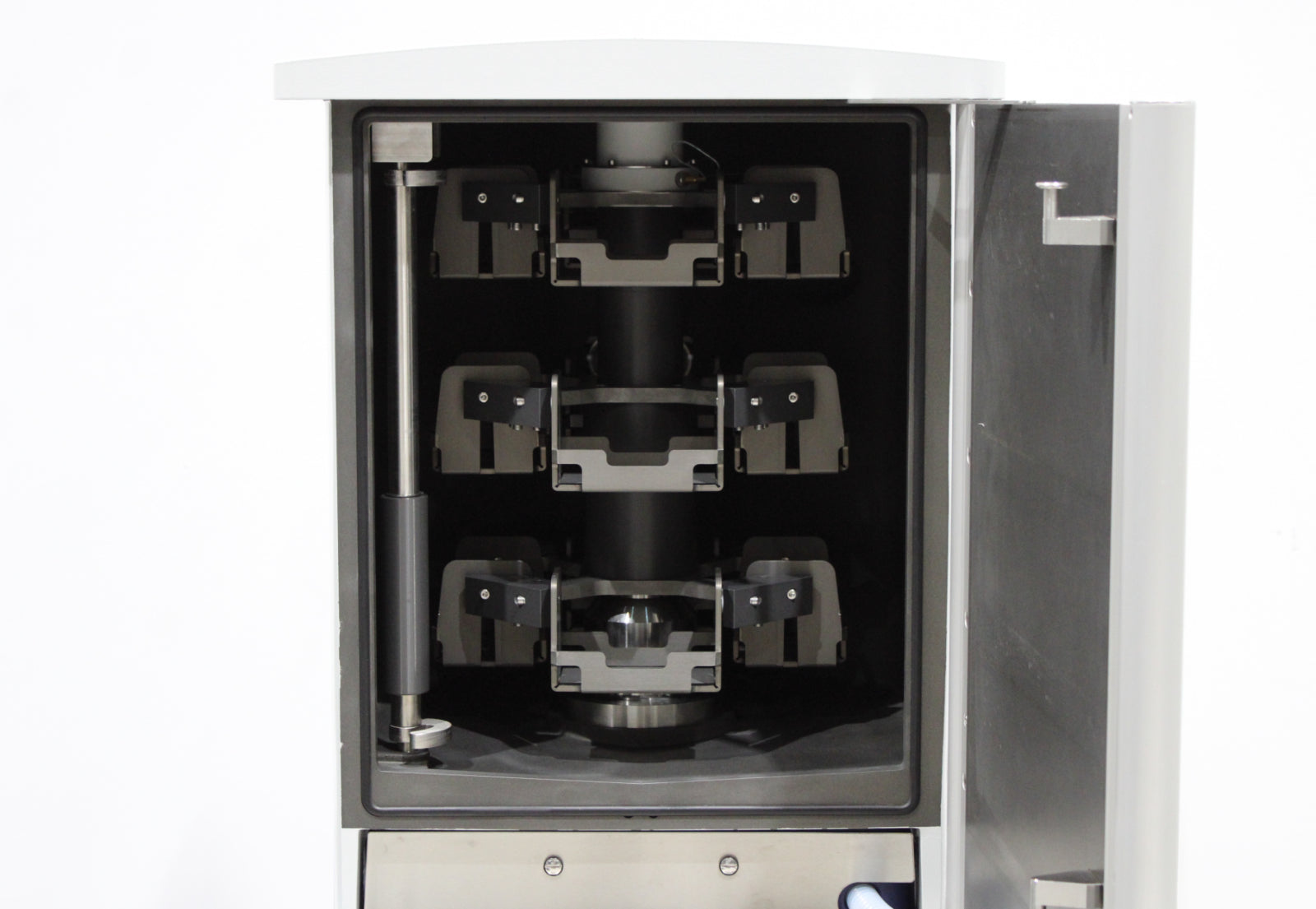

- x12 Swing Buckets

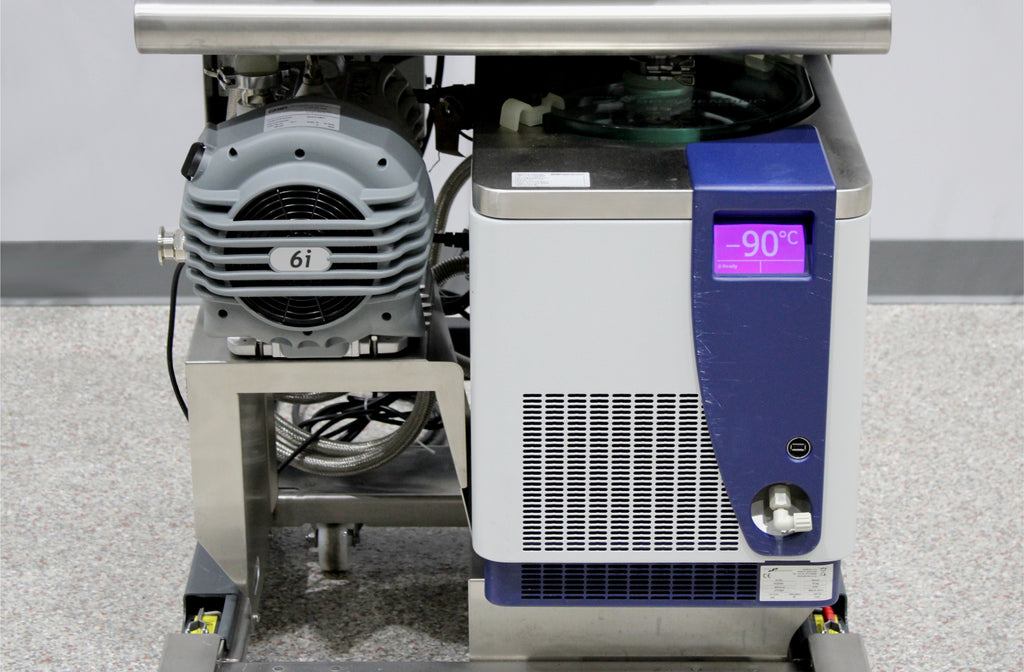

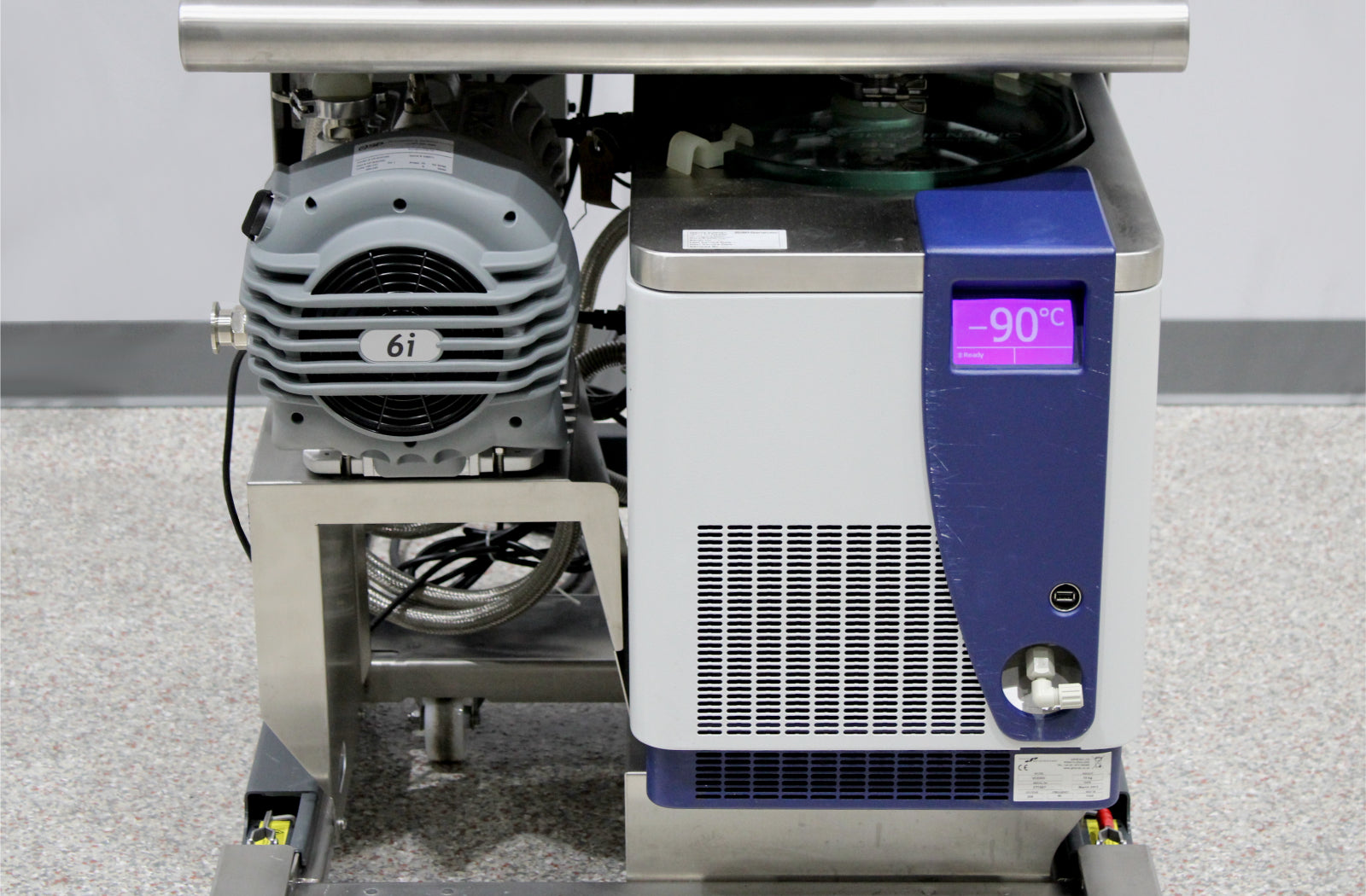

- GeneVac VC6000 Condenser (Cold Trap)
- Edwards nXDS6i Dry Scroll Vacuum Pump

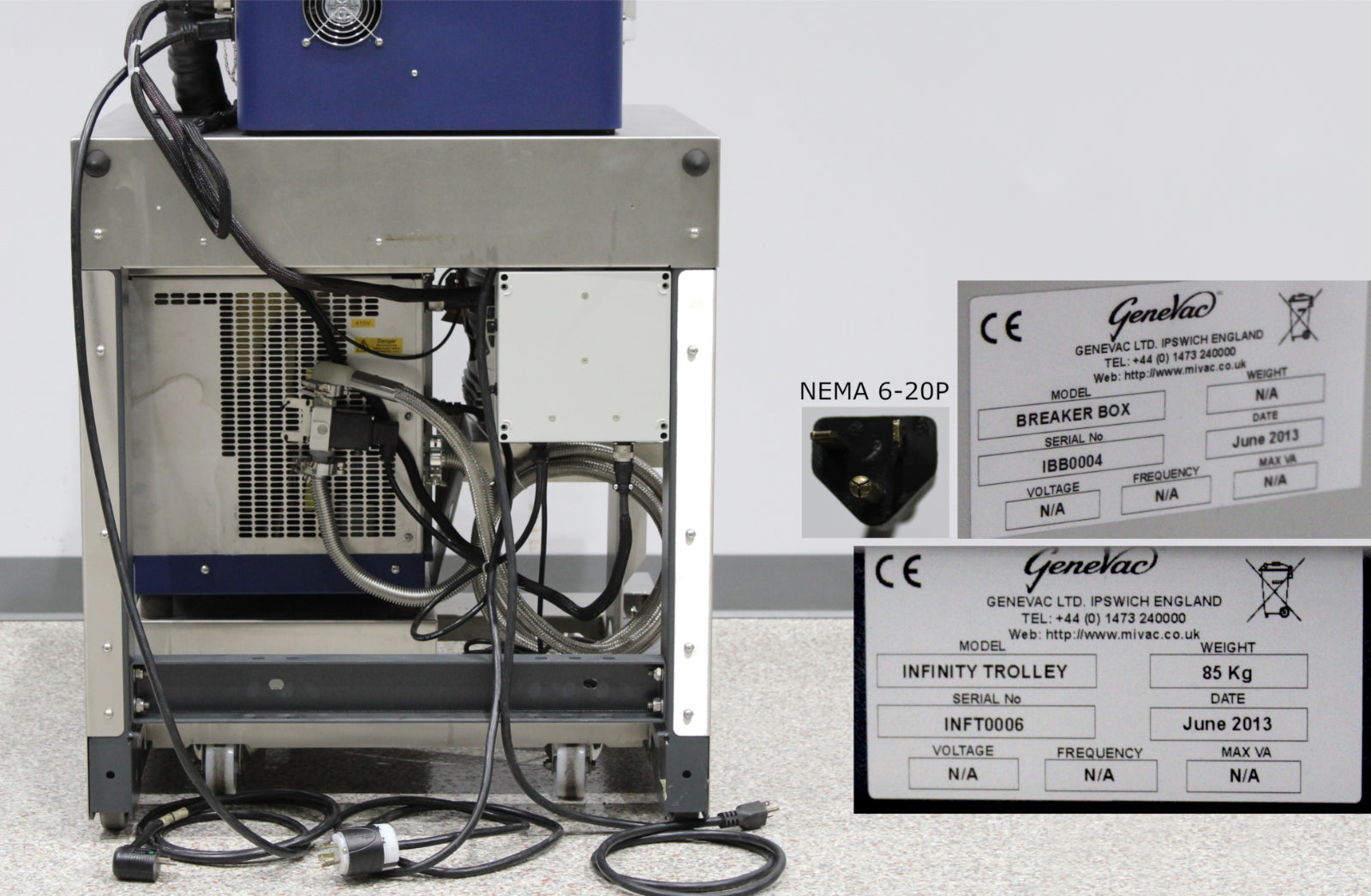

- GeneVac Infinity Trolley with Breaker Box
- Vacuum Hoses
- Condenser Drain Hoses
- Power Cables
- 90-Day Warranty

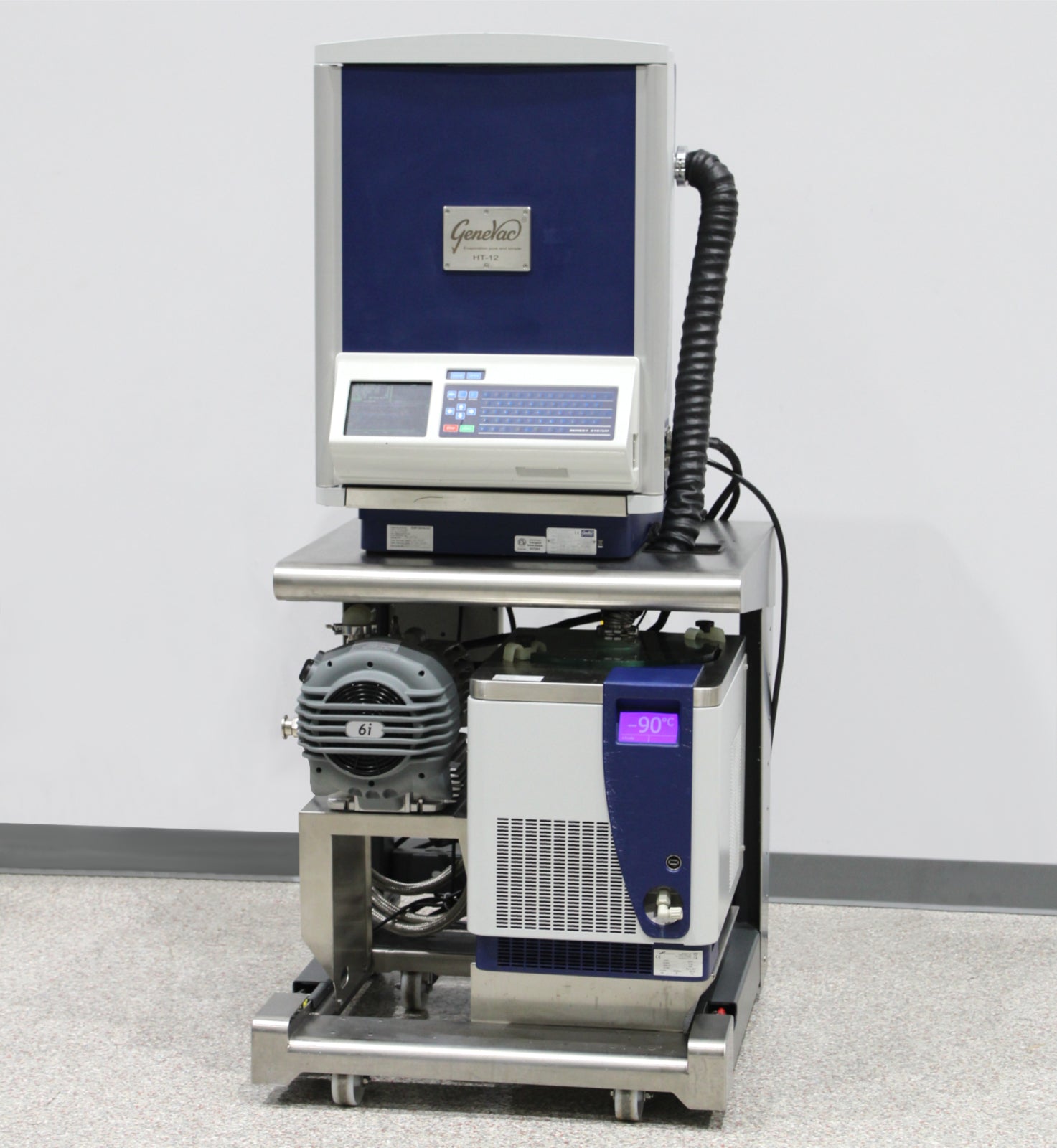

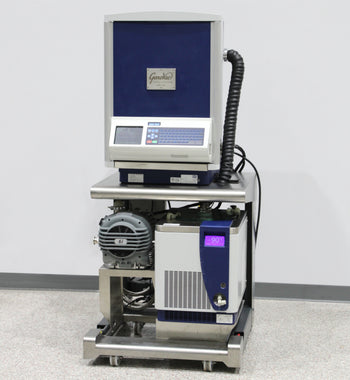

- Complete turnkey package: includes HT12 evaporator, VC6000 cold trap (-90°C), serviced scroll pump, swing buckets, utility cart, and all connecting lines.

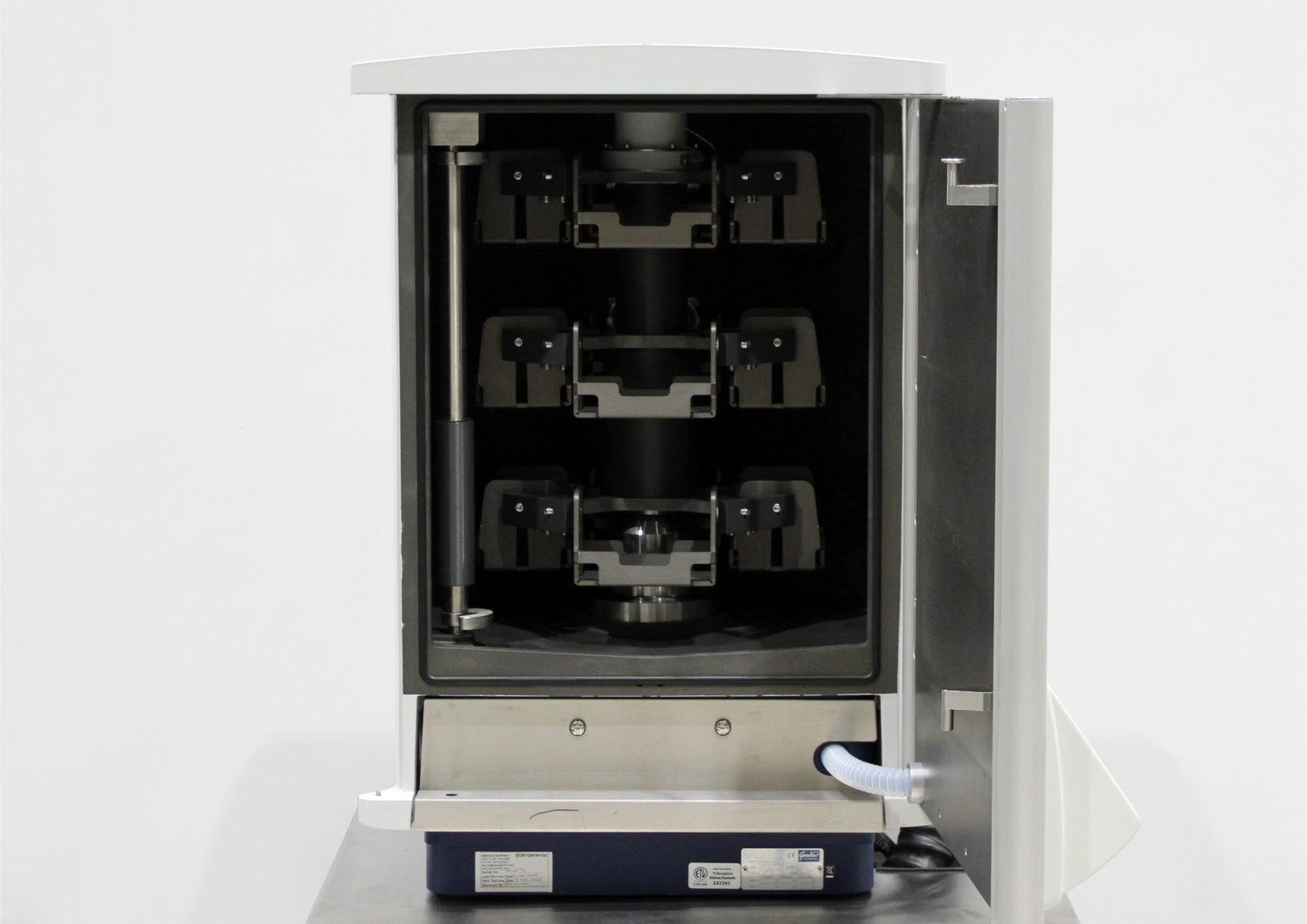

- Immaculate chamber: interior restored to like-new cleanliness via non-abrasive dry-ice media blasting.

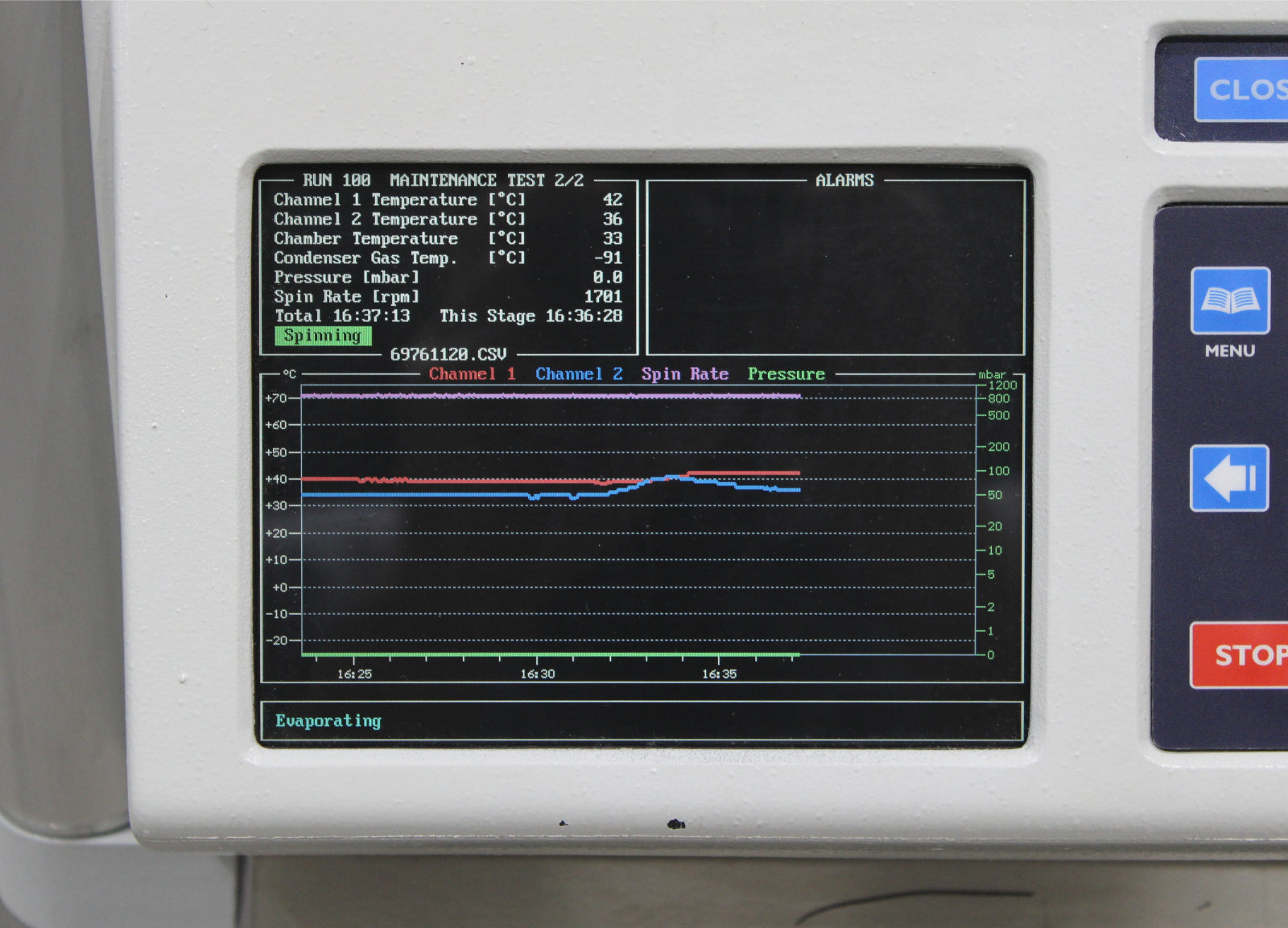

- Peak operating performance: achieves full 1,700 RPM max speed (vibration-free), 0 mbar chamber vacuum, and 15 micron pump pull-down.
- Refreshed systems: fully serviced cold trap refrigeration system and fresh tip seals on scroll pump.
After its initial disinfection and inspection, our technicians tested the GeneVac HT-12 centrifugal vacuum evaporator system with the following results:
- Visual and structural inspection: PASSED
- Safety interlock: PASSED
- Rotor and drive assembly: PASSED

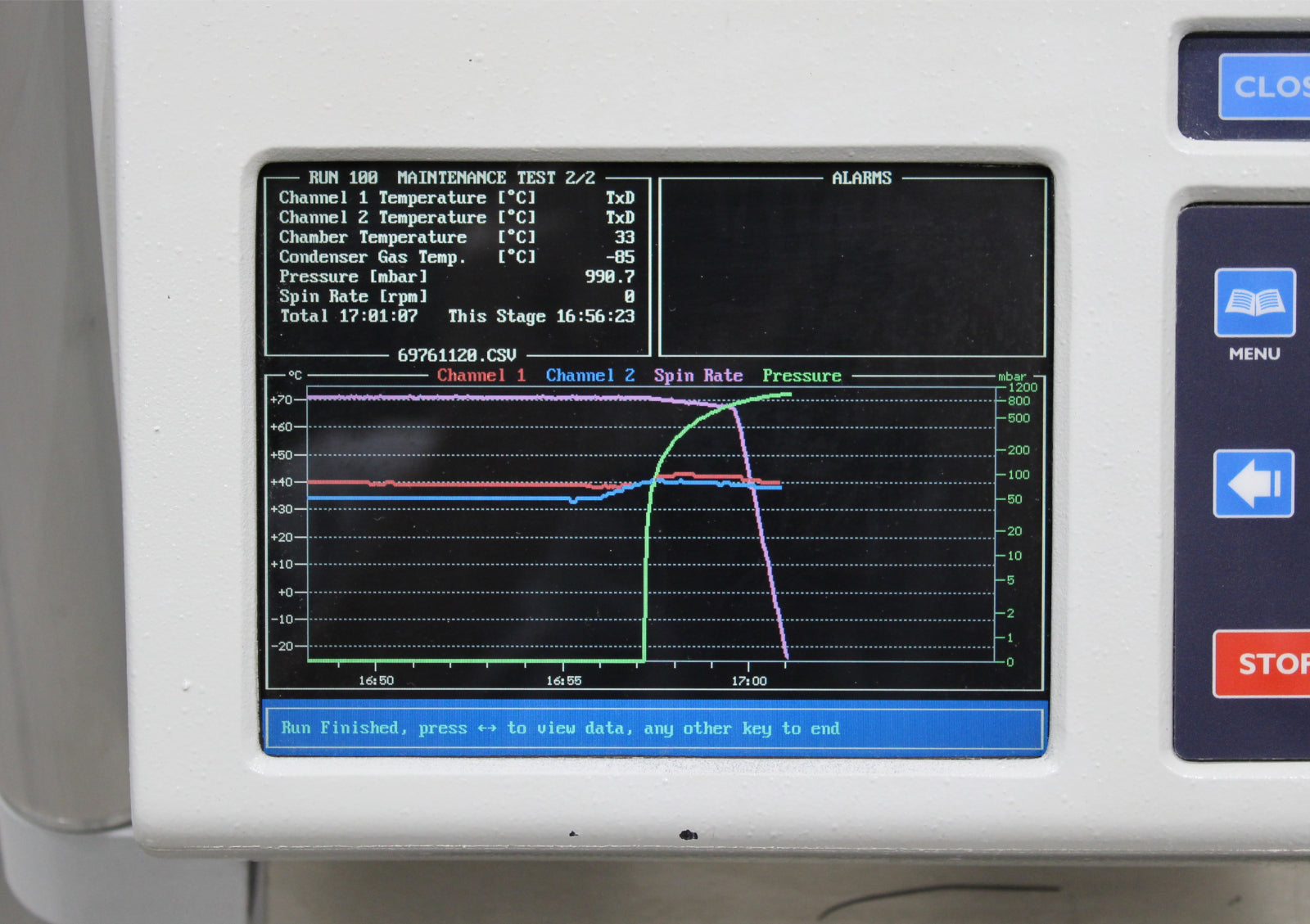

- Chamber vacuum performance: PASSED
- IR heating system: PASSED

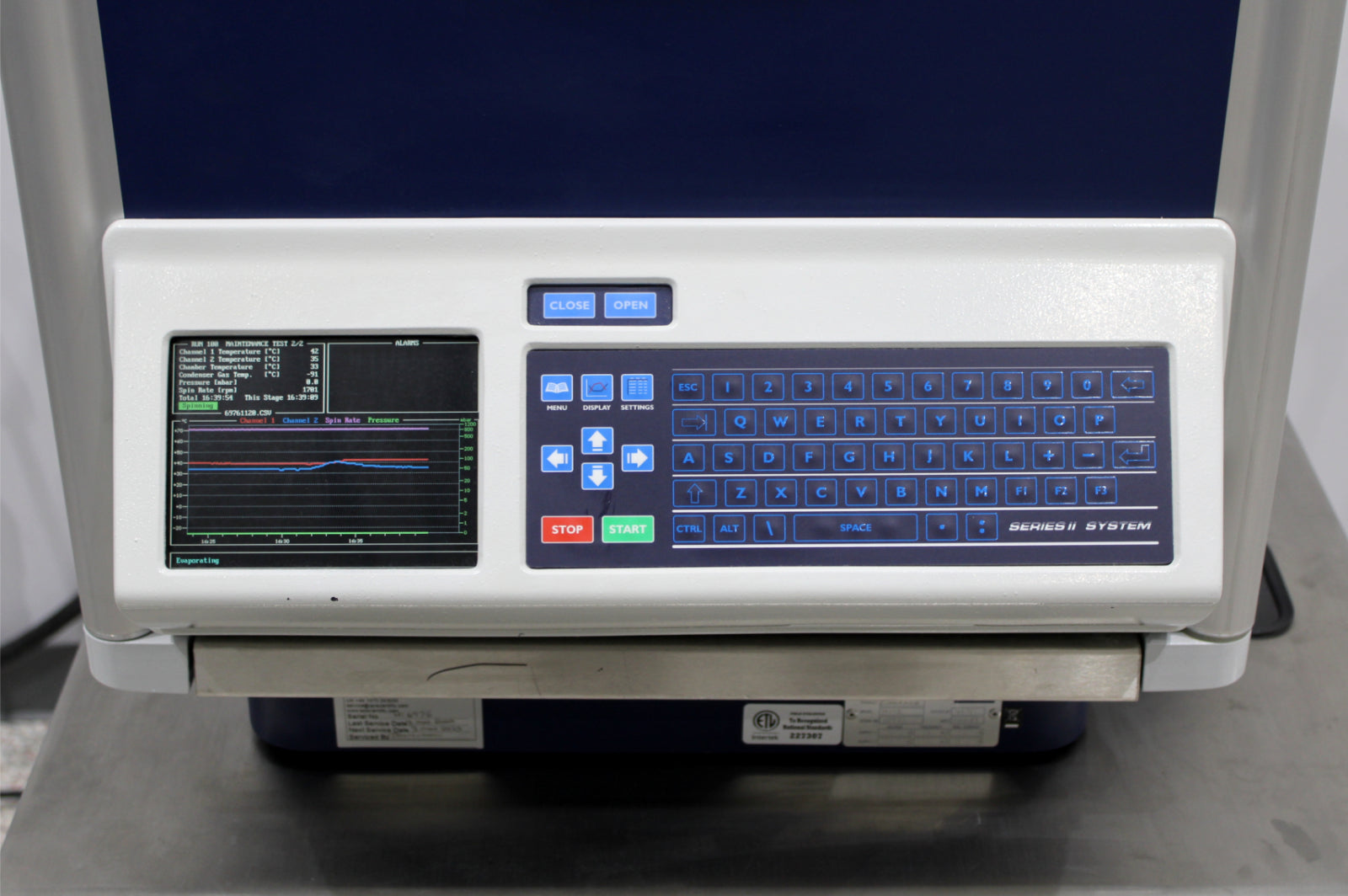

- Display and user interface: PASSED
- VC6000 cold trap and condenser: PASSED
- Scroll vacuum pump test: PASSED

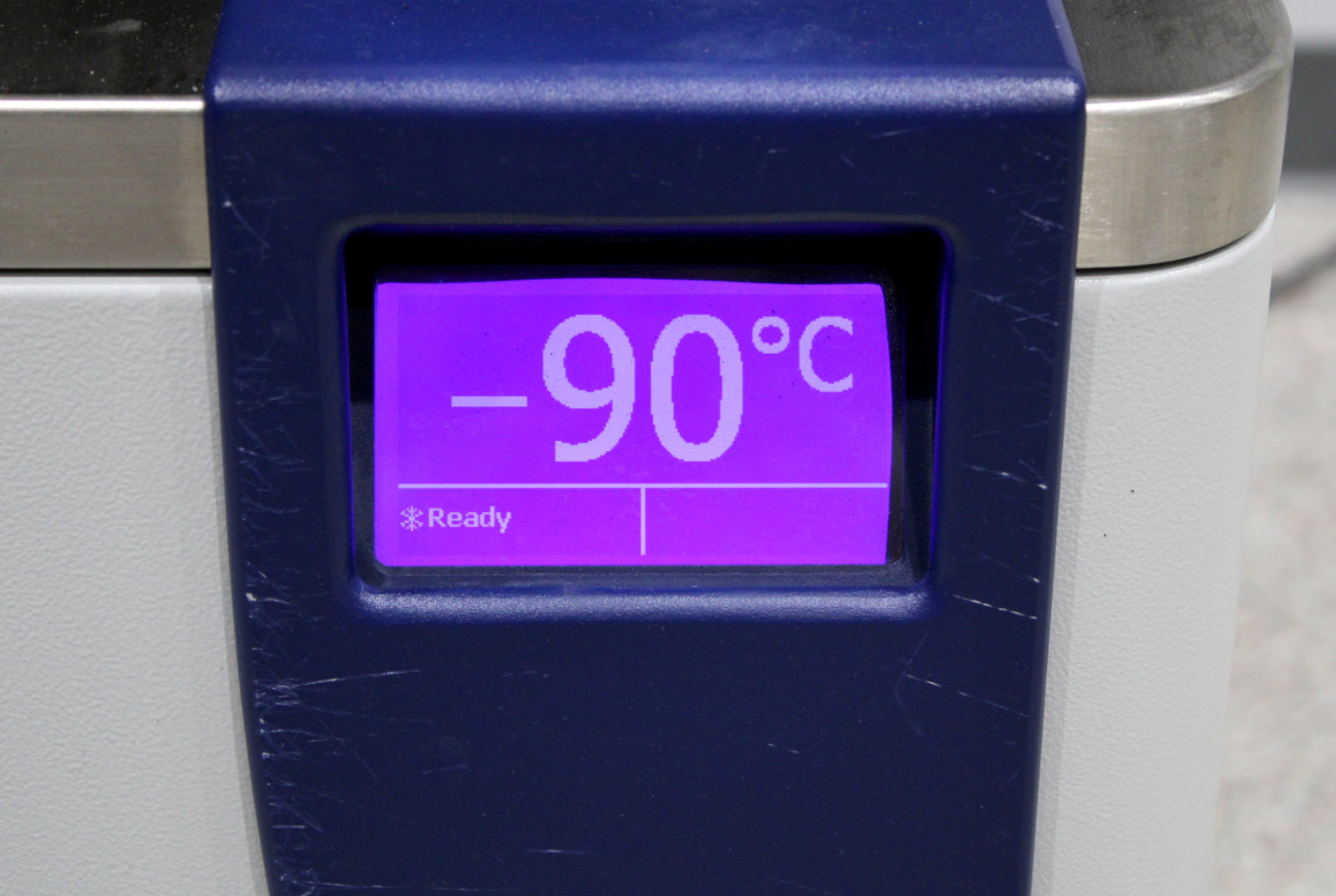

- VC6000 Cold Trap Refrigeration Service: Re-sealed, evacuated, pressure leak tested, and recharged with refrigerant. Cold trap verified to pull down to an impressive -90°C.
- Scroll Vacuum Pump Overhaul: Replaced internal scroll tip seals; restored vacuum performance to optimal factory specification (15 microns).
- Chamber Decontamination: Performed complete interior dry-ice media blasting to thoroughly strip away all residual chemical/sample buildup from previous ownership.
Notice: This evaporator system has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
GeneVac
|
|
Product
|
Evaporator
|
|
Model
|
HT12 Series II
|
|
Serial No.
|
6976
|
|
Mfg. date
|
March 2013
|
|
Max rotor speed
|
1300 low speed
1750 high speed
1800 Dri-Pure
|
|
Max force
|
300-500G
|
|
Drive system
|
Direct
|
|
Operation imbalance
|
85g
|
|
Max load
|
12 x 1.5kg @ 500G
|
|
IR lamps number
|
6
|
|
Weight
|
180 kg
|
|
Condenser temperature
|
Minimum: -45°C
Maximum: +60°C
|
|
Vacuum condenser capacity
|
3.0 liters
|
|
Exhaust condenser capacity
|
1.5 liters
|
|
Condenser level detector
|
No
|
|
Rapid defrost
|
Yes
|
|
Condenser chamber
|
316 Stainless steel
|
|
Condenser drain valve
|
Stainless steel/PTFE
|
|
Vacuum system pressure display/resolution
|
0 - 1000 mbar
|
|
Vacuum control
|
0 - 1000 mbar
|
|
Dri-Pure
|
Yes
|
|
Auto vacuum vent valve
|
Yes
|
|
Ultimate system vacuum
|
0.4 mbar
|
|
Vacuum pump - Scroll
|
Weight: 28 kg
Maximum vacuum: 0.15 mbar (50Hz)/0.12mbar (60Hz)
Flow rate: 3.6 m^3h^-1
|
|
Vacuum pump - CVP
|
Weight: 52 kg
Maximum vacuum: 0.15 mbar
Flow rate: 3.6 m^3h^-1
|
|

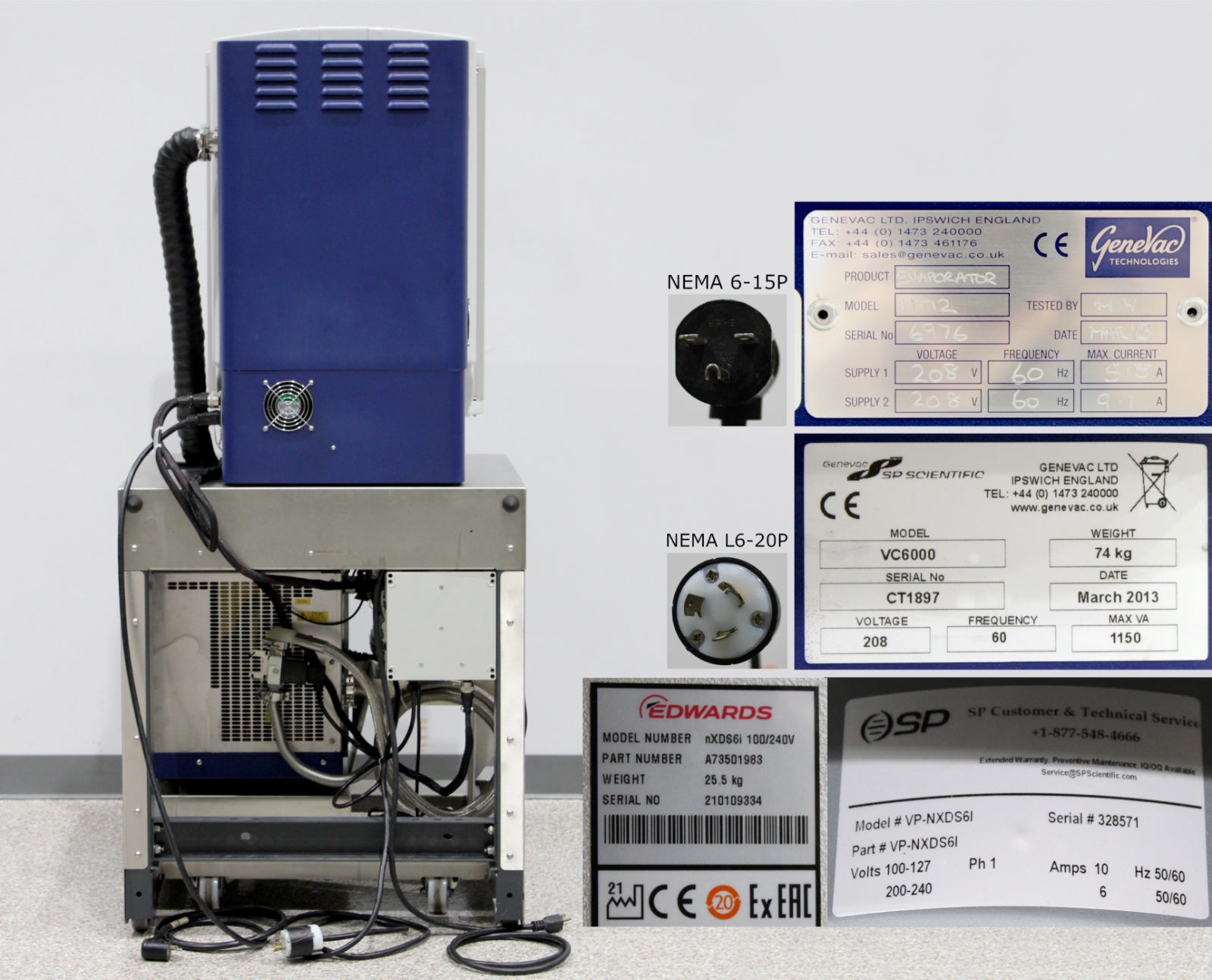

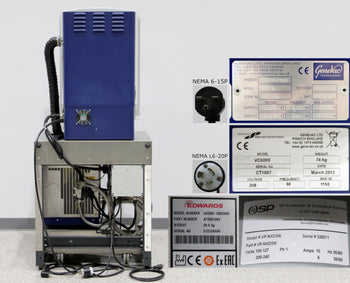

Plug type
|
NEMA 6-15P
|
|
Power rating
|
Supply 1: 208V, 60Hz, 5.5A
Supply 2: 208V, 60Hz, 9.1A
|
|
Dimensions (W x D x H)
|
22 x 27.5 x 32.5 in
|
|
Manufacturer
|
GeneVac
|
|
Product
|
Condenser
|
|
Model
|
VC6000
|
|
Serial No.
|
CT1897
|
|
Mfg. date
|
March 2013
|
|
Plug type
|
NEMA L6-20P
|
|
Power rating
|
208V, 60Hz
|
|
Power consumption
|
1150VA max.
|
|
Dimensions (W x D x H)
|
15.5 x 21 x 19 in
|
|
Manufacturer
|
Edwards
|
|
Product
|
Scroll vacuum pump
|
|
Model
|
nXDS6i 100/240V
|
|
Code No.
|
A73501983
|
|
Serial No.
|
210109334
|
|
Mfg. date
|
2021
|
|
Weight
|
25.5 kg
|
